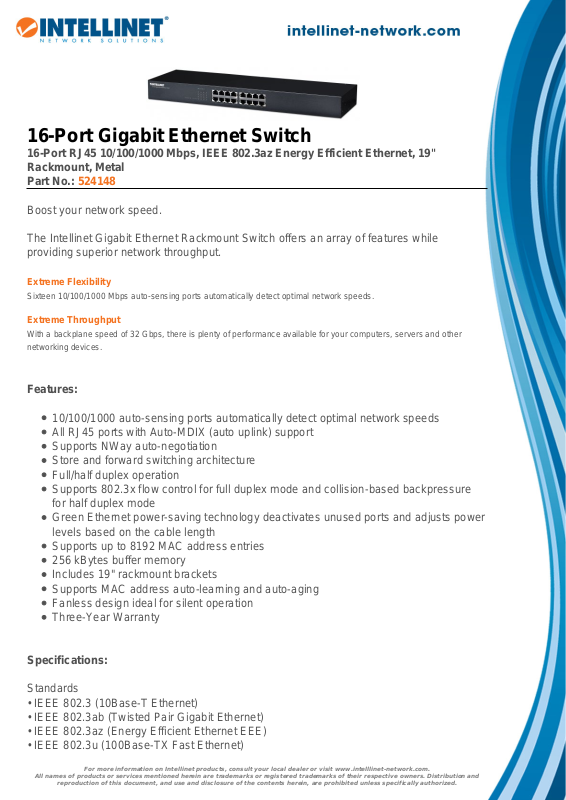

16-Port Gigabit Ethernet Switch

16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, 19"
Rackmount, Metal
Part No.: 524148

Boost your network speed.

The Intellinet Gigabit Ethernet Rackmount Switch offers an array of features while
providing superior network throughput.

Extreme Flexibility

Sixteen 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds.

Extreme Throughput

With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other
networking devices.

Features:

10/100/1000 auto-sensing ports automatically detect optimal network speeds
All RJ45 ports with Auto-MDIX (auto uplink) support
Supports NWay auto-negotiation
Store and forward switching architecture
Full/half duplex operation
Supports 802.3x flow control for full duplex mode and collision-based backpressure
for half duplex mode
Green Ethernet power-saving technology deactivates unused ports and adjusts power
levels based on the cable length
Supports up to 8192 MAC address entries
256 kBytes buffer memory
Includes 19" rackmount brackets
Supports MAC address auto-learning and auto-aging
Fanless design ideal for silent operation
Three-Year Warranty

Specifications:

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)

• IEEE 802.3az (Energy Efficient Ethernet EEE)

• IEEE 802.3u (100Base-TX Fast Ethernet)

All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and

For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.

reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.

• IEEE 802.3x (flow control, for full duplex mode)

General

• Media support:

- 10Base-T Cat3, 4, 5 UTP/STP RJ45

- 100Base-TX Cat5 UTP/STP RJ45

- 1000Base-T Cat5e UTP/STP RJ45

• Packet filter/forwarding rate:

- 1,488,000 pps (1000 Mbps)

- 148,800 pps (100 Mbps)

- 14,880 pps (10 Mbps)

• MAC address table: 8192 entries

• Backplane speed: 32 Gbps

• Switch architecture: store and forward

• 16 RJ45 Gigabit Ethernet ports

• Certifications: FCC Class B, CE

LEDs

• Power

• Link Speed per port: 1000 Mbps

• Link/Activity per port

Power

• Internal power supply: 100 – 240 V AC, 50/60 Hz

• Power consumption: 20 Watts (maximum)

Environmental

• Metal housing, 19" rackmount, 1U

• Dimensions: 440 (W) x 205 (L) x 44 (H) mm (17.4 x 8 x 1.7 in.)

• Weight: 2.9 kg (6.4 lbs.)

• Operating temperature: 0 – 40°C (32 – 104°F)

• Operating humidity: 10 – 90% RH, non-condensing

• Storage temperature: -40 – 70°C (-40 – 158°F)

Package Contents

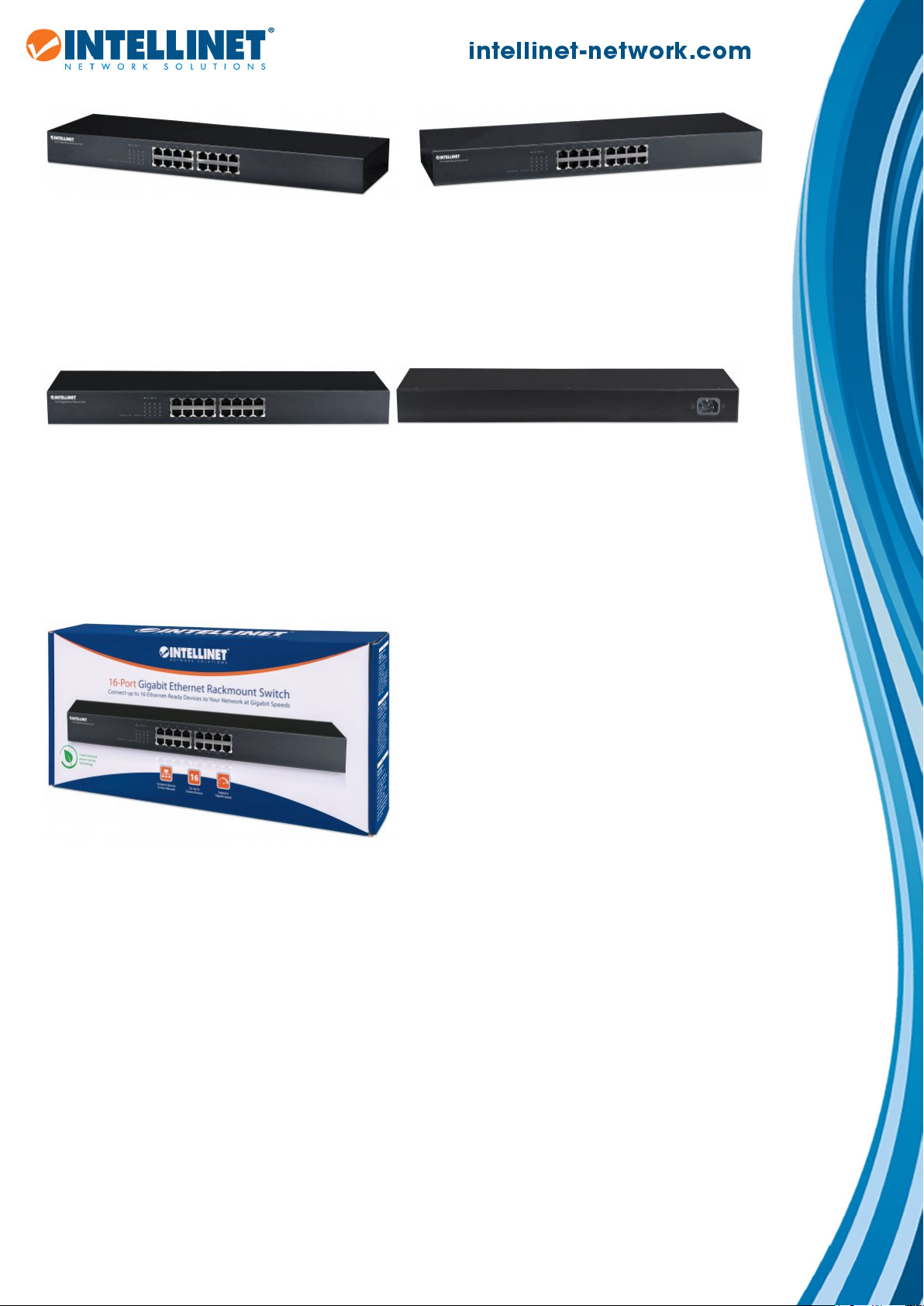

• Gigabit Ethernet Rackmount Switch

• Power cable

• 19" rackmount brackets

• User manual
