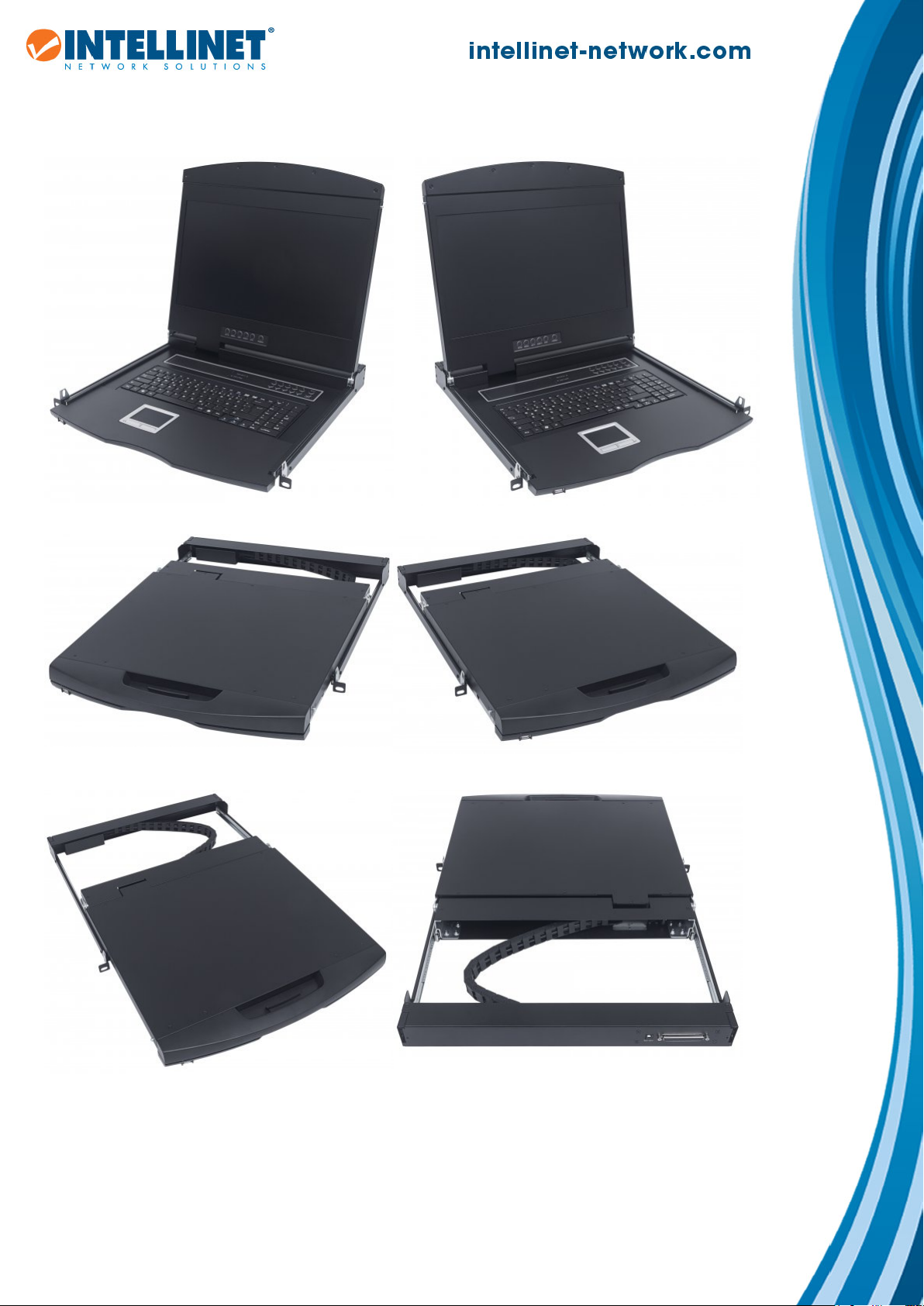

Intellinet 507981 User Manual
Rackmount 17" LCD Console
17-Inch LCD Panel, 1U, Modular System, German Layout
Part No.: 507981
This console must be used in conjunction with the singular connection VGA cable set
(507769) or one of the following modular KVM switches: 507776, 507844, 507882 or
507899.
Features:
Integrated LCD console, keyboard & mouse
Manage/control PS/2 or USB computers from one keyboard, monitor and mouse
(KVM module needed)
Standard 19-inch 1U rack drawer
Flip-open, 17-inch LCD panel supports 1280 x 1024 resolution
Gain complete control with easy-to-use OSD interface
Adjustable - for rack cabinets with depths from 600 mm to 1000 mm (23.6 to 39.37 in.)
100-key, low-profile, sturdy keyboard included
Ergonomic hand rest design
Ultra-sturdy rear bracket and extension design
OSD control and adjustment
Auto-scan automatically selects computers sequentially
Supports both PS/2 and USB mouse
Operating system independent, transparent to all applications
Three-Year Warranty
Specifications:
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Standards
• PS/2
• USB
• Compatible with Windows, MAC and Unix
General
• PC connections: Dependent on KVM module purchased alongside
• Computer selection:
- Via buttons
- Via hotkeys
• OSD: yes
• FCC Class B, CE, RoHS
Power
• Input (AC): approx. 100 - 240 V
LCD Panel
• Active display area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 (H) x 0.264 (W)
• Resolution: 1280 x 1024 at 60 Hz
• Brightness: 250 (Typ)
• Contrast ratio: 1000:1 (Typ)
• Display color: 16.7M colors
• User control: OSD control (auto saving)
• Backlight unit: LED
• MTBF: 100,000 hours
Keyboard
• Ultra-thin, German Layout 100-key, stand-alone removable keyboard (keyboard
language format optional)
• Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10
• Service life > 1,000,000 times
Mouse
• Touch Mouse
• 1000 point/inch?40 x 40 mm)
• Service life > 1,000,000 times
Environmental
• Operating temperature: 0 – 50°C (32 – 122°F)
• Storage temperature: -20 – 60°C (-4 – 140°F)
Package Contents
• 17" Rackmount Console
• Rear bracket and extension kit
• Power adapter
• User manual
