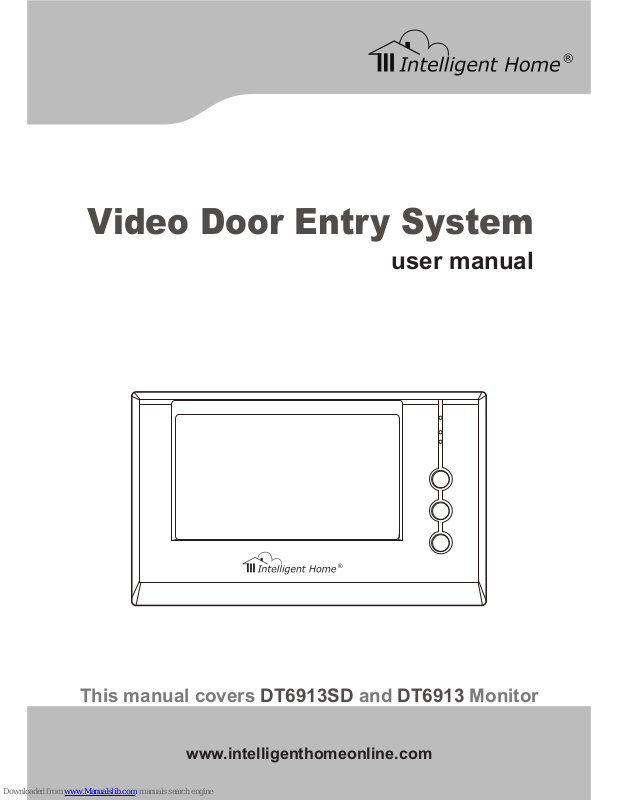

Video Door Entry System
user manual
www.intelligenthomeonline.com
This manual covers DT6913SD and DT6913 Monitor
PRECAUTIONS
● Read this manual through before using the product.
● Slots or openings in the back of the monitor, are provided for ventilation
and to ensure reliable operation of the video monitor or equipment and
to protect if from overheating. These openings must not be blocked or
covered. The monitor should never be placed near or over a radiator or
heat register and should not be placed in a built-in installation such as a
bookcase unless proper ventilation is provided.
● All parts should be protected from violence vibration. And not allow be
impacting, knocking and dropping.
● For clean the LCD screen, using hands or wet cloth is forbidden.
● Please do the cleanness with soft cotton cloth, please do not use the
organic or chemical clean impregnate. If necessary, please use pure
water or dilute soap water to clean the dust.
● Image distortion may occur if the video door phone is mounted too close
to magnetic eld e. g. Microwaves, TV, computer etc.
● Please keep away the video door monitor from wet, high temperature,
dust, and caustic and oxidation gas in order to avoid any unpredictable
damage.
● Do NOT open the device in any condition, call the administrator for help
if there is any problem or mulfunction happens.
CONTENT
1. Monitor Parts and Functions ------------------------1
2. Monitor Mounting --------------------------------1
3. System Connection- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
4. Multiple Monitors Connection ------------------------3
5. Multiple Door Cameras Connection -------------------4
6. Talk/Unlock Operation -----------------------------5
7. Ring Tone Setting --------------------------------6
8. Monitor Time Setting ------------------------------6
9. Auto-Record ------------------------------------7
10. Time Setting -----------------------------------7
11. Restore to Default -------------------------------8
12. Screen Setting ---------------------------------8
13. Built-in Memory and SD Card ----------------------9
14. Unlock setting- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
15. Intercom Calling -------------------------------11

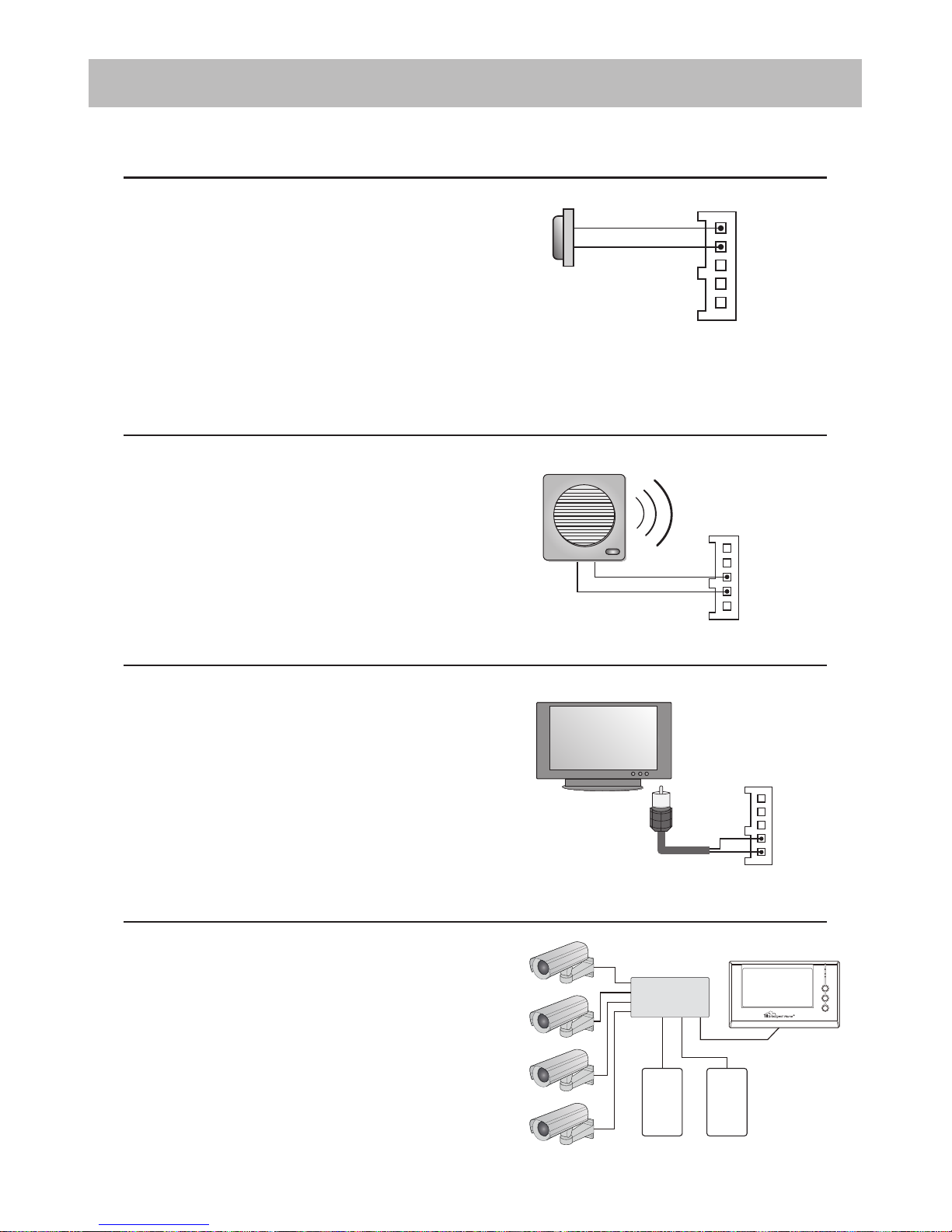

16. Connection Other Device to Monitor -----------------12
17. Specications ---------------------------------13
-1-

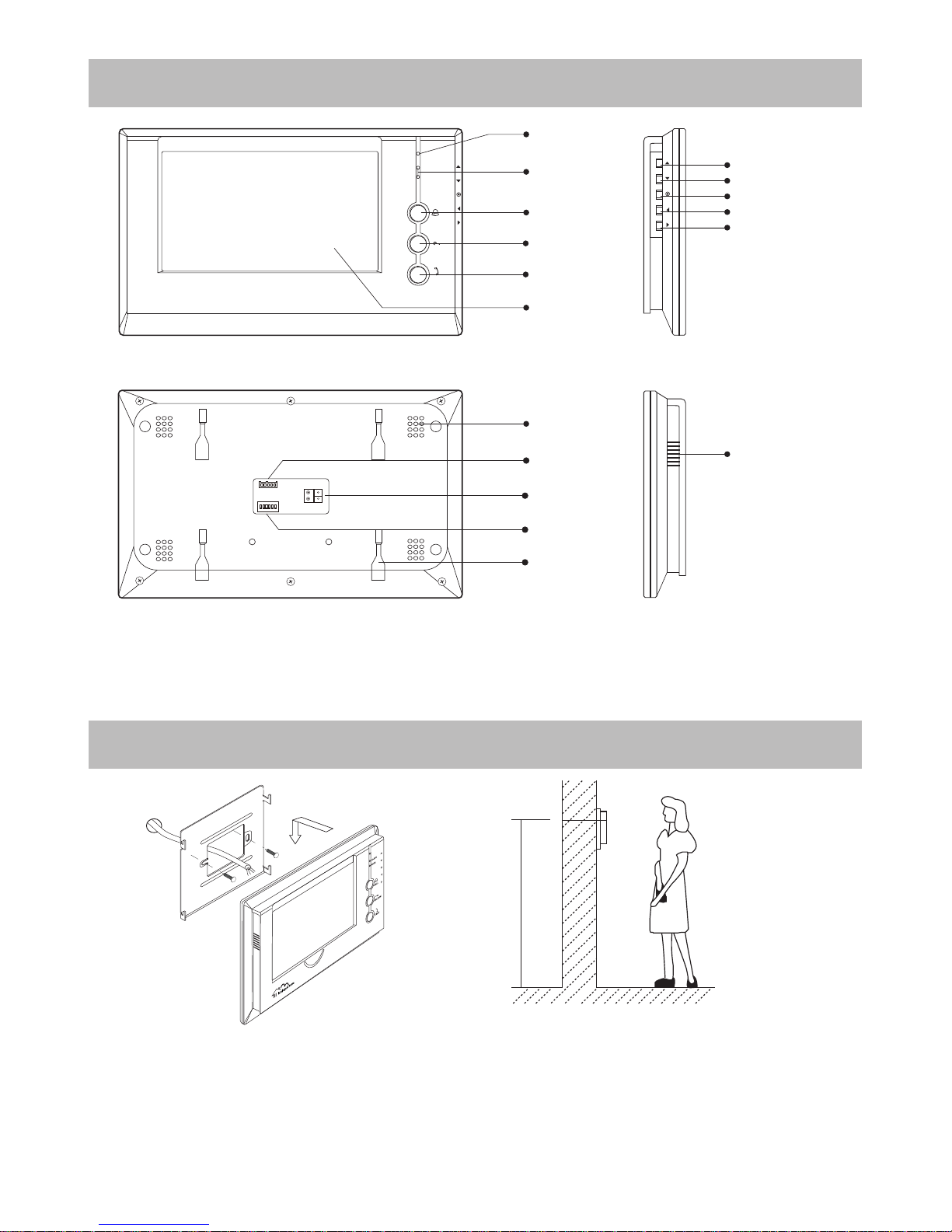

1. Monitor Parts and Functions
2. Monitor Mounting
TALK
UNLOCK
CALL
INI-USE
MESG
UP button
DOWN button
ENTER button
(+)ADD button
(-)REDUCE button
Microphone
CALL button
UNLOCK button
TFT screen
MONITOR/TALK
button
IN-USE/MESG
LED
Speaker
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
BUS
Ventilation Vent
Extend Port
Connection Port
DIP Switches
Mounting Hook
Dimension: 153(H)×250(W)×30(D)
145~160 cm
1. Use the screws to x the Mounting Bracket on the wall.(tting accesories includes a Bracket )
2. Wire the system correctly(see the later connection chapter) then hang the Monitor on the
Mounting Bracket rmly.
-2-

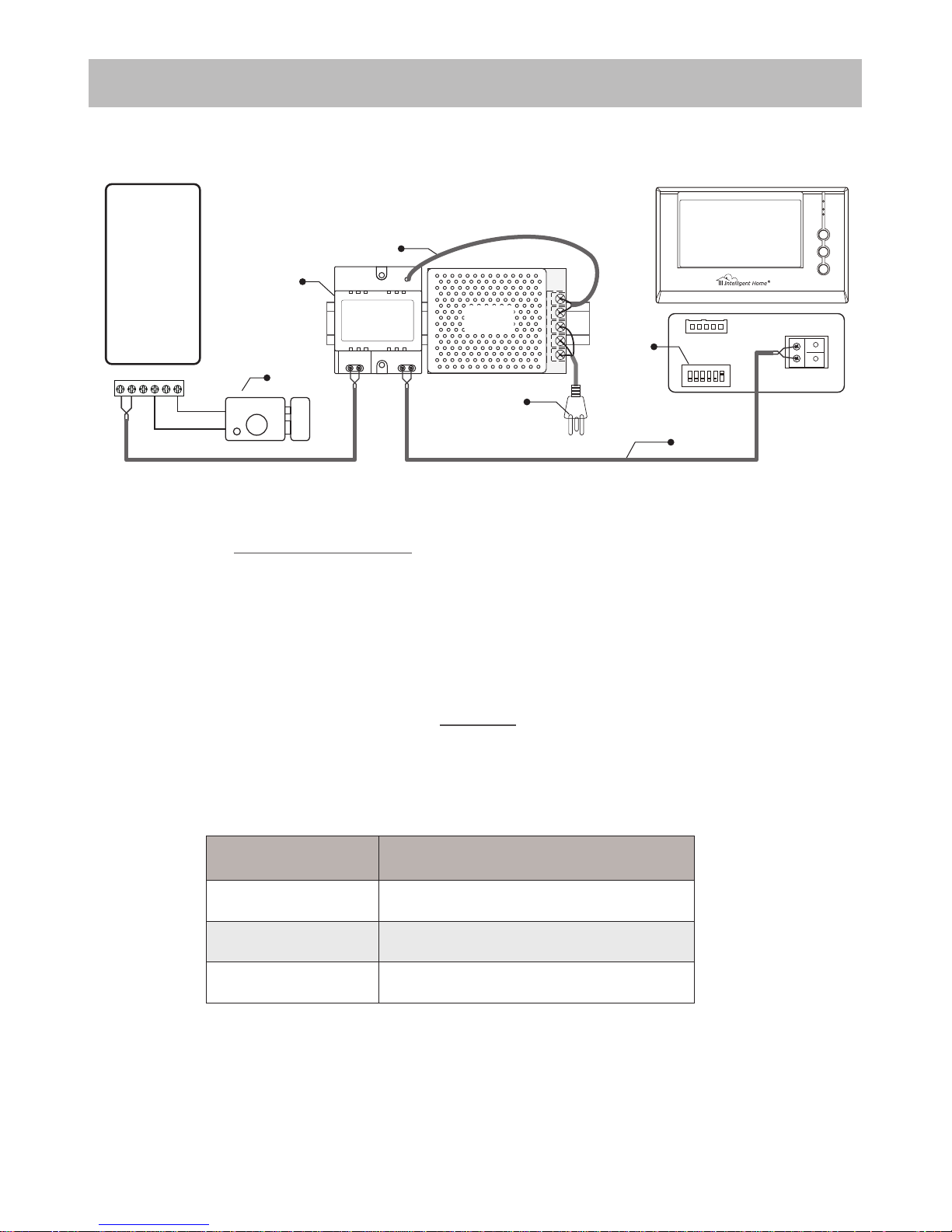

3. System Connection
Note 6
Note 4
Camera
Monitor
Note 2
Note 5
Note 3
Note 1
-
+
L1 L2 PL S1+ S2+ S-
AC~
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
DPS
PS5
● Note 1: Mount the DPS and PS5 side by side on the DIN nail or on the wall.
● Note 2: See Door Camera manual for detail information.
● Note 3: Connect the DPS to the output of PS5, non-polarity connection.
● Note 4: The bit-1 to bit-5 DIP switches are for Monitor address settings when multiple Monitors
installed, the bit-6 is for video impedance setting. When there is only one Monitor installed, set all the
bit-1 to bit-5 to OFF state, and set the bit-6 to ON position.
● Note 5: Conncet to the AC Mains electricity, 100~240 V AC.
● Note 6: Non-polarity 2 wire bus cable. See Table 3-1 for cable usage information.
Cable type Max. distance(meters)
RVV 2 * 1.5 mm
2
150 (Non-shielded, Twisted)
RVV 2 * 1.0 mm
2
100 (Non-shielded, Twisted)
RVV 2 * 0.75 mm
2
75 (Non-shielded, Twisted)
Table 3-1
-3-

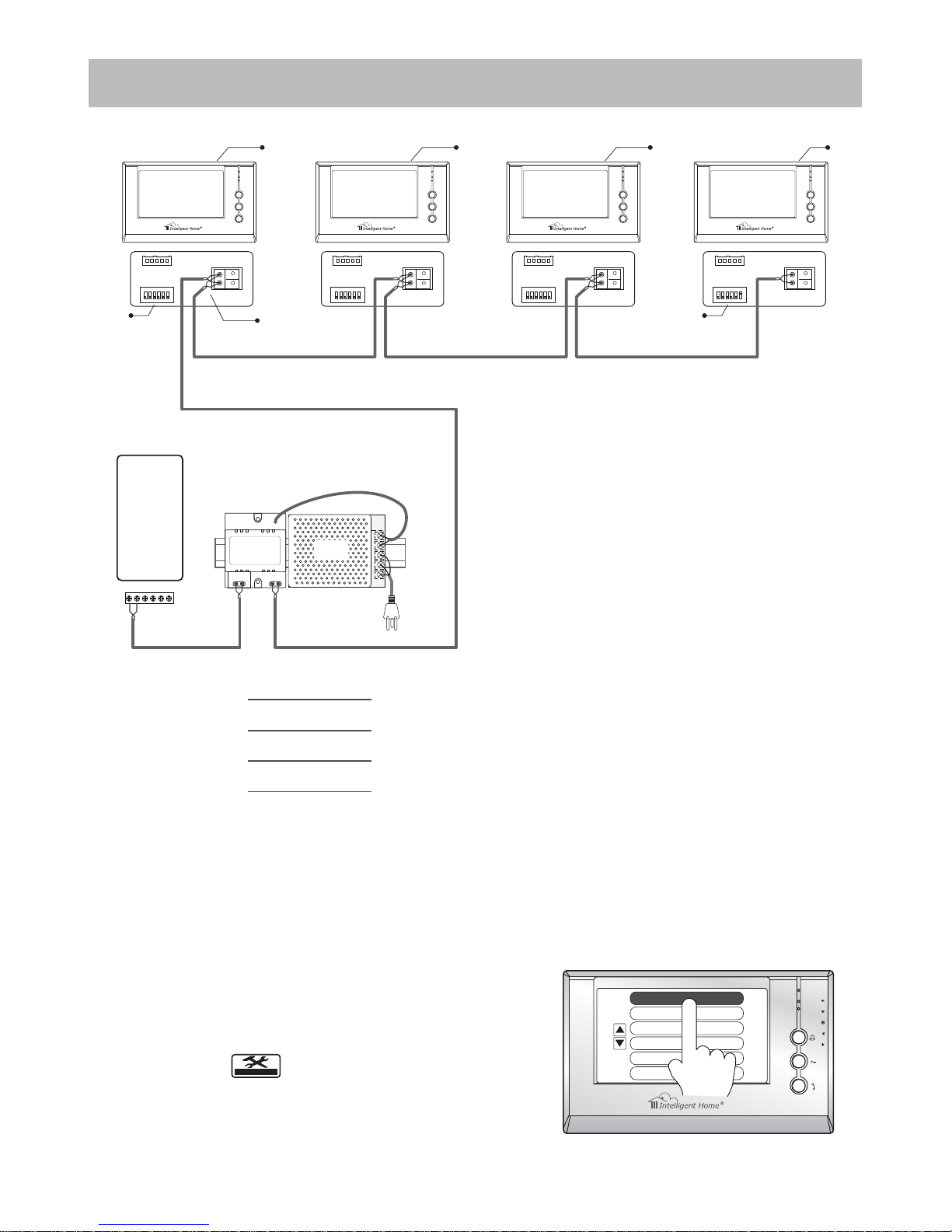

4. Multiple Monitors Connection
Note 1
Note 6
Note 2 Note 3 Note 4
Note 5 Note 7
L1 L2 PL S1+ S2+ S-
AC~
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1# Monitor 2# Monitor 3# Monitor
4# Monitor
DPS
Camera
PS5
● Note 1: The Slave Addr Set on the 1# Monitor set to 0.
● Note 2: The Slave Addr Set on the 2# Monitor set to 1.
● Note 3: The Slave Addr Set on the 3# Monitor set to 2.
● Note 4: The Slave Addr Set on the 4# Monitor set to 3.
● Note 5: The bit-1 to bit-5 of all the Monitors are set to OFF. The bit-6 set to OFF for 1#, 2# and 3#
Monitors.
● Note 6: All the connectors must use In-Out connection.
● Note 7: The bit-6 of the 4# Monitor must set to ON state.(the bit-6 of all the Monitors should be set to
OFF state except the last one which is at the end of the bus line).
Slave Addr Set -- 0
Guard Unit Set -- 0
Date/Time Set...
Other Settings...
Information...
Exit
How to set the Slave Address:
When the Monitor is in standby, press the screen to
open the time screen, press again to enter the main
menu. select
setup
to enter Setup menu, then press
Advanced Set item, Input password 2008. heTouch
the Slave Addr Set item to change the address.
-4-

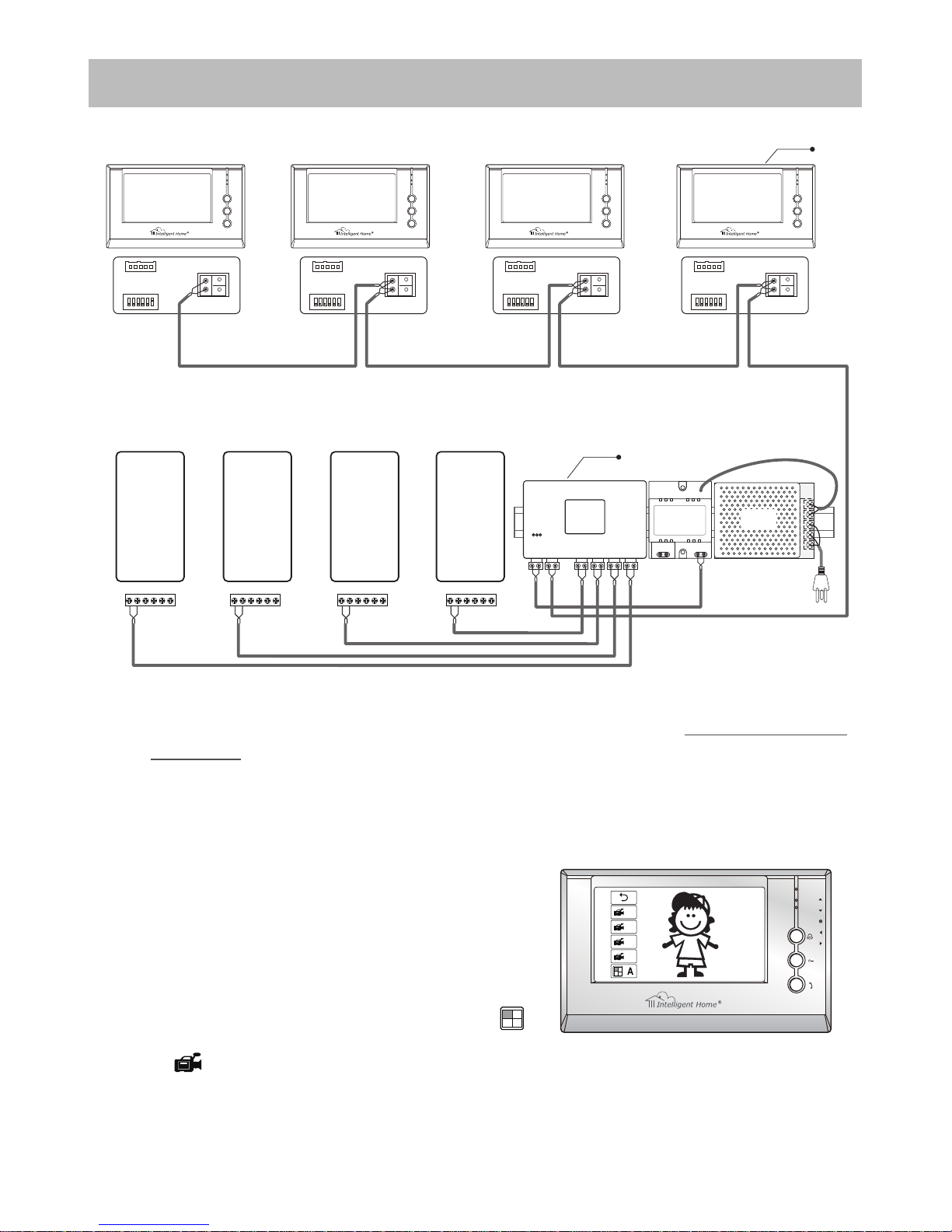

5. Multiple Door Cameras Connection
Note 1
Note 2
L1 L2 PL S1+ S2+ S- L1 L2 PL S1+ S2+ S-L1 L2 PL S1+ S2+ S-L1 L2 PL S1+ S2+ S-
AC~
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1 2 3 4 5 6
ON
DIPS
SW+
SW-
RING
GND
VIDEO
1# Camera2# Camera3# Camera4# Camera
DPS
PS5
A B C D
BUS
DBC4
● Note 1: The settings for all the Monitors are the same as chapter 4 Multiple Monitors
connection.
● Note 2: The DBC-4 unit is not included and should be bought separately.
1
2
3
4
When multiple Door Cameras are installed, each Door
Camera can connect its own electronic locks, and the
Unlock operation will only unlock the lock connected to
the calling Door Camera.
When monitoring, all Door Cameras can be swiched from
one to another. On the monitoring or talking state, press
the A icon to get into the auto-swithing mode. Press
on the screen, will show the Camera select menu, than
press
select a specic Camera.
-5-
6. Talk/Unlock Operation
2. Press TALK/MON Button or
TALK
icon, you can talk with the visitor for 90 seconds. During
talking state, press the TALK/MON Button again or press
EXIT
icon to end the conversation.
If nobody answers the phone, the screen will be turned off automatically after 30 seconds. If the
system connects two or more Monitors, when any Monitor starts to talk, the other Monitors will
be automatically shut off.

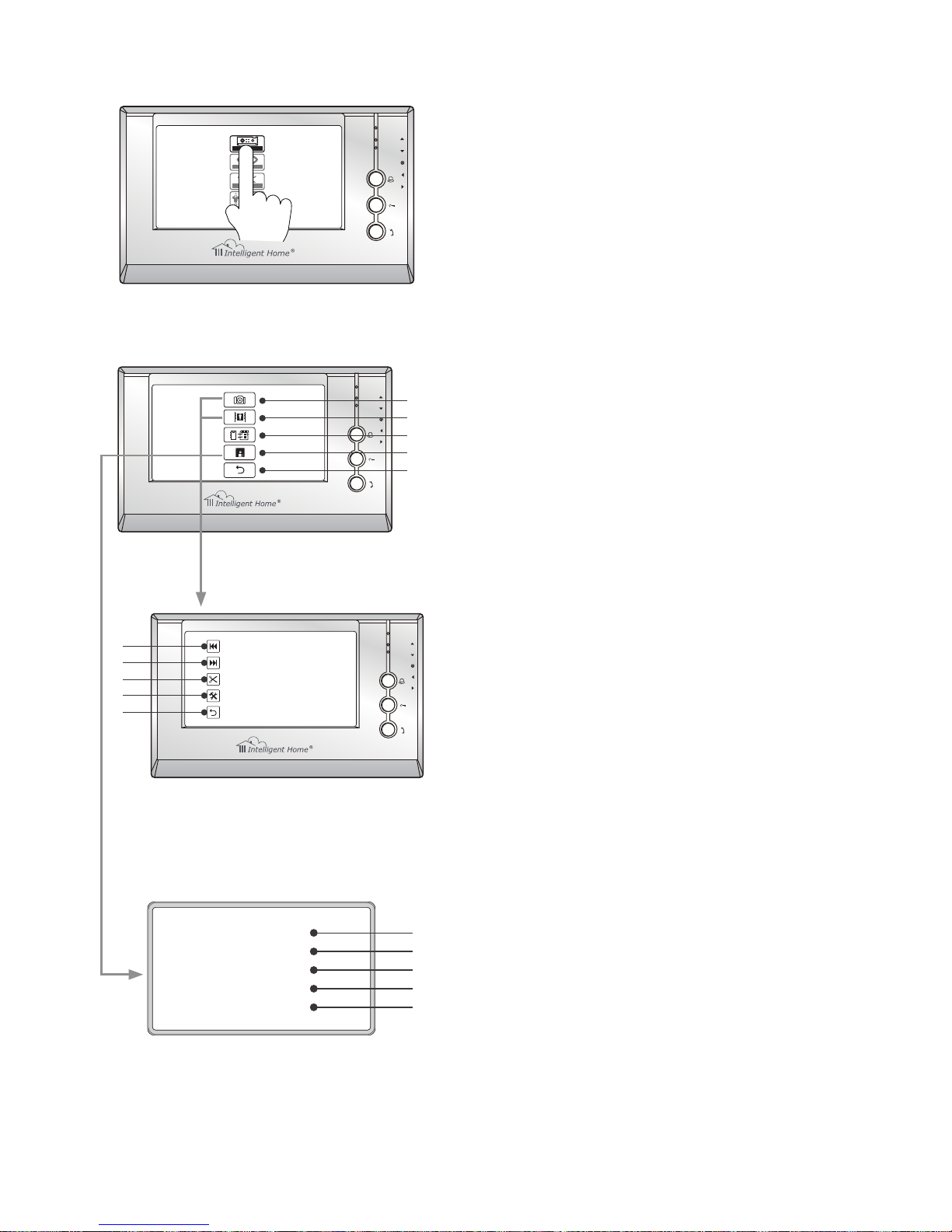

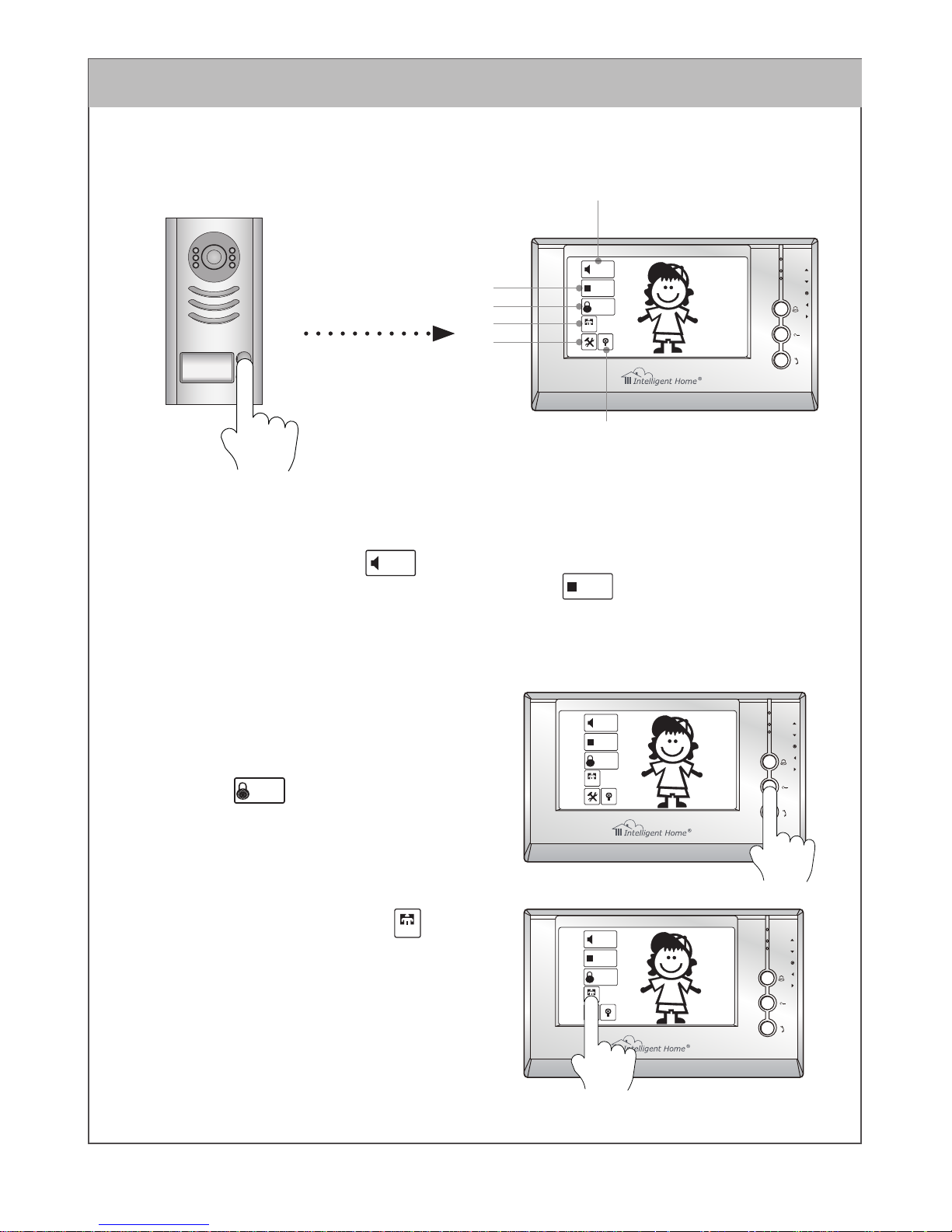

1. When visitor presses the Call Button A(or B) on the Outdoor Station, the Monitor(or B) will ring,
at the same time, the screen displays the visitor image.
Name B
Name A
1
2
3
4
5
6
TALK
EXIT
UNLOCK
rec
03
TALK
EXIT
UNLOCK
rec
03
TALK
EXIT
UNLOCK
rec
03
3. During the conversation, press UNLOCK
Button or
UNLOCK
icon to unlock the door.
4. During the conversation, press
rec
icon to
record the current video(10 seconds). If the
Auto-Record function has been turned on
(see chapter 12), a 10 second video will be
recorded automatically after the Call Button
of the Camera pressed.
1. Talk icon
2. Exit icon
3. Unlock icon
4. Record icon.
5. Setting icon.
6. Hide icon.
-6-
7. Ring Tone Setting 8. Monitor Time Setting
play
monitor
setup
exit
play
monitor
setup
exit
Outdoor Tone -- 01
Monitor Time -- 1min
Intercom Tone -- 05
Advanced Set...
Auto Record -- OFF
Exit
Outdoor Tone -- 01
Intercom Tone -- 05
Monitor Time -- 1min
Advanced Set...
Auto Record -- OFF
Exit
15 pieces ring tone can be selected. When
the Monitor is in standy, press anywhere
on the screen, a full screen calendar will be
showed.
Monitor Time is the maximum monitoring
time when the TALK/MON Button is pressed
in standby, after which the screen will be
closed automatically.
Settings will be performed immediately,
press Exit item to exit.
Press
or icon to modify the time
value in need. Settings will be performed
immediately, press Exit item to exit.
Press the screen again to enter the main
menu. Press
setup
to enter Setup menu.
Press the screen to enter the main menu.
then press
setup
to enter Setup menu.
Presspress anywhere on the screen.
Press and select Outdoor Tone or Intercom
Tone, then press
or icon to select
next or replay the current tone.
Press and select Monitor Time item.
1. Current time.
2. Current date.
3. Current weekday.
-7-

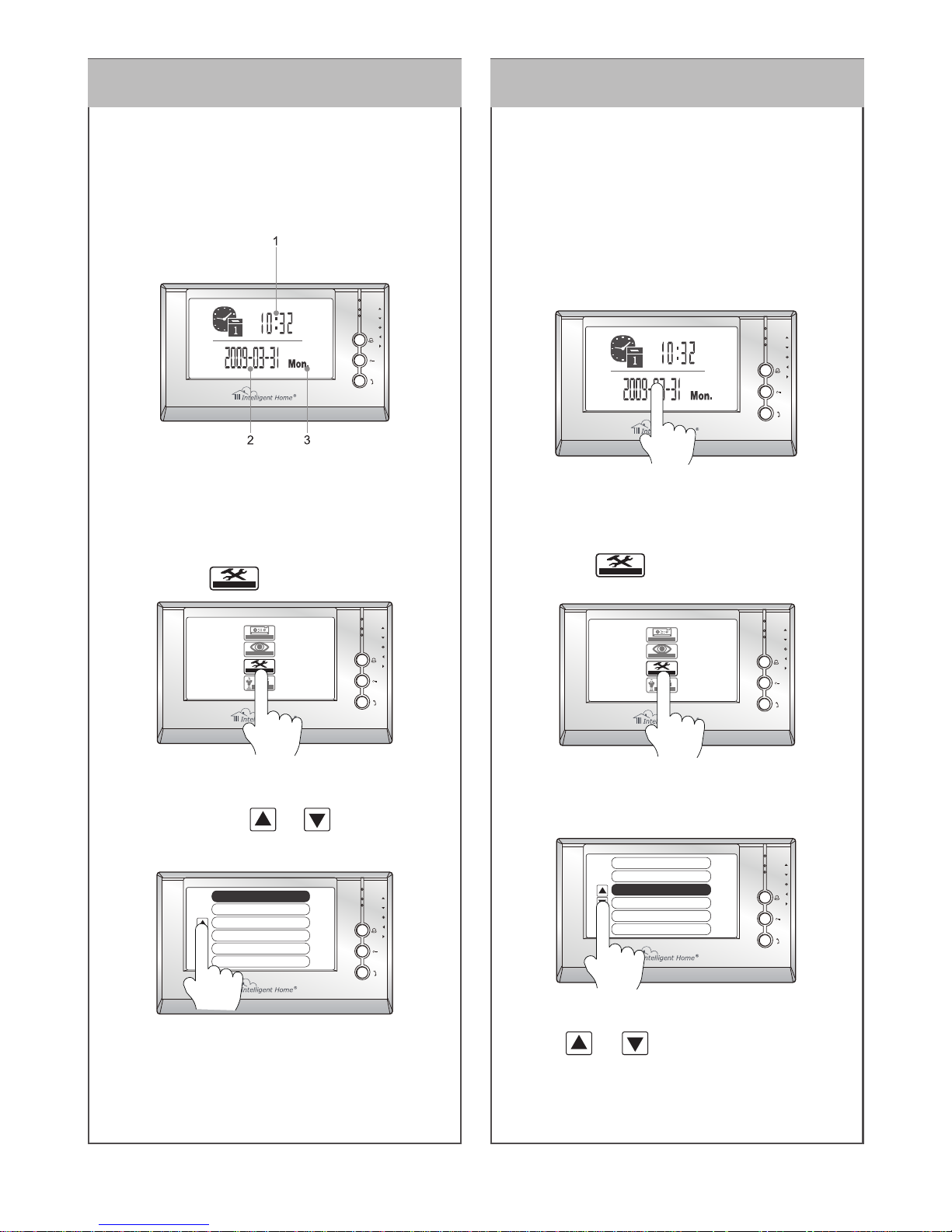

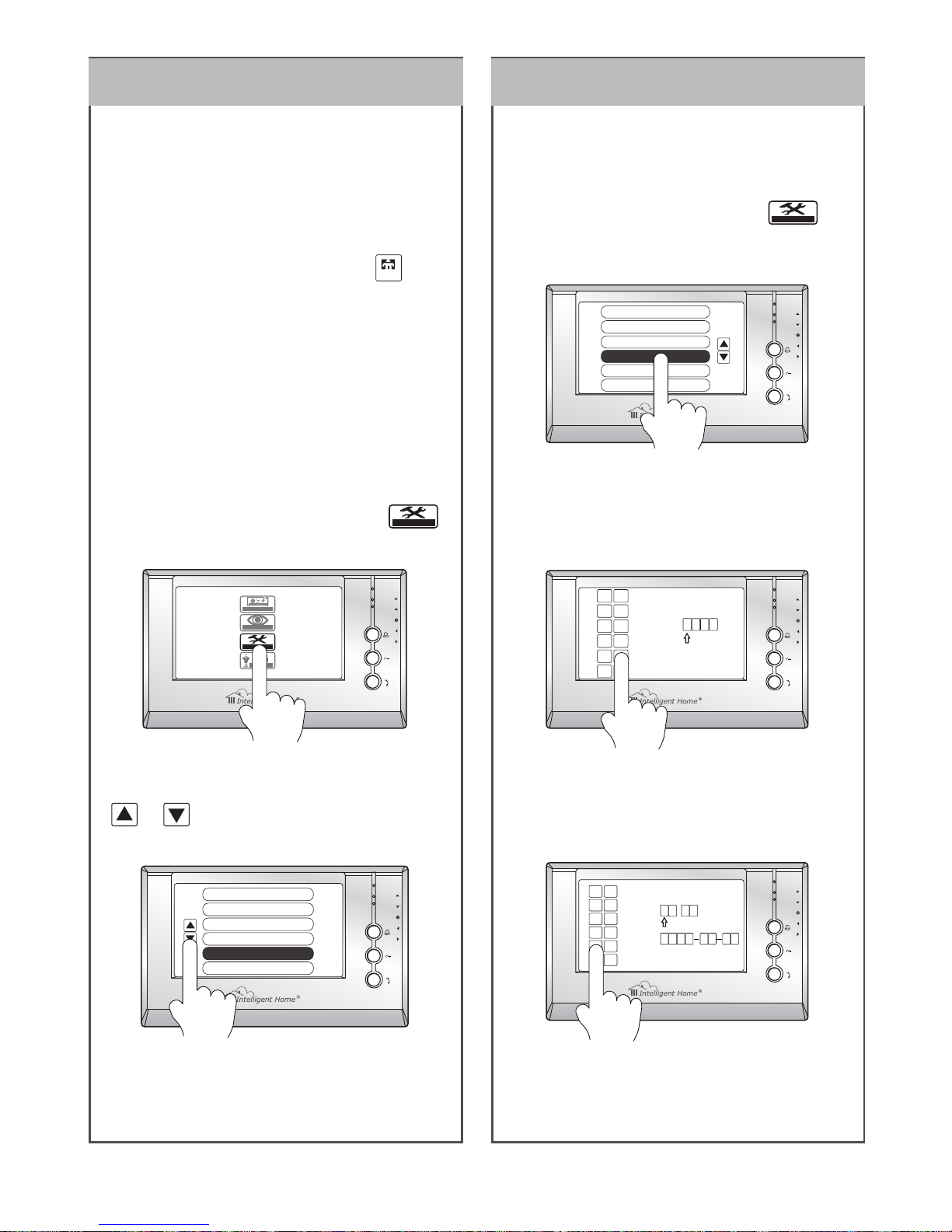

9. Auto-Record 10. Time Setting
play
monitor
setup
exit
Outdoor Tone -- 01
Intercom Tone -- 05
Monitor Time -- 1min
Advanced Set...
Auto Record -- OFF
Exit
0
* * *
Password:
8
7
6
#
0
9
3
2
1
*
5
4
Outdoor Tone -- 01
Intercom Tone -- 01
Monitor Time -- 1min
Advanced Set...
Auto Record -- OFF
Exit
TIME
DATE
2 0 0 9 1 0 2 1
1 1 3 5
:
8
7
6
#
0
9
3
2
1
*
5
4
When the Auto-Record function is turned
on, a 10 seconds video will be recorded
automatically after the Call Button was
pressed on the Door Camera. While the
video is being recorded, a ashing
rec
icon
will be dispalyed on the screen.
Note: In mornal state, the IN-USE LED
is light in green; when the Auto-Record is
turned on, it will ash in green, when there is
a missing call or unread video, the LED will
light in red.
When all numbers have been input, the
setting will be save automatically and exit, or
press the icon to quit.
When the Monitor is in standby, press the
screen to open the time screen, press again
to enter the main menu. then press
setup
to enter Setup menu.
A password will be asked before enter the
menu. Use the digital keypad on the scrren
to input numbers. The password is 2008.
Select and enter Date/Time Set item, Use
the digital keypad on the scrren to input
numbers.
When the Monitor is in standby, press the
screen to open the time screen, press again
to enter the main menu. select
setup
to
enter Setup menu, then press Advanced
Set item.
Press and selecte Auto-Record itme, Press
or icon (or press on the item again)
to toggle it on and off.
Settings will be performed immediately,
press Exit item to exit.
-8-
11. Restore to Default 12. Screen Setting
Exit
Hardware Ver 0502
Software Ver 0180
Voltage 20.8V
Manufacture 00.0
Restore to default
Scene
soft
+
—
Ratio
16:9
+
—
Brightness
6
+
—
Colour
6
+
—
Ring Volume
6
+
—
Talk Volume
7
+
—
Slave Addr Set -- 0
Guard Unit Set -- 0
Date/Time Set...
Other Settings...
Information...
Exit
In the Information menu, press Restore
to default item, the default settings will be
loaded. press Exit to exit out the menu.
The restore to default function allows the
user to recover the settings to factory setting.
Note that the restore to default operation will
not change the time setting and the les on
the buit-in momery or SD card.
When the Monitor is in standby, press the
screen to open the time screen, press again
to enter the main menu. select
setup
to
enter Setup menu, then press Advanced
Set item, Input password 2008.

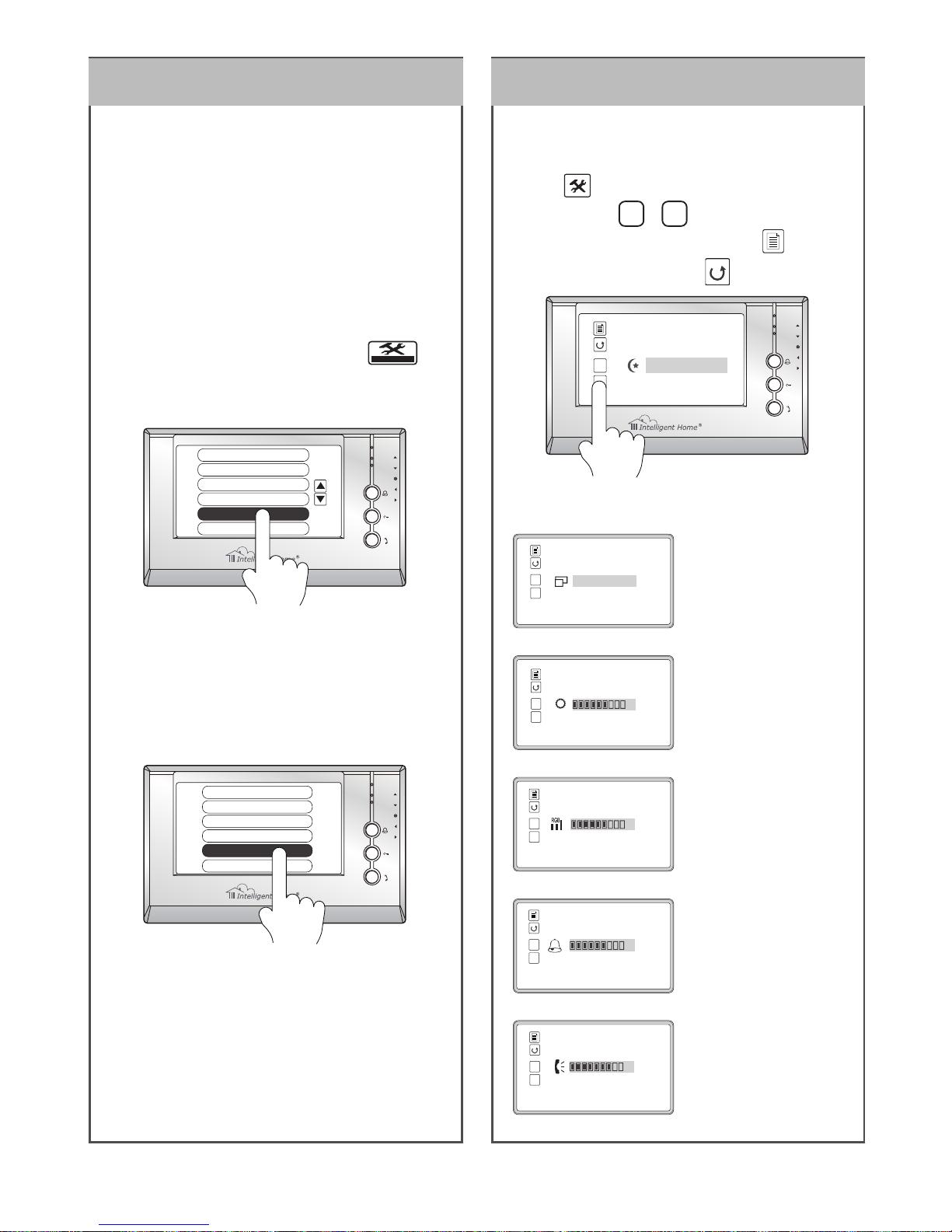

When the Monitor is in monitoring or talking,
Press
icon to open the screen setting
menu. Press
+ / - icons to increase or
decrease current value; touch the
icon to
switch to next setting, press
icon to exit.
The screen can be switch
between 16:9 and 4:3 mode.
Total 4 screen modes: Normal, Soft, Blight and User.
To adjust the brightness of the
LCD screen.
To adjust the color of the LCD
screen.
To adjust the volume for the
ring tone.
To adjust the volume for
talking.
Press and select Information itme, the
information of Monitor will be showed as
bellow.
-9-

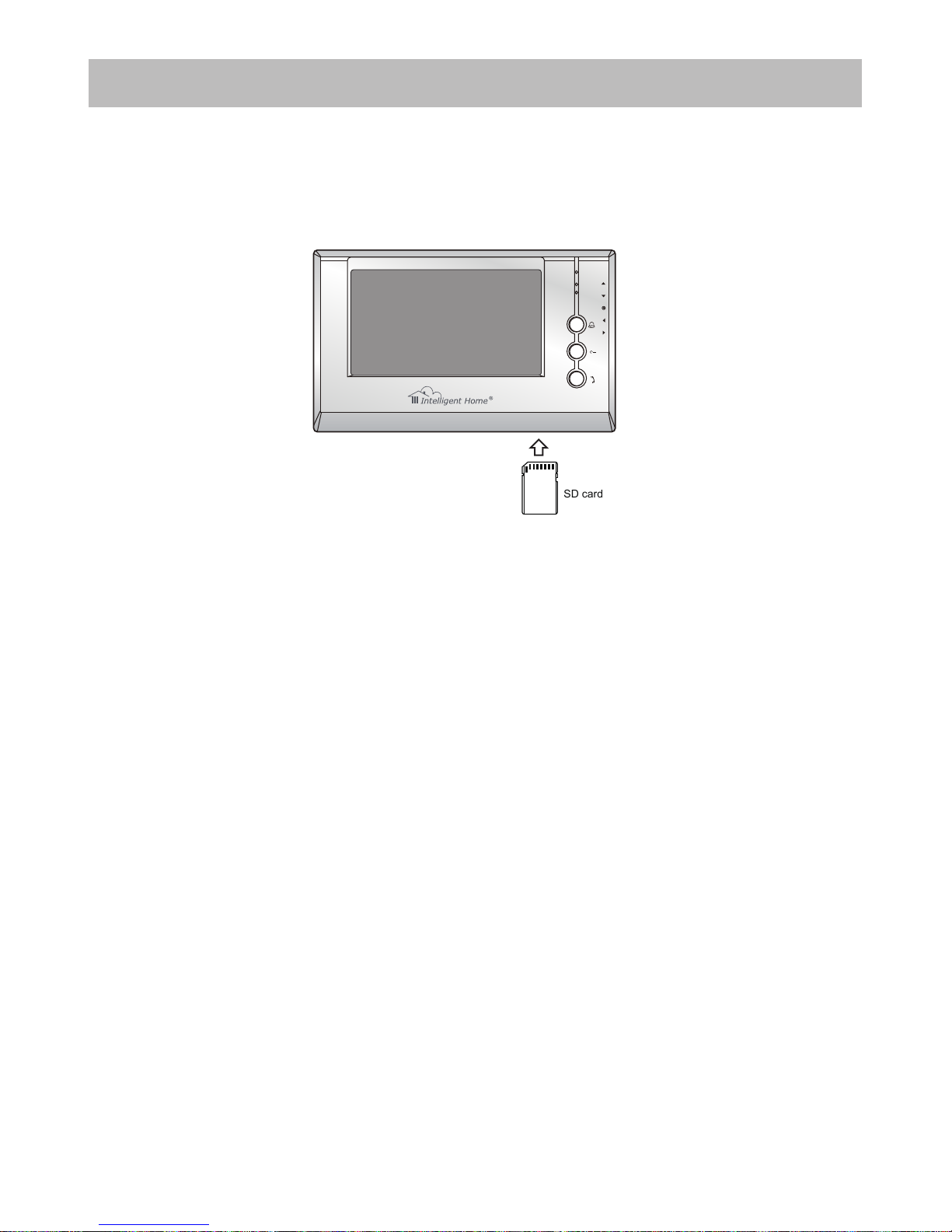

This Monitor has been equipped with a buit-in memory (about 118 MB, 50 ASF videos) together with
a SD card reader. Maximum 2 GB SD card can be supported. When a new SD card was inserted
to the Monitor, the SD card will be formated to FAT32 le system and 2 le folder(named DCIM and
PHOTO) will be created.
● This Monitor can play back JPEG photos and ASF videos. The recorded videos will be
saved in the SD--> DCIM-->100MEDIA le folder.
● Photo frame function, each photo playing will last 5 seconds, it will be stopped in one hour.
More pictures in the SD card, longer time for triggering the fuction, less than 1000pcs is
recommend. Note that the Monitor can only play back the photos in the SD-->PHOTO le
folder.
● Only the JPEG photos took by a digital camera can be played back in this monitor, JPEG
picture processed by other software might not be supported.
● Please do not play back pictures with the le size over 30MB.
● This Monitor can record ASF videos, both manually and automatically, the durantion of the
ASF video is xed in 10 seconds.
● When there is a SD card in the Monitor, the recording ASF videos will be saved in the SD
card rstly; they will be saved in the built-in memory when the SD card is full.
● The ASF videos in the built-in memory can be copy to the SD card.
● The built-in memory and SD card can be formated by the Monitor.
● Avoid plug in/out the SD Card when the monitor is under operation, it may cause the
death of memory board, please exit all operation when it is happened, and the device will
automatically reset in 30seconds( no need for restart the power), in the process, the LED
will turn to Green from Red.
● Please do not play back pictures with the le size over 30MB;
● The play back will be interupted by the calling from outdoor station.
13. Built-in Memory and SD Card
SD card
-10-
1
2
3
4
5
play
monitor
setup
exit
1
2
3
4
5
FLASH: 1%
VIDEO: 3
PHOTO: 21
VIDEO: 18
SD CARD: 5%
1
2
3
4
5

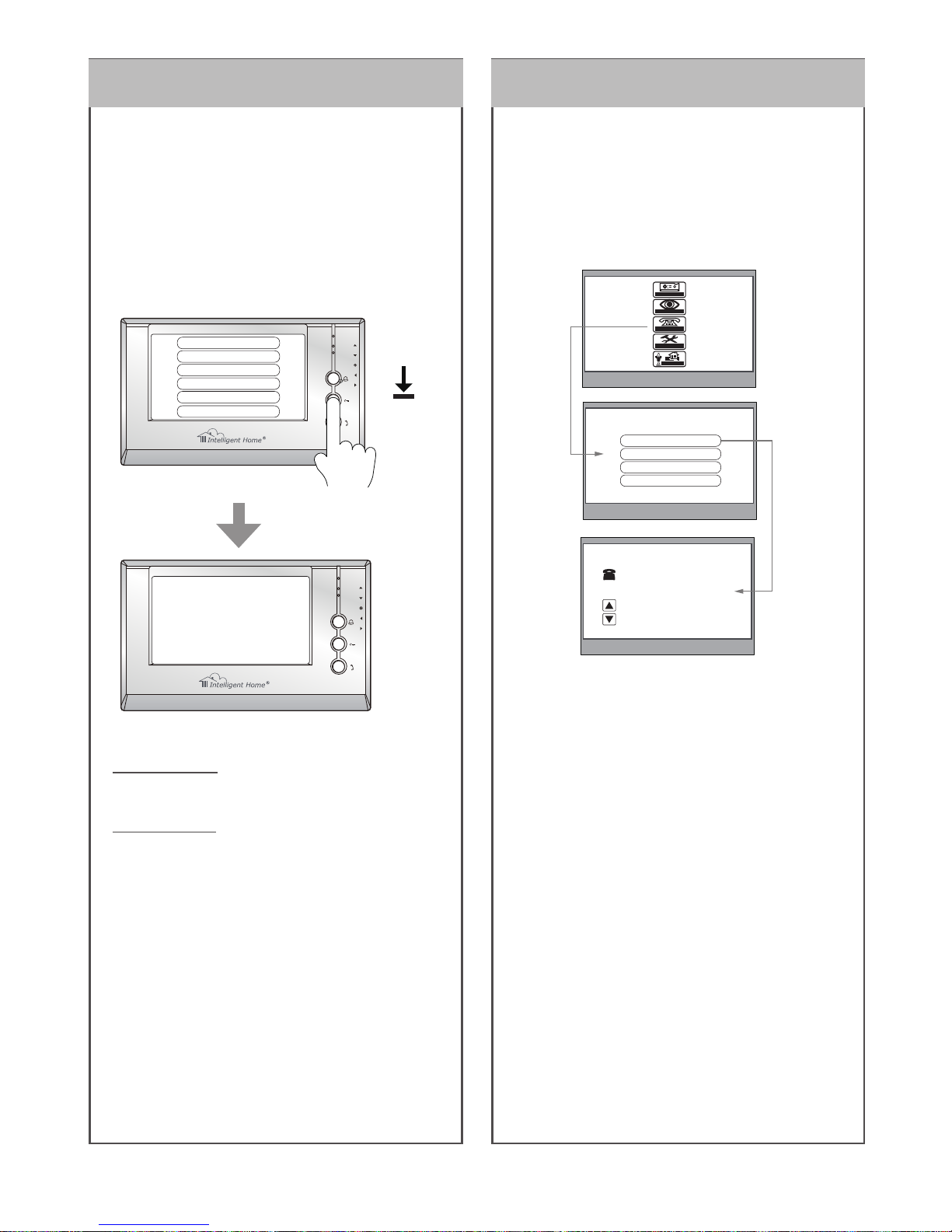

When the Monitor is in standby, press the screen
to enter Main menu then enter PLAY menu.
Press the icon to enter.
1. Play back photo
2. Play back video
3. Copy videos from built-in memory to SD card
(SD-->DCIM-->101MEDIA folder)
4. Memory information
5. Exit
Press the icon to play the video/photo. When
playing videos, there is no sound at rst, press the
TALK/MON Button to play the sound.
1. Play back last photo/video
2. Play back next photo/video
3. Delete currrent photo/video
4. Enter screen setting Menu
5. Exit
1. Used built-in memory
2. ASF videos in built-in memory
3. Used SD card memory
4. Photos in SD card(PHOTO folder)
5. ASF videos in SD card(100MEDIA folder)
6. Under this screen, press and hole the UNLOCK
Button for 3 seconds, a DEL FLASH & SD ?
hit will be showed on the screen, press the
UNLOCK Button again to execute the formating,
press any other key to exit without execution.
-11-
14. Unlock setting 15. Intercom Calling
Unlock Time: the Unlocking time setting,
default is 1 second.
Unlock Mode: set to 0 if using a Power-on-
to-Open type lock, set to 1 if using a Power-
off-to-Open type lock.
Settings will be performed immediately,
press Exit item to exit.
Intercom calling can be started on any
Monitor, users can call a specific Monitor
using the on screen name list.
Goto and enter Main-->Setup-->Advanced
set-->Information page, while the
information page is displaying on the
screen, press and hold the UNLOCK
Button for 2 seconds to set the Unlock
setting page.
Exit
Hardware Ver 0502
Software Ver 0180
Voltage 20.8V
Manufacture 00.0
Restore to default
2 seconds
Exit
Unlcok Time 1
Unlcok Mode 0
Intelligent Home System
play
monitor
intercom
setup
exit
Intercom Function
Intercom Call
Inner Call
Direct Call Guard Unit
Exit
Intelligent Home System
[001] User 1
[002] User 2
[003] User 3
[004] User 4
[005] User 5
Intelligent Home System
-12-
16. Connection Other Device to Monitor
Additional door bell call button can be connected
to the Monitor, so that the visitors can ring the
door bell again in front of the user's apartment.
When the call button is pressed, the Monitor will
output ring tones but the screen will keep off, and
the external ringer will ring at the same time(if a
external ringer is installed).
Door bell call button
SW+
SWEXT-RING
GND
VIDEO
External ringer can be connected to the Monitor.
The ringer will ring whenever the Door Station call
button or the door bell call button is pressed, and
it will stop ringing when the Monitor rejucted or
answered the call.
-
+
12Vdc 300mA
External Ringer
SW+
SWEXT-RING
GND
VIDEO
Connect television to the Monitor, when the Door
Station calls, the user switch the channel to the
AV channel, and the visitor's video will show up
on the screen of the television. The core of the
video cable must connect to the VD terminal, and
the shielded layer connect to the GND.
By adding a DCU unit, up to 6 CCTV cameras can
be connected to the system, each DCU unit can
connect 2 CCTV cameras. Note that the DCU unit
should be bought separately. See DCU manual
for detail information.
Television
video cable
SW+
SWEXT-RING
GND
VIDEO
DPS+PS5+
2*DCU+DBC4
Camera Camera
8.1 Connect Doorbell call button
8.2 Connect External Ringer
8.3 Connect Television
8.4 Connect CCTV Cameras(use DCU unit)
-13-
17. Specifications
Monitor
● Power supply for indoor monitor: DC 24V (supplied by Adaptor)
● Power consumption: Standby 0.5W; Working status 15W
● Monitor screen: 7 Inch color TFT-LCD
● Display Resolutions: 1,440(R, G, B) x 234 pixels
● Built-in Memory: 118 MB(only for DT692SD)
● Recorded Video format: ASF, 320*240 pixels, 10 seconds
● Monitor time: 30 seconds to 10 minutes
● Talking time: 30 seconds
● Monitor Dimensions: 153(H)×250(W)×30(D)mm
Door Camera
● Lock Power supply: 12Vdc, 300mA(Internal Power)
● Power Consumtion: 1W in standby, 12W in working
● NO, COM dry contact: Max. 48V dc 1.5A
● Unlocking time: 1 to 9 seconds, set by Monitor
● Working temperature: -10ºC ~ 45ºC
-14-
WARRANTY CARD
NB Please keep this document safe, as it is proof of your Warranty
Your Video door system comes with a one year Manufacturers Warranty. When
used normally, the following services are offered:
1. Replacement for malfunctioning parts in rst three months
2. Repair free of charge for malfunctioning parts in rst year
The following actions will void the Warranty:
1. Damage to the device during installation
2. Damage to the device through misuse
3. Opening and/or disassembling the device
4. Attempting to force the device to perform functions for which it is not intended
5. Attaching the device to power supplies other than thoserecommended by the
manufacturer
Distributor for Warranty purposes:
Lale Trading Ltd
34a High Street
Hornsey
London
N87NX
+44 (0)20 83482040
www.intelligenthomeonline.com
Product:_____________________________________________
Purchaser Name: ______________________________________
Invoice N: ____________________________________________
Purchase Date_________________________________________
www.intelligenthomeonline.com
The design and specications can be changed without notice to the user.
Right to interpret and copyright of this manual are preserved.
DT6913-villa-V1 2010-07-29
Loading...
