Intelligent Home Cronus 4-wire User Manual

Download
www.intelligenthomeonline.com
Cronus Video Door Phone
Digital Touch Screen 7 inch Monitor
1
2
3
4
4-wire series
Contents
8. Album Playback(for SD card model only) .............................................. 10
9. Basic Setup Instructions ........................................................................12
10. Basic Installer Setup Instructions .......................................................13
11. Monitor Advanced Setting ....................................................................15
12. Specication ........................................................................................16
1. Parts and Functions
1
2
3
4
Indicator 1
Digital TFT LCD Screen
UNLOCK Button
TALK/MON Button
MENU Button
Microphone
Speaker
Connection Port
SD card slot
Indicator 2
Mounting Hook
Mounting Hook
LCD screen Display the visitors' image
Indicator 1
Shows the power status of monitor
Indicator 2
Lights up when there are new pictures to be viewed
Unlock button
Press to release the lock
Talk/Mon button
Press to communicate with visitor Press to view outside at any time (even with no visitor) Press to turn off staircase light (refer to part 3)
Menu button
Press twice to access the menu
Microphone
For communicating with the visitor
Mounting hook
Use to hang the monitor
Connection port Bus terminal
Speaker
Audio from the doorbell(s)
Key functions
-1-
2. Monitor Mounting
3. Main Menu
145~160 cm
Mounting kit:
1) Mounting Bracket.
2) Two 4x25mm screws. Installation:
■ Average installation height for indoor monitor 145- 160cm (refer to sketch map).
■ Attach the screws to the wall to x the mounting bracket.
■ Hang the monitor rmly on the bracket.
■ Refer to the system connection section of this manual for correct wiring.
The Main Menu is your starting point for using all the applications on your monitor. To open the Main Menu page, tap either " Menu" key twice on the monitor or touch the screen anywhere twice.
-2-
Current time
04:29PM
:This icon will be displayed when the staircase light item is light on if the system connects RLC module which controls a light.
Otherwise,it won't be displayed. Touching this icon or pressing TALK/MON button can turn off the light.
:This icon will be displayed when recorded pictures have not been viewed,touch this icon for viewing recorded pictures.
Current date
Manual
Memory Album
User Setup Close
Monitor
Playback
Monitor Intercom Inner Call
4. System Wiring
Terminal Description
Basic 1-1 Connection
JS-OS1
Input 1 Input 2 Output
JS-AP
Handset 75 Ohm Power
JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
1) DC-IN: Power supply connection port
2) JP/VD: JP/VD is used for setting the video impedance.
3) JS-AP: Audio phone or RLC module connection port
4) JS-OS1: The rst doorbell connection port
5) JS-OS2: The second doorbell connection port
6) JS/VD: Extended slave monitor connection port
AC ~
1R2W3Y
4B
1R2W3Y
4B
1
2
3
4
Doorbell
Black
Yellow
Red
White
Black
Yellow
Red
White
Reserve
JS-OS1
Input 1 Input 2 Output
JS-AP
Handset 75 Ohm Power
JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V
2W
4B
2W
3Y 4B
1R
2W
3Y 4B
1R
2W
3Y 4B
-3-
Connecting Multiple Monitors
White
Red
Yellow
Black
Door station
Camera
Note:The first & last monitor,JP/VD jumper should remain! On other monitors should
be removed.
1#
Monitor
2#
Monitor
N#
Monitor
JP/VD Removed!
JP/VD Reserved
JP/VD Reserved
PS PS PS
4
4 4
Extending Audio Phone:
AC ~ AC ~ AC ~
Red
White
Black
Black
White
Red
+12
2W
4B
GX-3P
JS-AP
JS-LK
INSIDE
(90 Degree ROTATE)
Back View
Back View
User code=1
User code=1 User code=2
User code=2
User code=N(N<5)
Reserve
Remove
Reserve
123
4
Back View
123
4
Back View
123
4
123
4
123
4
123
4
123
4
User code=N(N<5)
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
-4-
Connecting 2 Doorbells
JP/VD Reserve!
Black
Yellow
Red
White
White
Red
Yellow
Black
2#
Camera
1#
Camera
1#
Camera
2#
Camera
1#
Monitor
NOTE:
1. First & last monitor JP/VD jumpers should remain. Others monitors, remove jumper.
2. When connecting two Outdoor Stations, 2 Way Input item should be set to
1 on the 1# Monitor. (Main Menu-User Setup-Installer Setup-2 Way Input).
2#
Monitor
N#
Monitor
JP/VD Removed!
JP/VD Reserved
PS PS PS
4
4
4 4
User code=1 User code=2
User code=N(N<5)
User code=1
User code=2
User code=N(N<5)
Back View
AC ~
123
4
123
4
123
4
123
4
AC ~ AC ~
Remove
Reserve
Reserve
Back View
123
4
Back View
123
4
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
-5-
1R
2W 3Y 4B
1R
2W
3Y
4B
Black
Yellow
Red
White
Black
Yellow
Red
White
SET
DS4
DS3
DS2
DS1
1#
2#
3#
4#
JW_VP
JW_VP
User code=1 User code=2 User code=N(N<5)
123
4
123
4
123
4
Reserve ReserveRemove
Note: First & last monitor, JP/VD jumper should remain. Others monitors, remove the jumper.
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V
2W
4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V
2W
4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
JS-OS1
JS-AP JP/VD DC-IN
DC- DC+
JS-OS2 JS-VD
1R
12V
2W
4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
Extending Multi Door Stations with MDS 4-way switch
Please refer to MDS user manual for more information.
-6-
5. Basic Door Release Operation
1. Press the CALL button on door station.
2. The monitor rings,and the visitor's image will be seen on screen.
Note: the screen turns off after 30 seconds(default) if nobody answers.
3. Press either TALK/MON Button on monitor or touch Talk icon on screen, you
can communicate hands free with the visitor for 90 seconds(default).After nishing
communication,press TALK/MON button or touch Talk icon again to end the communication. If the system has two or more monitors, when you answer from any monitor, the others will automatically shut off.
Answering a Door Call
Status bar
► 1. Shows the current doorbell you are viewing ► 2. Shows countdown to end of call ► 3. If the monitor is set to silent mode, this icon-
will be shown
► 4. If the RLC module is connected (which con- trols a light), and the Staircase Light item is set to 1 or 2 (refer to part 9->Staircase Light), this iconwill be shown when receiving a call.
1 2
3
4
Door Release
Entrance Monitoring
During talking state, Press UNLOCK Button or touch Unlock1 icon to release the door for the visitor.(
Note: if the system is connected
RLC
module which controls
a lock, touch
Unlock2
icon to release the second lock connected to RLC,for more
information,please refer to RLC user manual.
)
When the monitor is in standby mode, press TALK/MON Button(or touch Monitor ... item on main menu page), The screen can display the view of outside. If multiple door-
bells are in use, touch Select icon to get into the camera switch mode(or directly touch Manual Monitor item on main menu page). Select door 1/2/3/4 to monitor
the doorbell or CCTV camera. See the following diagrams.
-7-
DS1 00:30
► “ ” means the current operating monitor.
► “ ” means the selected calling monitor.
► Each monitor is assigned a unique user code
！
6. Intercom Function
Intercom can be initiated by any Monitor. Touch Intercom or Inner Call item on main menu page. Intercom function is activated when multiple monitors are installed. Intercom: press Intercom icon on any mon­itor to enter selective intercom page, see the diagram on right. Select a monitor,then press Dial Number icon to call. If the selected monitor answers the call,intercom chat starts. Inner Call: press Inner Call icon on any monitor to enter selective intercom page, see the diagram on right. All monitors will ring at the same time,whichever monitor answers the call, intercom chat starts. The other mon­itors will stop ringing .
DS-1 00:23
Note:
If the system utilizes the QSW module,
video quad split monitor is available, see
the diagram on right. For more information, please refer to the QSW user manual.
-8-
1 2
User 1
Dial Number Return
User 2
User 3
User 4
User 5
Redial
Dial Number Return
User 1
User 2
User 3
User 4
User 5
Door 1 Door 2 Door 3 Door 4
Door 1
Camera 1 Camera 2 Camera 3 Quad
Door 2 Door 3 Door 4
Selective Intercom
Selective Intercom
！
7. Star Connection with BDU module
BDU
4B3Y
2W
1R
4B3Y
2W
1R
4B3Y
2W
1R
4B3Y
2W
1R
BDU
JW/VP1
JW/VP2
JW/VP3
JW/OS
HI
75R
150R
SET-3Y
SET-3Y
AC ~
123
4
123
4
AC ~
123
4
AC ~
123
4
White
Red
Yellow
Black
Door station
AC ~
Back View
User code=1
Cronus IR-4-wire
Cronus IR-4-wire
Cronus IR-4-wire
Cronus IR-4-wire
User code=2
User code=3
Reserve
JP/VD Reserved
JP/VD Reserved
JP/VD Reserved
User code=N(N<5)
JS-OS1
JS-AP JP/VD DC-IN
DC-DC+
JS-OS2 JS-VD
1R
12V2W4B
2W
3Y
4B
1R
2W
3Y
4B
1R
2W
3Y
4B
Please refer to BDU user manual for more information.
-9-
Touch Memory Playback icon on main menu page (SD version of monitor only).
You can setup Memory Options to choose 1/4/8 pictures memo. If you choose 4/8, 4/8
shots of each call from doorbell are taken, one every1.5 seconds.Please refer to part
9->Picture Memory.
You can set the maximum Photo Frame album playing time, range from 1~999 minutes.
Please refer to part 9->Album Playback.
► 4 pictures will be displayed in each memo.
► The newest pictures will be displayed rst.
► When the built-in memory is full (max.
800 pictures), the oldest picture will be de-
leted to make room for new record. Save over
30.000 pictures with extra 2GB SD card.
8. PhotoFrame Album Playback (for SD card version only)
Touch Album on main menu page to play photos(SD card must be in).it can be played
automatically or manually by using your ngers to slide right or left on screen to play last or next photo. To nish the album playing,please touch the screen and hold for 2
seconds or touch " Menu" key.
About Picture Memory Recording
Playing time setting
-10-
2011-09-13 0012011-09-13 0012011-09-13 002
2011-09-13 0032011-09-13 004
Last
Next
Delete
Home

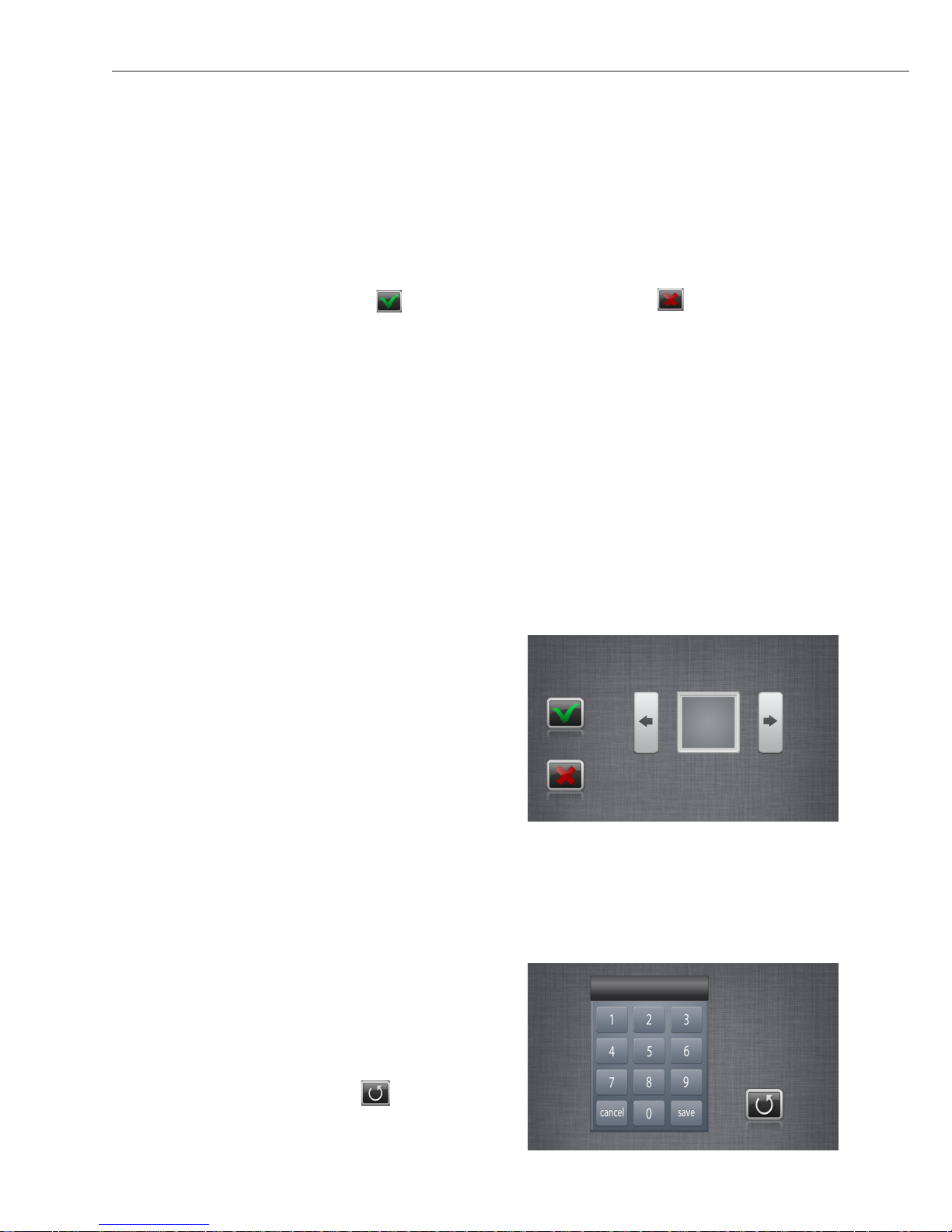

Date and Time Setting
Day Time Setting
Screen Setting
There are two formats for date and time dis­play, refer to part 9->date/time format. Touch
User Setup ->>Calendar. Use "cancel" key to select the setting item. After finishing, touch "save" key to save settings.
The day time setting is used to distinguish the day ring volume and night ring volume.
07:00 AM~18:00 PM is the default day
time .Touch User Setup ->>Day Time. Use "cancel" key to select the setting item. After finishing, touch "save" key to perform the setting.
2011-09-13 16:30
[07:00] --[18:00]
Restore to Default
Touch User Setup ->>
Restore to default
,a
message will be asked to conrm the restore
operation. Touch
Restore to default
icon again and all settings will be restored to default (except Calendar ).
Restore To Default ?
During monitoring or talking state, touch
Adjust icon,the Adjust page will be dis-
played.
The rst item is Scene mode selection: Total 4 screen modes can be selected in sequence:
Normal, User, Soft and Bright. The Brightness and Color item is for the
image quality setting.
The Talk Volume item is for talking volume adjustment.
-11-
Master
Monitor Time Calendar
Day Time
Bright
Color
Scene
Talk Vol
Return
Installer Restore
Setup to default
Call tone Call tone Call tone
Slaver Intercom Ring Volume Night Ring
Volume
5
9. Basic Setup Instructions
Ring Tone Settings
Touch User Setup item to enter setup page. Select Master Call Tone, Slaver Call Tone or Intercom Call Tone item, There are 12 ring tones can be selected. Touch a
ring tone you want, then touch icon to save settings or touch icon to exit.
Master Call Tone
: set the ring tone for First doorbell.
Slaver Call Tone
: set the ring tone for additional doorbells (2/3/4).
Intercom Call Tone
: set the ring tone for Intercom between monitors.
Ring Volume and Night Ring Volume Setting
Monitor Time Setting
You can set a ring volume for day time and
night time individually, 07:00 AM~18:00 PM
is the day time by default, but the day time
can be modied at any time by yourself(refer
to Day time setting section for more informa­tion). Touch User Setup icon on main menu page to enter setup page,select Ring Volume or Night Ring Volume to set a appropriate value. If you don't want to be disturbed at
night,you can set the night ring volume to 0.
Touch User Setup ->>Monitor Time. A digital keypad will be shown on screen, input the monitoring time by touching the digital
keypad,range from 00:30 ~ 59:59. Set time
and touch “save” key. touch icon to re­turn last page.
[01:30]
6
-12-
10. Installer Setup Instructions
Touch User Setup ->>Installer Setup, enter password (2412 > “save”) to enter the menu.There is a total of 16 options which can be modified. Input the corresponding
value by touching the digital keypad to modify the setting. Then either save or cancel.
Item Description
Default
value
Time Format
2 formats can be selected.[0]:24 hours format;[1]:12
hours format.
0
Date Format
2 formats can be selected.[0]:day/month/year format;[1]:month/day/year format.
0
Language [English only supported. Cannot be changed]
one
User Code
Used to set the monitor code,[1]:master monitor;[2] the rst slave monitor;[3]the second slave monitor;[4] the third slave monitor;[5] the fourth slave monitor
1
2 Way Input
If two doorbells are connected, please set this option
to 1(on); otherwise, set to 0(off). Refer to part 4 (sys­tem wiring->extending 2 doorbells)
0
Unlock Time Range from 0~9s.
3s
Unlock Auto
Range from 0~9s, the monitor will shut off after re-
leasing the door.
0
Calling Tims
The rst value is calling waiting time. The second
value is talking time. The setting range for these two
values are from 03-60. Please note that the calling
time is setting value multiplied by ten. For example,
the setting value is 03, the calling time is 30s.
calling waiting
time:30s
talking
time:90s
-13-
Item Description
Default
value
Remote Control
Used to add the remote control or delete remote
control,[0]:delete remote control;[1]:add remote
control.
0
Staircase Light
Staircase light.[0]: don’t turn light on when re­ceive calls;[1]:light on at night only when receive calls;[2]light on at any time when receive calls. Note that this parameter should be set on master
monitor (user code=1), for slave monitors this set­tings is invalid.
0
BDU installed
Range from 0~1. When the system has a BDU
module, this item must set to 1.
0
Picture Memory
Set the numbers for number of captured pictures
per call:1/4/8 can be chosen. Note that this item should be set on master monitor (user code=1). On
slave monitors this function is invalid.
1
Album Playback
Set the playing time for album, range from1~999 minutes
10 mins
Recover Settings...
Restore parameter settings to a default. Touch Recover Settings icon,the prompt “Y/N” will be
asked,touch Recover Settings icon again,restore setting will be performed immediately. Please note that the settings recovery will not change time for­mat, date format and user code item.
_
Online Search... Search the devices connected to the system
_
Back Return last page
_
-14-
11. Monitor Advanced Setting
Touch "About" button on main menu page,the monitor current parameters will be shown on screen,press Unlock button and hold for 3s,a digital keypad will be shown,input the code number by touching the keypad, touch “cancel” button to cancel,
touch “save” button to conrm the settings.
Item Code Description
Default
value
Volume setting
8800~8899
Set the volume for intercom talking, includ­ing the microphone and speaker, the larger
you set, the quieter it will be.
8800
8900~8999
Set the talking volume with outdoor station, including the microphone and loud speaker,
the larger you set, the quieter it will be.
8900
Logo status
setting
8630
There is not any logo to display when moni­tor Shuts off.
8630
8631
Input this code number to display the logo when monitor shuts off.
Factory setting
2412
Restore to factory setting, including user
setup, installer setup, and format pictures.
_
Initialization
setting
2499
Restore to initialization setting, including
user and installer setup, format pictures, logo status, volume setting.
_
Reserve
6789
Reserve
_
NTSC/PAL
setting
8500~8502
There are three setting modes: 8500(Auto identification mode);8501(PAL standard mode;8502(NTSC standard) mode
8500
-15-
12. Specication
●Power Supply: DC16-24V
●Power Consumption: standby 1.2W,working 8W
●Monitor Screen: 7 inch digital TFT
●Display Resolution: 800*3(RGB)*480 pixels
●Built-in Memory: 120 MB
●Picture Memo: 800pcs (internal memory),
● >30000pcs (2G SD card)
●Wiring: 4 wires, polarity
●Monitor time: 30 seconds(default)
●Talking time: 90 seconds(default)
●Dimensions: 125(H)×225(W)×23(D)mm
-16-
WARRANTY CARD
NB Please keep this document safe, as it is proof of your Warranty
Your Video door system comes with a one year Manufacturers Warranty. When
used normally, the following services are offered:
The following actions will void the Warranty:
1. Damage to the device during installation
2. Damage to the device through misuse
3. Opening and/or disassembling the device
4. Attempting to force the device to perform functions for which it is not intended
5. Attaching the device to power supplies other than thoserecommended by the manufacturer
Distributor for Warranty purposes:
Intelligent Home Online Ltd
62 Hartley Old Road
Purley, Surrey
CR8 4HJ
+44 (0)20 86170015
www.intelligenthomeonline.com
Product:_____________________________________________
Purchaser Name: ______________________________________
Invoice N: ____________________________________________
Purchase Date_________________________________________
Printed In China / 2013. 11
The design and specications can be modied without notice to the user. Right to interpret and copyright of this manual are preserved.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
