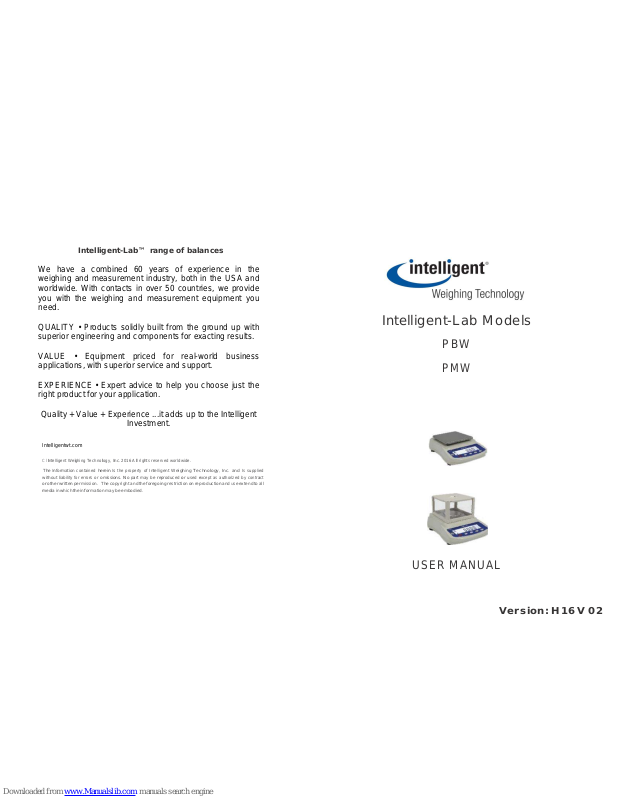

Intelligent-Lab™ range of balances
We have a combined 60 years of experience in the
weighing and measurement industry, both in the USA and
worldwide. With contacts in over 50 countries, we provide
you with the weighing and measurement equipment you
need.
QUALITY • Products solidly built from the ground up with
superior engineering and components for exacting results.
VALUE • Equipment priced for real-world business
applications, with superior service and support.
EXPERIENCE • Expert advice to help you choose just the
right product for your application.
Quality + Value + Experience ...it adds up to the Intelligent
Investment.
Intelligent-Lab Models
PBW
PMW
Intelligentwt.com
Cl Intelligent Weighing Technology, Inc. 2016 All rights reserved worldwide.
The Information
contained
herein Is
the property
of
Intelligent
Weighing Technology, Inc. and
Is s upplied
without
liability
for errors
or
omissions.
No
part
may be reproduced
or
used
except as authorized
by
contract
or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all
media in which the information may be embodied.
USER MANUAL
Ver sion: H 16 V 0 2
CONTENTS
I. Notes. .............................................................................. 1
II. General Information. ........................................................ 1
i. Overview. ................................................................... 1
ii. Parameters. ................................................................ 2
iii. Display. ......................................................................3
iv. Panel Functions. ....................................................... 3
III. Instruction for Use. .......................................................... 4
i. Precautions Before use. ...............................................4
ii. Storage and shipping conditions. ............................... 4
iii. Getting Started. .......................................................... 4
IV. Calibration. ...................................................................... 5
V. Operations. ..................................................................... 7
i. Turning the balance On/Off. ......................................... 7
ii. Zero and Tare Function. .............................................. 7
iii. Unit Conversion. ......................................................... 7
iv. Counting. .................................................................... 7
v. Weighing in Percent. ................................................... 7
vi. Check Weighing. ........................................................ 8
vii. Animal weighing. ....................................................... 9
VI. RS232 Transmission. ...................................................... 10
VII. POWER. ......................................................................... 10
VIII. Troubleshooting Guide. .................................................. 11
IX. Advanced Function Setting. ............................................. 12
X. Unit conversion table. ....................................................... 13
XI. Warranty. ........................................................................ 14
I. Notes
1.) Please do not get the balance wet. If the balance gets wet,
please wipe it with a dry cloth. If water damage occurs, this will
void your warranty.
2.) Do not drop or shock the balance. Do not drop any item(s)
onto the weighing tray. This may cause permanent damage.
Operate the balance gently and gently place items onto the
weighing tray. Overloading the balance will cause damage to
the weighing sensor and is not covered by warranty.
3.) Extreme temperatures (hot and cold), humidity, shocks
and vibrations shou ld be avoided at all times.
4.) If the balance will not be used for a long time, please
remove or unplug the power source. Cl ean the balance and store
in a non-static polybag. A des i cc ant is suggested to be inclu ded.
5.) Matter charged with s tatic electricity can af fect a cc uracy .
Discharge all static electricity. For example, one method is to use
Static-Guard spray. Please spray on both sides of the weighing
platform or any of our a nt i-static products.
II. General Information
i.
Overview
This balance is very accurate balance, which is designed to
meet the needs of laboratories, industry and commercial users.
This balance has a very clear and big display which greatly
reduces the chances of mistakes. The high - speed processor
1
processes the weight very quickly and will provide you with a
very speedy weighing experience. The glass windshield
protects against wind (PMW only). The integrated RS232
enables you to auto send the weighing data to PC or other
equipment if you have the required softwar e.
In order to provide a quick and easy weighing experience,
the following functio ns ar e included.
1. Kinds of different internati onal weighing units: g, ct , oz,
ozt, dwt, gn, lb, kg, t, tola, gsm, TAR, TMR, tlt, tlh, etc.
2. Wide range of function: weighing, parts counting, check
weighing, anim al weighing, percent weighing, ac cumulating
function, etc.
3. Large LCD disp lay with backlight.
4. Power-saving mode.
5. Data Transmission- Serial RS-232
6. Over-loading Indicator.
7. Battery Indicator.
8. Data-saving Function.
ii.
Parameter
Mode High Precision Electronic Balance
A/D Converter 24 bits
Division 30 000*300 000
Load cell Strain Gauge load cell
Display LCD display with bac k light or LED display
Power DC9V / 6V1. 3AH battery
Temperature 0*~40*; *85%RH;
2
iii.
Display
Battery Indicator Animal Weighing
Calibration Indicator
Negative Weight Symbol Zero and Tare
Overloading Indicator
Sleeping mode
Percent weighing Indicator High Limit Value
OK Limit Value Low Limit Value
iv.
Panel Functions
Name Function
Switch on or off
Calibration
Print Function
Units conversion & Counting mode selection
Zero and tare
3
III. Instructions for Use
i.
Precautions Befor e use
1.) The balance must be used on a stable, flat, and vibration
free surface in order to achieve accurate measurements.
2.) Please use an inde pendent power outlet to av oid
interference by ot her ele ct r onic appliances.
3.) In order to bring the ba lance into a horizontal position,
the adjustable feet can be turned either clockw ise or counter-
clockwise until the air bubble is in the center of the marked circle.
4.) Do not put any object on t he balance before powering
on.
5.) When possible, please allow the balance to warm up for
about 30-60 minutes before operations.
6.) Items should always be placed on the center of the
platform when being w ei ghed. Always press TARE before each
weighment to ensur e accuracy.
7.) For maximum acc ur acy, please re-calibrat e before each
use.
ii.
Storage and shipping c ondition
Allowable storage h umidity: 50%~75%R H
temperature: 10*~30* ( fluctuations*1*/h )
After unpacking the balance, please chec k it im m ediately for
any visible damages as a result of r ough handling during shipment
iii.
Getting Started
1)
Please check whether t he components listed bel ow on
the balance are in good condition:
4
*
Glass windshield (PMW only)
*
Weighing pan
*
AC adapter
*
Calibration weight
2)
Installation instructions
*
Place the weighing pan on the balance.
*
Leveling the balance using the leveling feet so that t he air
bubble is centered wit hi n t he circle of the level indicator.
*
Plug the cord on the AC adapter into the AC jack; then plug
the AC adaptor into a wall outlet. Please make sure that the
voltage rating printed on the balance is identical to your local line
voltage.
IV. Calibration
For maximum accuracy, calibration is requir ed before use.
Indicators your scale m ay need to be calibrated:
*
Firstly use this balance.
*
Weighing for a long ti me ( about after 30 days).
*
The ambient conditi on changed.
*
The temperature ch anged strongly.
Instructions for extramural calibration
1.) First remove all obj ects from weighing tray
2.) Press CAL until the scale show "CAL", calibration will
begin.
3.) The scale will show t he r equired weight for calibration.
5
Place the required weight as indicated on the screen on the center
4.) Once the required weight is placed on the scale it will
show lines across the screen -------, Then it will show the required
weight once more.
5.) Then remove the weight and the screen will show ------
then set back to zero. Cal ibrat i on is complete.
Note: Please make sure you are using the proper weighing
mode when calibrating.
Instruction for Linear calibration (Do not atte mpt t his
operation unless y ou have a full set of test weights, not just
the supplied calibrat i on w eights).
Note! Errors in linear it y
calibration are NOT c overed by warranty .
Please only enter Linear calibration when the precision is
different on different weights.
for example: 3200g/ 0. 01g
1.) First remove all obj ects from weighing tray .
2.) Press CAL until the Zero balance shows
"CAL".
3.) Then press MODE until the balance shows "CAL" once
more. Intramural calibration will begin.
4.) The balance will show "3000.00g". Place 3000g of
weight on the center of the weighing pan. Then the balance will
show lines across the screen -------, wait until it shows
"3000.00g" once more. Then remove the weight and the scree n
will show ------.
5.) The scale will show "2000.00g". Place 2000g weight on
the center of the weighing pan. Then the balance will show
lines across the screen -------, wait until it shows "2000.00g"
again.Then remove the weight and the screen will show------.
Then set back to zero. Ca libration is complete.
V. Operations
i.
Turning the balance On/Off
Press ON/OFF KEY t o sw it ch t he balance On and Off.
ii.
Zero and Tare Function (A lways press this before
weighing for more accurate results.
Press TARE will deduct the container weight or ret ur n t he
display to zero.
iii.
Unit conversion
The models have 16 units selection. You can select the
weighing unit by pressing MODE and scrolling through the options.
iv.
Counting
Press MODE for about 3s and the screen will show "COU",
place the item which needs to be counted. Press print key into
counting model. The balance will show PCS in the right corner.
Press CAL to select 10, 20, 50, 100, 150, 200, 250,500 and
1000. Press PRINT key to confirm. In the counting MODE
press again into norm al weighing mode.
v.
Weighing in Percent
Press MODE key for about 3s and the screen will show
"COU", Press MODE key again then the screen will show "PCT",
place the item which needs to be calculated and press print key.
The balance will show "100.00%" and " % " will show in the corner
of the screen, it's entering percent weighing. In the percent
weighing mode press mode key again into normal weighing mode.
7
8
vi Check Weighing
1.
Preset high & low limit values operation
9
2.
Display high & low limit values operation
Press MODE key for about 3s and the screen will show "COU", Press
MODE key twice and the screen will show "PST". And press PRINT key
and the screen will show "----Hi----", and than the screen display high
limit
values. Press MODE key and the screen will show "----Lo----", and
then the screen display low linit values. press PRINT key to exit.
3.
LCD indications and buzzer
10d low limit value high limit value
If set-up menu select PASS-0, when the object is higher the low limit
value and the object is lower the high limit value, the buzzer will sound.
If set-up menu select PASS-1, when the object is lower the low limit
value or the object is higher the high limit value, the buzzer will sound.
4.
Clear the check weighing settings
Press MODE key for about 3s and the screen will show
"COU", Press MODE key three time and the screen will show
"PST CE". And press PRINT key to clear the high & low limit
values.
vii. weigh hold on stab le
Press P RINT key un til the s cre en di spla y , the bal ance
into weigh hold on stable mode. when balance stable, weight
is held in display until weight is removed, and scales return to
zero.in weigh hold on stable mode, press P RINT key until
disappear, balanc e into normal weighing mode.
10
VI. RS232 Transmission
1. RS232 cable
2.
Data Format
Baud rate: 1200, 2400, 4800 or 9600(defaut)
Data bits: 8 BITS. Parity bit: None . Stop bits: 1 BIT.
1) SET-UP menu select CLA--0,data format as follow:
2)
SET-UP menu select CLA--1,data format as follow:
VII.POWER
LOW BATTERY
LCD series has the function of detecting the battery all the
time. When appears on the upper left corner of the display,
the battery needs recharging. If you don't recharge in time, the
power will be automatically cut off to protect the battery after
using 2~3 minutes. P le ase immediately recharge t he battery.
11
Charging tips
In LCD series when Battery status indication is " " and
hold on. It means the battery will be full after recharging 1~2 more
hours (Usually, it t akes about 8~10 hours to charg e fully.).
VIII. Troubleszzhooting Guide
Problems
Reasons
Ways to solve
When the screen
appears
"------"
Overload
Calibration
When the screen
appears
"----- -" or
"_ _ _ _ _ _"
Interference/
overload
Power off/
Calibration
Unstable
weights
1. Environment is not
good.
Improve the
environment
2. There's something
impacting the pan
Remove the
obstruction
3. Unfixed the
measured objects
Fix the objects
Inconsistent/
inaccurate
weights
1.The balance didn't
calibrate
Calibration
2.Didn't tare before
weighing
Tare
3. Low battery Recharge
12
IX. Advanced Function Setting
PressTAR E until the screen shows sensor code, then press
MODE will enter the advanced function setting (Press CAL
to select, press MODE to confirm, press ON/OFF to exit.).
1)
C Function (Zero Tracking Selection)
C---1: No zero tracking
C---2: Zero tracking +/-1d (def ault)
C---3: Zero tracking +/-2d
Note: The value is larger , the system is more stable; the
value is smaller, the system is more sensitive.
2)
P Function (Data Transmission Mode Selection)
P---0: stop transmission.
P---1: Single transmiss ion, data transmission according to
press PRINT once.
P---2: Continuous trans m i ssion. Press PRINT to tr ansmit
continuously, and then cl ick PRIN T to stop continuous transmission.
P---3: Single transmiss ion when stable. When the w eig ht is
stable, it'll print once. ( De fault)
3)
CLA Function (transmission data)
CLA--0: transfer current scale weig ht . ( default)
CLA--1: transfer series number, net weight, tare weight, gross
weight.
4)
FA Functio n ( weighing speed)
FA---1: Weighing spe ed is nat ur al. ( default)
FA---2: Weighing spe ed is fast er .
Note: After changing the weighing speed, please calibrate the
balance.
5)
b Function (Baud Rate Selection)
b---1: 1200 bps
b---2: 2400 bps
13
b---3: 4800 bps
b---4: 9600 bps (default)
6)
BL Function (Power -saving mode Selection)
BL---1: power saving t ur ns off, backlight turns on.
BL---2: Power-sav ing mo de turns on. Power-sav ing mode
will auto turn on within 60 seconds no using of the balance.(default)
BL---3: Power-sav ing mo de turns off, backlight tur ns off.
7)
Z Function (Back to Zer o Tracking selection)
Z*0: no back to zero tracking
Z---1: back to zero tracking +/-1d
Z---2: back to zero tracking +/-2d
Z---3: back to zero tracking +/-3d
Z---4: back to zero trackin g + /-4d
8)
BEEP Function(Buz zer Sound Selection)
BEEP-0: buzzer will don't sound
BEEP-1: buzzer will sound
9)
PASS Functi on( PST mod el Selection)
PASS-0, in weight checking, when the object is higher the
low limit value and the object is lower the high limit value , the
buzzer will sound.
PASS-1, in weight checking, when the object is lower the
low limit value or the object is higher the high limit value , the
buzzer will sound.
10)
U Function (Unit Selection)
U---ON: The selected we i ght unit displays on the screen.
U---OFF: The s e lect ed un it weig ht d isap p ear s on the screen.
14
X. Unit conversion table
Mark Unit Conversion Factor
g
gram
1
ct carat
5
oz ounce 0.03527396200
ozt troy ounce 0.03215074700
dwt Pennyweight 0.64301493100
gn Grain 15.43235835000
lb pounds 0.00220462260
kg kilogram 0.00100000000
tlt Taiwanese tael 0.02666666000
tlh Hong Kong tael 0.0271700000
gsm grams for square meter 100
TAR Tola/anna/ratti 0.01.2.2
TMR Tola/masha/ratti 0.01.0.2
XI. Warranty
The balance is warranted for one year from the date of
purchase against defects in materials and/or workmanship. If the
products fails to operate to specification during this period, when
used under normal conditions, we will repair or replace it at our
option, without charge. You must obtain a return goods
authorization and pay the shipping charges to us. Adjustment or
modification of any int er nal components, by other t han a fact ory
authorized technician, voids warranty coverage. Warranty does
not apply to accident, misuse, water damage or foreign material
entering the balance housing.
Loading...
