Intelligent EcoForce User Manual

EcoForce
user manual
2 Intelligent Facility Solutions
Control: Designed with SCM control.The machine will close itself when be used
exceed 50s
Specification
Power supply
Sensing distance
Warm air temp.
Motor speed
Heating power
Overall unit power
Overall dimension
Appearance
220V~50Hz
12+3cm
25000r.p.m
700W
1250W
210mmX182mmX270mm(LxWxH)
chroming painting
40+10
Dry hands quickly: Dry hands in 8s-12s if with warm air
Heat switch:
User can choose cold or hotair by the heat switch .
Anion generator:
There is anion generator inside, makes air more fresh and healthy.
Perfume holder:
Put a perfume piece on the holder, you will enjoy the sweet air around as soon as starting the machine.
Appearance:
Aluminum alloy,strong and beautiful.
Air speed
80m/s
Motor power
550W
Problem
Troubleshooting
No working
No warm air
Motor doesn t work
1)This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and know or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2)If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Notice:
EcoForce 3
Problem
Troubleshooting
Contact the local dealer
Reason Solution
Contact local dealer
No working
No power
Check the power
Too short sensing distance
Adjust the distance
Sensor device is damaged
No warm air
Heat switch is off
Switch on
Heating wire got problem
Contact the local dealer
Connect it well
The cable of sensor board is loose with the power wire
Motor doesn t work
Motor is damaged
1)This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
2)If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Notice:
4 Intelligent Facility Solutions
1.Please wet the assembling paper and put it on the right place on the wall.
2.Drive 4 holes on the wall according to the assembling paper. Put the plastic screw in the holes.
3.Loose the screw and take out the cover.
4.Aim the hole of seat at the plastic screw in the wall and lock it on the wall with metal screws.
5.Assembling the cover and lock it tightly with the seat.
Installation instruction
it must be more than 1.1m from bottom of the hand dryer to floor when install it
1.Please read the user's manual and install instruction before install it.
2.Please check the wall if it is flat or not and make it clean.
3.Please give the manual to the users after install it.
4. .
5.
6.
Don't put object in the sensor area Don't put reflection objects such as stainless steel or photoelectric
sensor under the sensor window of hand dryer to avoid mistake signal.
Please assemble it in sunless place.
Notice before installing
To make the product be used for a long time, please be careful as following:
L
N
SW
MN
ML
220V
~
M
W1
Moto r
Heat switch
Anio ns gene rator
Heat er
BKR
sensor board
Power board
flat cable
Wire drawing
EcoForce 5
1.Please wet the assembling paper and put it on the right place on the wall.
2.Drive 4 holes on the wall according to the assembling paper. Put the plastic screw in the holes.
3.Loose the screw and take out the cover.
4.Aim the hole of seat at the plastic screw in the wall and lock it on the wall with metal screws.
5.Assembling the cover and lock it tightly with the seat.
Installation instruction
it must be more than 1.1m from bottom of the hand dryer to floor when install it
.
4
3
13c m
12 5- 135 cm
1
2
6
5
1
2
Notice:
6 Intelligent Facility Solutions
Put your hand under the machine, it will work automatically, and stop
automatically when remove hand.When the induce time exceed 50s,then hand dryer will stop automatically. If you need, Please induce it again.
Usage instruction
Put your h and under the sens or area of hand dryer, it w ill be started automa tically.
When rem ove hand from the sens or area of hand dryer, it w ill be stopped automa tically
Adjustment of sensing distance
Disassembling the cover, and
adjust the W1, turn clockwise
to increase the distance, and
cou nter clo ckwis e to reduce
the distance.
W1
Sensor board
Lens
User can adjust warm or cool air
according to the request . When
turn on the heat switch, it will be
warm air .When close the heat
swi t c h , i t w i l l b e co o l a ir.
Temperature control
Heat switch

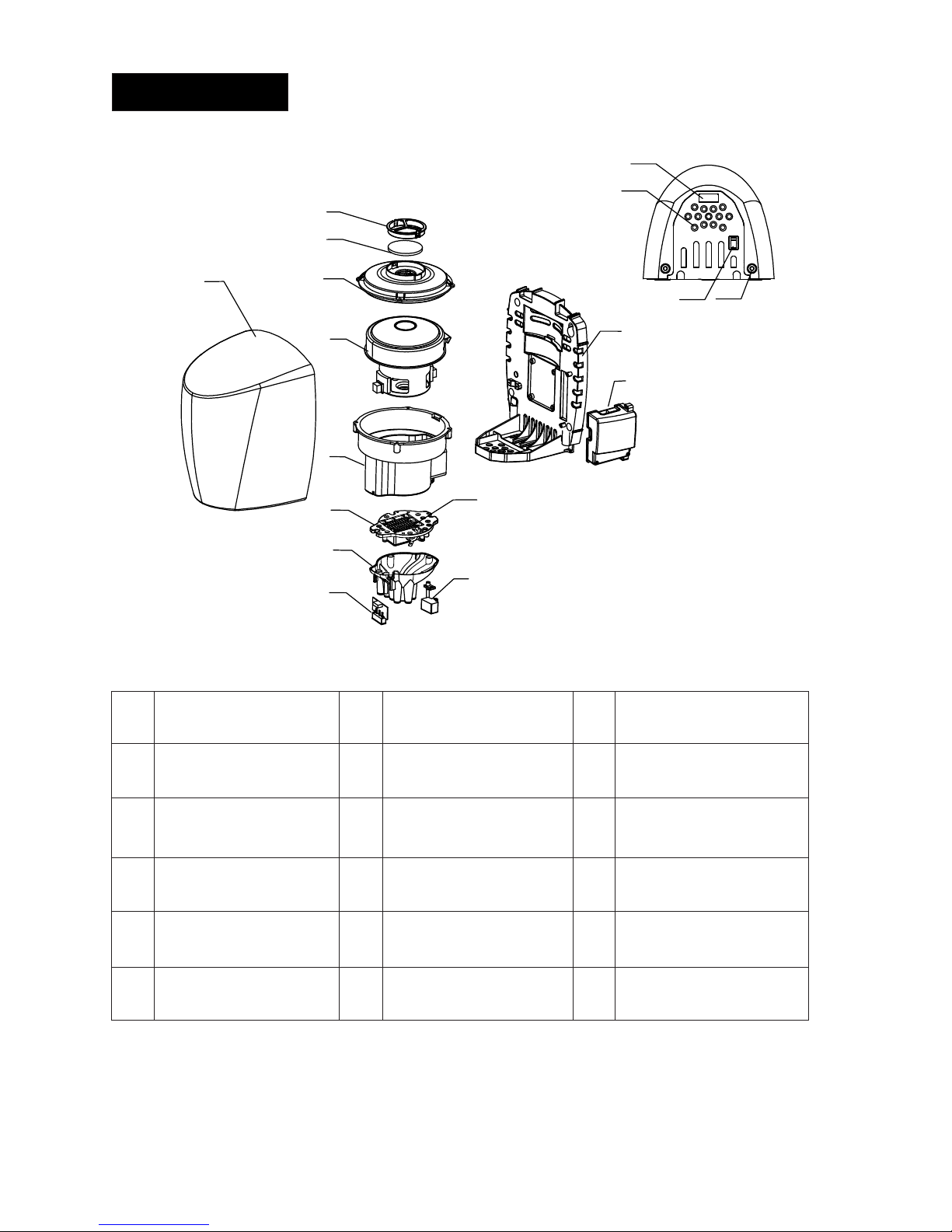

Break down
1
2
3
5
6
4
Air outlet
Inner hexagon screw
Sensor
Lens
Shell
Heat switch
EcoForce 7
1
2
3
4
Break down
1
2
3
5
6
8
9
10
11
12
13
14
16
7
15
4
Air outlet
Inner hexagon screw
Sensor
Cover for air tunnel
Cover of bottom motor
Motor
Cover of upper motor
Filter pad
Filter cover
Anion generator
Control box
Seat
17
5
6
7
8
9
10
1 1
1 2
1 3
1 4
1 6
1 7
1 5
Heating wire
Lens
Shell
Heat switch
Heat device
8 Intelligent Facility Solutions
