Intellian v130, v1-130 series Installation And Operation Manual

Download

Marine Satellite Communication Antenna System

v130

Installation and Operation Manual

Serial number of the product

This serial number will be required for the all troubleshooting or service inquiries.

logo are trademarks of Intellian Technologies, Inc., registered in the U.S. and other

countries. The v-Series and the v130 are trademarks of Intellian Technologies,

Inc. Intellian may have patents, patent applications, trademarks, copyrights,

or other intellectual property rights covering subject matter in this document.

Except as expressly provided in any written license agreement from Intellian,

the furnishing of this document does not give you any license to these patents,

trademarks, copyrights, or other intellectual property.

All other logos, trademarks, and registered trademarks are the property of their

respective owners. Information in this document is subject to change without

notice.

Every effort has been made to ensure that the information in this manual is

accurate. Intellian is not responsible for printing or clerical errors.

Doc. No. 2013PQ-UM0322-V1_1

INDEX

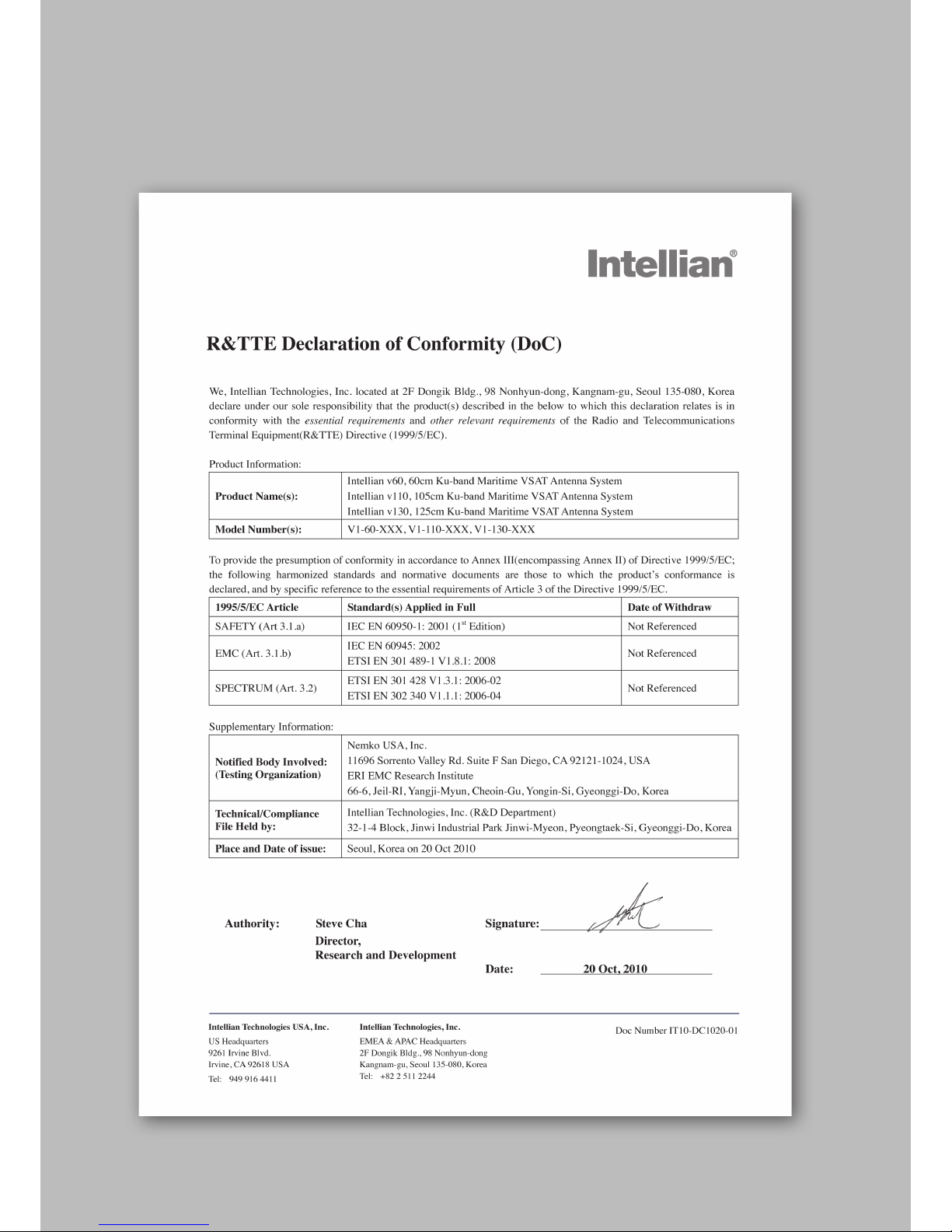

CERTIFICATIONS

INTRODUCTION

Introduction to Intellian v130 9

Features of Intellian v130 10

System Congurations 11

INSTALLING THE ANTENNA

System Package 14

Planning the Installation 19

Antenna Installation 22

INSTALLING THE ACU

Mounting the ACU 34

Ship Gyro Connection 36

OPERATING THE ACU

Introduction 40

Normal Mode 41

Setup Mode 44

Installation Settings 45

Antenna Settings 48

Satellite Settings 59

System Settings 66

PC CONTROLLER SOFTWARE

Introduction 76

PC to ACU Communication Setup 77

Main Menu 79

Controller Menus 81

REMOTE WEB ACCESS

Introduction 88

Main Page 89

Antenna Settings 91

Antenna/ACU Firmware Upgrade 105

Ethernet to Serial Settings 109

WARRANTY 117

TECHNICAL SPECIFICATION 118

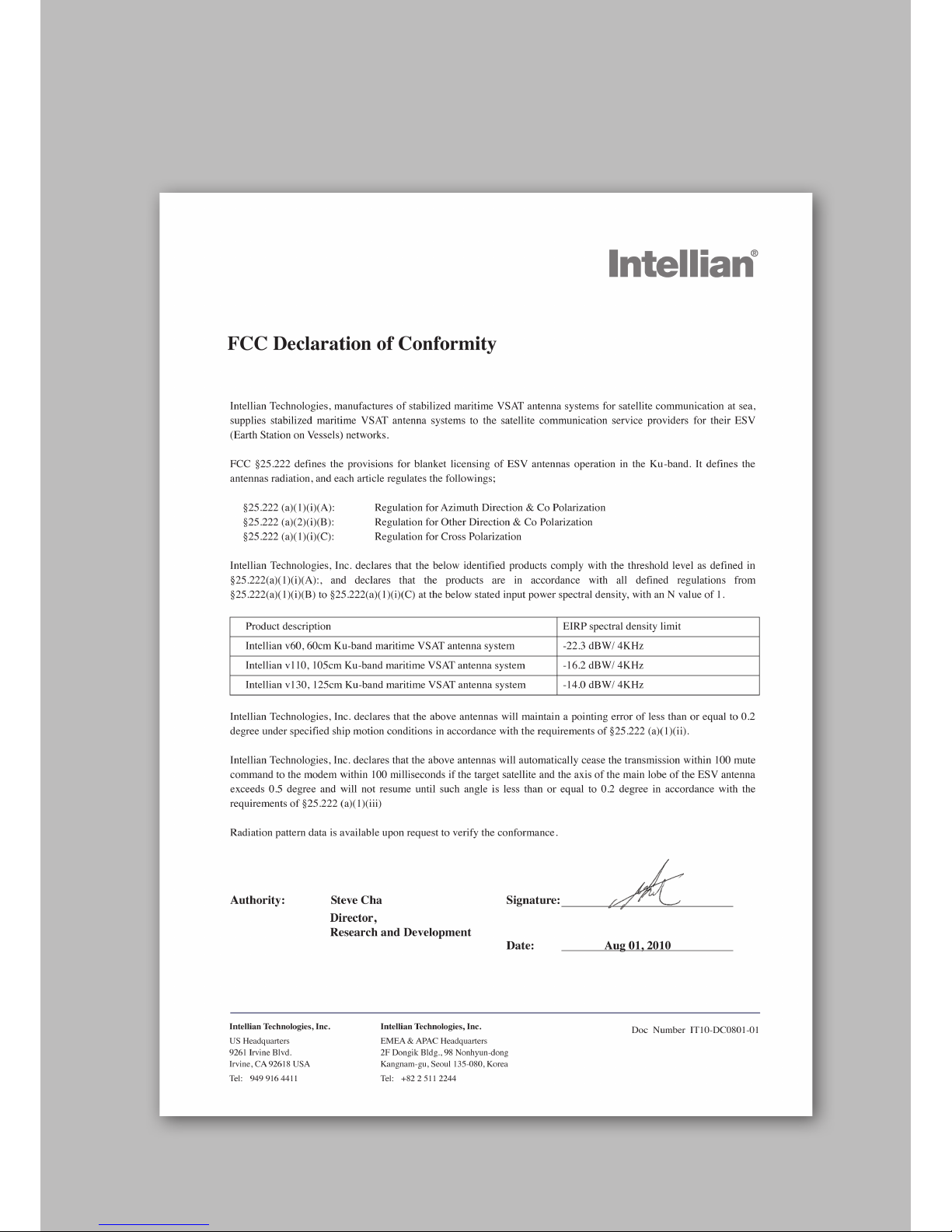

CERTIFICATIONS

v130 – Marine Satellite Communication System

Introduction to Intellian v130

Features of Intellian v130

System Congurations

INTRODUCTION

Introduction to Intellian v130

Intellian v130 (1.25m) is a ku-band VSAT maritime antenna system that supports SCPC, TDMA, Spread Spectrum or Carrier-in-Carrier and is suitable for high-speed internet, email, le transfer, video conference, VoIP, VPNs and database backup. With its 3-axis stabilized platform and advanced shock-resistant and vibration damping design, the v130 is capable of withstanding the most demanding sea conditions to provide “always on” and “high-quality” broadband communications on all types of vessels.

The v130 is built to meet or exceed the industry’s most stringent standards such as FCC, ETSI, R&TT, and MIL-STD-167. The v130 offers superior RF performance with its simple yet sophisticated design that reduces installation time and total cost of ownership. Equipped with Remote IP access function, the v130 can be accessed, monitored and controlled from anywhere and anytime to ensure cost-effective technical supports without having an engineer come on board.

The v130 is fully integrated with ABS (Automatic Beam Switching) function with leading service providers who use the embedded OpenAMIP protocol of the iDirect platform and v130 is also compatible with various platforms such as Hughes, Comtech, SatLink and more. The v130 is available in both cross-pol and co-pol feeds and supports multi-band LNBs and the option of 4W-25W BUC.

v130 – Marine Satellite Communication System

Features of Intellian v130

Enjoy always-on broadband connection at sea

Intellian v130 is the most modern communication system that offers a highspeed and always-on broadband connection at sea, where the atmospheric and environmental conditions are very harsh.

Best solution for all kinds of vessels

The v130 is the best solution for all kinds of vessels that require the satellite broadband connection around the globe. The major RF components are designed and manufactured by Intellian’s solid in-house engineering to achieve superior antenna gain and xpol isolation recognized among the best performances in the industry.

Gyro-free satellite search capability

Intellian’s new generation gyro-free satellite search function enables the v130 to acquire and lock onto the satellite without requiring a separate input from the ship’s gyrocompass

Wide elevation range

The v130 have a wide elevation range from -15° to 120° and -20° to 120°, respectively which offer seamless signal reception while the vessel is traveling near the Equator or Polar Regions.

Remote management solution

The v130 can be accessed, monitored, and controlled from any location in the world through the embedded web server, which can save tremendous time and cost from the hundreds of routine maintenance activities. These solutions include operating rmware upgrade, tracking parameters resets and system diagnostic.

Save installation and maintenance time

Simple design allows users to install and setup the system without the need for a skilled engineer. The v130 provides the utmost in reliability resulting in time and cost savings in maintenance.

Various platform compatibility

The v130 is fully integrated with Automatic Beam Switching (ABS) function with leading service providers who use the embedded OpenAMIP protocol of the iDirect platform and ROSS ROAM protocol of the Comtech platform. The v130 is also compatible with various platforms such as Hughes, Comtech, SatLink and more.

INTRODUCTION

System Congurations

For your satellite communication system to work properly, the system will have to be connected with all of the provided components properly, as shown in the gure below. Separate purchase of a satellite modem, ship’s gyrocompass, and Intellian Dual VSAT Mediator are required.

Basic System Conguration

(8W BUC)

Basic System Conguration

(4W BUC)

MODEM Interface

Gyro-Compass Input

RS-232/RS-422

Antenna Rx 24 V == 5 A

BUC

Power

Modem Rx

Satellite Modem (Not supplied)

Antenna Control Unit

Modem InterfaceModem RX

Antenna TX

Antenna RX

BUC

Power

AC 100 ~ 240 V (50~60 Hz 4A)

Ship’s Gyrocompass (Not supplied)

NOTE: BUC power should set to ON from the modem when you connect to a 4W

BUC. BUC power should set to OFF from the modem when you connect to an 8W BUC.

MODEM Interface

Gyro-Compass Input

RS-232/RS-422

Antenna Rx 24 V == 5 A

BUC

Power

Modem Rx

Satellite Modem (Not supplied)

Antenna Control Unit

Modem InterfaceModem RX

Antenna TX

Antenna RX

AC 100 ~ 240 V (50~60 Hz 4A)

Ship’s Gyrocompass (Not supplied)

v130 – Marine Satellite Communication System

MODEM Interface

Gyro-Compass Input

RS-232/RS-422

Antenna Rx 24 V == 5 A

BUC

Power

Modem Rx

Satellite Modem (Not supplied)

Antenna Control Unit

Modem InterfaceModem RX

Antenna TX

Antenna RX

BUC

Power

AC 100 ~ 240 V (50~60 Hz 4A)

Ship’s Gyrocompass (Not supplied)

PC Interface Tx

ANT1RS232 USB ANT2 MODEM

ANT1 ANT2 MODEM

ACU Interface

ACU1RS232 & RS422Console ACU

Modem Interface

Ethernet

NMEA

Heading

+ -

MODEM Interface

Gyro-Compass Input

RS-232/RS-422

Antenna Rx 24 V == 5 A

BUC Power

Modem Rx

MODEM Interface

Gyro-Compass Input

RS-232/RS-422

Antenna Rx 24 V == 5 A

BUC Power

Modem Rx

BUC

Power

BUC

Power

RX1 TX1 TX2

Antenna Unit 1

Antenna Unit 2

RX2

AC 100 ~ 240V (50~60Hz)

Antenna Control Unit 1

Satellite Modem

Antenna Control Unit 2

Mediator

Ship’s Gyrocompass

TX RX Interface

Dual System

Conguration

(8W BUC)

INTRODUCTION

INSTALLING THE ANTENNA

System Package

Antenna Unit ACU (Antenna Control Unit) Installation Kit

Planning the Installation

Selection of Antenna Installation Site Congure Radiation Hazard/Blockage Zones System Cables Power Requirement Tools Required for Installation

Antenna Installation

Unpacking the Wooden Crate Antenna Dimensions Antenna Mounting Templates Position the Radome Mount the Radome RF Cable Connections Secure the RF Cables

v130 – Marine Satellite Communication System

System Package

The package of Intellian v130 consists of antenna unit, ACU and installation kit box.

Antenna unit

ACU

Installation kit box

INSTALLING THE ANTENNA

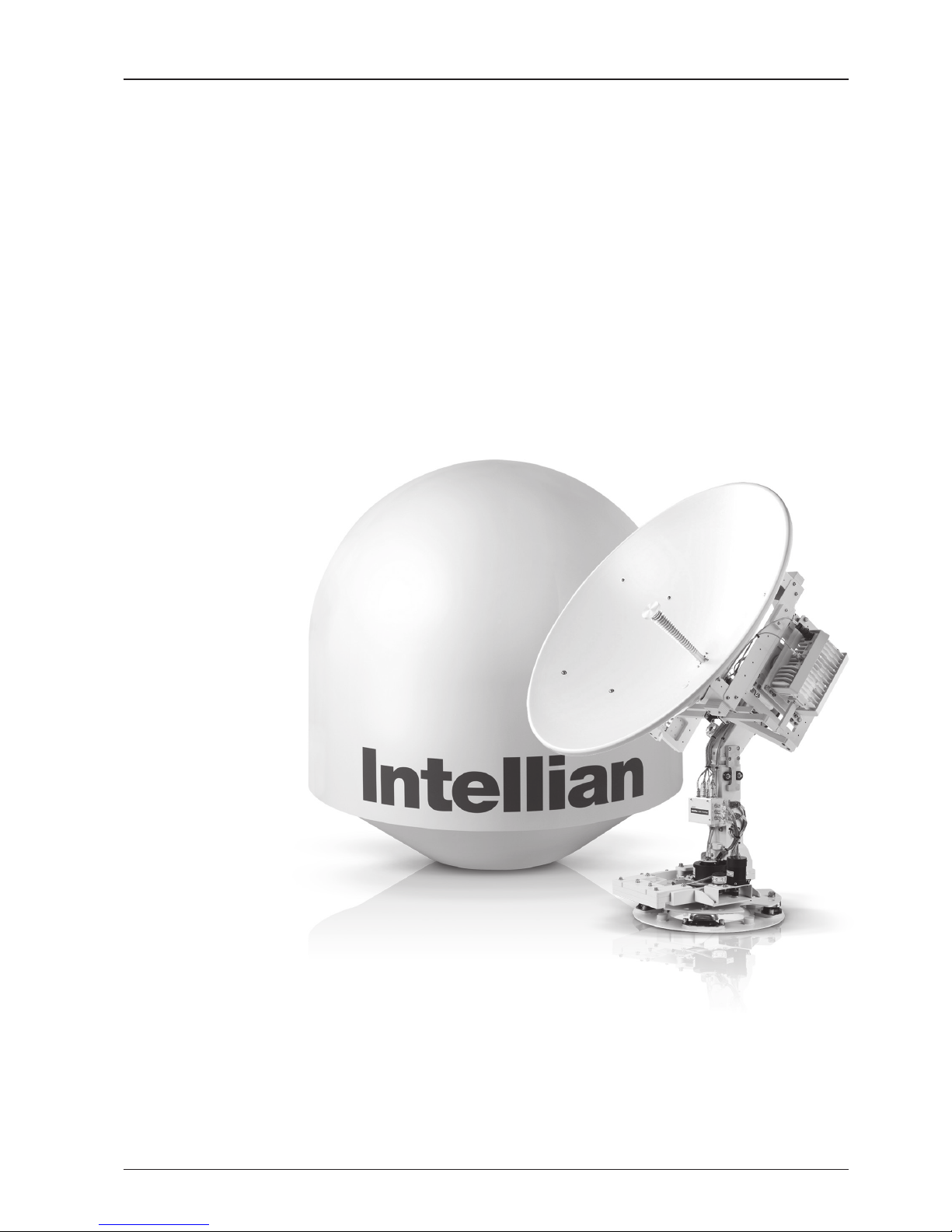

Antenna Unit

The antenna unit includes an antenna pedestal inside a radome assembly unit. The pedestal consists of a satellite antenna main dish with RF components mounted on a stabilized pedestal. The radome protects the antenna pedestal assembly unit from the marine environment.

Antenna Unit

v130 – Marine Satellite Communication System

ACU (Antenna Control Unit)

ACU provides power to the antenna and Block Up Converter (BUC), The digital Vacuum Fluorescent Display (VFD) allows for easy operation of the ACU, even in the dark.

The functions of the ACU are as follows:

• System startup

• Setting the satellite

• Editing satellite information

• Setting the antenna parameter

• Setting the antenna manual search

• Setting the LNB local frequency

• Setting radiation hazard or blockage zone

• Setting modem connections

• Setting GPS and Gyrocompass

• Display versions

• Display power status

• Performing diagnostic tests

• Backup and restore the system settings

• Set up the interface with a PC

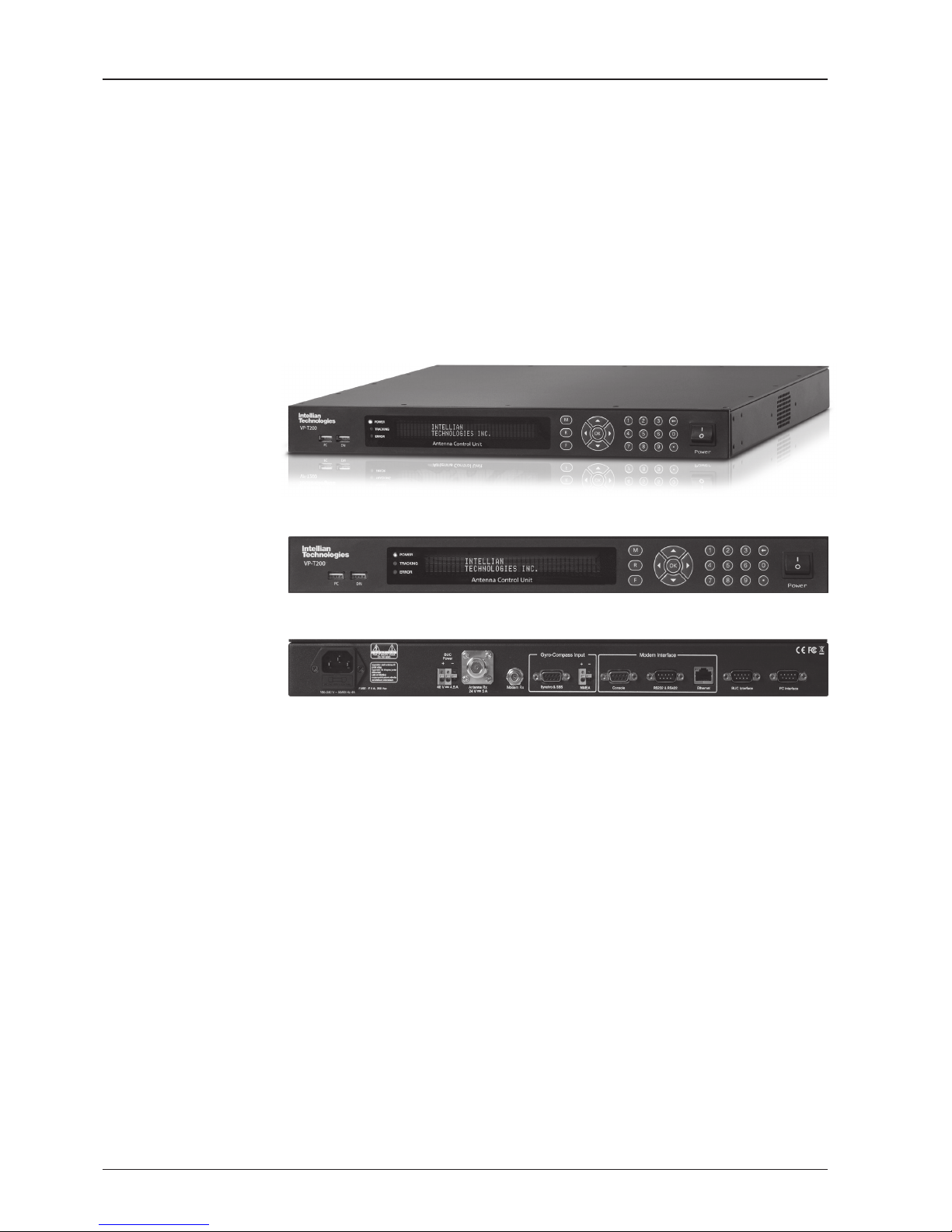

Antenna Control Unit

Front panel

Rear panel

INSTALLING THE ANTENNA

Antenna Q’ty Description Size Remark

Hex. Bolt M12 x 80L

Antenna-Deck

4 Sets: Installation

1 Set: Spare

Flat Washer M12

Spring Washer M12

Hex. Nut M12

Hex Head Wrench Bolt

M6 x 40L

Radome

(Spare Blots)

Dome Washer M6

ACU Q’ty Description Size Remark

Self-Tapping Screw

4 x 16

Table Mount

Bracket

Flat Head Screw M3 x 8L

Rack Mount

Bracket ACU

Sems Bolt M3 x 12L

Table Mount

Bracket ACU

Installation Kit

Contains the items required for securing the antenna unit and ACU to the vessel.

v130 – Marine Satellite Communication System

Other Components

Item Image Q’ty Description Size Remark

ACU

Bracket

Rack - ACU - 19 inch Rack

Table - ACU-Table

RG6 Cable 3 m ACU to Modem

RG6 Cable (Optional)

15 m

Antenna to Modem &

Antenna to ACU

BUC Power Cable 15 m Antenna to ACU

AC Power Cord (CEE7/7)

1.5 m ACU Power

AC Power Cord (USA)

1.8 m ACU Power

PC Serial Cable 1.8 m ACU to PC

USB Cable (A-A / M-M)

1.8 m ACU to PC

iDirect Interface Cable 1.5 m ACU to Modem

D-Sub 9 Pin Male Connector

- ACU

BUC Power Connector (AK950-2)

- Antenna (BUC In)

N to F Adapter -

N (Male) to F (Female)

Adapter

Installation CD - -

User Manual - -

Mounting Template - -

Wooden Crate Unpacking Guide

- -

INSTALLING THE ANTENNA

Planning the Installation

Selection of Antenna Installation Site

Install the antenna in accordance with the following procedures to insure maximum performance of the antenna. The ideal antenna site has a clear view of the horizon or satellite all around. Please be sure there are no obstacles within 15º above the center of the antenna. Any obstacles can prevent the antenna from transmitting and receiving the satellite signal.

Do not install the antenna near the radar especially on the same plane as its energy levels may overload the antenna front-end circuits. It is recommended to position the antenna at least 4 feet (1.2 m) above or below the level of the radar and minimum of 15 feet (4.6 m) away from the high power short wave radars.

The mounting platform should be rigid enough and not subjected to excessive vibration. The movement of the antenna can be minimized by installing at the center of the vessel. If these conditions can be only partially satised, nd the best compromised installation site between the various considerations.

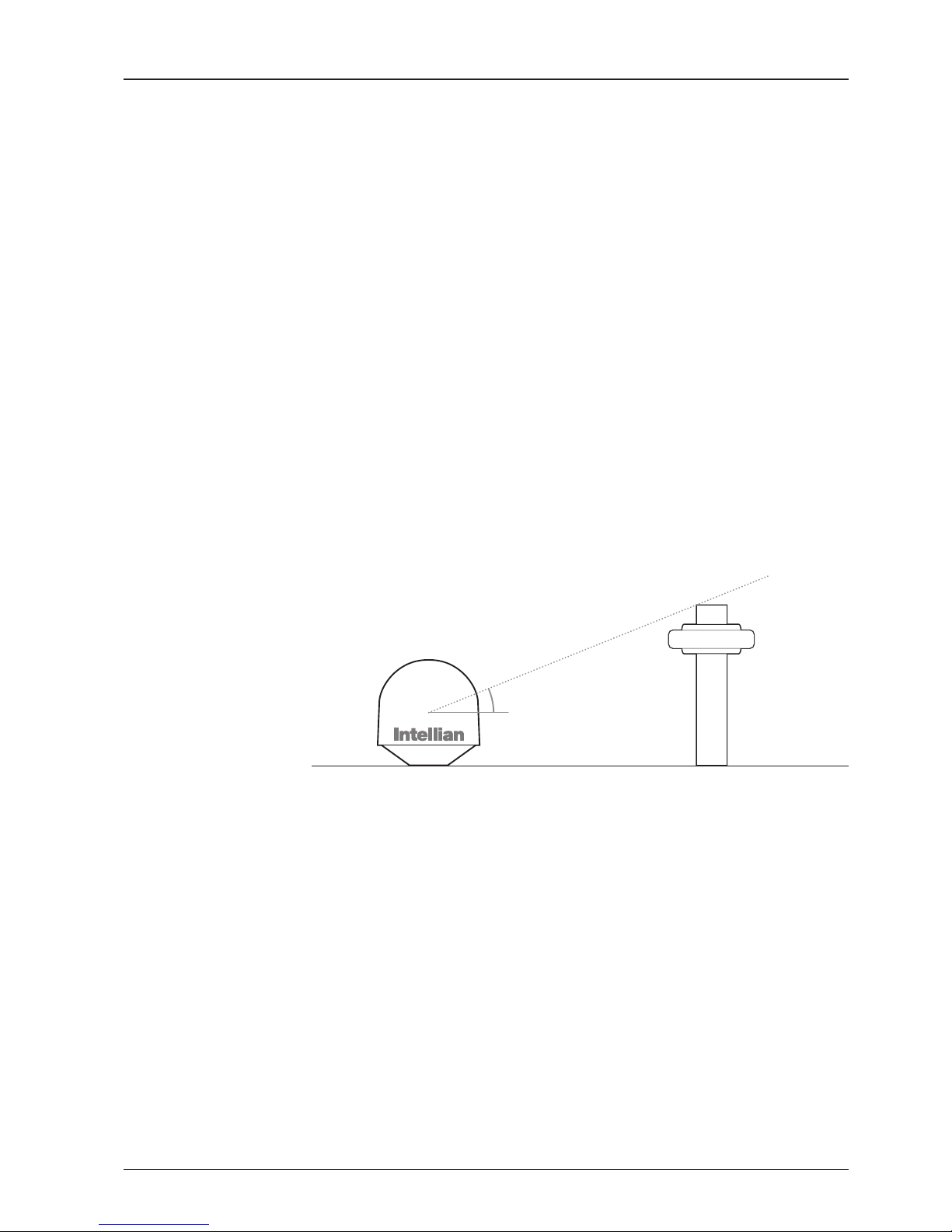

Elevation Limit

of Obstacles

15°

Congure Radiation Hazard/Blockage Zones

It is important to setup the radiation hazard or blockage zones for Intellian VSAT communication systems. The ACU can be programmed with relative azimuth and elevation sectors to create up to ve zones where transmit power would endanger personnel who are frequently in that area or blockage exists. Several things happen when the antenna is within one of these zones.

1. “BLOCK” will be displayed on the ACU screen.

2. Tracking continues as long as the signal level is greater than the predened

threshold value. When the signal level drops below the threshold value the antenna will wait “Search Wait Time” parameter amount of time and re-target the satellite you targeted last. The antenna will continue to re-target the satellite until the satellite is re-acquired and tracking can be resumed.

3. A transmit inhibit output from the ACU will disable/mute the modem transmission.

Antenna Unit Obstacle

v130 – Marine Satellite Communication System

System Cables

Before installing the system cables, you need to take the following points into consideration.

1. All cables need to be well clamped and protected from physical damage and exposure to heat and humidity.

2. Cable with an acute bend is not allowed.

3. Where a cable passes through an exposed bulkhead or deck head, a watertight

gland or swan neck tube should be used.

Power Requirement

Intellian v130 has been designed to work on a vessel’s power supply rated at 100240 V AC.

• BUC Power Cable

Cable Length mm2 per conductor

Up to 30 meters 1.25 mm

Up to 50 meters 2.30 mm

Up to 70 meters 3.00 mm

Up to 120 meters 5.00 mm

Recommended

BUC Power Cables

Type Multi-conductor, Shielded

Number of wires 5 conductors for Synchro

• Gyro Compass / GPS Interface Cable (Customer Furnished)

Recommended

Cables

• RF Cable (Customer Furnished)

Due to the voltage losses across the length of the RF coax on L-Band, Intellian recommends the following 50 ohm coax cable types for standard system installations. For cables that run longer than 150 meters, please consult Intellian Technologies.

Recommended

RF Cables

Coaxial Cable Type

Attenuation in dB/100M

Attenuation in dB/M

Recommended Cable Length

LMR300 30.3 0.303 35M

LMR400 19.6 0.196 60M

LMR500 15.9 0.159 80M

LMR600 12.8 0.128 100M

LMR900 8.6 0.086 150M

LMR1200 6.5 0.065 200M

INSTALLING THE ANTENNA

Power Drill

Phillips-Head Screwdriver

Flat Head Screwdriver

(min 5mm)

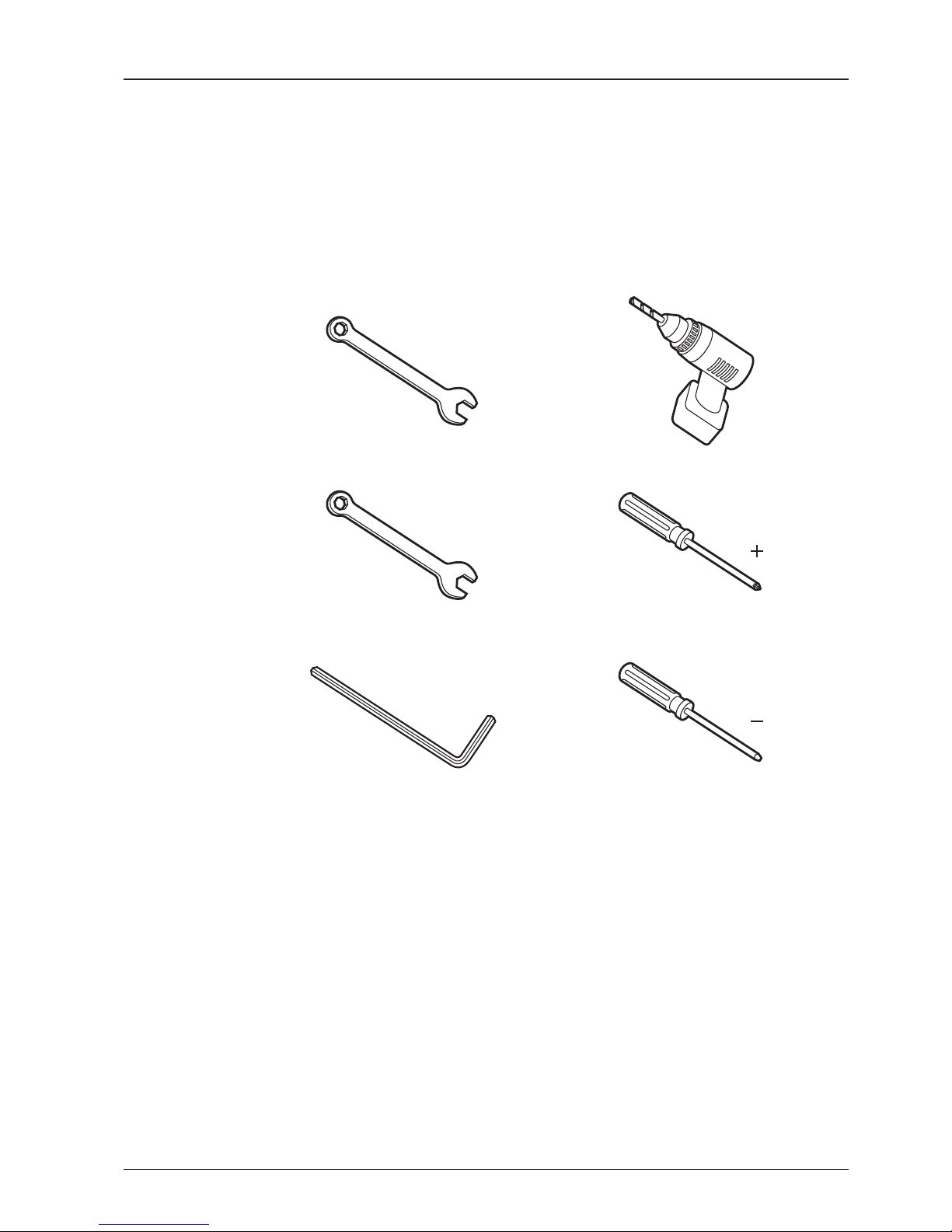

Tools Required for Installation

11 mm Spanner

19 mm Spanner

5 mm Allen/Hex key

v130 – Marine Satellite Communication System

Antenna Installation

Unpacking the wooden crate of v130

Step 1.

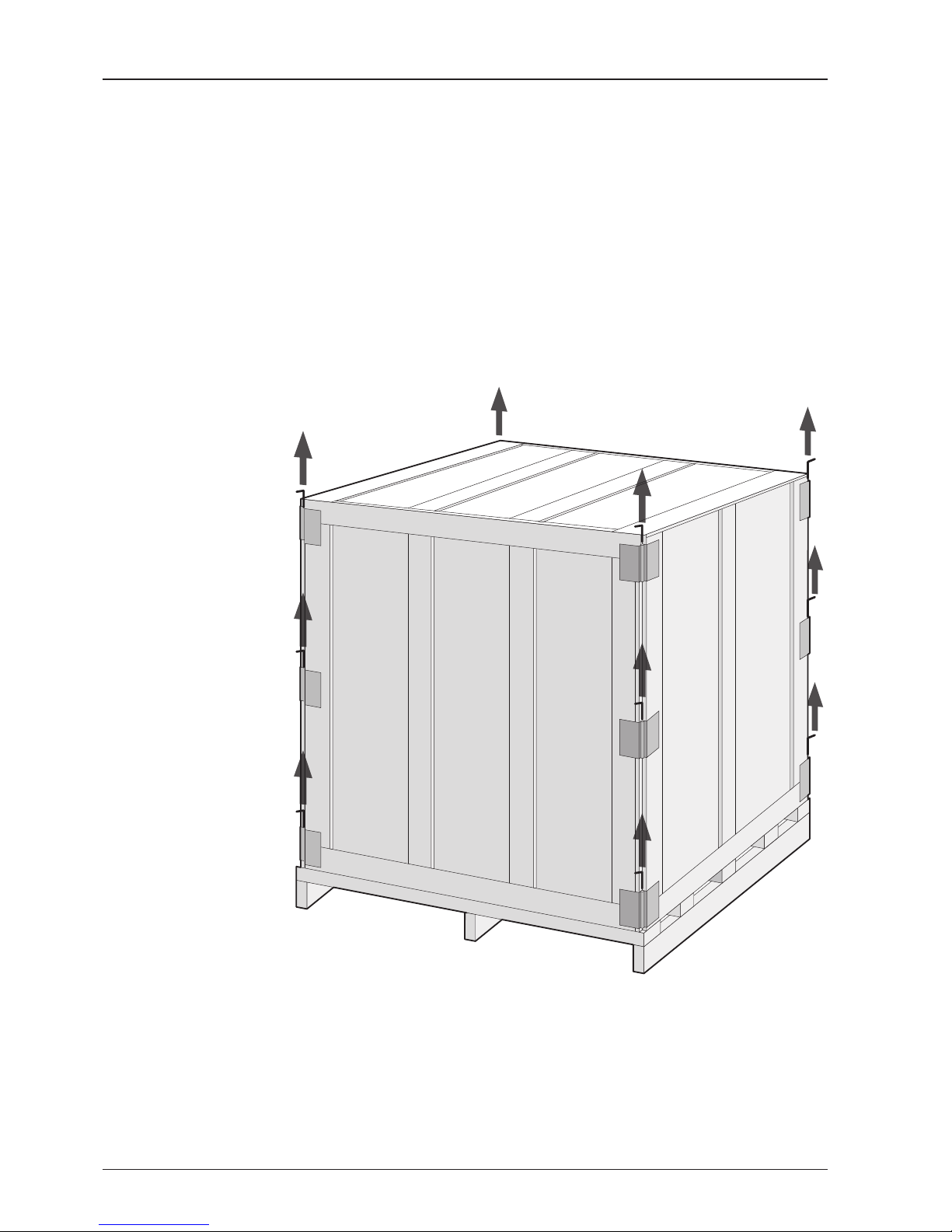

Remove the top panel and 12 pins from the hinges of the wooden crate.

INSTALLING THE ANTENNA

Step 2.

Remove 8 tapping screws that mount the ACU box and installation kit box to the pallet.

v130 – Marine Satellite Communication System

Step 3.

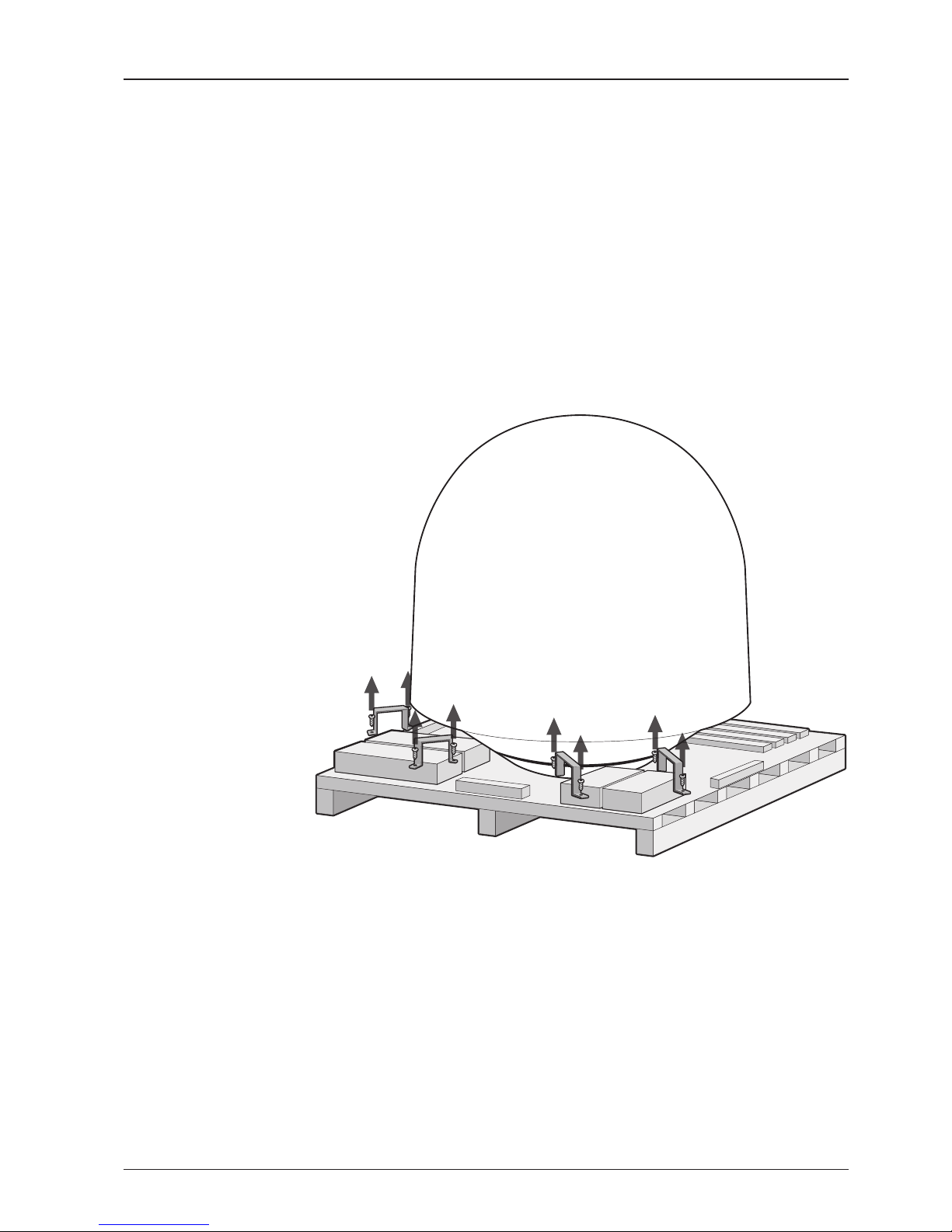

Lift the pallet by using a suitable size of lifting equipment. Using a 19mm spanner, remove 4 shipping bolts that mount the antenna to the pallet.

INSTALLING THE ANTENNA

Step 5.

Remove the ratchet strap.

* The photo with the opened radome is only for display purpose.

Step 4.

Open the radome hatch.

Radome Hatch

Flat Head Screwdriver

(min 5mm)

v130 – Marine Satellite Communication System

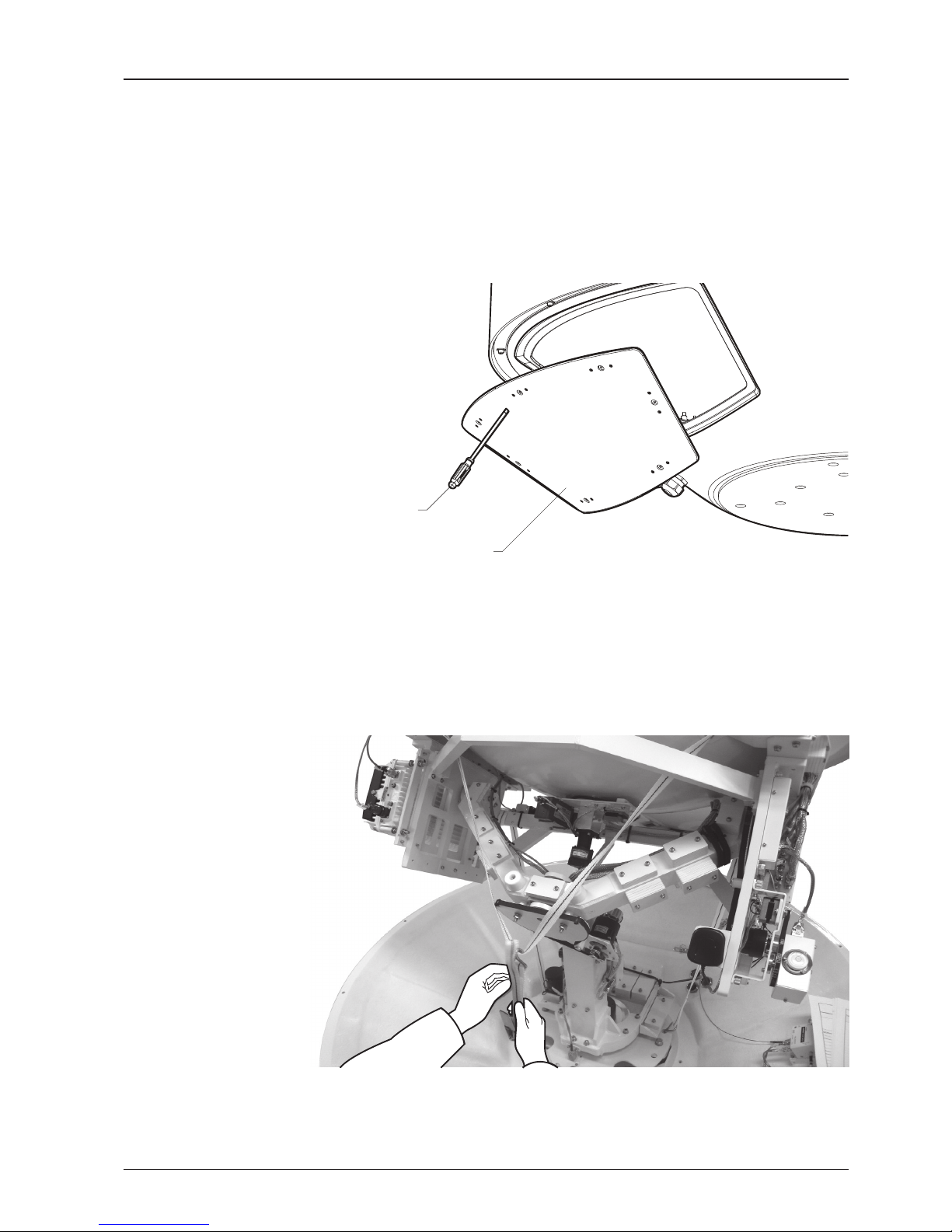

Step 6.

Remove the tie wrap from the pedestal. Do not turn on the antenna power if the shipping restraints from the antenna pedestal have not been removed completely.

INSTALLING THE ANTENNA

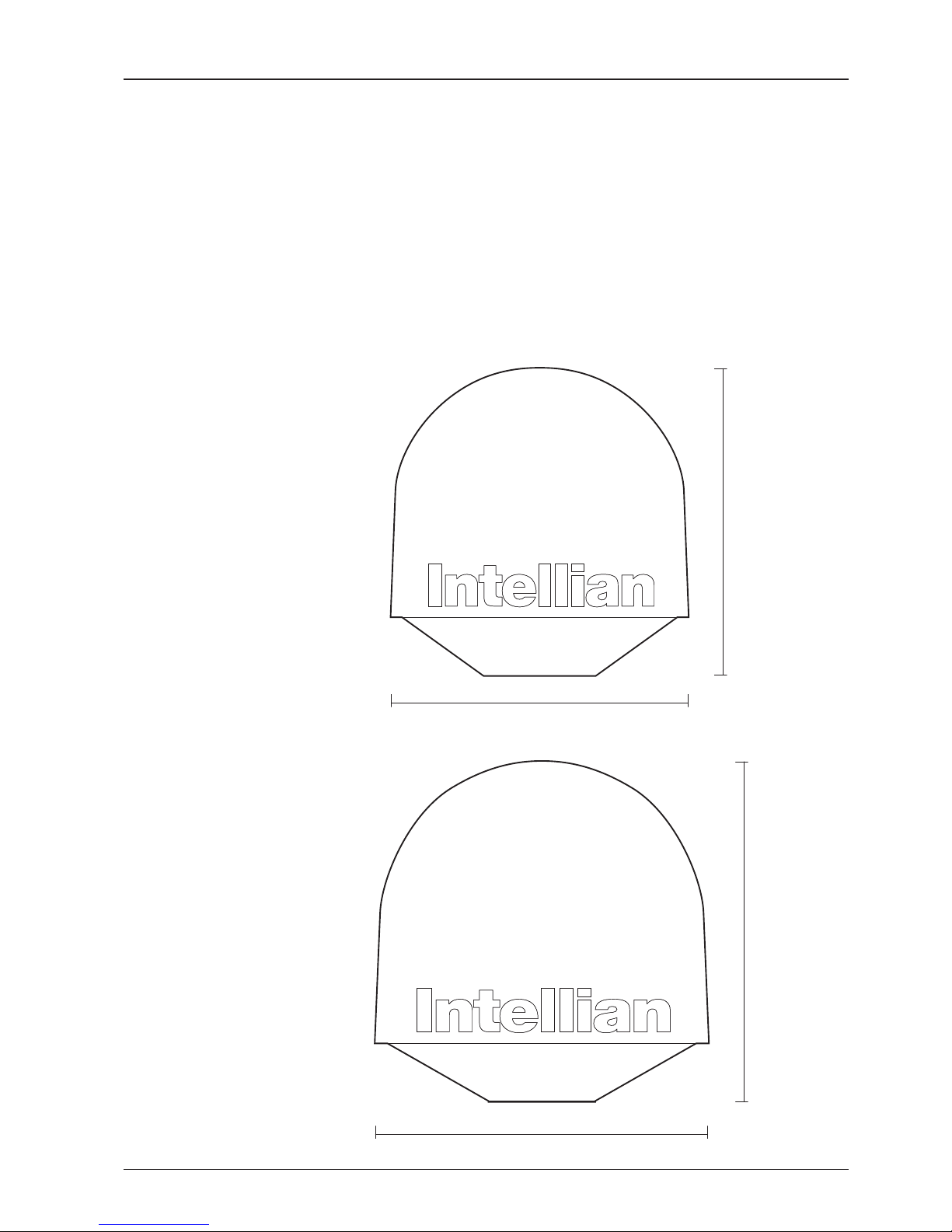

Antenna Dimensions

The method of installation and mounting of antenna may vary with vessel design but the following procedures are applicable in most situations, and will result in a secure and effective installation. Conrm the height and diameter of the antenna before installing it.

147.4 cm (58" )

152.2 cm (59.9" )

168.9 cm (66.5")

165.2 cm (65")

v110

Radome Dimensions

v130

Radome Dimensions

v130 – Marine Satellite Communication System

Ø48 cm (18.9")

Radome Hatch

24.75 cm (9.74")

v110 : Ø48 cm (18.9")

v130 : Ø54 cm (21.3")

v110 Radome Bottom

Ø54 cm (21.3")

Radome Hatch

v130 Radome Bottom

4-Ø13 mm(0.5") Holes

v11 0

v130

v110 : Ø48 cm (18.9")

v130 : Ø54 cm (21.3")

24.75 cm (9.74")

BOW direction

Antenna Mounting Templates

The mounting holes must be in the exact same place as shown in the diagram below. The radome should be positioned with the Bow marker aligned as close as possible to the centerline of the ship. Variation from actual alignment can be compensated with the "BOW Adjust" settings in the ACU.

INSTALLING THE ANTENNA

Position the Radome

The radome should be positioned with the BOW marker aligned as closely as possible to the ship’s centerline.

Mim. 120 cm (47”)

Mounting Plate

Min. 1 cm (0.4”)

Max. 3 cm (1.2” )

Support Pedestal

Appr. Ø25.4 cm (10”)

Recommended size of the

support pedestal

v130 – Marine Satellite Communication System

M12 Hex Bolt

Deck

Antenna Unit

M12 Flat Washer

M12 Spring Washer

M12 Hex Nut

19 mm Spanner

Mounting the Radome

Bolt the radome base directly to the support pedestal.

Note: Makesure to use the Intellian supplied blots from the accessory box when you

mount the radome. Apply Loctite #262 or equivalent to the bolt thread, and fasten it with the tight torque of 110 N·m

INSTALLING THE ANTENNA

Modem Tx Cable

(from modem)

ACU Rx Cable

(from ACU)

On/Off Switch

BUC Power Cable

(from ACU)

Antenna Power Cable

(from antenna)

Rotary #2 Rx Cable (from antenna)

BUC Power Cable (from antenna)

Rotary #1 Tx Cable

(from antenna)

Power Switch Box

Shrinkage Guide

Rubber Gland

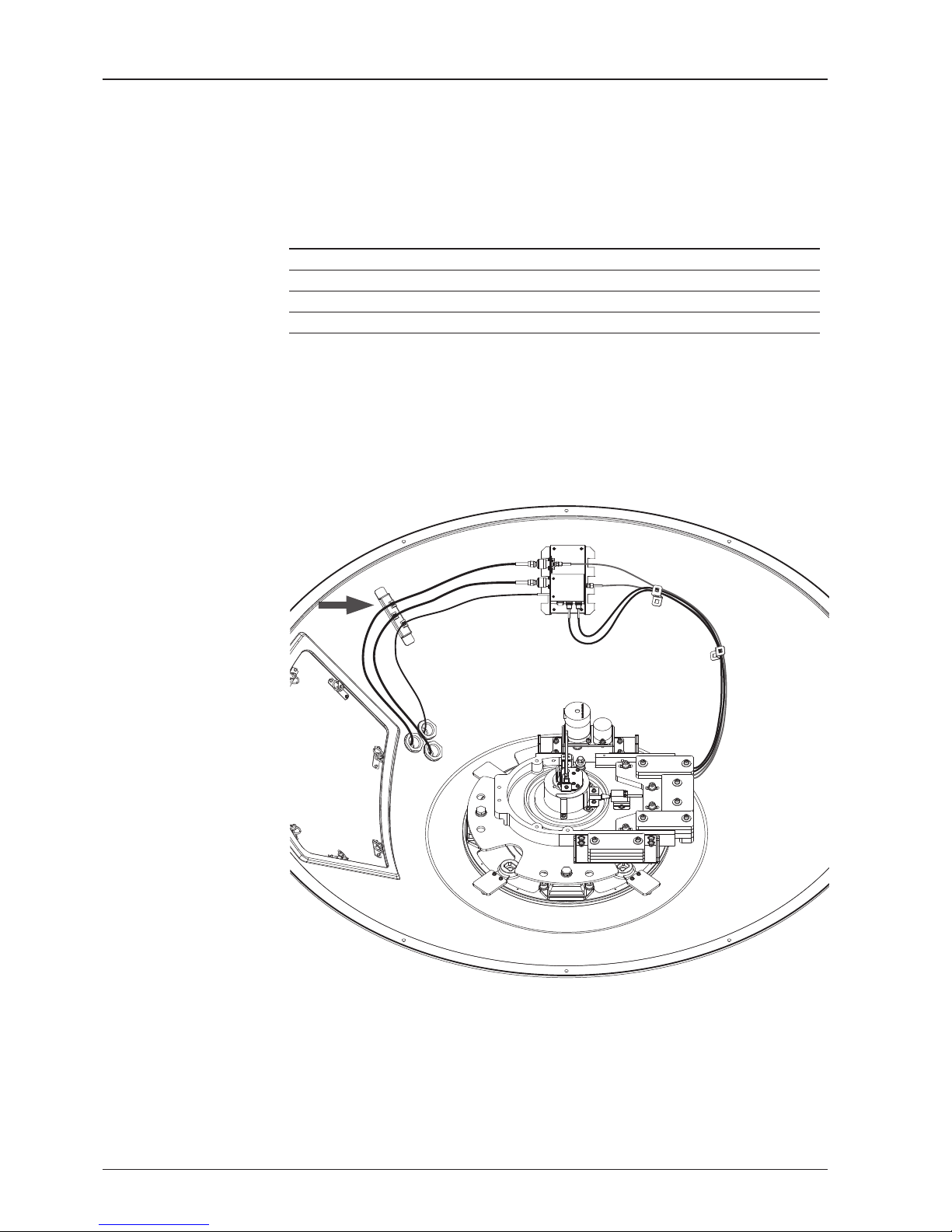

RF Cable Connections

Ensure that the switch on the power switch box is off during the installation period. When all the cables have been installed, turn on the switch.

v130 – Marine Satellite Communication System

Secure the RF Cables

Using tie wraps supplied with radome, secure the RF cables connected to the power switch box. Reinstall the hatch to the radome after the cable connection is established.

NOTE: Tightening torque

Connector Type Tightening Torque

F Type 1.0 N-m

SMA 0.6 N-m

N Type 1.5 N-m

INSTALLING THE ACU

Mounting the ACU

19” Rack Mount Type

Table Mount Type

ACU Dimensions

Selection of ACU Installation Site

Ship Gyro Connection

Connecting the System with a Ship’s Gyro

Connecting the System without a Ship’s Gyro

ACU Connector Guide

v130 – Marine Satellite Communication System

Mounting the ACU

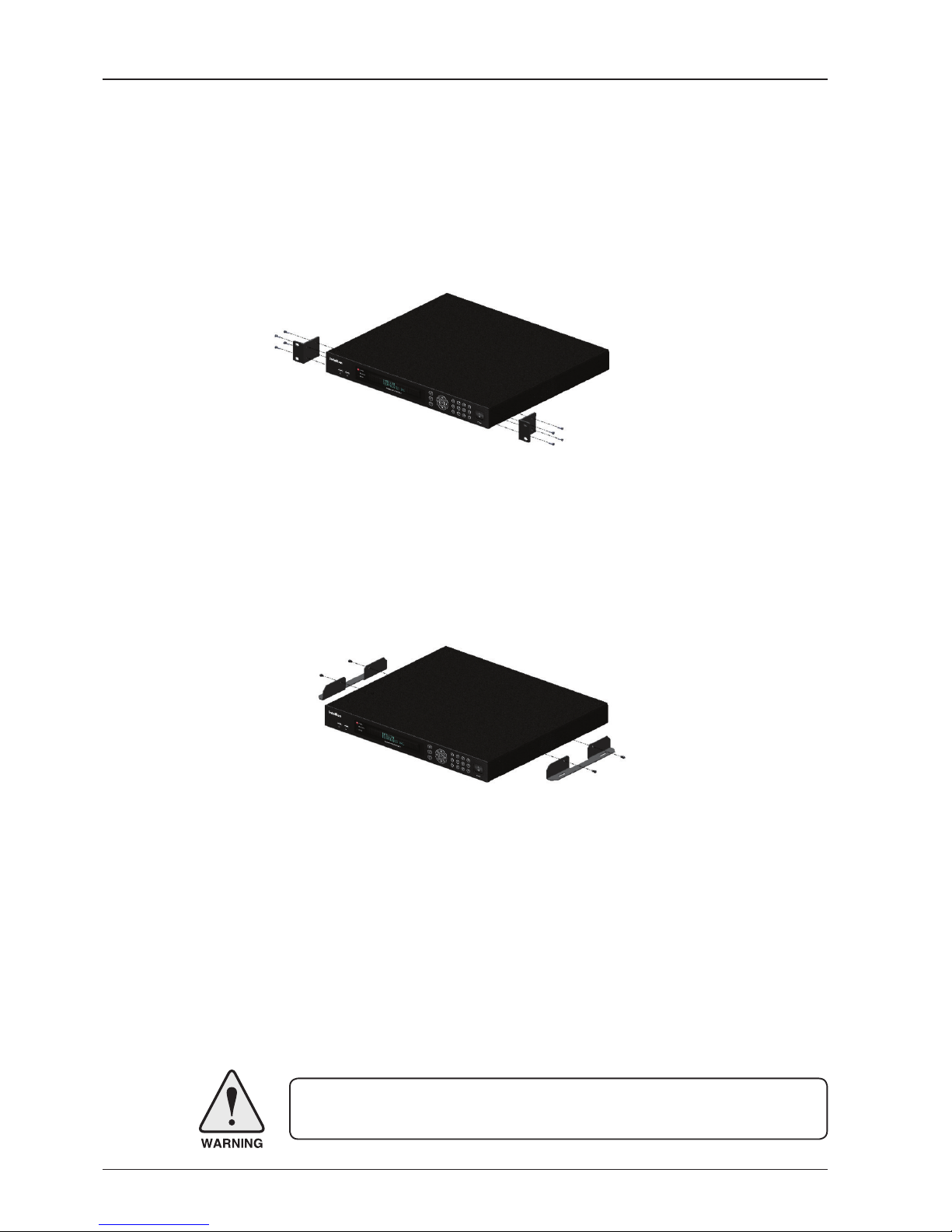

Intellian supplies two types of mounting methods (a) 19” Rack Mount Type and (b) Table Mount Type to mount your ACU.

19” Rack Mount Type

- The ACU should be installed using the two supplied rack mounting brackets which allow for a side 19” rack mounting conguration.

- Using the self tapping screws supplied, attach the mounting brackets to the sides of the ACU.

- Place the ACU in the location where it is going to be installed.

- Connect the cables to the rear of the ACU.

Table Mount Type

- The ACU should be installed using the two supplied table mounting brackets which allow for a top or bottom mounting conguration.

- Using the self tapping screws supplied, attach the mounting brackets to the sides of the ACU.

- Place the ACU in the location where it is going to be installed.

- Using a pencil to mark the 4 hole positions (2 each side), and use the appropriate drill bit to mount the unit.

- Connect the cables to the rear of the ACU.

WARNING: Ensure that the cables connected to the ACU are long enough to prevent

damage when the ACU is pulled out from the rack.

19" Rack Mount Type

Table Mount Type

INSTALLING THE ACU

Selection of ACU Installation Site

The ACU should be installed below deck, in a location that is:

• Dry, cool, and ventilated.

• The front panel should be easy accessible to user.

POWER

Antenna Control Unit

Power

1 2 3

4 5 6 0

7 8 9

TRACKING

ERROR

DNPC

3.2 cm (1.3")

46.5 cm (18.3")

48.5 cm (19.1")

13 cm (5.1")

20 cm (7.9")

43.1 cm (17")

45.4 cm (17.8")

47.4 cm (18.6")

4.4 cm (1.7")

38.1 cm (15")

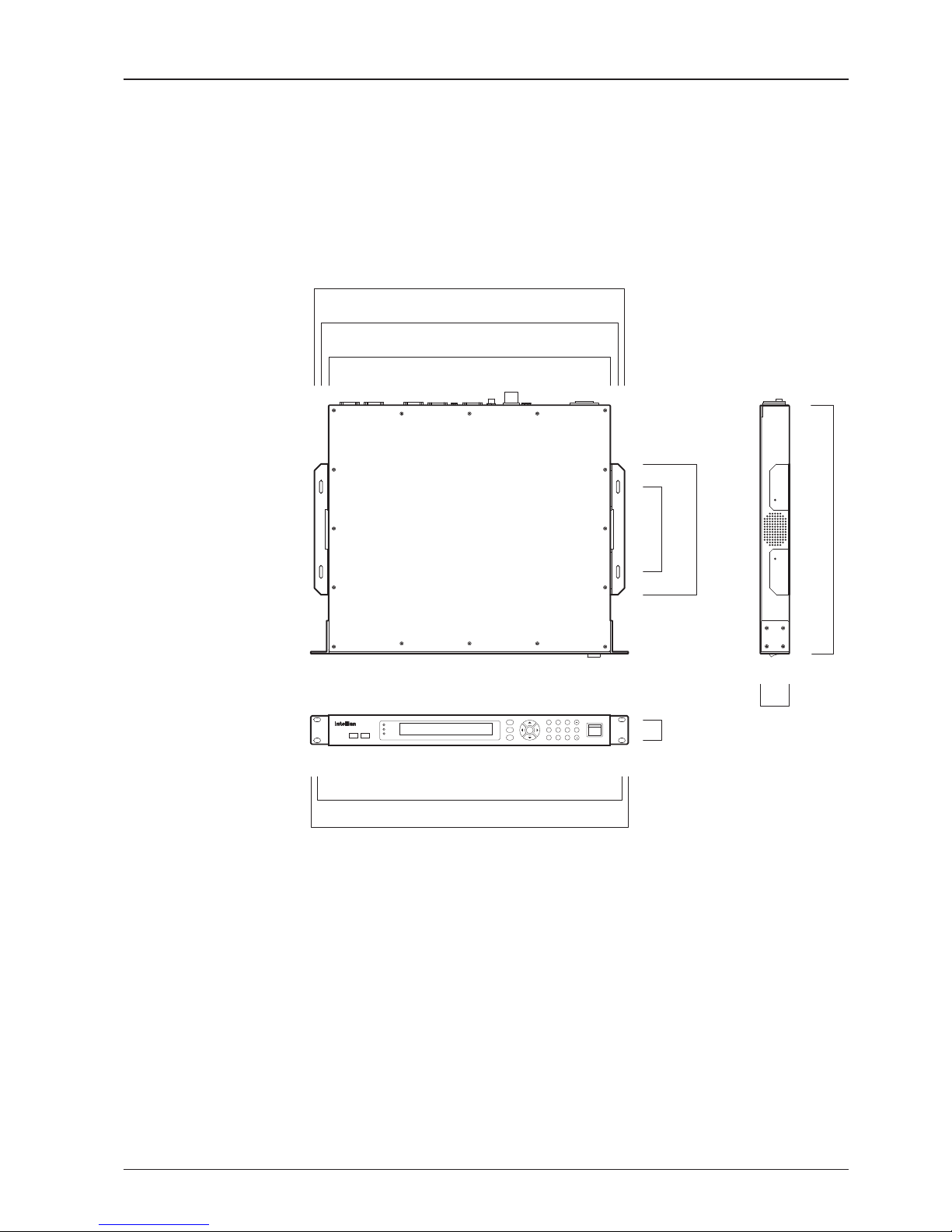

ACU Dimensions

Dimension of ACU

v130 – Marine Satellite Communication System

Ship Gyro Connection

Connecting the System with a Ship’s Gyro

The ship’s gyrocompass provides true heading input to the antenna which easily allows the antenna to target and acquire the desired satellite. Intellian always recommend to connect a ship’s gyro to the antenna through the gyro interface on the ACU. If the ship’s gyrocompass output is other than NMEA 0183 and Synchro separate purchase of a gyro converter is required.

• NMEA 0183 Gyro Compass Interface Cable (Customer Supplied)

• Type: 2 conductors for NMEA 0183

• NMEA heading sentence: xx HDT (4800 Baud, 8, N,1) If there is no HDT sentence then use HDM sentence instead.

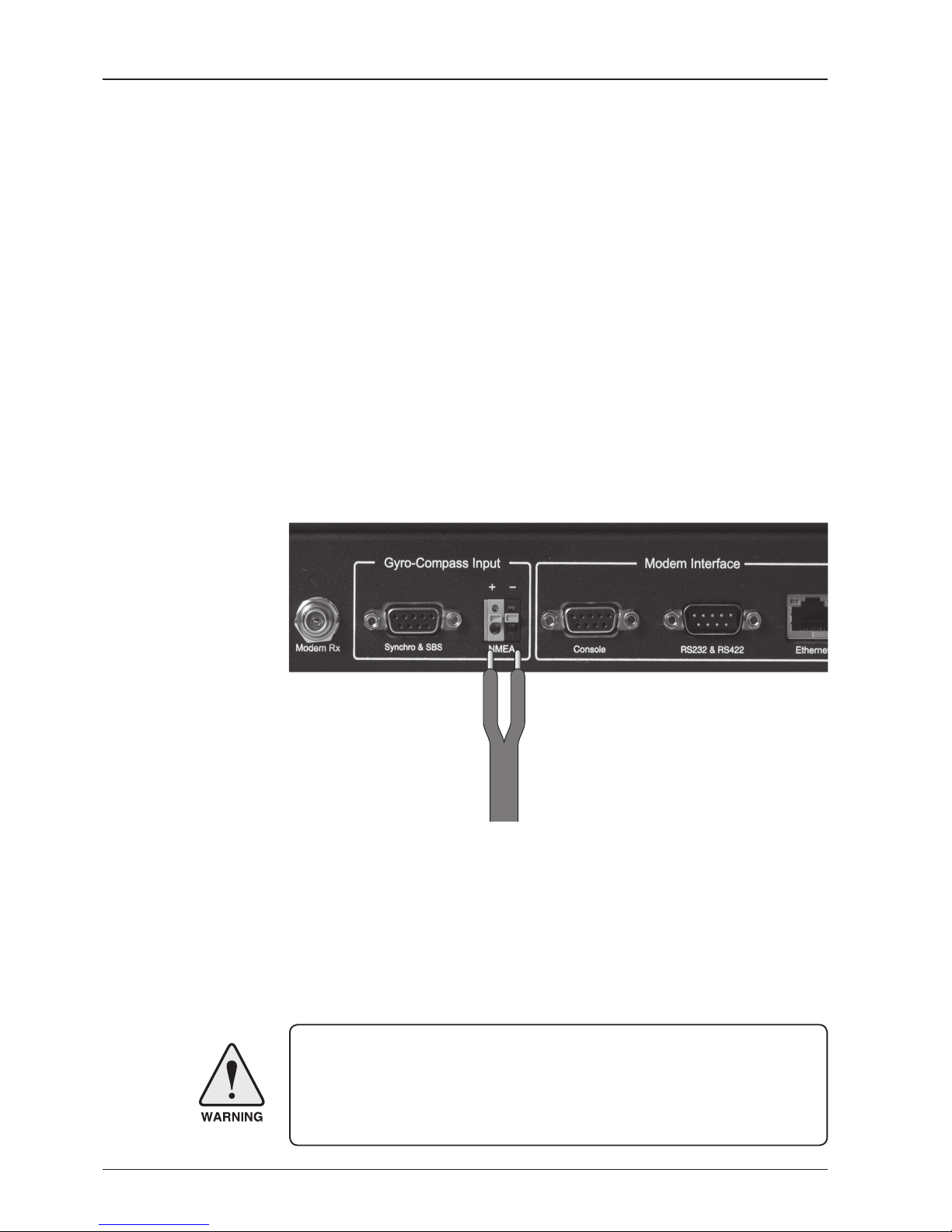

WARNING: Determine the type of gyrocompass OUTPUT on the ship, assure that the

GYRO TYPE parameter is set correctly (refer to the operation section of this menu). Heading in most cases will be 000.0 and you will have to enter the initial value of ships current value whenever you turn on the ACU. The ship’s heading is not required to input when your system is connected to NMEA or 1:1 synchro gyrocompass output.

Ship’s Gyro Connection

Strip the cable for 5 mm (0.2") Do not solder the cable

INSTALLING THE ACU

Connecting the System without a Ship’s Gyro

For a vessel where the ship’s gyrocompass is not installed or is difcult to be connected, the Intellian Gyro-Free satellite search function will be automatically enabled to allow the antenna to lock onto the desired satellite without requiring an external heading input.

The table below provides an example of the gyro-free satellite search algorithm. The Search 1 or Search 3 satellite search pattern will be triggered according to the existence of heading input and the setting of the heading device.

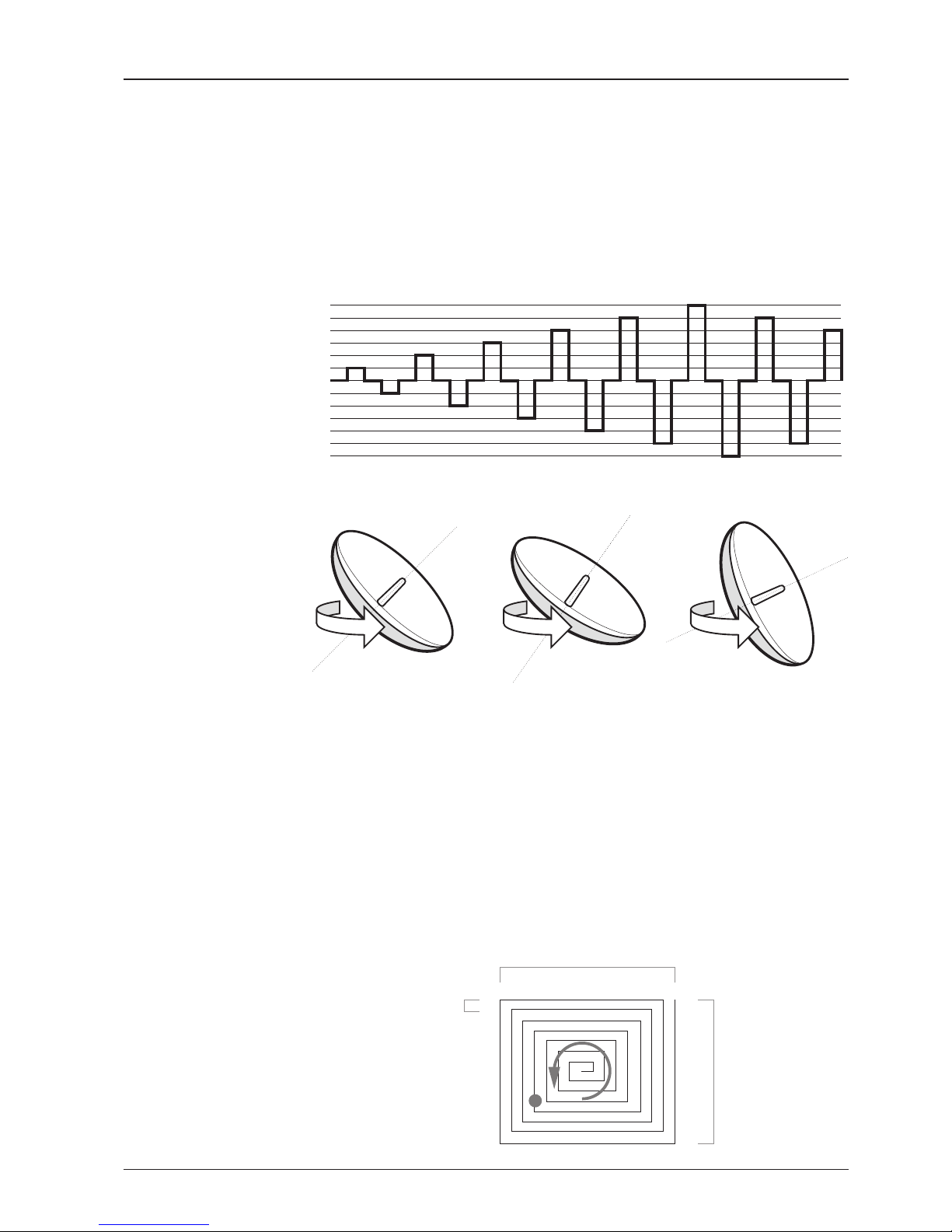

Search 1: The antenna will search for the target satellite by turning its azimuth

angle in CCW (Counter Clockwise) direction until the antenna receives the lock signal from the modem or the DVB (Digital Video Broadcasting) transponder of the target satellite is decoded by the antenna.

Search 3: The antenna will search for the target satellite by turning its azimuth angle

directly to the position calculated using the ship’s heading input and lock onto the satellite.

Quick Setup Procedure

• Set the satellite with DVB transponder as the target satellite.

• Set “No Device” to the heading device.

• The antenna will search for the target satellite by turning its azimuth angle in CCW direction and lock onto the satellite signal until the antenna receives a lock signal from the modem or the DVB transponder of the target satellite is decoded.

• Set the heading device as NMEA/Synchro

• Enter “Manual search” menu and press “Function” key to save the current settings.

Intellian ACU will automatically calculate and save the Bow offset.

• Upload the real TARGET satellite pre-congured from the library.

Setting of Heading Device

Existence of Heading Data No Device NMEA/Synchro Ground Test

With Heading Data

Search 1 Search 3 Search 3

Without Heading Data

Search 1 Search 1 Search 3

v130 – Marine Satellite Communication System

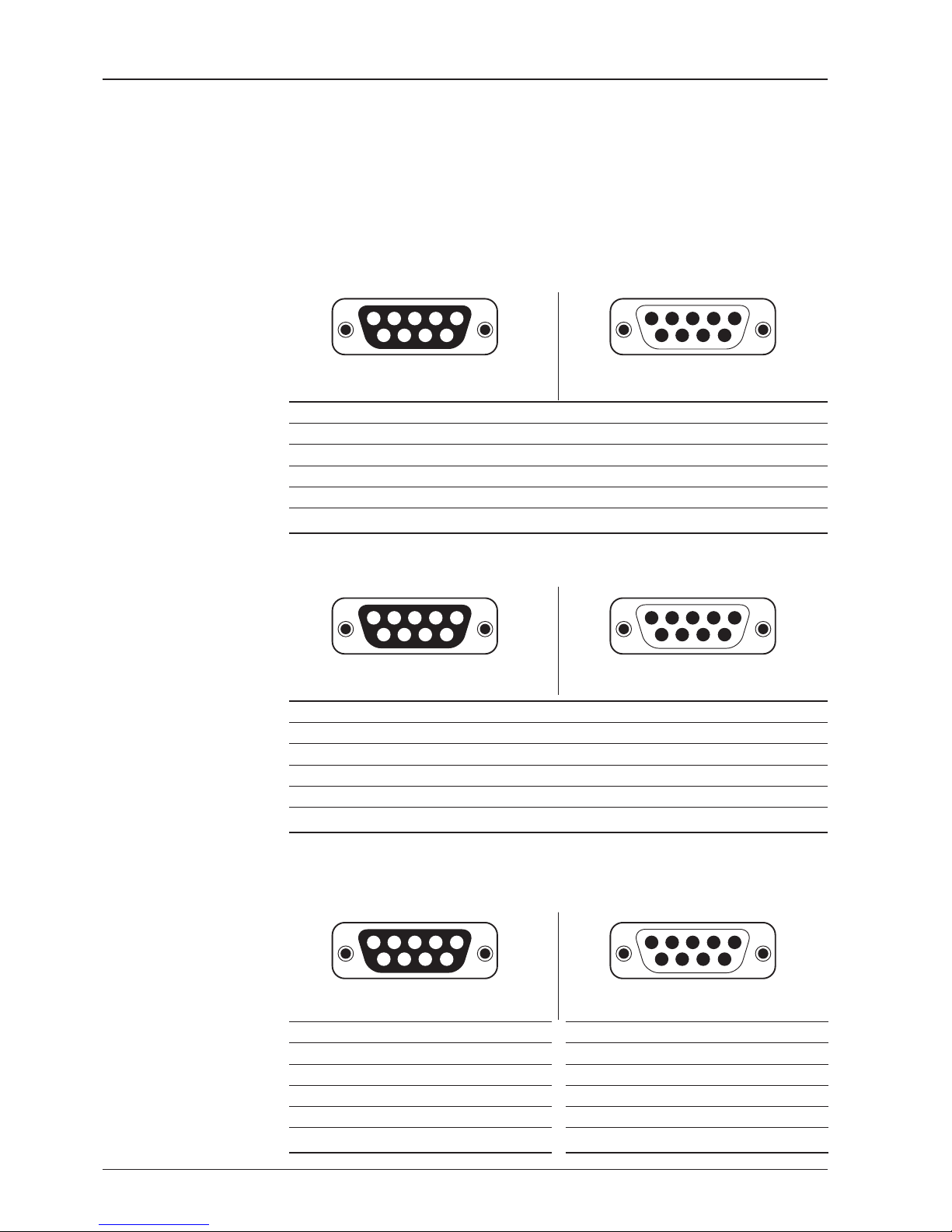

ACU Connector Guide

• Console Port

NOTE: NMEA GPS IN/OUT Sentence: GPGLL (4800 Baud, 8, N, 1)

12345

6789

54321

9876

54321

9876

Pin Signal Pin Signal

1 GND 6 GPS OUT -

2 GPS OUT + 7 MODEM_SIGNAL_IN

3 MODEM_LOCK 8 MODEM_CTRL2

4 MODEM_CTRL1 (TX MUTE) 9 GPS IN -

5 GPS IN +

ACU Console Port

D-Sub 9 pin Female

D-Sub 9 pin Male connector

Supplied Component

12345

6789

54321

9876

12345

6789

12345

6789

Pin Signal Pin Signal

1 - 6 -

2 - 7 -

3 SYNCHRO_R2 8 SYNCHRO_R1

4 SYNCHRO_R3 9 SYNCHRO_S2

5 SYNCHRO_S1

Pin Signal Pin Signal

1 - 6 -

2 RXD 7 -

3 TXD 8 -

4 - 9 -

5 GND

Pin Signal Pin Signal

1 - 6 -

2 RXD + 7 RXD -

3 TXD + 8 TXD -

4 - 9 -

5 GND

ACU Synchro Port

D-Sub 9 pin Female

D-Sub 9 pin RS232

Connector

D-Sub 9 pin Male connector

Supplied Component

D-Sub 9 pin Male connector

Supplied Component

• Synchro Connector

• RS232/422 Connector (Modem & BUC Interface)

OPERATING THE ACU

Introduction

Normal Mode

Setup Mode

Installation Settings

Antenna Settings

Manual Search Setup Antenna LNB Polarization Angle Search Parameters Setup Antenna Parameters Setup Block Zone Antenna Diagnostic Test

Satellite Settings

Load Satellite Edit Satellite Information Add Satellite Information Check NID

System Settings

Set LNB Local Oscillator Frequency Set Location Set Modem Port System Backup & Restore Display Versions

v130 – Marine Satellite Communication System

This section of the handbook describes how to setup your system after installing the ACU. It includes the following functions:

Introduction

ACU Soft Keys

Soft key Function

MODE

Enter SETUP mode

RETURN

In SETUP mode: return to previous menu/option or save the adjusted settings. In normal mode: return to the rst page of antenna current status.

FUNCTION

Save the adjusted settings.

ARROW KEYS

Select from the alternative options to increse or decrese the selected character to the desired value.

Enter next step/menu

NUMBER KEYS

Input the numbers

Soft Key Functions

PC Cable (USB) Status LED Return Function Number Keys Power

Mode Arrow Keys

OPERATING THE ACU

IN T E LLIAN TECHNO L O G I ES INC.

1. The data communication is being established between the antenna and the ACU.

INITI A L I Z E - AN TENNA I N F O

INTEL L I A N V1 1 0

2. The ACU receives antenna information.

INITI A L I Z E - EL PO S I TION

INTEL L I A N V1 1 0

3. The elevation angle and cross level angle are initialized.

INITI A L I Z E - AZ IMUTH POSITI O N

INTEL L I A N V1 1 0

4. The azimuth angle is initialized.

INITI A L I Z E - SA T POSITIO N

INTEL L I A N V1 1 0

5. The antenna returns to the target satellite position.

SEA R C H 1 138.0E TELST_18 SIG:30 1 VL

AZ:292.7( 202. 7 ) EL: 48.3 SK:

-72.0

6. The antenna is searching for the target satellite.

TRA C K I N G 13 8 . 0E TELST_ 1 8 SIG: 5 0 1 V L

AZ:292.7( 202. 7 ) EL: 48.3 SK: -72 . 0 F n

7. The antenna has locked onto the satellite.

Startup

With the system installed and power applied, the ACU screen will show the following sequence.

Normal Mode

Start up

Initialize antenna info

Initialize elevation &

cross level angle

Initialize azimuth angle

Initialize target satellite

position

Search status

Tracking status

v130 – Marine Satellite Communication System

SEA R C H 1 138.0E TELST_18 SIG:30 1 VL

AZ:292.7( 202. 7 ) EL: 48.3 S K : - 72.0

1. The antenna is searching for the target satellite.

TRA C K I N G 13 8 . 0E TELST_ 1 8 SIG: 3 0 1 V L

AZ:292.7( 202. 7 ) EL: 48.3 S K : - 7 2 .0 Fn

2. The antenna has locked onto the target satellite. Current IF signal level (SIG/AGC) is displayed. SIG will be displayed when NBD (Narrow band detection) mode for TRACKING SIGNAL is chosen to be used and AGC will be displayed when DVB mode of TRACKING SIGNAL is chosen to be used.

The symbol “•” will be only displayed when the satellite signal is strong enough to locked onto. [VL] indicates the LNB's local frequency corresponding to 13V is in use for the signal reception.

VL: 13V + 0 kHz, HL: 18V + 0 kHz, VH: 13V + 22 kHz, HH: 18V + 22 kHz

Press the UP or DOWN arrow key to increase or decrease the LNB skew angle. True azimuth [292.7] position of the antenna is the sum of ships heading 090.0 [HDG] and antenna relative [202.7].

SA VE CURRENT SAT INFO ?

YES NO

3. Press FUNCTION key to save current satellite information or abort and return to the main display. "Fn" will be displayed only if the antenna is in tracking mode.

NOTE: However, if the "GYRO TYPE" is set to "NONE" or "NMEA" but without

receiving a proper input signal, "---.-" will be displayed at "True Azimuth"

Monitoring Antenna Current Status

When the ACU power is on, it displays the status of the antenna. The current status of the antenna is displayed as shown below.

Current search status

Current tracking status

Save current satellite info

TRA C K I N G 13 8 . 0E TELST_ 1 8 SIG: 3 0 1 V L

AZ:---.-( 202. 7 ) EL: 48.3 S K : - 7 2 .0 Fn

OPERATING THE ACU

NBD F:124 7 0 0 0 BW: 1 0 0 0 SIG:3 0 1

004.53E 5 2 . 2 2 N H DG:09 0 . 0 L:100 0 0 Fn

5. NBD, GPS and ship’s heading information are shown.

- NBD (Narrow Band Detection) IF tracking frequency: 1247000 kHz

- Detected Band Width: 1000 kHz

- SIG (Signal Level ): 301 (When NBD mode for tracking signal is chosen)

- W (West)/E (East) Longitude: 4.53º E

- N (North)/S (South) Latitude: 52.22º N

- HDG (Ship’s Heading): 90º

- LNB local oscillator (LO) frequency: 10000 MHz

[PW R ] ANT: 26.4V LNB : 13V + 0K HZ

ACU: 27.1V [P O L ] TX: V RX:H

6. Press RIGHT arrow key to display the current operation voltage for antenna, ACU and

LNB. POL indicates the TX polarity (VERTICAL) and RX polarity (HORIZONTAL).

V1- 1 1 0 - 2 3H ANT . SERIA L 1.00

VP-T201 ACU SE RIAL 1.00(1.00)

7. Press RIGHT arrow key to display the below information.

- Antenna part number, antenna serial number and PCU rmware version.

- ACU part number, ACU serial number, ACU rmware version and Library version.

Press RETURN Key to return to the rst page of the antenna current status.

8. Press RIGHT arrow key to display the real-time diagnostic result.

The real-time diagnostic code will be displayed automatically if there is any error found during the system operation. However, this page will not be displayed if there is no error message.

9. Press FUNCTION key to erase diagnostic error message.

Tracking & Heading

information

Power status

Antenna & ACU

versions

[DIA G N O S I S] S E N S OR BOX

CO D E 109 RESUL T S : F AILED F N

ERASE D I A G NOSIS E R R O R LOG ?

YES NO

Real-time

diagnostic

result

Erase

Error message

v130 – Marine Satellite Communication System

Setup Mode

Enter the SETUP mode simply follow the instructions below.

Searching / Tracking mode

Enter password

Setup mode

Exit setup mode

TRA C K I N G 13 8 . 0E TELST_ 1 8 SIG: 3 0 1 V L

* AZ:292. 7 ( 20 2 . 7 ) EL: 48.3 SK: -72.0 Fn

1. While the antenna is in SEARCHING/TRACKING mode, press MODE key to enter SETUP mode.

indicates the key pad lock function is on (Refer to KEY LOCK menu to setup the key pad lock function). When key pad lock function is activated press MODE key or when “Fn” menu is activated press FUNCTION key the ENTER PASSWORD menu will be displayed.

ENT E R PASS W O R D

- - - -

2. If the key pad lock function is on, enter the password before accessing to the SETUP mode. If the key pad lock function is off, access to the SETUP mode directly as Step 3.

SETUP MODE ?

YES NO

3. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode or press RIGHT arrow key to move cursor to NO and press OK key to abort and return to the main display.

EX I T SETU P MODE ?

YES NO

4. While the antenna is in SETUP mode, press FUNCTION key as shortcut key to exit SETUP mode.

OPERATING THE ACU

Installation Settings

During the rst time installation, it is required to setup the installation settings.

Installation

Latitude & Longitude

Gyro type

Select satellite

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode

+ANTE N N A +S ATELL I T E

+SYST E M

+INST A L L A TION

2. Press arrow keys to move cursor to INSTALLATION menu and press OK key to enter it.

SELECT SATELLI T E

[ 1 ] TEL S T _ 1 8 138.0 0 E

3. Press UP and DOWN arrow keys to select the satellite that you wish to track and press OK key to load the selected satellite.

LATITUD E LONGITU D E

37. 0 0 N 1 2 6 . 5 3 E

4. Set the current LATITUDE and LONGITUDE Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase or decrease the value. Or press NUMBER keys to set the desired value directly. Press OK key to set the parameter.

GYRO TYPE B O W AD J U S T

NMEA 0 0 0

5. Set the ship’s GYRO TYPE* & BOW ADJUST A search pattern 1 or 3 will be initiated according to which Gyro Type is selected and the existence of the gyro input. Ensure that the supported Gyro Type is set correctly. For v130, if the ship's gyrocompass output is Step-by-Step (SBS) or Synchro, a separate purchase of a gyro converter is required. If the ship’s gyrocompass output is other than NMEA & Synchro, a separate purchase of a gyro converter is required.

A search pattern 1 will be initiated automatically if the gyro input does not exist and the gyro type is selected other than GROUND TEST.

The BOW ADJUST is to offset the angle difference between the antenna’s bow and the ship’s bow (Range: 0 – 360°).

NOTE: The bow offset will not be saved automatically if Search 1 pattern is initiated. In this case, the antenna will need to retarget the desired satellite using Search 1 every time if the antenna restarts.

v130 – Marine Satellite Communication System

6. Set MODEM PORT* and MODEM PROTOCOL* MODEM PORT is to select a proper data communication port on the ACU to interface with the satellite modem. MODEM PROTOCOL is to select a proper communication protocol on the ACU to interface with the satellite modem.

13 V + 0KHZ 18V+0KH Z

10 000MH Z 1 1 3 0 0 M HZ

13 V + 22KHZ 18V+22 K H Z

10 000MH Z 09750M H Z

7. Set the LNB local oscillator frequency for each voltage power. (13V +0 kHz, 18V +0 kHz, 13V +22 kHz, 18V +22 kHz)

Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase or decrease the value. Or press NUMBER keys to set the desired value directly.

MODEM PORT*

RS232 RS422 ETHERNET

Modem port & Modem

protocol

LNB local frequency

GYRO TYPE*

NO DEVICE NMEA / SYNCHRO GROUND TEST

Gyro search mode

MODEM PROTOCOL* I/O CONSOLE OPEN AMIP SERIAL GPS ROSS

Setting of Heading Device

Existence of Heading Data No

Device

NMEA/ Synchro

Ground Test

With Heading Data

Search 1 Search 3 Search 3

Without Heading Data

Search 1 Search 1 Search 3

MODEM PORT MODE M PROTO C O L

RS232 SERI A L G P S

OPERATING THE ACU

TRA C K I N G 13 8 . 0E TELST_ 1 8 SIG: 3 0 1 V L

AZ:292.7( 202. 7 ) EL: 48 .3 SK: -72 . 0 Fn

10. Antenna has locked onto the target satellite.

Tracking status

LOADING ...

DO NO T TURN OFF !

9. Setting is being loaded to the system. The ACU will restart the system automatically after uploading the setting. DO NOT TURN OFF ACU POWER while the data is being uploaded.

Loading settings

LOAD ?

YES NO

8. Press RETURN key to load the current setting or abort and return to the main display.

Load

v130 – Marine Satellite Communication System

Antenna Settings

Manual Search

Search the desired satellite manually.

Antenna movement

Setup mode

Save

Manual search menu

Antenna menu

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ A N T E NNA +SAT E L L I T E

+SYST E M +INSTAL L A T I ON

2. Press OK key to enter ANTENNA menu.

+M A N U A L SEARCH +S E T POL ANGLE

+SEAR C H PARA M +SE T PARAM E T E R S

3. Press OK key to enter MANUAL SEARCH menu.

STE P SIZE AZIMUTH ELEV A T I O N AGC

# 00. 2 #

231.7 48.3 301 Fn

4. Current IF tracking signal level (AGC)/(SIG) is displayed to assist you in manually peaking AZIMUTH (0°-360°) and ELEVATION (0°-90°) angle for best signal level. Press NUMBER key to change the STEP SIZE (Range: 0.1~99.9). Press LEFT and RIGHT arrow keys to increase or decrease the azimuth angles. Press UP and DOWN arrow keys to increase or decrease the elevation angles. Press FUNCTION key to save current settings or abort and return to the main display.

SAVE CURRENT SAT INFO?

YES NO

5. If the current settings are able to locate the satellite, press FUNCTION key to save “current satellite information”. This will help to reduce the satellite acquisition time after restarting the system. Press LEFT arrow key to move cursor to YES and press the OK key to save the settings.

NOTE: If the gyro type is not NMEA or the gyro is not connected to the ACU, the information cannot be saved.

OPERATING THE ACU

Setup Antenna LNB pol Angle

LNB pol angle type

Setup mode

Set pol angle menu

Antenna menu

LNB pol angle Signal

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ A N T E NNA +SAT E L L I T E

+SYST E M +INSTAL L A T I ON

2. Press OK key to enter ANTENNA menu.

+M A N U A L SEARCH +S E T POL A N G L E

+SEAR C H PARA M +SE T PARAM E T E R S

3. Press RIGHT arrow key to move cursor to SET POL ANGLE menu and press OK key to enter it.

S E L E C T POL A N G L E MENU

CALIBRA T I O N

4. Press UP and DOWN arrow keys to select the LNB pol angle menu and press OK key to run the selected operation 'CALIBRATION' or 'MANUAL ADJUST'. Select MANUAL ADJUST to control LNB pol angle manually. If the control board, LNB pol potentiometer or belt is replaced, select CALIBRATION to calibrate LNB pol angle.

LNB POL ANGLE SIGN A L : 180

5. Press UP and DOWN arrow keys to increase or decrease the LNB pol angle manually and the correspondent SIGNAL level will be displayed next to it. Press RETURN key to return to the main display.

NOTE: LNB POL ANGLE menu will be displayed only if MANUAL ADJUST is selected.

v130 – Marine Satellite Communication System

Search 3 range

Search 1 range

Search Parameters

Setup mode

Manual search menu

Antenna menu

Search param

S E T U P MODE ?

YES N O

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ A N TENNA +SA T E L L ITE

+ S YSTE M +INSTALL A T I O N

2. Press OK key to enter ANTENNA menu.

+MANUAL SEARCH + S E T POL A N G L E

+ S E ARCH PARAM +SET PARAMETE R S

3. Press arrow keys to move cursor to SEARCH PARAM menu and press OK key to enter it.

S E ARCH WAIT TIME INCREM E N T STE P

030 0.5 0

SEARCH1 AZ SEARCH 1 EL

40 0 06

SEARCH3 AZ SEARCH 3 EL

00 3 04

4. Set SEARCH 1 and 3 AZ (Azimuth) range and EL (Elevation) range. SEARCH 2 is reserved for future use.

A search pattern 1 or 3 will be initiated according to which GYRO TYPE is selected and the existence of the gyro input. Search 1: A search pattern 1 will automatically be initiated when the ship’s heading input does not exist/is failed. The antenna will go to the relative azimuth position 0º at the calculated elevation and search in the azimuth CCW direction and search up +0.5º & down -0.5º with a total 6º(±3º) in elevation. The search cycle will repeat until the antenna receives the lock signal from the modem or the DVB transponder of the target satellite is decoded by the antenna. If the desired signal is found and above the predened detect level, the ACU will enter to Search 3. However, the antenna will not initiate Search 3 pattern but go into TRACKING mode immediately if the desired signal is above the predened tracking threshold level. If the detected signal is below the predened tracking threshold level, the search 1 will repeat and start 3º away from the current position.

OPERATING THE ACU

-3°

-2°

-1°

0°

1°

2°

3°

1 5 10 15 20 3025

Search 1 (Gyro Free) Search Pattern

Search 3 pattern

Elevation (EL) Range

0.5˚

Azimuth (AZ) Range

Search 3: A search pattern 3 will automatically be initiated when AGC/SIG falls below the current tracking level threshold value. If the desired signal is found and above the predened tracking level, the ACU will terminate Search 3 and go into TRACKING mode. A search pattern will automatically be initiated when AGC/SIG falls below the current threshold setting (indicates that satellite signal has been lost). Search is conducted in a two-axis pattern consisting of alternate movements in azimuth (AZ) and elevation (EL) as forming expanding square indicated as below diagram.

Target Satellite EL Position

Revolution (AZ direction)

Target EL Angle

Turn 1

Target EL Angle + 0.5°

Turn 2

Target EL Angle - 0.5°

Turn 3

Search 1 antenna motion

v130 – Marine Satellite Communication System

Password

Antenna menu

Set parameters menu

Setup mode

Set detect & tracking DVB

Setup Antenna Parameters

These parameters should only be changed by an authorized Intellian service technician. Improper setting of these parameters will cause your system to perform improperly.

S E T U P MODE ?

YES N O

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ A N TENNA +SA T E L L ITE

+ S YSTE M +INSTALL A T I O N

2. Press OK key to enter ANTENNA menu.

+ M ANUA L SEARC H + S E T PO L A NGLE

+ S EARC H PARAM

+SET PARAMET E R S

3. Press arrow keys to move cursor to SET PARAMETERS menu and press OK key to enter it.

ENT E R PASS W O R D

- - - -

4. Press 4 digit password to enter SET PARAMETERS menu (1590). Setup parameters is only required after installation or repairs of your antenna system.

These parameters should only be changed by an authorized service technician. Improper setting of these parameters will render your system inoperable.

D E TECT DVB TR ACKI N G DVB

040 020

5. Set DETECT DVB and TRACKING DVB when DVB mode of TRACKING SIGNAL is chosen to be used (Range: 1-200).

DETECT DVB is to set the satellite signal detection level and TRACKING DVB is to set the satellite signal tracking level.

Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase and decrease the selected character. Or press NUMBER keys to set the desired value directly. Press OK key to set the parameter. Press RETURN key to select the parameter you wish to edit and press RETURN key again to save or abort and return to the main display.

OPERATING THE ACU

Detect & tracking level

Set detect & tracking NBD

BOW & EL adjust

DETECT NBD T R A CKING NBD

040 020

6. Set DETECT NBD and TRACKING NBD when NBD (Narrow Band Detection) mode of TRACKING SIGNAL is chosen to be used (Range: 1-200).

DETECT NBD is to set the satellite signal detection level and TRACKING NBD is to set the satellite signal tracking level.

Noise Level

Detect Level

Tracking Level

TRACKING DVB/NDB

Peak Level

DETECT DVB/NDB

BOW ADJUST E L.ADJ U S T

000 +0.0

7. Set BOW ADJUST and EL. ADJUST BOW ADJUST is to offset the angle difference between the antenna’s bow and the ship’s bow (Range: 0 – 360°) and EL. ADJUST is to offset the angle difference between the mechanical elevation angle and actual elevation angle (Range: ± 5°).

Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase and decrease the selected character. Or press NUMBER keys to set the desired value directly. Press OK key to set the parameter. Press RETURN key to select the parameter you wish to edit and press the RETURN key again to save or abort and return to the main display.

v130 – Marine Satellite Communication System

Level vial

Rate sensor bias

Tilt bias

Idle mode &

Reboot antenna

IDLE MODE RE B OOT ANTENNA

OFF NO

8. Set IDLE MODE and REBOOT ANTENNA The antenna is balanced at factory. However, after disassembly for shipping, maintenance or parts replacements, antenna balance adjustment may be required. The elevation and crosslevel motors have a brake mechanism integrated into them, therefore, antenna power and IDLE MODE must be ON to release the motor brakes. Balancing is achieved by adding or removing weight blocks at strategic locations to keep the antenna balanced.

IDLE MODE: Press UP and DOWN arrow keys to turn ON/ OFF IDLE MODE. The motor brakes will be released while the IDLE MODE is ON. The antenna will restart automatically if IDLE MODE is re-set from ON to OFF or RETURN key is pressed to exit SETUP mode.

REBOOT ANTENNA: The antenna will restart automatically if REBOOT ANTENNA is ON.

+R ATE SENSOR BIAS +TILT BIAS

9. Set RATE SENSOR BIAS RATE SENSOR BIAS is to calibrate DC voltage output from the three rate sensors used to sense antenna motion in azimuth, elevation and cross-level axes. The DC voltage output from each of the rate sensors may be vary by an amount which is directly proportional to the direction and rate of motion induced on it.

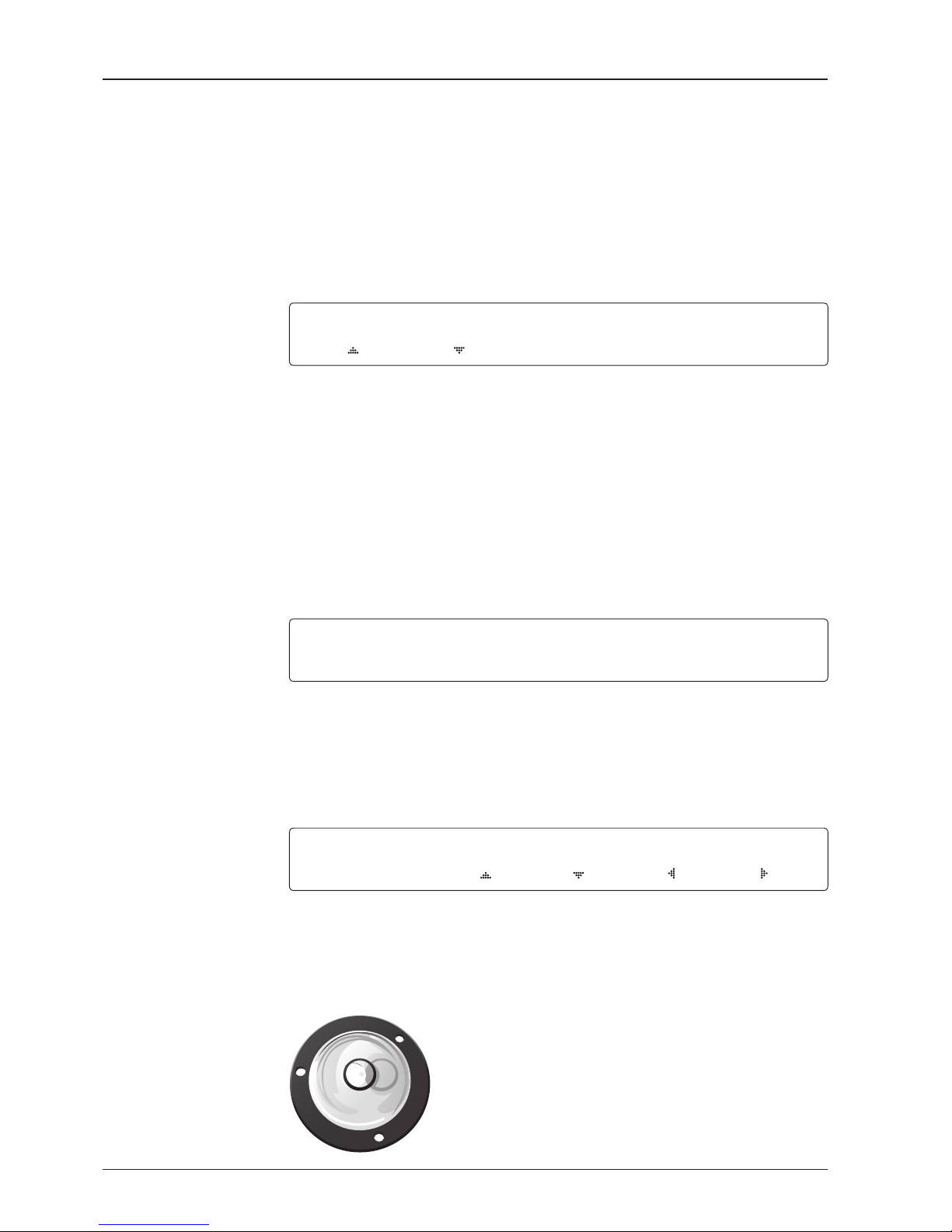

NOTE: The motion of the ship must be stable when the sensor box is replaced.

STE P SIZE ELEVATION CROSS LEVEL

# 0.2 #

00.0 01.0

10. Set TILT BIAS TILT BIAS is to adjust the two solid-state tilt sensors used to provide absolute cross-level tilt of the antenna and elevation feedback to eliminate long-term pointing drift (error). The TILT BIAS is required to set when the system is newly installed, antenna control board or sensor box is replaced. Check and see if the bubble is located at the center of the level vial. If not, press OK key to enter TILT BIAS menu to adjust.

OPERATING THE ACU

Setup Block Zone

Up to 5 block or radiation hazard zones can be programmed with relative azimuth and elevation sectors.

Block zone menu

Block zone range

Block zone 1

Antenna menu

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ A N T E NNA +SAT E L L I T E

+SYST E M +INSTAL L A T I ON

2. Press OK key to enter ANTENNA menu

+ B L O C K ZO N E +DIAGNO S I S

3. Press RIGHT arrow key to move cursor to BLOCK ZONE menu and press OK key to enter it. Up to 5 block zones is allowed to be programmed.

ZO NE 1 BLOCK

A Z . 1 STA R T AZ . 1 END EL.1 LIMIT

00 0 000 90

4. Set ZONE 1 BLOCK Press UP and DOWN arrow keys to select “ON” to setup the block zone for ZONE 1. Press OK key to use ZONE 1 BLOCK and set zone 1 block range. Press RETURN key to select the parameter you wish to edit and press the RETURN key again to save or abort and return to the main display. Set the AZ.1 START, AZ.1 END and EL.1 LIMIT while ZONE 1 BLOCK is ON. This is the clockwise of the two points. AZ.1 START is where the relative azimuth starts and AZ.1 END is where the relative azimuth ends (Range: 0- 360°). EL.1 Limit is where the elevation starts (Range 0- 90°). Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase and decrease the selected character. Or Press NUMBER keys to set the desired value directly. Press OK key to set the parameter. Press RETURN key to select the parameter you wish to edit and press RETURN key again to save or abort and return to the main display.

v130 – Marine Satellite Communication System

Block zone 2

Save

ZONE 2 B L OCK

OFF

5. ZONE 2 to ZONE 5 BLOCK setting is same as ZONE 1 BLOCK. Press OK key to set ZONE 2 BLOCK and set next parameter.

S A V E ?

YES N O

6. Press LEFT arrow key to move cursor to YES and press OK key to save and execute the current settings. Or press RIGHT arrow key to move cursor to NO and press OK key to abort and return to the main display.

OPERATING THE ACU

Antenna Diagnostic Test

Refer to the diagnosis codes for the test results.

Single diagnostic

test result

Full diagnostic test

Full diagnostic

test result

Diagnosis menu

Antenna menu

Setup mode

S E T U P MODE ?

YES N O

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ A N TENNA +SA T E L L ITE

+ S YSTE M +INSTALL A T I O N

2. Press OK key to enter ANTENNA menu.

+BLOCK ZONE +DIAG N O S I S

3. Press arrow keys to move cursor to DIAGNOSIS menu and press OK key to enter it.

D I A G NOSIS COMMUNICAT I O N

FULL TEST R E A D Y

4. Press UP and DOWN arrow keys to select a full diagnostic test or single diagnostic test and press OK key to execute the selected diagnostic test. Menus for DIAGNOSIS are FULL TEST and CODE 101 ~ CODE 116.

D I A G NOSIS F ULL TESTING

F U L L TEST

- -

5. A full diagnostic is successfully completed.

D I A G NOSIS COMM U N I C ATION

C O D E 101 RE S U L T : PA S S E D

6. A single diagnostic test is successfully completed.

v130 – Marine Satellite Communication System

Diagnosis Code:

CODE 101: The data communication between the antenna and the ACU is tested. CODE 102: The azimuth motor is tested. CODE 103: The elevation motor is tested. CODE 104: The cross-level motor is tested. CODE 105: The azimuth encoder is tested. CODE 106: The cross-level encoder is tested. CODE 107: The rate sensor is tested. CODE 108: The tilt sensor is tested. CODE 109: The sensor box motor is tested. CODE 110: The LNB/NBD is tested. CODE 111: The LNB pol motor is tested. CODE 112: The sub-reector is tested. (Skip for v-Series communication products) CODE 113: The antenna power is tested. CODE 114: The ACU power is tested. CODE 115: The receiver power is tested. (Skip for v-Series communication products) CODE 116: The home sensor is tested.

An example of test result: •2

••••••••••-••

•

: test is passed 2: test is failed (CODE102) –: test is skipped (TVRO products only) ?: test is in process

OPERATING THE ACU

Satellite Settings

Load Satellite

Load

Load sat menu

Load satellite

Satellite menu

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S A T E L LITE

+SYST E M +INSTAL L A T I ON

2. Press RIGHT arrow key to move cursor to SATELLITE and press OK key to enter it.

+ L O A D SA T . +E D I T SAT.

+ADD SAT. +C H E CK NID

3. Press OK key to enter LOAD SAT. menu.

LOAD SATELLI T E

[1] TELST_ 1 8 1 3 8 .00E

4. Press UP and DOWN arrow keys to select satellite that you wish to track. Press OK key to load the selected satellite.

LOAD ?

YES NO

5. Press LEFT arrow key to move cursor to YES and press OK key to load the selected satellite and execute the current settings. Or press RIGHT arrow key to move cursor to NO and press OK key to abort and return to the main display.

v130 – Marine Satellite Communication System

Edit Satellite Information

Edit satellite

Edit longitude & name

Edit sat menu

Satellite menu

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S A T E L LITE

+SYST E M +INSTAL L A T I ON

2. Press RIGHT arrow key to move cursor to SATELLITE and press OK key to enter it.

+LOAD SAT. +EDI T SAT.

+ADD SAT. +C H E CK NID

3. Press RIGHT arrow key and OK key to enter EDIT SAT. menu.

EDIT SATELLI T E

[ 1 ] TEL S T _ 1 8 138.0 0 E

4. Press UP and DOWN arrow keys to select the satellite that you wish to edit and press OK key to edit the selected satellite.

LONGI T U D E EDIT NAME

13 8 .0E TE L S T _ 1 8

5. Edit satellite orbit position, LONGITUDE and satellite NAME.

OPERATING THE ACU

DVB VERIFY SKEW OFFSET

DV B DE C O DE +0 .0

6. Edit satellite DVB VERIFY* method and SKEW OFFSET. DVB VERIFY will be only activated and applied when DVB mode of TRACKING SIGNAL is chosen to be used. Press UP and DOWN arrow keys to select DVB VERIFY and press OK key to set the parameter.

DVB VERIFY* AGC – use signal level for satellite tracking. DVB Lock – use DVB Lock for satellite tracking. DVB Decode – use DVB Decode for satellite tracking. DSS Decode – use DSS Decode for satellite tracking.

SELEC T LOCAL TRACKI N G SIGN A L

1130 0 M H Z NBD

7. Set SELECT LOCAL* frequency and TRACKING SIGNAL*. Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to select the LNB local frequency from the installed LNB. Or press NUMBER keys to set the desired value directly. Press OK key to set the parameter.

RX POL TX POL

VERT. HORI.

8. Set RX POL and TX POL To select the polarity for both RX (receive) and TX (transmit). Press UP and DOWN arrow keys to select VERTICAL or HORIZONTAL. Press OK key to set the parameter.

DVB veriy method

Set polarity

Set LNB local frequency

TRACKING SIGNAL* NBD DVB

SELECT LOCAL* The selectable LNB frequencies are depended on the installed LNB type.

v130 – Marine Satellite Communication System

Set NBD tracking

frequency

Save

Set DVB tracking

frequency

DVB FREQ. SYM B O L NID

11747 M H Z 2 1300K H Z 0 X 0 0 A D

9. Set DVB FREQUENCY, SYMBOL RATE and NID when DVB mode of TRACKING SIGNAL is chosen to be used.

45,000 is the maximum allowed symbol rate value. NID (network ID) range is from 0 x 0000 to 0 x FFFF (hexadecimal digit).

NB D FR E Q . BANDWI D T H

1070 . 0 0 0 MHZ 0 1 0 0 0 KHZ

10. Set NBD IF FREQUENCY and BANDWIDTH when NBD (Narrow Band Detection) mode of TRACKING SIGNAL is chosen to be used.

SAVE ?

YES NO

11. Press LEFT arrow key to move cursor to YES and press OK key to save and execute the current settings. Or press RIGHT arrow key to move cursor to NO and press OK key to abort and return to the main display.

OPERATING THE ACU

Add Satellite Information

DVB verify method

Add sat menu

Set longitude & name

Setup mode

Satellite menu

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S A T E L LITE

+SYST E M +INSTAL L A T I ON

2. Press RIGHT arrow key to move cursor to SATELLITE and press OK key to enter it.

+LOAD SAT. +EDIT SAT.

+ADD SAT. +C H ECK NID

3. Press DOWN arrow key and OK key to enter ADD SAT. menu.

L O NGITU D E ED I T NAME

000.00E SAT.00

4. Set satellite LONGITUDE and satellite NAME.

DVB VERIFY SKE W OFFSE T

DV B DE C O DE + 00.0

5. Edit the satellite DVB VERIFY* and SKEW OFFSET.

DVB VERIFY will be only activated and applied when DVB mode of TRACKING SIGNAL is chosen to be used. Press UP and DOWN arrow keys to select DVB VERIFY and press OK key to set the parameter.

v130 – Marine Satellite Communication System

Set LNB local frequency

Set polarity

Sat NBD tracking

frequency

Set DVB tracking

frequency

SELEC T LOCAL TRACKI N G SIGN A L

10000 M H Z NBD

6. SELECT LOCAL* to set LNB local oscillator frequency and TRACKING SIGNAL*. The selectable LNB frequencies are depended on the installed LNB type. Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase or decrease the value. Or press NUMBER keys to set the desired value directly. Press OK key to set the parameter.

TRACKING SIGNAL* NBD DVB

SELECT LOCAL* The selectable LNB frequencies are depended on the installed LNB type.

RX POL TX PO L

VERT. H ORI.

7. Set RX POL and TX POL To select the polarity for both RX (receive) and TX (transmit) pol. Press UP and DOWN arrow keys to select VERTICAL or HORIZONTAL. Press OK key to set the parameter.

DVB FREQ. SYM B O L NID

00000 M H Z 0 0000K H Z 0 X 0 000

8. Set DVB FREQUENCY, SYMBOL RATE and NID when DVB mode of TRACKING SIGNAL is chosen to be used. 45,000 is the maximum allowed symbol rate value. NID (network ID) range is from 0 x 0000 to 0 x FFFF (hexadecimal digit). Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase or decrease the value. Or press NUMBER keys to set the desired value directly. Press OK key to set the parameter.

NB D FR E Q . BANDWI D T H

0000 . 0 0 0 MHZ 0 0 0 0 0 KHZ

9. Set NBD IF FREQUENCY and detection BANDWIDTH when NBD (Narrow band detection) mode of TRACKING SIGNAL is chosen to be used.

OPERATING THE ACU

Save

Check NID

NID verication

Check NID menu

Setup mode

Satellite menu

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S A T E L LITE

+SYST E M +INSTAL L A T I ON

2. Press RIGHT arrow key to move cursor to SATELLITE menu and press OK key to enter it.

+LOAD SAT. +EDIT SAT.

+ A D D SA T .

+CHEC K NID

3. Press DOWN arrow key and OK key to enter CHECK NID menu.

[CHECK NID] F: 1 2 490 S : 2 7 4 9 0 0X00AD

PRESS OK RECE I V E D NI D [ 0 X 0 000]

4. CHECK NID is to verify the NID (Network ID) of the current tracking transponder. Press OK key to verify the NID [0 x 0000] only when “ PRESS OK” function is activated. “PRESS OK” function will only be activated when DVB Lock signal is conrmed by the antenna. However, “NO LOCK” message will be displayed if DVB Lock signal can’t be conrmed.

SAVE ?

YES NO

10. Press LEFT arrow key to move cursor to YES and press OK key to save and execute the current settings. Or press RIGHT arrow key to move cursor to NO and press OK key to abort and return to the main display.

v130 – Marine Satellite Communication System

Set LNB Local Oscillator Frequency

System Settings

System menu

Set local frequency menu

LNB info

Setup mode

Save

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S ATELL I T E

+SYST E M +INSTA L L A T I ON

2. Press DOWN arrow key to move cursor to SYSTEM and press OK key to enter it.

+ S E T LOC A L +SET LOCATI O N

+MODE M PORT +BACKUP & REST O R E

3. Press OK key to enter SET LOCAL menu to set the LNB local frequency.

1 3 V + 0KHZ 18V + 0K H Z

10 0 0 0MHZ 11300MHZ

13V + 22 KHZ 18 V + 22 KHZ

10 7 5 0MHZ

0975 0 M H Z

4. Set LNB local oscillator frequency for each correspondent voltage power. (13V +0 kHz, 18V +0 kHz, 13V +22 kHz, 18V +22 kHz)

Press RETURN key and press LEFT and RIGHT arrow keys to select the parameter you wish to edit. Press OK key to edit parameter. Or press RETURN key again to return to the main display.

LNB LOCAL: The selectable LNB frequencies are depended on the installed LNB type.

SAVE ?

YES NO

5. Press LEFT arrow key to move cursor to YES and press OK key to save current settings. Or move cursor to NO and press OK key to abort and return to the main display.

OPERATING THE ACU

Set Location

System menu

Set location menu

Gyro type and

Baud rate

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S ATELL I T E

+SYST E M +INSTA L L A T I ON

2. Press DOWN arrow key to move cursor to SYSTEM and press OK key to enter it.

+ S E T LOC A L + S E T LO C A T I O N

+MODE M PORT +BACKUP & REST O R E

3. Press RIGHT arrow key to move cursor to SET LOCATION and press OK key to enter it.

GY R O TY P E BAUD RATE

NM E A

4800

4. Set the ship’s GYRO TYPE* and BAUD RATE A search pattern 1 or 3 will be initiated according to which GYRO TYPE is selected and the existence of the gyro input. Set the BAUD RATE as 4800, 9600, 19200 or 38400 according to your device.

A search pattern 1 will be initiated automatically if the gyro input does not exist and the gyro type is selected other than GROUND TEST.

NOTE: The bow offset will not be saved automatically if Search 1 pattern is initiated. In this case, the antenna will need to re target the desired satellite using Search 1 every time if the antenna restarts.

Gyro search type

Setting of Heading Device

Existence of Heading Data No Device

NMEA / Synchro

Ground Test

With Heading Data

Search 1 Search 3 Search 3

Without Heading Data

Search 1 Search 1 Search 3

GYRO TYPE*

NO DEVICE NMEA SYNCHRO GROUND TEST

v130 – Marine Satellite Communication System

Heading

Latitude & longitude

Save

LATITUD E LONG I T U D E

37 . 0 0N 126.5 0 E

5. Set the current LATITUDE and LONGITUDE Press LEFT and RIGHT arrow keys until the desired character is underscored (selected). Press UP and DOWN arrow keys to increase or decrease the value. Or press NUMBER keys to set the desired value directly. Press the OK key to set the parameter.

HEADING

0 9 0.0

6. Entry of ships heading. Ensure that the supported Gyro Type is set correctly. If the ship's gyrocompass output is other than NMEA and Synchro, a purchase of a gyro converter is required.

SAVE ?

YES NO

7. Press LEFT arrow key to move cursor to YES and press OK key to save current settings. Or move cursor to NO and press OK key to abort and return to the main display.

OPERATING THE ACU

Set Modem Port

System menu

Modem port menu

Set Mediator &

modem type

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S ATELL I T E

+SYST E M +INSTA L L A T I ON

2. Press DOWN arrow key to move cursor to SYSTEM menu and press OK key to enter it.

+S ET LOCAL +SET LOCATION

+ M O D E M PORT +BACKU P & RES T O R E

3. Press DOWN arrow keys to move cursor to COM. PORT menu and press OK key to enter it.

USE MEDIATOR MODEM TYPE

YES I D I R E C T -I/O

4. USE MEDIATOR is to enable the usage of MEDIATOR if the antenna is connected to the Intellian Dual VSAT Mediator.

NOTE: USE MEDIATOR must be disabled if there is no MEDIATOR connected to the ACU. Improper setting of this parameter will cause your ACU’s modem interface working incorrectly.

MODEM TYPE* is to select a proper data communication port and protocol on the ACU to interface with the satellite modem. The settings related to the modem interface will be set automatically once the modem type is selected.

The options on the next page will be displayed and required to be set if "USER SETTING" is selected.

MODEM TYPE*

• USER SETTING

• IDIRECT-I/O

• IDIRECT-AMIP

• COMTECH-I/O

• COMTECH-ROSS

• SATLINK

• HUGHES

v130 – Marine Satellite Communication System

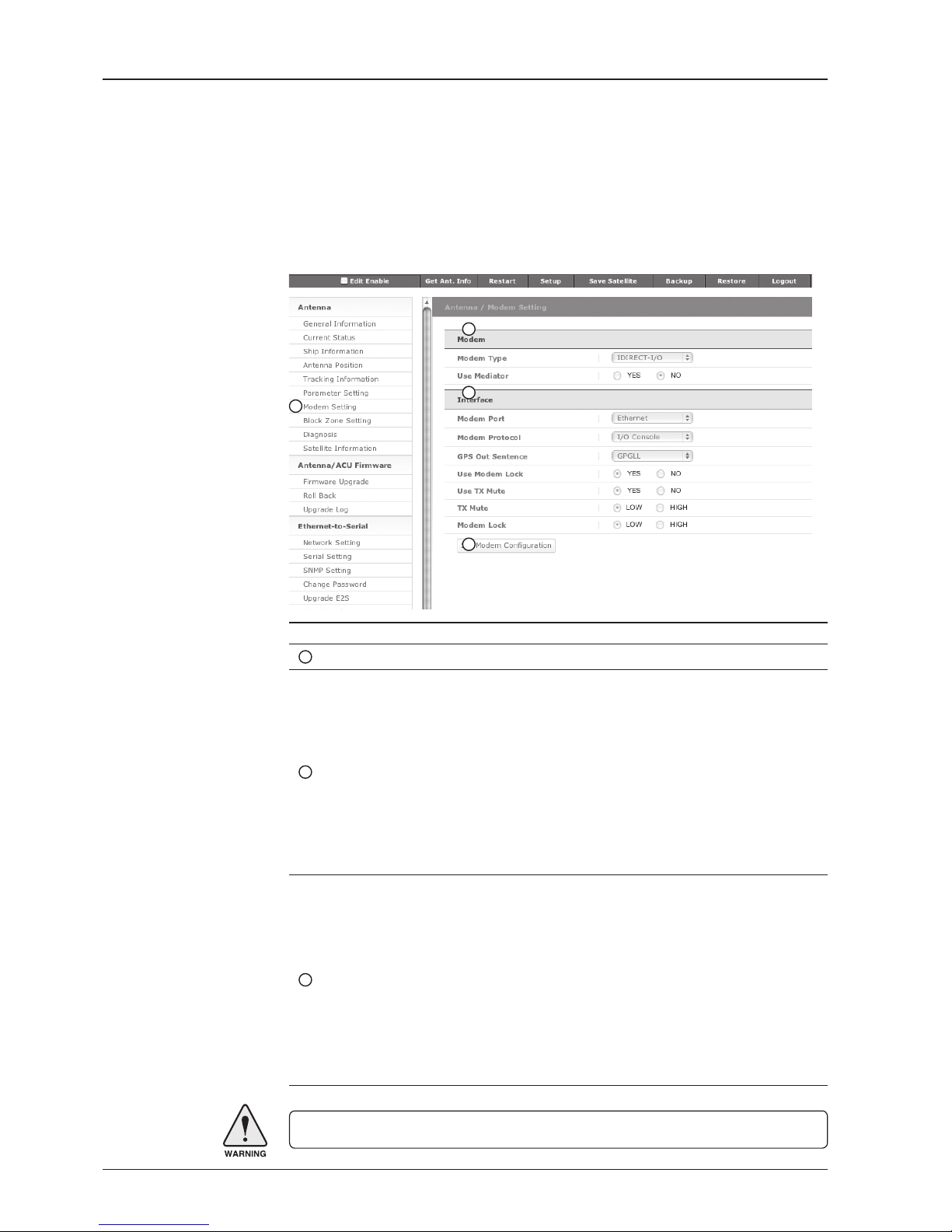

M O D E M P ORT PROTOC OL

E T H E R NET I / O CONSO L E

5. MODEM PORT* is to select a proper data communication port on the ACU to interface with the modem.

PROTOCOL* I/O CONSOLE: is a protocol for interchanging of information (GPS Out, TX mute, and

modem lock) between the ACU (through Console port) and a modem.

OPEN AMIP: is an ASCII based protocol developed by iDirect for interchanging of information between the ACU and a modem. OpenAMIP is not intended for any purpose except to allow the ACU and a modem to perform synchronized automatic beam switching (ABS).

SERIAL GPS: is a protocol for sending GPS Out information from the ACU (through RS232/422 port) to a modem.

ROSS: ROSS Open Antenna Management (ROAM) protocol is developed by Comtech EF Data Cooperation to offer common management interface for Comtech EF Data's Roaming Oceanic Satellite Server (ROSS) and ACU.

6. GPS OUT SENTENCE* is to select the GPS OUT SENTENCE type USE TX MUTE is to select whether or not to USE TX MUTE function from the satellite modem. A transmit inhibit output from the ACU will disable/mute the modem transmit via a voltage whenever the antenna is blocked, searching, or is mis-pointed 0.5 degrees from the peak satellite position.

Set modem protocol

Use TX mute

G PS O U T SEN T E NCE U S E TX MUTE

GPG L L YES

GPS OUT SENTENCE* GPGLL GPGGA SIMPLE GPGGA

MODEM PORT*

ETHERNET RS422 RS232

PROTOCOL* is to select a proper communication protocol on the ACU to

interface with the modem.

OPERATING THE ACU

TX mute activation

Save

TX MUTE A C T I V E

LOW

7. TX MUTE ACTIVE is a transmit inhibit output from the ACU to disable/mute the modem transmit through a 5 V (HIGH) or 0 V (LOW) current whenever the antenna is blocked, searching, or is mis-pointed 0.5º from peak satellite position.

TX MUTE ACTIVE item will only be

activated when PROTOCOL is set as I/O CONSOLE.

SAVE ?

YES NO

Use EXT.LOCK

USE EXT.LOCK EXT. LOCK ACTI V E

YE S LOW

6. USE EXT. LOCK is to select whether or not to use external lock signal from the satellite modem. USE EXT. LOCK item will only be activated when PROTOCOL is set as I/O CONSOLE.

EXT. LOCK ACTIVE is referred that modem lock output from the modem provides a logic input through a 5 V (HIGH) or 0 V (LOW). current to the ACU to identify when it is on the correct satellite.

EXT. LOCK ACTIVE item will only be activated when PROTOCOL is set as I/O CONSOLE.

8. Press LEFT arrow key to move cursor to YES and press OK key to save current settings. Or move cursor to NO and press OK key to abort and return to the main display.

v130 – Marine Satellite Communication System

S E L E C T PROCESS TYPE

BACKUP U S E R D ATA

4. Press UP and DOWN arrow keys to SELECT PROCESS TYPE* Press OK key to set the parameter and the processing message will be displayed.

SELECT PROCESS TYPE* BACKUP USER DATA: To backup the antenna settings set by user. RESTORE USER DATA: To restore the antenna by using the backup user data.

NOTE: When you perform a load default setting, you will lose all the data that is stored on the antenna. Back up the antenna settings to an external hard drive before performing a reset.

BACK UP AN T INF O

DO NOT TUR N O F F !

System Backup & Restore

System menu

Backup and restore

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S ATELL I T E

+SYST E M +INSTA L L A T I ON

2. Press DOWN arrow key to move cursor to SYSTEM menu and press OK key to enter it.

+SET LOCAL +SET L OCATI O N

+MODEM PORT +BACK U P & R E STORE

3. Press arrow keys to move cursor to BACKUP & RESTORE menu and press OK key to enter it.

Select process type

Processing

OPERATING THE ACU

Key Lock

System menu

Set key lock and

password

Key lock menu

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S ATELL I T E

+SYST E M +INSTA L L A T I ON

2. Press DOWN arrow key to move cursor to SYSTEM menu and press OK key to enter it.

+KEY LOCK + VIEW V E R S I O N

3. Press arrow keys to move cursor to KEY LOCK menu and press OK key to enter it.

KEY LOCK UN L O C K P /W

ON 1590

4. Press UP and DOWN arrow keys to choose whether or not to use key pad lock when entering the SETUP mode or saving the satellite information. Setup the password for entering the key pad lock. The factory default is 1590.

v130 – Marine Satellite Communication System

Display Versions

System menu

View version menu

System versions

Setup mode

SETUP MODE ?

YES NO

1. Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.

+ANTE N N A +S ATELL I T E

+SYST E M +INSTA L L A T I ON

2. Press DOWN arrow key to move cursor to SYSTEM menu and press OK key to enter it.

+KEY LOCK + V I EW VER S I O N

3. Press arrow key to move cursor to VIEW VERSION menu and press OK key to enter it.

[VER.] ANT: 1.02 - 1.03 LIB: 1. 0 0

ACU : 1.01 - 2 . 0 2 - 2.01

4. System rmware versions are displayed. ANT: PCU Firmware version, STABILIZER Firmware version, Library version ACU: MAIN Firmware version, MODEM Firmware version, Gyro Firmware version

OPERATING THE ACU

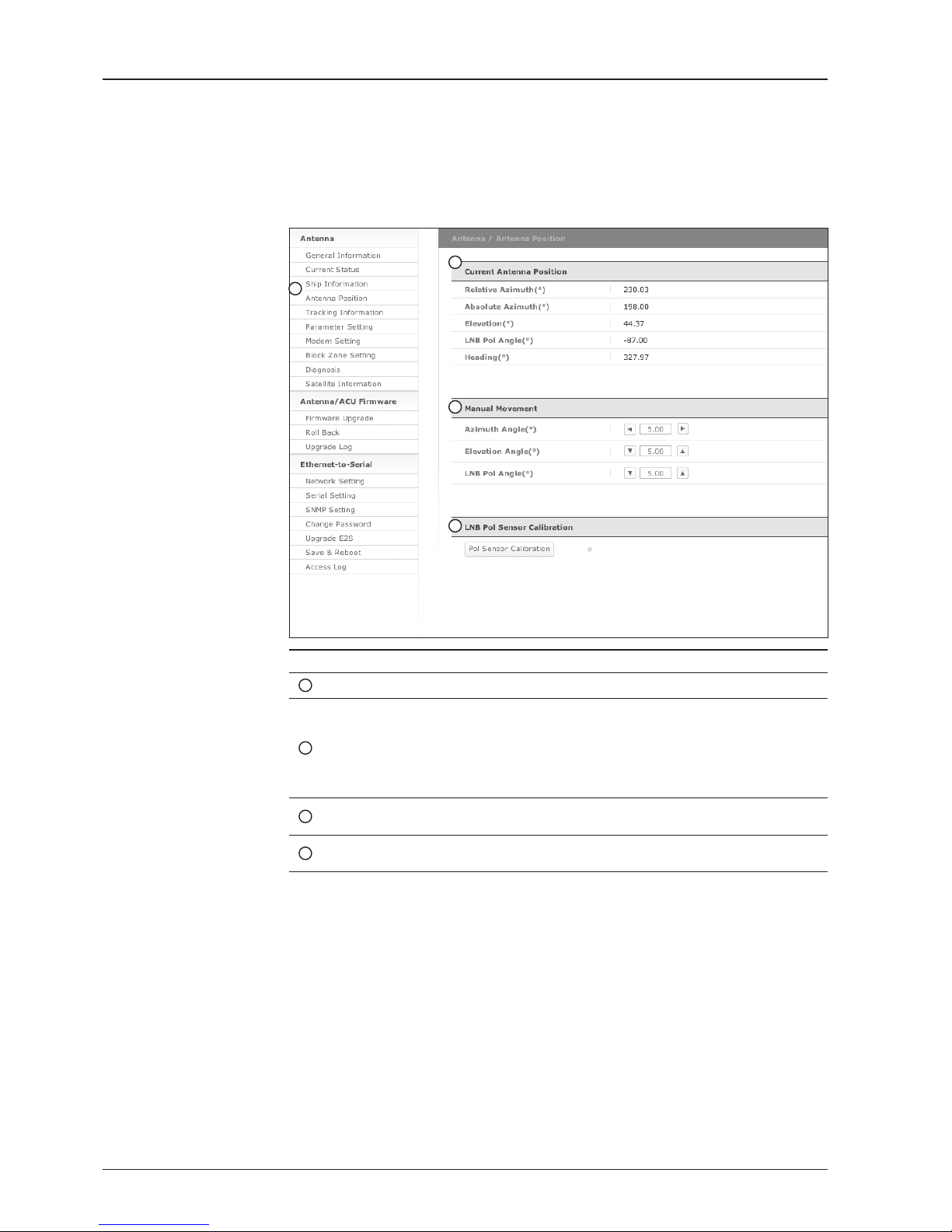

PC CONTROLLER SOFTWARE

Introduction

PC to ACU Communication Setup

Main Menu

Controller Menus

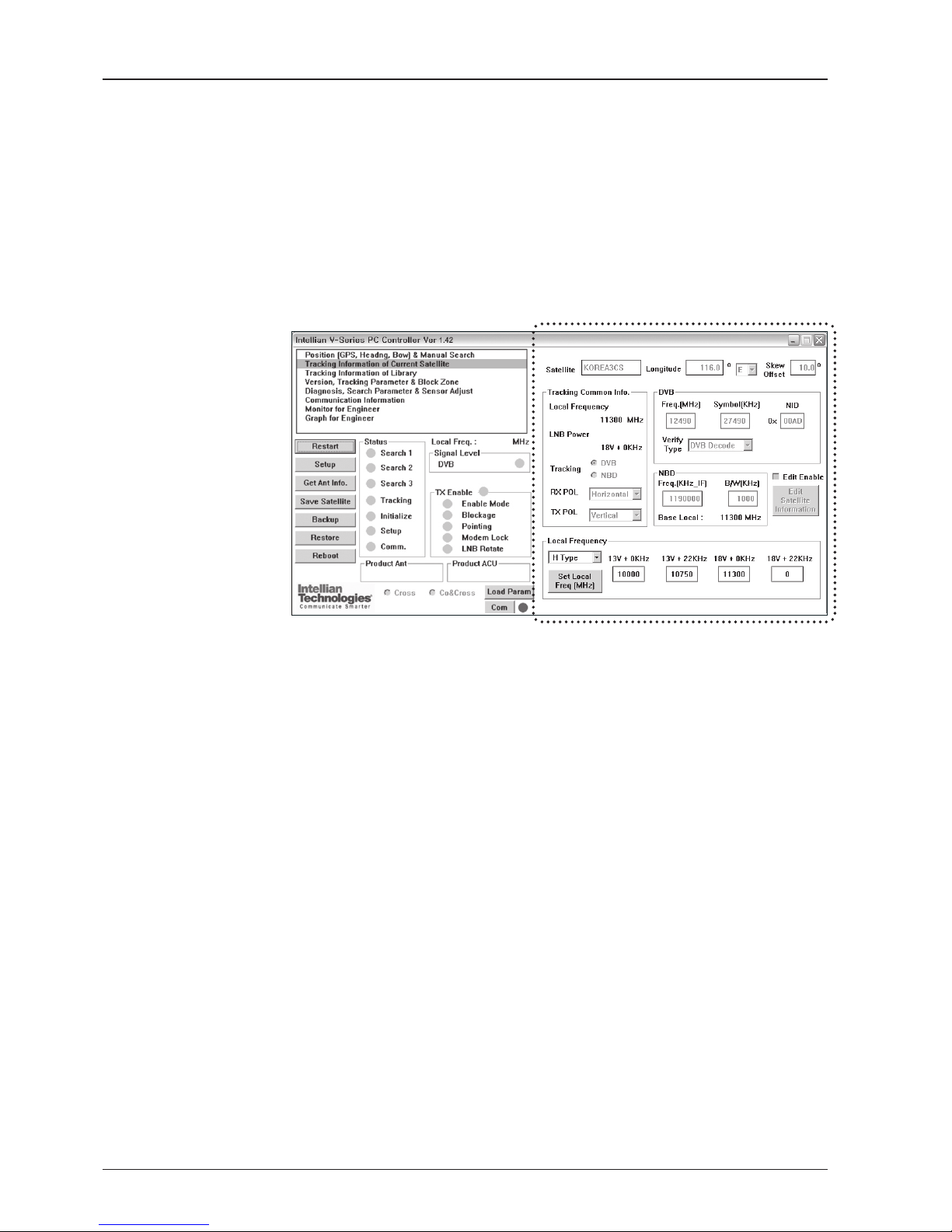

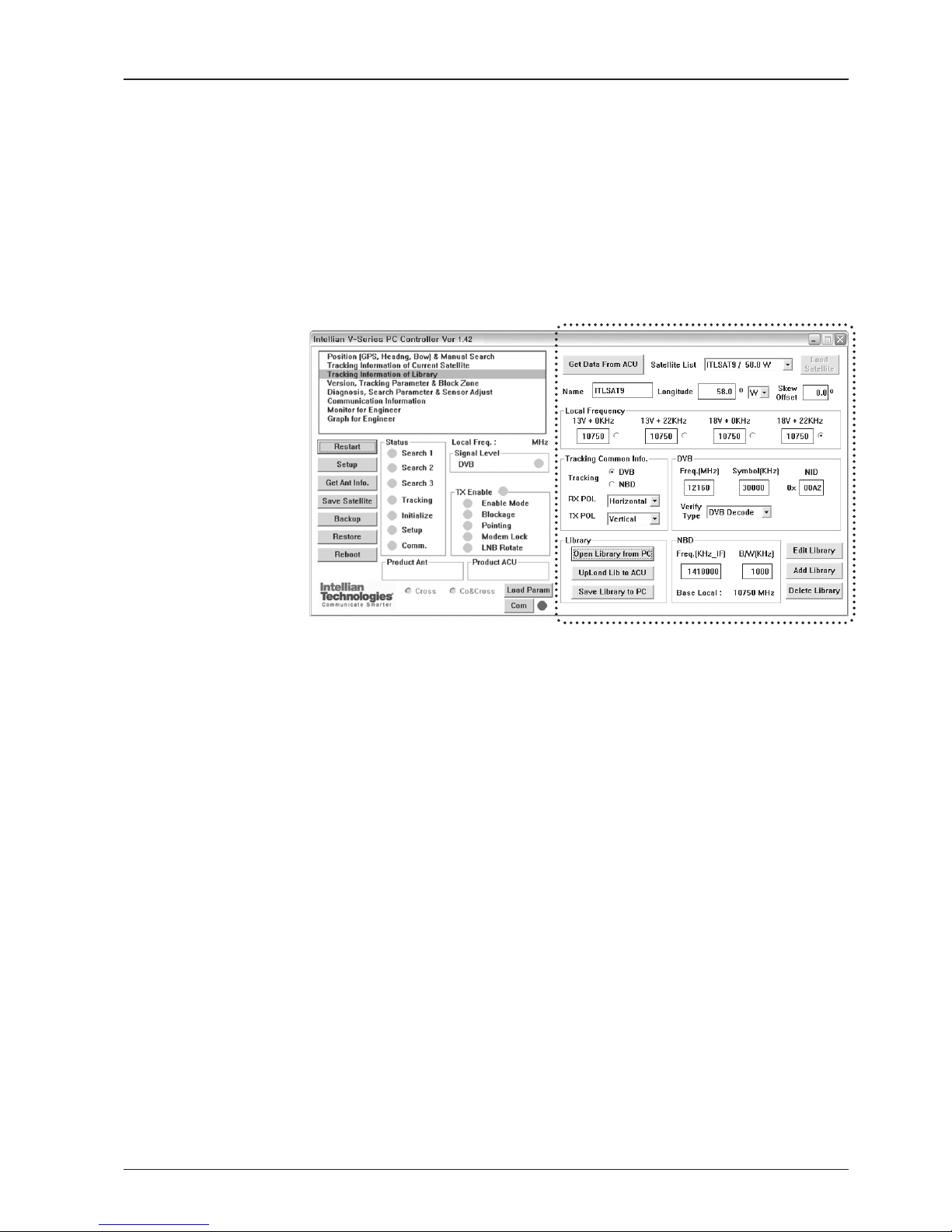

Position & Manual Search Tracking Information of Current Satellite Tracking Information of Library Version, Tracking Parameter & Block Zone Diagnosis, Search Parameter & Sensor Adjust

v130 – Marine Satellite Communication System

The PC Controller Software of Intellian v130 has been created for the user to easily set up the antenna by using a personal computer.

Introduction

Antenna PC controller

PC CONTROLLER SOFTWARE

PC to ACU Communication Setup

Enter “Communication Information” menu to setup the data communication between the PC and the ACU.

• Access ACU through Serial Communication

- Connect a 9 pin serial cable from the PC INTERFACE connector on the ACU to the 9-pin serial port on the PC. Use USB-Serial Adapter if there is no 9-pin serial port on the PC.

- Execute PC Controller Software by inserting the supplied CD-ROM into the CDROM drive of the PC.

- The baud rate of the ACU is 19200.

- Select a COM port which is not occupied by other devices.

- Click Connect button

• Access ACU through Network Communication

- Turn off wireless connection while using this method.

- Execute PC Controller Software by inserting the supplied CD-ROM into the CDROM drive of the PC.

- Enter the ACU’s IP address (Factory default IP: 192.168.0.223)

- Enter the ACU’s port number (Factory default port: 4002)

- Click Connect button

NOTE: If the remote access PC is located in the same network group with the ACU, the ACU can be accessed through the internal IP address. But, if the remote access PC is located at the outside of network group, the ACU’s IP address should be changed by the IP address assigned by the network service provider. Refer to page 108 for changing the ACU’s IP address.

Establish a data

communication

WARNING: The data volume will grow very quickly if Network Communication is in use.

Intellian recommends to use Remote Web Access to access the ACU (refer to page 86).

v130 – Marine Satellite Communication System

• Enable the Usage of External Lock & TX Mute

- Connect a RJ45 cable from the Ethernet connector on the ACU to the modem or connect a 9 pin serial cable from the RS232/422 connector on the ACU to the modem.

- Select a proper data communication port (RS232/422/Ethernet) to interface with a modem.

- Select a proper communication protocol (I/O Console/OpenAMIP/Serial GPS) to interface with a modem.

- Enable / disable the usage of TX MUTE function.

- TX Mute is a transmit inhibit output from the ACU to disable/mute the modem transmit through a 5 V (HIGH) or 0 V (LOW) current whenever the antenna is blocked, searching, or is mis-pointed 0.5 degrees from peak satellite position. This item will only be activated when the modem protocol is set as I/O Console.

- Enable/disable the usage of External Lock function. This function will only be activated when the modem protocol is set as I/O Console.

- Modem Lock is referred that modem lock output from the modem provides a logic input through a 5 V (HIGH) or 0 V (LOW). current to the ACU to identify when it is on the correct satellite. This item will only be activated when the modem protocol is set as I/O Console.

• Select GPS Out Sentence Type

- Select GPS OUT SENTENCE type (GPGLL/GPGGA/Simple GPGGA)

• Use Mediator

-Enable the usage of Mediator if the antenna is connected to the Intellian

Dual VSAT Mediator. Disable this function if there is no Mediator connected to the ACU. Improper setting of this parameter will cause your ACU’s modem inter face working incorrectly.

• Select Modem

-Select a proper data communication port and protocol on the ACU to interface

with the satellite modem. The settings related to the modem interface will be set automatically once the modem type is selected. If USER SETTING is selected, a separate input of modem port and modem protocol is required.

PC CONTROLLER SOFTWARE

Main Menu

Main menu

Restore Position Backup Position

• Controller Menus

- Position (GPS, Heading, Bow) & Manual search

- Tracking Information of Current Satellite

- Tracking Information of Library

- Version, Tracking Parameter & Block Zone

- Diagnosis, Search Parameter & Sensor Adjust

- Communication Information

• Command Buttons

- Restart: Exit SETUP mode and restart antenna.

- Setup: Enter SETUP mode.

- Get Antenna Information: Obtain the information stored in the antenna.

- Save Satellite: Save the current settings if they are able to locate the satellite (in Tracking mode). It can reduce the satellite acquisition time after restarting the system.

- Backup: Backup antenna information to ACU/PC.

- Restore: Restore the antenna by using saved information in ACU/PC.

- Reboot: Reboot the antenna.

v130 – Marine Satellite Communication System

In “SETUP” mode, “Back Up Position” or “Restore Position” message will pop up if “Backup” or “Restore” button is pressed. Backup File (*.ibf) and Report File (*.rpt) will be generated on the PC if “Back Up to PC” button is pressed. You can open a report le using notepad software.

NOTE: These two functions are only available for ACU Version 1.07 or later.

• Status

- Search 1: A search pattern 1 will automatically be initiated when the ship’s heading input does not exist or is failed. The search cycle will repeat until the antenna receives the lock signal from the modem or the DVB transponder of the target satellite is decoded by the antenna.

- Search 2: Search 2 is reserved for future use.

- Search 3: Search 3 is a search pattern 3 will automatically be initiated when AGC/SIG falls below the current tracking level threshold value. Once the desired signal is found and above the predened tracking threshold, the ACU will enter to tracking mode.

- Tracking: Antenna is tracking the target satellite.

- Initialize: Antenna or ACU is initializing.

- Setup: Antenna is in SETUP mode.

- Comm: Antenna is able to be communicated.

• Local frequency

- Local freq: Display LNB local oscillator frequency.

- Signal level: Display signal level. It shows “DVB” when DVB mode of tracking signal is chosen to be used and “NBD” when NBD mode of tracking signal is chosen to be used.

• System versions

- Product ant: Display antenna model and “PCU” rmware version.

- Product ACU: Display ACU model and “ACU main” rmware version.

• TX enable:

- TX enable: TX function is enabled and ready to transmit.

- Enable mode: Not in SETUP mode.

- Blockage: Antenna is not facing the predened block zone(s).

- Pointing: Antenna is pointing to the target satellite.

- Modem lock: Satellite modem is sending a logic input to the ACU to identify when the antenna tracks on the correct satellite.

- LNB rotate: LNB is not rotating.

NOTE: The TX function will be enabled (shows blue dot) only if all of the factors listed above shows “blue” dot. If any of the factors listed above shows “gray” dot or "red" dot, the TX function will be disabled (shows red dot). Exception: If “Use TX Mute” is set as “NO”, the TX function will be enabled regardless of which factor listed above shows “gray” dot or “red” dot.

PC CONTROLLER SOFTWARE

Position & Manual Search

Set the GPS and ship’s heading information to acquire the satellite signal and use move step function to nd the satellite signal manually.

Antenna angle, GPS and

ship’s heading information

Antenna Current GPS

- Antenna Current GPS: Display current antenna GPS and Ship’s heading information. Enter SETUP mode and click check box in front of Edit GPS/Edit Heading to set GPS / ship’s heading. After the desired value is entered press Set GPS/Set Heading button to save the settings.

- Set GPS: Set antenna GPS information manually.

- Set Heading: Set ship’s heading information manually.

Heading Device

- Heading Device: Set ship’s heading device and its baudrate

(4800/9600/19200/38400).

Antenna Angle 1

- Antenna Angle 1: Display current antenna absolute and relative AZ (azimuth) position, EL (elevation) position and LNB pol angle.

Bow

- Bow: Display and set bow offset if needed.

Skew Information

- LNB pol Information: Display LNB pol angle and satellite skew angle.

- Pol sensor calibration: Calibrate the sensor (potentiometer).

Antenna Angle 2

- Antenna Angle 2: Move antenna azimuth and elevation position and LNB pol angle to nd the desired satellite manually.

Controller Menus

v130 – Marine Satellite Communication System

Tracking Information of Current Satellite

Set the tracking mode and tracking frequency of the current satellite. Set the LNB local frequency to its corresponding voltage power supply.

Satellite Information

- Satellite information: Display the current satellite name, longitude position and satellite skew.

Tracking Common Info

- Local Frequency & LNB Power: Display the current LNB frequency which is in use and its corresponding voltage power supply.

- Tracking: Display/ set the current tracking mode (DVB/ NBD).

- RX POL and TX POL: Set RX and TX polarity (Vertical/Horizontal).

DVB

- DVB: Set satellite tracking information (frequency, symbol rate, NID and verify type) for DVB tracking mode.

NBD

- NBD: Set satellite tracking information (frequency and bandwidth) for NBD tracking mode.

Local Frequency

- Local frequency: Display or set LNB local frequency and its corresponding LNB power supply.

NOTE: Select the Swedish Microwave (SMW) PLL LNB type from the Drop-Down List. If the LNB type is other than SMW, manually input the LNB local frequency is required.

Set the current satellite

tracking information

PC CONTROLLER SOFTWARE

Tracking Information of Library

Open the pre-programmed satellite library le and upload it to the ACU. Build your own custom library and save it to an external hard drive/PC.

Get data from ACU

- Get data from ACU: Obtain the pre-programmed satellite library le from the ACU while the antenna is in SETUP mode.

Load Satellite

- Load satellite: Upload the pre-programmed satellite information in the library.

Library

- Open library from PC: Open the satellite library le from the supplied Intellian CD or from the external hard drive/PC. (File format: *.ilf)

- Upload library to ACU: Upload the satellite library le to ACU.

- Save library to PC: Save the current library setting to the PC.

- Edit Library: Edit the satellite information of the selected satellite.

- Add Library: Add the satellite information as dened in the current settings.

- Delete Library: Delete the selected satellite from the library settings.

NOTE: It is required to click the “Save Library to PC” button after “Edit Library”, “Add Library “, or “Delete Library” button is clicked. These functions are only available for ACU Version 1.07 or later.

Library information

v130 – Marine Satellite Communication System

Version, Tracking Parameter & Block Zone

Display the antenna, ACU rmware versions and serial number. Setup the antenna blockage zone(s). Setup the antenna parameters.

Display antenna versions

and tracking parameters

Software Information

- Software information: Display antenna and ACU rmware versions and library version.

Product Information

- Product information: Display antenna and ACU serial numbers.

Parameter Setting

- DVB: Display /setup current detect level threshold and tracking level threshold when DVB tracking mode is chosen to be used.

- NBD: Display /setup current detect level threshold and tracking level threshold when NBD tracking mode is chosen to be used.

- TX Enable Threshold: display/ setup TX enable threshold.

Block Zone

- Display current block zones by azimuth and elevation sectors. Up to 5 blockage zones can be programmed.

NOTE: DVB and NBD parameter settings should only be changed by an authorized service technician. Improper setting of these parameters will render your system inoperable. Consult Intellian for changing antenna parameters.

PC CONTROLLER SOFTWARE

Display antenna versions

and parameters

Tilt Sensor Bias

- Tilt sensor bias: Adjust the two solid-state tilt sensors used to provide absolute cross-level tilt of the antenna and elevation feedback to eliminate long-term pointing drift (error). Tilt bias is required to be adjusted when the antenna control board or sensor box is replaced. Check and see if the bubble is located at the center of the level vial.

- Ready: Make elevation angle go to 0º for tilt sensor bias adjustment.

Conical Range

- Conical rage: set conical range while the antenna is on tracking mode.

EL Adjust

- EL adjust: The elevation adjustment is to offset the angle difference between the mechanical elevation angle and actual elevation angle.

Diagnosis, Search Parameter & Sensor Adjust

Set the tilt sensors and calibrate rate sensors. Set the antenna search parameters. Run an antenna diagnostic test.

v130 – Marine Satellite Communication System

Rate Sensor

- Rate sensor: Rate sensor is to calibrate DC voltage output from the three rate sensors used to sense antenna motion in azimuth, elevation and cross-level axes. The DC voltage output from each of the rate sensors may be vary by an amount which is directly proportional to the direction and rate of motion induced on it.. Before calibrating the rate sensors located at the Sensor box, make sure that the antenna is placed on a rigid and at platform. During the calibration process, the antenna should avoid any motion as it can affect the antenna’s performance. After clicking the “Rate Sensor Bias Check” button, the green dot will be displayed as a ready signal to calibrate the gyro sensor. The red dot (fail) or blue dot (pass) will be displayed once the calibration is completed.

Idle Mode

- Idle mode: Release the elevation and cross level motor brakes while the antenna is in SETUP mode. The antenna can be moved manually during the idle mode.

Diagnosis

- Diagnosis: The system can carry out the selected full diagnostic test “Test All” or single diagnostic test. The software will display the diagnostic results Blue dot represents “normal”, red represents “abnormal”, yellow represents “skip test” and green represents “the diagnostic test is under process”.

REMOTE WEB ACCESS

Introduction

Main Page

Antenna Settings

General Information Current Status Ship Information Antenna Position Tracking Information Parameter Setting Modem Setting Block Zone Setting Diagnosis Satellite Information

Antenna/ACU Firmware Upgrade

Firmware Upgrade Roll Back Upgrade Log

Ethernet-to-Serial Settings

Network Setting Serial Setting SNMP Setting Change Password Upgrade E2S (Ethernet-to-Serial) Save & Reboot Access Log

v130 – Marine Satellite Communication System

Introduction

With embedded remote access function, the v-Series can be monitored, controlled, and diagnosed remotely from anywhere, anytime through the TCP/IP protocol. This not only can save tremendous time but also save the cost generated from the hundreds of routine maintenance activities such as operating rmware upgrades, tracking parameters resets, and system diagnostic.

REMOTE WEB ACCESS

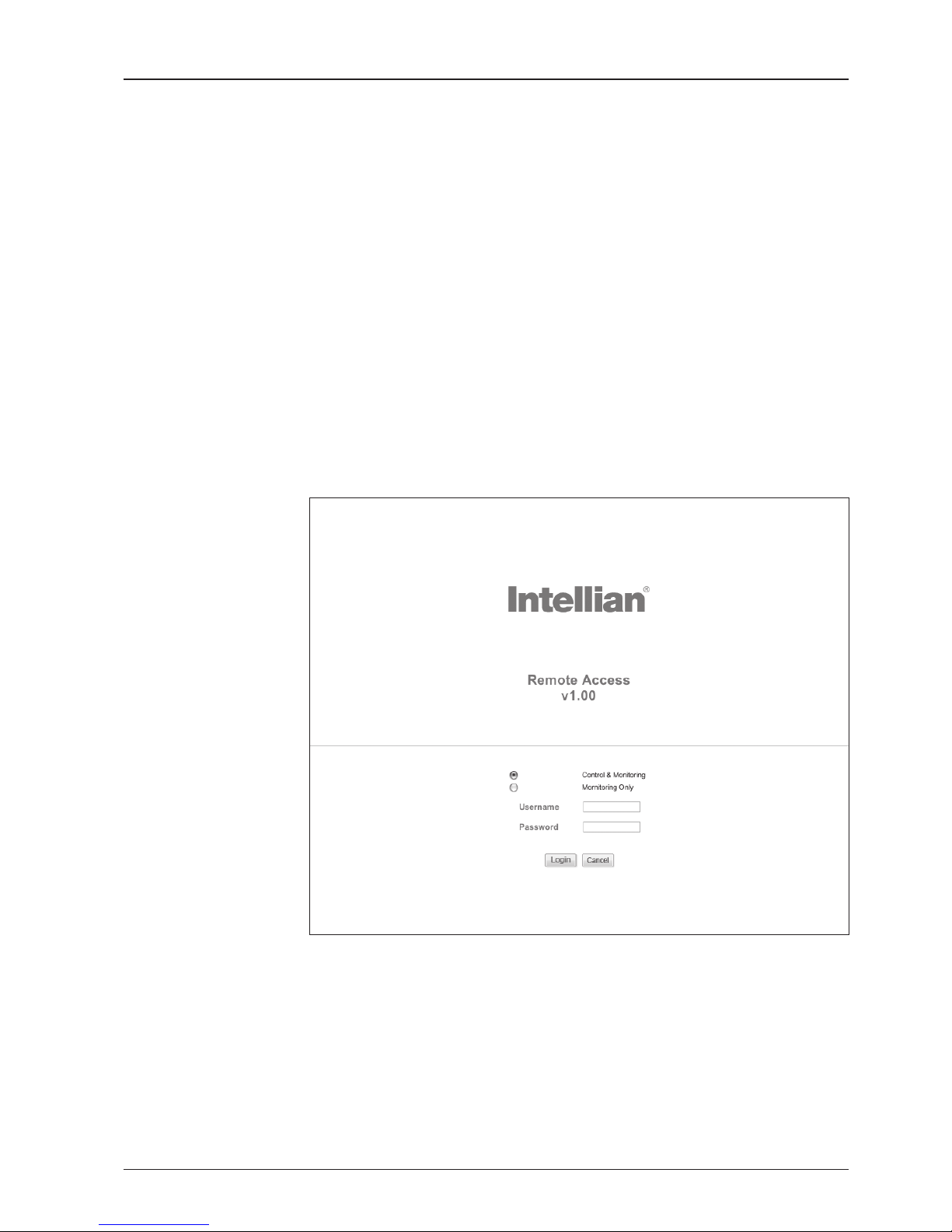

• Page Login

1. Enter the ACU's IP address into your web browser's address bar to login into the ACU’s internal HTML page. If this system has not been changed from the ACU’s factory default:

IP address: Primary: 192.168.0.223 Secondary: 10.10.1.1

2. Choose either to Control & Monitor the ACU or Only Monitor the ACU.

3. Log into the ACU by typing in User Name and Password information. If this system has not been changed from the factory default:

User Name: intellian Password: 12345678

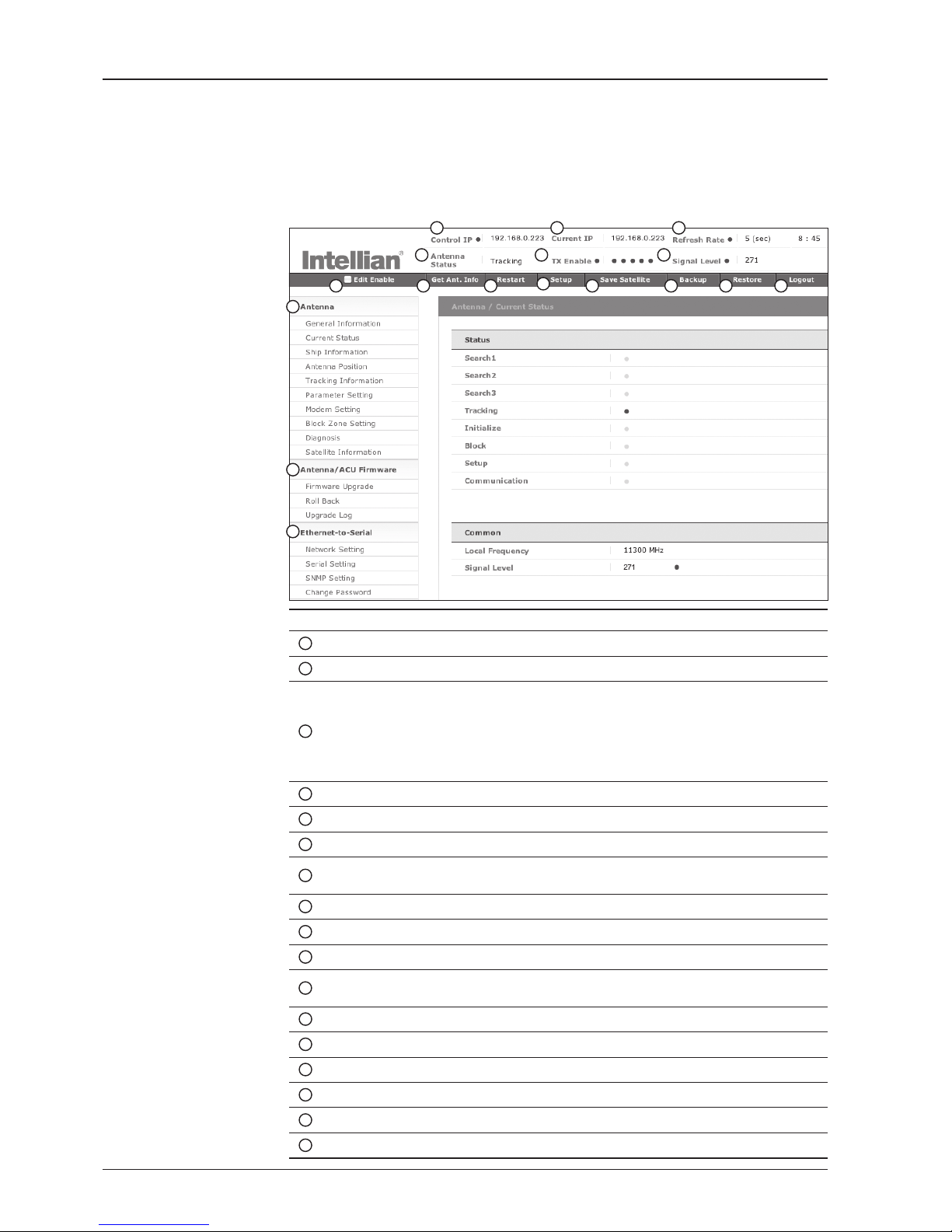

Main Page

v130 – Marine Satellite Communication System

No. Item Description

Control IP Display current IP that controls the ACU.

Current IP Display current IP address.

Refresh Rate

Display screen refresh rate and time out. The screen will not refresh once the time-out shows 0:00. Exception: If the Refresh Disable Time is set to “OFF” in the Network Setting page, then the clock will show “--:--“ and system will keep monitoring all activities regardless of timeout.

Antenna Status Display antenna status.

TX Enable

Display whether or not the antenna is able to transmit the data.

Signal Level Display current signal level.

Edit Enable

Enable to edit the ACU settings. Ensure the check box is enabled before modifying the settings.

Get Antenna Info Obtain current antenna information.

Restart Restart antenna system.

Setup Enter SETUP mode.

Save Satellite

Save current satellite settings. Bow offset will be adjusted and saved automatically.

Backup Backup antenna information to ACU.

Restore Restore antenna information from ACU.

Logout Logout ACU’s internal HTML page.

Antenna Antenna setup menu.

Firmware Firmware upgrade menu.

Ethernet-to-Serial ACU’s IP address and serial communication setup menus.

1 2 3

5 6

7 8 9

11 12 13 14

REMOTE WEB ACCESS

No. Item Description

General Information

Display current antenna information.

Antenna Information

Display current antenna information.

- Antenna Size: antenna dish size.

- Voltage: operation voltage of antenna and ACU.

- Antenna Product: antenna model number.

- ACU Product: ACU model number.

- Antenna Serial Number: antenna serial number.

- ACU Serial Number: ACU serial number

System Polarization: antenna polarized feed (Crosspol/Copol).

- Tracking Signal: satellite tracking mode (DVB/NBD)

Software Information

Display current Antenna and ACU rmware versions and Satellite Library version installed in the system.

- Antenna Stabilizer Version

- Antenna PCU Version

- ACU Main Version

- ACU Modem Version

- ACU Gyro Version

- Library Version

LNB Local Frequencies(MHz)

Display LNB local frequency and corresponding voltage.

Antenna Settings

General Information

v130 – Marine Satellite Communication System

Current Status

No. Item Description

Current Status Display current antenna status.

Status

Display current antenna status.

- Search 1: a search pattern 1 will automatically be initiated when the ship’s heading input does not exist / is failed. The search cycle will repeat until the antenna receives the lock signal from the modem or the DVB transponder of the target satellite is decoded by the antenna.

- Search 2: is reserved for future use.

- Search 3: a search pattern 3 will automatically be initiated when AGC/SIG falls below the current tracking level threshold value. Once the desired signal is found and above the predened tracking threshold, the ACU will enter to tracking mode.

- Tracking: antenna is tracking the target satellite.

- Initialize: antenna or ACU is initializing.

- Block: satellite signal is being blocked.

- Setup: antenna is in SETUP mode.

- Communication: antenna is able to be communicated with ACU.

Common Display current LNB local frequency and signal level.

TX Enable

Display whether or not the antenna is able to transmit the data. The TX function will only be enabled (shows BLUE dot) only if all of the factors listed below shows “BLUE” dot. Exception: If “Use TX Mute” is set as “NO”, the TX function will be enabled regardless of which factor listed below shows “gray” dot or “red” dot.

- Enable Mode: antenna is not in SETUP mode.

- Blockage: antenna is not facing the predened block zone(s).

- Pointing: antenna is pointing to the target satellite.

- Modem Lock: satellite modem is sending a logic input to the ACU to identify when the antenna tracks on the correct satellite.

- LNB Rotate: LNB is not rotating.

REMOTE WEB ACCESS

Ship Information

No. Item Description

Ship Information Display GPS and ship’s gyro information.

GPS

Display current GPS information.

- Longitude (East/West)

- Latitude (North/South)

BOW Offset Display and set bow offset if needed.

Heading Device

Current device: set ship’s heading device. If the ship’s gyro input is Step-by-step (SBS) separate purchase of GYRO Converter is required.

- Heading: set ship’s heading information.

WARNING: Ensure the Edit Enable check box is enabled before modifying the settings.

v130 – Marine Satellite Communication System

Antenna Position

No. Item Description

Antenna Position

Display current antenna position.

Current Antenna Position

Display current antenna position.

Relative Azimuth: display antenna relative AZ angle.

Absolute Azimuth: display antenna absolute AZ angle.

- Elevation: display antenna elevation angle.

- LNB Pol Angle: display LNB pol angle.

- Heading: display ship’s heading information.

Manual Movement

Move antenna azimuth and elevation angles and LNB pol angle to nd the desired satellite manually.

LNB Pol Sensor Calibration

Calibrate the LNB pol angle when the control board, potentiometer or belt is replaced.

REMOTE WEB ACCESS

Tracking Information

No. Item Description

Tracking Information

Display or set current tracking mode and tracking frequency of the target satellite.

Local Frequency Setting (MHz)

Display LNB’s local frequencies. Display current LNB local frequency which is in use and voltage.

Tracking Satellite

Display current tracking mode.

- Satellite: display satellite name.

- Longitude: display satellite orbit position.

- Skew Offset: display Skew offset.

Tracking Method: display current tracking mode (DVB/NBD).

- RX Polarization: display current RX polarization.

- TX Polarization display current TX polarization.

DVB Information

Display DVB tracking mode’s tracking information.

- Frequency: display tracking frequency.

- Symbol rate: display symbol rate.

- NID: display network ID.

Verify type: display verication type (AGC, DVB, DVB Decode)

NBD Information

Display NBD tracking mode’s tracking information.

- Frequency: display tracking IF frequency.

- Bandwidth: display detection bandwidth.

WARNING: Ensure the Edit Enable check box is enabled before modifying the settings.

v130 – Marine Satellite Communication System

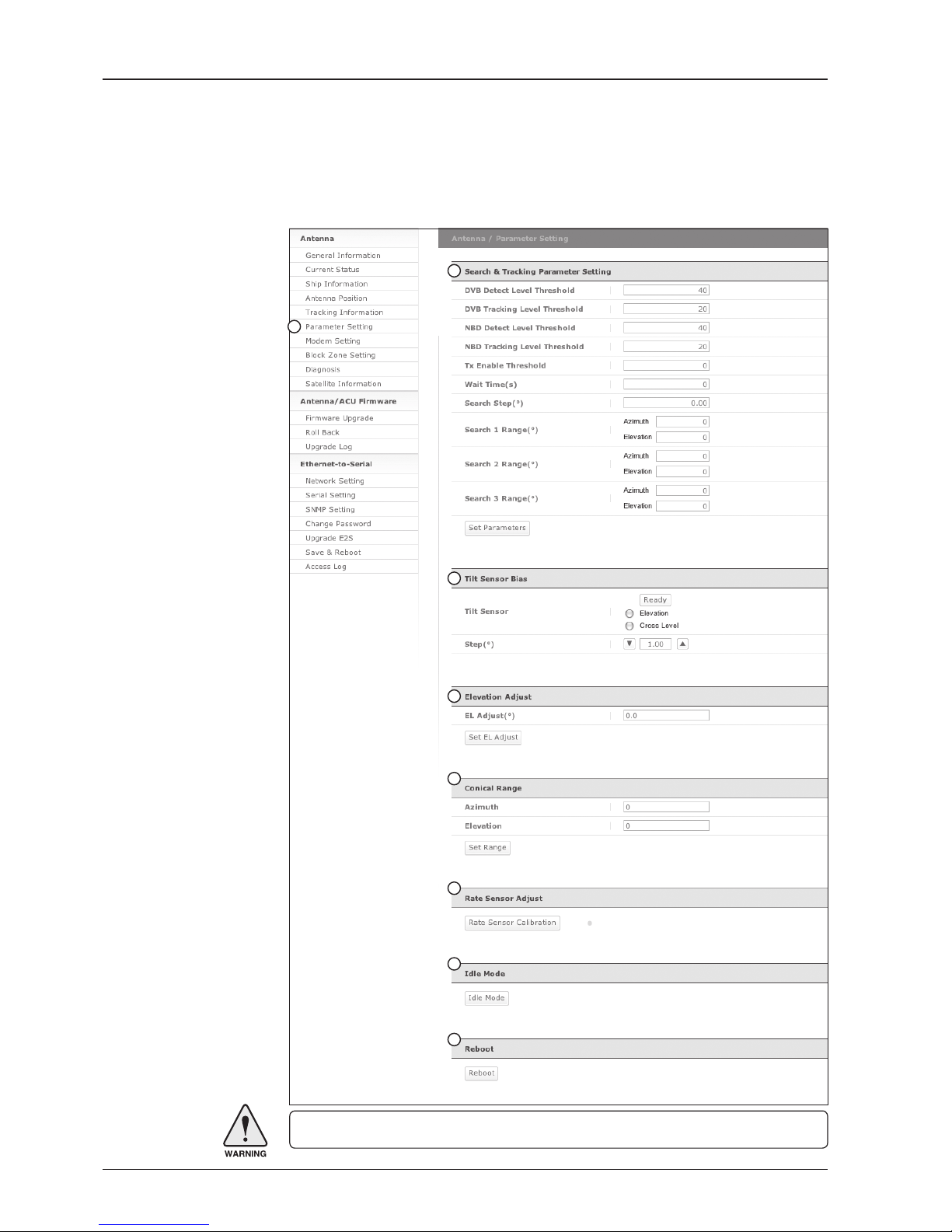

Parameter Setting

WARNING: Ensure the Edit Enable check box is enabled before modifying the settings.

REMOTE WEB ACCESS

No. Item Description

Parameter Setting

Set antenna search & tracking parameters. These parameters should only be changed by an authorized service technician. Improper setting of these parameters will render your system inoperable.

Search & Tracking Parameter Setting

DVB Detect and Tracking Level Threshold: display/set current detect level threshold and tracking level threshold when DVB tracking mode is chosen to be used.

- NBD Detect and Tracking Level Threshold: display/set current detect level threshold and tracking level threshold when NBD tracking mode is chosen to be used.

- Enable Threshold: display/set TX enable threshold.

- Wait time: set the time-out for automatic initiation of a search after the signal level drops below the pre-dened threshold value.

- Search Step: set increment step size.

- Search 1 & 3 Range: set Search 1 & 3 search range. Search is conducted in a two-axis pattern consisting of alternate movements in azimuth and elevation as forming expanding square.

- Search 2 Range: is reserved for future use.

Tilt Sensor Bias

Adjust the two solid-state tilt sensors used to provide absolute cross-level tilt of the antenna and elevation feedback to eliminate long-term pointing drift (error). Tilt bias is required to be adjusted when the antenna control board or sensor box is replaced. Check to see whether or not the bubble is located at the center of the level vial.

Elevation Adjust

Adjust the angle difference between the mechanical elevation angle and actual elevation angle.

Conical Range Set conical range while the antenna is on tracking mode.

Rate Sensor Adjust

Calibrate DC voltage output from the three rate sensors used to sense antenna motion in azimuth, elevation and cross-level axes. During the calibration process, the antenna should avoid any motion as it can affect the antenna’s performance.

Idle Mode

Release the elevation and cross level motor brakes while the antenna is in SETUP mode. The antenna can be moved manually during the idle mode.

Reboot Reboot the system.

v130 – Marine Satellite Communication System

Modem Setting

No. Item Description

Modem Setting Set the modem interface.

Modem

- Modem Type: is to select a proper data communication port and protocol on the ACU to interface with the satellite modem. The settings related to the modem interface will be set automatically once the modem type is selected (USER SETTING, IDIRECT-I/O, IDREICT-AMIP, COMTECH-I/O, COMTECHROSS, SATLINK). However, it is required to set Item “Interface” separately if USER SETTING is selected.

- Use Mediator: enable the usage of Mediator if the antenna is connected to the Intellian Dual VSAT Mediator. Use Mediator must be set to “NO” if there is no MEDIATOR connected to the ACU. Improper setting of this parameter will cause your ACU’s modem interface working incorrectly.

Interface

- Modem Port: is to select a proper data communication port on the ACU to interface with the satellite modem (RS232/422/ Ethernet).

- Modem Protocol: is to select a proper communication protocol on the ACU to interface with the modem (I/O Console, OpenAMIP, Serial GPS, ROSS)

- GPS Out Sentence: is to select the GPS out sentence type (GPGLL/GPGGA/SIMPLE GPGGA)

- USE Modem Lock: is to select whether or not to use external lock signal from the satellite modem.

- USE TX Mute: is to select whether or not to use TX mute function from the satellite modem.

WARNING: Ensure the Edit Enable check box is enabled before modifying the settings.

REMOTE WEB ACCESS

- TX Mute: is a transmit inhibit output from the ACU to disable/ mute the modem transmit through a 5V (High) or 0V(LOW) current whenever the antenna is blocked, searching, or is mispointed 0.5° from peak satellite position.

- Modem Lock: is the modem lock output from the modem provides a logic input through a 5V (High) or 0V(LOW) current to the ACU to identify when it is on the correct satellite.

Note: TX Mute and Modem Lock items will only be activated

when the modem protocol is set as I/O Console.

Set Modem Conguration

-Conrm to congure your modem settings.

v130 – Marine Satellite Communication System

100

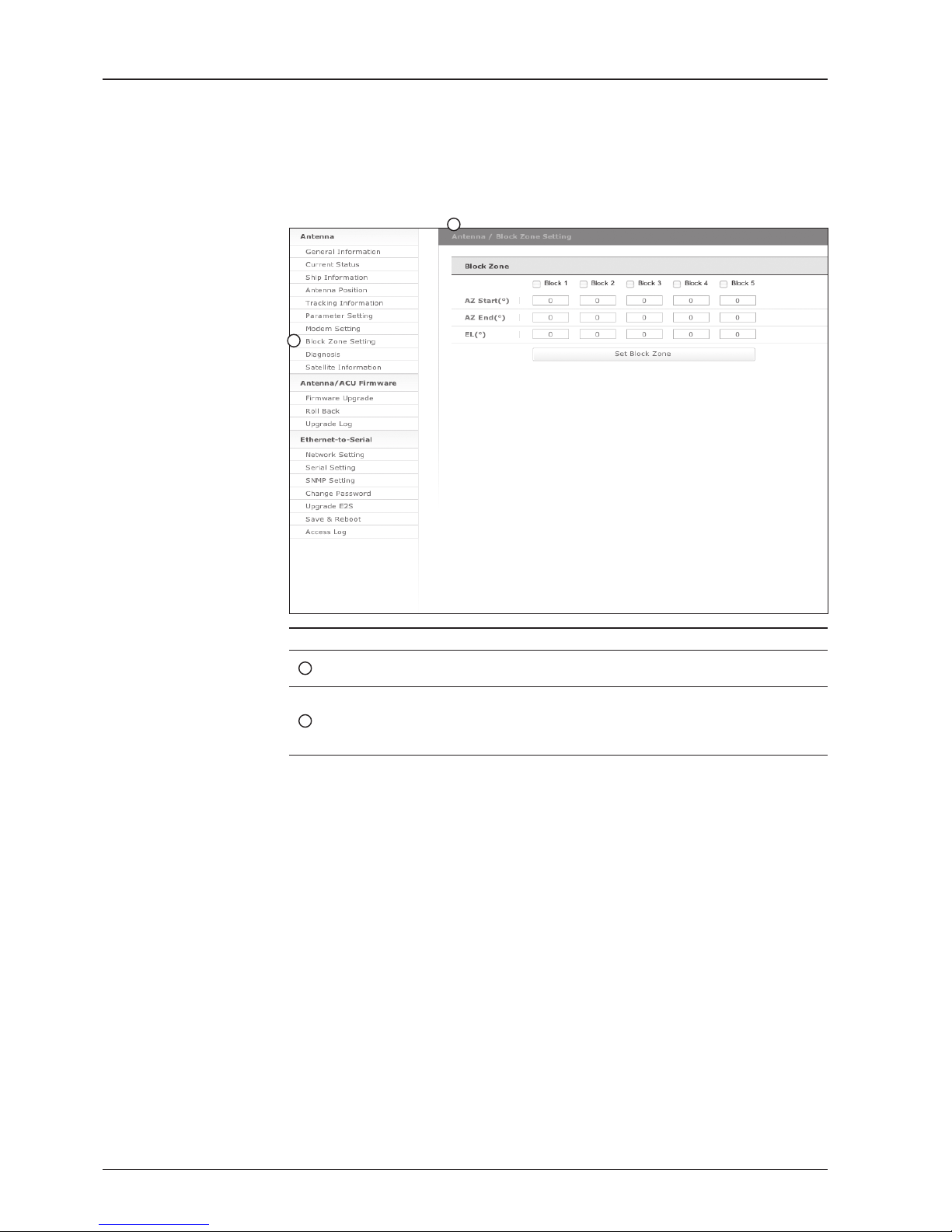

Block Zone Setting

No. Item Description

Block Zone Setting

Up to 5 block zones are allowed to be programmed.

Block Zone

This is the clockwise of the two points. AZ. START is where the relative azimuth starts and AZ. END is where the relative azimuth ends (Range: 0 - 360°). EL. Limit is where the elevation starts (Range 0

- 90°).

Intellian v130, v1-130 series Installation And Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
