Intellian i9P Installation And Operation Manual

Document Number: 2014H0-UM0213-V2_0
i9P
Installation and Operation Manual
2
Intellian Satellite TV Antenna Systems
Intellian i9P Serial Number
This serial number will be requested for all troubleshooting or service Inquiries.
All Rights Reserved
Intellian i9P® and Intellian® are the registered trademarks of Intellian Technologies, Inc., and should not be appropriated without permission by Intellian Technologies, Inc., and the information contained in this manual is the property of Intellian Technologies, Inc. Any and all parts of this manual shall not be reproduced and distributed in any form without prior written consent by Intellian Technologies, Inc. The information contained in this manual shall be subject to
change at any time without notice due to the functional upgrades of the product.
3
Table of Contents
INTRODUCTION
INTRODUCTION TO INTELLIAN i9P FEATURES OF INTELLIAN i9P BASIC SYSTEM CONFIGURATION OF INTELLIAN i9P
INSTALLATION THE ANTENNA
SYSTEM COMPONENTS TOOLS REQUIRED FOR INSTALLATION PLANNING THE INSTALLATION
INSTALLING THE ACU
ACU DIMENSIONS CONNECTING THE SYSTEM TO A GPS DC OUT PORT AUTO LNB SKEW ANGLE ADJUSTMENT PC TO ACU COMMUNICATION SETUP
OPERATION INSTRUCTION
INTRODUCTION
OPERATING THE ACU
ACU SOFT KEYS NORMAL MODE SETUP MODE
4
4 5 6
7
7 10 11
17
17 19 20 21 22
24
24
24
24 25 28
51
51 51 52 52 53 54 57 60
71
72
73
ANTENNA CONTROL SOFTWARE
INTRODUCTION TO APTUS
®
SOFTWARE INSTALLATION PC TO ACU COMMUNICATION SETUP ESTABLISH A DATA COMMUNICATION AUTO UPDATE TOOLBAR MENUS SYSTEM PROPERTY STATUS DASHBOARD WORK VIEW TABS
PREPARATION FOR TRANSPORTATION
WARRANTY
APPENDIX : i9P TECHNICAL SPECIFICATION
4
Intellian Satellite TV Antenna Systems
Introduction
Introduction to Intellian i9P
Intellian i9P is a digital satellite antenna system designed specically for all types of vessels (Anchored or transit) to automatically identify, track and capture satellite signals from the Digital Video Broadcasting (DVB: the international standard for digital TV transmissions) compatible satellites.
Specically, Intellian i9P has Wide Range Search (WRS) algorithm, which minimizes the search time during initialization, and Dynamic Beam Tilting (DBT) technology, which dynamically shapes the antenna beam to utilize stabilization. While tracking the target satellite, DBT technology uses a high-performance, constantly adjusting sub-reector which allows the antenna to remain relatively still, eliminating the constant whine of stepper motors while staying locked on to the satellites.
The i9P has a built-in GPS system which enhances the speed of satellite signals acquisitions. In addition, the i9P provides the embedded auto skew angle control system to maintain the optimal signal strength and increase the quality of satellite receptions in weak satellite single coverage area.
5
Features of Intellian i9P
Enjoy satellite broadcasts at sea
Intellian i9P is the most modern antenna system that enables you to receive a high quality broadcasting signal at sea, where the atmospheric and environmental condition can be challenging.
Fully automatic control system
Fully automatic control system allows you to simply turn the power switch on, and have crystal clear, high quality satellite television in motion or at anchor.
Fast and efcient search for the satellite
The WRS (Wide Range Search) algorithm allows for the antenna system to search the satellite within the shortest amount of time and to detect the satellite signal under any position and with any directional movement of the ship.
Outstanding reliability
The Intellian i9P is a highly reliable system through the implementation of a modularized design, and the usage of proven and tested components.
Built-in GPS
The Intellian i9P has an embedded GPS, which allows for the upload of GPS data automatically for an even faster and stable system.
Built-in automatic skew angle control system
The automatic skew control system allows Intellian i9P to maintain the optimal skew angle at all times and ensure the maximum level of satellite signal level.
Ethernet Port for management
The Ethernet Port on the rear panel of the ACU enables direct and simple network connection between a PC and the ACU. By connecting to ISP or the modem linked with VSAT systems, Intellian i9P can be monitored, controlled, and diagnosed remotely from anywhere, anytime through the TCP/IP protocol. This not only can save tremendous time but also save the cost generated from the hundreds of routine maintenance activities such as operating rmware upgrades, tracking parameters resets, and system diagnostic.
Wireless Connectivity and Aptus mobile
The built-in WiFi enables the ACU to be wirelessly connected. Any kind of wireless devices such as PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.
6
Intellian Satellite TV Antenna Systems
Figure 01 : Basic System Conguration
Basic System Conguration
For your satellite TV system to work properly, the system will have to be connected with all of the provided components properly, as shown in the gure below (see the “Installation” section of this manual). Separate purchase of a satellite receiver and a TV is required.
Note: Dish Network and Bell TV users please refer to the Intellian Dish Network MIM Installation and User Manuals.
ACU
IRD 2 (Not supplied)
(Optional)
(Optional)
(Optional)
IRD 3 (Not supplied)
IRD 4 (Not supplied)
9-30V DC Power
NMEA GPS PC Cable
Satellite Receiver (IRD)
TV (Not supplied)
7
Figure 02 : Antenna Unit
System Components
The Intellian i9P consists of two major units, antenna assembly unit and antenna control unit.
Antenna Unit
The antenna of Intellian i9P is manufactured with the following components for the optimum search and reception of the satellite signal.
Mechanical Unit – manipulates the antenna to receive the optimal satellite signal regardless of the movement of the vessel.
Control Unit – controls mechanical operation of the antenna.
RF Unit – transmits the optimum satellite signal to the receiver.
Radome – protects the antenna from the severe marine environment.
Installation the Antenna
8
Intellian Satellite TV Antenna Systems
Figure 03 : Antenna Control Unit (ACU)
Antenna Control Unit (ACU)
Antenna Control Unit (ACU) provides the power to the antenna and con­trols the various settings of the antenna. Additionally, Vacuum Fluores­cent Display (VFD) allows for you to operate the ACU in the dark.
The functions of ACU are as follows:
Provide power for the antenna unit
Monitor the antenna status
Change the target satellite
Set up the user environment
Set the current GPS information
Set satellite information
Move antenna manually
Perform self-diagnosis of the antenna
Set up the interface with a PC
Front
Rear
9
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)
Hex.Bolt
5
Flat Washer
5
Spring Washer
5
Hex. Nut
5
Item
Qty
Antenna
ACU
Installation Kit
Contains the items required for securing the antenna unit and ACU to the vessel.
Other Components

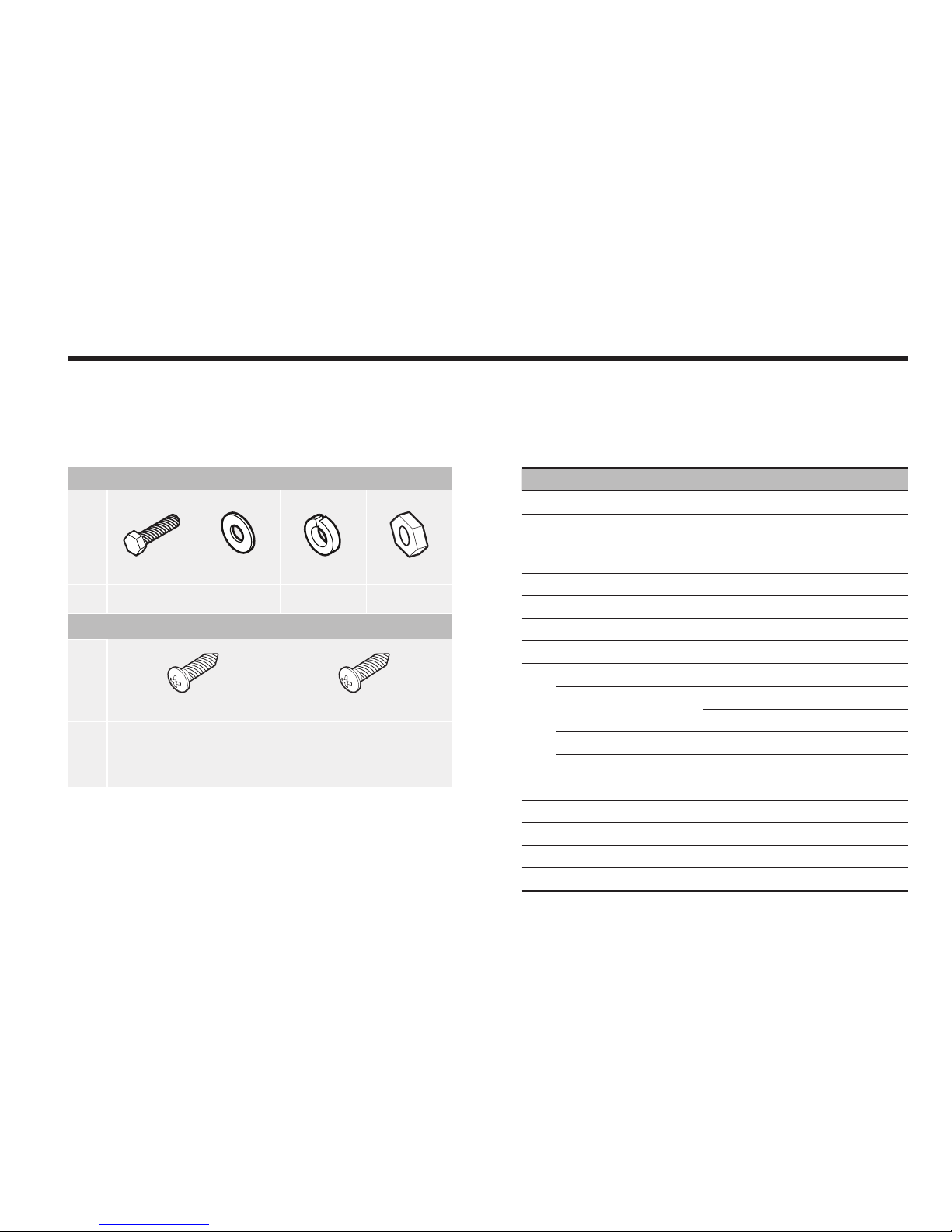

Figure 05 : List of the Supplied Parts
Figure 04 : Installation Bolt Kit
No Components Size Qty
1 ACU Bracket - 2
2
RG6 (Antenna - ACU RF Cable)
30m 1
3 RG6 (ACU - IRD Cable) 3m 1
4 Power Cable 10m 1
5 PC Serial Cable 1.8m 1
6 NMEA Connector AK950-2 1
7 Power Connector AK950-3 1
8
Hex Bolt M12x80L 5
Self-Tapping Screw
ø4x16L 5
ø3x8L 5
Flat Washer M12 5
Spring Washer M12 5
Nut M12 5
9 Aptus CD - 1
10 User Manual - 1
11 Mounting Template - 1
12 Quick Installation Guide - 1
10
Intellian Satellite TV Antenna Systems
Tools Required for Installation
Figure 06 : Required Tools for Installation
13 mm Spanner
11 mm Spanner
Phillips Head
Screwdriver
Flat Head
Screwdriver (Min. 5mm)
19 mm Spanner
5 mm Allen/Hex key
11
Planning the Installation
Selection of Antenna Installation Site
Install the antenna in accordance with the following procedures to insure maximum performance.
The antenna should be installed in a place where there is all round clear view of the horizon. Please be sure there are no obstacles within 15° above the antenna. Any obstacles can prevent the antenna from tracking the satellite signal (Refer to the drawing on the right).
Do not install the antenna near the radar especially on the same plane. Its energy levels may overload the antenna front-end circuits. It is recommended to position the antenna at least 4 feet (1.2m) above or below the level of the radar and minimum of 15 feet (4.6m) away from the high power short wave radars.
The mounting platform should be rigid and not subjected to excessive vibration. The movement of the antenna can be minimized by installing at the center of the vessel. For optimal performance of the antenna, it is not recommended to install at any corner of the vessel, where the movement of the vessel is the greatest. Install the bottom of the antenna parallel to the surface of the sea and x tightly to the structure of the vessel.
Figure 07 : Elevation Limit of Obstacles
15°
Antenna Unit Obstacle
12
Intellian Satellite TV Antenna Systems
Extending the Cables
The cables that have been supplied with your Intellian system should be of adequate length to complete the installation on most boats.
Power Cable
This cable supplied at a length of 10m.
Note: Exceeding the indicated cable lengths will result in reduced performance of your system.
Cables
Before installing the system cables, consider the following points.
• All cables need to be well clamped and protected from physical damage and exposure to heat and humidity.
• Cables with severe bends are not allowed.
• Where a cable passes through an exposed bulkhead or deckhead, a watertight grommet or swan neck tube should be used.
Power Requirements
You need to follow the power requirements to avoid damage the system. Intellian i9P has been designed to work on a boat’s power supply rated at 12V / 24 V DC (acceptable range: 9~30 V DC).
If your IRD(s) and television(s) require a 110V/240V AC power supply, you will need to install a suitable DC to AC converter to operate the unit(s) from your boat’s DC power supply.
RF Cable
This cable supplied at a length of 30m. If a longer length is required you should replace this cabel with an extended RF cable.
13
Installation and Mounting of Antenna
The method of installation and mounting of the antenna may vary due to vessel design but the following procedures are applicable in most situations, and will result in a secure and effective installation.
Conrmation of Size Prior to Installation
Conrm the height and diameter of the bottom surface of the antenna before installing.
The space must be sufcient for installing the antenna unit considering the height and diameter of the antenna.
The height and the diameter of the bottom surface of the antenna are as shown in the following drawing. If possible, install the antenna using a power tower.
Note: Before installing the antenna open the radome and remove the shipping constraints from the antenna interior. Reinstall the radome before operating the system. The system will not perform properly if the radome is open.
Figure 08 : Radome Dimension of i9P
121 cm (47.5”)
113 cm (44.6”)
14
Intellian Satellite TV Antenna Systems
Mark of the Antenna Mounting Position
Referring to the mounting template, mark where antenna will be mounted onboard (it must be a at surface) or on a separate power tower.
Note: If a power tower is not suitable to mount the antenna, separate cable shock and waterproong measures must be taken to protect the RF connector from being exposed to the sea water and external shocks. An exposed cable may cause electric shock and cause serious damage to the equipment.
Figure 09 : Mounting Hole Position of i9P
24.75 cm (9.74")
24.75 cm (9.74")
15
Connection of the Cable
Connect the RF cable through the cable glands under the radome bottom.
Figure 10 : Cable Glands on Radome Bottom
16
Intellian Satellite TV Antenna Systems
Mounting the Antenna
Attach the antenna by using the hex head bolts (M12X80L), M12 spring washers, and M12 at washers supplied.
Figure 11 : Mounting the Antenna
M12 Hex. Bolt
Deck
Antenna Unit
M12 Flat Washer
M12 Spring Washer
M12 Hex Nut
M12 Flat Washer
19 mm Spanner
17
Installing the ACU
The ACU should be installed using the two supplied Table Mounting Brackets which allow for a top or bottom mounting conguration.
Using the self tapping screws supplied, attach the mounting brackets to the sides of the ACU.
Place the ACU in the location where it is going to be installed.
Using a pencil to mark the 4 hole positions (2 each side), and use the appropriate drill bit to drill them.
Connect the cables to the rear of the ACU.
Figure 13 : Installation of ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
Dry, cool, and ventilated.
Easy accessible from your main TV viewing area.
Installing the ACU
Figure 12 : Dimension of ACU for i9P
ACU Dimensions
7.5 cm (2.95”)
17.8 cm (7”)
17.8cm (7”)
5.4cm (2.1”)
22.8cm(9”)
18.5cm (7.3”)
21.7cm(8.5”)
18
Intellian Satellite TV Antenna Systems
Figure 14 : Basic Conguration
Connecting the System Cables
After installation and xation of the antenna, connect the ACU to the antenna. Refer to the drawing on the right to connect cables.
Connect the RF cable (30m) from the RF1 connector on the antenna power switch box to the RF1 connector on the ACU
Connect the RF cable (3m) from the receiver connector on the ACU to the RF connector on the IRD.
Connect the power cable (10m) from DC power connector on the rear of ACU to a power source at 12 VDC/ 24 VDC.
Press the POWER ON switch in front of the ACU to start the operation of the antenna system automatically.
ACU
IRD 2 (Not supplied)
(Optional)
(Optional)
(Optional)
IRD 3 (Not supplied)
IRD 4 (Not supplied)
9-30V DC Power
NMEA GPS PC Cable
Satellite Receiver (IRD)
TV (Not supplied)
19

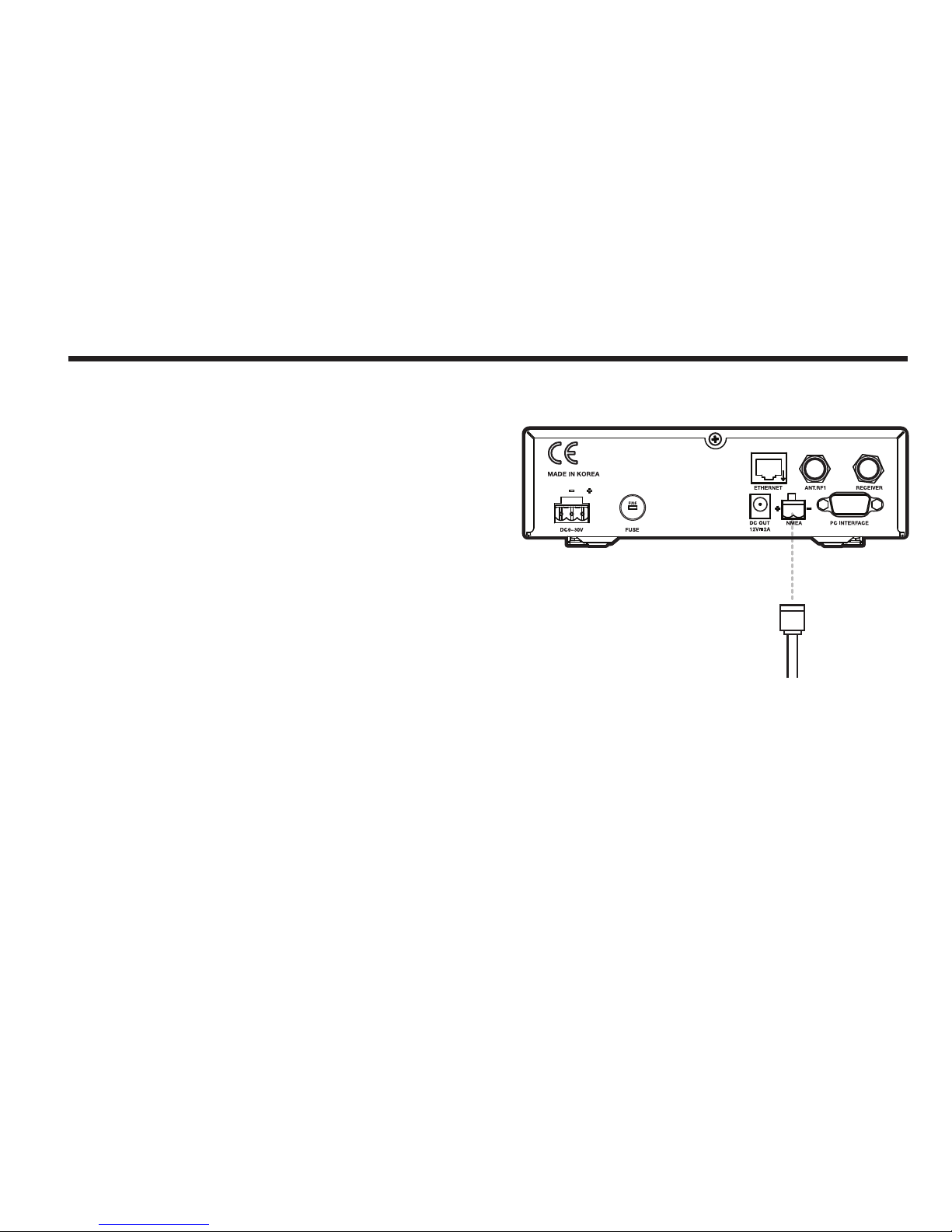

Figure 15 : GPS Connection
Your satellite TV system has a built-in GPS. If the internal GPS doesn’t operate properly, you can directly connect your boat’s NMEA 0183 GPS to the system through the ACU’s external GPS connector. To do this you will need a suitable cable to connect your GPS system and the green 2-way ACU GPS connector supplied with your Intellian i9P Satellite TV System.
Connecting the system to a GPS
1. Strip back the insulation of each conductor and connect each terminal of the 2-way connector.
2. Tighten the locking screws.
3. Connect the +ve (positive) terminal of the ACU GPS connector to the NMEA OUT wire of the boat’s GPS system.
4. Connect the –ve (negative) terminal of the ACU GPS connector to the ground wire of the boat’s GPS system.
5. Ret the ACU GPS connector to the rear of the ACU.
GROUND (-)NMEA OUT (+)
20
Intellian Satellite TV Antenna Systems
DC OUT port
Intellian ACU provides DC OUT port for direct connection of MIM(Multi­satellite Interface Multi-switch) or SDM (Shaw Decoder Module) which requires DC power input. Intellian MIM or SDM can be connected to the i-series ACU without AC-DC Adaptor.
Figure 16 : DC out MIM Figure 17 : DC out SDM
Note: The DC power cable is included in the component list of MIM and SDM.
21
Figure 18 : Auto LNB Skew Angle Control System
Intellian i9P has an embedded auto skew angle control system. Therefore, manual adjustment of the skew angle is not required. The skew angle is continuously adjusted automatically through calculations of the optimum angle by using the information of a targeted satellite and the GPS position. With location information as ship’s longitudinal and latitudinal position change from movement the skew angle will be adjusted accordingly. As the ship changes position, the skew angle will be continuously adjusted. The skew angle of the LNB is shown on the ACU and in the GUI program.
Auto LNB Skew Angle Adjustment
Skew sensor
Skew motor
LNB
22
Intellian Satellite TV Antenna Systems
PC to ACU Communication Setup
You can establish data communication between a PC and the ACU using one of the following methods.
Serial Connection Connection through Serial Port
1. Connect a 9-pin Serial cable from the PC INTERFACE connector on the
ACU to the 9-pin serial port on your PC.
2. If there is not a 9-pin serial port on the PC, use a USB-Serial adapter.
Figure 19 : Serial Connection
Wi-Fi Connection Setup Wi-Fi Connection
• Setting up the PC in order to access Wi-Fi
1. Connect Wi-Fi. After clicking on the Windows Wireless Connection icon, click on i-AP(default).
2. By default, the connection security is opened.
3. Use the ACU’s IP address to access Intellian Aptus
®
• Default: 192.168.1.223
Figure 20 : ACU to PC Wi Connection
23

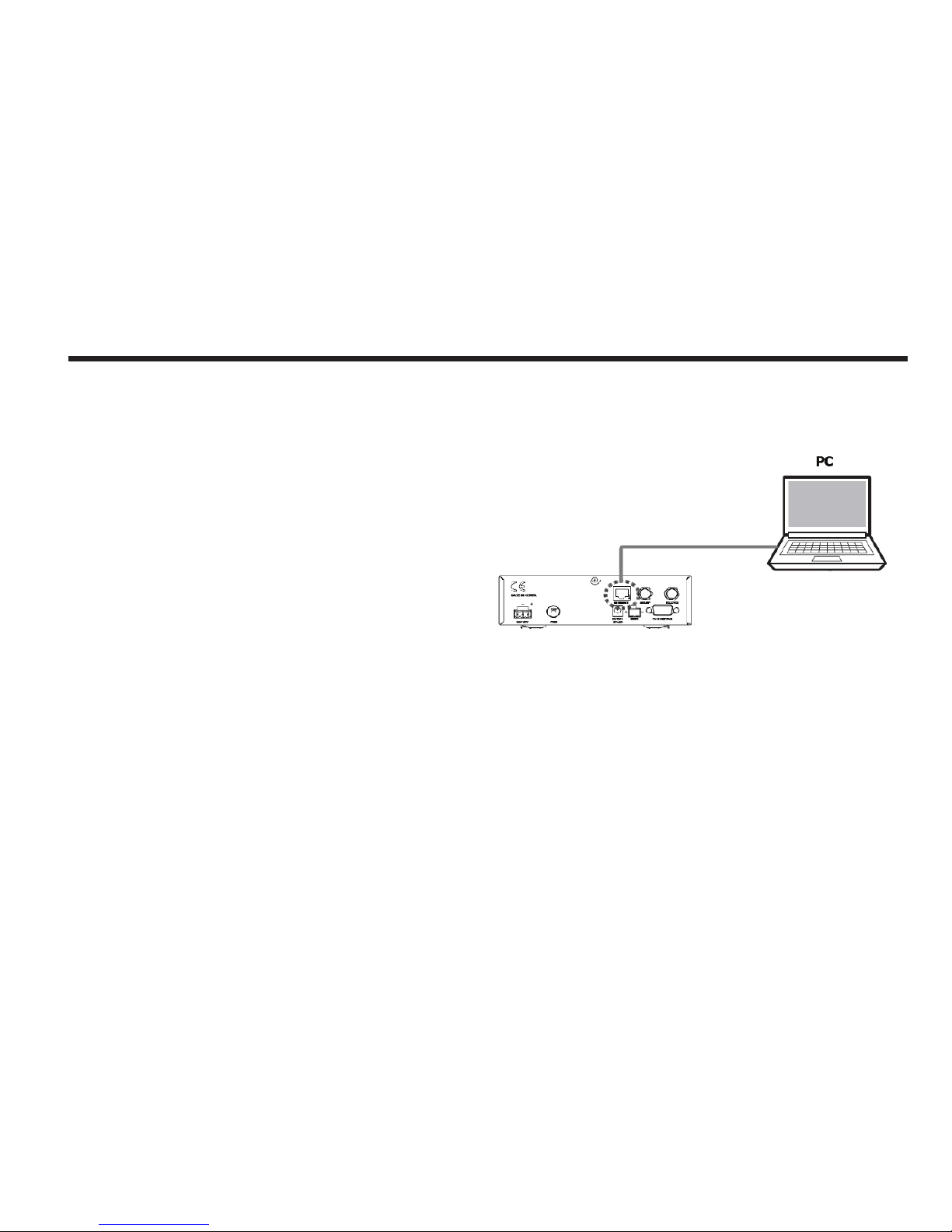

TCP/IP Connection Connection through Rear Panel Ethernet Port
This method requires separate IP conguration on a PC.
1. Connect an Ethernet cable from a PC Ethernet port to Ethernet port on the back of the ACU
2. Go to Control Panel > Network and Sharing Center > Change Adapter Settings and right-click on the Local Area Connection then click Properties
3. Select TCP/IPv4, then click Properties.
4. Change the network settings on a PC;
• IP Address: 192.168. 0.222
• Subnet Mask: 255.255.255.0
• Gateway: 192.168.0.223
5. Use the ACU’s IP address to access Intellian Aptus
®
.
• Default: 192.168.0.223
Figure 21 : ACU to PC TCP/IP Connection
24
Intellian Satellite TV Antenna Systems

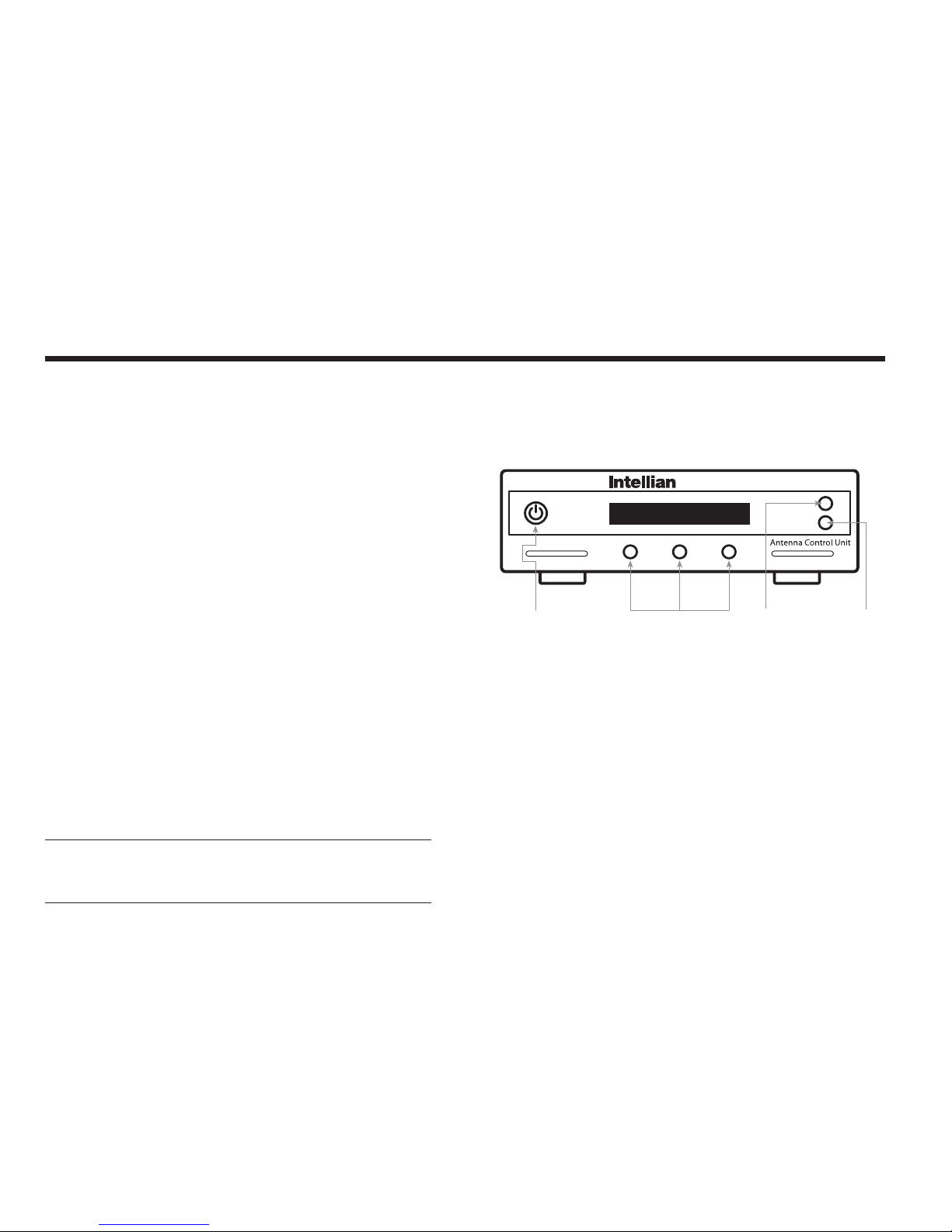

ACU Soft Keys
Press to select
On-screen option
BACK
ENTER
POWER
Figure 22 : ACU Soft Keys
Operating the ACU
Introduction
This section of the handbook describes how to setup your Satellite TV System after installing the ACU. It includes the following functions:
System startup
Changing the default satellite
Monitoring the antenna status
Setting sleep mode
Entering setup mode
Setting the satellite pair
Editing satellite information
Setting the antenna parameter
Setting GPS
Setting the DiSEqC method
Display versions
Display power status
Setting antenna go position
Setting antenna move step
Setting remote control
Setting the factory default parameters
Performing diagnostic tests
Note: Many of the listed functions will only be required only after initial installation of your system. Refer to the Quick Installation Guide before
operating the system.
Operation Instruction
25
Normal Mode
Start Up
With the system installed and power applied, the ACU screen will show the following sequence:
1. Data communication is being established between the antenna and the ACU. The ACU is initialized.
2. The antenna is initialized.
3. The antenna is searching for Satellite A.
4. The antenna has located the satellite and is
now tracking.
INITIALIZE ACU
INITIALIZE ANTENNA
SEARCH A: DTV101
TRACKING A: DTV101
INTELLIAN i9P
INTELLIAN i9P
B:DTV119 SETUP
B:DTV119 SETUP
Changing Target Satellite
Your antenna is pre-programmed with either two (Dual-Sat mode) or three (Tri-Sat mode) candidates of target satellites as a default mode. To change a target satellite, press LEFT soft key. The target satellite is changed and is automatically tracked by the antenna.
Default Dual-Sat Mode
1. Press LEFT soft key for tracking Satellite B.
2. The antenna is tracking Satellite B.
TRACKING A: DTV101
TRACKING B: DTV119
B: DTV119 SETUP
A: DTV101 SETUP
26
Intellian Satellite TV Antenna Systems
Advanced Tri-sat Mode
With the system installed and power applied, the ACU screen will show the following sequence.
1. Press LEFT soft key for tracking Satellite B.
2. The antenna is tracking Satellite B.
3. Press LEFT soft key for tracking Satellite C.
4. The antenna is tracking Satellite C.
TRACKING A: DTV101
TRACKING B: DTV119
TRACKING C: DTV110#
DTV119 DTV110#
DTV110# DTV101
DTV110# DTV101
DTV101 DTV119
TRACKING B: DTV119
27
AZ : ###.# EL : ##.#
SIGNAL : ### [VL]
Monitoring Current Status
When powered on, ACU displays the status of the antenna. The current status of the antenna is displayed as shown below.
1. The antenna is searching for satellite A.
5. Antenna position detail and signal strength are displayed.
3. The antenna is unwrapping the cable.
2. The antenna is tracking satellite A.
6. Press center soft key to display current GPS information. Press center soft key to return to main tracking mode.
4. The antenna is again tracking satellite A.
Press center soft key to display position detail.
SEARCH A: DTV101
ANTENNA IS UNWRAPPING
TRACKING A: DTV101
TRACKING A: DTV101
B:DTV119 SETUP
B:DTV119 SETUP
###.##E ##.##N
28
Intellian Satellite TV Antenna Systems
Setup Mode
Begin Setup Mode
To enter the Setup Mode simply follow the instructions below:
1. While the antenna is tracking press SETUP
1. Press BACK to enter sleep mode.
2. Press BACK again for exiting sleep mode.
2. Press YES to enter setup mode.
3. Press YES to set the satellite pair.
TRACKING A: DTV101
TRACKING A: DTV101
TRACKING A: DTV101
SETUP MODE ?
SET SAT PAIR ?
B:DTV99 SETUP
B:DTV119 SETUP
B:DTV119 SETUP
YES
PREV
NO
NEXTYES
Sleep Mode
If the antenna has lost the tracked satellite while in sleep mode, sleep mode will be canceled.
29
Setting the Satellite Pair
You can change the satellite pair if you decide to receive satellite television service from a different service provider.
1. Press YES to enter setup mode.
2. Press YES to set satellite pair.
3. Press YES to set triple satellites.
SETUP MODE ?
SET SAT PAIR ?
SET TRIPLE SAT ?
YES
PREV
YES
NO
NEXT
NO
YES
5. Set satellite B Press PREV to show previous satellite name. Press SELECT to set chosen satellite to SAT B. Press NEXT to show next satellite name.
6. Set satellite C Press PREV to show previous satellite name. Press SELECT to set chosen satellite to SAT C. Press NEXT to show next satellite name.
7. Press YES to save selections. Press NO to cancel and return to main setup
mode.
SAT B : DTV119
SAT C : DTV110#
SAVE ?
PREV
PREV
YES
NEXT
NEXT
NO
SELECT
SELECT
4. Set satellite A Press PREV to show previous satellite name. Press SELECT to set chosen satellite to SAT A. Press NEXT to show next satellite name.
SAT A : DTV101
PREV NEXTSELECT
30
Intellian Satellite TV Antenna Systems
Setting the GPS
It is possible to set up and modify the GPS information, which enhances the antenna functionality.
4. Input the longitude data. + increases the value. - decreases the value. Change the underscored digit using the +/­ buttons. Press INPUT to accept the value and move to
next digit. Press BACK to move to previous digit.
5. Press ENTER to move to next screen. Press BACK to move to previous screen.
6. Input the latitude data. + increases the value. - decreases the value. Change the underscored digit using the +/- buttons. Press INPUT to accept the value and move to
next digit.
Press BACK to move to previous digit.
7. Press YES to accept data. Press NO to cancel and return to main setup mode.
LONGITUDE ###.## E
LONGITUDE ###.## E
LATITUDE ##.## N
SAVE ?
-
-
-
YES
+
+
+
NO
INPUT
INPUT
INPUT
1. Press YES to enter setup mode.
2. Press NEXT to enter GPS setup mode.
3. Press YES to set GPS.
SETUP MODE ?
SET SAT PAIR ?
SET GPS ?
YES
PREV
PREV
NO
NEXT
NEXT
YES
YES
X1
31
Edit Satellite Information
It is possible to modify the existing satellite information and input new satellite information into the ACU as well. It is not recommended for a novice satellite service user to use this mode.
1. Press YES to enter setup mode.
2. Press NEXT twice to enter edit satellite info
mode.
3. Press YES to edit satellite info.
4. Set the satellite name.
PREV - Shows previous satellite name. SELECT - Select the displayed satellite for editing. NEXT - Shows next satellite name. Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
EDIT SAT INFO ?
SAT NAME : DTV101
YES
PREV
PREV
PREV
NO
NEXT
NEXT
NEXT
YES
YES
SELECT
X2
5. Input the satellite name. + increases the value. - decreases the value. Change the underscored digit using the +/­ buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit.
6. Press ENTER to move to next screen. Press BACK to return previous screen.
7. Input the satellite position. + increases the value. - decreases the value. Change the underscored digit using the +/­ buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit.
SAT NAME : DTV101
SAT NAME : DTV101
LONGITUDE 124.00 E
-
-
-
+
+
+
INPUT
INPUT
INPUT
8. Input the tracking frequency (MHz) and symbol rate (KHz) for vertical low band.
VER LOW 12598 21096
-
+INPUT
32
Intellian Satellite TV Antenna Systems
9. Input the network ID (NID) for vertical low band.
10. Input the tracking frequency (MHz) and symbol rate (KHz) for horizontal low band.
11. Input the network ID (NID) for horizontal low band.
12. Input the tracking frequency (MHz) and symbol rate (KHz) for vertical high band.
HOR LOW 12523 21096
VER HIGH 12598 21096
HOR LOW NID 0x0003
-
-
-
-
+
+
+
+
INPUT
INPUT
INPUT
INPUT
VER LOW NID 0x0003
13. Input the network ID (NID) for vertical high band.
14. Input the tracking frequency (MHz) and symbol rate (KHz) for horizontal high band.
VER HIGH NID 0x0003
HOR HIGH 12523 21096
-
-
+
+
INPUT
INPUT
15. Input the network ID (NID) for horizontal high band.
16. Select the Verication Method*
of tracking
satellite. PREV - Shows previous method. SELECT - Set the displayed method. NEXT - Shows next method.
HOR HIGH NID 0x0003
VERIFY : DSS DECODE
-
PREV
+
NEXT
INPUT
SELECT
33
17.
Select the
Voltage Supply Method*
to LNB.
(AUTO is recommended)
18. Select the DISEQC Method*. (AUTO is recommended)
19. Press YES to save the input information. Press NO to cancel and return to main setup mode.
VOLTAGE : AUTO
DISEQC : AUTO
PREV
PREV
YES
NEXT
NEXT
NO
SELECT
SELECT
SAVE?
Verication Method*
SIGNAL - use only signal level for tracking DVB LOCK - use only DVB Lock signal for tracking DVB DECODE - verify satellite using DVB decoding method for tracking DSS DECODE - decode only DSS Lock signal for tracking AGC AFTER DECODE - for tracking Ka-Band satellite
Voltage Supply Method*
AUTO – Supply 13V or 18V to LNB ONLY 13 V - always supply 13 V to LNB ONLY 18 V - always supply 18 V to LNB
DISEQC Method*
AUTO – Supply 0KHz tone or 22KHz tone to LNB ONLY 0 KHz – always supply 0KHz tone to LNB ONLY 22 KHz – always supply 22KHz tone to LNB
34
Intellian Satellite TV Antenna Systems
Setting the Antenna Parameters
It is not recommended for a novice satellite service user to use this mode. Consult Intellian for changing antenna parameters.
1. Press YES to enter setup mode.
2. Press the NEXT three times to enter set Antenna Parameter menu.
3. Press YES to set antenna parameter.
4. Select the PARAM* PREV - Shows previous parameter. SELECT - Set the displayed parameter. NEXT - Shows next parameter. Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
YES
PREV
PREV
PREV
NO
NEXT
NEXT
YES
YES
YES
X3
5. Input the WRS LEVEL.
+ increases the value. - decreases the value. Change the underscored digit using the +/­ buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.
6. Press YES to setup another parameter.
Press NO to cancel and return to main setup mode.
7. Press YES to save the input information.
Press NO to cancel and return to main setup mode.
WRS LEVEL : 0500
ANOTHER PARAMETER
SAVE ?
-
YES
YES
+
NO
NO
INPUT
SET ANT PARAMETER ?
NEXT
35
PARAM*
Scan Offset
Track Scale
Detect Level
WRS Level
Track Offset
Power Level
DiSEqC Level
Offset RH-LH
EL Offset
Use WRS
Offset
Difference

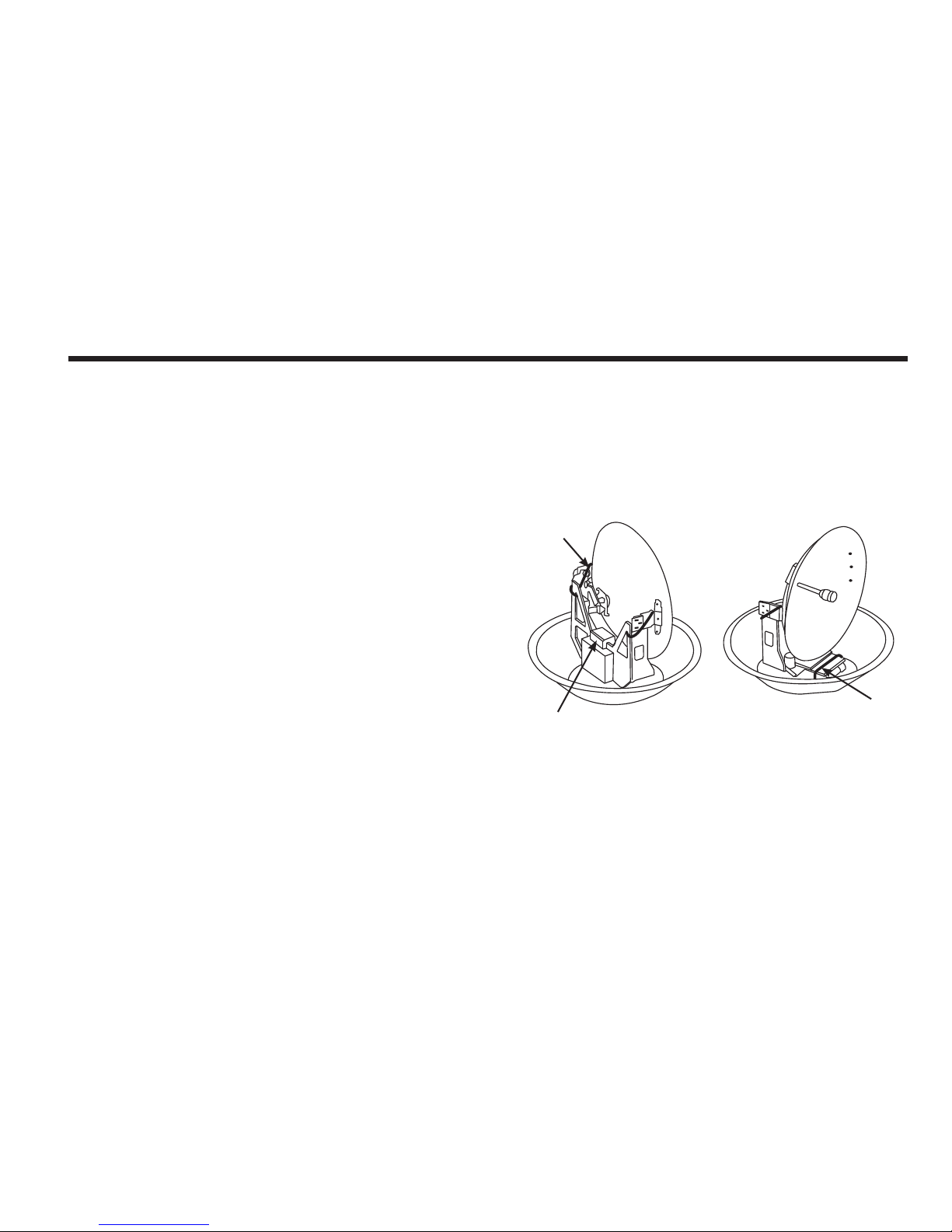

The scan offset is to offset the angle difference between the
black marker on the sub-reector and the optical sensor.
The track scale is to control the tracking speed while antenna
is tracking the satellite.
The detect level is to set the satellite signal detection level.
The WRS level is to set the WRS detection level.
The tracking offset is to offset the satellite signal tracking
level.
The power level is to distinguish the voltage between 13 V and 18 V.
The DiSEqC level is to distinguish 0KHz tone and 22KHz tone.
The offset RH-LH is to offset the signal difference between
RHCP and LHCP.
The EL offset is to offset the angle difference between the
mechanical elevation angle and actual elevation angle.
Use WRS is to determine whether the system uses WRS level
or not. “Use WRS” and “WRS Level” are pair functions.
Offset difference is to determine whether the system to uses
“Offset RH-LH” or not. “Offset Difference” and “Offset RH-LH”
are pair functions.
36
Intellian Satellite TV Antenna Systems

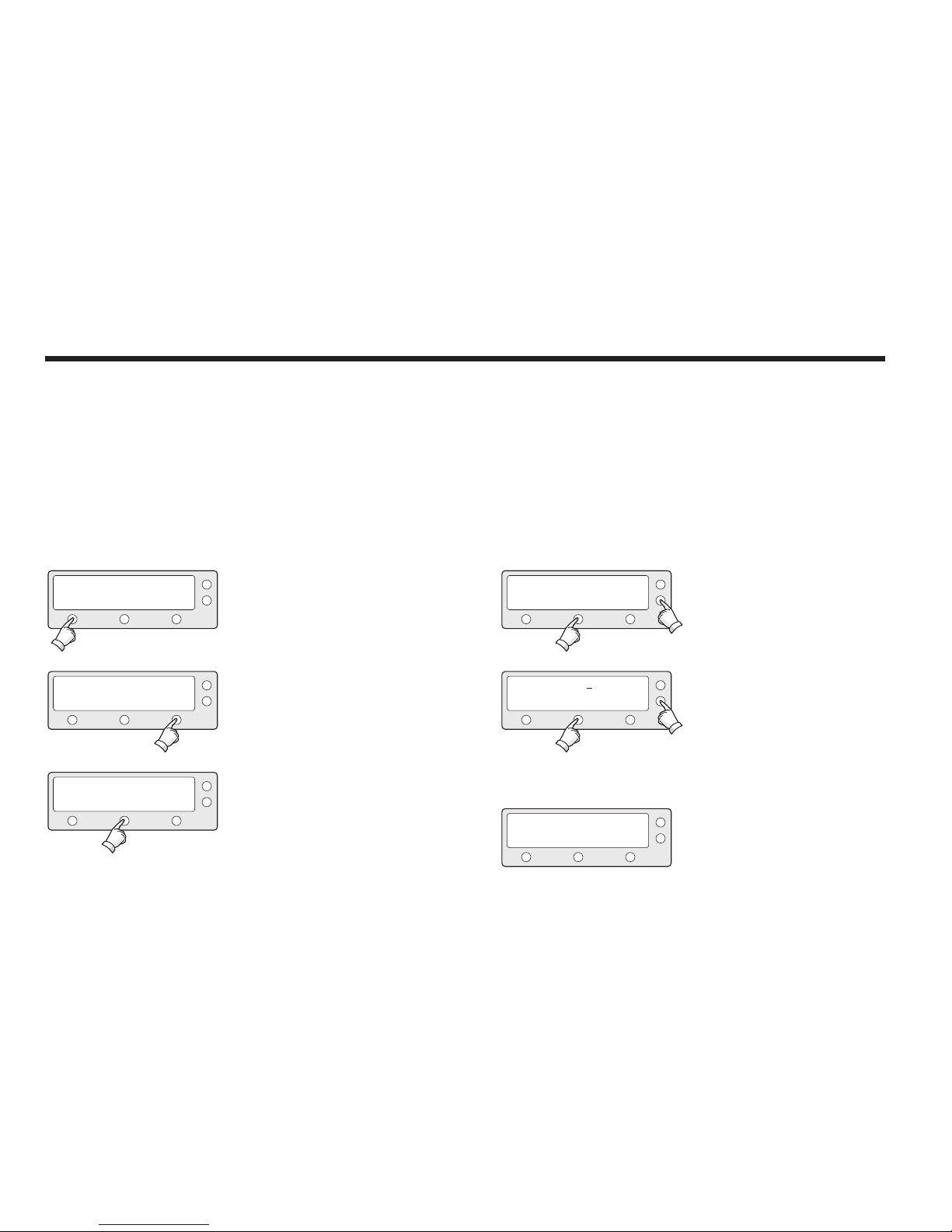

Setting the LNB Local Frequency
It is possible to select a local frequency from ACU. It is not recommended for a novice satellite service user to use this mode.
Case1. Single band LNB is used.
1. Press YES to enter setup mode.
2. Press NEXT four times to enter set local frequency mode.
3. Press YES to set local frequency.
4. Select the LNB Type* - SINGLE
PREV - Shows previous LNB type. SELECT - Set the displayed LNB type. NEXT - Shows next LNB type. Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
SET LOCAL FREQ ?
YES
PREV
NO
NEXT
NEXT
YES
YES
SELECT
X4
5. Input the local frequency of LNB.
+ increases the value. - decreases the value. Change the underscored digit using the +/-buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.
6. Press YES to accept the data.
Press NO to cancel and return to main setup mode.
LOCAL FREQ: #####MHz
SAVE ?
-
YES
+
NO
INPUT
37
Case 2. Universal LNB is used (Low band local frequency-9750 MHz/ High band local frequency 10600 MHz).
1. Press YES to enter setup mode.
2. Press NEXT four times to enter set local frequency mode.
3. Press YES to set local frequency.
4. Select the LNB Type* - UNIVERSAL. PREV - Shows previous LNB type. SELECT - Set the displayed LNB type. NEXT - Shows next LNB type. Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
SET LOCAL FREQ ?
LNB TYPE : UNIVERSAL
YES
PREV
PREV
PREVNO
NEXT
NEXT
YES
SELECT
X4
5. Press YES to accept the data. Press NO to cancel and return to main setup mode.
SAVE ?
YES NO
LNB Type*
SINGLE: Single Band LNB Asia 11300 MHz, Japan 10678 MHz, Korea 10750 MHz, America 11250 MHz
UNIVERSAL : Universal LNB Low band local frequency - 9750 MHz High band local frequency - 10600 MHz
38
Intellian Satellite TV Antenna Systems

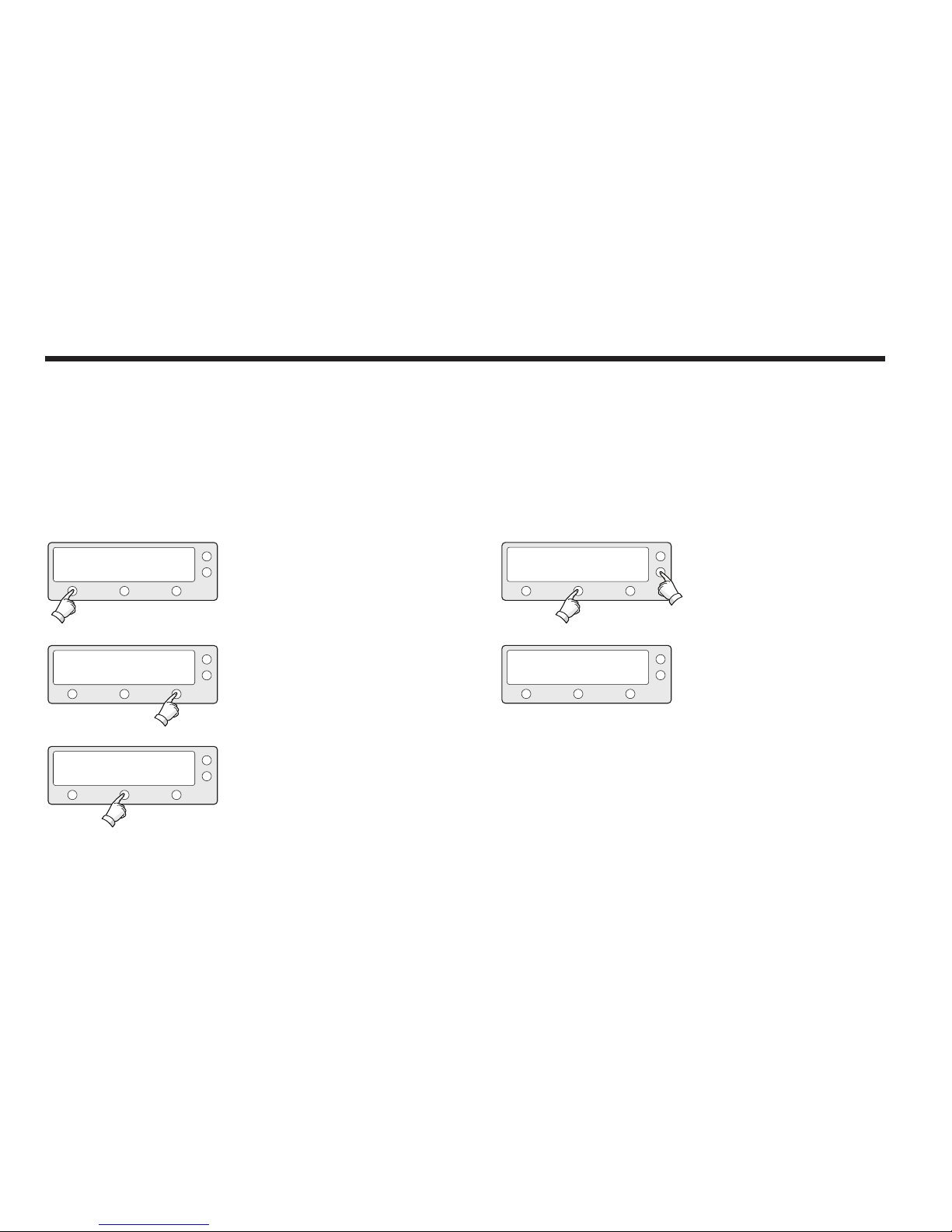

Setting the DiSEqC Method
DiSEqC selection can be made from ACU. It is not recommended for a novice satellite service user this mode.
1. Press YES to enter setup mode.
2. Press NEXT ve times to enter DISEQC mode.
3. Press YES to use DISEQC.
4. Select the DiSEqC Method* PREV - Shows previous DiSEqC Method. SELECT/ENTER - Set the displayed DiSEqC method. NEXT - Shows next DiSEqC Method. Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
USE DISEQC ?
DO NOT USE DISEQC
YES
PREV
PREV
PREV
NO
NEXT
NEXT
NEXT
YES
YES
X5
5. Press YES to accept the selection. Press NO to cancel and return to main setup mode.
SAVE ?
YES NO
DiSEqC Method*
DO NOT USE DISEQC - DiSEqC is not being used. USE TO CHANGE BAND - DiSEqC is being used to change to low and high band. USE TO CHANGE SAT - DiSEqC is being used to change tracking satellite.
39
1. Press YES to enter setup mode.
2. Press NEXT six times to enter the Use DiSEqC
1.2 menu.
3. Press YES to set the use of DiSEqC 1.2.
SETUP MODE ?
SET SAT PAIR ?
USE DISEQC 1.2 ?
YES
PREV
PREV
NO
NEXT
NEXT
YES
YES
X6
Setting the Use of DiSEqC 1.2
If DiSEqC 1.2 protocol is in use on your IRD, enable the DiSEqC 1.2 setting on the ACU to process the DiSEqC 1.2 command.
4. Set the USE DiSEqC 1.2 to a desired option*. PREV - Shows previous option (YES/NO) SELECT/ENTER - Set the displayed option for DiSEqC 1.2. NEXT - Shows next option (YES/NO) Press ENTER to move to next screen.
5. Press YES to accept the data. Press NO to cancel and return to main setup mode.
USE DISEQC 1.2 : NO
NEXT
PREV SELECT
SAVE ?
YES
NO
Options for ‘USE DiSEqC 1.2’
YES - Select this option if the DiSEqC 1.2 is used. NO - Select this option if the DiSEqC 1.2 is not used.
40
Intellian Satellite TV Antenna Systems
Setting the LNB Skew
1. Press YES to enter setup mode.
2. Press NEXT seven times to enter the Set LNB Skew menu.
3. Press YES to set the LNB Skew menu.
4. Press SELECT to calibrate LNB skew angle or press NEXT to enter ‘Skew: Manual’ option.
SETUP MODE ?
SET SAT PAIR ?
SET LNB SKEW
SKEW : CALIBRATION
PREV
PREV
PREV
NO
NEXT
NEXT
YES
YES
SELECT
YES
5. Press SELECT to set the LNB skew angle manually.
6. Press SET to save the changed LNB skew angle.
SKEW : 2.0 -> 0
+1
NEXT
X7
SKEW : MANUAL
PREV-1SELECT
SET
NEXT
41
1. Press YES to enter Display Version.
2. Press NEXT eight times to enter the View
Version mode .
3. Press YES to view version.
4. Antenna product name and S/N are shown.
Press EXIT to return to main setup mode.
DISPLAY VERSION?
SET SAT PAIR ?
VIEW VERSION ?
B4-919Q
YES
PREV
PREV
S/N: 0000000000
NO
NEXT
NEXT
EXIT
YES
YES
X8
Display Versions
This sequence enables you to see what version of antenna and ACU software are installed on your system.
5. Antenna software version and S/N are shown. Press EXIT to return to main setup mode.
6. ACU software version and S/N are shown. Press EXIT to return to main setup mode.
7. Library version and S/N are shown. Press EXIT to return to main setup mode.
ANT S/W VER : 4.00
ACU S/W VER : 0.01
LIBRARY VER : 0.01
S/N: 0000000000
S/N: 0000000000
S/N: 0000000000
EXIT
EXIT
EXIT
42
Intellian Satellite TV Antenna Systems
Display Power
1. Press YES to enter setup mode.
2. Press NEXT nine times to enter the view power mode.
3. Press YES to view power.
SETUP MODE ?
SET SAT PAIR ?
VIEW POWER ?
PREV
PREV
NO
NEXT
NEXT
YES
YES
X9
YES
4. ACU input voltage is shown. ACU output voltage is shown. Press any key to return to main setup mode.
ACU POWER : 27.1V
EXIT
5. Antenna input voltage is shown. Press center soft key to view IRD Voltage and frequency. Press EXIT to return to main setup mode.
6. IRD voltage and frequency are shown. Press EXIT to return to main setup mode.
ANT POWER : 25.9 V
IRD : 18V + ##kHz
EXIT
EXIT
43
Setting Remote Control
1. Press YES to enter setup mode.
2. Press NEXT ten times to enter remote control setting mode .
3. Press YES to set remote control.
4. Select the Function*
NEXT - Shows next function.
SETUP MODE ?
SET REMOCON ?
FUNC : CHANGE SAT
YES
PREV
PREV
NEXT
NO
NEXT
NEXT
EXIT
YES
YES
SELECT
X10
5. SELECT/ENTER - Registers a key on remote control.
6. Point remote control to ACU. Press any key on remote control for selected function and press same key again for conrmation. Press BACK to move to previous screen. Press EXIT to return to main setup mode.
PRESS A REMOTE KEY
NEXT
BACK
EXIT
EXIT
SELECT
FUNC : SLEEP MODE
7. If failed to press the same key twice, TRY AGAIN will be displayed.
8. If failed to register a free key, KEY IS USING will
be displayed.
FAILED - TRY AGAIN
THAT KEY IS USING
SET SAT PAIR ?
44
Intellian Satellite TV Antenna Systems
Function*
CHANGE SAT - Change the target satellite. SLEEP MODE - Enter sleep mode. CLEAR REGISTERED KEY - Clear registered key.
9. REMOTE KEY REGISTED will be displayed if key has been properly registered.
10. Press NEXT to shows next function.
Press EXIT to return to main setup mode.
REMOTE KEY REGISTED
FUNC : CHANGE SAT
NEXT EXITSELECT
45
Setting Antenna Go Position
The antenna can be controlled manually by using ACU.
1. Press YES to enter setup mode.
2. Press NEXT eleven times to enter Antenna Go Position mode.
3. Press YES to go position.
4. Input position value for azimuth (AZ) axis.
+increases the value. - decreases the value. Change the underscored digit using the +/- buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
ANT GO POSITION ?
GO TO AZ : ##.#
YES
PREV
PREV
-
NO
NEXT
NEXT
+
YES
YES
INPUT
X11
5. Input position value for elevation (EL) axis. + increases the value. - decreases the value. Change the underscored digit using the +/- buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.
6. Press YES to move the antenna to input position. Press NO to return to the Antenna Go Position mode.
7. Press EXIT to return to main setup mode.
GO TO EL : ##.#
GO TO POSITION ?
AZ:###.# EL:###.#
-
YES
+
NO
EXIT
INPUT
46
Intellian Satellite TV Antenna Systems
Setting Antenna Move Step
The antenna can be moved by 1° step manually by using ACU.
1. Press YES to enter setup mode.
2. Press NEXT twelve times to enter the Antenna Move Step mode.
3. Press YES to move step.
4. Move the antenna in the AZ axis. CW - Move the antenna clockwise. CCW - Move the antenna counter clockwise. EL - Go to elevation control screen.
SETUP MODE ?
SET SAT PAIR ?
ANT MOVE STEP ?
STEP AZ : ###.#
YES
PREV
CCW
NO
NEXT
NEXT
CW
YES
YES
EL
X12
5. Move the antenna in the EL axis. UP - Move the antenna up. DOWN - Move the antenna down. EXIT - Return to antenna move step mode.
STEP EL : ##.#
DOWN UP
PREV
EXIT
47
4. CODE 101 is being tested. Press EXIT to return to main setup mode.
5. CODE* 101 has passed. Press EXIT to return to main setup mode.
CODE 101 TESTING
CODE 101 PASSED.
RESULT: ?
RESULT:
EXIT
EXIT
Executing Antenna Diagnosis
The antenna status can be checked by reviewing the results of the diagnostic self-test of the antenna. Refer to the following codes to understand the test results.
1. Press YES to enter setup mode.
2. Press NEXT thirteen times to enter Antenna Diagnosis mode.
3. Press YES to diagnosis antenna.
SETUP MODE ?
SET SAT PAIR ?
ANT DIAGNOSIS ?
YES
PREV
PREV
NO
NEXT
NEXT
YES
YES
X13
48
Intellian Satellite TV Antenna Systems
CODE 101
CODE 102
CODE 103
CODE 104
CODE 105
CODE 106
CODE 107
CODE 108
CODE 109
CODE 110
RESULT
STATUS
Data communication between antenna and antenna control unit is
tested. If failed, check the RF cable.
AZ CW limit is tested.
If failed, check the limit sensors, motor and belt for AZ axis.
AZ CCW limit is tested.
If failed, check the limit sensors, motor and belt for AZ axis.
EL axis is tested.
If failed, check the limit sensors, motor and belt for EL axis.
Sub reector is tested.
If failed, check the sub reector.
LNB is tested.
If failed, check the LNB and control board.
Skew System is tested.
if failed, check the control board, skew motor, and skew sensor.
Antenna Input Power is tested.
If failed, check the RF cable.
ACU Power is tested.
If failed, check the ACU power cable and Input DC power.
IRD Power is test to IRD cable and IRD power.
• Test is passed.
- Test is skipped.
? Test is under processing.
Number refers to an error code
(••3••• -•••) 3 means error code 103.
CODE*
49

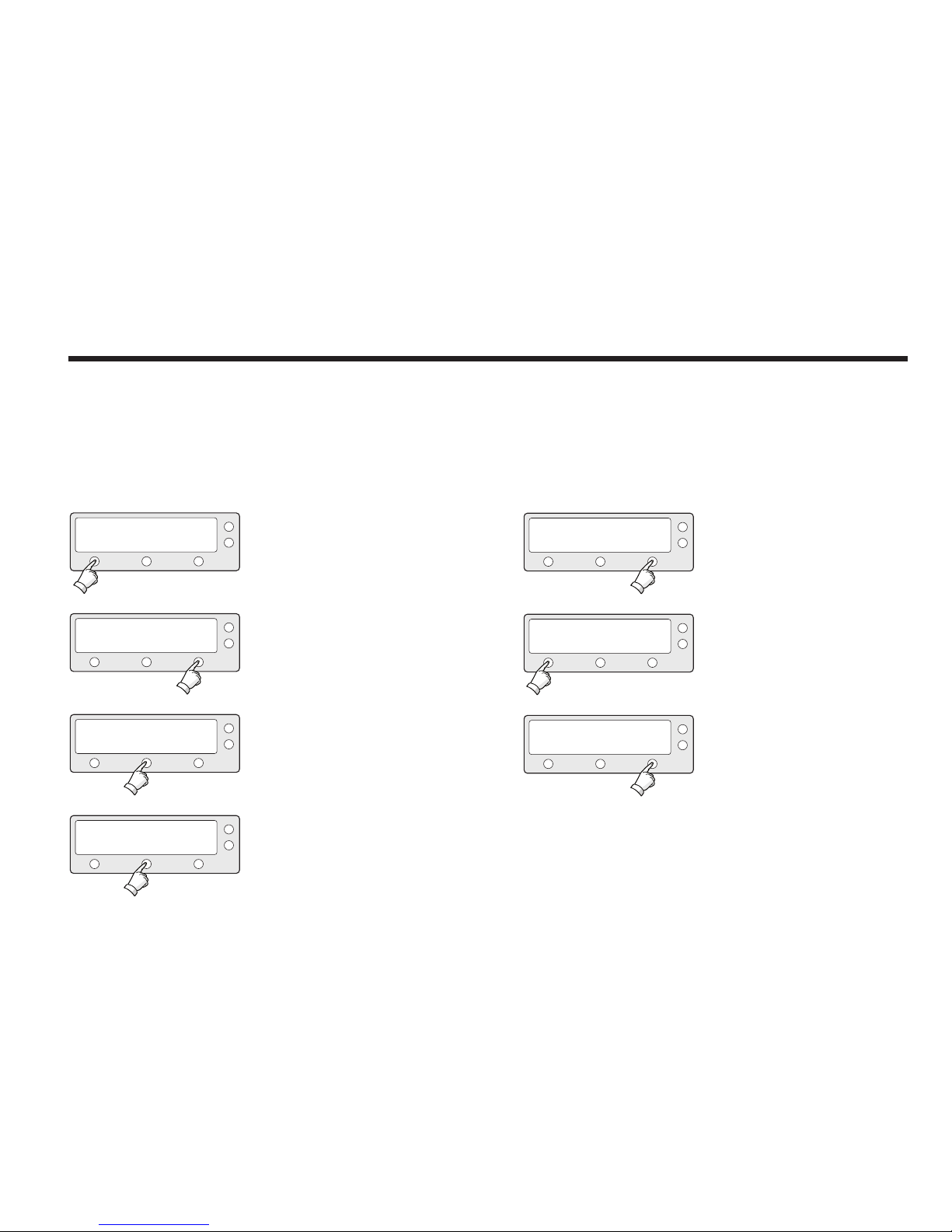

Setting Region
1. Press YES to enter setup mode.
2. Press NEXT twelve times to enter load region information mode.
3. Press YES to load region information.
4. Select the Continent.*
PREV - Shows previous continent. SELECT - Set the displayed continent. NEXT - Shows next continent.
SETUP MODE ?
SET SAT PAIR ?
LOAD REGION INFO ?
CONTINENT : N_AMERICA
YES
PREV
PREV
PREV
NO
NEXT
NEXT
NEXT
YES
YES
SELECT
5. Select the Region*. PREV - Shows previous region. SELECT - Set the displayed region. NEXT - Shows next region.
6. Press YES to load region information. Press NO to cancel and return to main setup
mode.
7. Loading selected region information.
REGION : LOS_ANGELES
LOAD ?
LOADING :
■ ■ ■ ■
PREV
DO NOT TURN OFF!
NEXT
NO
SELECT
Continent*
N. AMERICA, S.AMERICA, EUROPE, ASIA.
Region*
NEW YORK, MIAMI, UK, JAPAN, and etc.
50
Intellian Satellite TV Antenna Systems
Setting the Factory Default Parameters
This will restore the antenna back to factory default settings.
1. Press YES to enter setup mode.
2. Press NEXT fourteen times to enter default setting mode.
3. Press YES to set default parameters.
SETUP MODE ?
SET SAT PAIR ?
SET DEFAULT ?
YES
PREV
PREV
NO
NEXT
NEXT
YES
X14
51
Introduction to Aptus
®
Intellian’s new Antenna PC Controller Software, Aptus® is a next­generation graphically based antenna remote control software. The
Aptus® allows users to easily and conveniently set up the antenna by using a personal computer.
The minimum PC hardware and software requirements to install and run Aptus
®
are as below.

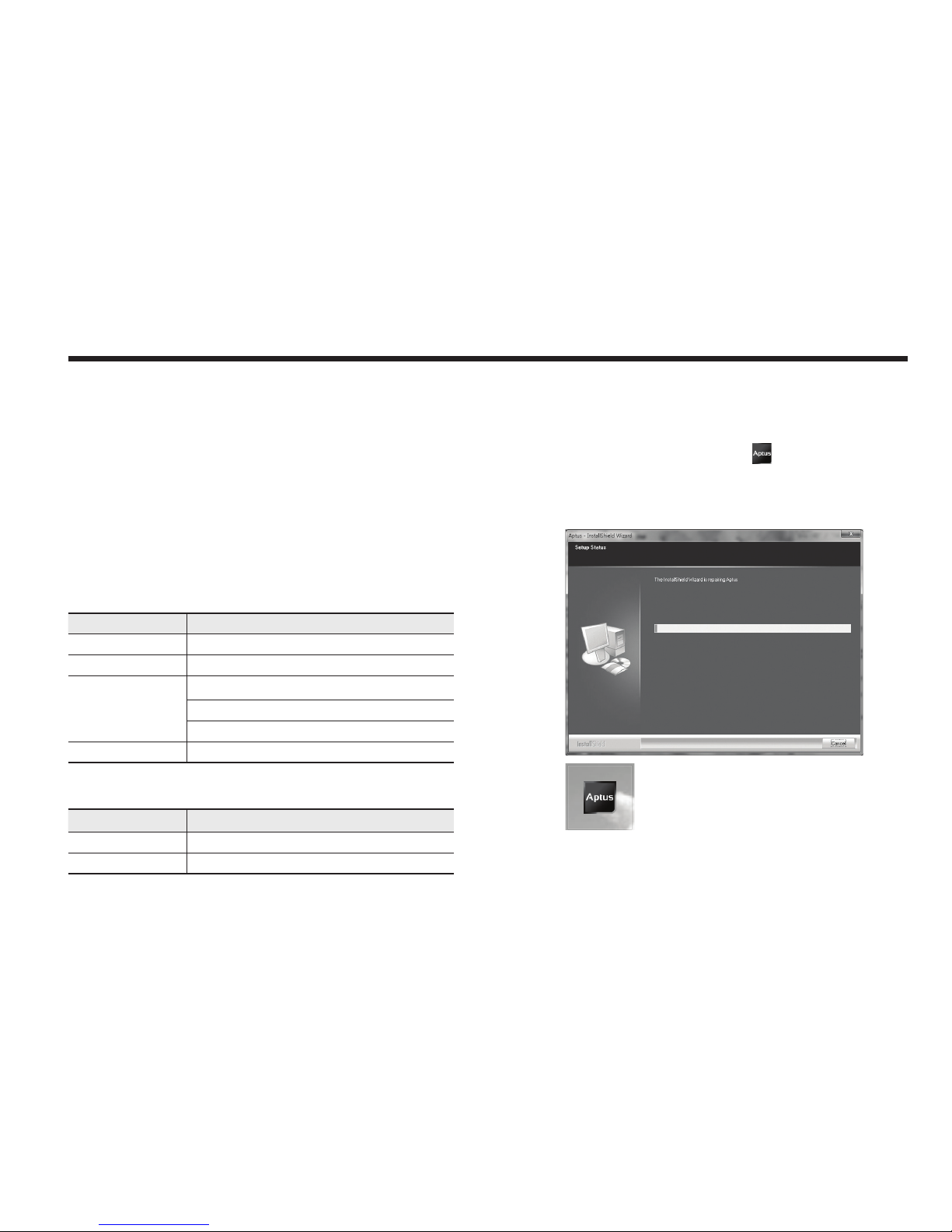

Software Installation
Double click the ‘Aptus for Setup.exe’ icon to install Aptus® directly onto your computer/ laptop. The InstallShield Wizard will guide you through the program setup process. The installation routine provides an icon on the desktop.
Click the icon to start the software. In addition, Intellian also provides patch les for software upgrade.
ANTENNA CONTROL SOFTWARE
Hardware
Hardware Requirements
CPU Intel
®
Pentium® 4 or higher
Memory 512MB or higher
Video Card
DirectX9.0 or higher supported
H/W acceleration supported
Video Memory 128MB or higher
HDD 1GB or higher
Operating System and Software
Software Requirements
Operating System Windows XP SP or higher
Framework Microsoft.Net Framework 3.5 Service Pack 1 or higher
52
Intellian Satellite TV Antenna Systems
PC to ACU Communication Setup
Starting Aptus
®
Double-click the Aptus® desktop icon, then Communication Window appears to establish the data communication between your PC and the ACU. Select options of connection method to access your ACU either through the Serial Port Communication or the Network Communication (TCP/IP).
Establish a data communication
Access ACU through Serial Communication
1. Connect a 9 pin Serial cable between the PC INTERFACE connector on the ACU and the 9 pin Serial port on the PC.
2. Select Serial at communication type combo-box.
3. The baud rate of the ACU is 19200 for i-series.
4. Select a COM port which is not occupied by other devices.
5. Click the Connect button.
Access ACU through Network Communication (TCP/IP)
1. Connect your PC to the Ethernet Port or via Wi-Fi.(Turn off the wireless connection while using the Ethernet port.)
2. Select Network at communication type combo-box.
3. Enter in the ACU’s IP address (Factory default - Ethernet connection: 192.168.0.223 / Wi-Fi connection : 192.168.1.223)
4. Enter in the ACU’s port number (Factory default : 4002)
Note: If the remote access PC is located in the same network group with the ACU, the ACU can be accessed through the internal IP address. But, if the remote access PC is located outside of the network group, the ACU’s IP address should be changed to the IP address assigned by the network service provider.
53

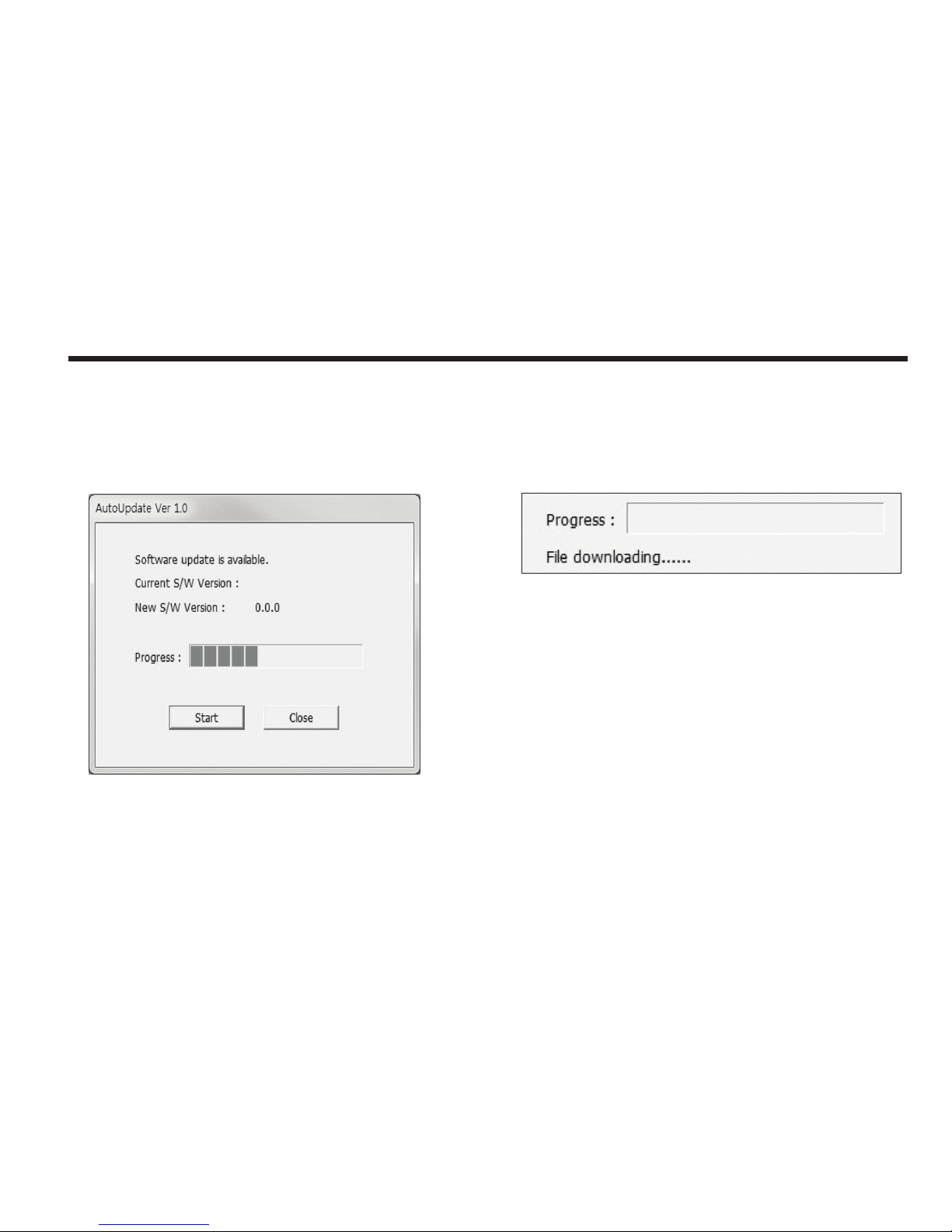

Auto Update
Intellian Aptus® checks and noties the latest version when it is started to maintain up to date software version by AutoUpdate function.
1. When Aptus® is started, it automatically checks the latest software version from the server and runs AutoUpdate if new version is available.
2. Current software version information is displayed.
3. It noties new software version information.
4. When you click the “start” button, “File downloading…” message is displayed while downloading les from the server.
5. When le downloading is nished, “installing…” message is displayed and Aptus patch runs and the installation starts by InstallShield.
6. Click the “Finish” button when InstallShield installation is nished, then “Run the Aptus” message is displayed and Aptus runs and AutoUpdate is automatically nished.
54
Intellian Satellite TV Antenna Systems
Toolbar Menus
The toolbar menus at the top of the screen display command buttons of the most commonly used functions of the Aptus®. The toolbar menus consists of 6 main menus; Quick (for quick launch of functions), File (not used on i-series), View(for user layout and work view), Connection(for communication), Utill(not used on i-series) and Help(for reporting problems and information check) .
Setup: enters Setup mode.
Restart: exits Setup mode and restarts the antenna.
Reboot: reboots the antenna.
Get Ant. Info: obtains the information stored in the antenna
Save Satellite: Not used on i-Series.
Quick
1
1 2 3 4 5 6
55
File : Not used on i-Series.
2
View
3
User Layout: displays the layout list that the user has previously stored by using Layout Manager. If you select a layout in this list, the selected layout will be constructed in Work View screen. The ‘Basic layout’ is provided by default.
Layout Manager: provides the user with add, delete, and save functionalities in order to manage the user’s layouts.
- Selecting ‘Add current layout’ opens a pop up window. Type in a desired name of current layout and click Add, then the new name of the current layout will be saved to the list under User Layout menu.
- When changes are made to the current layout, select ‘Save current layout’ option. The current layout will be saved with changes.
- To remove a layout, select ‘Delete layout’ option. Select a desired layout to remove on the pop up window, then click ‘Delete’. Close the window by clicking on ‘Close’. The selected layout is removed from the User Layout list.
Default Layout: returns the current layout to the default layout.
Work View: displays a list of seven pre-constructed Work View Tabs (Satellite View, Antenna Basic View, Antenna Advanced View, Monitor View, Graph View, ACU System View, and Antenna UI View) and also provides the Activate / Close functionalities for each view tab. Activate the work view tab by ticking the checkbox next to it.
56
Intellian Satellite TV Antenna Systems
At any time, data communication channel can be re-established between Serial and Network connection. Selecting Comm. Button will display Communication Window to connect to the ACU via Serial or Network communication.
• Report: provides e-mail contact to Intellian technical support team to let the user report problems at any time.
• Information: displays the information of current Aptus
®
software version.
Connection
4
Utill : Not used on i-Series.
5
Help
6
57
System Property Status Dashboard
The property status dashboard on the left pane of the screen provides the antenna status, the availability of TX transmission, signal level, GPS status, software information, product information and error status to be monitored quickly.
1
2
3
Antenna Status: Displays the status of the current mode of the antenna.
- Search: Antenna is searching the selected satellite.
- Tracking: Antenna is tracking the target satellite.
- Initialize: Antenna or ACU is initializing.
- Setup: Antenna is in SETUP mode.
- Sleep: Antenna is in Sleep mode.
- Unwrap: Antenna is unwinding/winding the cable in the antenna.
Tracking Satellite
Display or set current tracking satellite and tracking information. Up to three satellites can be selected.
Signal Level
The “Red” line indicates the signal “Detect Level Threshold” and the “Orange” line indicates the signal “Tracking Level Threshold”. If the signal level is higher than the tracking level threshold, the signal level bar will display “Blue” color. If the signal level is lower than the tracking level threshold, the signal level bar will display “Orange” color and the antenna will stay in searching mode.
Note: If the signal level is not higher than the tracking threshold, decrease the detect and tracking level.
58
Intellian Satellite TV Antenna Systems
4
5
6
7
GPS: Displays the current GPS location from the Antenna information.
The status light ashes green if the system receives a correct input of the GPS.
Voltage: Displays the antenna and the ACU voltage information.
Software Information: Displays the antenna and the ACU rmware versions
Product Information: Displays the antenna and ACU serial numbers,
antenna model and ACU model.
59
8
Diagnostic Error Report
The square button next to the Diagnostic Error Report turns red when the system receives an error. Click the button to see a Diagnostic Report.
60
Intellian Satellite TV Antenna Systems
Work View Tabs
Aptus® provides seven Work View Tabs (Antenna Basic View, Antenna Advanced View, Satellite ViewMonitor View, Graph View, Diagnostic /Network View, and GUI View) to manage the Antenna and the Satellite conguration.
How to modify the settings on Work View;
1. Enter the Setup mode by clicking Setup icon.
2. Tick the checkbox next to the “Set” button to modify the settings.
3. Enter the desired value then press the Set button to save the settings.
1. Antenna – Basic Info.
This view tab provides information on the Antenna’s Current GPS location, Skew Information, and the Antenna’s Angle. This view tab uses the Antenna’s AZ and EL information in order to provide a dynamic graphic user interface (UI).
- GPS: displays and sets current antenna’s GPS.
- Bow Information: not used on i-series.
- Go to Position : The current position (angle) of the antenna is displayed. Push the “Go to Target Position” button after keying in the desired angle to move the antenna to target position.
- Find Antenna Angle: displays and sets the current antenna angle. Select a desired satellite from the drop-down menu, then longitude, azimuth, elevation and skew information are displayed.
• Find Angles & Skew Antenna GPS: nds the current antenna angles and skew angle in relation to the longitude (orbit position) of the antenna’s current GPS.
61
- Antenna Angle: displays and sets current antenna’s absolute and relative AZ (azimuth) position, EL (elevation) position and polarization (between Linear and Circular). You can move antenna azimuth and elevation position and LNB Pol angle by using the arrows or inputting a value to nd the desired satellite manually.
2. Antenna – Advanced Info.
This view provides information on Parameter Setting, Threshold Setting, and Flag Setting.
-Tilt Sensor Bias: not used on i-series.
- Rate Sensor: not used on i-series
- Antenna Parameter: used to set the antenna parameter settings.
• Offset Diff AZ-EL: The offset AZ-EL is to offset the angle difference between Azimuth and Elevation.
• Lock Count: The Lock Count is to set the number of checking signal lock.
• Offset Diff RH-LH: The offset RH-LH is to offset the signal difference between RHCP and LHCP.
- Parameter Setting: used to set the control parameter settings.
• Scan Offset: The scan offset is to offset the angle difference between the black marker on the sub-reector and the optical sensor.
• Scale: The scale is to control the tracking speed while antenna is tracking the satellite.
• EL Adjust: The elevation adjustment is to offset the angle difference between the mechanical elevation angle and actual elevation angle.
- Threshold Setting: set the threshold level for detecting and tracking the satellite signal.
• DVB Detect Level: displays and sets signal detection threshold level when DVB tracking mode is in use.
• DVB Tracking Level: displays and sets signal
62
Intellian Satellite TV Antenna Systems
- Threshold Setting
• Initial Sat Count: Set the threshold count for maintaining tracking.
• Set Verify Time:Set the time of verifying whether the signal detected is the signal of target satellite.
• Voltage Threshold: Set the voltage threshold. The voltage threshold is to distinguish the voltage between 13V and 18V.
• DiSEqC Threshold: Set the DiSEqC threshold. The DiSEqC threshold is to distinguish the 0KHz tone and 22KHz tone.
• WRS Detect Level: Set the WRS detection level.
- Flag Setting
• Use WRS Method: Use WRS method is to determine whether the system uses “WRS Detect Level” or not. Use WRS method and “WRS Detect Level” are pair functions.
• Use Offset Difference: Use offset difference is to determine whether the system uses “Offset Difference” or not. Use Offset Difference and “Offset Difference” are pair functions.
• Use DiSEqC 1.2: Use DiSEqC 1.2 is to determine whether the system uses “DiSEqC 1.2” or not.
3. Satellite (Satellite View)
The name, longitude, verication method of the satellite and LNB local frequency are displayed.
- LNB Local Frequency: Displays or sets LNB local frequency and its corresponding LNB voltage supplied. You may select pre-programmed LNB LO settings from the drop down list..
63
- Edit Satellite Information: push the “Edit Satellite Information” button to update the information after modifying values.
- Load Default: Push the “Load Default” button to select a regional library le *.rif according to your region.
- Update Default: After loading a regional library le *.rif, push the “Update Default” button to update the system.
- Diseqc: When the operation method of DiSEqC is selected to “Change Band”, DiSEqC may be used for updating the local frequency and to “Change Satellite”, for updating the target satellite.
- Dual Satellite Mode/ Triple Satellite Mode: Registers the target satellite.
• Pushing ‘Register for Sat A’ or ‘Register for Sat B’ button after selecting the satellite in the list box makes it possible to register A or B in Dual Satellite Mode.
• Pushing ‘Register for Sat A’ or ‘Register for Sat B’ or ‘Register for Sat C’ button after selecting the satellite in the list box makes it possible to register A or B or C in the Triple Satellite Mode.
• Transponder information consists of frequency, symbol and NID (Network ID) of a transponder in tracking the satellite. There are four groups of transponder information. ‘Vertical/RHCP’ is applied when the IRD supplies 13V, and ‘Horizontal/LHCP’ is applied when the IRD supplies 18V. ‘LOW’ is applied when DiSEqC signal is not detected from IRD. ‘HIGH’ is applied when the DiSEqC signal is detected from the IRD. After modifying information, press the ‘Edit Satellite Information’ button, then new information is updated in the antenna.
- Pol & Band Control: The “Pol” controls 13V (Vertical/RHCP band) or 18V (Horizontal/ LHCP band). The “Band” controls DiSEqC 0KHz tone (Low band) and 22KHz tone (High band). After modifying information, press ‘Edit Satellite Information’ button, then new information is updated in the antenna.
- Triple Satellite Mode: To select between Dual-Sat mode and Triple-Sat mode, tick the ‘Triple Satellite Mode’ box at the bottom of the screen.
64
Intellian Satellite TV Antenna Systems
- Start/Stop Save: the chosen item is saved within the data log. The data log which stores the information displayed in the graphs can be later used for a service technician to nd out a cause of any possible problem to the antenna.
- Clear All: clears everything drawn on the Graph View window.
- Set Pos.: sets the current position as center value of each Graph Item.
- Current Pos.: moves to the location according to values of each Graph Item.
- Span: sets the Display Range(s) of each corresponding Graph Item.
- Period: displays and sets the signal sampling rate.
- Graph Column Count: makes all Graph Views show in either one or two-column format.
- Select Graph Item: shows the graphs of only the checked item(s) in a Single or Multi Graph View.
- Single Graph View: shows Graph Views per each single Graph Item selected in ‘Select Graph Item’.
- Multi Graph View: shows one large integrated Graph View of multiple Graph Items selected in ‘Select Graph Item’.
4. Graph
This view provides information on Signal, Elevation (EL), Absolute AZ (Azimuth), Relative AZ, Heading, AZ and EL in Single or Multi graph formats.
65
- Tracking: not used on i-series.
- Rate Sensor Bias: not used on i-series.
- Tilt Sensor Bias: not used on i-series.
- Show Param: shows the current antenna parameters.
- Check NID: veries the NID (network ID) of the current tracking transponder. Press the NID button to obtain the NID only if the antenna is locked onto the desired satellite.
- Start Debug: starts the debug log of the antenna. The debug message will be displayed once the debug button is pressed.
- Stop Debug: stops debug logging of the antenna.
- Save Debug (Start/Stop): starts or stops saving the debug log. This button is enabled once the Start Debug button is pressed.
- Clear View: clears the debug message or log data in monitoring window.

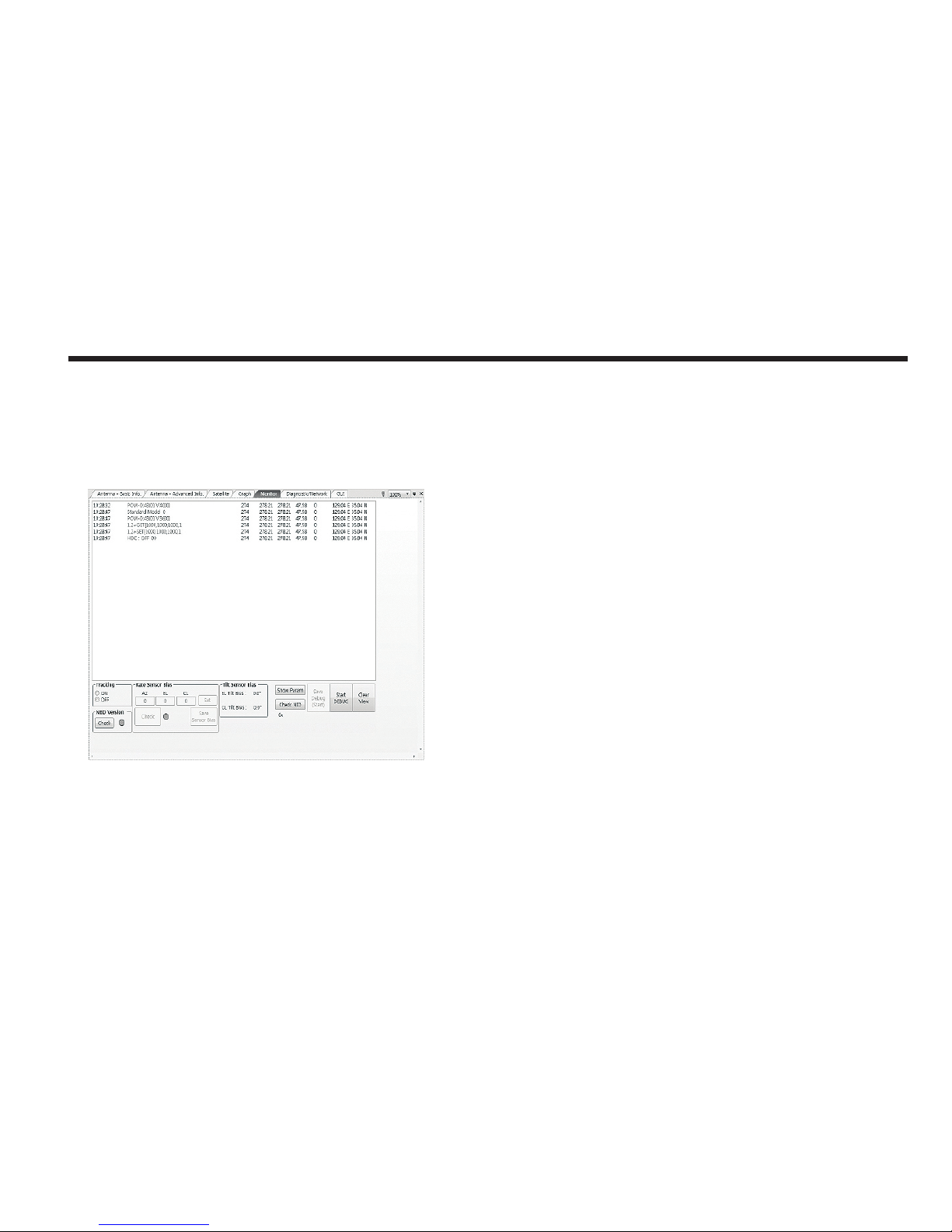

5. Monitor
This view provides a UI which can monitor all data that has been received from the ACU.
66
Intellian Satellite TV Antenna Systems
- Diagnostic : select to run a full diagnostic test or single diagnostic test. “Green” indicator is displayed for the test under progress. “Blue” indicates the test result as Pass while “Red” indicates the result as Fail. “Yellow” indicates the test has been skipped.
Serial Comm.: tests the data communication between the antenna and the ACU.
AZ Limit (CW) : tests the azimuth limit (CW)
AZ Limit(CCW) : tests the azimuth limit(CCW)
EL Limit: tests the elevation limit.
Sub-Reector: tests the Sub-Reector.
LNB: tests the LNB.
Power (Ant.): tests the antenna power to see whether or not it is within the nominal operating range.
Power (ACU): tests the ACU power to see whether or not it is within the nominal operating range.
Receiver Connection: tests the data communication between the antenna and the receiver.
6. Diagnostic / Network
This view provides Antenna Diagnostic Testing and Network Settings.
67
• Network Setting:
IP the network IP address.
Subnet Mask the network subnet mask.
Gate Way the gateway for network.
DNS the DNS address.
• Wi Setting:
Power select to turn on or off Wi network function.
SSID the SSID is the network name shared among all devices in a wireless net-
work. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 8 alphanumeric characters, which may be any keyboard character. Make sure this setting is the same for all devices in your wireless network.
Encryption i-series supports different types of encryption settings for your network.
Password the password should be 8 alphanumeric characters.
Conrm enter the password again to conrm it.
IP the current wireless IP address.
Subnet the current wireless subnet mask.
DNS the current default wireless DNS address.
• Default: initializes the network and Wi-Fi settings.
Note: When the setting is changed, it needs to be re-connected with the modied IP address.
68
Intellian Satellite TV Antenna Systems
7. GUI
This view shows a graphical representation of the current antenna position which allows you to easily identify whether or not the antenna is aligned properly to the target satellite or is in a block zone. In addition, this view shows the current satellite that the antenna is pointed towards and the satellites that are located at a 180°arc on the horizon, according to the current position.
8. Work View Functions
The seven Work View Tabs displayed in the Work View can be arranged in customized layouts.
- Layout Formatting
• Each of the Work View Tab can be separated from the rest Tabs. Click and hold the left mouse button on the Work View Tab’s header and then drag a desired Tab out. When a Work View Tab is separated from the rest of your Work View Tabs, again click and hold the left mouse button on the Work View Tab’s header to display a cross-shaped Navigator icon. While holding the mouse button, bring the selected Work View Tab closer to the Navigator icon and release the mouse button at your desired position (top, left, right or bottom arrow). This time, the selected Tab will be moved to the desired position.
Note: Based on the satellite EIRP footprint and the size of the antenna, you may not be able to track all the satellites visible in 180° arc.
Move the selected Work View Tab to the top position of the Work View layout.
69
Move the selected Work View Tab to the bottom position of the Work View layout.
Move the selected Work View Tab to the right position of the Work View layout.
Move the selected Work View Tab to the left position of the Work View layout.
Move the selected Work View Tab to the center position of the Work View layout.
- Horizontal or Vertical Tab Group The Work View Tabs can be also aligned horizontally or vertically. Without dragging them out, right-click the mouse button on a desired Tab header and select ‘New Horizontal Tab Group’ or ‘New Vertical Tab Group’ option. Selecting ‘New Horizontal Tab Group’ will separate a selected Tab from the rest of other Tabs then arrange it in a horizontal format. Likewise, selecting ‘New Vertical Tab Group’ will separate a selected Tab from the rest of other Tabs then arrange it in a vertical format.
- Closing the Work View Tab To close the Work View Tab, right-click the mouse button on a desired Tab header and select ‘Close’ option in the drop down list. To close all Work View Tabs except the selected Tab, select ‘Close All But This’ option in the drop down list.
70
Intellian Satellite TV Antenna Systems
- Zoom Tool Using the Zoom tool, you can easily select the magnication you want by using Zoom In and Zoom Out bar, and Fit in Work View button.
Fit Work View Button: ts the current view to the Work View window size. The button toggles between the t view and the previous view.
View Name Button: displays the current Work View name.
Close View Button: closes the current view.
Zoom In and Zoom Out Bar: zooms in and out to expand and reduce the View to the desired size. (The zoom changes in 10% increments.)
View Switch Button: displays a list of the current views in a list. Choosing one of these views will display the selected view in the Work View window.
71
1. Refer to the drawing on the right.
2. Rotate antenna left and right slowly until the limit switch is pressed. Don’t rotate it quickly, or you may damage the antenna limit system.
3. Turn the antenna by 360° to the reverse direction.
4. Insert a restraint foam in backside of the dish to secure the pedestal in position with the bottom radome.
5. Insert the cable ties to tight up the azimuth axis and the elevation axis.
6. Cover upper part of radome. Be careful not to touch the reector when assembling upper part of radome.
7. Pack Intellian i9P into the original package box.
Preparation for Transportation
The following procedures to secure the antenna shall be strictly observed to protect it from being damaged during transportation.
Figure 23 : Preparation for Transportation
Cable Tie
Cable Tie
Shipping Foam
72
Intellian Satellite TV Antenna Systems
Warranty
This product is warranted by Intellian Technologies Inc., to be free from defects in materials and workmanship for a period of Three (3) YEARS on parts and ONE (1) YEAR on labor performed at Intellian Technologies, Inc. service center from the purchased date of the product.
Intellian Technologies, Inc. warranty does not apply to product that has been damaged and subjected to accident, abuse, mis-use, non-authorized modication, incorrect and/ or non-authorized service, or to a product on which the serial number has been altered, mutilated or removed.
It is required to present a copy of the purchase receipt that indicates the date of purchase for after-sales service under the warranty period. In case of failure to present the purchase receipt, the warranty period will begin 30 days after the manufacturing production date of the product purchased.
Any product which is proven to be defective in materials or workmanship, Intellian Technologies, Inc. will (at its sole option) repair or replace during the warranty period in accordance with this warranty. All products returned to Intellian Technologies, Inc. under the warranty period must be accompanied by a return material authorization (RMA) number issued by the dealer/distributor from Intellian Technologies, Inc. and a copy of the purchase receipt as a proof of purchased date, prior to shipment. Alternatively, you may bring the product to an authorized Intellian Technologies, Inc. dealer/distributor for repair.
73
General
Approvals
CE – conforms to
FCC – veried to
EU Directive 89/336/EEC
CFR47:Part 15
Dimensions
Satellite antenna unit
Antenna dish diameter
Antenna control unit
113cm (44.6”) x 121cm(47.5”)
85cm(33.5”)
17.8cm(7”)x21.7cm(8.5”)x5.4cm(2.1”)
Weight
Satellite antenna unit
Antenna control unit
56.2kg (123.8 lbs)
1.2kg (2.6 lbs)
Environmental
Operating temperature range
Storage temperature range
Humidity limit
-25°C to +55°C (-13°F to 131°F)
-40°C to + 80°C (-40°F to + 176°F)
95% R.H
Power requirements 9~30 V DC
Power consumption Typ. 30W, Max. 50W
Antenna system performance
Frequency Ku-band (10.7 to 12.75 GHz)
Minimum EIRP 44 dBW
Azimuth range 680°
Elevation range -15° ~ +90°
Ship’s motion
Roll ±25°
Pitch ±15°
Roll and pitch
response rate
30° per second
Turn rate 30° per second
Appendix : i9P Technical Specication
74
Intellian Satellite TV Antenna Systems
intelliantech.com
APAC
supportAPAC@intelliantech.com
Headquarters
Intellian Technologies, Inc.
348-5 Chungho-Ri, Jinwi-Myeon Pyeongtaek-Si, Gyunggi-Do 451-862 Korea
T +82 31 379 1000 F +82 31 377 6185
Seoul Ofce
Intellian Technologies, Inc.
2F Dongik Building, 98 Nonhyun-Dong Gangnam-Gu, Seoul 135-010 Korea T +82 2 511 2244 F +82 2 511 2235
Maritime Technical Center
MTC@intelliantech.com
Busan Ofce
Intellian Technologies, Inc.
#1701,60, Centum buk-daero, Haeundae-gu, Busan 612-050 Korea T +82 51 746 9695 F +82 51 746 9440
Americas
supportAMERICAS@intelliantech.com
Irvine Ofce
Intellian Technologies USA, Inc.
9004 Research Drive Irvine, CA 92618 USA T 949 727 4498 F 949 271 4183
EMEA
supportEMEA@intelliantech.com
Rotterdam Ofce
Intellian B.V.
Bristolstraat 1, 3047AB Rotterdam, The Netherlands
T +31 1 0820 8655 F +31 1 0820 8656
Southampton Ofce
Intellian Ltd.
Epsilon House, Enterprise Road, Southampton Science Park, Southampton, Hampshire SO16 7NS,UK T +44 2380 019 021 F +44 2380 767 092
Loading...
