i6W

Installation and Operation

User Guide

Document Number: 2012G3-UM1004-V1_0

Intellian Satellite TV Antenna Systems

Intellian i6W Serial Number

This serial number will be requested for all troubleshooting or service Inquiries.

Notice

Intellian i6W® and Intellian® are the registered trademarks of Intellian Technologies, Inc., and should not be appropriated without permission by Intellian Technologies, Inc., and the information contained in this manual is the property of Intellian Technologies, Inc. Any and all parts of this manual shall not be reproduced and distributed in any form without prior written consent by Intellian Technologies, Inc. The information contained in this manual shall be subject to

change at any time without notice due to the functional upgrades of the product.

INTRODUCTION

INTRODUCTION TO INTELLIAN i6W FEATURES OF INTELLIAN i6W BASIC SYSTEM CONFIGURATION OF INTELLIAN i6W

INSTALLATION THE ANTENNA

SYSTEM COMPONENTS TOOLS REQUIRED FOR INSTALLATION PLANNING THE INSTALLATION

INSTALLING THE ACU

ACU DIMENSIONS CONNECTING THE SYSTEM TO A GPS AUTO LNB SKEW ANGLE ADJUSTMENT

OPERATION INSTRUCTION

INTRODUCTION

OPERATING THE ACU

ACU SOFT KEYS NORMAL MODE SETUP MODE

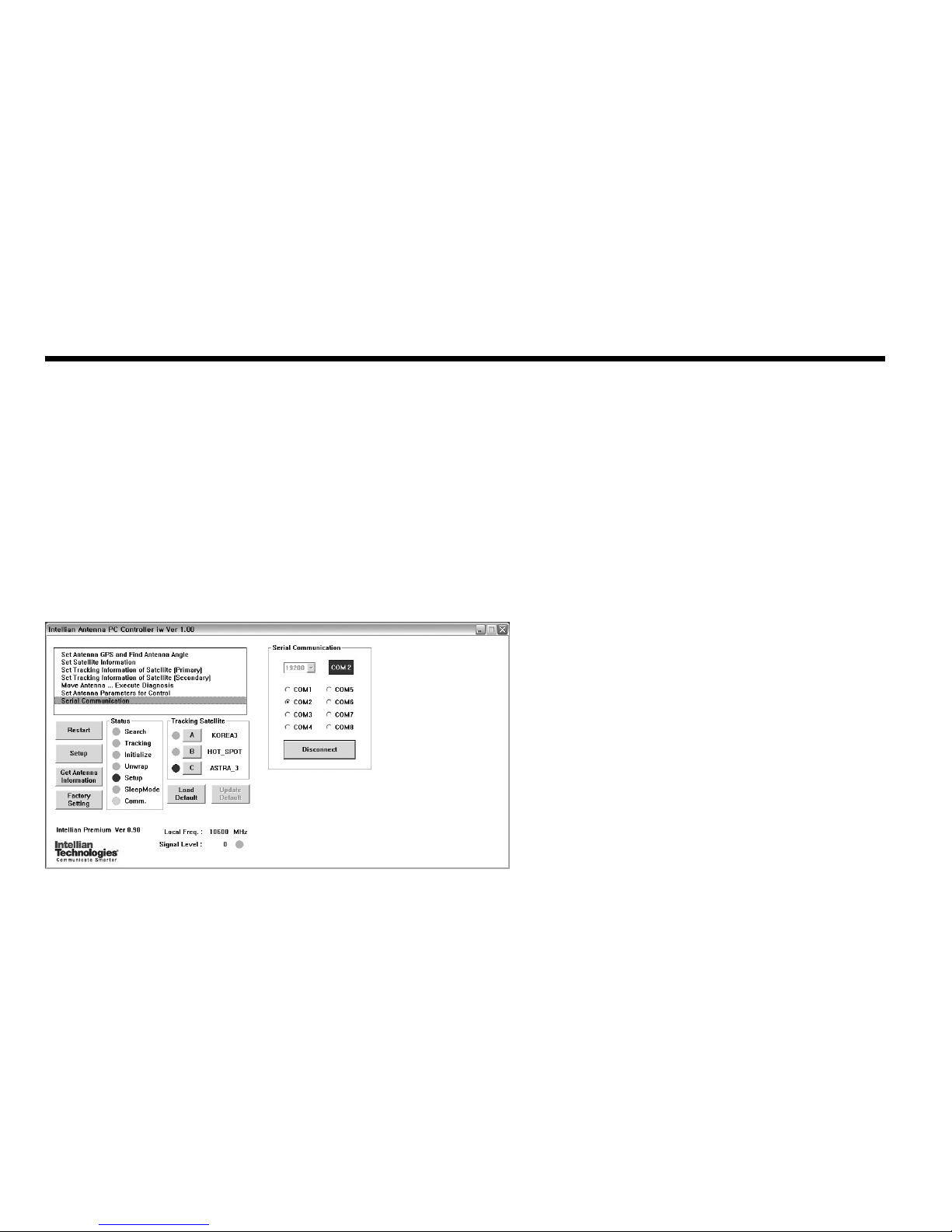

OPERATION USING PC CONTROLLER PROGRAM

INTRODUCTION PROGRAM INITIALING AND SERIAL PORT SETUP MAIN MENU CONTROLLER MENUS

PREPARATION FOR TRANSPORTATION

WARRANTY

APPENDIX : TECHNICAL SPECIFICATION

4 5 6

7 10 11

18 20 21

22 23 26

46 47 48 50

Table of Contents

Intellian Satellite TV Antenna Systems

Introduction to Intellian i6W

With its 60cm dish and 2-axis stabilized platform, the Intellian i6W is the world’s rst global satellite TV antenna that receives multi-band and multi- polarized satellite TV services as well as the latest advanced DVB-S2 programming without any antenna hardware changes each time the vessel crosses into a different satellite service region.

Integrated with the second generation WorldView

LNB module, the i6W offers a rock-solid and the highest stability of ±25kHz for TV reception. The Intellian WorldView

LNB module is designed and manufactured by Intellian’s in-house engineering professionals, which allows boaters to tune in any channel on any satellite and automatically switch between circular polarized programming in North, Central and South America, and linear polarized programming in Europe, Middle East, and the Asia Pacic regions.

The i6W is able to withstand severe shock and vibration generated by the marine environment. With a simplied yet sophisticated mechanical design and excellent satellite tracking capability, the i6W is recognized as the real denition for satellite TV system at sea.

Introduction

Features of Intellian i6W

Global Satellite Services Compatibility

Intellian i6W provides the ultimate convenience to connect you to thousands of free TV, pay TV, Standard Denition, and High Denition programming all over the world. It uses one LNB module which incorporates multi (8) LO frequencies and multi-polarizations.

Worldview

LNB Module

The Intellian Worldview

LNB module is built with the highest stability of ±25KHz that is required. It is used on the most of marine communication systems today to guarantee the most reliable TV receptions. In addition, this LNB module receives multi-band and multipolarization satellite TV services around the globe. Boaters don’t need to manually change LNB inside the antenna dome each time the vessel crosses into a different satellite service region.

DVB-S2 Digital TV Receptions

Some of the HDTV services have moved onto DVB-S2 and will be more in the future. Thanks to Intellian’s groundbreaking DVB-S2 digital TV technology, now you can enjoy your favorite DTH entertainment at sea, just like home.

Global Satellite Library

The i6W includes the pre-programmed global satellite library which allows you to select the desired satellite while travelling from region to region. Once the satellite is selected, the WorldView

LNB module will automatically switch to the corresponding local frequency and receive the signal.

Easy Installation and Outstanding Reliability

Intellian i6W adopts a single-cable connection design from the antenna to the antenna control unit. It provides a highly reliable system through the implementation of a modularized design and the usage of strictly proven components.

Intellian Satellite TV Antenna Systems

Figure 01: Basic System Conguration

Basic System Congurations

For your satellite TV system to work properly, the system will have to be connected with all of the provided components properly, as shown in the gure below (see the “Installation” section of this manual). Separate purchase of a satellite receiver and a TV is required.

Note: Dish Network and Bell TV users please refer to the Intellian Dish Network MIM Installation and User Manuals.

ACU

RF 1

RF 2

9-30V DC Power

NMEA GPS PC Cable

Satellite Receiver (IRD)

NMEA

ANT RF1 RECEIVER

FUSEDC 9 - 30 V PC INTERFACE

FG - +

+ -

Satellite Receiver (IRD)

Figure 02: Antenna Unit

System Components

The Intellian i6W consists of two major units, antenna assembly unit and antenna control unit.

Antenna Unit

The antenna of Intellian i6W is manufactured with the following components for the optimum search and reception of the satellite signal.

• Mechanical Unit – manipulates the antenna to receive the optimal satellite signal regardless of the movement of the vessel.

• Control Unit – controls mechanical operation of the antenna.

• RF Unit – transmits the optimum satellite signal to the receiver.

• Radome – protects the antenna from the severe marine environment.

Installation

Intellian Satellite TV Antenna Systems

Figure 03 : Antenna Control Unit (ACU)

Antenna Control Unit (ACU)

Antenna Control Unit (ACU) provides the power to the antenna and controls the various settings of the antenna. Additionally, Vacuum Fluorescent Display (VFD) allows for you to operate the ACU in the dark.

The functions of ACU are as follows:

• Provide power for the antenna unit

• Monitor the antenna status

• Change the target satellite

• Set up the user environment

• Set the current GPS information

• Set satellite information

• Move antenna manually

• Perform self-diagnosis of the antenna

• Set up the interface with a PC

NMEA

ANT RF1 RECEIVER

FUSEDC 9~30V PC INTERFACE

FG - +

+ -

Front

Rear

Antenna Control Unit

Installation Kit

Contains the items required for securing the antenna unit and ACU to the vessel.

Other Components

Figure 05 : List of the Supplied Parts

Figure 04 : Installation Bolt Kit

4 Power Cable 10m 1

5 PC Serial Cable 1.8m 1

6 NMEA Connector AK950-2 1

7 Power Connector AK950-3 1

Hex Bolt M8x50L 5

Self-Tapping Screw

ø4x16L 5

ø3x8L 5

Flat Washer M8 5

Spring Washer M8 5

Nut M8 5

9 Install CD - 1

10 Manual

- 1

11 Mounting Template

- 1

12 Quick Installation Guide

- 1

No Components Size Qty

1 ACU Bracket - 2

2 RG6

(Antenna - ACU RF Cable)

15m 1

3 RG6 (ACU - IRD Cable) 3m 1

Hex.Bolt

Hex.Head

Wrench Bolt

Flat Washer

Hex. Nut

Spring Washer

Antenna

Item

Qty

Item

Qty

Size

Self-Tapping Screw

(M4 X 16L)

Machine Screw

(M3 X 8L)

ACU

Intellian Satellite TV Antenna Systems

Tools Required for Installation

Figure 06 : Required Tools for Installation

Power Drill 11 mm Spanner

Cross-Head Screwdriver 13 mm Spanner

10 mm Drill Bit

Ø80 mm

Hole Saw

Pencil

5 mm

Allen/Hex key

Planning the Installation

Selection of Antenna Installation Site

Install the antenna in accordance with the following procedures to insure maximum performance.

The antenna should be installed in a place where there is all round clear view of the horizon. Please be sure there are no obstacles within 15° above the antenna. Any obstacles can prevent the antenna from tracking the satellite signal (Refer to the drawing on the right).

Do not install the antenna near the radar especially on the same plane. Its energy levels may overload the antenna front-end circuits. It is recommended to position the antenna at least 4 feet (1.2m) above or below the level of the radar and minimum of 15 feet (4.6m) away from the high power short wave radars.

The mounting platform should be rigid and not subjected to excessive vibration. The movement of the antenna can be minimized by installing at the center of the vessel. For optimal performance of the antenna, it is not recommended to install at any corner of the vessel, where the movement of the vessel is the greatest. Install the bottom of the antenna parallel to the surface of the sea and x tightly to the structure of the vessel.

Figure 07 : Elevation Limit of Obstacles

15°

Antenna Unit Obstacle

Intellian Satellite TV Antenna Systems

Extending the Cables

The cables that have been supplied with your Intellian system should be of adequate length to complete the installation on most boats.

Power Cable

This cable supplied at a length of 10m.

Note: Exceeding the indicated cable lengths will result in reduced performance of your system.

Cables

Before installing the system cables, consider the following points.

• All cables need to be well clamped and protected from physical

damage and exposure to heat and humidity.

• Cables with severe bends are not allowed.

• Where a cable passes through an exposed bulkhead or deckhead,

a watertight grommet or swan neck tube should be used.

Power Requirements

You need to follow the power requirements to avoid damage the system. Intellian i6W has been designed to work on a boat’s power supply rated at 12V / 24 V DC (acceptable range: 9~30 V DC).

If your IRD(s) and television(s) require a 110V/240V AC power supply, you will need to install a suitable DC to AC converter to operate the unit(s) from your boat’s DC power supply.

RF Cable

This cable supplied at a length of 15m. If a longer length is required you should replace this cabel with an extended RF cable.

Installation and Mounting of Antenna

The method of installation and mounting of the antenna may vary due to vessel design but the following procedures are applicable in most situations, and will result in a secure and effective installation.

Conrmation of Size Prior to Installation

• Conrm the height and diameter of the bottom surface of the antenna before installing.

• The space must be sufcient for installing the antenna unit considering the height and diameter of the antenna.

• The height and the diameter of the bottom surface of the antenna are as shown in the following drawing. If possible, install the antenna using a power tower.

Note: Before installing the antenna open the radome and remove the shipping constraints from the antenna interior. Reinstall the radome before operating the system. The system will not perform properly if the radome is open.

Figure 08 : Radome Dimension of i6W

Ø70 cm (27.5”)

72 cm (28.3”)

Intellian Satellite TV Antenna Systems

Mark of the Antenna Mounting Position

Referring to the mounting template, mark where antenna will be mounted onboard (it must be a at surface) or on a separate power tower.

Note: If a power tower is not suitable to mount the antenna, separate cable shock and waterproong measures must be taken to protect the RF connector from being exposed to the sea water and external shocks. An exposed cable may cause electric shock and cause serious damage to the equipment.

Figure 09 : Mounting Hole Position of i6W

30.4cm (12”)

30.4 cm (12”)

Connection of the Cable

Remove the rubber cap from RF connector. Connect the RF cable to the RF connector under the base plate through the access hole using an 11mm spanner. Be careful not to over tighten, as you may damage the connector.

Note: Do not use excessive force when using the spanner, this will damage the threads. Be careful that the connectors do not contact the mounting surface of the antenna, this may cause a critical malfunction and serious damage to the equipment.

Securing Holes for Bolts and Cable Ways

Make 4 bolt holes of 10mm diameter, one at each corner of a rectangle drawn as below.

Ø80mm

Hole Saw

Ø 10mm

Drill

Figure 10: Drilling Instruction

Figure 11: Connectors on Bottom of Antenna

Antenna Unit

RF Cables

11mm Spanner

Intellian Satellite TV Antenna Systems

Mounting the Antenna

Attach the antenna by using the hex head bolts (M8X50L), M8 spring washers, and M8 at washers supplied.

Figure 12: Mounting the Antenna

Installing the ACU

5.4 cm (2.1”)

5.5 cm (2.2”)

22.8 cm (9”)

17.8 cm (7”)

21.7 cm (8.5”)

18.5 cm (7.3”)

Figure 13: Dimension of ACU for i6W

ACU Dimensions

Antenna Unit Support

Deck

M8 Flat Washer

M8 Spring Washer

M8 Hex. Bolt

13mm Spanner

Installing the ACU

Figure 14: Installation of ACU

Selection of Installation site

• The ACU should be installed using the two supplied Table Mounting Brackets which allow for a top or bottom mounting conguration.

• Using the self tapping screws supplied, attach the mounting brackets to the sides of the ACU.

• Place the ACU in the location where it is going to be installed.

• Using a pencil to mark the 4 hole positions (2 each side), and use the

appropriate drill bit to drill them.

• Connect the cables to the rear of the ACU.

Intellian Satellite TV Antenna Systems

Figure 15: Basic Conguration

Up to 4 Receivers

In Universal LNB mode, RF1, RF2, RF3 and RF4 can be connected. However, when you use the system from universal LNB mode (ex. Europe) to single LNB mode (ex. US), RF3 and RF4 will not work and only RF1 and RF2 will transfer the satellite signal.

ACU

RF 1

RF 3

RF 4

RF 2

Satellite Receiver 2 (IRD)

9-30V DC Power

NMEA GPS PC Cable

Satellite Receiver 4 (IRD)

Satellite Receiver 3 (IRD)

Satellite Receiver 1 (IRD)

NMEA

ANT RF1 RECEIVER

FUSEDC 9 - 30 V PC INTERFACE

FG - +

+ -

Figure 16: Multi-Receiver

Connecting the System Using a Multi-Switch

When you use the multi-switch in single LNB mode, you need to connect RF1 and RF2 to the low-band (Horizontal Low and Vertical Low) outputs of the 4x8 multi-switch and disable DisEqC function while connecting to a receiver other than a European receiver. In Universal LNB mode, RF1~ RF4 can be connected to any 4 outputs of 4x8 multi-switch. However when you use the system for single LNB mode, RF3 and RF4 ports will not transfer the RF signal.

18V 13V 18+22KHz 13V+22KHz

Horiazontal Low Vertical Low Horizontal High Vertical High

ACU

RF 1

RF 3

RF 4

RF 2

Satellite Receiver 8 (IRD)

9-30V DC Power

NMEA GPS PC Cable

Satellite Receiver 1 (IRD)

NMEA

ANT RF1 RECEIVER

FUSEDC 9 - 30 V PC INTERFACE

FG - +

+ -

4x8 Multi switch

VL HL VH HH

Intellian Satellite TV Antenna Systems

Your satellite TV system has a built-in GPS. If the internal GPS doesn’t operate properly, you can directly connect your boat’s NMEA 0183 GPS to the system through the ACU’s external GPS connector. To do this you will need a suitable cable to connect your GPS system and the green 2-way ACU GPS connector supplied with your Intellian i6W Satellite TV System.

Connecting the system to a GPS

1. Strip back the insulation of each conductor and connect each terminal of the 2-way connector.

2. Tighten the locking screws.

3. Connect the +ve (positive) terminal of the ACU GPS connector to the NMEA OUT wire of the boat’s GPS system.

4. Connect the –ve (negative) terminal of the ACU GPS connector to the ground wire of the boat’s GPS system.

5. Ret the ACU GPS connector to the rear of the ACU.

NMEA

ANT RF1 RECEIVER

FUSEDC 9 - 30 V PC INTERFACE

FG - +

+ -

GROUND (-)NMEA OUT (+)

Figure : GPS Connection

Figure 17: Worldview LNB Module

Intellian i6W has an embedded auto skew angle control system. Therefore, manual adjustment of the skew angle is not required. The skew angle is continuously adjusted automatically through calculations of the optimum angle by using the information of a targeted satellite and the GPS position. With location information as ship’s longitudinal and latitudinal position change from movement the skew angle will be adjusted accordingly. As the ship changes position, the skew angle will be continuously adjusted. The skew angle of the LNB is shown on the ACU and in the GUI program.

Auto LNB Skew Angle Adjustment

Intellian Satellite TV Antenna Systems

Introduction

This section of the handbook describes how to set up your Satellite TV System after installation using the ACU or GUI PC controller program and includes the following functions :

ACU Soft Keys

Press to select

On-screen option

BACK

ENTER

POWER

Figure 18 : ACU Soft Keys

Operation Instruction Operating the ACU

• System startup

• Changing the default satellite

• Monitoring the antenna status

• Setting sleep mode

• Entering setup mode

• Setting the satellite pair

• Editing satellite information

• Setting the antenna parameter

• Setting GPS

• Setting the DiSEqC method

• Setting LNB skew angle

• Display versions

• Display power status

• Setting antenna go position

• Setting antenna move step

• Setting remote control

• Setting the factory default parameters

• Performing diagnostic tests

Note: Many of the above functions will only be required only after initial installation of your system. Refer to the Quick Installation Guide before operating the system.

Normal Mode

Start Up

With the system installed and power applied, the ACU screen will show the following sequence:

1. Data communication is being established between the antenna and the ACU. The ACU is initialized.

2. The antenna is initialized.

3. The antenna is searching for Satellite A.

4. The antenna has located the satellite and is

now tracking.

INITIALIZE ACU

INITIALIZE ANTENNA

SEARCH A: DTV101

TRACKING A: DTV101

INTELLIAN i6W

B:DTV119 SETUP

Changing Target Satellite

Your antenna is pre-programmed with either two (Dual-Sat mode) or three (Tri-Sat mode) candidates of target satellites as a default mode. To change a target satellite, press LEFT soft key. The target satellite is changed and is automatically tracked by the antenna.

Default Dual-Sat Mode

1. Press LEFT soft key for tracking Satellite B.

2. The antenna is tracking Satellite B.

TRACKING A: DTV101

TRACKING B: DTV119

B: DTV119 SETUP

A: DTV101 SETUP

Intellian Satellite TV Antenna Systems

Advanced Tri-sat Mode

1. Press LEFT soft key for tracking Satellite B.

2. The antenna is tracking Satellite B.

3. Press LEFT soft key for tracking Satellite C.

4. The antenna is tracking Satellite C.

TRACKING A: DTV101

TRACKING B: DTV119

TRACKING B:DTV119

TRACKING C: DTV110#

B:DTV119 SETUP

DTV110# DTV101

DTV101 DTV119

AZ : ###.# EL : ##.#

SIGNAL : ### ● [VL]

Monitoring Current Status

When powered on, ACU displays the status of the antenna. The current status of the antenna is displayed as shown below.

1. The antenna is searching for satellite A. 5. Antenna position detail and signal strength are

displayed.

3. The antenna is unwrapping the cable.

2. The antenna is tracking satellite A.

6. Press center soft key to display current GPS information. Press center soft key to return to main tracking mode.

4. The antenna is again tracking satellite A.

Press center soft key to display position detail.

SEARCH A: DTV101

ANTENNA IS UNWRAPPING

TRACKING A: DTV101

###.## E ##.## N

TRACKING A: DTV101

B:DTV119 SETUP

Intellian Satellite TV Antenna Systems

Setup Mode

Begin Setup Mode

Enter the Setup Mode simply follow the instructions below:

1.With the antenna tracking. press SETUP

1. Press BACK to enter sleep mode.

2. Press BACK again to exit sleep mode.

2. Press YES to enter setup mode.

3. Press YES to set the satellite pair.

TRACKING A: DTV101

SETUP MODE ?

SET SAT PAIR ?

B:DTV119 SETUP

YES

NEXTYES

Sleep Mode

If the antenna has lost the tracked satellite while in sleep mode, sleep mode will be canceled.

Setting the Satellite Pair

You can change a satellite pair if you wish to receive satellite television service from a different service provider.

1. Press YES to enter setup mode.

2. Press YES to enter Set Satellite Pair.

3. Press YES to set triple satellites.

SETUP MODE ?

SET SAT PAIR ?

SET TRIPLE SAT ?

YES

5. Set satellite B Press PREV to show previous satellite name. Press SELECT to set chosen satellite to SAT B. Press NEXT to show next satellite name.

6. Set satellite C Press PREV to show previous satellite name. Press SELECT to set chosen satellite to SAT C. Press NEXT to show next satellite name.

7. Press YES to save selections. Press NO to cancel and return to main setup

mode.

SAT B : DTV119

SAT C : DTV110#

SAVE ?

YES

SELECT

4. Set satellite A Press PREV to show previous satellite name. Press SELECT to set chosen satellite to SAT A. Press NEXT to show next satellite name.

SAT A : DTV101

PREV NEXTSELECT

Intellian Satellite TV Antenna Systems

Setting the GPS

It is possible to set up and modify the GPS information, which enhances the antenna functionality.

4. Input the longitude data. + increases the value. - decreases the value. Change the underscored digit using the +/ buttons. Press INPUT to accept the value and move to

next digit. Press BACK to move to previous digit.

5. Press ENTER to move to next screen. Press BACK to move to previous screen.

6. Input the latitude data. + increases the value. - decreases the value. Change the underscored digit using the +/- buttons. Press INPUT to accept the value and move to

next digit.

Press BACK to move to previous digit.

7. Press YES to accept data. Press NO to cancel and return to main setup mode.

LONGITUDE ###.## E

LATITUDE ##.## N

SAVE ?

YES

INPUT

1. Press YES to enter setup mode.

2. Press NEXT to enter Set GPS menu.

3. Press YES to set GPS.

SETUP MODE ?

SET SAT PAIR ?

SET GPS ?

YES

Edit Satellite Information

It is possible to modify the existing satellite information and input new satellite information into the ACU as well. It is not recommended for a novice satellite service user to use this mode.

1. Press YES to enter setup mode.

2. Press NEXT twice to enter Edit Satellite Info

mode.

3. Press YES to edit satellite info.

4. Set the satellite name.

PREV - Shows previous satellite name. SELECT - Select the displayed satellite for editing. NEXT - Shows next satellite name. Press ENTER to move to next screen.

SETUP MODE ?

SET SAT PAIR ?

EDIT SAT INFO ?

SAT NAME : DTV101

YES

SELECT

5. Input the satellite name. + increases the value. - decreases the value. Change the underscored digit using the +/ buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit.

6. Press ENTER to move to next screen. Press BACK to return previous screen.

7. Input the satellite position. + increases the value. - decreases the value. Change the underscored digit using the +/- buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit.

SAT NAME : DTV101

LONGITUDE 124.00 E

INPUT

8. Input the tracking frequency (MHz) and symbol rate (KHz) for vertical low band.

VER LOW 12598 21096

+INPUT

Intellian Satellite TV Antenna Systems

9. Input the network ID (NID) for vertical low band.

10. Input the tracking frequency (MHz) and symbol rate (KHz) for horizontal low band.

11. Input the network ID (NID) for horizontal low band.

12. Input the tracking frequency (MHz) and symbol rate (KHz) for vertical high band.

HOR LOW 12523 21096

VER HIGH 12598 21096

HOR LOW NID 0x0003

INPUT

VER LOW NID 0x0003

13. Input the network ID (NID) for vertical high band.

14. Input the tracking frequency (MHz) and symbol rate (KHz) for horizontal high band.

VER HIGH NID 0x0003

HOR HIGH 12523 21096

INPUT

15. Input the network ID (NID) for horizontal high

band.

16. Select the Verication Method*

of tracking

satellite. PREV - Shows previous method. SELECT - Set the displayed method. NEXT - Shows next method.

HOR HIGH NID 0x0003

VERIFY : DSS DECODE

INPUT

SELECT

17.

Select the V

oltage Supply Method*

to LNB.

(AUTO is recommended)

18. Select the DISEQC Method*. (AUTO is recommended)

19. input the local frequency of LNB. Input 10600MHz while Universal LNB in in use. + increase the value. - decrease the value. Change the underscored digit using the +/ buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.

20. Select the polarization (linear/circular) of satellite signals.

21. Press YES to save the input information. Press NO to cancel and return to main setup mode.

VOLTAGE : AUTO

DISEQC : AUTO

LIN

YES

CIR

SELECT

INPUT

SELECT

LOCAL FREQ : #####MHz

POL : LINEAR

SAVE?

Verication Method*

SIGNAL - use only signal level for tracking DVB LOCK - use only DVB Lock signal for tracking DVB DECODE - use DVB decoding for tracking DSS DECODE - use only DSS Lock signal for tracking

Voltage Supply Method*

AUTO – Supply 13V or 18V to LNB ONLY 13 V - always supply 13 V to LNB ONLY 18 V - always supply 18 V to LNB

DISEQC Method*

AUTO – Supply 0KHz tone or 22KHz tone to LNB ONLY 0 KHz – always supply 0KHz tone to LNB ONLY 22 KHz – always supply 22KHz tone to LNB

Intellian Satellite TV Antenna Systems

Setting the Antenna Parameters

It is not recommended for a novice satellite service user to use this mode. Consult Intellian for changing antenna parameters.

1. Press YES to enter setup mode.

2. Press the NEXT three times to enter Set Antenna Parameter menu.

3. Press YES to set antenna parameter.

4. Select the PARAM* PREV - Shows previous parameter. SELECT - Set the displayed parameter. NEXT - Shows next parameter. Press ENTER to move to next screen.

SETUP MODE ?

SET SAT PAIR ?

SET ANT PARAMETER ?

PARAM: SCAN OFFSET

YES

5. Input the WRS LEVEL. + increases the value. - decreases the value. Change the underscored digit using the +/ buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.

6. Press YES to save the input information. Press NO to cancel and return to main setup mode.

WRS LEVEL : 0500

SAVE ?

YES

INPUT

PARAM*

Scan Offset

Track Scale

Detect Level

WRS Level

Track Offset

Power Level

DiSEqC Level

Offset RH-LH

EL Offset

Use WRS

Offset

Difference

The scan offset is to offset the angle difference between the

black marker on the sub-reector and the optical sensor.

The track scale is to control the tracking speed while antenna

is tracking the satellite.

The detect level is to set the satellite signal detection level.

The WRS level is to set the WRS detection level.

The tracking offset is to offset the satellite signal tracking

level.

The power level is to distinguish the voltage between 13 V and 18 V.

The DiSEqC level is to distinguish 0KHz tone and 22KHz tone.

The offset RH-LH is to offset the signal difference between

RHCP and LHCP.

The EL offset is to offset the angle difference between the

mechanical elevation angle and actual elevation angle.

Use WRS is to determine whether the system uses WRS level

or not. “Use WRS” and “WRS Level” are pair functions.

Offset difference is to determine whether the system to uses

“Offset RH-LH” or not. “Offset Difference” and “Offset RH-LH”

are pair functions.

Intellian Satellite TV Antenna Systems

Setting the DiSEqC Method

DiSEqC selection can be made from ACU. It is not recommended for a novice satellite service user to use this mode.

1. Press YES to enter setup mode.

2. Press NEXT four times to enter DISEQC mode.

3. Press YES to use DISEQC.

4. Select the DiSEqC Method* PREV - Shows previous DiSEqC Method. SELECT/ENTER - Set the displayed DiSEqC method. NEXT - Shows next DiSEqC Method. Press ENTER to move to next screen.

SETUP MODE ?

SET SAT PAIR ?

USE DISEQC ?

DO NOT USE DISEQC

YES

PREVNO

YES

SELECT

5. Press YES to accept the selection. Press NO to cancel and return to main setup mode.

SAVE ?

YES NO

DiSEqC Method*

DO NOT USE DISEQC - DiSEqC is not being used. USE TO CHANGE BAND - DiSEqC is being used to change to low and high band. USE TO CHANGE SAT - DiSEqC is being used to change tracking satellite.

Setting LNB Skew Angle

1. Press YES to enter setup mode.

2. Press NEXT ve times to enter Set LNB Skew menu.

3. Press YES to enter Calibrate LNB skew menu.

4. Press SELECT to calibrate LNB skew angle or PRess NEXT to enter Skew manual menu.

SETUP MODE ?

SET SAT PAIR ?

SET LNB SKEW

SKEW : CALIBRATION

YES

PREVNO

YES

SELECT

5. Press SELECT to set the LNB skew angle manually.

6. Press SET to save the changed LNB skew angle.

SKEW : MANUAL

SKEW : 2.0 -> 0

-1

SELECT

SET

Intellian Satellite TV Antenna Systems

1. Press YES to enter Setup mode.

2. Press NEXT six times to enter the View Version menu.

3. Press YES to view version.

4. Antenna product name and S/N are shown. Press EXIT to return to main setup mode.

SETUP MODE ?

SET SAT PAIR ?

VIEW VERSION ?

B2-601W

YES

S/N: 0000000000

EXIT

YES

Display Versions

This sequence enables you to see what version of antenna and ACU software are installed on your system.

5. Antenna software version and S/N are shown. Press EXIT to return to main setup mode.

6. ACU software version and S/N are shown. Press EXIT to return to main setup mode.

7. Library version and S/N are shown. Press EXIT to return to main setup mode.

ANT S/W VER : 4.00

ACU S/W VER : 0.01

LIBRARY VER : 0.01

S/N: 0000000000

EXIT

Display Power

1. Press YES to enter setup mode.

2. Press NEXT seven times to enter the View Power menu.

3. Press YES to view power.

4. ACU input voltage is shown.

SETUP MODE ?

SET SAT PAIR ?

VIEW POWER ?

ACU POWER : 27.1 V

EXIT

YES

5. Antenna input voltage is shown. Press center soft key to view IRD voltage. Press EXIT to return to main setup mode.

6. IRD voltage with tone is shown. Press EXIT to return to main setup mode.

ANT POWER : 25.9 V

IRD : 18V + ##kHz

EXIT

Intellian Satellite TV Antenna Systems

Setting Remote Control

1. Press YES to enter setup mode.

2. Press NEXT eight times to enter set Remote Control Setting menu.

3. Press YES to set remote control.

4. Select the Function*

NEXT - Shows next function.

SETUP MODE ?

SET SAT PAIR ?

SET REMOCON ?

FUNC : CHANGE SAT

YES

EXIT

YES

SELECT

5. SELECT/ENTER - Registers a key on remote control.

6. Point remote control to ACU. Press any key on remote control for selected function and press same key again for conrmation. Press BACK to move to previous screen. Press EXIT to return to main setup mode.

PRESS A REMOTE KEY

BACK

EXIT

SELECT

FUNC : SLEEP MODE

7. If failed to press the same key twice, TRY AGAIN will be displayed.

8. If failed to register a free key, KEY IS USING will be displayed.

FAILED - TRY AGAIN

THAT KEY IS USING

Function*

CHANGE SAT - Change the target satellite. SLEEP MODE - Enter sleep mode. CLEAR REGISTERED KEY - Clear registered key.

9. REMOTE KEY REGISTED will be displayed if key has been properly registered.

10. Press NEXT to show next function.

Press EXIT to return to main setup mode.

REMOTE KEY REGISTED

FUNC : CHANGE SAT

NEXT EXITSELECT

Intellian Satellite TV Antenna Systems

Setting Antenna Go Position

The antenna can be controlled manually by using ACU.

1. Press YES to enter setup mode.

2. Press NEXT nine times to enter Antenna Go Position menu.

3. Press YES to go position.

4. Input position value for azimuth (AZ) axis.

+increases the value. - decreases the value. Change the underscored digit using the +/- buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.

SETUP MODE ?

SET SAT PAIR ?

ANT GO POSITION ?

GO TO AZ : ##.#

YES

INPUT

5. Input position value for elevation (EL) axis. + increases the value. - decreases the value. Change the underscored digit using the +/- buttons. Press INPUT to accept the value and move to next digit. Press BACK to move to previous digit. Press ENTER to move to next screen.

6. Press YES to move the antenna to input position. Press NO to return to the Antenna Go Position mode.

7. Press EXIT to return to main setup mode.

GO TO EL : ##.#

GO TO POSITION ?

AZ:###.# EL:###.#

YES

EXIT

INPUT

Setting Antenna Move Step

The antenna can be moved by 1° step manually by using ACU.

1. Press YES to enter setup mode.

2. Press NEXT ten times to enter the Antenna Move Step menu.

3. Press YES to move antenna in AZ/EL direction.

4. Move the antenna in the AZ direction.

CW - Move the antenna in clockwise direction. CCW - Move the antenna in counter clockwise direction. EL - Go to elevation control screen.

SETUP MODE ?

SET SAT PAIR ?

ANT MOVE STEP ?

STEP AZ : ###.#

YES

CCW

YES

X10

5. Move the antenna in the EL direction. UP - Move the antenna up. DOWN - Move the antenna down. POL - Go to Pol control menu.

6. Move LNB motor to either linear/circular polarization. LIN - Move LNB motor to linear polarization. CIR - Move LNB motor to circular polarization. EXIT - Return to Antenna move step menu.

STEP EL : ##.#

POL : LINEAR

DOWN

LIN

CIR

POL

EXIT

Intellian Satellite TV Antenna Systems

4. CODE 101 is being tested. Press EXIT to return to main setup mode.

5. CODE* 101 has passed. Press EXIT to return to main setup mode.

CODE 101 TESTING

CODE 101 PASSED.

RESULT: ?

RESULT: ●

EXIT

Executing Antenna Diagnosis

The antenna status can be checked by reviewing the results of the diagnostic self-test of the antenna. Refer to the following error codes to understand the test results.

1. Press YES to enter setup mode.

2. Press NEXT eleven times to enter Antenna Diagnosis menu.

3. Press YES to diagnosis antenna.

SETUP MODE ?

SET SAT PAIR ?

ANT DIAGNOSIS ?

YES

X11

CODE 101

CODE 102

CODE 103

CODE 104

CODE 105

CODE 106

CODE 107

CODE 108

CODE 109

CODE 110

RESULT

STATUS

Data communication between antenna and antenna control unit is

tested. If failed, check the RF cable.

AZ CW limit is tested.

If failed, check the limit sensors, motor and belt for AZ axis.

AZ CCW limit is tested.

If failed, check the limit sensors, motor and belt for AZ axis.

EL axis is tested.

If failed, check the limit sensors, motor and belt for EL axis.

Sub reector is tested.

If failed, check the sub reector.

LNB is tested.

If failed, check the LNB and control board.

Skew System is tested.

if failed, check the control board, skew motor, and skew sensor.

Antenna Input Power is tested.

If failed, check the RF cable.

ACU Power is tested.

If failed, check the ACU power cable and Input DC power.

IRD Power is test to IRD cable and IRD power.

If failed, check the cable between the ACU and the IRD and IRD Power.

• Testispassed.

- Test is skipped.

? Test is under processing.

Number refers to an error code

(••3•••-•••)3meanserrorcode103.

CODE *

Intellian Satellite TV Antenna Systems

Setting Region

1. Press YES to enter setup mode.

2. Press NEXT twelve times to enter load region information menu.

3. Press YES to load region information.

4. Select the Continent*.

PREV - Shows previous continent. SELECT - Set the displayed continent. NEXT - Shows next continent.

SETUP MODE ?

SET SAT PAIR ?

LOAD REGION INFO ?

CONTINENT : N_AMERICA

YES

SELECT

X12

5. Select the Region*. PREV - Shows previous region. SELECT - Set the displayed region. NEXT - Shows next region.

6. Press YES to load region information. Press NO to cancel and return to main setup

mode.

7. Loading selected region information.

REGION : LOS_ANGELES

LOAD ?

LOADING :

■ ■ ■ ■

YES

DO NOT TURN OFF!

SELECT

Continent*

N. AMERICA, S.AMERICA, EUROPE, ASIA.

Region*

NEW YORK, MIAMI, UK, JAPAN, and etc.

Setting the Factory Default Parameters

This will restore the antenna back to factory default settings.

1. Press YES to enter setup mode.

2. Press NEXT thirteen times to enter default setting mode.

3. Press YES to set default parameters.

SETUP MODE ?

SET SAT PAIR ?

SET DEFAULT ?

YES

X13

Intellian Satellite TV Antenna Systems

Introduction

PC Software of Intellian i6W has been created for the user to easily set up the antenna by using personal computer. The program enables the user to easily monitor and modify the information of antenna, satellite and GPS. Additionally, detailed diagnostic methods of the antenna are provided by the PC program.

Operation Using PC Controller Program

Figure 19 : Intellian Antenna PC Controller Program

To start this program,

1. Connect one end of PC serial cable to the serial port on the computer.

2. Connect the other end of the PC serial cable to the “PC Interface” on the rear of ACU.

3. Execute program by inserting the CD-ROM into the computer.

Program Initialing and Serial Port Setup

The data communication between the ACU and antenna must be established as the rst step in order to start setting your antenna.

Command Buttons

•BaudRateSetting–Todisplaydatacommunicationspeed.

•CommunicationStatusDisplay–TodisplaydatacommunicationbetweenACUandPC.

•SerialPortSetting–Toselectserialporttobeused.

•Connect/Disconnect–ToestablishthedatacommunicationbetweenACUandPC.

Figure 20 : Setup for Serial Communication

Baud rate setting

Communication status display

Serial port setting

Connect/Disconnect button

Intellian Satellite TV Antenna Systems

Main Menu

Figure 21 : Main Menu

Antenna Status Monitoring

•Search–Antennaissearchingfortheselectedsatellite.

•Tracking–Antennaistrackingtheselectedsatellite.

•Initialize–AntennaortheACUisinitializing.

•Unwrap–Antennaisunwinding/windingthecableintheantenna.

•Setup–Antennaisinsetupmode.

•Comm.–Antennaisabletobecommunicated.

Command Buttons

•Restart–Toexitsetupmodeandrestartantennaagain.

•Setup–Toenterthesetupmode.

•GetAntennaInformation–Toindicatetheinformationondisplayafter

receiving input from the antenna.

•FactorySetting–Toinitializeallantennainformationtodefaultasitwas

in the factory status.

•LoadDefault–ToselecttheregionallibraryonPCprogram.

•UpdateDefault–Toupdatetheantennausingtheselectedregional

library on PC program.

Controller menu

Select & monitor target satellite pair

Command button

Antenna status monitoring

Local frequency Signal strength

Set Region

1. Load default: Click “Load Default” button to select satellite library (*.rif le) according to your current region.

2. Update default: Click “Update Default” button to open update default dialogue. Click “YES” button to update the system.

3. Click “OK” button to complete the update.

Figure 22 : Load Regional Library

Figure 23 : Conrm the Update

Figure 24 : Updates Completed

Intellian Satellite TV Antenna Systems

Controller Menus

Set Antenna GPS and Find Antenna Angle

Antenna makes use of GPS information to search satellite faster. More precise the GPS information is, quicker the antenna is able to search for a satellite. The method to input information into GPS is to push “Set GPS” button after keying in the latitude and longitude information on “City GPS”. Pushing “Add City” button stores the GPS information. By selecting the stored region in the list box, the GPS information of each region is displayed. The Intellian i6W satellite TV antenna system utilizes GPS data to locate the satellite faster.

Command Buttons

•LoadGPSFiles–ReadsvariouscityinformationfromtheGPSles.

•AddCity–AddsthenameofcityanditsGPSinformationtoGPSles.

•DeleteCity–DeletesthenameofcityanditsGPSinformationfromthe

GPS les.

•SetGPS–InputstheindicatedGPSinformationondisplaytoantenna.

•FindAngles&SkewAntennaGPS–Findsthecurrentantennaangleand

skew angle in relation to the longitude (orbit position) of satellite and antenna current GPS.

•FindAngles&SkewCityGPS–Findsthecurrentantennaangleand

skew angle in relation to the longitude (orbit position) of satellite and city GPS.

Figure 25 : Antenna Angle and GPS Information

GPS Message Correct, shows blue color Incorrect, shows red color

Satellite longitude

Calculated angles

Find angles using current GPS data

Find angles using city GPS

City GPS data

Position stored in antenna

Set Satellite Information

Satellite Verication method

Select Triple Satellite

DiSEqC using method

Select the LNB local frequency and polarity for the target satellite

Satellite name and longitude

Figure 26 : Setup for Satellite Infomation

•SatelliteInformation

The name, longitude and conrmation method of the satellite is displayed when a satellite is selected in the list box. Push “Edit Satellite Information” button to update the information on modifying the value.

•DiSEqC

When the operation method of DiSEqC is selected to “Change Band”, DiSEqC may be used for updating the local frequency and to “Change Satellite”, for updating the target satellite.

•Registrationoftargetsatellite

Pushing ➊ or ➋ or ➌ button after selecting the satellite in the list box makes it possible to register A or B or C in Tri-sat mode.

•LocalFrequency

In case where the DiSEqC is selected to “Change Band”, be sure to push the “Universal LNB” button. In case where the DiSEqC is selected to “Not Use” or to “Change Satellite”, be sure to push “Single Band” button and input the Local Frequency, and then push“ the Set Local Frequency” button.

•Polarity

Select the polarity (linear and circular) of the satellite.

Intellian Satellite TV Antenna Systems

Command Buttons

•Edit Satellite Information – To modify the satellite information.

•Register for Sat A – To register a satellite to satellite A.

•Register for Sat B – To register a satellite to satellite B.

•Register for Sat C – To register a satellite to satellite C (Tri-Sat mode).

•Not Use – Do not use DiSEqC.

•Change Band – To use DiSEqC to change band.

•Singe Band – Antenna is in use of single band LNB.

•Universal LNB – Antenna is in use of universal LNB.

•Americas LNB – Antenna is in use of Americas LNB.

•Set Local Frequency – To select local frequency of LNB.

Figure 27 : Setup the Primary Tracking Information

Set Tracking Information of Satellite [Primary]

Tracking information for Vertical Low & RHCP band

Tracking information for Horizontal Low & LHCP band

Tracking information for Vertical High band

Tracking information for Horizontal High band

Power supplying method

DiSEqC using methodvㅍ

Satellite to be edited

Intellian Satellite TV Antenna Systems

Command Buttons

•Edit Satellite Information – To change frequency information of the antenna.

•Satellite Information – Satellite information consists of frequency, symbol and

NID (Network ID) of a transponder in tracking satellite. There are four groups of satellite information. ‘Vertical/RHCP’ is applied when IRD supply 13V, and ‘Horizontal/LHCP’ is applied when IRD supply 18V. ‘LOW’ is applied when DiSEqC signal is not detected from IRD, ‘HIGH’ is applied when DiSEqC signal is detected from IRD. If you select ‘Not Use’ or ‘Change Satellite’, two ‘HIGH’ groups are inactivated. If you select Change Band’, two ‘High’ groups are activated and you can modify satellite information which is applied when DiSEqC signal is detected from IRD. After modifying information, press ‘Edit Satellite Information’ button, then new information is updated in the antenna.

•Pol & Band Control – The “Pol” controls 13V (Vertical/ RHCP band) and 18V (Horizontal/LHCP band). The “Band” controls DiSEqC 0KHz tone (Low band) and 22KHz (High band).

Voltage DiSEqC Discription

13V 18V 0KHz 22KHz

AUTO AUTO AUTO AUTO 13V & 18V and DiSEqC 0KHz & 22KHz tone to LNB

AUTO AUTO

• 13V & 18V and DiSEqC 0KHz tone to LNB

AUTO AUTO

• 13V & 18V and DiSEqC 22KHz tone to LNB

• AUTO AUTO 13V and DiSEqC 0KHz & 22KHz tone to LNB

• • 13V and DiSEqC 0KHz tone to LNB

• • 13V and DiSEqC 22KHz tone to LNB

• AUTO AUTO 18V and DiSEqC 0KHz & 22KHz tone to LNB

• • 18V and DiSEqC 0KHz tone to LNB

• • 18V and DiSEqC 22KHz tone to LNB

Set Tracking Information of Satellite [Secondary]

Command Buttons

•EditSatelliteInformation–Tochangefrequencyinformationoftheantenna.

Figure 28 : Setup the Secondary Tracking Information

Tracking information for Vertical Low & RHCP band

Tracking information for Horizontal Low & LHCP band

Tracking information for Vertical High band

Tracking information for Horizontal High band

Power status of RF2

DiSEqC using method

Satellite to be edited

Intellian Satellite TV Antenna Systems

•AngleofAntenna

Two kinds of antenna movement is available. One is to move by the target position and the other is to move by certain amount of angle. The current position (angle) of the antenna is displayed as “Current” and to move to the target position, push “Go to target Position” button after keying in desired angle into “Target”. To move to a certain amount of angle only, move antenna to direction of up or down, and CW or CCW by using buttons after keying in the desired angle into the AZ and EL in the “Mover

Step”box.RotateLNBtodirecttheskewanglebyusing+–button.

•Self-Diagnosis

If the “Diagnosis” button is pressed, it displays the results of the selfdiagnosis after the test is completed. The blue circle means the antenna is normal; red represents abnormal and green represents the antenna is under diagnosis.

Command Buttons

•GotoTargetPosition–Tomovetheantennatothepresentposition.

•Diagnosis–Todiagnosetheantenna(BLUE–Passed,RED–Failed, GREEN–Underdiagnosis)

Figure 29 : Antenna Diagnostics

Move Antenna and Execute Antenna Diagnostics

Diagnosis results

Go to target angle

Skew information

Move the antenna angle and LNB pol angle & polarization

The antenna current position

Figure 30 : Antenna Parameters

It is not recommended for a novice satellite service user to use this mode. Consult Intellian for changing antenna parameters.

Set Antenna Parameters for Control

Parameter Setting

Flag Setting

Product information

Command Buttons

•SetControlParameter–Toregisterparametersvalue.

•SetFlags–TosetagsettingforWRSmethodoroffsetdifference.

•SetOffset–ToadjustthedistancebetweenbandswitchsensorandLNB.

Intellian Satellite TV Antenna Systems

Parameter Setting - To set antenna parameter values.

Scan Offset

Track Scale

Detect Level

WRS Level

Track Offset

Power Level

DiSEqC Level

Offset RH-LH

EL Offset

Use WRS

Offset

Difference

The scan offset is to offset the angle difference between the

black marker on the sub-reector and the optical sensor.

The track scale is to control the tracking speed while antenna

is tracking the satellite.

The detect level is to set the satellite signal detection level.

The WRS level is to set the WRS detection level.

The tracking offset is to offset the satellite signal tracking

level.

The power level is to distinguish the voltage between 13 V and 18 V.

The DiSEqC level is to distinguish 0KHz tone and 22KHz tone.

The offset RH-LH is to offset the signal difference between

RHCP and LHCP.

The EL offset is to offset the angle difference between the

mechanical elevation angle and actual elevation angle.

Use WRS is to determine whether the system uses WRS level

or not. “Use WRS” and “WRS Level” are pair functions.

Offset difference is to determine whether the system to uses

“Offset RH-LH” or not. “Offset Difference” and “Offset RH-LH”

are pair functions.

1. Refer to the drawing on the right.

2. Rotate antenna left and right slowly until the limit switch is pressed.

3. Turn the antenna by 360° to the reverse direction.

4. Insert the restraint foam in both sides of the dish to secure the pedestal in position with the bottom radome.

5. Cover upper part of radome. Be careful not to touch the reector when assembling upper part of radome.

6. Pack Intellian i6W into the original package box.

NOTE : Don’t rotate it quickly, or you may damage the antenna limit system.

Preparation for Transportation

The following procedures to secure the antenna shall be strictly observed to protect it from being damaged during transportation.

Figure 31: Preparation for Transportation

Bottom of the radome

Shipping Restraint

Intellian Satellite TV Antenna Systems

Warranty

This product is warranted by Intellian Technologies Inc., to be free from defects in materials and workmanship for a period of THREE (3) YEARS on parts and ONE (1) YEAR on labor performed at Intellian Technologies, Inc. service center from the purchased date of the product.

General

Approvals

CE – conforms to

FCC – veried to

EU Directive 89/336/EEC

CFR47:Part 15

Dimensions

Satellite antenna unit

Antenna dish diameter

Antenna control unit

70cm (27.5”) x 72cm(28.3”)

60cm(23.6”)

17.8cm(7”)x21.7cm(8.5”)x5.4cm(2.1”)

Weight

Satellite antenna unit

Antenna control unit

21kg (46.3 lbs)

1.2kg (2.6 lbs)

Environmental

Operating temperature range

Storage temperature range

Humidity limit

-15°C to +55°C (+5°F to 131°F)

-25°C to +70°C (-13°F to 158°F)

95% R.H

Power requirements 9~30 V DC

Power consumption Typ. 30W, Max. 50W

Antenna system performance

Frequency Ku-band (10.7 to 12.75 GHz)

Minimum EIRP 47 dBW

Azimuth range 680°

Elevation range -5° ~ +90°

Ship’s motion

Roll ±25°

Pitch ±15°

Roll and pitch

response rate

45° per second

Turn rate 45° per second

Appendix : i6W Technical Specication

Intellian Satellite TV Antenna Systems

www.intelliantech.com

APAC

supportAPAC@intelliantech.com

Headquarters

Intellian Technologies, Inc.

348-5 Chungho-Ri, Jinwi-Myeon Pyeongtaek-Si, Gyunggi-Do 451-862 Korea

T +82 31 379 1000 F +82 31 377 6185

Seoul Ofce

Intellian Technologies, Inc.

2F Dongik Building, 98 Nonhyun-Dong Gangnam-Gu, Seoul 135-010 Korea

T +82 2 511 2244 F +82 2 511 2235

Maritime Technical Center

MTC@intelliantech.com

Busan Ofce

Intellian Technologies, Inc.

#906 Ace High Tech 21, 1470 Woo-Dong Haeundae-Gu, Busan 612-020 Korea T +82 51 746 9695 F +82 51 746 9440

Americas

supportAMERICAS@intelliantech.com

Irvine Ofce

Intellian Technologies USA, Inc.

9004 Research Drive Irvine, CA 92618 USA T 949 727 4498 F 949 271 4183

EMEA

supportEMEA@intelliantech.com

Rotterdam Ofce

Intellian B.V.

Bristolstraat 1, 3047AB Rotterdam, The Netherlands

T +31 1 0820 8655 F +31 1 0820 8656

UK Ofce

Intellian Ltd.

Epsilon House, Enterprise Road, Southampton Science Park, Southampton, Hampshire SO16 7NS,UK T +44 2380 019 021 F +44 2380 767 092

Intellian i6W Installation And Operation User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
