1 2 Function Description
Down
EDID Copy Mode On
Down
Up
1280 x 800 (WXGA)
Up
Up
1024 x 768 (XGA)
Length
Dipswitches
0-8m (0-25’)
All dips Off
9-30m (26’-100’)
Dip 1 On
31-60m (101’-200’)
Dip 2 On
61-90m (201’-300’)
Dip 3 On
91m+ (301’+)
Dip 4 On
Troubleshooting
Symptom
Possible Solutions
No signal
Active LED is off
Verify that both ends of the twisted pair cables use
T568B crimp pattern.
Verify VGA cables and source and destination VGA
ports are operational.
No signal
Verify the power supply is connected to the send
balun.
Verify the power LEDs on both the send and
receive units are brightly illuminated.
Unusual colors or
blurry video
Adjust dipswitches for the length of you UTP cable.
Adjust the brightness on the receive balun.
Installation Instructions
1. Turn off power and disconnect VGA cables
from computer and display.
2. Connect a VGA cable between the display and
the receiver (VGA2-HR-R).
3. Connect twisted pair cable between the
transmitter (VGA2-HR-S) and the receiver
(VGA2-HR-R). Ensure T568B straight-thru
wiring.
4. Connect the included power supply to the
transmitter.
5. Connect a VGA cable between the computer
and the transmitter (VGA2-HR-S).
6. Power on attached audio/video devices.
EDID Copy Instructions
1. Set dipswitch 2 down.
2. Follow “Installation Instructions”.
3. Press the EDID copy button.
4. Wait for flashing LED and a “click”
noise. EDID copy is completed.
*Note: The VGA2-HR will only change EDID
modes after completely disconnecting both
power and VGA cabling.

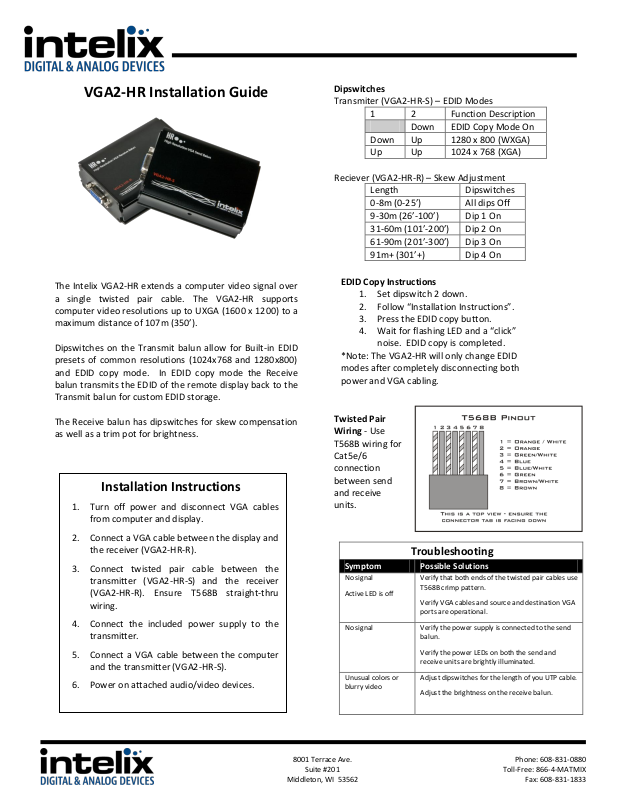

VGA2-HR Installation Guide
The Intelix VGA2-HR extends a computer video signal over
a single twisted pair cable. The VGA2-HR supports
computer video resolutions up to UXGA (1600 x 1200) to a
maximum distance of 107m (350’).
Dipswitches on the Transmit balun allow for Built-in EDID
presets of common resolutions (1024x768 and 1280x800)
and EDID copy mode. In EDID copy mode the Receive
balun transmits the EDID of the remote display back to the
Transmit balun for custom EDID storage.
The Receive balun has dipswitches for skew compensation
as well as a trim pot for brightness.
Dipswitches
Transmiter (VGA2-HR-S) – EDID Modes
Reciever (VGA2-HR-R) – Skew Adjustment
Twisted Pair
Wiring - Use
T568B wiring for
Cat5e/6
connection
between send
and receive
units.
8001 Terrace Ave.
Suite #201
Middleton, WI 53562
Phone: 608-831-0880
Toll-Free: 866-4-MATMIX
Fax: 608-831-1833
Technical Specifications
I/O Connections
VGA
HD15 Female
Twisted Pair
Shielded RJ45 Female
12V DC Power
5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
Supported Video
Maximum Video Compatibility at 106 m
UXGA (1600 x 1200)
Input DDC Signal
5.0 volts p-p (TTL)
Input Video Signal
1.2 volts p-p
Chassis and Environmental
Enclosure
Painted steel
Dimensions
83mm x 60mm x 25mm (3.27 in. x 2.36 in. x 0.98 in.)
Shipping Weight
0.61kg (1.35 lbs.)
Operating Temperature (Environment)
0° to +40° C (+32° to +104° F)
Operating Temperature (Chassis)
26° C (79° F) (S); 30° C (86° F) (R)
Operating Humidity (Environment)
20% to 90%, Non-condensing
Storage Temperature (Environment)
-10° to +60° C (+14° to +140° F)
Storage Humidity (Environment)
20% to 90%, Non-condensing
Power, ESD, and Regulatory
Maximum Power Consumption
2.5 watts
Power Supply
12vDC / 1A
ESD Protection
16kV
Regulatory
CE, RoHS
Other
Standard Warranty
2 Years
Diagnostic Indicators
Active video signal, EDID copy and power LEDs
Included Accessories
VGA cable, Power Supply, Adjustment screwdriver, Mounting brackets and
Installation Guide
