USER MANUAL
MODEL:
TSPB-2V1AD
Square table box with H DMI, V GA, 3.5mm
audio, and RJ45 inputs
TSPB-2V1AD – Contents
i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.1 Recycling Products 3
3 Overview 4
4 Defining the TSPB-2V1AD 5
4.1 The TSPB-2V1AD Connecting Surface 6
4.2 Power Socket Options 7
5 Installing the TSPB-2V1AD 8
5.1 Cutting an Opening 8
5.2 Installing the Power Socket 10
5.3 Inserting the TSPB-2V1AD through the Cut-Out Opening 11
5.4 Connecting the Cables 11
6 Technical Specifications 13
Figures
Figure 1: TSPB-2V1AD Square table box with HDMI, VGA, 3.5mm audio, and RJ45 inputs 4
Figure 2: Defining the Parts of the TSPB-2V1AD Square table box with HDMI, VGA, 3.5mm audio, and
RJ45 inputs 5
Figure 3: TSPB-2V1AD Connecting Surface 6
Figure 4: Cut out Dimensions (not to scale) 9
Figure 5: TSPB-2V1AD Universal Power Socket Housing 10
Figure 6: Power socket installed 11
TSPB-2V1AD - Introduction
1
1
1 Introduction
Congratulations on purchasing the TSPB-2V1AD Square table box with
HDMI, VGA, 3.5mm audio, and RJ45 inputs, which is ideal for
boardrooms, conference and training rooms.
Your TSPB-2V1AD is available in two models: in black (model TSPB2V1AD-B) and in aluminum (model TSPB-2V1AD-A). Note: that power
accessories are sold separately.
2
TSPB-2V1AD - Getting Started
This equipment is to be used only inside a building. It may
only be connected to other equipment that is installed
inside a building.
Do not place heavy objects on top of the TSPB-2V1AD.
!
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend high-
performance, high-resolution cables) to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight
coils
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality
Position your TSPB-2V1AD away from moisture, excessive sunlight
and dust
TSPB-2V1AD - Getting Started
3
3
2.1 Recycling Products
The Waste Electrical and Electronic Equipment (WEEE) Directive
2002/96/EC aims to reduce the amount of WEEE sent for disposal to
landfill or incineration by requiring it to be collected and recycled. To
comply with the WEEE Directive, we have made arrangements with the
European Advanced Recycling Network (EARN) and will cover any costs
of treatment, recycling and recovery of waste Electronics branded
equipment on arrival at the EARN facility.
4
TSPB-2V1AD - Overview
3 Overview
The TSPB-2V1AD is a furniture-mounted pop-up connection bus that is
easily installed into a table or podium top. The TSPB-2V1AD interface
enables you to connect any equipment to systems installed in a room
via the following pass-through connectors:
1 PC on a 15-pin HD connector
1 HDMI connector
1 stereo audio on a 3.5mm connector
1 Ethernet RJ-45 connector
When not in use, you can lower the TSPB-2V1AD flush into the table.
The example in Figure 1 shows the TSPB-2V1AD in a table or podium
top with a universal power socket.
Figure 1: TSPB-2V1AD Square table box with HDMI, VGA, 3.5mm audio, and RJ45 inputs
In addition, the TSPB-2V1AD is:
Easily opened and closed by pressing down gently on the lid due to
its tilting angular construction, pneumatic lift and mechanical
latching mechanism. It can be raised (when in use) or lowered
(when not in use)
TSPB-2V1AD - Defining the TSPB-2V1AD
5
5
#
Feature
Function
1
Black anodized or brushed
anodized aluminum semiautomatic lid
Covers the connecting surface, leaving the table surface neat
and tidy
2
Connecting Surface
See Section 4.1
3
Outer Rim
Fits over the table surface
4
Mini Latch
Enables the closing and opening of the lid by slightly pressing it
5
Mounting Clamp Plates
For holding the clamps
6
Mounting Clamp Slits (four sets
on each side)
Insert the mounting clamps to the slits when installing the
TSPB-2V1AD
4 Defining the TSPB-2V1AD
Figure 2: Defining the Parts of the TSPB-2V1AD Square table box with HDMI, VGA, 3.5mm audio,
and RJ45 inputs
6
TSPB-2V1AD - Defining the TSPB-2V1AD
#
Feature
Function
7
Rubber Protectors (2)
To ensure soft tightening to the table underside
8
Mounting Screws (2)
For securing the TSPB-2V1AD to the table
9
Locking Butterfly Nuts (2)
Tighten to lock the mounting butterfly screw
10
Mounting Butterfly Nuts (2)
Tighten to secure the unit to the table surface
11
Mounting Clamps (2 units)
Place in the clamp slits after inserting the enclosure into the
table – for securing the unit to the table surface
12
Power Connector Lock
Secures the power cable so it does not accidently disconnect
when opening the lid
13
Pneumatic Piston
Enables automatic lifting and smooth closing of the lid
14
Power Socket Opening Screw
Holes (4)
For installing/replacing the power socket
#
Feature
Function
1
HDMI Connector
Connect to an HDMI source
2
PC 15-pin HD Connector
Connect to a computer graphics source
3
AUDIO 3.5mm Mini Jack
Connects to an unbalanced stereo audio source
4.1 The TSPB-2V1AD Connecting Surface
Figure 3 defines the connecting surface and includes the universal
power socket (sold separately) for illustration purposes only:
Figure 3: TSPB-2V1AD Connecting Surface
TSPB-2V1AD - Defining the TSPB-2V1AD
7
7
#
Feature
Function
4
ETHERNET Connector
Connects to the PC or other Controller through computer
networking
5
Power Socket Opening
Suitable for various power sockets (see Section 4.2)
6
Connecting Surface
Pops up when gently pressing the lid
Power Socket Type
Power Specs
USA:
TS-201US (80-000046)
100-125V AC, 50/60Hz, 5A
Maximum 5A per power outlet
4.2 Power Socket Options
A power socket is available for purchase for the USA. Note that the photo
below is for illustration purposes only.
8
TSPB-2V1AD - Installing the TSPB-2V1AD
The thickness of the table should be 3in (76mm) or less.
i

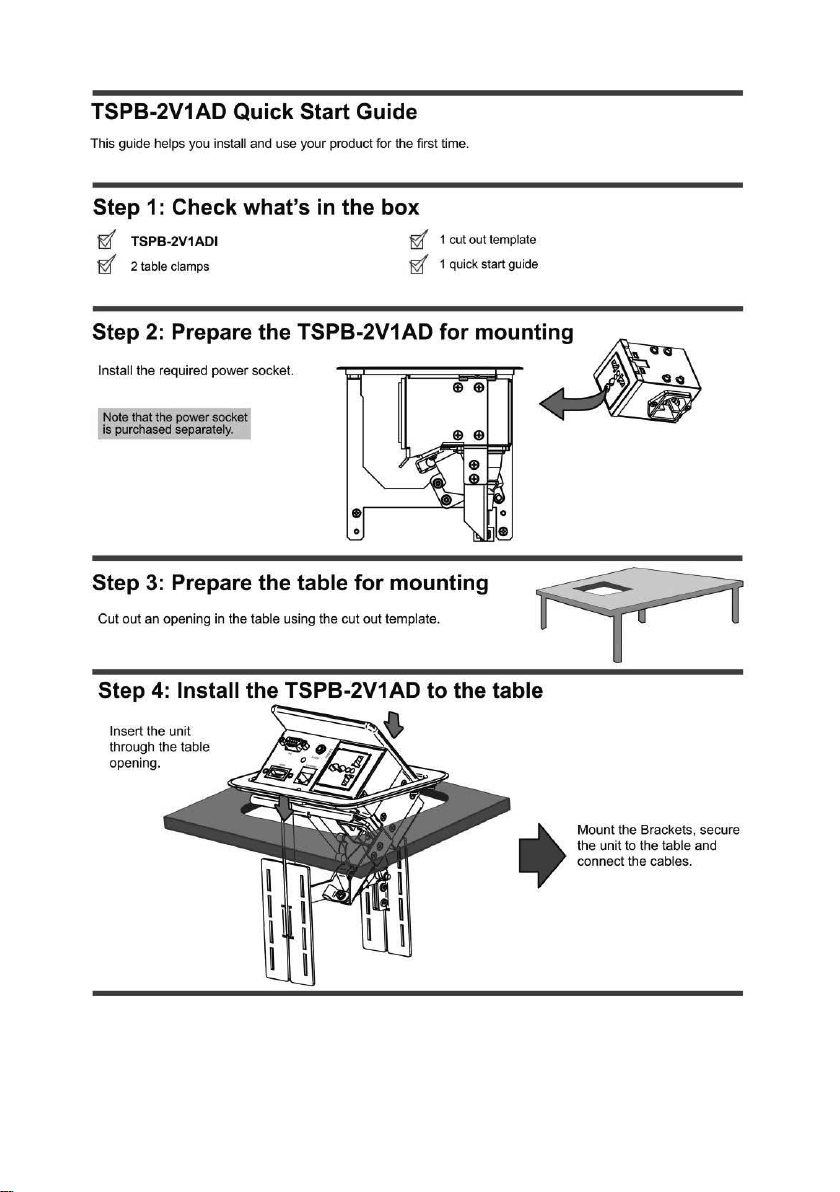

5 Installing the TSPB-2V1AD
To install the TSPB-2V1AD perform the following steps:
1. Cut an opening in the table (see Section 5.1).
2. Install the power socket (see Section 5.2).
3. Insert the TSPB-2V1AD through the cut-out opening (see
Section 5.3).
4. Connect the cables (see Section 5.4).
5.1 Cutting an Opening
The metal cutout template (supplied) defines the surface you have to
cut out to install your TSPB-2V1AD.
To cut an opening in the table:
1. Before cutting the opening, confirm the dimensions of the cutout
template and make sure that they have not changed.
2. Place the included cut out template (that is included with your
TSPB-2V1AD) on the surface of the table exactly where you want
to install the
TSPB-2V1AD.
3. Attach the template to the table with the included screws (if using
the cut out template).
4. Following the inside edge of the template, cut a hole in the table
surface with a sabre or keyhole saw according to the dimensions
shown in Figure 4 (not to scale).
TSPB-2V1AD - Installing the TSPB-2V1AD
9
9
Electronics is not responsible for any damage caused to the
table.
!
Figure 4: Cut out Dimensions (not to scale)
5. Unscrew and remove the template from the surface of the table
and clean the table surface.
Take care not to damage the table.
If needed, you can download a full-scale template from our Web
site.
10
TSPB-2V1AD - Installing the TSPB-2V1AD
5.2 Installing the Power Socket
Figure 5 shows an example of the Universal power socket housing
which is one of the optional power sockets for the TSPB-2V1AD, see
Section 4.2.
Figure 5: TSPB-2V1AD Universal Power Socket Housing
To install the power socket:
1. Close the TSPB-2V1AD lid.
2. Carefully insert the power socket housing so that the power
socket fits into the power socket opening on the connecting
surface and the four standoffs fit the four screw holes on the
TSPB-2V1AD.
When positioned correctly, the IEC socket faces downwards.
3. Screw the four screws included in the power socket kit into the
designated holes to fix the power socket housing in place (see
Figure 6).
TSPB-2V1AD - Installing the TSPB-2V1AD
11
11

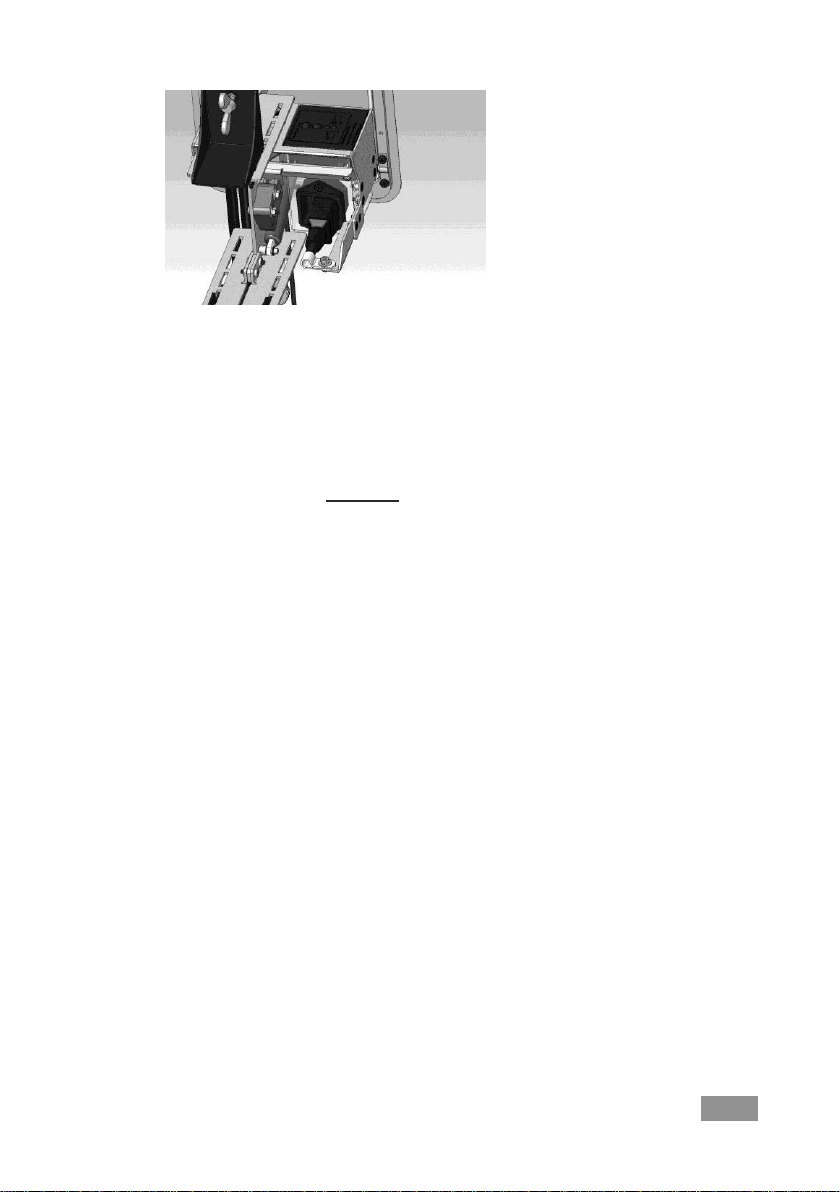

Figure 6: Power socket installed
4. Unscrew the power connector lock.
5. Connect the IEC power cord to the IEC socket.
6. Insert the power cord into the power connector lock and tighten
the screw (see Figure 2, item 12) to secure the power cable.
5.3 Inserting the TSPB-2V1AD through the Cut-Out Opening
To install the TSPB-2V1AD, do the following:
1. Carefully insert the unit into the prepared opening.
2. Take the support clamps under the table and place them into the
support clamp late slits at the desired height (on both the front
and rear sides of the unit).
3. Make sure that the upper outer rim is situated parallel to the edge
of the table.
4. Insert the mounting screws through the holes in the mounting
clamps. Tighten the mounting butterfly nuts to secure the unit to
the table surface and then lock with the mounting butterfly screw.
5.4 Connecting the Cables
1. Connect the appropriate cables from underneath.
12
TSPB-2V1AD - Installing the TSPB-2V1AD
2. Secure the cables.
Do not keep the cord too tight or too loose.
Once you have connected the unit to the mains power and connected the
proper cables, you may use the unit.
TSPB-2V1AD - Technical Specifications
13
13
PORTS:
1 HDMI connector, 1 Ethernet RJ-45 connector,
1 15-pin HD connector, 1 3.5mm mini jack
POWER SOURCE
(AC power limits):
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
FUSE RATING:
T 6.3A 250V
OPERATING TEMPERATURE RANGE:
+5 to +45 Deg. Centigrade
OPERATING HUMIDITY RANGE:
10 to 90% RHL, non-condensing
STORAGE TEMPERATURE RANGE:
-20 to +70Deg. C.
STORAGE HUMIDITY RANGE:
5 to 95% RHL, non-condensing
DIMENSIONS:
Including the outer rim: 14.5cm x 13.2cm x 17.3cm (5.71" x
5.2" x 6.81") W, D, H
Without the outer rim: 13.3cm x 12.0cm x 17.3cm (5.24" x
4.72" x 6.81") W, D, H
WEIGHT:
0.85kg (1.87lbs) approx.
1.2kg (2.65lbs) approx. with mounting brackets
1.4 kg (3.1lbs) approx. packed product
ACCESSORIES:
Cut out metal template
OPTIONS:
Power socket kits, power cord
6 Technical Specifications
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
!
