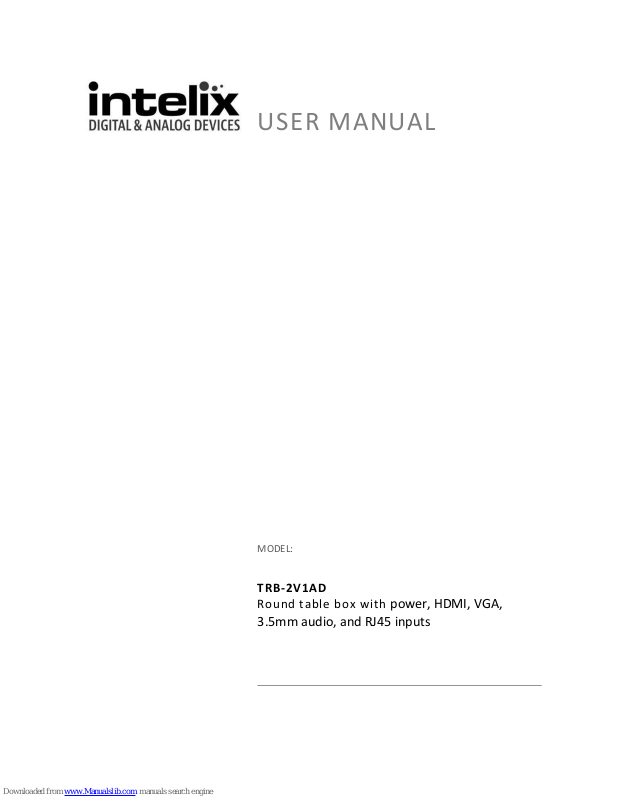

Intelix TRB-2V1AD User Manual

USER MANUAL

MODEL:

TRB-2V1AD

Round table box with power, HDMI, VGA,

3.5mm audio, and RJ45 inputs

TRB-2V1AD – Contents

i

Contents

1 Introduction 1
2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Products 3

3 Overview 4

3.1 Defining the TRB-2V1AD Round table box with power, HDMI, VGA, 3.5mm audio,
and RJ45 inputs 4

4 Installing the TRB-2V1AD 7

4.1 Drilling a Hole in the Table 7

4.2 Mounting the TRB-2V1AD in the Table 8

4.3 Connecting the Cables 10

5 Using the TRB-2V1AD 12
6 Technical Specifications 13

Figures

Figure 1: TRB-2V1AD Round table box with power, HDMI, VGA, 3.5mm audio, and RJ45 inputs 5
Figure 2: TRB-2V1AD Connecting Surface 6

Figure 3: Connecting the Cables 10
Figure 4: TRB-2V1AD Boardroom Installation 12

TRB-2V1AD - Introduction

1

1 Introduction

Congratulations on purchasing your TRB-2V1AD Round table box with
power, HDMI, VGA, 3.5mm audio, and RJ45 inputs, which is ideal for
the following typical applications:

 Boardrooms
 Conference rooms
 Training rooms

Your TRB-2V1AD is available in two models: in black (model TRB-2V1AD­B) and in aluminum (model TRB-2V1AD-A).

2

TRB-2V1AD - Getting Started

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

 Review the contents of this user manual

2.1 Achieving the Best Performance

To achieve the best performance:

 Use only good quality connection cables (we recommend high-

performance, high-resolution cables) to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)

 Do not secure the cables in tight bundles or roll the slack into tight

coils

 Avoid interference from neighboring electrical appliances that may

adversely influence signal quality

 Position your TRB-2V1AD away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may
only be connected to other equipment that is installed
inside a building.

!

TRB-2V1AD - Getting Started

3

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside
the unit

Warning:

Use only the power cord that is supplied with
the unit

Warning:

Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified
personnel only

Warning:

Disconnect the power and unplug the unit from
the wall before installing

2.3 Recycling Products

The Waste Electrical and Electronic Equipment (WEEE) Directive
2002/96/EC aims to reduce the amount of WEEE sent for disposal to
landfill or incineration by requiring it to be collected and recycled. To
comply with the WEEE Directive, we have made arrangements with the
European Advanced Recycling Network (EARN) and will cover any costs
of treatment, recycling and recovery of waste Electronics branded
equipment on arrival at the EARN facility.

!

4

TRB-2V1AD - Overview

3 Overview

The TRB-2V1AD is an elegant furniture-mounted, round connection bus,
featuring a pneumatic mechanism for automatic lifting and smooth
closing of its lid. The TRB-2V1AD is easily installed into a table or podium
top for the USA (Power Input - 110V AC). The TRB-2V1AD enables you to
connect any equipment to systems installed in a room via cable access
or passive interfaces.

In addition, the TRB-2V1AD includes the following pass-through
connectors:

 1 VGA on a 15-pin HD connector
 1 HDMI connector
 1 stereo audio on a 3.5mm connector
 1 Ethernet port on an RJ-45 connector
 C14 power socket

The TRB-2V1AD supports HDMI with Deep Color, x.v.Color™, Lip Sync,
HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, and CEC.

The TRB-2V1AD surface is available in black anodized or brushed clear.

3.1 Defining the TRB-2V1AD Round table box with power, HDMI,

VGA, 3.5mm audio, and RJ45 inputs

This section defines the TRB-2V1AD.

TRB-2V1AD - Overview

5

Figure 1: TRB-2V1AD Round table box with power, HDMI, VGA, 3.5mm audio, and RJ45 inputs

6

TRB-2V1AD - Overview

#

Feature

Function

1

Black Anodized or Brushed
Aluminum semi-automatic Lid

Covers the connecting surface, leaving the table surface neat
and tidy

2

Outer Rim

Fits over the table surface

3

Pneumatic Mechanism

Enables automatic lifting and smooth closing of the lid

4

Connecting Surface

See Figure 2

5

Rubber Protectors

Protect the table surface when mounting the unit (one on
each side)

6

Mounting Screws (2)

For securing the TRB-2V1AD to the table

7

Locking Butterfly Nuts

Tighten to lock the mounting butterfly screw (one on each
side)

8

Mounting Brackets (2 units)

Place in the bracket slits after inserting the enclosure into the
table – for securing the unit to the table surface (one on each
side)

9

Mounting Butterfly Nuts

Tighten to secure the unit to the table surface (one on each
side)

10

Mounting Bracket Slits (two sets
on each side)

Insert the mounting brackets to the slits when installing the
TRB-2V1AD (see Section 4.2)

11

HDMI Connector

Connect to an HDMI source

12

PC 15-pin HD Connector

Connect to a computer graphics source

13

Audio 3.5mm Mini Jack

Connect to an analog audio source

14

C14 power socket

Connect to the mains power

Figure 2: TRB-2V1AD Connecting Surface

#

Feature

Function

1

ETHERNET RJ-45 Connector

Connect to a network

2

PC 15-pin HD Connector

Connects to a VGA source

3

HDMI Connector

Connect to HDMI source

4

5A MAX. Power Socket

Connect to a 110V AC power consuming device

5

AUDIO 3.5mm Mini Jack

Connects to an unbalanced stereo audio source

6

Lid Latch

For safely closing the lid

TRB-2V1AD - Installing the TRB-2V1AD

7

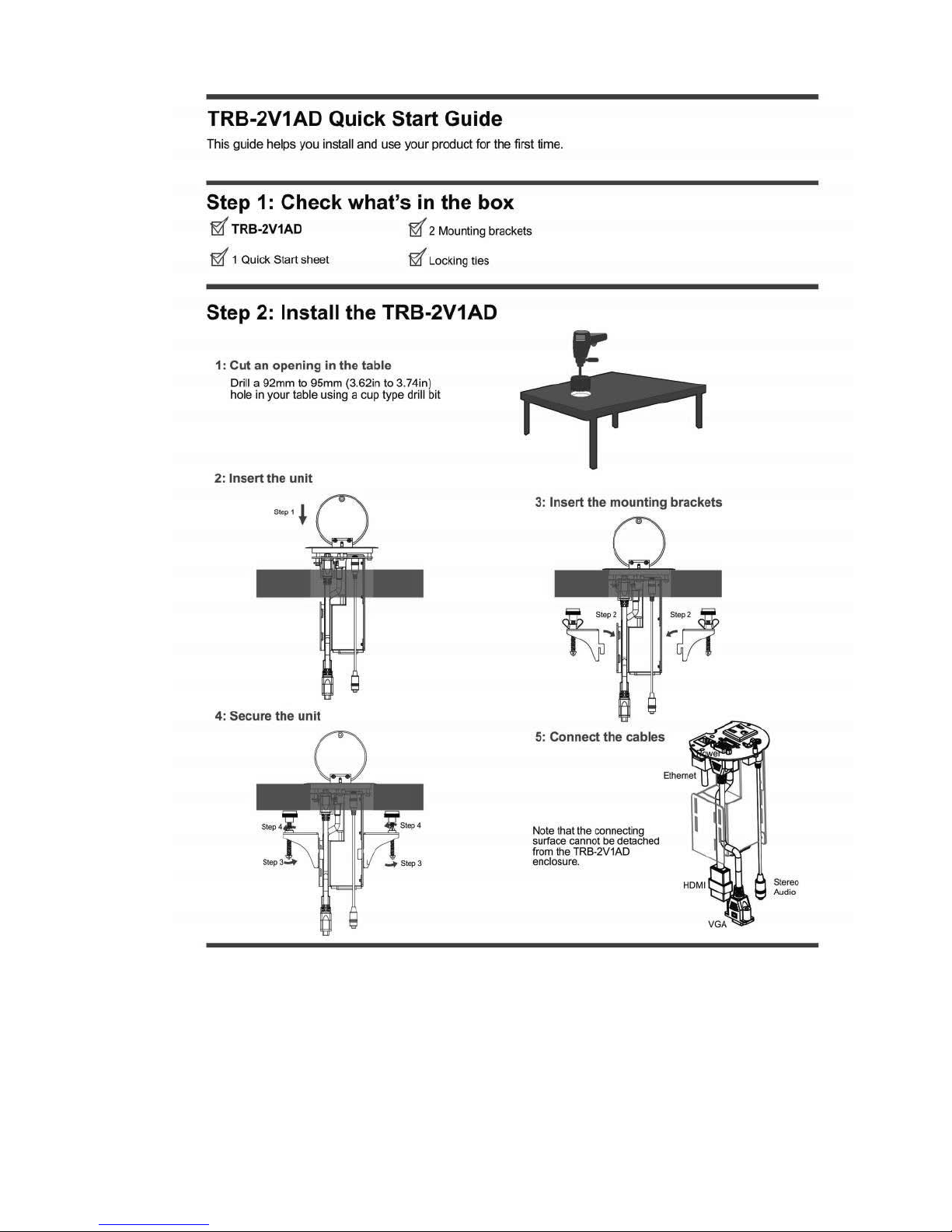

4 Installing the TRB-2V1AD

To install the TRB-2V1AD perform the following steps:

1. Drill a hole in the table (see Section 4.1).

2. Insert the unit through the hole and secure the unit to the table

(see Section 4.2).

3. Connect the cables (see Section 4.3).

4.1 Drilling a Hole in the Table

To drill an opening in the table:

1. Using any standard cup bit drill with a diameter ranging from 92mm
to 95mm (3.62in to 3.74in), drill a hole in the table in the desired
location.

Note: The thickness of the table should be 3in (76mm) or less.

2. Clean the table surface.

Take care not to damage the table.

We are not responsible for any damage caused to the
table.

!

8

TRB-2V1AD - Installing the TRB-2V1AD

4.2 Mounting the TRB-2V1AD in the Table

To mount the unit, follow these steps:

Step 1: Insert the TRB­2V1AD into the hole cut

into the table making sure
the outer rim is firm against
the surface of the table.

Step 2: From underneath
the table, slide the
mounting brackets into the
appropriate slots.

TRB-2V1AD - Installing the TRB-2V1AD

9

Step 3: Tighten the
butterfly mounting screws
securely upward against
the table.

Step 4: Lock the mounting
screws into position with
the locking butterfly
screws.

10

TRB-2V1AD - Installing the TRB-2V1AD

4.3 Connecting the Cables

Figure 3 illustrates how to connect the cables to the underside of the

unit:

Note that the connecting surface is an integral part of the RTBUS-11
enclosure and cannot be detached.

Figure 3: Connecting the Cables

TRB-2V1AD - Installing the TRB-2V1AD

11

We recommend that you use the C-AC/US AC Power Cord - 6ft USA
110V AC to power the unit.

12

TRB-2V1AD - Using the TRB-2V1AD

5 Using the TRB-2V1AD

Once the TRB-2V1AD is installed, you can easily customize it to your
own needs by plugging in the required AV equipment, as illustrated in
the example in Figure 4.

Figure 4: TRB-2V1AD Boardroom Installation

TRB-2V1AD - Technical Specifications

13

6 Technical Specifications

PORTS:

1 HDMI connector, 1 15-pin HD connector, 1 3.5mm mini jack, 1
RJ-45 connector

OPERATING TEMPERATURE:

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE:

-40° to +70°C (-49° to 158°F)

HUMIDITY:

10% to 90%, RHL non-condensing

POWER SOURCE (AC power limits):

115V AC, 50/60Hz, 5A Max

FUSE RATING:

T 6.3A 250V

DIMENSIONS:

10.5cm x 16cm (4.1" x 6.3") Diameter, H

WEIGHT:

0.85kg (1.9lbs) approx.

1.2kg (2.6lbs) approx. with mounting brackets

INCLUDED ACCESSORIES:

Six self-locking ties

This page is intentionally left blank

!

SAFE TY WARNI NG
Disconnect the unit from the power
supply before opening and servicing
