TDPB-2V1AD - Introduction
1
1
1 Introduction
Congratulations on purchasing the TDPB-2V1AD Dual square table box
with HDMI, VGA, 3.5mm audio, and RJ45 inputs, which is ideal for
boardrooms, conference and training rooms!
Your TDPB-2V1AD is available in two models: in black (model TDPB2V1AD-B) and in aluminum (model TDPB-2V1AD-A).
2
TDPB-2V1AD - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend high-
performance, high-resolution cables) to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight
coils
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality
Position your TDPB-2V1AD away from moisture, excessive sunlight
and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
Do not place heavy objects on top of the TDPB-2V1AD.
!
TDPB-2V1AD - Getting Started
3
3
2.2 Recycling Products
The Waste Electrical and Electronic Equipment (WEEE) Directive
2002/96/EC aims to reduce the amount of WEEE sent for disposal to
landfill or incineration by requiring it to be collected and recycled. To
comply with the WEEE Directive, we have made arrangements with the
European Advanced Recycling Network (EARN) and will cover any costs
of treatment, recycling and recovery of waste Electronics branded
equipment on arrival at the EARN facility.
4
TDPB-2V1AD - Overview
3 Overview
The TDPB-2V1AD is a furniture-mounted pop-up connection bus that
includes two identical pop-up connecting surfaces facing opposite
sides. The TDPB-2V1AD is easily installed into a table or podium top.
Each of the pop-up interfaces enables you to connect any equipment to
systems installed in a room, and includes the following pass-through
connectors:
1 PC on a 15-pin HD connector
1 HDMI connector
1 stereo audio on a 3.5mm connector
1 Ethernet RJ-45 connector
When not in use, you can independently lower each of the interfaces
flush into the table. The example in Figure 1 shows the TDPB-2V1AD in
a table or podium top with a universal power socket.
Figure 1: TDPB-2V1AD Dual square table box with HDMI, VGA, 3.5mm audio, and RJ45
inputs
TDPB-2V1AD - Overview
5
5
In addition, the TDPB-2V1AD is:
Easily opened and closed by pressing down gently on the lid due to its tilting
angular construction, pneumatic lift and mechanical latching mechanism. It
can be raised (when in use) or lowered (when not in use)
6
TDPB-2V1AD - Defining the TDPB-2V1AD
4 Defining the TDPB-2V1AD
Figure 2 and Figure 3 define the TDPB-2V1AD.
Note that both pop-up units are identical so Figure 2 and
Figure 3, as well as the following tables apply to each one
of them separately.
Figure 2: Defining the Parts of the TDPB-2V1AD Dual square table box with HDMI, VGA, 3.5mm
audio, and RJ45 inputs
.
#
Feature
Function
1
Black anodized or brushed
anodized aluminum semiautomatic lids
A cover for each connecting surface, leaving the table surface
neat and tidy
2
Connecting Surface
See Section 4.1
3
Outer Rim
Fits over the table surface
4
Power Connector Lock
Secures the power cable so it does not accidently disconnect
when opening the lid
5
Mounting Clamp Plates
For holding the clamps
i
TDPB-2V1AD - Defining the TDPB-2V1AD
7
7
#
Feature
Function
6
Mounting Clamp Slits
Insert the mounting clamps to the slits when installing the
TDPB-2V1AD
7
Mounting Clamps (2)
Place in the clamp slits after inserting the enclosure into the
table – for securing the unit to the table surface
8
Mounting Butterfly Nuts (2)
Tighten to secure the unit to the table surface
9
Locking Butterfly Nuts (2)
Tighten to lock the mounting butterfly screw
10
Mounting Screws (2)
For securing the TDPB-2V1AD to the table
11
Rubber Protectors (2)
To ensure soft tightening to the table underside
Figure 3: TDPB-2V1AD Dual square table box with HDMI, VGA, 3.5mm audio, and RJ45 inputs Side
View
#
Feature
Function
12
Power Socket Opening
Screw Holes (4)
For installing/replacing the power socket
13
Pneumatic Piston
Enables automatic lifting and smooth closing of the lid
14
Mini Latch
Enables the closing and opening of the lid by slightly pressing it
8
TDPB-2V1AD - Defining the TDPB-2V1AD
4.1 The TDPB-2V1AD Connecting Surface Unit

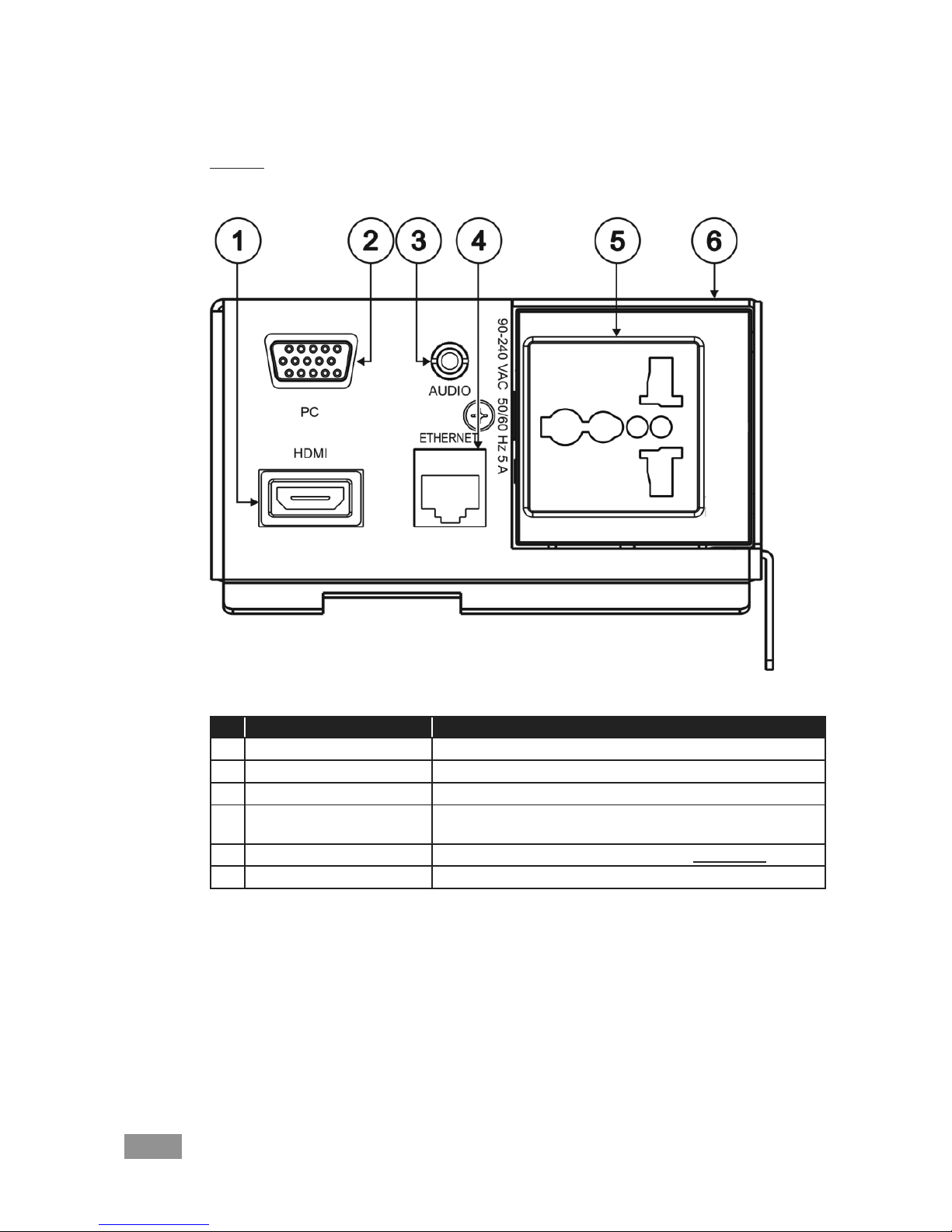

Figure 4 defines a connecting surface (one of two) and includes the universal power
socket (sold separately) for illustration purposes only:
Figure 4: TDPB-2V1AD Connecting Surface
#
Feature
Function
1
HDMI Connector
Connect to an HDMI source
2
PC 15-pin HD Connector
Connect to a computer graphics source
3
AUDIO 3.5mm Mini Jack
Connects to an unbalanced stereo audio source
4
ETHERNET Connector
Connects to the PC or other Controller through computer
networking
5
Power Socket Opening
Suitable for various power sockets (see Section 4.2)
6
Connecting Surface
Pops up when gently pressing the lid
TDPB-2V1AD - Defining the TDPB-2V1AD
9
9
4.2 Power Socket Options
A power socket is available for purchase for the USA. Note that the photo
below is for illustration purposes only.
Power Socket Type
Power Specs
USA:
TS-201US (80-000046)
100-125V AC, 50/60Hz, 5A
Maximum 5A per power outlet
10
TDPB-2V1AD - Installing the TDPB-2V1AD
5 Installing the TDPB-2V1AD
To install the TDPB-2V1AD perform the following steps:
1. Cut an opening in the table (see Section 5.1).
2. Install the power socket (see Section 5.2).
3. Insert the TDPB-2V1AD through the cut-out opening and fix to the
table (see Section 5.3).
4. Connect the cables (see Section 5.4).
5.1 Cutting an Opening
The metal cutout template (supplied) defines the surface you have to cut out to install
your TDPB-2V1AD.
The thickness of the table should be 3in (76mm) or less.
To cut an opening in the table:
1. Before cutting the opening, confirm the dimensions of the cutout
template and make sure that they have not changed.
2. Place the included cut out template (that is included with your
TDPB-2V1AD) on the surface of the table exactly where you want
to install the
TDPB-2V1AD.
3. Attach the template to the table with the included screws (if using
the cut out template).
4. Following the inside edge of the template, cut a hole in the table
surface with a sabre or keyhole saw according to the dimensions
shown in Figure 5 (not to scale).
i
TDPB-2V1AD - Installing the TDPB-2V1AD
11
11

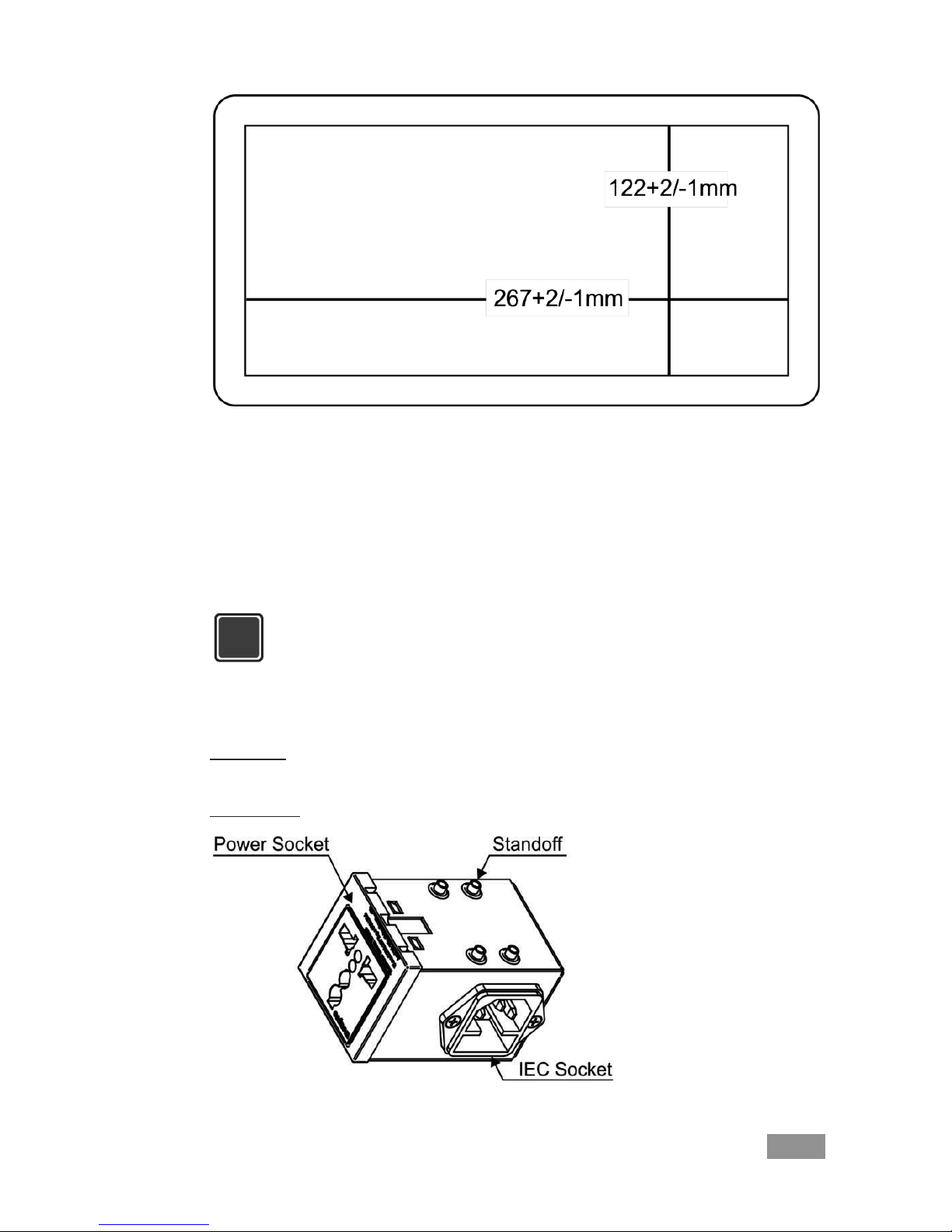

Figure 5: Cut out Dimensions
5. Unscrew and remove the template from the surface of the table
and clean the table surface.
Take care not to damage the table.
If needed, you can download a full-scale template from our Web
site.
Electronics is not responsible for any damage caused to the
table.
5.2 Installing the Power Socket
Figure 6 shows an example of the Universal power socket housing
which is one of the optional power sockets for the TDPB-2V1AD, see
Section 4.2.
Figure 6: TDPB-2V1AD Universal Power Socket Housing
!
12
TDPB-2V1AD - Installing the TDPB-2V1AD
To install the power socket:
1. Close the TDPB-2V1AD lid.
2. Carefully insert the power socket housing so that the power
socket fits into the power socket opening on the connecting
surface and the four standoffs fit the four screw holes on the
TDPB-2V1AD.
When positioned correctly, the IEC socket faces downwards.
3. Screw the four screws included in the power socket kit into the
designated holes to fix the power socket housing in place (see
Figure 7).
Figure 7: Power socket installed
4. Unscrew the power connector lock.
5. Connect the IEC power cord to the IEC socket.
6. Insert the power cord into the power connector lock and tighten
the screw (see Figure 2, item 12) to secure the power cable.
TDPB-2V1AD - Installing the TDPB-2V1AD
13
13
5.3 Inserting the TDPB-2V1AD through the Cut-Out Opening
To install the TDPB-2V1AD, do the following:
1. Carefully insert the unit into the prepared opening.
2. Take the support clamps under the table and place them into the
support clamp grooves at the desired height (on both the front
and rear sides of the unit).
3. Make sure that the upper outer rim is situated parallel to the edge
of the table.
4. Insert the table securing screw through the holes in the mounting
clamps and tighten the TDPB-2V1AD to the table.
5.4 Connecting the Cables
1. Connect the appropriate cables from underneath.
2. Secure the cables.
Do not keep the cord too tight or too loose.
Once you have connected the unit to the mains power and connected the
proper cables, you may use the unit.
14
TDPB-2V1AD - Technical Specifications
6 Technical Specifications
PORTS:
2 HDMI connector, 2 Ethernet RJ-45 connector,
2 15-pin HD connector, 2 3.5mm mini jack
POWER SOURCE
(AC power limits):
100-125V AC, 50/60Hz, 5A
Maximum 5A per power outlet
FUSE RATING:
T 6.3A 250V
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
DIMENSIONS:
Including the outer rim: 28.5cm x 14.0cm x 16.5cm (11.2" x
5.5" x 6.5") W, D, H
Without the outer rim: 26.5cm x 12.0cm x 16.0 cm (10.4" x
4.7" x 6.3") W, D, H
WEIGHT:
1.64kg (3.6lbs) approx.
1.88kg (4.1lbs) approx. with mounting clamps
2.26kg (5lbs) approx. packed product
ACCESSORIES:
Cut out metal template
OPTIONS:
Power socket kits, power cord
!
SAFE TY WARNI NG
Disconnect the unit from the power
supply before opening and servicing
