SKYPLAY-MX Installation
and Operation Guide
Rev 130412
SKYPLAY-MX Installation Guide
Important Safety
Instructions
Please completely read and verify you understand all
instructions in this manual before operating this equipment.
Keep these instructions in a safe, accessible place for future
reference.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Use only accessories specified or recommended by Intelix.
Explanation of graphical symbols:
o Lightning bolt/flash symbol: the lightning bolt/flash
and arrowhead within an equilateral triangle symbol is
intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product
enclosure which may be of sufficient magnitude to
constitute a risk of shock to a person or persons.
o Exclamation point symbol: the exclamation point
within an equilateral triangle symbol is intended to
alert the user to the presence of important operating
and maintenance (servicing) instructions in the
literature accompanying the product.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
Use the mains plug to disconnect the apparatus from the
mains.
2
SKYPLAY-MX Installation Guide
THE MAINS PLUG OF THE POWER CORD MUST REMAIN
READILY ACCESSIBLE.
Do not defeat the safety purpose polarized or grounding-type
plug. A polarized plug has two b lades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of your
obsolete outlet. Caution! To reduce the risk of electrical
shock, grounding of the center pin of this plug must be
maintained.
Protect the power cord from being walked on or pinched
particularly at the plugs, convenience receptacles, and the
point where they exit from the apparatus.
Do not block the air ventilation openings. Only mount the
equipment per Intelix’s instructions.
Use only with the cart, stand, table, or rack specified by Intelix
or sold with the equipment. When/if a cart is used, use
caution when moving the cart/equipment combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Caution! Shock Hazard. Do not open the unit.
Refer to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
3
SKYPLAY-MX Installation Guide
Table of Contents
Important Safety Instructions ......................................... 2
Overview ......................................................................... 6
Package Contents SKYPLAY-MX-S ............................... 7
Package Contents SKYPLAY-MX-R ............................... 7
SKYPLAY-MX-S ............................................................. 8
SKYPLAY-MX-R............................................................. 9
IR Remote .................................................................. 10
Installation Instructions ................................................ 11
Shelf Mounting Instructions...................................... 11
Setup and Pairing .......................................................... 12
Point-to-Point ............................................................ 12
Point-to-Many ........................................................... 13
Multiple Transmitters on a Receiver (Many-To-Point)
.................................................................................. 14
EDID Management ........................................................ 15
On-Screen Menu ........................................................... 16
Overview of OSD ....................................................... 16
Adding Sources.......................................................... 16
Removing Sources ..................................................... 16
Renaming Sources ..................................................... 19
Quick Source Selection.................................................. 20
Troubleshooting ............................................................ 21
Technical Specifications ................................................ 23
4
SKYPLAY-MX Installation Guide
FCC Statement .............................................................. 24
FCC Radiation Exposure Statement .............................. 25
Caution Statement ........................................................ 25
5
SKYPLAY-MX Installation Guide
Overview
The Intelix SKYPLAY-MX improves upon the existing
wireless HDMI by ensuring source to destination
compatibility with full HDCP-compliance. The SKYPLAYMX wireless distribution is designed specifically for
professional grade audio-visual installations.
The SKYPLAY-MX distributes HDMI high-definition audio
and video up to 100 feet in both point-to-point pointto-many, and many-to-point configurations. Each
transmitter is compatible with up to 4 receivers and
each receiver can be paired to switch up to 4
transmitters.
WHDI and AES 128-bit encrypted processing ensure the
integrity of digital signals and real-time processing (less
than one frame), whether transmitting in open spaces
or through light construction, such as framed drywall
walls.
6
SKYPLAY-MX Installation Guide
Package Contents SKYPLAY-MX-S
Please verify the following items are in the shipping box
prior to installation of the SKYPLAY-MX-S.
1 ea SKYPLAY-MX-S Wireless HDMI Transmitter
1 ea IR Emitter
1 ea Desktop Stand
1 ea HDMI Cable
1 ea 5V DC Power Supply
1 ea SKYPLAY-MX Installation and Operation Guide
Package Contents SKYPLAY-MX-R
Please verify the following items are in the shipping box
prior to installation of the SKYPLAY-MX-R.
1 ea SKYPLAY-MX-R Wireless HDMI Receiver
1 ea Desktop Stand
1 ea HDMI Cable
1 ea 5V DC Power Supply
1 ea Infrared Remote Control
1 ea SKYPLAY-MX Installation and Operation Guide
7
SKYPLAY-MX Installation Guide
Status
Indicators
5V DC
HDMI
Input
IR Output
Pairing
Button
5v
SKYPLAY-MX-S
Pairing Button – Recessed button for use when pairing a Transmitter
and Receiver.
Status Indicator “Network” – LED will be on when successfully
connected. LED will be blinking during pairing. LED will flash rapidly
indicating an error has occurred.
Status Indicator “Video” – LED is on when video is being transmitted.
IR Repeater Output – IR signals from the Receiver are output to the
source device.
HDMI Input – Receptacle for Connection to HDMI Source
5V DC Input – Power Supply input 5vDC 2a
8
SKYPLAY-MX Installation Guide
Status
Indicators
Receiver
Window
Pairing
Button
HDMI
USB Port
(Firmware
Update)
5V DC
HDMI
Output
5v
SKYPLAY-MX-R
Pairing Button – Recessed button for use when pairing a Transmitter
and Receiver.
IR Receiver Window – IR receiver for sending IR commands to OSD
or to remote source.
Status Indicator “Network” – LED will be on when successfully
connected.
Status Indicator “Video” – LED is on when video is being received.
USB Port – For use with firmware update only.
HDMI Output –Receptacle for connection to Display
5V DC Input – Power Supply input 5vDC 2a
9
SKYPLAY-MX Installation Guide

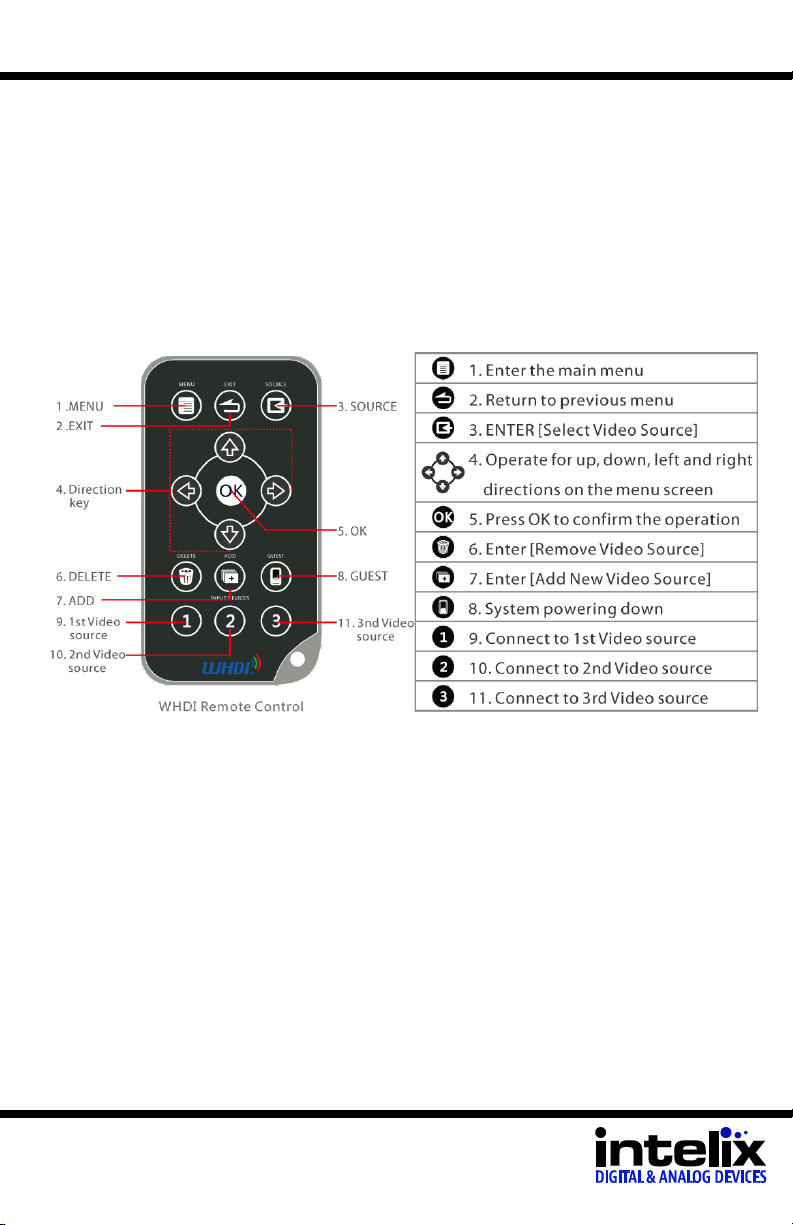

IR Remote
The included IR remote performs all of the pairing and
source selection operations of the SKYPLAY-MX wireless
HD distribution system.
10
SKYPLAY-MX Installation Guide
SKYPLAY-MX-S
Mounting Front
View
SKYPLAY-MX-R
Mounting Front
View
SKYPLAY-MX-S
Mounting Rear
View
SKYPLAY-MX-R
Mounting Rear
View
Installation Instructions
Shelf Mounting Instructions
Mount the SKYPLAY-MX in the desktop stand with the
vent holes down. Proper orientation will result in the
power cable being down near the base and will ensure
proper passive ventilation. Improper mounting can
cause the device to overheat and temporarily
malfunction.
11
SKYPLAY-MX Installation Guide
Setup and Pairing
Point-to-Point
To pair a receiver and transmitter:
1. Mount the transmitter and the receiver in the
desktop stand for proper ventilation. (See Shelf
Mounting Instructions)
2. Connect an HDMI cable from the HD Source to the
SKYPLAY-MX-S transmitter.
3. Connect an HDMI cable from the SKYPLAY-MX-R
receiver to the HD display.
4. Power on both the transmitter and receiver.
5. Point the IR remote at the SKYPLAY-MX-R receiver
and Press the “Add” button.
6. The On-Screen Display shows “Please Activate the
Registration on Transmitter Unit”.
7. Use a paperclip to Press and Hold the Pairing Button
on the front of the SKYPLAY-MX-S transmitter unit
the Network LED begins to blink.
8. Wait for the On-Screen Display to display the
“Adding …” message.
9. Press the “OK” button on the IR Remote to confirm
the addition of the receiver.
10. Wait for the pairing to complete, screen may flash
during pairing this is normal.
11. Setup is complete.
12
SKYPLAY-MX Installation Guide
Point-to-Many
The SKYPLAY-MX-S supports the ability to connect up to
4 receivers at a time. In order to setup point-to-many
installations it is easiest to pair one receiver to the
transmitter at a time.
1. Mount the transmitter and all of the receivers in
their desktop stand for proper ventilation. (See Shelf
Mounting Instructions)
2. Connect an HDMI cable from the HD Source to the
SKYPLAY-MX-S transmitter.
3. Connect HDMI cables from the SKYPLAY-MX-R
receivers to their respective HD displays.
4. Power on the transmitter.
5. Power on only one receiver at a time for ease of
installation.
6. Point the IR remote at the SKYPLAY-MX-R receiver
and Press the “Add” button.
7. The On-Screen Display shows “Please Activate the
Registration on Transmitter Unit”.
8. Use a paperclip to Press and Hold the Pairing Button
on the front of the SKYPLAY-MX-S transmitter unit
the Network LED begins to blink.
9. Wait for the On-Screen Display to display the
“Adding …” message.
10. Press the “OK” button on the IR Remote to confirm
the addition of the receiver.
11. Wait for the pairing to complete, screen may flash
during pairing this is normal.
12. In order to pair additional receivers to the
transmitter, Power down the SKYPLAY-MX-R
receiver.
13. Repeat steps 5 through 12 for each receiver.
14. Once all receivers have been paired to the
transmitter power on all the receivers.
15. Setup is complete.
13
SKYPLAY-MX Installation Guide
Multiple Transmitters on a Receiver
(Many-To-Point)
To pair additional transmitter to a receiver:
1. Mount the transmitter and the receiver in the
desktop stand for proper ventilation. (See Shelf
Mounting Instructions)
2. Connect an HDMI cable from the HD Source to the
SKYPLAY-MX-S transmitter.
3. Connect an HDMI cable from the SKYPLAY-MX-R
receiver to the HD display.
4. Power down other SKYPLAY-MX devices for ease of
installation.
5. Power on both the transmitter and receiver to be
paired.
6. Point the IR remote at the SKYPLAY-MX-R receiver
and Press the “Add” button.
7. The On-Screen Display shows “Please Activate the
Registration on Transmitter Unit”.
8. Use a paperclip to Press and Hold the Pairing Button
on the front of the SKYPLAY-MX-S transmitter unit
the Network LED begins to blink.
9. Wait for the On-Screen Display to display the
“Adding …” message.
10. Press the “OK” button on the IR Remote to confirm
the addition of the receiver.
11. Wait for the pairing to complete, screen may flash
during pairing this is normal.
12. Setup is complete.
14
SKYPLAY-MX Installation Guide
EDID Management
The SKYPLAY-MX automatically handles EDID
management. The transmitter will request the EDID for
all of the active connections. The transmitter then finds
the highest compatible signal type for all active wireless
connections. The transmitter then uses this as the
system EDID for the source to properly output a
supported signal type.
15
SKYPLAY-MX Installation Guide
On-Screen Menu
The SKYPLAY-MX generates an On-Screen Display (OSD)
for handling the pairing and status of the device.

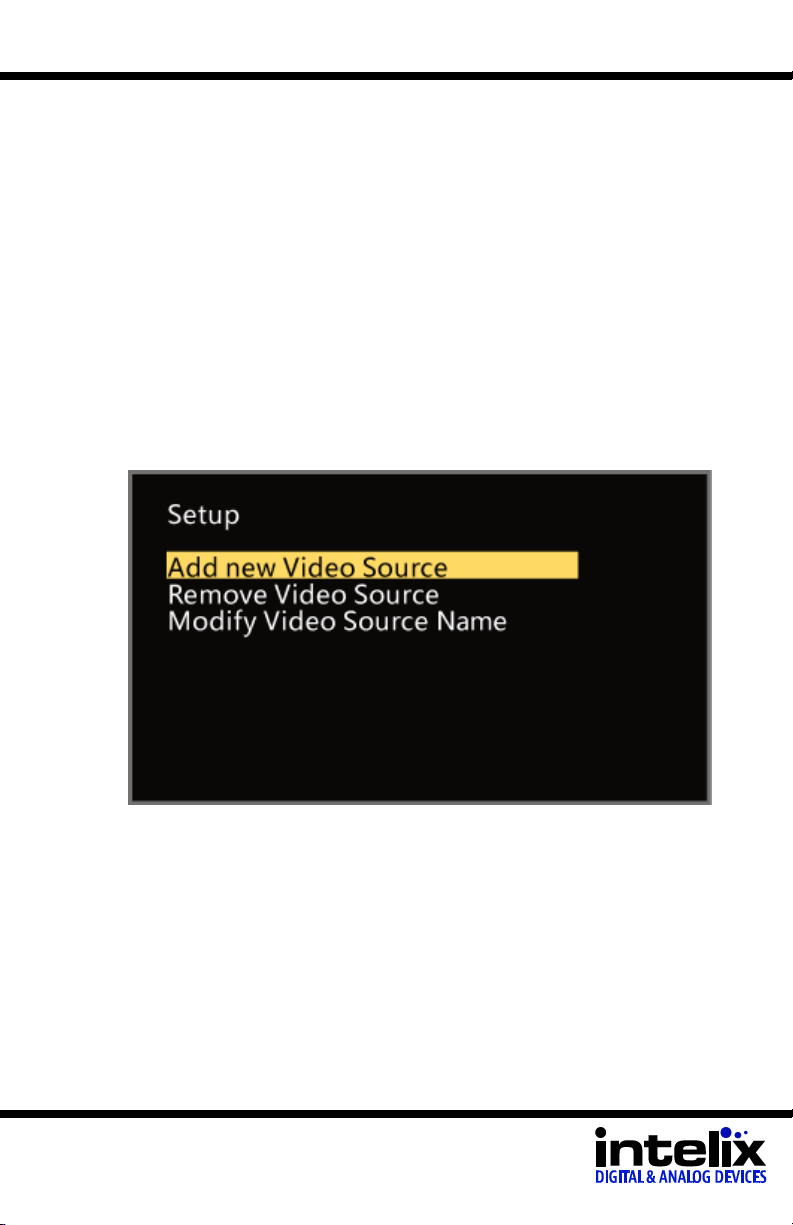

Overview of OSD
The On-Screen Display allows users to Add, Remove and
Rename Sources. There is also a Status area for
additional information.
Adding Sources
To add a new Video Source, refer to the Setup and
Pairing section of the installation manual.
Removing Sources
To remove a source, follow the instructions below:
16
SKYPLAY-MX Installation Guide
1. Using the IR Remote hit the “Menu” button.
2. Arrow down to the “Remove Video Source”
selection.
3. Press “OK”.
4. Choose the source to remove using the “Up” and
“Down” arrow buttons.
5. Press “OK”.
6. Confirm Removing of the selected source by using
the “OK” button, or cancel the selection by using the
“Exit” button.
17
SKYPLAY-MX Installation Guide
7. A screen will appear showing that the remove
operation is in progress.
8. You have removed the source and now are at the
Main Menu.
18
SKYPLAY-MX Installation Guide

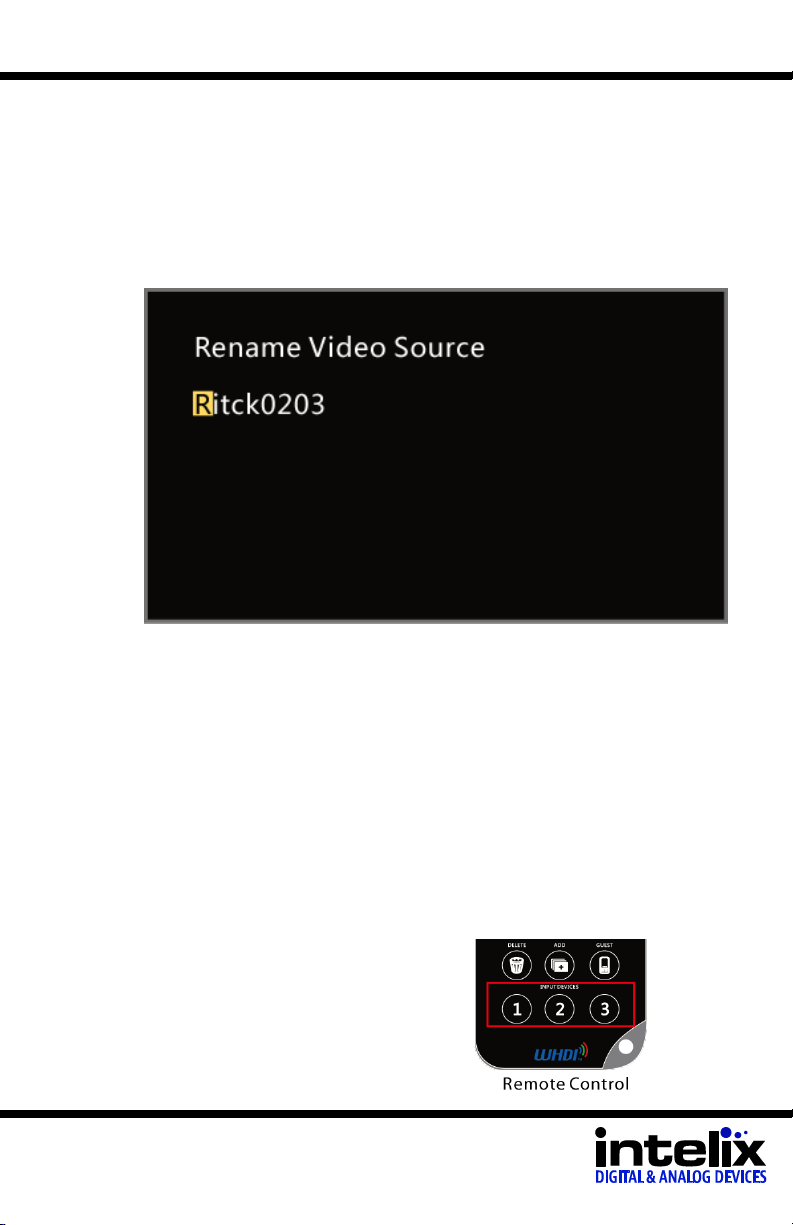

Renaming Sources
To rename a source, follow the instructions below:
1. Using the IR Remote hit the “Menu” button to bring
up the OSD menu.
2. Arrow down to the “Modify Video Source Name”
selection.
3. Press “OK”.
4. Choose the source to rename using the “Up” and
“Down” arrow buttons.
19
SKYPLAY-MX Installation Guide
5. Press “OK” to select the source.
6. Use the “Left” and “Right” buttons to change the
current position of the cursor. Use the “Up” and
“Down” buttons to change the character in the
current cursor position.
7. Press “OK” to save the modified name.
Quick Source Selection
The IR Remote allows for source selection without
having to enter the OSD for sources 1-3.
To use the Quick Selection Feature hit the “1”, “2” or
“3” button at the bottom of the IR Remote.
20
SKYPLAY-MX Installation Guide
Troubleshooting
SKYPLAY-MX will not pair
Verify power outlet is active.
Verify continuity in power cable.
Verify that both transmitter and receiver are powered
on.
Verify that pairing units are the only SKYPLAY-MX
devices currently powered on.
Distance issue – bring the transmitter (TX) and receiver
(RX) closer together, reduce the amount of solid walls
between the TX and RX.
No Signal at TV
Verify that both the transmitter and receiver are
powered on.
Verify that the source is powered on.
Verify that the TV is powered on.
Verify the HDMI cable between the source and
transmitter.
Verify the HDMI cable between the receiver and the tv.
Reboot the receiver.
Abnormal Color or Noise on the TV
Unplug and then re-plug the HDMI cable between the
receiver and the TV.
Unplug and then re-plug the HDMI cable between the
source and the transmitter.
HDCP error, verify the source and destination
equipment are HDCP compliant.
21
SKYPLAY-MX Installation Guide
Distance issue – bring the transmitter (TX) and receiver
(RX) closer together, reduce the amount of solid walls
between the TX and RX.
No Audio
Verify the mute and audio volume setting on the TV.
Audio format setting on the source is incompatible with
system. Change the source to output PCM 2.0, DTS or
Dolby Digital.
IR Remote Issues
Verify the IR emitter is plugged into the transmitter.
Verify the remote batteries.
Verify the alignment of the IR emitter with the IR
window on the front of the source equipment.
Verify there is no fluorescent lighting or radiation
interfering with the IR signals at either the receiver or
the transmitter.
22
SKYPLAY-MX Installation Guide
Technical Specifications
I/O Connections
HDMI Input (SKYPLAY-MX-S)
One (1) HDMI Type A Receptacle Connector
HDMI Output (SKYPLAY-MX-R)
One (1) HDMI Type A Receptacle Connector
IR Repeater (SKYPLAY-MX-S)
One (1) 2.5mm (3/16”) TS Male Connector
5V DC Power (Both)
One (1) 5.5mm Outside Diameter, 2.1mm Inside
Supported Audio and Video
Video Resolutions
480i, 480p, 576i, 576p, 720p, 1080i, 1080p and
VESA up to 1920X1080
Color Depth
30-bit
Audio
PCM 2.0, DTS and Dolby Digital
Signal Characteristics
Wireless Transmission Technology
Amimon Pro
Standard Protocol
HDMI 1.3
HDCP
Yes
Signal Bandwidth
40MHz
Transmission Rate
3 Gbps / 4.47Gbps (depending on resolution)
Operating Frequency
5gHz Unlicensed Band (U-NII-1 & U-NII-3)
TMDS
0.5 – 1.5 volts p-p
DDC
5 volts p-p
System Latency
<1ms
IR Frequency
38KHz
Chassis and Environmental
Material
Black Plastic
Dimensions
148mm x 97mm x 18mm (5.83 in. x 3.82 in. x 0.71
Shipping Weight
0.91 kg (2 lbs.)
Operating Temperature
-10° to +40° C (+14° to +104° F)
Operating Humidity
15% to 85%, Non-condensing
Storage Temperature
-20° to +80° C (-4° to +176° F)
Storage Humidity
15% to 85%, Non-condensing
Power, ESD, and Regulatory
Power Supply
5VDC 2A
Power Consumption
8 watts
ESD Protection
15kV
Regulatory
FCC, CE, RoHS
Other
Warranty
2 years
Diagnostic Indicators
Network status and Video indicator LEDs
Technical Specifications
23
SKYPLAY-MX Installation Guide
FCC Statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:-Reorient or relocate
the receiving antenna. Increase the separation between
the equipment and receiver. Connect the equipment
into an outlet on a circuit different from that to which
the receiver is connected. Consult the dealer or an
experienced radio/TV technician for help. To assure
continued compliance, any changes or modifications
not expressly approved by the party responsible for
compliance could void the user's authority to operate
this equipment. (Example use only shielded interface
cables when connecting to computer or peripheral
devices).
24
SKYPLAY-MX Installation Guide
FCC Radiation Exposure
Statement
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located
or operating in conjunction with any other antenna or
transmitter. This equipment complies with Part 15 of
the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Caution Statement
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to
this equipment. Such modifications could void the user
authority to operate the equipment.
25
SKYPLAY-MX Installation Guide
Thank you for your purchase.
Please contact us with your questions and
comments.
Intelix
8001 Terrace Ave, Ste 201
Middleton, WI 53562
Phone: 608-831-0880
26
Toll Free: 866-462-8649
Fax: 608-831-1833
www.intelix.com
intelix@intelix.com
Loading...
