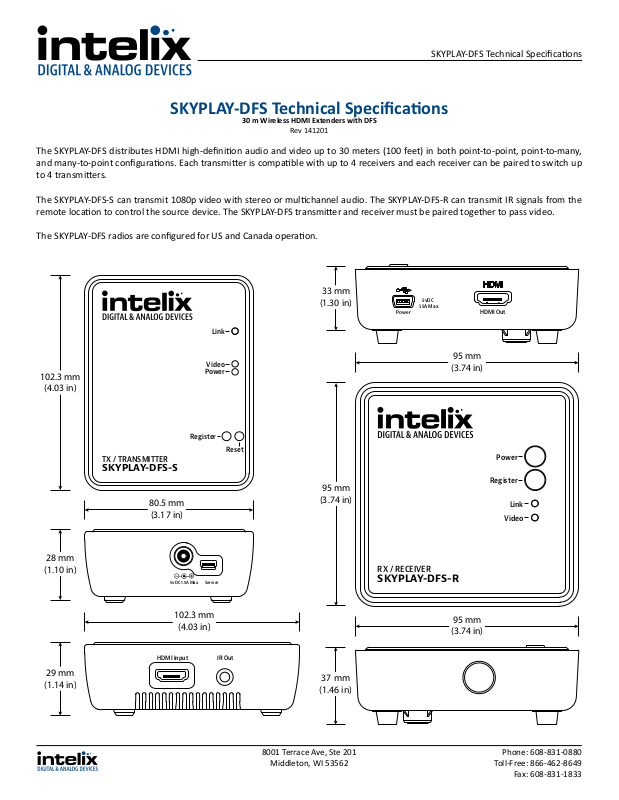

30 m Wireless HDMI Extenders with DFS
The SKYPLAY-DFS distributes HDMI high-denion audio and video up to 30 meters (100 feet) in both point-to-point, point-to-many,
and many-to-point conguraons. Each transmier is compable with up to 4 receivers and each receiver can be paired to switch up
to 4 transmiers.
The SKYPLAY-DFS-S can transmit 1080p video with stereo or mulchannel audio. The SKYPLAY-DFS-R can transmit IR signals from the
remote locaon to control the source device. The SKYPLAY-DFS transmier and receiver must be paired together to pass video.
The SKYPLAY-DFS radios are congured for US and Canada operaon.
Link
Video
102.3 mm
Power
(4.03 in)
Rev 141201
(1.30 in)
33 mm
Power
5vDC
1.5A Max
HDMI Out
95 mm
(3.74 in)
28 mm
(1.10 in)
29 mm
(1.14 in)
TX / TRANSMITTER
SKYPLAY-DFS-S
80.5 mm
(3.17 in)
HDMI Input IR Out
Register
5vDC 1.5A Max
102.3 mm
(4.03 in)
Service
Reset
95 mm
(3.74 in)
37 mm
(1.46 in)
Power
Register
Link
Video
RX / RECEIVER
SKYPLAY-DFS-R
95 mm
(3.74 in)
8001 Terrace Ave, Ste 201
Middleton, WI 53562
Phone: 608-831-0880
Toll-Free: 866-462-8649
Fax: 608-831-1833
SKYPLAY-DFS Technical Specicaons
I/O Connections (SKYPLAY-DFS-S)
HDMI Input One (1) HDMI Type A Receptacle
IR Output One (1) 2.5mm (3/16”) TS Male Connector
5V DC Power One (1) 5.5mm Outside Diameter, 2.1mm Inside Diameter Barrel
I/O Connections (SKYPLAY-DFS-R)
HDMI Output One (1) HDMI Type A Receptacle
5V DC Power One (1) Mini USB Type B Connector
Supported Video, Audio, and Control
Video Resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and VESA up to 1920X1080
Color Depth 30-bit
Video Compliance HDMI and HDCP
Input Video Signal 0.5 – 1.5 volts p-p
Input DDC Signal 5 volts p-p
Embedded Audio PCM 2.0, DTS (5.1) and Dolby Digital (5.1)
IR Frequency 38KHz
Signal Characteristics
Wireless Transmission Technology Amimon Pro
Signal Bandwidth 40MHz
Maximum Transmission Distance 30.5 m (100 ft)
Trans mission Rate 6.75 Gbps
Operating Frequency (Non-DFS) 5.19-5.23 GHz; 5.755-5.795 GHz
Operating Frequency (DFS) 5.27-5.59 GHz and 5.67 GHz
System Latency <1ms
Chassis and Environmental
Material Black Plastic
Dimensions (HxWxD) (SKYPLAY-DFS-S) With rubber feet: 29 mm x 81 mm x 102 mm (1.14 in x 3.19 in x 4.02 in)
Dimensions (HxWxD) (SKYPLAY-DFS-R) With rubber feet: 37 mm x 95 mm x 95 mm (1.46 in x 3.74 in x 3.74 in)
Shipping Weight 0.91 kg (2 lbs.)
Operating Temperature -10° to +40° C (+14° to +104° F)
Operating Humidity 15% to 85%, Non-condensing
Storage Temperature -20° to +80° C (-4° to +176° F)
Storage Humidity 15% to 85%, Non-condensing
Power, ESD, and Regulatory
Power Supply 5VDC 2.6A
Power Consumption 9 watts
ESD Protection 15kV
Regulatory FCC, CE, RoHS
Other
Warranty 2 years
Diagnostic Indicators (SKYPLAY-DFS-S) Power, Link, and Video
Diagnostic Indicators (SKYPLAY-DFS-R) Link and Video
Included Accessories (SKYPLAY-DFS-S) Installation Guide, IR emitter, power supply with international adapters, and HDMI cable
Included Accessories (SKYPLAY-DFS-R) Installation Guide, IR remote, power supply with international adapters, and HDMI cable
Without rubber feet: 28 mm x 81 mm x 102 mm (1.10 in x 3.19 in x 4.02 in)
Without rubber feet: 33 mm x 95 mm x 95 mm (1.30 in x 3.74 in x 3.74 in)
