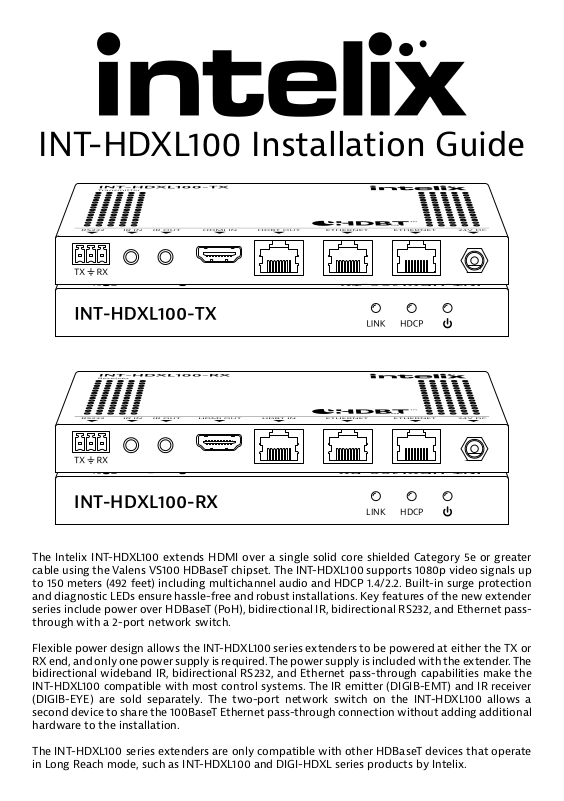

Intelix INT-HDXL100-RX Installation Guide

INT-HDXL100 Installation Guide

INT-HDXL100-RX

The Intelix INT-HDXL100 extends HDMI over a single solid core shielded Category 5e or greater
cable using the Valens VS100 HDBaseT chipset. The INT-HDXL100 supports 1080p video signals up
to 150 meters (492 feet) including multichannel audio and HDCP 1.4/2.2. Built-in surge protection
and diagnostic LEDs ensure hassle-free and robust installations. Key features of the new extender
series include power over HDBaseT (PoH), bidirectional IR, bidirectional RS232, and Ethernet pass­through with a 2-port network switch.

Flexible power design allows the INT-HDXL100 series extenders to be powered at either the TX or
RX end, and only one power supply is required. The power supply is included with the extender. The
bidirectional wideband IR, bidirectional RS232, and Ethernet pass-through capabilities make the
INT-HDXL100 compatible with most control systems. The IR emitter (DIGIB-EMT) and IR receiver
(DIGIB-EYE) are sold separately. The two-port network switch on the INT-HDXL100 allows a
second device to share the 100BaseT Ethernet pass-through connection without adding additional
hardware to the installation.

The INT-HDXL100 series extenders are only compatible with other HDBaseT devices that operate
in Long Reach mode, such as INT-HDXL100 and DIGI-HDXL series products by Intelix.

LINK HDCP

Installation Instructions

The following instructions describe the installation process for a point­to-point installation. The procedure is similar for compatible HDBaseT
components.

1. Verify all components included with the INT-HDXL100 extender are
present before installation.

2. If the INT-HDXL100 extender will be permanently mounted to a
surface, attach the included mounting brackets with the supplied
screws.

3. Turn off power and disconnect the audio/video equipment by
following the manufacturer’s instructions.

4. Connect shielded, solid core Category 5e or greater twisted pair
cable with RJ45 connectors between the INT-HDXL100-TX and the
INT-HDXL100-RX HDBaseT ports. TIA/EIA-568B straight-through
wiring connections must be used with all HDBaseT extenders.

5. Connect an HDMI cable and any desired control accessories between
the source and the transmitter.

6. Connect an HDMI cable and any desired control accessories between
the display and the receiver.

7. Connect a Category 5e patch cable between one of the ETHERNET
ports and any device that requires an Ethernet connection from the
transmitter.

8. Connect the power supply to either the INT-HDXL100-TX or the
INT-HDXL100-RX and lock the power supply to the power connector
by twisting the locking collar clockwise.

9. Power on attached audio/video devices.

Important notice:

• Do not attempt to disassemble or alter the extender housing. There are no user-serviceable parts inside
the unit. Doing so will void your warranty.

• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and
destination equipment must be powered o during installation.

• Do not connect the extender to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through
(point-to-point).

• Allow proper ventilation to reduce the risk of thermal failure.

Extender Front

1. HDBaseT Link Indicator

2. HDCP Activity Indicator

3. Power Indicator

Extender Rear

A B C D E F G

A. RS232 Port
B. IR Input
C. IR Output
D. HDMI port: Input on TX; Output on RX
E. HDBaseT port: Output on TX; Input on RX
F. Ethernet Ports
G. 24V DC Power Input

1 2 3

Included Accessories

• Extender

• Locking Power Supply with Power Adapters

• Two Mounting Rails with Screws

• 3-pole Removable Terminal Block

• Installation Guide

RS232 Wiring

Connect the controller or device RXD
signal to TX on the INT-HDXL100 extender.
Connect the controller or device TXD signal
to RX on the INT-HDXL100 extender.

INT-HDXL100-TX or

INT-HDXL100-RX

TX

RX

Controller or

Device

RXD

GND

TXD

Supported Audio, Video, and Control

Video Resolutions SMPTE: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p,

Maximum Video Compatibility at
150 m

Video Compliance HDMI 1.4 and HDCP 1.4/2.2

Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master

CEC (Consumer Electronics Control) Yes (Pass-through Only)

Supported Baud Rates 2400, 4800, 9600, 19200, 38400, 57600, 115200

Supported IR Carrier Frequencies 33 to 55 kHz

Ethernet 100BaseT

VESA: Resolutions up to 1920x1200
Color Depth: 24, 30, 36 bit

Deep Color 36/30/24 Bit at 1080p

Audio

HDBaseT Signal Characteristics

Maximum Distance 150 m (492 ft)

Cable Requirements Continuous shielded solid core Cat 5e or greater with TIA/EIA-568B

HDBaseT Chipset VS100 with Long Reach Mode enabled

crimp pattern (no couplers in-line)

Chassis and Environmental

Dimensions (H x W x D) 16.2 mm x 152 mm x 104 mm (0.64 in x 5.98 in x 4.09 in)

Operating Temperature 0° to +40° C (+32° to +104° F)

Power, ESD and Regulatory

Power Input 24V DC 1.25A or 48V DC PoH (Power over HDBaseT)

Power Output 48V DC PoH (Power over HDBaseT)

Power over Ethernet (PoE)
Compatibility

ESD Protection 15kV air, 8kV contact

Regulatory FCC, CE, RoHS

802.3af Alternative A

Other

Warranty 2 years

Diagnostic Indicators HDCP, Link, and Power

Included Accessories Installation Guide, power pupply, 3-pin removable screw terminal,

mounting brackets with screws
