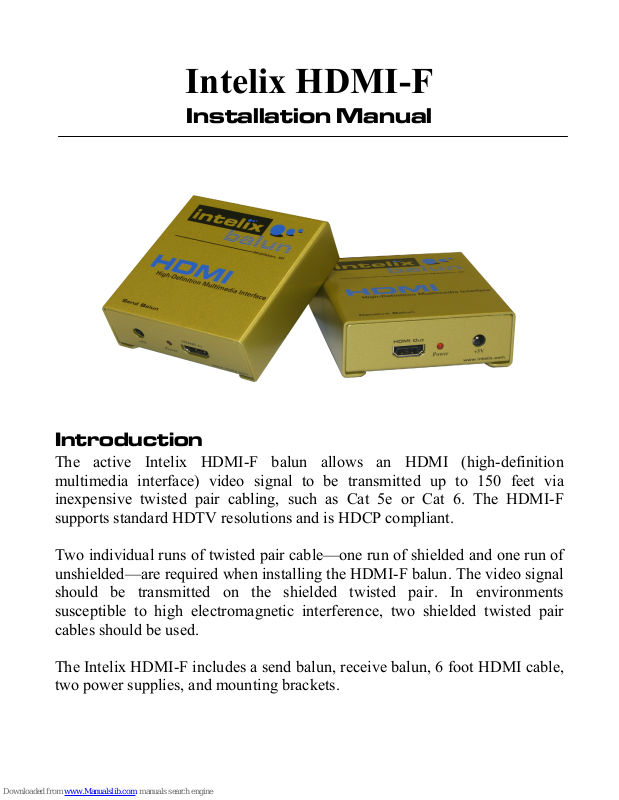

Intelix HDMI-F Installation Manual

Intelix HDMI-F

Installation Manual

Introduction

The active Intelix HDMI-F balun allows an HDMI (high-definition
multimedia interface) video signal to be transmitted up to 150 feet via
inexpensive twisted pair cabling, such as Cat 5e or Cat 6. The HDMI-F
supports standard HDTV resolutions and is HDCP compliant.

Two individual runs of twisted pair cable—one run of shielded and one run of
unshielded—are required when installing the HDMI-F balun. The video signal
should be transmitted on the shielded twisted pair. In environments
susceptible to high electromagnetic interference, two shielded twisted pair
cables should be used.

The Intelix HDMI-F includes a send balun, receive balun, 6 foot HDMI cable,
two power supplies, and mounting brackets.

Installation

To install the Intelix HDMI-F baluns, perform the following steps:

1. Identify the pin configuration of the baluns and RJ45 connectors on the
twisted pair cabling. To eliminate crosstalk, the pin configuration must
follow the EIA/TIA 568B standard. Please ensure that wiring is straight­through.

2. Connect the HDMI-F send balun to the HDMI output of the video source.
Do not connect the 5V power supply.

3. Connect the HDMI-F receive balun to the HDMI input of the receiver at
the remote end.

4. Complete the connection between the send and receive baluns using either
one or two runs of twisted pair cable. Ensure that there are no split pairs or
taps.

5. Connect the 5V power supply to either the send or receive HDMI-F balun.
Depending on the circuitry of the input/output devices, the second power
supply may be required.

6. Power-on the video equipment.

7. Verify picture quality. If necessary, adjust the dip switches on the bottom
of the send and receiver baluns. The dip switches are used to boost and
equalize the picture quality based on the cable length and high-definition
equipment being used. The dip switches should be adjusted with the
source and destination devices powered on and transmitting through the
balun.

Send Balun Dip Switch Settings

Setting Switch 1 Switch 2 Switch 3 Switch 4

No Boost OFF ON NA NA
Normal Boost (Default) OFF OFF NA NA
Strong Boost ON OFF NA NA
Undefined ON ON NA NA

Receiver Balun Dip Switch Settings

Setting Switch 1 Switch 2 Switch 3 Switch 4

No EQ (Default) OFF OFF NA NA
EQ Setting 2 ON OFF NA NA
EQ Setting 3 OFF ON NA NA
Maximum EQ ON ON NA NA

Adjustment Guidelines:

- Strong boost should not be used with stranded cables.

- Using the wrong settings will not damage the units; it will only degrade

picture quality.

- To eliminate crosstalk and outside interference, cables must be

terminated with the EIA 568B standard.

Technical Specifications

Video Amplifier Bandwidth
Supported Video Resolutions
Max Recommended Distance
Single Link Range
Vertical Frequency Range
Input Video Signal
Input DDC Signal
Input Unit Connectors
Output Unit Connectors
Link Connectors
Cabling

Power
Max Power Consumption
Dimensions
Temperature

Shipping Weight
Warranty
Intelix Part Number
Ordering Information

1.65 Gbps
480P, 720P, 1080I, 1080P and 1920 x 1200
150 feet
1080p/1920 x 1200
60 Hz.

1.2 volts p-p
5 volts p-p (TTL)
(1) Type A HDMI Connector
(1) Type A HDMI Connector
Shielded RJ45
Two individual runs of twisted pair cable—one run of
shielded and one run of unshielded—are required
when installing the HDMI-F balun. The video signal
should be transmitted on the shielded twisted pair.
External 5 VDC
15 watts max; powered on either end

3.4" x 3.25" 1.25"
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: up to 95%
3 lbs.
2 years
HDMI-F
HDMI-F package includes both send and receive
units, two 5V power supplies, one 6' HDMI cable, and
mounting hardware

The Intelix HDMI-F conforms to HDMI and HDCP specifications. Intelix does
not guarantee operation with devices that do not conform to these specifications.
The Intelix HDMI-F passes HDCP signals and does not manipulate them in any
way.
