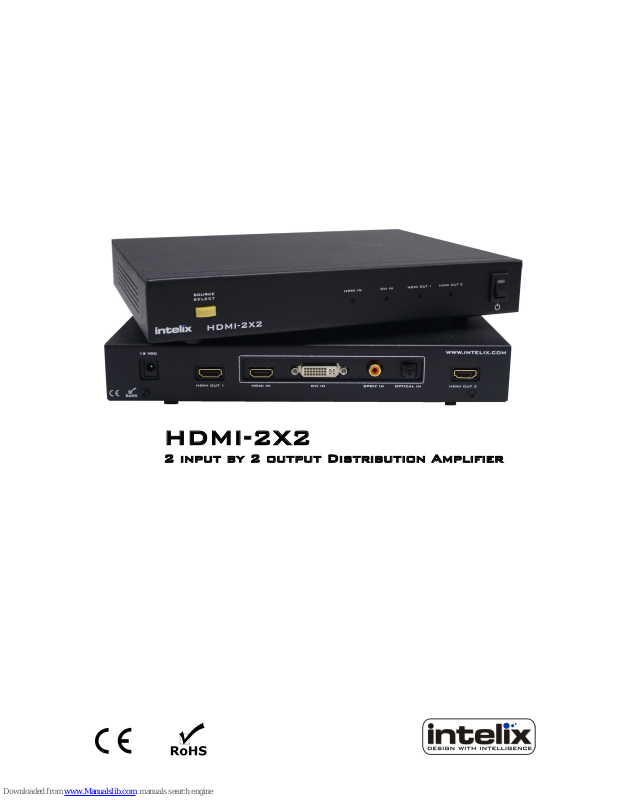

Page 1
HDMI-2X2
2 input by 2 output Distribution Amplifier
Page 2
Intelix HDMI-2X2 Installation Manual
Table of Contents
Overview............................................................................................. 3
Installation ......................................................................................... 4
Technical Specifications .................................................................... 5
Warranty ............................................................................................. 6
Contact Information………………………………………………… .. 7
Copyright 2007 Intelix LLC.
Design with Intelligence
2 www.intelix.com
Page 3
Intelix HDMI-2X2 Installation Manual
Overview
The Intelix HDMI-2X2 is not a standard 2 by 2 distribution amplifier. Instead, it
features two independent inputs—an HDMI input, as well as a DVI input with
optional digital SPDIF or optical audio. When the DVI/digital audio source is
selected, the HDMI-2X2 automatically converts the signal to the HDMI format
and routes it to two HDMI outputs. Front panel source selection provides
switching between the HDMI and DVI/digital audio inputs. Multiple HDMI2X2s may be linked for more than two outputs. The HDMI-2X2 supports
resolutions up to 1080p and is HDCP compliant.
Design with Intelix and Design with Intelligence.
HDMI-2X2 Package Contents
HDMI-2X2 distribution amplifier
¾
5 VDC power supply
¾
Manual
¾
www.intelix.com
3
Page 4
Intelix HDMI-2X2 Installation Manual
Installation
To install the Intelix HDMI-2X2 distribution amplifier, please perform the
following steps.
1. Power-off the source and destination audio and video devices.
2. Connect the input sources to the HDMI-2X2 using high-quality HDMI or
DVI and digital audio cables.
3. Connect the output destination to the HDMI-2X2 using high-quality HDMI
cables.
4. Connect the included 5 VDC power supply to the HDMI-2X2.
5. Power-on the HDMI-2X2.
6. Power-on the source and destination audio and video devices.
7. Select the desired input—either HDMI or DVI and digital audio—via the
front panel source select switch.
Warning
Do not expose the HDMI-2X2 to fluids or excessive moisture.
¾
Do not install the HDMI-2X2 near excessive sources of heat.
¾
Ensure the HDMI-2X2 is located in a well ventilated area.
¾
Do not place objects or equipment directly on or behind the
¾
HDMI-2X2.
Clean the HDMI-2X2 only with a dry cloth. Never use
¾
flammable materials for cleaning the HDMI-2X2.
Do not open or attempt to service the HDMI-2X2.
¾
4 www.intelix.com
Page 5
Intelix HDMI-2X2 Installation Manual
Technical Specifications
Vertical Frequency Range ........................................................................... 60 Hz.
Output Video ....................................................................... HDMI/HDCP 1.0/1.1
Maximum Single Link Range................................................. 1280 x 1024, 1080p
Input DDC Signal .................................................................... 5.0 volts p-p (TTL)
Input Video Signal.....................................................................0.5 – 1.0 volts p-p
Video Amplifier Bandwidth ....................................................................140 mHz
Input Connectors ................................................One (1) HDMI type A connector
One (1) DVI-D connector
One (1) SPDIF connector
One (1) optical connector
Output Connectors........................................... Two (2) HDMI type A connectors
High-Definition Compatible................................. 1080i, 1080p, 720p, 480i, 480p
Diagnostic............................. Front panel input switch; front panel channel LEDs
Operating Temperature Range................................................. -41 to 95 degrees F
-5 to 35 degrees C
Operating Humidity Range............................................ 5 to 90% non-condensing
Linkable......................................................................................................... Yes*
Included Accessories...............................................One (1) 5 VDC power supply
Control......................................................................... Front panel channel switch
Dimensions.........................................................................10.63” x 7.89” x 1.63”
Enclosure .............................................................................................Black metal
Max Power Consumption ......................................................................... 15 watts
Power........................................................................................................ 12 VDC
Regulatory .............................................................................................CE, RoHS
Shipping Weight.......................................................................................... 5.0 lbs
Intelix Part Number .............................................................................HDMI-2X2
Warranty..................................................................................................... 2 years
*Intelix recommends linking a maximum of five units with the units no more
than 30 feet apart.
www.intelix.com
5
Page 6
Intelix HDMI-2X2 Installation Manual
Warranty
All Intelix products are guaranteed against malfunction due to defects in
materials or workmanship for two years after date of purchase. If a
malfunction does occur during the specified period, the defective product
will be repaired or replaced at Intelix’s option without charge.
Furthermore, the “Fresh Start” program ensures that a product which has
been repaired or replaced is itself guaranteed for an additional two years.
This warranty does not cover: 1) Malfunction resulting from use of the
product other than as specified in the user manual; 2) Installation specific
wiring; 3) Malfunction resulting from abuse or misuse of the product; 4)
Exterior chassis appearance; 5) Malfunction occurring after repairs have
been made by anyone other than Intelix or any of its authorized service
representatives; 6) Acts of nature; 7) Optional embedded software
upgrades or updates.
All repair and service of Intelix products should only be provided by
qualified service personnel. Please contact Intelix for a list of authorized
service agents. Other attempts at service or repair will void the warranty.
Warranty service is only offered after a return authorization number has
been generated by an authorized Intelix factory representative.
Intelix Applications and Engineering support must be contacted prior to
any return of goods. To return a unit for service or repair, please call
Intelix directly for a return authorization number. Intelix will match
shipping charges for units still under warranty. If a unit which is out of
warranty needs repair, the dealer must pay for shipping, replacement
parts, and a fixed $100/hr labor fee. Normal Intelix credit terms apply to
billable repairs. If a unit is returned and found to work according to
factory specifications, a standard $100 service fee is billed regardless of
warranty status. All repairs are made in a reasonably quoted amount of
time; a rush shipment fee may apply to repairs needing a quicker than
usual turn-around time.
Note: Warranty Terms and Conditions subject to change and do not apply
outside the United States.
6 www.intelix.com
Page 7
Intelix HDMI-2X2 Installation Manual
Thank you for your purchase.
We appreciate your business. Please contact us with your questions
and comments.
Intelix
2222 Pleasant View Road Suite 1
Middleton, WI 53562
Phone: 608-831-0880
Toll-Free: 866-4-MATMIX
Fax: 608-831-1833
www.intelix.com
intelix@intelix.com
Copyright 2007 Intelix LLC.
Design with Intelligence
www.intelix.com
7
