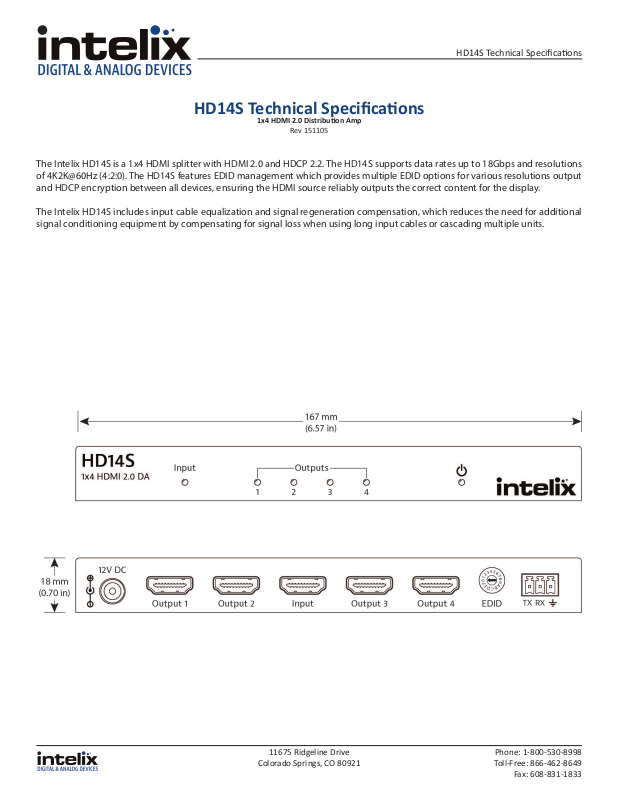

1x4 HDMI 2.0 Distribuon Amp

The Intelix HD14S is a 1x4 HDMI splitter with HDMI 2.0 and HDCP 2.2. The HD14S supports data rates up to 18Gbps and resolutions
of 4K2K@60Hz (4:2:0). The HD14S features EDID management which provides multiple EDID options for various resolutions output
and HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content for the display.

The Intelix HD14S includes input cable equalization and signal regeneration compensation, which reduces the need for additional
signal conditioning equipment by compensating for signal loss when using long input cables or cascading multiple units.

Rev 151105

11675 Ridgeline Drive

Colorado Springs, CO 80921

Phone: [phone]

Toll-Free: 866-462-8649

Fax: [phone]

HD14S Technical Specicaons

Technical Specicaons

I/O Connecons

HDMI Input One (1) HDMI Type A Receptacle

HDMI Outputs Four (4) HDMI Type A Receptacle (1 per output)

Supported Audio and Video

Maximum Data Rate 18 Gbps

HDTV Video Resolutions

VESA Video Resolutions Up to 1920x1200

Embedded Audio Compatibility Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio

Maximum Passive HDMI Distance 5m (16 ft)

Compliance HDMI 2.0, HDCP 2.2

Maximum Pixel Clock 600MHz

Input DDC Signal 5V

Chassis and Environmental

Enclosure Painted Aluminum

Dimensions (W x H x D) 167 mm x 69 mm x 18 mm (6.57 in x 2.71 in x 0.70 in)

Shipping Weight 0.30 kg (0.66 lbs)

Operating Temperature 0° to +45° C (+32° to +113° F)

Operating Humidity 10% to 90%, Non-condensing

Storage Temperature -20° to +70° C (+4° to +140° F)

Storage Humidity 10% to 90%, Non-condensing

Power, ESD, and Regulatory

Maximum Power Consumption 1080p: 2 W (max) / 4K: 2.5 W (max)

Power Supply Input Voltage 100-240v AC at 50/60 Hz at 0.35A

Power Supply Output Rating DC 12V 0.5A

ESD Protection 8kV

Device Regulatory CE, RoHS

Power Supply Regulatory CE, UL, FCC

Other

Warranty 2 years

Diagnostic Indicators Power LED, Input LED, Four (4) Output Status LEDs

Included Accessories Installation guide, power supply, mounting “L” brackets (2 ea), mounting screws (2 ea), 3 pole

Distances and picture quality may be aected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.

480p, 576p, 720p, 1080i, 1080p, 4Kx2K @30Hz, 4Kx2K @60Hz (4:4:4)

RS232 connector.
