Intelix FLX-3232 User Manual v1.6.4

FLX-3232 Installation and

Operation Guide

Rev 140221 8001 Terrace Ave Phone: [phone]

Suite 201 Toll-Free: 866-462-8649
Middleton, WI 53562 Fax: [phone]

FLX-3232 Installation Guide

Important Safety Instructions

 Please completely read and verify you understand all instructions in this manual before operating this equipment.
 Keep these instructions in a safe, accessible place for future reference.
 Heed all warnings.
 Follow all instructions.
 Do not use this apparatus near water.
 Clean only with a dry cloth.
 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
 Use only accessories specified or recommended by Intelix.
 Explanation of graphical symbols:

o Lightning bolt/flash symbol: the lightning bolt/flash and arrowhead within an equilateral triangle symbol is intended to alert

the user to the presence of uninsulated “dangerous voltage” within the product enclosure which may be of sufficient

magnitude to constitute a risk of shock to a person or persons.

o Exclamation point symbol: the exclamation point within an equilateral triangle symbol is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND

OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.

 Use the mains plug to disconnect the apparatus from the mains.
 THE MAINS PLUG OF THE POWER CORD MUST REMAIN READILY ACCESSIBLE.
 Do not defeat the safety purpose polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A

grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of your obsolete outlet. Caution! To reduce the risk of
electrical shock, grounding of the center pin of this plug must be maintained.

 Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and the point where they

exit from the apparatus.

 Do not block the air ventilation openings. Only mount the equipment per Intelix’s instructions.
 Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use ca ution

when moving the cart/equipment combination to avoid injury from tip-over.

 Unplug this apparatus during lightning storms or when unused for long periods of time.
 Caution! Shock Hazard. Do not open the unit.
 Refer to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

2

FLX-3232 Installation Guide

Table of Contents

Overview ....................................................................................................................................................... 5

Package Contents ............................................................................................................................. 5

Front Panel ....................................................................................................................................... 6

Rear Panel ........................................................................................................................................ 7

IR Remote ......................................................................................................................................... 7

Input Cards .................................................................................................................................................... 8

Analog Video (FLX-RI4) ..................................................................................................................... 8

DVI (FLX-DI4) .................................................................................................................................... 8

HDBaseT (FLX-BI4) ............................................................................................................................ 8

HDMI (FLX-HI4A) .............................................................................................................................. 8

Output Cards ............................................................................................................................................... 10

DVI (FLX-DO4) ................................................................................................................................ 10

HDBaseT (FLX-BO4A) ...................................................................................................................... 10

HDMI (FLX-HO4A) .......................................................................................................................... 11

Installation Instructions .............................................................................................................................. 12

Shelf Mounting Instructions .......................................................................................................... 12

Rack Mounting Instructions ........................................................................................................... 12

General I/O Card Installation ......................................................................................................... 12

FLX-BI4 and FLX-BO4A Wiring ........................................................................................................ 13

FLX-RI4 Wiring ................................................................................................................................ 14

EDID Management ...................................................................................................................................... 16

Copy EDID....................................................................................................................................... 16

Advanced EDID ............................................................................................................................... 16

Front Panel and IR Remote Operation ........................................................................................................ 17

Basic Routing .................................................................................................................................. 17

Advanced Routing .......................................................................................................................... 17

IR Remote Operation ..................................................................................................................... 17

Third Party Control Setup ........................................................................................................................... 18

IP Address Setup via Web Browser ................................................................................................ 18

Access the Web Browser with Defined IP Address ........................................................................ 20

Additional Options in Web Browser .............................................................................................. 20

RS232 Connection .......................................................................................................................... 20

RS232 and TCP/IP Commands ..................................................................................................................... 21

3

FLX-3232 Installation Guide

Routing Commands ........................................................................................................................ 21

Preset Commands .......................................................................................................................... 22

System Commands......................................................................................................................... 22

EDID Commands ............................................................................................................................ 22

HDCP Commands ........................................................................................................................... 23

FLX-RI4 Specific Commands ........................................................................................................... 23

FLX-HI4A Specific Commands ........................................................................................................ 24

Troubleshooting .......................................................................................................................................... 25

Technical Specifications .............................................................................................................................. 26

..................................................................................................... 25

......................................................................................................... 25

..................................................................................... 25

.......................................................................... 25

FLX-3232 Chassis ............................................................................................................................ 26

FLX-BI4 ........................................................................................................................................... 27

FLX-HI4A ......................................................................................................................................... 28

FLX-RI4 ........................................................................................................................................... 29

FLX-DI4 ........................................................................................................................................... 30

FLX-BO4A ....................................................................................................................................... 31

FLX-HO4A ....................................................................................................................................... 32

FLX-DO4 ......................................................................................................................................... 33

DIGIB-EMT ...................................................................................................................................... 34

DIGIB-EYE ....................................................................................................................................... 34

4

FLX-3232 Installation Guide

Overview

The Intelix FLX-3232 is a modular thirty-two input by thirty-two output video matrix switcher. Each
modular input or output card supports up to four device connections. In addition to front panel control,
the FLX-3232 can be controlled via IR, RS232, or TCP/IP connections.

The modular input cards include the following connections: HDMI (with stereo audio embedding), DVI,
HDBaseT (with RS232 and bi-directional wide-band IR), and analog video with digital scaling via HD15
(VGA-UXGA, RGBHV, RGsB, RsGsBs, component video, S-video and composite video). The modular
output cards include the following connections: HDMI (with stereo audio de-embedding, DVI, and
HDBaseT (with audio de-embedding).

Clear button caps provide legible text on the front panel, which can be customized for each installation.
IR, RS232, and TCP/IP provide a wide range of options for third party control systems. Ten
programmable presets provide an efficient means of configuring the video and audio distribution for
common usage patterns.

The FLX-3232 was designed with flexibility in mind. There are over 80 possible input card to output card
combinations. Since the system is modular, the system integrator can customize their installation per
their customer’s needs and not the limitations of available hardware.

Package Contents

Please verify the following items are in the shipping box prior to installation of the FLX-3232.

1 ea FLX-3232 Flexible Matrix Switcher
2 ea Modular Input Metal Blank (installed on FLX-3232)
2 ea Modular Output Metal Blank (installed on FLX-3232)
4 ea Rubber Feet
1 ea Power Cable
1 ea RS232 Cable
1 ea Infrared Remote Control
1 ea FLX-3232 Installation and Operation Guide
1 ea Intelix Pocket Screwdriver

5

FLX-3232 Installation Guide

Menu

(Top)

Input

Buttons

Menu

(Bottom)

Output

Buttons

LCD Status

Display

Rack

Handle

Power LED/ IR

Receiver

Front Panel

Power LED – Indicates the matrix has proper input power.
IR Receiver – For use with the included IR remote.
Input Buttons –Buttons labeled “1” through “10”.
Menu Buttons (Top Row) –Buttons labeled “AV”, “COMMA”, and “UNDO”.
AV – Used to route Video and Audio inputs to outputs
COMMA – Used to separate output selections when routing an input to multiple outputs

UNDO – Recalls the previous route.

Rack Handle – Eases installation in an equipment rack.
LCD Status Display – Displays matrix name and status when changing routes.
Output Buttons –Buttons labeled “1” through “10”.
Menu Buttons (Bottom Row) –Buttons labeled “ALL”, “THROUGH”, “UNDO”, and “”.

ENTER – Used to execute the currently entered routing.
ALL – Used to route one input AV pair to all outputs or to route each AV input to its
corresponding output.

THROUGH – Used to route the selected AV input to its corresponding output.
 – Used to clear the input source select.

Explanation of use for the front panel control is located in the section Front Panel Operation (page 14).

6

FLX-3232 Installation Guide

TCP/IP and

RS232 Input

Output Card

Slots

Input Card

Slots

110-240 VAC

Input

Rear Panel

Input Card Slots – Eight card slots to accommodate compatible input cards.
Output Card Slots – Eight card slots to accommodate compatible output cards.
TCP/IP Input – Allows control via third party control system and web browser access.
RS232 Input – Allows control via third party control system.
AC Input – Standard IEC C14 inlet. Redundant power inlet – connect to [2] separate circuits, if the first
circuit loses power, the matrix will switch automatically to the other circuit.

IR Remote

The included IR remote performs all of the functions available on the front
panel of the FLX-3232.

7

FLX-3232 Installation Guide

The modular input cards are keyed on the right side to line up with the output cards and ensure they are
installed correctly in the matrix.

Analog Video (FLX-RI4)

The HD15 inputs on the FLX-RI4 scale and convert a wide range of analog video signals to HD video
resolutions, which can be routed to any available output. The individual scaler engine on each input can
accommodate VGA to UXGA, RGBHV, RGsB, RsGsBs, component video, S-video, and composite video
signals. Two FLX-RBOCA (component video breakout cable) and two FLX-RBOCB (composite and S-video
breakout cable) cables are included with each FLX-RI4.

Input Cards

DVI (FLX-DI4)

The FLX-DI4 DVI-D inputs are HDMI and HDCP compliant and support CEC and DDC standards. Each input
is a single link DVI-D connection that can support video resolutions up to 1920x1200.

HDBaseT (FLX-BI4)

The FLX-BI4 takes advantage of HDBaseT inputs to allow sources from remote locations, from up to 70 m
away, to be routed to any of the available outputs utilizing standard Cat 5e cable with a TIA-568B crimp.
The RS232 and wide-band IR connections for each input allow bi-directional control signals at the
equipment rack to interface with source equipment when used with the DIGI-HD70C-S or DIGI-HDE-S
HDBaseT transmitters. The optional DIGIB-EMT (IR emitter) and DIGIB-EYE (IR receiver) are required for
IR control functionality.

HDMI (FLX-HI4A)

8

FLX-3232 Installation Guide

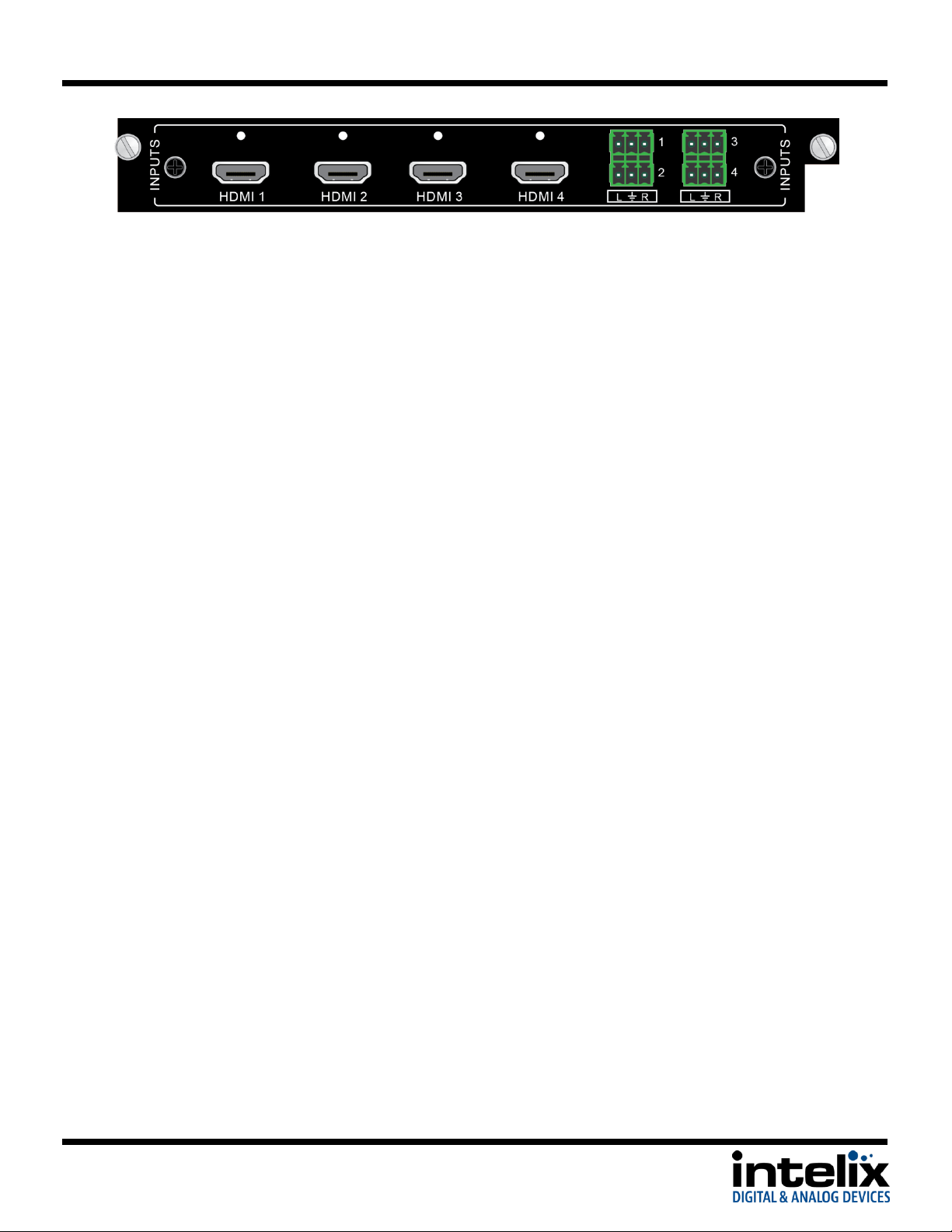

The FLX-HI4 HDMI inputs can be routed to any available outputs. The HDMI inputs can accept video
signals up to 1920x1200, including 3D and 48-bit Deep Color at 1080p. Additionally, audio signals from
stereo up to 7.1 audio streams will pass through the matrix to supported outputs. Using the euroblock
connectors, stereo audio can be embedded with the HDMI video stream. Audio source is selectable
(HDMI or analog) by RS232 or TCP/IP command.

9

FLX-3232 Installation Guide

The modular output cards are keyed on the left side to line up with the input cards and ensure they are
installed correctly in the matrix.

DVI (FLX-DO4)

The FLX-DO4 DVI-D outputs are HDMI and HDCP compliant and support CEC and DDC standards. Each
output is a single link DVI-D connection that can support video resolutions up to 1920x1200.

HDBaseT (FLX-BO4A)

Output Cards

The FLX-BO4 takes advantage of HDBaseT outputs connect any source device to a remote display, up to
70m away, utilizing standard Cat 6 cable with a TIA-568B crimp. The RS232 connections for each output
allow bi-directional control signals at the equipment rack to interface with display devices when used
with the DIGI-HD60C-R or DIGI-HDE-R HDBaseT receivers. Stereo audio can be de-embedded from the
HDMI signal and output to the 3.5mm TRS connectors. This unit has advanced EDID copy functions that
allow either full or hybrid copy (video with 2ch overwrite) to ensure that the source will emit the correct
format.

10

FLX-3232 Installation Guide

HDMI (FLX-HO4A)

The FLX-HO4 HDMI outputs can be routed from any input in the matrix. The HDMI outputs can pass
video signals up to 1920x1200, including 3D and 48-bit Deep Color at 1080p. Additionally, audio signals
from stereo up to 7.1 audio streams will pass to supported HDMI output devices. Stereo audio can be
de-embedded from the HDMI signal and output to the euroblock connectors. This unit has advanced
EDID copy functions that allow either full or hybrid copy (video with 2ch overwrite) to ensure that the
source will emit the correct format.

11

FLX-3232 Installation Guide

Shelf Mounting Instructions

Attach the supplied rubber feet to the bottom of the FLX-3232 matrix. Follow the instructions in General
I/O Card Installation to install the I/O cards.

Rack Mounting Instructions

The FLX-3232 requires three rack units (5 RU) of space. At least 2 inches of free air space is required on

both sides of the FLX-3232 for proper side ventilation. Avoid mounting the FLX-3232 near a power
amplifier or any other source of significant heat. It is recommended that you leave an empty rack space
above and below the FLX-3232 for additional cooling.

General I/O Card Installation

1. Power off the matrix.

2. Remove the metal blank.

Installation Instructions

12

FLX-3232 Installation Guide

3. Slide the I/O card between the guide rails until it is firmly seated.

4. Secure the I/O card by tightening the thumb screws.

5. Connect the appropriate cabling to the I/O card.

6. Power on the matrix.

FLX-BI4 and FLX-BO4A Wiring

A compatible HDBaseT with control transmitter or receiver is required to pass the control signals to the
source or display devices.

To connect the FLX-BI4 to a compatible transmitter or the FLX-BO4A to a compatible receiver, a Cat 6 or
greater cable with a TIA-568B crimp termination on the RJ45 connector must be used. The Cat 6 cable
must not exceed 40 meters for 3D content. The Cat 6 cable must not exceed 70 meters for 2D content.

13

FLX-3232 Installation Guide

To use the IR extension capabilities of the FLX-BI4, the DIGIB-EYE (wideband IR receiver) and DIGIB-EMT
(wideband IR emitter) will need to be connected to the appropriate IR ports. These parts are not
included with the HDBaseT I/O cards.

To use the RS232 extension capabilities of the FLX-BI4 and FLX-BO4A, connect the TX, ground, and RX
control signal wires to the removable 3-pole terminal block. Consult the manual of the control device(s)
to determine which pins the TX/RX signals are carried on. Be sure to always connect TX to RX and RX to
TX.

FLX-RI4 Wiring

For VGA signals, use a standard VGA male to VGA male cable.

14

For RGBHV signals, use a standard VGA to RGBHV cable. Below is a common pinout of this type of cable.

FLX-3232 Installation Guide

For component video, S-video, and composite video, a VGA to breakout cable is recommended. The FLX­RI4 comes with two FLX-RBOCA (component video breakout cable) and two FLX-RBOCB (composite and
S-video breakout cable) cables. See FLX-RI4 Specific Commands on page 20 to define the operation of
the inputs.

- Component video, RGsB, and RsGsBs connect to the appropriate red, green, and blue

connections on the FLX-RBOCA cable.

- S-video connects to the purple connector on the FLX-RBOCB cable.

- Composite video connects to the yellow connector on the FLX-RBOCB cable.

15

FLX-3232 Installation Guide

EDIDMyyBxx.

Copy EDID of output yy to input xx

EDIDMInit.

Restore factory EDID information

The stock EDID for the inputs of the FLX-3232 is 1280x1024 (computer video input) and 1080p with
stereo audio (consumer video input). In order to change the EDID information for an input, the EDID
copy command will need to be sent to the matrix via RS232 or TCP/IP.

The FLX-RI4 input card ignores the EDID settings since there is a scaler engine on each input to output a
pre-defined video resolution.

Copy EDID

To copy the EDID information from output 3 to input 1, transmit the following command:

EDIDM03B01.

Advanced EDID

The FLX-HO4A and FLX-BO4A support [2] EDID Copy
modes; FULL copy and HYBRID copy. The copy mode can
be set by output. On each card, you will find [4] DIP
switches near the back of the PCBA (card must be
removed from matrix). Each DIP switch corresponds to an
output of the card. Set the DIP switches ON for FULL copy
mode. Set the DIP switches OFF for HYBRID copy mode.

When the output is set to FULL copy mode, the entire
EDID table will be copied from the display (sink) to the
input. This accomplished via RS232 or TCP/IP command.

When the output is set to HYBRID, the EDID table that is copied to the input comes from two locations.
The video information, including Preferred Native Timing is retrieved from the display (sink) that is
connected to the output. The audio information is overwritten by a 48kHz PCM stereo audio preset.
Copying EDID with this HYBRID mode will ensure that all your sources output a format that is compatible
with the audio de-embedding circuit.

16

EDID Management

FLX-3232 Installation Guide

Front Panel and IR Remote Operation

Basic Routing

To set a route using the front panel of the FLX-3232:

1. Press the AV button.

2. Press the desired input button (source).

3. Press the desired output button (display).

4. Press the ENTER button

To route video and audio from input 4 to output 5:

1. Press AV.

2. Press input 4.

3. Press output 5.

4. Press ENTER

Advanced Routing

To route an input to multiple outputs:

1. Press AV.

2. Press the desired input.

3. Press the desired outputs, separated by the COMMA button.

4. Press ENTER.

(Example: AV i2 , o4 , o5 , o6 , ENTER)

To route video and audio from input 3 to all outputs:

1. Press input 3.

2. Press ALL.

To route video and audio from each input to its corresponding output (1 to 1, 2 to 2, through 8 to 8):

1. Press ALL.

2. Press THROUGH.

IR Remote Operation

The buttons on the IR remote are similar to the buttons on the front panel of the FLX-3232. The IR
routing commands match those of the front panel, except multiple output routing is not possible.

See Page 7 for the button layout of the IR remote.

17

FLX-3232 Installation Guide

IP Address Setup via Web Browser

Configuring the TCP/IP port is done via a web browser interface. A crossover cable is required for the
initial setup. The default IP address is printed on a sticker on the side of the FLX-3232.

1. Configure the computer to use the same network prefix as the IP address assigned to the matrix.

For example, the IP address of the matrix is 192.168.0.178. Set the computer to use a static IP
address within the same network range, such as 192.168.0.42.

2. Connect the crossover cable to the computer and to the TCP/IP port on the FLX-3232.

3. Open up Internet Explorer (Firefox, Chrome, and Safari crop the configuration options).

Third Party Control Setup

18

4. Go to the IP address printed on the sticker, which will take you to the Login screen.

5. The Default password is “88888”.

FLX-3232 Installation Guide

6. Press the LOGIN button. Pressing the Enter key will give a bad password error.

7. Click the System Info button to change the IP address.

8. Changing the dropdown option from Static to DHCP will allow the FLX-3232 to automatically

obtain an IP address from a DHCP server on the network.

9. For a static IP, enter the IP address, Gateway, and DNS Server information provided by your

Network Administrator.

10. Click Apply for the changes to take effect.

19

FLX-3232 Installation Guide

Access the Web Browser with Defined IP Address

1. Remove the crossover cable between the computer and the FLX-3232.

2. Restore the computer to the previous network settings.

3. Connect the computer and the matrix to the network.

4. Using Internet Explorer, enter the IP address for the matrix to access the browser interface.

Additional Options in Web Browser

1. Serial Info – Adjusts TCP/IP specific settings, including the default port (4001).

2. Change Password – Changes the password of the matrix.

3. Reset Device – Resets all changes to the default settings except for the IP address of the matrix.

4. Restore Default – Resets all changes to the default settings including the IP address.

a. Changing the baud rate settings has no effect on the RS232 port of the FLX-3232.
b. The baud rate setting must remain at 9600.

RS232 Connection

The RS232 control port requires a standard straight-through serial cable for operation. The default
settings for the RS232 port are:

- 9600 baud

- 8 Data Bits

- 1 Stop Bit

- Parity = none

20

FLX-3232 Installation Guide

Description

Command

Response

Route input xx to output yy

xxByy.

AV: xx->0yy<CR><LF>

Route input xx to all outputs

xxAll.

xx To All<CR><LF>

Route inputs to corresponding outputs

All#.

All Through.<CR><LF>

Route input xx to multiple outputs yy Number of
outputs is unlimited; each output must be
separated by a comma (,)

xxByy,yy.

xxVyy,yy<CR><LF>

Turn off all outputs

All$.

All Closed.<CR><LF>

Turn off specific output yy

yy$.

AV: yy Closed.
<CR><LF>

Output yy routing status

Statusyy.

V: xx->0yy<CR><LF>

Routing status of all inputs.

Status.

V: xx->0yy<CR><LF>

(Repeating sequence
starting with output
1, output 2, etc.)

02All.

Route Video and Audio from input 2 to all outputs

04$.

Turn off Video and Audio for output 4

06B03.

Route Video and Audio from input 6 to output 3

03B02,08.

Route Video and Audio from input 3 to outputs 2 and 8

RS232 and TCP/IP Commands

RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None
TCP/IP Settings: User defined IP address, port 4001

There is either a period (.) or a semicolon (;) at the end of each command. These characters must be
present for the command to process correctly.

There are no spaces between any of the characters in the command string.

xx = Input Number (input 2 would be 02)
yy = Output Number (output 3 would be 03)

<CR> = Carriage return (Hex 0D)
<LF> = Line Feed (Hex 0A)

Routing Commands

Examples:

21

FLX-3232 Installation Guide

Description

Command

Response

Save the current routing as a preset. Values range
from 0 through 9

Savex.

Save to Fx<CR><LF>

Recall preset x

Recallx.

Recall From
Fx<CR><LF>

Clear preset x

Clearx.

Save4.

Save the current routing as preset 4.

Recall4.

Recall preset 4

Clear4.

Clear preset 4

Description

Command

Response

Power full ON

PWON.

PWON<CR><LF>

Power off (Standby Mode)

PWOFF.

PWOFF<CR><LF>

Retrieve matrix model information

/*Type;

FLX-3232<CR><LF>

Lock the front panel keys

/%Lock;

System
Locked!<CR><LF>

Unlock the front panel keys

/%Unlock;

System
Unlock!<CR><LF>

Retrieve matrix firmware version number

/^Version;

Vz.z<CR><LF>

Turn off matrix command feedback

/:MessageOff;

Closed the Message
Return.<CR><LF>

Turn on matrix command feedback

/:MessageOn;

Enabled the Message
Return.<CR><LF>

Description

Command

Response

Copy EDID of output yy to input xx

EDIDMyyBxx.

EDIDMyyBxx.<CR><LF>

Restore factory EDID information

EDIDMInit.

EDIDMInit<CR><LF>

EDIDM05B01.

Copy EDID of output 5 to input 1

Preset Commands

Examples:

System Commands

EDID Commands

Example:

22

FLX-3232 Installation Guide

Description

Command

Response

Turn HDCP Compliance off for input xx

/%I/xx:0.

/%I/xx:0.<CR><LF>

Turn HDCP Compliance on for input xx

/%I/xx:1.

/%I/xx:1.<CR><LF>

/%I/04:0.

Turn HDCP Compliance off for input 4

Description

Command

Response

Set input xx to VGA input mode

USERxx0622%.

xx0622%.<CR><LF>

When input xx is in VGA mode, auto adjusts the input
signal

USERxx0606%.

xx0606%.<CR><LF>

Set input xx to component video input mode

USERxx0623%.

xx0623%.<CR><LF>

Set input xx to S-video input mode

USERxx0624%.

xx0624%.<CR><LF>

Set input xx to composite video input mode

USERxx0625%.

xx0625%.<CR><LF>

Set input xx to scale to XGA output (1024x768)

USERxx0626%.

xx0626%.<CR><LF>

Set input xx to scale to 720p output (1280x720)

USERxx0627%.

xx0627%.<CR><LF>

Set input xx to scale to WXGA output (1280x800)

USERxx0628%.

xx0628%.<CR><LF>

Set input xx to scale to 1080p output (1920x1080)

USERxx0629%.

xx0629%.<CR><LF>

Set input xx to VGA input mode

USERxx0622%.

xx0622%.<CR><LF>

USER050622%.

Set input 5 to VGA input mode

USER050606%.

Auto adjust input 5 VGA source

USER020623%.

Set input 2 to component video input mode

HDCP Commands

Example:

FLX-RI4 Specific Commands

The input number values are dependent upon which slot the FLX-RI4 is inserted. If the input card is in
the first input card slot, the input number values range from 01 through 04. If the input card is in the
second input card slot, the input number values range from 05 through 08. xx is the input number value.

Examples:

23

FLX-3232 Installation Guide

Description

Command

Response

Set input xx to analog audio input embedding

AUDIOxx:0.

AUDIOxxI0.<CR><LF>

Set input xx to digital audio (use HDMI audio)

AUDIOxx:1.

AUDIOxxI1.<CR><LF>

AUDIO07:0.

Use analog audio for input 7.

FLX-HI4A Specific Commands

The input number values are dependent upon which slot the FLX-HI4A is inserted. If the input card is in
the first input card slot, the input number values range from 1 through 4. If the input card is in the
second input card slot, the input number values range from 5 through 8. [X] is the input number value.

Examples:

24

FLX-3232 Installation Guide

Troubleshooting

Verify power outlet is active.
Verify continuity in power cable.

Copy EDID from output to input.
Verify display is 3D compatible.
Verify source device can output 3D content.
Verify twisted pair cable does not exceed 40 meters if using the FLX-BI4 or FLX-BO4.

Copy EDID from output to input.
Verify output can broadcast surround sound audio.
Verify source device is configured to output surround sound audio.
Change input from analog audio to HDMI audio (FLX-HI4A)

Verify the green link LED on the HDBaseT card is lit solid.

25

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

Supported Input Cards

FLX-BI4, FLX-DI4, FLX-HI4, FLX-RI4, FLX-HI4A

Supported Output Cards

FLX-BO4, FLX-DO4, FLX-HO4, FLX-BO4A, FLX-HO4A

Input and Output Card Securing Mechanism

Thumbscrew

Control, Rear Panel

RS232 via DE-9, TCP/IP via 8P8C Connector

Control, Front Panel

Push Button, IR

Chassis and Environmental

Material

Black Painted Aluminum

Dimensions

483mm x 356mm x 222mm (19 in. x 14 in. x 8.75 in.)

Rack Spacing

5 RU

Shipping Weight

9.98 kg (22 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Power, ESD, and Regulatory

Power Supply

100-240VAC 50/60 Hz

Power Consumption

280 watts Fully Populated

ESD Protection

15kV

Regulatory

CE, RoHS

Other

Warranty

2 years

Diagnostic Indicators

LCD output status and power LED

Included Accessories

Installation Guide, IR Remote, RS232 Cable, Power Cable, Modular Metal Blank
(16 ea), Rubber Feet (4 ea) and Intelix Pocket Screwdriver.

FLX-3232 Chassis

Technical Specifications

26

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

HDBaseT Port

Four (4) 8P8C port (Shielded RJ45)

IR In

Four (4) 3.5 mm TS (Requires DIGIB-EYE)

IR Out

Four (4) 3.5 mm TRS (Requires DIGIB-EMT)

RS232

Four (4) 3 pole Euroblock Connectors

Supported Audio and Video

Maximum Video Compatibility at 70 m

Deep Color 36/30/24 Bit at 1080p

Maximum Video Compatibility at 40 m

Deep Color 48 Bit at 1080p, 3D

Video Compliance

HDMI and HDCP

Embedded Audio

Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio

HDBaseT Signal Characteristics

Maximum Distance

70 m

Cable Requirements

Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern

Bandwidth

10.2 Gbps

Gain

0 dB – 10 dB at 100 MHz

Resolution Range

800x600 – 1920x1200

Signal to Noise Ratio (SNR)

> 70 dB at 100 MHz over 100 m

Return Loss

< -30 dB at 5 KHz

Total Harmonic Distortion (THD)

< 0.005% at 1 KHz

Min-Max Signal Level

< 0.3 V – 1.45 Vp-p

Differential Phase Error

±10° at 135 MHz over 100 m

Chassis and Environmental

Construction

Plug-in card with keyed black metal plate

Shipping Weight

0.43 kg (0.95 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Other

Warranty

2 years

Matrix Switcher Compatibility

FLX-8X8A, FLX-88, FLX-1616, FLX-3232

HDBaseT Transmitter (A/V and Control) Compatibility

DIGI-HDE-S, DIGI-HD60C-S

HDBaseT Transmitter (A/V Only) Compatibility

DIGI-HD70-S

Infrared (IR) Emitter

DIGIB-EMT

Infrared (IR) Receiver

DIGIB-EYE

FLX-BI4

27

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

HDMI Input

Four (4) HDMI Type A Receptacle Connector

Analog Audio In

Four (4) 3 pole Euroblock Connectors

Supported Audio and Video

Maximum Video Compatibility

Deep Color 48/36/30/24 Bit at 1080p, 3D

Video Compliance

HDMI and HDCP (Selectable)

HDMI Audio Compatibility

Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio

Analog to Digital Conversion Audio Format

PCM 2 Channel 48kHz

Analog Audio

Performance per Channel

Unbalanced Stereo Audio, -10 dBV nominal

Pinout (Left to Right)

Left (+), Ground, Right (+)

Input Impedance

>10kΩ

Frequency Response

20 Hz to 20 kHz, ±0.5 dB

THD + Noise

< 0.002% from 20 Hz to 20 kHz

HDMI Signal Characteristics

Bandwidth

340 MHz (10.2 Gbps)

Gain

0 dB

Resolution Range

Up to 1920x1200

Crosstalk

< -50 dB at 5 KHz

Input Level

TMDS 2.9V/3.3V

Chassis and Environmental

Construction

Plug-in card with keyed black metal plate

Shipping Weight

0.45 kg (1 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Other

Warranty

2 years

Matrix Switcher Compatibility

FLX-88, FLX-1616, FLX-3232

FLX-HI4A

28

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

Analog Video Input

Four (4) Female HD15

Supported Video

Input Signal Types

VGA-UXGA, RGBHV, RGsB, RsGsBs, Component Video, S-Video, & Composite
Video

Output Scaling Resolutions

XGA (1024x768), WXGA (1280x800), 720p (1280x720), and 1080p (1920x1080)

Analog Video Input Characteristics

Bandwidth

340 MHz (10.2 Gbps)

Gain

0 dB

Resolution Range

640x480 – 1920x1080

Crosstalk

< -50 dB at 5 MHz

Input Coupling

AC Coupling Only

Input Level

0.5V – 2.0Vp-p

Chassis and Environmental

Construction

Plug-in card with keyed black metal plate

Shipping Weight

0.67 kg (1.36 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Included Accessories

FLX-RBOCA (2 ea)

40 mm (15.75 in.) Male HD15 to three (3) Female RCA Connectors (Red, Green,
Blue)

FLX-RBOCB (2 ea)

40 mm (15.75 in.) Male HD15 to one (1) Female RCA Connector (Yellow) and
one (1) Female S-Video Connector

Other

Warranty

2 years

HDMI Matrix Switcher Compatibility

FLX-8X8A, FLX-88, FLX-1616, FLX-3232

FLX-RI4

29

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

Single Link DVI Input

Four (4) Female DVI 24+5

Supported Video

Input Signal Types

Single Link DVI-D up to 1920x1200

Video Compliance

HDMI and HDCP

EDID and DDC

Actively Buffered; Supports DVI and HDMI standards

DVI Signal Characteristics

Bandwidth

340 MHz (10.2 Gbps)

Gain

0 dB

Resolution Range

640x480 – 1920x1200

Crosstalk

< -50 dB at 5 KHz

Input Level

TMDS 2.9V/3.3V

Chassis and Environmental

Construction

Plug-in card with keyed black metal plate

Shipping Weight

0.37 kg (0.81 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Other

Warranty

2 years

Matrix Switcher Compatibility

FLX-8X8A, FLX-88, FLX-1616, FLX-3232

FLX-DI4

30

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

HDBaseT Port

Four (4) 8P8C port (Shielded RJ45)

Analog Audio Out

Four (4) 3.5 mm TRS

RS232

Four (4) 3 pole Euroblock Connectors

Supported Audio and Video

Maximum Video Compatibility at 70 m

Deep Color 36/30/24 Bit at 1080p

Maximum Video Compatibility at 40 m

Deep Color 48 Bit at 1080p, 3D

Video Compliance

HDMI and HDCP

Embedded Audio

Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio

Analog Audio

Performance per Channel

Unbalanced Stereo Audio, -10 dBV nominal

Pinout

TIP - Left (+), RING – Right (+), SLEEVE - Ground

Output Impedance

50Ω

Frequency Response

20 Hz to 20 kHz, ±0.5 dB

THD + Noise

< 0.002% from 20 Hz to 20 kHz

HDBaseT Signal Characteristics

Maximum Distance

70 m

Cable Requirements

Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern

Bandwidth

10.2 Gbps

Gain

0 dB – 10 dB at 100 MHz

Resolution Range

800x600 – 1920x1200

Signal to Noise Ratio (SNR)

> 70 dB at 100 MHz over 100 m

Return Loss

< -30 dB at 5 KHz

Total Harmonic Distortion (THD)

< 0.005% at 1 KHz

Min-Max Signal Level

< 0.3 V – 1.45 Vp-p

Differential Phase Error

±10° at 135 MHz over 100 m

Chassis and Environmental

Construction

Plug-in card with keyed black metal plate

Shipping Weight

0.43 kg (0.95 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Other

Warranty

2 years

Matrix Switcher Compatibility

FLX-88, FLX-1616, FLX-3232

Compatible Receivers (A/V and Control)

DIGI-HDE-R, DIGI-HD60C-R

Compatible Receivers (A/V Only)

DIGI-HD70-R

FLX-BO4A

31

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

HDMI Input

Four (4) HDMI Type A Receptacle Connector

Analog Audio Out

Four (4) 3 pole Euroblock Connectors

Supported Video

Maximum Video Compatibility

Deep Color 48/36/30/24 Bit at 1080p, 3D

Video Compliance

HDMI and HDCP

Analog Audio

Performance per Channel

Unbalanced Stereo Audio, -10 dBV nominal

Pinout (Left to Right)

Left (+), Ground, Right (+)

Output Impedance

50Ω

Frequency Response

20 Hz to 20 kHz, ±0.5 dB

THD + Noise

< 0.002% from 20 Hz to 20 kHz

HDMI Signal Characteristics

Bandwidth

340 MHz (10.2 Gbps)

Gain

0 dB

Resolution Range

Up to 1920x1200

Crosstalk

< -50 dB at 5 KHz

Input Level

TMDS 2.9V/3.3V

Chassis and Environmental

Construction

Plug-in card with keyed black metal plate

Shipping Weight

0.45 kg (1 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Other

EDID Copy Mode Selection

Four (4) 2 position DIP switch (one per output)

Warranty

2 years

Matrix Switcher Compatibility

FLX-88, FLX-1616, FLX-3232

FLX-HO4A

32

FLX-3232 Installation Guide

Technical Specifications

I/O Connections

Single Link DVI Output

Four (4) Female DVI 24+5

Supported Video

Output Signal Types

Single Link DVI-D up to 1920x1200

Video Compliance

HDMI and HDCP

EDID and DDC

Actively Buffered; Supports DVI and HDMI standards

DVI Signal Characteristics

Bandwidth

340 MHz (10.2 Gbps)

Gain

0 dB

Resolution Range

640x480 – 1920x1200

Crosstalk

< -50 dB at 5 KHz

Input Level

TMDS 2.9V/3.3V

Chassis and Environmental

Construction

Plug-in card with keyed black metal plate

Shipping Weight

0.37 kg (0.81 lbs.)

Operating Temperature

0° to +40° C (+32° to +104° F)

Operating Humidity

20% to 90%, Non-condensing

Storage Temperature

-10° to +60° C (+14° to +140° F)

Storage Humidity

20% to 90%, Non-condensing

Other

Warranty

2 years

Matrix Switcher Compatibility

FLX-8X8A, FLX-88, FLX-1616, FLX-3232

FLX-DO4

33

FLX-3232 Installation Guide

Technical Specifications

Signal Characteristics

Wide-Band Infrared (IR)

30 KHz to 56 KHz at 5V DC reference

Physical Characteristics

Material, Emitter Housing

Deep red translucent plastic

Dimensions, Emitter Housing

6 mm x 9.5 mm x 15 mm (0.24 in. x 0.37 in. x 0.59 in.)

Cable Length

2 m (6.56 ft)

Cable Connector

3.5 mm (1/8 in.) mono (TS) plug

Shipping Weight

0.5 lbs. (0.23kg)

Other

Warranty

2 years

What’s in the Box

(4) DIGIB-EMT

Compatible Devices

FLX-BI4, FLX-BO4, DIGI-HDE-S, DIGI-HDE-R, DIGI-HD60C-S, DIGI-HD60C-R,
DIGI-HD-IR3-S, DIGI-HD-IR3-R, DIGI-HD-IR3-WP-S, DIGI-HD-IR3-WP-R,
DIGI-HD-8X8, DIGI-HD-4X8, DIGI-HD-4X4, DIGI-HD-4X2

Technical Specifications

Signal Characteristics

Wide-Band Infrared (IR)

30 KHz to 56 KHz at 5V DC reference

Physical Characteristics

Material, Emitter Housing

Black plastic housing; smoke gray lens housing

Dimensions, Emitter Housing

13.5 mm x 9 mm x 29.5 mm (0.53 in. x 0.35 in. x 1.16 in.)

Cable Length

1 m (3.28 ft)

Cable Connector

3.5 mm (1/8 in.) stereo (TRS) plug

Shipping Weight

0.5 lbs. (0.23kg)

Other

Warranty

2 years

What’s in the Box

(1) DIGIB-EYE (hardware not included)

Compatible Devices

FLX-BI4, FLX-BO4, DIGI-HDE-S, DIGI-HDE-R, DIGI-HD60C-S, DIGI-HD60C-R,
DIGI-HD-IR3-S, DIGI-HD-IR3-R, DIGI-HD-IR3-WP-S, DIGI-HD-IR3-WP-R

DIGIB-EMT

DIGIB-EYE

34

FLX-3232 Installation Guide

This page intentionally left blank.

35

FLX-3232 Installation Guide

Thank you for your purchase.

Please contact us with your questions and comments.

Intelix

8001 Terrace Ave, Ste 201

Middleton, WI 53562

Phone: [phone]

Toll Free: 866-462-8649

Fax: [phone]

www.intelix.com

[e-mail]

36
