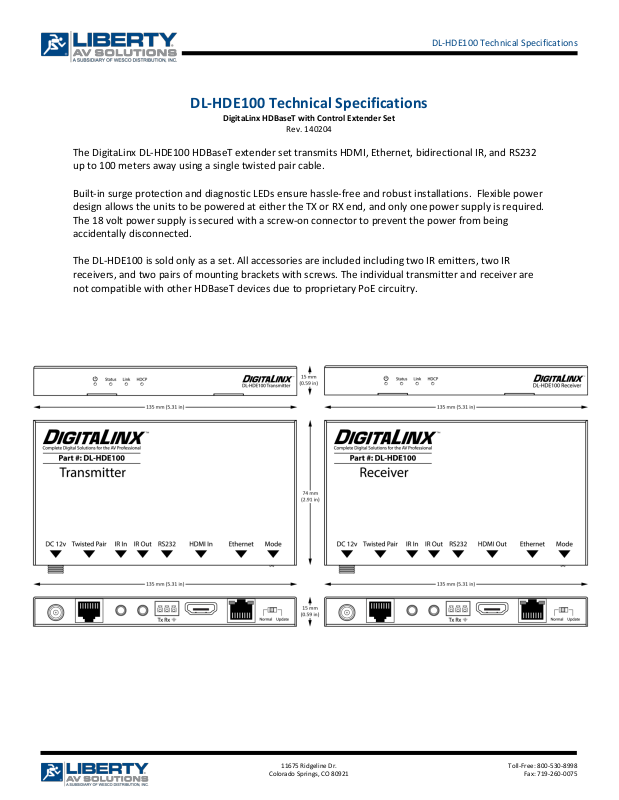

DigitaLinx HDBaseT with Control Extender Set

Rev. 140204

The DigitaLinx DL-HDE100 HDBaseT extender set transmits HDMI, Ethernet, bidirectional IR, and RS232
up to 100 meters away using a single twisted pair cable.

Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power
design allows the units to be powered at either the TX or RX end, and only one power supply is required.
The 18 volt power supply is secured with a screw-on connector to prevent the power from being
accidentally disconnected.

The DL-HDE100 is sold only as a set. All accessories are included including two IR emitters, two IR
receivers, and two pairs of mounting brackets with screws. The individual transmitter and receiver are
not compatible with other HDBaseT devices due to proprietary PoE circuitry.

11675 Ridgeline Dr. Toll-Free: 800-530-8998
Colorado Springs, CO 80921 Fax: [phone]

DL-HDE100 Technical Specifications

Technical Specifications

I/O Connections

HDMI

One (1) HDMI Type A Receptacle

Twisted Pair

One (1) 8P8C port (Shielded RJ45)

Ethernet

One (1) 8P8C port (Shielded RJ45)

IR Input

One (1) 3.5mm TRS Jack

IR Output

One (1) 3.5mm TS Jack

RS232

One (1) 3-Pole Euroblock connector

12V DC Power

One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking)

Supported Audio, Video and Control

Maximum Video Compatibility with Cat 6 or greater cable

90 m: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k

Maximum Video Compatibility with shielded Cat 6 or

greater cable and shielded connectors

100 m: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k

Video Compliance

HDMI, HDCP, and CEC (Consumer Electronics Control)

Embedded Audio

Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio

Input DDC Signal

5.0 volts p-p (TTL)

Input Video Signal

0.5 to 1.0 volts p-p

IR Carrier Frequency Range

33-55kHz at 5 volts

Ethernet

100BaseT

RS232 Baud Rate

Up to 115200 baud

HDBaseT Signal Characteristics

Maximum Distance

100 m

Cable Requirements

Category 6 or greater with TIA/EIA-568B crimp pattern

Bandwidth

10.2 Gbps

Gain

0 dB – 10 dB at 100 MHz

Resolution Range

800x600 – 1920x1200

Signal to Noise Ratio (SNR)

> 70 dB at 100 MHz over 100 m

Return Loss

< -30 dB at 5 KHz

Total Harmonic Distortion (THD)

< 0.005% at 1 KHz

Min-Max Signal Level

< 0.3 V – 1.45 Vp-p

Differential Phase Error

±10° at 135 MHz over 100 m

Chassis and Environmental

Enclosure

Painted steel

Dimensions

135mm x 74mm x 15mm (5.31 in. x 2.91 in. x 0.59 in.)

Shipping Weight

0.82 kg (1.8 lbs.)

Operating Temperature (Environment)

0° to +40° C (+32° to +104° F)

Operating Temperature (Chassis)

31° C (88° F) (S); 38° C (100° F) (R)

Operating Humidity (Environment)

20% to 90%, Non-condensing

Storage Temperature (Environment)

-10° to +60° C (+14° to +140° F)

Storage Humidity (Environment)

20% to 90%, Non-condensing

Power, ESD, and Regulatory

Maximum Power Consumption

3 watts (S), 6 watts (R)

Power Supply

18vDC

ESD Protection

15kV

Regulatory

CE, RoHS

Other

Standard Warranty

2 Years

Diagnostic Indicators

Power, Status, Link, and HDCP LEDs

Included Items

Installation Guide, power supply, US power cord, IR emitters (2 ea), IR receivers (2 ea),
mounting “L” brackets (4 ea), mounting screws (4 ea)

Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF a nd electrical interference, and cable patches. Liberty AV
Solutions’ specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.
