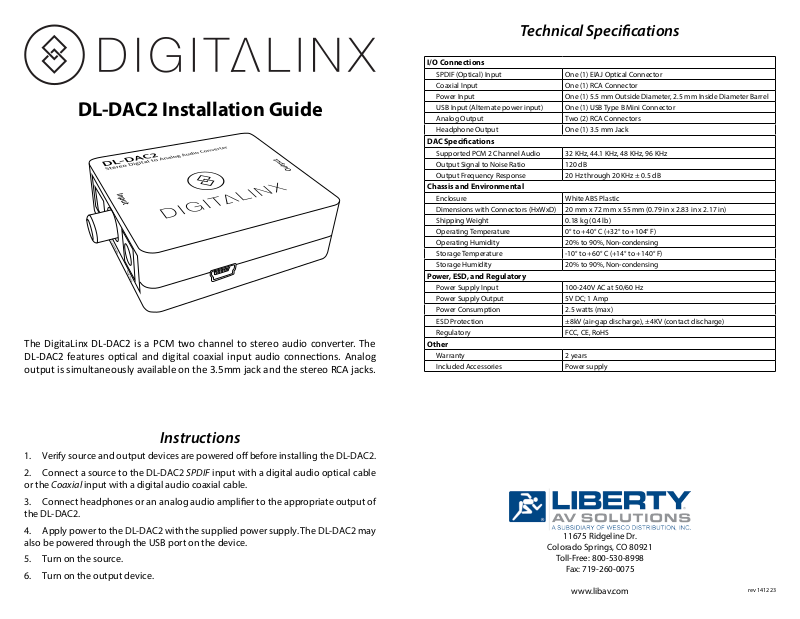

DL-DAC2 Installation Guide

The DigitaLinx DL-DAC2 is a PCM two channel to stereo audio converter. The

DL-DAC2 features opcal and digital coaxial input audio connecons. Analog

output is simultaneously available on the 3.5mm jack and the stereo RCA jacks.

Technical Specications

I/O Connections

SPDIF (Optical) Input One (1) EIAJ Optical Connector

Coaxial Input One (1) RCA Connector

Power Input One (1) 5.5 mm Outside Diameter, 2.5 mm Inside Diameter Barrel

USB Input (Alternate power input) One (1) USB Type B Mini Connector

Analog Output Two (2) RCA Connectors

Headphone Output One (1) 3.5 mm Jack

DAC Specications

Supported PCM 2 Channel Audio 32 KHz, 44.1 KHz, 48 KHz, 96 KHz

Output Signal to Noise Ratio 120 dB

Output Frequency Response 20 Hz through 20 KHz ± 0.5 dB

Chassis and Environmental

Enclosure White ABS Plastic

Dimensions with Connectors (HxWxD) 20 mm x 72 mm x 55 mm (0.79 in x 2.83 in x 2.17 in)

Shipping Weight 0.18 kg (0.4 lb)

Operating Temperature 0° to +40° C (+32° to +104° F)

Operating Humidity 20% to 90%, Non-condensing

Storage Temperature -10° to +60° C (+14° to +140° F)

Storage Humidity 20% to 90%, Non-condensing

Power, ESD, and Regulatory

Power Supply Input 100-240V AC at 50/60 Hz

Power Supply Output 5V DC; 1 Amp

Power Consumption 2.5 watts (max)

ESD Protection ±8kV (air-gap discharge), ±4KV (contact discharge)

Regulatory FCC, CE, RoHS

Other

Warranty 2 years

Included Accessories Power supply

Instructions

1. Verify source and output devices are powered o before installing the DL-DAC2.

2. Connect a source to the DL-DAC2 SPDIF input with a digital audio optical cable
or the Coaxial input with a digital audio coaxial cable.

3. Connect headphones or an analog audio amplier to the appropriate output of
the DL-DAC2.

4. Apply power to the DL-DAC2 with the supplied power supply. The DL-DAC2 may
also be powered through the USB port on the device.

5. Turn on the source.

6. Turn on the output device.

11675 Ridgeline Dr.

Colorado Springs, CO 80921

Toll-Free: 800-530-8998

Fax: [phone]

www.libav.com

rev 141223
