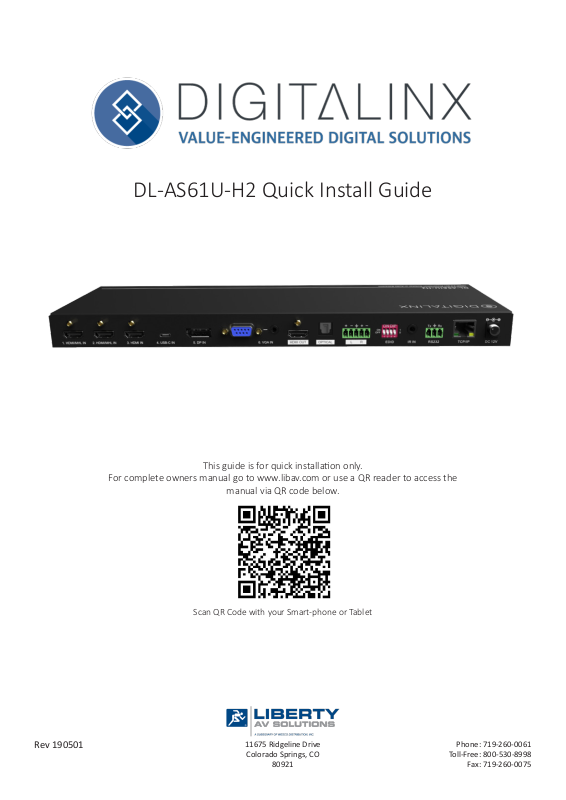

DL-AS61U-H2 Quick Install Guide

This guide is for quick installaon only.

For complete owners manual go to www.libav.com or use a QR reader to access the

manual via QR code below.

Rev 190501

Scan QR Code with your Smart-phone or Tablet

11675 Ridgeline Drive

Colorado Springs, CO

80921

Phone: [phone]

Toll-Free: 800-530-8998

Fax: [phone]

DL-AS61U-H2 Quick Guide

Product Overview

The DL-AS61U-H2 is a 6x1 HDMI 2.0b auto presentaon switcher featuring three HDMI, one USB-C ,
one DisplayPort and one VGA input as well as one HDMI output. The rst two HDMI inputs support
MHL. This switcher supports video resoluons up to 4Kx2K@60Hz 4:4:4 / 8 bit deep color as well
as HDR and mulchannel audio. In addion to passing nave EDID informaon from the display
to an input on the switcher, there are mulple built-in EDID sengs to choose from to simplify
an installaon. The switcher can de-embed digital and/or analog audio for audio reinforcement
purposes which is de-embedded from the HDMI output. The switchers funcons can be controlled
by built in web server / GUI, IR remote, RS232, IP or by front panel buon operaon. Integrated
CEC support for display control via front panel buons is built in. For a list of available control
commands for RS232 and IP control, please see the owners manual for this product located online at
www.libav.com.

When in auto-switch mode, the switcher will switch to an input as soon as a new source is connected.
When the acve source is removed, the switcher will select the rst source on the lowest numbered
input.

Package Contents

• DL-AS61U-H2 Auto Presentaon Switcher

• Quick Install Guide

• (1) IR Receiver

• (1) IR Remote

• (1) 3 pin Phoenix Connector

• (1) 5 pin Phoenix Connector

• (1) DB9 - 3 pin Phoenix RS232 breakout cable

• (1) DC12V 2A power supply with US, UK, AU and EU power plugs

• (2) Mounng Clips with 4 screws

• (4) Plasc Cushions

3

DL-AS61U-H2 Quick Guide

Front Panel View

1 2 3 4 5

1. POWER LED - Illuminates solid RED when device is in standby mode, illuminates GREEN when

device power is ON

2. VIDEO SOURCE:

• Buons 1-6 - Video input front panel buons, LEDs for the respecve inputs will illuminate
GREEN when selected

• AUTO Buon - Switches between auto and manual switch mode. Hold down for 3 seconds
to enable /disable audio switch mode.

3. DISPLAY CONTROL:

• ON - Press to turn display ON either by CEC or RS232

• OFF - Press to turn display OFF either by CEC or RS232

• Volume Mute - Press to mute display either by CEC or RS232

• Volume Down - Press to turn display volume down either by CEC or RS232

• Volume Up - Press to turn display volume up either by CEC or RS232

4. VGA RESOLUTION:

• VGA resoluon selecon. Press RES repeatedly to set the preferred VGA resoluon when
the VGA input source is selected. Illuminates GREEN to indicate VGA resoluon selected.

5. FW - USB port for rmware upgrade procedure

4

1. VIDEO INPUTS:

• Three HDMI input ports

DL-AS61U-H2 Quick Guide

Back Panel View

1 2 3 4 5 6 7 8 9

• One USB- C USB input port

• One DisplayPort input port

• One VGA input port with 3.5mm audio input

2. HDMI OUT - HDMI output for connecng to TV display

3. OPTICAL - Toslink output for digital audio output

4. L/R AUDIO - 5 pin phoenix; balanced le and right analog audio output

5. EDID - Dip switch seng for EDID management

6. IR IN - 3.5mm connector to connect IR receiver to control switcher by IR remote

7. RS232 - 3 pin phoenix; output port for connecon display or 3rd party control

8. TCP/IP - RJ45; Networking port

9. DC 24V - Locking power supply port

5

DL-AS61U-H2 Quick Guide

Connecvity Instrucons

1. Verify all components included with the DL-AS61U-H2 set are present before installaon.

2. If the DL-AS61U-H2 is going to be permanently mounted to a surface, aach the included mounng
brackets with the supplied screws.

3. Turn o power and disconnect the audio/video equipment by following the manufacturer’s
instrucons.

4. Connect an HDMI cable that is less to or equal to 5 meters in length between the display and the
HDMI output of the DL-AS61U-H2. For display devices that are further away, an HDMI extension device
will be required to complete the connecon.

5. Connect a source device to the HDMI input using a HDMI cable that is less than or equal to 5
meters in length. For source devices that are further away, an HDMI extension device will be required
to complete the connecon.

6. Connect a source device to the DisplayPort input using a DisplayPort cable that is less than or equal
to 5 meters in length. For source devices that are further away, an extension device will be required to
complete the connecon.

7. Connect a source device to the USB-C input using a USB-C video cable that is less than or equal to
2 meters in total length.

8. Connect a VGA source device to the VGA input using a 15-pin VGA cable.

9. Connect a 3.5mm audio cable into the respecve VGA audio input

10. Connect RS232 control between the display to control connected display or connect to a 3rd party
control system to control switcher funcons (oponal)

11. Connect TCP/IP control to a 3rd party control system to control switcher funcons (oponal)

NOTE: A list of control commands for this unit is available in the owners manual online at
www.libav.com under the DOCUMENTATION tab of the DL-AS61U-H2 product page

12. Connect IR receiver to IR IN port to control switcher via supplied IR remote (oponal)

13. Set EDID mode on front panel of unit to desired EDID seng

14. Connect the included power supply to the DL-AS61U-H2 and lock the power supply to the power
connector by twisng the locking collar clockwise.

15. Power on aached audio/video devices.

6

DL-AS61U-H2 Quick Guide

Technical Specicaons

Video

Video Inputs (2) HDMI/MHL, (1) HDMI, (1) USB-C, (1) DisplayPort, (1) VGA
Video Input Connector (3) HDMI Type A Female, (1) USB-C , (1) DisplayPort, (1) 15-pin VGA
Input Video Signal HDMI for HDMI input, ALT-DP Mode for USB-C, DP Version 1.2 for

DisplayPort input, MHL Version 2.2 for MHL
HDMI Input Resoluon Support Up to 3840 x 2160 @60Hz / 4:4:4 / 8 bit deep color for HDMI
MHL Input Resoluon Support Up to 10809 @60Hz
USB C Input Resoluon Support Up to 3840 x 2160 @30Hz / 4:4:4 / 8 bit deep color for HDMI
DisplayPort Input Resoluon Support Up to 3840 x 2160 @60Hz / 4:4:4 / 8 bit deep color for HDMI
VGA Input Resoluon Support Up to 1920x1200 @50/60Hz
Video Output (1) HDMI
Video Output Connector (1) HDMI type A
Output Resoluon Support Up to 3840 x 2160 @60Hz / 4:4:4 / 8 bit deep color
Standards Compliant with HDMI 2.0b, HDCP 2.2 and CEC
Bandwidth 18Gbps

Audio

Supported output formats Analog output: PCM

HDMI Embedded: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby

Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through

DisplayPort Audio Format: 8 channels LPCM, up to 24bit 192Khz, AC3,

DTS

Toslink Output: PCM, Dolby Digital, DTS, DTS-HD
Audio Output Balanced Stereo Analog
Audio Output Connector Analog output: 5 pin Phoenix

Digital output: Opcal / Toslink
Audio Output Impedance 70 Ohms
Frequency Response 20Hz-20KHz

Control

Control Port / Connector (1) 3 Pin Phoenix for RS232, (1) RJ45 for TCP/IP control, (1) IR input port

for IR receiver

Chassis and Environmental

Dimensions (WxHxD) 342 mm x 26 mm x 115 mm (13.5 in x 1 in x 4.5 in)
Shipping Weight 620g (1.4 lbs.)

Operang Temperature 0° to +55° C (+32° to +131° F)
Operang Humidity 10% to 90%, Non-condensing
Storage Temperature -20° to +70° C (+14° to +158° F)
Storage Humidity 10% to 90%, Non-condensing

Power, ESD, and Regulatory

Power Supply Input 100V-240VAC / 50-60 Hz
Power Supply Output 12VDC / 2A
Power Consumpon 10 was (max)
ESD Protecon 15kV
Product Regulatory FCC, CE, RoHS
Power Supply Regulatory CE, RoHS

Other

Standard Warranty 5 years
Included Accessories Quick Install Guide, Power Supply with US power plug, (1) IR Receiver,

(1) IR Remote, (1) 3-pin to DB9 RS232 Cable, (1) 5 pin Phoenix

connector, (1) 3 pin Phoenix connector, (2) Mounng clips with screws

and (4) plasc cushions
