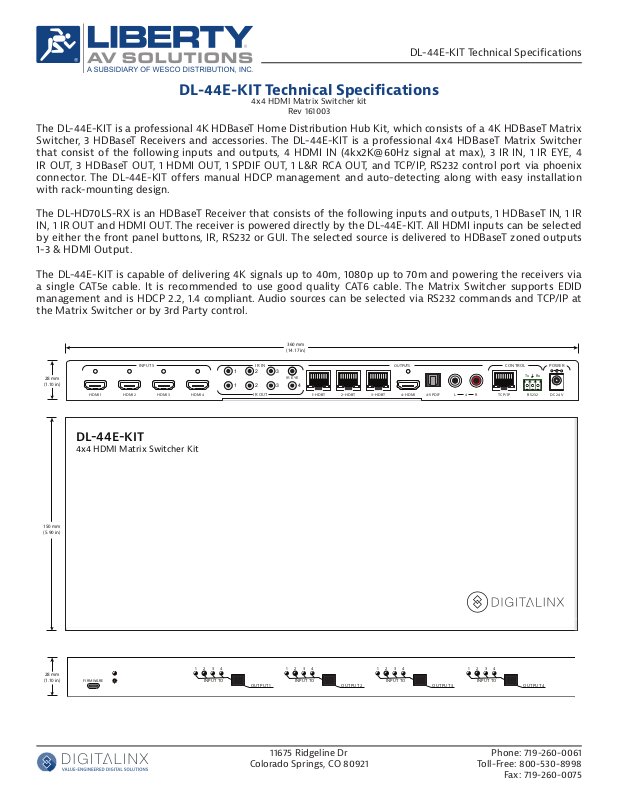

DL-44E-KIT Technical Specifications

DL-44E-KIT Technical Specifications

4x4 HDMI Matrix Switcher kit

The DL-44E-KIT is a professional 4K HDBaseT Home Distribution Hub Kit, which consists of a 4K HDBaseT Matrix
Switcher, 3 HDBaseT Receivers and accessories. The DL-44E-KIT is a professional 4x4 HDBaseT Matrix Switcher
that consist of the following inputs and outputs, 4 HDMI IN (4kx2K@60Hz signal at max), 3 IR IN, 1 IR EYE, 4
IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix
connector. The DL-44E-KIT offers manual HDCP management and auto-detecting along with easy installation
with rack-mounting design.

The DL-HD70LS-RX is an HDBaseT Receiver that consists of the following inputs and outputs, 1 HDBaseT IN, 1 IR
IN, 1 IR OUT and HDMI OUT. The receiver is powered directly by the DL-44E-KIT. All HDMI inputs can be selected
by either the front panel buttons, IR, RS232 or GUI. The selected source is delivered to HDBaseT zoned outputs
1-3 & HDMI Output.

The DL-44E-KIT is capable of delivering 4K signals up to 40m, 1080p up to 70m and powering the receivers via
a single CAT5e cable. It is recommended to use good quality CAT6 cable. The Matrix Switcher supports EDID
management and is HDCP 2.2, 1.4 compliant. Audio sources can be selected via RS232 commands and TCP/IP at
the Matrix Switcher or by 3rd Party control.

28 mm

(1.10 in)

HDMI 1 HD MI 2

INP UTS

HDMI 3

HDMI 4

1 2

1 2

IR IN

IR OU T

Rev 161003

360 mm

(14.17 in)

3

IR EYE

3

4

1-HD BT

2-HD BT

3-HD BT

OUTPUTS

POWE R CONT ROL

RxTx

4-SPD IF4-HD MI

4 DC 24V TCP/I P

L R

RS23 2

150 mm
(5.90 in)

28 mm

(1.10 in)

DL-44E-KIT

4x4 HDMI Matrix Switcher Kit

FIRM WARE

1 2 3 4

INP UT TO

OUT PUT 1

1 2 3 4

INP UT TO

OUT PUT 2

1 2 3 4

INP UT TO

OUT PUT 3

1 2 3 4

INP UT TO

OUT PUT 4

11675 Ridgeline Dr

Colorado Springs, CO 80921

Phone: [phone]

Toll-Free: 800-530-8998

Fax: [phone]

DL-44E-KIT Technical Specifications

DL-44E-KIT Technical Specifications

Video Input

Input 4 HDMI
Input Connector Female HDMI
Input Level T.M.D.S. 2.9V~3.3V
Input Impedance 100Ω (Differential)
HDMI Standard Support HDMI1.4 & HDCP2.2 and is backward compatible with all previous standards.

Video Output

Output 1 HDMI – 3 HDBaseT
Output Connector Female HDMI

Output Level T.M.D.S. 2.9V~3.3V
Output Impedance 100Ω (Differential)
HDMI Standard Support HDMI1.4 & HDCP1.4 and is backward compatible with all previous standards.

Video general

Video Signal HDMI (or DVI-D)
Transmission Distance 1080P@60Hz ≤70m

Resolution Range Up to 4Kx2K@60Hz
EDID Management In-built EDID data and manual EDID management
Gain 0 dB
Bandwidth 10.2Gbit/s
Switching Speed 200ns (Max.)

Audio general

Output Signal Stereo audio

Analog Audio Output Support PCM
Digital Audio Output Supports PCM，Dolby，DTS，DTS-HD
Frequency Response 20Hz~20KHz
Output Connector 1 L&R(RCA)

Control Parts

Control Ports 4 IR OUT

Panel Control Front panel buttons
RS232 Control 3-pin pluggable terminal block
IR Extended IR receiver
TCP/IP Control Web-based GUI

General

Power Supply Input: 100-240V~, 50/60Hz

Power Consumption 35W (Max)
Temperature 0 ~ +50，
Reference Humidity 10% ~ 90%
Dimension (W*H*D) 360mm x 28mm x 150 mm
Net weight 910g

Female RJ45(with LED indicators)

4Kx2K@60Hz ≤40m

Digital audio

1 SPDIF

3 IR IN
1 IR EYE
1 TCP/IP (female RJ45)
1 RS232 (3-pin pluggable terminal block)

Output: DC 24V 2.71A

Distances and picture quality may be aected by cable grade, cable quality, source and desnaon equipment, RF and electrical interference, and cable patches.

11675 Ridgeline Dr

Colorado Springs, CO 80921

Phone: [phone]

Toll-Free: 800-530-8998

Fax: [phone]

12V DC

DL-44E-KIT Technical Specifications

DL-HD70LS-RX

Slim 70m HDMI with IR Extender Set - Receiver

Link HDCP

Supported Audio and Video DL-HD70LS-RX Technical Specifications

Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p

40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD)

Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)

Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio

IR Carrier Frequency Range 33-55kHz at 5 volts

HDBaseT Signal Characteristics

Maximum Distance 70 m

Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern

Bandwidth 10.2 Gbps

Chassis and Environmental

Dimensions (H x W x D) 18 mm x 120 mm x 74 mm (0.71 in x 4.72 in x 2.91 in)

Operating Temperature (Environment) 0° to +40° C (+32° to +104° F)

Operating Temperature (Chassis) 31° C (88° F) (S); 38° C (100° F) (R)

Operating Humidity (Environment) 20% to 90%, Non-condensing

Power

Maximum Power Consumption 12 watts

Power Supply Input Voltage 100-240V AC at 50-60 Hz

Power Supply Output Voltage 12V DC

Regulatory CE, RoHS

Other

Standard Warranty 2 Years

Included Items Installation Guide, Power Supply, Adapter Plugs (US, EU, AU, UK), Mounting Brackets (4 ea), Mounting

Screws (4 ea)

IR Transmitter (Sold Separately) DIGIB-EMT

IR Receiver (Sold Separately) DIGIB-EYE, IR-AC

Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical
interference, and cable patches.
