Intelix DL-44E-H2-KIT Quick Start Guide

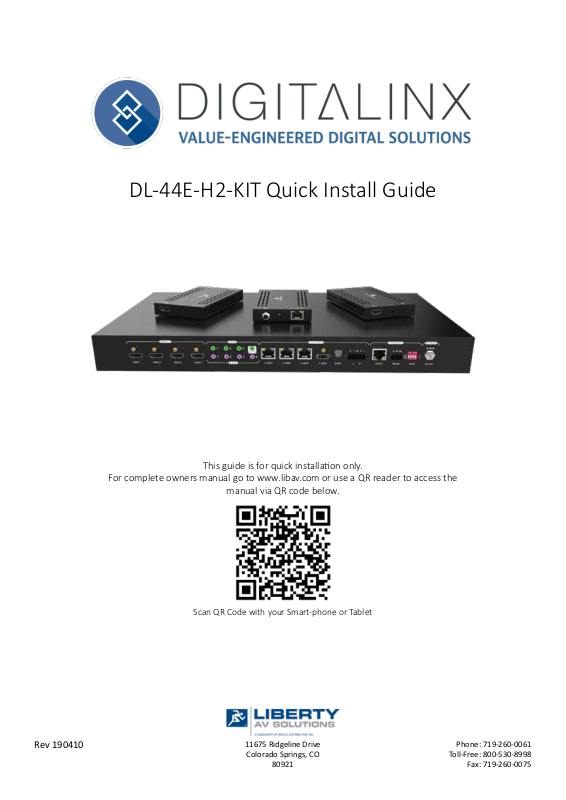

DL-44E-H2-KIT Quick Install Guide
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Rev 190410
Scan QR Code with your Smart-phone or Tablet
11675 Ridgeline Drive
Colorado Springs, CO
80921
Phone: 719-260-0061
Toll-Free: 800-530-8998
Fax: 719-260-0075
DL-44E-H2-KIT Quick Guide
Product Overview
The DL-44E-H2-KIT is an HDMI 2.0 compable 4x4 matrix switcher kit which consists of an HDMI and HDBaseT matrix switcher, 3 compable HDBaseT receivers and accessories. The HDMI and HDBa­seT matrix switcher features 4 HDMI inputs, 3 HDBaseT outputs + 1 HDMI output. Digital and/or analog audio can be de-embedded from the 4th output (HDMI). The matrix switcher supports EDID management, is HDCP 2.2 and HDMI 2.0 compliant. The 3 HDBaseT transmier outputs are compat­ible only with the 3 HDBaseT receivers that are included with the kit. The HDBaseT extender circuits are capable of extending 4K/60Hz 4:4:4 signals up to 40m, 1080p up to 70m all while powering the remote receivers using CAT6 F/UTP rated cable for each extension circuit. The HDBaseT receivers can also extend bi-direconal IR that can be free-routed from the HDBaseT receiver locaons to the local switcher to allow exible control of sources or devices living in the A/V headend.
The DigitaLinx DL-44E-H2-KIT can transport HDMI data rates up to 18Gbps over HDBaseT. The system enables high data rates by ulizing visual lossless compression at a 2:1 data compression rate when the signal surpasses 10Gbps, anything under 10Gbps will never be compressed. Supports stac HDR (HDR10) only when data rate exceeds 18Gbps, supports dynamic HDR (HDR10+ / Dolby Vision) when data rate is 10Gbps or less.
The switcher kit can be controlled either by front panel buons, IR remote, TCP/IP, RS232 or by the internal built in web GUI/server. For a list of available control IP and RS232 control commands for, please see the owners manual for this product located online at www.libav.com.
Package Contents
4x4 HDMI 2.0 and HDBaseT Matrix Switcher
(3) 70m HDBaseT Receivers
• Quick Install Guide
(1) IR Remote
(4) IR Emiers
(4) IR Receivers
(1) 5-pin Phoenix connector
(1) 3-pin Phoenix connector
(1) DB9 to 3 pin Phoenix Adapter Cable for RS232
(1) DC24V 2.71A power supply with US, UK, EU and UA power plugs
(8) Rack mount ears with 8 mounng screws
(4) Plasc Cushions
3
DL-44E-H2-KIT Quick Guide
2
Front Panel View - Switcher
1
1. FIRMWARE - Micro USB port for rmware upgrades
2. POWER LED - Illuminates red when power is applied
3. FRONT PANEL SWITCHING
There are four LEDs that corresponds to every source input and labeled accordingly 1-4. Illuminates blue to indicate which source is selected for each output
Press the output buon repeatedly to through inputs
4. PRESET RECALL - Save / Recall switching presets
Press and hold buons 1-3 to save current switching status
Press the buons 1-3 to recall the saved switching preset
3 4
4
1. INPUTS
DL-44E-H2-KIT Quick Guide
Back Panel View - Switcher
421 5 6
3
• HDMI 1-4 - HDMI inputs 1-4
2. IR IN
• 1-3 - 3.5mm ports for IR receivers for IR pass through control
• IR EYE - 3.5mm ports for IR receiver for switchers IR remote control
3. IR OUT
• 1-4 - 3.5mm ports for IR emiers for IR pass through control
4. OUTPUTS
• 1-3 HDBT - HDBaseT outputs 1-3
• 4 HDMI - HDMI output
• SPDIF - Digital S/PDIF audio output
• L/R - Analog RCA stereo audio output
5. CONTROL
• TCP/IP - RJ45 to control device via network / web GUI
• RS232 - 3 pin phoenix connector for RS232 control
• EDID - 4 pin dip switch for EDID sengs
6. DC24V- Locking power supply port
5
DL-44E-H2-KIT Quick Guide
Front Panel View - HDBaseT Receiver
1
1. HDMI OUT - HDMI output port for connecon to TV display
2. IR IN - 3.5mm IR input port for connecon to IR receiver or IR system
3. IR OUT - 3.5mm IR output port for connecon to IR emier
2
3
Back Panel View - HDBaseT Receiver
1 2 3
1. DC24V- Locking power supply port
2. POWER LED - Illuminates red when power is applied
3. HDBT IN - RJ45 HDBaseT connecon. Connect Cat6 cable to HDBT output transmier of the
DL-44E-H2-KIT
• LINK LED - Illuminates orange when there is a valid HDBaseT link between switcher and receiver
• HDCP LED - Illuminates green when video content is encrypted
6
DL-44E-H2-KIT Quick Guide
Connecvity Instrucons
1. Verify all components included with the DL-44E-H2-KIT set are present before installaon.
2. If the DL-44E-H2-KIT is going to be permanently mounted in a rackmount case, aach the included mounng brackets with the supplied screws.
3. Turn o power and disconnect the audio/video equipment by following the manufacturer’s instrucons.
4. Connect Category 6 or greater twisted pair cable with RJ45 connectors between the DL-44E-H2­KIT HDBaseT output / transmiers to the supplied receivers. TIA/EIA-568B straight-through wiring connecons must be used.
5. Connect an HDMI cable that is less to or equal to 5 meters in length between the display and the HDMI output of the DL-44E-H2-KIT HDBaseT receiver.
6. Connect an HDMI cable that is less to or equal to 5 meters in length between the display and the HDMI output of the DL-44E-H2-KIT. For display devices that are further away, an HDMI extension device will be required to complete the connecon.
7. Connect a source device to the HDMI inputs using a HDMI cable that is less than or equal to 5 meters in length. For source devices that are further away, an HDMI extension device will be required to complete the connecon.
8. Connect RS232 control to a 3rd party control system to control switcher funcons (oponal)
9. Connect TCP/IP control to a 3rd party control system to control switcher funcons (oponal)
NOTE: A list of control commands for this unit is available in the owners manual online at www.libav.com under the DOCUMENTATION tab of the DL-44E-H2-KIT product page
10. Connect IR receiver to IR EYE port to control switcher via supplied IR remote (oponal)
11. Connect IR emiers to IR out ports of the HDBaseT receiver or local switcher (oponal)
12. Connect the analog or digital audio output to a local audio amplier (oponal)
13. Connect the included power supply to the DL-44E-H2-KIT and lock the power supply to the power connector by twisng the locking collar clockwise.
14. Power on aached audio/video devices.
7
DL-44E-H2-KIT Quick Guide
Cabling Wiring Requirements
HDBaseT Cabling
To ensure proper performance of the DL-44E-H2-KIT HDBaseT circuits, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
When using shielded category cabling ALWAYS...
....use shielded connectors
....properly ground the category cable
For opmized HDBaseT performance use the following Liberty Wire and Cable branded cabling;
Category 6 plenum; 24-4P-P-L6SH Category 6A plenum; 24-4P-P-L6ASH
Category 6 NON-plenum; 24-4P-L6SH Category 6A NON -plenum; 24-4P-L6ASH
Twisted Pair Wiring
Use TIA/EIA-568B wiring for Category 6 connecon between send and receive units.
RS232 Wiring
Some controllers may not have a DB9 port available for RS232 communicaon, but may have removable terminal block connecons. Consult the manual of the control device(s) to determine which pins the TX/RX signals are carried on. Be sure to always connect TX to RX and RX to TX.
TX G RX
RS232 PORT
Connected RS232 Device Pins
RX G TX
Passing IR Signals:
The DL-44E-H2-KIT is capable of passing IR signals between 33 and 55 KHz. To prevent damage to any of the electronics, the extenders should be powered o while inserng or removing any IR components. Inserng an IR transmier into the IR IN port may damage the IR circuit for that extender.
8
DL-44E-H2-KIT Quick Guide
Technical Specicaons - Switcher
Video
Video Inputs (4) HDMI Video Input Connectors (4) HDMI Type A Female Input video Signal HDMI 2.0 compliant HDMI Input Resoluon Support Up to 4K@60Hz 4:4:4 / 8 bit deep color Video Output () HDBaseT, (1) HDMI Video Output Connector (2) Type-A Female HDMI, (1) RJ45 Output Resoluon Support Up to 3840 x 2160 @60Hz / 4:4:4 / 8 bit deep color
Standards HDMI 2.0, HDCP 2.2 Bandwidth All HDMI inputs / outputs: 18Gbps
HDBaseT Output: 18Gbps
Audio Output
Audio Output (1) Balanced audio (L+R)
(1) Digital SPDIF audio (L+R) Audio Output Connector (1) 5-pin terminal block (1) Toslink connector Frequency Response 20Hz – 20KHz, ±3dB Max Input Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line
level signal Output Impedance 70Ω
Control
Control Ports (1) RS232, (1) IR Eye, (3) IR IN, (4) IR OUT, (1) TCP/IP, (1) Firmware Control Connectors (1) 3-pin terminal block - RS232, (8) 3.5mm jacks - IR, (1) RJ45 - TCP/IP, (1) Micro USB -
Firmware
IR Carrier Frequency Range 33-55kHz at 5 volts
HDBaseT Signal Characteriscs
Maximum Distance HDBaseT Output (Transmier): 70 m (up to 1080p) , 40 m (up to 4K@60Hz / 4:4:4 / 8
bit deep color) Cable Requirements Solid core shielded Category 6 F/UTP cable or greater with TIA/EIA-568B crimp paern Bandwidth HDBaseT Output (Transmier): 18Gbps
Chassis and Environmental
Dimensions (WxHxD) 436 mm x 44 mm x 236.5 mm (17 in x 1.7 in x 9.3 in) – 1RU Shipping Weight 1.9kg (2.2 lbs.) Operang Temperature 0° to +55° C (+32° to +131° F) Operang Humidity 10% to 90%, Non-condensing Storage Temperature -20° to +70° C (+14° to +158° F) Storage Humidity 10% to 90%, Non-condensing
Power, ESD, and Regulatory
Power Supply Input 100V-240VAC / 50-60 Hz Power Supply Output 24VDC / 2.71A Power Consumpon 58 was (max) ESD Protecon 15kV Product Regulatory FCC, CE, RoHS Power Supply Regulatory CE, RoHS
Other
Standard Warranty 5 years Included Accessories Quick Install Guide, (1) 3-pin Phoenix connectors, (1) 5-pin Phoenix connectors, IR
Remote, (4) IR Emiers, (4) IR Receivers, (1) DB9 to 3 pin Phoenix adapter cable for
RS232, (1) DC24V power supply with US, UK, EU and AU power plug, (8) Rack mount ears
with 8 mounng screws, (4) Plasc Cushions Compable Transmiers INT-HD70-TXWP, INT-HD70-TX, AS-1H1V, AS-1H1V-WP-W., AS-2H, AS-2H-WP-W, INT-
HD52
Distances and picture quality may be aected by cable grade, cable quality, source and desnaon equipment, RF and electrical interference, and cable
patches.
9
DL-44E-H2-KIT Quick Guide
Technical Specicaons - HDBaseT Receiver
Supported Audio and Video
Video Input (1) HDBaseT
Video Input Connector (1) RJ45
Video Output (1) HDMI
Video Output Connector (1) HDMI Type A Female
Video Compliance HDMI 2.0, HDCP 2.2
Output Resoluon Support Up to 4K@60Hz (4:4:4 chroma sub-sampling / 8 bit deep color)
Embedded Audio Supports up to 8Ch LPCM, Dolby TrueHD, DTS-HD, Dolby Digital5.1, DTS 5.1, Dolby
Digital Plus
HDBaseT Signal Characteriscs
Maximum Distance 70 m (up to 1080p) , 40 m (up to 4K@60Hz / 4:4:4 / 8 bit deep color) Cable Requirements Solid core shielded Category 6 F/UTP cable or greater with TIA/EIA-568B crimp paern Bandwidth 18Gbps
Control
Control Ports (1) IR IN, (1) IR OUT Control Connectors (2) 3.5mm jacks IR Carrier Frequency Range 33-55kHz at 5 volts
Chassis and Environmental
Dimensions (WxHxD) 74 mm x 18 mm x 120 mm (2.9 in x .7 in x 4.7 in) Shipping Weight 235g (.5 lbs.) Operang Temperature 0° to +40° C (+32° to +104° F) Operang Humidity 10% to 90%, Non-condensing Storage Temperature -10° to +50° C (+14° to +122° F) Storage Humidity 10% to 90%, Non-condensing
Power, ESD, and Regulatory
Power Supply Input Power 24V DC 1.25A or PoC (Power Over Cable), 100-240VAC, 50/60Hz Power Consumpon 9.5 was (max) ESD Protecon 15kV Product Regulatory FCC, CE, RoHS Power Supply Regulatory CE, RoHS
Other
Standard Warranty 5 years
Distances and picture quality may be aected by cable grade, cable quality, source and desnaon equipment, RF and electrical interference, and cable
patches.
10
Thank you for your purchase.
For Technical Support please call our toll free number at
800-530-8998 or email us at supportlibav@libav.com
www.libav.com
Digitalinx is a brand of:
11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998
