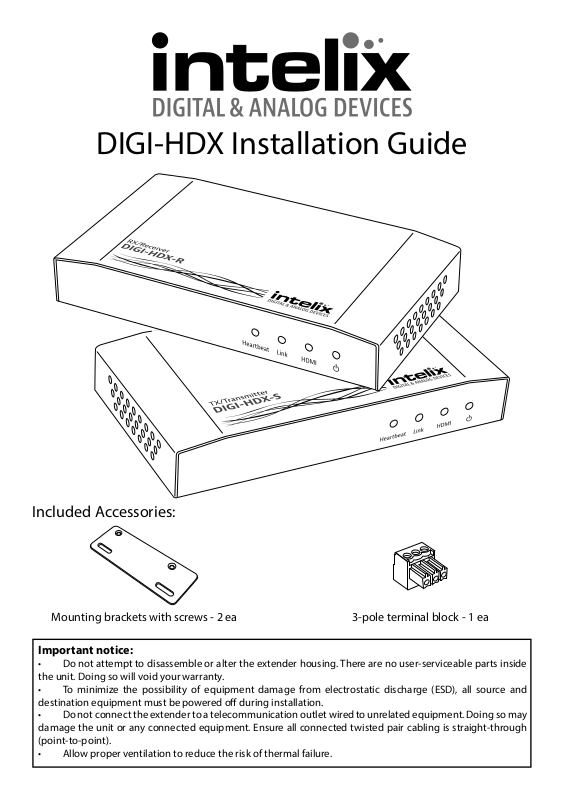

DIGI-HDX Installation Guide
Included Accessories:
Mounting brackets with screws - 2 ea 3-pole terminal block - 1 ea
Important notice:
• Do not attempt to disassemble or alter the extender housing. There are no user-serviceable parts inside
the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and
destination equipment must be powered o during installation.
• Do not connect the extender to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through
(point-to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
The Intelix DIGI-HDX extends HDMI over a single cable by incorporating HDBaseT technology.
The DIGI-HDX supports 1080p, full 3D or 4k x 2k video signals up to 90 meters (295 feet) including
multichannel audio. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust
installations. Key features of the new extender series include local HDMI output on the transmitter,
power over Ethernet (PoE), bidirectional IR, bidirectional RS232, and Ethernet pass-through with a
2-port network switch on the receiver.
The HDMI distribution chip in the DIGI-HDX-S sends one signal to the HDBaseT output and the other
signal to the local HDMI output for a local display. This new feature also allows HDMI source devices
that do not support DDC clock stretching (HDMI 1.2 and below) to be extended over the HDBaseT
link without issues. Flexible power design allows the DIGI-HDX series extenders to be powered at
either the TX or RX end, and only one power supply is required. The power supply (PS-24D-25) is
sold separately. The bidirectional wideband IR, bidirectional RS232, and Ethernet pass-through
capabilities make the DIGI-HDX compatible with most control systems. The two-port network switch
on the DIGI-HDX-R allows a second device to share the 100BaseT Ethernet pass-through connection
without adding additional hardware to the installation.
The DIGI-HDX series extenders are compatible with all Intelix HDBaseT product oerings and any
product that meets the HDBaseT specications.
Example Diagram
Internet
DIGI-HDX-R
HD Source
***
Up to 90m (295 ft) of shielded
Cat 5e or greater cable.
**
*
DIGI-HDX-S
1 8
TIA/EIA-568B
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Orange/White
Orange
Green/White
Blue
Blue/White
Green
Brown/White
Brown
Twisted Pair Wiring
Use TIA/EIA-568B wiring for cable
connections between send and
receive units and when using the
Ethernet connections.
* Power supply (PS-24D-25) can be connected on
either end and is sold separately.
** IR receiver (DIGIB-EYE) is to be connected into the
IR In port and is sold separately. Supports IR carrier
frequencies between 33 and 55 KHz.
*** IR Transmitter (DIGIB-EMT) is to be connected to
the IR Out port and is sold separately. Ax to the IR
window of the device to be controlled. Supports IR
carrier frequencies between 33 and 55 KHz.
Instructions
The following instructions describe the installation process for a point-to-point installation. The procedure
is similar for compatible HDBaseT components. In the event a compatible HDBaseT product cannot
provide power over the HDBaseT cable connection, the DIGI-HDX product will require a local power supply.
1. Verify all components included with the extender set are present before installation.
2. If the extenders are going to be permanently mounted to a surface, attach the included
mounting brackets with the supplied screws.
3. Turn o power and disconnect the audio/video equipment by following the manufacturer’s
instructions.
4. Connect shielded Category 5e or greater twisted pair cable with RJ45 connectors between
the transmitter (DIGI-HDX-S) and the receiver (DIGI-HDX-R). TIA/EIA-568B straight-through wiring
connections must be used with all HDBaseT extenders.
5. Connect an HDMI cable and any desired control accessories between the display and the
receiver (DIGI-HDX-R).
6. Connect an HDMI cable and any desired control accessories between the source and the
transmitter (DIGI-HDX-S).
7. Connect the power supply (PS-24D-25, sold separately) to the transmitter or receiver and lock
the power supply to the power connector by twisting the locking collar clockwise.
8. Power on attached audio/video devices.
RS232 Wiring
Connect the controller or device RXD signal
to Tx on the DIGI-HDXextender. Connect the
controller or device TXD signal to Rx on the
DIGI-HDX-S or
DIGI-HDX-R
Tx
Controller or
Device
RXD
GND
DIGI-HDX extender.
Rx
TXD
Diagnostic LEDs:
The DIGI-HDX provides four LEDs to indicate the current operating status and to assist troubleshooting an
installation.
Power: Solid, the DIGI-HDX extender is receiving power from the power supply or from the remote extender via
shielded Category 5e or greater cabling.
Heartbeat: Flashes once per second, the HDBaseT processor is running.
Link: Solid, the two DIGI-HDX extenders are communicating via shielded Category 5e or greater cabling.
HDMI: Solid, HDCP signal is present in the HDMI stream. Flashes quickly, no HDCP signal is present in the HDMI
stream.
Technical Specications
Supported Audio, Video, and Control
Maximum Video Compatibility Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k
Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
IR Carrier Frequency Range 33-55kHz at 5 volts
Ethernet 100BaseT
RS232 Baud Rate Up to 115200 baud
HDBaseT Signal Characteristics
Maximum Distance 90 m
Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth 10.2 Gbps
Chassis and Environmental
Dimensions 85 mm x 151 mm x 24 mm (3.35 in. x 5.94 in x 0.95 in)
Operating Temperature (Environment) 0° to +40° C (+32° to +104° F)
Operating Temperature (Chassis) 31° C (88° F) (S); 38° C (100° F) (R)
Operating Humidity (Environment) 20% to 90%, Non-condensing
Power, ESD and Regulatory
Maximum Power Consumption 22 watts
ESD Protection 15 kV
Regulatory CE, RoHS
Other
Standard Warranty 2 Years
Included Items Installation Guide, Mounting Brackets (2 ea), Mounting Screws (4 ea)
DIGI-HDX-S Compatible Receivers
AV and Control FLX-BI4
AV and PoE DIGI-HD60-R
AV, PoE, and Control DIGI-HDX-R, DIGI-HD60C-R
DIGI-HDX-R Compatible Transmitters
AV and Control DIGI-P123, FLX-BO4A, DIGI-44B, DIGI-88B
AV and PoE DIGI-HD60-S
AV, PoE, and Control DIGI-HDX-S, DIGI-HD60C-S, DIGI-P52, FLX-44, ASW-WP
Accessories
Power Supply PS-24D-25
IR Emitter DIGIB-EMT
IR Receiver DIGIB-EYE
Complete Technical Specications can be found on Intelix.com.
