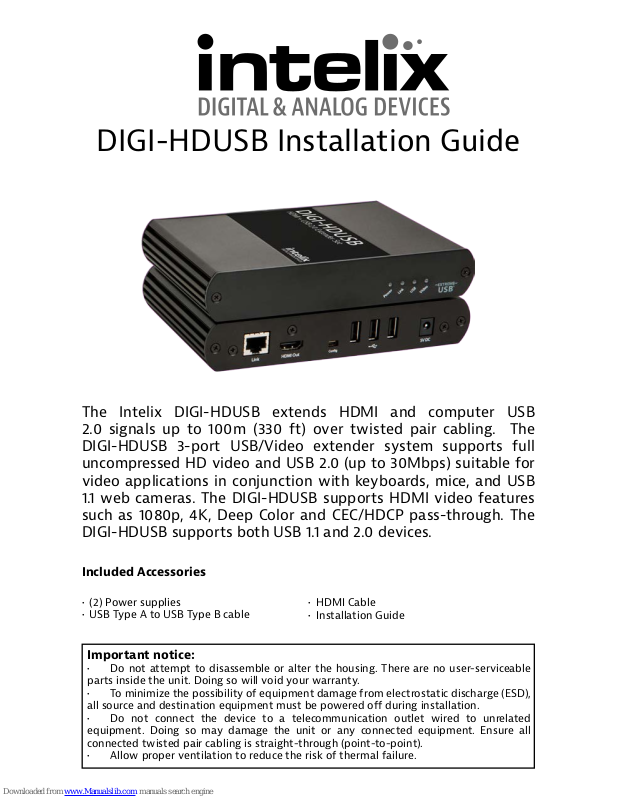

DIGI-HDUSB Installation Guide
Important notice:
• Do not attempt to disassemble or alter the housing. There are no user-serviceable
parts inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD),
all source and destination equipment must be powered off during installation.
• Do not connect the device to a telecommunication outlet wired to unrelated
equipment. Doing so may damage the unit or any connected equipment. Ensure all
connected twisted pair cabling is straight-through (point-to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
The Intelix DIGI-HDUSB extends HDMI and computer USB
2.0 signals up to 100m (330 ft) over twisted pair cabling. The
DIGI-HDUSB 3-port USB/Video extender system supports full
uncompressed HD video and USB 2.0 (up to 30Mbps) suitable for
video applications in conjunction with keyboards, mice, and USB
1.1 web cameras. The DIGI-HDUSB supports HDMI video features
such as 1080p, 4K, Deep Color and CEC/HDCP pass-through. The
DIGI-HDUSB supports both USB 1.1 and 2.0 devices.
Included Accessories
• (2) Power supplies
• USB Type A to USB Type B cable
• HDMI Cable
• Installation Guide
Host Side Connections
Client Side Connections
1. Status LEDs
• Power: Solid green when power is applied.
• Link: Solid green when link is present between extenders.
• USB: Solid green when connected to host PC; flashes green when in a
suspended state.
• Video: Solid green when HDCP content is being transmitted; flashing
green when non-HDCP content is being transmitted.
2. 5V DC Power Input
3. USB Type B Port to PC
4. Link Port to Extender
5. HDMI in from source
6. Config for firmware update. A separate document will provide usage
instructions once a new firmware update is available.
Power
Link
USB
Video
HDMI InConfig 5V DCLink
30 mm
(1.18 in)
30 mm
(1.18 in)
100 mm
(3.94 in)
HDMI Out Config 5V DCLink
30 mm
(1.18 in)
30 mm
(1.18 in)
100 mm
(3.94 in)
Power
Link
USB
Video
1. Status LEDs
• Power: Solid green when power is applied.
• Link: Solid green when link is present between extenders.
• USB: Solid green when connection is established between local extender
and host PC; flashes green when in a suspended state.
• Video: Solid green when HDCP content is being transmitted; flashing
green when non-HDCP content is being transmitted.
2. Link Port to Extender
3. HDMI out to remote monitor
4. (3) USB Type A Port to USB device(s)
5. 5V DC Power Input
6. Config for firmware update. A separate document will provide usage
instructions once a new firmware update is available.
Instructions
1. Verify all components included with the extender set are present
before installation.
2. Connect USB cable between the computer and the Host device.
3. Connect HDMI cable into the extender and supported HDMI device.
4. Connect the remote device(s) to the client extender.
5. Connect Category 5e or greater twisted pair cable with RJ45
connectors between the Host and Client extenders. TIA/EIA-568B
straight-through wiring connections must be used with all extenders.
6. Connect the included power supplies to the Host and Client extenders.
TIA/EIA-568B
Orange/White
Orange
Green/White
Blue
Blue/White
Green
Brown/White
Brown
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
1 8
Twisted Pair Wiring
Use TIA/EIA-568B wiring for Category
6 connections between transmit and
receive units.
Troubleshooting Tips
Symptom Possible Solutions
• Link LEDs on Local Extender
• Remote extenders are off
• Verify that both ends of the twisted pair cables use
T568B crimp pattern.
• Test with a short twisted pair patch cord between local
and remote extenders.
• Verify the power supplies are connected to both local
and remote extender.
• Link LED on Local extender is
on
• USB LED on local extender is
off
• Verify USB cables at local and remote USB ports are
operational.
• Verify USB device works directly attached to PC.
• Verify the USB device driver is installed and working.
• All LEDs on both extenders are
on
• USB device is not operating
correctly
• Verify the USB device is operational.
• Verify the operating system has all the latest updates
installed.
• Test a second USB device with the extenders.
• Video LED is off • Verify HDMI cables are less than or equal to 5 meters in
length.
• Test with a short twisted pair patch cord between local
and remote extenders.
• Test with a second HDMI source.
rev 150602
8001 Terrace Ave, Ste 201
Middleton, WI 53562
608-831-0880
supportlibav@libav.com
Technical Specifications
Host Input/Output Connections
USB Input One (1) USB Type B Receptacle
Video Input One (1) HDMI In
Link Output One (1) 8P8C Connector (RJ45 style)
5V DC Power One (1) Barrel (5.5 mm OD; 1.7 mm ID)
Client Input/Output Connections
USB Outputs
Three (1) USB Type A Receptacles
Video Output One (1) HDMI Out
Link Input One (1) 8P8C Connector (RJ45 style)
5V DC Power One (1) Barrel (5.5 mm OD; 1.7mm ID)
USB Performance
Maximum Distance
100 m (328 ft) over solid core Category 5e or greater cable
USB Device Support High-speed devices (USB 2.0) - up to 30 Mbps
Full-speed devices (USB 2.0 & 1.1) - up to 12 Mbps
Low-speed devices (USB 2.0 & 1.1) - up to 1.5 Mbps
USB Hub Support Any single chain can include up to 4 USB hubs.
USB Host Support EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Video Performance
Video Resolution & Depth High Definition 1080p, 1920 x 1200, and 4K; Depth: 2D and 3D
Color 36-bit, Deep Color, and x.v. Color
Latency Less than 1ms
Chassis and Environmental
Enclosure Material Black Anodized Aluminum
Enclosure Dimensions (H x W x D) 112 mm x 175 mm x 30 mm (4.4 in x 6.9 in x 1.18 in)
Shipping Weight 1.95kg (4.30 lbs)
Operating Temperature 0°C to +40°C (+32° to +104° F)
Operating Humidity 20% to 80%, Non-condensing
Storage Temperature -20° to +70° C (-4° to +158° F)
Storage Humidity 10% to 90%, Non-condensing
Power and Regulatory
Power Supply Input 100V-240VAC / 50-60 Hz / 0.6A
Power Supply Output 5VDC / 3.0A
Power Consumption 15 watts (max)
Power Available to USB device at REX 500mA each port
ESD Protection ±15 kV
Product Regulatory FCC, CE, IC, RoHS
Power Supply Regulatory UL, CUL, CE, PSE, GS, RoHS2
Other
Warranty 2 years
Diagnostic Indicators (Host Side) Power, Link, USB, Video
Diagnostic Indicators (Client Side) Power, Link, USB, Video
Included Accessories (2) Power Supplies, USB Cable, HDMI cable, Installation Guide
Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical
interference, and cable patches.
