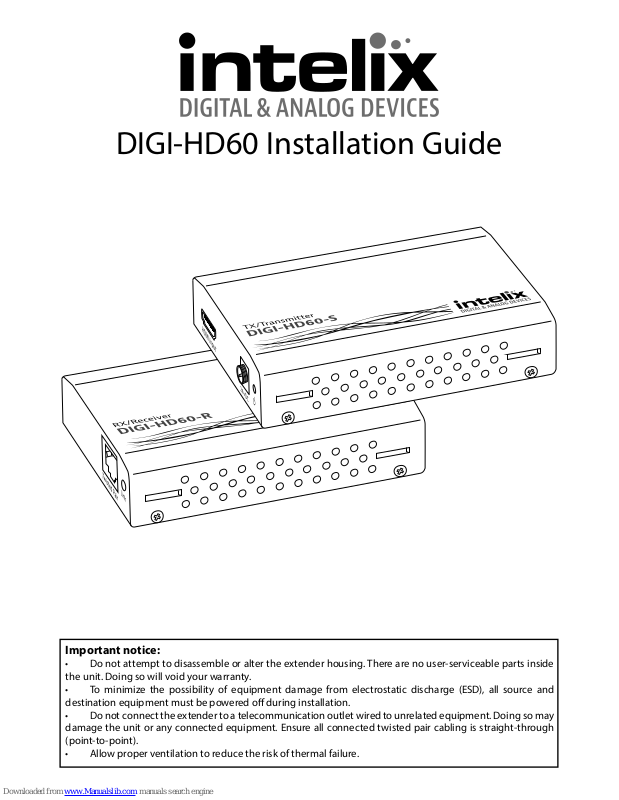

DIGI-HD60 Installation Guide
Important notice:
• Do not attempt to disassemble or alter the extender housing. There are no user-serviceable parts inside
the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and
destination equipment must be powered o during installation.
• Do not connect the extender to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through
(point-to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
Page 2
HD Source
*
Up to 60m (196 ft) of shielded
Cat 5e or greater cable.
* Power supply (PS-24D-25) can be connected on either end and is sold separately.
The Intelix DIGI-HD60 extends HDMI over a single cable by incorporating HDBaseT technology. The
DIGI-HD60 supports a 1080p video signal including multichannel audio up to 60m, as well as 3D
and 4K x 2K signals up to 35m. Built-in surge protection and diagnostic LEDs ensure hassle-free and
robust installations. Flexible power design allows the units to be powered at either the TX or RX end,
and only one power supply is required. The power supply (PS-24D-25) is sold separately.
The DIGI-HD60 series extenders are compatible with all Intelix HDBaseT product oerings and any
product that meets the HDBaseT specications.

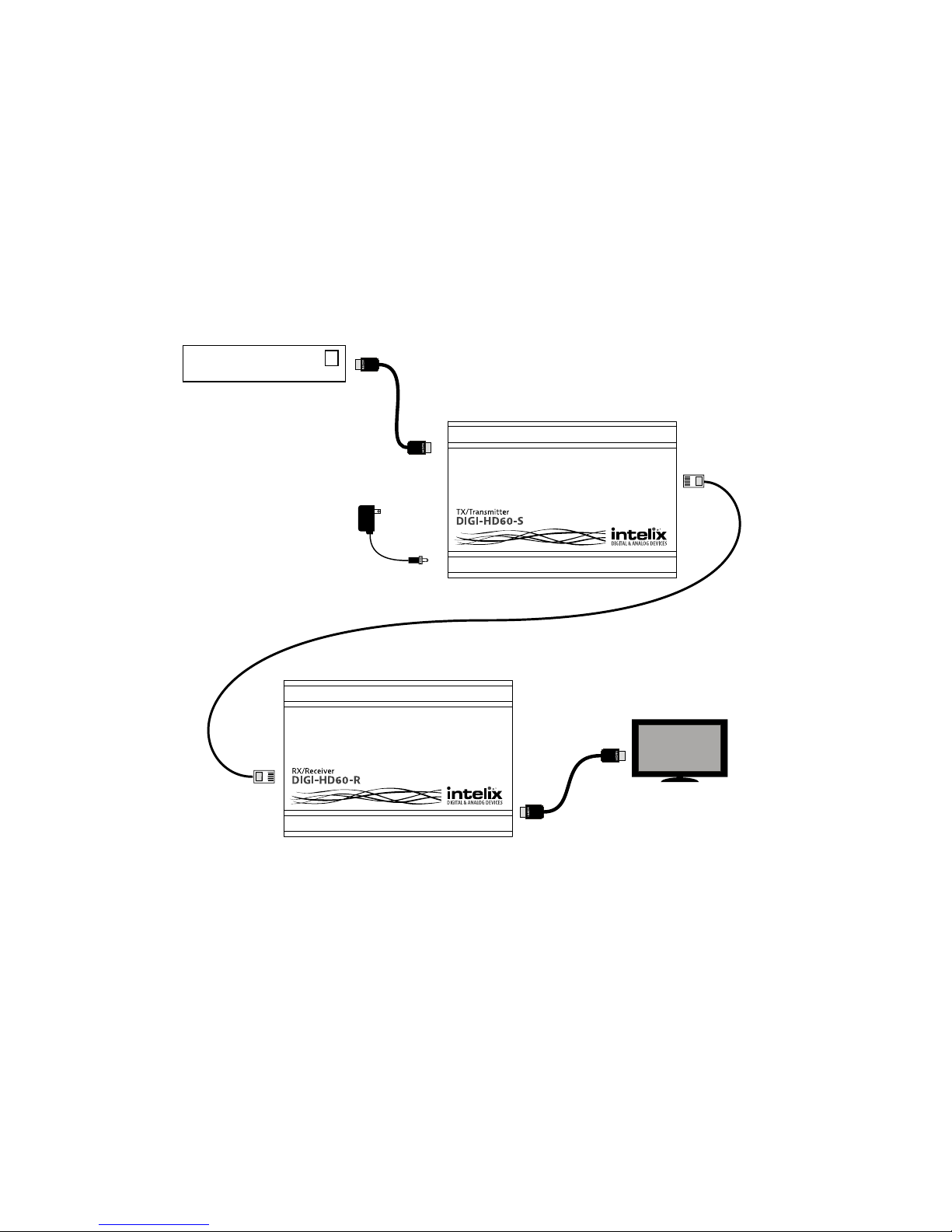

Example Diagram
Diagnostic LEDs:
The DIGI-HD60 provides two LEDs to indicate the current operating status and to assist
troubleshooting an installation.
Power: Solid, the DIGI-HD60 extender is receiving power from the power supply or from the remote
extender via shielded Category 5e or greater cabling.
Link: Solid, the two DIGI-HD60 extenders are communicating via shielded Category 5e or greater
cabling.
Page 3
Instructions
The following instructions describe the installation process for a point-to-point installation. The
procedure is similar for compatible HDBaseT components. In the event a compatible HDBaseT product
cannot provide power over the HDBaseT cable connection, the DIGI-HD60 product will require a local
power supply.
1. If the extenders are going to be permanently mounted to a surface, Intelix encourages utilizing
the DIGI-PMK1 mounting bracket.
2. Turn o power and disconnect the audio/video equipment by following the manufacturer’s
instructions.
3. Connect shielded Category 5e or greater twisted pair cable with RJ45 connectors between the
transmitter (DIGI-HD60-S) and the receiver (DIGI-HD60-R). TIA/EIA-568B straight-through wiring
connections must be used with all HDBaseT extenders.
4. Connect an HDMI cable between the display and the receiver (DIGI-HD60-R).
5. Connect an HDMI cable between the source and the transmitter (DIGI-HD60-S).
6. Connect the power supply (PS-24D-25, sold separately) to the transmitter or receiver and lock
the power supply to the power connector by twisting the locking collar clockwise.
7. Power on attached audio/video devices.

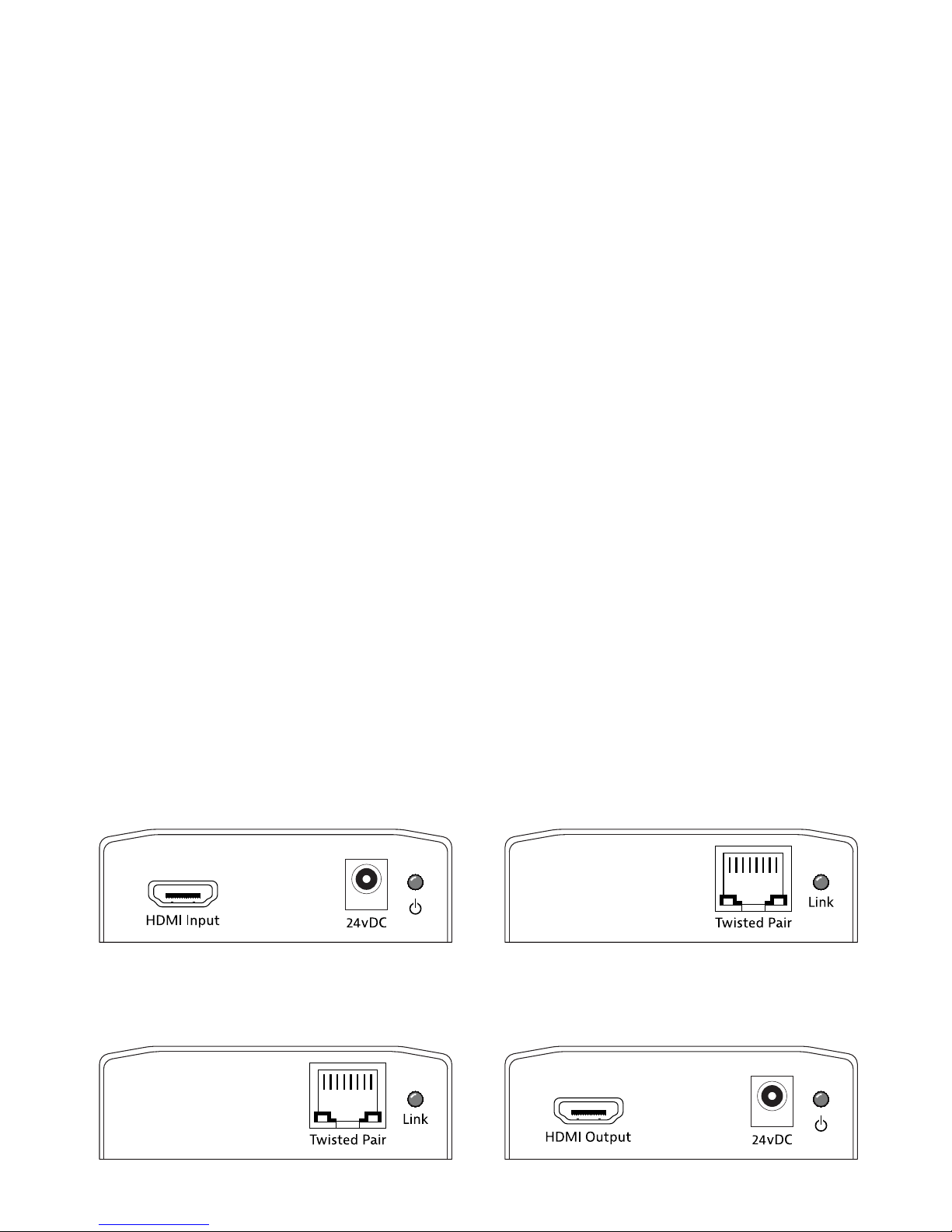

HDBaseT Input
HDBaseT Output
HDMI Output and Power
DIGI-HD60-R Connections
HDMI Input and Power
DIGI-HD60-S Connections
Page 4
rev 141013
Technical Specications
Supported Audio, Video, and Control
Maximum Video Compatibility at 60 m Deep Color 36/30/24 Bit at 1080p
Maximum Video Compatibility at 35 m Deep Color 48 Bit at 1080p, 3D, and 4k x 2k
Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
HDBaseT Signal Characteristics
Maximum Distance 60 m
Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth 10.2 Gbps
Chassis and Environmental
Dimensions 110mm x 76mm x 24mm (4.33 in x 2.99 in x 0.95 in)
Operating Temperature (Environment) 0° to +40° C (+32° to +104° F)
Operating Temperature (Chassis) 31° C (88° F) (S); 38° C (100° F) (R)
Operating Humidity (Environment) 20% to 90%, Non-condensing
Power, ESD and Regulatory
Maximum Power Consumption 22 watts
ESD Protection 15 kV
Regulatory CE, RoHS
Other
Standard Warranty 2 Years
Included Items Installation Guide, Mounting Brackets (2 ea), Mounting Screws (4 ea)
DIGI-HD60-S Compatible Receivers
AV Only FLX-BI4,
AV and PoE DIGI-HD60-R, DIGI-HDX-R
DIGI-HD60-R Compatible Transmitters
AV Only
FLX-BO4A, DIGI-44B, DIGI-88B, DIGI-P123
AV and PoE
DIGI-HD60-S, DIGI-HDX-S, ASW-WP, FLX-44, DIGI-P52
Accessories
Power Supply PS-24D-25
Mounting Kit DIGI-PMK1
Complete Technical Specications can be found on Intelix.com.
8001 Terrace Ave, Ste 201
Middleton, WI 53562
608-831-0880
