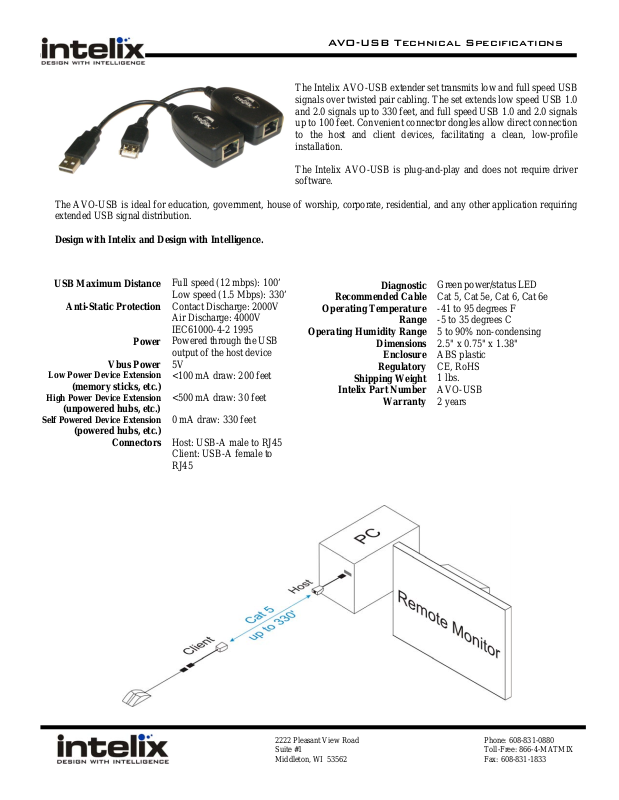

AVO-USB Technical Specifications
The Intelix AVO-USB extender set transmits low and full speed USB
signals over twisted pair cabling. The set extends low speed USB 1.0
and 2.0 signals up to 330 feet, and full speed USB 1.0 and 2.0 signals
up to 100 feet. Convenient connector dongles allow direct connection
to the host and client devices, facilitating a clean, low-profile
installation.
The Intelix AVO-USB is plug-and-play and does not require driver
software.
The AVO-USB is ideal for education, government, house of worship, corporate, residential, and any other application requiring
extended USB signal distribution.
Design with Intelix and Design with Intelligence.
USB Maximum Distance
Anti-Static Protection
Low Power Device Extension
(memory sticks, etc.)
High Power Device Extension
(unpowered hubs, etc.)
Self Powered Device Extension
(powered hubs, etc.)
Power
Vbus Power
Connectors
Full speed (12 mbps): 100’
Low speed (1.5 Mbps): 330’
Contact Discharge: 2000V
Air Discharge: 4000V
IEC61000-4-2 1995
Powered through the USB
output of the host device
5V
<100 mA draw: 200 feet
<500 mA draw: 30 feet
0 mA draw: 330 feet
Host: USB-A male to RJ45
Client: USB-A female to
RJ45
Diagnostic
Recommended Cable
Operating Temperature
Range
Operating Humidity Range
Dimensions
Enclosure
Regulatory
Shipping Weight
Intelix Part Number
Warranty
Green power/status LED
Cat 5, Cat 5e, Cat 6, Cat 6e
-41 to 95 degrees F
-5 to 35 degrees C
5 to 90% non-condensing
2.5" x 0.75" x 1.38"
ABS plastic
CE, RoHS
1 lbs.
AVO-USB
2 years
