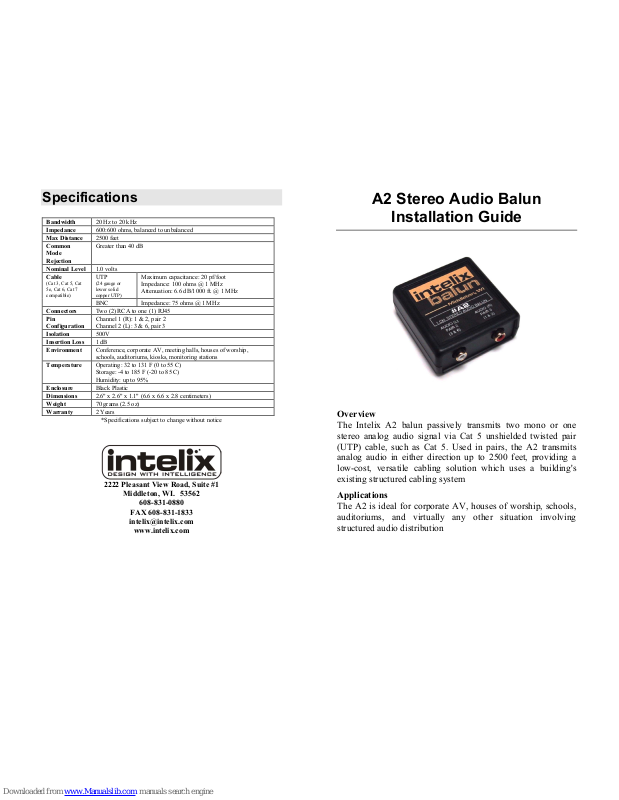

Intelix A2 Installation Manual

Specifications

Bandwidth

20 Hz to 20 kHz

Impedance

600:600 ohms, balanced to unbalanced

Max Distance

2500 feet

Common
Mode
Rejection

Greater than 40 dB

Nominal Level

1.0 volts
UTP

(24 gauge or
lower solid
copper UTP)

Maximum capacitance: 20 pf/foot
Impedance: 100 ohms @ 1 MHz
Attenuation: 6.6 dB/1000 ft. @ 1 MHz

Cable

(Cat 3, Cat 5, Cat
5e, Cat 6, Cat 7
compatible)

BNC Impedance: 75 ohms @ 1 MHz

Connectors

Two (2) RCA to one (1) RJ45

Pin
Configuration

Channel 1 (R): 1 & 2, pair 2
Channel 2 (L): 3 & 6, pair 3

Isolation

500V

Insertion Loss

1 dB

Environment

Conference, corporate AV, meeting halls, houses of worship,
schools, auditoriums, kiosks, monitoring stations

Temperature

Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%

Enclosure

Black Plastic

Dimensions

2.6" x 2.6" x 1.1" (6.6 x 6.6 x 2.8 centimeters)

Weight

70 grams (2.5 oz)

Warranty

2 Years

*Specifications subject to change without notice

2222 Pleasant View Road, Suite #1

Middleton, WI. 53562

608-831-0880

FAX [phone]

[e-mail]

www.intelix.com

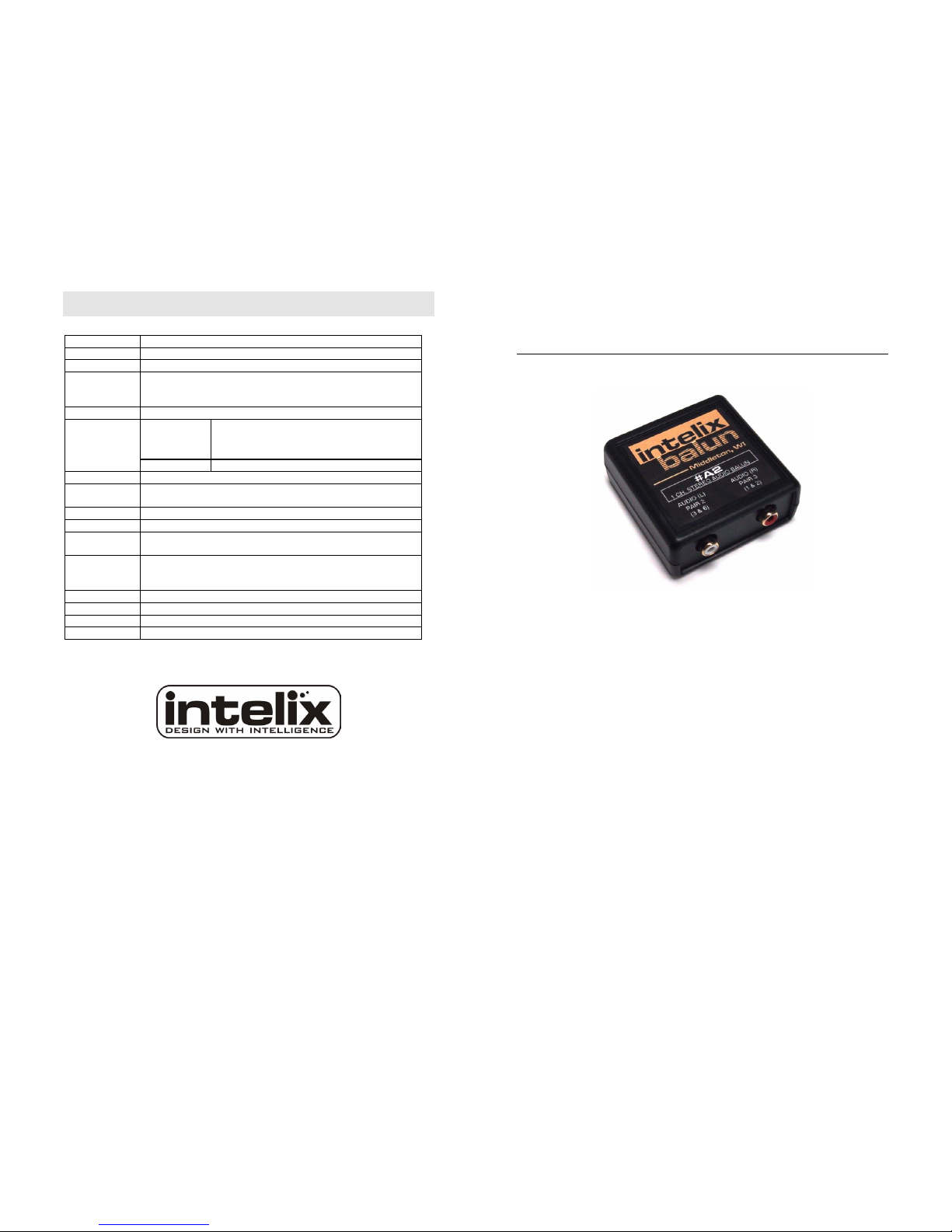

A2 Stereo Audio Balun

Installation Guide

Overview
The Intelix A2 balun passively transmits two mono or one
stereo analog audio signal via Cat 5 unshielded twisted pair
(UTP) cable, such as Cat 5. Used in pairs, the A2 transmits
analog audio in either direction up to 2500 feet, providing a
low-cost, versatile cabling solution which uses a building's
existing structured cabling system

Applications

The A2 is ideal for corporate AV, houses of worship, schools,
auditoriums, and virtually any other situation involving
structured audio distribution

Installation

Caution: Do not attempt to open the balun housing. There are no user-

serviceable parts inside the A2. Opening the unit will void your
warranty.

To install an A2 balun, perform the following steps:

1. Turn off power and disconnect the audio equipment by following the
manufacturer’s instructions.

2. Make certain that outlets and cross connects to which you will connect the A2
are configured properly and labeled appropriately to identify the circuit.

Caution: Do not connect the A2 to a telecommunication outlet wired to

unrelated equipment. Making such a connection may damage the
equipment and/or balun. Please ensure all wiring is “straight­through.”

3. Verify the desired twisted pairs are not being used for other LAN or telephony
equipment.

4. Connect the RCA inputs from the source equipment to one of the two baluns.
Two A2's are needed--one at each end of the run--and are interchangeable.

Caution: Do not mount the balun over equipment ventilation openings.

Covering the openings may cause the equipment to overheat.

5. Connect a 4-pair Cat 5 cable from the RJ45 8-position modular jack of the A2
to the twisted pair cabling of the building.

6. Connect the second balun's RCA inputs to the destination equipment.

7. Connect a 4-pair Cat 5 cable from the RJ45 8-position modular jack of the A2
to the appropriate modular wall outlet.

8. Power on the source and destination equipment and test for correct operation.

Troubleshooting

If your equipment malfunctions with A2 baluns in place, follow the troubleshooting
procedures below:

1. Perform diagnostics on your audio equipment by following the manufacturer’s
instructions.

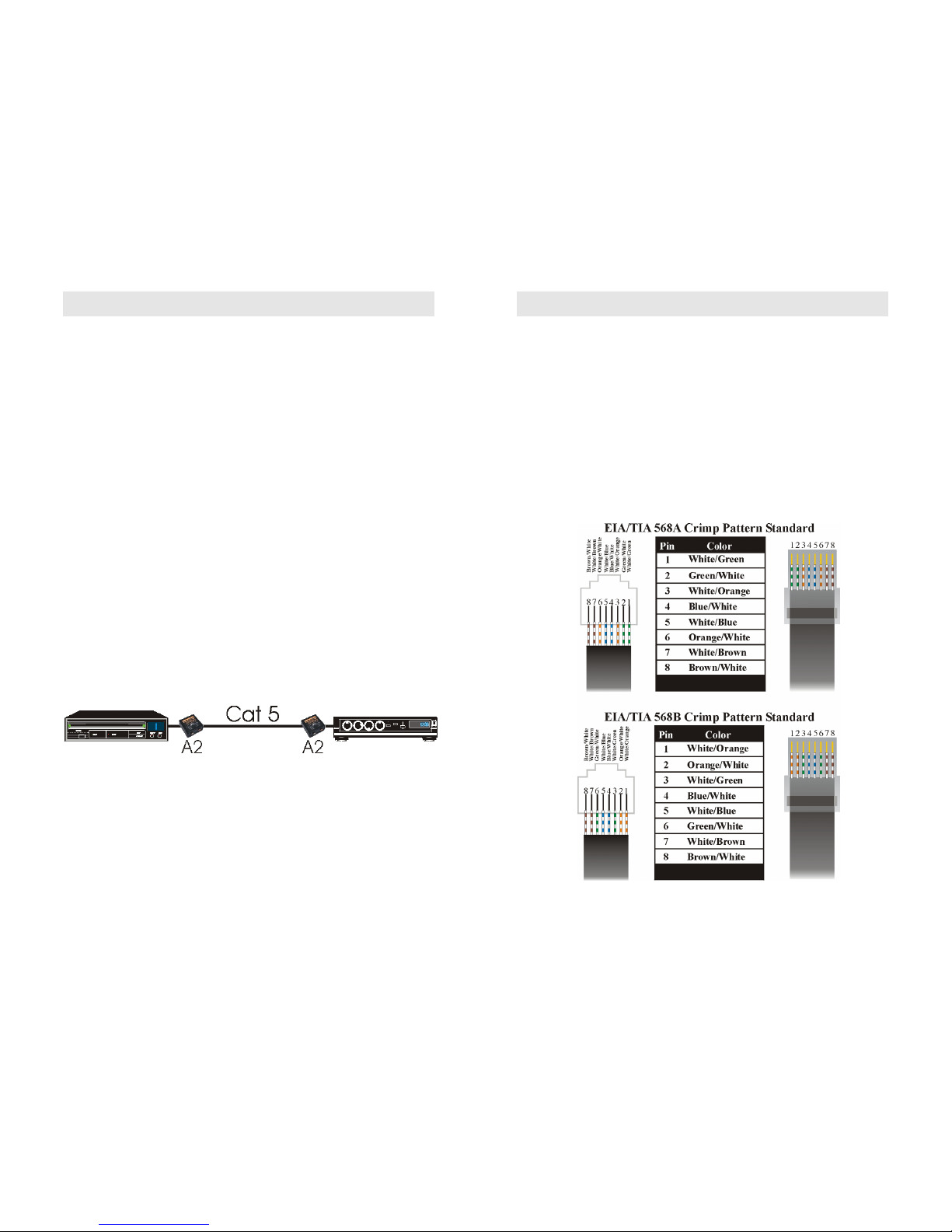

2. Check all the connections and the structured cabling system. Verify the RJ45
crimp pattern conforms to either EIA/TIA 568A or 568B standards, as shown
below.

3. Check pin configuration.

4. The maximum operational distances over which the A2 can be transmitted is
dependant on the equipment used and cable. Ensure that the maximum
recommended operational distances have not been exceeded.

5. Check that only twisted pair patch cords are being used.

6. Replace the A2 balun

with another A2 that is known to be working.

7. If you still cannot diagnose the problem, call Intelix for support.
