Intelimax User Manual
- 1 -
Page 2
Intelimax User Manual
- 2 -
TABLE OF CONTENTS
CONTACT INFORMATION ........................................................................ - 5 -
RF EXPOSURE AND ELECTRICAL SAFETY COMPLIANCE ........................... - 6 -
Caution ............................................................................................. - 6 -
General Safety .................................................................................. - 7 -
Vehicle Safety ................................................................................... - 8 -
Potentially Unsafe Areas ................................................................... - 8 -
REVISION HISTORY ................................................................................ - 9 -
Intelimax USER MANUAL ...................................................................... - 10 -
Disclaimers ..................................................................................... - 10 -
INTRODUCTION .................................................................................... - 11 -
Overview ......................................................................................... - 11 -
Intelimax Features .......................................................................... - 11 -
Frequency Bands .......................................................................... - 11 -
Data Speeds ................................................................................ - 11 -
Environmental Specifications .......................................................... - 11 -
Dimensions .................................................................................. - 12 -
Connections ................................................................................. - 12 -
Mounting ..................................................................................... - 12 -
LED Lights ................................................................................... - 12 -
Module Approvals ......................................................................... - 12 -
Compliance .................................................................................. - 12 -
Power Source ............................................................................... - 12 -
Operating Systems ....................................................................... - 12 -
Intelimax Setup .................................................................................... - 13 -
Connecting to the Intelimax ............................................................ - 14 -
Serial Port Connection .................................................................... - 14 -
TCP/IP Connection.......................................................................... - 14 -
Modem Configuration ...................................................................... - 15 -
Modem Status Tab .......................................................................... - 15 -
WAN Configuration ......................................................................... - 17 -

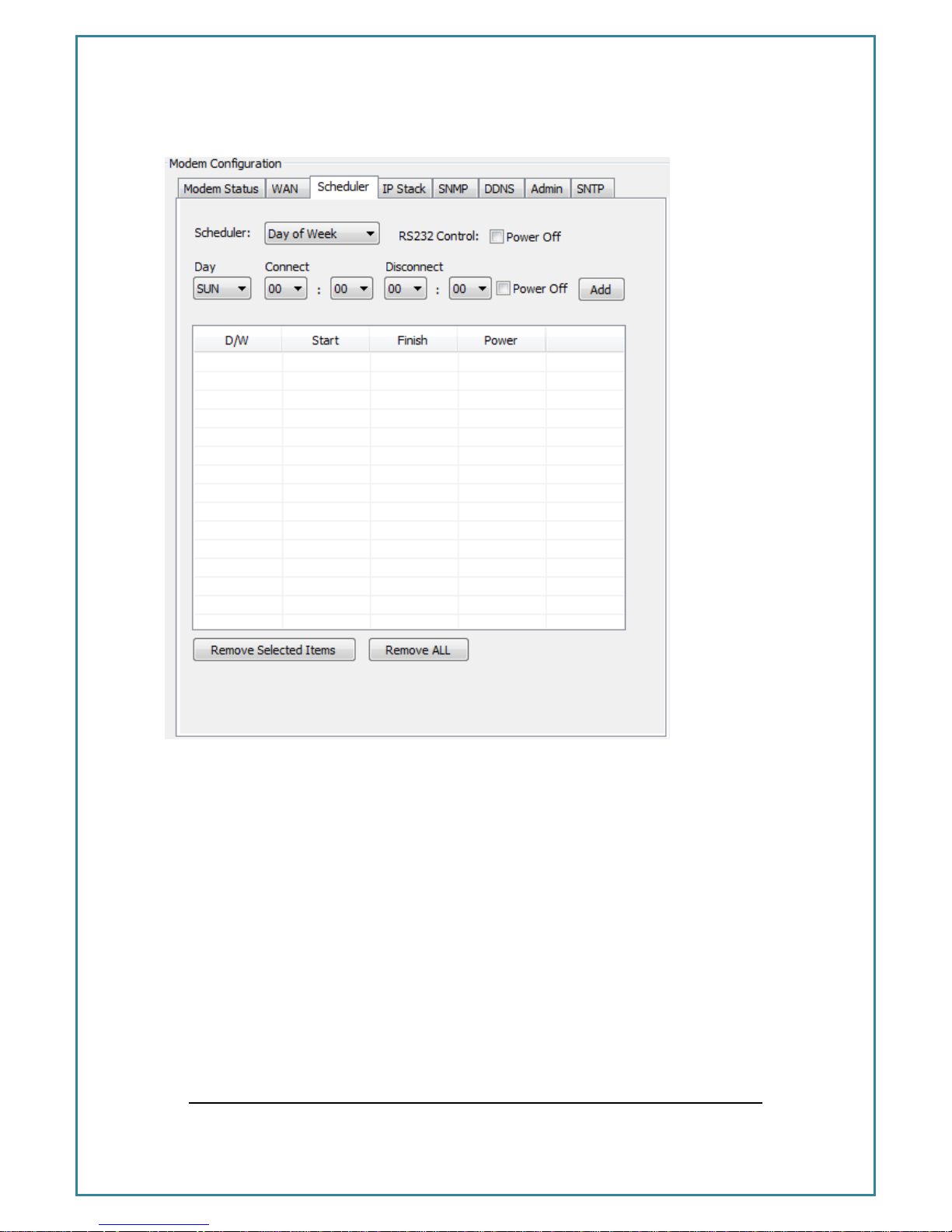

Scheduler ........................................................................................ - 20 -
Scheduler Day of the Week: ............................................................ - 20 -
Page 3
Intelimax User Manual
- 3 -
Scheduler by Duration..................................................................... - 21 -
IP Stack Configuration .................................................................... - 23 -
SNMP Configuration ........................................................................ - 26 -

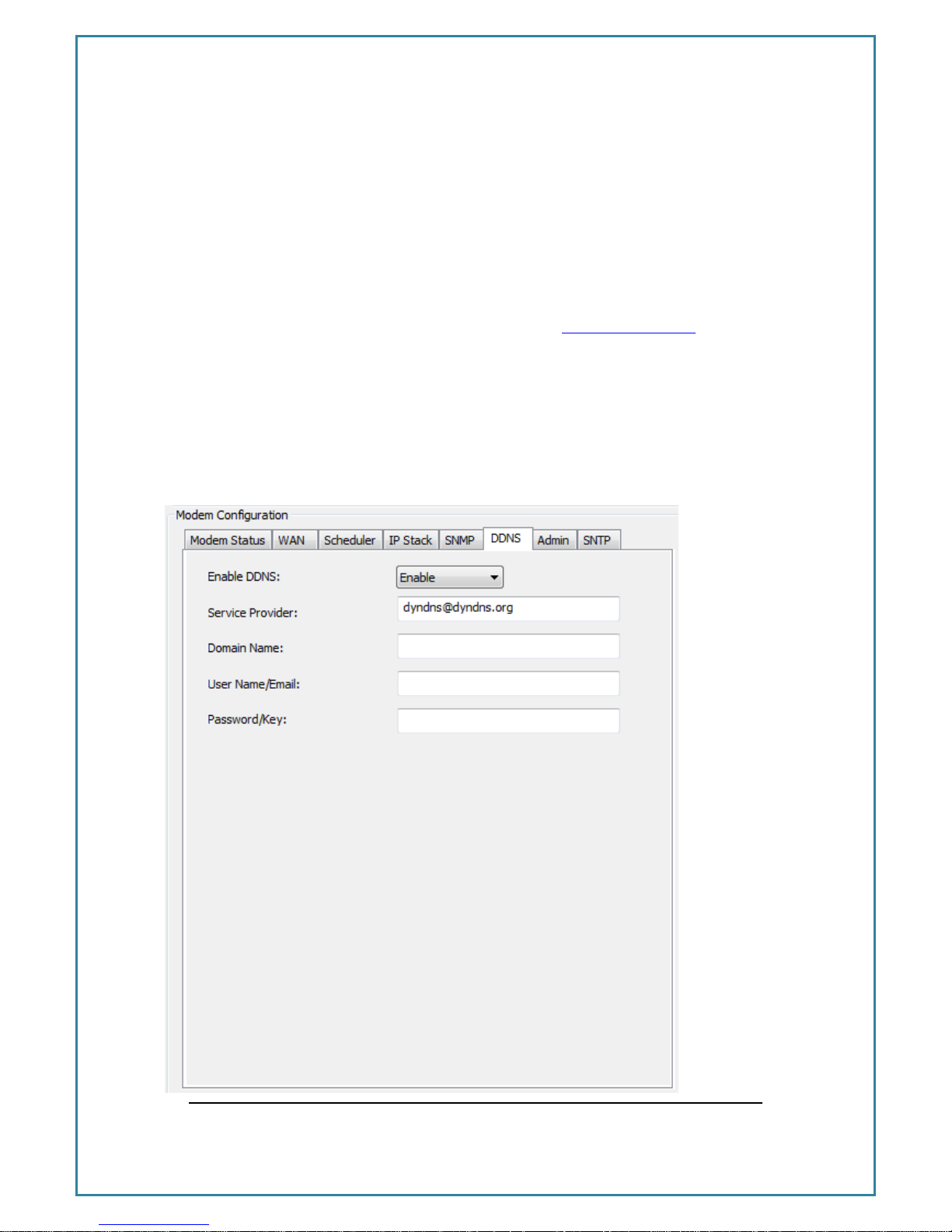

Dynamic DNS .................................................................................. - 29 -
Admin ............................................................................................. - 30 -
Telnet .............................................................................................. - 30 -
Syslog ............................................................................................. - 31 -
Administrators ................................................................................ - 31 -

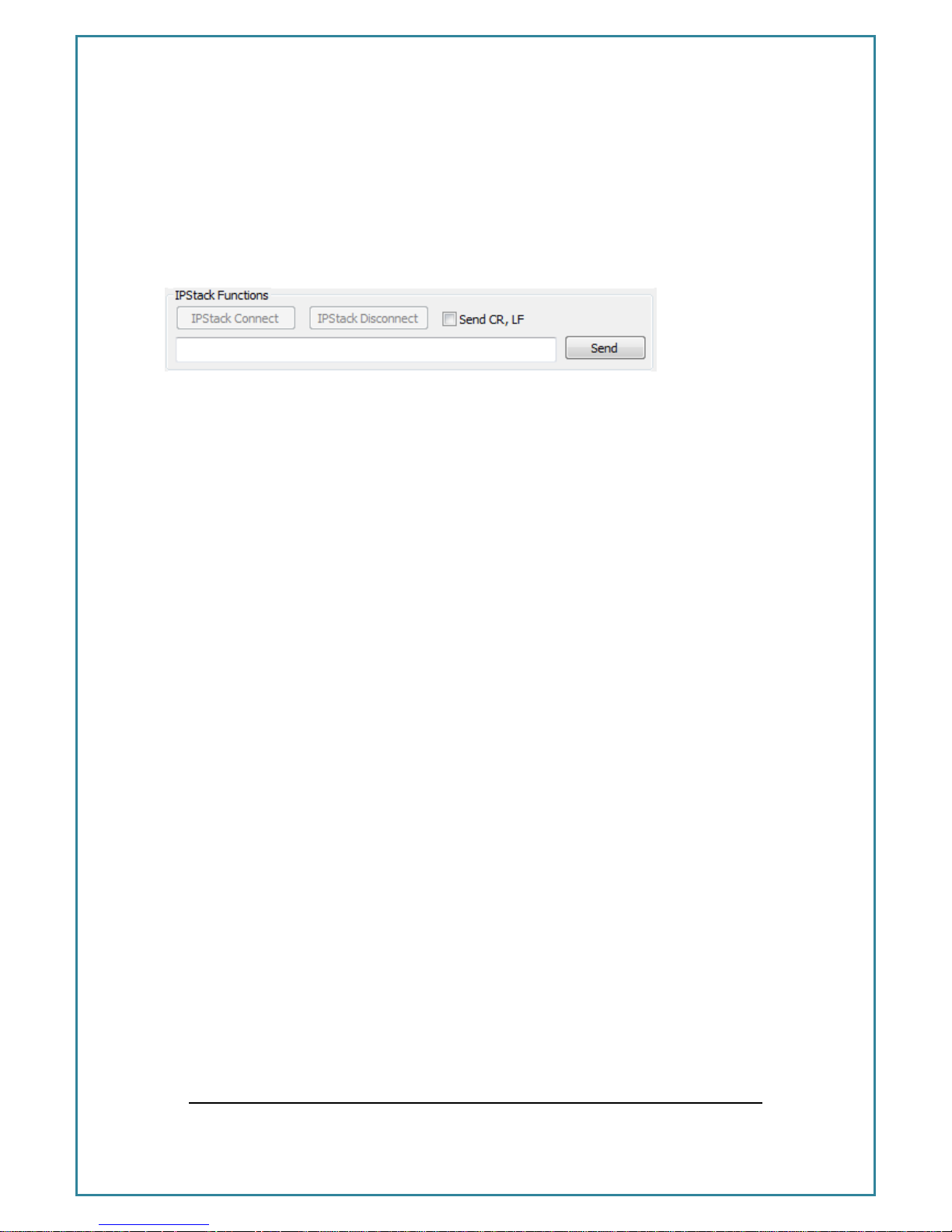

IP Stack Functions .......................................................................... - 32 -
IP Stack Connect AT Command ....................................................... - 32 -
IP Stack Disconnect AT Command ................................................... - 32 -
IP Stack Connect Button ................................................................. - 32 -
IP Stack Disconnect Button ............................................................. - 32 -
Send CR, LF ..................................................................................... - 32 -
Send Button .................................................................................... - 32 -

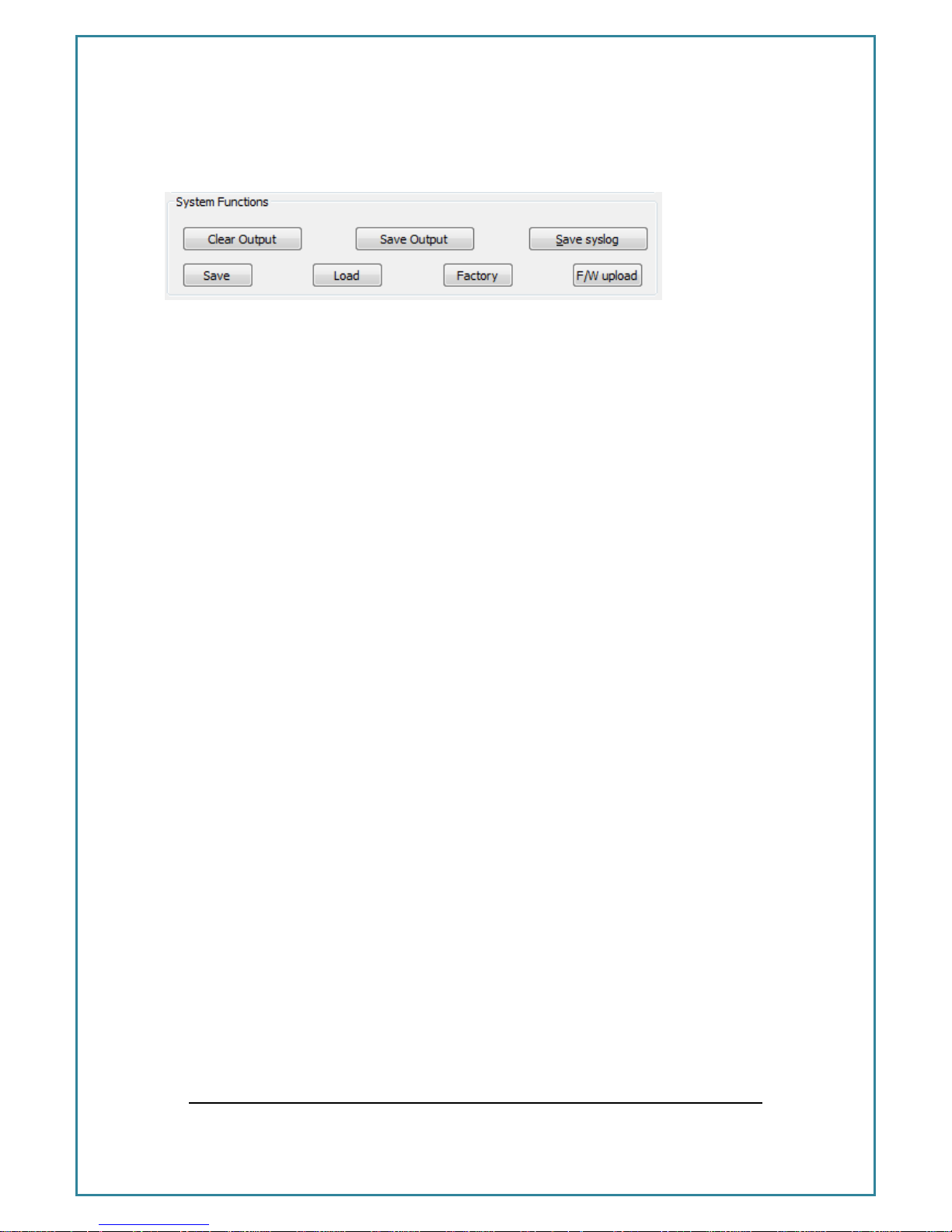

System Functions ............................................................................ - 33 -
Clear Output.................................................................................... - 33 -
Save Output .................................................................................... - 33 -
Save Config ..................................................................................... - 33 -
Load Config ..................................................................................... - 33 -
Factory Setting ............................................................................... - 33 -

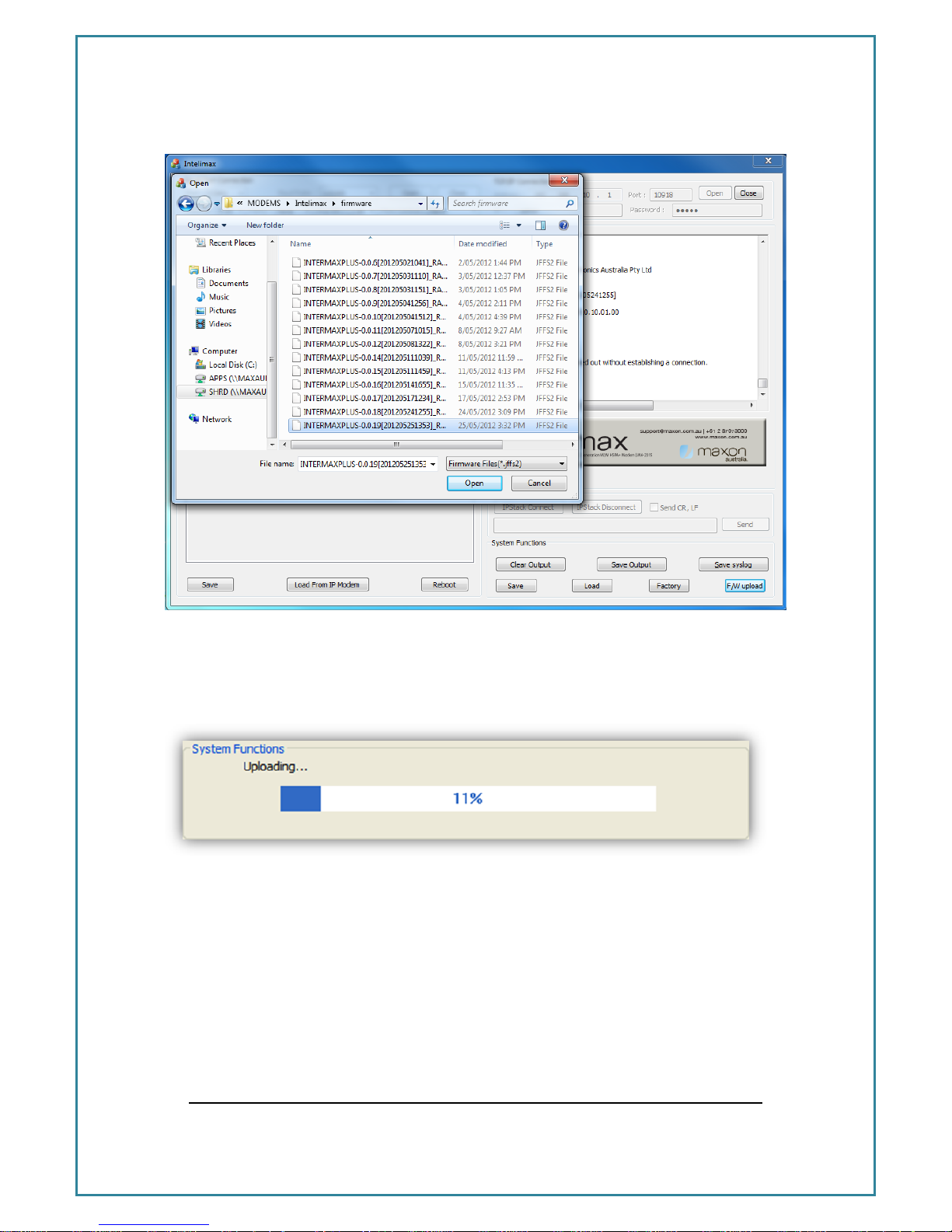

Firmware Upgrade .......................................................................... - 33 -
SMS Commands (Works only in IP Stack mode) ................................... - 35 -
LED Functionality .................................................................................. - 36 -

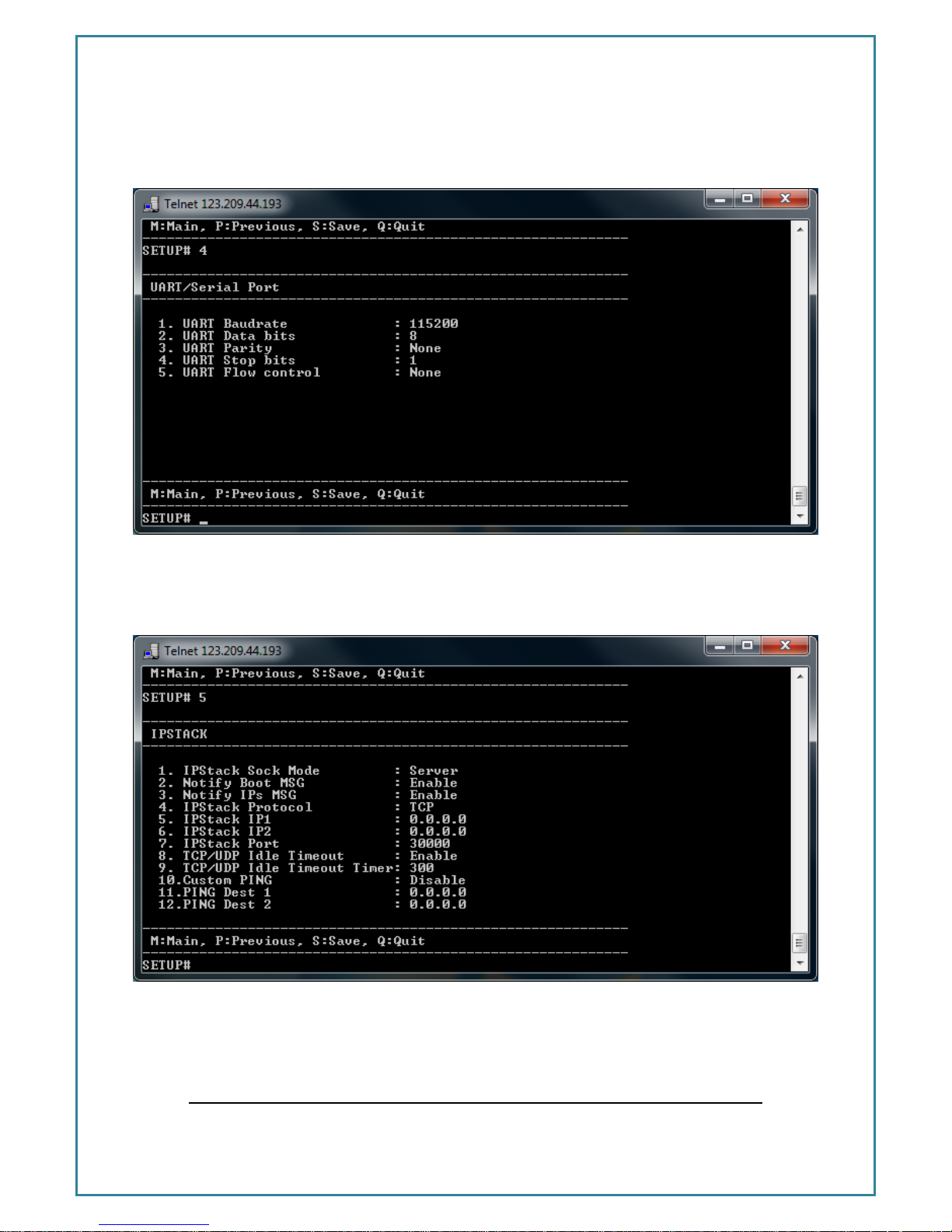

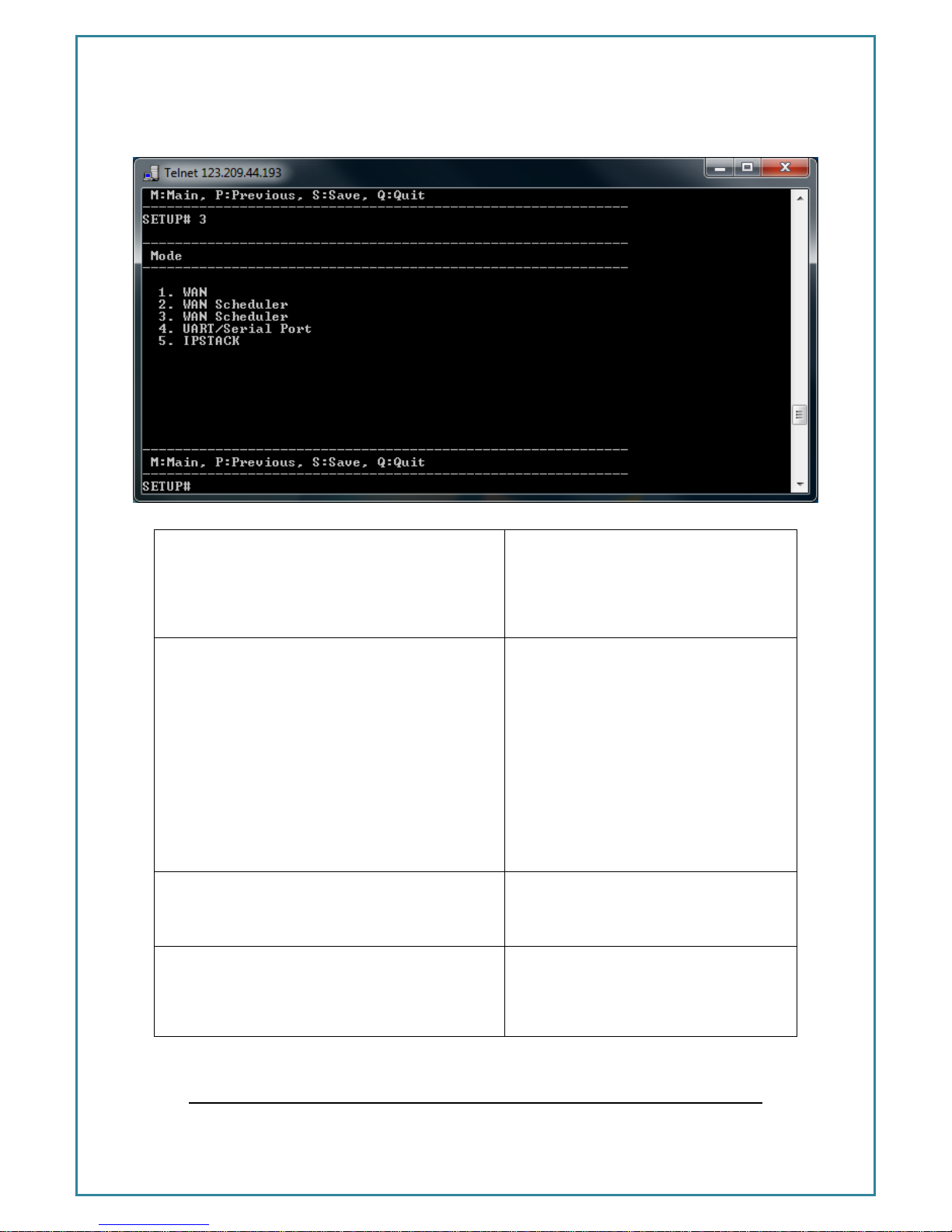

Telnet / SSH Commands ....................................................................... - 37 -

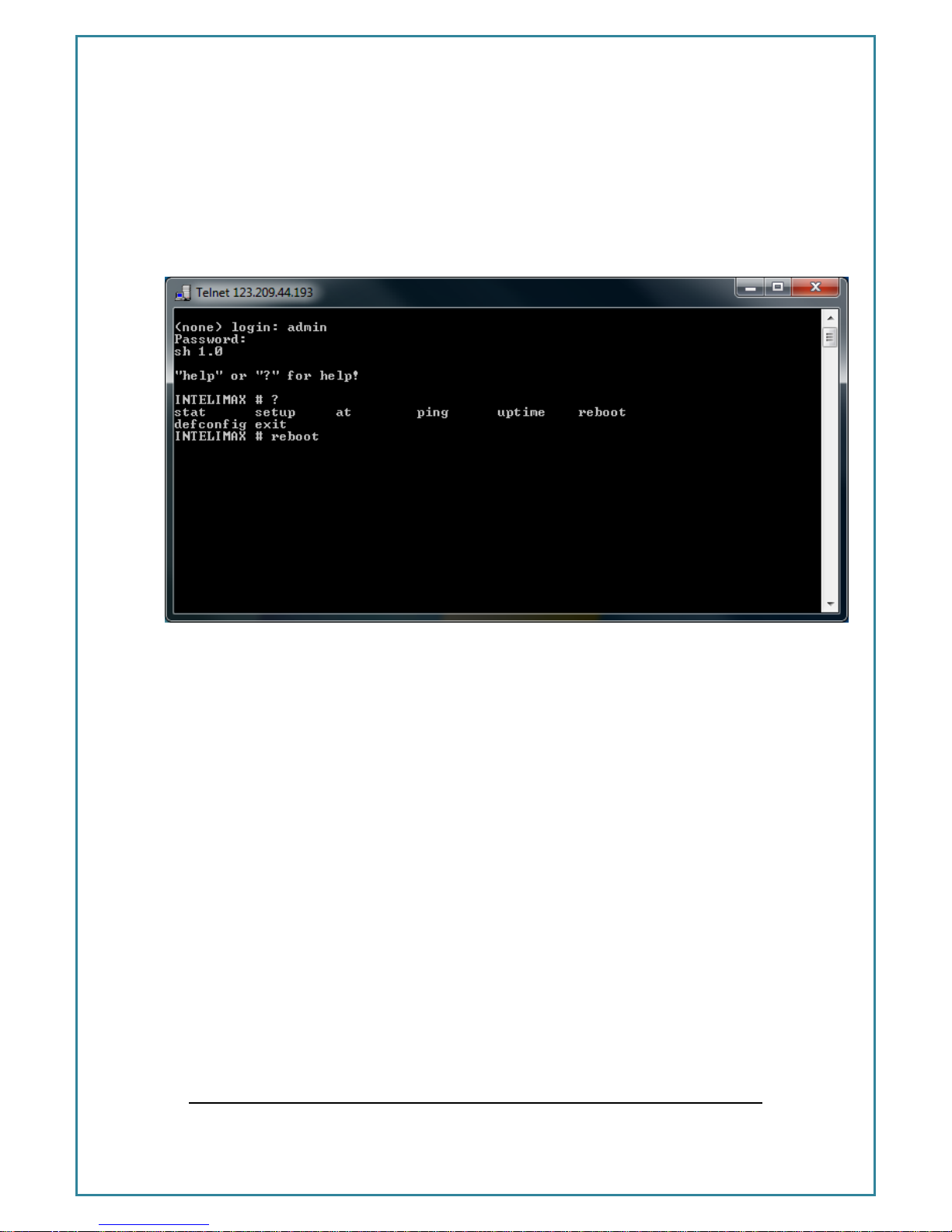

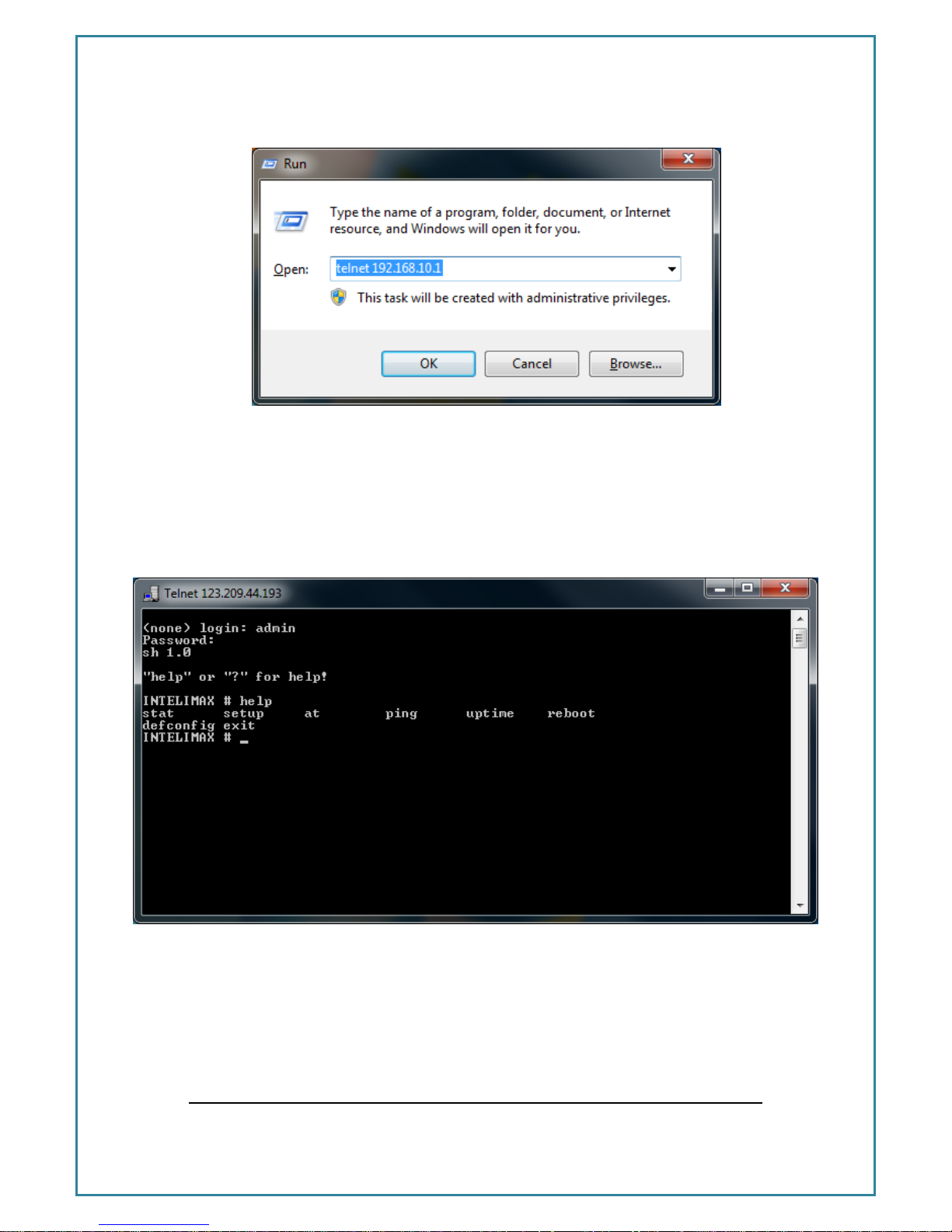

Connecting to the modem via telnet ............................................... - 37 -
Extended / Intelimax Specific AT Command Set ................................... - 51 -
Device Information ......................................................................... - 51 -
Wan extension function .................................................................. - 51 -
WAN authentication ........................................................................ - 52 -
Periodic reset .................................................................................. - 52 -
WAN scheduler................................................................................ - 53 -
IP Stack setting .............................................................................. - 53 -
SNMP .............................................................................................. - 54 -
DDNS .............................................................................................. - 54 -
System ............................................................................................ - 55 -
Page 4
Intelimax User Manual
- 4 -
Serial (UART) port .......................................................................... - 55 -
Engine Band .................................................................................... - 56 -
Check IP address of the WAN side .................................................. - 56 -
FTP .................................................................................................. - 57 -
Signal Strength ............................................................................... - 59 -
Open PPP connection ...................................................................... - 59 -
Close PPP connection ...................................................................... - 59 -
Open TCP/UDP Socket .................................................................... - 59 -
Close TCP/UDP Socket .................................................................... - 60 -
IPStack Connection Settings ........................................................... - 60 -
Change modem mode ...................................................................... - 60 -
Save and Reboot ............................................................................. - 60 -
Extended / Module Specific AT Command Set (Serial Modem Mode) .... - 61 -
Page 5
Intelimax User Manual
- 5 -
C ONTACT I NFORMATION
In keeping with Maxon's dedicated customer support policy, we encourage you to
contact us.
TECHNICAL:
Hours of Operation: Monday to Friday 8.30am to 5.30pm*
Telephone: +61 2 8707 3000
Facsimile: +61 2 8707 3001
SALES:
Hours of Operation: Monday to Friday 8.30am to 5.30pm*
Telephone: +61 2 8707 3000
Facsimile: +61 2 8707 3001
WEBSITE: www.maxon.com.au
Maxon has also added for the benefit of developers and integrators, a forum on our
website that can be accessed to discuss this product and/or technical matters in
relation to your applications. All questions raised within this portal will be answered.
ADDRESS:
Maxon Electronics Australia Pty Ltd
36a Gibson Avenue, Padstow
Sydney, NSW, Australia 2211
POSTAL ADDRESS
Maxon Electronics Australia Pty Ltd
Po Box 1, Revesby North,
Sydney, NSW Australia 2212
Page 6
Intelimax User Manual
- 6 -
RF EXPOSURE A N D ELECTRICAL SA F E T Y
COMPLIANCE
The use of this device in any other type of host configuration may not comply with the
RF exposure requirements and should be avoided. During operation, a 20 cm
separation distance should be maintained between the antenna, whether extended or
retracted, and the user’s/bystander’s body (excluding hands, wrists, feet, and ankles) to
ensure RF exposure compliance. The modem is not designed for, nor intended to be,
used in applications within 20 cm (8 inches) of the body of the user. Continued
compliance of the equipment relies upon it being used with an AS/NZS 60950.1
approved SELV power supply.
Caution
Change or modification without the express consent of Maxon Electronics Australia Pty.
Ltd. voids the user’s authority to use the equipment. These limits are designed to provide
reasonable protection against harmful interference in an appropriate installation. The
modem is a transmitting device with similar output power to a mobile phone. This
equipment generates, uses, and can radiate radio frequency energy and, if not used in
accordance with instructions, can cause harmful radiation to radio communication.
Use only the supplied or an approved antenna. Unauthorized antennas, modifications,
or attachments could impair call quality, damage the device, or result in violation of RF
exposure regulations.
However, there is no guarantee that interference will not occur in a particular
installation. If the equipment does cause harmful interference in radio and television
reception, which can be determined by turning the equipment on and off, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Re-orient or relocate the receiving radio or TV antenna
Increase the separation distance between the equipment and the receiver
Contact Maxon Australia Technical Support for assistance.
Page 7
Intelimax User Manual
- 7 -
General Safety
RF Interference Issues: Avoid possible radio frequency (RF) interference by carefully
following safety guidelines below:
Switch OFF the Modem when in an aircraft. The use of cellular telephones in
aircraft is illegal. It may endanger the operation of the aircraft and/or disrupt the
cellular network. Failure to observe this instruction may lead to suspension or
denial of cellular services to the offender, legal action, or both.
Switch OFF the Modem in the vicinity of gasoline or diesel fuel pumps or before
filling a vehicle with fuel.
Switch OFF the Modem in hospitals and any other place where medical
equipment may be in use.
Respect restrictions on the use of radio equipment in fuel depots, chemical
plants, or in areas of blasting operations.
There may be a hazard associated with the operation of your Modem in the
vicinity of inadequately protected personal medical devices such as hearing
aids and pacemakers. Please consult the manufacturers of the medical device
to determine if it is adequately protected.
Operation of the Modem in the vicinity of other electronic equipment may
cause interference if the equipment is inadequately protected. Observe any
warning signs and manufacturers’ recommendations.
The modem contains sensitive electronic circuitry. Do not expose the modem to
any liquids, high temperatures or shock. The modem is not waterproof. Please
keep it dry and store it in a cool, dry place.
Only use original accessories or accessories that are authorized by the
manufacturer. Using unauthorized accessories may affect your modem’s
performance, damage your modem and violate related national regulations.
Always handle the modem with care. There are no user serviceable parts inside
the modem. Unauthorised dismantling or repair of the modem will void the
warranty.
* The product needs to be supplied by a limited power source or the
power supply provided. Otherwise, safety will not be ensured
Page 8
Intelimax User Manual
- 8 -
Vehicle Safety
Do not use the Modem while driving.
Respect national regulations on the use of cellular telephones in vehicles. Road
safety always comes first.
If incorrectly installed in a vehicle, the operation of the Modem could interfere
with the correct functioning of vehicle electronics. To avoid such problems, be
sure that the installation has been performed by qualified personnel.
Verification of the protection of vehicle electronics should be part of the
installation.
Note: The user is cautioned that changes or modifications not expressly approved by
Maxon Australia could void the warrantee.
Potentially Unsafe Areas
Posted Facilities: Turn off this device in any facility or area when posted notices require
you to do so.
Blasting Areas: Turn off your device where blasting is in progress. Observe restrictions
and follow any regulations or rules.
Potentially Explosive Atmospheres: Turn off your device when you are in any area with a
potentially explosive atmosphere. Obey all signs and instructions. Sparks in such areas
could cause an explosion or fire, resulting in bodily injury or death.
Areas with a potentially explosive atmosphere are often but not always clearly marked.
They include:
Fuelling areas such as gas or petrol stations
Below deck on boats
Transfer or storage facilities for fuel or chemicals
Vehicles using liquefied petroleum gas, such as propane or butane
Areas when the air contains chemicals or particles such as grain, dust or metal
powders
Avoid using the modem in areas that emit electromagnetic waves or enclosed
metallic structures e.g. lifts.
Any other area where you would normally be advised to turn off your engine
Page 9
Intelimax User Manual
- 9 -
R E V I S I O N H ISTORY
Product
Intelimax M2M 3G Serial Modem
Model
MA-2015
Document Type
PDF
Current Version Number
7.1
Status of the Document
Stable Release
Revision Date
1 May 2013
Total Number of Pages
62
- Revision History
Level
Date
History
1.0
May 2012
Internal Draft Version
5.0
November 2012
Stable Release Version
Page 10
Intelimax User Manual
- 10 -
Intelimax U SER M A N U A L
All data and information contained in or disclosed by this document are confidential
and proprietary information of Maxon Australia, and all rights therein are expressly
reserved. By accepting this material, the recipient agrees that this material and the
information contained therein are held in confidence and in trust and will not be used,
copied, reproduced in whole or in part, nor its contents revealed in any manner to
others without the express written permission of Maxon Australia. This information
provided in this document is provided on an “as is” basis.
In no event will Maxon Australia be liable for any damages arising directly or indirectly
from any use of information contained in this document. Information in this document is
preliminary and subjected to change without any notice.
Disclaimers
Life support – This product is not designed for use in life support appliances or systems
where malfunction of these products can reasonably be expected to result in personal
injury.
Maxon Australia customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Maxon Australia for any damages
resulting from such application.
Right to make change - Maxon Australia reserves the right to make changes, without
notice, in the products, including circuits and software, described or contained herein
in order to improve design and/or performance.
This document is the sole and
exclusive property of Maxon
Australia. Not to be distributed or
divulged without prior written
agreement.
36A Gibson Ave
Padstow NSW 2211
Australia
URL: www.maxon.com.au
Page 11
Intelimax User Manual
- 11 -
I N T R O D U C T I O N
Overview
Breaking the industry benchmark, the top-of-the range Intelimax is a unique and
intelligent fusion of 3G capabilities with advanced functionality of a modem/router.
Intelimax Features
General Features
HSPA Wireless Module Em-820 PCI (21Mbps downlink, 5.6Mbps uplink)
Supports Packet and Circuit Switched Data
RS232 connection
2 Way SMS
Remote SMS diagnostics & reset
Embedded TCP/IP, UDP/IP STACK
Dynamic DNS
Rugged plastic casing for industrial use
Programmable periodic reset
Programmable WAN connection scheduler
SSH and Telnet support
Save and restore modem configuration from a file
FOTA - Firmware upgrade over the air
External antenna connectivity to maximise HSPA coverage
External LED to show Network and Connection status
Frequency Bands
WCDMA/HSPA 850MHz, 1900MHz, 2100MHz
GSM/GPRS/EDGE 850MHz, 900MHz, 1800MHz and 1900MHz
Data Speeds
HSPA: UL 5.76 Mbps /DL 21 Mbps
WCDMA PS: UL 384 Kbps / DL 384 Kbps
WCDMA CS: UL 64 Kbps / DL 64 Kbps
GPRS/EDGE: UL 236 Kbps / DL 236 Kbps
GSM CS: UL 9.6 Kbps / DL 9.6 Kbps
Environmental Specifications
Normal Operation Temperature -20 to 60° C
Extreme Operation Temperature -25 to 75° C
This document is the sole and
exclusive property of Maxon
Australia. Not to be distributed or
divulged without prior written
agreement.
36A Gibson Ave
Padstow NSW 2211
Australia
URL: www.maxon.com.au
Page 12
Intelimax User Manual
- 12 -
Dimensions
71mm x 55mm x 26mm (without side brackets and antenna)
Connections
RJ45 Connection
USB Connection
SIM Card Holder
Antenna connector: FME male
Mounting
Side mounting brackets
LED Lights
Power
RSSI/ Data
Module Approvals
GCF
PTCRB
CE
FCC
ACA
Carrier Approvals* - (Please contact Maxon Australia for more information)
Compliance
RoHS Compliant
Power Source
DC Input Voltage Range: 6 to 32 VDC
Idle Current @ 12V: 50mA
Maximum Current @ 12V: 150mA
Operating Systems
Windows XP/ Vista / 7
Page 13
Intelimax User Manual
- 13 -
Intelimax Setup
Maxon Intelimax serial modem supports a Winodws GUI, where by you can configure
the modem via serial connection or remotely via the WAN IP.
After connecting to the modem using the GUI, users can configure; WAN settings,
Scheduler, IP Stack, SNMP Dynamic DNS and Admin settings.
Page 14
Intelimax User Manual
- 14 -
Connecting to the Intelimax
Serial Port Connection
Use this section to connect to the modem using the provided serial cable, the default
connection settings are:
Baud Rate: 115200
Databit: 8 bit
Parity: None
Stop bit: 1 bit
Flow control: None
Make sure to select the correct COM port and click the open button, the Intelimax GUI
will connect to the modem via the selected COM port.
PLEASE NOTE THAT WHEN USING SERIAL MODE WITH GUI, PLEASE ENTER THE WAN
PASSWORD, DDNS PASSWORD AND ADMIN PASSWORD PRIOR TO CLICKING SAVE.
Failing to set the above will remove the set password and replace the passwords with
“*”.
TCP/IP Connection
Using the TCP/IP connection option allows users to connect remotely to the modem. To
use this feature the modem must have a static/public IP address on the Modem WAN
connection.
To successfully connect to the modem, the admin username and password would also
be required. The default settings are:
Address: 192.168.10.1 (LAN Only)
Port: 10918
ID: admin
Password: admin
Page 15
Intelimax User Manual
- 15 -
Users can also access the Intelimax locally via an IP address by powering the modem
via the serial port as well plugging the mini USB cable into the modem. The drivers will
need to be installed for this method, which can be downloaded from:
http://maxon.com.au/downloads.php?p=13
Once the drivers are installed you will have to set a static IP on the Intelimax network
connection (as the Intelimax does not support DHCP)
The default IP for the Intelimax is 192.168.10.1, set your IP within this range
Eg.192.168.10.50
This function is also used for remote access to the Intelimax plus upgrading the firmware
in the modem.
Modem Configuration
Modem Status Tab
The modem status page displays modem information such as network registration and
WAN connectivity status.
Page 16
Intelimax User Manual
- 16 -

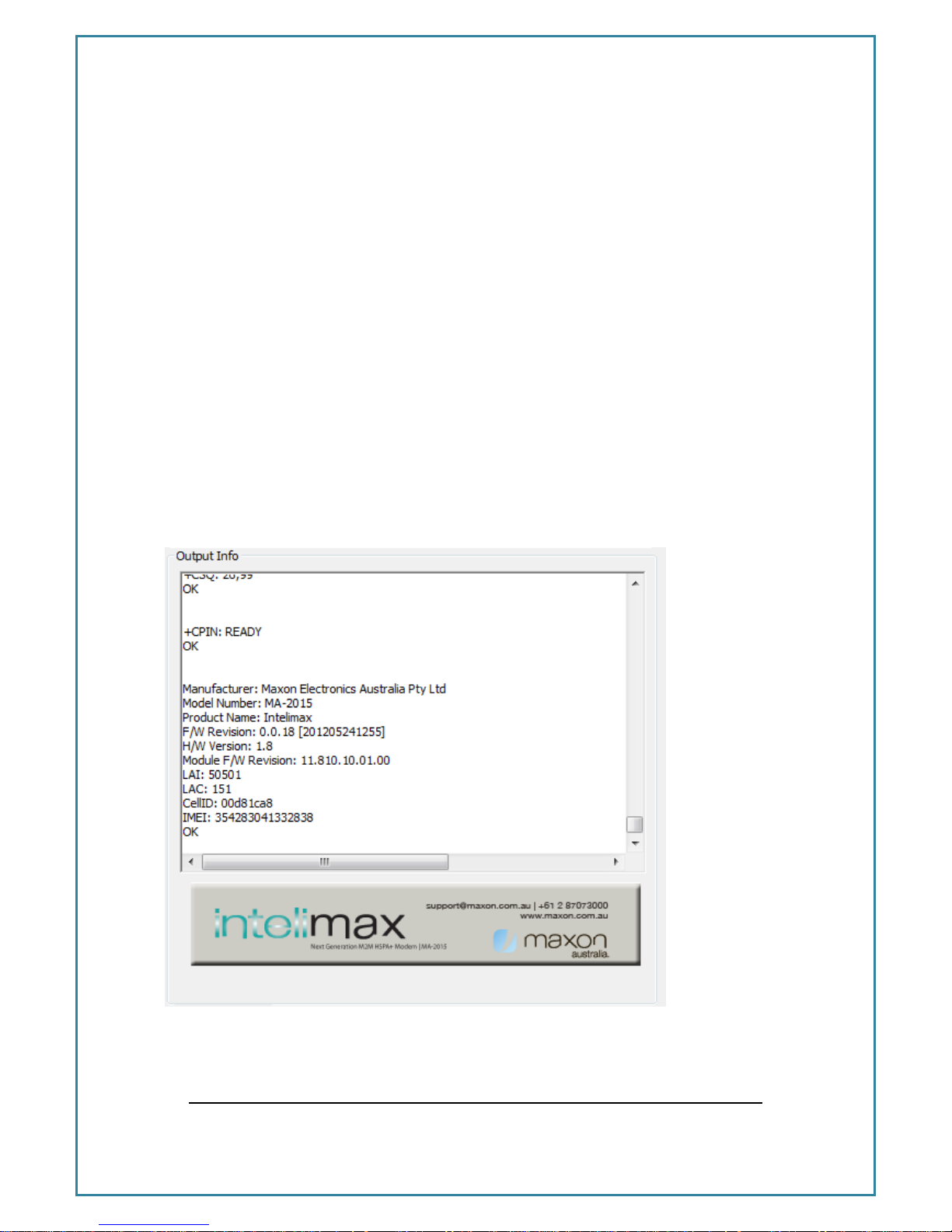

Information displayed on the Status page is:
F/W Revision: Firmware version output. Includes version and compile date. Ex 0.0.0
[201201061408]
H/W Version: Product’s board release version
Module F/W Revision: Engine’s firmware version
LAI: LAC, Cell ID,
IMEI: IMEI number of the Intelimax
WAN IP: IP address assigned by ISP such as Telstra or Optus
Signal: Status of current signal strength (dBm)
IP Stack Mode: IP Stack Mode of Intelimax. (IP Stack Auto or Manual)
Page 17
Intelimax User Manual
- 17 -
PIN Status: Status of PIN request (enable/disable)
System Time: System time acquired 3G network
WAN Configuration
WAN configuration page is used to configure how the modem will connect to the 3G
network. Please select the correct operation mode as this will decide if the modem will
automatically connect to the network on power up or work in pass through mode.
The Intelimax supports 3 operation modes:
1. Circuit Switched Data call (Pass through mode – connects to the 3G module in
the modem)
2. IP Stack Auto (Modem connects to the 3G networks and acquires an IP address
and then runs the IP STACK server or client mode)
3. IP Stack Manual (Modem wait for user to send AT commands before
connecting to the 3G networks and acquiring an IP address.
Circuit Switch Data Call
Circuit switch is the old method where the user dials in to the modem data terminating
number.
Set of AT commands used with Circuit Switch Call
ATD Dial the Data number
ATA Answer the Data Call
ATS0=n Set auto answer where n=number of rings
+++ Escape command to enter AT command mode
ATH Drops the data call
AT&D Set the DTR line
To use this feature please ensure the following has been setup on the SIM:
1. Contact SIM service provider and make sure that CSD is activated on the Sim
card. Generally this requires a second number (data terminating number)
attached to the same service.
2. Configure the modem to auto answer the call or make sure that the equipment
connect to the modem has auto answer activated to detect an incoming call
and sends ATA to answer the data call.
IP Stack Auto Mode
Page 18
Intelimax User Manual
- 18 -
When using IP STACK Auto modem the modem will behave as an IP Serial modem.
When using this modem the modem will transfer all incoming packets via the serial port
to the host and vice versa.

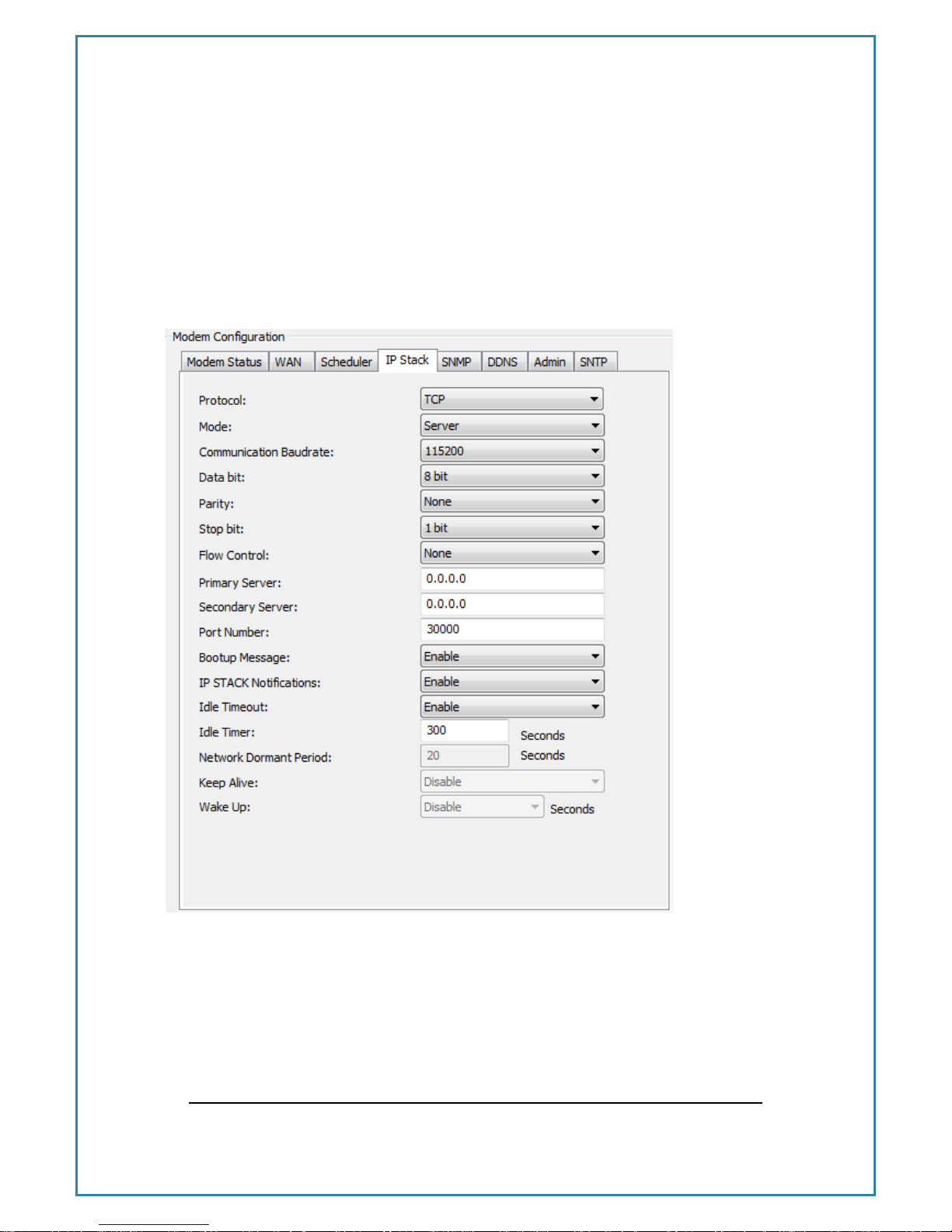

Intelimax IPStack can be configured as a Server or Client mode. In Server mode the
Intelimax will act as a socket server. The modem will listen on a specific TCP/UDP port
waiting for an incoming client socket connection. As soon as the client drops the socket
connection, the Intelimax will go back to socket listening mode as per IP stack
configuration. On the other hand with client mode the Intelimax will try to establish a
socket connection to a preconfigured server IP address or DNS name and port number.
The client mode also supports a secondary server IP address just in case the primary
server cannot be reached. The in-built IP stack feature supports smarts such as PPP link
check, TCP link check, PPP link timeout, TCP link timeout and MTU settings.
IP Stack Manual Mode
With IPStack manual mode, the modem doesn’t initiate the PPP connection. The
modem will rely on the host on serial port to send the PPP initiation commands.
The AT command to Start the PPP session and open a socket is AT$$IPCTOS.
The AT command to close the socket and PPP session is AT$$IPCTCS.
Page 19
Intelimax User Manual
- 19 -
WAN page allows configuring the following features:
operation mode CSD, IP Stack Auto or IP Stack manual mode
APN and dialup string
Username and password for IP WAN
Auto pin settings (Intelimax will enter the PIN code if SIM pin is Enabled)
network authentication information
Band
Watchdog (Ping Function)
Back off timer
Periodic reset
Load configuration from an existing file
Page 20
Intelimax User Manual
- 20 -

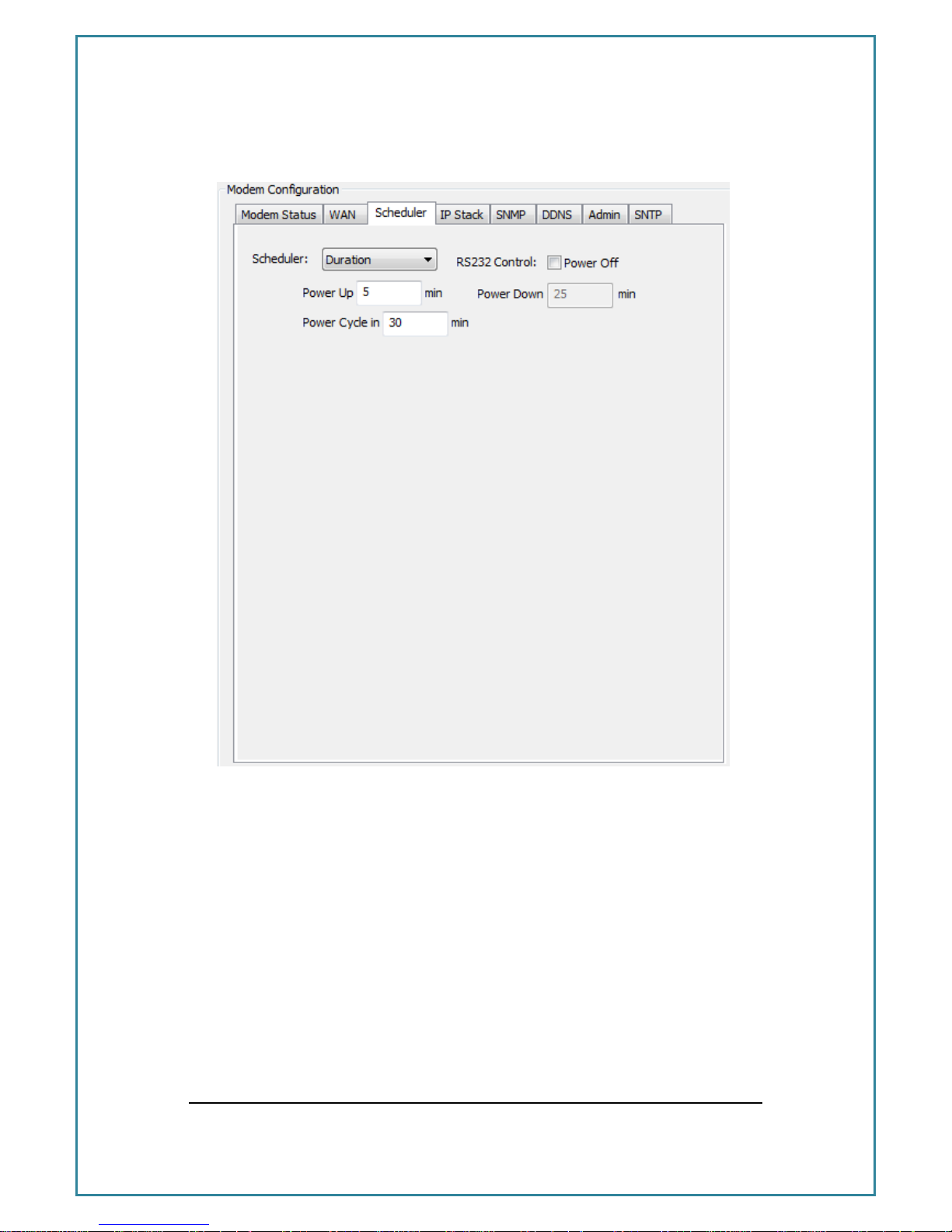

Scheduler
The scheduler tab allows configuring modem WAN connection schedule. The scheduler
supports two methods of selection. Days of the Week (setup to come on certain days of
the week) or Setting up a certain power up duration (setup to come certain during the
hour).
Scheduler Day of the Week:
Using this option the user can specify days of the week when the modem will connect
to the internet and would be online. The connection and disconnection time is in 24
hour format. While using the scheduler the RS232 and the 3G module can also be
configured to shutdown to save power.
To setup Scheduler by Day of the week, select the Day with the connect and
disconnect time. You can also set the modem to power off itself when it disconnects,
by checking the power off check box.
To delete an entry click on the entry and press the Remove selected Item button, or if
you want to remove all entered entries click Remove all button
Page 21
Intelimax User Manual
- 21 -
In the above example the modem will connect on Sunday 6:30AM and will disconnect
at 5:30Pm and power itself off, this feature is really handy if the modem is running on
solar power.
Scheduler by Duration
Using this method the modem will be power up for certain duration, power itself down
for another period of time, and the cycle repeats itself.
To setup scheduler by duration enter for how long you wish the modem to stay
powered up and enter power cycle duration.
The power down will be calculated by the modem.
In the below example the modem will stay powered for 5 min, power down for 25 min
and the cycle is repeated. (Range 0~60 minutes)
Page 22
Intelimax User Manual
- 22 -
Page 23
Intelimax User Manual
- 23 -
IP Stack Configuration
IP stack configuration page is used to setup modem IP STACK settings such as port
number and IP address and connection timeouts.
Protocol:
IP Stack supports TCP and UDP, depending on your application requirement you can
choose between TCP and UDP communication
Mode:
Page 24
Intelimax User Manual
- 24 -
Intelimax supports 2 IP Stack operation modes:
Server mode: In Server mode the modem will connect to a PPP session and will listen on
a predefined port for incoming client requests
Client mode: the modem will initiate a PPP connection and try to connect to the
Primary server. If the connection to the server fails 10 times it will try the Secondary
server, if the connection to the secondary server also fails for 10 times the modem will
drop the PPP connection, reboot and start all over again.
Serial Port Setup:
Serial port setup includes the following
Baud rate (the modem supports 1200, 2400, 4800, 9600, 19200, 38400, 57600 and
115200)
Data Bit (7Bit or 8bit)
Stop bit (1bit or 2bit)
Flow Control (None, Software or Hardware)
Serial port speed setup should be set to match host (connected via serial port)
configuration. With certain applications there may be a need to fabricate a custom
serial cable to work between the host and the Intelimax. The custom serial cable
depends on the equipment requirements and settings.
Primary Server
Define the IP Address or DNS address of the primary server the Intelimax will try to
connect to in Client mode, in server mode please leave this field as default.
Secondary Server
Define the IP Address or DNS name of the secondary server the Intelimax will try to
connect to in Client mode, in server mode please leave this field as default.
Port Number
Define the TCP or UDP Port number, this port will be used in the server and client mode.
Boot up Message
Boot up message is a message that the modem sends to the host via serial port upon
boot up. Using this option the user can disable or enable this message.
Page 25
Intelimax User Manual
- 25 -
IP STACK Notifications
IP Stack notification by default sent out on the serial port to the connected host. With
some applications this may cause issues with data transfer and using this option the user
can disable or enable the notification messages.
Idle Timeout / Idle Timer
Enabling the idle Timeout and setting an Idle Timer, will set the Intelimax to constantly
check the IP STACK connection status. If the socket connection stays idle for the
defined period of time, it will close the socket connection and retry depending on the
setup.
UDP Session Control
To enhance the reliability of UDP IP Stack communication within the Intelimax, we have
introduced a new configuration option, which provides Intelimax users with more
control over the UDP activity and data communication. The user can now enable or
disable keep alive in conjunction with the Network Dormant period or alternatively
specify Wake up time in seconds.
Wake up feature will send dummy UDP packets prior to sending any data received via
serial port to setup a channel with the network. The modem will send dummy packet
twice as per timing set, followed by the actual data. This is to ensure the UDP data is not
lost.
Network Dormant Period: By default the network puts the modem in dormant or
standby mode within 20 seconds of no data activity.
Keep Alive: This sends a dummy UDP packet prior to modem going dormant and this is
based on the Network Dormant Period, Usually this packet will be sent only if the
modem doesn’t send any data over the wireless network for the Network Dormant
period.
Enabling this could lead to additional delay in data transfer due to modem sending
dummy packet first to initialize the UDP connection with remote site.
Wake Up: Wake up feature will send dummy UDP packets prior to actual data, this
wakes up the communication channel and guaranties sending the complete UDP data
packet to the receiving end.
Page 26
Intelimax User Manual
- 26 -
SNMP Configuration
Simple Network Management Protocol (SNMP) is the protocol governing network
management and the monitoring of network devices and their functions. It is not
necessarily limited to TCP/IP networks.

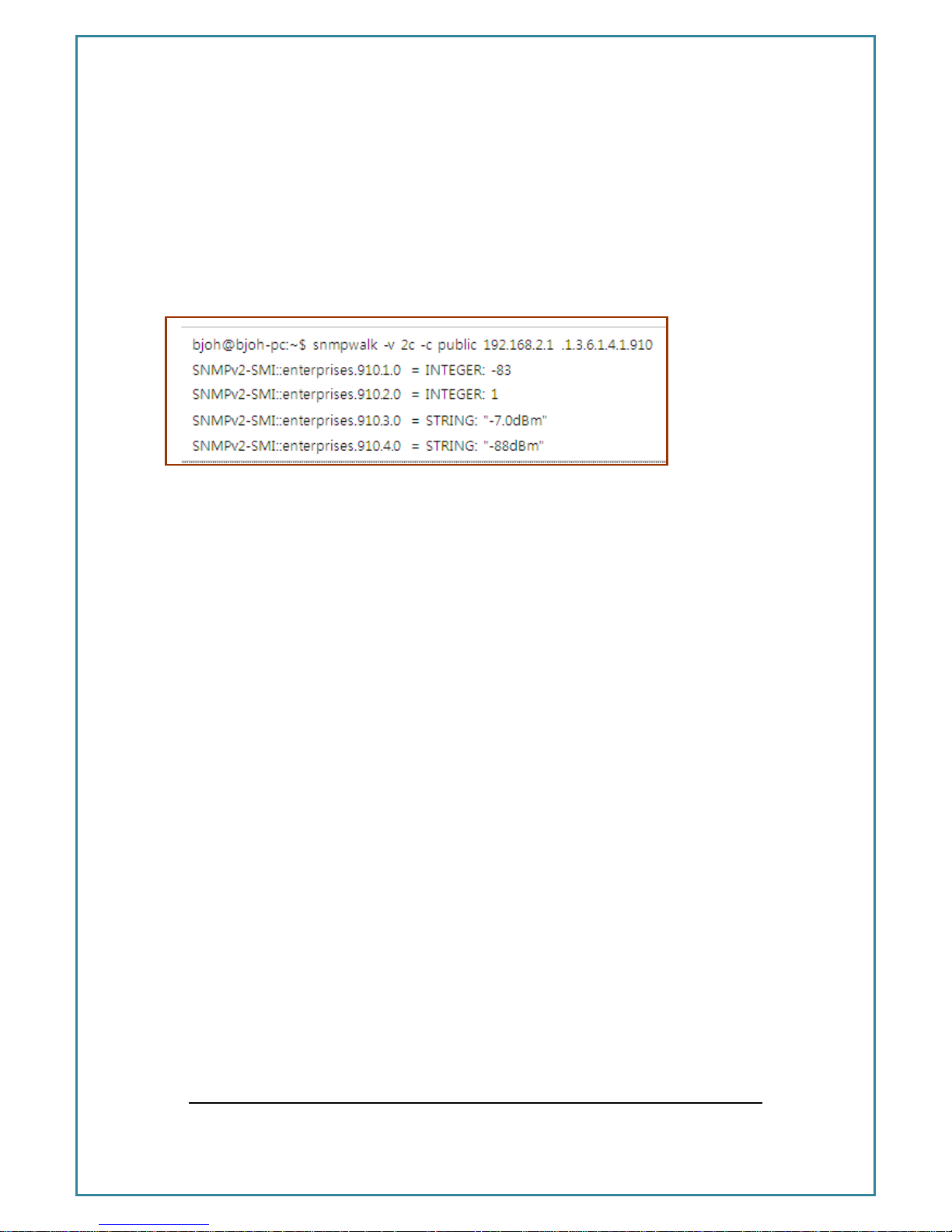

With the Intelimax SNMP customers can read the modem Signal Strength, registration
value, ecio, and rscp values via SNMP MIB as shown below.
MAXON-MIB DEFINITIONS ::= BEGIN
IMPORTS
OBJECT-TYPE, MODULE-IDENTITY, Integer32, enterprises
FROM SNMPv2-SMI
DisplayString
FROM SNMPv2-TC;
MaxMIB MODULE-IDENTITY
LAST-UPDATED "201104150000Z"
ORGANIZATION "DHPLAB"
DESCRIPTION "Maxon MIB"
REVISION "201104150000Z"
DESCRIPTION "This file defines the maxon mib by dhplab."
::= { enterprises 0910 }
signalStrength OBJECT-TYPE
SYNTAX Integer32 (45..105)
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Signal strength of the modem"
::= { MaxMIB 1}
Page 27
Intelimax User Manual
- 27 -
registrationValue OBJECT-TYPE
SYNTAX Integer32 (0..5)
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Registration of the modem"
::= { MaxMIB 2}
ecioValue OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"EC/IO of the modem"
::= { MaxMIB 3}
rscp OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"RSCP of the modem"
::= { MaxMIB 4}
END
Page 28
Intelimax User Manual
- 28 -

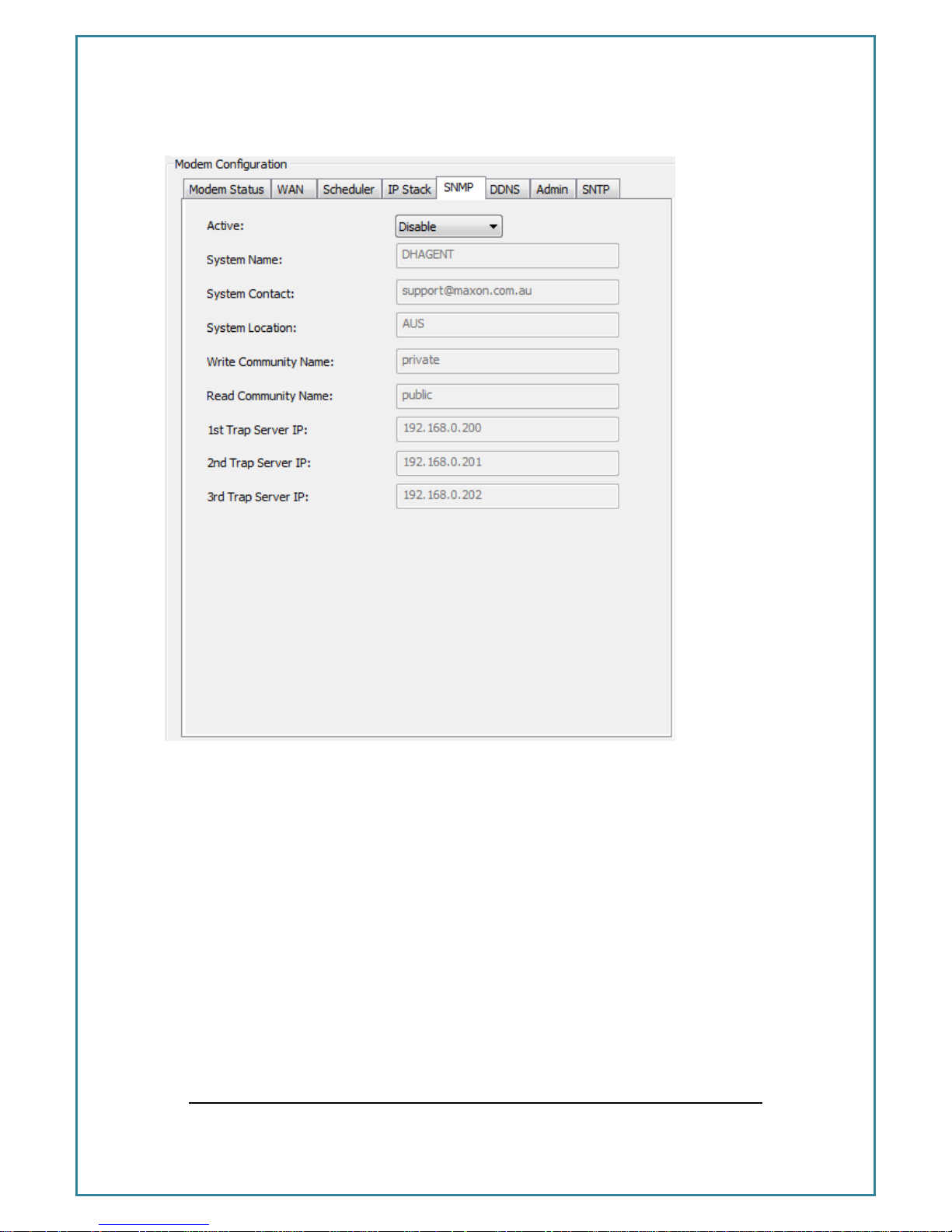

SNMP settings
Active
System Name
System Contact
System Location
Write Community Name
Read Community Name
1st Trap Server IP
2nd Trap Server IP
3rd Trap Server IP
Modem Configuration / DDNS Tab
Page 29
Intelimax User Manual
- 29 -
Dynamic DNS
Allows the user to configure; Username, Password and Domain name to be used by
Intelimax when authenticating on a DDNS server.
Enable DDNS
Select to enable DDNS.
Service Provider
Link of the DDNS service web page (Server site is http://dyndns.com) by default
Domain Name
Set DDNS host name or Alias from DDNS server
User Name/Email
Input User Name for logging onto a DDNS server
Password/Key
Input Password for logging onto a DDNS server
Page 30
Intelimax User Manual
- 30 -

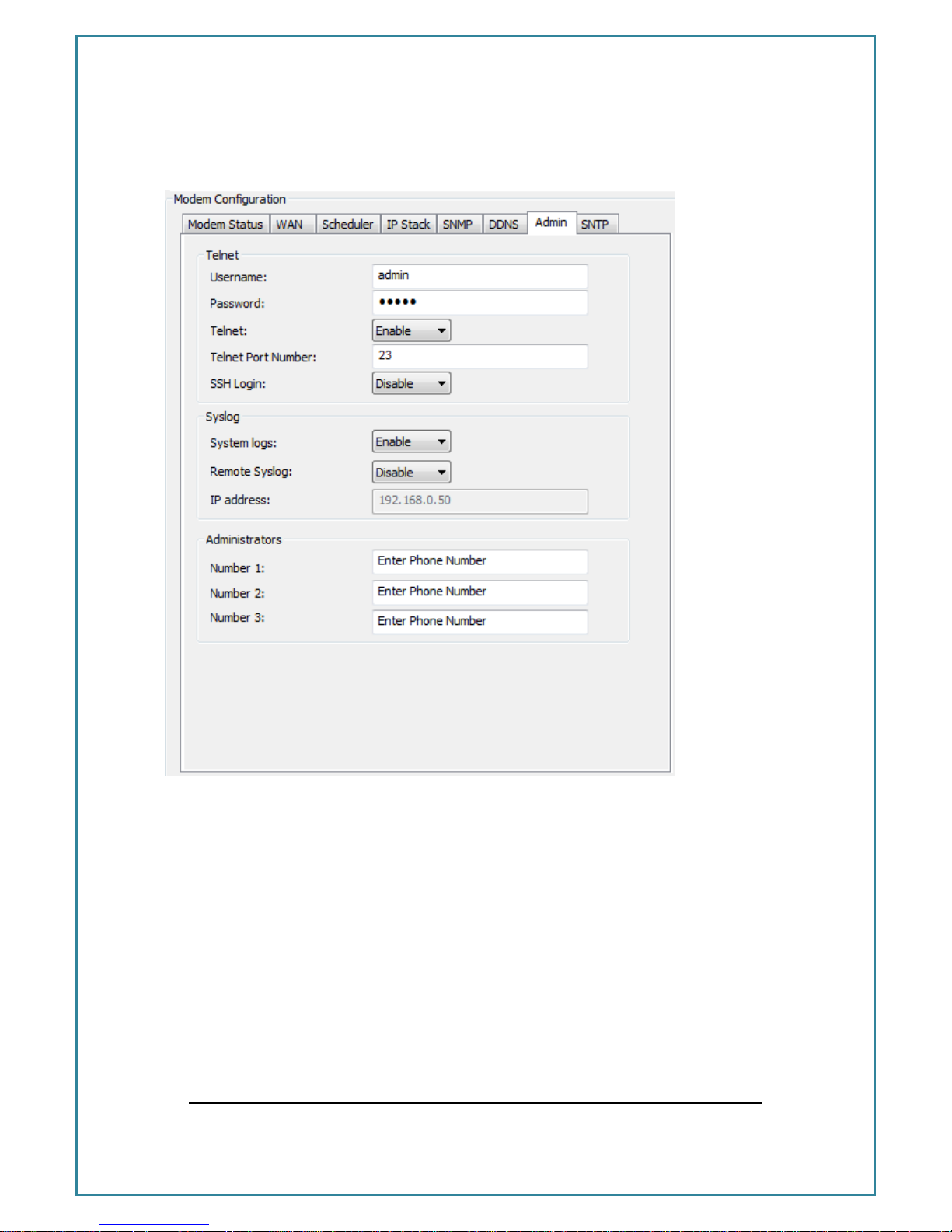

Admin
Telnet
Username
User Name setting using for Telnet and TCP connection.
Password setting using for Telnet and TCP connection.
Enable or disable Telnet.
Set Telnet port number to use.
Set SSH enable or disable.
Page 31
Intelimax User Manual
- 31 -
Syslog
Syslog allows viewing system logs plus enabling remote syslogs function and
server IP address.
Save System logs in the internal memory.
Send modem Syslog to external sys logs server.
Enter the IP address of remote server.
Administrators
Administrators phone numbers in international format +61412 345 678
Output Info
Output Information for receiving Intelimax’s data in serial or remote access.
Page 32
Intelimax User Manual
- 32 -
IP Stack Functions
IP Stack Connect AT Command
AT$$IPCTOS
IP Stack Disconnect AT Command
AT$$IPCTCS
IP Stack Connect Button
When IP Stack is Manual Mode, connect without AT Command input.
IP Stack Disconnect Button
When IP Stack is Manual Mode, disconnect without AT Command input.
Send CR, LF
Add Carriage Return and Line Feed message when data is sent. Use for AT Command
sending via the GUI.
Send Button
Send AT Command and Data.
Page 33
Intelimax User Manual
- 33 -
System Functions
Clear Output
Delete modem output information.
Save Output
Save Output Info’s information as a File.
Save Config
Save modem configuration as a file.
Load Config
Load modem configuration information as a file.
Factory Setting
Reset Intelimax to factory settings.
Firmware Upgrade
Upgrade the Intelimax’s firmware
Page 34
Intelimax User Manual
- 34 -
Click ‘Firmware Upgrade’ button and select firmware file. And open the file, the
uploading screen appears.
Do not remove Intelimax’s cable or turn off the power until upgrade finishing.
Page 35
Intelimax User Manual
- 35 -
SMS Commands (Works only in IP Stack mode)
Following SMS commands can be used to change the APN, ID, Password,
Authentication and even rebooting Intelimax. Also after changing the APN, ID,
Password, Authentication, Intelimax will send a confirmation SMS after applying the
change.
Change APN (e.g. telstra.extranet)
SMS Syntax: INTELIMAX.PARK.APN telstra.extranet
Change Username, Password and Authentication (e.g. Username:
[email protected], Password: maxon, Authentication: chap)
SMS Syntax: INTELIMAX.PARK.AUTH [email protected]:maxon:chap
Check Settings and IP address
SMS Syntax: INTELIMAX.PARK.WANIP
Reboot Intelimax
SMS Syntax: INTELIMAX.PARK.REBOOT
Page 36
Intelimax User Manual
- 36 -
LED Functionality
Description
Signal Strength
Power LED
Data LED
IP STACK IDLE
SIGNAL > 84dBm
ON
OFF
IP STACK ONLINE
SIGNAL > 84dBm
ON
1 sec on
1 sec off
IP STACK IDLE
SIGNAL > 95dBm
< 85dBm
3 sec on 1 sec off
OFF
IP STACK ONLINE
SIGNAL > 95dBm
< 85dBm
3 sec on 1 sec off
1 sec on
1 sec off
IP STACK IDLE
SIGNAL < 96dBm
1 sec on 1 sec off
OFF
IP STACK ONLINE
SIGNAL < 86dBm
1 sec on 1 sec off
1 sec on
1 sec off
SERIAL MODE IDLE
SIGNAL > 84dBm
ON
OFF
SERIAL MODE
ONLINE
SIGNAL > 84dBm
ON
1 sec on
1 sec off
SERIAL MODE IDLE
SIGNAL > 95dBm
< 85dBm
3 sec on 1 sec off
OFF
SERIAL MODE
ONLINE
SIGNAL > 95dBm <
85dBm
3 sec on 1 sec off
1 sec on
1 sec off
SERIAL MODE IDLE
SIGNAL < 96dBm
1 sec on 1 sec off
OFF
SERIAL MODE
ONLINE
SIGNAL > 86dBm
1 sec on 1 sec off
1 sec on
1 sec off
Page 37
Intelimax User Manual
- 37 -
Telnet / S S H C o m m a n d s
Using Intelimax Telnet / SSH commands allows you to configure the modem remotely,
also you can send diagnostic commands here is summary off of tasks tht you can
perform

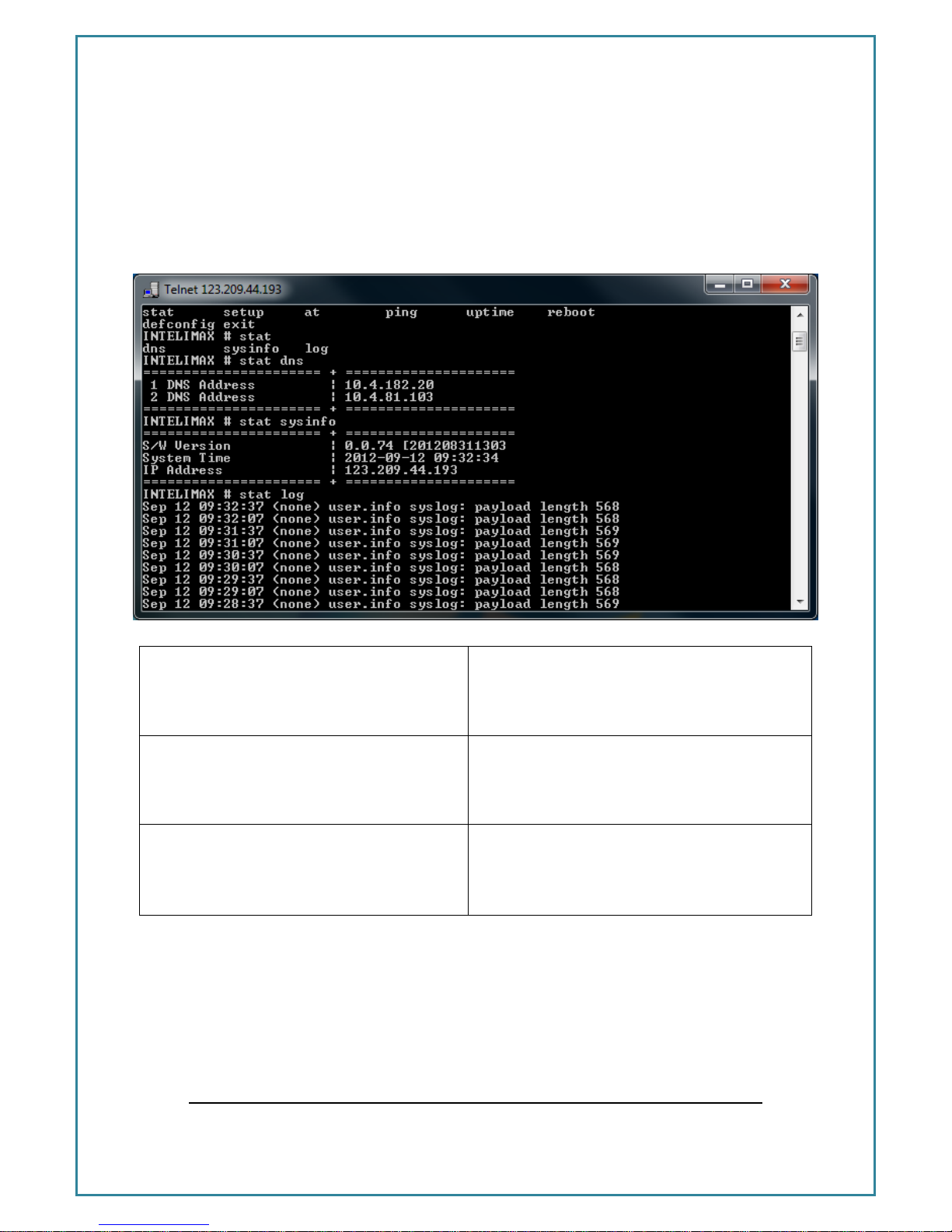

1. Stat : Used to display sys log, system info and DNS settings

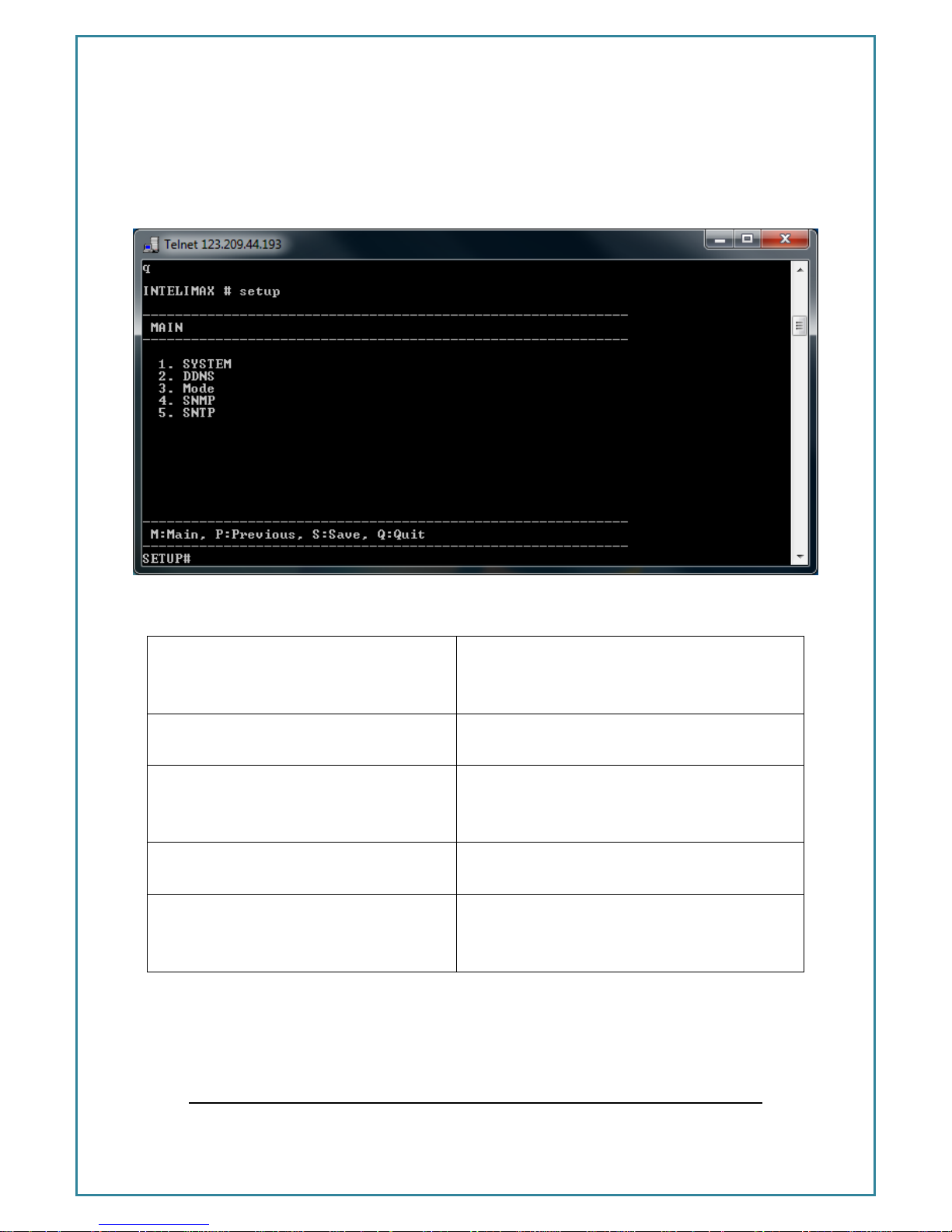

2. Setup: using this menu you can setup system settings, Dynamic DNS, operation
mode, SNMP and SNTP settings
3. Send Direct AT commands to the modem module
4. Check signal strength
5. Use Ping command
6. Check system up time
7. Set the modem to factory default
8. Reboot the modem
Connecting to the modem via telnet
To access the modem via Telnet or SSH you will need the following
1. A Telnet or terminal software you can use windows telnet
2. Telnet needs to be enabled on the Intelimax
3. Modem IP Address or Dynamic DNS URL
4. Modem Username and Password
Connection Steps
1. Run your telnet software and put the modem IP address or URL
2. Enter your username and password
3. Type help to display all available configuration commands

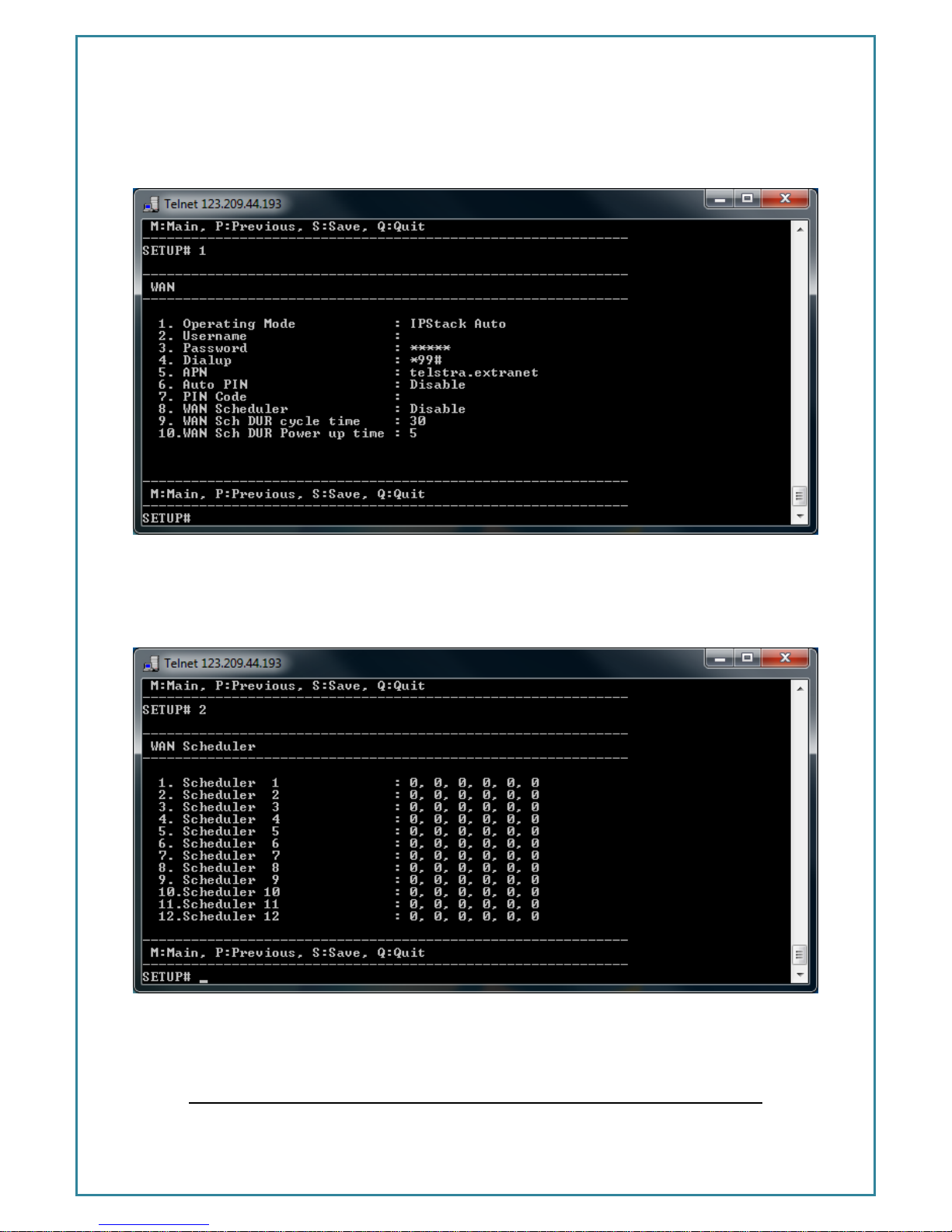

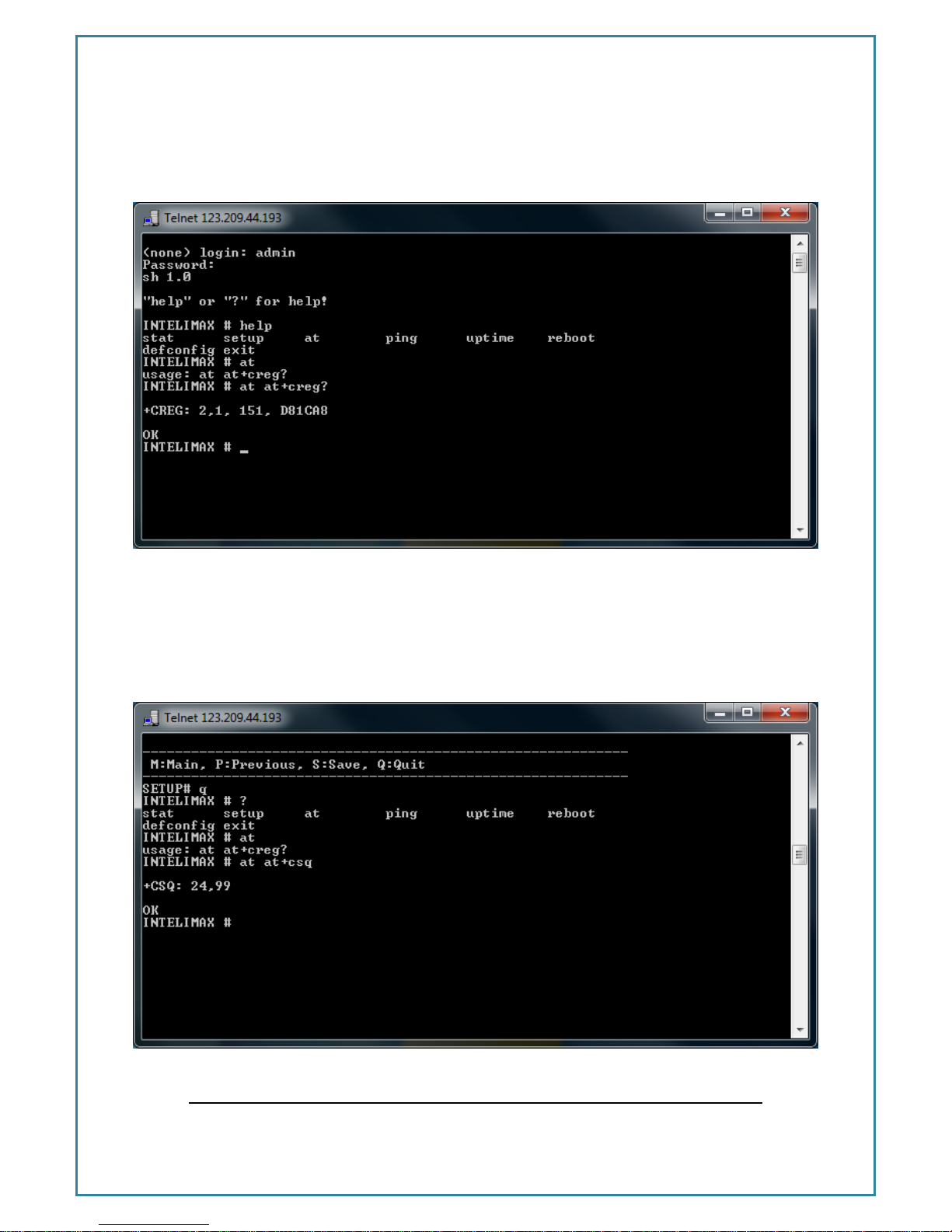

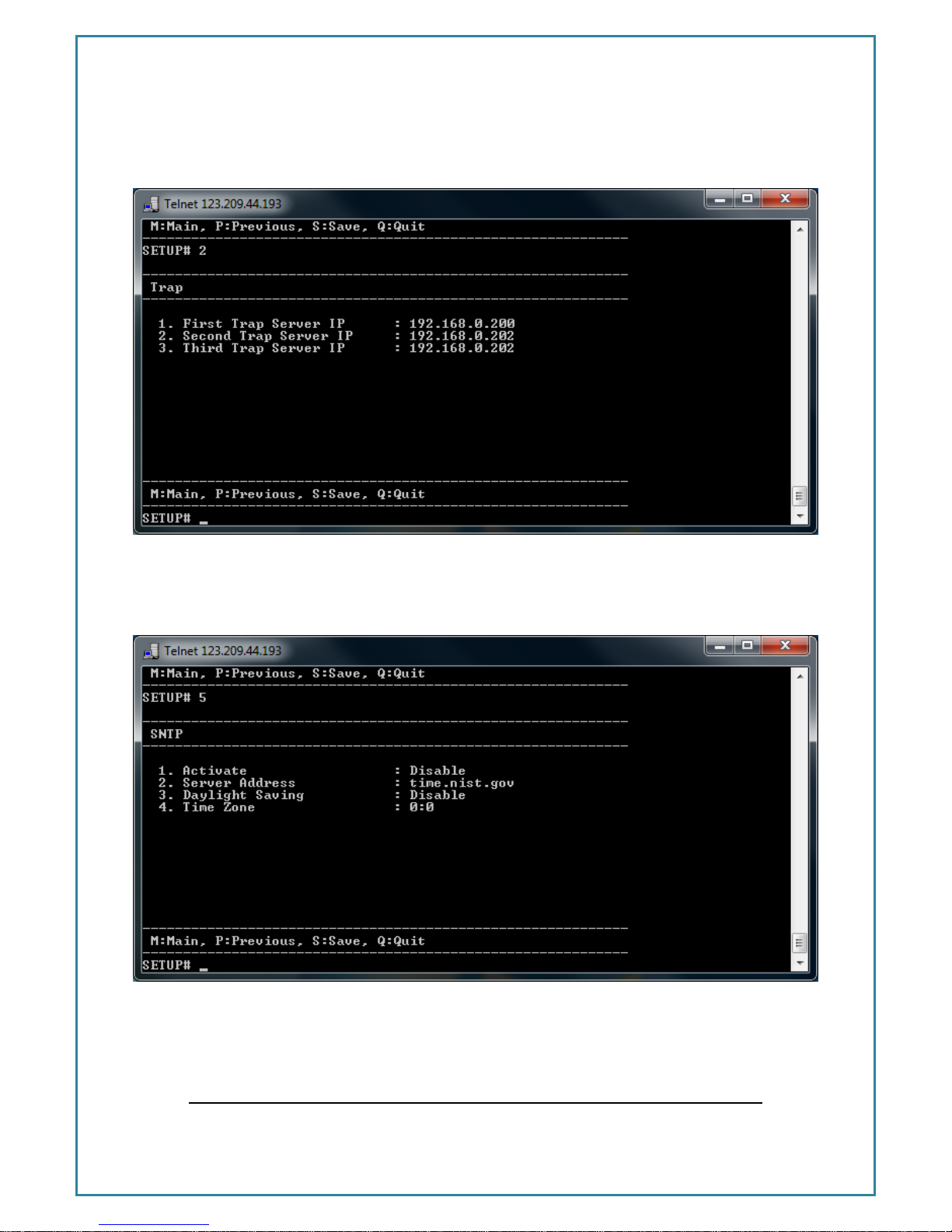

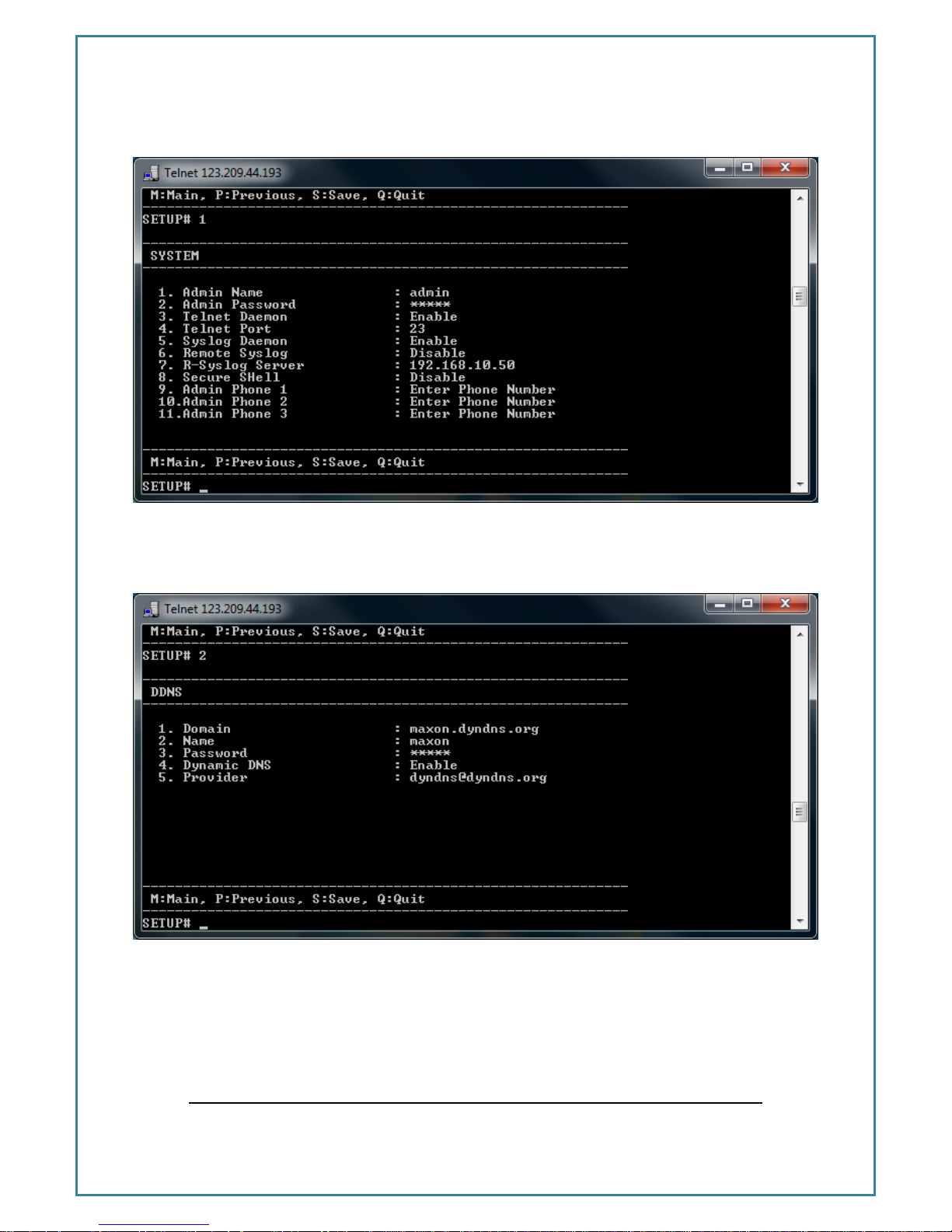

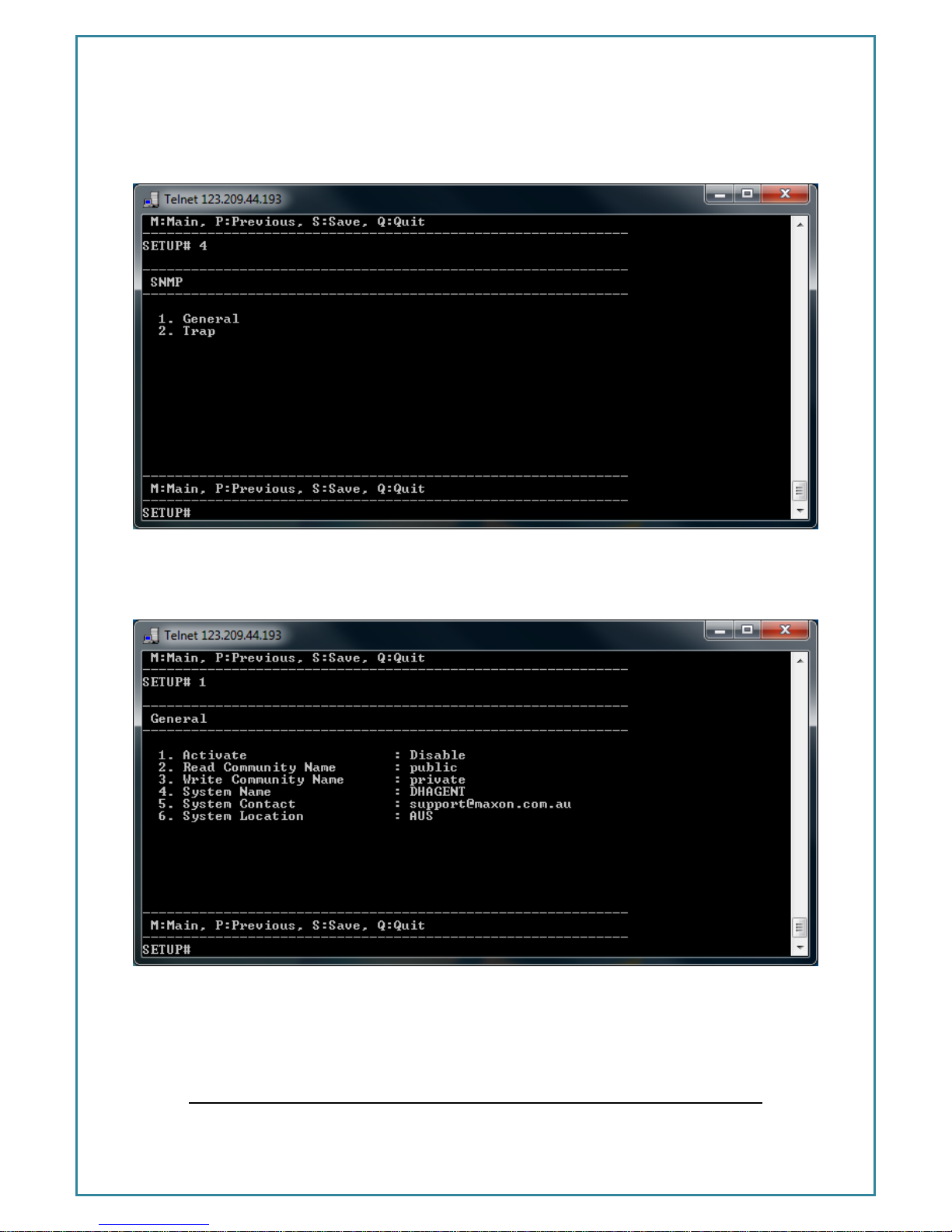

Screen Shoots showing the different telnet commands
Page 38
Intelimax User Manual
- 38 -

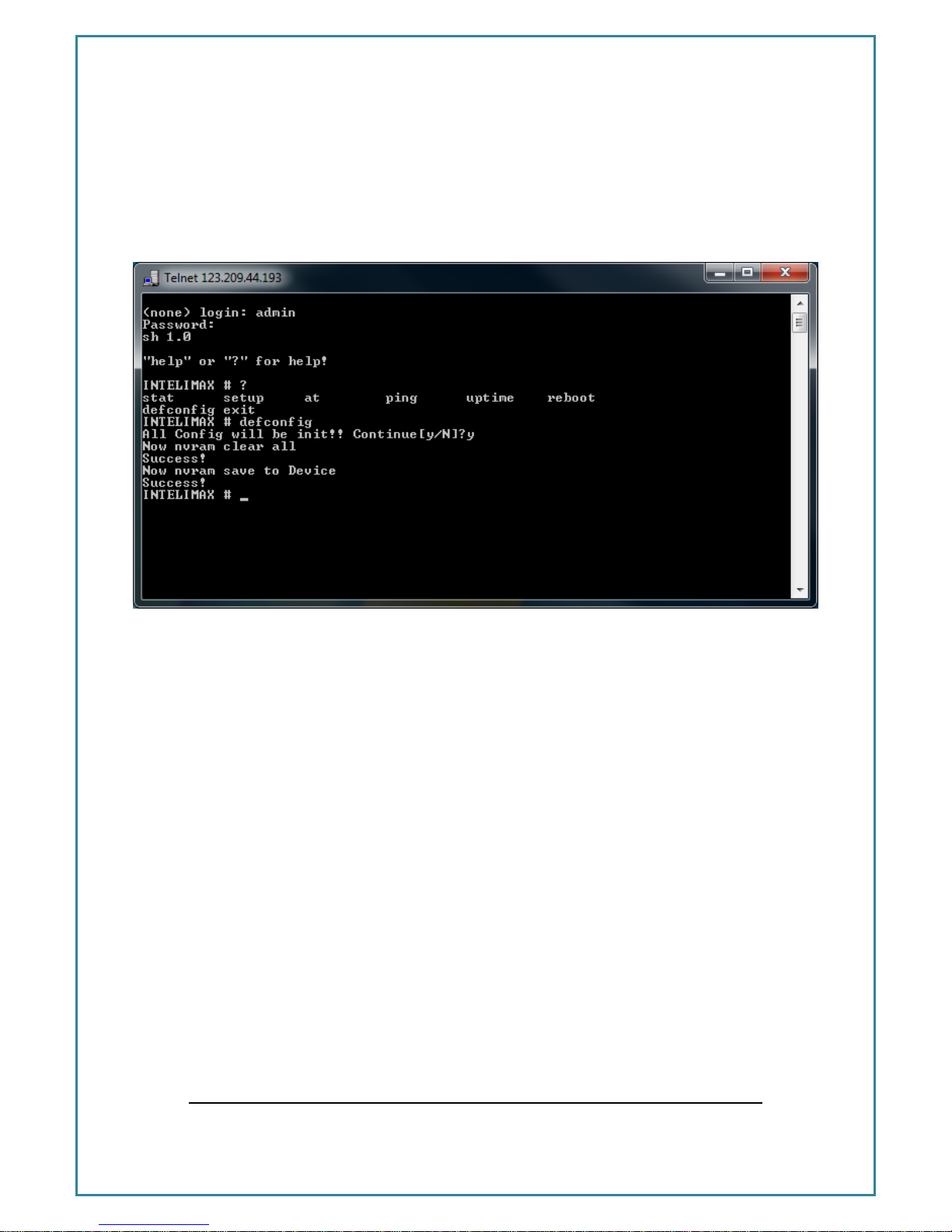

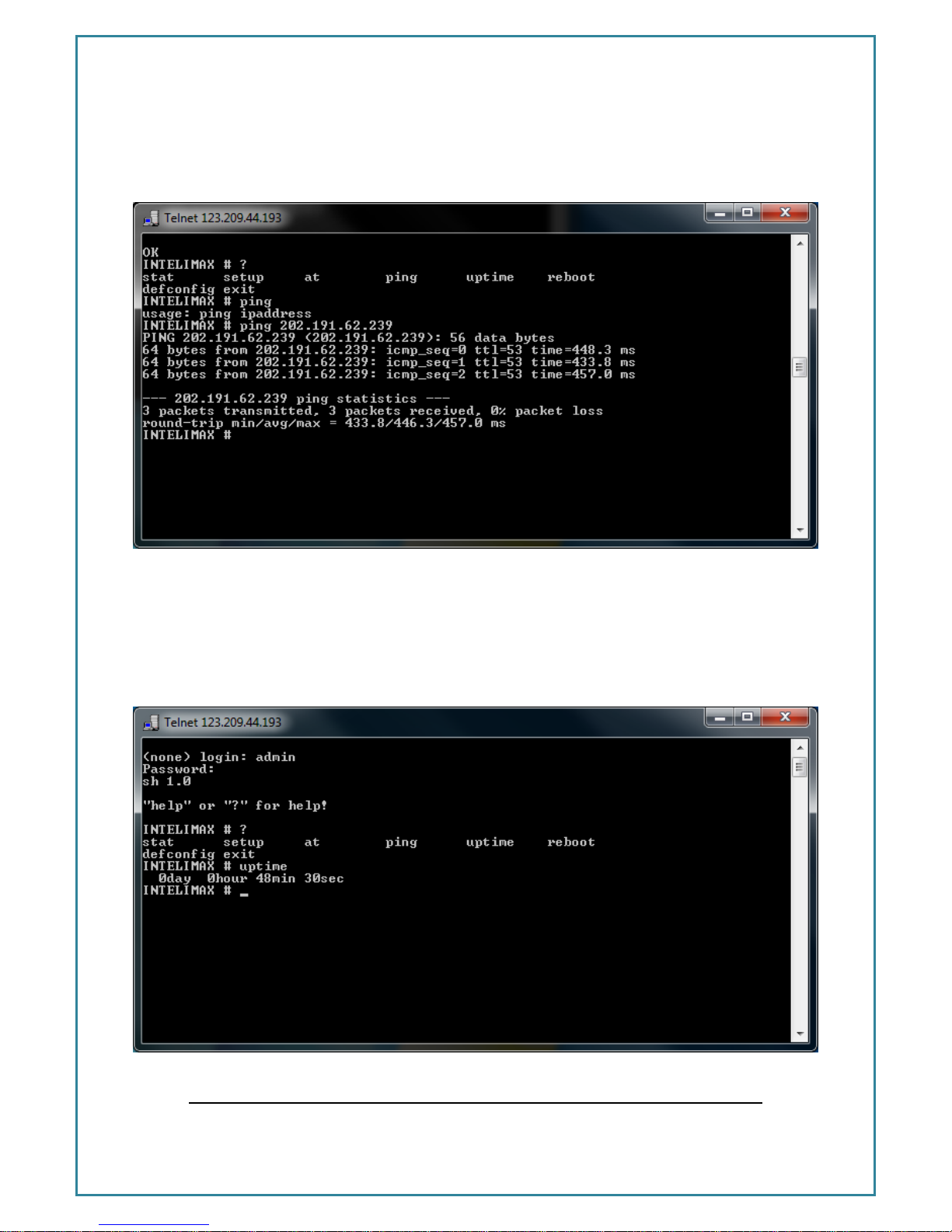

Once you login to telnet. You can choose whether to start telnet service, set up
configuration, Configure via AT command, use ping function, show uptime reboot and
reset the modem remotely to factory default using option provided i.e stat, setup, at,
ping, uptime, reboot and defconfig respectively.
Page 39
Intelimax User Manual
- 39 -
Stat
Status of INTELIMAX
Log
Shows the syslog information if it is not set as
remote syslog
Sysinfo
Shows F/W version and system Time and IP
Address of Intelimax
DNS
Display Primary DNS and secondary DNS
address of Intelimax
Page 40
Intelimax User Manual
- 40 -
SETUP
SYSTEM
1. SYSTEM
Users can change Admin password, telnet
port, Enable/Disable Remote Syslog and can
enter up to three phone number for SMS
2.DDNS
Users can configure Dynamic DNS using this
command
3.MODE
Intelimax support IP stack and Serial mode
only, using this option(Mode) users can
configure WAN scheduler, UART/Serial port
setting and IP stack setting
4.SNMP
Users can enable/disable this feature that
allows network monitoring
5.SNTP
Users can enter server address, Activate and
De-activate day light saving and even
change time zone
Page 41
Intelimax User Manual
- 41 -
DDNS
MODE
Page 42
Intelimax User Manual
- 42 -
1.WAN
This command will allow users to select
operating mode, configure users
name and password, enter APN,
Enable/Disable Auto PIN function,
enter PIN code and configure WAN
scheduler.
2.WAN Scheduler
This command will allow users to
control WAN connection in a specified
time.
Day of week[0~6],
Start hour[0~23],
Start Minutes[0~59],
Start hour[0~23],
Start Minutes[0~59],
Engine power [0, 1]
E.g.: Scheduler 1: 0,0,0,23,59,1
Sunday from 0:)0 to 23:59 scheduler
with engine power off
4. UART/Serial Port
This command allows users to
configure serial setting e.g. baud rate,
data bit, stop bit, parity, and flow
control
5.IPSTACK
Modem will be configured to use
onboard IPSTACK. This option allows
changing IPSTACK Protocol (TCP/UDP),
IPSTACK Port and configuring client
and server IP address.
Page 43
Intelimax User Manual
- 43 -
WAN
WAN Scheduler
Page 44
Intelimax User Manual
- 44 -
UART/Serial Port
IPSTACK
Page 45
Intelimax User Manual
- 45 -
SNMP
General
Page 46
Intelimax User Manual
- 46 -
Trap
SNTP
Page 47
Intelimax User Manual
- 47 -
AT command direct to Module
Signal Strength Check
To check signal strength use “at at+csq?” command. Refer to the screen shot
below:
Page 48
Intelimax User Manual
- 48 -
PING command
System uptime check.
The command uptime shows you the connection time as shown in the screen
shot below.
Page 49
Intelimax User Manual
- 49 -
Set to Factory
Use defconfig to clear all the setting which will configure the modem to factory default
state.
Page 50
Intelimax User Manual
- 50 -
Reset the INTELIMAX
Intelimax can be power rebooted using the reboot command after logging into the
Intelimax remotely
Page 51
Intelimax User Manual
- 51 -
Extended / Intelimax Specific AT
Command Set
Device Information
ATI
Manufacturer: Maxon Electronics Australia Pty Ltd / Jeongwontech
Model Number: MA-2015
Product Name: Intelimax
F/W Revision: 0.0.0 [201201130929]
H/W Version: 1.0
Module F/W Revision: 11.810.09.05.00
LAI: 50506
LAC: 4eeb
CellID: 00cb63b3
IMEI: 354283040117446
OK
Wan extension function
AT$$WANSE?
$$WANSE:
PINGCHECK:Enable,0,0,0.0.0.0,
BACKOFF:Disable,0,0,0,0
OK
Parameters
$$WANSE: X,X,X,X,X,X
0,1 PINGCHECK,BACKOFF
0,1 Disable/Enable both expansion PINGCHECK and BACKOFF
1~60 Interval of PINGCHECK/40~59 Seconds of 1st retrial interval of BACKOFF
1~60 Fail count of PINGCHECK/2~10 Minutes of 1st retrial duration of BACKOFF
IP address of 1st server of PINGCHECK/10~59 Minutes of 2nd retrial interval of BACKOFF
IP address of 2nd server of PINGCHECK/2~10 Hours of 2nd retrial duration of BACKOFF
OK
Page 52
Intelimax User Manual
- 52 -
WAN authentication
AT$$WANSA?
$$WANSA: 1,telstra.extranet,0,,,*99#,0,,0,0,0,0,00:00,0
OK
Parameters
$$WANSA: X,X,X,X,X,X,X,X,X,X,X,X,X,X
1,2 IPStack Auto/Manual
Access Point domain Name
0,1,2 NONE/PAP/CHAP
Username
Password
Dialup number
0,1 Auto PIN Disable/Enable
PIN code
0 ~ 24 Hours of Periodic reset
0,1 Disable/Enable Reset (TCP Server Listening)
0,1 Disable/Enable Reset (TCP Connected State)
0,1 Disable/Enable Reset (At scheduled Time)
HH:MM for Reset (At scheduled Time)
Battery (12.3 volts ON, 11.9 volts OFF)
0,1~100 LCP Echo Interval
0,1~100 LCP Echo Failure
OK
Periodic reset
AT$$RESET=24
$$RESET: 24
OK
Parameters
$$RESET: X
0 ~ 24 Hours of Periodic reset
Page 53
Intelimax User Manual
- 53 -
WAN scheduler
AT$$WANSS?
$$WANSS: 0,Disabled
OK
Parameters
$$WANSS:
0,1 RS232 line driver power down
0,1,2 Disable/Day of Week/Duration
0,1 Delete/Add schedule/5~59 Minutes of power up
0~28 Entry number of day of week[Delete]/0,1,2,3,4,5,6 Day of week[Ddd]/5~59 Minutes
of power cycle
0~23 Hours of start
0~59 Minutes of start
0~23 Hours of finish
0~59 Minutes of finish
0,1 Engine power down
OK
IP Stack setting
AT$$WANSI?
$$WANSI: 1,1,1,0,0.0.0.0,0.0.0.0,30000,1,300,20,0,0
OK
Parameters
$$WANSI: X,X,X,X,X,X,X,X,X,X,X,X
0,1,2 None/Server/Client
0,1 Disable/Enable Notify Boot Message
0,1 Disable/Enable Notify IPStack Message
0,1 TCP/UDP
xxx.xxx.xxx.xxx Primary IPAddress
xxx.xxx.xxx.xxx Secondary IPAddress
0 ~ 65535 Port Number
0,1 Disable/Enable Keep Alive
1 ~ 3600 Seconds Keep Alive Interval
5 ~ 60 Seconds Network Dormant Period UDP
0,1 Disable/Enable UDP Keep Alive
Page 54
Intelimax User Manual
- 54 -
0,1,2 ~ 60 Disable/Handshake/Seconds UDP Wake Up
OK
SNMP
AT$$SNMPS?
$$SNMPS:
Disable,public,private,DHAGENT,[email protected],AUS,192.168.0.200,192.168.0.2
01,192.168.0.202
OK
Parameters
$$SNMPS: X,X,X,X,X,X,X,X,X
0,1 Disable/Enable
Read community
Write community
Name
Contact
Location
Trap 1 IP address
Trap 2 IP address
Trap 3 IP address
OK
DDNS
AT$$DDNSS?
$$DDNSS: Disable,,,
OK
Parameters
$$DDNSS: X,X,X,X
0,1 Disable/Enable
DomainName
UserName
Password
Service Provider
Page 55
Intelimax User Manual
- 55 -
OK
System
AT$$SYSTS?
$$SYSTS:
admin,admin,Enable,23,Enable,Disable,192.168.0.50,Disable,+61427933242,+6142793324
2,+61427933242
OK
Parameters
$$SYSTS: X,X,X,X,X,X,X,X,X,X,X
UserName
Password
0,1 Telnet Disable/Enable
Telnet Port Number
0,1 Syslog Disable/Enable
0,1 Remote syslog Disable/Enable
Remote syslog server address
0,1 SSH Disable/Enable
Phone number of Administrator
Phone number of Administrator
Phone number of Administrator
OK
Serial (UART) port
AT$$SPORT?
$$SPORT: 115200,8,N,1,None
OK
Parameters
$$SPORT: X,X,X,X,X
2400,4800,9600,19200,38400,57600,115200 Baud rate
7,8 Data bits
Page 56
Intelimax User Manual
- 56 -
N,E,O None/Even/Odd
1,2 Stop bits
None, Software, Hardware Flow control
OK
Engine Band
AT$$BAND?
$$BAND: 40000000
OK
Parameters
$$BAND:
1: GSM 850
2: GSM DCS SYSTEMS
4: GSM EGSM 900
8: GSM PGSM 900
10: GSM RGSM 900
20: GSM PCS
40: WCDMA I IMT2000
80: WCDMA II PCS1900
400: WCDMA V 850
1000: WCDMA VIII 900
40000000: AUTO
OK
Check IP address of the WAN side
AT$$WAN
$$WAN: 123.209.0.204
OK
Page 57
Intelimax User Manual
- 57 -
FTP
AT$$FTPCS?
AT$$FTPCS: 1,192.168.10.1:21,maxon,maxon,0,INTELIMAX,1000,1
OK
Parameters
$$FTPCS: X,X,X,X,X,X,X,X
0 - Disable
1 - Manual
2 - Hourly (0 - 24)
3 - Time of day (0 - 24)
4 - Day of month (1 - 31 days)
5 – Minutes (0 - 60)
Host IP/Domain address with Port
User name
Password
Time interval
Header of file name
Size of file (Bytes)
Time stamp
Page 58
Intelimax User Manual
- 58 -
Examples:
AT command to upload every 1 hour.
AT$$FTPCS=2,20.19.62.23:21,maxon,maxon,1,FILEHEADER,10000,0
AT command to upload every 30 minutes.
AT$$FTPCS=5, 20.19.62.23:21,maxon,maxon,30,FILEHEADER,10000,0
AT command to upload every day at 8PM.
AT$$FTPCS=3, 20.19.62.23:21,maxon,maxon,20,FILEHEADER,10000,0
AT command to upload every 15th day of the month.
AT$$FTPCS=4, 20.19.62.23:21,maxon,maxon,15,FILEHEADER,10000,0
1. In the example above file size is 10000 bytes.
2. The modem would create a text file using name specified above (in the
example I have used “fileheader” as the filename)
3. The last setting 0 or 1 decides if the data is time stamped. 0 will only log data in
the text file. 1 will stamp all data logged with date and time.
File uploaded with date time stamp disabled.
AT$$FTPCS=2,20.19.62.23:21,maxon,maxon,1,FILEHEADER,10000,0
AT+CSQ
AT+CSQ
AT+CSQ
AT+CSQ
AT+CSQ
AT+CSQ
File uploaded with date time stamp enabled.
AT$$FTPCS=2,20.19.62.23:21,maxon,maxon,1,FILEHEADER,10000,1
09/11/2012 15:44:05 AT+CSQ
Page 59
Intelimax User Manual
- 59 -
09/11/2012 15:44:06 AT+CSQ
09/11/2012 15:44:07 AT+CSQ
09/11/2012 15:44:08 AT+CSQ
09/11/2012 15:44:09 AT+CSQ
09/11/2012 15:44:10 AT+CSQ
09/11/2012 15:44:11 AT+CSQ
09/11/2012 15:44:12 AT+CSQ
09/11/2012 15:44:13 AT+CSQ
09/11/2012 15:44:14 AT+CSQ
09/11/2012 15:44:15 AT+CSQ
AT$$FTPFL
Displays the files waiting to be uploaded
AT$$FTPSC
OK
Will start the FTP connection and upload the files. For manual mode only
Signal Strength
AT+CSQ?
+CSQ: 17,99
OK
Open PPP connection
AT$$IPCTOP
Close PPP connection
AT$$IPCTCP
Open TCP/UDP Socket
AT$$IPCTOS
Page 60
Intelimax User Manual
- 60 -
Close TCP/UDP Socket
AT$$IPCTCS
IPStack Connection Settings
AT$$IPSCFG?
$$IPSCFG: 30,100,300
OK
AT$$IPSCFG=?
$$IPSCFG: X,X,X
IPSTACK SEND DELAY: 0,1 ~ 2000 msec
IPSTACK BUFFER SIZE: 1,32 ~ 1450 bytes
IPSTACK SOCKET TIMEOUT: 2,<0,10~3600> sec
OK
Change modem mode
AT$$CHGMODE=
1 – IP Stack Auto
2 – IP Stack Manual
3 – Serial Modem
at$$chgmode=1
OK
Save and Reboot
AT$$RESET
At$$reset
OK
Page 61
Intelimax User Manual
- 61 -
Extended / Module S p e c i f i c A T
Command Set ( S e r i a l M o d e m M o d e )
AT&W
Saves AT commands
AT%RESET=1 (Serial Modem mode)
Applies saved AT commands with a reboot
Parameter
Description
E0
Do not echo command set in command state or online
command state.
E1
Echo command set in command state or online command
state.
Q0
Return result codes.
Q1
Do not return result codes.
&C0
Circuit 109 (CF) always ON.
&C1
Circuit 109 (CF) ON in accordance with the specified service.
DCD line is High during a circuit switched call.
&C2
Circuit 109 (CF) ON. DCD is always high. This line toggles low
for 1 second when the circuit switched call is disconnected.
&C3
Circuit 109 (CF) ON. DCD is Low. High when modem has
successfully established a PPP Data (packet switched) call
(only applies to IP STACK)
&C4
Circuit 109 (CF) ON. DCD is Low. High when modem has
successfully established a PPP Data and opened a socket with
remote server(packet switched) call (only applies to IP STACK)
&D0
Ignore circuit 108/2 (CD).
[&D1]
Enter online command state following ON-to-OFF transition of
circuit 108/2. See service specific AT command processing for
service state transitions.
&D2
Enter command state following On to Off transition of circuit
108/2. See service specific AT command processing for service
state processing requirements.
S0
[1 to 255]
0
Automatic answering. [Enable automatic
answering after (Value: 1) x 6 seconds.]
0: Not Answer
Page 62
Intelimax User Manual
- 62 -
Command
TE2 MT2
Command
TE2 MT2
ATD<phone_number>
Notify
TE2 MT2
CONNECT (Data call connected)
Connect <Speed> if connect_baud is set.
NO CARRIER (Data call failure)
Value
phone_number:
for Packet Switched Data: *99# (Australia – requires authentication)
for Circuit Switched Data: You will need a data number ( Code 2620 activated
on the SIM account)
Notify
TE2 MT2
AT: RING
Command
TE2 MT2
ATA (answer data call)
Notify
TE2 MT2
CONNECT (Data call connected)
CONNECT <SPEED> if connect_baud is enabled.
NO CARRIER (Data call failure)
Call State
Command
TE2 MT2
+++ (escape command to go to off-line command state)
ATH (release call)
Notify
TE2 MT2
NO CARRIER
