Intel NUC6CAYH User manual

Intel® NUC Board NUC6CAYB

Technical Product Specification

Regulatory Model: NUC6CAY

November 2016

Order Number: J46865-001

The Intel NUC Board NUC6CAYB may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current characterized errata are documented in the Intel NUC Board NUC6CAYB Specification Update.

Revision

Revision History

Date

001

First release of Intel NUC Board NUC6CAYB Technical Product Specification

November 2016

Revision History

Disclaimer

This product specification applies to only the standard Intel® NUC Board and Kits with BIOS identifier AYAPLCEL.86A.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.

All Intel® NUC Boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers (PC) for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other PC or embedded non-PC applications or other environments, such as medical, industrial, alarm systems, test equipment, etc. may not be supported without further evaluation by Intel.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or

incompatibilities arising from future changes to them.

Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different processor families: Go to:

Learn About Intel® Processor Numbers

Intel NUC Boards may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.

Intel and Celeron are trademarks of Intel Corporation in the U.S. and/or other countries.

* Other names and brands may be claimed as the property of others.

AA Revision

BIOS Revision

Notes

J23203-402

AYAPLCEL.86A.0026

1,2

J26842-402

AYAPLCEL.86A.0026

1,2,3

Device

Stepping

S-Spec Number(s)

Intel Celeron processor J3455

SR2Z9

Device

Model

Version

SanDisk*

SDINADF4-32G-H

5.1

Hynix*

H26M64103EMR

5.0

Kingston*

EMMC32G-M525-A53

5.1

Product Name

Intel® NUC Board

Differentiating Features

NUC6CAYH

J23203-xxx

Kit with power adapter, no memory, no eMMC, no OS

NUC6CAYS

J26842-xxx

Kit with power adapter, preinstalled with 2GB 1600MHz SO-DIMM, 32GB eMMC with Microsoft* Windows* 10 Home

Date

Type of Change

Description of Changes or Clarifications

Board Identification Information

Basic Intel® NUC Board NUC6CAYB Identification Information

Notes:

1. The AA number is found on a small label on the SO-DIMM memory connector.

2. Intel® Celeron® processor J3455, used on this AA revision, consists of the following component:

3. Contains a 32GB embedded MultiMediaCard (eMMC) device consisting of one of the following components:

Product Identification Information

Intel® NUC Products NUC6CAY{x} Identification Information

Specification Changes or Clarifications

The table below indicates the Specification Changes or Specification Clarifications that apply to the Intel NUC Board NUC6CAYB.

Specification Changes or Clarifications

Errata

Current characterized errata, if any, are documented in a separate Specification Update. See

http://www.intel.com/content/www/us/en/nuc/overview.html for the latest documentation.

iii

Intel NUC Board NUC6CAYB

Chapter

Description

A description of the hardware used on Intel NUC Board NUC6CAYB

A map of the resources of the Intel NUC Board

The features supported by the BIOS Setup program

A description of the BIOS error messages, beep codes, and POST codes

The features of the Intel NUC Kit

Technical Product Specification

Preface

This Technical Product Specification (TPS) specifies the board layout, components, connectors, power and environmental requirements, and the BIOS for Intel® NUC Board NUC6CAYB. This board may be found in Intel® NUC Kit NUC6CAYH (without memory and operating system) and Intel® NUC Kit NUC6CAYS (with pre-installed SO-DIMM memory and operating system).

Intended Audience

The TPS is intended to provide detailed technical information about Intel NUC Board NUC6CAYB and its components to the vendors, system integrators, and other engineers and technicians who need this level of information. It is specifically not intended for general audiences.

What This Document Contains

Typographical Conventions

This section contains information about the conventions used in this specification. Not all of these symbols and abbreviations appear in all specifications of this type.

Notes, Cautions, and Warnings

NOTE

Notes call attention to important information.

CAUTION

Cautions are included to help you avoid damaging hardware or losing data.

Used after a signal name to identify an active-low signal (such as USBP0#)

Gigabyte (1,073,741,824 bytes)

GB/s

Gigabytes per second

Gb/s

Gigabits per second

Kilobyte (1024 bytes)

Kilobit (1024 bits)

kb/s

1000 bits per second

Megabyte (1,048,576 bytes)

MB/s

Megabytes per second

Megabit (1,048,576 bits)

Mb/s

Megabits per second

TDP

Thermal Design Power

xxh

An address or data value ending with a lowercase h indicates a hexadecimal value.

x.x V

Volts. Voltages are DC unless otherwise specified.

This symbol is used to indicate third-party brands and names that are the property of their respective owners.

Other Common Notation

Contents

Revision History ............................................................................................................... ii

Board Identification Information ..................................................................................................................... iii

Product Identification Information ................................................................................................................. iii

Errata ........................................................................................................................................................................... iii

Preface .............................................................................................................................. iv

Intended Audience ................................................................................................................................................ iv

What This Document Contains ........................................................................................................................ iv

Typographical Conventions .............................................................................................................................. iv

Contents .......................................................................................................................... vii

1 Product Description ............................................................................................... 11

1.1 Overview ...................................................................................................................................................... 11

1.1.1 Feature Summary .................................................................................................................. 11

1.1.2 Board Layout (Top) ............................................................................................................... 13

1.1.3 Board Layout (Bottom) ........................................................................................................ 15

1.1.4 Block Diagram ......................................................................................................................... 17

1.2 Online Support .......................................................................................................................................... 18

1.3 Processor ..................................................................................................................................................... 18

1.4 System Memory ........................................................................................................................................ 19

1.5 Processor Graphics Subsystem .......................................................................................................... 21

1.5.1 Intel® High Definition (Intel® HD) Graphics ................................................................... 21

1.5.2 High Definition Multimedia Interface* (HDMI*) ......................................................... 21

1.5.3 Video Graphics Array* (VGA*) ........................................................................................... 21

1.6 USB ................................................................................................................................................................. 22

1.7 SATA Interface ........................................................................................................................................... 22

1.7.1 AHCI Mode ................................................................................................................................ 22

1.8 Embedded MultiMediaCard (e-MMC) - optional ......................................................................... 23

1.9 Real-Time Clock Subsystem ................................................................................................................ 23

1.10 Audio Subsystem ..................................................................................................................................... 24

1.10.1 Digital Microphone Array .................................................................................................... 24

1.10.2 Mini-TOSLINK Interface ...................................................................................................... 25

1.10.3 Audio Subsystem Software ............................................................................................... 25

1.11 LAN Subsystem ......................................................................................................................................... 26

1.11.1 Realtek* 8111HN Gigabit Ethernet Controller .......................................................... 26

1.11.2 LAN Subsystem Software ................................................................................................... 26

1.11.3 RJ-45 LAN Connector with Integrated LEDs .............................................................. 27

1.11.4 Wireless Network Module .................................................................................................. 27

1.12 Hardware Management Subsystem ................................................................................................. 28

vii

1.12.1 Hardware Monitoring ........................................................................................................... 28

1.12.2 Fan Monitoring ........................................................................................................................ 28

1.12.3 Thermal Solution ................................................................................................................... 29

1.13 Power Management ................................................................................................................................ 30

1.13.1 ACPI ............................................................................................................................................. 30

1.13.2 Hardware Support ................................................................................................................. 32

1.13.3 HDMI Consumer Electronics Control (CEC) ................................................................ 34

1.14 Intel Platform Security Technologies .............................................................................................. 36

1.14.1 Intel® Virtualization Technology ...................................................................................... 36

1.14.2 Intel® Platform Trust Technology ................................................................................... 36

2 Technical Reference ............................................................................................... 37

2.1 Memory Resources .................................................................................................................................. 37

2.1.1 Addressable Memory ........................................................................................................... 37

2.2 Connectors and Headers....................................................................................................................... 37

2.2.1 Front Panel Connectors ...................................................................................................... 38

2.2.2 Back Panel Connectors ....................................................................................................... 38

2.2.3 Headers and Connectors (Top) ........................................................................................ 39

2.2.4 Connectors and Headers (Bottom) ................................................................................. 40

2.3 BIOS Security Jumper ............................................................................................................................ 50

2.4 Mechanical Considerations .................................................................................................................. 52

2.4.1 Form Factor .............................................................................................................................. 52

2.5 Electrical Considerations ...................................................................................................................... 53

2.5.1 Power Supply Considerations .......................................................................................... 53

2.5.2 Fan Header Current Capability ......................................................................................... 53

2.6 Thermal Considerations ........................................................................................................................ 53

2.7 Reliability ..................................................................................................................................................... 56

2.8 Environmental ........................................................................................................................................... 56

3 Overview of BIOS Features ................................................................................... 57

3.1 Introduction ................................................................................................................................................ 57

3.2 BIOS Flash Memory Organization ..................................................................................................... 57

3.3 System Management BIOS (SMBIOS) .............................................................................................. 57

3.4 Legacy USB Support ............................................................................................................................... 58

3.5 BIOS Updates ............................................................................................................................................. 58

3.5.1 Language Support ................................................................................................................. 59

3.6 BIOS Recovery ........................................................................................................................................... 59

3.7 Boot Options .............................................................................................................................................. 59

3.7.1 Network Boot........................................................................................................................... 60

3.7.2 Booting Without Attached Devices ................................................................................ 60

3.7.3 Changing the Default Boot Device During POST ...................................................... 60

3.7.4 Power Button Menu .............................................................................................................. 61

3.8 Hard Disk Drive Password Security Feature .................................................................................. 62

3.9 BIOS Security Features .......................................................................................................................... 63

viii

Contents

4 Error Messages and Blink Codes ......................................................................... 64

4.1 Front-panel Power LED Blink Codes ................................................................................................ 64

4.2 BIOS Error Messages ............................................................................................................................... 64

5 Intel NUC Kit Features ........................................................................................... 65

5.1 Chassis Front Panel Features .............................................................................................................. 65

5.2 Chassis Rear Panel Features ................................................................................................................ 66

Figures

Figure 1. Major Board Components (Top) ....................................................................................................... 13

Figure 2. Major Board Components (Bottom) ................................................................................................ 15

Figure 3. Block Diagram ........................................................................................................................................... 17

Figure 4. Memory Channel and SO-DIMM Configuration.......................................................................... 20

Figure 5. 4-Pin 3.5 mm (1/8 inch) Audio Jack Pin Out ............................................................................... 24

Figure 6. Mini-TOSLINK Adaptor (not included) ........................................................................................... 25

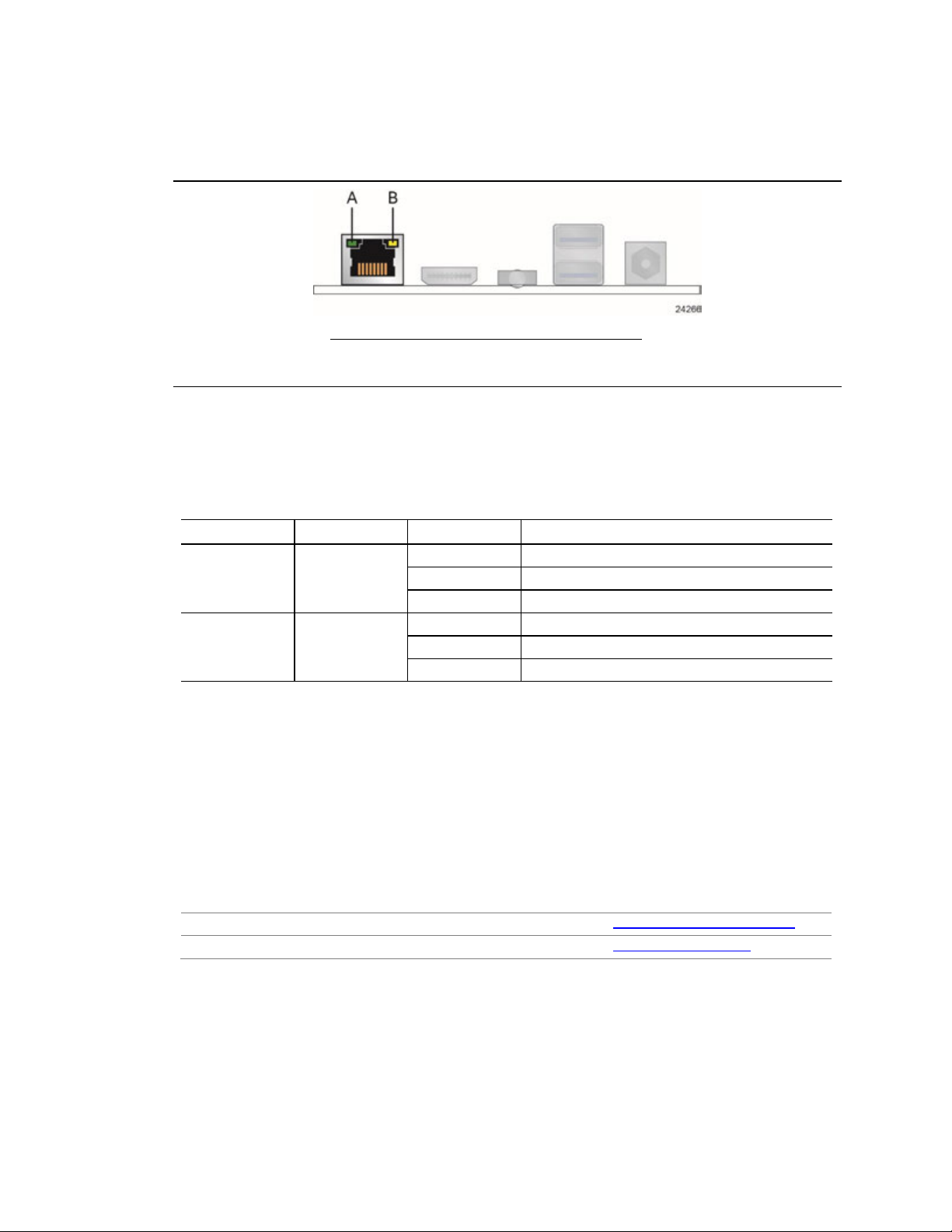

Figure 7. LAN Connector LED Locations........................................................................................................... 27

Figure 8. Thermal Solution and Fan Header ................................................................................................... 29

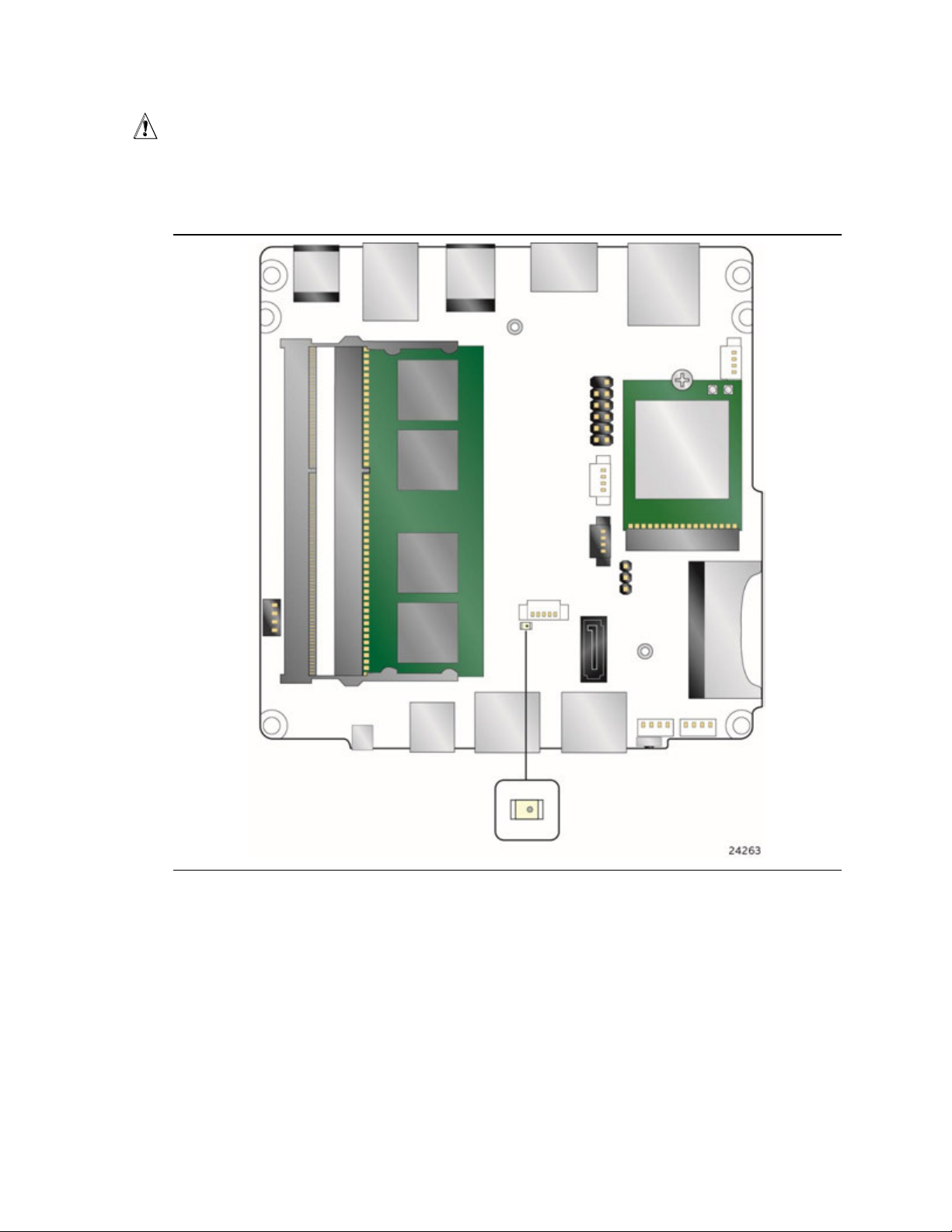

Figure 9. Location of the Standby Power LED ............................................................................................... 34

Figure 10. Front Panel Connectors, Controls and Indicators .................................................................. 38

Figure 11. Back Panel Connectors ...................................................................................................................... 38

Figure 12. Headers and Connectors (Top) ....................................................................................................... 39

Figure 13. Connectors and Headers (Bottom) ............................................................................................... 40

Figure 14. Connection Diagram for Front Panel Header (2.0 mm Pitch) ............................................ 47

Figure 15. Location of the CIR Sensor ............................................................................................................... 49

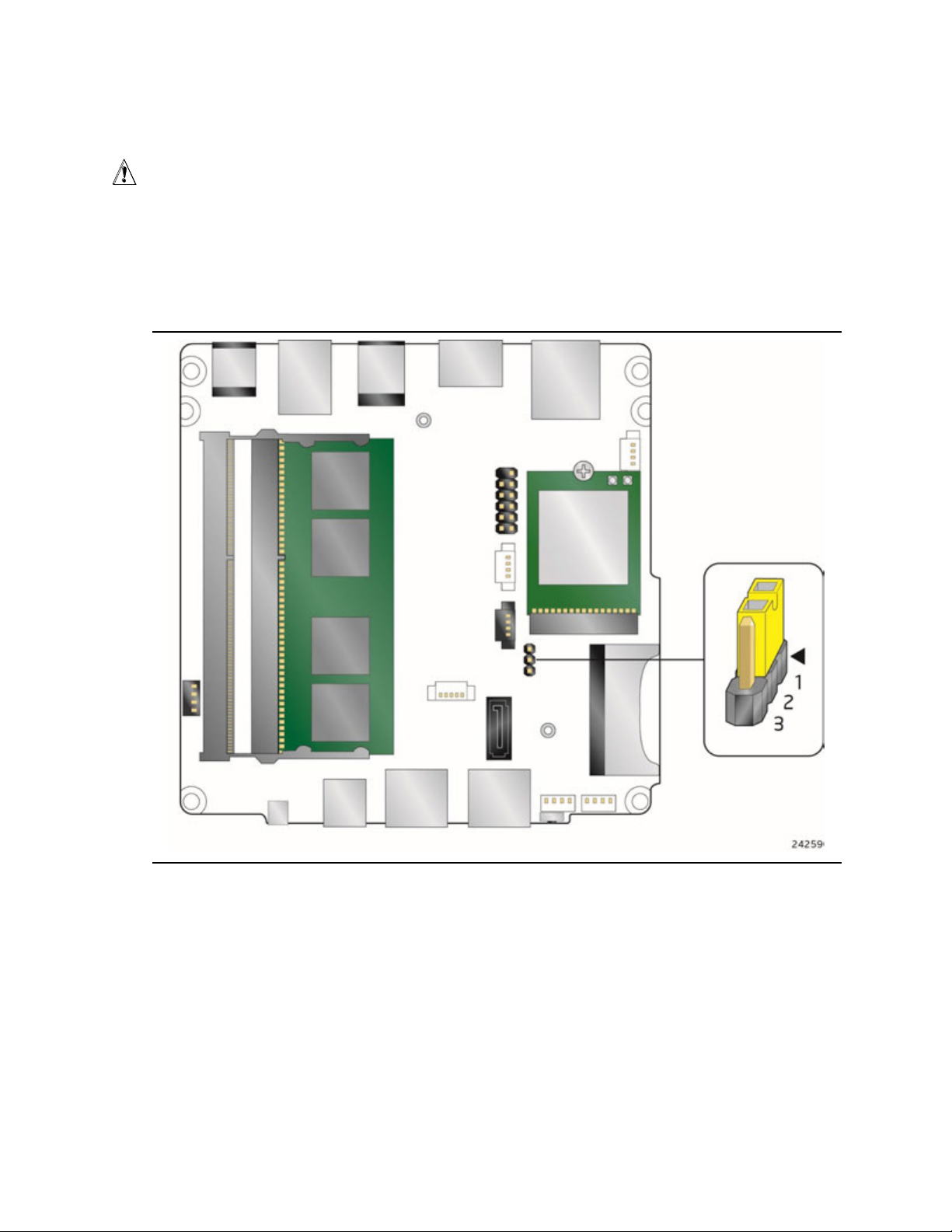

Figure 16. Location of the BIOS Security Jumper ........................................................................................ 50

Figure 17. Board Dimensions ................................................................................................................................ 52

Figure 18. Board Height Dimensions ................................................................................................................. 53

Figure 19. Localized High Temperature Zones ............................................................................................. 54

Figure 20. Intel NUC Kit NUC6CAYH/NUC6CAYS Features – Front ....................................................... 65

Figure 21. Intel NUC Kit NUC6CAYH/NUC6CAYS Features – Rear ......................................................... 66

Tables

Table 1. Feature Summary ..................................................................................................................................... 11

Table 2. Components Shown in Figure 1 ......................................................................................................... 14

Table 3. Components Shown in Figure 2 ......................................................................................................... 16

Table 4. Supported Memory Configurations .................................................................................................. 19

Table 5. Unsupported Memory Configurations............................................................................................. 19

Table 6. LAN Connector LED States ................................................................................................................... 27

Table 7. Effects of Pressing the Power Switch ............................................................................................... 30

Table 8. Power States and Targeted System Power ................................................................................... 31

Table 9. Wake-up Devices and Events .............................................................................................................. 32

Table 10. HDMI CEC expected behavior ............................................................................................................ 35

Table 11. Headers and Connectors Shown in Figure 12 ........................................................................... 39

Table 12. Connectors and Headers Shown in Figure 13 ........................................................................... 41

Table 13. VGA Header .............................................................................................................................................. 42

Table 14. SATA Power Header (1.25 mm Pitch) ............................................................................................ 42

Table 15. Single-Port Internal USB 2.0 Headers (1.25 mm Pitch) ......................................................... 42

Table 16. Digital Microphone (DMICS) Array Connector (1.25 mm Pitch).......................................... 43

Table 17. Front Panel HDD LED Ring Connector (1.25 mm Pitch) ........................................................ 43

Table 18. Consumer Electronics Control (CEC) Connector (1.25 mm Pitch) .................................... 43

Table 19. M.2 2230 Module (Mechanical Key E) Connector .................................................................... 43

Table 20. SDXC Card Reader Connector .......................................................................................................... 45

Table 21. Auxiliary Power Connector ................................................................................................................ 46

Table 22. Front Panel Header (2.0 mm Pitch) ................................................................................................ 47

Table 23. States for a One-Color Power LED ................................................................................................. 48

Table 24. States for a Dual-Color Power LED ................................................................................................ 48

Table 25. BIOS Security Jumper Settings ........................................................................................................ 51

Table 26. Fan Header Current Capability ......................................................................................................... 53

Table 27. Thermal Considerations for Components ................................................................................... 55

Table 28. Tcontrol Values for Components ................................................................................................... 55

Table 29. Environmental Specifications ........................................................................................................... 56

Table 30. Acceptable Drives/Media Types for BIOS Recovery ............................................................... 59

Table 31. Boot Device Menu Options ................................................................................................................ 60

Table 32. Master Key and User Hard Drive Password Functions ........................................................... 62

Table 33. Supervisor and User Password Functions................................................................................... 63

Table 34. Front-panel Power LED Blink Codes ............................................................................................. 64

Table 35. BIOS Error Messages ............................................................................................................................ 64

Table 36. Components Shown in Figure 20 ................................................................................................... 65

Table 37. Components Shown in Figure 21 ................................................................................................... 66

Form Factor

4.0 inches by 4.0 inches (101.60 millimeters by 101.60 millimeters)

Processor

 Soldered-down quad-core Intel

Celeron® processor J3455 with up to 10 W TDP

― Intel

HD Graphics 500

― Integrated memory controller ― Integrated PCH

Memory

 Support for DDR3L 1600/1866 MHz SO-DIMMs  Support for 1600/1866 MHz memory speeds  Support for 4 Gb and 8 Gb memory technology  Support for up to 8 GB of system memory with two SO-DIMMs  Support for non-ECC memory  Support for 1.35 V low voltage JEDEC memory  2 GB DDR3L 1600 MHz SO-DIMM pre-installed (included in Intel NUC Kit

NUC6CAYS only)

Graphics

 Integrated graphics support with Intel

Graphics Technology:

― High Definition Multimedia Interface* (HDMI*) 2.0 full-sized back panel

connector

― VGA header (a VGA cable is provided with the Intel NUC kits)

Audio

 Intel® High Definition (Intel

HD) Audio via the HDMI v2.0 interface

 Realtek ALC283 HD Audio via a stereo microphone/headphone 3.5 mm jack on the

front panel

 Compressed 5.1/7.1 digital audio through a mini-TOSLINK jack on the back panel  Digital microphone (DMIC) array header for support of digital voice assistants, such

as Microsoft* Cortana (dual digital array microphones are included with Intel NUC Kit NUCC6AYH and Intel NUC Kit NUC6CAYS)

Peripheral Interfaces

 USB 3.0 ports:

― Two ports are implemented with external front panel connectors (one blue and

one amber charging capable)

― Two ports are implemented with external back panel connectors (blue)

 USB 2.0 ports:

― Two ports via two single-port internal 1x4 1.25 mm pitch headers (white) ― One port is reserved for an M.2 2230 Type E Module

 Consumer Infrared (CIR)

Storage

 One SATA 6.0 Gb/s port (black)

― Supports one 2.5“ SSD or HDD up to 9.5mm

 One full-sized SDXC slot  32 GB Embedded MultiMediaCard (e·MMC) onboard storage module (included in

Intel NUC Kit NUC6CAYS only)

1 Product Description

1.1 Overview

1.1.1 Feature Summary

Table 1 summarizes the major features of the board.

Table 1. Feature Summary

continued

Expansion Capabilities

One M.2 Module supporting M.2 2230 cards (key type E) (prepopulated with Intel® Dual Band Wireless-AC 3168 module)

BIOS

 Intel

BIOS resident in the Serial Peripheral Interface (SPI) Flash device

 Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and

System Management BIOS (SMBIOS)

LAN Support

Gigabit (10/100/1000 Mb/s) LAN subsystem using the Realtek* 8111HN Gigabit Ethernet Controller

Hardware Monitor Subsystem

Hardware monitoring subsystem, based on an ITE IT8987D embedded controller, including:

 Voltage sense to detect out of range power supply voltages  Thermal sense to detect out of range thermal values  One processor fan header  Fan sense input used to monitor fan activity  Simple fan speed control

Wireless

Intel® Dual Band Wireless-AC 3168 module

 Intel’s 3

-generation 802.11ac, Dual Band, 1x1 Wi-Fi + Dual Mode Bluetooth 4.2

 Maximum Transfer speed up to 433Mbps  Supports Intel® Smart Connect Technology  Pre-installed in M.2 2230 slot

Operating System

Supports Microsoft* Windows* 10 Home and Microsoft* Windows* 10 Pro  Intel NUC Kit NUC6CAYS comes with Windows 10 Home pre-installed on the eMMC

storage device

 Other operating system (OS) support may be available. Please check your OS

distributor for support details.

Additional Features

 Integrated HDMI CEC  Intel® Platform Trust Technology

Table 1. Feature Summary (continued)

1.1.2 Board Layout (Top)

Figure 1 shows the location of the major components on the top-side of Intel NUC Board NUC6CAYB.

Product Description

Figure 1. Major Board Components (Top)

Item from Figure 1

Description

Battery

Front panel header

Thermal solution

Processor fan header

Table 2 lists the components identified in Figure 1.

Table 2. Components Shown in Figure 1

Product Description

1.1.3 Board Layout (Bottom)

Figure 2 shows the location of the major components on the bottom-side of Intel NUC Board NUC6CAYB.

Figure 2. Major Board Components (Bottom)

Item from Figure 2

Description

Back panel connectors

Front panel HDD LED ring connector (HDD_LED) (1.25 mm pitch)

Digital microphone array (DMICS) connector (1.25 mm pitch)

VGA header (2.0 mm pitch)

Auxiliary power connector (AUX_PWR) (1.25 mm pitch)

M.2 2230 Module socket (with Intel® Dual Band Wireless-AC 3168 card installed)

BIOS security jumper

SDXC slot

I, J

Front panel single-port USB 2.0 connector (1.25 mm pitch)

Consumer Infrared (CIR) sensor

SATA 6.0 Gb/s connector

Front panel USB 3.0 connector, charging capable (amber)

SATA power connector (1.25 mm pitch)

Front panel USB 3.0 connector (blue)

Front panel stereo speaker/headphone/microphone jack

Power button / power LED

Consumer Electronic Control (CEC) connector

Dual DDR3L SO-DIMM sockets (SO-DIMM shown for illustration purposes; SO-DIMM supplied with Intel NUC Kit NUC6CAYS only)

Table 3. Components Shown in Figure 2

1.1.4 Block Diagram

Figure 3 is a block diagram of the major functional areas of the board.

Product Description

Figure 3. Block Diagram

To find information about…

Visit this World Wide Web site:

Intel NUC Board NUC6CAYB

http://www.intel.com/NUC

NUC Board Support

http://www.intel.com/NUCSupport

Available configurations for Intel NUC Board NUC6CAYB

http://ark.intel.com

BIOS and driver updates

http://downloadcenter.intel.com

Tested memory

http://www.intel.com/NUCSupport

Integration information

http://www.intel.com/NUCSupport

1.2 Online Support

1.3 Processor

Intel NUC Board NUC6CAYB has a soldered-down System-on-a-Chip (SoC), which consists of a quad-core Intel Celeron processor J3455 with up to 10 W TDP.

 Integrated Intel HD Graphics 500  Integrated memory controller  Integrated PCH

NOTE

This board has specific requirements for providing power to the processor. Refer to Section 2.5.1 on page 53 for information on power supply requirements for this board.

Product Description

SO-DIMM Capacity

Configuration

(Note)

SDRAM Density

SDRAM Organization Front-side/Back-side

Number of SDRAM Devices

2048 MB

4 Gbit

512 M x4/empty

4096 MB

4 Gbit

512 M x4/512 M x4

4096 MB

8 Gbit

1024 M x4/empty

8192 MB

4 Gbit

512 M x8/512 M x8

8192 MB

8 Gbit

1024 M x4/1024 M x4

SO-DIMM Capacity

Configuration

(Note)

SDRAM Density

SDRAM Organization Front-side/Back-side

Number of SDRAM Devices

1024 MB

1 Gbit

128 M x8/empty

2048 MB

1 Gbit

128 M x8/128 M x8

2048 MB

2 Gbit

256 M x8/empty

4096 MB

2 Gbit

256 M x8/256 M x8

1.4 System Memory

The board has two 204-pin SO-DIMM sockets and supports the following memory features:

 1.35 V DDR3L 1600/1866 MHz SDRAM non-ECC SO-DIMM with gold plated contacts on

Intel Celeron processor J3455

 Two memory channels  Unbuffered, single-sided or double-sided SO-DIMMs using 4 Gb or 8 Gb technology

(density)

 8 GB maximum total system memory (with 4 Gb or 8 Gb memory technology). Refer to

Section 2.1.1 on page 37 for information on the total amount of addressable memory.

 Minimum recommended total system memory: 2048 MB  Serial Presence Detect  Optional 2 GB DDR3L 1600 MHz SO-DIMM pre-installed (included in Intel NUC Kit

NUC6CAYS only)

NOTE

To be fully compliant with all applicable DDR SDRAM memory specifications, the board should be populated with SO-DIMMs that support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read the SPD data and program the chipset to accurately configure memory settings for optimum performance. If non-SPD memory is installed, the BIOS will attempt to correctly configure the memory settings, but performance and reliability may be impacted or the SO-DIMMs may not function under the determined frequency.

NOTE

Intel NUC Board NUC6CAYB supports only 4 Gb and 8 Gb memory technologies (also referred to as “SDRAM density”). Table 4 lists the supported SO-DIMM configurations. Table 5 lists the SO-DIMM configurations that are not supported.

Table 4. Supported Memory Configurations

Note: “DS” refers to double-sided memory modules and “SS” refers to single-sided memory modules.

Table 5. Unsupported Memory Configurations

Note: “DS” refers to double-sided memory modules and “SS” refers to single-sided memory modules.

For information about…

Refer to:

Tested Memory

http://www.intel.com/NUCSupport

Figure 4 illustrates the memory channel and SO-DIMM configuration.

Figure 4. Memory Channel and SO-DIMM Configuration

1.5 Processor Graphics Subsystem

The board supports HDMI and VGA integrated graphics via the processor.

Product Description

1.5.1 Intel

The Intel HD graphics controller features the following:

 HDMI 2.0 through a MegaChips MCDP2800-BCT DisplayPort 1.2a to HDMI 2.0 Level

Shifter/Protocol Converter (LSPCON)

 3D graphics hardware acceleration supporting DirectX* 9.3/10/11.1/12, OpenCL* 1.2, OGL

ES 3.0, OpenGL* 4.3

 Video decode hardware acceleration supporting H.265/HEVC @ Level 5.1, H.264 @ Level

5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8 and VP9 formats

 Video encode hardware acceleration supporting H.265/HEVC @ Level 4, H.264 @ Level

5.2, JPEG, MVC, VP8 and VP9 formats

 Supports content protection using High-Bandwidth Digital Content Protection (HDCP)

1.4/2.0 and PAVP 2.0.

 VGA graphics through an ITE IT6516BFN DisplayPort to VGA bridge

High Definition (Intel® HD) Graphics

1.5.1.1 Video Memory Allocation

Intel® Dynamic Video Memory Technology (DVMT) is a method for dynamically allocating system memory for use as graphics memory to balance 2D/3D graphics and system performance. If your computer is configured to use DVMT, graphics memory is allocated based on system requirements and application demands (up to the configured maximum amount). When memory is no longer needed by an application, the dynamically allocated portion of memory is returned to the operating system for other uses.

1.5.2 High Definition Multimedia Interface* (HDMI*)

The HDMI port supports standard, enhanced, or high definition video, plus multi-channel digital audio on a single cable. The port is compatible with all ATSC and DVB HDTV standards and supports eight full range channels at 24-bit/96 kHz audio of lossless audio formats. The maximum supported resolution is 3840 x 2160 @ 60 Hz, 24 bpp (WUXGA). The HDMI port is compliant with the HDMI 2.0 specification.

1.5.2.1.1 Integrated Audio Provided by the HDMI Interfaces

The following audio technologies are supported by the HDMI 2.0 interfaces directly from the SoC:

 AC3 - Dolby* Digital  Dolby Digital Plus  LPCM, 192 kHz/24-bit, 8 Channel

1.5.3 Video Graphics Array* (VGA*)

The VGA port supports graphics resolutions up to 1920 x 1200 @ 60 Hz.

For information about

Refer to

The location of the USB connectors on the back panel

Figure 11, page 38

The location of the USB connector on the front panel

Figure 2, page 15

1.6 USB

The USB port arrangement is as follows:

 USB 3.0 ports:

 Two ports are implemented with external front panel connectors (one blue and one

amber charging capable)

 Two ports are implemented with external back panel connectors (blue)  Maximum current is 900 mA for each blue port, 1.5 A for the amber charging port

 USB 2.0 ports:

 Two ports via two single-port internal 1x4 1.25 mm pitch headers (white)  One port is reserved for an M.2 2230 Module  Maximum current is 500 mA for each port of the white headers (1 A total)

All the USB ports are high-speed, full-speed, and low-speed capable.

NOTE

Computer systems that have an unshielded cable attached to a USB port may not meet FCC Class B requirements, even if no device is attached to the cable. Use a shielded cable that meets the requirements for full-speed devices.

1.7 SATA Interface

The SoC provides one SATA port with a theoretical maximum transfer rate of 6.0 Gb/s. A point-to-point interface is used for host to device connections.

The underlying SATA functionality is transparent to the operating system. The SATA controller can operate in both legacy and native modes. In legacy mode, standard IDE I/O and IRQ resources are assigned (IRQ 14 and 15). In Native mode, standard PCI Conventional bus resource steering is used. Native mode is the preferred mode for configurations using Windows* operating systems.

1.7.1 AHCI Mode

The board supports AHCI storage mode.

NOTE

In order to use AHCI mode, AHCI must be enabled in the BIOS. Microsoft* Windows* 10 includes the necessary AHCI drivers without the need to install separate AHCI drivers during the operating system installation process. However, it is always good practice to update the AHCI drivers to the latest available by Intel.

Product Description

1.8 Embedded MultiMediaCard (e-MMC) - optional

The board contains a 32 GB Embedded MultiMediaCard (e·MMC) onboard storage module with Windows 10 Home operating system preinstalled (e-MMC and OS included in Intel NUC Kit NUC6CAYS only).

1.9 Real-Time Clock Subsystem

A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to  13 minutes/year at 25 ºC with 3.3 VSB applied via the power supply 5 V STBY rail.

NOTE

If the battery and AC power fail, date and time values will be reset and the user will be notified during the POST.

When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. Figure 1 on page 13 shows the location of the battery.

Pin Number

Pin Name

Description

Tip

Left Audio Out

Ring

Right Audio Out

Ring

Common/Ground

Sleeve

Audio In

1.10 Audio Subsystem

The board supports Intel HD Audio via the Realtek ALC283 audio codec. The audio subsystem supports the following features:

 Analog line-out/Analog Headphone/Analog Microphone jack on the front panel  High Definition Audio via a stereo microphone/headphone/optical jack on the back panel  Support for 44.1 kHz/48 kHz/96 kHz/192 kHz sample rates on all analog outputs  Support for 44.1 kHz/48 kHz/96 kHz sample rates on all analog inputs  Support for digital microphone (DMIC) array via onboard header  Back Panel Audio Jack Support (see Figure 5 for 3.5 mm audio jack pin out):

 Speakers only  Headphones only  Microphone only  Combo Headphone/Microphone

Figure 5. 4-Pin 3.5 mm (1/8 inch) Audio Jack Pin Out

NOTE

The analog circuit of the back panel audio connector is designed to power headphones or amplified speakers only. Poor audio quality occurs if passive (nonamplified) speakers are connected to this output.

1.10.1 Digital Microphone Array

The board supports a digital microphone (DMIC) array header for use of digital voice assistants, such as Microsoft* Cortana. Both Intel NUC Kit NUCC6AYH and Intel NUC Kit NUC6CAYS include dual digital array microphones mounted in the chassis on either side of the front panel.

1.10.2 Mini-TOSLINK Interface

For information about

Refer to

Obtaining Audio software and drivers

http://downloadcenter.intel.com

The 3.5 mm audio jack also provides TOSLINK optical digital audio output.

 Mini-TOSLINK interface (back panel) plus analog audio out

 PCM datastream support  S/PDIF datastream support  Mini-TOSLINK adaptor (not included) necessary to connect to standard TOSLINK cable  Stereo audio out

Figure 6. Mini-TOSLINK Adaptor (not included)

Product Description

1.10.3 Audio Subsystem Software

Audio software and drivers are available from Intel’s World Wide Web site.

For information about

Refer to

LAN software and drivers

http://downloadcenter.intel.com

For information about

Refer to

Full LAN Hardware feature set

http://www.realtek.com.tw/

For information about

Refer to

Obtaining LAN software and drivers

http://downloadcenter.intel.com

1.11 LAN Subsystem

The LAN subsystem consists of the following:

 Realtek 8111HN-CG Gigabit Ethernet Controller (10/100/1000 Mb/s)  RJ-45 LAN connector with integrated status LEDs  Intel® Dual Band Wireless-AC 3168 module

Additional features of the LAN subsystem include:

 CSMA/CD protocol engine  Jumbo frame support 9K  LAN connect interface between the SoC and the LAN controller  Power management capabilities

 ACPI technology support  LAN wake capabilities

 LAN subsystem software

1.11.1 Realtek* 8111HN Gigabit Ethernet Controller

The Realtek 8111HN Gigabit Ethernet Controller supports the following features:

 10/100/1000 BASE-T IEEE 802.3 compliant  Energy Efficient Ethernet (EEE) IEEE802.3az support (Low Power Idle (LPI) mode)  Dual interconnect between the Integrated LAN Controller and the Physical Layer (PHY):

 PCI Express-based interface for active state operation (S0) state

 SMBUS for host and management traffic (Sx low power state)  Compliant to IEEE 802.3x flow control support  802.1p and 802.1q  TCP, IP, and UDP checksum offload (for IPv4 and IPv6)  Full device driver compatibility

1.11.2 LAN Subsystem Software

LAN software and drivers are available from Intel’s World Wide Web site.

Product Description

Item

Description

Link LED (Green)

Data Rate LED (Green/Yellow)

LED

LED Color

LED State

Condition

Link (A)

Green

Off

LAN link is not established.

LAN link is established.

Blinking

LAN activity is occurring.

Data Rate (B)

Green/Yellow

Off

10 Mb/s data rate is selected.

Green

100 Mb/s data rate is selected.

Yellow

1000 Mb/s data rate is selected.

For information about

Refer to

Obtaining WLAN software and drivers

http://downloadcenter.intel.com

Full Specifications

http://intel.com/wireless

1.11.3 RJ-45 LAN Connector with Integrated LEDs

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 7).

Figure 7. LAN Connector LED Locations

Table 6 describes the LED states when the board is powered up and the LAN subsystem is operating.

Table 6. LAN Connector LED States

1.11.4 Wireless Network Module

The Intel Dual Band Wireless-AC 3168 module provides hi-speed wireless connectivity with the following capabilities:

 2nd Gen 802.11ac, Dual Band, 1x1 Wi-Fi + Dual Mode Bluetooth 4.0  Maximum Transfer speed up to 433Mbps  Supports Intel® Smart Connect Technology  Pre-installed in M.2 2230 slot

For information about

Refer to

Wired for Management (WfM) Specification

www.intel.com/design/archives/wfm/

1.12 Hardware Management Subsystem

The hardware management features enable the board to be compatible with the Wired for Management (WfM) specification. The board has several hardware management features, including thermal and voltage monitoring.

1.12.1 Hardware Monitoring

The hardware monitoring and fan control subsystem is based on an ITE IT8987D embedded controller, which supports the following:

 Processor and system ambient temperature monitoring  Chassis fan speed monitoring  Voltage monitoring of +5 V, +3.3 V, Memory Vcc (SDRAM)  SMBus interface

1.12.2 Fan Monitoring

Fan monitoring can be implemented using third-party software.

1.12.3 Thermal Solution

Item

Description

Processor fan header

Thermal solution

Figure 8 shows the location of the thermal solution and processor fan header.

Product Description

Figure 8. Thermal Solution and Fan Header

If the system is in this state…

…and the power switch is pressed for

…the system enters this state

Off (ACPI G2/G5 – Soft off)

Less than four seconds

Power-on (ACPI G0 – working state)

On (ACPI G0 – working state)

Less than four seconds

Soft-off/Standby (ACPI G1 – sleeping state)

Note

On (ACPI G0 – working state)

More than six seconds

Fail safe power-off (ACPI G2/G5 – Soft off)

Sleep (ACPI G1 – sleeping state)

Less than four seconds

Wake-up (ACPI G0 – working state)

Sleep (ACPI G1 – sleeping state)

More than six seconds

Power-off (ACPI G2/G5 – Soft off)

1.13 Power Management

Power management is implemented at several levels, including:

 Software support through Advanced Configuration and Power Interface (ACPI)  Hardware support:

 Power Input

 Instantly Available PC technology

 LAN wake capabilities

 Wake from USB

 WAKE# signal wake-up support

 Wake from S5

 Wake from CIR

 +5 V Standby Power Indicator LED

1.13.1 ACPI

ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. The use of ACPI with this board requires an operating system that provides full ACPI support. ACPI features include:

 Plug and Play (including bus and device enumeration)  Power management control of individual devices, add-in boards (some add-in boards may

require an ACPI-aware driver), video displays, and disk drives

 Methods for achieving less than 15-watt system operation in the power-on/standby

sleeping state

 A Soft-off feature that enables the operating system to power-off the computer  Support for multiple wake-up events (see Table 9 on page 32)  Support for a front panel power and sleep mode switch

Table 7 lists the system states based on how long the power switch is pressed, depending on how ACPI is configured with an ACPI-aware operating system.

Table 7. Effects of Pressing the Power Switch

Note: Depending on power management settings in the operating system.

Product Description

Global States

Sleeping States

Processor States

Device States

Targeted System Power

(Note 1)

G0 – working state

S0 – working

C0 – working

D0 – working state.

Full power

G1 – sleeping state

S3 – Suspend to RAM. Context saved to RAM.

No power

D3 – no power except for wake-up logic.

Power < 5 W

(Note 2)

G1 – sleeping state

S4 – Suspend to disk. Context saved to disk.

No power

D3 – no power except for wake-up logic.

Power < 5 W

(Note 2)

G2/S5

S5 – Soft off. Context not saved. Cold boot is required.

No power

D3 – no power except for wake-up logic.

Power < 5 W

(Note 2)

G3 – mechanical off

AC power is disconnected from the computer.

No power to the system.

No power

D3 – no power for wake-up logic, except when provided by battery or external source.

No power to the system. Service can be performed safely.

1.13.1.1 System States and Power States

Under ACPI, the operating system directs all system and device power state transitions. The operating system puts devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications. Devices that are not being used can be turned off. The operating system uses information from applications and user settings to put the system as a whole into a low-power state.

Table 8 lists the power states supported by the board along with the associated system power targets. See the ACPI specification for a complete description of the various system and power states.

Table 8. Power States and Targeted System Power

Notes:

1. Total system power is dependent on the system configuration, including add-in boards and peripherals powered

by the system chassis’ power supply.

2. Dependent on the standby power consumption of wake-up devices used in the system.

Devices/events that wake up the

system…

…from this sleep state

Comments

Power switch

S3, S4, S5

RTC alarm

S3, S4, S5

(Note 1)

Monitor to remain in sleep state

LAN

S3, S4, S5

(Notes 1, 2)

“S5 WOL after G3” must be supported;

monitor to remain in sleep state

USB

S3, S4, S5

(Note 3, 4)

Wake S4, S5 controlled by BIOS option

PCIe via WAKE#

S3, S4, S5

(Note 1)

Via WAKE; monitor to remain in sleep state

Consumer IR

S3, S4, S5

(Notes 3, 4)

Bluetooth

N/A

Wake from Bluetooth is not supported

1.13.1.2 Wake-up Devices and Events

Table 9 lists the devices or specific events that can wake the computer from specific states.

Table 9. Wake-up Devices and Events

Notes:

1. Monitor will remain in “sleep” state

2. “S5 WoL after G3” supported w/Deep Sleep disabled

3. Wake from S4 and S5 only supported w/Deep Sleep disabled

4. Wake from device/event not supported immediately upon return from AC loss

NOTE

The use of these wake-up events from an ACPI state requires an operating system that provides full ACPI support. In addition, software, drivers, and peripherals must fully support ACPI wake events.

1.13.2 Hardware Support

The board provides several power management hardware features, including:

 Wake from Power Button signal  Instantly Available PC technology  LAN wake capabilities  Wake from USB  WAKE# signal wake-up support  Wake from S5  Wake from CIR  +5 V Standby Power Indicator LED

NOTE

The use of Wake from USB from an ACPI state requires an operating system that provides full ACPI support.

Product Description

1.13.2.1 Power Input

When resuming from an AC power failure, the computer may return to the power state it was

in before power was interrupted (on or off). The computer’s response can be set using the Last Power State feature in the BIOS Setup program’s Boot menu.

1.13.2.2 Instantly Available PC Technology

Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-RAM) sleep-state. While in the S3 sleep-state, the computer will appear to be off (the power supply is off, and the front panel LED is amber if dual colored, or off if single colored.) When signaled by a wake-up device or event, the system quickly returns to its last known wake state. Table 9 on page 32 lists the devices and events that can wake the computer from the S3 state.

The use of Instantly Available PC technology requires operating system support and drivers for any installed PCI Express add-in card.

1.13.2.3 LAN Wake Capabilities

LAN wake capabilities enable remote wake-up of the computer through a network. The LAN subsystem monitors network traffic at the Media Independent Interface. Upon detecting a Magic Packet* frame, the LAN subsystem asserts a wake-up signal that powers up the computer.

1.13.2.4 Wake from USB

USB bus activity wakes the computer from an ACPI S3, S4, and S5 states.

NOTE

Wake from USB requires the use of a USB peripheral that supports Wake from USB.

1.13.2.5 WAKE# Signal Wake-up Support

When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from an ACPI S3, S4, or S5 state.

1.13.2.6 Wake from S5

When the RTC Date and Time is set in the BIOS, the computer will automatically wake from an ACPI S5 state.

1.13.2.7 Wake from Consumer IR

CIR activity wakes the computer from an ACPI S3, S4, or S5 state.

1.13.2.8 +5 V Standby Power Indicator LED

The standby power indicator LED shows that power is still present even when the computer appears to be off. Figure 9 shows the location of the standby power LED.

CAUTION

If AC power has been switched off and the standby power indicator is still lit, disconnect the power cord before installing or removing any devices connected to the board. Failure to do so could damage the board and any attached devices.

Figure 9. Location of the Standby Power LED

1.13.3 HDMI Consumer Electronics Control (CEC)

The board contains two mutually-exclusive methods for controlling HDMI CEC devices:

 External CEC adaptor connected via CEC connector (item L in Figure 13; pinout in Table 18)  Onboard CEC control from the embedded controller via HDMI cable and BIOS setup.

Expected behavior is provided in Table 10 below.

Product Description

Activity

Current Status

Action

Expected Behavior

1,2

TV3

Wake On TV

Off

TV on

PC on

Standby by TV

TV Standby

PC sleep or power off4

Auto Turn Off TV (S0 -> S5)

PC Shutdown

TV standby3

Auto Turn On TV (S5 -> S0)

Off

PC On

TV on3

Auto Turn Off TV (S0 -> S3)

PC Sleep

TV standby3

Auto Turn On TV (S3 -> S0)

Off

PC On

TV on3

Table 10. HDMI CEC expected behavior

Notes:

1. HDMI CEC Control enabled in BIOS Setup and in TV setup, if necessary. Please consult your TV’s documentation.

2. Fast Boot and Deep S4/S5 disabled in BIOS Setup.

3. Results seen with Panasonic LED TV VIERA TH-40A400W. Other TVs may have different results due to variable

implementations of CEC features.

4. PC power off behavior dependent upon power button setting in operating system.

5. If using external CEC adaptor, onboard CEC control must be disabled in BIOS Setup.

For information about

Refer to

Intel Virtualization Technology

http://www.intel.com/technology/virtualization/technology.htm

For information about

Refer to

Intel Platform Trust Technology

http://www.intel.com/content/dam/www/public/us/en/documents /white-papers/enterprise-security-platform-trust-technologywhite-paper.pdf

1.14 Intel Platform Security Technologies

Intel platform security technologies provides tools and resources to help the user protect their information by creating a safer computing environment.

NOTE

Software with security capability is required to take advantage of Intel platform security technologies.

1.14.1 Intel® Virtualization Technology

Intel Virtualization Technology (Intel® VT) is a hardware-assisted technology that, when combined with software-based virtualization solutions, provides maximum system utilization by consolidating multiple environments into a single server or client.

NOTE

A processor with Intel VT does not guarantee that virtualization will work on your system. Intel VT requires a computer system with a chipset, BIOS, enabling software and/or operating system, device drivers, and applications designed for this feature.

1.14.2 Intel® Platform Trust Technology

Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management. Intel® PTT supports Microsoft* BitLocker* Drive Encryption for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

NOTE

Support for fTPM version 2.0 requires a UEFI-enabled operating system, such as Microsoft* Windows* 10.

CAUTION

BIOS recovery using the BIOS security jumper clears Intel® Platform Trust Technology (Intel® PTT) keys. These keys will not be restored after the BIOS recovery.

2 Technical Reference

2.1 Memory Resources

2.1.1 Addressable Memory

The board utilizes up to 8 GB of addressable system memory. Typically the address space that is allocated for PCI Conventional bus add-in cards, PCI Express configuration space, BIOS (SPI Flash device), and chipset overhead resides above the top of DRAM (total system memory). On a system that has 8 GB of system memory installed, it is not possible to use all of the installed memory due to system address space being allocated for other system critical functions. These functions include the following:

 BIOS/SPI Flash device (64 Mbit)  Local APIC (19 MB)  Direct Media Interface (40 MB)  PCI Express configuration space (256 MB)  SoC base address registers PCI Express ports (up to 256 MB)  Memory-mapped I/O (I/O fabric) that is dynamically allocated for PCI Express add-in cards

(256 MB)

The board provides the capability to reclaim the physical memory overlapped by the memory mapped I/O logical address space. The board remaps physical memory from the top of usable DRAM boundary to the 4 GB boundary to an equivalent sized logical address range located just above the 4 GB boundary. All installed system memory can be used when there is no overlap of system addresses.

2.2 Connectors and Headers

CAUTION

Only the following connectors and headers have overcurrent protection: back panel and front panel USB.

This section describes the board’s connectors and headers. The connectors and headers can be divided into these groups:

 Front panel I/O connector  Back panel I/O connectors

Item

Description

Power switch and LED

Front panel stereo microphone/headphone jack

USB 3.0 port (blue)

USB 3.0 charging-capable port (amber)

CIR

Item

Description

LAN

HDMI connector

Back panel TOSLINK stereo jack

USB 3.0 ports

12 - 19V DC input jack

2.2.1 Front Panel Connectors

Figure 10 shows the location of the front panel connectors, controls and indicators for the board.

Figure 10. Front Panel Connectors, Controls and Indicators

2.2.2 Back Panel Connectors

Figure 11 shows the location of the back panel connectors for the board.

Figure 11. Back Panel Connectors

2.2.3 Headers and Connectors (Top)

Item from Figure 12

Description

Front panel header

Processor fan header

Figure 12 shows the location of the headers and connectors on the top-side of the board.

Technical Reference

Figure 12. Headers and Connectors (Top)

Table 11 lists the headers and connectors identified in Figure 12.

Table 11. Headers and Connectors Shown in Figure 12

2.2.4 Connectors and Headers (Bottom)

Figure 13 shows the locations of the connectors and headers on the bottom-side of the board.

Figure 13. Connectors and Headers (Bottom)

Table 12 lists the connectors and headers identified in Figure 13.

Item from Figure 13

Description

Front panel HDD LED ring connector (HDD_LED)

Digital microphone array connector (DMICS)

VGA header

Auxiliary power connector (AUX_PWR) (1.25 mm pitch)

M.2 2230 Module connector

BIOS security jumper

SDXC slot

H, I

Front panel single-port USB 2.0 header (1.25 mm pitch)

SATA 6.0 Gb/s connector

SATA power connector (1.25 mm pitch)

Consumer Electronics Control (CEC) connector (1.25 mm pitch)

Table 12. Connectors and Headers Shown in Figure 13

Technical Reference

Signal Name

CLK 2 DATA

VCC 4 VSYNC

HSYNC

GND 7 RED 8 GND 9 GREEN

GND

BLUE

KEY

Signal Name

5 V

5 V 3 3.3 V

GND 5 GND

Signal Name

+5 V DC

Data (negative)

Data (positive)

Ground

2.2.4.1 Signal Tables for the Connectors and Headers

Table 13. VGA Header

Table 14. SATA Power Header (1.25 mm Pitch)

NOTE

Connector is Molex* part number 53398-0571, 1.25 mm pitch PicoBlade* header, surface mount, vertical, lead-free, 5 circuits.

Table 15. Single-Port Internal USB 2.0 Headers (1.25 mm Pitch)

NOTE

 Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface

mount, vertical, lead-free, 4 circuits.

 The +5 V DC power on the USB header is fused.  Use only an internal USB connector that conforms to the USB 2.0 specification for high-speed

USB devices.

Technical Reference

Signal Name

Ground

+3.3 V DC (+3V3_DMIC)

Clock (DMIC_CLK)

Data (DMIC_DAT)

Signal Name

+3.3VSB

Red HDD LED

Green HDD LED

Blue HDD LED

Signal Name

+5VSB

Ground

CEC_PWR

HDMI_CEC

Signal Name

3.3V

GND

3.3V

RESERVED

GND

Table 16. Digital Microphone (DMICS) Array Connector (1.25 mm Pitch)

NOTE

Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface mount, vertical, lead-free, 4 circuits.

Table 17. Front Panel HDD LED Ring Connector (1.25 mm Pitch)

NOTE

Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface mount, vertical, lead-free, 4 circuits.

Table 18. Consumer Electronics Control (CEC) Connector (1.25 mm Pitch)

NOTE

Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface mount, vertical, lead-free, 4 circuits.

Table 19. M.2 2230 Module (Mechanical Key E) Connector

RESERVED

ALERT# (I)(0/3.3)

GND

I2C CLK (O)(0/3.3)

RESERVED

I2C DATA (I/O)(0/3.3)

RESERVED

W_DISABLE1# (O)(0/3.3V)

GND

W_DISABLE2# (O)(0/3.3V)

PEWAKE0# (I/O)(0/3.3V)

PERST0# (O)(0/3.3V)

CLKREQ0# (I/O)(0/3.3V)

SUSCLK(32kHz) (O)(0/3.3V)

GND

RESERVED

REFCLKN0

RESERVED

REFCLKP0

RESERVED

GND

C-Link CLK (I/O)

PERn0

C-Link DATA (I/O)

PERp0

C-Link RESET (I) (0/3.3V)

GND

RESERVED

PETn0

RESERVED

PETp0

RESERVED

GND

Connector Key

RESERVED

GND

RESERVED

GND 4 3.3V 5 USB_D-

3.3V 3 USB_D+

GND

2.2.4.2 Add-in Card Connector

Signal Name

Descriptive Name

Card Detection

DATA2

Serial Data 2

DATA3

Serial Data 3

CMD

Command

VSS1

Ground

VDD

Power (3.3 V)

CLK

Serial Clock

VSS2

Ground

DATA0

Serial Data 0

DATA1

Serial Data 1

Write Protect

The board supports a M.2 2230 (key type E) module.

 Supports M.2 wireless communication module  Intel® Dual Band Wireless-AC 3168 module pre-installed

2.2.4.3 SDXC Card Reader

The board has a standard Secure Digital (SD) card reader that supports the Secure Digital eXtended Capacity (SDXC) format, 3.01 specification.

Table 20. SDXC Card Reader Connector

Technical Reference

NOTE

The SD card reader is not supported in Microsoft* Windows* 7

Signal Name

Descriptive Name

+5VSB

PCH_GPIO24

Power draw sensor

GND

Ground

+VIN

12V – 19V DC input

For information about

Refer to

Power supply considerations

Section 2.5.1, page 53

2.2.4.4 Power Supply Connector

The board has the following power supply connector:

 External Power Supply – the board is powered through a 12-19 V DC connector on the back

panel. The back panel DC connector is compatible with a 5.5 mm/OD (outer diameter) and

2.5 mm/ID (inner diameter) plug, where the inner contact is +19 (±10%) V DC and the shell is GND. The maximum current rating is 3 A.

NOTE

External power voltage, 12-19 V DC, is dependent on the type of power adapter used.

Table 21. Auxiliary Power Connector

NOTE

The Auxiliary Power Connector is a limited voltage source (output) for 5V Standby and the voltage supplied to the board (typically 19V DC) for use by expansion peripherals. The Auxiliary Power Connector is limited to 1.5A max (fused).

NOTE

Connector is JTE (JOINT TECH): A1250WV-S-04P A-Series (Wire to Board) Vertical SMT Connector,

1.25mm pitch, 1A rating. Mates with JTE A1250 Series Housing.

Technical Reference

Signal Name

Description

Signal Name

Description

HDD_POWER_LED

Pull-up resistor (750 Ω) to +5V

POWER_LED_MAIN

[Out] Front panel LED (main color)

HDD_LED#

[Out] Hard disk activity LED

POWER_LED_ALT

[Out] Front panel LED (alt color)

GROUND

Ground

POWER_SWITCH#

[In] Power switch

RESET_SWITCH#

[In] Reset switch

GROUND

Ground

+5V_DC

Power (2A)

Key

No pin

2.2.4.5 Front Panel Header (2.0 mm Pitch)

This section describes the functions of the front panel header. Table 22 lists the signal names of the front panel header. Figure 14 is a connection diagram for the front panel header.

Table 22. Front Panel Header (2.0 mm Pitch)

Figure 14. Connection Diagram for Front Panel Header (2.0 mm Pitch)

2.2.4.5.1 Hard Drive Activity LED Header

Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is being read from or written to a hard drive. Proper LED function requires a SATA hard drive or optical drive connected to an onboard SATA connector.

2.2.4.5.2 Reset Switch Header

Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type switch that is normally open. When the switch is closed, the board resets and runs the POST.

LED State

Description

Off

Power off

Blinking

Standby

Steady

Normal operation

LED State

Description

Off

Power off

Secondary color blinking (amber)

Standby Primary color steady (blue)

Normal operation

For information about

Refer to

Power supply considerations

Section 2.5.1, page 53

2.2.4.5.3 Power/Sleep LED Header

Pins 2 and 4 can be connected to a one- or two-color LED. Table 23 and Table 24 show the possible LED states.

Table 23. States for a One-Color Power LED

Table 24. States for a Dual-Color Power LED

NOTE

The LED behavior shown in Table 23 is default – other patterns may be set via BIOS setup.

2.2.4.5.4 Power Switch Header

Pins 6 and 8 can be connected to a front panel momentary-contact power switch. The switch must pull the SW_ON# pin to ground for at least 50 ms to signal the power supply to switch on or off. (The time requirement is due to internal debounce circuitry on the board.) At least two seconds must pass before the power supply will recognize another on/off signal.

2.2.4.5.5 5V DC Power Header

Pin 6 can supply 2A of 5V DC (VCC) power. Any usage of power from this header should be considered when calculating the system’s total power budget.

Technical Reference

Item

Description

CIR Sensor

2.2.4.6 Consumer Infrared (CIR) Sensor

The Consumer Infrared (CIR) sensor on the front panel provides features that are designed to comply with Microsoft Consumer Infrared usage models.

The CIR feature is made up of the receiving sensor. The receiving sensor consists of a filtered translated infrared input compliant with Microsoft CIR specifications.

Customers are required to provide their own media center compatible remote or smart phone application for use with the Intel NUC. Figure 15 shows the location of the CIR sensor.

Figure 15. Location of the CIR Sensor

2.3 BIOS Security Jumper

CAUTION

Do not move a jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged.

Figure 16 shows the location of the BIOS security jumper. The 3-pin jumper determines the BIOS Security program’s mode. Table 25 describes the BIOS security jumper settings for the three modes: normal, lockdown, and configuration.

Figure 16. Location of the BIOS Security Jumper

Table 25 lists the settings for the jumper.

Function/Mode

Jumper Setting

Configuration

Normal

1-2

The BIOS uses current configuration information and passwords for booting.

Lockdown

2-3

The BIOS uses current configuration information and passwords for booting, except:

• All POST Hotkeys are suppressed (prompts are not displayed and keys

are not accepted. For example, F2 for Setup, F10 for the Boot Menu).

• Power Button Menu is not available (see Section 3.7.4 Power Button Menu).

BIOS updates are not available except for automatic Recovery due to flash corruption.

Configuration

None

BIOS Recovery Update process if a matching *.bio file is found. Recovery Update can be cancelled by pressing the Esc key.

If the Recovery Update was cancelled or a matching *.bio file was not found, a Config Menu will be displayed. The Config Menu consists of the following (followed by the Power Button Menu selections):

[1] Suppress this menu until the BIOS Security Jumper is replaced.

[2] Clear BIOS User and Supervisor Passwords.

See Section 3.7.4 Power Button Menu.

Table 25. BIOS Security Jumper Settings

Technical Reference

2.4 Mechanical Considerations

2.4.1 Form Factor

The board is designed to fit into a custom chassis. Figure 17 illustrates the mechanical form factor for the board. Dimensions are given in millimeters. The outer dimensions are

101.60 millimeters by 101.60 millimeters [4.0 inches by 4.0 inches].

Figure 17. Board Dimensions

Figure 18 shows the height dimensions of the board.

Fan Header

Maximum Available Current

Processor fan

.25 A

Figure 18. Board Height Dimensions

2.5 Electrical Considerations

2.5.1 Power Supply Considerations

Technical Reference

System power requirements will depend on actual system configurations chosen by the integrator, as well as end user expansion preferences. It is the system integrator’s responsibility to ensure an appropriate power budget for the system configuration is properly assessed based on the system-level components chosen.

2.5.2 Fan Header Current Capability

Table 26 lists the current capability of the fan header.

Table 26. Fan Header Current Capability

2.6 Thermal Considerations

CAUTION

A chassis with a maximum internal ambient temperature of 58 oC at the processor fan inlet is recommended. If the internal ambient temperature exceeds 58 oC, further thermal testing is required to ensure components do not exceed their maximum case temperature.

CAUTION

Failure to ensure appropriate airflow may result in reduced performance of both the processor and/or voltage regulator or, in some instances, damage to the board.

All responsibility for determining the adequacy of any thermal or system design remains solely with the system integrator. Intel makes no warranties or representations that merely following the instructions presented in this document will result in a system with adequate thermal performance.

Item

Description

Processor voltage regulator area

Thermal solution

CAUTION

Ensure that the ambient temperature does not exceed the board’s maximum operating

temperature. Failure to do so could cause components to exceed their maximum case temperature and malfunction. For information about the maximum operating temperature, see the environmental specifications in Section 2.8.

CAUTION

The processor voltage regulator area (shown in Figure 19) can reach a temperature of up to

97.5 oC in an open chassis. Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do so may result in shorter than expected product lifetime.

Figure 19 shows the locations of the localized high temperature zones.

Figure 19. Localized High Temperature Zones

Technical Reference

Component

Maximum Case Temperature

Processor

For processor case temperature, see processor datasheets and processor specification updates

Component

Tcontrol

Processor

For processor case temperature, see processor datasheets and processor specification updates

For information about

Refer to

Processor datasheets and specification updates

Section 1.2, page 18

Table 27 provides maximum case temperatures for the components that are sensitive to thermal changes. The operating temperature, current load, or operating frequency could affect case temperatures. Maximum case temperatures are important when considering proper airflow to cool the board.

Table 27. Thermal Considerations for Components

To ensure functionality and reliability, the component is specified for proper operation when Case Temperature is maintained at or below the maximum temperature listed in Table 28. This is a requirement for sustained power dissipation equal to Thermal Design Power (TDP is specified as the maximum sustainable power to be dissipated by the components). When the component is dissipating less than TDP, the case temperature should be below the Maximum Case Temperature. The surface temperature at the geometric center of the component corresponds to Case Temperature.

It is important to note that the temperature measurement in the system BIOS is a value reported by embedded thermal sensors in the components and does not directly correspond to the Maximum Case Temperature. The upper operating limit when monitoring this thermal sensor is Tcontrol.

Table 28. Tcontrol Values for Components

Parameter

Specification

Temperature

Non-Operating

-40 C to +60 C

Operating

0 C to +50 C

The operating temperature of the board may be determined by measuring the air temperature from the junction of the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.

Shock

Unpackaged

50 g trapezoidal waveform

Velocity change of 170 inches/s²

Packaged

Half sine 2 millisecond

Product Weight (pounds)

Free Fall (inches)

Velocity Change (inches/s²)

<20

167

21-40

152 41-80

136 81-100

118

Vibration

Unpackaged

5 Hz to 20 Hz: 0.01 g² Hz sloping up to 0.02 g² Hz

20 Hz to 500 Hz: 0.02 g² Hz (flat)

Packaged

5 Hz to 40 Hz: 0.015 g² Hz (flat)

40 Hz to 500 Hz: 0.015 g² Hz sloping down to 0.00015 g² Hz

2.7 Reliability

The Mean Time Between Failures (MTBF) prediction is calculated using component and subassembly random failure rates. The calculation is based on the Telcordia SR-332-2 Issue 2, Method I, Case 3, 55⁰C ambient. The MTBF prediction is used to estimate repair rates and spare parts requirements. The MTBF for the board is 61,444 hours.

2.8 Environmental

Table 29 lists the environmental specifications for the board.

Table 29. Environmental Specifications

Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum

operating temperature specified. It is recommended that the board temperature be at least room temperature before attempting to power on the board. The operating and non-operating environment must avoid condensing humidity.

3 Overview of BIOS Features

3.1 Introduction

The board uses an Intel Visual BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the Visual BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support. The initial production BIOSs are identified as AYAPLCEL.86A.

The Visual BIOS Setup program can be used to view and change the BIOS settings for the computer, and to update the system BIOS. The BIOS Setup program is accessed by pressing the <F2> key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

NOTE

The maintenance menu is displayed only when the board is in configuration mode. Section 2.3 on page 50 shows how to put the board in configuration mode.

3.2 BIOS Flash Memory Organization

The Serial Peripheral Interface Flash Memory (SPI Flash) includes a 64 Mb (8192 KB) flash memory device.

3.3 System Management BIOS (SMBIOS)

SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

The main component of SMBIOS is the Management Information Format (MIF) database, which contains information about the computing system and its components. Using SMBIOS, a system administrator can obtain the system types, capabilities, operational status, and installation dates for system components. The MIF database defines the data and provides the method for accessing this information. The BIOS enables applications such as third-party management software to use SMBIOS. The BIOS stores and reports the following SMBIOS information:

 BIOS data, such as the BIOS revision level  Fixed-system data, such as peripherals, serial numbers, and asset tags  Resource data, such as memory size, cache size, and processor speed  Dynamic data, such as event detection and error logging

Non-Plug and Play operating systems require an additional interface for obtaining the SMBIOS information. The BIOS supports an SMBIOS table interface for such operating systems. Using this support, an SMBIOS service-level application running on a non-Plug and Play operating

system can obtain the SMBIOS information. Additional board information can be found in the BIOS under the Additional Information header under the Main BIOS page.

3.4 Legacy USB Support

Legacy USB support enables USB devices to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB. However, this requires the addition of USB 3.0 drivers to the operating system image prior to beginning installation. By default, Legacy USB support is set to Enabled.

Legacy USB support operates as follows:

1. When you apply power to the computer, legacy support is disabled.

2. POST begins.

3. Legacy USB support is enabled by the BIOS allowing you to use a USB keyboard to enter and

configure the BIOS Setup program and the maintenance menu.

4. POST completes.

5. The operating system loads. While the operating system is loading, USB keyboards and mice

are recognized and may be used to configure the operating system. (Keyboards and mice are not recognized during this period if Legacy USB support was set to Disabled in the BIOS Setup program.)

6. After the operating system loads the USB drivers, all legacy and non-legacy USB devices are

recognized by the operating system, and Legacy USB support from the BIOS is no longer used. This requires the operating system to have USB 3.0 driver support in order to recognize devices attached to any of the NUC6AYB’s external USB ports.

To install an operating system that supports USB, verify that Legacy USB support in the BIOS Setup program is set to Enabled and follow the operating system’s installation instructions.

3.5 BIOS Updates

The BIOS can be updated using either of the following utilities, which are available on the Intel World Wide Web site:

 Intel

 Intel F7 switch during POST allows a user to select where the BIOS .bio file is located and

 Intel Visual BIOS allows the user to select the BIOS .bio file from the internet, USB device,

All utilities verify that the updated BIOS matches the target system to prevent accidentally installing an incompatible BIOS.

Express BIOS Update utility, which enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

Flash Memory Update Utility, which requires booting from DOS. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.

perform the update from that location/device. Similar to performing a BIOS Recovery without removing the BIOS configuration jumper.

hard disk drive, or other media.

Overview of BIOS Features

For information about

Refer to

BIOS update utilities

http://www.intel.com/support/motherboards/desktop/sb/CS-034499.htm

Media Type

(Note)

Can be used for BIOS recovery?

Hard disk drive (connected to SATA or USB)

Yes

CD/DVD drive (connected to USB)

Yes

USB flash drive

Yes

USB diskette drive (with a 1.4 MB diskette)

No (BIOS update file is bigger than 1.4 MB size limit)

For information about

Refer to

BIOS recovery

http://www.intel.com/support/motherboards/desktop/sb/CS-034524.htm

NOTE

Review the instructions distributed with the upgrade utility before attempting a BIOS update.

3.5.1 Language Support

The BIOS Setup program and help messages are supported in US English. Check the Intel web site for support.

3.6 BIOS Recovery

It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. Table 30 lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable.

Table 30. Acceptable Drives/Media Types for BIOS Recovery

NOTE

Supported file systems for BIOS recovery:

 NTFS (sparse, compressed, or encrypted files are not supported)  FAT32  FAT16  FAT12  ISO 9660

3.7 Boot Options

In the BIOS Setup program, the user can choose to boot from a hard drive, optical drive, removable drive, or the network. The default setting is for the optical drive to be the first boot device, the hard drive second, removable drive third, and the network fourth.

Boot Device Menu Function Keys

Description

<> or <>

Selects a default boot device

<Enter>

Exits the menu, and boots from the selected device

<Esc>

Exits the menu and boots according to the boot priority defined through BIOS setup

NOTE

Optical drives are not supported by the onboard SATA connectors. Optical drives are supported only via the USB interfaces.

3.7.1 Network Boot

The network can be selected as a boot device. This selection allows booting from the onboard LAN or a network add-in card with a remote boot ROM installed.

Pressing the <F12> key during POST automatically forces booting from the LAN. To use this key during POST, the User Access Level in the BIOS Setup program's Security menu must be set to Full.

3.7.2 Booting Without Attached Devices

For use in embedded applications, the BIOS has been designed so that after passing the POST, the operating system loader is invoked even if the following devices are not present:

 Video adapter  Keyboard  Mouse

3.7.3 Changing the Default Boot Device During POST

Pressing the <F10> key during POST causes a boot device menu to be displayed. This menu displays the list of available boot devices. Table 31 lists the boot device menu options.

Table 31. Boot Device Menu Options

Overview of BIOS Features

3.7.4 Power Button Menu

The Power Button Menu is accessible via the following sequence:

1. System is in S4/S5 (not G3)

2. User pushes the power button and holds it down

3. The power LED will change to its secondary color to signal the user to release the power

button (approximately 3 seconds); alternately, the system will emit three short beeps from the PC speaker or headphones, if installed, then stop. Release immediately.

4. User releases the power button before the 4-second shutdown override.

If this boot path is taken, the BIOS will use default settings, ignoring settings in VPD where possible.

The BIOS will display the following prompt and wait for a keystroke:

[ESC] Normal Boot [F2] Intel Visual BIOS [F3] Disable Fast Boot [F4] BIOS Recovery [F7] Update BIOS [F10] Enter Boot Menu [F12] Network Boot

[F3] Disable Fast Boot is only displayed if at least one Fast Boot optimization is enabled.

If an unrecognized key is hit, then the BIOS will beep and wait for another keystroke. If one of the listed hotkeys is hit, the BIOS will follow the indicated boot path. Password requirements must still be honored.

If Disable Fast Boot is selected, the BIOS will disable all Fast Boot optimizations and reset the system.

Password Set

Password During Boot

Neither

None

Master only

None

User only

Master and User Set

Master or User

3.8 Hard Disk Drive Password Security Feature

The Hard Disk Drive Password Security feature blocks read and write accesses to the hard disk drive until the correct password is given. Hard Disk Drive Passwords are set in BIOS SETUP and are prompted for during BIOS POST. For convenient support of S3 resume, the system BIOS will automatically unlock drives on resume from S3. Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 19 characters in length.

The User hard disk drive password, when installed, will be required upon each power-cycle until the Master Key or User hard disk drive password is submitted.

The Master Key hard disk drive password, when installed, will not lock the drive. The Master Key hard disk drive password exists as an unlock override in the event that the User hard disk drive password is forgotten. Only the installation of the User hard disk drive password will cause a hard disk to be locked upon a system power-cycle.

Table 32 shows the effects of setting the Hard Disk Drive Passwords.

Table 32. Master Key and User Hard Drive Password Functions

During every POST, if a User hard disk drive password is set, POST execution will pause with the following prompt to force the user to enter the Master Key or User hard disk drive password:

Enter Hard Disk Drive Password:

Upon successful entry of the Master Key or User hard disk drive password, the system will continue with normal POST.

If the hard disk drive password is not correctly entered, the system will go back to the above prompt. The user will have three attempts to correctly enter the hard disk drive password. After the third unsuccessful hard disk drive password attempt, the system will halt with the message:

Hard Disk Drive Password Entry Error

A manual power cycle will be required to resume system operation.

NOTE

The passwords are stored on the hard disk drive so if the drive is relocated to another computer that does not support Hard Disk Drive Password Security feature, the drive will not be accessible.

Overview of BIOS Features

Password Set

Supervisor Mode

User Mode

Setup Options

Password to Enter Setup

Password During Boot

Neither

Can change all options

(Note)

Can change all options

(Note)

None

Supervisor only

Can change all options

Can change a limited number of options

Supervisor Password

Supervisor

None User only

N/A

Can change all options

Enter Password Clear User Password

User

Supervisor and user set

Can change all options

Can change a limited number of options

Supervisor Password Enter Password

Supervisor or user

3.9 BIOS Security Features

The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions:

 The supervisor password gives unrestricted access to view and change all the Setup options

in the BIOS Setup program. This is the supervisor mode.

 The user password gives restricted access to view and change Setup options in the BIOS

Setup program. This is the user mode.

 If only the supervisor password is set, pressing the <Enter> key at the password prompt of

the BIOS Setup program allows the user restricted access to Setup.

 If both the supervisor and user passwords are set, users can enter either the supervisor

password or the user password to access Setup. Users have access to Setup respective to which password is entered.

 Setting the user password restricts who can boot the computer. The password prompt will be

displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, the user can enter either password to boot the computer.

 For enhanced security, use different passwords for the supervisor and user passwords.  Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 20 characters in

length.

 To clear a set password, enter a blank password after entering the existing password.

Table 33 shows the effects of setting the supervisor password and user password. This table is for reference only and is not displayed on the screen.

Table 33. Supervisor and User Password Functions

Note: If no password is set, any user can change all Setup options.

Type

Pattern

Note

BIOS update in progress

Off when the update begins, then on for 0.5 seconds, then off for 0.5 seconds. The pattern repeats until the BIOS update is complete.

Video error

(Note)

On-off (1.0 second each) two times, then 2.5-second pause (off), entire pattern repeats (blink and pause) until the system is powered off.

When no VGA option ROM is found.

Memory error

On-off (1.0 second each) three times, then 2.5-second pause (off), entire pattern repeats (blinks and pause) until the system is powered off.

Thermal trip warning

Each beep will be accompanied by the following blink pattern: .25 seconds on, .25 seconds off, .25 seconds on, .25 seconds off. This will result in a total of 16 blinks.

Error Message

Explanation

CMOS Battery Low

The battery may be losing power. Replace the battery soon.

CMOS Checksum Bad

The CMOS checksum is incorrect. CMOS memory may have been corrupted. Run Setup to reset values.

Memory Size Decreased

Memory size has decreased since the last boot. If no memory was removed, then memory may be bad.

No Boot Device Available

System did not find a device to boot.

4 Error Messages and Blink Codes

4.1 Front-panel Power LED Blink Codes

Whenever a recoverable error occurs during POST, the BIOS causes the board’s front panel

power LED to blink an error message describing the problem (see Table 34).

Table 34. Front-panel Power LED Blink Codes

Note: Disabled per default BIOS setup option.

4.2 BIOS Error Messages

Table 35 lists the error messages and provides a brief description of each.

Table 35. BIOS Error Messages

Regulatory Compliance and Battery Disposal Information

Item from Figure 20

Description

Kensington* Anti-Theft Key Lock Hole SD Card Reader

Digital Microphone Array

Power Switch and Power LED

Speaker/Headset Jack

USB 3.0 Connectors

Consumer Infrared Sensor

5 Intel NUC Kit Features

5.1 Chassis Front Panel Features

Intel NUC Board NUC6CAYB board can be found integrated into Intel® NUC Kit NUC6CAYH and Intel® NUC Kit NUC6CAYS. Figure 20 shows the location of the features located on or near the front of the chassis.

Figure 20. Intel NUC Kit NUC6CAYH/NUC6CAYS Features – Front

Table 36 lists the components identified in Figure 20.

Table 36. Components Shown in Figure 20

Item from Figure 21

Description

19V DC Power Inlet

Cooling Vents

Speaker and Optical Audio Jack High Definition Multimedia Interface Connector

Ethernet Port Video Graphics Array Connector

USB 3.0 Connectors

5.2 Chassis Rear Panel Features

Figure 21 shows the location of the features located on the rear of the chassis.

Figure 21. Intel NUC Kit NUC6CAYH/NUC6CAYS Features – Rear

Table 37 lists the components identified in Figure 21.

Table 37. Components Shown in Figure 21
