Intel ICH10R User Manual

USER'S MANUAL
Of
Intel X58 Express Chipset
And
Intel ICH10R Chipset
M/B for Intel Core i7 Processors
NO. G03-BI600 -F
Rev: 2.0
Release date: April, 2009
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are subject to
change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
i
TABLE OF CONTENT
SAFETY ENVIROMENTAL INSTRUCTION ....................................................................iii
USER’S NOTICE.....................................................................................................................iv
MANUAL REVISION INFORMATION ..............................................................................iv
COOLING SOLUTIONS........................................................................................................iv
CHAPTER 1
1-1 FEATURES OF MOTHERBOARD....................................................................................1
1-1.1 SPECIAL FEATURES OF MOTHERBOARD.................................................... 2
1-2 SPECIFICATION.................................................................................................................. 4
1-3 PERFORMANCE LIST........................................................................................................ 5
1-4 LAYOUT DIAGRAM ........................................................................................................... 6
INTRODUCTION OF X58 EXPRESS AND ICH10R MOTHERBOARDS
CHAPTER 2 HARDWARE INSTALLATION
2-1 HARDWARE INSTALLATION STEPS............................................................................. 8
2-2 CHECKING MOTHERBOARD'S JUMPER SETTING.................................................. 8
2-3 INSTALL CPU....................................................................................................................... 9
2-3-1 GLOSSARY............................................................................................................. 9
2-3-2
ABOUT INTEL LGA 1366CPU
2-3-3 LGA 1366 CPU INSTALLATION GUIDE........................................................... 11
2-3-4 INTEL REFERENCE THERMAL SOLUTION ASSEMBLY........................... 13
2-4 INSTALLING MEMORY.................................................................................................... 14
2-5 EXPANSION CARDS........................................................................................................... 15
2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION............................ 15
2-5-2 ASSIGNING IRQ FOR EXPANSION CARD...................................................... 15
2-5-3 PCI-EXPRESS SLOT.............................................................................................. 16
2-5-4 INSTALLING THE CROSSFIRE BRIDGE CARD............................................ 17
2-6 CONNECTORS, HEADERS................................................................................................ 19
2-6-1 CONNECTORS....................................................................................................... 19
2-6-2 HEADERS ............................................................................................................... 22
2-7 STARTING UP YOUR COMPUTER................................................................................. 25
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP.............................................................................................................. 26
3-2 GETTING HELP................................................................................................................... 26
3-3 THE MAIN MENU................................................................................................................ 27
3-4 STANDARD BIOS FEATURES........................................................................................... 28
3-5 ADVANCED BIOS FEATURES.......................................................................................... 29
3-6 ADVANCED CHIPSET FEATURES.................................................................................. 30
3-7 INTEGRATED PERIPHERALS......................................................................................... 30
3-7-1 ONBOARD SATA DEVICE .................................................................................. 30
3-7-2 ONBOARD DEVICE CONTROL......................................................................... 31
3-7-3 SUPER IO CONFIGURATION ............................................................................ 31
3-7-4 USB CONFIGURATION....................................................................................... 33
3-8 POWER MANAGEMENT FEATURES............................................................................. 33
3-9 MISCELLANEOUS CONTROL......................................................................................... 34
3-10 PC HEALTH STATUS.......................................................................................................... 35
3-10-1 SMART FAN CONFIGURATION.................................................................... 35
3-11 POWER USER OVERCLOCK SETTING......................................................................... 36
3-12 BIOS SECURITY FEATURES............................................................................................ 36
3-13 LOAD OPTIMIZED DEFAULTS/LOAD FAIL-SAFE DEFAULTS ............................... 37
3-14 SAVE CHANGES AND EXIT/ DISCARD AND EXIT....................................................... 37
CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION
MAGIC INSTALL SUPPORTS WINDOWS 2000/XP ................................................................ 38
4-1 INF INSTALL INTELX58 CHIPSET SYSTEM DRIVER.................................... 39
4-2 SOUND INSTALL ALC 888 HD AUDIO CODEC DRIVER....................................... 40
4-3 LAN INSTALL REALTEK GIGABIT ETHERNET NIC DRIVER....................... 41
4-4 RAID INSTALL JMICRON RAID DRIVER............................................................ 41
4-5 NORTON INSTALL NORTON INTERNET SECURITY 2009.................................... 42
4-6 PC-HEALTH INSTALL MYGUARD HARDWARE MONITOR UTILITY .............. 43
4-7 RAID DISK INSTALL JMICRON RAID DISK.......................................................... 43
4-8 AHCI INSTALL INTEL AHCI DRIVER ...................................................................... 44
4-9 HOW TO UPDATE BIOS..................................................................................................... 45
4-10 INTEL PLATFORM RAID FUNCTION INTRODUCTION ........................................... 45
4-11 PRO MAGIC PLUS FUNCTION INTRODUCTION........................................................ 47
.......................................................................... 10
ii
4-12 G.P.I.FUNCTION LED DISPLAY ...................................................................................... 48
Safety Environmental Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 40 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARES DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED FOR THE UTILIZATION OF X58 EXPRESS INTEL EDITION MOTHER-BOARDS TO MEET THE USER’S REQUIREMENTS. BUT IT WILL CHANGE, CORRECT AT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition Feb., 2009
Item Checklist
5
Intel X58 Express and ICH10R chipset based Motherboard
5
User’s Manual
5
CD for motherboard utilities
5
8 in 1 cable package
5
I/O Back Panel Shield
Intel Core Processor Family Cooling Solutions
As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial while building computer systems. Maintaining the proper thermal environment is the key to reliable, long-term system operation. The overall goal in providing the proper thermal environment is keeping the processor below its specified maximum case temperature. Heat sinks induce improved processor heat dissipation through increased surface area and concentrated airflow from attached fans. In addition, interface materials allow effective transfers of heat from the processor to the heat sink. For optimum heat transfer, Intel recommends the use of thermal grease and mounting clips to attach the heat sink to the processor. When selecting a thermal solution for your system, please refer to the website below for collection of heat sinks evaluated and recommended by Intel for use with Intel processors. Note, those heat sinks are recommended for maintaining the specified Maximum T case requirement. In addition, this collection is not intended to be a comprehensive listing of all heat sinks that support Intel processors.
iv
Chapter 1
Introduction of X58 Express and ICH10R chipset based Motherboards
1-1 Features of Motherboard
The X58 Express and ICH10R chipset based motherboard series are based on Intel X58 Express chipset and ICH10R chipsets technology which supports the innovative Intel® Core™ i7-965 processor Extreme Edition, Intel® Core™ i7-940 processors and Intel® Core™ i7-920 processors with QPI up to 6.4 GT/s.
The X58 Express and ICH10R chipset Based motherboard series deliver the revolutionary levels of performance enabling vivid, high-definition experiences and multi-tasking responsiveness from state-of-the-art Intel quad-core technologies, AMD CrossFire technology through the high bandwidth of dual channel DDR3 1600/1333/1066 MHz system memories which are expandable to 24 GB capacity and the new generation of PCI Express interface for the latest graphics cards from both AMD and nVidea. The X58 Express and ICH10R chipset motherboard series are absolutely the ultimate solution for game enthusiasts and applications, and it also meets the demanding usage of computing of gaming, multimedia entertainment and business applications.
The Intel X58 Express and ICH10R chipset motherboard series are embedded with ICH10R chipset of providing six serial ATA2 interfaces of 3.0 Gb / s data transfer rate for six serial ATA devices which supports RAID 0, 1,5,10 functions. More over, the motherboard provides also extra 1 Ultra ATA interface for two IDE devices of 133 MB / s data transfer rate and two external serial ATA interface of 3.0 Gb / s data transfer rate for two external serial ATA hard disk devices.
Th e X58 Express and ICH10R chipset Ba se d motherboard provides Gigabit LAN function by using two Realtek RTL8111C PCI Gigabit LAN chips which support 10M / 100M / 1Gbps data transfer rate. Embedded 8-channel ALC888 HD CODEC is fully compatible with Sound
Blaster Pro® standards that offer you with the home cinema quality and absolutely software compatibility.
The X58 Express chipset based motherboard series offer four PCI-Express2.0 x16 graphics slots with PE1 and PE4 being PCI Express 2.0 x16@16 lane slots while PE3 and PE5 being PCI Express 2.0 x16@ 8 lane slots. These four graphics slots are fully compatible with the latest AMD CrossFireX Technology to guarantee the fully operational Multi-GPUs graphics function and avoid the possible installation error. One PCI Express x4 I/O slot and one 32-bit PCI slots guarantee the rich connectivity for the I/O of peripherals.
Embedded USB controllers as well as capability of expanding to 12 of USB2.0 functional ports delivering 480Mb/s bandwidth of rich connectivity, these motherboards meet the future USB demands which are also equipped with hardware monitor function on system to monitor and protect your system and maintain your non-stop business computing.
Some special features---
Debug Port/OC-CON/G.P.I. Function/DIY Clear/Power on Button/Reset Button
CPU Thermal Throttling/ CPU Smart Fan/ CPU Vcore X-shift/
in this
motherboard are designed for power user to use the over-clocking function in more flexible
1
ways. But please be caution that the over-clocking may cause the failure in system reliability. This motherboard provides the guaranteed performance and meets the demands of the next generation computing. But if you insist to gain more system performance with variety possibilities of the components you choose, please be careful and make sure to read the detailed descriptions of these value added product features, please get them in the coming section.
1-1.1 Special Features of motherboard
CPU Thermal Throttling Technology--- (The CPU Overheat Protection Technology)
To prevent the increasing heat from damage of CPU or accidental shutdown while at high workload, the CPU Thermal Throttling Technology will force CPU to enter partially idle mode from 87.5% to 12.5% according to preset CPU operating temperature in BIOS (from 40 to 90). When the system senses the CPU operating temperature reaching the preset
value, the CPU operating bandwidth will be decreased to the preset idle percentage to cool down the processor. When at throttling mode the beeper sound can be optionally selected to indicate it is in working.
CPU Smart Fan
It’s never been a good idea to gain the performance of your system by sacrificing its acoustics. CPU Smart Fan Noise Management System is the answer to control the noise level needed for now-a-day’s high performance computing system. The system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements.
CPU Vcore X-Shift
The CPU voltage can be adjusted up by 31 stages for the precisely over-clocking of extra demanding computing performance.
Debug Port
Being bugged of abnormal system failure through the tossed and turned nights no more, the embedded Hardware Debug Port offers you the real-time visual system healthy for the demanding usage of computing. No more bugging by unknown system failure and no more time wasted in the first moment of 24-hour nonstop ping business computing, the embedded Debug Port will turn you into a well training hardware professional with the seeing system situation. (The Post Code please refer Appendix)
OC-CON ---
series only) The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC-CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.
--- The Noise Management System
--- Shift to Higher Performance
--- The Professional Hardware Diagnosis System
High-polymer Solid Electrolysis Aluminum Capacitors (Optional for HI04
2
G.P.I. Function—(Green power indicator function)
The full name of G.P.I technology is Green Power Indicator technology, obviously technology utilized to low power consumption. G.P.I is a technology with remarkable power saving function.
DIY Clear
The CMOS Button is to facilitate the clear COMS process for power user overclocking function. The user can easily clear or restore COMS settings by pressing down the button, without taking trouble to remove the case and locate the jumper for clear CMOS.
Power on Button
You can easily start the computer by pressing down this button for a few seconds, without troubling yourself to locate the front panel jumpers to find the Power on jumper.
Reset Button
You can easily restart the computer by pressing down this button for a few seconds, without troubling yourself to locate the front panel jumpers to find the reset jumper.
3
1-2 Specification
Spec Description
Design Chipset
CPU Socket LGA 1366
Memory Sockets
Expansion Slots
Integrate IDE and Serial ATA2 RAID
Gigabit LAN
8CH-Audio
BIOS
ATX form factor 6 layers PCB size: 30.5x24.5cm Intel X58 Express Chipset Intel ICH10R chipset
Supports the Intel® Core™ i7-965 processor Extreme Edition,
Intel® Core™ i7-940 processors and Intel® Core™ i7-920 processors.
Support QPI up to 6.4 GT/s DDR3 Module sockets x 6
Support 6 pcs DDR3 1600 /DDR3 1333MHz/ DDR3 1066
memory modules expandable to 24GB.
Support Dual- channel / Three-channel function PCI-Express2.0 x16 slot 4pcs PCI-Express2.0 x4 slot 1pcs 32-bit PCI slot x 1pcs The Intel ICH10R supports six internal Serial ATA ports for six
SATA devices with RAID0, RAID1, RAID5 and PAID10 function providing 3.0 Gb/sec data transfer rate.
JMB363 supports PCI Bus Mastering, ATA PIO/DMA and the
ULTRA DMA 66 / 100/133 functions that deliver the data transfer rate up to 133 MB/s for two IDE Devices and two external Serial ATA ports providing 3.0 Gb /sec data transfer rate for two serial ATA devices
Integrated Realtek RTL8111C PCI-E Gigabit LAN function. Supports Fast Ethernet LAN function provide 10Mb/100Mb/
1Gb /s data transfer rate.
Realtek ALC888 Azalia 8-channel HD Audio Codec integratedSupport 8-channel 3D surround & Positioning Audio Audio driver and utility included AMI 8MB SPI Flash ROM
Multi I/O
PS/2 keyboard and PS/2 mouse connectors ESATA connectors x2, SATA connectors x6 Coaxial S/PDIF Out connector x1 USB2.0 port x 8 and headers x2 RJ-45 LAN connector x2 Audio connector x1 (8-CH Audio) Floppy disk drive connector x1,Hard disk drive connector x1 Serial Port headerx1 HDMI-SPDIF header x1 IR header x 1
4
p
,
,
1-3 Performance List
The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.)
Test Configuration:
CPU: Core i7 920 DRAM: Apacer DDR3 1333 2GB x2 VGA Card: ATI 3850
Hard Disk Driver: Seagat SATA 160GB BIOS: T003
3D Mark 2001SE 3D Mark 2003 3D Mark 2005 AQUAMRK3
PCMark2005
System / CPU / Memory Graph / HDD Content Creation Winstone 2004 Business Winstone 2004 Winbench 99 V2.0: Business /Hi-end Disk Winmark99
SYSMark 2007: SISMark Rating(Internet Content Creation / Office Productivity )
E-learning
Video Creation
productively 3D System Mark Preview Rating DATA Analysis
SISOFT Sandra 2009 : 1.CPU Arithmetic Benchmark 2.CPU Multi-Media Benchmark 3.Memory bandwidth
Benchmark
1.DHRYSTON ALU GIPS WHETSTONE ISSE2 GFLOPS
2. Int/Float Buffered iSSE2 MB/S
3. Integer/Floating-Point SSE2 IT/S UT2003 Benchmark (flyby/botmatch) Quake3 DEMO1 / DEMO2 FPS Super Pi (1M) Second CPUZ System / CPU Clock
13.59GB/S
124.61
542.181702/178.297337
34578 13117
7544
N/G
7324/8095/6354
5499/6247
49.3
32.4
225001.3
151 164 138 211 164 296
70.66GIPS
62.53GFlo
100.38 Mpixel/s
N/A
15.34”
2.66GHZ
s
13.63GB/S
5
r
(
)
y
1-4 Layout Diagram
RJ-45 Ports
PS/2Mouse
(Green)
CMOS2
PS/2 Keyboard
Purple
SPDIF-OUT1
USB connectors
KB/MS Power On Jumper(JP1)
Line IN
Blue
MIC-IN Pink
CEN/BASS
(Black)
Line OUT (Green)
Surrback Orange
Surround (Gra
)
PS2 KB/Mouse Port
Coaxial S/PDIF out.
CMOS2
E-SATA Ports
over USB Ports
RJ45 Ports
Over USB Ports
Audio Connector
RTL8111C
Gigabit LAN Chips
PCI-E 2.0 x16 @ 16 lane
(PE1, PE4)
PCI-E2.0 x4 slot
PCI-E 2.0 x16 @ 8 lane
(PE3, PE5)
32-bit PCI Slot
8-CH Azalia Audio Codec
HDMI-SPDIF
CD Audio In
ATX 12V Power Conn.
LGA 1366 CPU Socket
USB Power On Jumper (JP3)
Intel X58 Express
Chipset
8Mbit SPI Flash ROM BIOS
Serial Port Header
Floppy Connector
CPU FAN
ICH10R
Chipset
Clear CMOS (JBAT)
SYS FAN1
ATA 133 IDE
Connector
USB Power On Jumper (JP4)
Intel
IR Header
USB headers
Front Panel
Header
DDR3 1600 DIMMs
ATX Power Connecto
SYS FAN2
Serial-ATA2 Connectors
(D-SATA1, D-SATA2, D-SATA3)
Reset Button
Power on Button
COMS1 Button
Power LED Speaker Headers
6
Jumpers
Jumper Name Description Page
JBAT CMOS RAM Clear 3-pin Block P.8
JP1 Keyboard Power On Enabled/Disabled 3-pin Block P.9 JP3/JP4 USB Power On Enabled/Disabled 3-pin Block P.9
Connectors
Connector Name Description Page
ATXPWR1 ATX Power Connector 24-pin Block P.18 ATX12V1 ATX 12V Power Connector 8-pin Block P.18 KB1 PS/2 Mouse & PS/2 Keyboard Connector 6-pin Female P.19
USB from CN1,CN2 and
USB 2.0 Port Connectors 4-pin Connector P.19 UL1 UL2 RJ45 LAN from UL1,UL2 RJ-45 LAN Port Over USB Connectors. RJ-45 Connector P.19 AUDIO1 8-CH Audio Connector 6 phone jack
P.19
Connector FLOPPY1 Floppy Driver Connector 34-pin Block P.19 IDE1 IDE Connector 40-pin Block P.20
DSATA1,DSATA2,
Serial ATA2 Connector 7-pin Connector P.20
DSATA3
E-SATA from CN1,CN2 External Serial ATA2 Connectors 7-pin Connector P.21 SPDIF_ Out1 Coaxial S/PDIF Out Connector 1phone connector P.21
Headers
Header Name Description Page
FP_AUDIO1 SPEAKER, MIC header 9-pin Block P.21 USB1,USB2 USB Port Headers 9-pin Block P.21 SPEAK PC Speaker header 4-pin Block P.21 PWR LED Power LED header 3-pin Block P.21 JW_FP(PWR LED/Reset/
HD LED/PWR BTN)
Front Panel Header (including Power LED/ IDE activity
9-pin Block P.21
LED/Reset switch / Power On Button lead) CPUFAN1 CPUFAN Header 4-pin Block P.22 SYSFAN1, SYSFAN2 System FAN Headers 3-pin Block P.22 CDIN1 CD Audio-In Header 4-pin Block P.22 IR1 IR Header 5-pin Block P.23 COM1 Serial Port COM1 Header 9-pin Block P.23
HDMI-SPDIF1 SPDIF-Out header 2-pin Block P.23
Expansion Sockets
Socket/Slot Name Description Page
LGA 1366 Socket CPU Socket LGA 1366 CPU Socket
DIMM_A2/DIMM_A1/
DDR3 Module Sockets 240-pin DDR3 Module Sockets
P.10 P.14
DIMM_B2/DIMM_B1/ DIMM_C2/DIMM_C1 PCI1
PE2 PE1,PE3,PE4,PE5
PCI Slot 32-bit PCI Local Bus Expansion slots
PCI-Express2.0 x4 Slot PCI-Express2.0 x 4Expansion Slots
PCI-Express 2.0x 16
PCI-Express2.0 x16 Expansion Slots
P.16 P.16 P.16
Slots
7
Chapter 2
Hardware Installation
WARNING!
Turn off your power when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.
2-1 Hardware installation Steps
Before using your computer, you had better complete the following steps:
1. Check motherboard jumper setting
2. Install CPU and Fan
3. Install System Memory (DIMM)
4. Install Expansion cards
5. Connect IDE Front Panel /Back Panel cable
6. Connect ATX Power cable
7. Power-On and Load Standard Default
8. Reboot
9. Install Operating System
10. Install Driver and Utility
2-2 Checking Motherboard’s Jumper Setting
(1) CMOS RAM Clear (3-pin) : JBAT1
A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JBAT to store the CMOS data.
To clear the CMOS, follow the procedure below:
1. Turn off the system and unplug the AC power
2. Remove ATX power cable from ATX power connector
3. Locate JBAT and short pins 2-3 for a few seconds
4. Return JBAT to its normal setting by shorting pins 1-2
5. Connect ATX power cable back to ATX power connector
Note: When should clear CMOS
1. Troubleshooting
2. Forget password
3. After over clocking system boot fail
JBATJBAT
1-2 Closed Normal
CMOS RAM Clear Setting
2-3 Closed Clear CMOS
8
(2) Keyboard function Enabled/Disabled: JP1
JP1
1-2 Closed KB Power ON Disable (Default)
Keyboard/Mouse Power On Setting
JP1
2-3 Closed KB Power ON Enabled
(3) USB Power On function Enabled/Disabled: JP3/JP4
JP3 / JP4JP3 / JP4
1-2 closed USB Power On Disable
(Default)
USB Power-On Setting
2-3 Installing CPU 2-3-1 Glossary
Chipset (or core logic) - two or more integrated circuits which control the interfaces between the system processor, RAM, I/O devises, and adapter cards. Processor slot/socket - the slot or socket used to mount the system processor on the motherboard.
Slot (PCI-E, PCI, RAM) - the slots used to mount adapter cards and system RAM. PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound
cards, network interface cards, and modems; runs at 33MHz. PCI Express2.0- Peripheral Component Interconnect Express2.0, developed in 2003, the speed of each line doubled from the previous PCI-E of 2.5Gbps to 5 Gbps.
Serial Port - a low speed interface typically used for mouse and external modems. Parallel Port - a low speed interface typically used for printers. PS/2 - a low speed interface used for mouse and keyboards. USB - Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,
scanners, and some digital cameras. Sound (interface) - the interface between the sound card or integrated sound connectors and speakers, MIC, game controllers, and MIDI sound devices.
LAN (interface) - Local Area Network - the interface to your local area network. BIOS (Basic Input/Output System) - the program logic used to boot up a computer and
establish the relationship between the various components. Driver - software, which defines the characteristics of a device for use by another device or other software.
2-3 closed USB Power On Enabled
9
Processor - the "central processing unit" (CPU); the principal integrated circuit used for
doing the "computing" in "personal computer"
Front Side Bus Frequency -
the working frequency of the motherboard, which is generated
by the clock generator for CPU, DRAM and PCI BUS.
CPU L2 Cache -
the flash memory inside the CPU, normal it depend on CPU type.
2-3-2 About Intel LGA 1366 CPU
This motherboard provides a 1366-pin DIP, LGA 1366 Land Grid Array socket, referred to as the LGA 1366 socket.
The CPU that comes with the motherboard should have a cooling FAN attached to prevent overheating. If this is not the case, then purchase a correct cooling FAN before you turn on your system.
NOTED!
Be sure that there is sufficient air circulation across the processor’s heat sink and CPU cooling FAN is working correctly, otherwise it may cause the processor and motherboard overheat and damage, you may install an auxiliary cooling FAN, if necessary.
To install a CPU, first turn off your system and remove its cover. Locate the LGA 1366 socket and open it by first pulling the level sideways away from the socket then upward to a
135-degree angle. Insert the CPU with the correct orientation as shown below. The
notched corner should point toward the end of the level. Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown.
When you install the CPU into the LGA 1366 socket, there’s no force required CPU insertion; then press the level to locate position slightly without any extra force.
Pin-1
Indicator
10
Alignment key
2-3-3 LGA 1366 CPU Installation Guide
2.
1. Please make sure that CPU socket is facing towards
you and the level is on you left hand side.
Press down the level and move iit to the left side to
make sure it is freed from the hook and then open it upwards about 135 degree.
3. Pick up the lode plate upwards about 100 degree to
make sure it is moved upwards.
4. Remove the plastic protective cap from the socket.
( Put it to the original place if CPU is not installed . Do not touch the metal contact point of the CPU socket).
11
Alignment
Key
Alignment
Key
Pin-1
Indicator
5. Make sire that golden finger is on the left-down side as shown and match the two alignment keys
on the CPU with two points of the socket. CPU can only be correctly installed with this direction. Incorrect installation might cause damage to CPU .
6Put down the load plate.
7.
Press down the load level and move it rightwards make
sure it is locked under the notch.
12
2-3-4 Intel Reference Thermal Solution Assembly
Align the fastener with the hole
1. Put the heat sink vertically above the CP-installed
socket and make sure to align the four fasteners with four holes around the socket.
2Revolve the four fasteners in the counter-clockwise
direction.
Motherboard
3. Press down two fasteners down in the oblique crossing
direction as shown above.
4.
Turn over the motherboard carefully to make sure the
fastener insert in the right direction.
Notice:
Please apply thermal interface material to the CPU HIS surface; The heat sink and installation steps are for reference use only; Installation steps might
differ depending on different heat sink models;
Please use Intel original heat sink for better heat dissipation or other heat sinks that has
pass Intel certification.
13
2-4 Installing Memory

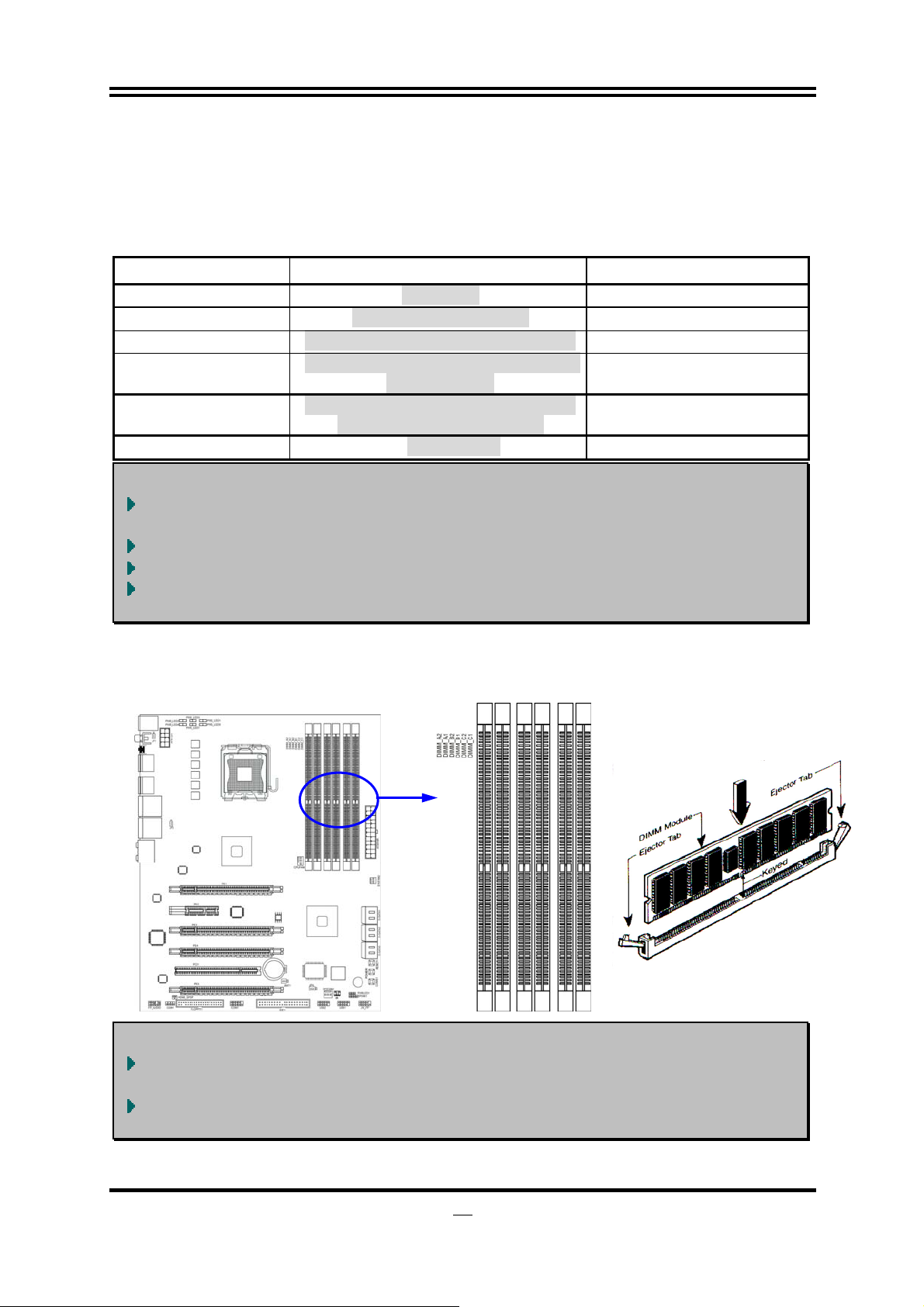

This motherboard provides six 240-pin DDR3 DUAL INLINE MEMORY MODULES (DIMM) socket for DDR3 memory modules capacity expansion to maximum memory volume of 24 GB.
Valid Memory Configurations for DDR3
Number of slot(s) Recommended Installing DIMM Working Mode
One
Two
Three
Four
Five
DIMM_A1 & DIMM_B1& DIMM_C1 3-Channel DIMM_A1 & DIMM_B1& DIMM_C1
DIMM_A1 & DIMM_B1& DIMM_C1
DIMM_A1 & DIMM_B1 Dual Channel
& DIMM_A2 & DIMM_B2
Six
Notice
If there is only one memory module, you should install it only in one of DIMM_A1,
DIMM_B1 and DIMM_C1 slot; otherwise system won’t start.
With two memory modules, you can only install them in two slots of the DIMM_A1, DIMM_B1 and DIMM_C1 to enjoy dual channel function. With three or more memory modules, you should install three of them in DIMM_A1,
DIMM_B1 and DIMM_C1 in the first place to enjoy 3-channel function.
DIMM_A1 Single Channel
3-Channel
& DIMM_A2
3-Channel
ALL DIMMs 3-Channel
Installing memory modules on your motherboard is an easy process in most cases. You might as well refer to the following pictures when installing your memory modules. Please make sure the power is cut off in the first place.
installation Tips
Open the two plastic clips of memory slots then push down the module vertically into
the slot. See to it that the hole of the module fit into the notch of the slot;
The two plastic clips will automatically close if the memory module is fitted in a
proper way.
14
2-5 Expansion Cards
2-5-1 Procedure For Expansion Card Installation
1. Read the documentation for your expansion card and make any necessary hardware or
software setting for your expansion card such as jumpers.
2. Remove your computer’s cover and the bracket plate on the slot you intend to use.
3. Align the card’s connectors and press firmly.
4. Secure the card on the slot with the screen you remove above.
5. Replace the computer system’s cover.
6. Set up the BIOS if necessary.
7. Install the necessary software driver for your expansion card.
2-5-2 Assigning IRQs for Expansion Card
Some expansion cards need to set up the IRQ to operate. An IRQ must be assigned exclusively to single interface use only. There are 16 IRQs available but most of them are already being used.
Standard Interrupt Assignments
IRQ Priority Standard function
0 N/A System Timer 1 N/A Keyboard Controller 2 N/A Programmable Interrupt 3 * 8 Communications Port (COM2) 4 * 9 Communications Port (COM1) 5 * 6 Sound Card (sometimes LPT2) 6 * 11 Floppy Disk Controller 7 * 7 Printer Port (LPT1) 8 N/A System CMOS/Real Time Clock
9 * 10 ACPI Mode when enabled 10 * 3 IRQ Holder for PCI Steering 11 * 2 IRQ Holder for PCI Steering 12 * 4 PS/2 Compatible Mouse Port 13 N/A Numeric Data Processor 14 * 5 Primary IDE Channel 15 * 1 Secondary IDE Channel
* These IRQs are usually available for ISA or PCI devices.
15

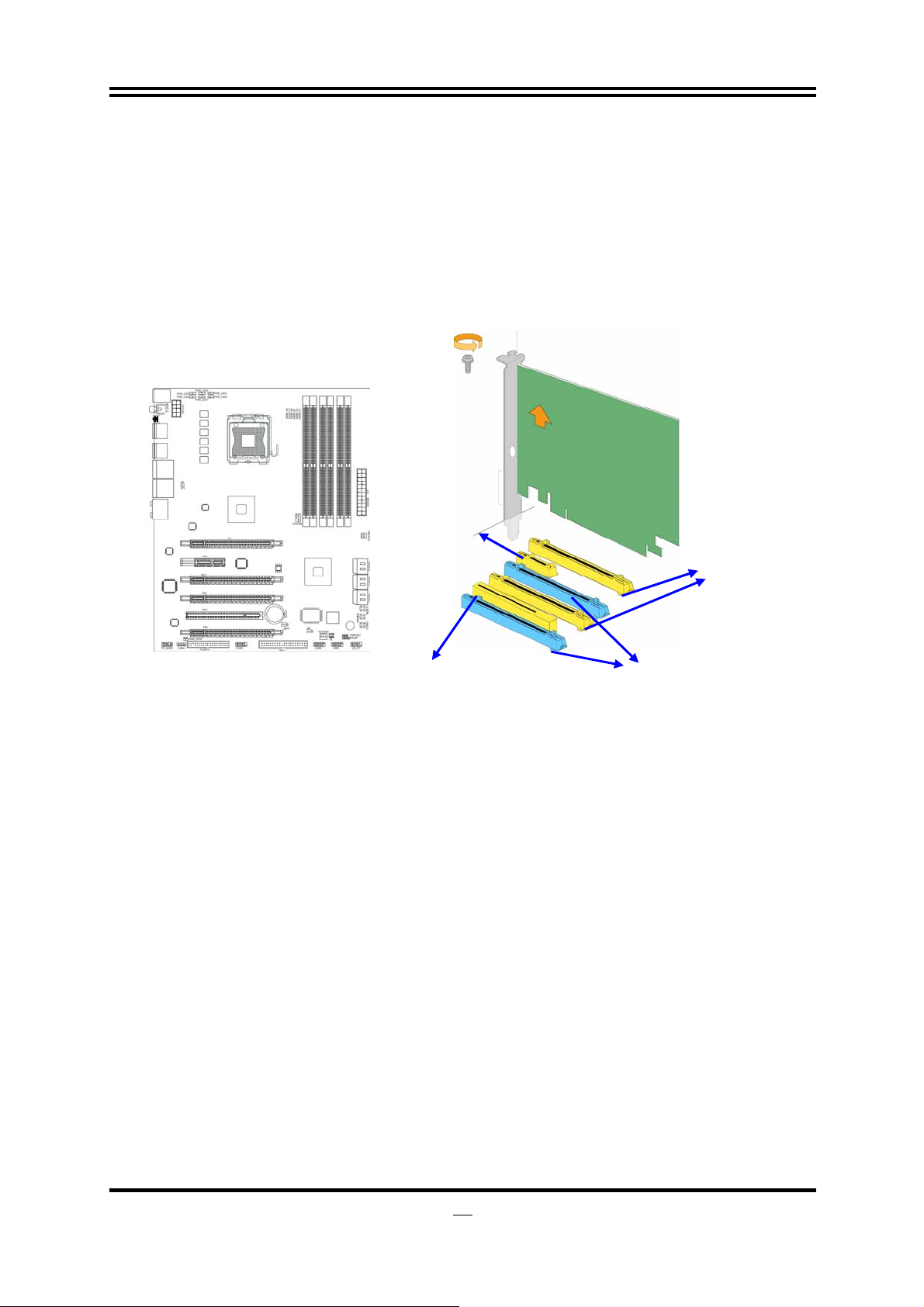

2-5-3 PCI Express Slot
The X58 Express chipset based motherboard series offer four PCI-Express2.0 x16 graphics slots with PE1 and PE4 being PCI Express 2.0 x16@16 lane slots while PE3 and PE5 being PCI Express 2.0 x16@ 8 lane slots. These four graphics slots are fully compatible with the latest AMD CrossFireX Technology to guarantee the fully operational Multi-GPUs graphics function and avoid the possible installation error. One PCI Express x4 I/O slot and one 32-bit PCI slots guarantee the rich connectivity for the I/O of peripherals.
PCI-E2.0 x4Slot
PCI Slots
PCI-E2.0 x16@8 Lane Slots
PCI-E2.0 x16@16 Lane Slot
16

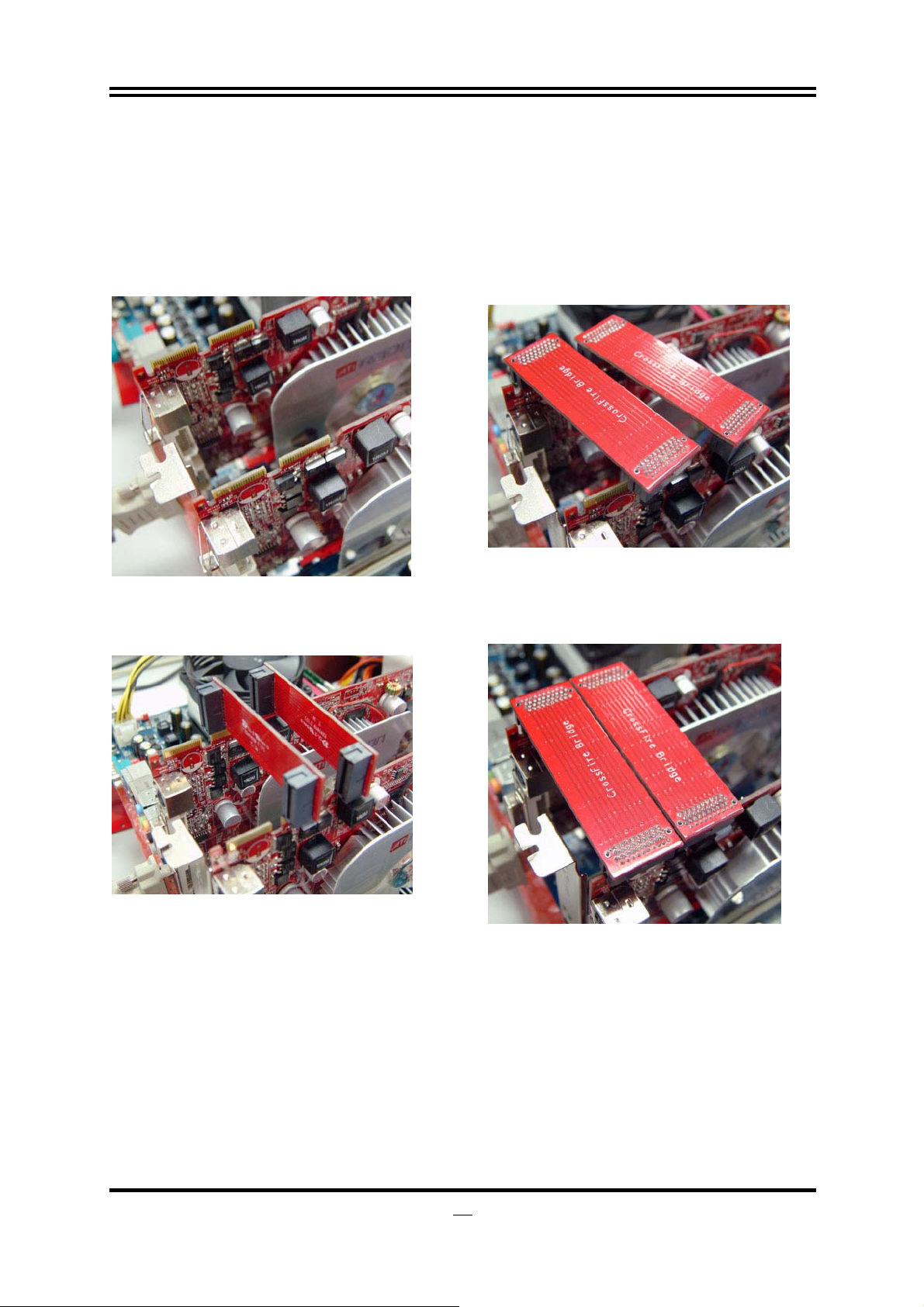

2-5-4 Installing the CrossFire Bridge Card
The following illustrations show you how to install the CrossFire Bridge Card.
Bridge for CrossFire Tech. Supported VGA Cards
In order to activate the CrossFire technology, you have to install the optional Bridge for your CrossFire Tech. Supported VGA Cards before you activating the advance multi-GPUs functions. For CrissFire Bridge installation
1. Install your CrossFire Tech Supported VGA
Cards in the PCI-E x16 slots.
3. Be careful with the position for the pin you
would like to set up.
2. Prepare with the CF Bridges with your
crossFire Tech Supported VGA Cards.
4. Keep straight to force the CF Bridges plug
into both sides of CrossFire Tech Supported VGA Cards.
17
Notice!
The motherboard and graphics card in the illustration is for reference use only; We suggest that you install graphics cards in PE1 and PE4 slot for better CrossFire
performance;
We suggest that you install graphics cards in PE1,PE3 and PE4 slots for better
performance when installing 3 graphics card.
18
2-6 Connectors, Headers
2-6-1 Connectors

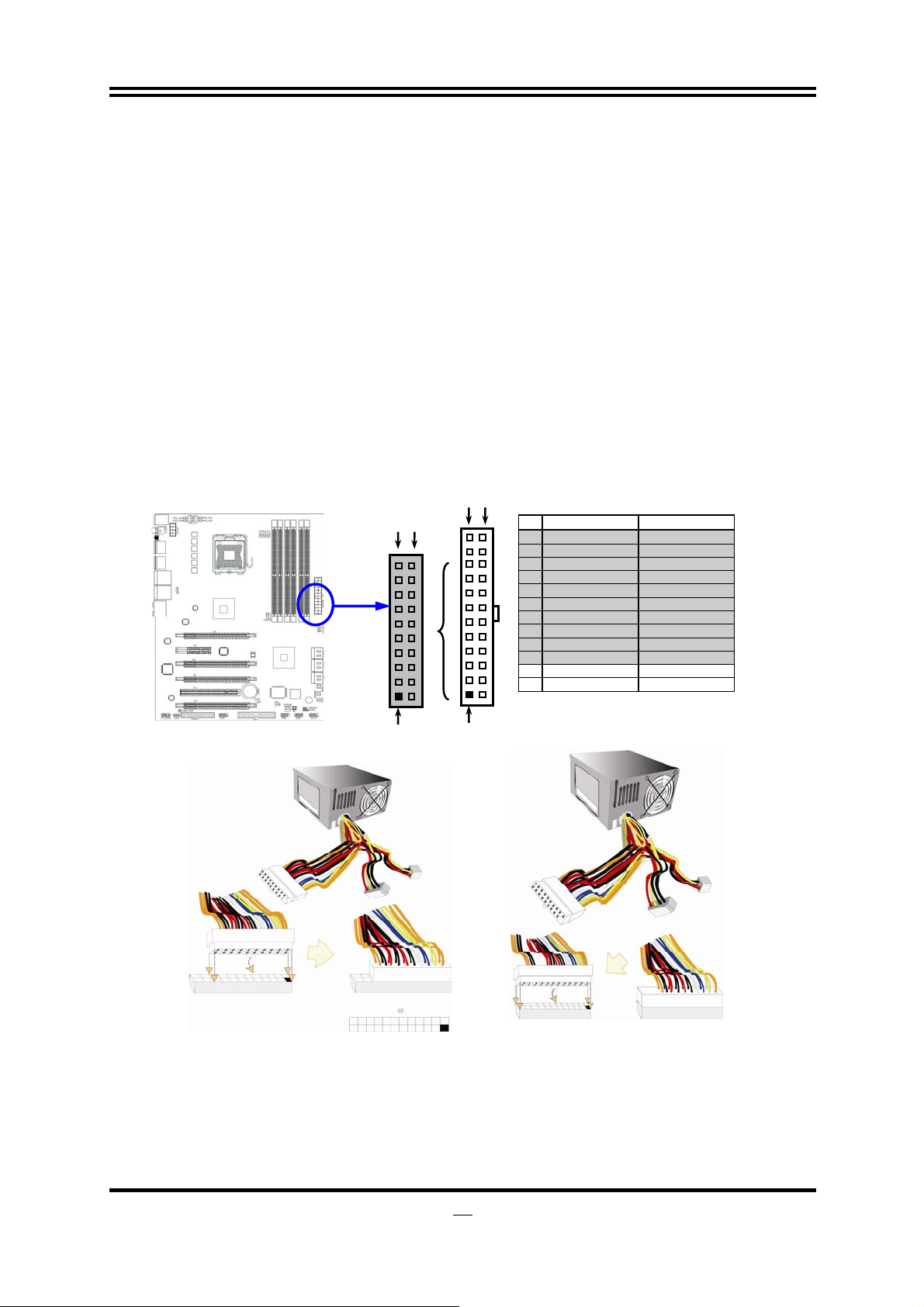

(1) Power Connector (24-pin block): ATXPWR1
ATX Power Supply connector: This is a new defined 24-pins connector that usually
comes with ATX case. The ATX Power Supply allows using soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. When the power switch on the back of the ATX power supply turned on, the full power will not come into the system board until the front panel switch is momentarily pressed. Press this switch again will turn off the power to the system board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power supply
unit (PSU) with a minimum of 350W power rating. This type has 24-pin and 4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the 20-pin
power plug can provide at least 15A on +12V and the power supply unit has a minimum power rating of 350W. The system may become unstable or may not boot up if the power is inadequate.
ROW1 ROW2
ROW1 ROW2
Pin 1
20-Pin
Pin 1
24-Pin
PIN ROW1 ROW2
1 3.3 V 3.3V 2 3.3 V -12V 3 GND GND 4 5V Soft Power On 5 GND GND 6 5V GND 7 GND GND 8 Power OK -5V
9 +5V (for Soft Logic) +5V 10 +12V +5V 11 +12V +5V 12 +3V GND

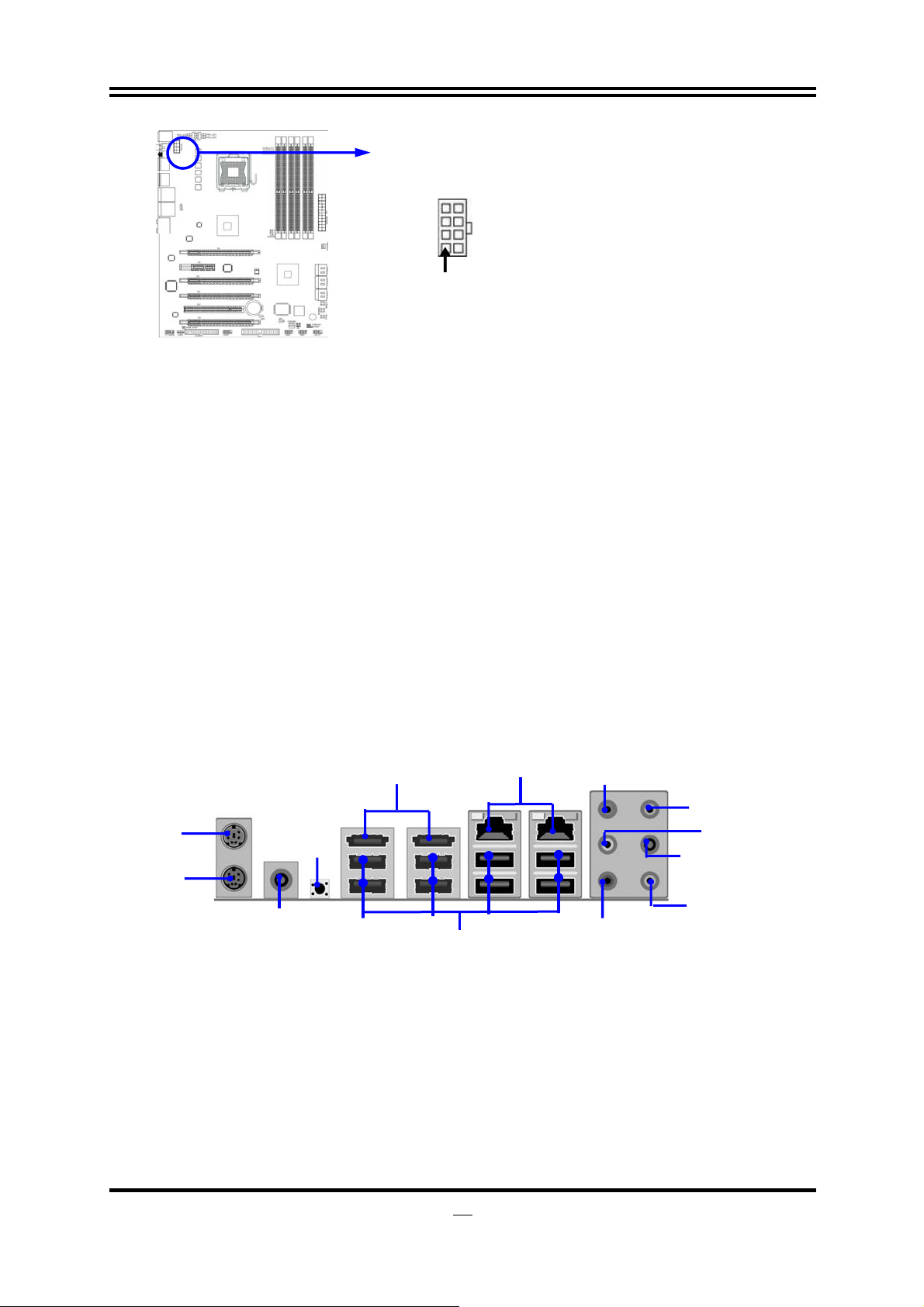

(2) ATX 12V Power Connector (8-pin block) : ATX12V1
This is a new defined 8-pin connector that usually comes with ATX Power Supply. The
ATX Power Supply which fully supports LGA 1366 processor must including this connector for support extra 12V voltage to maintain system power consumption. Without this connector might cause system unstable because the power supply can not provide sufficient current for system.
19
(
)
y
Pin 1
(3) PS/2 Mouse & PS/2 Keyboard Connector: KB1
The connectors are for PS/2 keyboard and PS/2 Mouse input devices.
(4) USB Port connector: USB port from CN1, CN2 and UL1, UL2
The connectors are 4-pin connectors that connect USB devices with the 400Mbit / sec
data transfer rate to the system board.
(5) LAN Port connector: RJ-45 LAN port from UL1, UL2
This connector is standard RJ45 over USB connectors for Network connection. The
connector supports 10MB/100MB/1G B/s data transfer rate
(6)
Audio Line-In,
Lin
-Out, MIC, Surrback, Surround, CEN/BASS Connector: AUDIO1
These Connectors are 6 Phone-Jack for LINE-OUT, LINE-I N, MIC, Surrback, Surround, CEN/LEF audio connections.
Line-in : (BLUE) Line-out : (GREEN) MIC : (PINK) Surrback : (ORANGE) CEN/BASS : (BLACK)
Audio input to sound chip
Audio output to speaker
Microphone Connector
Audio output to speaker-Rear speaker out
Audio output to speaker-Center/Subwoofer speaker out
RJ-45 Ports
PS/2Mouse
(Green)
PS/2 Keyboard
Purple
CMOS2
SPDIF-OUT1
USB connectors
Line IN
Blue
MIC-IN Pink
CEN/BASS
(Black)
Line OUT (Green)
Surrback Orange
Surround (Gra
)
(7) Floppy drive Connector (34-pin block): FLOPPY1
This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives.
20
FLOPPY
Pin 1
Black
Floppy Drive Connector
(8) IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to your hard disk(s). If you install two hard disks, you must configure the second drive to Slave mode.
IDE1
Pin 1
Primary IDE ConnectorBlack
• Two hard disks can be connected to each connector. The first HDD is referred to as the
“Master” and the second HDD is referred to as the “Slave”.
• For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM
drive on the same IDE channel as a hard disk..Otherwise, the system performa nce on this channel may drop.
(9) Serial-ATA2 Port connectors: DSATA1 / DSATA2 / DSATA3
These connectors support the provided Serial ATA and Serial ATA2 IDE hard disk cable
to connect the motherboard and serial ATA2 hard disk drives.
DSATA3
Serial-ATA2 Compatible Connectors
DSATA2 DSATA1
21
D
(10)
ESATA Port: ESATA ports from CN1, CN2
These two connectors support the External Serial ATA2 (eSATA) to enable the full SATA interface speed outside the chassis.
(11) SPDIF Out connectors: SPDIF_Out1
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder. Use this feature only when your stereo system
has digital input function.
2-6-2 Headers
(1) Line-Out/MIC Header for Front Panel (9-pin): FP_AUDIO1
These headers connect to Front Panel Line-out, MIC connector with cable.
Audio-GND
KEY
MIC2-JD
Audio-JD
LINE2-JD
AUDIO
Pin 1
2
10
9
MIC2-L
MIC2-R
Sense-FB
Lineout2-L
Lineout2-R
Line-Ou t, MIC Headers
(2) USB Port Headers (9-pin): USB1/USB2
These headers are used for connecting the additional USB port plugs. By attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel.
VCC
VCC
OC
GN
-DATA
+DATA
GND
-DATA
+DATA
Pi n 1
USB Port Header
(3) Speaker connector: SPEAK
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(4) Power LED: PWR LED
The Power LED is light on while the system power is on. Connect the Power LED from
the system case to this pin.
(5) IDE Activity LED: HD LED
This connector connects to the hard disk activity indicator light on the case.
(6) Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting your
computer without having to turn off your power switch. This is a preferred method of
22
rebooting in order to prolong the lift of the system’s power supply. See the figure below.
(7) Power switch: PWR BTN
This 2-pin connector connects to the case-mounted power switch to power ON/OFF the system.
PWRBTN
PWR LED
PWRLED
Pin 1
SPEAK
Pin 1
System Case Connections
SPKR
JW FP
Pin 1
NC
GND
VCC5
GND
VCC5
PWRLED
PWRBTN
NC
GND
VCC5
HDDLE
RSTSW
RESET
HDLED
(8) FAN Headers: SYSFAN1, SYSFAN2 (3-pin), CPUFAN1 (4-pin)
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground. Please connect the fan’s plug to the board taking into consideration the polarity of connector.
CPUFAN
SYSFAN2
1
4
1
3
SYSFAN 1
(9) CD Audio-In Headers (4-pin) : CDIN1
CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM CD-Audio output connector.
CDI N
CD Audio-In Headers
1
4 1
23
3
5 6
(10) IR infrared module Headers (5-pin): IR1
This connector supports the optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function.
IR
Pin 1
GND
+5VX
2
GND
IRTX
IRRX
IR infrared module Headers
(11)
Serial COM Port header:
COM1
COM1 is a 9-pin RS232 connector.
Pin1
Serial COM Port 9-pin Block
(12) SPDIF Out header: HDMI_SPDIF
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder. Use this feature only when your stereo system has digital input function.
SPDIF
HDMI_SPDIF_OUT
1
2
GND
24
2-7 Starting Up Your Computer
1. After all connection is made, close your computer case cover.
2. Be sure all the switch are off, and check that the power supply input voltage is set to
proper position, usually in-put voltage is 220V240V or 110V120V depending on your country’s voltage used.
3. Connect the power supply cord into the power supply located on the back of your system
case according to your system user’s manual.
4. Turn on your peripheral as following order: a. Your monitor. b. Other external peripheral (Printer, Scanner, External Modem etc…) c. Your system power. For ATX power supplies, you need to turn on the power
supply and press the ATX power switch on the front side of the case.
5. The power LED on the front panel of the system case will light. The LED on the monitor may light up or switch between orange and green after the system is on. If it complies with green standards or if it is has a power standby feature. The system will then run power-on test. While the test are running, the BIOS will alarm beeps or additional message will appear on the screen.
If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance.
Beep Meaning
One short beep when displaying logo No error during POST Long beeps in an endless loop No DRAM install or detected One long beep followed by two short
No VGA card found or error found in monitor
beeps High frequency beeps when system is
working
CPU overheated System running at a lower frequency
6. During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in BIOS SETUP.
7.
Power off your computer:
You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. If you use Windows 9X, click
“Start”
button, click
“Shut down”
and then click
“Shut down the computer?”
The power supply should turn off after windows shut down.
25
Chapter 3
Introducing BIOS
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
• Press <Esc> to quit the BIOS Setup.
• Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you want to
confirm or to modify.
• Press <F10> when you have completed the setup of BIOS parameters to save these
parameters and to exit the BIOS Setup menu.
• Press <+>/<–> keys when you want to modify the BIOS parameters for the active option.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to
Press <Del> to enter Setup
3-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu/Option Page Setup M enu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.
26
3-3 The Main Menu
Once you enter AMI BIOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from 12 setup functions and 2 exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Standard BIOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Features Miscellaneous Control PC Health Status
↑↓→←
: Move Enter: Select +/-/: Value F10: Save ESC:Exit F1:General Help
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
V 0.265(C) Copyright 1985-2008, American Megatrends, Inc.
Power User Overclock Settings
BIOS Security Features
Load Optimized Defaults
Load Fail-Safe Defaults Save Changes and Exit Discard Changes and Exit
Figure 3-1
Standard BIOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Features
Use this menu to specify your settings for power management features
Miscellaneous Control
Use this menu to specify your settings for Miscellaneous Control.
PC Health Status
Use this item to configure hardware health status.
Power User Overclock Settings
Use this menu to specify your settings (frequency, Voltage) for overclocking demand.
BIOS Security Features
This entry for setting Supervisor password and User password
27
U
T
Load Optimized Defaults
Use this menu to load the BIOS default values these are setting for opt imal performa nce s system operations for performance use.
Load Failsafe Defaults
This menu uses a minimal performance setting, but the system would run in a stable way.
Save Changes and Exit
Save CMOS value changes to CMOS and exit setup.
Discard Changes and Exit
Abandon all CMOS value changes and exit setup.
3-4 Standard BIOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Standard BIOS Features
System Date Wed 01/07/2009 System Time 22 : 46 : 33
SATA Channel 1 Not Detected
SATA Channel 3 Not Detected SATA Channel 2 Not Detected SATA Channel 4 Not Detected SATA Channel 5 Not Detected SATA Channel 6 Not Detected
FLOPPY A 1.44MB, 3
1
2
Help Item
se[Enter], [TAB] or [SHIFT­field.
Use [+] or [-]to configure
System Date
AB] to select a
System Memory Size: 1016 MB
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
System Date
The date format is <day><month><date><year>.
Day of the week, from Sun to Sat, determined by BIOS. Read-only.
Day Month Date Year
The month from Jan. through Dec.
The date from 1 to 31 can be keyed by numeric function keys.
The year depends on the year of the BIOS.
System Time
The time format is <hour><minute><second>.
SATA Channel 1, 2, 3, 4, 5, 6
While entering setup, BIOS auto detest the presence of IDE devices. This displays the status of auto detection of IDE devices.
Type: LBA/Large Mode: Block (Multi-Sector Transfer): PIO Mode: the optional settings are:
The optional settings are: Not Installed; Auto; CD/DVD and ARMD
The optional settings are Auto; Disabled.
The optional settings are: Disabled and Auto.
Auto, 0, 1, 2, 3 and 4.
28
DMA MODE: S.M.A.R.T.:
the optional settings are Auto, SWDMAn, MWDMAn , UDMAn.
This option allows you to enable the HDD S.M.A.R.T Capability (Self-Monitoring, Analysis and Reporting Technology). The optional settings are Auto; Disabled; and ENABLED.
32 Bit Data Transfer:
the optional settings are: Disabled and Enabled.
Floppy A
This item is for specific floppy disk drive settings. Select according to the specification of the floppy disk you use.
System Memory
This item will show information about the memory modules(s) installed.
3-5 Advanced BIOS Feature
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Advanced BIOS Features Advanced Settings WARNING: Setting wrong values in below sections
May cause system to malfunction
CPU Configuration Press Enter Boot Sector Virus Protection Disabled Quick Boot Enabled Boot up Number Lock On ACPI APIC Support Enabled Quiet Boot Disabled
Configure CPU
Help Item
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
Boot Sector Virus Protection
The selection Allow you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.
Disabled
(default) No warning message to appear when anything attempts to access the
boot sector or hard disk partition table.
Enabled
Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.
Quick Boot
Allows BIOS to skip certain tests while booting. This will decrease the needed to boot the system.
Boot Up NumLock Status
The default value is On.
(default)
On Off
Keypad is numeric keys.
Keypad is arrow keys.
ACPI APIC Support
Include ACPI APIC table pointer to RSDT pointer list.
Quiet Boot
The optional settings are Enabled and Disable. Disabled: Display normal POST message. Enabled: Displays OEM logo instead of POST message.
29
3-6 Advanced Chipset Features
The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Advanced Chipset Features
PCI Express Configuration Press Enter Intel VT-d Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
PICE Configuration
Press Enter to configure PCI Express Support.
Intel VT-d
Help Item
Configure PCI Express Support
The optional setting is: Enabled; Disabled.
3-7 Integrated Peripherals
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Integrated Peripherals
Onboard SATA Device Press Enter
Onboard Device Control Press Enter Super IO Configuration Press Enter USB Configuration Press Enter
Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
3-7-1 Onboard SATA Device
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Onboard SATA Device
SATA#1 Configuration Compatible Configure SATA#1 as IDE Hard Disk Write Protect Disabled IDE Detect Time Out(Sec) 35 ATA (PI) 80 pin Cable Detect Host & Device
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
Help Item
Configure the USB Support
Help Item
Options
Disabled
Compatible
Enhanced
SATA#1 Configuration
The optional settings are: Disabled; Compatible and Enhanced.
Configure SATA#1 as
Press Enter to select the SATA type. The optional settings are: IDE; RAID; AHCI.
30
Hard Disk Write Protection
Use this item to enable or disable hard disk write protection. This will be effective ony if the device is accessed through BIOS.
IDE Detect Time Out(Sec)
Select the time out value for detecting ATA/ATA(PI) devices.
ATA(PI) 80 Pin Cable Detect( Host & Device; Host; Device)
Select the mechanism for detecting 80 pin ATA(PI) cable
3-7-2 Onboard Device Control
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Onboard Device Control
Onboard
Onboard PCIE Lan BootRom Disabled JMicron 36x ATA Controller IDE Mode HD Audio Controller Enabled
PCIE LAN 1 Auto
Onboard
PCIE LAN 2 Auto
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
Help Item
Options
Auto
Enabled
Disabled
Onboard PCI E Lan 1/2
Use this item to enable or disable Onboard PCI E Lan. J
Micron 36x ATA Controller
Users can enable or disable ESATA and IDE interface though this item.
HD Audio Controller
This item allows you to decide to enable/disable the chipset family to support HD Audio. The optional settings are: Auto; Enabled and Disabled.
3-7-3 Super IO Configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Super IO Configuration
Configure F71887F Super IO Chipset
Power On by keyboard Disabled
Power On by Mouse Disabled
Onboard Floppy Controller Enabled Serial Port 1 Address 3F8/IRQ4 Serial Port 2 Address 2F8/IRQ3
Serial Port Mode IrDA PWRON After PWR Fail Always Off
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
Disabled Enabled
Help Item
Options
Onboard Floppy Controller
This item allows BIOS to enable or disable floppy controller. Select Enabled if your system has a floppy disk controller (FDD) installed on the system board and you wish to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field. The settings are: Enabled and Disabled.
Power On by keyboard
31
E
U
L
Set it as enabled if you wish to resume the system by keyboard. The optional setting is : Enabled; Disabled.
Power On by Mouse
Set it as enabled if you wish to resume the system by mouse. The optional setting is : Enabled; Disabled.
Serial Port1 /Port 2 Address
Use this item to select serial port address for serial port one.
Serial Port2 Mode
The optional settings are: Normal; IrDA (1.6 ns); IrDA(3/16 bit).
PWRON After PWR-Fail
The optional settings are: Always On; Always Off and Former-Sts.
3-7-4 USB Configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
USB Configuration
USB Configuration
Help Item
Module Version -2.24.3-13.4
USB Devices Enabled
None
Legacy USB Support Enabled
Port 64/60 Emulation Disabled
USB 2.0 Controller Mode HiSpeed
BIOS EHCI Hand-Off Enabled
Hotplug USB FDD Support Auto
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
nables support for legacy SB. AUTO option disables eacy support If no USB devices
are connected
Port 64/60 Emulation
Enables I/O put 64h/60h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. The optional settings are: Enabled; Disabled.
USB 2.0 Controller Mode
This item configures the USB 2.0 controller in the Hi-Speed (480Mbps) or Full-Speed (12 Mbps) mode.
BIOS EHCI Hand-Off
This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should claim by EHCI driver.
Hotplug USB fdd Support
A dummy FDD device is created that will be associated with the hotplug FDD later. Auto option creates this dummy device only if there is no USB FDD present.
32
3-8 Power Management Features
The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Power Management Features
Power Management Feature
Suspend Mode Auto Report Video on S3 Resume No ACPI Version Features ACPI v1.0 ACPI APIC Support Enabled AMI OEMB table Enabled Headless Mode Disabled Energy Lake Feature Disabled APIC ACPI SCI IRO Disabled USB Device Wakeup from S3/S4 Disabled High performance Event Timer Disabled Power Button Mode Instant-Off Resume On Ring Disabled Resume On LAN Disabled Resume On PME Disabled Resume On RTC Alarm Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
Suspend Mode
The optional settings are: S1 (POS); S3 (STR) and Auto.
Report Video on S3 Resume
Determine whether to invoke VGA BIOS port on S3/STR sesume
ACPI APIC Features
Enables RSDP pointers to 64-bit fixed system description tables.
AMI OEMS Table
Include OMES table pointer to R(x) SDT pointer lists.
Headlist Mode
Enable/Disable headless operation mode though ACPI.
Power Button Mode
This item determines system whether system goes into On / Off or Suspend mode when power button is pressed.
Resume on Ring
This item is used for user to enable or disable RI to generate a wake event.
Resume on LAN
This item is used for user to enable or disable LAN GPI to generate a wake event.
Resume on PME
This item is used for user to enable or disable PIC device to generate a wake event.
Resume on RTC Alarm
This item is used for user to enable or disable RTC to generate a wake event.
Help Item
Select the ACPI State Used for System Suspend.
33
3-9 Miscellaneous Control
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Miscellaneous Control
Advanced PCI/PnP Setting
Plug &Play O/S No PCI Legacy Timer 64 Allocate IRQ to PCI VGA Yes Palette Snooping Disabled PCI IDE Bus Master Disabled Reserved Memory Size Disabled IRQ Resources Press Enter
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
Plug &Play O/S
The optional settings are: No; Yes No: Let the BIOS configure all the devices in the system. Yes: Let the operating system configure Plug and Play devices, not required for boot if your system has a Plug and Play system.
Allocate IRQ for PCI VGA
The optional settings are: No; Yes. Yes: Assigns IRQ to PCI VGA card if card requests IRQ. No: Does not assign IRQ to PCI VGA card even card requests an IRQ.
Palette Snooping
The optional settings are: Enabled; Disabled. Enable: inform the PCI device that an ISA graphics devices is installed in the system so the card will function correctly.
PCI IDE Bus Master
The optional settings are: Enabled; Disabled. Enable: BIOS uses PCI busmastering for reading/writing IDE devices.
Reserved Memory Size
This item determines the size of memory block to reserve for legacy ISA devices.
Help Item
34
F
3-10 PC Health Status
This section shows the Status of you CPU, Fan, and Warning for overall system status. This is only available if there is Hardware Monitor onboard.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
PC Health Status
PC Health Status Smart FAN Configuration Press Enter
H/W Health Function Enabled
CPU Temperature: 50°C/122°F System Temperature: 60°C/140°F CPUFAN Speed: 2923RPM SYSFAN1 Speed: N/A SYSFAN Speed: N/A Vcore 1.242v NB1.1V : 1.160V +5V 5.045V +12V 11.440v 5VSB 4.961v VDIMM : 1.468V
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
H/W Health Function,
it displays information list below when set as below. The choice is either Enabled or Disabled.
CPU Temperature/ System Temperature/CPUFAN/SYSFAN1 Speed/SYSFAN2 Speed /Vcore/NB 1.1V/+5V/+12V/5V SB/VDIMM
This will show the CPU/ /System voltage chart and FAN Speed, etc.
Help Item
3-10-1 Smart FAN Configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Smart FAN Configuration
FAN1 Mode Setting Auto Fan by RPM Temperature1 Limit of Highest 050 Temperature1 Limit of Second 040 Temperature1 Limit of Third 030 Temperature1 Limit of Lowest 020 FAN1 Highest Setting 100 FAN1 Second Setting 080 FAN1 Third Setting 070 FAN1 Forth Setting 060 FAN1 Lowest Setting 050
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
an Configuration Mode
Setting
Smart FAN Configurations FAN1 Mode Setting
The optional settings are: Auto Fan by RPM; Auto Fan by Dutycycle; Manual Mode by RPM and Manual Mode by Dutycycle.
Help Item
35
I
3-11 Power User Overclock Setting
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Power User Overclock Setting
Overclocking Configuration
CPU Bridge Configuration Press Enter CPU Overclock 133 CPU Voltage at next boot Default VDIMM Select Default NB1.1 V Setting Default
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
CPU Voltage at next Boot
Use this item to select CPU voltage at next boot. The optional settings are: Default; 1.2000 V~1.550V.
VDIMM Select
Use this item to select voltage for memory modules. The optional settings areL: Default;
1.525 V ~1.650V.
NB 1.1 V
The optional setting values are: Default; 1.150v; 1.200v and 1.250V.
CPU Bridge Configuration
Users can Press Enter to have a brief view of the CPU information and select relative values for the following sub-items, which includes: QPI Link Speed; QPI Frequency; Memory Frequency; memory Mode; Demand Scrubbing; Patrol Scrubbing and Throttling-closed loop; Throttling-open loop.
QPI Frequency
The optional settings are: Auto; 4.800GT and 6.400 GT.
Memory Frequency This item is used to force a DDR3 frequency slower than the common tCK detected via SPD.
Help Item
Configure CPU Bridge Feature
3-12 BIOS Security Features
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
BIOS Security Features
Security Settings Supervisor Password: Not Installed User Password: Not Installed
Change Supervisor Password Press Enter Change User Password Press Enter Boot Sector Virus Protection Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Discard Changes F6:Fail-Safe Defaults F7:Optimized Defaults
nstall or change the
password
You can set either supervisor or user password, or both of them. The differences are:
Supervisor password: Can enter and change the options of the setup menus.
User password: Can only enter but do not have the right to change the options of the setup
menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.
ENTER PASSWORD:
36
Help Item
Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “Always”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.
3-13 Load Optimized Defaults/ Load Fail-Safe Defaults
Load Optimized Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Optimized Defaults?
OK Cancel Pressing <OK> loads the default values that are factory settings for optimal performance system operations.
Load Fail-Safe Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Optimized Defaults?
OK Cancel Pressing <OK> loads the default values that are factory settings for stable performance system operations.
3-14 Save Changes and Exit / Discard and Exit
Save Changes and Exit
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Save Configuration Changes and Exit Setup?
OK Cancel Pressing <OK> save the values you made previously and exit BIOS setup.
Load Fail-Safe Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Discard Changes and Exit Setup?
OK Cancel
Pressing <OK> to leave BIOS setting without saving previously set values.
37
Chapter 4
DRIVER & FREE PROGRAM INSTALLATION
Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. We call this auto detect software MAGIC INSTALL.
MAGIC INSTALL Supports WINDOWS 2000/XP/Vista
Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as below. If the menu does not appear, double-click MY COMPUTER / double-click CD-ROM drive or click START / click RUN / type X:\SETUP.EXE (assuming X is your CD-ROM drive).
From MAGIC INSTALL MENU you may make 10 selections:
1. INF install Intel X58 chipset system driver
2. SOUND install ALC888 HD Audio Codec driver
3. LAN install Realtek Gigabit Ethernet NIC Driver
4. RAID install JMICRON RAID driver
5. Norton install Norton Iternet Security 2009
6. PC-HEALTH install MyGuard Hardware Monitor Utility
7. RAIDDISK install JMICRON RAID Disk

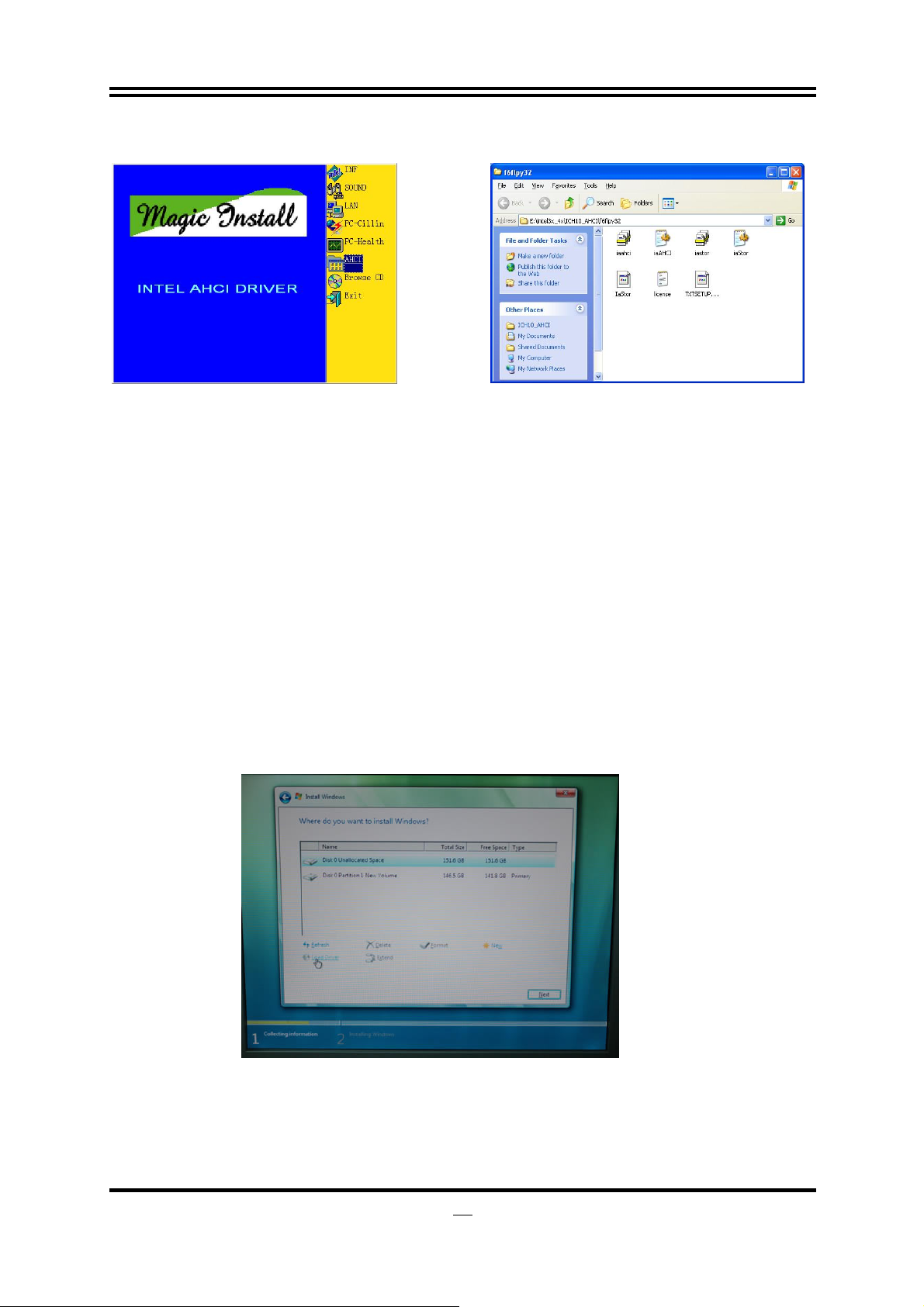

8. AHCI install Intel AHCI Driver
9. BROWSE CD to browse the contents of the CD
10. EXIT to exit from MAGIC INSTALL menu
38
4-1 INF Install Intel X58 Chipset System Driver
1.Click INF item when Magic Install menu appears.
2.Click Next when Intel Chipset Device Software appears.
3. Click Yes on the Licence Agreement. 4 . After reading the Readme File
Information click Next.
5.Click Finish to finish installation.
39
4-2 SOUND Install ALC888 HD Audio Codec Driver
1.Click Sound on the Magic Install menu.
2.lick NEXT When Realtek High Definition
Audio driver windows appear
3. Click FINISH and restart your computer 4. Manual Sound Effect Setting
5. The mixer. 6. Audio input and output settings.
7. Microphone effect. 8 3D sound effect..
40
NOTE: Please upgrade your Windows XP to Service Pack 2 / Windows 2000 to Service Pack 4 or later before you the HD Audio CODEC driver.

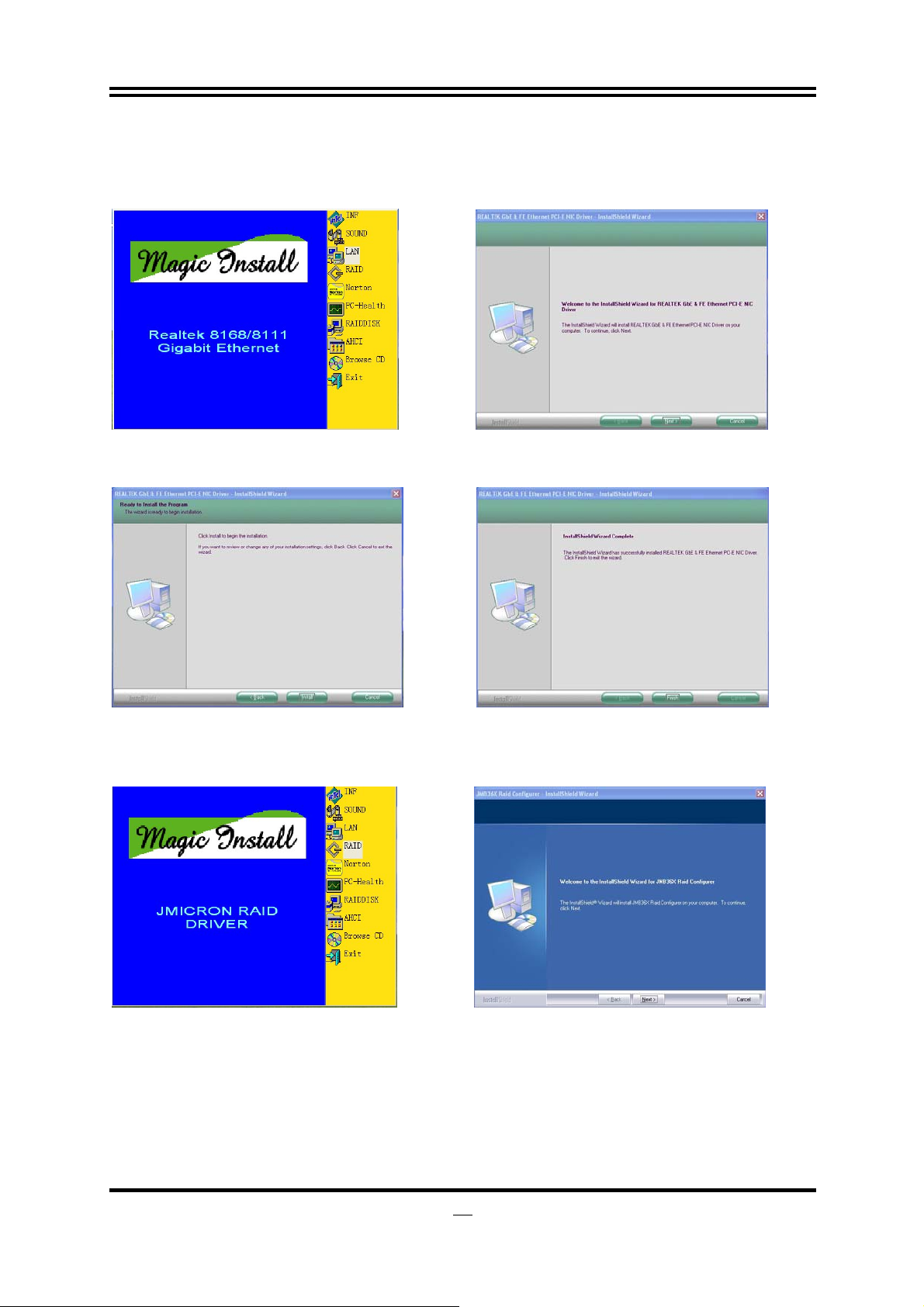

4-3 LAN Install Realtek Gigabit Ethernet NIC Driver
1. Click LAN when Magic Install Menu appears
2. Click NEXT, install REALTEK LAN and Fast
Ethernet NIC Driver
3. Click install to begin the installation. 4.After driver installation completed, Click
Finish.
4-4 RAID Install JMICRON RAID Driver
1. Click RAID when MAGIC INSTALL MENU
appears.
2. Click “Next” when the "JMB36X RAID
Configurer" installShield Wizard appears.
41
3.To select the setup type that best suits your need 4. Click the “Install” to begin the installation.
1. Choose whether you would like to restart your
computer and then Click FINISH to complete the installation.
4-5 Norton Install Norton Internet Security 2009
1.
Click Norton when Magic Install menu
appears.
2.
Click AGREE & INSTALL after reading Unser
License Agreement.
42
4-6 PC-HEALTH Install MyGuard Hardware Monitor Utility
1. Click PC-HEALTH when MAGIC INSTALL
MENU appears
2. Click Next when Install shield wizard Window
appears.
3. Click Install to begin the installation. 4. Click Finish to complete the installation.
4-7 RAIDDISK Install JMICRON X32 RAID Disk
1. Click PC-CILLIN when MAGIC INSTALL MENU appears
43
2.Copy the files to floppy disk and restart the computer with floppy disk as the first booting disk and then follow the steps shown on the screen to finish RAID function settings.
4-8 AHCI Install Intel AHCI Driver
If you want to use Intel SATA AHCI mode for your system , please according to following step install driver :
1. Copy CD:\Intel3x_4x\ICH10_AHCI\f6flpy32 all file to empty floppy disk root directory . (for windows 2000 / xp / vistaX32)
Copy CD:\Intel3x_4x\ICH10_AHCI\f6flpy64 all file to
empty floppy disk root directory . (for windows xp64 / vistaX64)
2. Please going to BIOS setup \ Integrated Peripherals \ Onboard SATA Function , Set the SATA mode to “AHCI”
3. Before you Install Windows XP OS , Please press F6 key to install SATA AHCI
driver First .
4. If you are Vista OS , please load SATA ACHI driver from this location .
44
4-9 How to Update BIOS
Before updating the BIOS, users have to check if the “Miscellaneous Control” of BIOS SETUP has the “Flash Part Write Protect” selection. If there is one, users have to “Disable” the “Flash Part Write Protect” selection of the “Miscellaneous Control” in BIOS SETUP. Otherwise the system the will not allow you to upgrade BIOS by Award Flash Utility. If there is no such selection, users can follow the 4 steps directly to update BIOS.
STEP 1. Prepare a boot disc. (You may make one by click START click RUN type SYS A: click OK) STEP 2. Copy utility program to your boot disc. You may copy from DRIVER CD X:\FLASH\AWDFLASH.EXE or download from our web site. STEP 3. Download and make a copy of the latest BIOS for X58 series motherboard series from the web site to your boot disc. STEP 4. Insert your boot disc into A:, Start the computer, type “Awdflash A:\xxxxxx.BIN /SN/PY/CD/CH/WB/CC/R” xxxxxx.BIN is the file name of latest BIOS SN means don’t save existing BIOS data PY means renew existing BIOS data CD means clear DMI data after programming CH means update HOLE WB means always programming BootBlock CC means clear existing CMOS data R means restart computer STEP 5. Type ENTER to update and flash the BIOS, then the system will restart automatically.
4-10 Intel Platform RAID Function Installation
Step 1.
Please get into the location: BIOS setup \ Integrated Peripherals \ Onboard SATA Device\ Configure SATA#1 as…, and select RAID to enable the RAID function. Please press “F10” key to save this setting.
Step2.
Reboot the computer and press Ctrl+ J when the following window appears:
The name disks you would like to set RAID function should appear under the Hard Disk Driver List
45
category on the right window. Choose Create RAID Disk Drive and press Enter, then the following windows will show up
Press Enter to the Level item, then select RAID mode by navigation keys [↑↓]:
Then press Enter to enter the Confirm Creation item, then dialogue box would show Create RAID on the select HDD(Y/N)?Y. Type Y, and press Enter, the following window would show up to confirm the success in creating RAID mode.
Step3.
How to make a RAID driver diskette?
1: Insert the diskette which is being formatted in floppy drive on a system which can start OS. 2: After booting OS insert the bundle CD in your CD-ROM 3: Copy all the files from \Intel\RAIDDisk to floppy diskette Once you have the SATA driver diskette ready, you may start to install Windows XP, Windows 2000 or Vista on your System.
46
Installation of Windows XP/ Windows 2000/Vista
For installation of Windows XP or Windows 2000, please insert Windows XP, Windows 2000 CD or Vista into the CD-ROM drive. Then remove the floppy diskette, and boot the system. At the very beginning, you will see the message at the bottom of screen, “Press F6 if you need to install a third party SCSI or RAID driver….” At this moment, please press <F6> key and follow the instructions of Windows XP/2000/Vista for the proper installation.
4-11 Pro Magic Plus Function Introduction
What’s Pro Magic Plus?
Tired with reinstall OS each time when it doesn’t work? Does your computer often crash down or unable to work after installed new software? Have you had great loses and troubles because of computer problems? Still using time-consuming backup software that occupies lots of HD space?
Pro Magic Plus- an instant system recovery software tailored to solve these problems for you. It combines various application tools (e.g. anti-virus, backup software, uninstall software, multi-boot software) to satisfy your needs of all sorts of system protections.
What functions does Pro Magic Plus have?
1. Instant System Restoration – Regardless of mis-operation or system crash, install Pro Magic
Plus beforehand would allow you to instantly restore your system back by simply reboot your computer.
2. Easy-to-use – Auto installation from CD ROM; Supports Mouse
3. System Uninstall – Pro Magic provides a protection mode, which allows user to freely test any
software. If user does not want to keep the software, just reboot the computer to restore back to the previous state, and Pro Magic will remove it completely from you computer.
4. Password Security – Pro Magic provides double password protection, including user password
for entering each OS and manager password for managing ‘Pro Magic’, which can effectively prevent others from using your computer without permission or data from being stolen. (disable item for OEM version)
5. Complete Protection – Pro Magic not only protects the system disk, but also can protect your
data disk, and does not require to reboot when backup or restore data disk.
6. Multipoint Save/Restore – You can backup your system whenever you need and restore them
back to anytime you wish, 1 hour, 1 day or 1 month ago. Restore points are unlimited. (disable item for OEM version)
7. Data Disk Protection – Pro Magic Plus now comes with data disk protection, provides complete
protection for your computer! (disable item for OEM version)
8. You can choose to change the default path of ‘My Document’, ‘My Favorite’ and ‘Outlook
Express’, so that when you are restoring the system, data in these folders will not be restored as well. (This is optional, you can leave it as it is).
47
NOTE: Functions of each version will differ from each other, and will be based on the function descriptions of each
version.
System Requirements
First OS must be Windows 2000/XP/Vista Support Only Windows OS (No Linux) Windows server OS and Windows NT not supported Minimum of Intel 486 or above, 16MB of memory or above Minimum of 500MB free/usable space or above Support for SCSI & SATA Hard disk
Pro Magic Plus only supports SCSI hard disk with Windows 2000 or OS above
Notice Before Installation
1. Before install Pro Magic Plus, turn off all anti-virus software. (Include BIOS anti-virus function)
2. Pro Magic Plus does not support multiple PRI partitions. If you have multiple PRI partitions, please repartition your HD before installation.
3. If your HDD is not fully partitioned (with un-partitioned/unused space at end of HDD), please repartition the HDD before install Pro Magic Plus.
4-12 G.P.I. Function LED Display
1. All LED on: CPU working on high-load state and the motherboard is working at full-speed with non­power saving mode.
24 LED on, 2 off: Motherboard is working on partial power saving mode(the LED off indicate
the relative power phase working with idle mode ).
3. 2 LED on, 4 off: motherboard is working on
partial power saving mode.(the LED off indicate the relative power phase working with idle mode ).
4. All LED off: Motherboard is not in the working mode.
NoticeThe above LED status in these illustrations is for reference use only. There might be other
LED display status depending on different working state. The more LEDs off, the more inductances works on idle mode.
48
Loading...
