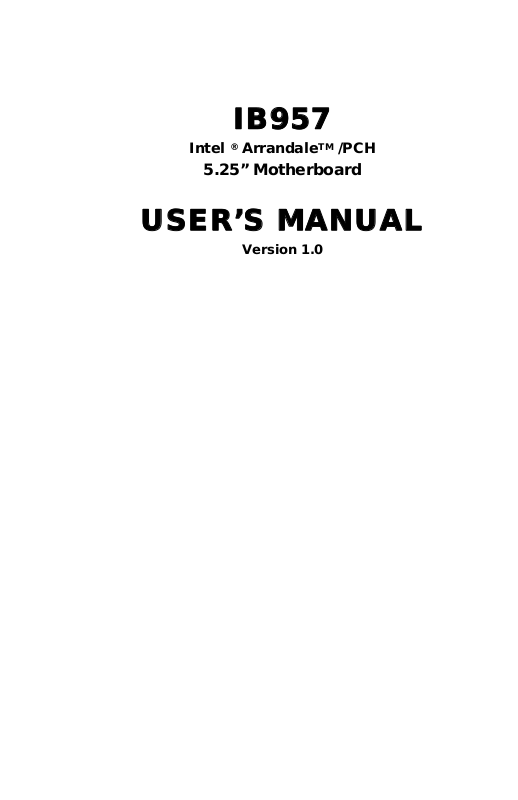

IB957

Intel ® ArrandaleTM /PCH

5.25” Motherboard

USER’S MANUAL

Version 1.0

Acknowledgments

AMI is a registered trademark of American Megatrends Inc. PS/2 is a trademark of International Business Machines Corporation. Intel and Intel® Arrandale DC Mobile Processor are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Fintek is a registered trademark of Fintek Electronics Corporation. All other product names or trademarks are properties of their respective owners.

ii

IB957 User’s Manual

The IB957 5.25” Disk-Size SBC is a high performance Intel® Core™ i7-610E (2.53GHz/4MB) Processor-based IB957 5.25” Disk-Size SBC with the mobile Intel® QM57 Express Chipset. It is designed for a range of automation, industrial, and medical applications. The Intel® Core™ i7 Mobile processor has an optimized integrated graphics solution.

IB957 features a low-power design that is validated with Intel® Core™ i7/i3 Mobile processors on 32nm process. With two dual-channel DDR3 800/1066MHz DIMM sockets that support ECC memory, the SBC can be populated with up to 8GB of system memory. Connectivity includes a Gigabit Ethernet port, up to 12 USB 2.0 ports, four SATA ports, a HDMI, LVDS, DisplayPort, DVI-D and VGA display connector. A Mini PCI-E (Mini Card) slot is available for expansion. Dimensions are 203mm x 146mm.

IB957 FEATURES:

y Supports Intel® i7-610E (2.53GHz/4MB cache) or i3-330E

(2.13GHz/3MB cache)

y Two DDR3 w/ ECC DIMM, Max. 8GB memory y Onboard Gigabit Ethernet y Integrated Graphics VGA for CRT/DVI/ HDMI/LVDS/DisplayPort y 4x SATA, 12x USB 2.0, 4x COM, Watchdog timer

 Digital I/O, Mini PCI-E socket (Mini Card)

IB957 User’s Manual 1

INTRODUCTION

Checklist

Your IB957 package should include the items listed below.

• The IB957 SBC

• This User’s Manual

• 1 CD containing chipset drivers and flash memory utility

• Serial port cable (Part # PK1HK, 30cm)

• SATA cable (Part # SATA-7F, 46cm)

2

IB957 User’s Manual

®

IB957 Specifications

CPU Supported

CPU Voltage System Speed CPU FSB Cache Green /APM CPU Tpye Chipset

BIOS Memory VGA

LVDS LCD Panel

LAN

USB Seri al ATA Ports IAMT6.0

Audio LPC I/O

Digital IO Keyboard/Mouse Expansion Slots Edge Connector

Onboard Header/ Connector

Watchdog Timer System Voltage Others Board Size

Intel

Arrandale+ECC processor

- i7-610E (2.53GHz/4M Cache/ 2 cores/4 Threads/35W)

- i3-330E (2.13GHz/3M Cache/ 2 cores/4 Threads/35W)

0.700V ~ 1.5V (IMVP-6.5) Up to 3.0GHz or above 1066MHz FSB Up to 4MB shared L3 Cache APM1.2 FcBGA1288 Intel Ibex Peak-M (PCH) Chipset PCH: 25mm x 27mm, 1071-pin FCBGA AMI BIOS, supports ACPI function DDR3-800/1066 DIMM x2 (w/ECC function), Max. 8GB Arrandale DC mobile processor integrated graphics Supports CRT, DVI Supports HDMI, DP(DisplayPort) Arrandale DC mobile processor built-in,

supports 24-bit, single or dual channel LVDS

PCH 10/100/gigabit MAC + PHY

• Intel 82577LM 10/100/1000 PCH built-in USB 2.0 host controller, support 12 ports PCH built-in SATA controller, supports 4 ports PCH built-in Intel Active Management Technology VER 6.0 with HW KVM(MI957-i7-610E only) PCH built-in High Definition audio controller: ALC888 w/ 5.1 channels F81865F: COM1, COM2 (RS232/RS422/RS485), COM3 and COM4 Hardware monitor (3 thermal, 4 voltage monitor inputs, 2 fan headers) 4 in & 4 out Supports PS/2 keyboard/mouse connector Mini PCIE socket x1 PS/2 connector x1 for keyboard/mouse and dual USB stack connector Gigabit LAN RJ-45 + dual USB stack connector x1 DP Connector x1 + dual USB stack connector x1 HDMI connector x1 DVI-D and DB15 (VGA) stack connector x1 Quad USB stack connector x1 RCA Jack 3x1 for Audio (Front-Out, Line-In, Mic) 10-pin headerx1 for Digital I/O; 10-pin header x2 for COM1,COM2 20-pin header x1 for COM3, COM4 26-pin header x1 for Printer 10-pin header x 2 for USB 9,10,11,12 DF13 connector x2 for LVDS; 10-pin header x1 for audio Line-Out & Mic 4-pin header x1 for CD in, SPDIF-out connector x1 SATA connector x4 for SATA ports Yes (256 segments, 0, 1, 2…255 sec/min) +5V, +3.3V, +12V, -12V, 5VSB Modem Wakeup, LAN Wakeup 203mm x 146mm (5.25”)

INTRODUCTION

IB957 User’s Manual 3

INTRODUCTION

[

Board Dimensions

4

IB957 User’s Manual

INTRODUCTION

IB957 User’s Manual 5

INSTALLATIONS

Installations

This section provides information on how to use the jumpers and connectors on the IB957 in order to set up a workable system. The topics covered are:

Installing the Memory ............................................................................ 7

Setting the Jumpers ................................................................................ 8

Connectors on IB957 ........................................................................... 12

6

IB957 User’s Manual

INSTALLATIONS

Installing the Memory

The IB957 board supports two DDR3 memory socket for a maximum total memory of 8GB in DDR3 w/ECC DIMM memory type.

Installing and Removing Memory Modules

To install the DDR3 modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR3 module so that the key of the DDR3 module aligned

with that on the memory slot.

2. Gently push the DDR3 m odule in an upright position until the clips of

the slot close to hold the DDR3 module in place when the DDR3 module touches the bottom of the slot.

3. To remove the DDR3 module, press the clips with both hands.

Lock Lock

DDR3 Module

Lock

IB957 User’s Manual 7

Lock

INSTALLATIONS

Setting the Jumpers

Jumpers are used on IB957 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on IB957 and their respective functions.

Jumper Locations on IB957 ................................................................... 9

JP2: LCD Panel Power Selection ......................................................... 10

JP3, JP4, JP5: RS232/422/485 (COM2) Selection .............................. 10

JBAT1: Clear CMOS Setting............................................................... 11

IMPORTANT NOTE: When the system boots without the CRT being connected, there will be no image on screen when you insert the CRT/VGA cable. To show the image on screen, the hotkey must be pressed.

8

IB957 User’s Manual

Jumper Locations on IB957

INSTALLATIONS

Jumpers on IB957 ............................................................................. Page

JP2: LCD Panel Power Selection ........................................................ 10

JP3, JP4, JP5: RS232/422/485 (COM2) Selection .............................. 10

JBAT1: Clear CMOS Setting .............................................................. 11

IB957 User’s Manual 9

INSTALLATIONS

JP2: LCD Panel Power Selection

JP2 LCD Panel Power

3.3V

5V

JP3, JP4, JP5: RS232/422/485 (COM2) Selection

COM1 is fixed for RS-232 use only. COM2 is selectable for RS232, RS-422 and RS-485. The following table describes the jumper settings for COM2 selection.

COM2

Function

Jumper Setting

(pin closed)

RS-232 RS-422 RS-485

JP3:

1-2

JP4:

3-5 & 4-6

JP5:

3-5 & 4-6

JP3:

3-4

JP4:

1-3 & 2-4

JP5:

1-3 & 2-4

JP3:

5-6

JP4:

1-3 & 2-4

JP5:

1-3 & 2-4

10

IB957 User’s Manual

COM2 is jumper selectable for RS-232, RS-422 and RS-485.

Pin # Signal Name

RS-232 R2-422 RS-485

1 DCD TX- DATA2 RX TX+ DATA+ 3 TX RX+ NC 4 DTR RX- NC 5 Ground Ground Ground 6 DSR RTS- NC 7 RTS RTS+ NC 8 CTS CTS+ NC 9 RI CTS- NC

10 NC NC NC

INSTALLATIONS

JBAT1: Clear CMOS Setting

JBAT1 Setting

Normal

Clear CMOS

IB957 User’s Manual 11

INSTALLATIONS

Connectors on IB957

Connector Locations on IB957 ............................................................ 13

CN1: DC Adapter Connector ............................................................... 14

CN2: DVI-D and VGA Connector ...................................................... 14

HDMI1: HDMI Connector .................................................................. 15

CN3: USB11/12 Ports .......................................................................... 15

J2: DisplayPort Connector ................................................................... 15

CN4: USB6/7/8/10 Ports ..................................................................... 15

USB_LAN1: 10/100/1000 RJ-45 and USB9/13 Ports ......................... 15

CN5: Audio Connector ........................................................................ 15

COM3_COM4: COM3, COM4 Serial Port ......................................... 16

SYS_FAN1: System Fan Power Connector ........................................ 16

CPU_FAN1: CPU Fan Power Connector ............................................ 16

J1 (F_PANEL): System Function Connector ...................................... 17

J3: LCD Backlight Connector .............................................................. 19

J4, J5: +12V and +5V Output Power Connectors ................................ 19

J6: Printer Port Connectors .................................................................. 19

J7: SPI Flash Connector (factory use only) ......................................... 19

J8: CD-In Pin Header ........................................................................... 19

J9: PS/2 Keyboard/Mouse Connector .................................................. 19

J10: Digital I/O .................................................................................... 20

J11: Front Audio Connector ................................................................ 20

J12: PCI-E(x1) Slot .............................................................................. 20

J13: SPDIF Out Connector .................................................................. 20

JMINI: Mini PCIE Connector .............................................................. 20

SATA1, SATA2, SATA3, SATA4: SATA Connectors ...................... 20

F_USB1: USB1/USB5 Connector ....................................................... 21

F_USB2: USB0/USB3 Connector ....................................................... 21

COM1,COM2: COM1,COM2 Serial Port ........................................... 21

LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel) ........ 22

12

IB957 User’s Manual

Connector Locations on IB957

INSTALLATIONS

IB957 User’s Manual 13

INSTALLATIONS

CN1: DC Adapter Connector

CN1 provides DC12V that provide system power +5,+3.3,+12V,5VSB

CN2: DVI-D and VGA Connector

[

Signal Name Pin # Pin # Signal Name

DATA 2- 1 16 HOT PLUG

DATA 2+ 2 17 DATA 0Shield 2/4 3 18 DATA 0+ DATA 4- 4 19 SHIELD 0/5 DATA 4+ 5 20 DATA 5-

DDC CLOCK 6 21 DATA 5+

DDC DATA 7 22 SHIELD CLK

N.C 8 23 CLOCK DATA 1- 9 24 CLOCK + DATA 1+ 10 C1 N.C.

SHIELD 1/3 11 C2 N.C.

DATA 3- 12 C3 N.C. DATA 3+ 13 C4 N.C.

DDC POWER 14 C5 N.C.

A GROUND 1 15 C6 N.C.

Signal Name Pin # Pin # Signal Name

Red 1 2 Green

Blue 3 4 N.C. GND 5 6 GND GND 7 8 GND

N.C. 9 10 GND

N.C. 11 12 DDC_DATA

HSYNC 13 14 VSYNC

DDC_CLK 15

14

IB957 User’s Manual

INSTALLATIONS

HDMI1: HDMI Connector

Signal Name Pin # Pin # Signal Name

DATA 2- 1 13 DATA 3+

DATA 2+ 2 14 +5V Power Shield 2/4 3 15 GROUND

DATA 4- 4 16

HOT PLUG

DATA 4+ 5 17 DATA 0-

DDC CLOCK 6 18 DATA 0+

DDC DATA 7 19 SHIELD 0/5

N.C 8 20 DATA 5-

DATA 1- 9 21 DATA 5+

DATA 1+ 10 22 SHIELD CLK

SHIELD 1/3 11 23 CLOCK +

DATA 3- 12 24 CLOCK -

CN3: USB11/12 Ports

J2: DisplayPort Connector

CN4: USB6/7/8/10 Ports

USB_LAN1: 10/100/1000 RJ-45 and USB9/13 Ports

CN5: Audio Connector

The audio connector, from top to bottom, is composed of Line in, Line out and Microphone jacks.

IB957 User’s Manual 15

INSTALLATIONS

COM3_COM4: COM3, COM4 Serial Port

Signal Name Pin # Pin # Signal Name

DSR 2 1 DCD RTS 4 3 RXD CTS 6 5 TXD

RI 8 7 DTR

NA 10 9 Ground DSR 12 11 DCD RTS 14 13 RXD CTS 16 15 TXD

RI 18 17 DTR

NA 20 19 Ground

SYS_FAN1: System Fan Power Connector

This is a 3-pin header for system fans. The fan must be a 12V (500mA).

Pin # Signal Name

1 Ground 2 +12V 3 Rotation detection

CPU_FAN1: CPU Fan Power Connector

This is a 3-pin header for the CPU fan. The fan must be a 12V fan.

Pin # Signal Name

1 Ground 2 +12V 3 Rotation detection

16

IB957 User’s Manual

INSTALLATIONS

J1 (F_PANEL): System Function Connector

J1 provides connectors for system indicators that provide light i ndication of the computer activities and switches to change the computer status. J2 is a 20-pin header that provides interfaces for the following functions.

Hard Disk Drive LED

Reset Switch

Not Defined

ATX Power On Switch

Power LED

Speaker

Speaker: Pins 1 - 4

This connector provides an interface to a speaker for audio tone generation. An 8-ohm speaker is recommended.

Pin # Signal Name

1 Speaker out 2 No connect

Power LED: Pins 11 - 15

3 Ground 4 +5V

Pin # Signal Name

11 Power LED 12 No connect 13 Ground 14 No connect 15 Ground

IB957 User’s Manual 17

INSTALLATIONS

ATX Power ON Switch: Pins 7 and 17

This 2-pin connector is an “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed again, it will force the system to power off.

Reset Switch: Pins 9 and 19

The reset switch allows the user to reset the system without turning the main power switch off and then on again. Orientation is not required when making a connection to this header.

Hard Disk Drive LED Connector: Pins 10 and 20

This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed.

Pin # Signal Name

10 HDD Active 20 5V

18

IB957 User’s Manual

INSTALLATIONS

J3: LCD Backlight Connector

Pin # Signal Name

1 +12V 2 Backlight Enable 3 Brightness Control

4 Ground

J4, J5: +12V and +5V Output Power Connectors

J6: Printer Port Connectors

J7: SPI Flash Connector (factory use only)

J8: CD-In Pin Header

Pin # Signal Name

1 CD Audio R 2 Ground 3 Ground 4 CD Audio L

J9: PS/2 Keyboard/Mouse Connector

Signal Name Pin Pin Signal Name

Ground 1 2 Ground

Vcc 3 4 Vcc

MSDATA 5 6 KBDATA

MSCLK 7 8 KBCLK

NC 9 10 NC

IB957 User’s Manual 19

INSTALLATIONS

J10: Digital I/O

Signal Name Pin Pin Signal Name

GND 1 2 VCC

OUT3 3 4 OUT1 OUT2 5 6 OUT0

IN3 7 8 IN1 IN2 9 10 IN0

J11: Front Audio Connector

Signal Name Pin # Pin # Signal Name

MIC2_L 1 2 Ground MIC2_R 3 4 Presence# Line2_L 5 6 MIC2_ID

Sense 7 8 NC

Line2_R 9 10 Line2_ID

J12: PCI-E(x1) Slot

J13: SPDIF Out Connector

JMINI: Mini PCIE Connector

SATA1, SATA2, SATA3, SATA4: SATA Connectors

20

IB957 User’s Manual

F_USB1: USB1/USB5 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc D0- 3 4 D1-

D0+ 5 6 D1+

Ground 7 8 Ground

NC 9 10 Ground

F_USB2: USB0/USB3 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc D0- 3 4 D1-

D0+ 5 6 D1+

Ground 7 8 Ground

NC 9 10 Ground

COM1,COM2: COM1,COM2 Serial Port

INSTALLATIONS

COM2

Signal Name Pin # Pin # Signal Name

DCD, Data carrier detect 1 6 DSR, Data set ready

RXD, Receive data 2 7 RTS, Request to send

TXD, Transmit data 3 8 CTS, Clear to send

DTR, Data terminal ready 4 9 RI, Ring indicator

GND, ground 5 10 Not Used

IB957 User’s Manual 21

INSTALLATIONS

LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel)

The LVDS connectors on board consist of the first channel (LVDS1) and second channel (LVDS2).

Signal Name Pin # Pin # Signal Name

TX0- 2 1 TX0+

Ground 4 3 Ground

TX1- 6 5 TX1+

5V/3.3V 8 7 Ground

TX3- 10 9 TX3+ TX2- 12 11 TX2+

Ground 14 13 Ground

TXC- 16 15 TXC+

5V/3.3V 18 17 ENABKL

+12V 20 19 +12V

22

IB957 User’s Manual

BIOS SETUP

BIOS Setup

This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction ........................................................................................ 24

BIOS Setup .................................................................................................... 24

Main BIOS Setup ......................................................................................... 25

Advanced Settings ........................................................................................ 26

Chipset Settings ............................................................................................ 40

Boot Settings ................................................................................................. 46

Security Settings ........................................................................................... 47

Save & Exit Settings .................................................................................... 48

Event Logs ..................................................................................................... 50

IB957 User’s Manual 23

BIOS SETUP

BIOS Introduction

The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the co mputer, the BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

24

IB957 User’s Manual

BIOS SETUP

Main BIOS Setup

This setup allows you to record some basic hardware configurations in your computer system and set the system clock.

Main Advanced Chipset Boot Security Save & Exit Event Logs

BIOS INFORMATION

BIOS Vendor American Megatrends

Memory Information Total Memory 4096 MB (DDR3 1066)

System Date [Tue 01/06/2009 System Time [00:08:21]

Access Level Administrator

Note:

If the system cannot boot after making and saving system changes with Setup, the AMI BIOS supports an override to the CMOS settings that resets your system to its default.

Warning:

It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

System Language

Choose the system default language.

System Date

Set the Date. Use Tab to switch between Data elements.

System Time

Set the Time. Use Tab to switch between Data elements.

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

IB957 User’s Manual 25

BIOS SETUP

Advanced Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Main Advanced Chipset Boot Security Save & Exit Event Logs

Legacy OpROM Support Launch PXE OpROM Launch Storage OpROM

► PCI Subsystem Settings ► ACPI Settings ► Wake up event setting ► CPU Configuration ► SATA Configuration ► Thermal Configuration ► Intel IGD SWSCI OpRegion ► Intel TDT(AT-p) Configurations ► USB Configuration ► Super IO Configuration ► H/W Monitor ► Intelligent Power Sharing ► AMT Configuration

► Serial Port Console Redirection

Launch PXE OpROM

Enable or Disable Boot Option for Legacy Network Devices.

Launch Storage OpROM

Enable or Disable Boot Option for Legacy Mass Storage Devices with Option ROM.

► Wake up event setting

Enable/Disable Wake up event.

► Intel TDT(AT-p) Configurations

Disabling TDT Allow user to login to platform. This is strictly for testing only. This does not disable TDT Services in ME.

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

26

IB957 User’s Manual

BIOS SETUP

PCI Subsystem Settings

This section allows you to configure the PCI, PCI-X and PCI Express settings.

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit Event Logs

PCI Bus Driver Version V 2.02.01 PCI ROM Priority EFI Compatible ROM

PCI Common Settings PCI Latency Timer 32 PCI Bus Clocks

PCI Express Device Settings Extended Tag Disabled No Snoop Enabled Maximum Payload Auto Maximum Read Request Auto

PCI Express Link Settings ASPM Support Disabled WARNING: Enabling ASPM may cause

Some PCI-E devices to fail

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

PCI ROM Priority

In case of multiple Option ROMs (Legacy and EFI Compatible), specifies what PCI Option ROM to launch.

PCI Latency Timer

Value to be programmed into PCI Latency Timer Register.

Extended Tag

If ENABLED allows Device to use 8-bit Tag field as a requester.

No Snoop

Enables or Disables PCI Express Device No Snoop option.

Maximum Payload

Set Maximum Payload of PCI Express Device or allow System BIOS to select the value.

Maximum Read Request

Launches (Enabled/Disabled) the boot option for legacy network devices.

IB957 User’s Manual 27

BIOS SETUP

PCI Express Link Settings

Set Maximum Read Request Size of PCI Express Device or allow System BIOS to select the value.

ASPM Support

Set the ASPM Level: Force L0 – Force all links to L0 State AUTO – BIOS auto configure DISABLE – Disables ASPM

28

IB957 User’s Manual

BIOS SETUP

ACPI Settings

Main Advanced Chipset Boot Security Save & Exit Event Logs

Enable ACPI Auto Configuration Disabled

ACPI Sleep State S3 (Suspend to R…)

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Enabled ACPI Auto Configuration

Enables or Disables BIOS ACPI Auto Configuration.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

IB957 User’s Manual 29

BIOS SETUP

Wake up event settings

Main Advanced Chipset Boot Security Save & Exit Event Logs

Wake system with Fixed Time Disabled Wake up hour 0 Wake up minute 0 Wake up second 0

Wake on Ring Disabled Wake on PCI PME Disabled Wake on PCIE Wake Event Disabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Wake system with Fixed Time

Enables or Disables System wake on alarm event. When enabled, System will wake on the hr::min:: sec specified.

Wake on Ring

The options are Disabled and Enabled.

Wake on PCI PME

The options are Disabled and Enabled.

30

IB957 User’s Manual

BIOS SETUP

CPU Configuration

This section shows the CPU configuration parameters.

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit Event Logs

CPU Configuration

Processor Type Intel(R) Core(TM) i5 CPU EMT64 Supported Processor Speed 2394 MHz Processor Stepping 20652 Microcode Revision 9 Processor Cores 2 Intel HT Technology Supported

Hyper-threading Enabled Active Processor Cores All Limit CPUID Maximum Disabled Execute Disable Bit Enabled Hardware Prefetcher Enabled Adjacent Cache Line Prefetch Enabled Intel Virtualization Technology Disabled

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Hyper-threading

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled, only one thread per enabled core is enabled.

Active Processor Cores

Number of cores to enable in each processor package.

Limit CPUID Maximum

Disabled for Windows XP.

Execute Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, Re33dHat Enterprise 3 Update 3.)

Hardware Prefetcher

To turn on/off the MLC streamer prefetcher.

IB957 User’s Manual 31

BIOS SETUP

Adjacent Cache Line Prefetch

To turn on/off prefetching of adjacent cache lines.

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Power Technology

Enable the power management features.

SATA Configuration

SATA Devices Configuration.

Main Advanced Chipset Boot Security Save & Exit Event Logs

SATA Configuration

SATA Port0 Hitachi HDS721 (160.0GB) SATA Port1 Not Present SATA Port2 Not Present SATA Port3 Not Present SATA Port4 Not Present SATA Port5 ATAPI iHDS11 ATAPI

SATA Mode IDE Mode Serial-ATA Controller 0 Compatibled Serial-ATA Controller 1 Enhanced

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

SATA Mode

Options are: (1) IDE Mode (2) AHCI Mode (3) RAID Mode

Serial-ATA Controller

Options are: Disable (1) Enhanced (2) Compatible

32

IB957 User’s Manual

BIOS SETUP

Intel IGD SWSCI OpRegion

Main Advanced Chipset Boot Security Save & Exit Event Logs

Intel IGD SWSCI OpRegion Configuration

DVMT/FIXED Memory 256MB IGD – Boot Type VBIOS Default Active LVDS No LVDS LVDS Channel Type Auto LVDS Panel Color Depth 18bit LVDS LCD Panel Type 1024x768 LVDS

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

DVMT/FIXED Memory

Select DVMT/FIXED Mode Memory size used by Internal Graphics Device. Options are 128MB, 256MB and Maximum.

IGD – Boot Type

Select the Video Device which will be activated during POST. This has no effect if external graphics present. Options are VBIOS Default, CRT, LVDS, DisplayPort, HDMI, DVI, CRT+LVDS, CRT+HDMI and CRT+DVI.

Active LVDS

Select the Active LVDS Configuration. No LVDS: VBIOS does not enable LVDS. Int-LVDS: VBIOS enables LVDS driver by Integrated encoder. SDVO LVDS : VBIOS enables LVDS driver by SDVO encoder. eDP: LVDS Driven by Int-DisplayPort encoder.

LVDS Channel Type

The default setting is Auto. Other settings are Single and Double.

LVDS Panel Color Depth

The default setting is 18bit. The other optoin is 24bit.

LVDS LCD Panel Type

The default setting is 1024x768 LVDS.

IB957 User’s Manual 33

BIOS SETUP

Intel TDT(AT-p) Configurations

Main Advanced Chipset Boot Security Save & Exit Event Logs

Intel Theft Deterrence Technology Configuration

TDT Disabled TDT Recovery 3

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

TDT

Enable/Disable TDT in BIOS for testing only.

TDT Recovery

Set the number of times Recovery attempted will be allowed.

34

IB957 User’s Manual

BIOS SETUP

USB Configuration

Main Advanced Chipset Boot Security Save & Exit Event Logs

USB Configuration

USB Devices: 2 Hubs

Legacy USB Support Enabled EHCI Hand-off Enabled Device Reset Timeout 20 sec

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Legacy USB Support

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

EHCI Hand-off

Enabled/Disabled. This is a workaround for Oses without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

Device Reset Timeout

USB mass storage device Start Unit command timeout. Options are: 10 sec / 20 sec / 30 sec / 40 sec.

IB957 User’s Manual 35

BIOS SETUP

Super IO Configuration

Main Advanced Chipset Boot Security Save & Exit Event Logs

Super IO Configuration

Super IO Chip Fintek F81865

-> Serial Port 0 Configuration

-> Serial Port 1 Configuration

-> Serial Port 2 Configuration

-> Serial Port 3 Configuration Parallel Port Configuration Power Failure Always off ACPI Shutdown Temperature Disable

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Serial Port Configuration

Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device.

Power Failure

Options are: Keep last state Bypass mode Always on Always off (default)

Parallel Port Configuration

Set Parameters of the parallel port. The default setting is 378F/IRQ7.

ACPI Shutdown Temperature

The system will shut down automatically under OS with ACPI mode, when the CPU temperature reaches the configured temperature.

36

IB957 User’s Manual

BIOS SETUP

H/W Monitor

Main Advanced Chipset Boot Security Save & Exit Event Logs

PC Health Status

CPU Temperature +51 C System Temperature +35 C CPU FAN Speed 7109 RPM VCC3V +3.408 V Vcore +0.928 V 5V +5.087 V 12V +11.880V

1.5V +1.552 V VSB3V +3.392 VBAT +3.184 V CPU Fan Smart Fan Control Disabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status.

CPU Fan Smart Fan Control

This field enables or disables the smart fan feature. At a certain temperature, the fan starts turning. Once the temperature drops to a certain level, it stops turning again.

IB957 User’s Manual 37

BIOS SETUP

Thermal Configuration

Main Advanced Chipset Boot Security Save & Exit Event Logs

Thermal Configuration

Intelligent Power Sharing

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Intelligent Power Sharing

• Intelligent power sharing – The default setting is Enabled.

• Mch Turbo – The default setting is Enabled.

• IPS Policy – The default setting is Driver.

• Core Temp Limit – The default setting is Disabled.

• Mch Power Limit – The default setting is Disabled.

• Processor Power Limit - The default setting is Disabled.

• Core Power Limit – The default setting is Disabled.

38

IB957 User’s Manual

BIOS SETUP

AMT Configuration

Main Advanced Chipset Boot Security Save & Exit Event Logs

AMT Enabled Unconfigure AMT/ME Disabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

AMT

Options are Enabled and Disabled.

Unconfigure AMT/ME

Perform AMT/ME unconfigure without password operation.

Serial Port Console Redirection

Main Advanced Chipset Boot Security Save & Exit

COM0 (Disabled) Console Redirection Port is Disabled

Serial Port for Out-of-Band Management/

Windows Emergency Management Services (EMS)

Console Redirection Enabled Out-of-Band Mgmt Port COM0 (Disabled) Data Bits 8 Parity None Stop Bits 1 Terminal Type VT-UTF8

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Console Redirection

Console Redirection Enable/Disable.

Terminal Type

VT-UTF8 is the preferred terminal type for out-of-band management. The next best choice is VT100+ and then VT100.

IB957 User’s Manual 39

BIOS SETUP

Chipset Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Main Advanced Chipset Boot Security Save & Exit Event Logs

Enable CSID Disabled

► North Bridge ► South Bridge ► ME Subsystem

Enable CSID

By default, this item is disabled. Enable Compatible Revision ID.

North Bridge

This item shows the North Bridge Parameters.

South Bridge

This item shows the South Bridge Parameters.

ME Subsystem

This item shows the ME Subsystem Parameters.

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

40

IB957 User’s Manual

BIOS SETUP

North Bridge

This section allows you to configure the North Bridge Chipset.

Main Advanced Chipset Boot Security Save & Exit Event Logs

Memory Information

CPU Type Arrandale Total Memory 4096 MB (DDR3 1066) Memory Slot0 2048 MB (DDR3 1066) Memory Slot1 0 Memory Slot2 2048 MB (DDR3 1066) Memory Slot3 140

CAS# Latency(tCL) 7 RAS# Active Time(tRAS) 20 Row Precharge Time(tRP) 7 RAS# to CAS# Delay(tRCD) 7 Row Refresh Cycle Timea(tRFC) 60 Write to Read Delay(tWTR) 4 Active to Active Delay(tRRD) 4 Read CAS# Precharge(tRTP) 5

Low MMIO Align 64M Initiate Graphic Adapter PEG/IGD Graphics Turbo IMON Current 31 VT-d Disabled PCI Express Compliance Mode Disabled PCI Express Port Auto IGD Memory 32M

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Low MMIO Align

Low MMIO resources align at 64MB/1024MB.

Initiate Graphic Adapter

Select which graphics controller to use as the primary boot device. Options are IGD, PCI/IGD, PCI/PEG, PEG/IGD, PEG/PCI and SG.

Graphics Turbo IMON Current

Graphics turbo IMON current values supported (14-31).

VT-d

VT-d Enable/Disable.

PCI Express Compliance Mode

PCI Express Compliance Mode Enable/Disable.

IB957 User’s Manual 41

BIOS SETUP

PCI Express Port

Options are Disabled, Enabled and Auto.

IGD Memory

IGD Share Memory Size. Options are Disable, 32M, 64M and 128M.

PAVP Mode

Select PAVP Mode used by Internal Graphics Device. Options are Disabled and Enabled.

PEG Force Gen1

PCI Express Port Force Gen1. Options are Disabled and

42

IB957 User’s Manual

BIOS SETUP

SB Chipset Configuration

This section allows you to configure the South Bridge Chipset.

Main Advanced Chipset Boot Security Save & Exit Event Logs

SB Chipset Configuration

SMBus Controller Enabled GbE Controller Enabled Wake on LAN from S5 Enabled

SLP_S4 Assertion Stretch Enable Enabled SLP_S4 Assertion Width 1-2 Seconds

Audio Configuration Azalia HD Audio Enabled Azalia Internal HDMI codec Enabled

High Precision Event Timer Configuration High Precision Timer Enabled

PCI Express Ports Configuration

USB Configuration

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

SMBus Controller

SMBus Controller help.

GbE Controller

This is constantly enabled.

Wake on LAN from S5

Wake on LAN from S5 help.

SLP_S4 Assertion Stretch Enable

Select a minimum assertion width of the SLP_S4# signal.

Audio Configuration

The Audio Configuration settings Enable/Disable the Azalia HD Audio and the Azalia internal HDMI codec.

High Precision Event Timer Configuration

Enable/or Disable the High Precision Event Timer.

IB957 User’s Manual 43

BIOS SETUP

PCI Express Ports Configuration

Enable or Disable the PCI Express Ports in the Chipset.

Main Advanced Chipset Boot Security Save & Exit Event Logs

PCI Express Ports Configuration

PCI Express Port 1 Auto PCI Express Port 2 Auto PCI Express Port 3 Auto PCI Express Port 4 Auto PCI Express Port 5 Auto PCI Express Port 6 Auto PCI Express Port 7 Auto PCI Express Port 8 Auto

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

USB Configuration

Enable/Disable All USB Devices, USB 2.0 (EHCI) Support and RMH Support. The setting of AUTO on RMH Support Enable RMH support on Ibex Peak B0 Stepping.

Main Advanced Chipset Boot Security Save & Exit Event Logs

USB Configuration

All USB Devices Enabled

EHCI Controller 1 Enabled EHCI Controller 2 Enabled RMH Support Auto

USB Port 0 Enabled USB Port 1 Enabled USB Port 2 Enabled USB Port 3 Enabled USB Port 4 Enabled USB Port 5 Enabled USB Port 6 Enabled USB Port 7 Enabled USB Port 8 Enabled USB Port 9 Enabled USB Port 10 Enabled USB Port 11 Enabled USB Port 12 Enabled USB Port 13 Enabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

44

IB957 User’s Manual

BIOS SETUP

Intel ME Subsystem

This section allows you to configure the PCI settings.

Main Advanced Chipset Boot Security Save & Exit Event Logs

Intel ME Subsystem Configuration

ME Version 6.0.3.1195

ME Subsystem Enabled End of Post Message Enabled Execute ME8x Enabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

ME Version

Launches (Enabled/Disabled) the boot option for legacy network devices.

ME Subsystem

Launches (Enabled/Disabled) the boot option for legacy network devices.

End of Post Message

Launches (Enabled/Disabled) the boot option for legacy network devices.

Execute ME8x

Launches (Enabled/Disabled) the boot option for legacy network devices.

IB957 User’s Manual 45

BIOS SETUP

Boot Settings

This section allows you to configure the boot settings according to your preference.

Main Advanced Chipset Boot Security Save & Exit Event Logs

Boot Configuration Quiet Boot Disabled Fast Boot Disabled Setup Prompt Timeout 1 Bootup NumLock State On CSM16 Module Version 07.60 GateA20 Active Upon Request Option ROM Messages Force BIOS Interrupt 19 Canture Disabled Boot Option Priorities Boot Option #1 SATA: ATAPI iH…)

Quiet Boot

Enables/Disables Quiet Boot option.

Fast Boot

Enables/Disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State

Select the keyboard NumLock state.

GateA20 Active

UPON REQUEST – GA20 can be disabled using BIOS services. ALWAYS – do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

Option ROM Messages

Set display mode for Option ROM. Options are Force BIOS and Keep Current.

Interrupt 19 Canture

Enable: Allows Option ROMs to trap Int 19.

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

46

IB957 User’s Manual

BIOS SETUP

Boot Option Priorities

Sets the system boot order.

Hard Drive BBS Priorities

Set the order of the legacy devices in this group.

Security Settings

This section allows you to configure and improve your system and

llows you to set up some system features according to your preference. a

Main Advanced Chipset Boot Security Save & Exit Event Logs

Password Description

If ONLY the Administrator’s password is set, then this only limits accesss to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights

Administrator Password User Password

Administrator Password

Set Setup Administrator Password.

User Password

Set User Password.

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

IB957 User’s Manual 47

BIOS SETUP

Save & Exit Settings

Main Advanced Chipset Boot Security Save & Exit Event Logs

Save Changes and Exit Disacard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override SATA: ATAPI iHDS116 4 SATA: Hitachi HDS721616PLA380

Launch EFI Shell from filesystem device

Save Options

► Reset System with ME disable Mode

Save Changes and Exit

Exit system setup after saving the changes.

Disacard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

Restore Defaults

Restore/Load Defaults values for all the setup options.

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

48

IB957 User’s Manual

BIOS SETUP

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

Boot Override

Pressing ENTER causes the system to enter the OS.

Launch EFI Shell from filesystem device

Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices.

Reset System with ME disable Mode

ME will run into the temporary disable mode.

IB957 User’s Manual 49

BIOS SETUP

Event Logs

This section allows you to configure the Smbios Event Log. according to your preference.

Main Advanced Chipset Boot Security Save & Exit Event Logs

► Change Smbios Event Log Settings Press Enter to change Smbios

View Smbios Event Log View System Event Log

Main Advanced Chipset Boot Security Save & Exit Event Logs

Enabling/Disabling Options Change this to enable/disable all

Smbios Event Log Enabled

Erasing Settings Erase Event Log No When Log is Full Do Nothing

Smbios Even tLog Standard Settings MECI 1 METW

Custom Options Log OEM Codes Enabled

Convert OEM Codes Disabled

NOTE: All values changed here do not take effect until computer is restarted

Aptio Setup Utility

Event Log Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Aptio Setup Utility

features of Smbios Logging during boot.

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

60

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

50

IB957 User’s Manual

DRIVERS INSTALLATION

Drivers Installation

This section describes the installation procedures for software and drivers under Windows operating systems. The software and drivers are included with the motherboard. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:

Intel Chipset Software Installation Utility ........................................... 52

VGA Drivers Installation .................................................................... 54

Realtek HD Audio Driver Installation ................................................. 56

LAN Drivers Installation ..................................................................... 57

Intel® Management Engine Interface ................................................. 60

IB957 User’s Manual 51

DRIVER INSTALLATION

Intel Chipset Software Installation Utility

The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset component s. Follow the instructions below to complete the installation.

1. Insert the CD that comes with the board. Click Intel and then Intel(R) QM57 Chipset Drivers.

2. Click Intel(R) Chipset Software Installation Utility.

3. When the Welcome screen to the Intel® Chipset Device Software appears, click Next to continue.

52

IB957 User’s Manual

DRIVERS INSTALLATION

4. Click Yes to accept the software license agreement and proceed with the installation process.

5. On the Readme File Information screen, click Next to continue the installation.

6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

IB957 User’s Manual 53

DRIVER INSTALLATION

VGA Drivers Installation

NOTE: Before installing the Intel(R) QM57 Chipset Family Graphics Driver, the Microsoft .NET Framework 3.5 SPI should be first installed.

To install the VGA drivers, follow the steps below.

1. Insert the CD that comes with the board. Click Intel and then Intel(R) QM57 Chipset Drivers.

2. Click Intel(R) QM57 Chipset Family Graphics Driver.

3. When the Welcome screen appears, click Next to continue.

54

IB957 User’s Manual

DRIVERS INSTALLATION

4. Click Yes to to agree with the license agreement and continue the installation.

5. On the Readme File Information screen, click Next to continue the installation of the Intel® Graphics Media Accelerator Driver.

6. On Setup Progress screen, click Next to continue.

7. Setup complete. Click Finish to restart the computer and for changes to take effect.

IB957 User’s Manual 55

DRIVER INSTALLATION

Realtek HD Audio Driver Installation

Follow the steps below to install the Realtek HD Audio Drivers.

1. Insert the CD that comes with the board. Click Intel and then Intel(R) QM57 Chipset Drivers.

2. Click Realtek High Definition Audio Driver.

3. On the Welcome to the InstallShield Wizard screen, click Next.

3. InstallShield Wizard is complete. Click Finish to restart the computer.

56

IB957 User’s Manual

DRIVERS INSTALLATION

LAN Drivers Installation

Follow the steps below to install the Intel LAN drivers.

1. Insert the CD that comes with the board. Click Intel and then Intel(R) QM57 Chipset Drivers.

2. Click Intel(R) PRO LAN Network Driver.

3. When the Welcome screen appears, click Next. On the next screen, click Yes to to agree with the license agreement.

IB957 User’s Manual 57

DRIVER INSTALLATION

4. Click the checkbox for Drivers in the Setup Options screen to select it and click Next to continue.

5. The wizard is ready to begin installation. Click Install to begin the installation.

58

IB957 User’s Manual

DRIVERS INSTALLATION

6. When InstallShield Wizard is complete, click Finish.

IB957 User’s Manual 59

DRIVER INSTALLATION

Intel® Management Engine Interface

NOTE: Before installing the Intel(R) AMT 6.0 Drivers, the Microsoft .NET Framework 3.5 SPI should be first installed.

Follow the steps below to install the Intel Management Engine.

1. Insert the drivers disc that comes with the motherboard. Click Intel and then Intel(R) AMT 6.0 Drivers.

60

IB957 User’s Manual

DRIVERS INSTALLATION

2. When the Welcome screen to the InstallShield Wizard for Intel® Management Engine Components, click Next. On the next screen, click Yes to to agree with the license agreement.

2. When the Setup Progress screen appears, click Next. Then, click Finish when the setup progress has been successfully installed.

IB957 User’s Manual 61

DRIVER INSTALLATION

62

IB957 User’s Manual

APPENDIX

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The fo llowing table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h - 06Fh Keyboard Controller 070h - 07Fh Real Time Clock, NMI 080h - 09Fh DMA Page Register 0A0h - 0BFh Interrupt Controller #2 0C0h - 0DFh DMA Controller #2 0F0h Clear Math Coprocessor Busy Signal 0F1h Reset Math Coprocessor 1F0h - 1F7h IDE Interface 278h - 27Fh Parallel Port #2(LPT2) 2E8h – 2EFh Serial Port #4(COM4) 2F8h - 2FFh Serial Port #2(COM2) 2B0h- 2DFh Graphics adapter Controller 360h - 36Fh Network Ports 3B0h - 3BFh Monochrome & Printer adapter 3C0h - 3CFh EGA adapter 3D0h - 3DFh CGA adapter 3E8h – 3EFh Serial Port #3(COM3) 3F8h - 3FFh Serial Port #1(COM1)

IB957 User’s Manual 63

APPENDIX

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

Level Function

IRQ0 System Timer Output IRQ1 Keyboard IRQ2 Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Reserved IRQ6 Reserved IRQ7 Reserved IRQ8 Real Time Clock IRQ9 Reserved IRQ10 Serial Port #3 IRQ11 Serial Port #4 IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE

64

IB957 User’s Manual

APPENDIX

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "F81865.H" //--------------------------------------------------------------------------int main (int argc, char *argv[]); void EnableWDT(int); void DisableWDT(void); //--------------------------------------------------------------------------int main (int argc, char *argv[]) { unsigned char bBuf; unsigned char bTime; char **endptr;

char SIO;

printf("Fintek 81865 watch dog program\n");

SIO = Init_F81865(); if (SIO == 0) { printf("Can not detect Fintek 81865, program abort.\n"); return(1); }//if (SIO == 0)

if (argc != 2) { printf(" Parameter incorrect!!\n"); return (1); }

bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime);

if (bTime) { EnableWDT(bTime); } else { DisableWDT(); }

IB957 User’s Manual 65

APPENDIX

return 0; } //--------------------------------------------------------------------------void EnableWDT(int interval) { unsigned char bBuf;

bBuf = Get_F81865_Reg(0x2B); bBuf &= (~0x20); Set_F81865_Reg(0x2B, bBuf); //Enable WDTO

Set_F81865_LD(0x07); //switch to logic device 7 Set_F81865_Reg(0x30, 0x01); //enable timer

bBuf = Get_F81865_Reg(0xF5); bBuf &= (~0x0F); bBuf |= 0x52; Set_F81865_Reg(0xF5, bBuf); //count mode is second

Set_F81865_Reg(0xF6, interval); //set timer

bBuf = Get_F81865_Reg(0xFA); bBuf |= 0x01; Set_F81865_Reg(0xFA, bBuf); //enable WDTO output

bBuf = Get_F81865_Reg(0xF5); bBuf |= 0x20; Set_F81865_Reg(0xF5, bBuf); //start counting } //--------------------------------------------------------------------------void DisableWDT(void) { unsigned char bBuf;

Set_F81865_LD(0x07); //switch to logic device 7

bBuf = Get_F81865_Reg(0xFA); bBuf &= ~0x01; Set_F81865_Reg(0xFA, bBuf); //disable WDTO output

bBuf = Get_F81865_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81865_Reg(0xF5, bBuf); //disable WDT } //---------------------------------------------------------------------------

66

IB957 User’s Manual

APPENDIX

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include "F81865.H" #include <dos.h> //--------------------------------------------------------------------------unsigned int F81865_BASE; void Unlock_F81865 (void); void Lock_F81865 (void); //--------------------------------------------------------------------------unsigned int Init_F81865(void) { unsigned int result; unsigned char ucDid;

F81865_BASE = 0x4E; result = F81865_BASE;

ucDid = Get_F81865_Reg(0x20); if (ucDid == 0x07) //Fintek 81865 { goto Init_Finish; }

F81865_BASE = 0x2E; result = F81865_BASE;

ucDid = Get_F81865_Reg(0x20); if (ucDid == 0x07) //Fintek 81865 { goto Init_Finish; }

F81865_BASE = 0x00; result = F81865_BASE;

Init_Finish: return (result); } //--------------------------------------------------------------------------void Unlock_F81865 (void) { outportb(F81865_INDEX_PORT, F81865_UNLOCK); outportb(F81865_INDEX_PORT, F81865_UNLOCK); } //--------------------------------------------------------------------------void Lock_F81865 (void) { outportb(F81865_INDEX_PORT, F81865_LOCK); } //--------------------------------------------------------------------------void Set_F81865_LD( unsigned char LD) { Unlock_F81865(); outportb(F81865_INDEX_PORT, F81865_REG_LD); outportb(F81865_DATA_PORT, LD); Lock_F81865(); } //--------------------------------------------------------------------------void Set_F81865_Reg( unsigned char REG, unsigned char DATA) { Unlock_F81865(); outportb(F81865_INDEX_PORT, REG); outportb(F81865_DATA_PORT, DATA); Lock_F81865(); } //---------------------------------------------------------------------------

IB957 User’s Manual 67

APPENDIX

unsigned char Get_F81865_Reg(unsigned char REG) { unsigned char Result; Unlock_F81865(); outportb(F81865_INDEX_PORT, REG); Result = inportb(F81865_DATA_PORT); Lock_F81865(); return Result; } //---------------------------------------------------------------------------

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#ifndef __F81865_H #define __F81865_H 1 //--------------------------------------------------------------------------#define F81865_INDEX_PORT (F81865_BASE) #define F81865_DATA_PORT (F81865_BASE+1) //--------------------------------------------------------------------------#define F81865_REG_LD 0x07 //--------------------------------------------------------------------------#define F81865_UNLOCK 0x87 #define F81865_LOCK 0xAA //--------------------------------------------------------------------------unsigned int Init_F81865(void); void Set_F81865_LD( unsigned char); void Set_F81865_Reg( unsigned char, unsigned char); unsigned char Get_F81865_Reg( unsigned char); //--------------------------------------------------------------------------#endif //__F81865_H

68

IB957 User’s Manual

Intel IB957 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Signal Name Pin # Pin # Signal Name

Signal Name Pin # Pin # Signal Name
