80 Port Frequently Asked Questions
Below is a list of some basic POST Codes, possible problems and solutions. For
more detailed information about POST Codes, refer to Appendix D in this manual.
POST CODE Problem Solution
FFh or CFh 1.BIOS chip inserted
incorrectly
2. Incorrect BIOS update
version
3. M ainbo ard proble m
4. Add-on card inserted
incorrectly.
C1h - C5h 1. Memory module
inserted incorrectly
2. Memory com patibility
problem
3. Memory module
damaged
2Dh 1. Error occured in VGA
BIOS
2. VGA card inserted
incorrectly
26 h Overclo ck error Clear CMOS or press the insert
1. Reinsert the BIOS
chip
2. Download the correct
BIOS versio n update
from the manufac turer's
Web site.
3. Replace mainboard
4. Rem ove and replace the
add-on card
1. Reinsert memory
mo dule
2. Replace memory
with correct type
3. Replace memory
mo dule
1. Replace VGA card
2. Reinsert the VGA
card
key to power on the system
07 h - 12h 1. Init ke yboard
Initial Keyboard
controller error
2. RTC error
1. Ensure that the keybo ard and
mouse are connected
correctly.
2. Replace the RTC battery.
iii
Table of Contents
Section 1 Introduction
Package Contents ...................................................... 1- 1
Mainboard Features ................................................... 1- 2
System Block Diagram ............................................... 1- 6
Section 2 Specification
Mainboard Specification ............................................ 2- 1
Section 3 Installation
Mainboard Layout ..................................................... 3- 1
Easy Installation Procedure ....................................... 3- 2
CPU Insertion ............................................................. 3- 2
Jumper Settings .......................................................... 3- 4
System Memory Configuration .................................. 3- 5
Expansion Slots .......................................................... 3- 7
Device Connectors..................................................... 3- 8
Thermo Stick Function ............................................... 3- 15
Power-On/Off (Remote) .............................................. 3- 16
External Modem Ring-in Power ON and
Keyboard Power ON Function (KBPO) ..................... 3- 16
STR (Suspend To RAM) Function ............................ 3- 17
Page
Section 4 BIOS Setup
Main Menu ................................................................ 4- 1
Standard CMOS Setup ............................................... 4- 2
Advanced BIOS Features .......................................... 4- 3
Advanced Chipset Features ...................................... 4- 5
Integrated Peripherals ................................................ 4- 7
Power Management Setup ......................................... 4- 12

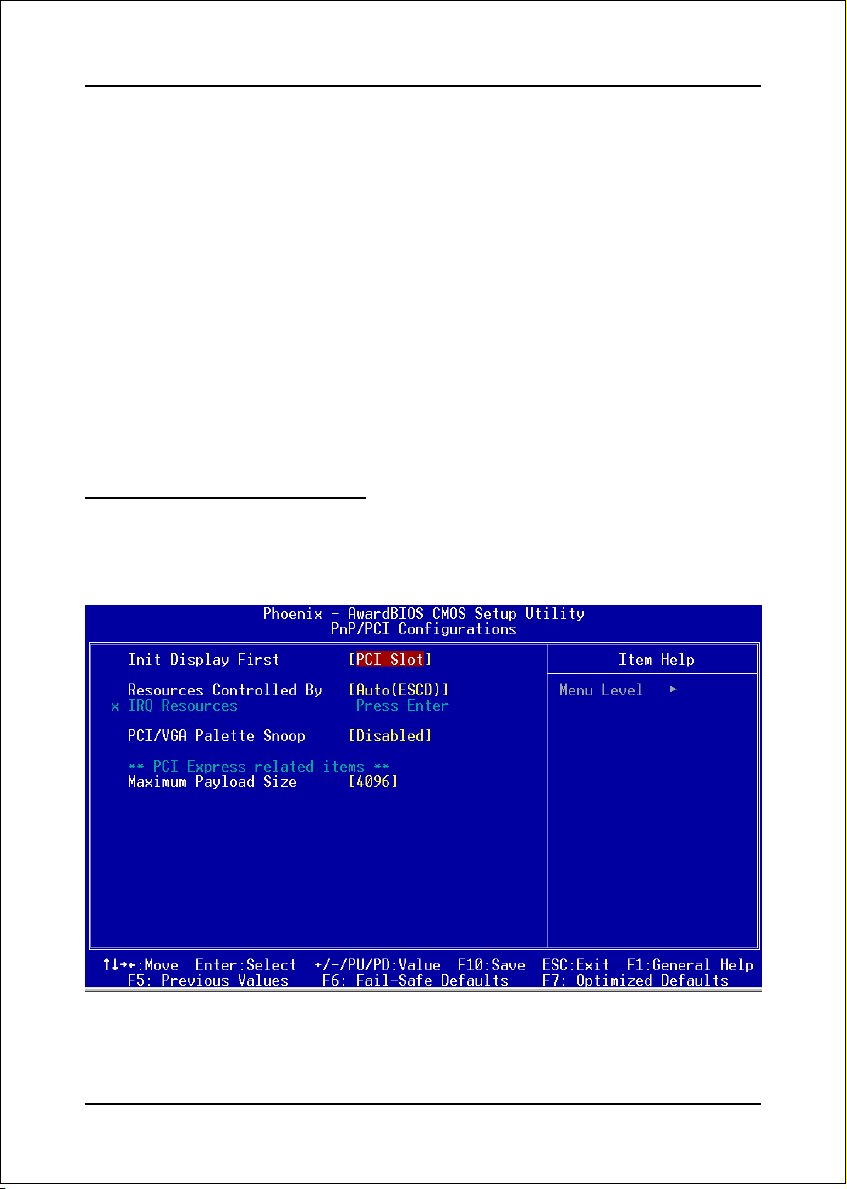

PNP/PCI Configuration .............................................. 4- 15
iv
PC Health Status ........................................................ 4- 17
Power BIOS Features ................................................. 4- 19
Defaults Menu ........................................................... 4- 22
Supervisor/User Password Setting ............................ 4- 23
Exit Selecting .............................................................. 4- 24
Section 5 RAID Configuration
Introduction ............................................................... 5- 1
Intel ICH6R RAID Features ....................................... 5- 3
Enable RAID Function ............................................... 5- 4
Section 6 Driver Installation
Easy Driver Installation .............................................. 6- 1
Realtek Sound Manager Quick User guide ................ 6- 2
Appendix Appendix A
Update Your System BIOS ......................................... A- 1
Appendix B
Intel Application Accelerator RAID Option ROM ........ B- 1
Appendix C
Intel Matrix RAID Quick Guide .................................... C- 1
Appendix D
POST Codes ............................................................... D- 1
v
Page Left Blank
vi
1-1 Package Contents
Introduction
Section 1
INTRODUCTION
Contents
A. Mainboard
B. User’s manual
C. Floppy drive cable
D. HDD drive cable
E. CD (drivers and utilities)
F. I/O Shield
G. S-ATA data and power cable
H. Game & COM bracket cable
I. IEEE 1394 two ports cable
J. Extra USB2.0 port cable
K. SP-ATA Kit
USER’S
MANUAL
A
Powerpack items
L. ThermoStick cable
M.Mini heatsink
N. Tool Pen
Optional Items
O. S/PDIF Module
If you need the optional item, please
contact your dealer for assistance.
E
C
B
D
F
G
H
M
I
J
K
L
N
O
Page 1-1
Introduction
1-2 Mainboard Features
Brief Introduction
Intel® Pentium® 4 processors
The Pentium 4 processor is designed to deliver performance across applications
and usages where end-users can truly appreciate and experience the
performance. The Pentium 4 processor delivers this world-class performance for
consumer enthusiasts and business professional desktop PC users as well as for
entry-level workstation users.
Intel adds support for Hyper-Threading Technology to the Pentium 4 processor
family. HT Technology allows a single, physical Pentium 4 processor to function
as two logical processor for next generation multi threaded application.
For more information about all the new features the Pentium 4 delivers, check out the
Intel website at
Chipset
http://www.intel.com
This board is designed with Intel® 925XE (Alderwood) chipset. The Intel® 925XE
chipset consists of the Graphics Memory Controller Hub (GMCH) and the I/O
Controller Hub (ICH6R).
DDR2
DDR2 ushers in the new era of DDR memory technology. DDR2 memory offers
faster speed, higher data bandwidth and lower power consumption over DDR.
PCI-Express (PCI-E)
Next generation peripheral interface to succeed to current PCI bus for the next
decade. With smaller slot size and 250MB/sec(PCI-E*1) or 4GB/sec(PCI-E*16)
maximum transfer, PCI-Express overcomes PCI bus bottleneck.
Ultra ATA100
The mainboard provides an Ultra ATA100 Bus Master IDE controller. This
controller supports Ultra ATA100 protocols which are ideal to support demanding
applications such as real-time video, multimedia, and a high performance operating
system. A new IDE cable is required for Ultra ATA100.
Page 1-2
Introduction
Hardware Monitoring
Hardware monitoring enables you to monitor various aspects of the system opera-
tion and status. This includes CPU temperature, voltage and fan speed in RPMs.
Dual GbE LAN
Two Gigabit-LAN controllers onboard running on the PCI-Express bus. This twin
set of PCI-Express to Gigabit-LAN breaks traditional bandwidth barrier, delivering
maximum 1000Mbps between internal and external network.
Serial ATA (S-ATA)
Support Serial ATA, an evolutionary replacement for Parallel ATA IDE storage
interface. Increases the peak data transfer speed up to 150MB/sec and allows
future enhancements to the computing platform.
S-ATA RAID
RAID function available on chipset S-ATA ports.
IEEE 1394
IEEE 1394a provides enhanced PC connectivity for consumer electronics audio/
video appliances, storage peripherals, portable devices such as digital cameras, and
inter-PC communications. IEEE 1394a provides transfer rates up to 400Mbits/sec.
USB2.0
A popular USB standard for plugging in peripherals with up to 480Mbps transfer
speed while maintaining backward compatibility with older USB1.1 device.
8ch
Delivers 8 channel audio to bring you the latest in audio realism from DVD
movies and games. Perfect for your home theatre system.
Page 1-3
Introduction
Special Features
BIOS Features:
Magic Health
&
Reports your system hardware status for every boot-up to help detect faults
early. Monitor hardware status including CPU temperature, CPU/Memory/
Chipset voltage, fan RPM speed for chassis fan, CPU fan & Power supply fan.
EZ-Boot
&
Simply press “ESC” to select your bootable device. No more hassle to search
the BIOS menu, change and re-start.
PowerBIOS
&
Supporting a full range of overclocking setting via BIOS. Various adjustable
feature include FSB/Chipset/Memory voltage tweaking.
H/W Features:
80 Port
&
An onboard LED-display trouble-shooting device, facilitating user to detect
boot-up problems.
QuickSPDIF
&
On board SPDIF-out connector for quick connection to multi-channel
speakers. Not only removes cable cluttering but also delivers loss-free digital
audio to let you enjoy DVD movies and games with crystal clear sound.
Thermo Stick
&
Flexible thermometer to let you measure any temperature by software. Ideal for
monitoring VGA card, chipset or even disk drives temperatures. Refer to page
3-15 for details.
EZ-Button
&
A handy power-on button located onboard to turn on/off the system easily,
especially while debugging or testing the system.
LEDION
&
Onboard LED indicators to show the power status CPU, Chipset and DRAM.
You know immediately where to look if the system fails to start.
Page 1-4
Introduction
SP-ATA
&
A S-ATA to IDE conversion device includes in this package. Older IDE hard-
drives can now be plugged to new Serial-ATA interface through this transition
kit. SP-ATA even works for CD-ROM and DVD-ROM drives.
PISTON V
&
Achieve ultimate overclocking with revolutionary 5-phase switching power.
Using "true" five sets of independent switching block, PISTON V offers strong
and stable CPU power while producing less heat compared to conventional
PWM design.
Page 1-5
Introduction
1-2 System Block Diagram
Page 1-6
Mainboard Specification
Processor
Support Intel® Pentium 4® 5xx, 6xx and P4EE series processors up to 3.8+
GHz in LGA775 socket with 533/800/1066 MHz front-side system bus
Support Intel® Celeron D® 3xx series processors up to 3.2+GHz in LGA775
socket with 533 MHz front-side system bus
Support Intel 04B or 04A Platform Compatibility Guide
Support EM64T for 64-bit O/S support
Chipset
Intel® 925XE Chipset (925XE + ICH6R)
Main Memory
Four 240-pin DDR2 SDRAM DIMM sockets
Support single-sided or double-sided, non-ECC, 1.8v DDR2-400/533
DIMMs with dual channel architecture in 256Mb/512Mb/1Gb technologies
Supports up to 4GB memory size
Turbo Mode technology support under 1066/800MHz FSB and DDR2-533
Specification
Section 2
SPECIFICATION
Expansion Slots
Four PCI connectors compliant with PCI v2.3
Two PCI-E x1 connectors compliant with PCI Express 1.0a
One PCI-E x16 connectors compliant with PCI Express 1.0a
IDE
One IDE interface (up to 2 IDE devices) with UDMA-33, ATA-66/100
support from embedded IDE controller
USB
Eight USB connectors compliant with USB2.0 from embedded USB
controller (4 connectors at rear panel)
Page 2-1
Specification
S-ATA RAID
Four S-ATA ports with up to 150MBps bandwidth from ICH6R with RAID
0,1 support with Hot-Plug support
LAN
Two Gb Ethernet from onboard Marvell 88E8053 PCI-E*1 controller for
Dual LAN with Virtual Cable Net-Diagnostic support
1394a
Two 1394a ports with up to 400Mbps bandwidth from onboard VIA
VT6307 1394 controller
Audio
Selectable 2, 6 or 8-CH audio from onboard ALC880 High Definition audio
compliant CODEC with 20-bit ADC and 24-bit DAC resolution
- Support CD-In, S/PDIF-in and S/PDIF-out
- Optical & Coaxial S/PDIF-out available on rear panel
- Support Jack detection for fool-proof audio device installation
- Rear panel audio jacks configuration:
roloCkcaJoiduA lennahc2 lennahc6 lennahc8
eulBthgiLni-eniLni-eniLni-eniL
emiLtuo-eniLtuo-oeretstnorFtuo-oeretstnorF
kniPni-ciMni-ciMni-ciM
yarGtuo-oeretsediS
kcalBtuo-oeretsraeRtuo-oeretsraeR
egnarOrefoowbuS&retneCrefoowbuS&retneC
I/O
Onboard Winbond W83627THF LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Two
Serial, Game and IrDA (v1.0 compliant)
Support Hardware Monitoring for fan speed monitoring, CPU/System
temperature and ThermoStick temperature.
Intelligent fan speed control for CPU-fan (PWM) and Chassis-fan (DC) for
quiet operation
Page 2-2
Specification
BIOS
Flash EEPROM with Award Plug&Play BIOS
Support ACPI S3 (Suspend To RAM) mode in ACPI compliant O/S
Support EZ Boot for fast bootable device selection
Support Magic Health for system hardware status report during system
boot-up
Peripheral Interfaces
))
) At Rear Panel
))
PS/2 keyboard and mouse ports
One Parallel (printer) port
One S/PDIF-Out Coaxial jack
One S/PDIF-Out Optical
One Serial port
Two RJ45 LAN connector
Four USB2.0 ports
Six Audio jacks
))
) Onboard connector and pin-header
))
One floppy drive connector
One ATA-100 IDE connector
Four extra USB2.0 ports
One CD-IN connector
One S/PDIF-in/out connector
One IR connector
One Game port connector
One Serial Port (COM2) connector
Four S-ATA connectors
Three Fan connectors
One RESET and One PW-ON button
Page 2-3
Specification
Front Panel Controller
Supports Reset & Soft-Off switches
Supports HDD & Power LEDs
Supports PC speaker
Supports Front Panel Audio connector
Special Features
Support KBPO function – Keyboard power on, turn on the computer from
keyboard
Support Wake-On-LAN by PME
Support USB resume in S3
Onboard 80 Port LED display for system debugging
PowerBIOS for excellent overclocking capabilities through
- Programmable FSB, PCI-E and PCI Clock output frequency with 1MHz fine
tuning
- Support BIOS adjustable CPU multiplier & Core voltage, FSB clock, PCI-E
x16 voltage & clock, Chipset voltage, DIMM frequency and voltage
settings
Support LEDION – onboard LED power indicator for CPU, DDR and chipset
Form Factor
305mm x 245 mm ATX size
Page 2-4
Mainboard Layout
Installation
Section 3
INSTALLATION
Page 3-1
Installation
Easy Installation Procedure
The following must be completed before powering on your new system:
3-1. CPU Installation
3-2. Jumper Settings
3-3. System Memory
3-4. Expansion Slots
3-5. Device Connectors
3-1 CPU Installation
Step 1
Carefully remove the plastic protection plate from the
socket.
Warning:
The pins inside the CPU socket are fragile and are
easily broken. Be careful not to touch them when
installing the CPU.
<Figure 1>
<Figure 3>
<Figure 2>
Step 2
Open the socket by releasing
the actuation lever, and press
downwards at the tip shown by
the arrow.
Page 3-2
Step 3
Before inserting the CPU, align the CPU according
to the key slots shown in the picture. Gently place
the CPU into the socket and make sure it is fully
seated.
Installation
<Figure 4>
Step 4
a) Put the CPU lid on the socket, and
close the socket by lowering and
locking the actuation lever.
Step 5
Place the CPU cooler on top of the socket.
Press its clips down firmly until it is
completely seated in the hole.
<Figure 5>
b) Apply thermal compound to the top
of the CPU and into the four holes
around CPU area to install the cooler
as shown.
Step 6
a) Rotate the clips 90 degrees to lock
the CPU cooler in place.
b) Plug the cooler fan power into the
mainboard’s CPU fan connector.
The installation is complete.
<Figure 6>
CAUTION:
• Installing with incorrect CPU cooler and heatsink assemblies may damage the CPU. Use
Intel’s thermal solution shown in the illustrations above: an active heatsink; an extruded
aluminum heatsink base; and a fan attached to the top of the fin array.
• Apply thermal compound or paste to the CPU to avoid CPU overheating and damage.
• In accordance with Intel guidelines specifications, do not install a CPU over 20 times to
avoid damaging the pins on the CPU socket.
Page 3-3
Installation
3-2 Jumper Settings
JCMOS:
Clear CMOS data Jumper
If the CMOS data becomes corrupted or
you forgot the supervisor or user
password, clear the CMOS data to
reconfigure the system back to the
default values stored in the ROM BIOS.
Settings:
1
To CMOS Clear data, please follow the steps below.
1. Turn off the system.
2. Change the jumper from “1-2” to “2-3” position for
a few seconds.
3. Replace the jumper back to the “1-2” position.
4. Turn on the system and hold down the <Del> key
to enter BIOS setup.
1-2: Normal (Default)
2-3: Clear CMOS
Page 3-4
JUSB:
USB S3 Wake up Jumper
This jumper disconnects 5V standby
voltage to USB devices. This means USB
devices will not be able to wake-up the
system from S3 (Suspend to RAM) power
saving mode.
Settings:
1
1-2: Connect (S3 enabled)
2-3: Disconnect (No S3)
Installation
3-3 System Memory Configuration
The mainboard accommodates four 240-pin DDR2 DIMM sockets.
• Supports up to 4.0GB of 400/533MHz DDR2 SDRAM.
• Supports dual channel memory interface.
• Supports non-ECC memory and non-Registered DIMMs only.
• Supports 256Mb/512Mb/1Gb DDR2 technologies in x8 and x16 devices only.
• SPD (Serial Presence Detect) scheme for DIMM detection support.
• Supports configurations defined in the JEDEC DDR2 DIMM specification only.
Dual Channel interface:
• Dual channel memory access offers increased system performance.
<Figure 7> shows the logical memory layout for channel A and channel B.
• For dual channel to operate, both channel must be populated with same
amount of memory, preferably of the same type.
<Figure 7>
• The four DIMM sockets are divided into two colors to help you identify the
channel pairs <Figure 8>. Each dual channel pair has the same color, e.g.
DIMM1 and DIMM3. To obtain best performance, simply mount DIMM
sockets of the same color.
Channel A
Channel B
DDR-A1 DIMM 1
DDR-A2 DIMM 2
DDR-B2 DIMM 4
<Figure 8>
Dual Channel 1
Dual Channel 2
Page 3-5
Installation
Memory configurations supported:
MMID1
)tib-46(
1#MMIDSD/SSSD/SSSD/SSSD/SSSD/SSSD/SS
2#MMIDSD/SSSD/SSSD/SSSD/SSSD/SSSD/SS
3#MMIDSD/SSSD/SSSD/SSSD/SSSD/SS
4#MMIDSD/SSSD/SSSD/SSSD/SSSD/SS
* SS: Single-Sided DIMM, DS: Double-Sided DIMM
MMID2
)tib-821(
MMID3
)tib-821(
Note: Using non-compliant memory with higher bus speeds (overclocking) may
severely compromise the integrity of the system.
Memory Installation :
To install, align the notch on the DIMM module with the connector.
Press straight down as shown in the figure below until the white clips
close and the module fits tightly into the DIMM socket.
MMID4
)tib-821(
Page 3-6
Notch
3-4 Expansion Slots
PCI-E
VGA Slot
PCI-E Slot
PCI Slots
1. Remove the bracket (on the PC case) for the slot you intend to use.
2. Firmly press down the card into the slot until it is completely
seated. Ensure the VGA slot clicker is locked as shown in the
picture below.
Installation
PCI-E Slots
The mainboard is equipped with two
PCI-E*1 compliant with PCI Express 1.0a.
PCI-E VGA Slots
The elongated PCI-E*16 is intended for
PCI-E VGA card installation.
PCI Slots
The mainboard is equipped with three
PCI slots.
VGA Card Installation Caution
3. Secure the card's bracket to the PC case with a screw.
Page 3-7
Installation
3-5 Device Connectors
The I/O back panel for this mainboard is shown below. When installing the
mainboard into the computer case, use the bundled I/O shield to protect this back
panel.
Parallel Port
RJ45
LAN
RJ45
LAN
PS/2
Mouse
PS/2
Keyboard
S/PDIF-out
Coaxial Jack
JSYS_FAN
S/PDIF-out
Optical
JCPU_FAN
JPWR_FAN
7.1 Audio Channel
COM1
USB2.0 x 4 ports
Figure 9 - I/O Ports
JCPU_FAN / JPWR_FAN / JSYS_FAN:
CPU/Power/Chassis Fan Power Connectors
JCPU_FAN: The CPU must be kept cool by using a
heatsink with fan assembly.
JPWR_FAN: If you are installing an additional fan
in the unit, connect to this fan
connector.
JSYS_FAN: The chassis fan will provide adequate
airflow throughout the chassis to
prevent overheating the CPU.
JCPU_FAN
JPWR_FAN
JSYS_FAN
Page 3-8
Control
This mainboard is equipped with intelligent fan
Sense
+12V
Ground
Sense
+12V
Ground
Sense
Ground
+12V
speed control. Refer to the PC Health Status
submenu of the BIOS.
IDE3
IDE1
FDD: Floppy Controller Connector
IDE1: ATA-66/100 IDE Connector
Supports up to 2 IDE devices from embedded IDE
controller .
FDD
When using two IDE drives, one must be set to
Master mode and the other to Slave mode. Refer to
your disk drive user’s manual for information about
selecting the proper drive switch settings.
Installation
34 33
2
FDD
PW2
4
3
+12V+12V
GroundGround
2
1
PW2
40 39
1
2
1
IDE1
PW1: 24-pin ATX Power Connector
PW2: 4-pin ATX12V Power Connector
The mainboard is equipped with a standard 24-pin
PW1
ATX main power connector and a 4-pin +12V
power connector for connecting an ATX12V
power supply. The plugs of the power cables are
designed to fit in only one orientation. Insert the
plugs into the connectors until they fit in place.
Caution:
The PW1 and PW2 Power Connector must be used simultaneously .
The board requires a minimum of 350 Watt power
supply to operate. Your system configuration (amount
of memory, add-in cards, peripherals, etc.) may
exceed this minimum power requirement. To ensure
that adequate power, use a 400 Watt or greater power
supply.
+12V
+12V
3.3V
23
1
PW1
24
Ground
+5V
+5V
+5V5VSB
-5VPW-OK
GroundGround
Ground+5V
GroundGround
PS-ON+5V
GroundGround
-12V3.3V
3.3V3.3V
11
Page 3-9
Loading...
