Intel 815E Little Board
USER’S MANUAL
Version 1.1
Acknowledgments
Award is a registered trademark of Award Software International, Inc. PS/2 is a trademark of International Business Machines Corporation. Intel and Celeron are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners.
Table of Contents
Introduction...............................................................1
Product Description..........................................................1
Checklist...........................................................................2
Specifications....................................................................3
Board Dimensions.............................................................4
Installations ..............................................................5
Installing the CPU.............................................................6
Installing the Memory (DIMM) .........................................7
Setting the Jumpers...........................................................8
Connectors on I815E.......................................................12
BIOS Setup..............................................................25
Drivers Installation.................................................47
Appendix.................................................................75
A. I/O Port Address Map....................................................... 75
B. Interrupt Request Lines (IRQ) .........................................76
I815E User’s Manual iii
A picture of the I815E Embedded Board
INTRODUCTION
Introduction
Product Description
I815E is a high-performance flexible embedded board based on the Intel 815E chipset that contains the Graphics and Memory Controller Hub (GMCH), the I/O Controller Hub (ICH2) and the Firmware Hub (FWH). It supports 66/100/133MHz system bus, up to 1.4GHz CPU speed, integrated 2D/3D graphics accelerator, and PC100/PC133 SDRAM modules. With the ICH2, it is able to support UDMA33/66/100, four USB ports, and integrated LAN.
System memory is provided by one 168-pin DIMM socket that accommodates SDRAM with a maximum capacity of 256MB. The Award BIOS facilitates easy system configuration and peripheral setup. Other advanced features include four USB ports, 256-level watchdog timer (supported by LPC I/O IT8712), and IrDA interface.
I815E User’s Manual 1
INTRODUCTION
Checklist
Your I815E package should include the items listed below.
• The I815E Embedded Little Board
• This User’s Manual
• 1 IDE Ribbon Cable
• 1 Floppy Ribbon Connector
• 1 CD containing the following:
• Chipset Drivers
• Flash Memory Utility
Specifications
INTRODUCTION
Processor Supported Chipset Intel 815E Chipset
BIOS Award BIOS; supports ACPI System Memory 1x DIMM socket supports up to 256MB capacity
LPC I/O Chipset ITE IT8712 (keyboard controller is built-in) I/O Features 1x FDD (up to 2.88MB, 3 Mode, LS120)
Bus Master IDE 2x IDE interfaces for up to 4 devices; supports PIO Mode VGA 815E integrated graphics
Audio ICH2 integrated audio with AC97 codec LAN ICH2 integrated Ethernet controller
Secondary LAN (Optional)
USB Two USB ports on board IrDA Pin header
Hardware Monitoring Watchdog Timer 256-level Watchdog timer
P/S Connector Rear Side
Connectors Form Factor
Dimensions
Socket 370 for Intel Celeron / Pentium III (FC-PGA), 533MHz~1.4GHz, 66/100/133MHz Bus Speed
GMCH: 82815 544-PIN BGA ICH2: 82801BA 360-PIN BGA FWH
PC100/PC133 DIMM modules supported
1x Parallel Port (EPP, ECP Port) 2x Serial Ports (1x RS232 and 1x RS232/422/485) 1x IrDA TX/RX Headers
3/4 or UDMA33/66/100 HDD, and ATAPI CD-ROM
Shared memory 4MB display cache on board VGA CRT connector on board Pin header for optional TV-Out (CH7007) daughter board with S-Video & RCA jacks
10Base-T / 100Base-TX protocol Primary RJ-45 Ethernet connector on board Optional Intel 82559 Ethernet controller 10Base-T / 100Base-TX protocol Optional Secondary RJ-45 Ethernet connector on board
Another two USB ports supported by USB pin header
Built-in IT8712 Monitors CPU/system temperature and voltages
ATX type power supply connector PS/2 keyboard, PS/2 mouse, Primary RJ45 connector;
optional secondary RJ-45 connector, printer port, VGA CRT, USBx2, serial Port, Microphone, speaker
5.25-inch SBC (Little Board) 203mm x 146mm (7.99” x 5.75”)
I815E User’s Manual 3
INTRODUCTION
Board Dimensions
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and connectors on the I815E in order to set up a workable system. The topics covered are:
Installing the CPU.............................................................6
Installing the Memory (DIMM) .........................................7
Setting the Jumpers...........................................................8
Connectors on I815E.......................................................12
I815E User’s Manual 5
INSTALLATIONS
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
Installing the CPU
The I815E board supports a Socket 370 processor socket for Intel Pentium III and Celeron processors.
The Socket 370 processor socket comes with a lever to secure the processor. Raise this lever to about a 90° angle to allow the insertion of
the processor. Place the processor into the socket by making sure the notch on the corner of the CPU corresponds with the notch on the inside of the socket. Once the processor has slide into the socket, return the lever to the lock position. Refer to the figures below.
After you have installed the processor into the socket, check if the jumpers for the CPU type and speed are correct.
NOTE:
cause your system to hang or be unstable.
INSTALLATIONS
Lock
Installing the Memory (DIMM)
The I815E board supports one 168-pin DIMM socket for a maximum total memory of 256MB in SDRAM type. The memory module capacities supported are 32MB, 64MB, 128MB and 256MB.
Installing and Removing DIMMs
To install the DIMM, locate the memory slot on the board and perform the following steps:
1. Hold the DIMM so that the two keys of the DIMM align with those on the memory slot.
2. Gently push the DIMM in an upright position until the clips of the slot close to hold the DIMM in place when the DIMM touches the bottom of the slot.
3. To remove the DIMM, press the clips with both hands.
Lock
I815E User’s Manual 7
DIMM
Top View of DIMM Socket
Lock
Lock
INSTALLATIONS
Setting the Jumpers
Jumpers are used on I815E to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on I815E and their respective functions.
Jumper Locations on I815E............................................................... 9
Configuring the CPU Frequency..................................................... 10
JP2: Clear CMOS Contents .............................................................10
JP5, JP7, JP8: RS232/422/485 (COM2) Selection....................... 10
JP6: BIOS Write Protect ..................................................................11
JP9, JP10: CPU Overclocking......................................................... 11
Jumper Locations on I815E
Jumpers:
JP2: Clear CMOS Contents JP5, JP7, JP8: RS232/422/485 (COM2) Selection JP6: BIOS Write Protect JP9, JP10: CPU Overclocking
INSTALLATIONS
I815E User’s Manual 9
INSTALLATIONS
Configuring the CPU Frequency
The I815E board does not provide DIP switches to configure the processor speed (CPU frequency). However, the processor speed can be configured inside the BIOS Setup. Refer to the BIOS Setup section in this manual on how to change the processor speed.
JP2: Clear CMOS Contents
Use JP2, a 3-pin header, to clear the CMOS contents. Note that the ATX-power connector should be disconnected from the board before clearing CMOS.
JP2 Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
Normal
Clear CMOS
JP5, JP7, JP8: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only. COM2 is selectable for RS232, RS-422 and RS-485. The following table describes the jumper settings for COM2 selection.
COM2
Function
Jumper
Setting
(pin closed)
RS-232 RS-422 RS-485
JP7:
1-2
JP5:
3-5 & 4-6
JP8:
3-5 & 4-6
JP7:
3-4
JP5:
1-3 & 2-4
JP8:
1-3 & 2-4
JP7:
5-6
JP5:
1-3 & 2-4
JP8:
1-3 & 2-4
INSTALLATIONS
JP6: BIOS Write Protect
JP6 can be used to protect the BIOS from being overwritten due to accidental modification or virus attacks.
JP6 Write Protect
Enabled
Disabled
JP9, JP10: CPU Overclocking
Use JP9 and JP10 2-pin jumpers when overclocking the CPU bus speed from 66MHz to 100MHz or 100MHz to 133MHz. Refer to the table below. Note that some processors cannot be overclocked because their bus speed has been ‘locked’ by the manufacturer and overclocking can cause the system to hang or become unstable.
Jumper Normal 66à100MHz 100à133MHz
JP9
JP10
I815E User’s Manual 11
INSTALLATIONS
[
Connectors on I815E
The connectors on I815E allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following table lists the connectors on I815E and their respective functions.
Connector Locations on I815E........................................................ 13
IDE1, IDE2: Primary and Secondary IDE Connectors................... 14
FDD1: Floppy Drive Connector......................................................15
J2: System Function Connector.......................................................15
FAN1: CPU Fan Power Connector.................................................17
FAN2, FAN3: System Fan Power Connectors ...............................18
J1, J3: Line-out and Microphone connectors..................................18
J4, J5: CD In Connectors ................................................................18
J6: Secondary RJ45 Connector (optional) ......................................18
J7: USB3/USB4 Connector............................................................. 19
J8: VGA CRT Connector.................................................................19
J10: Parallel Port Connector............................................................20
J11: TV-Out Interface Connector.................................................... 20
J13: Wake On LAN Connector........................................................20
J15, J12: COM1 / COM2 Serial Ports............................................ 21
J16: USB and Primary RJ45 Connectors........................................ 22
J17: Smart Card Reader Interface.................................................... 22
J18: +5V Standby Connector...........................................................22
J19: IrDA Connector........................................................................ 23
J21: External Keyboard Connector..................................................23
J22: Game Port Connector...............................................................23
J23: External PS/2 Mouse Connector............................................. 23
J24, J25: PS/2 Mouse and PS/2 Keyboard Connectors.................. 24
J26: ATX Power Supply Connector ................................................24
Connector Locations on I815E
Connectors:
IDE1, IDE2: Primary and Secondary IDE Connectors FDD1: Floppy Drive Connector J2: System Function Connector FAN1: CPU Fan Power Connector FAN2, FAN3: System Fan Power Connectors J1, J3: Line-out and Microphone connectors J4, J5: CD In Connectors J6: Secondary RJ45 Connector (optional) J7: USB3/USB4 Connector J8: VGA CRT Connector J10: Parallel Port Connector J11: TV-Out Interface Connector J13: Wake On LAN Connector J15, J12: COM1 / COM2 Serial Ports J16: USB and Primary RJ45 Connectors J17: Smart Card Reader Interface J18: +5V Standby Connector J19: IrDA Connector J21: External Keyboard Connector J22: Game Port Connector J23: External PS/2 Mouse Connector J24, J25: PS/2 Mouse and PS/2 Keyboard Connectors J26: ATX Power Supply Connector
INSTALLATIONS
I815E User’s Manual 13
INSTALLATIONS
IDE1, IDE2: Primary and Secondary IDE Connectors
IDE1
IDE2
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15
Ground 19 20 Key
DRQ0 21 22 Ground Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
Vcc 41 42 Vcc
Ground 43 44 N.C.
INSTALLATIONS
FDD1: Floppy Drive Connector
FDD1 is a 34-pin header and will support up to 2.88MB floppy drives.
Signal Name Pin # Pin # Signal Name
Ground 1 2 RM/LC Ground 3 4 No connect Ground 5 6 No connect Ground 7 8 Index Ground 9 10 Motor enable 0 Ground 11 12 Drive select 1 Ground 13 14 Drive select 0 Ground 15 16 Motor enable 1 Ground 17 18 Direction Ground 19 20 Step Ground 21 22 Write data Ground 23 24 Write gate Ground 25 26 Track 00
FDD1
Ground 27 28 Write protect Ground 29 30 Read data Ground 31 32 Side 1 select Ground 33 34 Diskette change
J2: System Function Connector
J2 provides connectors for system indicators that provide light indication of the computer activities and switches to change the computer status. J2 is a 20-pin header that provides interfaces for the following functions.
Hard Disk Drive LED
Turbo LED Connector
SMI / Hardware Switch
Reset Switch
ATX Power On Switch
Speaker
Power LED
I815E User’s Manual 15
INSTALLATIONS
Speaker: Pins 1 - 4
This connector provides an interface to a speaker for audio tone generation. An 8-ohm speaker is recommended.
Pin # Signal Name
1 Speaker out 2 No connect 3 Ground 4 +5V
Power LED: Pins 11 - 15
The power LED indicates the status of the main power
SMI/Hardware Switch: Pins 6 and 16
switch.
Pin # Signal Name
11 Power LED 12 No connect 13 Ground 14 No connect 15 Ground
This connector supports the "Green Switch" on the control panel, which, when pressed, will force the system into the power-saving mode immediately.
Pin # Signal Name
6 Sleep
16 Ground
ATX Power ON Switch: Pins 7 and 17
This 2-pin connector is an “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed again, it will force the system to power off.
Turbo LED Connector: Pins 8 and 18
There is no turbo/deturbo function on the board. The Turbo LED on the control panel will always be On when attached to this connector.
Pin # Signal Name
8 5V
Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without turning the main power switch off and then on again. Orientation is not required when making a connection to this header.
18 Ground
INSTALLATIONS
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed.
Pin # Signal Name
10 Ground 20 5V
FAN1: CPU Fan Power Connector
FAN1 is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin # Signal Name
3 2 1
1 Ground 2 +12V 3 Rotation detection
I815E User’s Manual 17
INSTALLATIONS
FAN2, FAN3: System Fan Power Connectors
FAN2 and FAN3 are 3-pin headers for the system fans. The fans must support 12V.
Pin # Signal Name
1 Ground 2 +12V 3 Rotation detection
3 2 1
J1, J3: Line-out and Microphone connectors
J1 ad J3 are connectors for Line out and Microphone jacks.
J4, J5: CD In Connectors
J4 and J5 are the CD-in connectors. Below is their pin out assignments.
1 2 3 4
4 3 2 1
J4 J5
Signal Name Pin # Pin # Signal Name
Ground 1 1 Right
Left 2 2 Ground
Ground 3 3 Ground
Right 4 4 Left
J6: Secondary RJ45 Connector (optional)
J6 is the secondary RJ-45 Ethernet connector, supporting the optional 82559 Ethernet controller, located between the Microphone connector and VGA CRT connector. Refer to the section below for its pin assignments.
INSTALLATIONS
J7: USB3/USB4 Connector
J7 is the onboard USB pin-header that supports an optional USB connector cable with two ports for USB3 and USB4.
Pin # Signal Name
1 8 Vcc 2 7 USB­3 6 USB+ 4 5 Ground
J8: VGA CRT Connector
J8 is a DB-15 VGA connector located beside the COM1 port. The following table shows the pin-out assignments of this connector.
Signal Name Pin # Pin #
Red 1 2 Green
Blue 3 4 N.C.
Signal Name
GND 5 6 GND GND 7 8 GND
N.C. 9 10 GND N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
I815E User’s Manual 19
INSTALLATIONS
J10: Parallel Port Connector
J10 is a DB-25 external connector situated on top of the VGA and serial ports. The following table describes the pin-out assignments of this connector.
Signal Name Pin # Pin # Signal Name
Line printer strobe 1 14 AutoFeed PD0, parallel data 0 2 15 Error PD1, parallel data 1 3 16 Initialize PD2, parallel data 2 4 17 Select PD3, parallel data 3 5 18 Ground PD4, parallel data 4 6 19 Ground PD5, parallel data 5 7 20 Ground PD6, parallel data 6 8 21 Ground PD7, parallel data 7 9 22 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A
J11: TV-Out Interface Connector
The J11 34-pin header is used to connect, through the use of a ribbon cable, to the 34-pin header of an optional daughter card (IBD742) containing the S-VHS and RCA connectors.
J13: Wake On LAN Connector
J13 is a 3-pin header for the Wake On LAN function on the board. The following table shows the pin out assignments of this connector. Wake On LAN will function properly only with an ATX power supply with 5VSB that has 200mA.
Pin # Signal Name
1 2 3
1 +5VSB 2 Ground 3 -PME
INSTALLATIONS
J15, J12: COM1 / COM2 Serial Ports
J15 (COM1) is a DB-9 connector, while J12 (COM2) is a 10-pin header. Refer to the table below for their pin assignments.
COM1 COM2
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
J12 (COM2) is jumper selectable for RS-232, RS-422 and RS-485.
Ground 5 10 Not Used
Pin #
RS-232 R2-422 RS-485
Signal Name
1 DCD TX- DATA­2 RX TX+ DATA+ 3 TX RX+ NC 4 DTR RX- NC 5 Ground Ground Ground 6 DSR RTS- NC 7 RTS RTS+ NC 8 CTS CTS+ NC 9 RI CTS- NC
10 NC NC NC
I815E User’s Manual 21
INSTALLATIONS
J16: USB and Primary RJ45 Connectors
J16 consists of the primary RJ-45 connector (top) and two stacked USB ports. Refer to the section below for their respective pin assignments.
USB1
Pin # Signal Name
1 Vcc 2 USB­3 USB+
USB2
4 Ground
J17: Smart Card Reader Interface
J17 is a 14-pin header that provides interface for a Smart Card Reader. The table below shows the pin assignments of this pin header.
J18: +5V Standby Connector
J18 is the +5V standby 2-pin connector. Refer to the pin assignments below.
Signal Name Pin # Pin # Signal Name
Vcc 1 2 No connect
-SCRFET 3 4 SCRRST SCRCLK 5 6 SCRIO
Ground 7 8 -SCRPRES
INSTALLATIONS
J19: IrDA Connector
J19 is used for an optional IrDA connector for wireless communication.
+5V IRRX IRTX
Pin # Signal Name
1 +5V 2 No connect 3 Ir RX 4 Ground 5 Ir TX
N.C. GND
J21: External Keyboard Connector
Signal Name Pin # Pin # Signal Name
Vcc
KBDAT_OUT
KBDAT_IN
1 4 2 5 3 6
KBCLK_OUT
KBCLK_IN
GND
J22: Game Port Connector
J22 is a 16-pin game port pin header for devices such as joysticks.
Signal Name Pin # Pin # Signal Name
VCC 1 9 Vcc JOY3 2 10 JOY7 JOY1 3 11 JOY5
Ground 4 12 Midi-Out Ground 5 13 JOY6
J23: External PS/2 Mouse Connector
JOY2 6 14 JOY8 JOY4 7 15 Midi-In
Vcc 8 16 No connect
Signal Name Pin # Pin # Signal Name
Vcc
MSDAT_OUT
MSDAT_IN
1 4 2 5 3 6
MSCLK_OUT
MSCLK_IN
GND
I815E User’s Manual 23
INSTALLATIONS
J24, J25: PS/2 Mouse and PS/2 Keyboard Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
J26: ATX Power Supply Connector
J26 is a 20-pin ATX power supply connector. Refer to the following table for the pin out assignments.
11 1
Signal Name Pin # Pin # Signal Name
3.3V 11 1 3.3V
-12V 12 2 3.3V
Ground 13 3 Ground
PS-ON 14 4 +5V Ground 15 5 Ground Ground 16 6 +5V Ground 17 7 Ground
-5V 18 8 Power good
20 10
+5V 19 9 5VSB +5V 20 10 +12V
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Award BIOS that comes with the board. The topics covered in this chapter are as follows:
BIOS Introduction............................................................................26
BIOS Setup........................................................................................26
Standard CMOS Setup......................................................................28
Advanced BIOS Features..................................................................31
Advanced Chipset Features.............................................................. 34
Integrated Peripherals....................................................................... 36
Power Management Setup................................................................39
PNP/PCI Configurations..................................................................42
PC Health Status...............................................................................43
Frequency/Voltage Control..............................................................44
Load Fail-Safe Defaults ...................................................................45
Load Setup Defaults......................................................................... 45
Set Supervisor/User Password......................................................... 45
Save & Exit Setup.............................................................................45
Exit Without Saving......................................................................... 45
I815E User’s Manual 25
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel Pentium II/III processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.
BIOS SETUP
changes with Setup, the Award BIOS supports an override to
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP/PCI Configurations Save & Exit Setup PC Health Status Exit Without Saving ESC : Quit á â à ß : Select Item F10 : Save & Exit Setup
Time, Date, Hard Disk Type…
The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below the control keys section, there is another section which displays information on the currently highlighted item in the list.
Note:
If the system cannot boot after making and saving system
the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.
I815E User’s Manual 27
BIOS SETUP
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the board is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.
Date (mm:dd:yy) Tue, Mar 26 2001 Item Help Time (hh:mm:ss) 00 : 00 : 00 Menu Level
IDE Primary Master Press Enter 13020 MB Change the day, month, IDE Primary Slave Press Enter None Year and century IDE Secondary Master Press Enter None IDE Secondary Slave Press Enter None
Drive A 1.44M, 3.5 in. Drive B None
Video EGA/VGA Halt On All, But Keyboard
Base Memory 640K Extended Memory 129024K Total Memory 130048K
At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.
Date
The date format is:
Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1994 to 2079
To set the date, highlight the “Date” field and use the PageUp/ PageDown or +/- keys to set the current time.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Standard CMOS Features
BIOS SETUP
Time
The time format is: Hour : 00 to 23
Minute : 00 to 59 Second : 00 to 59
To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn> or +/- keys to set the current time.
IDE Primary HDDs / IDE Secondary HDDs
The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE devices. Each channel can support up to two hard disks; the first is the “Master” and the second is the “Slave”.
Press <Enter> to configure the hard disk. The selections include Auto, Manual, and None. Select ‘Manual’ to define the drive information manually. You will be asked to enter the following items.
CYLS : Number of cylinders HEAD : Number of read/write heads PRECOMP : Write precompensation LANDZ : Landing zone SECTOR : Number of sectors
The Access Mode selections are as follows: Auto
Normal (HD < 528MB) Large (for MS-DOS only) LBA (HD > 528MB and supports
Logical Block Addressing)
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has been installed in the computer. The available specifications are: 360KB
5.25 in.
1.2MB
5.25 in.
720KB
3.5 in.
1.44MB
3.5 in.
2.88MB
3.5 in.
I815E User’s Manual 29
BIOS SETUP
The system boot will not be halted for any error
error,
The system boot will not be halted for a
The system boot will not be halted for a disk
Video
This field selects the type of video display card installed in your system. You can choose the following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an error is detected during power up. No errors
that may be detected.
All errors Whenever the BIOS detects a non-fatal
the system will stop and you will be prompted.
All, But Keyboard
keyboard error; it will stop for all other errors
All, But Diskette
error; it will stop for all other errors.
All, But Disk/Key The system boot will not be halted for a key-
board or disk error; it will stop for all others.
BIOS SETUP
Advanced BIOS Features
This section allows you to configure and improve your system and allows you to set up some system features according to your preference.
Virus Warning Disabled ITEM HELP CPU Internal Cache Enabled Menu Level External Cache Enabled CPU L2 Cache ECC Checking Enabled Processor Number Feature Enabled Quick Power On Self Test Enabled First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device CDROM Boot Other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Disabled Boot Up Numlock Status On Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup OS Select For DRAM>64MB Non-OS2 Report No FDD For WIN 95 No Small Logo (EPA) Show
Virus Warning
This item protects the boot sector and partition table of your hard disk against accidental modifications. If an attempt is made, the BIOS will halt the system and display a warning message. If this occurs, you can either allow the operation to continue or run an anti-virus program to locate and remove the problem.
CPU Internal Cache / External Cache
Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. These items allow you to enable (speed up memory access) or disable the cache function. By default, these items are Enabled.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Advanced BIOS Features
Enabled
Allows you choose the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep
I815E User’s Manual 31
BIOS SETUP
CPU L2 Cache ECC Checking
This field enables or disables the ECC (Error Correction Checking) checking of the CPU level-2 cache. The default setting is Enabled.
Processor Number Feature
When enabled, this feature allows external systems to detect the processor number/type of the CPU.
Quick Power On Self Test
When enabled, this field speeds up the Power On Self Test (POST) after the system is turned on. If it is set to Enabled, BIOS will skip some items.
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an operating system. The options available include Floppy, LS/ZIP, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, LAN and Disable.
Boot Other Device
These fields allow the system to search for an operating system from other devices other than the ones selected in the First/Second/Third Boot Device.
Swap Floppy Drive
This item allows you to determine whether or not to enable Swap Floppy Drive. When enabled, the BIOS swaps floppy drive assignments so that Drive A becomes Drive B, and Drive B becomes Drive A. By default, this field is set to Disabled.
Boot Up Floppy Seek
When enabled, the BIOS will seek whether or not the floppy drive installed has 40 or 80 tracks. 360K type has 40 tracks while 760K, 1.2M and 1.44M all have 80 tracks.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up the system.
Gate A20 Option
This field allows you to select how Gate A20 is worked. Gate A20 is a device used to address memory above 1 MB.
BIOS SETUP
Typematic Rate Setting
When disabled, continually holding down a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to 250msec.
Security Option
This field allows you to limit access to the System and Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is Non-OS/2.
Small Logo (EPA) Show
This field enables the showing of the EPA logo located at the upper right of the screen during boot up.
I815E User’s Manual 33
BIOS SETUP
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
SDRAM CAS Latency Time 3 ITEM HELP SDRAM Cycle Time Tras/Trc Auto Menu Level SDRAM RAS-to-CAS Delay Auto SDRAM RAS Precharge Time Auto System BIOS Cacheable Disabled Video BIOS Cacheable Disabled CPU Latency Timer Enabled Delayed Transaction Enabled AGP Graphics Aperture Size 64MB System Memory Frequency 100Mhz On-Chip Video Window Size 64MB
SDRAM CAS Latency Time
You can select CAS latency time in HCLKs of 2/2 or 3/3. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU. The choices are 2 and 3.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Advanced Chipset Features
SDRAM Cycle Time Tras/Trc
The default setting for the SDRAM Cycle Time Tras/Trc is Auto.
SDRAM RAS-to-CAS Delay
You can select RAS to CAS Delay time in HCLKs of 2/2 or 3/3. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU. The choices are Auto, 2 and 3.
SDRAM RAS Precharge Time
This option defines the length of time for Row Address Strobe is allowed to precharge. The choices are Auto, 2 and 3.
System BIOS Cacheable
The setting of Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.
BIOS SETUP
Video BIOS Cacheable
The Setting Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh, resulting in better video performance. However, if any program writes to this memory area, a system error may result.
CPU Latency Timer
The default setting for the CPU Latency Timer is Enabled.
Delayed Transaction
The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.
AGP Aperture Size
The field sets aperture size of the graphics. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. The default setting is 64M.
System Memory Frequency
This field sets the frequency of the memory installed in the board. The default setting is 100MHz.
On-Chip Video Window Size
The setting choices for the On-Chip Video Window Size are 64MB and 32MB. By default, this option is set to 64MB.
I815E User’s Manual 35
BIOS SETUP
Integrated Peripherals
This section sets configurations for your hard disk and other integrated peripherals.
On-Chip Primary PCI IDE On-Chip Secondary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Secondary Master PIO IDE Secondary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA IDE Secondary Master UDMA IDE Secondary Slave UDMA USB Controller USB Keyboard Support
Init Display First PCI Slot AC97 Audio Auto IDE HDD Block Mode Enabled POWER ON Function BUTTON ONLY KB Power ON Password Enter Hot Key Power ON Ctrl-F1 Onboard FDC Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART Mode Select Normal UR2 Duplex Mode Half Onboard Parallel Port 378/IRQ7 Parallel Port Mode SPP ECP Mode Use DMA 3 Game Port Address 201 Midi Port Address 330 Midi Port IRQ 10
OnChip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster. Rather than have the BIOS issue a series of commands that transfer to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Integrated Peripherals Enabled ITEM HELP
Enabled Menu Level Auto Auto Auto Auto Auto Auto Auto Auto Enabled Disabled
BIOS SETUP
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are Auto and Disabled.
USB Controller
The options for this field are Enabled and Disabled. By default, this field is set to Enabled.
USB Keyboard Support
The options for this field are Enabled and Disabled. By default, this field is set to Disabled.
Init Display First
This field allows the system to initialize first the VGA card on chip or the display on the PCI Slot. By default, the PCI Slot VGA is initialized first.
AC97 Audio
The default setting of the AC97 Audio is Auto.
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.
POWER ON Function
This field allows powering on by the following methods:
Password Hot KEY Mouse Left Mouse Right
Any KEY BUTTON ONLY Keyboard 98
KB Power ON Password
This field allows you to set the power on function via the keyboard.
Hot Key Power ON
This field allows you to set the power on function via hot keys on the keyboard including Ctrl-F1 to Ctrl-F12.
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed on the board and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field. This option allows you to select the onboard FDD port.
I815E User’s Manual 37
BIOS SETUP
Onboard Serial/Parallel Port
These fields allow you to select the onboard serial and parallel ports and their addresses. The default values for these ports are: Serial Port 1 3F8H/IRQ4 Serial Port 2 2F8H/IRQ3 Parallel Port 378H/IRQ7
UART Mode Select
This field determines the UART 2 mode in your computer. The default value is Normal. Other options include IrDA and ASKIR.
Parallel Port Mode
This field allows you to determine parallel port mode function. SPP Standard Printer Port EPP Enhanced Parallel Port ECP Extended Capabilities Port
Midi Port Address
The option settings for this field are 330, 400 and Disabled. The default setting is 330.
Game Port Address
The default setting is 201.
Midi Port IRQ
The default Midi Port IRQ is 10.
BIOS SETUP
the ranges is from 1 min. to 1hr.
Except for HDD Power Down which
Power Management Setup
The Power Management Setup allows you to save energy of your system effectively.
ACPI Function ACPI Suspend Type Power Management Video Off Method Video Off In Suspend Suspend Type Modem Use IRQ Suspend Mode HDD Power Down
Soft-Off by PWR-BTTN Wake-up by PCI card Power On by Ring Resume by Alarm Date (of Month) Alarm 0 Time (hh:mm:ss) Alarm 0: 0: 0
** Reload Global Timer Events ** Primary IDE 0 Enabled Primary IDE 1 Enabled Secondary IDE 0 Enabled Secondary IDE 1 Enabled FDD, COM, LPT Port Enabled PCI PIRQ[A-D] # Enabled
ACPI Function
Enable this function to support ACPI (Advance Configuration and Power Interface).
ACPI Suspend Type
This option sets the ACPI Power Management standby state. The default is S1 (POS).
Power Management
This field allows you to select the type of power saving management modes. There are four selections for Power Management.
Min. Power Saving Minimum power management Max. Power Saving Maximum power management. User Define Each of
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Power Management Setup
Enabled ITEM HELP (S1 (POS) Menu Level User Define DPMS Yes Stop Grant 3 Disabled Disabled
Instant-Off Disabled Disabled Disabled
I815E User’s Manual 39
ranges from 1 min. to 15 min. (Default)
BIOS SETUP
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank Default setting, blank the screen and turn off
vertical and horizontal scanning.
DPMS Allows the BIOS to control the video
display card if it supports the DPMS feature.
Blank Screen This option only writes blanks to the video
buffer.
Video Off In Suspend
When enabled, the video is off in suspend mode. The default setting is Yes.
Suspend Type
The default setting for the Suspend Type field is Stop Grant.
Modem Use IRQ
This field sets the IRQ used by the Modem. By default, the setting is 3.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices except the CPU will be shut off.
HDD Power Down
When enabled, and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.
Soft-Off by PWRBTN
This field defines the power-off mode when using an ATX power supply. The Instant Off mode allows powering off immediately upon pressing the power button. In the Delay 4 Sec mode, the system powers off when the power button is pressed for more than four seconds or enters the suspend mode when pressed for less than 4 seconds. The default value is Instant Off.
Wake-up by PCI Card
This field enables or disables the wake up function through a PCI card.
Power On by Ring
This field enables or disables the power on of the system through the modem connected to the serial port or LAN.
BIOS SETUP
Resume by Alarm
This field enables or disables the resumption of the system operation. When enabled, the user is allowed to set the Date and Time.
Reload Global Timer Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events which can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.
I815E User’s Manual 41
BIOS SETUP
PNP/PCI Configurations
This option configures the PCI bus system. All PCI bus systems on the system use INT#, thus all installed PCI cards must be set to this value.
Reset Configuration Data
Resources Controlled By IRQ Resources
PCI/VGA Palette Snoop
Reset Configuration Data
This field allows you to determine whether to reset the configuration data or not. The default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices automatically with the use of a use a PnP operating system such as Windows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly. This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
PnP/PCI Configurations
Disabled ITEM HELP
Auto (ESCD) Press Enter
Disabled
Menu Level
Default is Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot
BIOS SETUP
PC Health Status
This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.
Shutdown Temperature Disabled Vcore (V) +1.8(V) VCC3(V) +5(V) +12(V)
-12(V)
-5(V) 5VSB(V) Voltage Battery System Temp. CPU Temp. System Temp. CPU Fan Speed System Fan Speed System Fan Speed
Shutdown Temperature
This field allows the user to set the temperature by which the system automatically shuts down once the threshold temperature is reached. This function can help prevent damage to the system that is caused by overheating.
Temperatures/Fan Speeds/Voltages
These fields are the parameters of the hardware monitoring function feature of the board. The values are read-only values as monitored by the system and show the PC health status.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
PC Health Status
1.63V
1.79V
3.37V
5.05V
12.09V
(-)12.03V
-5.05V
4.70V
3.24V 41°C 59°C 41°C
4166 RPM
0 RPM 0 RPM
ITEM HELP
I815E User’s Manual 43
BIOS SETUP
Frequency/Voltage Control
This section shows the user how to configure the processor frequency.
Auto Detect DIMM/PCI Clk Spread Spectrum Host CPU/PCI Clock CPU Clock Ratio
Auto Detect DIMM/PCI Clk
This field enables or disables the auto detection of the DIMM/PCI clock. The default setting is Disabled.
Spread Spectrum
This field sets the value of the spread spectrum. The default setting is Disabled. This field is for CE testing use only.
Host CPU/PCI Clock
The Host CPU/PCI Clock has a default setting of Default which automatically detects the systems host CPU clock and PCI clock. You can also use this parameter to overclock your system. However, it is important to note that overclocking the system/CPU can cause your system to become unstable or crash.
CPU Clock Ratio
The CPU Ratio, also known as the CPU bus speed multiplier, can be configured through this field. The default setting is X 3. This parameter can be used in conjunction with the above field to change the processor’s speed.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Frequency/Voltage Control
Disabled ITEM HELP Disabled Default X 3
Menu Level
BIOS SETUP
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features.
Load Setup Defaults
This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.
Set Supervisor/User Password
These two options set the system password. Supervisor Password sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the modifications. If you type “Y”, you will quit the setup utility and save all changes into the CMOS memory. If you type “N”, you will return to Setup utility.
Exit Without Saving
Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.
I815E User’s Manual 45
BIOS SETUP
This page is intentionally left blank.
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and drivers under the Windows 98, Windows NT 4.0 and Windows 2000. The software and drivers are included with the board. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:
I815E Windows 98 Drivers Installation...........................48
Intel Software Installation Utility.........................................48
Intel Ultra ATA Storage Driver ............................................49
Intel 815E Chipset VGA Driver...........................................51
SigmaTel AC97 Audio Drivers............................................ 52
I815E Windows NT 4.0 Drivers Installation....................54
Intel Ultra ATA Storage Driver ............................................54
Intel 815E Chipset VGA Driver...........................................57
SigmaTel AC97 Audio Drivers............................................ 59
I815E Windows 2000 Drivers Installation .......................62
Intel Software Installation Utility.........................................62
Intel Ultra ATA Storage Driver ............................................63
Intel 815E Chipset VGA Driver...........................................65
SigmaTel AC97 Audio Drivers............................................ 66
Intel 82559 LAN Drivers Installation...............................68
Introduction...........................................................................68
Making Floppy Disks for NetWare and Windows Installation68
Installing LAN Drivers for Windows 95..............................69
Installing LAN Drivers for Windows 98..............................69
Installing LAN Drivers for Windows NT.............................70
Installing LAN Drivers for Windows 2000......................... 70
TV Out Drivers Installation.............................................71
I815E User’s Manual 47
DRIVERS INSTALLATION
I815E Windows 98 Drivers Installation
Intel Software Installation Utility
The Intel Chipset Software Installation Utility will enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation under Windows 98.
1. Insert the CD that comes with the board. In the initial screen, Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel Chipset Software Installation Utility.
3. When the Welcome screen appears, click Next to continue.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. On the Readme Information screen, click Next to continue the installation.
6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect. When the computer has restarted, the system will be able to find some devices. Restart your computer when prompted.
DRIVERS INSTALLATION
Intel Ultra ATA Storage Driver
Follow the steps below to install Intel Ultra ATA Storage Driver with the InstallShield Wizard under Windows 98.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel Ultra ATA IDE Driver.
3. The Welcome screen of the Install Shield Wizard for Intel Ultra ATA Storage Driver appears. To continue, click Next.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. You are now required to Select the folder where Setup will install files. Click Next to accept the default folder or click Browse to configure the location.
I815E User’s Manual 49
DRIVERS INSTALLATION
6. You are now asked to select a program folder. Click Next to accept the default program folder or enter the folder name you prefer.
7. The InstallShield Wizard has completed installation. Click Finish for the computer to restart and changes to take effect.
DRIVERS INSTALLATION
Intel 815E Chipset VGA Driver
Follow the steps below to install Intel 81x Family Chipset Graphics Driver Software under Windows 98.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel 815x Chipset Graphics Driver.
3. The Welcome screen of the Intel 81x Family Chipset Graphics Driver Software Setup program appears. To continue, click Next.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. The Setup program has now completed installation. Click Finish for the computer to restart and changes to take effect.
I815E User’s Manual 51
DRIVERS INSTALLATION
SigmaTel AC97 Audio Drivers
Follow the steps below to install SigmaTel AC97 Audio Drivers on your system under Windows 98.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click SigmaTel AC97 Audio Driver.

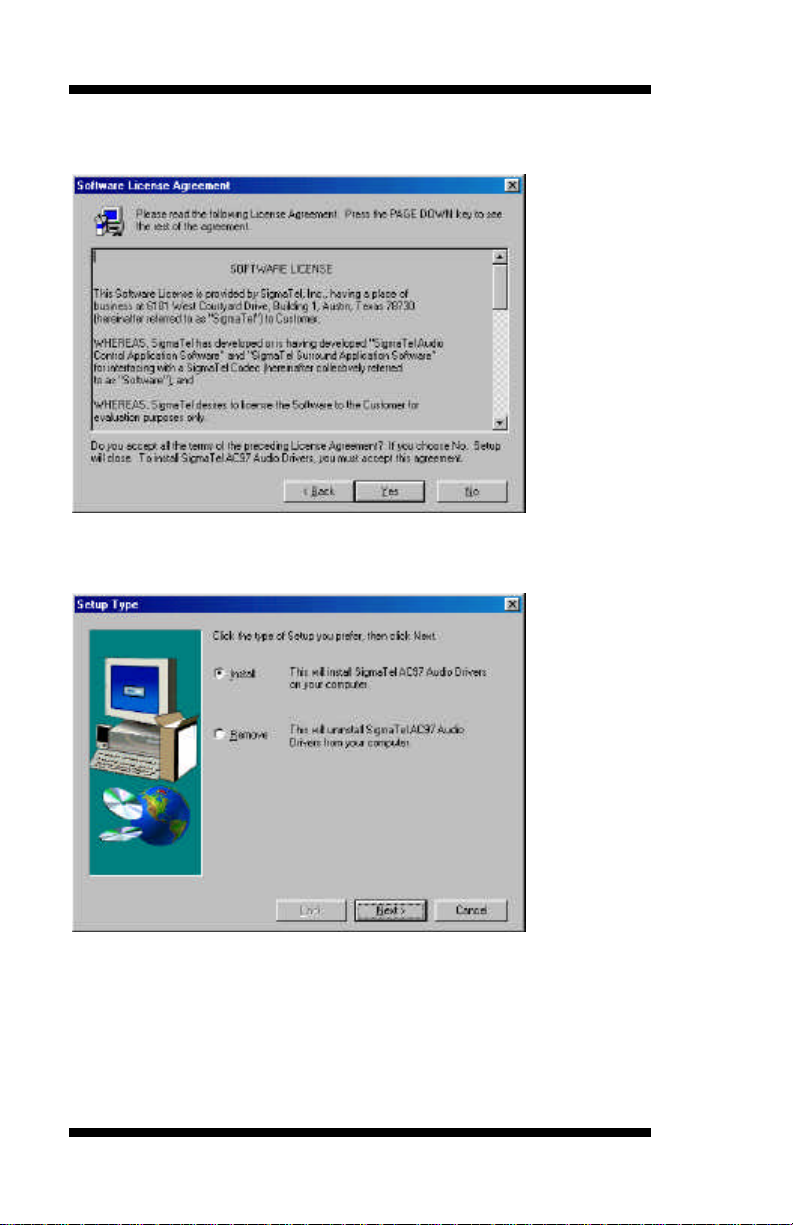

3. The Welcome screen of the SigmaTel AC97 Audio Driver Setup program appears. To continue, click Next.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. Select Install and click Next to install SigmaTel AC97 Audio Drivers on your system.
DRIVERS INSTALLATION
6. The Setup program has now completed installation. Click Finish for the computer to restart and changes to take effect.
7. After the system has restarted, a screen would appear saying it was able to find the device “Intel AC’97 Audio Controller.” Click Next to continue.
8. Now click Select to “Search for the best river for your device (Recommended).” Click Next, then click Select to “specify a location”. Now enter the path as “d:\intel\i815e\sound\win98\driver\wdm” (This is assuming drive D: is your CD-ROM drive.
9. Now click Next and Next again. You are now prompted to place the Windows 98 CD into the CD-ROM drive. Do so accordingly and click OK. Then click Finish to restart the system and for changes to take effect.
I815E User’s Manual 53
DRIVERS INSTALLATION
I815E Windows NT 4.0 Drivers Installation
Intel Ultra ATA Storage Driver
Follow the steps below to install Intel Ultra ATA Storage Driver with the InstallShield Wizard under Windows NT 4.0.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel Ultra ATA IDE Driver.
3. The Welcome screen of the Install Shield Wizard for Intel Ultra ATA Storage Driver appears. To continue, click Next.
DRIVERS INSTALLATION
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. You are now required to Select the folder where Setup will install files. Click Next to accept the default folder or click Browse to configure the location.
I815E User’s Manual 55
DRIVERS INSTALLATION
6. You are now asked to select a program folder. Click Next to accept the default program folder or enter the folder name you prefer.
7. The InstallShield Wizard has completed installation. Click Finish for the computer to restart and changes to take effect.
DRIVERS INSTALLATION
Intel 815E Chipset VGA Driver
Follow the steps below to install Intel 81x Family Chipset Graphics Driver Software under Windows NT 4.0.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel 81x Chipset Graphics Driver.
3. The Welcome screen of the Intel 81x Family Chipset Graphics Driver Software Setup program appears. To continue, click Next.
I815E User’s Manual 57
DRIVERS INSTALLATION
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. The Setup program has now completed installation. Click Finish for the computer to restart and changes to take effect.
DRIVERS INSTALLATION
SigmaTel AC97 Audio Drivers
Follow the steps below to install SigmaTel AC97 Audio Drivers on your system under Windows NT 4.0.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click SigmaTel AC97 Audio Driver.
3. The Welcome screen of the SigmaTel AC97 Audio Driver Setup program appears. To continue, click Next.
I815E User’s Manual 59
DRIVERS INSTALLATION
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. Select Install and click Next to install SigmaTel AC97 Audio Drivers on your system.
DRIVERS INSTALLATION
6. The Setup program has now completed installation. Click Finish for the computer to restart and changes to take effect.
7. After the system has restarted, a screen would appear showing some installation information. Restart the system when prompted to complete the audio driver installation.
I815E User’s Manual 61
DRIVERS INSTALLATION
I815E Windows 2000 Drivers Installation
Intel Software Installation Utility
The Intel Chipset Software Installation Utility will enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation under Windows 2000.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel Chipset Software Installation Utility.
3. When the Welcome screen appears, click Next to continue.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. On the Readme Information screen, click Next to continue the installation.
6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect. When the computer has restarted, the system will be able to find some devices. Restart your computer when prompted.
DRIVERS INSTALLATION
Intel Ultra ATA Storage Driver
Follow the steps below to install Intel Ultra ATA Storage Driver with the InstallShield Wizard under Windows 98.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel Ultra ATA IDE Driver.
3. The Welcome screen of the Install Shield Wizard for Intel Ultra ATA Storage Driver appears. To continue, click Next.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. You are now required to Select the folder where Setup will install files. Click Next to accept the default folder or click Browse to configure the location.
I815E User’s Manual 63
DRIVERS INSTALLATION
6. You are now asked to select a program folder. Click Next to accept the default program folder or enter the folder name you prefer.
7. The InstallShield Wizard has completed installation. Click Finish for the computer to restart and changes to take effect.
DRIVERS INSTALLATION
Intel 815E Chipset VGA Driver
Follow the steps below to install Intel 81x Family Chipset Graphics Driver Software under Windows 2000.
1. Insert the CD that comes with the board. In the initial scrren, click Intel 815(E) Driver.
2. In the Intel 815 Driver screen, click Intel 815x Chipset Graphics Driver.
3. The Welcome screen of the Intel 815x Family Chipset Graphics Driver Software Setup program appears. To continue, click Next.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. The Setup program has now completed installation. Click Finish for the computer to restart and changes to take effect.
I815E User’s Manual 65
DRIVERS INSTALLATION
SigmaTel AC97 Audio Drivers
Follow the steps below to install SigmaTel AC97 Audio Drivers on your system under Windows 2000.
1. Insert the CD that comes with the board. The CD will autorun and show an initial screen. Click Intel 815(E) Driver.
2. Click SigmaTel AC97 Audio Driver.
3. The Welcome screen of the SigmaTel AC97 Audio Driver Setup program appears. To continue, click Next.
4. Click Yes to accept the software license agreement and proceed with the installation process.
5. Select Install and click Next to install SigmaTel AC97 Audio Drivers on your system.
DRIVERS INSTALLATION
6. A window appears indicating that the software to be installed does not contain a Microsoft digital signature. Click Yes to continue the installation process.
7. The Setup program has now completed installation. Click Finish for the computer to restart and changes to take effect.
I815E User’s Manual 67
DRIVERS INSTALLATION
Intel 82559 LAN Drivers Installation
Introduction
Intel 82559 a 32-bit 10/100MBps Ethernet controller for PCI local bus-compliant PCs. It supports bus mastering architecture, and auto-negotiation feature that can be used for both 10Mbps and 100Mbps connection.
Making Floppy Disks for NetWare and Windows Installation
You need to use a floppy disk to install the LAN drivers. Use the MAKEDISK.BAT utility located in the \LAN\I8255X\MAKEDISK directory on the CD.
MAKEDISK [operating system] [destination] where [operating system] is the OS for which you are creating the
diskette, and [destination] is the drive letter and path (such as A:). If no destination is specified, the A: drive will be used.
The possible [operating system] options are: NT = Microsoft Windows NT
W2K = Microsoft Windows* 2000 W9X = Microsoft Windows* 95 and Windows 98 NW = Novell NetWare servers and clients DOS = Microsoft DOS and IBM OS2
Make sure you have a 1.44 MB formatted, non-bootable diskette in the floppy drive when using this utility.
NOTE: The utility MUST be run from the \LAN\I8255X \MAKEDISK directory.
Alternately, you can use the following .BAT files (located in the root directory on this CD) to simplify this process:
MAKEW9X.BAT -- Creates a drivers disk for Windows 95 and Windows 98. MAKENT.BAT -- Creates a drivers disk for Windows NT. MAKEW2K.BAT -- Creates a drivers disk for Windows 2000. MAKENW.BAT -- Creates a drivers disk for Novell NetWare servers and clients.
DRIVERS INSTALLATION
Installing LAN Drivers for Windows 95
Follow these steps to install the Intel 82559 LAN/Ethernet driver for Windows 95:
1. From the Control Panel, double-click the System icon.
2. Click the Device Manager tab.
3. Double-click Other Devices (question mark icon) in the list area.
4. Double-click a PCI Ethernet Controller.
5. Click the Driver tab, then click Update Driver.
6. Insert the Configuration and Drivers disk or CD in the appropriate
drive, and at the Update Device Driver Wizard, select "No" and click Next.
7. Click Have Disk, insert the Configuration and Drivers disk in the appropriate drive, and click OK.
8. At the Select Device dialog box, click OK again.
9. Follow any prompts for Windows 95 installation disks and restart when prompted.
Note: The Windows 95 system files are typically available on the Windows 95 CD in the win95 directory (D:\win95).
Installing LAN Drivers for Windows 98
Follow these steps to install the Intel 82559 LAN/Ethernet driver for Windows 98:
1. From the Control Panel, double-click the System icon.
2. Click the Device Manager tab.
3. Double-click Other Devices or Network Adapters in the list area.
4. Double-click a PCI Ethernet Controller.
5. Click the Driver tab, then click Update Driver.
6. Click Next at the Update Device Driver Wizard.
7. Select "Display a list of all the drivers..." and click Next.
8. Insert the Intel adapter disk and click Have Disk.
9. Enter the appropriate drive for your disk media (A:) and click OK.
10. Click OK at the Select Device dialog box.
11. The Update Wizard displays the message that it has found the driver. Click Next.
12. Click Finish.
13. Restart your computer when prompted.
I815E User’s Manual 69
DRIVERS INSTALLATION
Installing LAN Drivers for Windows NT
Follow the steps below to install the PCI Ethernet/LAN drivers Windows NT 4.0.
1. Under the Windows NT 4.0 environment, click Start à Control Panel. Double click Network à Adapters à Add.
2. Select “Have disk …” and insert the floppy diskette containing the Ethernet drivers for Windows NT 4.0 into the FDD drive, then click OK.
3. Click OK à Close, and then enter IP address.
4. Restart the system for changes to take effect.
Installing LAN Drivers for Windows 2000
Follow the steps below to install the PCI Ethernet/LAN drivers Windows
2000.
1. Under the Windows 2000 environment, click Start à Control Panel. Double click System à Hardware à Device Manager à Other Devices.
2. Double-click Ethernet Controller.
3. Click Driver à Update Driver à Next.
4. Now select “Display a list of the known drivers for this device so that I can choose a specific driver.”
5. Insert the floppy diskette containing the Intel Ethernet drivers into the FDD drive. Click OK and select “Intel PRO/100 VE Network connection.”
6. Click Next à Next à Finish. Close all tasks and restart the computer.
DRIVERS INSTALLATION
TV Out Drivers Installation
Introduction
The I815E 5.25” embedded board supports the optional TV out function with the optional IB742 TV Out Daughter Card. After you have installed the IBD742 daughter card onto I815E, install the TV-Out drivers by doing the following procedure.
1. Insert the diskette containing the TV Out driver files into the floppy
disk drive. Under Windows 98, click START, then click RUN. Enter the filename to execute as A:\setup (assuming that Drive A is the floppy drive.) and press <ENTER>. Windows will start the TV-Out Patch Setup.
I815E User’s Manual 71
DRIVERS INSTALLATION
2. Click Next to continue with the Setup program.
3. Click Next to begin copying the program files.
DRIVERS INSTALLATION
4. After file copying is finished, click Finish to restart the computer and
for changes to take effect.
I815E User’s Manual 73
DRIVERS INSTALLATION
This page was intentionally left blank.
APPENDIX
Appendix
A. I/O Port Address Map B. Interrupt Request Lines (IRQ)
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used.
Address Device Description
000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h - 06Fh Keyboard Controller 070h - 07Fh Real Time Clock, NMI 080h - 09Fh DMA Page Register 0A0h - 0BFh Interrupt Controller #2 0C0h - 0DFh DMA Controller #2 0F0h Clear Math Coprocessor Busy Signal 0F1h Reset Math Coprocessor 1F0h - 1F7h IDE Interface 278 - 27F Parallel Port #2(LPT2) 2F8h - 2FFh Serial Port #2(COM2) 2B0 - 2DF Graphics adapter Controller 378h - 3FFh Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1)
I815E User’s Manual 75
APPENDIX
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.
Level Function
IRQ0 System Timer Output IRQ1 Keyboard IRQ2 Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Reserved IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
