Chapter 1
General Description
The HS-2606 is a 100MHz FSB VIA CLE266/VT8 235 chipset-based board designed for ULV Intel® Celeron® processor 400/650MHz. These features combine and make the HS-2606 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with CompactFlash reader, PCMCIA, CRT/Panel, audio, LAN, TV-Out, 4 COM, and USB2.0 interfaces.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-2606 to support data transfers of 33, 66 or 100MB/sec . to one IDE drive connection. The VIA CLE266 integrated S3 3D supporting CRT/Panel displays up to 1600 x 1200 at 32-bit.
HS-2606 offers PCMCIA connector and CompactFlash reader in addition. +10~+30V wide range single DC power in can make HS-2606 suitable for all kinds of environments even more.
System memory is also sufficient with the one 200-pin SO-DDR socket that can support up to 1GB.
1
Additional onboard connectors include four advanced USB2.0 port providing faster data transmission. And one extern al RJ-45 connector for 10/100 Based Ethernet use.
1.1 Major Features
The HS-2606 comes with the following features:
ULV Intel® Celeron® processor 400/650MHz One SO-DDR socket with a max. capacity of 1GB VIA CLE266/VT8235 system chipset Winbond W83697UF super I/O chipset VIA CLE266 graphics controller RealTek RTL8139DL Ethernet controller AC97 3D audio controller Fast PCI ATA/33/66/100 IDE controller CompactFlash card adapter, PCMCIA, four COM, four USB2.0 ports TV-Out function +10~+30V wide range single DC power in
2
1.2 Specifications
CPU: ULV Intel® Celeron® processor 400/650MHz
Memory: One SO-DDR socket supporting up to 1GB
Chipset: VIA CLE266/VT8235
I/O Chipset: Winbond W83697UF
CompactFlash: One, Type II IDE interface adapter
PCMCIA: Two PC Card or CardBus slots
PCI Slot: One, Type I mini PCI slot
VGA: VIA CLE266 integrated S3 3D supporting AGP Bus and Hardware MPEG-2
TV-Out: Supports PAL or NTSC TV systems
Ethernet:
Audio:
IDE:
rates of 33/66/100MB/sec.
Serial Port: W83697UF UART-compatible RS-232 x 4 serial ports with 16-byte FIFO
USB: Four internal USB2.0 ports Keyboard/Mouse: PS/2 6-pin Mini DIN
BIOS:
Watchdog Timer:
1~256 sec.
CMOS: Battery backup
Power In: +10~+30V wide range single DC power in
Temperature: 0~+60°C (operating)
Dimensions: 14.5(L) x 10.2(W) cm
RealTek RTL8139DL 10/100 Based LAN
AC97 3D audio controller
Two IDE disk drives supporting ATA/33/66/100 and with transfer
AMI PnP Flash BIOS
Software programmable time-out intervals from
3
1.3 Board Dimensions
4
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-2606 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.
2.2 Inspection
After unpacking the board, plac e it on a raised surface and carefu lly inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules , R OM -D i sk , and keyboard controller chip to ensure that they are firmly seated. The HS-2606 delivery package contains the following items:
HS-2606 Board x 1
Utility CD Disk x 1
Cables package x 1
Jumper Bag x 1
User’s Manual
5
Cables Package
NO. Description
1 4-pin power cable x 1 2 MIC/Audio cable x 1 3 8-pin USB split type cable x 1 4 PS/2 KB/MS transfer cable x 1 5 RS-232 cable x 4 6 IDE flat cable x 1
It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.
6
Chapter 3
Hardware Installation
This chapter provides the inform ation on how to install the hardware using the HS-2606. This chapter also c ontains information related to jumper settings of switch, and the watchdog timer selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.
2. Go through the con nections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.
3. Keep the man u a l and diskette in good condition for future reference and use.
7
3.2 Board Layout
8
3.3 Jumper List
Jumper Default Setting Setting Page
JBAT1 Clear CMOS: Normal Operation Short 1-2 10
JP2 Panel Voltage Select: +3.3V Short 1-2 12
3.4 Connector List
Connector Definition Page
CN1 4-pin Power In Connector 10 CN2 CN3 2-pin ATX Power In Connector 10 CN4 External Reset Button 10 CN5 PS/2 6-pin Mini DIN KB/MS Connector 18 CN6 RJ-45 Connector 14 CN7
CN8/CN9/CN12/CN11 COM 1~COM 4 Connector (5x2 header) 17
CN10 TV-Out Connector 14 CN13 IDE Connector 16 CN14 CompactFlash Connector 22
DIM1 SO-DDR Socket 10
FN1 Fan Connector 10
J1 Line In Connector 15 J2 System Front Panel Connector 11 J3 GPIO Connector 20 J5 USB Connector 18 J6 USB Connector 18
JP1 MIC In/Audio Out Connector 15
LCD1 44-pin Panel Connector 12
U32 PCMCIA Connector 23
PC1 Mini PCI Connector 20
External VCC Out Connector 10
15-pin CRT Connector 12
3.5 Configuring the CPU
The HS-2606 v2.0 embedded w ith a ULV Intel® Celeron® processor 400/650MHz. User don’t need to adjust the frequently and check speed of Intel® processor.
9
3.6 System Memory
The HS-2606 provides one 200-pin SO-DDR socket at locations DIM1. The maximum capacity of the onboard memory is 1GB.
3.7 CMOS Data Clear
The HS-2606 has a Clear CMOS jumper on JBAT1.
JBAT1: Clear CMOS
Options Settings
Normal Operation (default) Short 1-2
Clear CMOS Short 2-3
IMPORTANT:
Before you turn on the power of your system, please set JBAT1 to Short 1-2 for normal operation.
13
3.8 Power and Fan Connectors
HS-2606 provides one 4-pin power connectors at CN1. And one 2-pin ATX power in at CN3.
+10~+30V wide range single DC power in can make HS-2 60 6 su itable for all kinds of environments even more.

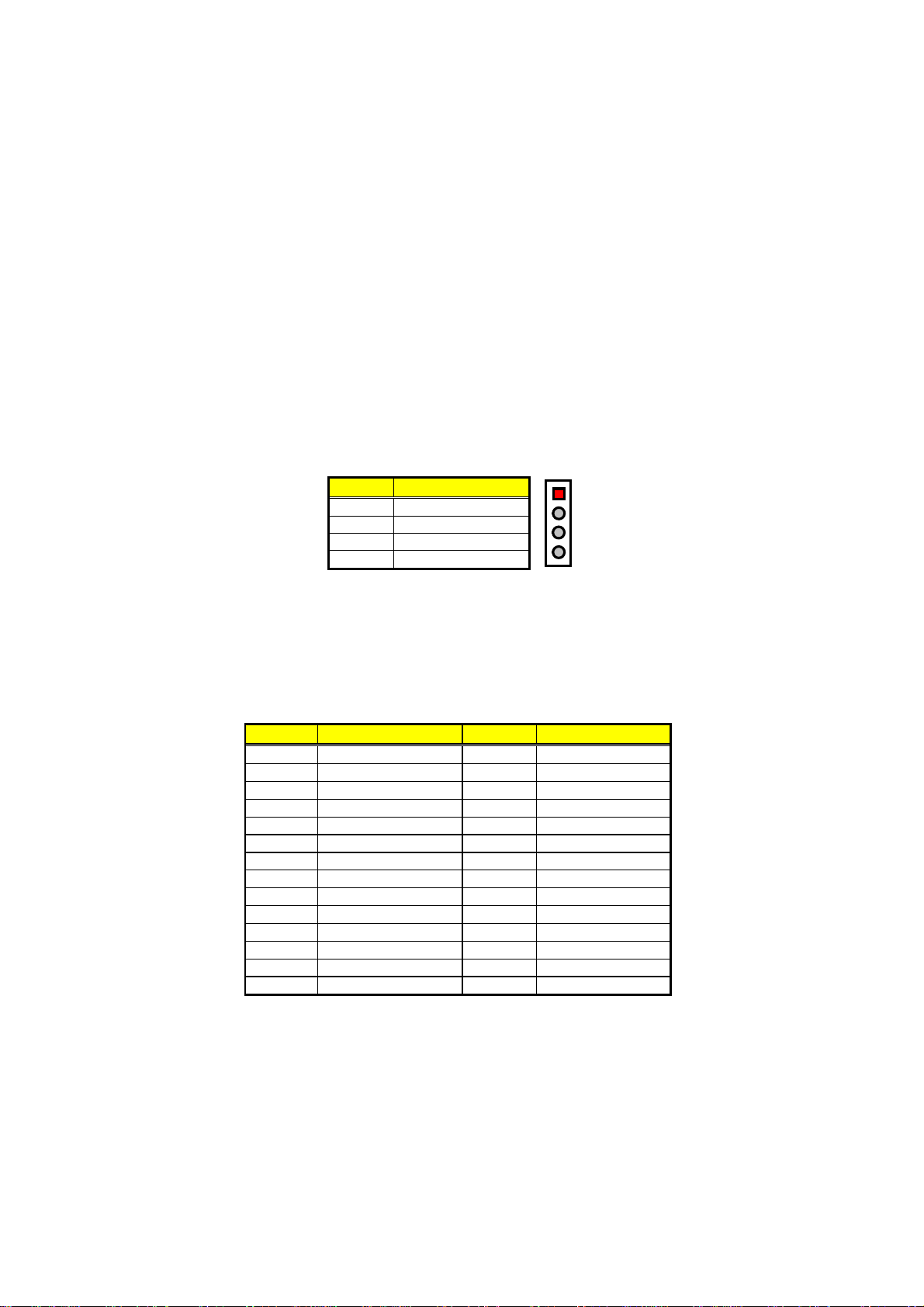

CN1: 4-pin Power In Connector
PIN Description
1 +10~+30V 2 3 GND 4 +10~+30V
CN3: 2-pin ATX Power In Connector
GND
PIN Description
1 PS_ON 2 5VSB
1 4
PS_ON25VSB
1
10
CN2: External VCC Out Connector
PIN Description
1 VCC 2 GND 3 GND 4 VCC
CN4: External Reset Button
PIN Description
1 RST_SW 2 GND 3 GND 4 GND
FN1: Fan Connector
1
4
3
1
4
2
PIN Description
GND
+5V
1 GND 2 +5V 3 N/C
13
N/C
Connector FN1 onboard HS-2606 is a 3-pin fan power output connector. And HS-2606 supports +5V Fan only.
3.9 System Front Panel Connectors
The HS-2606 has one LED at location J2 that indicates the powe r-on status. This visual feature of the IDE LED may also be connected to a HDD LED, power button, reset switch, speaker and power LED via connector J2(1-3), J2(5-7), J2(9-11), J2(2-4-6-8), and J2(10-12).
J2: System Front Panel Connector
PIN Description PIN Description
1 330Ω Pull +5V 2 Speaker 3 HDD LED 4 N/C 5 PW Button 6 GND 7 GND 8 330Ω Pull +5V 9 Reset Switch 10 330Ω Pull +5V
11 GND 12 PW_LED
11
Connector J2 Orientation
1
11
2
3
4
5
6
7
8
9
10 12
SPEAKER
PWR LED
HDD LED
PWR
Button
RST_SW
3.10 VGA Controller
The HS-2606 provides two connection methods of a VGA device. CN7 offers a single standard CRT connector while LCD1 is the 44-pin panel connector. VIA CLE266 VGA chipset shared main memory 8/16/32MB, and provides high quality DVD video playback. HS-2606 also provides Hardware MPEG-2.
CN7: 15-pin CRT Connector
PIN Description PIN Description
1 Red 2 Green 3 Blue 4 N/C 5 GND 6 GND 7 GND 8 GND
9 N/C 10 GND 11 N/C 12 SDA 13 HSYNC 14 VSYNC 15

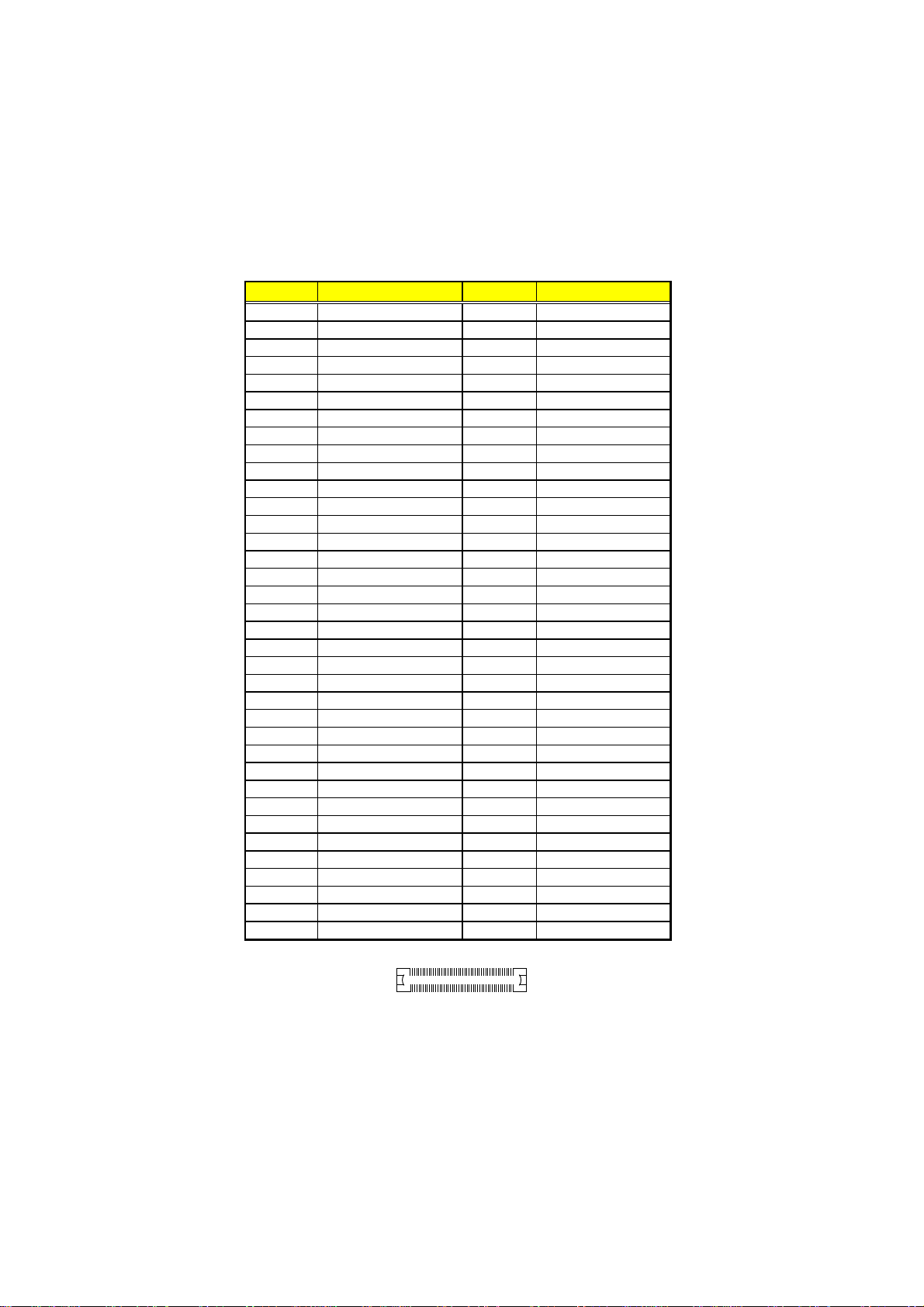

LCD1: 44-pin Panel Connector
SCL
PIN Description PIN Description
1 VCC 2 VCC 3 GND 4 GND 5 V
6 ENPVDD
LCD
7 ENPVEE 8 GND
9 GFPD0 10 GFPD1 11 GFPD2 12 GFPD3 13 GFPD4 14 GFPD5 15
GFPD6
…More On Next Page…
16
GFPD7
6
1
11
10
15
5
12
PIN Description PIN Description
NOTE:
17
GFPD8
18
19 GFPD10 20 GFPD11 21 GFPD12 22 GFPD13 23 GFPD14 24 GFPD15 25 GFPD16 26 GFPD17 27 GFPD18 28 GFPD19 29 GFPD20 30 GFPD21 31 GFPD22 32 GFPD23 33 N/C 34 N/C 35 SHFCLK 36 GFPVS 37 GFPDEN 38 GFPHS 39 GND 40 FPBKLP 41 N/C 42 N/C 43
N/C
2
1
N/C
N/C
GND
ENPVDD
GND
GFPD1
GFPD3
GFPD5
GFPD7
GFPD9
LCD
V
GND
GFPD0
GFPD2
GFPD4
GFPD6
ENPVEE
GFPD8
44
GFPD11
GFPD13
GFPD15
GFPD17
GFPD19
GFPD21
GFPD10
GFPD12
GFPD14
GFPD16
GFPD18
GFPD20
Please set the proper voltage of your panel using JP3 before proceeding on installing it.
GFPD23
GFPD22
N/C
GFPVS
N/C
SHFCLK
GFPD9
N/C
GFPHS
FPBKLP
N/C
N/C
GND
GFPDEN
N/C
44
43
N/C
The HS-2606 has an onboard jumper that selects the working voltage of the flat panel connected to the system. Jumper JP2 offers two voltage settings for the user.
JP2: Panel Voltage Select
Options Settings
+3.3V (default) S hort 1-2
+5V
Short 2-3
13
13
3.11 TV-Out Connector
HS-2606 can support TV-Out function which input could be up to 800 x 600 graphics resolutions. World Wide Video stand ards are supported including NTSC-M (North America, Ta iwan), NTSC-J ( Japan), PAL-B, D, G, H, I (Europe, Asia), PAL-M (Brazil), PAL-N (Uruguay, Paraguay) and PAL-NC (Argentina).
CN10: TV-Out Connector
PIN Description PIN Description
1 TVCVB 2 GND 3 GND 4 GND
143
2
3.12 Ethernet Connector
The HS-2606 provides one external RJ-45 interface connector. Please refer to the following for its pin information.
CN6: RJ-45 Connector
PIN Description
1 TX+ 2 TX- 3 R/C GND 4 N/C 5 6 R/C GND 7 RX+ 8 RX-
N/C
1
2
7
8
14
3.13 Audio Connectors
The HS-2606 has an onboard AC97 3D audio interfac e. The following tables list the pin assignments of the MIC In/Audio Out and Line in connectors.
JP1: MIC In/Audio Out Connector
PIN Description PIN Description
1 AOUTL 2 AOUTR 3 GND 4 GND 5 MIC IN 6 N/C 7
GND
8
GND
J1: Line In Connector
PIN Description
1 Line In_R 2 GND 3 GND 4 Line In_L
1234
AOUT_L
GND
MIC IN
GND
12
78
AOUT_R
GND
N/C
GND
15
3.14 PCI E-IDE Drive Connector
CN13 is a standard 44-pin 2.0mm pitch connector dais y-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-2606. A maximum of two ATA/33/66/100 IDE drives can be connected to the HS-2606 via CN13.
CN13: IDE Connector
PIN Description PIN Description
1 3 PDD7 4 PDD8 5 PDD6 6 PDD9 7 PDD5 8 PDD10
9 PDD4 10 PDD11 11 PDD3 12 PDD12 13 PDD2 14 PDD13 15 PDD1 16 PDD14 17 PDD0 18 PDD15 19 GND 20 N/C 21 PDREQ 22 GND 23 IOW# 24 GND 25 IOR# 26 GND 27 29 RPDACK- 30 GND 31 Interrupt 32 N/C 33 RPDA1- 34 PD33/66 35 RPDA0- 36 PDA2 37 39 HDD Active 40 GND 41 VCC 42 VCC 43 GND 44 N/C
2
1
Reset
PIORDY
RPCS1-
2
28
38
GND
470Ω with GND
PDCS3#
44
43
16
3.15 Serial Port Connectors
The HS-2606 offers two W83697UF compatible UARTs with Read/Receive 16-byte FIFO serial ports and four internal 10-pin connectors.
CN8: COM1 Connector (5x2 Header)
PIN Description PIN Description
1 DCD1 2 DSR1 3 RXD1 4 RTX1 5 TXD1 6 CTX1 7
DTR1
8
RI1
9 GND 10 N/C
CN9: COM2 Connector (5x2 Header)
PIN Description PIN Description
1 DCD2 2 DSR2 3 RXD2 4 RTX2 5 TXD2 6 CTX2 7 DTR2 8 RI2 9 GND 10 N/C
CN12: COM3 Connector (5x2 Header)
PIN Description PIN Description
1
DCD3
2
3 RXD3 4 RTX3 5 TXD3 6 CTX3 7 DTR3 8 RI3 9
CN11: COM4 Connector (5x2 Header)
GND
10
DSR3
N/C
PIN Description PIN Description
1 DCD4 2 DSR4 3 RXD4 4 RTX4 5 TXD4 6 CTX4 7 DTR4 8 RI4 9 GND 10 N/C
DSR1
RTX1
CTX1
N/C
RXD1
RTX2
RXD2
RTX3
RXD3
RTX4
RXD4
TXD1
CTX2
TXD2
CTX3
TXD3
CTX4
TXD4
RI1
GND
DTR1
N/C
RI2
GND
DTR2
N/C
RI3
GND
DTR3
N/C
RI4
GND
DTR4
246810
13579
DCD1
DSR2
246810
13579
DCD2
DSR3
246810
13579
DCD3
DSR4
246810
13579
DCD4
17
3.16 USB Connector
The HS-2606 provides two 8-pin connectors, at location J5 and J6, for four USB2.0 connections to the HS-2606.
J5/J6: USB Connector
PIN Description PIN Description
1 +5VSUS 2 +5VSUS 3 5 BD2+/ BD1+ 6 BD3+/ BD0+ 7 GND 8 GND
BD2-/ BD1-
4
BD3-/ BD0-
2
1
8
7
3.17 Keyboard/Mouse Connectors
The HS-2606 offers CN5 for an external PS/2 type keyboard and mouse.
CN5: PS/2 6-pin Mini DIN Keyboard and Mouse Connector
PIN Description
1 Keyboard Data 2 Mouse Data 3 GND 4 +5V 5 Keyboard Clock 6 Mouse Clock
165243
18
3.18 Watchdog Timer
Once the Enable cycle is active, a Refresh cycle is reques ted before the time-out period. This restar ts counting of the WDT period. Wh en the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal will re-start when such error happens.
The following sample programs show how to Enable, Disable and Refresh the Watchdog Timer:
;---------------------------------------------------------------------­; Enter the extended function mode, interruptible double-write ;----------------------------------------------------------------------
MOV DX, 4EH MOV AL, 87H OUT DX, AL
OUT DX, AL ;---------------------------------------------------------------------­; Configurate logical device 8, configuration register CRF30 ;--------------------------------------------------------------------­MOV DX, 4EH MOV AL, 07H OUT DX, AL ; point to Logical Device Number Reg. MOV DX, 4FH MOV AL, 08H OUT DX, AL ; select logical device 8
MOV DX, 4EH MOV AL, 30H OUT DX, AL ; select CRF30 MOV DX, 4FH MOV AL, 01H OUT DX, AL ; update CRF30 with value 01H
MOV DX, 4EH MOV AL, F3H OUT DX, AL ; select CRF3 (select WDTO count mode) MOV DX, 4FH MOV AL, 00H OUT DX, AL ; update CRF3 with value 00H (bit 2:0=second; 1=minute)
MOV DX, 4EH MOV AL, F4H OUT DX, AL ; select CRF4 (WDTO Time-out value) MOV DX, 4FH MOV AL, 05H OUT DX, AL ; update CRF4 with value 05H Bit[7:0] = 00 Time-out Disabled 01 Time-out occurs after 1 second/minute 02 Time-out occurs after 2 second/minute . . ff Time-out occurs after 255 second/minute
19
3.19 GPIO Connector
The HS-2606 offers four general purpose I/O ports with the following capabilities:
I2C/SMB Support
Thermal Detect
Notebook Lid Open/Close Detect
Battery Low Detect
J3: General Purpose Input/Output
PIN Description
1 GPIO8 2 GPIO9 3 4 GPIO11
GPIO10
1
4
3.20 Mini PCI Connector
HS-2606 supports a Mini PCI connector. The peripheral component with standard Type1 Mini PCI can be used. For particular requirement, please refer to “BOSER Mini PCI series product” on website or contact with us.
PC1: Mini PCI Connector
PIN Description PIN Description
1 INTB# 2 5V 3 3.3V 4 INTA# 5 INTD# 6 INTC# 7 GND 8 N/C 9 CLK 10 RST#
11 GND 12 3.3V 13 15 3.3V 16 GND 17 AD[31] 18 PME# 19 AD[29] 20 Reserved 21 GND 22 AD[30] 23 25 AD[25] 26 AD[28] 27 REQ1# 28 AD[26]
REQ0#
AD[27]
14
24
. . . More on next page . . .
GNT#
3.3V
20
PIN Description PIN Description
29 C/BE[3]# 30 AD[24] 31 AD[23] 32 IDSEL 33
GND
34
35 AD[21] 36 AD[22] 37 AD[19] 38 AD[20] 39 GND 40 PAR 41 AD[17] 42 AD[18] 43 C/BE[2]# 44 AD[16] 45 IRDY# 46 GND 47 3.3V 48 FRAME# 49 N/C 50 TRDY# 51 SERR# 52 STOP# 53 GND 54 3.3V 55
PERR#
56
57 C/BE[1]# 58 GND 59 AD[14] 60 AD[15] 61 GND 62 AD[13] 63 AD[12] 64 AD[11] 65 AD[10] 66 GND 67 GND 68 AD[9] 69 AD[8] 70 C/BE[0]# 71 AD[7] 72 3.3V 73 3.3V 74 AD[6] 75 AD[5] 76 AD[4] 77
REQ2#
78
79 AD[3] 80 AD[0] 81 5V 82 GNT2# 83 AD[1] 84 GNT3# 85 GND 86 GND 87 N/C 88 N/C 89 N/C 90 N/C 91 N/C 92 N/C 93 N/C 94 N/C 95 N/C 96 REQ3# 97 N/C 98 GND 99
N/C
100
GND
DEVSEL#
AD[2]
N/C
2
199
Mini PCI Socket
pin orientation
100
21
3.21 CompactFlash™ Connector
The HS-2606 also offers an optional CompactFlash™ connector which is IDE interface located at the solder side of the board (beneath the SO-DIMM connector). The designated CN14 connector, once soldered with an adapter, can hold CompactFlash cards of various sizes. Please turn off the power before inserting the CD card.
CN14: CompactFlash Connector
PIN Description PIN Description
1 GND 26 N/C 2 SDD3 27 SDD11 3 SDD4 28 SDD12 4 SDD5 29 SDD13 5 6 SDD7 31 SDD15 7 -SDCS1 32 -SDCS3 8 GND 33 N/C 9 GND 34 -SDIOR
10 11 GND 36 4.7KΩ pull to VCC 12 GND 37 IRQ15 13 VCC 38 VCC 14 GND 39 N/C 15 GND 40 N/C 16 GND 41 10KΩ pull to VCC 17 GND 42 SHDRDY 18 SDA2 43 SDDACK 19 SDA1 44 SDDREQ 20 SDA0 45 HDD LED 21 SDD0 46 4.7KΩ pull to VCC 22 SDD1 47 SDD8 23 24 470Ω pull to GND 49 SDD10 25 N/C 50 GND
SDD6
GND
SDD2
30
35
48
SDD14
-SDIOW
SDD9
Inserting a CompactFlash™ card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram on the following page for the traditional way of inserting the card.
22
3.22 PCMCIA Connector
HS-2606 built-in two CardBus/PCMCIA interface connectors.
U32: PCMCIA Connector
PIN Description PIN Description
1 GND 2 CAD0 3 CAD1 4 CAD3 5 CAD5 6 CAD7 7 CCBE0 8 CAD9 9 CAD12 10 CAD12
11 13 CPAR 14 CPERR 15 CGNT 16 IRQ*INT 17 VCC 18 VPP1 19 CCLK 20 CIRDY 21 23 CAD20 24 CAD21 25 CAD22 26 CAD23 27 CAD24 28 CAD25 29 CAD26 30 CAD27 31 33 CKRUN 34 GND 35 GND 36 CCD1 37 CAD2 38 CAD4 39 CAD6 40 RFU 41 CAD8 42 CAD10 43 CVS1 44 CAD13 45 CAD15 46 CAD16 47 RFU 48 CBLOCK 49 CSTOP 50 CDEVSEL 51 VCC 52 VPP2 53 CTDRY 54 CFRAME 55 CAD17 56 CAD19 57 59 CSERR 60 CREQ 61 CCBE3 62 CAUDIO 63 STSCHG-C* 64 CAD28 65 CAD30 66 CAD31 67
CAD14
CCBE2
CAD29
CVS2
CCD2
12
22
32
58
68
CCBE1
CAD18
RFU
CRST
GND
23
This page is intentionally left blank.
24
Chapter 4
AMI BIOS Setup
The HS-2606 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.
4.1 Starting Setup
The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
1. By pressing <Del> immediately after switchin g th e system on, or
2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will be asked to...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
25
4.2 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and < PageDown> keys to chang e entries, and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.
Move to previous item
↑ ↓ Move to next item
Move to previous item
← → Move to previous item
Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu
PgUp key Decrease the numeric value or make changes PgDn key
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes F1 key Reserved F2 key Change color fro m total 8 colors. F2 to select color forward F3 key F2 to select color backward F4 key Reserved F5 key Reserved F6 key Reserved F7 key Reserved F8 key Reserved F9 key Reserved
F10 key
Increase the numeric value or make changes
Save all the CMOS changes, only for Main Menu
26
4.3 Main Menu
Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup Power Management Setup PCI / Plug and Play Setup
Peripheral Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
NOTE:
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
A brief description of the highlighted choice appears a t the bottom of the screen.
27
4.4 Standard CMOS Setup
The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the capacity of the IDE hard disk drive is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.
mode. Please use the IDE Setup Utility in
LBA
(C)2001 American Megatrends, Inc. All Rights Reserved
AMIBIOS SETUP – STANDARD CMOS SETUP
Date (mm/dd/yyyy) : Sun Mar 01, 2099 Base Memory : Time (hh/mm/ss) : 19:04:12 Extd Memory :
Pri Master : Auto Off Pri Slave : Auto Off Sec Master : Auto Off Sec Slave : Auto Off
Boot Sector Virus Protection Disabled
Month: Jan - Dec
Year: 1980 - 2099
LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Day: 01 - 31
ESC: Exit PgUp/PgDn: Modify F2/F3: Color

639KB
55MB
: Sel
28
4.5 Advanced CMOS Setup
This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.
(C)2001 American Megatrends, Inc. All Rights Reserved
Quick Boot Enabled 1st Boot Device Disabled 2nd Boot Device Disabled 3rd Boot Device Disabled Try Other Boot Devices Yes S.M.A.R.T. for Hard Disks Disabled BootUp Num-Lock On PS/2 Mouse Support Enabled Primary Display VGA/EGA Password Check Setup Ask HDD Password on Every Boot Yes Boot To OS/2 No CPU MicroCode Updation Enabled CPU Serial Number Disabled L1 Cache Enabled L2 Cache Enabled System BIOS Cacheable Enabled C000,32k Shadow Cache C800,16k Shadow Disabled CC00,16k Shadow Disabled D000,16k Shadow Disabled D400,16k Shadow Disabled D800,16k Shadow Disabled DC00,16k Shadow Disabled
AMIBIOS SETUP – ADVANCED CMOS SETUP
Available Options:
S
Disabled
`
Enabled
ESC: Exit : Sel PgUp/PgDn: Modify F2/F3: Color
T
29
4.6 Advanced Chipset Setup
This section allows you to configure the system based on the specific features of the installed ch ipset. This chipset m anages bus speeds an d the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best oper ating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.
AMIBIOS SETUP – ADVANCED CHIPSET SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
******** DRAM Timing ******** Available Options:
Configure SDRAM Timing by SPD Enabled SDRAM Frequency Auto Enabled SDRAM CAS# Latency 2.5 SDRAM Bank Interleave Disabled
SDRAM Command Rate 2T Memory Hole Disabled Auto Prechrage for TLB/WB Disabled Write Recovery time 2T AGP Mode 4x AGP Read Synchronization Disabled AGP Fast Write Disabled AGP Comp. Driving Auto Manual AGP Comp. Driving CB AGP Aperture Size 64MB AGP Master 1 W/S Write Disabled AGP Master 1 W/S Read Disabled Search for MDA Resources Yes PCI Delay Transaction Enabled USB Controller 4 USB Ports USB Device Legacy Support All Device V-Link Data 2X Support Disabled ESC: Exit : Sel
PgUp/PgDn: Modify
F2/F3: Color
Disabled
`
30
4.7 Power Management Setup
The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.
AMIBIOS SETUP – POWER MANAGEMENT SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
ACPI Aware O/S Yes
ACPI Standby State S1/POS
USB Device Wakeup Function Enabled
Re-Call VGA BIOS at S3 Resuming Enabled
Power Management / APM Enabled
Video Power Down Mode Suspend
Hard Disk Power Down Mode Stand By
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Throttle Slow Clock Ratio 50%~56.25%
Display Activity Ignore
IRQ3 Monitor
IRQ4 Monitor
IRQ5 Ignore
IRQ7 Monitor
IRQ9 Ignore
IRQ10 Ignore
IRQ11 Ignore
IRQ13 Ignore
IRQ14 Monitor
IRQ15 Ignore
Power Button Function On / Off
Restore on AC/Power Loss Last State
Wake-Up Key Any Key
Wake-Up Password N/A
Resume On PS/2 Mouse Disabled
Resume On RTC Alarm Disabled
RTC Alarm Date 15
RTC Alarm Hour 12
RTC Alarm Minute 30
RTC Alarm Second 30
Available Options:
S
No
`
Yes
ESC: Exit PgUp/PgDn: Modify F2/F3: Color
T

: Sel
31
4.8 PCI / Plug and Play Setup
This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recomme nded that only experienced users should make any changes to the default settings.
AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Plug and Play Aware O/S No Available Options:
Clear NVRAM No ` No
OnChip VGA Frame Buffer Size 16MB Yes
PCI Latency Timer (PCI Clocks) 32
Primary Graphics Adapter PCI
Boot Device Select CRT
TV Type NTSC
TV Output Connector Composite
LCD Panel Type 00
TV Layout Default
Dithering Disabled
PCI IDE BusMaster Disabled
OffBoard PCI IDE Card Auto
OffBoard PCI IDE Primary IRQ Disabled
OffBoard PCI IDE Secondary IRQ Disabled
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP ESC: Exit
IRQ14 PCI/PnP PgUp/PgDn: Modify
IRQ15 PCI/PnP F2/F3: Color

: Sel
32
4.9 Peripheral Setup
The IDE hard drive controllers can s upport up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.
PIO means Programmed Input/Output. Rath er than having the BIOS issue a series of command s to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).
(C)2001 American Megatrends, Inc. All Rights Reserved
AMIBIOS SETUP – PERIPHERAL SETUP
OnBoard Serial Port 1 3F8/COM1 Available Options:
OnBoard Serial Port 2 2F8/COM2
Serial Port2 Mode Normal Disabled IR Pin Select IRRX/IRTX Enabled OnBoard Serial Port3 3E8/COM3 Serial Port3 IRQ 10 OnBoard Serial Port4 2E8/COM4 Serial Port4 IRQ 11 OnBoard IDE Both OnBoard AC’97 Audio Enabled ESC: Exit : Sel PgUp/PgDn: Modify F2/F3: Color
Auto
`
33
4.10 Auto-Detect Hard Disks
This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.
Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To acce pt the displayed entries, press the “Y” key; to skip to the ne xt drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
34
Auto-detect all hard disk parameters
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
4.11 Change Supervisor/User Password
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Enter new supervisor password: _
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
ESC: Exit :Sel F2/F3: Color F10: Save & Exit
Change the Supervisor Password
You can set either supervisor or user passw ord, or both of th em. The differences are:
supervisor password: can enter and change the options of the setup
menus.
user password:
options of the setup menus.
just can only enter but do not have the right to change the
When you select this function, the following message will appear at the center of the screen to assist yo u in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password aga in and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
35
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.
You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.
4.12 Auto Configuration with Optimal Settings
When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values perm anently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Load high performance settings (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Load configuration settings giving highest performance
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
36
4.13 Auto Configuration with Fail Safe Settings
When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Load failsafe settings (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Load failsafe configuration settings
37
4.14 Save Settings and Exit
Pressing <Enter> on this item asks for confirmation:
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Save current settings and exit (Y/N) ? Y
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Write the current setting to CMOS and exit
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system will be restarted again.
38
4.15 Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Quit without saving (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Exit without saving the current settin g
Abandon all Data & Exit Setup
39
This page is intentionally left blank.
40
Chapter 5
Software Utilities
This chapter contains the detailed information of VGA, LAN, audio, and USB2.0 driver installation procedures.
The drivers are located in the following directories of the utility disk:
5.1 VGA Driver Installation
5.1.1 VGA Driver Installation for WIN95/98/2000/XP

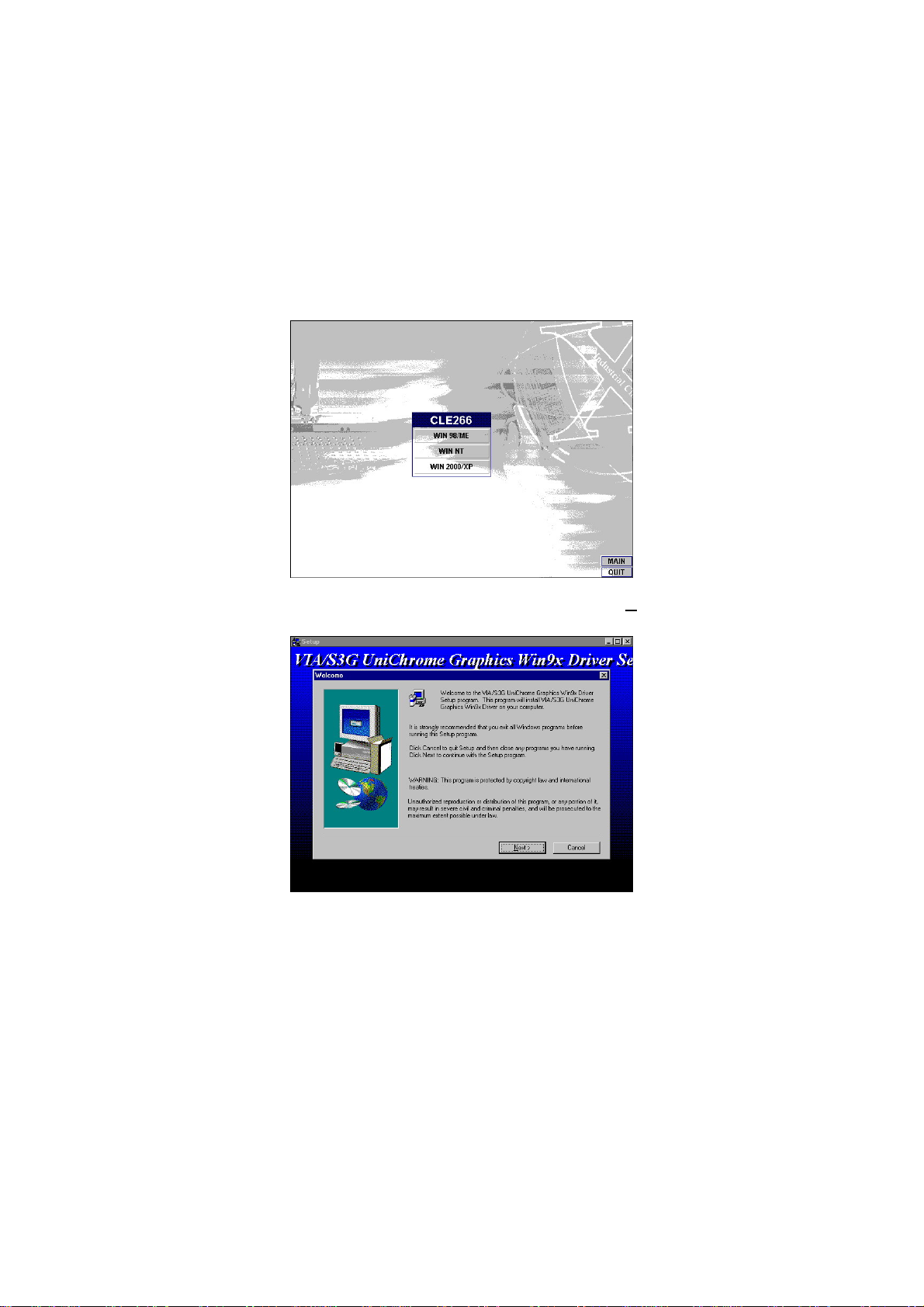

1. With the Utility CD Disk still in your CD ROM drive, click the
chipset CLE_266.
41
2. Select the operating system of your computer to proceed with the
installation process.
3. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the N button.
ext>
42
4. When the display below appears on your screen, Setup is already
ready to install and copy the related files onto your hard drive. Click on the N
ext> button to proceed.
5. After the installation finishes, you will be prompted to restart your system. We recommend you to reboot your computer to allow the new settings to take effect. Click on the Finish button to reboot.
43
5.1.2 VGA Driver Installation for WIN NT4.0

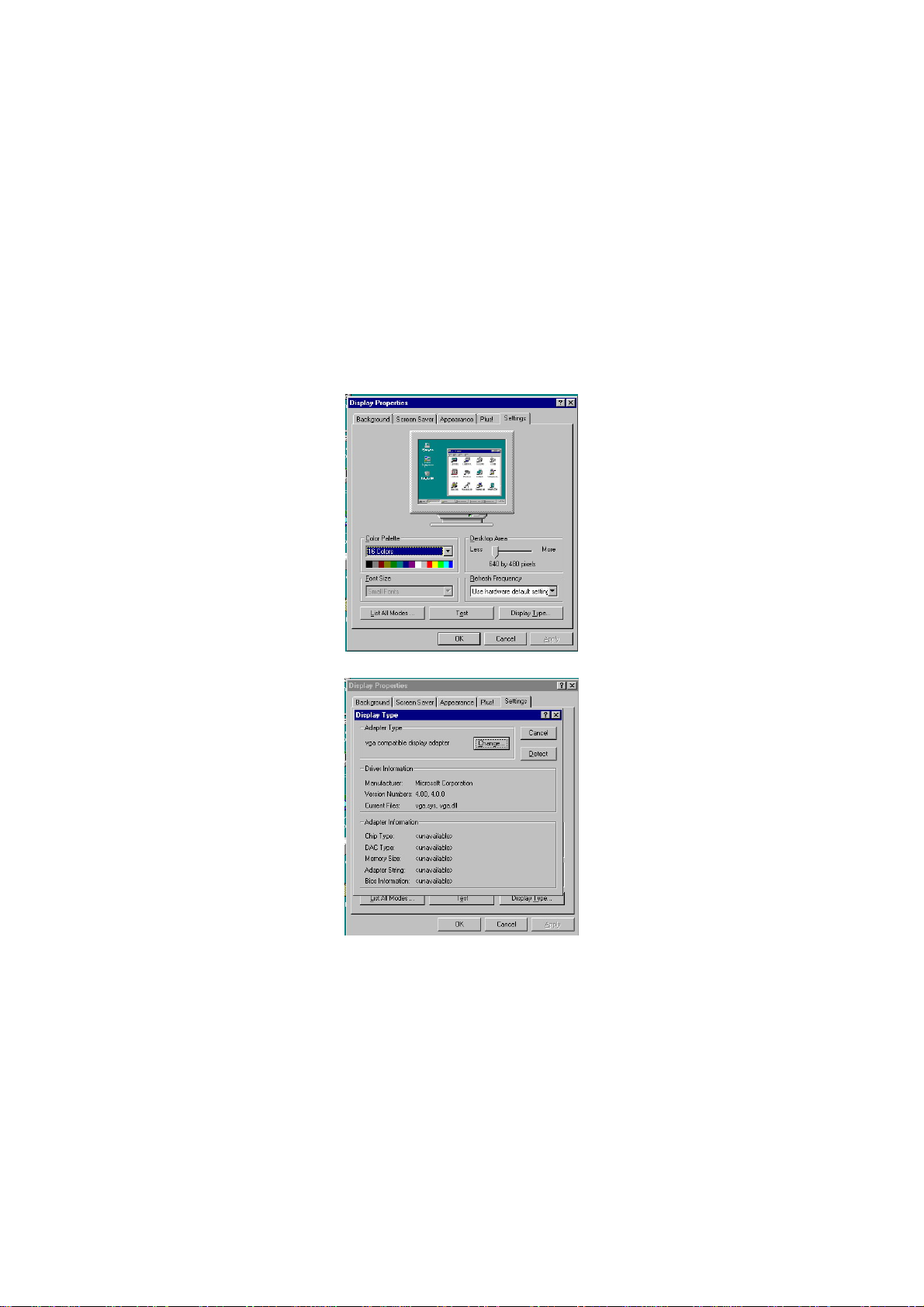

1. Click the Start button on the lower left hand corner of your screen, then select Setting. Choose Control Panel and double-click on the Display icon to launc h its Display Properties window.
2. Click on the Settings tab, and then choose Display Type.
44
3. In the Change Display Type window, click on Have Disk.
4. Specify the path of the new driver and then press on Enter.
45
5. Select VIA/S3G UniChrome Graphics, the n click OK or press Enter.
6. You will see warning panel about Third Party Drivers. Click on
es to finish the installatio n.
Y
46
7. Once the installation is completed, you must shut down the system and restart for the new driver to take effect.
47
5.2 LAN Driver Installation
5.2.1 LAN Driver Installation for WIN95/98/2K
1. With the Utility CD Disk still in y ou r C D R O M d r ive , ri gh t c lick on
My Computer icon from the Windows menu. Sele ct on System Properties and then proceed to the Device Manager from the
main menu.
48

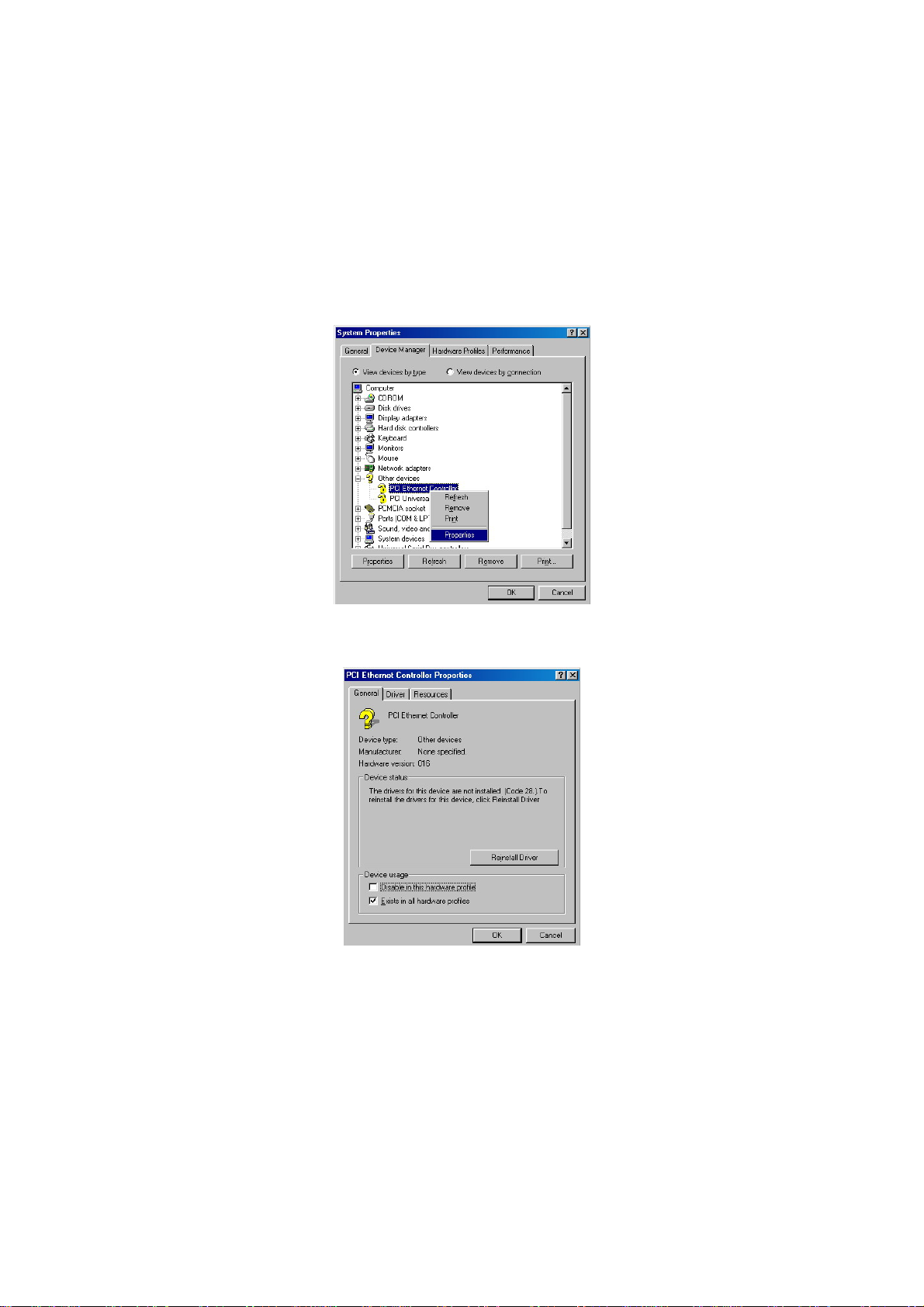

2. Select on PCI Ethernet Controller from Other devices list,
right-click and then select on Properties.
3. The PCI Ethernet Controller Properties screen then appears,
allowing you to rein s t all t he driver. Select Driver from the main menu to proceed.
4. The window th en displays the current status of yo ur LAN driver.
Press on Update Driver button to continue.
49
5. The program wi ll then launch the Update Devic e Dr iver Wizard
window that will install your device driver. Click on the Next> button to proceed to the next step.
6. The Update Device Driver Wizard will then ask you to spec ify, by
ticking, the path of the new driver. Tick on the open boxes where you require the program to search for the device driver then click on the Br
owse button to manually specify the path.
50
7. Update Device Driver Wizard will ask are you sure to updated
driver, tick on updat e, and then press Next> to continue.
8. Once the program detects the device driver (*.inf) file fro m your
specified location , it will automatically copy th e files into your hard drive.
51

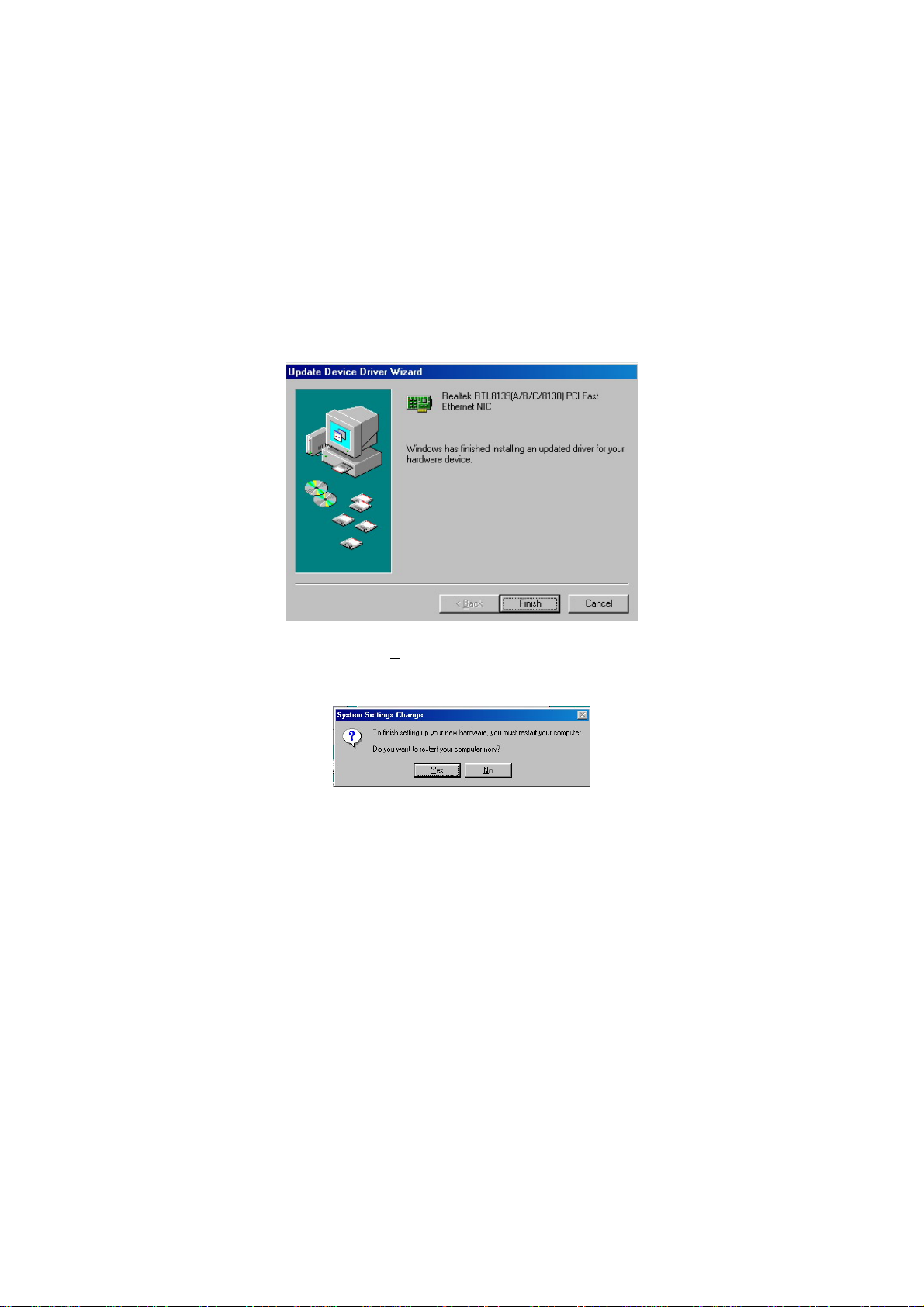

9. The program then copies the necessary files from your Windows
installation disk to comple te th e driver setup process. Once the driver is completely installed, the follow ing message appe ars on your display. Click on the Finish button to proceed.
10. Restart your computer to make the new system settings take
effect. Click on the Y and your LAN Driver for Win95 and Win98 are now completely installed.
es button when the screen below appears
52
5.2.2 LAN Driver Installation for WIN NT4.0

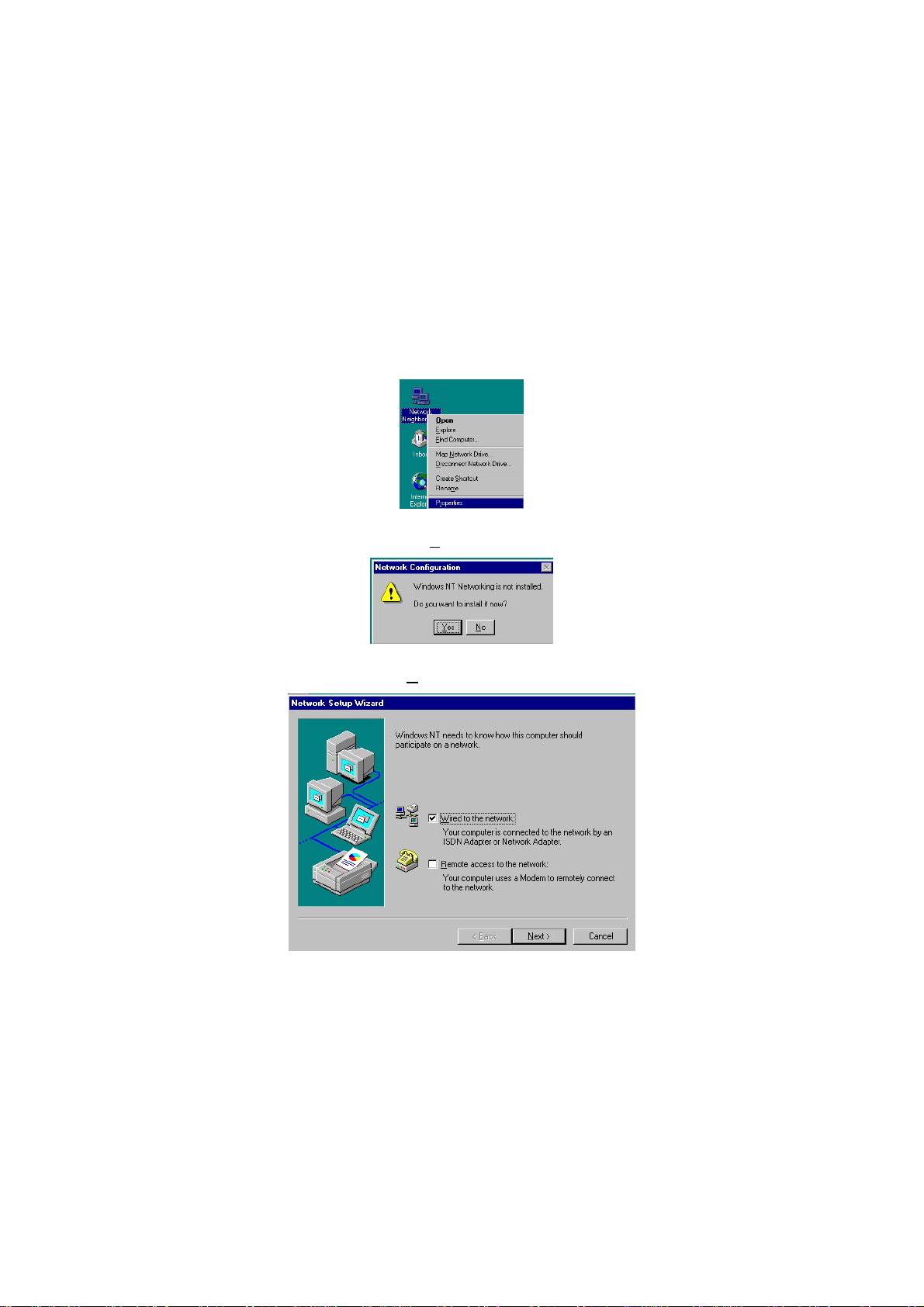

1. With the Utility CD Disk still in y ou r C D R O M d r ive , r igh t c lick on
Network Neighborhood icon from the Windows menu. Select on Properties.
2. The system automatically detects the absence of Windows NT
Networking. Click on the Y
3. Tick on the Wired to Network once the following screen
appears. Click on the N
es button to start installation.
ext> to proceed.
53

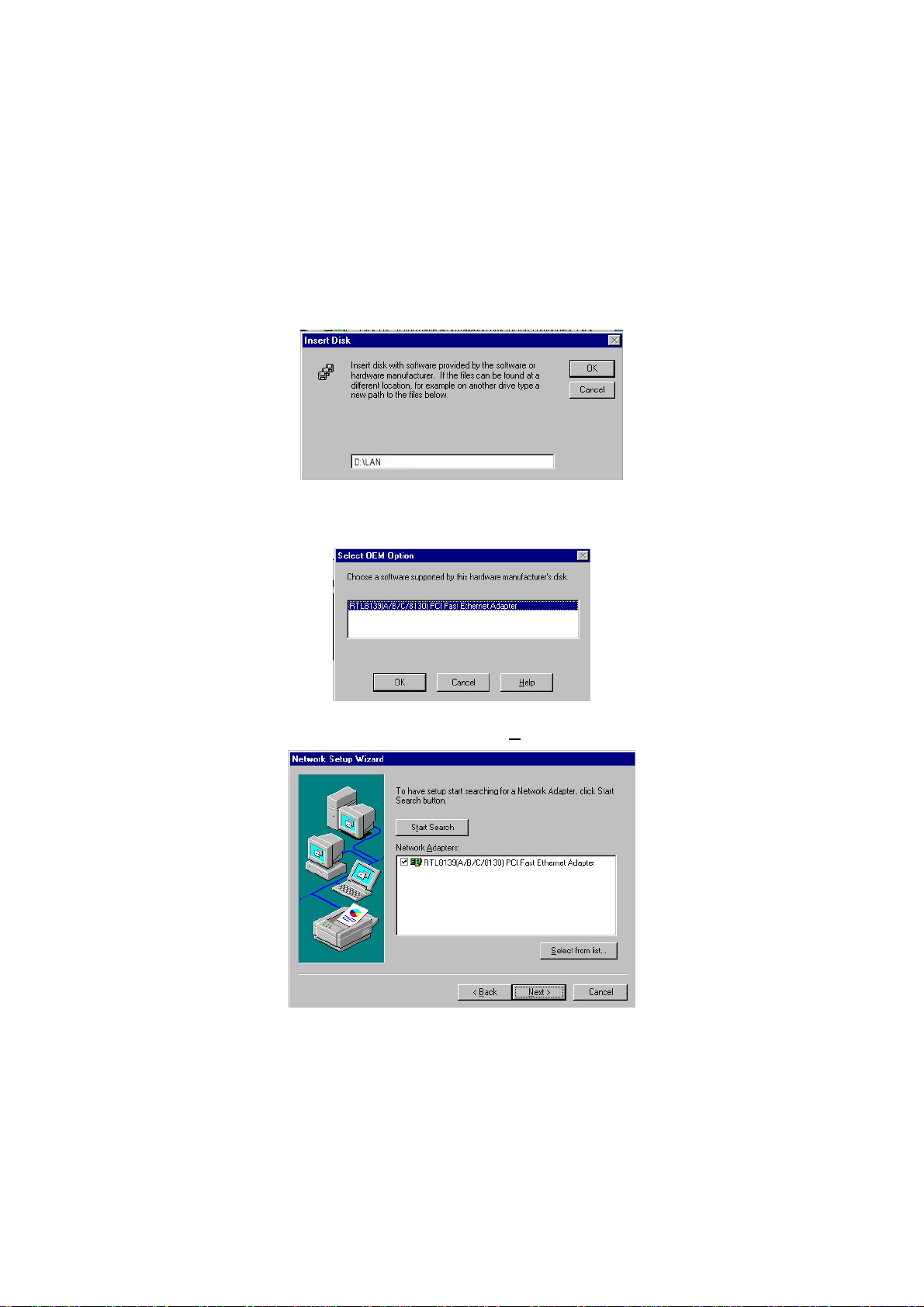

4. Click on the Start Search button for the program to locate the
Network Adapter.
5. Once setup finishes the search, it will list a number of adapters
for you to choose from. Press on the H the driver path location.
ave Disk button to assign
54
6. Setup now asks you for the location of the driver. When you have
entered the new driver path, press on the OK button to continue.
7. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. Press on the OK button to accept and pr oc e ed .
8. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on N
ext> to continue.
55
9. The Network Setu p Wiz a rd then allows you to set the Network
Protocols on your network. Select the appropriate protocol and then click on N
ext> to continue.
10. The Network Setup Wizard then allows you to set the Network
Services on your Network, then click on N
ext> to continue.
56

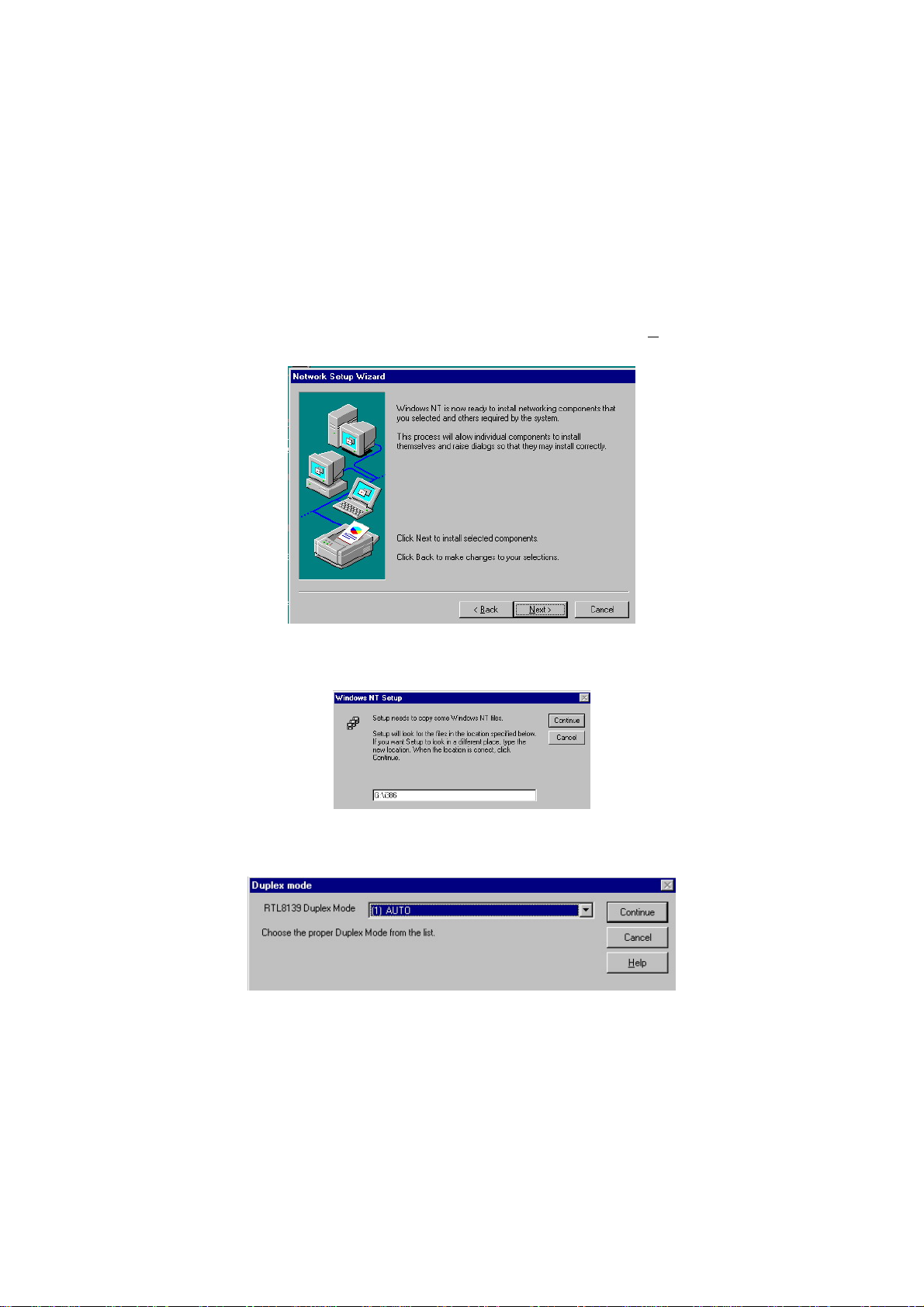

11. Before Setup starts installing the components found and the
settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the N button once you are sure of your devices.
ext>
12. Windows NT Setup will then need to copy files necessary to
update the system information. Specify the path then press Continue.
13. Once it finishes copying the files, Setup will now allow you to
choose the Duplex Mode of your LAN controller. Press on the Continue button after making your selection.
57

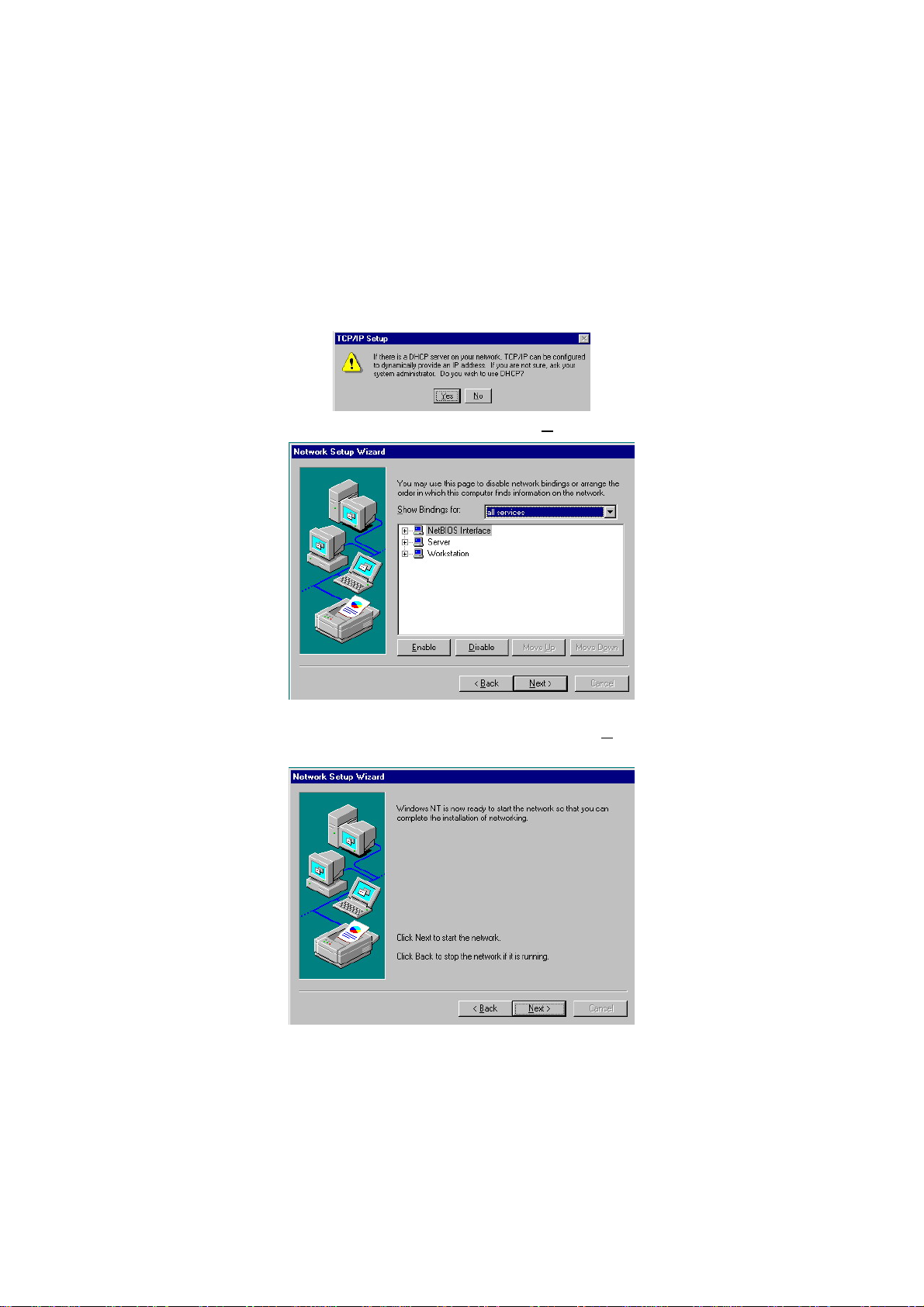

14. When Setup asks if you wish to change the TCP/IP settings of
your system, select the appropriately. The default choice is No.
15. When the screen below appears, click on Next> to continue.
16. Setup then prompts you that it is ready to start the network. You
may complete the installation thereaft er. Click on N continue.
ext> to
58
17. Restart your computer. The LAN driver installation for WIN NT4.0
is now complete.
5.3 Audio Driver Installation
5.3.1 Audio Driver Installation for WIN98/2K/XP
1. With the Utility CD Disk still in your CD ROM drive, click the
chipset “VIA_AC97”.
2. Once the Welcome screen appears on the screen, make sure to
close applications that are runni ng and then click the N button.
ext>
59

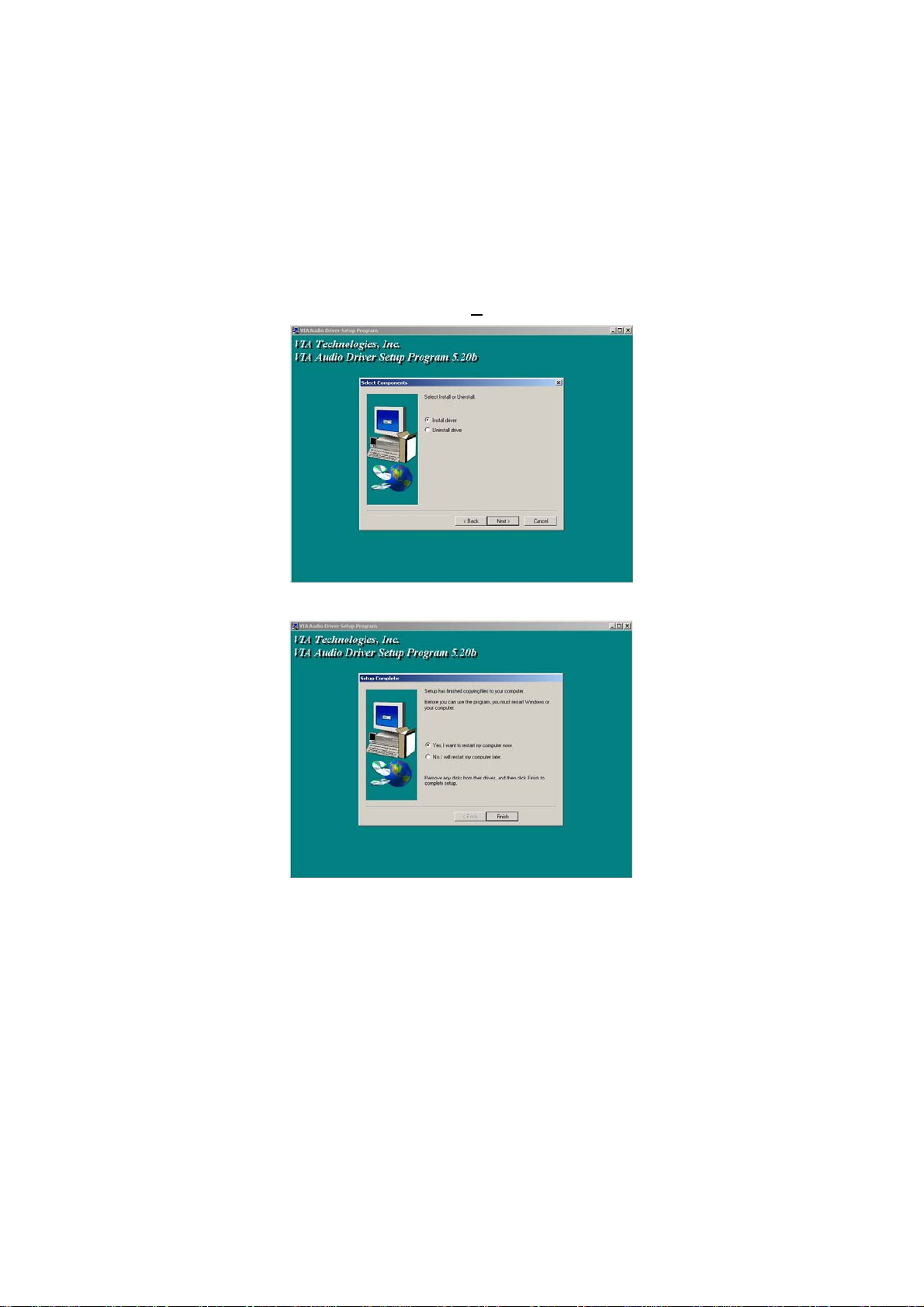

3. The Select C omponents dialog box is now displayed. Select on
Install driver and then click on N
ext>.
4. After the audio driver installation finishes, select the Finish
button to complete the installation process.
60
5.3.2 Audio Driver Installation for WINNT

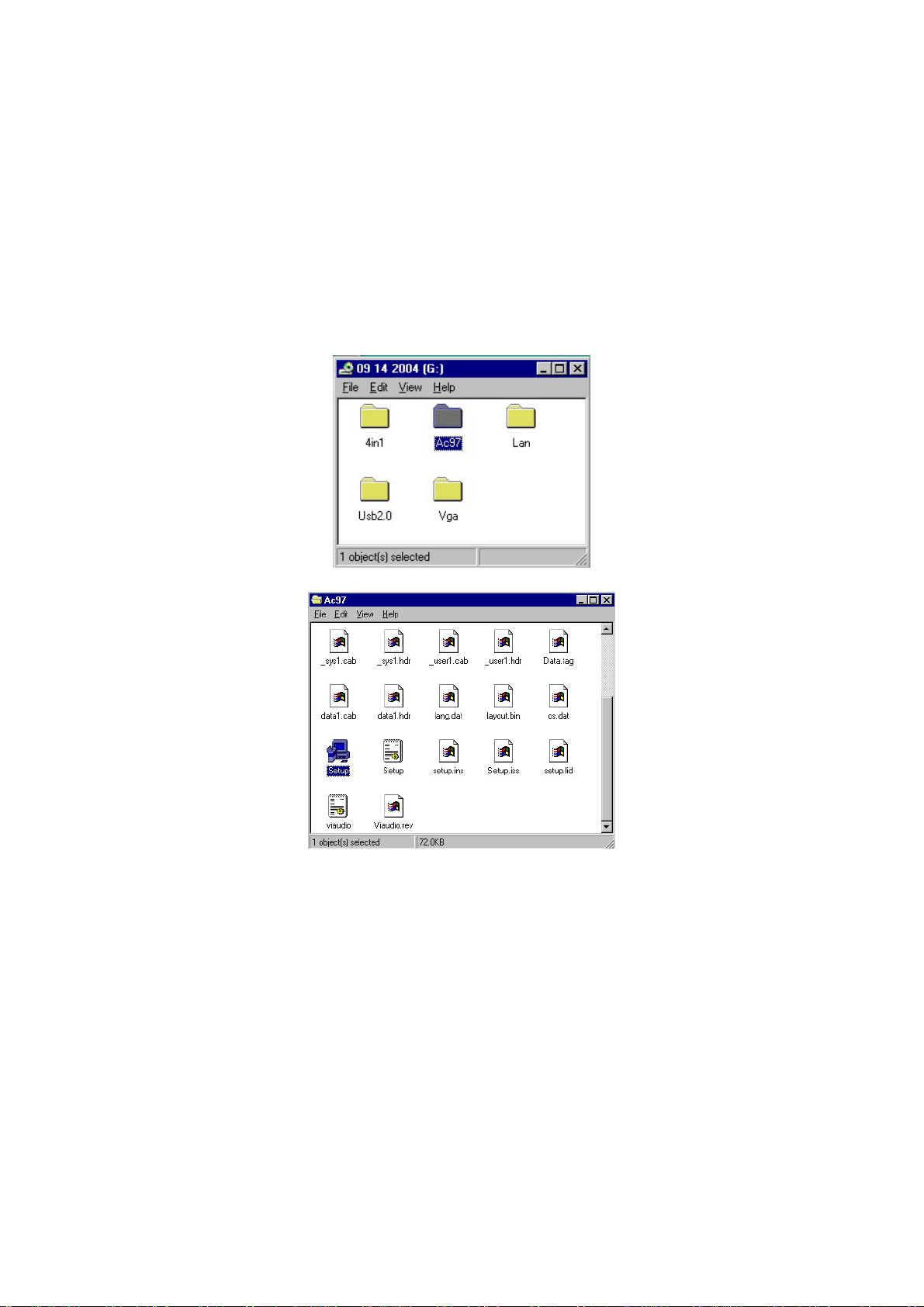

1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the driver folder.
2. Press “Setup.exe” and to go setup.
61
3. Once the Welcome screen appears on the screen, make sure to
close applications that are runnin g an d then click the N button.
ext>
4. The Select Components dialog box is now displayed. Tick on
VT8233/VT8235 and then click on N
ext>.
62
5. After the audio driver installation finishes, tike restart
computer now, and click the Finish button to complete the
installation process.
63
5.4 USB2.0 Driver Installation
5.4.1 Win 98
1. Put the Utility CD Disk still in your CD ROM drive, click the “VIA
8235 USB2.0”.
2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the “Next” button.

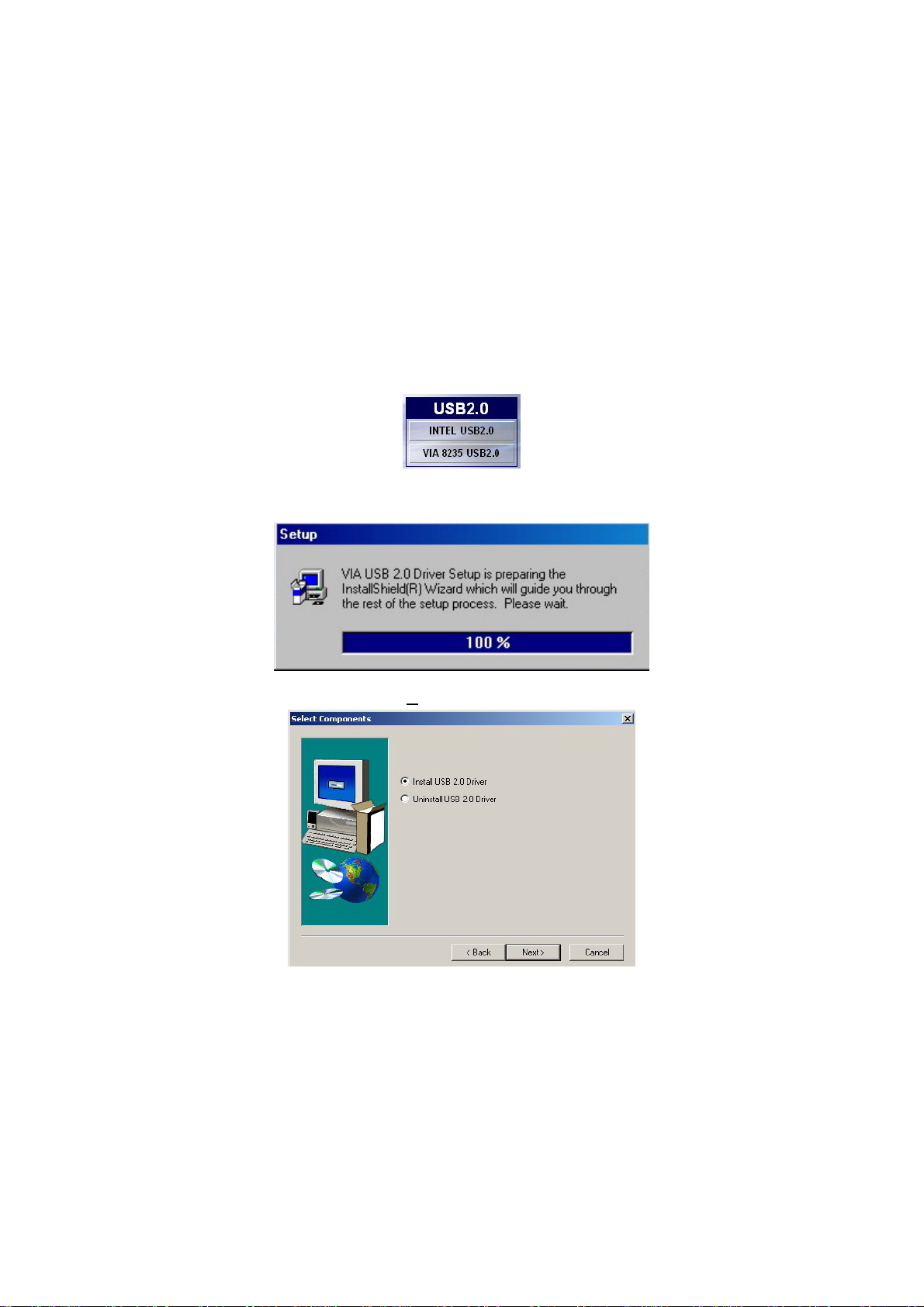

3. Tick on the “Install USB2.0 Driver” once the following screen
appears. Click on the N
ext to proceed.
64

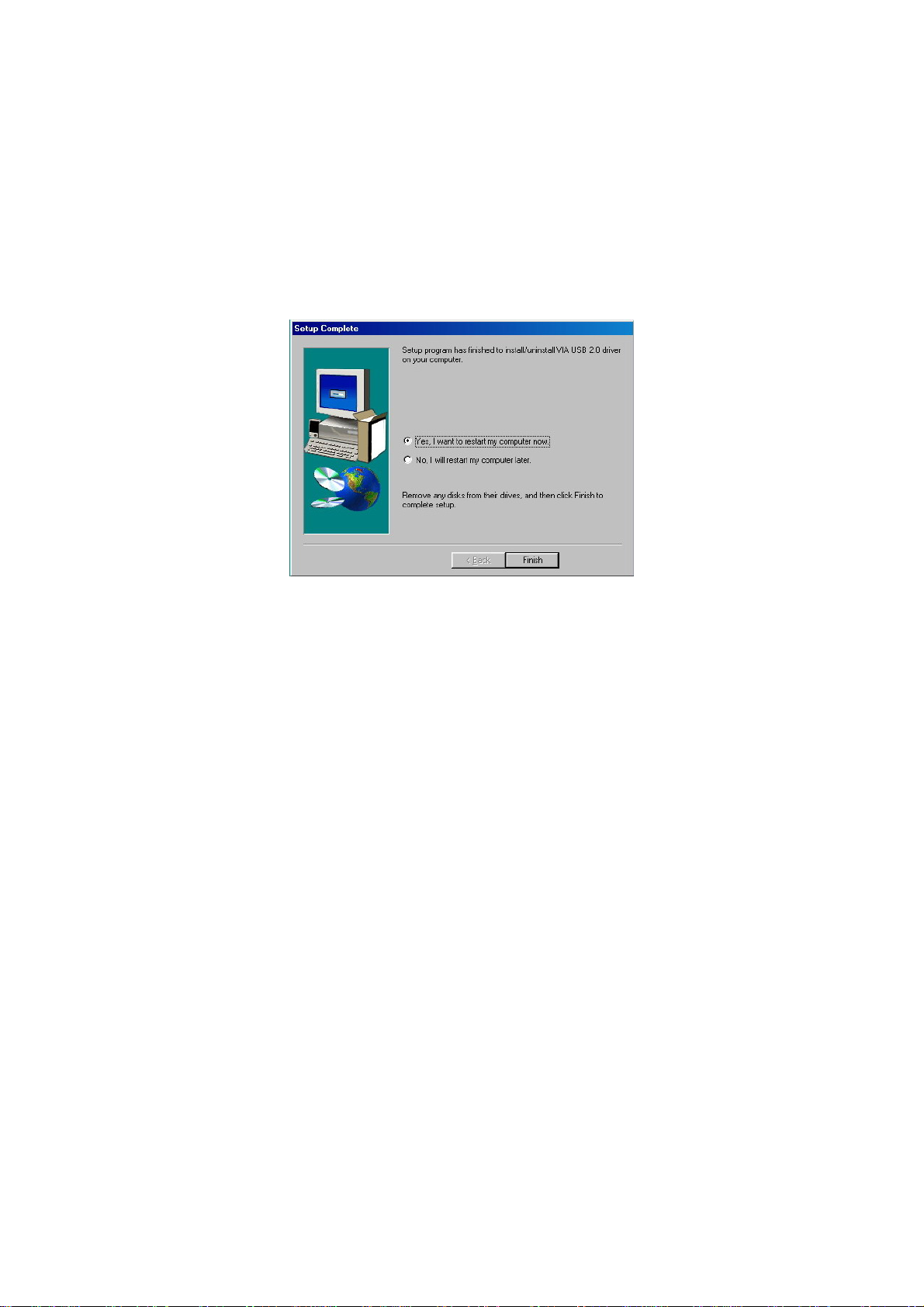

4. After the driver installation finishes, select restart computer now,
and click the Finish button to complete the installation process.
65
5.4.2 Win 2000

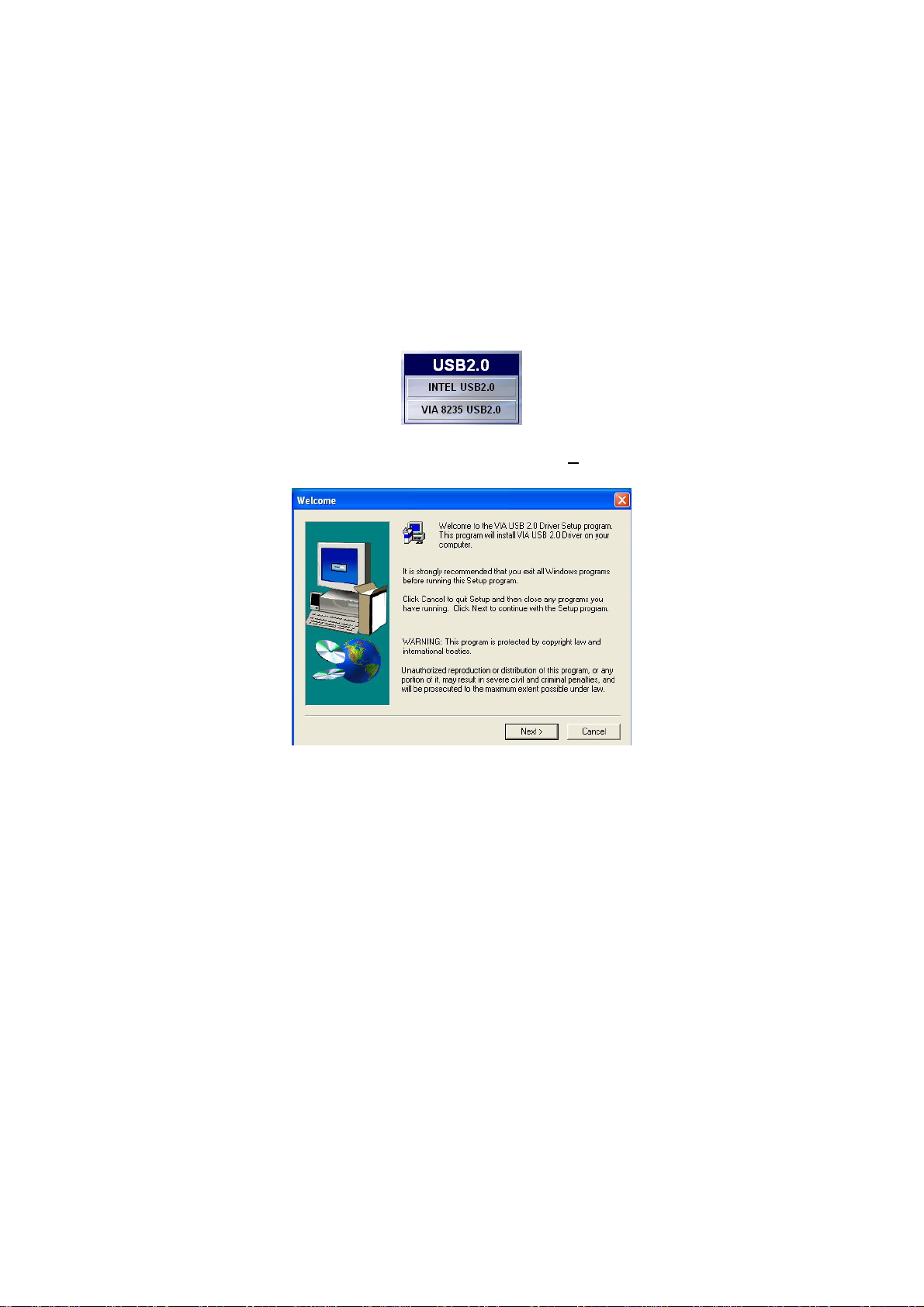

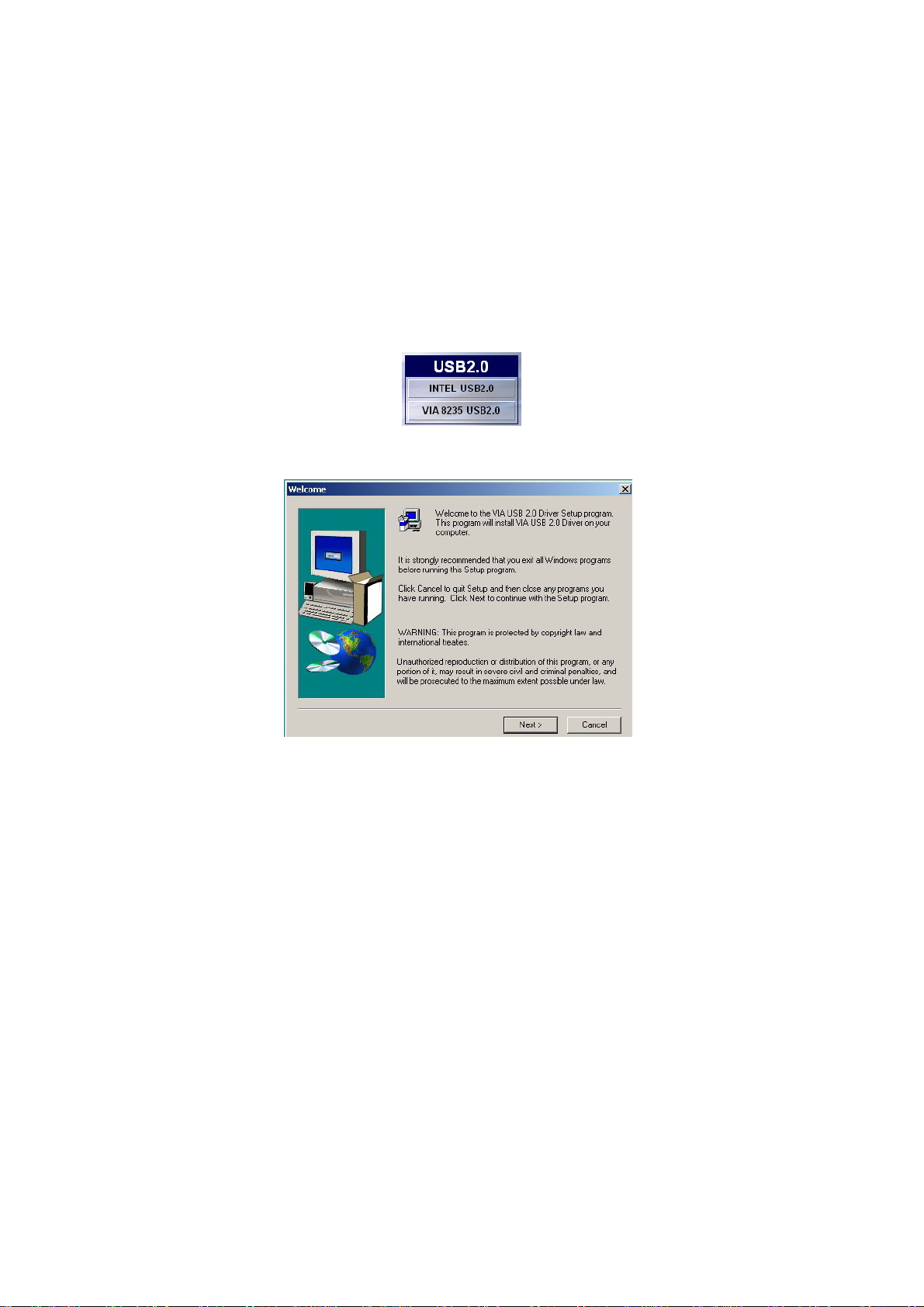

1. With the Utility CD Disk st ill in your CD ROM driv e, click the “VIA
8235 USB2.0”.
2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the “Next” button.
66
3. When the display below appears on your screen, Setup is already
ready to install and copy the related files on t o your hard drive, click on the “Next” button to proceed.
4. Tick on the “Install USB2.0 Driver” once the following screen
appears. Click on the N
ext to proceed.
67

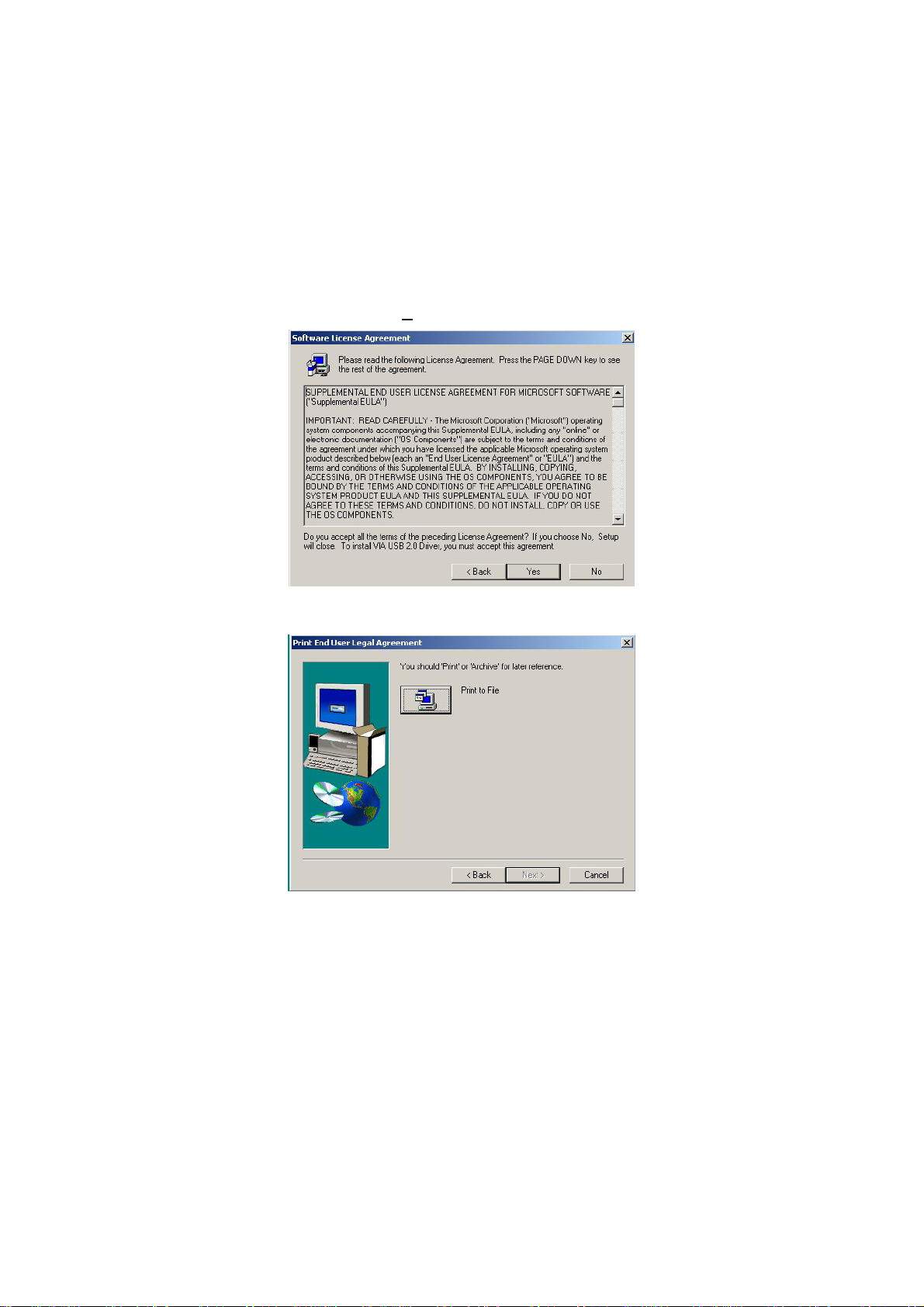

5. When the Software License Agreement screen appears on your
screen, press on the N
6. And you als o c an print End User Legal Agreement after your
installation finished.
ext button to continue.
68
5.4.3 Win XP
1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the driver folder.
2. When the dialo g bo x be low appears, make sure you close all
other Windows applications then click on the N proceed.
ext > button to
69
3. The programs starts to install the USB 2 . 0 driver when you click
the N
ext> button on the screen below.
4. Once the InstallShield Wizard completes the operation and
update of your USB2.0 driver. Click on the Y computer to complete the installation process.
es button to restart
70
Loading...
