GA-945P-DS3/S3

Intel® Core

2 Extreme dual-core / Core Intel® Pentium® D / Pentium® 4 / Celeron® D LGA775 Processor Motherboard

User's Manual

Rev. 3301

12ME-945PDS3-3301R

2 Duo /

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

Oct. 27, 2006

GA-945P-DS3/GA-945P-S3

Motherboard

Oct. 27, 2006

GA-945P-DS3/

GA-945P-S3

Motherboard

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

 For quick installation, please refer to the "Hardware Installation Guide" included with the

product.

 For detailed product information and specifications, please carefully read the

"Product User Manual".

 For detailed information related to Gigabyte's unique features, please go to "Technology

Guide" section on Gigabyte's website to read or download the information you need.

For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

Table of Contents

Item Checklist ................................................................................................................. 6

Optional Accessories ...................................................................................................... 6

GA-945P-DS3/GA-945P-S3 Motherboard Layout ......................................................... 7

Block Diagram ................................................................................................................ 8

Chapter 1 Hardware Installation ..................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and CPU Cooler ....................................................... 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the CPU Cooler ............................................................................ 13

1-4 Installation of Memory .................................................................................... 14

1-5 Installation of Expansion Cards ...................................................................... 16

1-6 I/O Back Panel Introduction ........................................................................... 17

1-7 Connectors Introduction .................................................................................. 18

Chapter 2 BIOS Setup ................................................................................................ 29

The Main Menu (For example: GA-945P-DS3 BIOS Ver. F2c) ................................ 30

2-1 Standard CMOS Features ............................................................................. 32

2-2 Advanced BIOS Features.............................................................................. 34

2-3 Integrated Peripherals ..................................................................................... 36

2-4 Power Management Setup ............................................................................. 39

2-5 PnP/PCI Configurations................................................................................. 41

2-6 PC Health Status ........................................................................................... 42

2-7 MB Intelligent Tweaker(M.I.T.) ....................................................................... 44

2-8 Load Fail-Safe Defaults ................................................................................... 46

2-9 Load Optimized Defaults ................................................................................. 46

2-10 Set Supervisor/User Password ..................................................................... 47

2-11 Save & Exit Setup......................................................................................... 48

2-12 Exit Without Saving ....................................................................................... 48

- 4 -

Chapter 3 Install Drivers ............................................................................................. 49

3-1 Install Chipset Drivers .................................................................................... 49

3-2 Software Applications ..................................................................................... 50

3-3 Driver CD Information .................................................................................... 50

3-4 Hardware Information ..................................................................................... 51

3-5 Contact Us ..................................................................................................... 51

Chapter 4 Appendix ................................................................................................... 53

4-1 Unique Software Utilities ................................................................................ 53

4-1-1 EasyTune 5 Introduction ..................................................................................... 53

4-1-2 Xpress Recovery2 Introduction ......................................................................... 54

4-1-3 Flash BIOS Method Introduction ........................................................................ 56

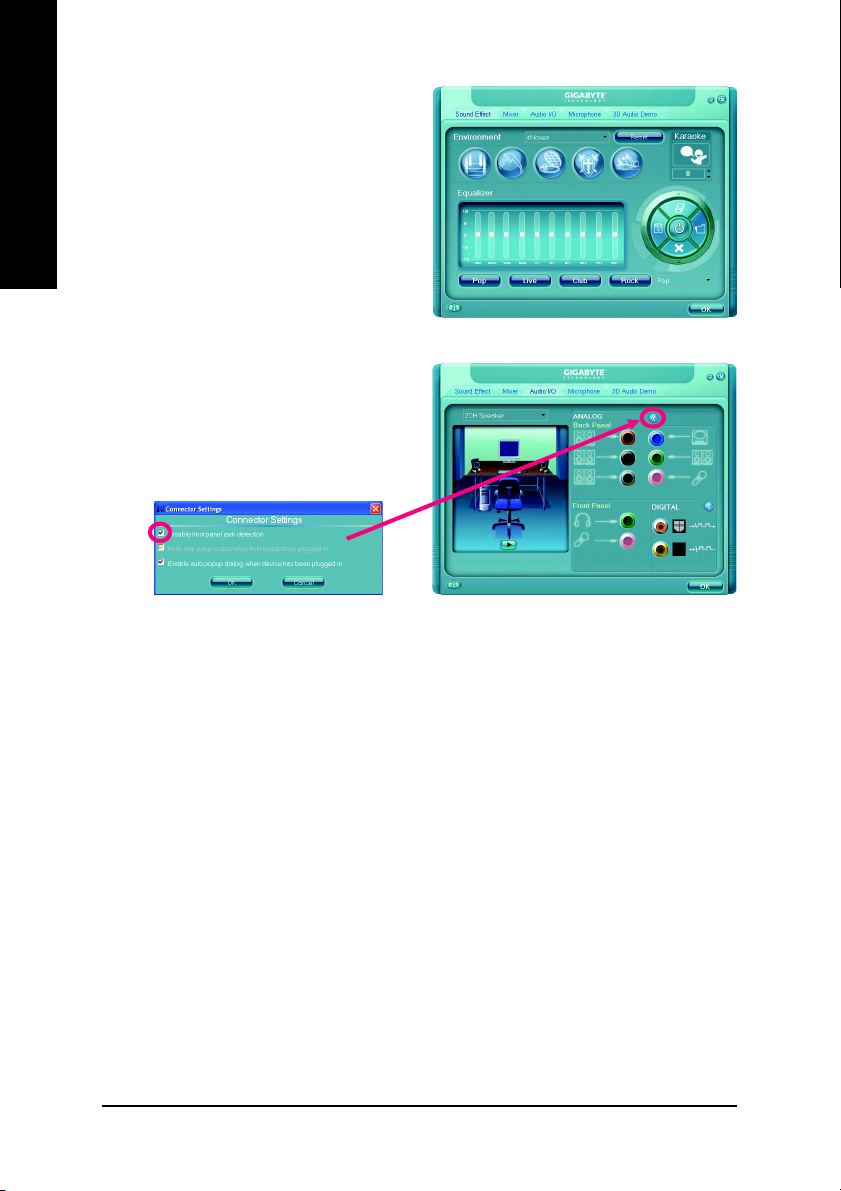

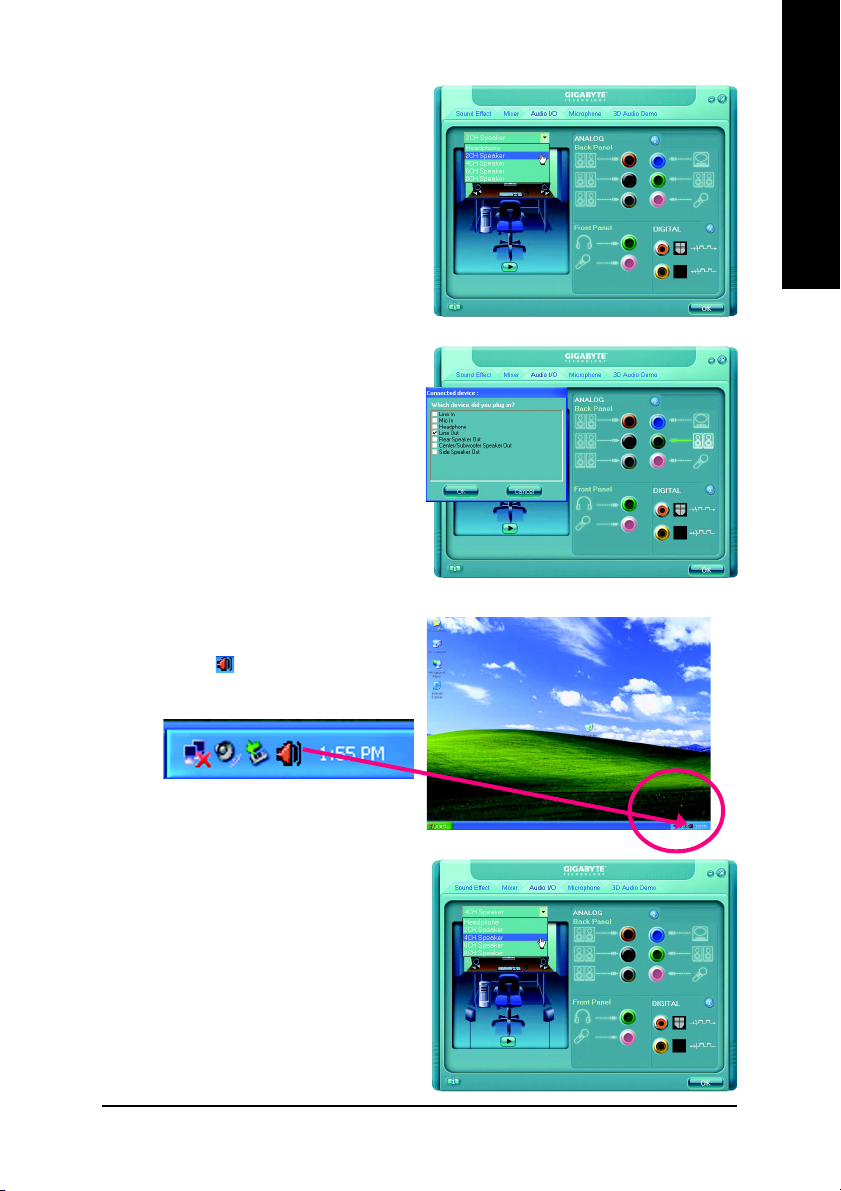

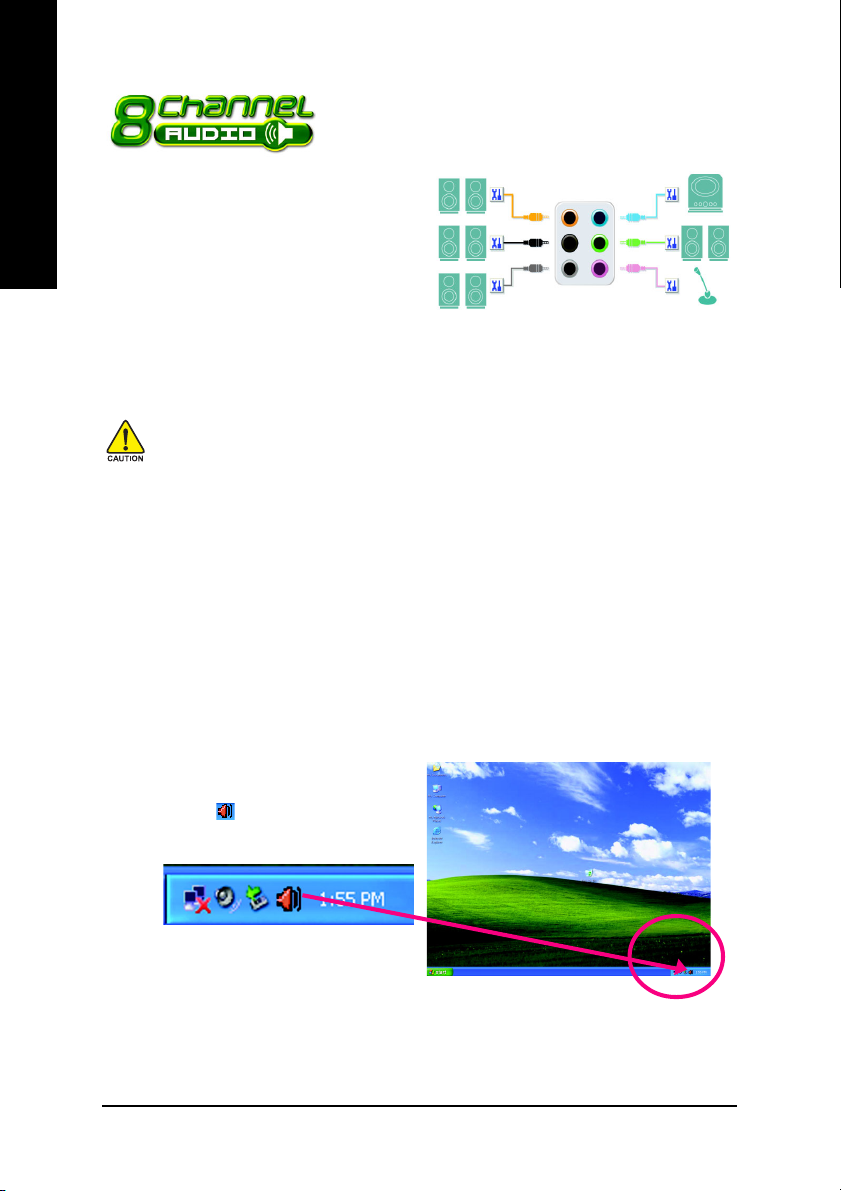

4-1-4 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 60

4-2 Troubleshooting ............................................................................................... 65

- 5 -

Item Checklist

IDE Cable x 1 and FDD Cable x 1

SATA 3Gb/s Cable x 2

I/O Shield

* The items listed above are for reference only, and are subject to change without notice.

Optional Accessories

 2 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-51/R)

 4 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-21/R)

 SPDIF In and Out Cable (Part Number: 12CR1-1SPINO-11/R)

 e-SATA Cable (Part Number: 12CF1-3SATPW-11R)

- 6 -

GA-945P-DS3/GA-945P-S3 Motherboard Layout

KB_MS

COMA

AUDIO

LPT

USB

RTL8111B

CODEC

LAN

ATX_12V

F_AUDIO

IT8718

NB_FAN

PCIE_16

PCIE_1

PCIE_2

PCI1

PCI2

PCI3

LGA775

Intel® 945P

PCIE_3

CPU_FAN

GA-945P-DS3/GA-945P-S3

DDRII1

CLR_CMOS

Intel® ICH7

BATTERY

SATAII0

BIOS

SATAII1

PWR_LED

FDD

DDRII2

SATAII2

SATAII3

F_PANEL

DDRII3

PWR_FAN

ATX

DDRII4

IDE1

CD_IN

SPDIF_IO SYS_FAN

- 7 -

F_USB1

F_USB2

Block Diagram

PCIe CLK (100 MHz)

PCI Express x16

LGA775

Processor

CPU CLK+/-(266/200/133 MHz)

Host

Interface

DDRII 667

(Note)

/533/400 MHz DIMM

PCI Express Bus

PCIe CLK (100 MHz)

3 PCI Express x1

PCI Bus

LAN

RJ45

RTL8111B

Intel ICH7

CODEC

MIC

Line-Out

Intel 945P

Line-In

SPDIF In

Dual Channel Memory

MCH CLK (266/200/133 MHz)

BIOS

4 SATA 3Gb/s

IT8718

8 USB

Ports

SPDIF Out

ATA 33/66/100

IDE Channel

Floppy

LPT Port

COM Port

PS/2 KB/Mouse

3 PCI

Side Speaker Out

Surround Speaker Out

PCI CLK (33 MHz)

Center/Subwoofer Speaker Out

(Note) To use a DDRII 667 memory module on the motherboard, you must install a 1066/800 MHz

FSB processor.

- 8 -

Chapter 1 Hardware Installation

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic pad or

within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector

from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are required

for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the information

in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with the

motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the product,

please consult a certified computer technician.

English

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Hardware Installation- 9 -

English

1-2 Feature Summary

CPU  LGA775 for Intel® Core

Pentium® 4/Celeron® D

 L2 cache varies with CPU Front Side Bus  Supports 1066/800/533 MHz FSB Chipset  Northbridge: Intel® 945P Express Chipset

 Southbridge: Intel® ICH7 LAN  Onboard RTL8111B chip (10/100/1000 Mbit) Audio  Onboard Realtek ALC888 chip

 Supports High Definition Audio

 Supports 2/4/6/8 channel audio

 Supports S/PDIF In/Out connection

 Supports CD In connection

Storage  ICH7 Southbrigde

- 1 FDD connector, allowing connection of 1 FDD device

- 1 IDE connector with UDMA 33/ATA 66/ATA 100 support, allowing connection of 2 IDE devices

- 4 SATA 3Gb/s connectors, allowing connection of 4 SATA 3Gb/s devices

O.S Support  Microsoft Windows 2000/XP Memory  4 DDRII DIMM memory slots (supports up to 4 GB memory)

 Supports dual channel DDRII 667  Supports 1.8V DDRII DIMMs

Expanstion Slots  1 PCI Express x16 slot

 3 PCI Express x1 slots  3 PCI slots

Internal Connectors  1 24-pin ATX power connector

 1 4-pin ATX 12V power connector  1 floppy connector  1 IDE connector  4 SATA 3Gb/s connectors  1 CPU fan connector  1 system fan connector  1 power fan connector  1 northbridge fan connector  1 front panel connector  1 front audio connector  1 CD In connector  1 S/PDIF In/Out connector  2 USB 2.0/1.1 connectors for additional 4 ports by cables  1 power LED connector  1 Chassis Intrusion connector

2 Extreme dual-core/CoreTM 2 Duo/Pentium® D/

(Note 2)

/533/400 unbuffered DIMMs

(Note 1)

"*" Only the GA-945P-DS3 adopts All-Solid Capacitor design.

GA-945P-DS3/S3 Motherboard - 10 -

Rear Panel I/O  1 PS/2 keyboard port

 1 PS/2 mouse port  1 serial port  1 parallel port  4 USB 2.0/1.1 ports  1 RJ-45 port  6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear

Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out) I/O Control  IT8718 chip Hardware Monitor  System voltage detection

 CPU temperature detection  CPU/System/Power fan speed detection  CPU warning temperature  CPU/System/Power fan failure warning  CPU smart fan control

BIOS  1 4 Mbit flash ROM

 Use of licensed AWARD BIOS  PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

Additional Features  Supports @BIOS

 Supports Download Center  Supports Q-Flash  Supports EasyTune  Supports Xpress Install  Supports Xpress Recovery2  Supports Xpress BIOS Rescue

Bundle Software  Norton Internet Security (OEM revision) Form Factor  ATX form factor; 30.5cm x 19.3cm

(Note 3)

English

(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage

and therefore the actual memory size is less than the stated amount. For example, 4 GB of memory size will instead be shown as 3.xx GB memory during system startup.

(Note 2) To use a DDRII 667 memory module on the motherboard, you must install a 1066/800 MHz

FSB processor.

(Note 3) EasyTune functions may vary depending on different motherboards.

Hardware Installation- 11 -

English

1-3 Installation of the CPU and CPU Cooler

Before installing the CPU, please comply with the following conditions:

1. Please make sure that the motherboard supports the CPU.

2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU will not insert properly. If this occurs, please change the insert direction of the CPU.

3. Please add an even layer of heat paste between the CPU and CPU cooler.

4. Please make sure the CPU cooler is installed on the CPU prior to system use, otherwise overheating and permanent damage of the CPU may occur.

5. Please set the CPU host frequency in accordance with the CPU specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the required standards for the peripherals. If you wish to set the frequency beyond the proper specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.

HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires all of the following platform components:

- CPU: An Intel® Pentium 4 CPU with HT Technology

- Chipset: An Intel® Chipset that supports HT Technology

- BIOS: A BIOS that supports HT Technology and has it enabled

- OS: An operation system that has optimizations for HT Technology

1-3-1 Installation of the CPU

Metal Lever

Fig. 1 Gently lift the metal lever located on the CPU socket to the upright position.

Fig. 2 Remove the plastic covering on the CPU socket.

Fig. 3 Notice the small gold colored triangle located on the edge of the CPU socket. Align the indented corner of the

CPU with the triangle and gently insert the CPU into position. (Grasping the CPU firmly between your thumb and forefinger, carefully place it into the socket in a straight and downwards motion. Avoid twisting or bending motions that might cause damage to the CPU during installation.)

GA-945P-DS3/S3 Motherboard - 12 -

Fig. 4 Once the CPU is properly inserted, please replace the load plate and push the metal lever back into its original position.

1-3-2 Installation of the CPU Cooler

English

Male Push Pin

The top of Female Push Pin

Female Push Pin

Fig.1 Please apply an even layer of heat paste on the surface of the installed CPU.

Fig. 3 Place the CPU cooler atop the CPU and make sure the push pins aim to the pin hole on the motherboard.Pressing down the push pins diagonally.

Fig. 5 Please check the back of motherboard after installing. If the push pin is inserted as the picture, the installation is complete.

Fig. 2 (Turning the push pin along the direction of arrow is to remove the CPU cooler, on the contrary, is to install.) Please note the direction of arrow sign on the male push pin doesn't face inwards before installation. (This instruction is only for Intel boxed fan)

Fig. 4 Please make sure the Male and Female push pin are joined closely. (for detailed installation instructions, please refer to the CPU cooler installation section of the user manual)

Fig. 6 Finally, please attach the power connector of the CPU cooler to the CPU fan header located on the motherboard.

The CPU cooler may adhere to the CPU as a result of hardening of the heat paste.To prevent such an occurrence, it is suggested that either thermal tape rather than heat paste be used for heat dissipation or using extreme care when removing the CPU cooler.

Hardware Installation- 13 -

English

1-4 Installation of Memory

Before installing the memory modules, please comply with the following conditions:

1. Please make sure that the memory used is supported by the motherboard. It is recommended that memory of similar capacity, specifications and brand be used.

2. Before installing or removing memory modules, please make sure that the computer power is switched off to prevent hardware damage.

3. Memory modules have a foolproof insertion design. A memory module can be installed in only one direction. If you are unable to insert the module, please switch the direction.

The motherboard supports DDRII memory modules, whereby BIOS will automatically detect memory capacity and specifications. Memory modules are designed so that they can be inserted only in one direction. The memory capacity used can differ with each slot.

Notch

DDRII

Fig.1 The DIMM socket has a notch, so the DIMM memory module can only fit in one direction. Insert the DIMM memory module vertically into the DIMM socket. Then push it down.

Fig.2 Close the plastic clip at both edges of the DIMM sockets to lock the DIMM module. Reverse the installation steps when you wish to remove the DIMM module.

GA-945P-DS3/S3 Motherboard - 14 -

Dual Channel Memory Configuration

The GA-945P-DS3/S3 supports the Dual Channel Technology. After operating the Dual Channel Technology, the bandwidth of memory bus will double. The GA-945P-DS3/S3 includes 4 DIMM sockets, and each Channel has two

DIMM sockets as following:

Channel 0 : DDRII1, DDRII2 Channel 1 : DDRII3, DDRII4

If you want to operate the Dual Channel Technology, please note the following explanations due to the limitation of Intel chipset specifications.

1. Dual Channel mode will not be enabled if only one DDRII memory module is installed.

2. To enable Dual Channel mode with two or four memory modules (it is recommended to use memory modules of identical brand, size, chips, and speed), you must install them into DIMM sockets of the same color.

The following is a Dual Channel Memory configuration table: (DS: Double Side, SS: Single Side, X:Empty)

DDR II 1 DDR II 2 DDR II 3 DDR II 4

2 memory modules

4 memory modules

DS/SS X DS/SS X

X DS/SS X DS/SS

DS/SS DS/SS DS/SS DS/SS

English

Hardware Installation- 15 -

English

1-5 Installation of Expansion Cards

You can install your expansion card by following the steps outlined below:

1. Read the related expansion card's instruction document before install the expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer's chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

Installing a PCI Express x16 expansion card:

Please align the VGA card to the onboard PCI Express x16 slot and press firmly down on the slot. Make sure your VGA card is locked by the latch at the end of the PCI Express x16 slot. When you try uninstall the VGA card, please gently press the latch as the picture to the left shows to release the card.

GA-945P-DS3/S3 Motherboard - 16 -

1-6 I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the lower port (purple).

Parallel Port (LPT)

The parallel port allows connection of a printer, scanner and other peripheral devices.

Serial Port (COMA)

Connects to serial-based mouse or data processing devices.

USB Port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make sure your OS supports USB controller. If your OS does not support USB controller, please contact OS vendor for possible patch or driver upgrade. For more information please contact your OS or device(s) vendors.

LAN Port

The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/100/1000Mbps.

Center/Subwoofer Speaker Out

The default Center/Subwoofer Speaker Out jack. Center/Subwoofer speakers can be connected to Center/Subwoofer Speaker Out jack.

Surround Speaker Out (Rear Speaker Out)

The default Surround Speaker Out (Rear Speaker Out) jack. Rear surround speakers can be connected to Surround Speaker Out (Rear Speaker Out) jack.

Side Speaker Out

The default Side Speaker Out jack. Surround side speakers can be connected to Side Speaker Out jack.

Line In

The default Line In jack. Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out (Front Speaker Out)

The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround speakers can be connected to Line Out (Front Speaker Out) jack.

MIC In

The default MIC In jack. Microphone must be connected to MIC In jack.

English

Hardware Installation- 17 -

English

In addition to the default speakers settings, the ~ audio jacks can be reconfigured to perform different functions via the audio software. Only microphones still MUST be connected

to the default Mic In jack ( ) . Please refer to the 2-/4-/6-/8- channel audio setup steps for

detailed software configuration information.

1-7 Connectors Introduction

1) ATX_12V

2) ATX (Power Connector)

3) CPU_FAN

4) SYS_FAN

5) PWR_FAN

6) NB_FAN

7) FDD

8) IDE1

9) SATAII0/1/2/3

10) PWR_LED

11) F_PANEL

12) F_AUDIO

13) CD_IN

14) SPDIF_IO

15) F_USB1/F_USB2

16) C I

17) CLR_CMOS

18) BATTERY

GA-945P-DS3/S3 Motherboard - 18 -

1/2) ATX_12V/ATX (Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, please make sure that all components and devices are properly installed. Align the power connector with its proper location on the motherboard and connect tightly. The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connector is not connected, the system will not start. Caution! Please use a power supply that is able to handle the system voltage requirements. It is recommended that a power supply that can withstand high power consumption be used (300W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable system or a system that is unable to start. If you use a 24-pin ATX power supply, please remove the small cover on the power connector on the motherboard before plugging in the power cord; Otherwise, please do not remove it.

Pin No. Definition

ATX_12V

1 GND

2 GND

3 +12V

4 +12V

English

ATX

Pin No. Definition

1 3.3V

2 3.3V

3 GND

4 +5V

5 GND

6 +5V

7 GND

8 Power Good

9 5V SB(stand by +5V)

10 +12V

11 +12V(Only for 24-pin ATX)

12 3.3V(Only for 24-pin ATX)

Pin No. Definition

13 3.3V

14 -12V

15 GND

16 PS_ON(soft On/Off)

17 GND

18 GND

19 GND

20 -5V

21 +5V

22 +5V

23 +5V (Only for 24-pin ATX)

24 GND(Only for 24-pin ATX)

Hardware Installation- 19 -

English

3/4/5) CPU_FAN / SYS_FAN / PWR_FAN (Cooler Fan Power Connector)

The cooler fan power connector supplies a +12V power voltage via a 3-pin/4-pin (only for CPU_FAN) power connector and possesses a foolproof connection design. Most coolers are designed with color-coded power connector wires. A red power connector wire indicates a positive connection and requires a +12V power voltage. The black connector wire is the ground wire (GND). Remember to connect the CPU/system fan cable to the CPU_FAN/SYS_FAN connector to prevent CPU damage or system hanging caused by overheating.

CPU_FAN:

Pin No. Definition

CPU_FAN

1 GND

2 +12V/Speed Control

3 Sense

4 Speed Control

SYS_FAN

PWR_FAN

SYS_FAN/PWR_FAN:

Pin No. Definition

1 GND

2 +12V

3 Sense

6) NB_FAN (Chip Fan Power Connector)

The chip fan will not work if you install it in the wrong direction and sometimes the chip fan will be damaged.

Pin No. Definition

1 GND

2 +12V

3NC

GA-945P-DS3/S3 Motherboard - 20 -

7) FDD (Floppy Connector)

The FDD connector is used to connect the FDD cable while the other end of the cable connects to the FDD drive. The types of FDD drives supported are: 360 KB, 720 KB, 1.2 MB, 1.44 MB and

2.88 MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD connector.

English

8) IDE1 (IDE Connector)

An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive). If you wish to connect two IDE devices, please set the jumper on one IDE device as Master and the other as Slave (for information on settings, please refer to the instructions located on the IDE device). Before attaching the IDE cable, please take note of the foolproof groove in the IDE connector.

Hardware Installation- 21 -

English

9) SATAII0/1/2/3 (SATA 3Gb/s Connector)

SATA 3Gb/s can provide up to 300MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA and install the proper driver in order to work properly.

Pin No. Definition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

SATAII2

SATAII0

SATAII1

SATAII3

10) PWR_LED

The PWR_LED connector is connected with the system power indicator to indicate whether the system is on/off. It will blink when the system enters suspend mode (S1).

Pin No. Definition

1 MPD+

2 MPD-

3 MPD-

GA-945P-DS3/S3 Motherboard - 22 -

11) F_PANEL (Front Panel Jumper)

Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front panel to the F_PANEL connector according to the pin assignment below.

English

Message LED/

Power/

Sleep LED

Power

Switch

PW+

MSG+

PW-

MSG-

2 1

HD-

RES+

HD+

RES-

Reset Switch

IDE Hard Disk Active LED

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

(Blue) Pin 2: LED cathode(-)

SPEAK (Speaker Connector) Pin 1: Power

(Amber) Pin 2- Pin 3: NC

Pin 4: Data(-)

RES (Reset Switch) Open: Normal

(Green) Close: Reset Hardware System

PW (Power Switch) Open: Normal

(Red) Cl ose : Power On/Off

MSG (Message LED/Power/Sleep LED) Pin 1: LED anode(+)

(Yellow) Pin 2: LED cathode(-)

NC ( Purple) NC

Speaker Connector

SPEAK+

SPEAK-

20 19

Hardware Installation- 23 -

English

12) F_AUDIO (Front Audio Connector)

This connector supports either HD (High Definition) or AC97 front panel audio module. If you wish to use the front audio function, connect the front panel audio module to this connector. Check the pin assignments carefully while you connect the front panel audio module. Incorrect connection between the module and connector will make the audio device unable to work or even damage it. For optional front panel audio module, please contact your chassis manufacturer.

910

AC'97 Audio:HD Audio:

Pin No. Definition

1 MIC2_L

2 GND

3 MIC2_R

4 -ACZ_DET

5 LINE2_R

6 FSENSE1

7 FAUDIO_JD

8 No Pin

9 LINE2_L

10 FSENSE2

Pin No. Definition

1 MIC

2 GND

3 MIC Power

4NC

5 Line Out (R)

6NC

7NC

8 No Pin

9 Line Out (L)

10 NC

By default, the audio driver is configured to support HD Audio. To connect an AC97 front panel audio module to this connector, please refer to the instructions on Page 64 about the software settings.

GA-945P-DS3/S3 Motherboard - 24 -

13) CD_IN (CD IN Connector)

Connect CD-ROM or DVD-ROM audio out to the connector.

Pin No. Definition

1 CD-L

2 GND

3 GND

4 CD-R

14) SPDIF_IO (S/PDIF In/Out Connector)

The S/PDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby Digital Decoder. Use this feature only when your stereo system has digital input function. Use S/PDIF IN feature only when your device has digital output function. Be careful with the polarity of the SPDIF_IO connector. Check the pin assignment carefully while you connect the S/PDIF cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional S/PDIF cable, please contact your local dealer.

English

1625

Pin No. Definition

1 Power

2 No Pin

3 SPDIF

4 SPDIFI

5 GND

6 GND

Hardware Installation- 25 -

English

15) F_ USB1 / F_USB2 (Front USB Connector)

Be careful with the polarity of the front USB connector. Check the pin assignment carefully while yo u connect the front USB cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional front USB cable, please contact your local dealer.

Pin No. Definition

1 Power(5V)

2 Power(5V)

3 USB DX-

210

4 USB Dy-

5 USB DX+

6 USB Dy+

7 GND

8 GND

9 No Pin

10 NC

16) CI (Chassis Intrusion, Case Open)

This 2-pin connector allows your system to detect if the chassis cover is removed. You can check the "Case Opened" status in BIOS Setup.

GA-945P-DS3/S3 Motherboard - 26 -

Pin No. Definition

1 Signal

2 GND

17) CLR_CMOS (Clear CMOS)

You may clear the CMOS data to its default values by this header. To clear CMOS, temporarily

short the two pins. Default doesn't include the jumper to avoid improper use of this header.

Open: Normal

Short: Clear CMOS

18) BATTERY

English

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended

by the manufacturer.

Dispose of used batteries according to the manufacturer's

instructions.

If you want to erase CMOS...

1. Turn off the computer and unplug the power cord.

2. Gently take out the battery and put it aside for about one minute. (Or you can use a metal object to connect the positive and nega-

tive pins in the battery holder to makethem short for five seconds.)

3. Re-install the battery.

4. Plug the power cord in and turn on the computer.

Hardware Installation- 27 -

English

GA-945P-DS3/S3 Motherboard - 28 -

Chapter 2 BIOS Setup

BIOS (Basic Input and Output System) includes a CMOS SETUP utility which allows user to configure required settings or to activate certain system features. The CMOS SETUP saves the configuration in the CMOS SRAM of the motherboard. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS SRAM. When the power is turned on, pressing the <Del> button during the BIOS POST (Power-On Self Test) will take you to the CMOS SETUP screen. You can enter the BIOS setup screen by pressing "Ctrl + F1". If you wish to upgrade to a new BIOS, either Gigabyte's Q-Flash or @BIOS utility can be used. Q-Flash allows the user to quickly and easily update or backup BIOS without entering the operating system. @BIOS is a Windows-based utility that does not require users to boot to DOS before upgrading BIOS but directly download and update BIOS from the Internet.

CONTROL KEYS

< >< >< >< > Move to select item <Enter> Select Item <Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu

and Option Page Setup Menu - Exit current page and return to Main Menu <Page Up> Increase the numeric value or make changes <Page Down> Decrease the numeric value or make changes <F1> General help, only for Status Page Setup Menu and Option Page Setup Menu <F2> Item Help <F5> Restore the previous CMOS value from CMOS, only for Option Page Setup

Menu <F6> Load the fail-safe default CMOS value from BIOS default table <F7> Load the Optimized Defaults <F8> Q-Flash utility <F9> System Information <F10> Save all the CMOS changes, only for Main Menu

English

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc>.

Because BIOS flashing is potentially risky, please do it with caution and avoid inadequate operation that may result in system malfunction.

BIOS Setup- 29 -

English

Startup Screen:

<TAB>:POST Scree n <DEL>:BIOS Setup/Q-Flash <F9>:XpressRecovery2 <F12>:Boot Menu

<TAB> : POST Screen

Press the TAB key to see BIOS POST screen.

(To show the BIOS POST screen at system startup, refer to the instructions on the Full Screen LOGO Show item on page 35.)

<DEL> : BIOS Setup/Q-Flash

Press the DELETE key to enter BIOS Setup program.

<F9> : Xpress Recovery2

Press the F9 key to enter the Xpress Recovery2 screen.

<F12> : Boot Menu

Press the F12 key to enter Boot Menu to select the first boot device.

The Main Menu (For example: GA-945P-DS3 BIOS Ver. F2c)

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (as figure below) will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

1. If you don’t find the settings you want, press "Ctrl+F1" to access advanced options.

2. Select the Load Optimized Defaults item in the BIOS Setup when somehow the system is not stable as usual. This action makes the system reset to the default settings for stability.

3. The BIOS Setup menus described in this chapter are for reference only and may differ from the exact settings for your motherboard.

GA-945P-DS3/S3 Motherboard - 30 -

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving



 Standard CMOS Features



This setup page includes all the items in standard compatible BIOS.



 Advanced BIOS Features



This setup page includes all the items of Award special enhanced features.



 Integrated Peripherals



This setup page includes all onboard peripherals.



 Power Management Setup



This setup page includes all the items of Green function features.



 PnP/PCI Configurations



This setup page includes all the configurations of PCI & PnP ISA resources.



 PC Health Status



This setup page is the System auto detect Temperature, voltage, fan, speed.



 MB Intelligent Tweaker(M.I.T.)



This setup page is control CPU clock and frequency ratio.



 Load Fail-Safe Defaults



Fail-Safe Defaults indicates the value of the system parameters which the system would be in safe configuration.



 Load Optimized Defaults



Optimized Defaults indicates the value of the system parameters which the system would be in best performance configuration.



 Set Supervisor Password



Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.



 Set User Password



Change, set, or disable password. It allows you to limit access to the system.



 Save & Exit Setup



Save CMOS value settings to CMOS and exit setup.



 Exit Without Saving



Abandon all CMOS value changes and exit setup.

English

BIOS Setup- 31 -

English

2-1 Standard CMOS Features

Date (mm:dd:yy) Fri, Mar 18 2007 Time (hh:mm:ss) 18:25:04

` IDE Channel 0 Master [None] ` IDE Channel 0 Slave [None] ` IDE Channel 2 Master [None] ` IDE Channel 2 Slave [None] ` IDE Channel 3 Master [None] ` IDE Channel 3 Slave [None]

Drive A [1.44M, 3.5"] Floppy 3 Mode Support [Disabled]

Halt On [All, But Keyboard]

Base Memory 640K Extended Memory 511M

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Date

The date format is <week>, <month>, <day>, <year>.

Week The week, from Sun to Sat, determined by the BIOS and is display-only Month The month, Jan. Through Dec Day The day, from 1 to 31 (or the maximum allowed in the month) Year The year, from 1999 through 2099.

Time

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example, 1 p.m. is 13:0:0.

IDE Channel 0 Master/Slave

IDE HDD Auto-Detection

Press "Enter" to select this option for automatic device detection.

IDE Channel 0 Master/Slave IDE/SATA Device Setup. You can use one of three methods:

Auto Allows BIOS to automatically detect IDE/SATA devices during POST(default) None Select this if no IDE/SATA devices are used and the system will skip the

automatic detection step and allow for faster system start up.

Manual User can manually input the correct settings

Access Mode Use this to set the access mode for the hard drive. The four options are:

CHS/LBA/Large/Auto(default:Auto)

IDE Channel 2, 3 Master/Slave

IDE Auto-Detection

Press "Enter" to select this option for automatic device detection.

Extended IDE Drive. IDE/SATA Device Setup. You can use one of the two methods:

Auto Allows BIOS to automatically detect IDE/SATA devices during POST(default) None Select this if no IDE/SATA devices are used and the system will skip the

automatic detection step and allow for faster system start up.

GA-945P-DS3/S3 Motherboard - 32 -

Standard CMOS Features

Item Help Menu Level`

Capacity Capacity of currently installed hard disk.

Cylinder Number of cylinders Head Number of heads Precomp Write precomp Landing Zone Landing zone Sector Number of sectors

Drive A

The category identifies the types of floppy disk drive A that has been installed in the computer.

None No floppy drive installed 360K, 5.25" 5.25 inch PC-type standard drive; 360K byte capacity.

1.2M, 5.25" 5.25 inch AT-type high-density drive; 1.2M byte capacity

(3.5 inch when 3 Mode is Enabled).

720K, 3.5" 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5" 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5" 3.5 inch double-sided drive; 2.88M byte capacity.

Floppy 3 Mode Support (for Japan Area)

Disabled Normal Floppy Drive. (Default value) Drive A Drive A is 3 mode Floppy Drive.

Halt on

The category determines whether the computer will stop if an error is detected during power up.

No Errors The system boot will not stop for any error that may be detected and you

will be prompted. All Errors Whenever the BIOS detects a non-fatal error the system will be stopped. All, But Keyboard The system boot will not stop for a keyboard error; it will stop for all other

errors. (Default value) All, But Diskette The system boot will not stop for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will stop for all

other errors.

Memory

The category is display-only which is determined by POST (Power On Self Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard, or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU's memory address map.

English

BIOS Setup- 33 -

English

2-2 Advanced BIOS Features

` Hard Disk Boot Priority [Press Enter]

First Boot Device [Floppy] Second Boot Device [Hard Disk] Third Boot Device [CDROM] Password Check [Setup] HDD S.M.A.R.T. Capability [Disabled] CPU Hyper-Threading Limit CPUID Max. to 3 No-Execute Memory Protect CPU Enhanced Halt (C1E) CPU Thermal Monitor 2(TM2) CPU EIST Function Virtualization Technology Full Screen LOGO Show [Enabled]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

(Note)

Hard Disk Boot Priority

Select boot sequence for onboard(or add-on cards) SCSI, RAID, etc.

Use < > or < > to select a device, then press<+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

First / Second / Third Boot Device

Floppy Select your boot device priority by Floppy. LS120 Select your boot device priority by LS120. Hard Disk Select your boot device priority by Hard Disk. CDROM Select your boot device priority by CDROM. ZIP Select your boot device priority by ZIP. USB-FDD Select your boot device priority by USB-FDD. USB-ZIP Select your boot device priority by USB-ZIP. USB-CDROM Select your boot device priority by USB-CDROM. USB-HDD Select your boot device priority by USB-HDD. LAN Select your boot device priority by LAN. Disabled Disable this function.

Password Check

Setup The system will boot but will not access to Setup page if the correct

password is not entered at the prompt. (Default value) System The system will not boot and will not access to Setup page if the correct

password is not entered at the prompt.

If you want to cancel the setting of password, please just press ENTER to make [SETUP] empty.

Advanced BIOS Features

(Note)

[Enabled] [Disabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

Item Help Menu Level`

Select Hard Disk Boot Device Priority

(Note) This item will show up when you install a processor which supports this function.

GA-945P-DS3/S3 Motherboard - 34 -

HDD S.M.A.R.T. Capability

This feature allows your hard disk to report read/write errors and to issue warnings when thirdparty hardware monitor utility is installed.

Enabled Enable HDD S.M.A.R.T. capability. Disabled Disable HDD S.M.A.R.T. capability. (Default value)

CPU Hyper-Threading

(Note)

Enabled Enable CPU Hyper Threading Feature. Please note that this feature is only

working for operating system with multi processors mode supported. (Default value)

Disabled Disable CPU Hyper Threading.

Limit CPUID Max. to 3

(Note)

Enabled Limit CPUID Maximum value to 3 when use older OS like NT4. Disabled Disable CPUID Limit for windows XP. (Default value)

No-Execute Memory Protect

(Note)

Enabled Enable No-Execute Memory Protect function. (Default value) Disabled Disable No-Execute Memory Protect function.

CPU Enhanced Halt (C1E)

(Note)

Enabled Enable CPU Enhanced Halt (C1E) function. (Default value) Disabled Disable CPU Enhanced Halt (C1E) function.

CPU Thermal Monitor 2 (TM2)

(Note)

Enabled Enable CPU Thermal Monitor 2 (TM2) function. (Default value) Disabled Disable CPU Thermal Monitor 2 (TM2) function.

CPU EIST Function

(Note)

Enabled Enable CPU EIST function. (Default value) Disabled Disable EIST function.

Virtualization Technology

(Note)

Enabled Enable Virtualization Technology. (Default value) Disabled Disable this function.

Full Screen LOGO Show

Enabled Show full screen logo at system startup. (Default value) Disabled Disable this function. If you wish to see BIOS POST screen, set this item to

"Disabled".

English

(Note) This item will show up when you install a processor which supports this function.

BIOS Setup- 35 -

English

2-3 Integrated Peripherals

On-Chip Primary PCI IDE [Enabled] On-Chip SATA Mode [Auto]

x PATA IDE Set to Ch.0 Master/Slave

SATA Port 0/2 Set to Ch.2 Master/Slave SATA Port 1/3 Set to Ch.3 Master/Slave

USB Controller [Enabled] USB 2.0 Controller [Enabled] USB Keyboard Support [Disabled] USB Mouse Support [Disabled] Legacy USB storage detect [Enabled] Azalia Codec [Auto] Onboard H/W LAN [Enabled]

` SMART LAN [Press Enter]

Onboard LAN Boot ROM [Disabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Parallel Port [378/IRQ7] Parallel Port Mode [SPP]

x ECP Mode Use DMA 3

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

On-Chip Primary PCI IDE

Enabled Enable onboard 1st channel IDE port. (Default value) Disabled Disable onboard 1st channel IDE port.

On-Chip SATA Mode

Disabled Disable this function. Auto BIOS will auto detect. (Default value) Combined Set On-Chip SATA mode to Combined, you can use up to 4 HDDs on

the motherboard; 2 for SATA and the other 2 for PATA.

Enhanced Set On-Chip SATA mode to Enhanced, the motherboard allows up to 6

HDDs to use; 4 SATA HDDs plus 2 PATA HDDs.

Non-Combined Set On-Chip SATA mode to Non-Combined, SATA will be simulated to

PATA mode. Support a maximum of 4 SATA devices. PATA devices will be ignored.

PATA IDE Set to

Ch.1 Master/Slave Set PATA IDE to Ch. 1 Master/Slave. Ch.0 Master/Slave Set PATA IDE to Ch. 0 Master/Slave. (Default value)

SATA Port 0/2 Set to

This value will auto make by the setting "On-Chip SATA Mode" and "PATA IDE Set to".

If PATA IDE were set to Ch. 1 Master/Slave,this function will auto set to Ch. 0 Master/Slave.

SATA Port 1/3 Set to

This value will auto make by the setting "On-Chip SATA Mode" and "PATA IDE Set to".

If PATA IDE were set to Ch. 0 Master/Slave,this function will auto set to Ch. 1 Master/Slave.

USB Controller

Enabled Enable USB Controller. (Default value) Disabled Disable USB Controller.

Integrated Peripherals

Item Help Menu Level`

GA-945P-DS3/S3 Motherboard - 36 -

USB 2.0 Controller

Disable this function if you are not using onboard USB 2.0 feature.

Enabled Enable USB 2.0 Controller. (Default value) Disabled Disable USB 2.0 Controller.

USB Keyboard Support

Enabled Enable USB Keyboard Support. Disabled Disable USB Keyboard Support. (Default value)

USB Mouse Support

Enabled Enable USB Mouse Support. Disabled Disable USB Mouse Support. (Default value)

Legacy USB storage detect

This option allows users to decide whether to detect USB storage devices, including USB flash drives and USB hard drives during POST.

Enabled BIOS will scan all USB storage devices. (Default value) Disabled Disable this function.

Azalia Codec

Auto Auto detect Azalia audio function. (Default value) Disabled Disable Azalia audio function.

Onboard H/W LAN

Enabled Enable Onboard H/W LAN function. (Default value) Disabled Disable this function.

SMART LAN (LAN Cable Diagnostic Function)

Start detecting at Port.....

Pair1-2 Status = Open / Length = 0.0m Pair3-6 Status = Open / Length = 0.0m Pair4-5 Status = Open / Length = 0.0m Pair7-8 Status = Open / Length = 0.0m

SMART LAN

Item Help Menu Level`

English

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

This motherboard incorporates cable diagnostic feature designed to detect the status of the attached LAN cable. This feature will detect cabling issue and report the approximate distance to the fault or short. Refer to the following information for diagnosing your LAN cable:

When No LAN Cable Is Attached... If no LAN cable is attached to the motherboard, the Status fields of all four pairs of wires will show Open and the Length fields show 0.0m, as shown in the figure above.

BIOS Setup- 37 -

English

When LAN Cable Is Functioning Normally...

If no cable problem is detected on the LAN cable connected to a Gigabit hub or a 10/100 Mbps hub, the following message will appear:

Start detecting at Port.....

Link Detected --> 100Mbps Cable Length= 30 m

Link Detected Displays transmission speed Cable Length Displays the approximate length of the attached LAN cable.

Note: The Gigabit hub will only operate at a speed of 10/100Mbps in MS-DOS mode; it will operate at a normal speed of 10/100/1000Mbps in Windows mode or when the LAN Boot ROM is activated.

When a Cable Problem Occurs...

If a cable problem occurs on a specified pair of wires, the Status field will show Short and the length shown will be the approximate distance to the fault or short. Example: Pair1-2 Status = Short / Length = 1.6m Explanation: A fault or short might occur at about 1.6m on Pair 1-2.

Note: Pair 4-5 and Pair 7-8 are not used in a 10/100 Mbps environment, their Status fields will show Open, and the length shown is the approximate length of the attached LAN cable

OnBoard LAN Boot ROM

This function decide whether to invoke the boot ROM of the onboard LAN chip.

Enabled Enable this function. Disabled Disable this function. (Default value)

Onboard Serial Port 1

Auto BIOS will automatically setup the port 1 address. 3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8/IRQ4. (Default value) 2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8/IRQ3. 3E8/IRQ4 Enable onboard Serial port 1 and address is 3E8/IRQ4. 2E8/IRQ3 Enable onboard Serial port 1 and address is 2E8/IRQ3. Disabled Disable onboard Serial port 1.

Onboard Parallel Port

Disabled Disable onboard LPT port. 378/IRQ7 Enable onboard LPT port and address is 378/IRQ7. (Default value) 278/IRQ5 Enable onboard LPT port and address is 278/IRQ5. 3BC/IRQ7 Enable onboard LPT port and address is 3BC/IRQ7.

Parallel Port Mode

SPP Using Parallel port as Standard Parallel Port. (Default value) EPP Using Parallel port as Enhanced Parallel Port. ECP Using Parallel port as Extended Capabilities Port. ECP+EPP Using Parallel port as ECP & EPP mode.

GA-945P-DS3/S3 Motherboard - 38 -

ECP Mode Use DMA

This option is available only when Parallel Port Mode is set to ECP or ECP+EPP.

3 Set ECP Mode Use DMA to 3. (Default value) 1 Set ECP Mode Use DMA to 1.

2-4 Power Management Setup

ACPI Suspend Type [S1(POS)] Soft-Off by PWR-BTTN [Instant-Off] PME Event Wake Up [Enabled] Power On by Ring [Enabled]

Resume by Alarm [Disabled]

x Date (of Month) Alarm Everyday x Time (hh:mm:ss) Alarm 0 : 0 : 0

Power On By Mouse [Disabled]

Power On By Keyboard [Disabled]

x KB Power ON Password Enter

AC Back Function [Soft-Off]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

ACPI Suspend Type

S1(POS) Set ACPI suspend type to S1/POS(Power On Suspend). (Default

S3(STR) Set ACPI suspend type to S3/STR(Suspend To RAM).

Soft-Off by PWR-BTTN

Instant-Off Press power button then Power off instantly. (Default value) Delay 4 Sec. Press power button 4 sec. to Power off. Enter suspend if button is

PME Event Wake Up

This feature requires an ATX power supply that provides at least 1A on the 5VSB lead.

Disabled Disable this function. Enabled Enable PME as wake up event. (Default value)

Power On by Ring

Disabled Disable Power on by Ring function. Enabled Enable Power on by Ring function. (Default value)

Resume by Alarm

You can set "Resume by Alarm" item to Enabled and key in Date/time to power on system.

Disabled Disable this function. (Default value) Enabled Enable alarm function to POWER ON system.

Power Management Setup

value)

pressed less than 4 sec.

Item Help Menu Level`

English

BIOS Setup- 39 -

English

If Resume by Alarm is Enabled.

Date (of Month) Alarm : Everyday, 1~31 Time (hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)

Power On By Mouse

Disabled Disable this function. (Default value) Double Click Double click on PS/2 mouse left button to power on the system.

Power On By Keyboard

Password Enter from 1 to 5 characters to set the Keyboard Power On Password. Disabled Disable this function. (Default value) Keyboard 98 If your keyboard have "POWER Key" button, you can press the key to

power on the system.

KB Power ON Password

When "Power On by Keyboard" set at Password, you can set the password here.

Enter Input password (from 1 to 5 characters) and press Enter to set the Keyboard

Power On password.

AC Back Function

Soft-Off When AC-power back to the system, the system will be in "Off" state.

(Default value) Full-On When AC-power back to the system, the system always in "On" state. Memory When AC-power back to the system, the system will return to the Last state

before AC-power off.

GA-945P-DS3/S3 Motherboard - 40 -

2-5 PnP/PCI Configurations

PCI1 IRQ Assignment [Auto] PCI2 IRQ Assignment [Auto] PCI3 IRQ Assignment [Auto]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PCI1 IRQ Assignment

Auto Auto assign IRQ to PCI 1. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1.

PCI2 IRQ Assignment

Auto Auto assign IRQ to PCI 2. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.

PCI3 IRQ Assignment

Auto Auto assign IRQ to PCI 3. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.

PnP/PCI Configurations

Menu Level`

Item Help

English

BIOS Setup- 41 -

English

2-6 PC Health Status

Reset Case Open Status [Disabled]

Case Opened No Vcore OK DDR18V OK +3.3V OK +12V OK Current CPU Temperature 47oC Current CPU FAN Speed 3375 RPM Current POWER FAN Speed 0 RPM Current SYSTEM FAN Speed 0 RPM

CPU Warning Temperature [Disabled] CPU FAN Fail Warning [Disabled] POWER FAN Fail Warning [Disabled] SYSTEM FAN Fail Warning [Disabled] CPU Smart FAN Control [Enabled] CPU Smart FAN Mode [Auto]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Reset Case Open Status

Disabled Don't reset case open status. (Default value) Enabled Clear case open status at next boot.

Case Opened

If the case is closed, "Case Opened" will show "No". If the case have been opened, "Case Opened" will show "Yes". If you want to reset "Case Opened" value, set "Reset Case Open Status" to "Enabled" and save CMOS, your computer will restart.

Current Voltage(V) Vcore / DDR18V / +3.3V / +12V

Detect system's voltage status automatically.

Current CPU Temperature

Detect CPU temperature automatically.

Current CPU/POWER/SYSTEM FAN Speed (RPM)

Detect CPU/power/system fan speed status automatically.

CPU Warning Temperature

60oC / 140oF Monitor CPU temperature at 60oC / 140oF. 70oC / 158oF Monitor CPU temperature at 70oC / 158oF. 80oC / 176oF Monitor CPU temperature at 80oC / 176oF. 90oC / 194oF Monitor CPU temperature at 90oC / 194oF. Disabled Disable this function. (Default value)

CPU/POWER/SYSTEM FAN Fail Warning

Disabled Disable the fan fail warning function. (Default value) Enabled Enable the fan fail warning function.

PC Health Status

Menu Level`

Item Help

GA-945P-DS3/S3 Motherboard - 42 -

CPU Smart FAN Control

Disabled Disable this function. Enabled When this function is enabled, CPU fan will run at different speed depending on

CPU temperature. Users can adjust the fan speed with Easy Tune based on their requirements. (Default Value)

CPU Smart FAN Mode

This option is available only when CPU Smart FAN Control is enabled.

Auto BIOS autodetects the type of CPU fan you installed and sets the optimal CPU

Smart FAN control mode for it. (Default value) Voltage Set to Voltage when you use a CPU fan with a 3-pin fan power cable. PWM Set to PWM when you use a CPU fan with a 4-pin fan power cable.

Note: In fact, the Voltage option can be used for CPU fans with 3-pin or 4-pin power cables. However, some 4-pin CPU fan power cables are not designed following Intel 4-Wire fans PWM control specifications. With such CPU fans, selecting PWM will not effectively reduce the fan speed.

English

BIOS Setup- 43 -

English

2-7 MB Intelligent Tweaker(M.I.T.)

CPU Clock Ratio Robust Graphics Booster [Auto] C.I.A. 2 [Disabled] O.C. FSB1333 Core. 2 CPU [Disabled]

CPU Host Clock Control [Disabled]

x CPU Host Frequency (Mhz) 200 x PCI Express Frequency (Mhz) Auto

System Memory Multiplier [Auto]

Memory Frequency (Mhz) 533

DIMM OverVoltage Control [Normal]

PCI-E OverVoltage Control [Normal]

FSB OverVoltage Control [Normal]

CPU Voltage Control [Normal]

Normal CPU Vcore 1.3875V

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

(Note)

Incorrectly using these features may result in system instability or corruption. Doing a overclock or overvoltage on CPU, chipsets and memory modules may result in damages or shortened life expectancy to these components. Please be aware that the M.I.T. menu items are for power users only.

CPU Clock Ratio

(Note)

This setup option will automatically assign by CPU detection. The option will display "Locked" and read only if the CPU ratio is not changeable.

Robust Graphics Booster

Select the options can enhance the VGA graphics card bandwidth to get higher performance.

Auto Set Robust Graphics Booster to Auto. (Default value) Fast Set Robust Graphics Booster to Fast. Turbo Set Robust Graphics Booster to Turbo.

C.I.A.2

C.I.A.2 (CPU Intelligent Acelerator 2) is designed to detect CPU loading during software program executing, and automatically adjust CPU computing power to maximize system performance.

Disabled Disable this function. (Default value) Cruise Set C.I.A.2 to Cruise. (Automatically increase CPU frequency(5%,7%) by

Sports Set C.I.A.2 to Sports. (Automatically increase CPU frequency(7%,9%) by

Racing Set C.I.A.2 to Racing. (Automatically increase CPU frequency(9%,11%) by

Turbo Set C.I.A.2 to Turbo. (Automatically increase CPU frequency(15%,17%) by

Full Thrust Set C.I.A.2 to Full Thrust. (Automatically increase CPU frequency(17%,

Warning: Stability is highly dependent on system components.

(Note) This item will show up when you install a processor which supports this function. GA-945P-DS3/S3 Motherboard - 44 -

CPU loading.

19%) by CPU loading.

MB Intelligent Tweaker(M.I.T.)

[16X]

Item Help

Menu Level`

O.C. FSB1333 Core. 2 CPU

Enable use of a CoreTM 2 CPU with 1333 MHz FSB through overclocking. To enable this feature, you must install DDRII 533 memory module(s) and a CoreTM 2 CPU.

Disabled Disable the use of a CoreTM 2 CPU (1333 MHz FSB). (Default value) Enabled Enable the use of a CoreTM 2 CPU (1333 MHz FSB).

CPU Host Clock Control

Please note that if your system is overclocked and cannot restart, please wait 20secs. for automatic system restart or clear the CMOS setup data and perform a safe restart.

Disabled Disable CPU Host Clock Control. (Default value) Enabled Enable CPU Host Clock Control.

CPU Host Frequency (Mhz)

100MHz ~ 600MHz Set CPU Host Frequency from 100 MHz to 600 MHz. If you use a 533 MHz FSB processor, set "CPU Host Frequency" to 133 MHz. If you use an 800 MHz FSB processor, set "CPU Host Frequency" to 200 MHz. If you use a 1066 MHz FSB processor, set "CPU Host Frequency" to 266 MHz. Incorrect using it may cause your system broken. For power End-User use only!

PCI Express Frequency (Mhz)

Auto Set PCI Express frequency automatically. (Default value)

90~150 Set PCI Express frequency from 90 MHz to 150 MHz.

System Memory Multiplier

The adjustable range will vary based on the CPU FSB. Default value: Auto (set memory frequency by DRAM SPD data). Wrong frequency settings may cause system unable to boot. Clear CMOS to overcome wrong frequency issue.

Memory Frequency (Mhz)

The values depend on CPU Host Frequency (Mhz) and System Memory Multiplier setting.

DIMM OverVoltage Control

Please note that by overclocking your system through the increase of the DIMM voltage, damage to the memory may occur.

Normal Supply DIMM voltage as DIMM required. (Default value)

+0.1V ~ +0.7V Increase DIMM voltage by 0.1V ~ 0.7V.

PCI-E OverVoltage Control

Normal Supply PCI-E voltage as PCI-E required. (Default value)

+0.1V ~ +0.3V Increase PCI-E voltage by 0.1V ~ 0.3V.

FSB OverVoltage Control

Normal Supply FSB voltage as FSB required. (Default value)

+0.1V ~ +0.3V Increase FSB voltage by 0.1V ~ 0.3V.

CPU Voltage Control

Supports adjustable CPU vcore. The adjustable range is dependent on CPUs. (Default value: Normal) Please note that by overclocking your system through the increase of the CPU voltage, damage to the CPU or decrease in the CPU life expectancy may occur.

Normal CPU Vcore

Display your CPU's normal voltage.

English

BIOS Setup- 45 -

English

2-8 Load Fail-Safe Defaults

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Load Fail-Safe Defaults (Y/N)? N

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Fail-Safe defaults contain the most appropriate values of the system parameters that allow minimum system performance.

2-9 Load Optimized Defaults

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Load Optimized Defaults (Y/N)? N

Load Optimized Defaults

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects.

GA-945P-DS3/S3 Motherboard - 46 -

2-10 Set Supervisor/User Password

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Enter Password:

Change/Set/Disable Password

When you select this function, the following message will appear at the center of the screen to assist you in creating a password. Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable password, just press <Enter> when you are prompted to enter password. A message "PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely. The BIOS Setup program allows you to specify two separate passwords: SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all BIOS Setup program function. When enabled, the Supervisor password is required for entering the BIOS Setup program and having full configuration fields, the User password is required to access only basic items. If you select "System" at "Password Check" in Advance BIOS Features Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup Menu. If you select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted only when you try to enter Setup.

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

English

BIOS Setup- 47 -

English

2-11 Save & Exit Setup

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Save to CMOS and EXIT (Y/N)? Y

Save Data to CMOS

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS. Type "N" will return to Setup Utility.

2-12 Exit Without Saving

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Quit Without Saving (Y/N)? N

Abandon all Data

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Type "Y" will quit the Setup Utility without saving to RTC CMOS. Type "N" will return to Setup Utility.

GA-945P-DS3/S3 Motherboard - 48 -

Chapter 3 Install Drivers

Pictures below are shown in Windows XP. Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the Run.exe.

3-1 Install Chipset Drivers

After insert the driver CD, "Xpress Install" will scan automatically the system and then list all the drivers that recommended to install. Please pick the item that you want and press "install" followed the item; or you can press "Xpress Install" to install all items defaulted.

English

Some device drivers will restart your system automatically. After restarting your system the "Xpress Install" will continue to install other drivers. System will reboot automatically after install the drivers, afterward you can install others application.

For USB2.0 driver support under Windows XP operating system, please use Windows Service Pack. After install Windows Service Pack, it will show a question mark "?" in "Universal Serial Bus controller" under "Device Manager". Please remove the question mark and restart the system (System will auto-detect the right USB2.0 driver).

Install Drivers- 49 -

English

3-2 Software Applications

This page displays all the tools that Gigabyte developed and some free software, you can choose anyone you want and press "install" to install them.

3-3 Driver CD Information

This page lists the contents of software and drivers in this CD-title.

GA-945P-DS3/S3 Motherboard - 50 -

3-4 Hardware Information

This page lists all device you have for this motherboard.

3-5 Contact Us

Please see the last page for details.

English

Install Drivers- 51 -

English

GA-945P-DS3/S3 Motherboard - 52 -

Chapter 4 Appendix

4-1 Unique Software Utilities

(Not all model support these Unique Software Utilities, please check your MB features.)

4-1-1 EasyTune 5 Introduction

EasyTune 5 presents the most convenient Windows based system performance enhancement and manageability utility. Featuring several powerful yet easy to use tools such as 1) Overclocking for enhancing system performance, 2) C.I.A. and M.I.B. for special enhancement for CPU and Memory, 3) Smart-Fan control for managing fan speed control of both CPU cooling fan and North-Bridge Chipset cooling fan, 4) PC health for monitoring system status.

User Interface Overview

(Note)

English

Button / Display Description

1. Overclocking Enters the Overclocking setting page

2. C.I.A./C.I.A.2 and M.I.B./M.I.B.2 Enters the C.I.A./2 and M.I.B./2 setting page

3. Smart-Fan Enters the Smart-Fan setting page

4. PC Health Enters the PC Health setting page

5. GO Confirmation and Execution button

6. "Easy Mode" & "Advance Mode" Toggles between Easy and Advance Mode

7. Display screen Display panel of CPU frequency

8. Function display LEDs Shows the current functions status

9. GIGABYTE Logo Log on to GIGABYTE website

10. Help button Display EasyTuneTM 5 Help file

11. Exit or Minimize button Quit or Minimize EasyTuneTM 5 software

(Note) EasyTune 5 functions may vary depending on different motherboards.

Appendix- 53 -

English

4-1-2 Xpress Recovery2 Introduction

Xpress Recovery2 is designed to provide quick backup and restoration of hard disk data. Supporting Microsoft operating systems including Windows XP/2000/NT/98/Me and DOS, and file systems including FAT16, FAT32, and NTFS, Xpress Recovery2 is able to back up data

on hard disks on PATA and SATA IDE controllers. After Xpress Recovery2 is executed from CD-ROM for the first time, it will stay permanent in your hard disk. If you wish to run Xpress Recovery2 later, you can simply press F9 during system bootup to enter Xpress Recovery2 without the CD-ROM.

System requirements:

1. Intel x86 platforms

2. At least 64M bytes of system memory

3. VESA-supported VGA cards

How to use the Xpress Recovery2

Initial access by booting from CD-ROM and subsequent access by pressing the F9 key: Steps: After entering BIOS Setup, go to Advanced BIOS Feature and set to boot from CD-ROM. Save

the settings and exit the BIOS Setup. Insert the provided driver CD into your CD-ROM drive. Upon system restart, the message which says "Boot from CD/DVD:" will appear in the bottom left corner of the screen. Press any key to enter Xpress Recovery2. After the steps above are completed, subsequent access to Xpress Recovery2 can be made by simply pressing the <F9> key during system power-on.

. . Boot from CD/DVD:

Press any key to startup XpressRecovery2.....

Boot from CD/DVD:

Intel P945 BIOS for 945P-DS3 F2c . . . .

<DEL>:BIOS Setup/Q-Flash <F9>: XpressRecovery2 <F12>: Boot Menu <End>: Qflash 01/31/2007-I945-6A79TG0AC-00

1. If you have already entered Xpress Recovery2 by booting from the CD-ROM, you can enter Xpress Recovery2 by pressing the <F9> key in the future.

2. System storage capacity and the reading/writing speed of the hard disk will affect the data backup speed.

3. It is recommended that Xpress Recovery2 be immediately installed once you complete installations of OS and all required drivers as well as software.

GA-945P-DS3/S3 Motherboard

. . . .

- 54 -

<F9>: Xpress Recovery2

The Main Screen of Xpress Recovery2

1. RESTORE:

Restore the backed-up data to your hard disk. (This button will not appear if there is no backup file.)

2. BACKUP:

Back up data from hard disk.

3. REMOVE:

Remove previously-created backup files to release disk space. (This button will not appear if there is no backup file.)

4. REBOOT:

Exit the main screen and restart the system.

Limitations:

1. Not compatible to Xpress Recovery.

2. For the use of Xpress Recovery2, a primary partition must be reserved.

3. Xpress Recovery2 will store the backup file at the end of the hard disk, so free space available on the hard disk for the backup file must be allocated in advance. (A minimum 4GB is recommended but the actual space is dependent on the size of the data to be backed up)

4. Capable of backing up hard disks installed with Windows operating systems including DOS and Windows XP/2000/NT/9x/Me.

5. USB hard disks are currently not supported.

6. Does not support RAID/AHCI (class code 0104/0106) hard disks.

7. Capable of backing up and restoring only the first physical hard disk.

Hard disks detection sequence is as follows:

a. PATA IDE primary channel b. PATA IDE secondary channel c. SATA IDE channel 1 d. SATA IDE channel 2 e. SATA IDE channel 3 f. SATA IDE channel 4

Precautions:

1. When using hard disks with more than 128G under Windows 2000, be sure to execute the EnableBigLba.exe program from the driver CD before data backup.

2. It is normal that data backup takes longer time than data restoration.

3. Xpress Recovery2 is compliant with the GPL regulations.

4. On a few motherboards based on Nvidia chipsets, BIOS update is required for Xpress Recovery2 to correctly identify RAID and SATA IDE mode. Please contact your motherboard manufacturer.

English

Appendix- 55 -

English

4-1-3 Flash BIOS Method Introduction

Method 1 : Q-Flash

Q-FlashTM is a BIOS update tool that allows the user to update BIOS without entering operating systems like MS-DOS or Windows.Embedded in the BIOS, the Q-FlashTM tool frees you from the hassles of

going through complicated BIOS flashing process.

Before Use:

Follow the steps below before using Q-Flash to update BIOS:

1. From GIGABYTE's website, download the latest compressed BIOS update file that matches your motherboard model.

2. Extract the file and save the new BIOS file (e.g. 945PDS3.F1) to your floppy disk, USB flash drive, or hard disk. Note: The USB flash drive or hard disk must use FAT32/16/12 file system.

3. Restart the system. During POST, press the End key to enter Q-Flash. Note: You can access Q-Flash by either pressing the End key during POST or the F8 key in BIOS Setup. However, if the BIOS update file is saved to a hard drive in RAID/AHCI mode or a hard drive attached to an independent IDE/SATA controller, use the End key during POST to access Q-Flash.

Intel P965 BIOS for 945P-DS3 F2c . . . .

<DEL>:BIOS Setup/Q-Flash <F9>: XpressRecovery2 <F12>: Boot Menu <End>: Qflash 01/31/2007-I945-6A79TG0AC-00

Because BIOS flashing is potentially risky, please do it with caution. Inadequate BIOS flashing may result in system malfunction.

Updating the BIOS

Step 1: a. In the Q-Flash menu, use the UP or DOWN ARROW key to select Update BIOS from Drive and

press ENTER.

<End> : Qflash

If you wish to back up the current BIOS file, use the Save BIOS to Drive function.

b. Select the floppy drive or hard drive where the BIOS file is saved, such as "Floppy A" and

press ENTER.

Flash Type/Size.................................Winbond 25X40 512K

Enter : Run :Move ESC:Reset F10:Power Off

GA-945P-DS3/S3 Motherboard

. . . .

Keep DMI Data Enable

Floppy A <Drive> HDD 0-0 <Drive>

Total size : 0 Free size : 0 F5 : Refresh DEL : Delete

Q-Flash Utility v2.02

Update BIOS from Drive

Save BIOS to Drive

0 file(s) found

- 56 -

c. Select the BIOS file and press ENTER.

Make sure again the BIOS file matches your motherboard model.

Step 2: The process of system reading the BIOS file from the floppy disk is displayed on the screen.

When the message "Are you sure to update BIOS?" appears, press ENTER. The BIOS update will begin and the current process will be displayed.

1. Do not turn off or restart the system when the system is reading/updating the BIOS.

2. Do not remove the floppy disk or hard drive/USB drive when the system is updating the BIOS.

Step 3: When the update process is complete, press any key to return to the Q-Flash main menu.

Flash Type/Size.................................Winbond 25X40 512K

Keep DMI Data Enable

Enter : Run :Move ESC:Reset F10:Power Off

Q-Flash Utility v2.02

Update BIOS from Drive

!! Copy BIOS completed - Pass !!

Save BIOS to Drive

Please press any key to continue

Step 4: Press ESC and then ENTER to exit Q-Flash and the system will restart. As the system reboots,

you will see the new BIOS version during POST.

Step 5: As the system re boots, press DELETE to enter BIOS Setup. Select Load Optimized Defaults

and press ENTER to load BIOS defaults. System will re-detect all peripherals devices after BIOS update, so we recommend that you reload BIOS defaults.

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit  : Select Item F11: Save CMOS to BIOS

F8: Q-Flash F10: Save & Exit Setup F12: Load CMOS from BIOS

Load Optimized Defaults (Y/N)? N

Load Optimized Defaults

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

English

Press Y to load BIOS defaults

Step 6: Select Save & Exit Setup and then press Y to save settings to CMOS and exit BIOS Setup.

When the system restarts, the whole update process is complete.

Appendix- 57 -

English

Method 2 : @BIOSTM Utility

If you do not have a DOS startup disk, we recommend that you use the new @BIOS utility. @BIOS allows users to update their BIOS under Windows. Just select the desired @BIOS server to download the latest version of BIOS.

Fig 1. Installing the @BIOS utility Fig 2. Installation Complete and Run @BIOS

Click Start/ Programs/ GIGABYTE/@BIOS

Select @BIOS item than click Install

Fig 3. The @BIOS Utility Fig 4. Select the desired @BIOS server

Click "3" Click "Update New BIOS"

1. Methods and steps:

I. Update BIOS through Internet

a. Click "Internet Update" icon b. Click "Update New BIOS" icon c. Select @BIOSTM sever d. Select the exact model name on your motherboard e. System will automatically download and update the BIOS.

II. Update BIOS NOT through Internet:

a. Do not click "Internet Update" icon b. Click "Update New BIOS" c. Please select "All Files" in dialog box while opening the old file. d. Please search for BIOS unzip file, downloading from internet or any other methods (such as:

945PDS3.F1).

e. Complete update process following the instruction.

GA-945P-DS3/S3 Motherboard

. . . .

- 58 -

III. Save BIOS In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save the current BIOS version.

IV. Check out supported motherboard and Flash ROM: In the very beginning, there is "About this program" icon shown in dialog box. It can help you check out which kind of motherboard and which brand of Flash ROM are supported.

2. Note:

I. In method I, if it shows two or more motherboard's model names to be selected, please make

sure your motherboard's model name again. Selecting wrong model name will cause the system unbooted.

II. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your

motherboard's. Otherwise, your system won't boot.

III. In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto

Gigabyte's web site for downloading and updating it according to method II. IV. Please note that any interruption during updating will cause system unbooted. V. Do not use @BIOS and C.O.M. (Corporate Online Management) at the same time.

English

Appendix- 59 -

4-1-4 2- / 4- / 6- / 8- Channel Audio Function

Introduction

English

The default speaker settings for the 6 audio jacks are as shown in the picture to the right. The jack retasking capability supported by HD Audio allows users to change the function for each audio jack by the audio software provided. For example, if a rear speaker is plugged into the center/subwoofer

Center/Subwoofer Speaker Out

Rear Speaker Out

Side Speaker Out

Line In

Line Out (Front Speaker Out)

Mic In

speaker out jack, you can change the center/ subwoofer speaker out jack to fucntion as a rear speaker out jack via the audio software.Please follow the steps to install the function. (Following pictures are in Windows XP)

Note that if you wish to connect a microphone, you MUST connect it to the default Mic In jack for the microphone to work correctly.

HD Audio

With multiple built-in high quality digital-to-analog converters (DACs) that support audio output at up to 192 kHz/24-bit quality and multi-streaming applications, HD Audio is able to handle multiple audio streams (in and out) simultaneously. Multi-channel audio experiences have become a reality so you can, for instance, listen to MP3 music, have an Internet chat, make a telephone call over the Internet, and etc. all at the same time.

Stereo Speakers Connection and Settings:

We recommend that you use the speaker with amplifier to acquire the best sound effect if the stereo output is applied.

STEP 1 : After installation of the audio driver, you should find an Audio Manager icon in your system tray (you can also find the icon in Control Panel). Doubleclick the icon to open the Audio Control Panel.

GA-945P-DS3/S3 Motherboard

. . . .

- 60 -

STEP 2: In the Audio Control Panel, click the Audio I/O tab. In the upper left list, click 2CH Speaker.

STEP 3: After a speaker or headphone is plugged into the rear Line Out jack, a small window will pop up and ask you what type of equipment is connected. Choose Headphone or Line Out depending on the device connected and click OK. The 2-channel audio setup is completed.

4 Channel Audio Setup

English

STEP 2: In the Audio Control Panel, click the Audio I/O tab. In the upper left list, click 4CH Speaker.

Appendix- 61 -

English

STEP 3: After plugging in 4-channel speakers to the rear speaker jacks, a small window will pop up and ask you what type of equipment is connected. Choose a device depending on the type of speaker connected (4-channel audio consists of Front Speaker Out (Line Out) and Rear Speaker Out) and then click OK. The 4-channel audio setup is completed.

6 Channel Audio Setup

STEP 2: In the Audio Control Panel, click the Audio I/O tab. In the upper left list, click 6CH Speaker.

STEP 3: After plugging in 6-channel speakers to the rear speaker jacks, a small window will pop up and ask you what type of equipment is connected. Choose a device depending on the type of speaker connected (6-channel audio consists of Front Speaker Out (Line Out), Rear Speaker Out, and Center/Subwoofer Speaker Out) then click OK. The 6-channel audio setup is completed.

GA-945P-DS3/S3 Motherboard

. . . .

- 62 -

8 Channel Audio Setup

STEP 2: In the Audio Control Panel, click the Audio I/O tab. In the upper left list, click 8CH Speaker.

English

STEP 3: After plugging in 8-channel speakers to the rear speaker jacks, a small window will pop up and ask you what type of equipment is connected. Choose a device depending on the type of speaker connected (8-channel audio consists of Front Speaker Out (Line Out), Rear Speaker Out, Center/Subwoofer Speaker Out, and Side Speaker Out) then click OK. The 8-channel audio setup is completed.

Appendix- 63 -

English

Sound Effect Configuration:

At the Sound Effect menu, users can adjust sound option settings as desired.

AC'97 Audio Configuration:

To enable the front panel audio connector to support AC97 Audio mode, go to the Audio Control Panel and click the Audio I/O tab. In the ANA-

LOG area, click the Tool icon and then select the Disable front panel jack detection check box.

This action completes the AC'97 Audio configuration.

GA-945P-DS3/S3 Motherboard

. . . .

- 64 -

4-2 Troubleshooting

Below is a collection of general asked questions. To check general asked questions based on a specific motherboard model, please log on to http://www.gigabyte.com.tw

Question 1: I cannot see some options that were included in previous BIOS after updating BIOS. Why? Answer: Some advanced options are hidden in new BIOS version. Please press Ctrl and F1 keys after entering BIOS menu and you will be able to see these options.

Questions 2: Why is the light of my keyboard/optical mouse still on after computer shuts down? Answer: In some boards, a small amount of electricity is kept on standby after computer shuts down and that's why the light is still on.

Question 3: How do I clear CMOS? Answer: If your board has a Clear CMOS jumper, please refer to the Clear CMOS steps in the manual. If your board doesn't have such jumper, you can take off the on-board battery to leak voltage to clear CMOS. Please refer to the steps below:

Steps:

1. Turn off power.

2. Disconnect the power cord from MB.

3. Take out the battery gently and put it aside for about 1 minute (Or you can use a metal object

to connect the positive and negative pins in the battery holder to makethem short for 5

seconds).

4. Re-insert the battery to the battery holder.

5. Connect power cord to MB again and turn on power.

6. Press Del to enter BIOS and load Fail-Safe Defaults(or load Optimized Defaults).

7. Save changes and reboot the system.

Question 4: Why do I still get a weak sound after turning up the speaker to the maximum volume? Answer: Please make sure the speaker you are using is equipped with an internal amplifier. If not, please change another speaker with power/amplifier and try again later.

English

Question 5: Sometimes I hear different continuous beeps from computer after system boots up. What do these beeps usually stand for? Answer: The beep codes below may help you identify the possible computer problems. However, they are only for reference purposes. The situations might differ from case to case.

 AWARD BIOS Beep Codes

1 short: System boots successfully 2 short: CMOS setting error 1 long 1 short: DRAM or M/B error 1 long 2 short: Monitor or display card error 1 long 3 short: Keyboard error 1 long 9 short: BIOS ROM error Continuous long beeps: DRAM error Continuous short beeps: Power error

Appendix- 65 -

English

GA-945P-DS3/S3 Motherboard

. . . .

- 66 -

English

Appendix- 67 -

English

GA-945P-DS3/S3 Motherboard

. . . .

- 68 -

English

Appendix- 69 -

English

y Taiwan (Headquarters)

GIGA-BYTE TECHNOLOGY CO., LTD.

Address: No.6, Bau Chiang Road, Hsin-Tien,

Taipei 231, Taiwan

TEL: +886-2-8912-4888

FAX: +886-2-8912-4003

Tech. and Non-Tech. Support (Sales/Marketing) :

http://ggts.gigabyte.com.tw

WEB address (English): http://www.gigabyte.com.tw

WEB address (Chinese): http://www.gigabyte.tw

y U.S.A.

G.B.T. INC.

TEL: +1-626-854-9338

FAX: +1-626-854-9339

Tech. Support:

http://rma.gigabyte-usa.com

Web address: http://www.gigabyte.us

y Mexico

G.B.T Inc (USA)

Tel: +1-626-854-9338 x 215 (Soporte de habla hispano)

FAX: +1-626-854-9339

Correo: soporte@gigabyte-usa.com

Tech. Support:

http://rma.gigabyte-usa.com

Web address: http://www.gigabyte-latam.com

y Japan

NIPPON GIGA-BYTE CORPORATION

WEB address : http://www.gigabyte.co.jp

y Singapore

GIGA-BYTE SINGAPORE PTE. LTD.

WEB address : http://www.gigabyte.com.sg

y China

NINGBO G.B.T. TECH. TRADING CO., LTD.

WEB address : http://www.gigabyte.cn

Shanghai

TEL: +86-21-63410999

FAX: +86-21-63410100

Beijing

TEL: +86-10-62102838

FAX: +86-10-62102848

Wuhan

TEL: +86-27-87851061

FAX: +86-27-87851330

GuangZhou

TEL: +86-20-87540700

FAX: +86-20-87544306 ext. 333

Chengdu

TEL: +86-28-85236930

FAX: +86-28-85256822 ext. 814

Xian

TEL: +86-29-85531943

FAX: +86-29-85539821

Shenyang

TEL: +86-24-83992901

FAX: +86-24-83992909

y India

GIGABYTE TECHNOLOGY (INDIA) LIMITED

WEB address : http://www.gigabyte.in

y Australia

GIGABYTE TECHNOLOGY PTY. LTD.

WEB address : http://www.gigabyte.com.au

GA-945P-DS3/S3 Motherboard

. . . .

- 70 -

y Germany

G.B.T. TECHNOLOGY TRADING GMBH

WEB address : http://www.gigabyte.de

y U.K.

G.B.T. TECH. CO., LTD.

WEB address : http://www.giga-byte.co.uk

y The Netherlands

GIGA-BYTE TECHNOLOGY B.V.

WEB address : http://www.giga-byte.nl

y France

GIGABYTE TECHNOLOGY FRANCE

WEB address : http://www.gigabyte.fr

y Italy

WEB address : http://www.giga-byte.it

y Spain

GIGA-BYTE SPAIN

WEB address : http://www.giga-byte.es

y Czech Republic

Representative Office Of GIGA-BYTE Technology Co., Ltd.

in CZECH REPUBLIC

WEB address : http://www.gigabyte.cz

y Turkey

Representative Office Of GIGA-BYTE Technology Co., Ltd.

in TURKEY

WEB address : http://www.gigabyte.com.tr

y Russia

Moscow Representative Office Of GIGA-BYTE Technology

Co., Ltd.

WEB address : http://www.gigabyte.ru

y Latvia

GIGA-BYTE Latvia

WEB address : http://www.gigabyte.com.lv

y Poland

Office of GIGA-BYTE TECHNOLOGY Co., Ltd. in POLAND

WEB address : http://www.gigabyte.pl

y Ukraine

WEB address : http://www.gigabyte.kiev.ua

y Romania

Representative Office Of GIGA-BYTE Technology Co., Ltd.

in Romania

WEB address : http://www.gigabyte.com.ro

y Serbia & Montenegro

Representative Office Of GIGA-BYTE Technology Co., Ltd.

in SERBIA & MONTENEGRO

WEB address : http://www.gigabyte.co.yu

English

y GIGABYTE Global Service System

To submit a technical or non-technical (Sales/ Marketing) question, please link to : http://ggts.gigabyte.com.tw Then select your language to enter the system.

Appendix- 71 -

- 72 -

Intel GA-945P-DS3-S3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
