GA-8IPXDR-E Series
Intel® Dual XeonTM Serverboard
USER’S MANUAL
Intel® Dual Xeon Processor Serverboard
Rev. 1001
25A08-08IPX-F00
GA-8IPXDR-E(C) Motherboard
Table of Content
Item Checklist .........................................................................................4
GA-8IPXDR-E Series Model List ...........................................................4
WARNING!...............................................................................................4
Chapter 1 Introduction.............................................................................6
Features Summary...................................................................................... 6
GA-8IPXDR-E(C) Motherboard Layout ....................................................... 8
Chapter 2 Hardware Installation Process................................................9
Step 1: Install the Central Processing Unit (CPU).....................................10
Step 1-1: Installing Motherboard to the Chassis... ....................................................... 10
Step 1-2: CPU Installation................................................................................................ 11
Step 1-3: CPU Heat Sink Installation ............................................................................. 13
Step 2: Install memory modules................................................................ 15
Step 3: Install expansion cards ................................................................. 17
Step 4: Connect ribbon cables, cabinet wires, and power supply ........... 18
Step 4-1: I/O Back Panel Introduction............................................................................ 18
Step 4-2: Connectors Introduction.................................................................................. 20
Step 4-3: Jumper Setting Introduction ............................................................................ 30
Chapter 3 BIOS Setup ..........................................................................36
Main........................................................................................................... 38
Advanced ................................................................................................... 41
Advanced Configuration.................................................................................................. 42
Chipset Configuration ...................................................................................................... 44
Power Management Configuration ................................................................................. 45
PCI-X Configuration........................................................................................................ 46
Peripheral Configuration .................................................................................................. 47
Security ...................................................................................................... 54
Boot............................................................................................................ 56
Exit .............................................................................................................58
2
Table of Content
Chapter 4 Technical Reference ............................................................60
GA-8IPXDR-E System Block Diagram.....................................................60
Chapter 5 Appendix.............................................................................61
Appendix A: Intel Network Driver Installation ............................................................... 61
Appendix B: INF Update Installation (Driver for chipset)............................................. 63
Appendix C: ATI Rage XL VGA Driver Installation ...................................................... 64
Appexdix D: Adaptec SCSI Driver Installation ............................................................ 65
Appendix E: Utilites Installation ...................................................................................... 66
Appendix F: About Updateing Latest version of BIOS ................................................ 66
Appendix G: IPMI Connector Pin Definition .................................................................. 67
Appendix H: Acronyms .................................................................................................. 68
Technical Support/RMA Sheet ....................................................................................... 70
3
GA-8IPXDR-E(C) Motherboard
Item Checklist
; The GA-8IPXDR-E series motherboard ; I/O Back Panel
; IDE cable x 1/ Floppy cable x 1 ; USB Cable x 1(Optional)
; Driver CD for motherboard driver & utility ; SCSI Cable x 1 (Optional)
; GA-8IPXDR-E user’s manual
GA-8IPXDR-E Series Model List
3 GA-8IPXDR-E (Supports 533MHz / with SCSI function)
3 GA-8IPXDR-EC (Supports 533MHz / without SCSI function)
W ARNING!
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the A TX power supply is switched off before you plug in or remove the A T X
power connector on the motherboard.
4
WARNING!
Installing the motherboard to the chassis…
If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are
no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting
holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful
of your hands). In this way you can still attach the motherboard to the base without worrying about short
circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard
PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact
any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the
board or cause board malfunctioning.
5
GA-8IPXDR-E(C) Motherboard
Chapter 1 Introduction
Features Summary
Form Factor y 30.5cm x 33cm Extend A TX size form factor, 8 layers PCB.
CPU y mPGA 604 socket for Intel® XeonTM processor with 512KB L2cache
y Intel Prestonia 400/533MHz FSB
Chipset y Chipset RGE7501MC HOST/Memory Controller Hub
y FW82801CA I/O Controller Hub
Memory y 6 184-pin DDR DIMM sockets
y Supports 200MHz/266MHz DDR memory interface
y Supports Up to 6 72bit Registered ECC DDR DIMMs
y Supports up to 12GB DRAM (Max)
y Supports only 2.5V DDR DIMM
y Dual channel supports :
y One 144bit wide DDR memory port with ECC type DRAM
integrity.
y Peak memory bandwidth of 3.2GB/s or 4.21 GB/s
y DIMMs must be populated in pairs.
I/O Control y NS PC87366
Slots y Support Intel P64H2 PCI-X bridge x 2
(4 PCI-Xslot supports 66~133MHz & PCI 2.2 compliant)
y 2 PCI slot supports 33MHz & PCI 2.2 compliant
y PCI_X-3 slot (Green) implented the Intel RADOIS circuitry
supports the Intel ZCR and Adaptec Night hawk2 ZCR Adapters
On-Board IDE y 2 IDE bus master (DMA33/AT A66/ATA100) IDE ports for up to 4
ATAPI devices
y Supports up to A TA100 IDE & ATAPI CD-ROM
On-Board Peripherals y 1 Floppy port supports 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
y 1 Parallel port supports Normal/EPP/ECP mode
y 2 COM ports (One at front, one at rear)
y 2 LAN ports (LAN1 & LAN2)
y 4 USB ports (Rear USB x 2, Front USB x 2)
6
Introduction
Hardware Monitor y CPU/Power/System Fan Revolution detect
y CPU Overheat Warning
y System Voltage Detect
On-Board LAN y Build in Intel 82546EB single chip with Dual ports Gigabit Ethernet
controller (Server Adapter)
On-Board VGA y Build in A TI Rage XL PCI VGA Chipset
On-Board SCSI y Adaptec 7902W Ultra 320 SCSI Chipset
PS/2 Connector y PS/2 Keyboard interface and PS/2 Mouse interace
BIOS y Licensed AMI BIOS, 4M bit FWH
Additional Features y Wake on LAN
y AC Recovery
y IPMI V1.0 (Winbond BMC)
®
y Intel
RADIOS circuits support both Intel® RADOIS and Adaptec
Nighthawk 2 ZCR adapters
0 Please set the CPU host frequency in accordance with your processor’s specifications.
We don’t recommend you to set the system bus frequency over the CPU’s specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Chipsets,SDRAM,Cards….etc.
7
GA-8IPXDR-E(C) Motherboard
GA-8IPXDR-E(C) Motherboard Layout
FDD1
USB1
IDE1
IPMI_CON
BIOS
COM2 J20
B)
*SCSI1 (Channel
*SCSI2 (Channel
IDE2
A)
ATX2
CLR_COMS
*SCSI
7902W
BT1
CPU2
CPU1 (Install First)
ICH3-S
P64H2
604 PIN Socket604 PIN Socket
SIO NS
Wake on LAN
E7501
ATX1
P64H2
PCI_6
PCI_5
PCI_4
PCI-X_3
PCI-X_2
PCI-X_1
82546EB
J4 (B-1)
J1 (A-1)
J5 (B-2)
J2 (A-2)
J6 (B-3)
J3 (A-3)
ATX3
ATI
Rage XL
LAN2
LAN1
VGA
LPT
COM1
USB2
CN1
Note that * indicates for GA-8IPXDR-E Only
8
Hardware Installation Process
Chapter 2 Hardware Installation Process
T o set up your computer , you must complete the following setups:
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Install expansion cards
Step 4- Connect ribbon cables, cabinet wires, and power supply
Step 5- Setup BIOS software
Step 6- Install supporting software tools
Step1
Step 4
Step 4
Step 5
Step 4
Step 3
Step 4
Step 4
Step 4
Step 2
9
GA-8IPXDR-E(C) Motherboard
Step 1: Install the Central Processing Unit (CPU)
Step 1-1: Installing Motherboard to the Chassis...
Y ou may use the 4 screws which come with the mainboard to reinforce the support between Xeon CPU
heat-sink on the mainboard and chassis.
Step1: The 4 new mounting holes on the chassis
are for additional support for Xeon CPU
heat-sink on the mainboard.
Figure 1
Step2: Preparing the assemblt kits.
Step3: Fit the 4 screws with 2 CPU
retention modules on the chassis.
Figure 2
10
Step 1-2: CPU Installation
Pin1 indicator
Hardware Installation Process
CPU Top View: Socket 603 / 400MHz
CPU Top View: Socket 604 / 533MHz
For socket 603 / 400MHz
Socket Actuation Lever
CPU Botttom View: Socket 603 / 400MHz
CPU Bottom View: Socket 604 / 533MHz
Pin1 indicator
1. Pull the lever out, than lift up the Lever.
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
11
GA-8IPXDR-E(C) Motherboard
3. Press down the CPU socket lever
and finish CPU installation.
For socket 604 / 533MHz
Socket Actuation Lever
1. Pull the lever out, than lift up the Lever.
3. Press down the CPU socket lever
and finish CPU installation.
00
0 Please make sure the CPU type is supported by the motherboard.
00
00
0 If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
00
Pin1 indicator
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
improper installation. Please change the insert orientation.
00
0 Warning: If your are installing one CPU ONLY, please refer to the Motherboard
00
Layout (page 8) to install the CPU into the certain socket.
12
Step 1-3: CPU Heat Sink Installation
Hardware Installation Process
1. Use qualified fan approved by Intel.
3. First step of assembling.
5. Second step of assembling.
2. Heat Sink
4. Completive picture for first step.
6. Completive picture for second step.
13
GA-8IPXDR-E(C) Motherboard
7. Fan assembly.
9. Picture of device set on the motherboard.
00
0 Please use Intel approved cooling fan.
00
00
0 We recommend you to apply the thermal paste to provide better heat
00
8. Hook one end of the cooler bracket to the
CPU socket first.
conduction between your CPU and heatsink.
00
0 Make sure the CPU fan power cable is plugged in to the CPU fan connector,
00
this completes the installation.
00
0 Please refer to CPU heat sink user’s manual for more detail installation
00
procedure.
14
Hardware Installation Process
Step 2: Install memory modules
The motherboard has 6 dual inline memory module (DIMM) sockets, but it can only support a
maximum of 3 banks DDR memory. DDR socket 1 uses 1 bank, DDR socket 2& 3 share the
remaining 2 banks. The BIOS will automatically detects memory type and size. To install the memory
module, just push it vertically into the DIMM Slot .The DIMM module can only fit in one direction due
to the notch.Memory size can vary between sockets.
Registered DDR
Notch
J4 (B-1)
J1 (A-1)
J5 (B-2)
J2 (A-2)
J6 (B-3)
J3 (A-3)
15
GA-8IPXDR-E(C) Motherboard
J4 (B-1)
J1 (A-1)
J5 (B-2)
J2 (A-2)
J6 (B-3)
J3 (A-3)
Installation Step:
1. The DIMM slot has a notch, so the DIMM
memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into
the DIMM slot. Then push it down.
3. Close the plastic clip at both edges of theDIMM
slots to lock the DIMM module.
4. When installing the memoryin the DIMM
module, please insert them pair by pair.
Y ou must follow the slot number order to
insert the DIMM into DIMM module.
The installation number sequence are
J3J6 -- J2J5 -- J1J4. If you only insert one
pair, you must insert it in J3/J6 slot.
5. If you want to install X4, X8 device width DDR
DIMMs simultaneously, please populated x4
device width DIMMs at the farthest DIMMs
away from MCH.
6. It is not not recommended to use DDR X4,
X8 type of mixture installation.
7. DIMMs must be populated in pairs, and the
DIMMs in a pair must be identical.
8. Reverse the installation steps when you wish to
remove the DIMM module.
16
Hardware Installation Process
Step 3: Install expansion cards
1. Read the related expansion card’s instruction document before install the expansion card into
the computer.
2. Remove your computer’s chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer’s chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
17
GA-8IPXDR-E(C) Motherboard
Step 4: Connect ribbon cables, cabinet wires, and power
supply
Step 4-1: I/O Back Panel Introduction
ZZ
Z
XX
X
XX
YY
Y
YY
XX
X PS/2 Keyboard and PS/2 Mouse Connector
XX
ZZ
[[
[
[[
\\
\
\\
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
YY
Y USB Connector
YY
USB 0
USB 1
¾This connector supports standard PS/2
keyboard and PS/2 mouse.
¾Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard, mouse, scanner, zip,
speaker..etc. Have a standard USB interface.
Also make sure your OS (Win 95 with USB
supplement, Win98, Windows 2000, Windows ME,
Win NT with SP 6) supports USB controller. If
your OS does not support USB controller, please
contact OS vendor for possible patch or driver
upgrade. For more information please contact
your OS or device(s) vendors.
18
ZZ
ZParallel Port / Serial Port / VGA Port (LPT/COMA/VGA)
ZZ
Parallel Port
(25 pin Female)
¾This connector supports 1 standard COM port
,1 Parallel port and 1 VGA port. Device like
printercan be connected to Parallel port ; mouse
and modem etc can be connected to Serial ports.
Hardware Installation Process
COMA
Serial Port
(9 pin Male)
[[
\\
[/
\ LAN1 / LAN2 Port
[[
\\
VGA
VGA Port
(15 pin Female)
19
GA-8IPXDR-E(C) Motherboard
Step 4-2: Connectors Introduction
H
G
S
J
K
D
M
N
L
I
E
F
Q
O
ABC
A) ATX3 L) COM2
B) ATX1 M) CASEOPEN
C) ATX2 N) J20 (Front Panel)
D) BT1 O) J30
E) SCSI1 P) J31
F) SCSI2 Q) J32
G) FDD1 R) J33
H) USB1 S) J34
I ) IDE1 T) J18 ( Wake On LAN)
J ) IDE2 U) F_Panel
K) IPMI_CON
P
U
T
R
20
A) ATX3 (2x12 Pin ATX Power )
24
12
¾ AC power cord should only be connected to
your power supply unit after A TX power cable
and other related devices are firmly connected
to the mainboard.
13
1
Connector Introduction
PIN No. Definition
1 +3.3V
2 +3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 POK
9 5VSB
10 +12V
11 +12V
12 +3.3V
13 +3.3V
14 -12V
15 GND
16 PSON
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V
24 GND
B) ATX1 (ATX1 Power )
Pin No. Definition
1 GND
2 +12v
3 GND
1
4 +12V
5 GND
6 +12V
7 GND
8 +12V
¾This connector (A TX +12V) is used only for
CPU Core Voltage.
21
GA-8IPXDR-E(C) Motherboard
C) ATX2 (+12V Power Connector)
O/Q ) J30/J32 (CPU FAN Connector)
4
1
2
1 GND
2 GND
3 +12V
4 +12V
Pin No. Definition
3
¾This connector (A TX +12V) is used only for
CPU Core Voltage.
J32
J30
1
J32:CPU1 FAN
Pin No. Definition
1 GND
2 +12v/Control
3 Sense
1
J30:CPU 0 FAN
¾Please note, a proper installation of the CPU
cooler is essential to prevent the CPU from
running under abnormal condition or damaged
by overheating.The CPU fan connector
supports Max. current up to 600mA .
22
F/O) J33/J34 (System FAN Connector)
Connector Introduction
P) J31 (Power FAN Connector)
J33
1
J34
Pin No. Definition
1 GND
2 +12v/Control
3 Sense
Pin No. Definition
1 GND
2 +12v/Control
3 Sense
1
Pin No. Definition
1 GND
1
2 +12v/Control
3 Sense
23
GA-8IPXDR-E(C) Motherboard

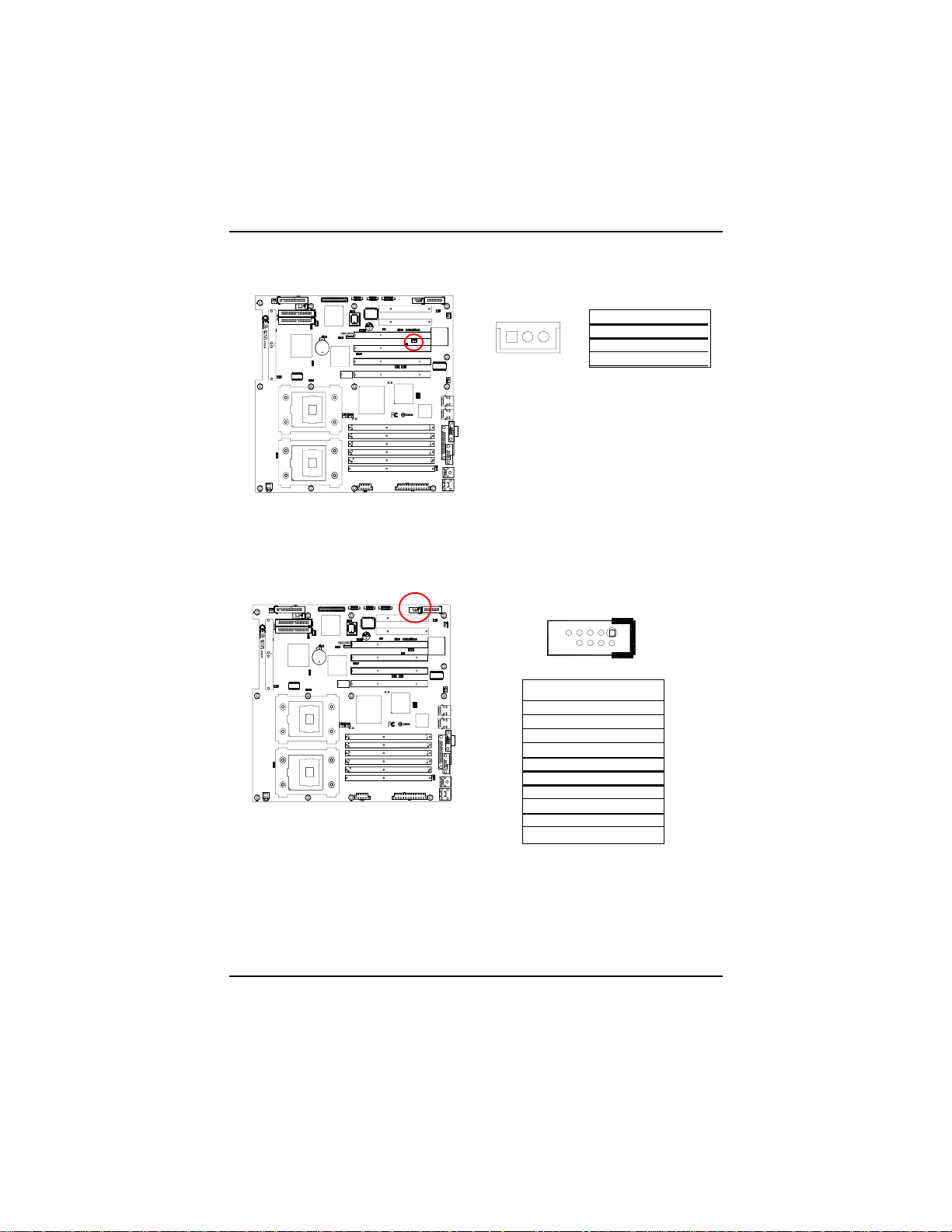

T) J18 (Wake On LAN Connector)
L) COM 2 Connector
Pin No. Definition
1
1 +5VSB
2 GND
3 Signal
1
24
Pin No. Definition
1 NDCDB
2 NSINB
3 NSOUTB
4 NDTRB
5 GND
6 NDSRB7 NRTSB8 NCTSB9 NRIB10 NC
E/F) SCSI1/2 Connector
SCSI 1
SCSI 2
I/J) IDE1/IDE2 [IDE1 / IDE2 Connector(Primary/Secondary)]
Connector Introduction
IDE2
IDE1
¾Important Notice:
Please connect first harddisk to IDE1
and connect CDROM to IDE2.The red stripe of
the ribbon cable must be the same side with the
Pin1.
25
1
1
GA-8IPXDR-E(C) Motherboard
G) FDD1 (Floppy Connector)
M) CASE OPEN
1
234
Floppy
1
Pin No. Definition
33
1 Signal
2 GND
26
GA-8IPXDR-E(C) Motherboard
N) J20 (Front Panel Connector-- Power button and Power LED)
20
Pin No. Definition
17 PWR LED+
18 PWR LED19 PWR BTN+
20 PWR BTN-
H) USB1 (Front USB Connector)
1
1
Be careful with the polarity of the front panel
USB connector. Check the pin assignment
while you connect the front panel USB cable.
Please contact your nearest dealer for
optional front panel USB cable.
Pin No. Definition
1 Power
2 GND
3 USB D24NC
5 USB D2+
6 USB D3+
7NC
8 USBD39 GND
10 Power
27
GA-8IPXDR-E(C) Motherboard
K) IPMI_CON (IPMI Connector)
¾IPMI module is an optional device for customer to
purchase.
¾For the IPMI connector pins definition, please refer
to Appendix G.
D) BT1 (Battery)
2
1
70
69
+
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent
type recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer’s instructions.
28
K) F_PANEL connector
JP_RST (Reset Button) Open: Normal Operation
Close: Reset hardware system
JP_HD (HDD Active LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
JP_SPK (Speaker Connector) Pin 1: VCC(+)
Pin 2- Pin 3: NC
Pin 4: Data(-)
Connector Introduction
JP_SPK+
JP_HD+
JP_RST
JP_HD-
JP_SPK-
29
GA-8IPXDR-E(C) Motherboard
Step 4-3: Jumper Setting Introduction
3
15
13
11
10
5
12
2
9
14
1
1) JP 1 9) JP 17
2) JP 8 10) JP 18
3) JP 9 1 1) JP 19
4) JP 10 12) JP 20
5) JP 13 13) JP 21
6) JP 14 14) JP 22
7) JP 15 15) CLR_COMS
8) JP 16
6
7
8
4
30
1) JP 1 (Onboard SCSI Function)
Jumper Setting
1
1
2) JP 8 (Onboard VGA Functon)
1
1
3) JP 9 (Front Side USB Wake Up Function)
1-2 close: SCSI Enabled (Default)
2-3 close: SCSI Disabled
1-2 close: VGA Enabled (Default)
2-3 close: VGA Disabled
31
1
1
1-2 close: Front USB wake up
function disabled (Default)
2-3 close: Front USB wake up
function enabled
GA-8IPXDR-E(C) Motherboard

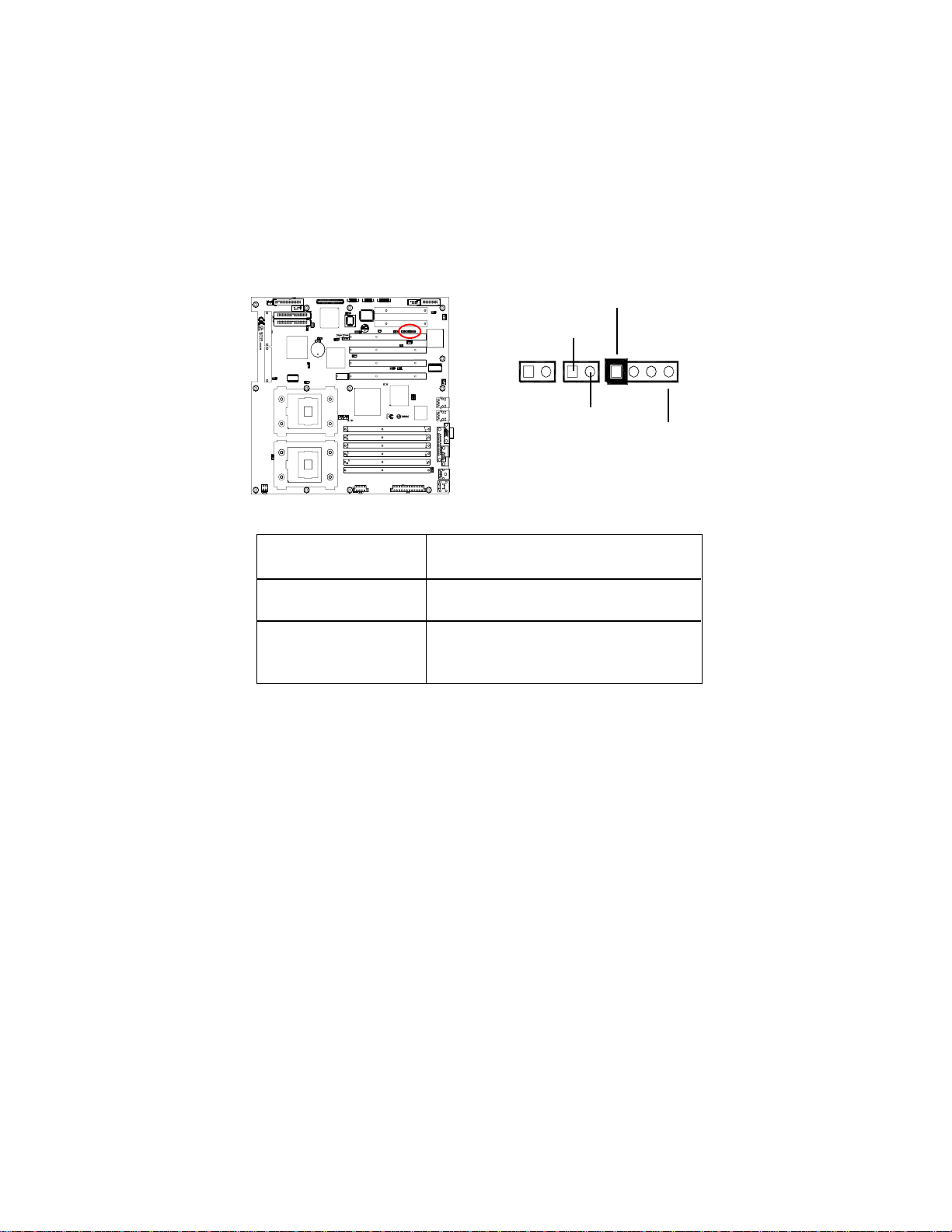

4) JP 10 (Rear Side USB Wake Up Function)
1
1
1-2 close: Rear USB wake up
function disabled (Default)
2-3 close: Rear USB wake up
function enabled
5 / 6) JP13 / JP14 (P64H2#1 Primary PCI-X max Bus Frequency Function)
For PCI-X_1
JP13
JP14
JP13
JP14
JP13
JP14
1
JP13 : JP14 = 1-2 closed ; 1-2 closed
==>Set the Primary PCI-X
max Bus frequency at 133MHz
(Default)
1
JP13 : JP14 = 1-2 closed ; 2-3 closed
==>Set the Primary PCI-X
max Bus frequency at 100MHz
1
JP13 : JP14 = 2-3 closed ; Open
==>The Primary PCI-X max Bus
frequency will stay at 66MHz
32
Jumper Setting
7 / 8) JP15 / JP16 (P64H2#1 Secondary PCI-X max Bus Frequency Selection)
For Giagbit LAN U6
JP15
JP16
JP15
JP16
JP15
JP16
1
JP15 : JP16 = 1-2 closed ; 1-2 closed
==>Set the Secondary PCI-X
max Bus frequency at 133MHz
(Default)
1
JP15 : JP16 = 1-2 closed ; 2-3 closed
==>Set the Secondary PCI-X
max Bus frequency at 100MHz
1
JP15 : JP16 = 2-3 closed ; Open
==>The Secondary PCI-X max Bus
frequency will stay at 66MHz
9 / 10) JP17 / JP18 (P64H2#2 Primary PCI-X max Bus Frequency Selection)
For PCI-X_3 / U320 SCSI
JP18
JP17
JP18
JP17
JP18
JP17
1
JP18 : JP17 = 1-2 closed ; 1-2 closed
==>Set the Primary PCI-X
max Bus frequency at 133MHz
(Default)
1
JP18 : JP17 = 1-2 closed ; 2-3 closed
==>Set the Primary PCI-X
max Bus frequency at 100MHz
33
GA-8IPXDR-E(C) Motherboard
11 / 12) JP19 / JP20 (P64H2#2 Secondary PCI-X max Bus Frequency Selection)
For PCI-X_2 and PCI-X_4
1
JP20 : JP19 = 1-2 closed ; 1-2 closed
==>Set the Secondary PCI-X
max Bus frequency at 133MHz
(Default)
1
JP20 : JP19 = 1-2 closed ; 2-3 closed
==>Set the Secondary PCI-X
max Bus frequency at 100MHz
1
JP20 : JP19 = 2-3 closed ; Open
==>The Secondary PCI-X max Bus
frequency will stay at 66MHz
JP19
JP20
JP20
JP19
JP20
JP19
JP20
JP19
13) JP21 (On Board SCSI Channel A Terminator Function)
1
1-2 closed : Enable SCSI Channel A
terminator
(Default)
1
2-3 closed :
terminator set by the controller
automatically
14) JP22 (On Board SCSI Channel B Terminator Function)
1
34
1-2 closed :
terminator
1
2-3 closed : SCSI Channel B
terminator set by the controller
automatically
SCSI Channel A
Enable SCSI Channel B
(Default)
15) CLR_CMOS (Clear CMOS Function)
Jumper Setting
1
1
1-2 close: Clear CMOS
2-3 close: Normal (Default)
Y ou may clear the CMOS data to its default
values by this jumper
35
GA-8IPXDR-E(C) Motherboard
Chapter 3 BIOS Setup
BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the
basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it
retains the Setup information when the power is turned off.
ENTERING SETUP
Power ON the computer and press <DEL> immediately will allow you to enter Setup.
CONTROL KEYS
<Ç> Move to previous item
<È> Move to next item
<Å> Move to the item in the left hand
<Æ> Move to the item in the right hand
<Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and
Option Page Setup Menu - Exit current page and return to Main Menu
<+/PgUp> Increase the numeric value or make changes
<-/PgDn> Decrease the numeric value or make changes
<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu
<F2> Reserved
<F3> Reserved
<F4> Reserved
<F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu
<F6> Reserved
<F7> Load the Optimized Defaults
<F8> Reserved
<F9> Reserved
<F10> Save all the CMOS changes, only for Main Menu
36
GETTING HELP
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu / Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. T o exit the Help Window press <Esc>.
zz
z Main
zz
This setup page includes all the items in standard compatible BIOS.
zz
z Advanced
zz
This setup page includes all the items of AMI special enhanced features.
(ex: Auto detect fan and temperature status, automatically configure hard disk parameters.)
zz
z Security
zz
Change, set, or disable password. It allows you to limit access the system and setup.
zz
z Boot
zz
This setup page include all the items of first boot function features.
zz
z Exit
zz
There are five optionsin this selection: Exit Saving Changes, Exit Discarding Changes, Load
Optimal Defaults, Load Failsafe Defaults, and Discard Changes.
BIOS Setup
37
GA-8IPXDR-E(C) Motherboard
Main
Once you enter AMI BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen.
Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
System Date: Jan 30 2002 [Setup Help]
System Time: [00:13:12]
Floppy Drive A: 1.44MB 3
Floppy Drive B: Not Installed
Primary IDE Master CD-540E
Primary IDE Slave Not Installed
Secondary IDE Master ST380021A
Secondary IDE Slave Not Installed
System Information
1/2
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 1: Main
System Date
Set the System Date. Note that the “Day” automatically changed after you set the date.
(Weekend: DD: MM: YY) (YY: 1099~2099)
System Time
The time is calculated based on the 24-hour military time clock. Set the System Time (HH:MM:SS)
This field only displays the BIOS ID
38
BIOS Setup
Floppy Drive A/B
This category identifies the type of floppy disk drive A or drive B that have been installed in the
computer.
None No floppy drive installed
1.2MB, 3.5 in. 3.5 inch AT-type high-density drive; 1.2M byte capacity
720K, 3.5 in. 3.5 inch double-sided drive; 720K byte capacity
1.44M, 3.5 in. 3.5 inch double-sided drive; 1.44M byte capacity.
2.88M, 3.5 in. 3.5 inch double-sided drive; 2.88M byte capacity.
IDE Primary Master, Slave / Secondary Ma ster , Slave
The category identifies the types of hard disk from drive C to F that has been installed in the computer.
There are two types: auto type, and manual type. Manual type is user-definable; Auto type which will
automatically detect HDD type.
Note that the specifications of your drive must match with the drive table. The hard disk will not work
properly if you enter improper information for this category.
If you select User Type, related information will be asked to enter to the following items. Enter the
information directly from the keyboard and press <Enter>. Such information should be provided in the
documentation form your hard disk vendor or the system manufacturer.
TYPE
1-46: Predefined types.
Users: Set parameters by User.
Auto: Set parameters automatically. (Default Vaules)
CD/DVD: Use for ATAPI CD/DVD-ROM drives.
ARMD: Use for ATAPI Removable Media Device.
Cylinders Number of cylinders
Write Precompensation Write precompensation
SECTORS Number of sectors
Maximum Capacity Maximum Capacity
LBA Mode This field shows if the device type in the specific IDE channel
support LBA Mode
Block Mode This field only shows the information of Block Mode.
39
GA-8IPXDR-E(C) Motherboard
Fast Programmed I/O Mode This field only shows the information of Fast Programmed
I/O Mode.
32 Bit Transfer Mode Enables 32 bit access to maximize the hard disk data
transfer rate.
Option: On (Default Value); Off
If a hard disk has not been installed select NONE and press <Enter>.
System Information
This category displays the following system information: the Processor type, Speed, Cache Size,
Total Memory Size, Memory Resized DIMM, BIOS version, BIOS Release Date and System
Product Name.
40
Advanced
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
[Setup Help]
` Advanced Configuration
` Chipset Configuration
` Power Management Configuration
` PCI-X Configuration
`Peripheral Configuration
`Hardware Monitor Configuration
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 2: Advanced
BIOS Setup
**
*
About This Section: Advanced
**
This section “Advanced” will be divided into five sub-menus.
Advanced Configuration
Chipset Configuration
Power Management Configuration
PCI-X Configuration
Peripheral Configuration
Hardware Monitor Configuration
With this section, allowing user to configure your system for basic operation. A user can change the
system’s default boot-up sequence, keyboard operation, shadowing and security, etc.
41
GA-8IPXDR-E(C) Motherboard
Adva nced Configuration
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
Advanced Configuration [Setup Help]
Quick Boot Disabled
MPS Version for O.S 1. 4
Console Redirect Disabled
C.R Baud Rate 19200
C.R after Post Disabled
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 2-1: Advanced Configuration
Advanced Configuration
` Quick Boot
This setting allows BIOS to skip certain tests while booting. This will decrease the time needed
to boot the system.
Enabled Set this option “Enable” to permit BIOS to skip certain tests while booting.
(Default Value)
Disabled Disable this function.
The
indicates DISPLAY ONLY
42
BIOS Setup
` MPS Version for O.S
This option allows a user to select MP (Multi Processors) system supported version.
Note: Some old MPS OS support 1.1 version only.
1.4 Support MPS Version 1.4 . (Default Value)
1.1 Support MPS Version 1.1.
` Console Redirect
Enable this option to remote monitoring and controlling the BIOS by the client computer.
Note: If user wants to apply this function, please press ‘F4’ than ‘DEL’.
COMA/COMB User can either select COMA or COMB to enable the console
redirect function. When the COM port is determined, users can
adjust the items for C.R Baud Rate and the C.R after Post.
Disabled Disable this function.(Default Value)
43
GA-8IPXDR-E(C) Motherboard
Chipset Configuration
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
Chipset Configuration [Setup Help]
ClkGen Spread Spectrum Disabled
Hyper Threading Disabled
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 2-2: Chipset Configuration
Chipset Configuration
` ClkGen Spread Spectrum
Enabled Enable ClkGen Spread Spectrum
Disabled Disable this function. (Default Value)
` Hyper Threading
Hyper-Threading T echnology can provide an immediate performance boost in multi-tasking
Enabling Hyper-Threading T echnology requires a computer system with an Intel Pentium 4
processor at 3.06 GHz or higher, a chipset and BIOS that utilize this technology, and an
operating system that includes optimizations for this technology. Performance will vary
depending on the specific hardware and software you use.environments and while using multithreaded applications.
Enabled Enable Intel Hyper Threading.
Disabled Disable Inel Hyper Threading. (Default V alue)
44
Power Ma nagement Configuration
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
Power Management Configuration [Setup Help]
System After AC Back Last State
PME Event Wake Up Enabled
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 2-3: Power Management Configuration
Power Manage ment Configuration
The Power Management Configuration allows you to reduce system power consumption through
different saving power methods for various devices.
BIOS Setup
` System After AC Back
On State System power state when AC cord is re-plugged.
Off State Do not power on system when AC power is back.
Last State Set system to the last sate when AC power is removed. Do not power on
system when AC power is back. (Default V alue)
` PME Event Wake Up
This option allow user to wake up system from the PME device.
Enabled Enable PME Event Wake Up (Default Value)
Disabled Disable this function.
45
GA-8IPXDR-E(C) Motherboard
PCI-X Configuration
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
PCI-X Configuration [Setup Help]
Data Parity Error Recovery Enabled
Relaxed Ordering Enabled
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 2-4: PCI-X Configuration
PCI-X Configuration
` Data Parity Error Recovery
Enabled Select “Enabled” to active PCI-X data parity error recovery. (Default Value)
Disabled Disable this function.
` Relaxed Ordering
Enabled Select “Enabled” to active relaxed ordering. (Default Value)
Disabled Disable this function.
46
Peripheral Configuration
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
Peripheral Configuration [Setup Help]
OnBoard IDE Both
OnBoard FDC Enabled
Onboard Serial Port A 3F8/COM1
Onboard Serial Port B 2F8/COM2
Onboard Parallel Port 378
Parallel Port Mode ECP
Parallel Port IRQ 7
Parallel Port DMA 3
USB Function Enabled
USB Legacy Support Disabled
OnBoard Gigabit LAN Enabled
OnBoard SCSI Enabled
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
BIOS Setup
Figure 2-5: Peripheral Configuration
Peripheral Configuration
` OnBoard IDE
Option: Both (Default Value), Primary, Secondary , Disabled
` OnBoard FDC
Enabled Select “Enabled” to active Onboard Floppy Controller. (Default Value)
Disabled Disable this function.
47
GA-8IPXDR-E(C) Motherboard
` OnBoard Serial Port A
This option specifies the base I/O port address of serial prot A.
3F8/COM1 Enable onboard serial port A and set I/O address to 3F8/COM1. (Default
value)
2F8/COM2 Enable onboard serial port A and set I/O address to 2F8/COM2.
3E8/COM3 Enable onboard serial port A and set I/O address to 3E8/COM3.
2E8/COM4 Enable onboard serial port A and set I/O address to 2E8/COM4.
` OnBoard Serial Port B
This option specifies the base I/O port address of serial prot B.
Note: If one port address is assigned to serial port A, than that address will not be able to resign
to serial port B.
3F8/COM1 Enable onboard serial port A and set I/O address to 3F8/COM1.
2F8/COM2 Enable onboard serial port A and set I/O address to 2F8/COM2. (Default
value)
3E8/COM3 Enable onboard serial port A and set I/O address to 3E8/COM3.
2E8/COM4 Enable onboard serial port A and set I/O address to 2E8/COM4.
` OnBoard Parallel Port
This option specifies the base I/O address of the parallel prot on the motherboard.
378 Enable onboard LPT port and set I/O address to 378. (Default value)
278 Enable onboard LPT port and set I/O address to 278
3BC Enable onboard LPT port and set I/O address to 3BC
48
BIOS Setup
` Parallel Port Mode
This option specifies the parallel mode.
Normal The normal parallel pro is used.
Bi-Directional Use this setting to support bi-directional transfers on the parallel port.
EPP The parallel port can be used with devices that adhere to the
enhanced Parallel Port ( EPP ) specifications. EPP uses the
existing parallel port signal to provide asymmetric bi-directional
data transfer driven by the host device.
ECP The parallel port can be used with devices that adhere to the
extended Capabilities Port specifications. ECP uses the DMA
protocol to achieve data transfer rate up to 2.5Mbit/s. ECP provides
the symmetric bi-directional communication. (Default value)
` Parallel Port IRQ
This option is to select Parallel Port IRQ
Option: 7 (Default V alue) , 5
` Parallel Port DMA
This option iallows user to select Parallel Port DMA.
Option: 3 (Default V alue) , 1
` USB Function
This option allows user to enable USB host controller.
Enable Enable USB host controller (Default Value)
Disabled Disable this function.
` USB Legacy Support
This option allows user to function support for legacy USB.
Enabled Enables support for legacy USB
Disabled Disables support for legacy USB (Default Value)
49
GA-8IPXDR-E(C) Motherboard
` OnBoard Gigabit LANs
This option allows user to function onboard Gigabit LANs.
Enable Enables onboard Gigabit LANs. (Default Value)
Disabled Disable this function.
` OnBoard SCSI
This option allows user to function onboard SCSI controller.
Enable Enable onboard SCSI. (Default Value)
Disabled Disable this function.
50
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
Hardware Configuration [Setup Help]
Reset Case Open Status N o
CPU Fan Fail Alarm Disabled
CPU Voltage Fail Alarm Disabled
CPU Warning Temperature Disabled
Case Status Open
CPU0 Fan Temperature 38
CPU1 Fan Temperature 300C/860F
System Current Temperature 300C/860F
CPU0 FAN RP M
CPU1 FAN RP M
System FAN1 RPM
Power FAN1 RP M
Power FAN2 RP M
Vcore 1.429V
VCC1.8 1.805V
VCC3 3.342V
VCC2.5 2.550V
+12V 11.984
VCC 4.983V
VBAT 2.962V
VBAT 2.962V
Vtt DDR 1.299V
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 2-6: Hardware Monitor Configuration
The
indicates DISPLAY ONLY
0
C/1000F
BIOS Setup
51
GA-8IPXDR-E(C) Motherboard
Hardware Monitor Configuration
This section provides the system hardware health information to user for reference.
` Reset Case Open Status
This function provides user to stop the case open warning beep. Once the case is opened, the
system will rise waring alert.To stop the beep, user is required to enter the setup menu and rest
the case open status to “Yes” option.
` Case Status
This item displays the status of system case.
` CPU Fan Fail Alarm
Disabled CPU Fan Fail Warning Function Disabled. (Default value)
Enabled CPU Fan Fail Warning Function Enabled.
` CPU Vlotage Fail Alarm
Disabled CPU Voltage Fail Warning Function Disabled. (Default value)
Enabled CPU Voltage Fail Warning Function Enabled.
` CPU Warning Temperature
70°C / 158°F Monitor CPU0/1 Temp. at 70°C / 158°F.
80°C / 176°F Monitor CPU0/1 Temp. at 80°C / 176°F
90°C / 194°F Monitor CPU0/1 Temp. at 90°C / 194°F.
Disabled Disabled this function.(Default value)
` CPU 0 / 1 Fan Temperature
This field only displlays the current CPU0/1 Fan temperature.
` System Current T emperature
This field only displlays the current system temperature.
52
` CPU 0 / 1 FAN
This field indicates the RPM (Ratio Per Minute) of current CPU 0/1 speed.
` System FAN 1
This field indicates the RPM (Ratio Per Minute) of current system 1 fan speed.
` Power FAN 1/2
This field indicates the RPM (Ratio Per Minute) of current power fan speed.
` Vcore/ VCC 1..8 / VCC 3 / VCC 2..5 / VCC / +12V / VBAT/ Vtt DDR
This field only displays the current CPU / System voltage.
BIOS Setup
53
GA-8IPXDR-E(C) Motherboard
Security
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced
No] [Setup Help]
Set Supervisor Password: [Enter]
Set User Password: [Enter]
Password Check [Setup]
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
**
*
About This Section: Security
**
In this section, user can set either supervisor or user passwords, or both for different level of
password securities. In addition, user also can set the virus protection for boot sector.
Set Supervisor Password
Y ou can install and change this options for the setup menus. T ype the password up to 6
characters in lengh and press <Enter>. The password typed now will clear any previously
entered password from the CMOS memory. You will be asked to confirm the entered
password. T ype the password again and press <Enter>. You may also press <Esc> to abort
the selection and not enter a specified password or press <Enter> key to disable this option.
Security Boot Exit
Figure 3: Security
54
Set User Password
Y ou can only enter but do not have the right to change the options of the setup menus. When
you select this function, the following message will appear at the center of the screen o assist
you in creating a password.
Type the password up to 6 characters in lengh and press <Enter>. The password typed now
will clear any previously entered password from the CMOS memory. You will be asked to
confirm the entered password. Type the password again and press <Enter>. You may also
press <Esc> to abort the selection and not enter a specified password.
Password Check
` Setup will check password while invlolking setup. (Default V alue)
` Always will check the password while involking setup as well as on each boot.
BIOS Setup
55
GA-8IPXDR-E(C) Motherboard
Boot
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
[Setup Help]
Boot Device Priority
1st Floppy: 1.44 MB 3
2nd CD/DVD: C-540E
3rd IDE-0: Disabled
OnBoard LAN Boot ROM Disabled
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
**
*
About This Section: Boot
**
The “Boot” menu allows user to select among four possible types of boot devices listed
using the up and down arrow keys. By applying <+> and <Space> key, you can promote
devices and by using the <-> key, you can demote devices. Promotion or demotion of devices
alerts the priority that the system uses to search for boot device on system power on.
1/2
Figure 4: Boot
Boot Device Priority
` 1st / 2nd / 3 rd Boot Device
These three fields determines which type of device the system attempt to boot from after
AMIBIOS Post completed. Specifies the boot sequence from the available devices. If the first
device is not a bootable device, the system will seek for next available device.
56
` The Choice for 1st Boot Device: ,
Removable Device (Default V alue)
ATAPI CDROM
Hard Disk
Disabled.
` The Choice for 2nd Boot Device:
Removable Device
ATAPI CDROM (Default Value)
Hard Disk
Disabled.
` The Choice for 3rd Boot Device:
Removable Device
ATAPI CDROM
Hard Disk
Disabled (Default V alue)
BIOS Setup
` OnBoard LAN Boot ROM
Enabled Enable OnBoard LAN Boot ROM.
Disabled Disable this function. (Default Value)
57
GA-8IPXDR-E(C) Motherboard
Exit
AMI BIOS NEW SETUP Utility - VERSION 3.31a
Main Advanced Security Boot Exit
[Setup Help]
Exit Saving Changes [Enter]
Exit Discarding Changes [Enter]
Load Defaul Settings [Enter]
Load Original Values [Enter]
F1: Help KL: Select Item + -: Change Values F5: Setup Defaults
Esc: Exit IJ: Select Menu Enter: Select Sub-Menu F10: Save&Exit
Figure 5: Exit
**
*
About This Section: Security
**
Once you have changed all of the set values in the BIOS setup, you should save your chnages and
exit BIOS setup program. Select “Exit” from the menu bar, to display the following sub-menu.
Exit Saving Changes
Exit Discarding Changes
Load Default Settings
Load Original Values
58
Exit Saving Cha nge s
This option allows user to exit system setup with saving the changes.
Press <Enter> on this item to ask for the following confirmation message:
Pressing ‘Y’ to store all the present setting values tha user made in this time into CMOS.
Therefore, whenyou boot up your computer next time, the BIOS will
re-configure your system according data in CMOS.
Exit Discarding Change s
This option allows user to exit system setup without changing any
previous settings values in CMOS. The previous selection remain in effect.
This will exit the Setup Utility and restart your compuetr when selecting this option.
Press <Enter> on this item to ask for confirmation message.
Load Default Settings
Press <Enter> on this item to load the default values for all the setup options. Enable this
function you will get a confirmation dialog box with a message as below:
Press [Enter] to continue
Or press [ESC] to Abort
BIOS Setup
Press [Enter] to load the default settings that are factory settings for default performance
system operations.
Load Original Values
Press <Enter> on this item to discard changes without exiting setup. Enable this function you
will get a confirmation dialog box with a message as below:
Press [Enter] to continue
Or press [ESC] to Abort
Press [Enter] to load the original values that are factory settings for factory original value
system operations.
59
GA-8IPXDR Motherboard
Revision History
Chapter 4 Technical Reference
GA-8IPXDR-E System Block Diagram
60
Appendix
Revision History
Chapter 5 Appendix
Appendix A: Intel Network Driver Installation
(Note: Driver CD Ver. : 2.0)
Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver
CD-title will auto start and show a series of Setup Wizard dialog boxes. If not, please double click the
CD-ROM device icon in "My computer", and execute the setup.exe.
1.Click "Intel Network Driver" item.
(1)
3. Click Next” to process the
installation.
(3)
2.Click "Install Software" item.
(2)
4. Select “I accept the terms in
the lincense aggrement and
click "Yes".
(4)
61
GA-8IPXDR-E(C) Motherboard
5.Slect either Typical
or Custom Setup
type and click
6. Ready to install the program.
Click "Install" to begin the
installation.
"Next".
(5)
(6)
Step 5. Note that user can select either Typical or Custom Setup T ypes. Typical setup type allows
users to install basic connectivity and the adapter management utility. Custom setup type
embraces installing features and subfeatures user selects, including modern utilities, manage
ment components and drivers. Recommended for advanced users.
8. Wizard completed.
Click "Finish".
Starting installation
(7)
(8)
62
Appendix
Appendix B: INF Update Installation (Driver for chipset)
Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver
CD-title will auto start and show a series of Setup Wizard dialog boxes. If not, please double click the
CD-ROM device icon in "My computer", and execute the setup.exe.
(1) (2)
(3)
(5)
63
(4)
GA-8IPXDR-E(C) Motherboard
Appendix C: ATI Rage XL VGA Driver Installation
Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver
CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device
icon in "My computer", and execute the setup.exe.
2.Click "Next".
1.Click "ATI Rage XL VGA Driver"
item.
(1)
3.Click "Yes" at License Agreement
window.
(3)
(2)
4. Select “Y es, I want to restart
my computer” item and
click "Finish" to restart
computer.
(4)
64
Appendix
Appexdix D: Adaptec SCSI Driver Installation
Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver
CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device
icon in "My computer", and execute the setup.exe.
2. A n exploer window will pops up.
Click in the “SCSI 7902W” folder,
the followed up screen will guide
you to install the SCSI driver
depends on the operating system.
1. Click "Adaptec SCSI Driver" item.
(1)
65
(2)
GA-8IPXDR-E(C) Motherboard
Appendix E: Utilites Installation
Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver
CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device
icon in "My computer", and execute the setup.exe.
The Utilities item contains the utility of DirectX 9.0, Adabe Acrobate Reader V.5.0 , GMT1.21 and
Norton Internet Security 2003
2. Click on the desired item and
follow up a series of installation
1. Click "Utilities" item.
wizard.
(1)
(2)
Appendix F: About Updateing Latest version of BIOS
T o update the latest BIOS version, please go to Gigabyte Networking official web site:
Http://networking.gigabyte.com.tw
66
Appendix G: IPMI Connector Pin Definition
Pin Definition Pin Definition
1 EMP Port ENABLE 36 POWER BUTTON OUT
2 5VSB 37 POWER BUTTON IN
3 SERIAL PORT 38 SYSTEM S5
4 SERIAL PORT 39 SERIAL PORT
5 SERIAL PORT 40 RESET BUTTON IN
6 SERIAL PORT 41 BUZZER STOP
7 POWER OK 42 GND
8 GND 43 CPU0 PRESENT
9 MAIN SMBUS DATA 44 CPU0 THER TRIP10 MAIN SMBUS CLK 45 CPU1 PRESENT
11 MAIN SMBUS ALERT 46 CPU1 THER TRIP12 P1 SMBUS ALERT 47 LPC LDRQ0
13 P1 SMBUS DATA 48 BMC BEEP
14 P1 SMBUS CLK 49 VCC3
15 AOL SMBUS DATA 50 V C C
16 AOL SMBUS CLK 51 BSP TRI-STATE
17 AOL SMBUS ALERT 52 ID BUTTON
18 IPMB SMBUS ALERT 53 AP TRI-STATE
19 IPMB SMBUS DATA 54 VGA FUSE
20 IPMB SMBUS CLK 55 KB/MS FUSE
21 GND 56 SCSI1 FUSE
22 BMC LPC CLOCK 57 USB1 FUSE
23 LPC FRAME 58 SCSI2 FUSE
24 GND 59 USB2 FUSE
25 LPC LAD3 60 GND
26 LPC LAD42 61 ALL ERROR LED
27 GND 62 BMC RESET OUT
28 LPC LAD1 63 HDD ERROR LED
29 LPC LAD0 64 POWER SUPPLY ERROR LED
30 3VSB 65 FAN ERROR LED
31 LPC RESET 66 SYSTEM POWER LED
32 SYSTEM NMI 67 SERIAL PORT
33 SERIAL IRQ 68 SERIAL PORT
34 GREEN OUTPUT 69 CPU0 IERR-SIGNAL
35 RESET BUTTON OUT 70 CPU1 IERR-SIGNAL
Appendix
67
GA-8IPXDR-E(C) Motherboard
Appendix H: Acronyms
Acronyms Meaning
ACPI Advanced Configuration and Power Interface
APM Advanced Power Management
AGP Accelerated Graphics Port
AMR Audio Modem Riser
ACR Advanced Communications Riser
BBS BIOS Boot Specification
BIOS Basic Input / Output System
CPU Central Processing Unit
CMOS Complementary Metal Oxide Semiconductor
CRIMM Continuity RIMM
CNR Communication and Networking Riser
DMA Direct Memory Access
DMI Desktop Management Interface
DIMM Dual Inline Memory Module
DRM Dual Retention Mechanism
DRAM Dynamic Random Access Memory
DDR Double Data Rate
ECP Extended Capabilities Port
ESCD Extended System Configuration Data
ECC Error Checking and Correcting
EMC Electromagnetic Compatibility
EPP Enhanced Parallel Port
ESD Electrostatic Discharge
FDD Floppy Disk Device
FSB Front Side Bus
HDD Hard Disk Device
IDE Integrated Dual Channel Enhanced
IRQ Interrupt Request
I/O Input / Output
IOAPIC Input Output Advanced Programmable Input Controller
ISA Industry Standard Architecture
Acronyms Meaning
68
LAN Local Area Network
LBA Logical Block Addressing
LED Light Emitting Diode
MHz Megahertz
MIDI Musical Instrument Digital Interface
MTH Memory Translator Hub
MPT Memory Protocol Translator
NIC Network Interface Card
OS Operating System
OEM Original Equipment Manufacturer
PAC PCI A.G.P. Controller
POST Power-On Self Test
PCI Peripheral Component Interconnect
RIMM Rambus in-line Memory Module
SCI Special Circumstance Instructions
SECC Single Edge Contact Cartridge
SRAM Static Random Access Memory
SMP Symmetric Multi-Processing
SMI System Management Interrupt
USB Universal Serial Bus
VID Voltage ID
ZCR Zero Channel RAID
Appendix
69
GA-8IPXDR-E(C) Motherboard
T echnical Support/RMA Sheet
Customer/Country: Company: Phone No.:
Contact Person: E-mail Add. :
Model name/Lot Number: PCB revision:
BIOS version: O.S./A.S.:
Hardware Mfs. Model name Size: Driver/Utility:
Configuration
CPU
Memory
Brand
Video Card
Audio Card
HDD
CD-ROM /
DVD-ROM
Modem
Network
AMR / CNR
Keyboard
Mouse
Power supply
Other Device
Problem Description:
70
Loading...
