GA-8IPE1000 Series

Intel® Pentium® 4 Processor Motherboard

User's Manual

Rev. 4002

12ME-8IPE1K4-4002

GA-8IPE1000-G / GA-8IPE1000-L / GA-8IPE1000

Nov. 11. 2004

Nov. 11, 2004

Motherboard

GA-8IPE1000-G / GA-8IPE1000-L /

GA-8IPE1000

Motherboard

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

 For quick installation, please refer to the "Hardware Installation Guide" included with the

product.

 For detailed product information and specifications, please carefully read the

"Product User Manual".

 For detailed information related to Gigabyte's unique features, please go to the

"Technology Guide" section on Gigabyte's website to read or download the information

you need.

Fore more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

Table of Contents

GA-8IPE1000 Series Motherboard Layout .................................................................... 6

Block Diagram ............................................................................................................... 7

Chapter 1 Hardware Installation ................................................................................... 9

1-1 Considerations Prior to Installation ................................................................. 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and Heatsink ............................................................ 12

1-3-1 Installation of the CPU .......................................................................................... 12

1-3-2 Installation of the Heatsink ................................................................................... 13

1-4 Installation of Memory ................................................................................... 14

1-5 Installation of Expansion Cards .................................................................... 16

1-6 I/O Back Panel Introduction .......................................................................... 17

1-7 Connectors Introduction ................................................................................ 18

Chapter 2 BIOS Setup ............................................................................................... 29

The Main Menu (For example: BIOS Ver. : E8) ....................................................... 30

2-1 Standard CMOS Features ............................................................................. 32

2-2 Advanced BIOS Features ............................................................................. 34

2-3 Integrated Peripherals ................................................................................... 35

2-4 Power Management Setup ............................................................................ 39

2-5 PnP/PCI Configurations ................................................................................ 41

2-6 PC Health Status ........................................................................................... 42

2-7 Frequency/Voltage Control ........................................................................... 43

2-8 Load Fail-Safe Defaults ................................................................................ 45

2-9 Load Optimized Defaults ............................................................................... 45

2-10 Set Supervisor/User Password ..................................................................... 46

2-11 Save & Exit Setup ......................................................................................... 47

2-12 Exit Without Saving ....................................................................................... 47

- 4 -

Chapter 3 Drivers Installation ..................................................................................... 49

3-1 Install Chipset Drivers ................................................................................... 49

3-2 Software Application ...................................................................................... 50

3-3 Software Information ..................................................................................... 50

3-4 Hardware Information .................................................................................... 51

3-5 Contact Us ..................................................................................................... 51

Chapter 4 Appendix ................................................................................................... 53

4-1 Unique Software Utilities ............................................................................... 53

4-1-1 Xpress Recovery Introduction .............................................................................. 53

4-1-2 Flash BIOS Method Introduction .......................................................................... 56

4-1-3 2- / 4- / 6- / 8- Channel Audio Function Introduction ........................................... 65

4-2 Troubleshooting............................................................................................. 73

- 5 -

GA-8IPE1000 Series Motherboard Layout

KB_MS

USB

COMA

COMB

USB

MIC_IN

F_AUDIO

CODEC

LPT

LAN

LINE_OUT

LINE_IN

SMSC

LPC47M997-NR

GAME

ATX_12V

CD_IN

RTL8110S or RTL8100C

SUR_CEN

DDR1

DDR2

DDR3

Socket 478

Intel 865PE

CPU_FAN

DDR4

ATX

GA-IPE1000(-G)(-L)

AGP

BATTERY

PCI1

PCI2

PCI3

BIOS

PCI4

PCI5

F_USB2

F_USB1

INFO_LINKSPDIF_IO

Intel ICH5

SATA1SATA0

PWR_LED

F_PANEL

CLR_CMOS

FDD

IDE2

IDE1

SYS_FAN

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

- 6 -

Block Diagram

AGP 4X/8X

5 PCI

PCICLK (33MHz)

AGPCLK 66MHz

RJ45

RTL8110S

PCI Bus 33MHz

CODEC

RJ45

RTL8100C

AC97 Link

2 Serial

ATA

Pentium 4

Socket 478

CPU

Intel 865PE

Intel ICH5

8 USB

Ports

CPUCLK+/-(100/133/200MHz)

System Bus 400/533/800 MHz

HCLK+/- (100/133/200MHz)

ZCLK (66 MHz)

ATA33/66/100 IDE Channels

Dual Channel

DDR 400/333/266MHz DIMM

33MHz

14.318MHz 48MHz

66MHz

BIOS

SMSC

LPC47M997-

14MHz

DDR

Game Port

Floppy

LPT Port

2 COM Ports

PS/2 KB/Mouse

Mic In

Line In

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

Line Out

- 7 -

- 8 -

Chapter 1Hardware Installation

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components (CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic pad or within a electrostatic shielding container.

5. Please verify that you the power supply is switched off before unplugging the power supply connector from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

English

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Hardware Installation- 9 -

English

1-2 Feature Summary

Motherboard  GA-8IPE1000-G or GA-8IPE1000-L or GA-8IPE1000 CPU  Socket 478 for Intel® Pentium® 4 (Northwood, Prescott) with HT Technology

 Supports 800/533/400MHz FSB  L2 cache varies with CPU

Chipset  Northbridge: Intel® 865PE Chipset

 Southbridge: Intel® ICH5

Memory  4 DDR DIMM memory slots (supports up to 4GB memory)

 Supports dual channel DDR 400/333/266 DIMM  Supports 2.5V DDR DIMM

Slots  1 AGP slot supports 8X/4X(1.5V) mode

 5 PCI slots

IDE Connections  2 IDE connection (UDMA 33/ATA 66/ATA 100), allows connection of

4 IDE devices FDD Connections  1 FDD connection, allows connection of 2 FDD devices Onboard SATA  2 Serial ATA ports from ICH5 (SATA0, SATA1) Peripherals  1 parallel port supporting Normal/EPP/ECP mode

 2 serial ports (COMA and COMB)  8 USB 2.0/1.1 ports (rear x 4, front x 4 via cable)  1 front audio connector  1 IR connector  1 PS/2 keyboard port  1 PS/2 mouse port

Onboard LAN  Onboard RTL8110S chip (10/100/1000 Mbit)

 Onboard RTL8100C chip (10/100 Mbit)  1 RJ 45 port

Onboard Audio  ALC850 CODEC (UAJ)

 Supports Jack Sensing function  Supports 2 / 4 / 6 / 8 channel audio  Supports Line In ; Line Out ; MIC  Surround Back Speaker (by optional Surround-kit)  SPDIF In/Out connection  CD In / Game connection

(Note)

(Note) Due to standard PC architecture, a certain amount of memory is reserved for system usage and

therefore the actual memory size is less than the stated amount. For example, 4 GB of memory size will instead be shown as 3.xxGB memory during system startup.

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

GA-8IPE1000 Series Motherboard - 10 -

I/O Control  SMSC LPC47M997-NR Hardware Monitor  System voltage detection

 CPU temperature detection  CPU / System fan speed detection

BIOS  Use of licensed AWARD BIOS

 Supports Q-Flash

Additional Features  Supports @BIOS

 Supports EasyTune 5

Overclocking  Over voltage via BIOS (CPU/ AGP/ DDR)

 Over clock via BIOS (CPU/ AGP/ DDR/ PCI)

Form Factor  ATX form factor; 30.5cm x 22cm

English

Hardware Installation- 11 -

1-3 Installation of the CPU and Heatsink

English

Before installing the CPU, please comply with the following conditions:

1. Please make sure that the motherboard supports the CPU.

2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU will not insert properly. If this occurs, please change the insert direction of the CPU.

3. Please add an even layer of heat sink paste between the CPU and heatsink.

4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise overheating and permanent damage of the CPU may occur.

5. Please set the CPU host frequency in accordance with the processor specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the required standards for the peripherals. If you wish to set the frequency beyond the proper specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.

HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires all of the following platform components:

- CPU: An Intel® Pentium 4 Processor with HT Technology

- Chipset: An Intel® Chipset that supports HT Technology

- BIOS: A BIOS that supports HT Technology and has it enabled

- OS: An operation system that has optimizations for HT Technology

1-3-1 Installation of the CPU

Fig. 1

Socket lever

Position lever at a 90 degree angle.

Fig. 2 A gold-colored triangle is marked one edge of the CPU. Please align this edge with the socket edge closest to the CPU lever. Gently place the CPU into position making sure that the CPU pins fit perfectly into their holes. Once the CPU is positioned into it socket, place one finger down on the middle of the CPU and gently press the metal lever back into its original position.

Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly. Rather than applying force, please change the positioning of the CPU.

GA-8IPE1000 Series Motherboard - 12 -

1-3-2 Installation of the Heatsink

Fig.1 Before installing the heat sink, please first add an even layer of heat sink paste on the surface of the CPU. Install all the heat sink components (Please refer to the heat sink manual for detailed installation instructions).

Fig.2 Please connect the heat sink power connector to the CPU_FAN connector located on the motherboard so that the heat sink can properly function to prevent CPU overheating.

The heat sink may adhere to the CPU as a result of hardening of the heat sink paste. To prevent such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for heat dissipation or using extreme care when removing the heat sink.

English

Hardware Installation- 13 -

English

1-4 Installation of Memory

Before installing the memory modules, please comply with the following conditions:

1. Please make sure that the memory used is supported by the motherboard. It is recommended that memory of similar capacity, specifications and brand be used.

2. Before installing or removing memory modules, please make sure that the computer power is switched off to prevent hardware damage.

3. Memory modules have a foolproof insertion design. A memory module can be installed in only one direction. If you are unable to insert the module, please switch the direction.

The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory capacity and specifications. Memory modules are designed so that they can be inserted only in one direction. The memory capacity used can differ with each slot.

Notch

DDR

Fig.1 The DIMM socket has a notch, so the DIMM memory module can only fit in one direction. Insert the DIMM memory module vertically into the DIMM socket. Then push it down.

Fig.2 Close the plastic clip at both edges of the DIMM sockets to lock the DIMM module. Reverse the installation steps when you wish to remove the DIMM module.

GA-8IPE1000 Series Motherboard - 14 -

Dual Channel DDR

GA-8IPE1000 Series supports the Dual Channel Technology. After operating the Dual Channel Technology, the bandwidth of Memory Bus will add double up to 6.4GB/s(DDR400) or 5.3GB/s(DDR333).

GA-8IPE1000 Series includes 4 DIMM sockets, and each Channel has two DIMM sockets as following:

Channel A : DDR 1, DDR 2

Channel B : DDR 3, DDR 4 If you want to operate the Dual Channel Technology, please note the following explanations due to the limitation of Intel chipset specifications.

1. Dual channel memory cannot be used if one DDR memory modules are installed.

2. If two DDR memory modules are installed (same storage capacity), one must be added to the Channel A slot and the other in the Channel B slot in order to use dual channel memory. Dual channel memory cannot function if both DDR memory modules are installed on the same channel.

3. If four DDR memory modules are installed, please use memory of the same storage capacity in order to use dual channel memory and for BIOS to detect all the DDR memory modules.

We'll strongly recommend our user to slot two DDR memory modules into the DIMMs with the same color in order for Dual Channel Technology to work.

The following table is for Dual Channel Technology combination: (DS: Double Side, SS: Single Side)

DDR 1 DDR 2 DDR 3 DDR 4

2 memory modules

4 memory modules

DS/SS X DS/SS X

X DS/SS X DS/SS

DS/SS DS/SS DS/SS DS/SS

English

Hardware Installation- 15 -

English

1-5 Installation of Expansion Cards

You can install your expansion card by following the steps outlined below:

1. Read the related expansion card's instruction document before install the expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer's chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

Installing a AGP VGA card:

Please carefully pull out the small whitedrawable bar at the end of the AGP slot when you try to install/uninstall the VGA card. Please align the VGA card to the onboard AGP slot and press firmly down on the slot. Make sure your VGA card is locked by the small white-drawable bar.

GA-8IPE1000 Series Motherboard - 16 -

1-6 I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the lower port (purple).

USB port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make sure your OS supports USB controller. If your OS does not support USB controller, please contact OS vendor for possible patch or driver upgrade. For more information please contact your OS or device(s) vendors.

Parallel Port

The parallel port allows connection of a printer, scanner and other peripheral devices.

COM A / COM B (Serial Port)

Connects to serial-based mouse or data processing devices.

LAN Port

The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/100/1000Mbps.

LAN Port

The provided Internet connection is fast Ethernet, providing data transfer speeds of 10/100Mbps.

Line In

Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out

Connect the stereo speakers or earphone to this connector.

MIC In

Microphone can be connected to MIC In jack.

English

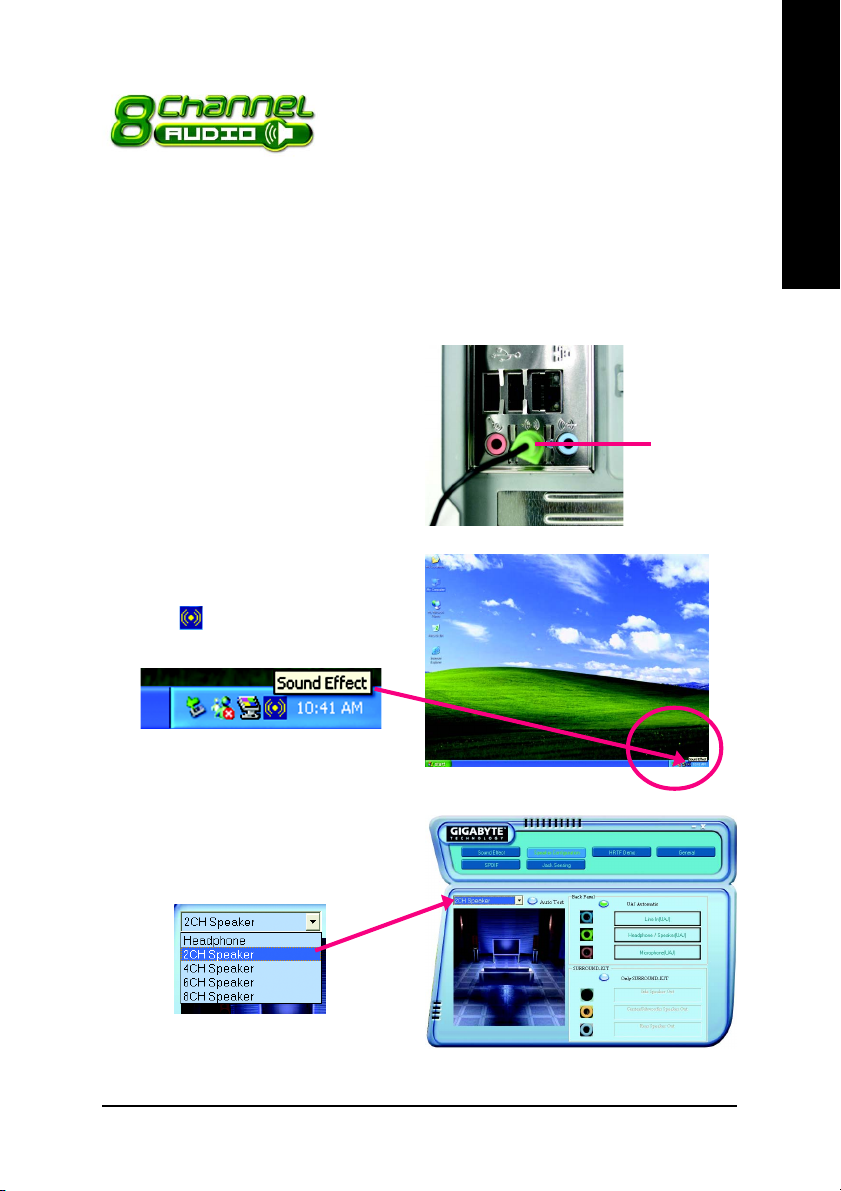

You can use audio software to configure 2-/4-/6-/8-channel audio functioning.

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

Hardware Installation- 17 -

1-7 Connectors Introduction

English

12 11

1) ATX_12V

2) ATX (Power Connector)

3) CPU_FAN

4) SYS_FAN

5) FDD

6) IDE1 / IDE2

7) SATA0 / SATA1

8) PWR_LED

9) BATTERY

10) F_PANEL

18 86 15 1014

11) F_AUDIO

12) CD_IN

13) SUR_CEN

14) SPDIF_IO

15) F_USB1 / F_USB2

16) IR

17) GAME

18) INFO_LINK

19) CLR_CMOS

GA-8IPE1000 Series Motherboard - 18 -

1/2) ATX_12V/ATX (Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, please make sure that all components and devices are properly installed. Align the power connector with its proper location on the motherboard and connect tightly. The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connector is not connected, the system will not start. Caution! Please use a power supply that is able to handle the system voltage requirements. It is recommended that a power supply that can withstand high power consumption be used (300W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable system or a system that is unable to start.

Pin No. Definition

1 GND

2 GND

3 +12V

4 +12V

Pin No. Definition

1 3.3V

2 3.3V

3 GND

4 VCC

5 GND

6 VCC

7 GND

8 Power Good

9 5V SB (stand by +5V)

10 +12V

11 3.3V

12 -12V

13 GND

14 PS_ON(soft on/off)

15 GND

16 GND

17 GND

18 -5V

19 VCC

20 VCC

English

Hardware Installation- 19 -

English

3/4) CPU_FAN / SYS_FAN (Cooler Fan Power Connector)

The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and possesses a foolproof connection design. Most coolers are designed with color-coded power connector wires. A red power connector wire indicates a positive connection and requires a +12V power voltage. The black connector wire is the ground wire (GND). Please remember to connect the power to the cooler to prevent system overheating and failure. Caution! Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.

CPU_FAN

SYS_FAN

Pin No. Definition

1 GND

2 +12V

3 Sense

5) FDD (FDD Connector)

The FDD connector is used to connect the FDD cable while the other end of the cable connects to the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB. Please connect the red power connector wire to the pin1 position.

GA-8IPE1000 Series Motherboard - 20 -

6) IDE1 / IDE2 (IDE Connector)

An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive). If you wish to connect two IDE devices, please set the jumper on one IDE device as Master and the other as Slave (for information on settings, please refer to the instructions located on the IDE device).

English

7) SATA0 / SATA1 (Serial ATA Connector)

Serial ATA can provide up to 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA and install the proper driver in order to work properly.

Pin No. Definition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

Hardware Installation- 21 -

English

8) PWR_LED

PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will blink when the system enters suspend mode.

Pin No. Definition

1 MPD+

2 MPD-

3 MPD-

9) BATTERY

If you want to erase CMOS...

1. Turn OFF the computer and unplug the power cord.

2. Remove the battery, wait for 30 second.

3. Re-install the battery.

4. Plug the power cord and turn ON the computer.

GA-8IPE1000 Series Motherboard - 22 -

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended

by the manufacturer.

Dispose of used batteries according to the manufacturer's

instructions.

10) F_PANEL (Front Panel Jumper)

Please connect the power LED, PC peaker, reset switch and power switch etc. of your chassis front panel to the F_PANEL connector according to the pin assignment below.

English

Message LED/

Power/

Sleep LED

Power Switch

PW+

MSG+

MSG-

2 1

HD-

HD+

RES-

Reset Switch

IDE Hard Disk Active LED

MSG (Message LED/Power/Sleep LED) Pin 1: LED anode(+)

(Yellow) Pin 2: LED cathode(-)

PW (Power Switch) Open: Normal Operation

(Red) Close: Power On/Off

SPEAK (Speaker Connector) Pin 1: VCC(+)

(Amber) Pin 2- Pin 3: NC

Pin 4: Data(-)

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

(Blue) Pin 2: LED cathode(-)

RES (Reset Switch) Open: Normal Operation

(Green) Close: Reset Hardware System

NC (Purple) NC

Speaker Connector

PW-

RES+

SPEAK+

SPEAK-

20 19

Hardware Installation- 23 -

English

11) F_AUDIO (Front Audio Panel Connector)

If you want to use Front Audio connector, you must remove 5-6, 9-10 Jumper. In order to utilize the front audio header, your chassis must have front audio connector. Also please make sure the pin assigment on the cable is the same as the pin assigment on the MB header. To find out if the chassis you are buying support front audio connector, please contact your dealer. Please note, you can have the alternative of using front audio connector or of using rear audio connector to play sound.

Pin No. Definition

1 MIC

2 GND

3 MIC_BIAS

4 Power

5 Front Audio (R)

6 Rear Audio (R)

7 Reserved

8 No Pin

9 Front Audio (L)

10 Rear Audio (L)

12) CD_IN (CD In Connector)

Connect CD-ROM or DVD-ROM audio out to the connector.

GA-8IPE1000 Series Motherboard - 24 -

Pin No. Definition

1 CD-L

2 GND

3 GND

4 CD-R

13) SUR_CEN (Surround Center Connector)

Please contact your nearest dealer for optional SUR_CEN cable.

Pin No. Definition

1 SUR OUTL

2 SUR OUTR

3 GND

4 No Pin

5 CENTER_OUT

6 BASS_OUT

7 AUX_L

8 AUX_R

14) SPDIF_IO (SPDIF In / Out Connector)

The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby Digital Decoder. Use this feature only when your stereo system has digital input function. Be careful with the polarity of the SPDIF_IO connector. Check the pin assignment carefully while you connect the SPDIF cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional SPDIF_IO cable, please contact your local dealer.

English

125

Pin No. Definition

1 VCC

2 No Pin

3 SPDIF

4 SPDIFI

5 GND

6 GND

Hardware Installation- 25 -

English

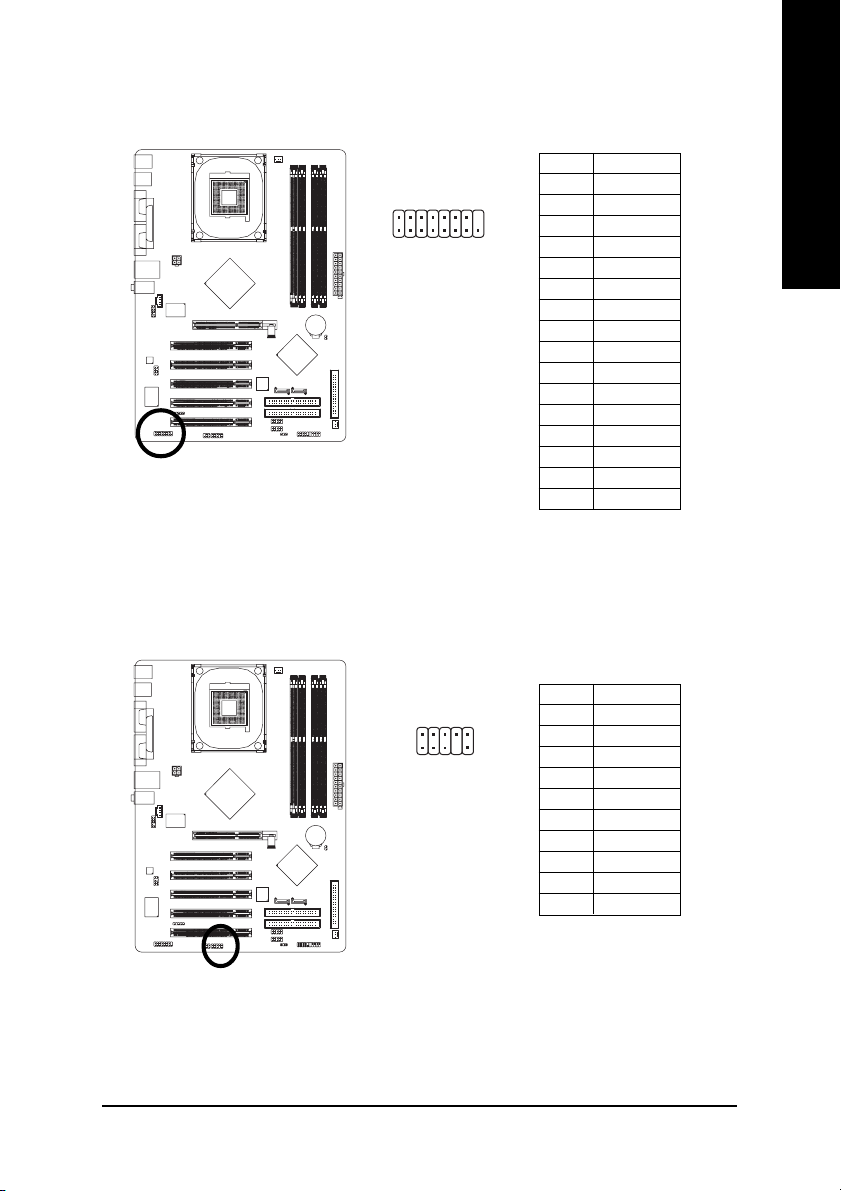

15) F_ USB1 / F_USB2 (Front USB Connector)

Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you connect the front USB cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional front USB cable, please contact your local dealer.

Pin No. Definition

2 1

1 Power

2 Power

3 USB DX-

4 USB Dy-

5 USB DX+

6 USB Dy+

7 GND

8 GND

9 No Pin

10 NC

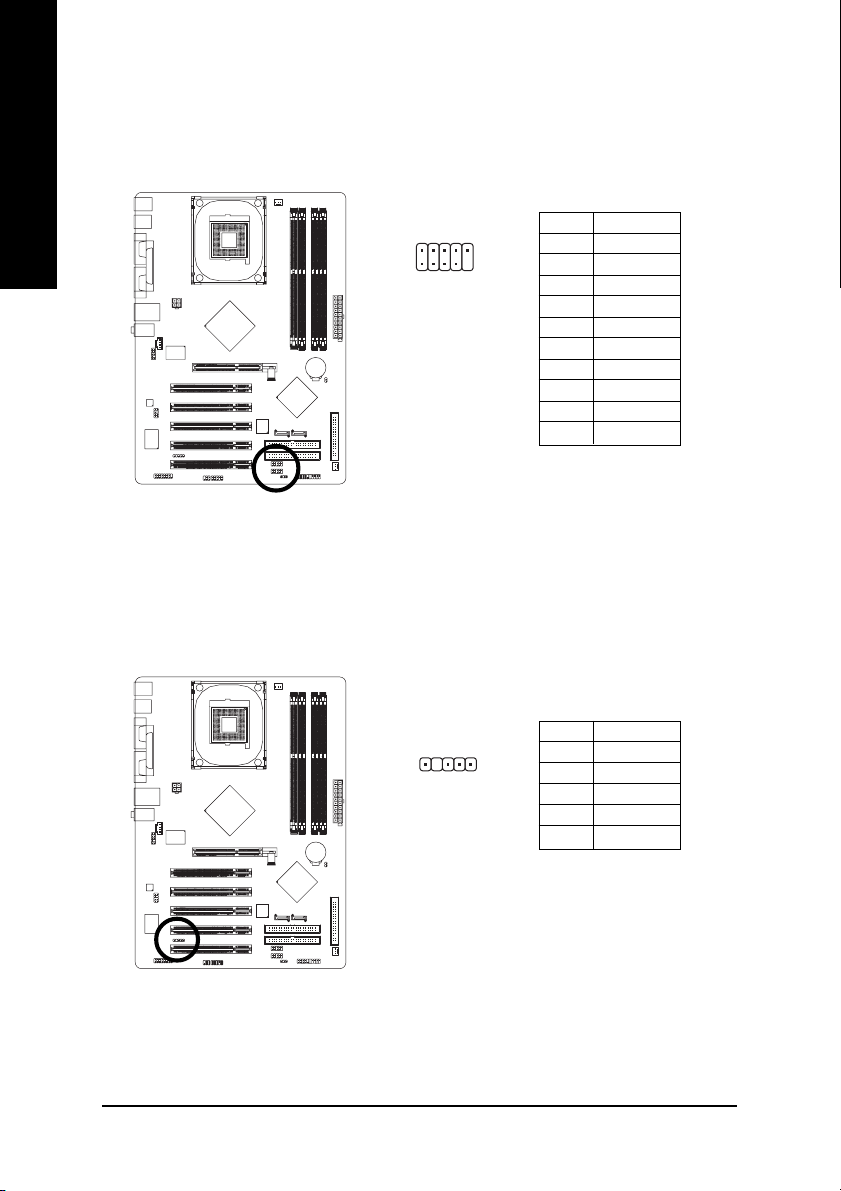

16) IR

Be careful with the polarity of the IR connector while you connect the IR. Please contact your nearest dealer for optional IR device.

GA-8IPE1000 Series Motherboard - 26 -

Pin No. Definition

1 VCC

2 No Pin

3 IR RX

4 GND

5 IR TX

17) GAME (GAME Connector)

This connector supports joystick, MIDI keyboard and other relate audio devices.

Pin No. Definition

1 VCC

2 GRX1_R

3 GND

4 GPSA2

5 VCC

6 GPX2_R

7 GPY2_R

8 MSI_R

9 GPSA1

10 GND

11 GPY1_R

12 VCC

13 GPSB1

14 MSO_R

15 GPSB2

16 No Pin

18) INFO_LINK

This connector allows you to connect some external devices to provide you extra function.

English

Pin No. Definition

1 SMBCLK

2 VCC

3 SMBDATA

4 GPIO

5 GND

6 GND

7 No Pin

8NC

9 +12V

10 +12V

Hardware Installation- 27 -

English

19) CLR_CMOS (Clear CMOS)

You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily short 1-2 pin. Default doesn't include the "Shunter" to prevent from improper use this jumper.

Open: Normal

Short: Clear CMOS

GA-8IPE1000 Series Motherboard - 28 -

Chapter 2 BIOS Setup

BIOS (Basic Input and Output System) includes a CMOS SETUP utility which allows user to configure required settings or to activate certain system features. The CMOS SETUP saves the configuration in the CMOS SRAM of the motherboard. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS SRAM. When the power is turned on, pushing the <Del> button during the BIOS POST (Power-On Self Test) will take you to the CMOS SETUP screen. You can enter the BIOS setup screen by pressing "Ctrl + F1". When setting up BIOS for the first time, it is recommended that you save the current BIOS to a disk in the event that BIOS needs to be reset to its original settings. If you wish to upgrade to a new BIOS, either GIGABYTE's Q-Flash or @BIOS utility can be used. Q-Flash allows the user to quickly and easily update or backup BIOS without entering the operating system. @BIOS is a Windows-based utility that does not require users to boot to DOS before upgrading BIOS but directly download and update BIOS from the Internet.

CONTROL KEYS

< > < > < > < > Move to select item <Enter> Select Item <Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu

and Option Page Setup Menu - Exit current page and return to Main Menu <Page Up> Increase the numeric value or make changes <Page Down> Decrease the numeric value or make changes <F1> General help, only for Status Page Setup Menu and Option Page Setup Menu <F2> Item Help <F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu <F6> Load the file-safe default CMOS value from BIOS default table <F7> Load the Optimized Defaults <F8> Q-Flash utility <F9> System Information <F10> Save all the CMOS changes, only for Main Menu

English

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc>.

BIOS Setup- 29 -

English

The Main Menu (For example: BIOS Ver. : E8)

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (as figure below) will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

If you can't find the setting you want, please press "Ctrl+F1" to search the advanced option hidden.



 Standard CMOS Features



This setup page includes all the items in standard compatible BIOS.



 Advanced BIOS Features



This setup page includes all the items of Award special enhanced features.



 Integrated Peripherals



This setup page includes all onboard peripherals.



 Power Management Setup



This setup page includes all the items of Green function features.



 PnP/PCI Configuration



This setup page includes all the configurations of PCI & PnP ISA resources.



 PC Health Status



This setup page is the System auto detect Temperature, voltage, fan, speed.



 Frequency/Voltage Control



This setup page is control CPU clock and frequency ratio.



 Load Fail-Safe Defaults



Fail-Safe Defaults indicates the value of the system parameters which the system would be in safe configuration.

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

GA-8IPE1000 Series Motherboard - 30 -



 Load Optimized Defaults



Optimized Defaults indicates the value of the system parameters which the system would be in best performance configuration.



 Set Supervisor Password



Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.



 Set User Password



Change, set, or disable password. It allows you to limit access to the system.



 Save & Exit Setup



Save CMOS value settings to CMOS and exit setup.



 Exit Without Saving



Abandon all CMOS value changes and exit setup.

English

BIOS Setup- 31 -

English

2-1 Standard CMOS Features

Date (mm:dd:yy) Tue, Oct 26 2004 Time (hh:mm:ss) 22:31:24

` IDE Channel 0 Master [None] ` IDE Channel 0 Slave [None] ` IDE Channel 1 Master [None] ` IDE Channel 1 Slave [None]

Drive A [1.44M, 3.5"] Drive B [None] Floppy 3 Mode Suport [Disabled]

Halt On [All, But Keyboard]

Base Memory 640K Extended Memory 239M Total Memory 240M

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

Date

The date format is <week>, <month>, <day>, <year>.

Week The week, from Sun to Sat, determined by the BIOS and is display only Month The month, Jan. Through Dec. Day The day, from 1 to 31 (or the maximum allowed in the month) Year The year, from 1999 through 2098

Time

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour militarytime clock. For example, 1 p.m. is 13:00:00.

IDE Channel 0 Master, Slave / IDE Channel 1 Master, Slave

IDE HDD Auto-Detection Press "Enter" to select this option for automatic device detection. IDE Channel 0/1 Master/Slave IDE Device Setup. You can use one of three methods:

• Auto Allows BIOS to automatically detect IDE devices during POST. (Default value)

• None Select this if no IDE devices are used and the system will skip the automatic detection step and allow for faster system start up.

• Manual User can manually input the correct settings.

Access Mode Use this to set the access mode for the hard drive. The four options are:

CHS/LBA/Large/Auto(default:Auto)

Hard drive information should be labeled on the outside drive casing. Enter the appropriate option based on this information.

Cylinder Number of cylinders Head Number of heads Precomp Write precomp Landing Zone Landing zone Sector Number of sectors

If a hard disk has not been installed, select NONE and press <Enter>.

Standard CMOS Features

Item Help Menu Level`

Change the day, month, year

<Week> Sun. to Sat.

<Month> Jan. to Dec.

<Day> 1 to 31 (or maximum allowed in the month)

<Year> 1999 to 2098

GA-8IPE1000 Series Motherboard - 32 -

Drive A / Drive B

The category identifies the types of floppy disk drive A or drive B that has been installed in the computer.

None No floppy drive installed 360K, 5.25" 5.25 inch PC-type standard drive; 360K byte capacity.

1.2M, 5.25" 5.25 inch AT-type high-density drive; 1.2M byte capacity (3.5 inch when 3 Mode is Enabled).

720K, 3.5" 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5" 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5" 3.5 inch double-sided drive; 2.88M byte capacity.

Floppy 3 Mode Support (for Japan Area)

Disabled Normal Floppy Drive. (Default value) Drive A Drive A is 3 mode Floppy Drive. Drive B Drive B is 3 mode Floppy Drive. Both Drive A & B are 3 mode Floppy Drives.

Halt on

The category determines whether the computer will stop if an error is detected during power up.

No Errors The system boot will not stop for any error that may be detected and you

will be prompted.

All Errors Whenever the BIOS detects a non-fatal error the system will be stopped. All, But Keyboard The system boot will not stop for a keyboard error; it will stop for all other

errors. (Default value)

All, But Diskette The system boot will not stop for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will stop for all

other errors.

Memory

The category is display-only which is determined by POST (Power On Self Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard, or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU's memory address map.

Total Memory

This item displays the memory size that used.

English

BIOS Setup- 33 -

English

2-2 Advanced BIOS Features

` Hard Disk Boot Priority [Press Enter]

First Boot Device [Floppy] Second Boot Device [Hard Disk] Third Boot Device [CDROM] Password Check [Setup]

# CPU Hyper-Threading [Enabled]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

" # " System will detect automatically and show up when you install the Intel® Pentium® 4 processor with HT Technology.

Hard Disk Boot Priority

Select boot sequence for onboard(or add-on cards) SCSI, RAID, etc. Use < > or < > to select a device, then press<+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

First / Second / Third Boot Device

Floppy Select your boot device priority by Floppy. LS120 Select your boot device priority by LS120. Hard Disk Select your boot device priority by Hard Disk. CDROM Select your boot device priority by CDROM. ZIP Select your boot device priority by ZIP. USB-FDD Select your boot device priority by USB-FDD. USB-ZIP Select your boot device priority by USB-ZIP. USB-CDROM Select your boot device priority by USB-CDROM. USB-HDD Select your boot device priority by USB-HDD. LAN Select your boot device priority by LAN. Disabled Select your boot device priority by Disabled.

Password Check

Setup The system will boot but will not access to Setup page if the correct password is

not entered at the prompt. (Default value)

System The system will not boot and will not access to Setup page if the correct

password is not entered at the prompt.

CPU Hyper-Threading

Enabled Enables CPU Hyper Threading Feature. This feature is only working for

operating system with multi-processors mode supported. (Default value)

Disabled Disables CPU Hyper Threading.

GA-8IPE1000 Series Motherboard - 34 -

Advanced BIOS Features

Item Help Menu Level`

Select Hard Disk Boot Device Priority

2-3 Integrated Peripherals

On-Chip Primary PCI IDE [Enabled] On-Chip Secondary PCI IDE [Enabled] On-Chip SATA [Auto]

x SATA Port0 configure as SATA Port0

SATA Port1 configure as SATA Port1

USB Controller [Enabled] USB 2.0 Controller [Enabled] USB Keyboard Support [Disabled] USB Mouse Support [Disabled] AC97 Audio [Auto] Onboard H/W LAN 12 [Enabled] Onboard LAN Boot ROM 12 [Disabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2 [2F8/IRQ3]

UART Mode Select [Normal]

x UR2 Duplex Mode Half x TxD, RxD Polarity Active Lo, Hi x Use IR Pins IR-Rx2Tx2

Onboard Parallel Port [378/IRQ7]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

Integrated Peripherals

Item Help Menu Level`

English

Parallel Port Mode [PRINTER]

x ECP Mode Use DMA 3

Game Port Address [201] Midi Port Address [Disabled]

x Midi Port IRQ 10

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

Integrated Peripherals

Item Help Menu Level`

On-Chip Primary PCI IDE

Enabled Enable onboard 1st channel IDE port. (Default value) Disabled Disable onboard 1st channel IDE port.

On-Chip Secondary PCI IDE

Enabled Enable onboard 2nd channel IDE port. (Default value) Disabled Disable onboard 2nd channel IDE port.

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

BIOS Setup- 35 -

English

On-Chip SATA

Disabled Disable onboard Seria ATA function. Auto When there is no device to be plugged in IDE1 or IDE2, SATA controller will

remap to IDE controller. (Default value)

Manual Set SATA mode manually from "SATA Port0 configure as" item.

SATA Port0 configure as

IDE Pri. Master Set SATA controller to compatible mode. This mode will remap SATA Port 0 to

IDE Primary Master.

IDE Pri. Slave Set SATA controller to compatible mode. This mode will remap SATA Port 0 to

IDE Primary Slave.

IDE Sec. Master Set SATA controller to compatible mode. This mode will remap SATA Port 0 to

IDE Secondary Master.

IDE Sec. Slave Set SATA controller to compatible mode. This mode will remap SATA Port 0 to

IDE Secondary Slave.

SATA Port0 Set SATA controller to native mode(Serial ATA mode - SATA Port 0). This mode

is only supported by Windows XP or later. (Default value)

SATA Port1 Set SATA controller to native mode(Serial ATA mode - SATA Port 1). This mode

is only supported by Windows XP or later.

SATA Port1 configure as

The setting depends on "SATA Port0 configure as" item setting. (Default: SATA Port1)

USB Controller

Enabled Enable USB controller. (Default value) Disabled Disable USB controller.

USB 2.0 Controller

You can disable this function if you are not using onboard USB 2.0 feature.

Enabled Enable USB 2.0 controller. (Default value) Disabled Disable USB 2.0 controller.

USB Keyboard Support

Enabled Enable USB keyboard support. Disabled Disable USB keyboard support. (Default value)

USB Mouse Support

Enabled Enable USB mouse support. Disabled Disable USB mouse support. (Default value)

AC97 Audio

Auto Auto detect AC97 audio function. (Default value) Disabled Disable AC97 audio function.

Onboard H/W LAN

Enabled Enable onboard H/W LAN function. (Default value) Disabled Disable this function.

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

GA-8IPE1000 Series Motherboard - 36 -

Onboard LAN Boot ROM

This function decide whether to invoke the boot ROM of the onboard LAN chip.

Enabled Enable this function. Disabled Disable this function. (Default value)

Onboard Serial Port 1

Auto BIOS will automatically setup the port 1 address. 3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8. (Default value) 2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8. 3E8/IRQ4 Enable onboard Serial port 1 and address is 3E8. 2E8/IRQ3 Enable onboard Serial port 1 and address is 2E8. Disabled Disable onboard Serial port 1.

Onboard Serial Port 2

Auto BIOS will automatically setup the port 1 address. 3F8/IRQ4 Enable onboard Serial port 2 and address is 3F8. 2F8/IRQ3 Enable onboard Serial port 2 and address is 2F8. (Default value) 3E8/IRQ4 Enable onboard Serial port 2 and address is 3E8. 2E8/IRQ3 Enable onboard Serial port 2 and address is 2E8. Disabled Disable onboard Serial port 2.

UART Mode Select

This item allows you to determine which Infra Red(IR) function of Onboard I/O chip.

Normal Set onboard I/O chip UART to normal mode. (Default value) IrDA Set onboard I/O chip UART to IrDA mode. ASKIR Set onboard I/O chip UART to ASKIR mode.

UR2 Duplex Mode

This feature allows you to seclect IR mode. This function will available when "UART Mode Select" doesn't set at Normal.

Half IR Function Duplex Half. (Default value) Full IR Function Duplex Full.

TxD, RxD Polarity Active

This function will available when "UART Mode Select" doesn't set at Normal.

Hi, Hi Set TxD, RxD polarity active to Hi, Hi. Hi, Lo Set TxD, RxD polarity active to Hi, Lo. Lo, Hi Set TxD, RxD polarity active to Lo, Hi. (Default value) Lo, Lo Set TxD, RxD polarity active to Lo, Lo.

Use IR Pins

This function will available when "UART Mode Select" doesn't set at Normal.

RxD2, TxD2 Set IR pins to use RxD2, TxD2. IR-Rx2Tx2 Set IR pins to use IR-Rx2Tx2. (Default value)

English

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

BIOS Setup- 37 -

English

Onboard Parallel port

Disabled Disable onboard LPT port. 378/IRQ7 Enable onboard LPT port and address is 378/IRQ7. (Default value) 278/IRQ5 Enable onboard LPT port and address is 278/IRQ5. 3BC/IRQ7 Enable onboard LPT port and address is 3BC/IRQ7.

Parallel Port Mode

SPP Using Parallel port as Standard Parallel Port. EPP1.9+SPP Using Parallel port as Enhanced Parallel Port 1.9 and SPP mode. ECP Using Parallel port as Extended Capabilities Port. EPP1.9+ECP Using Parallel port as Enhanced Parallel Port 1.9 and ECP mode. PRINTER Using Parallel port as printer port. (Default value) EPP1.7+SPP Using Parallel port as Enhanced Parallel Port 1.7 and SPP mode. EPP1.7+ECP Using Parallel port as Enhanced Parallel Port 1.7 and ECP mode.

ECP Mode Use DMA

3 Set ECP Mode Use DMA to 3. (Default value) 1 Set ECP Mode Use DMA to 1.

Game Port Address

201 Set Game Port Address to 201. (Default value) 209 Set Game Port Address to 209. Disabled Disable this function.

Midi Port Address

330 Set Midi Port Address to 330. 300 Set Midi Port Address to 300. 290 Set Midi Port Address to 290. Disabled Disable this function. (Default value)

Midi Port IRQ

5 Set Midi Port IRQ to 5. 10 Set Midi Port IRQ to 10. (Default value)

GA-8IPE1000 Series Motherboard - 38 -

2-4 Power Management Setup

ACPI Suspend Type [S1(POS)]

Power LED in S1 state [Blinking]

Off by Power button [Instant-Off]

AC BACK Function [Soft-Off]

PME Event Wake Up [Enabled]

ModemRingOn [Enabled]

Resume by Alarm [Disabled]

x Date (of Month) Alarm Everday x Time (hh:mm:ss) Alarm 0 : 0 : 0

POWER ON Function [Disabled]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

ACPI Suspend Type

S1(POS) Set ACPI suspend type to S1/POS(Power On Suspend). (Default value) S3(STR) Set ACPI suspend type to S3/STR(Suspend To RAM).

Power LED in S1 state

Blinking In standby mode(S1), power LED will blink. (Default value) Dual/Off In standby mode(S1):

a. If use single color LED, power LED will turn off. b. If use dual color LED, power LED will turn to another color.

Off by Power button

Instant-off Press power button then Power off instantly. (Default value) Delay 4 Sec. Press power button 4 seconds to Power off. Enter suspend if button is pressed less

than 4 seconds.

AC BACK Function

Soft-Off When AC-power back to the system, the system will be in "Off" state. (Default value) Full-On When AC-power back to the system, the system always in "On" state. Memory When AC-power back to the system, the system will return to the Last state before

AC-power off.

PME Event Wake Up

This feature requires an ATX power supply that provides at least 1A on the 5VSB lead.

Disabled Disable this function. Enabled Enable PME as wake up event. (Default value)

ModemRingOn

An incoming call via modem can awake the system from any suspend state.

Disabled Disable Modem Ring On function. Enabled Enable Modem Ring On function. (Default value)

Power Management Setup

Item Help Menu Level`

English

BIOS Setup- 39 -

English

Resume by Alarm

You can set "Resume by Alarm" item to enabled and key in Date/Time to power on system.

Disabled Disable this function. (Default value) Enabled Enable alarm function to POWER ON system.

If RTC Alarm Lead To Power On is Enabled.

Date (of Month) Alarm : Everyday, 1~31 Time (hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)

POWER ON Function

Disabled Disable this function. (Default value) Any KEY Press any key to power on the system. Mouse Double click on mouse left button to power on the system. Mouse/Any KEY Press any key or double click on mouse left button to power on the system.

GA-8IPE1000 Series Motherboard - 40 -

2-5 PnP/PCI Configurations

PCI 1/5 IRQ Assignment [Auto]

PCI 2 IRQ Assignment [Auto]

PCI 3 IRQ Assignment [Auto]

PCI 4 IRQ Assignment [Auto]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

PCI 1/5 IRQ Assignment

Auto Auto assign IRQ to PCI 1/5. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1/5.

PCI 2 IRQ Assignment

Auto Auto assign IRQ to PCI 2. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.

PCI 3 IRQ Assignment

Auto Auto assign IRQ to PCI 3. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.

PCI 4 IRQ Assignment

Auto Auto assign IRQ to PCI 4. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 4.

PnP/PCI Configurations

Item Help

Menu Level`

Device(s) using this INT:

English

BIOS Setup- 41 -

English

2-6 PC Health Status

Current CPU Temperature 50oC

Vcore 1.35V

DDR25V 2.39V

+3.3V 3.28V

+12V 12.09V

Current CPU FAN Speed 3308 RPM

Current SYSTEM FAN Speed 0 RPM

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

Current CPU Temperature

Detect CPU temperature automatically.

Current Voltage(V) Vcore / DDR25V / +3.3V / +12V

Detect system's voltage status automatically.

Current CPU/SYSTEM FAN Speed (RPM)

Detect CPU/SYSTEM fan speed status automatically.

PC Health Status

Menu Level`

Item Help

GA-8IPE1000 Series Motherboard - 42 -

2-7 Frequency/Voltage Control

CPU Clock Ratio [15X]

CPU Host Clock Control [Disabled]

x CPU Host Frequency (Mhz) 133 x AGP/PCI/SRC Fixed 66/33/100

Memory Frequency For [Auto]

Memory Frequency (Mhz) 266

AGP/PCI/SRC Frequency (Mhz) 66/33/100

DIMM OverVoltage Control [Normal]

AGP OverVoltage Control [Normal]

CPU OverVoltage Control [Normal]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Save Defaults F7: Optimized Defaults

Incorrect using these features may cause your system broken. For power end-user use only.

CPU Clock Ratio

This setup option will automatically assign by CPU detection. The option will display "Locked" and read only if the CPU ratio is not changeable.

CPU Host Clock Control

Disabled Disable CPU host clock control. (Default value) Enabled Enable CPU host clock control.

CPU Host Frequency(Mhz)

This item will be available when CPU Host Clock Control is set to Enabled.

100Mhz ~ 355Mhz Set CPU Host Clock from 100Mhz to 355Mhz. If you use a 400Mhz FSB processor, please set CPU Host Frequency to 100Mhz. If you use a 533Mhz FSB processor, please set CPU Host Frequency to 133Mhz. If you use an 800Mhz FSB processor, please set CPU Host Frequency to 200Mhz.

AGP/PCI/SRC Fixed

Adjust AGP/PCI/SRC clock asynchronous with CPU.

Memory Frequency For

Wrong frequency may make system can't boot, clear CMOS to overcome wrong frequency issue. for FSB(Front Side Bus) frequency =400Mhz,

2.66 Memory Frequency = Host clock x 2.66.

Auto Set Memory frequency by DRAM SPD data. (Default value) for FSB(Front Side Bus) frequency=533Mhz,

2.0 Memory Frequency = Host clock x 2.

2.5 Memory Frequency = Host clock x 2.5.

Auto Set Memory frequency by DRAM SPD data. (Default value)

Frequency/Voltage Control

Item Help

Menu Level`

Set CPU Ratio if CPU Ratio is unclocked

English

BIOS Setup- 43 -

English

for FSB(Front Side Bus) frequency=800Mhz,

1.33 Memory Frequency = Host clock x 1.33.

1.6 Memory Frequency = Host clock x 1.6.

2.0 Memory Frequency = Host clock x 2.

Auto Set Memory frequency by DRAM SPD data. (Default value)

Memory Frequency (Mhz)

The values depend on CPU Host Frequency(Mhz) and Memory Frequency For.

AGP/PCI/SRC Frequency (Mhz)

The values depend on AGP/PCI/SRC Fixed item.

DIMM OverVoltage Control

Normal Set DIMM OverVoltage Control to Normal. (Default value)

+0.1V Set DIMM OverVoltage Control to +0.1V.

+0.2V Set DIMM OverVoltage Control to +0.2V.

AGP OverVoltage Control

Normal Set AGP OverVoltage Control to Normal. (Default value)

+0.1V Set AGP OverVoltage Control to +0.1V.

+0.2V Set AGP OverVoltage Control to +0.2V.

+0.3V Set AGP OverVoltage Control to +0.3V.

CPU OverVoltage Control

Normal Set CPU OverVoltage Control to Normal. (Default value)

+5.0% Set CPU OverVoltage Control to +5.0%.

+7.5% Set CPU OverVoltage Control to +7.5%.

+10.0% Set CPU OverVoltage Control to +10.0%.

GA-8IPE1000 Series Motherboard - 44 -

2-8 Load Fail-Safe Defaults

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Load Fail-Safe Defaults (Y/N)? N

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Fail-Safe defaults contain the most appropriate values of the system parameters that allow minimum system performance.

2-9 Load Optimized Defaults

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Load Optimized Defaults (Y/N)? N

Load Optimized Defaults

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

English

Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects.

BIOS Setup- 45 -

English

2-10 Set Supervisor/User Password

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Enter Password:

Change/Set/Disable Password

Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects. When you select this function, the following message will appear at the center of the screen to assist you in creating a password. Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable password, just press <Enter> when you are prompted to enter password. A message "PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely. The BIOS Setup program allows you to specify two separate passwords: SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all BIOS Setup program function. When enabled, the Supervisor password is required for entering the BIOS Setup program and having full configuration fields, the User password is required to access only basic items. If you select "System" at "Password Check" in Advance BIOS Features Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup Menu. If you select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted only when you try to enter Setup.

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

GA-8IPE1000 Series Motherboard - 46 -

2-11 Save & Exit Setup

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Save to CMOS and EXIT (Y/N)? Y

Save & Exit Setup

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS. Type "N" will return to Setup Utility.

2-12 Exit Without Saving

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Quit Without Saving (Y/N)? N

Abandon all Data

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

English

Type "Y" will quit the Setup Utility without saving to RTC CMOS. Type "N" will return to Setup Utility.

BIOS Setup- 47 -

English

GA-8IPE1000 Series Motherboard - 48 -

Chapter 3Drivers Installation

Pictures below are shown in Windows XP. Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the Setup.exe.

3-1 Install Chipset Drivers

After insert the driver CD, "Xpress Install" will scan automatically the system and then list all the drivers that recommended to install. The "Xpress Install" uses the"Click and Go" technology to install the drivers automatically. Just select the drivers you want then click the "GO" button. The "Xpress Install" will execute the installation for you automatically.

(12)

English

Some device drivers will restart your system automatically. After restarting your system the "Xpress Install" will continue to install other drivers. System will reboot automatically after install the drivers, afterward you can install others application.

For USB2.0 driver support under Windows XP operating system, please use Windows Service Pack. After install Windows Service Pack, it will show a question mark "?" in "Universal Serial Bus controller" under "Device Manager". Please remove the question mark and restart the system (System will auto-detect the right USB2.0 driver).

Only for GA-8IPE1000-G. Only for GA-8IPE1000-L.

Drivers Installation- 49 -

English

3-2 Software Application

This page displays all the tools that Gigabyte developed and some free software, you can choose anyone you want and press "install" to install them.

3-3 Software Information

This page lists the contents of software and drivers in this CD-title.

GA-8IPE1000 Series Motherboard - 50 -

3-4 Hardware Information

This page lists all device you have for this motherboard.

3-5 Contact Us

Please see the last page for details.

English

Drivers Installation- 51 -

English

GA-8IPE1000 Series Motherboard - 52 -

Chapter 4 Appendix

4-1 Unique Software Utilities

4-1-1 Xpress Recovery Introduction

What is Xpress Recovery ?

Xpress Recovery is a utility used to back up and restore an OS partition. If the hard drive is not working properly, the user can restore the drive to its original state.

1. Supports FAT16, FAT32, and NTFS formats

2. Must be connected to the IDE1 Master

3. Allows installation of only one OS

4. Must be used with an IDE hard disk supporting HPA

5. The first partition must be set as the boot partition. When the boot partition is backed up, please do not alter its size.

6. Xpress Recovery is recommended when using Ghost to return boot manager to NTFS format.

How to use the Xpress Recovery

1. Boot from CD-ROM (BMP Mode) Enter the BIOS menu, select "Advanced BIOS Feature" and set to boot from CD-ROM. Insert the provided driver CD into your CD drive, then save and exit the BIOS menu. Once the computer has restarted, the phrase "Boot from CD:" will appear at the bottom left-hand corner of the screen. When "Boot from CD:" appears, press any key to enter Xpress Recovery. Once you have completed this step, subsequent access to Xpress Recovery can also function by pressing the F9 key during computer power on.

. . Verifying DMI Pool Data Boot from CD:

Boot from CD:

English

Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technology CO. , Ltd.

1. Execute Backup Utility

2. Execute Restore Utility

3. Remove Backup Image

4. Set Password

5. Exit and Restart

Build 2011

Appendix- 53 -

English

2. Press F9 during powering on the computer. (Text Mode) Press F9 during powering on the computer .

Intel 865PE AGPSet BIOS for 8IPE1000MT F1 Check System Health OK . . .

Press DEL to enter SETUP / Q-Flash, F9 For Xpress Recovery 08/16/2002-I845GE-6A69YG01C-00

Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technology CO. , Ltd.

1. Execute Backup Utility

2. Execute Restore Utility

3. Remove Backup Image

4. Set Password

5. Exit and Restart

F9 For Xpress Recovery

1. If you have already entered Xpress Recovery by booting from the CD-ROM, you can enter Xpress Recovery in the future by pressing the F9 key.

2. System storage capacity as well as drive reading/writing speed will affect backup speed.

3. It is recommended that Xpress Recovery be immediately installed after OS and all required driver and software installations are complete.

GA-8IPE1000 Series Motherboard - 54 -

1. Execute Backup Utility:



 Press B to Backup your System or Esc to Exit



The backup utility will automatically scan your system and back up data as a backup image in your hard drive.

Not all systems support access to Xpress Recovery by pressing the F9 key during computer power on. If this is the case, please use the boot from CD-ROM method to enter Xpress Recovery.

2. Execute Restore Utility:



 This program will recover your system to factory default.



Press R to restore your system back to factory default or press Esc to exit

Restores backup image to original state.

3. Remove Backup Image:



 Remove backup image. Are you sure? (Y/N)



Remove the backup image.

4. Set Password:



 Please input a 4-16 character long password (a-z or 0-9) or press Esc to exit



You can set a password to enter Xpress Recovery to protect your hard disk data. Once this is done, password input will be required to enter Xpress Recovery during the next as well as subsequent system restarts. If you wish to remove the need for password entry, please select "Set Password" and under "New Password/Confirm Password", make sure there is no entry and then press "Enter" to remove password requirement.

English

5. Exit and Restart:

Exit and restart your computer.

Appendix- 55 -

English

4-1-2 Flash BIOS Method Introduction

Method 1 : Q-FlashTM Utility

Q-FlashTM is a BIOS flash utility embedded in Flash ROM. With this utility, users only have to stay in the BIOS menu when they want to update

BIOS. Q-FlashTM allows users to flash BIOS without any utility in DOS or Windows. Using Q-FlashTM indicating no more fooling around with any complicated instructions and operating system since it is in the BIOS menu.

Please note that because updating BIOS has potential risk, please do it with caution!! We are sorry that Gigabyte Technology Co., Ltd is not responsible for damages of system because of incorrect manipulation of updating BIOS to avoid any claims from end-users.

Before You Begin:

Before you start updating BIOS with the Q-FlashTM utility, please follow the steps below first.

1. Download the latest BIOS for your motherboard from Gigabyte's website.

2. Extract the BIOS file downloaded and save the BIOS file (the one with model name.Fxx. For example,

8KNXPU.Fba) to a floppy disk.

3. Reboot your PC and press Del to enter BIOS menu.

The BIOS upgrading guides below are separated into two parts. If your motherboard has dual-BIOS, please refer to Part One. If your motherboard has single-BIOS, please refer to Part Two.

Part One:

Updating BIOS with Q-Flash

Some of Gigabyte motherboards are equipped with dual BIOS. In the BIOS menu of the motherboards supporting Q-Flash and Dual BIOS, the Q-Flash utility and Dual BIOS utility are combined in the same screen. This section only deals with how to use Q-Flash utility.

In the following sections, we take GA-8KNXP Ultra as the example to guide you how to flash BIOS from an older version to the latest version. For example, from Fa3 to Fba.

Utility on Dual BIOS Motherboards.

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file is Fa3

before updating

Intel i875P AGPset BIOS for 8KNXP Ultra Fa3 Check System Health OK , VCore = 1.5250 Main Processor : Intel Pentium(R) 4 1.6GHz (133x12) <CPUID : 0F27 Patch ID : 0027> Memory Testing : 131072K OK

Memory Frequency 266 MHz in Single Channel Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery 08/07/2003-i875P-6A79BG03C-00

GA-8IPE1000 Series Motherboard - 56 -

Entering the Q-FlashTM utility:

Step1: To use Q-Flash utility, you must press Del in the boot screen to enter BIOS menu.

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Step 2: Press F8 button on your keyboard and then Y button to enter the Dual BIOS/Q-Flash utility.

Exploring the Q-FlashTM / Dual BIOS utility screen

The Q-Flash / Dual BIOS utility screen consists of the following key components.

English

Task menu for

Dual BIOS

utility

Task menu for

Q-Flash

utility

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Copy Main ROM Data to Backup

Enter : Run :Move ESC:Reset F10:Power Off

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Dual BIOS utility bar

Q-FlashTM utility title

bar

Action bar

Task menu for Dual BIOS utility:

Contains the names of eight tasks and two item showing information about the BIOS ROM type. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Task menu for Q-Flash utility:

Contains the names of four tasks. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Action bar:

Contains the names of four actions needed to operate the Q-Flash/Dual BIOS utility. Pressing the buttons mentioned on your keyboards to perform these actions.

Appendix- 57 -

English

Using the Q-FlashTM utility:

This section tells you how to update BIOS using the Q-Flash utility. As described in the "Before you begin" section above, you must prepare a floppy disk having the BIOS file for your motherboard and insert it to your computer. If you have already put the floppy disk into your system and have entered the Q-Flash utility, please follow the steps below to flash BIOS.

Steps:

1. Press arrow buttons on your keyboard to move the light bar to "Load Main BIOS from Floppy" item in

the Q-Flash menu and press Enter button. Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.

If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save Main BIOS to Floppy" item.

2. Move to the BIOS file you want to flash and press Enter.

In this example, we only download one BIOS file to the floppy disk so only one BIOS file,

8KNXPU.Fba, is listed.

Please confirm again you have the correct BIOS file for your motherboard.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

8KNXPU.Fba 512K

Total size : 1.39M Free size : 911.50K

Copy Main ROM Data to Backup

F5 : Refresh DEL : Delete

Enter : Run :Move ESC:Reset F10:Power Off

After pressing Enter, you'll then see the progress of reading the BIOS file from the floppy disk.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Reading BIOS file from floppy ...

>>>>>>>>>>>>>>.....................

Copy Main ROM Data to Backup

Don't Turn Off Power or Reset System

Enter : Run :Move ESC:Reset F10:Power Off

After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"

GA-8IPE1000 Series Motherboard - 58 -

Dual BIOS Utility

1 file(s) found

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

BIOS file in the floppy

disk.

Do not trun off power or

reset your system at this

stage!!

3. Press Y button on your keyboard after you are sure to update BIOS. Then it will begin to update BIOS. The progress of updating BIOS will be displayed.

Please do not take out the floppy disk when it begins flashing BIOS.

4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Copy Main ROM Data to Backup

Enter : Run :Move ESC:Reset F10:Power Off

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

!! Copy BIOS completed - Pass !!

Halt On Error Disable

Please press any key to continue

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

You can repeat Step 1 to

4 to flash the backup

BIOS, too.

5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after

you exit Q-Flash.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Copy Main ROM Data to Backup

Enter : Run :Move ESC:Reset F10:Power Off

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

Are you sure to RESET ?

Halt On Error Disable

[Enter] to continure or [Esc] to abort...

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

English

After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file

becomes Fba after

updating.

Intel i875P AGPset BIOS for 8KNXP Ultra Fba Check System Health OK , VCore = 1.5250 Main Processor : Intel Pentium(R) 4 1.6GHz (133x12) <CPUID : 0F27 Patch ID : 0027> Memory Testing : 131072K OK

Memory Frequency 266 MHz in Single Channel Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery 09/23/2003-i875P-6A79BG03C-00

Appendix- 59 -

English

6. Press Del to enter BIOS menu after system reboots. When you are in BIOS menu, move to

Load Fail-Safe Defaults item and press Enter to load BIOS Fail-Safe Defaults. Normally the system

redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading the BIOS defaults after BIOS has been upgraded.

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Load Fail-Safe Defaults (Y/N)? Y

Time, Date, Hard Disk Type...

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Press Y on your keyboard to load defaults.

7. Select Save & Exit Setup item to save the settings to CMOS and exit the BIOS menu.

System will reboot after you exit the BIOS menu. The procedure is completed.

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Save to CMOS and EXIT (Y/N)? Y

Time, Date, Hard Disk Type...

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Press Y on your keyboard to save and exit.

Part Two:

Updating BIOS with Q-Flash

This part guides users of single-BIOS motherboards how to update BIOS using the Q-Flash

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Q-Flash F10: Save & Exit Setup

GA-8IPE1000 Series Motherboard - 60 -

Utility on Single-BIOS Motherboards.

Top Performance

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Time, Date, Hard Disk Type...

utility.

Exploring the Q-FlashTM utility screen

The Q-FlashBIOS utility screen consists of the following key components.

Q-FlashTM utility bar

Action bar

Task menu for

Q-Flash

utility

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Q-Flash Utility V1.30

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Task menu for Q-Flash utility:

Contains the names of three tasks. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Action bar:

Contains the names of four actions needed to operate the Q-Flash utility. Pressing the buttons mentioned on your keyboards to perform these actions.

Using the Q-FlashTM utility:

Steps:

1. Press arrow buttons on your keyboard to move the light bar to "Update BIOS from Floppy" item in the

Q-Flash menu and press Enter button. Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.

If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save BIOS to Floppy" item.

2. Move to the BIOS file you want to flash and press Enter.

In this example, we only download one BIOS file to the floppy disk so only one BIOS file, 8GE800.F4, is listed.

Please confirm again you have the correct BIOS file for your motherboard.

Flash Type/Size.................................SST 49LF003A 256K

8GE800.F4 256K

Total size : 1.39M Free size : 1.14M

Enter : Run :Move ESC:Reset F10:Power Off

F5 : Refresh DEL : Delete

Q-Flash Utility V1.30

1 file(s) found

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

BIOS file in the floppy

disk.

English

Flash Type/Size.................................SST 49LF003A 256K

Reading BIOS file from floppy ...

>>>>>>>>>>>>>>.....................

Enter : Run :Move ESC:Reset F10:Power Off

Don't Turn Off Power or Reset System

Q-Flash Utility V1.30

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Do not trun off power or

reset your system at

this stage!!

After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"

Please do not take out the floppy disk when it begins flashing BIOS.

Appendix- 61 -

English

3. Press Y button on your keyboard after you are sure to update BIOS.

Then it will begin to update BIOS. The progress of updating BIOS will be shown at the same time.

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Don't Turn Off Power or Reset System

Q-Flash Utility V1.30

Keep DMI Data Enable

Updating BIOS Now

Update BIOS from Floppy

>>>>>>>>>>>>>>>>>>>.........................

Save BIOS to Floppy

Do not trun off power or

reset your system

at this stage!!

4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Q-Flash Utility V1.30

Keep DMI Data Enable

!! Copy BIOS completed - Pass !!

Update BIOS from Floppy

Save BIOS to Floppy

Please press any key to continue

5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after

you exit Q-Flash.

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Q-Flash Utility V1.30

Keep DMI Data Enable

Are you sure to RESET ?

Update BIOS from Floppy

Save BIOS to Floppy

[Enter] to continure or [Esc] to abort...

After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file becomes F4 after updating

Intel 845GE AGPSet BIOS for 8GE800 F4 Check System Health OK Main Processor : Intel Pentium(R) 4 1.7GHz (100x17.0) <CPUID : 0F0A Patch ID : 0009> Memory Testing : 122880K OK + 8192K Shared Memory

Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Q-Flash 03/18/2003-I845GE-6A69YG01C-00

6. Press Del to enter BIOS menu after system reboots and "Load BIOS Fail-Safe Defaults". See how

to Load BIOS Fail-Safe Defaults, please kindly refer to Step 6 to 7 in Part One.

Congratulation!! You have updated BIOS successfully!!

GA-8IPE1000 Series Motherboard - 62 -

Method 2 : @BIOSTM Utility

If you do not have a DOS startup disk, we recommend that you use the

new @BIOS utility. @BIOS allows users to update their BIOS under

Windows. Just select the desired @BIOS server to download the latest

version of BIOS.

Fig 1. Installing the @BIOS utility Fig 2. Installation complete and run @BIOS

Click Sart/ Programs/ GIGABYTE/@BIOS

Select @BIOS item.

Fig 3. The @BIOS utility Fig 4. Select the desired @BIOS server

Click "" Click "Update New BIOS"

English

1. Methods and steps:

I. Update BIOS through Internet:

a. Click "Internet Update" icon. b. Click "Update New BIOS" icon. c. Select @BIOSTM sever. d. Select the exact model name on your motherboard. e. System will automatically download and update the BIOS.

II. Update BIOS NOT through Internet:

a. Do not click "Internet Update" icon. b. Click "Update New BIOS". c. Please select "All Files" in dialog box while opening the old file. d. Please search for BIOS unzip file, downloading from internet or any other methods (such as:

8IPEKG4.E8).

e. Complete update process following the instruction.

Appendix- 63 -

English

III. Save BIOS: In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save the current BIOS version.

IV. Check out supported motherboard and Flash ROM: In the very beginning, there is "About this program" icon shown in dialog box. It can help you check out which kind of motherboard and which brand of Flash ROM are supported.

2. Note:

I. In method I, if it shows two or more motherboard's model names to be selected, please make sure

your motherboard's model name again. Selecting wrong model name will cause the system unbooted.

II. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your

motherboard's. Otherwise, your system won't boot.

III. In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto Gigabyte's

website for downloading and updating it according to method II.

IV. Please note that any interruption during updating will cause system unbooted.

GA-8IPE1000 Series Motherboard - 64 -

4-1-3 2- / 4- / 6- / 8- Channel Audio Function

Introduction

The installation of audio software for Windows 98/ 2000/ ME/ XP is very simple. Please follow the steps to install the function. (Following pictures are in Windows XP)

Stereo Speakers Connection and Settings:

We recommend that you use the speaker with amplifier to acquire the best sound effect if the stereo output is applied.

STEP 1: Connect the stereo speakers or earphone to "Line Out".

Line Out

STEP 2: Following installation of the audio driver, you find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

English

STEP 3: Click "Speaker Configuration" then click on the left selection bar and select "2CH Speaker" to complete 2 channel audio configuration.

Appendix- 65 -

English

4 Channel Audio Setup

STEP 1: Connect the Front Speakers to "Line Out", the Rear Speakers to "Line In".

Line In (Rear Speaker Out) Line Out (Front Speaker Out)

STEP 2: Following installation of the audio driver, you find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

STEP 3: Click "Speaker Configuration" and select the "UAJ Function". Then click on the left selection bar and select "4CH Speaker" to complete 4 channel audio configuration.

GA-8IPE1000 Series Motherboard - 66 -

6 Channel Audio Setup

STEP 1: Connect the Front Speakers to "Line Out", the Rear Speakers to "Line In", and the Center/Subwoofer Speakers to "MIC In".

STEP 2: Following installation of the audio driver, you find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

STEP 3: Click "Speaker Configuration" and select the "UAJ Function". Then click on the left selection bar and select "6CH Speaker" to complete 6 channel audio configuration.

English

Line In (Rear Speaker Out) Line Out (Front Speaker Out) Mic In (Center/Subwoofer Speaker Out)

Appendix- 67 -

English

8 Channel Audio Setup (using Audio Combo Kit, optional device) :

Audio Combo Kit offers SPDIF output, an optical and coaxial cable and a Surround-Kit. The Surround-Kit offers R/L surround, center/subwoofer output and rear surround.

STEP 1: Secure the Audio Combo Kit at the panel on the back of the case.

STEP 2: Connect the Surround-Kit to the SUR_CEN connector located on the motherboard.

STEP 3: There are two methods of 8 channel audio configuration: Method 1: Connect the front channels to the "Line Out" port located on the audio panel and the rear channels to the Surround-Kit "REAR R/L" port. Connect the center/subwoofer channels to the Surround-Kit "SUB CENTER" and the R/L channels to the Surround-Kit "SUR BACK" port.

GA-8IPE1000 Series Motherboard - 68 -

Method 2: Connect the front channels to the "Line Out" port located on the audio panel and the rear channels to the "Line In" port. Connect the center/subwoofer channels to the "MIC In" port located on the audio panel and the R/L channels to the Surround-Kit "SUR BACK" port. (This method requires UAJ function)

STEP 4: Following installation of the audio driver, you find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

STEP 5: Click "Speaker Configuration" and select both the "UAJ Function" and "Only Surround-Kit". Then click on the left selection bar and select "8CH Speaker" to complete 8 channel audio configuration.

English

Sound Effect Configuration: At the sound effect menu, users can adjust sound option settings as desired.

Appendix- 69 -

English

SPDIF Output Device (Optional Device)

A "SPDIF output" device is available on the motherboard. Cable with rear bracket is provided and could link to the "SPDIF output" connector (As picture.) For the further linkage to decoder, rear bracket provides coaxial cable and Fiber connecting port.

1. Connect the SPDIF output device to the rear bracket of PC, and fix it with screw.

2. Connect SPDIF device to the motherboard.

3. Connect SPDIF to the SPDIF decoder.

GA-8IPE1000 Series Motherboard - 70 -

Jack-Sensing and UAJ Introduction

Jack-Sensing provides audio connectors error-detection function.

Install Microsoft DirectX8.1 or later version before to enable Jack-Sensing support for Windows 98/ 98SE/ 2000/ ME.

Jack-Sensing includes 2 parts: AUTO and MANUAL. Following is an example for 2 channels (Following pictures are in Windows XP):

Introduction of audio connectors

You may connect CDROM, Walkman or others audio input devices to Line In jack, speakers, earphone or others output devices to Line Out jack, and microphone to MIC In jack.

Auto-detecting:

Please connect the devices to the right jacks as above. A window will appear as right picture if you setup the devices properly. Please note that 3D audio function will only appear when 3D audio inputs.

English

Appendix- 71 -

English

If you set wrong with the connectors, the warning message will come out as right picture.

Manual setting:

If the device picture shows different from what you set, please press "Manual Selection" to set.

UAJ Introduction

UAJ (Universal Audio Jack) has a very smart feature: It will switch signal automatically when user plugs his audio device to the wrong jack (Line-in/ Line-out). That means users do not need to worry the audio device should be plug in Line-in or Line-out jack, the device will work perfectly after UAJ is activated.

Enable UAJ function:

You can click "UAJ Automatic" button to enable UAJ function.

GA-8IPE1000 Series Motherboard - 72 -

4-2 Troubleshooting

Below is a collection of general asked questions. To check general asked questions based on a specific motherboard model, please log on to http://tw.giga-byte.com/faq/faq.htm

Question 1: I cannot see some options that were included in previous BIOS after updating BIOS. Why? Answer: Some advanced options are hidden in new BIOS version. Please press Ctrl and F1 keys after entering BIOS menu and you will be able to see these options.

Questions 2: Why is the light of my keyboard/optical mouse still on after computer shuts down? Answer: In some boards, a small amount of electricity is kept on standby after computer shuts down and that's why the light is still on.

Question 3: Why cannot I use all functions in EasyTune 4? Answer: The availability of the listed functions in EasyTune 4 depends on the MB chipset. If the chipset doesn't support certain functions in EasyTune 4, these functions will be locked automatically and you will not be able to use them.

Question 4: Why do I fail to install RAID and ATA drivers under Win 2000 and XP on boards that support RAID function after I connect the boot HDD to IDE3 or IDE4 ? Answer: First of all, you need to save some files in the CD-ROM to a floppy disk before installing drivers. You also need to go through some rather different steps in the installation process. Therefore, we suggest that you refer to the installation steps in the RAID manual at our website.

Question 5: How do I clear CMOS? Answer: If your board has a Clear CMOS jumper, please refer to the Clear CMOS steps in the manual. If your board doesn't have such jumper, you can take off the on-board battery to leak voltage to clear CMOS. Please refer to the steps below:

Steps:

1. Turn off power.

2. Disconnect the power cord from MB.

3. Take out the battery gently and put it aside for about 10 minutes (Or you can use a metal object to connect the positive and negative pins in the battery holder to makethem short for one minute).

4. Re-insert the battery to the battery holder.

5. Connect power cord to MB again and turn on power.

6. Press Del to enter BIOS and load Fail-Safe Defaults.

7. Save changes and reboot the system.

English

Question 6: Why does system seem unstable after updating BIOS? Answer: Please remember to load Fail-Safe Defaults (Or Load BIOS Defaults) after flashing BIOS. However, if the system instability still remains, please clear CMOS to solve the problem.

Question 7: Why do I still get a weak sound after turning up the speaker to the maximum volume? Answer: Please make sure the speaker you are using is equipped with an internal amplifier. If not, please change another speaker with power/amplifier and try again later.

Question 8: How do I disable onboard VGA card in order to add an external VGA card? Answer: Gigabyte motherboards will auto-detect the external VGA card after it is plugged in, so you don't need to change any setting manually to disable the onboard VGA.

Appendix- 73 -

English

Question 9: Why cannot I use the IDE 2? Answer: Please refer to the user manual and check whether you have connected any cable that is not provided with the motherboard package to the USB Over Current pin in the Front USB Panel. If the cable is your own cable, please remove it from this pin and do not connect any of your own cables to it.

Question 10: Sometimes I hear different continuous beeps from computer after system boots up. What do these beeps usually stand for? Answer: The beep codes below may help you identify the possible computer problems. However, they are only for reference purposes. The situations might differ from case to case.

AMI BIOS Beep Codes *

Computer gives 1 short beep when system boots successfully.

*Except for beep code 8, these codes are always fatal.

1 beep Refresh failure 2 beeps Parity error 3 beeps Base 64K memory failure 4 beeps Timer not operational 5 beeps Processor error 6 beeps 8042 - gate A20 failure 7 beeps Processor exception interrupt error 8 beeps Display memory read/write failure 9 beeps ROM checksum error 10 beeps CMOS shutdown register read/write error 11 beeps Cache memory bad

Question 11:For the M/B which have RAID function, how to set in the BIOS in order to bootup from IDE3, 4 by either RAID or ATA mode? Answer:Please set in the BIOS as follow:

1. Advanced BIOS features-->(SATA)/RAID/SCSI boot order: "SATA"

2. Advanced BIOS features--> First boot device: "SCSI"

3. Integrated Peripherals--> Onboard H/W ATA/RAID: "enable"

Then it depends on the RAID mode that you need to set "RAID" to RAID mode or "ATA" to normal ATA mode in the item named RAID controller function.

Question 12:How to set in the BIOS to bootup from the IDE/ SCSI/ RAID card ? Answer:Please set in the BIOS as follow:

1. Advanced BIOS features-->(SATA)/RAID/SCSI boot order: "SCSI"

2. Advanced BIOS features--> First boot device: "SCSI"

Then it depends on the mode(RAID or ATA) that you need to set in RAID/ SCSI BIOS.

 AWARD BIOS Beep Codes

1 short: System boots successfully 2 short: CMOS setting error 1 long 1 short: DRAM or M/B error 1 long 2 short: Monitor or display card error 1 long 3 short: Keyboard error 1 long 9 short: BIOS ROM error Continuous long beeps: DRAM error Continuous short beeps: Power error

GA-8IPE1000 Series Motherboard - 74 -

English

Appendix- 75 -

English

GA-8IPE1000 Series Motherboard - 76 -

English

Appendix- 77 -

English

GA-8IPE1000 Series Motherboard - 78 -

English

 

 Taiwan (Headquarters)

 

GIGA-BYTE TECHNOLOGY CO., LTD.

Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien,

Taiwan.

TEL: +886 (2) 8912-4888

FAX: +886 (2) 8912-4003

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address (English): http://www.gigabyte.com.tw

WEB address (Chinese): http://chinese.giga-byte.com

 

 U.S.A.

 

G.B.T. INC.

Address: 17358 Railroad St, City of Industry, CA 91748.

TEL: +1 (626) 854-9338

FAX: +1 (626) 854-9339

Tech. Support :

http://www.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.com

 

 Germany

 

G.B.T. TECHNOLOGY TRADING GMBH

Address: Friedrich-Ebert-Damm 112 22047 Hamburg

Deutschland

TEL: +49-40-2533040 (Sales)

+49-1803-428468 (Tech.)

FAX: +49-40-25492343 (Sales)

+49-1803-428329 (Tech.)

Tech. Support :

http://de.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.de

 

 Japan

 

NIPPON GIGA-BYTE CORPORATION

WEB address : http://www.gigabyte.co.jp

 

 Singapore

 

GIGA-BYTE SINGAPORE PTE. LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

 

 U.K.

 

G.B.T. TECH. CO., LTD.

Address: GUnit 13 Avant Business Centre 3 Third Avenue,

Denbigh West Bletchley Milton Keynes, MK1 1DR, UK, England

TEL: +44-1908-362700

FAX: +44-1908-362709

Tech. Support :

http://uk.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://uk.giga-byte.com

 

 The Netherlands

 

GIGA-BYTE TECHNOLOGY B.V.

TEL: +31 40 290 2088

NL Tech.Support: 0900-GIGABYTE (0900-44422983)

BE Tech.Support: 0900-84034

FAX: +31 40 290 2089

Tech. Support :

http://nz.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.nl

Appendix- 79 -

English

 

 China

 

NINGBO G.B.T. TECH. TRADING CO., LTD.

Tech. Support :

http://cn.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.com.cn

Shanghai

TEL: +86-021-63410999

FAX: +86-021-63410100

Beijing

TEL: +86-010-82886651

FAX: +86-010-82888013

Wuhan

TEL: +86-027-87851061

FAX: +86-027-87851330

GuangZhou

TEL: +86-020-87586074

FAX: +86-020-85517843

Chengdu

TEL: +86-028-85236930

FAX: +86-028-85256822

Xian

TEL: +86-029-85531943

FAX: +86-029-85539821

Shenyang

TEL: +86-024-23960918

FAX: +86-024-23960918-809

 

 Australia

 

GIGABYTE TECHNOLOGY PTY. LTD.

Address: 3/6 Garden Road, Clayton, VIC 3168 Australia

TEL: +61 3 85616288

FAX: +61 3 85616222

Tech. Support :

http://www.giga-byte.com.au/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.com.au

 

 France

 

GIGABYTE TECHNOLOGY FRANCES S.A.R.L.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.fr

 

 Russia

 

Moscow Representative Office Of Giga-Byte Technology Co.,

Ltd.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.ru

 

 Poland

 

Representative Office Of Giga-Byte Technology Co., Ltd.

POLAND

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.pl

GA-8IPE1000 Series Motherboard - 80 -

Intel GA-8IPE1000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
