Intel® NUC Kit
DCCP847DYE
PRODUCT BRIEF
The Shape that Fits the Future
TAKING BASIC COMPUTING TO A NEW LEVEL AND SIZE
The Intel® NUC delivers new levels of performance and responsiveness in a
pocket-sized solution. With an Intel Celeron® processor, the NUC is an affordable,
customizable computing device that ts in the palm of your hand and offers a
world of exibility. With 8-channel audio and HDMI*, along with Microsoft* Windows 8,
you can create a PC home theater system with touch capabilities that lets you
experience your movies, photos, and music from the couch – or your ofce chair.
Wireless capabilities let you access Hulu, iTunes, Netix, Pandora, and other online
content providers. Experience a difference you can truly see. Because the only thing
more amazing than Intel® technology is what you’ll do with it.
STUNNINGLY SMALL FORM FACTOR
The 4"×4"×2" form factor unlocks a world of potential design applications, from
digital signage and kiosks to portable innovations.
ADVANCED TECHNOLOGY
The NUC features two SO-DIMM sockets for expandability up to 16 GB of memory,
two PCIe* mini-card connectors for exible support of wireless and SSD congurations, BIOS Vault Technology, Fast Boot and the Intel® Visual BIOS.
Integrated Board
Dimensions
Cooling
Drive options
Color options
Chassis design
P/S
Additional
Features
• DCP847SKE
• 116.6mm×112.0mm×39.0mm (4.59”×4.41”×1.55”)
• Active
• mSATA
• Grey only
• Aluminum and plastic
• 19V, 65W DC-DC power adapter
• Antenna for WIFI and Bluetooth
pre-assembled for ease of deployment
• Front Panel USB 2.0
• VESA mounting bracket included
• Integration Guide
• 3 year product life cycle
PRODUCT BRIEF

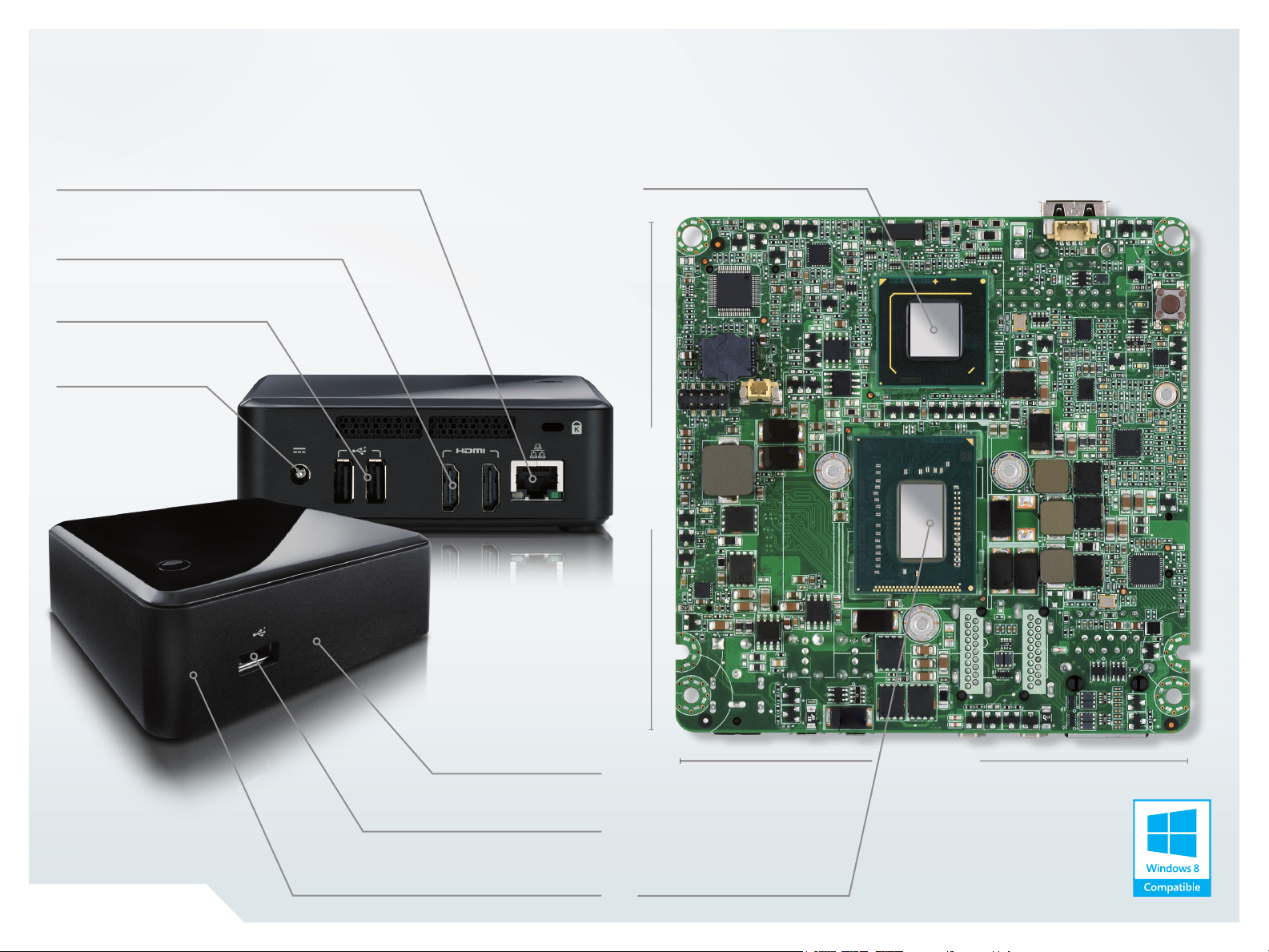

Full PC functionality in its simplest form ...with Intel® NUC DCP847SKE
Intel® Gigabit Ethernet
Dual HDMI ports supporting
dual independent display capability
Dual USB 2.0 Ports
19V, 65W DC
Power connector
Intel® QS77 Express chipset
4” (10,16cm)
PRODUCT BRIEF
Dual Mini PCIe slots
for expandability
Front Panel USB 2.0 Port
Dual SO-DIMM sockets
for memory expandability up to 16GB
4” (10,16cm)
Intel® Celeron™ 847
(soldered down)
Intel® NUC Kit DCCP847DYE
Technical Specications
PROCESSOR
Processor Support
• Intel® Celeron™ Processor 847
(1.10 GHz, 2M Cache)
• Supports Intel® 64 architecture
3
CHIPSET
• Intel® QS77 Express Chipset
GRAPHICS
• Intel® HD Graphics
• Dual HDMI Ports supporting dual independent display
capability
PERIPHERAL CONNECTIVITY
• Integrated Intel® 10/100/1000 Network Connection
• Three Hi-Speed USB 2.0 ports (two back panel ports
and one front panel port)
EXPANSION CAPABILITIES
2
• One full length mini-PCIe slot supporting mSATA
capability
• One half length mini-PCIe slot with dual USB 2.0 ports
routed
1 WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce
system stability and useful life of the system, memory and processor; (ii) cause the
processor and other system components to fail; (iii) cause reductions in system
performance; (iv) cause additional heat or other damage; and (v) affect system data
integrity. Intel has not tested, and does not warranty, the operation of the memory
beyond its specications. Intel assumes no responsibility that the memory, including
if used with altered clock frequencies and/or voltages, will be t for any particular
purpose. Check with memory manufacturer for warranty and additional details.
2 System resources and hardware (such as PCI and PCI Express*) require physical
memory address locations that can reduce available addressable system memory.
This could result in a reduction of as much as 1 GB or more of physical addressable
memory being available to the operating system and applications, depending on
the system conguration and operating system.
3 64-bit computing on Intel® architecture requires a computer system with
a processor, chipset, BIOS, operating system, device drivers, and applications
enabled for Intel® 64 architecture. Processors will not operate (including 32-bit
operation) without an Intel 64 architecture-enabled BIOS. Performance will vary
depending on your hardware and software congurations. See http://developer.
intel.com/technology/ intel64/index.htm for more information.
SYSTEM BIOS
• Intel® Visual Bios
• 64 Mb Flash EEPROM with Intel® Platform Innovation
Framework for EFI Plug and Play
• Advanced conguration and power interface V3.0b,
SMBIOS2.5
• Intel® Express BIOS update support
Fast Boot BIOS – Optimized POST for almost instant-on
access to PC from power on
SYSTEM MEMORY
1
Memory Capacity
• Dual-channel DDR3 with two connectors for 1333 MHz
memory support (16 GB max)
Memory Voltage
• 1.5V and 1.35 V
HARDWARE MANAGEMENT FEATURES
• Processor fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management control
INTEL® PRO 10/100/1000 NETWORK CONNECTION
• Low-power design
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO
ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT
AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS,
INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS
OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS
INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT,
OR OTHER INTELLECTUAL PROPERTY RIGHT.
Intel products are not intended for use in medical, life-saving, or life-sustaining
applications. Intel may make changes to specications and product descriptions
at any time, without notice.
All products, dates, and figures specified are preliminary based on current
expectations, and are subject to change without notice. Availability in different
channels may vary.
Actual Intel® NUC may differ from the image shown.
AUDIO
• Intel® High Denition Audio (Intel® HD Audio) via two
HDMI 1.4a outputs supporting 8 channel (7.1) digital
audio
Indicators and Controls
• HDD LED, Power LED
• Power on/off
MECHANICAL
Chassis Size
• 4.59”×4.41”×1.55” (116.6mm×112.0mm×39.0mm)
Board Size
• 4”×4” (101.6mm×101.6mm)
Baseboard Power Requirements
• DC Power 19V, 65 Watt
ENVIRONMENT
Operating Temperature
• 0°C to +50°C
Storage Temperature
• -20°C to +70°C
Intel, the Intel logo, Intel Core, Pentium, and Celeron are trademarks of Intel
Corporation in the U.S. and other countries.
* Other names and brands may be claimed as the property of others.
Copyright© 2013 Intel Corporation. All rights reserved.
1113/JMD/HBD/PDF 328671-002US
COMPLIANCE WITH REGULATIONS AND STANDARDS
Safety Regulations
UL/CSA 60950-1
EN 60950-1
IEC 60950-1
NOM-019-SCFI-1998
GOST-R
EMC Class B Regulations
CISPR 22
CIPSR 24
FCC 47 CFR Part 15, Subpart B
ICES-003
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
IEC/EN 61000-4 Series
VCCI V-3
KN-22
KN-24
CNS 13438
ENVIRONMENTAL COMPLIANCE
Europe RoHS
China RoHS
