Intel BKNUC8V7PNH User Manual

Intel® NUC Board/Kit NUC8v5PN & NUC8v7PN

Technical Product Specification

December 2019

Intel® NUC Board NUC8v5PN & NUC8v7PN may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current characterized errata, if any, are documented in Intel NUC Board NUC8v5PN & NUC8v7PN Specification Update.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Revision History

Revision

Revision History

Date

1.0

First release of the Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

November 2019

1.1

Updated AA Revision to include TPM and TCM

2.2.4.4.1 – Updated Section

November 2019

1.2

1.5.1.4 – Added Display Emulation section

December 2019

Disclaimer

This product specification applies to only the standard Intel NUC Board with BIOS identifier TBD.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.

All Intel NUC Boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers (PC) for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other PC or embedded non-PC applications or other environments, such as medical, industrial, alarm systems, test equipment, etc. may not be supported without further evaluation by Intel.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or

incompatibilities arising from future changes to them. Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each

processor family, not across different processor families: Go to:

Learn About Intel® Processor Numbers

Intel NUC may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.

Intel, the Intel logo, Intel NUC and Intel Core are trademarks of Intel Corporation in the U.S. and/or other countries. * Other names and brands may be claimed as the property of others. Copyright © 2019 Intel Corporation. All rights reserved.

Board Identification Information

Basic Intel® NUC Board NUC8v5PNB & NUC8v7PNB Identification Information

AA Revision

BIOS Revision

Notes

K59971-xxx

PNWHL57.xxxx

1,2

K66222-xxx

PNWHL57.xxxx

1,3

K59997-xxx

PNWHL57.xxxx

1,4

K66242-xxx

PNWHL57.xxxx

1,5

Notes:

1. The AA number is found on a small label on the component side of the board.

2. The Intel® Core™ i7-8665U processor with TPM is used on this AA revision consisting of the following component:

3. The Intel® Core™ i7-8665U processor with TCM is used on this AA revision consisting of the following component:

4. The Intel® Core™ i5-8365U processor with TPM is used on this AA revision consisting of the following component:

5. The Intel® Core™ i5-8365U processor with TCM is used on this AA revision consisting of the following component:

Device

Stepping

S-Spec Numbers

Intel Core i5

SRF9Z

Intel Core i7

SRF9W

Production Identification Information

Intel® NUC Products NUC8v5PN & NUC8v7PN{x} Identification Information

Product Name

Intel® NUC Board

NUC8v5PNK

NUC8v5PNB NUC8v5PNH

NUC8v5PNB

NUC8v7PNK

NUC8v7PNB NUC8v7PNH

NUC8v7PNB

Specification Changes or Clarifications

The table below indicates the Specification Changes or Specification Clarifications that apply to the Intel NUC Board/Kit NUC8v5PN & NUC8v7PN.

Specification Changes or Clarifications

Date

Type of Change

Description of Changes or Clarifications

Errata

Current characterized errata, if any, are documented in a separate Specification Update. See

http://www.intel.com/content/www/us/en/nuc/overview.html for the latest documentation.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Preface

This Technical Product Specification (TPS) specifies the board layout, components, connectors, power and environmental requirements, and the BIOS for Intel® NUC Board/Kits NUC8v5PN & NUC8v7PN. Some features are only available on Kit SKUs.

Intended Audience

The TPS is intended to provide detailed, technical information about Intel® NUC Board/Kit NUC8v5PN & NUC8v7PN and its components to the vendors, system integrators, and other engineers and technicians who need this level of information. It is specifically not intended for general audiences.

What This Document Contains

Chapter

Description

A description of the hardware used on Intel® NUC Board NUC8v5PNB & NUC8v7PNB

A map of the resources of the Intel® NUC Board

The features supported by the BIOS Setup program

A description of the BIOS error messages, beep codes, and POST codes

Regulatory compliance and battery disposal information

Typographical Conventions

This section contains information about the conventions used in this specification. Not all of these symbols and abbreviations appear in all specifications of this type.

Notes, Cautions, and Warnings

NOTE

Notes call attention to important information.

CAUTION

Cautions are included to help you avoid damaging hardware or losing data.

vii

Other Common Notation

Used after a signal name to identify an active-low signal (such as USBP0#)

Gigabyte (1,073,741,824 bytes)

GB/s

Gigabytes per second

Gb/s

Gigabits per second

Kilobyte (1024 bytes)

Kilobit (1024 bits)

kb/s

1000 bits per second

Megabyte (1,048,576 bytes)

MB/s

Megabytes per second

Megabit (1,048,576 bits)

Mb/s

Megabits per second

TDP

Thermal Design Power

xxh

An address or data value ending with a lowercase h indicates a hexadecimal value.

x.x V

Volts. Voltages are DC unless otherwise specified.

x.x A

Amperes.

This symbol is used to indicate third-party brands and names that are the property of their respective owners.

Contents

Revision History .............................................................................................................. iv

Disclaimer ................................................................................................................................................................. iv

Board Identification Information ...................................................................................................................... v

Errata ............................................................................................................................................................................ v

Preface .............................................................................................................................. vi

Intended Audience ................................................................................................................................................ vi

What This Document Contains ........................................................................................................................ vi

Typographical Conventions .............................................................................................................................. vi

Contents ........................................................................................................................... ix

1 Product Description ............................................................................................... 13

1.1 Overview ...................................................................................................................................................... 13

1.1.1 Feature Summary .................................................................................................................. 13

1.1.2 Board Layout (Top) ............................................................................................................... 15

1.1.3 Board Layout (Bottom) ........................................................................................................ 16

1.1.4 Block Diagram ......................................................................................................................... 17

1.2 Online Support .......................................................................................................................................... 19

1.3 Processor ..................................................................................................................................................... 19

1.4 System Memory ........................................................................................................................................ 20

1.5 Processor Graphics Subsystem .......................................................................................................... 21

1.5.1 Integrated Graphics .............................................................................................................. 21

1.6 USB ................................................................................................................................................................. 25

1.7 SATA Interface ........................................................................................................................................... 26

1.7.1 AHCI Mode ................................................................................................................................ 26

1.7.2 NVMe........................................................................................................................................... 26

1.7.3 Intel® Rapid Storage Technology / SATA RAID ......................................................... 26

1.7.4 Intel® Next Generation Storage Acceleration ............................................................. 27

1.8 Real-Time Clock Subsystem ................................................................................................................ 28

1.9 Audio Subsystem Software .................................................................................................................. 28

1.9.1 Audio Subsystem Software ............................................................................................... 28

1.10 LAN Subsystem ......................................................................................................................................... 29

1.10.1 Intel® I219LM Gigabit Ethernet Controller .................................................................. 29

1.10.2 RJ-45 LAN Connector with Integrated LEDs .............................................................. 29

1.10.3 Wireless Network Module .................................................................................................. 30

1.11 Hardware Management Subsystem ................................................................................................. 30

1.11.1 Hardware Monitoring ........................................................................................................... 31

1.11.2 Fan Monitoring ........................................................................................................................ 31

1.11.3 Thermal Solution ................................................................................................................... 31

1.12 Power Management ................................................................................................................................ 32

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.12.1 ACPI ............................................................................................................................................. 32

1.12.2 Hardware Support ................................................................................................................. 34

1.13 Intel® Security and Manageability Technologies ......................................................................... 36

1.13.1 Intel® vPro™ Technology ..................................................................................................... 36

2 Technical Reference ............................................................................................... 41

2.1 Memory Resources .................................................................................................................................. 41

2.1.1 Addressable Memory ........................................................................................................... 41

2.2 Connectors and Headers....................................................................................................................... 41

2.2.1 Front Panel Connectors ...................................................................................................... 42

2.2.2 Back Panel Connectors ....................................................................................................... 42

2.2.3 Connectors and Headers (Top) ........................................................................................ 43

2.2.4 Connectors and Headers (Bottom) ................................................................................. 44

2.3 BIOS Security Jumper ............................................................................................................................ 54

2.4 Mechanical Considerations .................................................................................................................. 56

2.4.1 Form Factor .............................................................................................................................. 56

2.5 Electrical Considerations ...................................................................................................................... 57

2.5.1 Power Supply Considerations .......................................................................................... 57

2.5.2 Fan Header Current Capability ......................................................................................... 58

2.6 Thermal Considerations ........................................................................................................................ 58

2.7 Reliability ..................................................................................................................................................... 64

2.8 Environmental ........................................................................................................................................... 64

3 Overview of BIOS Features ................................................................................... 67

3.1 Introduction ................................................................................................................................................ 67

3.2 BIOS Flash Memory Organization ..................................................................................................... 67

3.3 System Management BIOS (SMBIOS) .............................................................................................. 67

3.4 Legacy USB Support ............................................................................................................................... 68

3.5 BIOS Updates ............................................................................................................................................. 68

3.5.1 Language Support ................................................................................................................. 69

3.5.2 BIOS Recovery ......................................................................................................................... 69

3.6 Boot Options .............................................................................................................................................. 70

3.6.1 Network Boot........................................................................................................................... 70

3.6.2 Booting Without Attached Devices ................................................................................ 70

3.6.3 Boot Device Selection During POST .............................................................................. 70

3.6.4 Power Button Menu .............................................................................................................. 70

3.7 Hard Disk Drive Password Security Feature .................................................................................. 72

3.8 BIOS Security Features .......................................................................................................................... 72

4 Error Messages ........................................................................................................ 74

4.1 BIOS Error Messages ............................................................................................................................... 74

5 Regulatory Compliance and Battery Disposal Information .......................... 75

5.1 Regulatory Compliance.......................................................................................................................... 75

5.1.1 Safety Standards .................................................................................................................... 75

Contents

5.1.2 European Union Declaration of Conformity Statement ........................................ 75

5.1.3 EMC Regulations .................................................................................................................... 76

5.1.4 e-Standby and ErP Compliance....................................................................................... 78

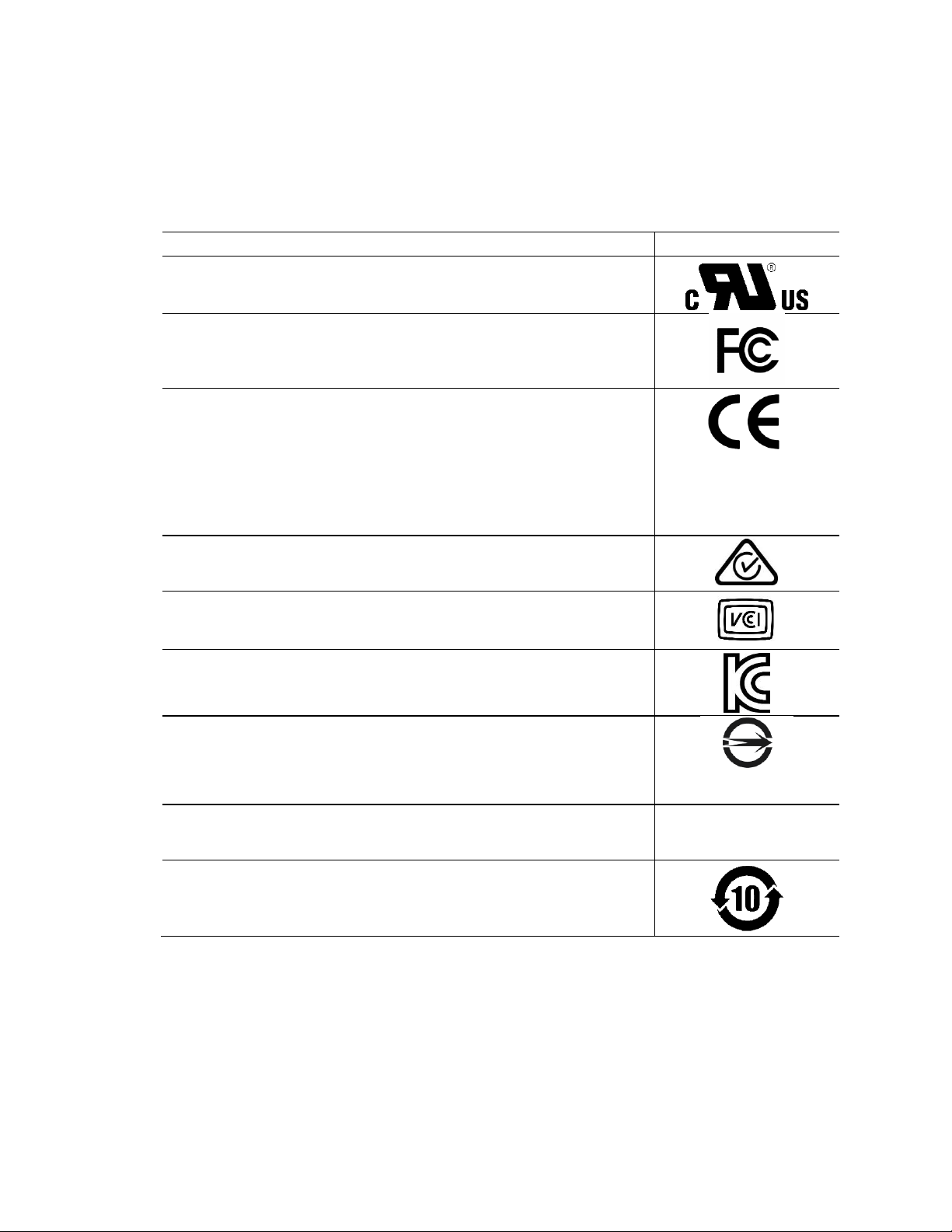

5.1.5 Regulatory Compliance Marks (Board Level) ............................................................. 79

5.2 Battery Disposal Information .............................................................................................................. 80

Figures

Figure 1. Major Board Components (Top) ....................................................................................................... 15

Figure 2. Major Board Components (Bottom) ................................................................................................ 16

Figure 3. Block Diagram ........................................................................................................................................... 18

Figure 4. Memory Channel and SO-DIMM Configuration.......................................................................... 21

Figure 5. eDP Connector on Bottom-side of the Board ............................................................................. 23

Figure 6. LAN Connector LED Locations........................................................................................................... 29

Figure 7. Thermal Solution and Fan Header ................................................................................................... 31

Figure 8. Location of the Standby Power LED ............................................................................................... 35

Figure 9. Front Panel Connectors ........................................................................................................................ 42

Figure 10. Back Panel Connectors ...................................................................................................................... 42

Figure 11. Connectors and Headers (Top) ....................................................................................................... 43

Figure 12. Connectors and Headers (Bottom) ............................................................................................... 44

Figure 13. Connection Diagram for Front Panel Header (2.0 mm Pitch) ............................................ 51

Figure 14. Connection Diagram for the Internal Power Supply Connector ....................................... 53

Figure 15. Location of the BIOS Security Jumper ........................................................................................ 54

Figure 17. Board Dimensions ................................................................................................................................ 56

Figure 18. Board Height Dimensions ................................................................................................................. 57

Figure 19. Localized High Temperature Zones ............................................................................................. 60

Figure 20. Installation Area of the Thermal Pad on Tall Chassis ........................................................... 61

Figure 21. Installation Area of the Thermal Pad on Slim Chassis .......................................................... 62

Tables

Table 1. Feature Summary ..................................................................................................................................... 13

Table 2. Components Shown in Figure 1 .......................................................................................................... 15

Table 3. Components Shown in Figure 2 ......................................................................................................... 17

Table 4. LAN Connector LED States ................................................................................................................... 30

Table 5. Effects of Pressing the Power Switch ............................................................................................... 32

Table 6. Power States and Targeted System Power ................................................................................... 33

Table 7. Wake-up Devices and Events .............................................................................................................. 34

Table 8. Connectors and Headers Shown in Figure 11 .............................................................................. 43

Table 9. Connectors and Headers Shown in Figure 12 .............................................................................. 45

Table 10. SATA Power Header (1.25 mm pitch) ............................................................................................ 46

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

xii

Table 11. Internal USB 2.0 Header (1.25 mm pitch) ..................................................................................... 46

Table 12. Internal USB 3.0 Header (1.25 mm pitch) ..................................................................................... 47

Table 13. Serial Port Header (1.25 mm pitch) ................................................................................................. 47

Table 14. M.2 2280 Module (Mechanical Key M) Connector .................................................................... 47

Table 15. M.2 2230 Module (Mechanical Key E) Connector .................................................................... 49

Table 16. 40-Pin eDP Connector ......................................................................................................................... 50

Table 17. Front Panel Header (2.0 mm Pitch) ................................................................................................ 51

Table 18. States for a One-Color Power LED ................................................................................................. 52

Table 19. States for a Dual-Color Power LED ................................................................................................ 52

Table 20. 12-24 V Internal Power Supply Connector ................................................................................ 53

Table 21. BIOS Security Jumper Settings ........................................................................................................ 54

Table 22. Power Budget for Assessing the DC-to-DC Circuit’s Power Rating (worst case:

Embedded board in 3rd party chassis) ...................................................................................................... 57

Table 23 lists the current capability of the fan headers. ............................................................................ 58

Table 23. Fan Header Current Capability ......................................................................................................... 58

Table 25. Thermal Considerations for Components ................................................................................... 63

Table 26. Tcontrol Values for Components ................................................................................................... 63

Table 27. Environmental Specifications ........................................................................................................... 64

Table 28. Acceptable Drives/Media Types for BIOS Recovery ............................................................... 69

Table 29. Boot Device Menu Options ................................................................................................................ 70

Table 30. Master Key and User Hard Drive Password Functions ........................................................... 72

Table 31. Supervisor and User Password Functions................................................................................... 73

Table 32. BIOS Error Messages ............................................................................................................................ 74

Table 33. Safety Standards .................................................................................................................................... 75

Table 34. EMC Regulations .................................................................................................................................... 77

Table 35. Regulatory Compliance Marks ......................................................................................................... 79

1 Product Description

1.1 Overview

1.1.1 Feature Summary

Table 1 summarizes the major features of Intel® NUC Board NUC8v5PNB & NUC8v7PNB.

Table 1. Feature Summary

Form Factor

4.0 inches by 4.0 inches (101.60 millimeters by 101.60 millimeters)

Processor

Intel® NUC Board NUC8v5PNB has a soldered-down 8th generation Intel® Core™ i5-8365U quad-core processor with up to 25 W TDP

― Intel® UHD Graphics 620 ― Integrated memory controller ― Integrated PCH

Intel® NUC Board NUC8v7PNB has a soldered-down 8th generation Intel® Core™ i7-8665U quad-core processor with up to 25 W TDP

― Intel® UHD Graphics 620 ― Integrated memory controller ― Integrated PCH

Memory

Two 260-pin 1.2 V DDR4 SDRAM Small Outline Dual Inline Memory Module (SO-DIMM) sockets

― Support for DDR4 1866/2133/2400 MHz SO-DIMMs ― Support for 4 Gb, 8 Gb, and 16 Gb memory technology ― Support for up to 64 GB of system memory with two SO-DIMMs using 16Gb memory

technology

― Support for non-ECC memory ― Support for 1.2 V low voltage JEDEC memory only

Note: 2 Gb memory technology (SDRAM Density) is not compatible

Graphics

Integrated graphics support for processors with Intel® Graphics Technology:

― Two High Definition Multimedia Interface* 2.0a (HDMI*) back panel connectors ― Flat panel displays via the internal Embedded DisplayPort* 1.4 (eDP) connector

Audio

Intel® High Definition (Intel® HD) Audio via the HDMI v2.0a interface through the processor

Storage

SATA ports:

― One SATA 6.0 Gb/s port (blue) ― One SATA 6.0 Gb/s port is reserved for an M.2 2280 module

Note: Intel® NUC Board NUC8v5PNB & NUC8v7PNB supports key type M (PCI Express* x1/x2/x4 and SATA)

Peripheral Interfaces

USB 3.0 ports:

― Two ports are implemented with external front panel connectors (blue) ― One port is implemented with external back panel connectors (blue) ― One port is implemented with an internal 1x10 1.25mm pitch header (white)

USB 2.0 ports:

― One port is implemented with external back panel connectors (black) ― Two ports via two single-port internal 1x4 1.25 mm pitch headers (white) ― One port is reserved for an M.2 2230 Module (key type E)

Serial Port 1x9 1.25mm pitch header (black)

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Table 1. Feature Summary (continued)

Expansion Capabilities

One M.2 Module supporting M.2 2280 (key type M) One M.2 Module supporting M.2 2230 (key type E) for Wireless Only

BIOS

Intel® BIOS resident in the Serial Peripheral Interface (SPI) Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System

Management BIOS (SMBIOS)

LAN

Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® I219LM Gigabit Ethernet Controller

Hardware Monitor Subsystem

Hardware monitoring subsystem including: Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values One processor fan header Fan sense input used to monitor fan activity Fan speed control

Wireless (Kit only)

Intel® Dual Band Wireless-AC vPro 9560

― 802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth v5 ― Maximum Transfer speed up to 1.73 Gbps ― Supports CNVi and PCIE

Intel® vPro™ Technologies

Intel® Active Management Technology (out-of-band remote power on/off/reboot, Serial over LAN, IDE-R)

Wireless Intel® AMT Desktop and Mobile Architecture for System Hardware: DASH v1.1 compliance

Intel Remote Manageability (out-of-band Remote KVM) Intel® vPro™ brand eligibility Intel® Transparent Supply Chain

Product Description

1.1.2 Board Layout (Top)

Figure 1 shows the location of the major components on the top-side of Intel NUC Board NUC8v5PNB & NUC8v7PNB.

Figure 1. Major Board Components (Top)

Table 2. Components Shown in Figure 1

Item from Figure 1

Description

Thermal Solution

Processor Fan Header

DC Internal Power Connector

eDP Connector

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.1.3 Board Layout (Bottom)

Figure 2 shows the location of the major components on the bottom-side of Intel NUC Board NUC8v5PNB & NUC8v7PNB.

Figure 2. Major Board Components (Bottom)

Product Description

Table 3. Components Shown in Figure 2

Item from Figure 2

Description

12-24 V DC Input Jack

HDMI 2.0a Port 1 with HDCP 2.2 Support and Built-In CEC Support

LAN Connector

Back Panel USB 3.0 / USB 2.0

HDMI 2.0a Port 2 / Thunderbolt 3 Port

CMOS Battery

Serial Port Header

M.2 2230 Module Connector (Key Type E) (Wireless card on Kit only)

Battery Header

SATA Power Header

USB 2.0 Header

M.2 2280 Module Connector (Key Type M)

Front Panel USB 3.0

SATA 6.0 Gb/s Connector

Front Panel USB 3.0

Standby Power LED

USB 3.0 Header

Front Panel Power Button

Front Panel Header

DDR4 SO-DIMM 0 Socket

DDR4 SO-DIMM 1 Socket

BIOS Security Header

Intel® Management Engine BIOS Extension (Intel® MEBX) Reset Header

1.1.4 Block Diagram

Figure 3 is a block diagram of the major functional areas of the board.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Figure 3. Block Diagram

Product Description

1.2 Online Support

To find information about…

Visit this World Wide Web site:

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN

http://www.intel.com/NUC

Intel NUC Board/Kit Support

http://www.intel.com/NUCSupport

High level details for Intel NUC Board/Kit NUC8v5PN & NUC8v7PN

https://ark.intel.com/content/www/us/en/ark/search.html?_charset_=UT F-8&q=provo%20canyon

BIOS and driver updates

https://downloadcenter.intel.com/search?keyword=nuc8v%pn/search?k eyword=nuc8v%pn

Tested memory

http://www.intel.com/NUCSupport

Integration information

http://www.intel.com/NUCSupport

Processor datasheet

https://ark.intel.com/content/www/us/en/ark/search.html?_charset_=UT F-8&q=provo%20canyon

Regulatory documentation

https://www.intel.com/content/www/us/en/support/articles/000055571. html

1.3 Processor

Intel NUC Board NUC8v5PNB has a soldered-down 8th generation Intel Core i5-8365U quad-core processor with up to 25 W TDP:

• Intel® UHD Graphics 620

• Integrated memory controller

• Integrated PCH

NUC8v7PNB has a soldered-down 8th generation Intel Core i7-8655U quad-core processor with up to 25 W TDP:

• Intel® UHD Graphics 620

• Integrated memory controller

• Integrated PCH

NOTE

There are specific requirements for providing power to the processor. Refer to Section 2.5.1 on page 57 for information on power supply requirements.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.4 System Memory

The board has two 260-pin SO-DIMM sockets and supports the following memory features:

• 1.2 V DDR4 SDRAM SO-DIMMs with gold plated contacts

• Two independent memory channels with interleaved mode support

• Unbuffered, single-sided or double-sided SO-DIMMs

• 64 GB maximum total system memory (with 16 Gb memory technology)

• Minimum recommended total system memory: 2048 MB

• Non-ECC SO-DIMMs

• Serial Presence Detect

• DDR4 1866/2133/2400 MHz SDRAM SO-DIMMs

• Supports 4 Gb, 8 Gb, and 16 Gb memory technology (SDRAM Density)

NOTE

To be fully compliant with all applicable DDR SDRAM memory specifications, the board should be populated with SO-DIMMs that support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read the SPD data and program the chipset to accurately configure memory settings for optimum performance. If non-SPD memory is installed, the BIOS will attempt to correctly configure the memory settings, but performance and reliability may be impacted or the SO-DIMMs may not function under the determined frequency.

NOTE

Intel NUC Board NUC8v5PNB & NUC8v7PNB supports only 4 Gb, 8 Gb, and 16 Gb memory

technologies (also referred to as “SDRAM density”).

For information about…

Refer to:

Tested Memory

http://www.intel.com/NUCSupport

Product Description

Figure 4 illustrates the memory channel and SO-DIMM configuration.

Figure 4. Memory Channel and SO-DIMM Configuration

1.5 Processor Graphics Subsystem

The board supports graphics through Intel® UHD Graphics 620.

1.5.1 Integrated Graphics

The board supports integrated graphics via the processor.

1.5.1.1 Intel® High Definition (Intel® HD) Graphics

The Intel® UHD Graphics 620 controller features the following:

• 3D Features ⎯ DirectX* 12 support ⎯ OpenGL* 4.5 support

• Display ⎯ Supports eDP flat panel displays up to 3840 x 2160 at 60 Hz ⎯ Supports HDMI displays up to 4096 x 2160 at 60 Hz ⎯ Supports Type-C and Thunderbolt 3 Display, multiplexed on a first-come, first served

basis w/ DP out.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

• Next Generation Intel® Clear Video Technology HD support is a collection of video playback and enhancement features that improve the end user’s viewing experience

• Encode/transcode HD content

• Playback of high definition content including Blu-ray* disc

• Superior image quality with sharper, more colorful images

• DirectX* Video Acceleration (DXVA) support for accelerating video processing

• Full AVC/VC1/MPEG2/HEVC/VP8/JPEG HW Decode

• Intel HD Graphics with Advanced Hardware Video Transcoding (Intel® Quick Sync Video)

• HDR 10 (High Dynamic Range 10 bit)

• HDCP (High-bandwidth Digital Content Protection) 2.2

NOTE

Intel Quick Sync Video is enabled by an appropriate software application.

1.5.1.2 High Definition Multimedia Interface* (HDMI*)

The HDMI ports are HDMI 2.0a specification compliant and support standard, enhanced, or high definition video, plus multi-channel digital audio on a single cable. The port is compatible with all ATSC and DVB HDTV standards and supports thirty-two full range channels of lossless audio formats. The system can support up to two displays at the maximum supported resolution of 4096 x 2160 @ 60 Hz, 24bpp.

For information about

Refer to

HDMI technology

http://www.hdmi.org

1.5.1.2.1 Integrated Audio Provided by the HDMI Interfaces

The following audio technologies are supported by the HDMI 2.0a interface:

• 192kHz/16-bit or 176.4 kHz/24-bit, 32 Channel

1.5.1.2.2 High-bandwidth Digital Content Protection (HDCP)

HDMI Port 1 supports HDCP 2.2. HDCP is the technology for protecting high definition content against unauthorized copy or interception between a source (computer, digital set top boxes, etc.) and the sink (panels, monitor, and TVs). The PCH supports HDCP 2.2 for content protection over wired displays.

1.5.1.3 Flat Panel Display Interfaces

The board supports flat panel displays via the Embedded DisplayPort interface. Figure 5 shows the flat panel connector on the bottom-side of the board.

Product Description

Item

Description

Embedded DisplayPort Connector

Figure 5. eDP Connector on Bottom-side of the Board

1.5.1.3.1 Embedded DisplayPort (eDP) Interface

The Embedded DisplayPort 1.4 (eDP) flat panel display interface supports the following:

• Maximum resolution of 3840 x 2160 at 60 Hz

• 4-lane bandwidth at 5.4 Gb/s

• Multiple EDID data source capability (panel, predefined, and custom payloads)

• 3.3V flat panel display voltage

• 0.6A of maximum backlight current capability

• Backlight power voltage same as NUC board DC power source (No backlight power if DC in

>21V)

• Board connector used is I-PEX-20455-040E-12, or compatible

1.5.1.3.2 Configuration Modes

Video mode configuration for eDP displays is supported as follows:

• Panel: automatic panel identification via Extended Display Identification Data (EDID) for panels with onboard EDID support

• Predefined: panel selection from common predefined panel types

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

• Custom payloads: custom EDID payload installation for ultimate parameter flexibility, allowing custom definition of EDID data on panels without onboard EDID

In addition, BIOS setup provides the following configuration parameters for internal flat panel displays:

• Color Depth: allows the system integrator to select whether the panel is 24 bpp with VESA or JEIDA color mapping, or 18 bpp.

• eDP Interface Type: allows the system integrator to select whether the eDP panel is a singlelane, dual-lane, or quad-lane display.

• eDP Data Rate: allows the system integrator to select whether the eDP panel runs at

1.62 Gb/s, 2.7 Gb/s, or 5.4 Gb/s.

• Inverter Frequency and Polarity: allows the system integrator to set the operating frequency and polarity of the panel inverter board.

• Maximum and Minimum Inverter Current Limit (%): allows the system integrator to set maximum PWM%, as appropriate, according to the power requirements of the internal flat panel display and the selected inverter board.

NOTE

Support for flat panel display configuration complies with the following:

1. Internal flat panel display settings will be preserved across BIOS updates.

2. Backlight inverter voltage option “Vin” refers to board input voltage as provided to board power input connector.

Product Description

1.5.1.4 Display Emulation

Display emulation is supported using the HDMI ports so that the system may be remotely accessed in a headless configuration or be capable of tolerating display connectivity interruptions without the operating system redetecting and rearranging the overall display layout. The display emulation feature may be enabled in BIOS Setup (Advanced → Video → “Display Emulation” drop down menu) with the following options:

• “No display emulation” (default selection): the system operates normally.

• “Virtual display emulation”: provides a 1280x1024 virtual display when no displays are

connected to the system and provides an additional 1280x1024 virtual display if one display is attached to the system. (If two display are attached to the system these displays will be enabled and no virtual displays will be provided).

• “Persistent display emulation”: emulates that both displays are always connected to the

system no matter their actual connection status. The EDID information from each display will remain programmed through S3, S4, and S5 power states until the feature is disabled.

• When “Persistent display emulation” is enabled another drop-down menu

(“Inconsistent Display Device”) will become visible that allows the user to select

the behavior of the system when the display device EDID is inconsistent with the EDID stored by the system.

▪ “Block boot” (default selection): the BIOS will display a warning message

with options and will wait indefinitely for a user selection.

▪ “Countdown”: the BIOS will display a warning message with options and

will wait 10 seconds before booting.

NOTE

“Persistent display emulation” is not compatible with HDCP 2.2 displays. When using “Persistent display emulation” it would be expected behavior for the system not to

properly drive displays different than those connected when the feature was enabled, as the EDID parameters of the initially connected displays are still being driven by the system. A power cycle (AC power loss) is required to retrain the system with a different display configuration

1.6 USB

The board supports eight USB ports. All eight ports are high-speed, full-speed, and low-speed capable. The port arrangement is as follows:

• USB 3.0 ports: ⎯ Two ports are implemented with external front panel connectors (blue) ⎯ One port is implemented with external back panel connectors (blue) ⎯ One port is implemented with a 1x10 1.25mm internal header (white)

• USB 2.0 ports: ⎯ One port is implemented with external back panel connectors (black) ⎯ Two ports via two single-port internal 1x4 1.25 mm pitch headers (white) ⎯ One port is reserved for the M.2 2230 Module Connector (Key Type E) (Wireless card on

Kit only)

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

NOTE

Computer systems that have an unshielded cable attached to a USB port may not meet FCC Class B requirements, even if no device is attached to the cable. Use a shielded cable that meets the requirements for full-speed devices.

For information about

Refer to

The location of the front panel USB headers

Figure 9, page 42

The location of the USB connectors on the back panel

Figure 10, page 42

The location of the internal connectors

Figure 12, page 44

1.7 SATA Interface

The board provides the following SATA interfaces:

• One internal M.2 SATA port supporting M.2 2280 (key type M) modules

• One SATA 6.0 Gb/s port (blue)

The PCH provides independent SATA ports with a theoretical maximum transfer rate of 6 Gb/s. A point-to-point interface is used for host to device connections.

1.7.1 AHCI Mode

The board supports AHCI storage mode.

NOTE

In order to use AHCI mode, AHCI must be enabled in the BIOS. Microsoft* Windows* 10 includes the necessary AHCI drivers without the need to install separate AHCI drivers during the operating system installation process; however, it is always good practice to update the AHCI drivers to the latest available by Intel.

1.7.2 NVMe

The board supports M.2 NVM Express* (NVMe) drives. NVMe is an optimized, high-performance scalable host controller interface designed to utilize PCIe-based solid-state storage. NVMe is designed to provide efficient access to storage devices built with non-volatile memory, from current NAND flash technology to future, higher performing persistent memory technologies like Optane. NVMe is designed to meet serial bandwidth requirements and very high IOPs. It is based on PCIe Gen 3 and can deliver up to 4GB/s bandwidth. Current NVMe is based on version 1.3 of the specification.

1.7.3 Intel® Rapid Storage Technology / SATA RAID

The PCH supports Intel® Rapid Storage Technology, providing both AHCI and integrated RAID functionality. The RAID capability provides high-performance RAID 0 and 1 functionality on all SATA ports. Other RAID features include hot spare support, SMART alerting, and RAID 0 auto replace. Software components include an Option ROM for pre-boot configuration and boot

Product Description

functionality, a Microsoft Windows compatible driver, and a user interface for configuration and management of the RAID capability of the PCH.

NOTE

Intel Rapid Storage Technology / SATA RAID is only supported if an M.2 SATA SSD module is used with the onboard SATA interface. RAID is not available with an M.2 NVMe SSD module and onboard SATA interface. Supported on chassis with 2.5 inch SATA HDD capability.

1.7.4 Intel® Next Generation Storage Acceleration

Intel® Next Generation Storage Acceleration with Intel® Optane™ Technology is a disk caching

solution that can provide improved computer system performance with improved power savings. It allows configuration of a computer system with the advantage of having HDDs for maximum storage capacity and with Intel® Optane™ Technology for improved system performance. Supported on chassis with 2.5 inch SATA HDD capability.

For more information on Intel® Optane™ Technology, go to

http://www.intel.com/content/www/us/en/architecture-and-technology/non-volatilememory.html

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.8 Real-Time Clock Subsystem

A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to  13 minutes/year at 25 ºC with 3.3 VSB applied via the power supply 5 V STBY rail.

NOTE

If the battery and AC power fail, date and time values will be reset and the user will be notified during the POST.

When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. Figure 1 on page 16 shows the location of the battery.

1.9 Audio Subsystem Software

Audio is supported through the HDMI 2.0a ports interface through the processor and supports eight full range channels of lossless audio formats per port. When using an encoded format (such as DTS-HD MA or Dolby True HD) the board supports a single 7.1 stream. When using an unencoded format the board supports 8 discrete, un-encoded channels per HDMI port simultaneously, for a total of 16 discrete/un-encoded channels.

1.9.1 Audio Subsystem Software

Audio drivers are built into the Graphics driver and are available from Intel’s website.

For information about

Refer to

Obtaining NUC software and drivers

https://downloadcenter.intel.com/sea rch?keyword=nuc8v%pn/search?key word=nuc8v%pn

Product Description

1.10 LAN Subsystem

The LAN subsystem consists of the following:

• Intel I219LM Gigabit Ethernet Controller (10/100/1000 Mb/s)

• RJ-45 LAN connector with integrated status LEDs

Additional features of the LAN subsystem include:

• CSMA/CD protocol engine

• LAN connect interface between the Processor and the LAN controller

• Power management capabilities

⎯ ACPI technology support ⎯ LAN wake capabilities

• LAN subsystem software

For information about

Refer to

LAN software and drivers

https://downloadcenter.intel.com/search ?keyword=nuc8v%pn

1.10.1 Intel® I219LM Gigabit Ethernet Controller

The Intel I219LM Gigabit Ethernet Controller supports the following features:

• Compliant with the 1 Gb/s Ethernet 802.3, 802.3u, 802.3z, 802.3ab specifications

• Multi-speed operation: 10/100/1000 Mb/s

• Full-duplex operation at 10/100/1000 Mb/s; Half-duplex operation at 10/100 Mb/s

• Flow control support compliant with the 802.3X specification as well as the specific operation

of asymmetrical flow control defined by 802.3z

• VLAN support compliant with the 802.3q specification

• Supports Jumbo Frames (up to 9 kB)

⎯ IEEE 1588 supports (Precision Time protocol)

• MAC address filters: perfect match unicast filters, multicast hash filtering, broadcast filter, and

promiscuous mode

1.10.2 RJ-45 LAN Connector with Integrated LEDs

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 6).

Item

Description

Link LED (Green)

Data Rate LED (Green/Yellow)

Figure 6. LAN Connector LED Locations

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Table describes the LED states when the board is powered up and the LAN subsystem is operating.

Table 4. LAN Connector LED States

LED

LED Color

LED State

Condition

Link

Green Off

LAN link is not established.

LAN link is established.

Blinking

LAN activity is occurring.

Data Rate

Green/Yellow Off

10 Mb/s data rate is selected.

Green

100 Mb/s data rate is selected.

Yellow

1000 Mb/s data rate is selected.

1.10.3 Wireless Network Module

The board supports M.2 2230 (key type E) (WLAN) module:

• M.2 2230 (key type E) (WLAN): Supports PCIe x1, USB 2.0, CNVI

The Intel Dual Band Wireless-AC vPro 9560 module provides hi-speed wireless connectivity provided with the following capabilities and is supported by Intel vPro Technology. The wireless module is included with Kit SKUs only:

• Compliant IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11i, 802.11w, 802.11r, 802.11k,

802.11v (pending OS support) specifications

• Maximum bandwidth of 1.73 Gbps

• Bluetooth Version* 5

• Wi-Fi Direct* for peer to peer device connections

• Wi-Fi Miracast* as Source

• Authentication: WPA* and WPA2*, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-

AKA')

• Encryption: 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 128-bit and 256-bit AESGCMP

For information about

Refer to

Obtaining WLAN software and drivers

https://downloadcenter.intel.com/sea rch?keyword=nuc8v%pn

Full Specifications

http://intel.com/wireless

1.11 Hardware Management Subsystem

The board has prioritized monitored voltage rails.

- DC Vin

Product Description

1.11.1 Hardware Monitoring

Prioritized Monitored Voltage Rails

• DC V in

1.11.2 Fan Monitoring

Fan monitoring can be implemented using third-party software.

1.11.3 Thermal Solution

Figure 7 shows the location of the thermal solution and processor fan header.

Item

Description

Thermal Solution

Processor Fan Header

Figure 7. Thermal Solution and Fan Header

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.12 Power Management

Power management is implemented at several levels, including:

• Software support through Advanced Configuration and Power Interface (ACPI)

• Hardware support: ⎯ Power Input ⎯ LAN wake capabilities ⎯ Wake from USB ⎯ +5 V Standby Power Indicator LED

1.12.1 ACPI

ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. The use of ACPI with this board requires an operating system that provides full ACPI support. ACPI features include:

• Plug and Play (including bus and device enumeration)

• Power management control of individual devices, add-in boards (some add-in boards may

require an ACPI-aware driver), video displays, and hard disk drives

• Methods for achieving less than 15-watt system operation in the power-on/standby sleeping state

• A Soft-off feature that enables the operating system to power-off the computer

• Support for multiple wake-up events (see Table 7 on page 34)

• Support for a front panel power and sleep mode switch

Table 5 lists the system states based on how long the power switch is pressed, depending on how ACPI is configured with an ACPI-aware operating system.

Table 5. Effects of Pressing the Power Switch

If the system is in this state…

…and the power switch is

pressed for

…the system enters this state

Off (ACPI G2/G5 – Soft off)

Less than four seconds

Power-on (ACPI G0 – working state)

On (ACPI G0 – working state)

Less than four seconds

Soft-off/Standby (ACPI G1 – sleeping state)

Note

On (ACPI G0 – working state)

More than six seconds

Fail safe power-off (ACPI G2/G5 – Soft off)

Sleep (ACPI G1 – sleeping state)

Less than four seconds

Wake-up (ACPI G0 – working state)

Sleep (ACPI G1 – sleeping state)

More than six seconds

Power-off (ACPI G2/G5 – Soft off)

Note: Depending on power management settings in the operating system.

Product Description

1.12.1.1 System States and Power States

Under ACPI, the operating system directs all system and device power state transitions. The operating system puts devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications. Devices that are not being used can be turned off. The operating system uses information from applications and user settings to put the system as a whole into a low-power state.

Table 6 lists the power states supported by the board along with the associated system power targets. See the ACPI specification for a complete description of the various system and power states.

Table 6. Power States and Targeted System Power

Global States

Sleeping States

Processor States

Device States

G0 – working state

S0 – working

C0 – working

D0 – working state.

G1 – sleeping state

S3 – Suspend to RAM. Context saved to RAM.

No power

D3 – no power except for wake-up logic.

G1 – sleeping state

S4 – Suspend to disk. Context saved to disk.

No power

D3 – no power except for wake-up logic.

G2/S5

S5 – Soft off. Context not saved. Cold boot is required.

No power

D3 – no power except for wake-up logic.

G3 – mechanical off AC power is disconnected

from the computer.

No power to the system.

No power

D3 – no power for wake-up logic, except when provided by battery or external source.

Notes:

1. Total system power is dependent on the system configuration, including add-in boards and peripherals powered by the system chassis’ power supply.

2. Dependent on the standby power consumption of wake-up devices used in the system.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.12.1.2 Wake-up Devices and Events

Table 7 lists the devices or specific events that can wake the computer from specific states.

Table 7. Wake-up Devices and Events

Devices/events that wake up the

system…

…from this sleep

state

Comments

Power switch

S3, S4, S51

RTC alarm

S3, S4, S51

Monitor to remain in sleep state

LAN

S3, S4, S5

1, 3

“S5 WOL after G3” must be supported;

monitor to remain in sleep state

WIFI

S3, S4, S5

1, 3

Monitor to remain in sleep state

Bluetooth

S31, S4

USB

S3, S4, S5

1, 2, 3

Wake S4, S5 controlled by BIOS option (not after G3)

PCIE

S3, S4

Via WAKE; monitor to remain in sleep state

HDMI CEC

S3, S4, S51

Emulates power button push

Notes:

1. S4 implies operating system support only.

2. Will not wake from Deep S4/S5. USB S4/S5 Power is controlled by BIOS. USB S5 wake is controlled by BIOS. USB S4

wake is controlled by OS driver, not just BIOS option.

3. Windows Fast startup will block wake from LAN and USB from S5.

NOTE

The use of these wake-up events from an ACPI state requires an operating system that provides full ACPI support. In addition, software, drivers, and peripherals must fully support ACPI wake events.

1.12.2 Hardware Support

The board provides several power management hardware features, including:

• Wake from Power Button signal

When resuming from an AC power failure, the computer returns to the power state defined in the BIOS. Available states are “Power On”, “Stay Off”, and “Last State”.

• LAN wake capabilities

Enables remote wake-up of the computer through a network. The LAN subsystem monitors network traffic at the Media Independent Interface. Upon detecting a Magic Packet* frame, the LAN subsystem asserts a wake-up signal that powers up the computer.

• Wake from USB

USB bus activity wakes the computer from an ACPI S3 state (not after G3).

• +5 V Standby Power Indicator LED

The standby power indicator LED shows that power is still present even when the computer appears to be off. Figure 8 shows the location of the standby power LED.

Product Description

NOTE

The use of Wake from USB from an ACPI state requires an operating system that provides full ACPI support. Wake from USB requires the use of a USB peripheral that supports Wake from USB.

CAUTION

If AC power has been switched off and the standby power indicator is still lit, disconnect the power cord before installing or removing any devices connected to the board. Failure to do so could damage the board and any attached devices.

Figure 8. Location of the Standby Power LED

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.13 Intel® Security and Manageability Technologies

Intel® Security and Manageability Technologies provides tools and resources to help small business owners and IT organizations protect and manage their assets in a business or institutional environment.

NOTE

Software with security and/or manageability capability is required to take advantage of Intel platform security and/or management technologies.

1.13.1 Intel® vPro™ Technology

Intel® vPro™ Technology is a collection of platform capabilities that support enhanced manageability, security, virtualization and power efficiency. The key platform capabilities include:

• Intel® Active Management Technology (Intel® AMT) 12.0

• Intel® Virtualization (Intel® VT-x)

• Intel® Virtualization for Directed I/O (Intel® VT-d)

• Intel® Trusted Execution Technology (Intel® TXT)

• Intel® Identity Protection Technology (Intel® IPT)

• Intel® Software Guard Extensions (Intel® SGX)

• Intel® Transparent Supply Chain (Intel® TSC)

• Trusted Platform Module 2.0 (TPM)

For information about

Refer to

Intel® vPro Technology

http://support.intel.com/support/vpro/

1.13.1.1 Intel® Active Management Technology 12

When used with third-party management and security applications, Intel Active Management Technology (Intel® AMT) allows business owners and IT organizations to better discover, heal, and protect their networked computing assets.

Some of the features of Intel AMT include:

• Out-of-band (OOB) system access, to discover assets even while PCs are powered off

• Remote trouble-shooting and recovery, which allows remote diagnosis and recovery of

systems after OS failures

• Hardware-based agent presence checking that automatically detects and alerts when critical software agents have been stopped or are missing

• Proactive network defense, which uses filters to block incoming threats while isolating infected clients before they impact the network

• Remote hardware and software asset tracking, helping to track computer assets and keep virus protection up-to-date

• Keyboard, video and mouse (KVM) remote control, which allows redirection of a managed

system’s video to a remote console which can then interact with it using the console’s own

mouse and keyboard

Product Description

NOTE

Intel AMT requires a network connector and an Intel AMT enabled remote management console. Setup requires additional configuration of the platform.

For information about

Refer to

Intel® Active Management Technology

http://www.intel.com/technology/platform-technology/intelamt/index.htm

1.13.1.2 Intel® Virtualization Technology

Intel® Virtualization Technology (Intel® VT-x) is a hardware-assisted technology that, when combined with software-based virtualization solutions, provides maximum system utilization by consolidating multiple environments into a single server or client.

NOTE

A processor with Intel VT does not guarantee that virtualization will work on your system. Intel VT requires a computer system with a chipset, BIOS, enabling software and/or operating system, device drivers, and applications designed for this feature.

For information about

Refer to

Intel® Virtualization Technology

http://www.intel.com/technology/virtualization/technology.htm

1.13.1.3 Intel® Virtualization Technology for Directed I/O

Intel® Virtualization Technology for Directed I/O (Intel® VT-d) allows addresses in incoming I/O device memory transactions to be remapped to different host addresses. This provides Virtual Machine Monitor (VMM) software with:

• Improved reliability and security through device isolation using hardware assisted remapping.

• Improved I/O performance and availability by direct assignment of devices.

For information about

Refer to

Intel® Virtualization Technology for Directed I/O

https://software.intel.com/enus/node/139035?wapkw=vt+directed+io

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

1.13.1.4 Intel® Trusted Execution Technology

Intel® Trusted Execution Technology (Intel® TXT) is a hardware security solution that protects systems against software-based attacks by validating the behavior of key components at startup against a known good source. It requires that Intel VT be enabled and the presence of a TPM.

For information about

Refer to

Intel® Trusted Execution Technology

http://www.intel.com/content/www/us/en/architecture-andtechnology/trusted-execution-technology/malware-reductiongeneral-technology.html

1.13.1.5 Intel® Identity Protection Technology

Intel® Identity Protection Technology (Intel® IPT) provides a simple way for websites and enterprises to validate that a user is logging in from a trusted computer. This is accomplished by using the Intel Manageability Engine embedded in the chipset to generate a six-digit number that, when coupled with a user name and password, will generate a One-Time Password (OTP) when visiting Intel IPT-enabled websites. Intel IPT eliminates the need for the additional token or key fob required previously for two-factor authentication.

For information about

Refer to

Intel® Identity Protection Technology

http://ipt.intel.com

1.13.1.6 Intel® Software Guard Extensions

Intel® Software Guard Extensions (Intel® SGX) is for application developers who are seeking to protect select code and data from disclosure or modification. Intel SGX makes such protections possible through the use of enclaves, which are protected areas of execution in memory. Application code can be put into an enclave by special instructions and software made available to developers via the Intel SGX Software Development Kit (SDK).

For information about

Refer to

Intel® Software Guard Extensions

https://software.intel.com/en-us/sgx

1.13.1.7 Intel® Transparent Supply Chain (TSC)

Intel® Transparent Supply Chain is being able to prove that all components used for Intel products were sourced from approved manufacturers and purchased from authorized suppliers or distributors. The components will be traceable to each finished goods serial number. TSC data aids in the detection of counterfeit, gray market, and/or components that do not conform to spec.

For information about

Refer to

Intel® Transparent Supply Chain

https://tsc.intel.com/nuc

Product Description

1.13.1.8 Trusted Platform Module (TPM)

The TPM version 2.0 component is specifically designed to enhance platform security above-and-

beyond the capabilities of today’s software by providing a protected space for key operations and

other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages—operations when the keys are being used unencrypted in plain-text form. The TPM shields unencrypted keys and platform authentication information from software-based attacks.

NOTE

Support for TPM v2.0 requires a UEFI-enabled operating system, such as Microsoft Windows 10.

TCM 2.0-compliant device:

NationZ TCM-Z32H330TC TPM v2.0

2 Technical Reference

2.1 Memory Resources

2.1.1 Addressable Memory

The system has been validated with up to 32 GB of addressable system memory. Typically, the address space that is allocated for PCI Express configuration space, BIOS (SPI Flash device), and chipset overhead resides above the top of DRAM (total system memory). On a system that has 16 GB of system memory installed, it is not possible to use all of the installed memory due to system address space being allocated for other system critical functions. These functions include the following:

• BIOS/SPI Flash device (32 MB)

• Local APIC (19 MB)

• Direct Media Interface (40 MB)

• PCI Express configuration space (256 MB)

• PCH base address registers PCI Express ports (up to 256 MB)

• Memory-mapped I/O that is dynamically allocated for M.2 add-in cards (256 MB)

• Integrated graphics shared memory (up to 1.5 GB; 64 MB by default)

2.2 Connectors and Headers

CAUTION

Only the following connectors and headers have overcurrent protection: back panel USB, front panel USB, and internal USB headers.

All other connectors and headers are not overcurrent protected and should connect only to devices inside the computer’s chassis, such as fans and internal peripherals. Do not use these connectors or headers to power devices external to the computer’s chassis. A fault in the load presented by the external devices could cause damage to the computer, the power cable, and the external devices themselves.

Furthermore, improper connection of USB header single wire connectors may eventually overload the overcurrent protection and cause damage to the board.

This section describes the board’s connectors and headers. The connectors and headers can be divided into these groups:

• Front panel I/O connectors

• Back panel I/O connectors

• On-board I/O connectors and headers (see page 43 and 44)

NOTE

Unless otherwise noted, all 2.0 mm headers are dual-row, straight, surface mount with each twopin section measuring 2.0 mm x 4.0 mm, with a pin height of 4.0 mm.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

2.2.1 Front Panel Connectors

Figure 9 shows the location of the front panel connectors for the board.

Item

Description

USB 3.0 Port (blue)

Front Panel Power Button

Figure 9. Front Panel Connectors

2.2.2 Back Panel Connectors

Figure 10 shows the location of the back panel connectors for the board.

Item

Description

12-24 V DC Input Jack

HDMI Port 1

LAN Connector

USB 3.1 Port (blue) / USB 2.0 Port (black)

HDMI Port 2

Thunderbolt 3 Port

Figure 10. Back Panel Connectors

Technical Reference

2.2.3 Connectors and Headers (Top)

Figure 11 shows the location of the connectors and headers on the top-side of the board.

Figure 11. Connectors and Headers (Top)

Table 8. Connectors and Headers Shown in Figure 11

Item from Figure 11

Description

Processor Fan Header

DC Internal Power Connector

eDP Connector

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

2.2.4 Connectors and Headers (Bottom)

Figure 12 shows the locations of the connectors and headers on the bottom-side of the board.

Figure 12. Connectors and Headers (Bottom)

Technical Reference

Error! Reference source not found. lists the connectors and headers identified in Figure 12.

Table 9. Connectors and Headers Shown in Figure 12

Item from Figure 12

Description

Serial Port Header

M.2 2230 Module Connector (Key Type E) (Wireless card on Kit only)

Battery Header

SATA Power Header

USB 2.0 Header

M.2 2280 Module Connector (Key Type M)

SATA 6.0 Gb/s Connector

USB 3.0 Header

Front Panel Header

BIOS Security Header

Intel® Management Engine BIOS Extension (Intel® MEBX) Reset Header

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

2.2.4.1 Signal Tables for the Connectors and Headers

Table 10. SATA Power Header (1.25 mm pitch)

Signal Name

5 V (2A total for pins 1, 2)

3 V (1A)

GND 5 GND

Connector is Molex part number 53398-0571, 1.25mm Pitch PicoBlade* Header, Surface Mount, Vertical, Lead-Free, 5 Circuits.

Table 11. Internal USB 2.0 Header (1.25 mm pitch)

Signal Name

5 V 1 2 D - 3 D + 4 GND

The two USB 2.0 headers on the board can deliver a combined power rating of 1.5 A, with any one of the headers

supplying 1 A and the other supplying 500 mA.

Connector is Molex part number 53398-0471, 1.25mm Pitch PicoBlade* Header, Surface Mount, Vertical, Lead-Free, 4 Circuits.

Technical Reference

Table 12. Internal USB 3.0 Header (1.25 mm pitch)

Signal Name

USB_VBUS

USB1_N

USB1_P

GND 5 USBSS1_TX_N

USBSS1_TX_P

GND 8 USBSS1_RX_N

USBSS1_RX_P

Wiring requirement for pin 10 (“Host/Device ID Switch) is as follows:

Port Type

Pin 10 wired to…

Port automatically configured as…

Type A or internal USB peripheral

Ground

Host port Type B

Not connected

Device port

Micro B or Micro AB

ID pin on attached port

Dynamic configuration as host or device port (depending on attached peripheral)

Connector is 1x10 1.25mm Pitch PicoBlade* Header, Surface Mount, Vertical, Lead-Free, 10 Circuits.

Table 13. Serial Port Header (1.25 mm pitch)

Signal Name

Description

DCD

Data Carrier Detect

RXD#

Receive Data

TXD#

Transmit Data

DTR

Data Terminal Ready

GND

Ground

DSR

Data Set Ready

RTS

Request to Send

CTS

Clear to Send

Ring Indicator

Connector is 1x9 1.25mm Pitch PicoBlade* Header, Surface Mount, Vertical, Lead-Free, 9 Circuits.

Table 14. M.2 2280 Module (Mechanical Key M) Connector

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Signal Name

3.3V (2.75A total for pins 74, 72, 70, 4, 2)

GND

3.3V (2.75A total for pins 74, 72, 70, 4, 2)

GND

3.3V (2.75A total for pins 74, 72, 70, 4, 2)

GND

SUSCLK(32kHz) (O)(0/3.3V)

PEDET (NC-PCIe/GND-SATA)

Connector Key

N/C

Connector Key

N/C

Connector Key

N/C

GND

PEWAKE# (I/O)(0/3.3V) or N/C

REFCLKP

CLKREQ# (I/O)(0/3.3V) or N/C

REFCLKN

PERST# (O)(0/3.3V) or N/C

GND

N/C

PETp0/SATA-A+

N/C

PETn0/SATA-A-

N/C

GND

N/C

PERp0/SATA-B-

N/C

PERn0/SATA-B+

DEVSLP (O)

GND

N/C

PETp1

N/C

PETn1

N/C

GND

N/C

PERp1

N/C

PERn1

N/C

GND

N/C

PETp2

N/C

PETn2

N/C

GND

3.3V

PERp2

3.3V

PERn2

3.3V

GND

3.3V

PETp3

DAS/DSS# (I/O)/LED1# (I)(0/3.3V)

PETn3

N/C 9 GND

N/C 7 PERp3

3.3V (2.75A total for pins 74, 72, 70, 4, 2)

PERn3

3.3V (2.75A total for pins 74, 72, 70, 4, 2)

GND

Technical Reference

Table 15. M.2 2230 Module (Mechanical Key E) Connector

Signal Name

3.3V (2.75A total for pins 74, 72, 4, 2)

RESERVED/PERn1

3.3V (2.75A total for pins 74, 72, 4, 2)

RESERVED/PERp1

RESERVED

GND

W_DISABLE1# (O)(0/3.3V)

RESERVED/PETn1

W_DISABLE2# (O)(0/3.3V)

RESERVED/PETp1

PERST0# (O)(0/3.3V)

GND

SUSCLK(32kHz) (O)(0/3.3V)

PEWAKE0# (I/O)(0/3.3V)

BRI_DT (I) (0/1.8V)

CLKREQ0# (I/O)(0/3.3V)

RGI_RSP (O) (0/1.8V)

GND

RGI_DT (I) (0/1.8V)

REFCLKN0

Connector Key

REFCLKP0

Connector Key

GND

Connector Key

PERn0

Connector Key

PERp0

UART TXD (O) (0/1.8V)

GND

PETn0

ANTCTL0 (I)(0/1.8V)

PETp0

ANTCTL1 (I)(0/1.8V)

GPIO_2 (I/O)(0/1.8V*)

ANTCTL3 (I)(0/1.8V)

Connector Key

CONFIG_1

Connector Key

3.3V (2.75A total for pins 74, 72, 4, 2)

Connector Key

3.3V (2.75A total for pins 74, 72, 4, 2)

Connector Key

RESERVED

GND

USB_D-

USB_D+

GND

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Table 16. 40-Pin eDP Connector

Signal Name

NC – Reserved

21 LCD_VCC (2.0A total for pins 21, 20, 19, 18)

H_GND

22 NC 3 Lane3_N

23 LCD_GND

Lane3_P

24 LCD_GND

H_GND

25 LCD_GND

Lane2_N

26 LCD_GND

Lane2_P

27 HPD 8 H_GND

28 BL_GND

Lane1_N

29 BL_GND

Lane1_P

30 BL_GND

H_GND

31 BL_GND

Lane0_N

32 BL_ENABLE

Lane0_P

33 BL_PWM_DIM

H_GND

34 NC - RESERVED

AUX_CH_P

35 NC - RESERVED

AUX_CH_N

36 BL_PWR (1A total for pins 39, 28, 37, 36)

H_GND

37 BL_PWR (1A total for pins 39, 28, 37, 36)

LCD_VCC (2.0A total for pins 21, 20, 19, 18)

38 BL_PWR (1A total for pins 39, 28, 37, 36)

LCD_VCC (2.0A total for pins 21, 20, 19, 18)

39 BL_PWR (1A total for pins 39, 28, 37, 36)

LCD_VCC (2.0A total for pins 21, 20, 19, 18)

40 NC - RESERVED

Connector used is right-angled I-PEX-20455-040E-12, 1x40 eDP connector.

2.2.4.2 Add-in Card Connectors

The board supports M.2 2230 (key type E) (WLAN) and 2280 (key type M) (SSD) Modules.

• M.2 2230 (key type E) (WLAN): Supports PCIe x1, USB 2.0, CNVI

• M.2 2280 (key type M) (SSD): Supports PCIe x4 and SATA

Technical Reference

2.2.4.3 Front Panel Header (2.0 mm Pitch)

This section describes the functions of the front panel header. Table 17 lists the signal names of the front panel header. Figure 13 is a connection diagram for the front panel header.

Table 17. Front Panel Header (2.0 mm Pitch)

Signal Name

Description

Signal Name

Description

HDD_POWER_LED

Pull-up 750 Ω to +5V

POWER_LED_MAIN

[Out] Front panel LED (main color)

HDD_LED#

[Out] HDD activity LED

POWER_LED_ALT

[Out] Front panel LED (alt color)

GROUND

Ground

POWER_SWITCH#

[In] Power switch

RESET_SWITCH#

[In] Reset switch

GROUND

Ground

+5V_DC (1A) (Vcc)

VCC5 (1A current rating)

Key

No pin

5Vsby (2A)

5VSB (2A current rating)

3.3Vsby (1A)

3VSB (1A current rating)

Figure 13. Connection Diagram for Front Panel Header (2.0 mm Pitch)

2.2.4.3.1 Hard Drive Activity LED Header

Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is being read from or written to a hard drive. Proper LED function requires a SATA hard drive or optical drive connected to an onboard SATA connector.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

2.2.4.3.2 Reset Switch Header

Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type switch that is normally open. When the switch is closed, the board resets and runs the POST.

2.2.4.3.3 Power/Sleep LED Header

Pins 2 and 4 can be connected to a one- or two-color LED. Table 18 and Table 19 show the possible LED states.

Table 18. States for a One-Color Power LED

LED State

Description

Off

Power off

Blinking

Standby

Steady

Normal operation

Table 19. States for a Dual-Color Power LED

LED State

Description

Off

Power off

Blinking (white)

Standby

Steady (white)

Normal operation

NOTE

The LED behavior shown in Table 18 is default – other patterns may be set via BIOS setup.

2.2.4.3.4 Power Switch Header

Pins 6 and 8 can be connected to a front panel momentary-contact power switch. The switch must pull the SW_ON# pin to ground for at least 50 ms to signal the power supply to switch on or off (the time requirement is due to internal debounce circuitry on the board). At least two seconds must pass before the power supply will recognize another on/off signal.

2.2.4.4 Power Supply Connectors

The board has the following power supply connectors:

• External Power Supply – the board can be powered through a 12-24 V DC connector on the back panel. The back panel DC connector is compatible with a 5.5 mm/OD (outer diameter) and 2.5 mm/ID (inner diameter) plug, where the inner contact is +12-24 V DC and the shell is GND. The maximum current rating is 10 A.

NOTE

External power voltage, 12-24 (±5%) V DC, is dependent on the type of power brick used.

• Internal Power Supply – the board can alternatively be powered via the internal 12-24 V DC 2 x 2 power connector, where pins 1 and 2 are +12-24 V DC and pins 3 and 4 are GND. The maximum current rating is 10 A.

Technical Reference

The connector used is Molex Micro-Fit (3mm pitch), right-angled, 4-pos/dual row (2x2).

Table 20. 12-24 V Internal Power Supply Connector

Pins

Signal Name

1, 2

+12-24 V

3, 4

Ground

Figure 14. Connection Diagram for the Internal Power Supply Connector

2.2.4.4.1 Power Sensing Circuit

The board has a power sensing circuit that:

• manages CPU power usage to maintain system power consumption below 90 W

• is designed and tested for use with the provided 90 W AC-DC adapters

For information about

Refer to

Power supply considerations

Section 2.5.1, page 57

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

2.3 BIOS Security Jumper

CAUTION

Do not move a jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged.

Figure 15 shows the location of the BIOS Security Jumper. The 3-pin jumper determines the BIOS Security program’s mode.

Figure 15. Location of the BIOS Security Jumper

Table 21 describes the jumper settings for the three modes: normal, lockdown, and configuration.

Table 21. BIOS Security Jumper Settings

Function/Mode

Jumper Setting

Configuration

Normal

1-2

The BIOS uses current configuration information and passwords for booting.

Technical Reference

Lockdown

2-3

The BIOS uses current configuration information and passwords for booting, except:

• All POST Hotkeys are suppressed (prompts are not displayed and keys are not accepted. For example, F2 for Setup, F10 for the Boot Menu).

• Power Button Menu is not available (see Section 3.6.4 Power Button Menu).

BIOS updates are not available except for automatic Recovery due to flash corruption.

Configuration

None

BIOS Recovery Update process if a matching *.bio file is found. Recovery Update can be cancelled by pressing the Esc key.

If the Recovery Update was cancelled or a matching *.bio file was not found, a Config Menu will be displayed. The Config Menu consists of the following (followed by the Power Button Menu selections):

[1] Suppress this menu until the BIOS Security Jumper is replaced. [2] Clear BIOS User and Supervisor Passwords. [3] Reset Intel® AMT to default factory settings. [4] Clear Trusted Platform Module.

Warning: Data encrypted with the TPM will no longer be accessible if the TPM is cleared.

[F2] Intel® Visual BIOS. [F4] BIOS Recovery.

See Section 3.6.4 Power Button Menu.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

2.4 Mechanical Considerations

2.4.1 Form Factor

The board is designed to fit into a custom chassis. Figure 16 illustrates the mechanical form factor for the board. Dimensions are given in inches [millimeters]. The outer dimensions are 4.09 inches by 4.09 inches [104.1 millimeters by 101.6 millimeters].

Figure 16. Board Dimensions

Technical Reference

Figure 17 shows the height dimensions of the board. Dimensions are in mm.

Figure 17. Board Height Dimensions

2.5 Electrical Considerations

2.5.1 Power Supply Considerations

System power requirements will depend on actual system configurations chosen by the integrator, as well as end user expansion preferences. It is the system integrator’s responsibility to ensure an appropriate power budget for the system configuration is properly assessed based on the system-level components chosen. See Section 2.2.4.4 Power Supply Connector for more information.

• The back panel input range is 12-24 V (±5%) DC

• The internal power connector input range is 12-24 V (±5%) DC

CAUTION

The external DC jack is the primary power input connector of Intel NUC Board NUC8v5PNB & NUC8v7PNB. However, the board also provides an internal 2 x 2 power connector that can be used in custom-developed systems that have an internal power supply. The internal 2 x 2 power connector is a Molex Micro-Fit (3mm pitch), right-angled, 4-pos/dual row connector.

There is no isolation circuitry between the external DC jack and the internal 2 x 2 power connector. It is the system integrator’s responsibility to ensure no more than one power supply unit is or can be attached to the board at any time and to ensure the external DC jack is covered if the internal 2 x 2 power connector is to be used. Simultaneous connection of both external and internal power supply units could result in potential damage to the board, power supplies, or other hardware.

The power budget should not exceed the rating of the power source.

Table 22. Power Budget for Assessing the DC-to-DC Circuit’s Power Rating (worst case:

Embedded board in 3rd party chassis)

LOAD NAME

Load Description

Estimated Adapter Power

Consumption (W)

Function

SoC

Whisky Lake-U( 4+2)

SOC

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

VDD (DRAM)

DRAM core (VDDQ)

4.8

SODIMM

VPP (DRAM)

DRAM Activation

VTT (DRAM)

DRAM IO Termination

0.36

i219 V

LAN

1.32

LAN

V3.3_TBT

Titan ridge

2.64

TBT

V3.3_HDMI

LSPCON*2

2.64

HDMI

V3.3S_SSD

M.2

23.1

SSD

V5S_HDD

HDD (only for Tall)

HDD

V3.3Dx_WiFi

WIFI/BT

3.584

WIFI

V5_FAN

FAN

2.5

FAN

V3.3A_EC

Embedded Controller

0.045

Embedded

Controller

V1.8A_EC

Embedded Controller

(eSPI)

0.18

TBT x1

TBT port

I/O port

USB 3.1

Rear USB 3.1 port

4.5

USB 2.0

Rear 2.0 port

2.5

USB 3.1

Front USB 3.1 port x2

2.5.2 Fan Header Current Capability

Table 23 lists the current capability of the fan headers.

Table 24. Fan Header Current Capability

Fan Header

Maximum Available Current

Processor fan

1 A

2.6 Thermal Considerations

CAUTION

Failure to ensure appropriate airflow may result in reduced performance of both the processor and/or voltage regulator or, in some instances, damage to the board.

All responsibility for determining the adequacy of any thermal or system design remains solely with the system integrator. Intel makes no warranties or representations that merely following the instructions presented in this document will result in a system with adequate thermal performance.

Technical Reference

CAUTION

Ensure that the ambient temperature does not exceed the board’s maximum operating temperature. Failure to do so could cause components to exceed their maximum case temperature and malfunction. For information about the maximum operating temperature, see the environmental specifications in Section 0.

CAUTION

Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do so may result in shorter than expected product lifetime.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Figure 18 shows the locations of the localized high temperature zones.

Item

Description

Thermal Solution

Processor Voltage Regulator Area

Figure 18. Localized High Temperature Zones

Technical Reference

A thermal pad has been installed for the bottom of the chassis to improve the thermal performance when using M.2 devices that operate at higher temperatures. If the thermal pad ever needs to be replaced, Figure 24 shows the installation area of the thermal pad.

Tall Chassis

Item

Description

Thermal Pad

Thermal Pad Installation Area

Figure 19. Installation Area of the Thermal Pad on Tall Chassis

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Slim Chassis

Item

Description

Thermal Pad

Thermal Pad Installation Area

Figure 20. Installation Area of the Thermal Pad on Slim Chassis

Technical Reference

Table 25 provides maximum case temperatures for the components that are sensitive to thermal changes. The operating temperature, current load, or operating frequency could affect case temperatures. Maximum case temperatures are important when considering proper airflow to cool the board.

Table 25. Thermal Considerations for Components

Component

Maximum Case Temperature

Processor

For processor case temperature, see processor datasheets and processor specification updates

To ensure functionality and reliability, the component is specified for proper operation when Case Temperature is maintained at or below the maximum temperature listed in Table 26. This is a requirement for sustained power dissipation equal to Thermal Design Power (TDP is specified as the maximum sustainable power to be dissipated by the components). When the component is dissipating less than TDP, the case temperature should be below the Maximum Case Temperature. The surface temperature at the geometric center of the component corresponds to Case Temperature.

It is important to note that the temperature measurement in the system BIOS is a value reported by embedded thermal sensors in the components and does not directly correspond to the Maximum Case Temperature. The upper operating limit when monitoring this thermal sensor is Tcontrol.

Table 26. Tcontrol Values for Components

Component

Tcontrol

Processor

For processor case temperature, see processor datasheets and processor specification updates

For information about

Refer to

Processor datasheets and specification updates

Section 1.3

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

2.7 Reliability

The demonstrated Mean Time Between Failures (MTBF) is done through 24/7 testing. Full Intel® NUC systems in chassis with memory, SSD or HDD, and a fan are ran at 100% on time for 90 days continuously while running system wide stress inducing software in a 40 °C ambient air temperature chamber. The demonstrated MTBF for Intel NUC Board NUC8v5PNB & NUC8v7PNB is 50,000 hours.

2.8 Environmental

Table 27 lists the environmental specifications for the board.

Table 27. Environmental Specifications

Parameter

Specification

Temperature

Sustained Storage Limits (i.e. warehouse)

-20 C to +40 C

Short Duration Limits (i.e. shipping)

-40 °C to +60 °C

Ambient Operating – NUC Kit*

0 C to +40 C

Ambient Operating – NUC Board*

0 C to +40 C * Processor performance may automatically decrease when the system operates in the top

5 °C of the ambient operating temperature ranges above.

Shock (Board)

Unpackaged

50 g trapezoidal waveform

Velocity change of 170 inches/s²

Packaged

Free fall package drop machine set to the height determined by the weight of the package.

Product Weight (pounds)

Non-palletized Product drop height (inches)

Palletized drop heights (single product) (inches)

<20

N/A 21-40

N/A 41-80

N/A

81-100

12 100-120

12 9

Vibration (System)

Unpackaged

Random profile 5 Hz @ 0.001 g^2/Hz to 20 Hz @ 0.01 g^2/Hz(slope up)

20 Hz to 500 Hz @ 0.01 g^2/Hz (flat)

Input acceleration is 2.20g RMS

Packaged

Random profile 5 Hz @ 0.01 g^2/Hz to 20 Hz @ 0.02 g^2/Hz(slope up)

20 Hz to 500 Hz @ 0.02 g^2/Hz (flat)

Input acceleration is 3.13g RMS

Technical Reference

Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of

the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.

Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum

operating temperature specified. It is recommended that the board temperature be at least room temperature before attempting to power on the board. The operating and non-operating environment must avoid condensing humidity.

CAUTION

If the external ambient temperature exceeds 40 oC, further thermal testing is required to ensure components do not exceed their maximum operating temperature.

3 Overview of BIOS Features

3.1 Introduction

The board uses Intel AMI BIOS core that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the Visual BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.

The BIOS displays a message during POST identifying the type of BIOS and a revision code. The initial production BIOSs are identified as TBD.

The Visual BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the <F2> key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

NOTE

The maintenance menu is displayed only when the board is in configure mode. Section 2.3 on page 54 shows how to put the board in configure mode.

3.2 BIOS Flash Memory Organization

The Serial Peripheral Interface Flash Memory (SPI Flash) includes a 16 MB flash memory device.

3.3 System Management BIOS (SMBIOS)

SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

The main component of SMBIOS is the Management Information Format (MIF) database, which contains information about the computing system and its components. Using SMBIOS, a system administrator can obtain the system types, capabilities, operational status, and installation dates for system components. The MIF database defines the data and provides the method for accessing this information. The BIOS enables applications such as third-party management software to use SMBIOS. The BIOS stores and reports the following SMBIOS information:

• BIOS data, such as the BIOS revision level

• Fixed-system data, such as peripherals, serial numbers, and asset tags

• Resource data, such as memory size, cache size, and processor speed

• Dynamic data, such as event detection and error logging

Non-Plug and Play operating systems require an additional interface for obtaining the SMBIOS information. The BIOS supports an SMBIOS table interface for such operating systems. Using this support, an SMBIOS service-level application running on a non-Plug and Play operating system can obtain the SMBIOS information. Additional board information can be found in the BIOS under the Additional Information header under the Main BIOS page.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

3.4 Legacy USB Support

Legacy USB support enables USB devices to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB. By default, Legacy USB support is set to Enabled.

Legacy USB support operates as follows:

1. When you apply power to the computer, legacy support is disabled.

2. POST begins.

3. Legacy USB support is enabled by the BIOS allowing you to use a USB keyboard to enter and

configure the BIOS Setup program and the maintenance menu.

4. POST completes.

5. The operating system loads. While the operating system is loading, USB keyboards and mice

are recognized and may be used to configure the operating system. (Keyboards and mice are not recognized during this period if Legacy USB support was set to Disabled in the BIOS Setup program.)

6. After the operating system loads the USB drivers, all legacy and non-legacy USB devices are

recognized by the operating system, and Legacy USB support from the BIOS is no longer used.

To install an operating system that supports USB, verify that Legacy USB support in the BIOS Setup program is set to Enabled and follow the operating system’s installation instructions.

3.5 BIOS Updates

The BIOS can be updated using one of the following methods:

• Intel® Express BIOS Update utility, which enables automated updating while in the Windows

environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive, a CD-ROM, or from the file location on the Web.

• Intel® Flash Memory Update Utility, which requires booting from DOS. In order to boot from

DOS the legacy boot option in the BIOS has to be checked. Using this utility, the BIOS can be updated from a file on a hard disk or a USB drive.

• Intel® F7 switch during POST allows a user to select where the BIOS .bio file is located and

perform the update from that location/device. Similar to performing a BIOS Recovery without removing the BIOS configuration jumper. The F7 switch supports FAT, FAT32, and NTFS format storage.

• Intel® Visual BIOS has an option to update the BIOS from a valid .bio file located on a hard

disk or USB drive. Enter Intel Visual BIOS by pressing <F2> during POST.

Both utilities verify that the updated BIOS matches the target system to prevent accidentally installing an incompatible BIOS.

NOTE

Review the instructions distributed with the upgrade utility before attempting a BIOS update.

Overview of BIOS Features

For information about

Refer to

BIOS update utilities

https://www.intel.com/content/www/us/en/support/articles/0000 05636/

3.5.1 Language Support

The BIOS Setup program and help messages are supported in US English. Check the Intel web site for support.

3.5.2 BIOS Recovery

It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. Table 28 lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable.

Table 28. Acceptable Drives/Media Types for BIOS Recovery

Media Type

(Note)

Can be used for BIOS recovery?

Hard disk drive (connected to SATA or USB)

Yes

CD/DVD drive (connected to USB)

Yes

USB flash drive

Yes

NOTE

Supported file systems for BIOS recovery:

• NTFS (sparse, compressed, or encrypted files are not supported)

• FAT32

• FAT16

• FAT12

• ISO 9660

For information about

Refer to

BIOS recovery

https://www.intel.com/content/www/us/en/support/articles/000033291/

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

3.6 Boot Options

In the BIOS Setup program, the user can choose to boot from a hard drive, optical drive, removable drive, or the network. The default setting is for the optical drive to be the first boot device, the hard drive second, removable drive third, and the network fourth.

NOTE

Optical drives are not supported by the onboard SATA connectors. Optical drives are supported only via the USB interfaces.

3.6.1 Network Boot

The network can be selected as a boot device. This selection allows booting from the onboard LAN or a network add-in card with a remote boot ROM installed.

Pressing the <F12> key during POST automatically forces booting from the LAN. To use this key during POST, the User Access Level in the BIOS Setup program's Security menu must be set to Full.

3.6.2 Booting Without Attached Devices

For use in embedded applications, the BIOS has been designed so that after passing the POST, the operating system loader is invoked even if the following devices are not present:

• Video cable

• Keyboard

• Mouse

3.6.3 Boot Device Selection During POST

Pressing the <F10> key during POST causes a boot device menu to be displayed. This menu displays the list of available boot devices. Table 29 lists the boot device menu options.

Table 29. Boot Device Menu Options

Boot Device Menu Function Keys

Description

<> or <>

Selects a default boot device

<Enter>

Exits the menu, and boots from the selected device

<Esc>

Exits the menu and boots according to the boot priority defined through BIOS setup

3.6.4 Power Button Menu

As an alternative to Back-to-BIOS Mode or normal POST Hotkeys, the user can use the power button to access a menu. The Power Button Menu is accessible via the following sequence:

1. System is in S4/S5 (not G3)

2. User pushes the power button and holds it down for 3 seconds

Overview of BIOS Features

3. The system will emit three short beeps from the front panel (FP) audio port, then stop to

signal the user to release the power button. The FP power button LED will also change from Blue to Amber when the user can release the power button.

4. User releases the power button before the 4-second shutdown override If this boot path is taken, the BIOS will use default settings, ignoring settings in VPD where

possible. At the point where Setup Entry/Boot would be in the normal boot path, the BIOS will display the

following prompt and wait for a keystroke: [ESC] Normal Boot

[F2] Intel Visual BIOS [F3] Disable Fast Boot [F4] BIOS Recovery [F7] Update BIOS [F10] Enter Boot Menu [F12] Network Boot

[F2] Enter Setup is displayed instead if Visual BIOS is not supported. [F3] Disable Fast Boot is only displayed if at least one Fast Boot optimization is enabled. [F9] Remote Assistance is only displayed if Remote Assistance is supported.

If an unrecognized key is hit, then the BIOS will beep and wait for another keystroke. If one of the listed hotkeys is hit, the BIOS will follow the indicated boot path. Password requirements must still be honored.

If Disable Fast Boot is selected, the BIOS will disable all Fast Boot optimizations and reset the system.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

3.7 Hard Disk Drive Password Security Feature

The Hard Disk Drive Password Security feature blocks read and write accesses to the hard disk drive until the correct password is given. Hard Disk Drive Passwords are set in BIOS SETUP and are prompted for during BIOS POST. For convenient support of S3 resume, the system BIOS will automatically unlock drives on resume from S3. Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 19 characters in length.

The User hard disk drive password, when installed, will be required upon each power-cycle until the Master Key or User hard disk drive password is submitted.

The Master Key hard disk drive password, when installed, will not lock the drive. The Master Key hard disk drive password exists as an unlock override in the event that the User hard disk drive password is forgotten. Only the installation of the User hard disk drive password will cause a hard disk to be locked upon a system power-cycle.

Table 30 shows the effects of setting the Hard Disk Drive Passwords.

Table 30. Master Key and User Hard Drive Password Functions

Password Set

Password During Boot

Neither

None

Master only

None

User only

Master and User Set

Master or User

During every POST, if a User hard disk drive password is set, POST execution will pause with the following prompt to force the user to enter the Master Key or User hard disk drive password:

“Enter Hard Disk Drive Password:”

Upon successful entry of the Master Key or User hard disk drive password, the system will continue with normal POST.

If the hard disk drive password is not correctly entered, the system will go back to the above prompt. The user will have three attempts to correctly enter the hard disk drive password. After the third unsuccessful hard disk drive password attempt, the system will halt with the message:

“Hard Disk Drive Password Entry Error”

A manual power cycle will be required to resume system operation.

NOTE

As implemented on Intel NUC Board NUC8v5PNB & NUC8v7PNB, Hard Disk Drive Password Security is only supported on either SATA Port 0 (M.2) or SATA Port 1 (onboard SATA connector). The passwords are stored on the hard disk drive so if the drive is relocated to another computer that does not support Hard Disk Drive Password Security feature, the drive will not be accessible.

3.8 BIOS Security Features

The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions:

Overview of BIOS Features

• The supervisor password gives unrestricted access to view and change all the Setup options

in the BIOS Setup program. This is the supervisor mode.

• The user password gives restricted access to view and change Setup options in the BIOS

Setup program. This is the user mode.

• If only the supervisor password is set, pressing the <Enter> key at the password prompt of

the BIOS Setup program allows the user restricted access to Setup.

• If both the supervisor and user passwords are set, users can enter either the supervisor

password or the user password to access Setup. Users have access to Setup respective to which password is entered.

• Setting the user password restricts who can boot the computer. The password prompt will be

displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, the user can enter either password to boot the computer.

• For enhanced security, use different passwords for the supervisor and user passwords.

• Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 16 characters in

length.

• To clear a set password, enter a blank password after entering the existing password. Table 31 shows the effects of setting the supervisor password and user password. This table is for

reference only and is not displayed on the screen.

Table 31. Supervisor and User Password Functions

Password Set

Supervisor Mode

User Mode

Setup Options

Password to Enter Setup

Password During Boot

Neither

Can change all options

(Note)

Can change all options

(Note)

None

Supervisor only

Can change all options

Can change a limited number of options

Supervisor Password

Supervisor

None User only

N/A

Can change all options

Enter Password Clear User Password

User

Supervisor and user set

Can change all options

Can change a limited number of options

Supervisor Password Enter Password

Supervisor or user

Note: If no password is set, any user can change all Setup options.

4 Error Messages

4.1 BIOS Error Messages

Table 32 lists the error messages and provides a brief description of each.

Table 32. BIOS Error Messages

Error Message

Explanation

CMOS Battery Low

The battery may be losing power. Replace the battery soon.

CMOS Checksum Bad

The CMOS checksum is incorrect. CMOS memory may have been corrupted. Run Setup to reset values.

Memory Size Decreased

Memory size has decreased since the last boot. If no memory was removed, then memory may be bad.

No Boot Device Available

System did not find a device to boot.

5 Regulatory Compliance and Battery

Disposal Information

5.1 Regulatory Compliance

This section contains the following regulatory compliance information for Intel NUC Board NUC8v5PNB & NUC8v7PNB:

• Safety standards

• European Union Declaration of Conformity statement

• Electromagnetic Compatibility (EMC) standards

• Product Ecology statements

• Regulatory Compliance Marks

5.1.1 Safety Standards

Intel NUC Board NUC8v5PNB & NUC8v7PNB complies with the safety standards stated in Table 33 when correctly installed in a compatible host system.

Table 33. Safety Standards

Standard

Title

CSA/UL 60950-1

Information Technology Equipment – Safety - Part 1: General Requirements (USA and Canada)

EN 60950-1

Information Technology Equipment – Safety - Part 1: General Requirements (European Union)

IEC 60950-1

Information Technology Equipment – Safety - Part 1: General Requirements (International)

EN62368-1

Information Technology Equipment – Safety - Part 1: General Requirements (European Union)

5.1.2 European Union Declaration of Conformity Statement

We, Intel Corporation, declare under our sole responsibility that the products Intel® NUC Board NUC8v5PNB & NUC8v7PNB is in conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directive 2004/108/EC (EMC Directive), 2006/95/EC (Low Voltage Directive), and 2011/65/EU (ROHS Directive).

The product is properly CE marked demonstrating this conformity and is for distribution within all member states of the EU with no restrictions.

This product follows the provisions of the European Directives 2004/108/EC, 2006/95/EC, and 2011/65/EU.

Čeština Tento výrobek odpovídá požadavkům evropských směrnic 2004/108/EC, 2006/95/EC a 2002/95/EC.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

Dansk Dette produkt er i overensstemmelse med det europæiske direktiv 2004/108/EC, 2006/95/EC & 2002/95/EC.

Dutch Dit product is in navolging van de bepalingen van Europees Directief 2004/108/EC, 2006/95/EC & 2002/95/EC. Eesti Antud toode vastab Euroopa direktiivides 2004/108/EC, ja 2006/95/EC ja 2002/95/EC kehtestatud nõuetele. Suomi Tämä tuote noudattaa EU-direktiivin 2004/108/EC, 2006/95/EC & 2002/95/EC määräyksiä. Français Ce produit est conforme aux exigences de la Directive Européenne 2004/108/EC, 2006/95/EC & 2002/95/EC. Deutsch Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 2004/108/EC, 2006/95/EC & 2002/95/EC. Ελληνικά Το παρόν προϊόν ακολουθεί τις διατάξεις των Ευρωπαϊκών Οδηγιών 2004/108/EC, 2006/95/EC και 2002/95/EC. Magyar E termék megfelel a 2004/108/EC, 2006/95/EC és 2002/95/EC Európai Irányelv

előírásainak. Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 2004/108/EC,

2006/95/EC, & 2002/95/EC. Italiano Questo prodotto è conforme alla Direttiva Europea 2004/108/EC, 2006/95/EC &

2002/95/EC. Latviešu Šis produkts atbilst Eiropas Direktīvu 2004/108/EC, 2006/95/EC un 2002/95/EC noteikumiem. Lietuvių Šis produktas atitinka Europos direktyvų 2004/108/EC, 2006/95/EC, ir 2002/95/EC

nuostatas. Malti Dan il-prodott hu konformi mal-provvedimenti tad-Direttivi Ewropej 2004/108/EC,

2006/95/EC u 2002/95/EC. Norsk Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 2004/108/EC, 2006/95/EC & 2002/95/EC. Polski Niniejszy produkt jest zgodny z postanowieniami Dyrektyw Unii Europejskiej

2004/108/EC, 206/95/EC i 2002/95/EC. Portuguese Este produto cumpre com as normas da Diretiva Européia 2004/108/EC,

2006/95/EC & 2002/95/EC. Español Este producto cumple con las normas del Directivo Europeo 2004/108/EC, 2006/95/EC & 2002/95/EC. Slovensky Tento produkt je v súlade s ustanoveniami európskych direktív 2004/108/EC,

2006/95/EC a 2002/95/EC. Slovenščina Izdelek je skladen z določbami evropskih direktiv 2004/108/EC, 2006/95/EC in

2002/95/EC. Svenska Denna produkt har tillverkats i enlighet med EG-direktiv 2004/108/EC, 2006/95/EC & 2002/95/EC.

Türkçe Bu ürün, Avrupa Birliği’nin 2004/108/EC, 2006/95/EC ve 2002/95/EC yönergelerine uyar.

5.1.3 EMC Regulations

Intel NUC Board NUC8v5PNB & NUC8v7PNB complies with the EMC regulations stated in Table 34 when correctly installed in a compatible host system.

Regulatory Compliance and Battery Disposal Information

Table 34. EMC Regulations

Regulation

Title

FCC 47 CFR Part 15, Subpart B

Title 47 of the Code of Federal Regulations, Part 15, Subpart B, Radio Frequency Devices. (USA)

ICES-003

Interference-Causing Equipment Standard, Digital Apparatus. (Canada)

EN55032

Limits and methods of measurement of Radio Interference Characteristics of Information Technology Equipment. (European Union)

EN55024

Information Technology Equipment – Immunity Characteristics Limits and methods of measurement. (European Union)

EN55022

Australian Communications Authority, Standard for Electromagnetic Compatibility. (Australia and New Zealand)

CISPR 32

Limits and methods of measurement of Radio Disturbance Characteristics of Information Technology Equipment. (International)

CISPR 24

Information Technology Equipment – Immunity Characteristics – Limits and Methods of Measurement. (International)

VCCI-CISPR 32

Voluntary Control for Interference by Information Technology Equipment. (Japan)

KN-35, KN-24

Korean Communications Commission – Framework Act on Telecommunications and Radio Waves Act (South Korea)

CNS 13438

Bureau of Standards, Metrology, and Inspection (Taiwan)

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact: Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124

1-800-628-8686 This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to the equipment not expressly approved by Intel Corporation

could void the user’s authority to operate the equipment. Tested to comply with FCC standards for home or office use.

Canadian Department of Communications Compliance Statement

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des Communications du Canada.

Japan VCCI Statement

Japan VCCI Statement translation: This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Korea Class B Statement

Korea Class B Statement translation: This equipment is for home use, and has acquired electromagnetic conformity registration, so it can be used not only in residential areas, but also other areas.

5.1.4 e-Standby and ErP Compliance

Intel NUC Board NUC8v5PNB & NUC8v7PNB meets the following program requirements in an adequate system configuration, including appropriate selection of an efficient power supply:

• EPEAT*

• Korea e-Standby

• European Union Energy-related Products Directive 2013 (ErP) Lot 6 and ErP Lot 3

For information about

Refer to

Electronic Product Environmental Assessment Tool (EPEAT)

http://www.epeat.net/

Korea e-Standby Program

http://www.kemco.or.kr/new_eng/pg02/pg02

100300.asp

European Union Energy-related Products Directive 2009 (ErP)

http://ec.europa.eu/enterprise/policies/sustai nable-business/sustainable-productpolicy/ecodesign/index_en.htm

Regulatory Compliance and Battery Disposal Information

5.1.5 Regulatory Compliance Marks (Board Level)

Intel NUC Board NUC8v5PNB & NUC8v7PNB has the regulatory compliance marks shown in Table 35.

Table 35. Regulatory Compliance Marks

Description

Mark

UL joint US/Canada Recognized Component mark. Includes adjacent UL file number for Intel NUC: E210882.

FCC Declaration of Conformity logo mark for Class B equipment.

CE mark. Declaring compliance to the European Union (EU) EMC directive, Low Voltage directive, and RoHS directive.

For CE Mark-Related Questions: Intel Corporation Attn: Corporate Quality 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA

Australian Communications Authority (ACA) and New Zealand Radio Spectrum Management (NZ RSM) C-tick mark. Includes adjacent Intel supplier code number, N-232.

Japan VCCI (Voluntary Control Council for Interference) mark.

Korea Certification mark. Includes an adjacent MSIP (Ministry of Science, ICT & Future Planning) certification number: MSIP-REM-CPU-NUC5i5MYBE

Taiwan BSMI (Bureau of Standards, Metrology and Inspections) mark. Includes adjacent Intel company number, D33025.

D33025

RoHS

Printed wiring board manufacturer’s recognition mark. Consists of a unique UL recognized manufacturer’s logo, along with a flammability rating (solder side).

Depedent upon the rating material.

V-0 or V-1

China RoHS/Environmentally Friendly Use Period Logo: This is an example of the symbol used on Intel NUC and associated collateral. The color of the mark may vary depending upon the application. The Environmental Friendly Usage Period (EFUP) for Intel NUC has been determined to be 10 years.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

5.2 Battery Disposal Information

CAUTION

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.

PRÉCAUTION

Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des piles usagées doit respecter les réglementations locales en vigueur en matière de protection de l'environnement.

FORHOLDSREGEL

Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse med gældende miljølovgivning.

OBS!

Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier bør kastes i henhold til gjeldende miljølovgivning.

VIKTIGT!

Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras enligt de lokala miljövårdsbestämmelserna.

VARO

Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten mukaisesti.

VORSICHT

Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend.

AVVERTIMENTO

Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate, seguire le istruzioni del produttore.

Regulatory Compliance and Battery Disposal Information

PRECAUCIÓN

Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.

WAARSCHUWING

Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.

ATENÇÃO

Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto. As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias usadas deve ser feita de acordo com as regulamentações ambientais da região.

AŚCIAROŽZNAŚĆ

Існуе рызыка выбуху, калі заменены акумулятар неправільнага тыпу. Акумулятары павінны, па магчымасці, перепрацоўвацца. Пазбаўляцца ад старых акумулятараў патрэбна згодна з мясцовым заканадаўствам па экалогіі.

UPOZORNÌNÍ

V případě výměny baterie za nesprávný druh může dojít k výbuchu. Je-li to možné, baterie by měly být recyklovány. Baterie je třeba zlikvidovat v souladu s místními předpisy o životním prostředí.

Προσοχή

Υπάρχει κίνδυνος για έκρηξη σε περίπτωση που η μπαταρία αντικατασταθεί από μία λανθασμένου τύπου. Οι μπαταρίες θα πρέπει να ανακυκλώνονται όταν κάτι τέτοιο είναι δυνατό. Η απόρριψη των χρησιμοποιημένων μπαταριών πρέπει να γίνεται σύμφωνα με τους κατά τόπο περιβαλλοντικούς κανονισμούς.

VIGYÁZAT

Ha a telepet nem a megfelelő típusú telepre cseréli, az felrobbanhat. A telepeket lehetőség szerint újra kell hasznosítani. A használt telepeket a helyi környezetvédelmi előírásoknak megfelelően

kell kiselejtezni.

Intel NUC Board/Kit NUC8v5PN & NUC8v7PN Technical Product Specification

AWAS

Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi peraturan alam sekitar tempatan.

OSTRZEŻENIE

Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu baterii. Zużyte baterie należy w miarę możliwości utylizować zgodnie z odpowiednimi przepisami ochrony środowiska.

PRECAUŢIE

Risc de explozie, dacă bateria este înlocuită cu un tip de baterie necorespunzător. Bateriile trebuie reciclate, dacă este posibil. Depozitarea bateriilor uzate trebuie să respecte reglementările locale privind protecţia mediului.

ВНИМАНИЕ

При использовании батареи несоответствующего типа существует риск ее взрыва. Батареи должны быть утилизированы по возможности. Утилизация батарей должна проводится по правилам, соответствующим местным требованиям.

UPOZORNENIE

Ak batériu vymeníte za nesprávny typ, hrozí nebezpečenstvo jej výbuchu. Batérie by sa mali podľa možnosti vždy recyklovať. Likvidácia použitých batérií sa musí vykonávať v súlade s miestnymi predpismi na ochranu životného prostredia.

POZOR

Zamenjava baterije z baterijo drugačnega tipa lahko povzroči eksplozijo. Če je mogoče, baterije reciklirajte. Rabljene baterije zavrzite v skladu z lokalnimi okoljevarstvenimi

predpisi.

UYARI

Yanlış türde pil takıldığında patlama riski vardır. Piller mümkün olduğunda geri dönüştürülmelidir. Kullanılmış piller, yerel çevre yasalarına uygun olarak atılmalıdır.

OСТОРОГА

Використовуйте батареї правильного типу, інакше існуватиме ризик вибуху. Якщо можливо, використані батареї слід утилізувати. Утилізація використаних батарей має бути виконана згідно місцевих норм, що регулюють охорону довкілля.

Regulatory Compliance and Battery Disposal Information

Intel BKNUC8V7PNH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
