1 About the Intel

AXXRSBBU8

Intel® RAID (Redundant Array of Inexpensive Disks) Controllers and Intel® Integrated RAID Modules provide reliability, high performance, and fault-tolerant disk subsystem management. A complete fault-tolerant strategy requires protection of all data, including the unwritten cached data in the RAM cache. If power is lost, the data in the RAM cache is lost. To avoid data loss, a battery can be added to supply power to the RAID RAM during an AC power outage or if the AC power cord is removed.

A battery backup unit (BBU) protects the integrity of the cached data on Intel Controllers by providing backup power if there is a complete AC power failure or a brief power outage. The Intel alternative to using an uninterruptible power supply (UPS) or it can act as a second level of fault tolerance when used with a UPS.

The cache memory available on Intel performance. Writing data to the controller's cache memory is much faster than writing it to a storage device. Write operations appear to complete very quickly at the software application level. The Intel when system activity is low or when the cache is getting full. The risk of using write-back cache is that the cached data can be lost if the AC power fails before it is written to the storage device. This risk factor is eliminated when the Intel BBU installed.

RAID Smart Battery Backup Unit provides an inexpensive

RAID Controller writes the cached data to the storage device

RAID Smart Battery

RAID

RAID controllers can improve the overall system

RAID Controller has a

The Intel modules installed on the Intel level, the battery backup module switches the memory power source from the controller to the battery pack attached to the Intel voltage level stays below the predefined value, the battery backup module provides power for memory. When the voltage level returns to an acceptable level, the module switches the power source back to the Intel devices are completed without losing any data.

The battery backup module has built-in functionality to charge the battery pack automatically and to communicate battery status information such as voltage, temperature, and current to the host computer system.

The Intel lithium-ion (Li-Ion) battery technology. It is compatible with a backup auxiliary power source. The battery is charged automatically.

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 1

RAID Smart Battery Backup Unit monitors the voltage level of the DRAM

RAID Smart Battery AXXRSBBU8 is a smart battery backup module and uses

RAID Controller. If the voltage drops below a predefined

RAID Smart Battery Backup Unit. As long as the

RAID Controller, and all pending writes to storage

2 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

2 Installing the Hardware

AXXRSBBU8 (bottom view)

AXXRSBBU8 (top view)

AF003671

The Intel® RAID Smart Battery AXXRSBBU8 battery pack attaches to the RAID controller either directly or remotely. Figure 1 displays the top and bottom views of the

RAID Smart Battery AXXRSBBU8. The J1 connector (see letter “A” for the

Intel location of this connector) is used to directly connect to an Intel connector (see letter “B” for the location of this connector) is used to remotely connect to an Intel visible after it is installed on the RAID controller.

RAID Controller using supplied cable. Only the top side of the battery pack is

RAID Controller. The J2

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 3

A. Board to board Connector

B. Remote BBU Connector

Figure 1. Top and Bottom View of the Intel

RAID Smart Battery AXXRSBBU8

Remote Extender Board (REB)

AF003672

CB1

RB2

RB3

RB4

RB1

RB5

CB7

CB6

CB2

CB3

CB4

CB5

C2 C3

TRACER

ASSY

AXXRSBBU8(Top View)

AXXRSBBU8(Bottom View)

The REB component is a small daughter card that mounts directly to the base controller through the board-to-board connector J2 and is secured by one screw. It provides a 20-pin battery connector J1 for remote battery installation support for base controllers that do not have a 20-pin connector on the controller. The REB is included in the RAID controller product kit.

Figure 2. Remote Extender Board

Remote Battery Connecting Cables

A 20 inch 20-pin cable is provided in the battery kit to remotely connect the Intel® RAID Smart Battery AXXRSBBU8 to the RAID controller, or to a REB which is mounted on the RAID controller. Intel recommends mounting the battery remotely from the RAID controller when possible to provide additional cooling.

4 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

Table 1. Cable Compatability

Intel® RAID Controller or Server System 20-inch Cable

Intel

RAID Controller RS2BL080 and

RSBL080DE

RAID Controller RS2BL040 X (Requires the REB)

Intel

Intel® RAID Controller RS2PI008 and RS2PI008DE

RAID Controller RS2MB044 X (Direct connection with controller without REB)

Intel

Intel(R) RAID Controller RS2SG244 X (Direct connection with controller without REB)

Intel(R) RAID Controller RS2WG160 X (Direct connection with controller without REB)

X (Requires the REB)

X (Direct connection with controller without REB)

Note: Controllers that can directly connect to 20-inch cable already has a cable connector on it,

which is same as the J1 connector as shown in Figure 2 (Remote Extender Board).

Important Pre-installation Considerations

Warning: Always ground yourself and/or use a ground strap before touching the RAID controller or

the Intel

RAID Smart Battery AXXRSBBU8. Perform all installation work at an ESDsafe workstation. Use an ESD-safe Phillips* screwdriver set to a maximum torque of 2.25 inch-pounds, and be sure the screwdriver is centered in the screw to avoid damaging the screw head. If you exceed the maximum torque specification, you may damage the board, connectors, or screws, and you will void the warranty of the board.

The batteries in the Intel

RAID Smart Battery AXXRSBBU8 must charge for at least six

hours during fast charge, under normal operating conditions.

To protect your data, Intel recommends that you set the RAID Controller Write Policy to write-through until the battery unit is fully charged. When the battery unit is charged, you can change the Write Policy to write-back to take advantage of the performance improvements of data caching.

The maximum ambient temperature for the battery pack is shown in the following tables.

AXXRSBBU8 Operating temperature of 55°C

Expected hold time 48 hours 12 hours

Service life Up to 1 year Up to 3 years

AXXRSBBU8 Operating temperature of 45°C

Expected hold time 48 hours 12 hours

Service life Up to 3 years Up to 5 years

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 5

Note: The temperature of the battery pack is generally 15-20 degrees higher than the ambient

temperature during fast charge. Therefore, to complete the fast charge cycle, ambient temperature should be less than 55° C. If the ambient temperature exceeds 45° C, the fast charge cycle will terminate prematurely, thus preventing the battery pack from reaching a fully charged state. Intel recommends mounting the battery remotely from the RAID controller when possible to provide additional cooling.

Installing the Intel® RAID Smart Battery AXXRSBBU8

To install the Intel® RAID Smart Battery AXXRSBBU8 on the Intel® RAID Controller, you must perform the following steps:

1. Remove the RAID Controller if it is already installed in the server system. For information, see “Removing the RAID Controller” on page 6.

2. Install the Intel one of the following methods:

— Install directly through the board-to-board connector. For information, see

“Installing Directly on the RAID Controller” on page 7.

— Set up a remote connection through the remote BBU connector. For information,

see “Setting up a Remote Connection to the RAID Controller” on page 9.

RAID Smart Battery AXXRSBBU8 on the RAID Controller using

3. Install the RAID Controller in the server system. For information, see “Installing the

Intel

RAID Controller in the Server System” on page 14.

Removing the RAID Controller

If the RAID controller is already installed in a computer, do the following to remove it before you install the Intel

1. Shut down the computer, turn off the power, and unplug the power cord(s).

2. Remove the chassis cover and ground yourself before touching the RAID controller. Carefully unplug all cables connected to the RAID controller. Press the silver spring at the connector end of the data cables to make sure the two tiny catches release.

3. Carefully remove the RAID controller from the server board. For more information on removing add-in cards, refer to the server board documentation.

4. Place the RAID controller on a flat, clean, static-free surface.

RAID Smart Battery AXXRSBBU8:

Installing the Intel® RAID Smart Battery AXXRSBBU8

You can either directly connect the Intel® RAID Smart Battery AXXRSBBU8 to the RAID Controller or you can set up a remote connection to the RAID Controller.

6 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

Installing Directly on the RAID Controller

To install the Intel® RAID Smart Battery AXXRSBBU8 on the RAID Controller through the J2 board-to-board connector (daughter card), do the following:

1. Ground yourself, and remove the Intel package.

2. Make sure the three screws, and Phillips* screwdriver are easily accessible during the following steps.

3. Remove the protective metal cover from the battery connector on the Intel Controller.

4. Align the battery for your specific RAID controller by placing the Intel Controller with the components facing up (see Figure 3).

RAID Smart Battery AXXRSBBU8 from the

RAID

Battery

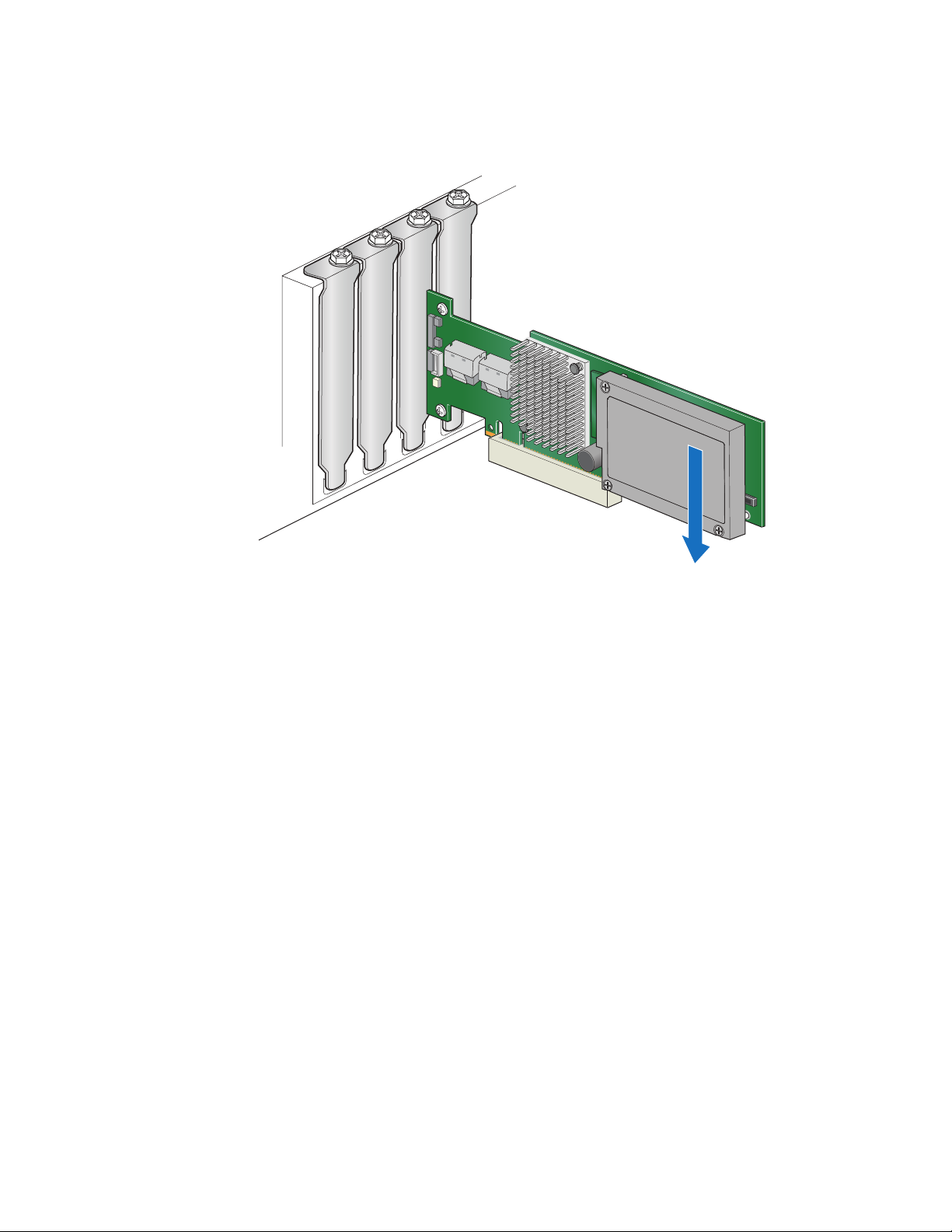

Figure 3. Installing Directly on the Intel

RAID Controller

AF003673

5. Hold the controller such that the battery side is up and the three screw holes are aligned.

6. Carefully press the Intel

RAID Smart Battery AXXRSBBU8 onto the RAID

controller, so that the two connectors shown above in Figure 6 are firmly joined

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 7

AF003674

Standoff 7/32’’ Screw

Battery Pack

RAID Controller

Header Connect

Figure 4. Mounting the Battery on a RAID Controller

7. Attach the Intel

RAID Smart Battery AXXRSBBU8 to the RAID controller using the three Phillips* (2-56) screws provided. Place the three screws from the RAID controller side.

Caution: Center the screwdriver carefully to avoid stripping the screw head. Do not over-tighten

the screws. The maximum recommended torque is 2.25-inches per pound.

8 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

Setting up a Remote Connection to the RAID Controller

AF003238

To install the Intel® RAID Smart Battery AXXRSBBU8 on the RAID Controller through the J2 Remote BBU connector, do the following:.

1. Ground yourself, and remove the Intel package.

2. Install the plastic standoff to the REB.

RAID Smart Battery AXXRSBBU8 from the

Figure 5. Installing the Plastic Standoff on the REB

3. Install the Remote Extension Board (REB) onto the RAID controller’s battery connector (JT3 on the RS2BL080).

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 9

Figure 6. Installing the REB onto the RAID Controller

AF003239

4. Verify that the wire from the battery is connected to the circuit board. If it is not connected, insert the battery pack harness connector at the end of the colored wires into the 5-pin J4 connector (see letter “A” in Figure 1) on the back side of the battery.

10 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

Note: Please carefully observe how the battery cable connectors are keyed and to avoid

asserting unnecessary force when plugging in the cable.

Figure 7. Connecting the Cables

Connecting the Plastic Battery Holder to the Chassis

The Intel® RAID Smart Battery AXXRSBBU8 is designed for easy attachment to either an Intel your server.

pedestal or rack mount chassis. Complete the following instructions for

AF003675

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 11

If you are installing this component into a third-party chassis, you must first install an attachment mechanism, such as industrial-grade Velcro*. Refer to your server chassis documentation or discuss an appropriate attachment mechanism with your server chassis manufacturer to ensure the attachment mechanism complies with the chassis requirements.

Server Chassis SC5400, Intel® Server Chassis SC5600, Intel® Server Chassis SC5650,

Intel

Server Systems SR1600UR, SR1625UR, SR2600UR, and SR2625UR

1. Locate the installation clips inside the chassis. They are on the left side of the chassis, near the rear. Remove the mylar pad if there is a mylar pad covering the mounting hole.

2. Align the tabs on the plastic battery holder with the clips on the chassis (Figure 8).

AF003676

Figure 8. Aligning Holder’s Tabs to the Chassis Clips

3. Slide the plastic battery holder toward the front of the system until the tabs engage with the clips in the chassis (Figure 9).

12 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

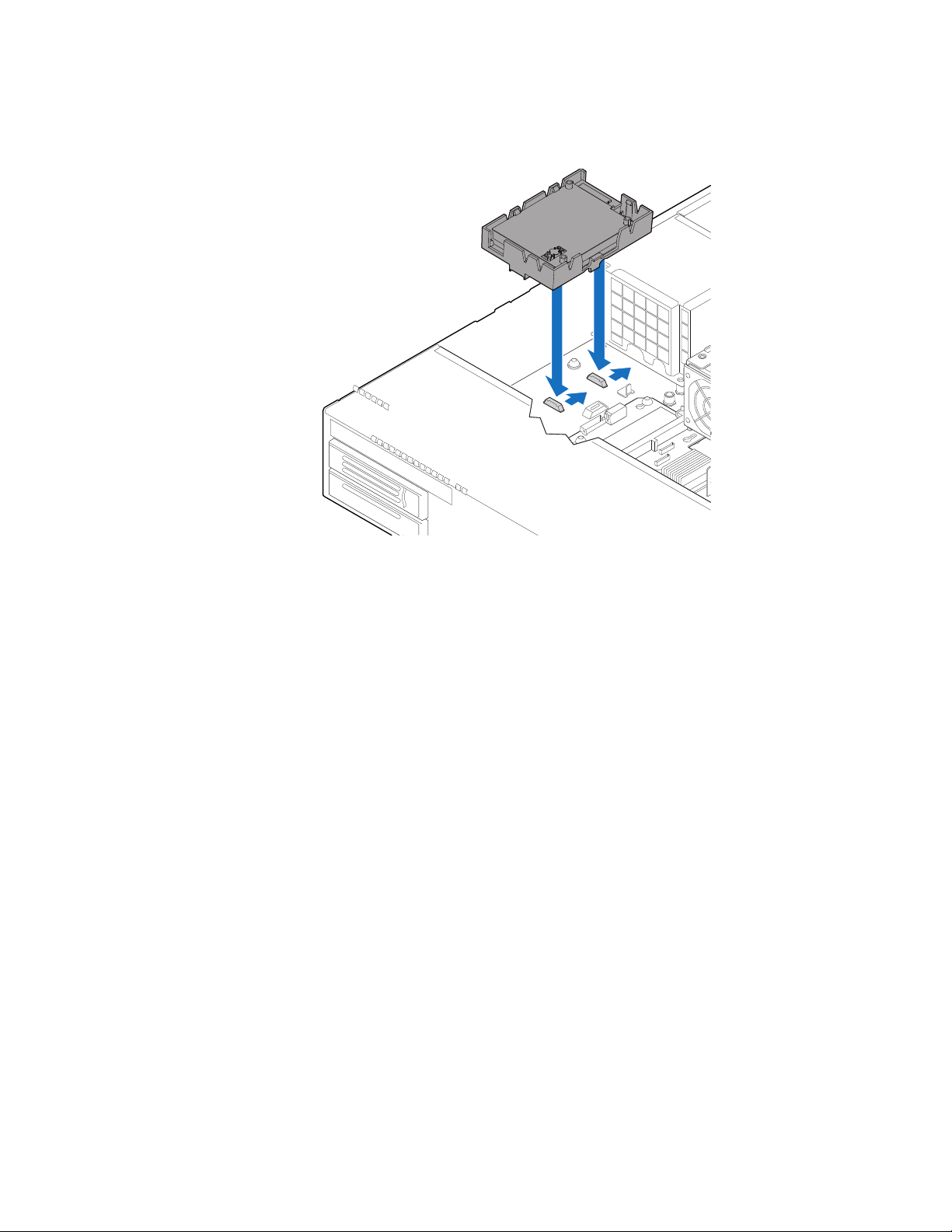

Figure 9. Engaging Plastic Battery Holder Tabs with the Chassis Clips

AF003677

Server Systems SR1600UR, SR1625UR, SR2600UR, SR2625UR, SR1550AL, and

Intel SR2500ALLX with Intel

Integrated RAID SROMBSASMP2, Intel® Server Systems SR1550AL,

and SR2500ALLX

1. Locate the installation clips inside the chassis. They are located on the inside floor of the hassis, on the left side, near the front of the chassis by the power supply.

2. Align the tabs on the plastic battery holder with the clips on the chassis.

3. Slide the plastic battery holder toward the rear of the system until the tabs engage with the clips in the chassis (Figure 10).

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 13

Figure 10. Engaging Holder Tabs with the Chassis Clips

AF003678

Attaching the Connecting Cable to the Server System

Follow the appropriate set of instructions below for your server.

1. Route the cable through the cable holder on the edge of the chassis.

2. Connect the cable to the RAID controller or remote mounting board.

Installing the Intel® RAID Controller in the Server System

To install the Intel® RAID Controller back into the server system, do the following:

1. Align the RAID controller with the PCI Express* slot.

2. Press down gently, but firmly, to ensure that the RAID controller is properly seated in the slot. The bottom edge of the RAID controller must be flushed with the slot.

14 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

Figure 11. Seating the RAID Card into PCI Express* Slot

AF003679

Battery

Caution: Never apply pressure to the Intel

RAID controller. Only press down on the top edge of the RAID controller.

3. Attach the cables, as needed, to the connectors on the Intel

4. Replace the chassis cover and reattach the power cord(s).

RAID Smart Battery AXXRSBBU8 when you insert the

RAID controller.

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 15

16 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

3 Monitoring Battery Backup

Multiple utilities are available to display and configure the BBU information, including the recharge count. When you replace a BBU, you should reset this counter to zero. Intel recommends that you replace the BBU once a year or after 500 recharge cycles, whichever comes first.

Note: This chapter describes only the BBU-related features of the utility programs. For

complete information on these utilities, see the Intel

RAID Software User's Guide.

Monitoring the BBU with the Intel® RAID BIOS Configuration Utility

The Intel® RAID BIOS Console can be used to configure disk arrays and logical drives. It is independent of the operating system and can be accessed at server start up by pressing <Ctrl>+<G>.

To view the BBU information, do the following:

1. At boot, press <Ctrl> + <G> when prompted.

2. Once the Intel Adapter Properties.

3. Click Next to view the second Adapter Properties screen.

4. In the Battery Backup field at the top left of the Adapter Properties screen, click Present.

5. The Battery Module screen appears, as shown in Figure 12. This screen contains the following information:

— Battery information

— Design information

RAID BIOS Console loads and the main menu appears, choose

— Capacity information

— Auto Learn properties and settings

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 17

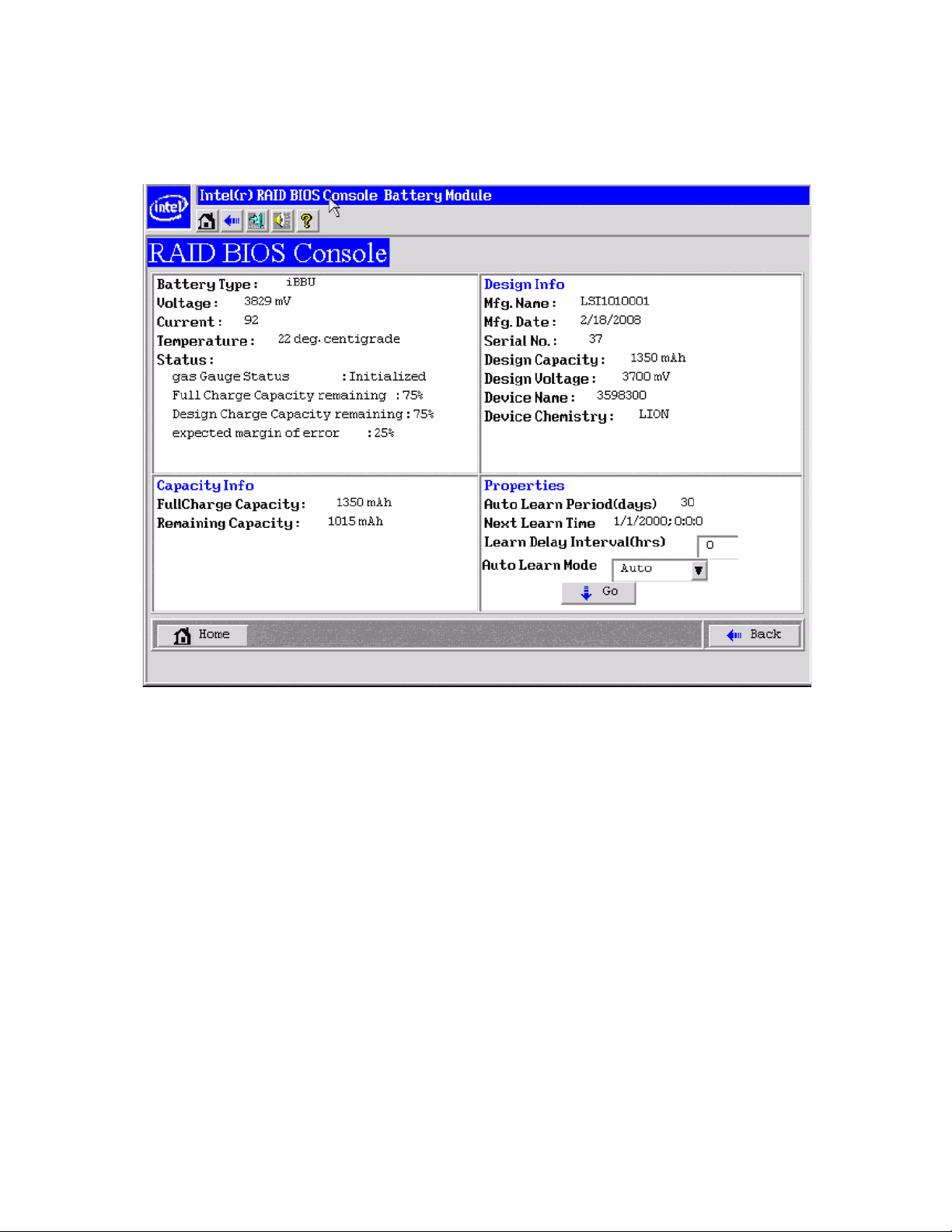

Figure 12. Monitoring the Battery with Intel

Most of the battery module properties are view-only. In the lower right panel of the Intel

RAID BIOS Console

RAID BIOS Console screen, there are two properties that can be changed. Although Intel recommends that you use the default settings for these options. The default settings for the two properties are:

• Learn Delay Interval (hrs) - The default is 0 hour.

• Auto Learn Mode - The default is Auto.

Note: The learning cycle is a battery calibration operation performed periodically by the

controller to determine the condition of the battery.

Using Intel® RAID Web Console 2

To view the status of all BBUs connected to controllers in the server, select the Physical tab in the left panel of the Intel controller. The Battery Backup Unit appears as the last item on the list under that

18 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

RAID Web Console 2. To see the battery, select the

controller (see Figure 13). An icon (small rectangle or red dot) appears in the left pane to indicate the BBU status. The rectangle indicates normal operation; a red dot indicates the BBU has failed.

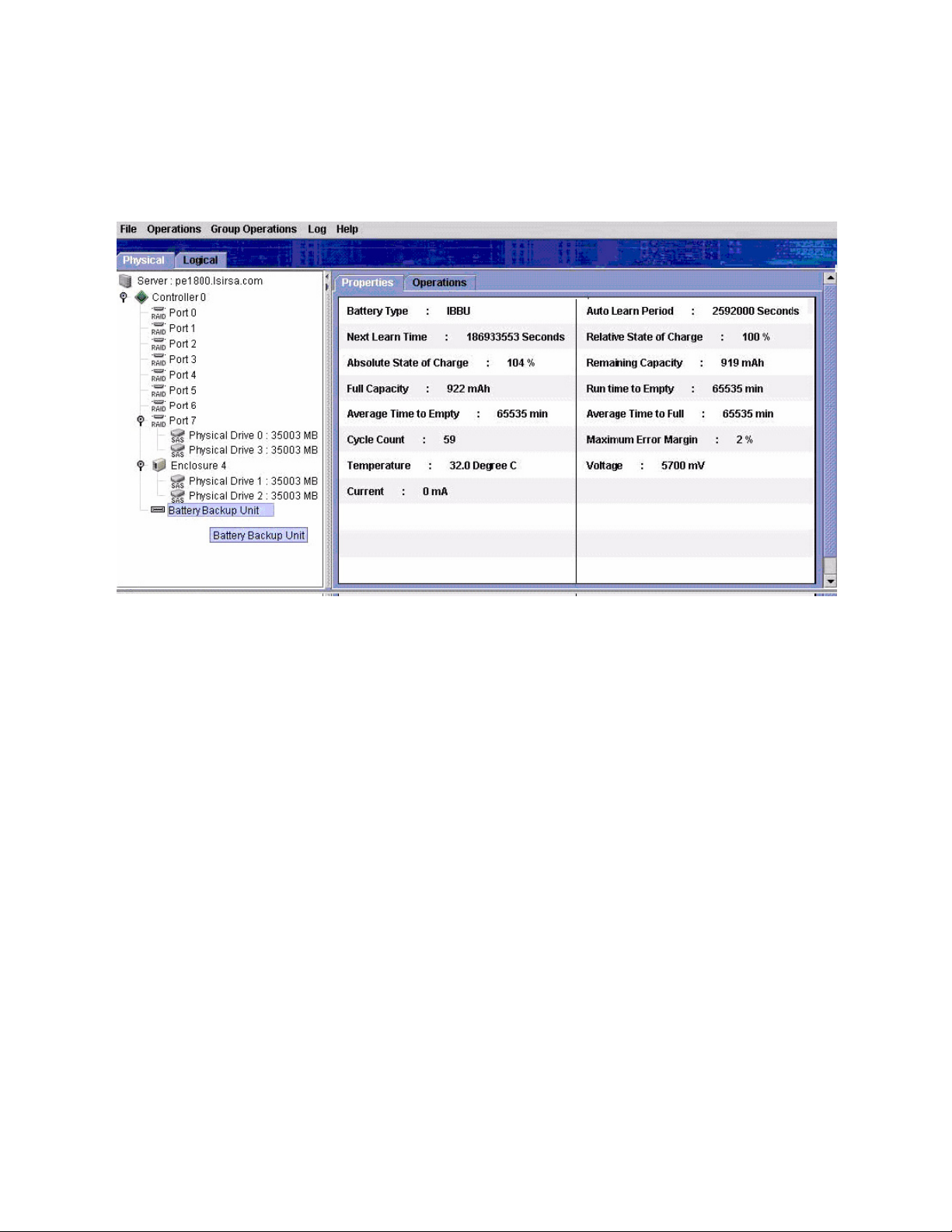

Figure 13. BBU information in Intel

RAID Web Console 2

The Battery Backup Unit properties include:

• The number of times the BBU has been recharged (Cycle Count).

• The full capacity of the BBU, percentage of the current charge, and the estimated time

until the charge will be depleted.

• The BBU temperature, voltage, current, and remaining capacity.

• The estimated time until the battery is fully charged if the battery is currently

charging.

Learn cycle is a battery calibration operation performed by the controller periodically to determine the condition of the battery. You can start battery learn cycles manually or automatically. To choose automatic battery learn cycles, enable automatic learn cycles. To choose manual battery learn cycles, disable automatic learn cycles.

If you enable automatic learn cycles, you can delay the start of the learn cycles for up to 168 hours (7 days). If you disable automatic learn cycles, you can start the learn cycles manually, and you can choose to receive a reminder to start a manual learn cycle.

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 19

20 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

4 Replacing Battery Backup Units

Intel recommends that you replace each BBU once in one year or after 500 recharging cycles, whichever comes first. The battery pack has one year warranty. After you install a new BBU, use one of the Intel configuration utilities to reset the battery recharge cycle counter to zero. For instructions, see “Monitoring the BBU with the Intel® RAID BIOS

Configuration Utility” on page 17.

Disposing of Battery Backup Units

Warning: Do not damage the battery pack in any way. Toxic chemicals can be released if it is

damaged.

The material in the battery pack contains heavy metals that can contaminate the environment. Federal, state, and local regulations prohibit the disposal of rechargeable batteries in public landfills. Be sure to recycle old battery packs properly. Intel would like to remind you that you must comply with all applicable battery disposal and hazardous material handling laws and regulations in the country or other jurisdiction where you are using the BBU.

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 21

22 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

5 Battery Backup Unit Specifications

Table 2. BBU Specifications

Battery Technology Lithium-Ion (Li-Ion)

Battery Operating Environment 10-55°C dry bulb temperature

(The maximum dry bulb temperature shall be derated by 3.3°C per 1000 m above 500 m)

5% to 90% relative humidity noncondensing

Battery Storage Temperature Storage Temperature Range (dry bulb)

10°C to 55°C (maximum period of 3) months (The maximum dry bulb temperature shall be de-rated by 3.3°C per 1000 m above 500 m)

Fast Charge Rate 500 mAH

Battery Voltage Nominal Battery Voltage: 3.7 V

Mechanical 76.1 mm x 53.5 mm

(battery extends over PCB)

Battery Capacity 1500 mAH

Battery Charge Time Typical: Approximate 6 hours

Battery Shelf Life 1 year

Battery Operational Life Intel

Memory DDR2 or DDR3 SDRAM 800MHz (1.8 V),

Smart Battery Monitoring Temperature is monitored using the I

Auxiliary Power Ability to detect the presence of an

provides a one year warranty on the

Intel

RAID Smart Battery AXXRSBBU8

maximum 72-bit bus width

C interface; Supports v1.1 “Smart Battery System Manager”

external auxiliary power source. Circuitry automatically chooses auxillary power and defers discharge until auxillary power is removed or exhausted. Auxillary power increases the DRT ratings.

Battery Life and Data Retention Time

The Intel utilities display a counter showing the number of times a BBU has been recharged. When you replace a BBU, you should run the utility program and reset this counter to zero for the new BBU. Intel the BBU once in one year or after 500 recharging cycles, whichever comes first. The battery pack has one year warranty.

Intel® RAID Smart Battery AXXRSBBU8 User’s Guide 23

recommends that you replace the battery pack on

24 Intel® RAID Smart Battery AXXRSBBU8 User’s Guide

Intel AXXRSBBU8 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Information

Important Safety Instructions

Wichtige Sicherheitshinweise

Consignes de sécurité

Instrucciones de seguridad importantes

Warnings

Table of Contents

List of Figures

List of Tables

2 Installing the Hardware

Remote Extender Board (REB)

Remote Battery Connecting Cables

Important Pre-installation Considerations

Installing the Intel® RAID Smart Battery AXXRSBBU8

Removing the RAID Controller

Installing the Intel® RAID Smart Battery AXXRSBBU8

Installing Directly on the RAID Controller

Setting up a Remote Connection to the RAID Controller

Connecting the Plastic Battery Holder to the Chassis

Attaching the Connecting Cable to the Server System

Installing the Intel® RAID Controller in the Server System

3 Monitoring Battery Backup

Monitoring the BBU with the Intel® RAID BIOS Configuration Utility

Using Intel® RAID Web Console 2

4 Replacing Battery Backup Units

Disposing of Battery Backup Units

5 Battery Backup Unit Specifications

Battery Life and Data Retention Time
