Intel® WiFi Adapter Information Guide

This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below. However, note that newer features provided in this software release are generally not supported for older, legacy adapters.

The following adapters are supported on this release for Windows* 10:

Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 8260 (64-bit only) Intel® Dual Band Wireless-AC 8265 Intel® Wireless-AC 9260 Intel® Wireless-AC 9461 Intel® Wireless-AC 9462 Intel® Wireless-AC 9560 Intel® Wireless Gigabit 11000 Intel® Wireless Gigabit 11100VR Intel® Wireless Gigabit Sink W13100 Intel® Wireless Gigabit Sink W13110VR Intel® Tri-Band Wireless-AC 18265 Intel® Wi-Fi 6 AX201 Intel® Wi-Fi 6 AX200

The following adapters are supported on this release for Windows* 8 and Windows* 8.1 with Windows* 7 drivers from Intel®:

Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6230

The following adapters are supported on this release for Windows* 8 with Windows* 8 drivers from Intel®:

Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 3168 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260

The following adapters are supported on this release for Windows* 8.1 with Windows* 8 drivers from Intel®:

Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300

The following adapters are supported on this release for Windows* 8.1 with Windows* 8.1 drivers from Intel®:

Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 3168 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260 Intel® Tri-Band Wireless-AC 17265 Intel® Tri-Band Wireless-AC 18260 Intel® Wireless Gigabit 11000

With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change.

This guide contains basic information about Intel adapters. It includes information about several adapter properties that you can set to control and enhance the performance of your adapter with your particular wireless network and environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs.

Adapter Settings Regulatory Information Specifications Important Information Support Warranty Glossary

Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and

802.11n (draft 2.0) wireless standards. Operating at 5GHz or 2.4GHz frequency at data rates of up to 450 Mbps, you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your WiFi adapter maintains automatic data rate control according to the access point location and signal strength to achieve the fastest possible connection. All of your wireless network connections are easily managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced security measures with 802.1X network authentication.

Hillsboro, OR 97124-6497 USA

The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel

Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be

used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

*Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any

commitment to update the information contained herein. IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all

necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure.

For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless LAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products.

Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition systemlevel regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant.

May 16, 2019

Back to Contents

Adapter Settings

The Advanced tab displays the device properties for the WiFi adapter installed on your computer.

How to Access

At the Intel® PROSet/Wireless WiFi Connection Utility, Advanced Menu click Adapter Settings. Select the Advanced tab.

WiFi Adapter Settings Description

Name Description

802.11ac Mode

(5GHz)

802.11n Channel Width (2.4 GHz)

The 802.11ac standard builds on 802.11n standard. 802.11ac Mode delivers up to 867Mbps (theoretical) by increasing channel bandwidth to 80MHz and adding higher density modulation (256 QAM). Select Enabled or Disabled to set the 802.11ac mode of the WiFi adapter. Enabled is the default setting. This setting applies to 802.11ac capable adapters only.

Set high throughput channel width to maximize performance. Set the channel width to Auto or 20MHz. Use 20MHz if 802.11n channels are restricted. This setting applies to

802.11n capable adapters only. NOTE: This setting does not apply to the Intel® Wireless WiFi Link 4965AGN (uses 20 MHz

channel width only).

802.11n Channel Width (5.2 GHz)

802.11n Mode The 802.11n standard builds on previous 802.11 standards by adding multiple-input

Ad Hoc Channel

802.11b/g Ad Hoc QoS

Mode

Set high throughput channel width to maximize performance. Set the channel width to Auto or 20MHz. Use 20MHz if 802.11n channels are restricted. This setting applies to

802.11n capable adapters only. NOTE: This setting does not apply to the following adapters:

Intel® WiFi Link 1000 Intel® Wireless WiFi Link 4965AGN

multiple-output (MIMO). MIMO increases data throughput to improve transfer rate. Select Enabled or Disabled to set the 802.11n mode of the WiFi adapter. Enabled is the default setting. This setting applies to 802.11n capable adapters only.

NOTE: To achieve transfer rates greater than 54 Mbps on 802.11n connections, WPA2*AES security must be selected. No security (None) can be selected to enable network setup and troubleshooting.

An administrator can enable or disable support for high throughput mode to reduce powerconsumption or conflicts with other bands or compatibility issues.

Select Enabled or Disabled.

Quality of Service (QoS) control in ad hoc networks. QoS provides prioritization of traffic from the access point over a wireless LAN based on traffic classification. WMM (Wi-Fi Multimedia) is the QoS certification of the Wi-Fi Alliance (WFA). When WMM is enabled, the WiFi adapter uses WMM to support priority tagging and queuing capabilities for Wi-Fi networks.

WMM Enabled WMM Disabled (Default)

Bluetooth®

NOTE: The optimal setting is for a user to always set the transmit power at the lowest

AMP HT Mode/VHT

Mode/Disabled

Fat Channel Intolerant

Enable or disable Bluetooth® AMP. AMP stands for alternate MAC/PHY and uses the 802.11 (Wi-Fi) as the high-speed transport. If disabled, Bluetooth HS is turned off.

This settings lets you select HT Mode (High Throughput mode), VHT Mode (Very High Throughput Mode) or to disable both modes. HT Mode supports 802.11n compatibility, whereas VHT Mode supports 802.11ac compatibility.

This setting communicates to access points that this WiFi adapter does not prefer 40MHz channels in the 2.4GHz band. The default setting is for this to be turned off (disabled), so that the adapter does not send this notification. If the access point continues to use 40MHz channels, the WiFi adapter will also use 40MHz channels if the 802.11n Channel Width (2.4GHz) setting is AUTO.

NOTE: This setting does not apply to the following adapters:

Intel® Wireless WiFi Link 4965AG_ Intel® PRO/Wireless 3945ABG Network Connection

Mixed mode protection

Preferred Band In an environment with other radiating devices nearby (such as microwave ovens, cordless

Roaming Aggressiveness

Use to avoid data collisions in a mixed 802.11b and 802.11g environment. Request to Send/Clear to Send (RTS/CTS) should be used in an environment where clients may not hear each other. CTS-to-self can be used to gain more throughput in an environment where clients are in close proximity and can hear each other.

telephones, access points, or client devices), in order to reduce interference you may prefer the 5GHz band over the 2.4GHz band, or vice-versa. Your choices are:

No Preference Prefer 2.4GHz band Prefer 5GHz band

Here are the various Wi-Fi bands:

802.11 legacy - 2.4GHz

802.11a - 5GHz

802.11b - 2.4GHz

802.11g - 2.4GHz

802.11n - 2.4GHz and 5GHz

802.11ac - 5GHz

802.11ad - 60GHz

This setting lets you define how aggressively your wireless client roams to improve connection to an access point. There are five available settings.

Transmit Power

3. Medium: This is the default. A balanced setting between not roaming and

performance.

1. Lowest: Your wireless client will not roam. Only significant link quality degradation causes it to roam to another access point.

5. Highest: Your wireless client continuously tracks the link quality. If any degradation occurs, it tries to find and roam to a better access point.

Default Setting: Highest power setting. Lowest: Minimum Coverage: Set the adapter to the lowest transmit power. Enables you

to expand the number of coverage areas or confine a coverage area. Reduces the coverage area in high traffic areas to improve overall transmission quality and avoids congestion and interference with other devices.

Highest: Maximum Coverage: Set the adapter to a maximum transmit power level. Select for maximum performance and range in environments with limited additional WiFi radio devices.

possible level that is still compatible with the quality of their communication. This allows the

maximum number of wireless devices to operate in dense areas and reduce interference with other devices that it shares the same radio spectrum with.

NOTE: This setting takes effect when either Network (Infrastructure) or Device to Device (ad hoc) mode is used.

Wake on Magic Packet

This setting, enabled, wakes the computer from a sleep state when it receives a "magic packet" from a sending computer. The magic packet contains the MAC address of the intended destination computer.

Enabling turns on Wake on Magic Packet. Disabling turns off Wake on Magic Packet. Disabling this only disables the magic packet feature, not Wake on Wireless LAN.

Wake on Pattern Match

This feature wakes the computer from a sleep state when a particular wake pattern is received at the adapter. This feature is supported by Windows* 7 and Windows 8. Such patterns typically are:

Wake on new incoming TCP connection for IPv4 and IPv6 (TCP SYN IPv4 and TCP SYN IPv6). Wake on 802.1x re-authentication packets.

Disabling this only disables the pattern match feature, not Wake on Wireless LAN.

Wireless Mode Select which mode to use for connection to a wireless network:

802.11a only: Connect the wireless WiFi adapter to 802.11a networks only. Not

applicable for all adapters.

802.11b only: Connect the wireless WiFi adapter to 802.11b networks only. Not applicable for all adapters.

802.11g only: Connect the wireless WiFi adapter to 802.11g networks only.

802.11a and 802.11g: Connect the WiFi adapter to 802.11a and 802.11g networks

only. Not applicable for all adapters.

802.11b and 802.11g: Connect the WiFi adapter to 802.11b and 802.11g networks only. Not applicable for all adapters.

802.11a, 802.11b, and 802.11g: (Default) - Connect to either 802.11a, 802.11b or 802.11g wireless networks. Not applicable for all adapters.

OK Saves settings and returns to the previous page. Cancel Closes and cancels any changes.

Back to Top Back to Contents

Trademarks and Disclaimers

Back to Contents

Regulatory Information

This section provides regulatory information for the following wireless adapters:

Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 3168 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260 Intel® Dual Band Wireless-AC 8265 Intel® Wireless-AC 9260 Intel® Wireless-AC 9461 Intel® Wireless-AC 9462 Intel® Wireless-AC 9560 Intel® Tri-Band Wireless-AC 17265 Intel® Tri-Band Wireless-AC 18260 Intel® Tri-Band Wireless-AC 18265 Intel® Wireless Gigabit Sink W13100 Intel® Wireless Gigabit 11000 Intel® Wireless Gigabit Sink W13110VR Intel® Wireless Gigabit 11100VR Intel® Wi-Fi 6 AX201 Intel® Wi-Fi 6 AX200

NOTE: Due to the evolving state of regulations and standards in the wireless LAN field (IEEE 802.11 and similar standards), the information provided herein is subject to change. Intel Corporation assumes no responsibility for errors or omissions in this document.

Intel WiFi/WiMAX Wireless Adapters

Information in this section supports the following wireless adapters:

Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N + WiMAX 6250

See Specifications

for complete wireless adapter specifications.

NOTE: In this section, all references to the "wireless adapter" refer to all adapters listed above.

The following information is provided:

Information for the User Regulatory Information Regulatory ID Information for OEMs and Host Integrators

INFORMATION FOR THE USER Safety Notices

USA FCC Radio Frequency Exposure

The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. The wireless adapter meets the Human Exposure requirements found in FCC Part 2, 15C, 15E along with guidance from KDB 447498, KDB 248227 and KDB 616217. Proper operation of this radio according to the instructions found in this manual will result in exposure substantially below the FCC’s recommended limits.

The following safety precautions should be observed:

Do not touch or move antenna while the unit is transmitting or receiving. Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause damage to the radio. Use in specific environments:

The use of wireless adapters in hazardous locations is limited by the constraints posed by the safety directors of such environments. The use of electronic devices equipped with wireless adapters on airplanes is governed by rules for each commercial airline operator. The use of wireless adapters in hospitals is restricted to the limits set forth by each hospital.

Explosive Device Proximity Warning

Warning: Do not operate a portable transmitter (including this wireless adapter) near unshielded blasting caps

or in an explosive environment unless the transmitter has been modified to be qualified for such use.

Antenna Warnings

Warning: The wireless adapter is not designed for use with high-gain directional antennas.

Use On Aircraft Caution

Caution: Regulations of commercial airline operators may prohibit airborne operation of certain electronic devices equipped with radio-frequency wireless devices (wireless adapters) because their signals could interfere with critical aircraft instruments.

Caution: 60 GHz/802.11ad equipment is not permitted on aircraft per FCC §15.255. OEM and host integrators should consider this FCC rule in host devices.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network: See the documentation supplied with wireless

adapters or other devices in the wireless network.

Local Restrictions on 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, 802.11ac, and 802.16e Radio Usage

Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, 802.11ac, and 802.16e wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11d, 802.11g,

802.11n, 802.11ac, and 802.16e products are designed for use only in specific countries, and are not allowed to be operated in countries other than those of designated use. As a user of these products, you are responsible for ensuring that the products are used only in the countries for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country of use. The device transmit power control (TPC) interface is part of the Intel® PROSet/Wireless WiFi Connection Utility Software. Operational restrictions for Equivalent Isotropic Radiated Power (EIRP) are provided by the system manufacturer. Any deviation from the permissible power and frequency settings for the country of use is an infringement of national law and may be punished as such.

Wireless Interoperability

The wireless adapter is designed to be interoperable with other wireless LAN products that are based on direct sequence spread spectrum (DSSS) radio technology and to comply with the following standards:

IEEE Std. 802.11b compliant Standard on Wireless LAN IEEE Std. 802.11g compliant Standard on Wireless LAN IEEE Std. 802.11a compliant Standard on Wireless LAN IEEE Std. 802.11n draft 2.0 compliant on Wireless LAN IEEE 802.16e-2005 Wave 2 compliant Wireless Fidelity certification, as defined by the Wi-Fi Alliance WiMAX certification as defined by the WiMAX Forum

The Wireless Adapter and Your Health

The wireless adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by the wireless adapter, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile phones. The wireless adapter operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of the wireless adapter may be restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of such situations may include:

Using the wireless adapter on board airplanes, or Using the wireless adapter in any other environment where the risk of interference with other devices or services is perceived or identified as being harmful.

If you are uncertain of the policy that applies to the use of wireless adapters in a specific organization or environment (an airport, for example), you are encouraged to ask for authorization to use the adapter before you turn it on.

REGULATORY INFORMATION USA - Federal Communications Commission (FCC)

This wireless adapter is restricted to indoor use due to its operation in the 5.15 to 5.25 and 5.470 to 5.75GHz frequency ranges. No configuration controls are provided for Intel® wireless adapters allowing any change in the frequency of operations outside the FCC grant of authorization for U.S. operation according to Part 15.407 of the FCC rules.

Intel® wireless adapters are intended for OEM integrators only. Intel® wireless adapters cannot be co-located with any other transmitter unless approved by the FCC.

This wireless adapter complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference that may cause undesired operation.

Class B Device Interference Statement

This wireless adapter has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This wireless adapter generates, uses, and can radiate radio frequency energy. If the wireless adapter is not installed and used in accordance with the instructions, the wireless adapter may cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a particular installation. If this wireless adapter does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one or more of the following measures:

Reorient or relocate the receiving antenna of the equipment experiencing the interference. Increase the distance between the wireless adapter and the equipment experiencing the interference. Connect the computer with the wireless adapter to an outlet on a circuit different from that to which the equipment experiencing the interference is connected. Consult the dealer or an experienced radio/TV technician for help.

NOTE: The adapter must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Any other installation or use will violate FCC Part 15 regulations.

Safety Approval Considerations

This device has been safety approved as a component and is for use only in complete equipment where the acceptability of the combination is determined by the appropriate safety agencies. When installed, consideration must be given to the following:

It must be installed into a compliant host device meeting the requirement of UL/EN/IEC 60950-1 2nd edition including the general provisions of enclosure design 1.6.2 and specifically paragraph 1.2.6.2 (Fire Enclosure). The device shall be supplied by a SELV source when installed in the end-use equipment. A heating test shall be considered in the end-use product for meeting the requirement of UL/EN/IEC 60950-1 2nd edition.

Low Halogen

Applies only to brominated and chlorinated flame retardants (BFRs/CFRs) and PVC in the final product. Intel components as well as purchased components on the finished assembly meet JS-709 requirements, and the PCB / substrate meet IEC 61249-2-21 requirements. The replacement of halogenated flame retardants and/or PVC may not be better for the environment.

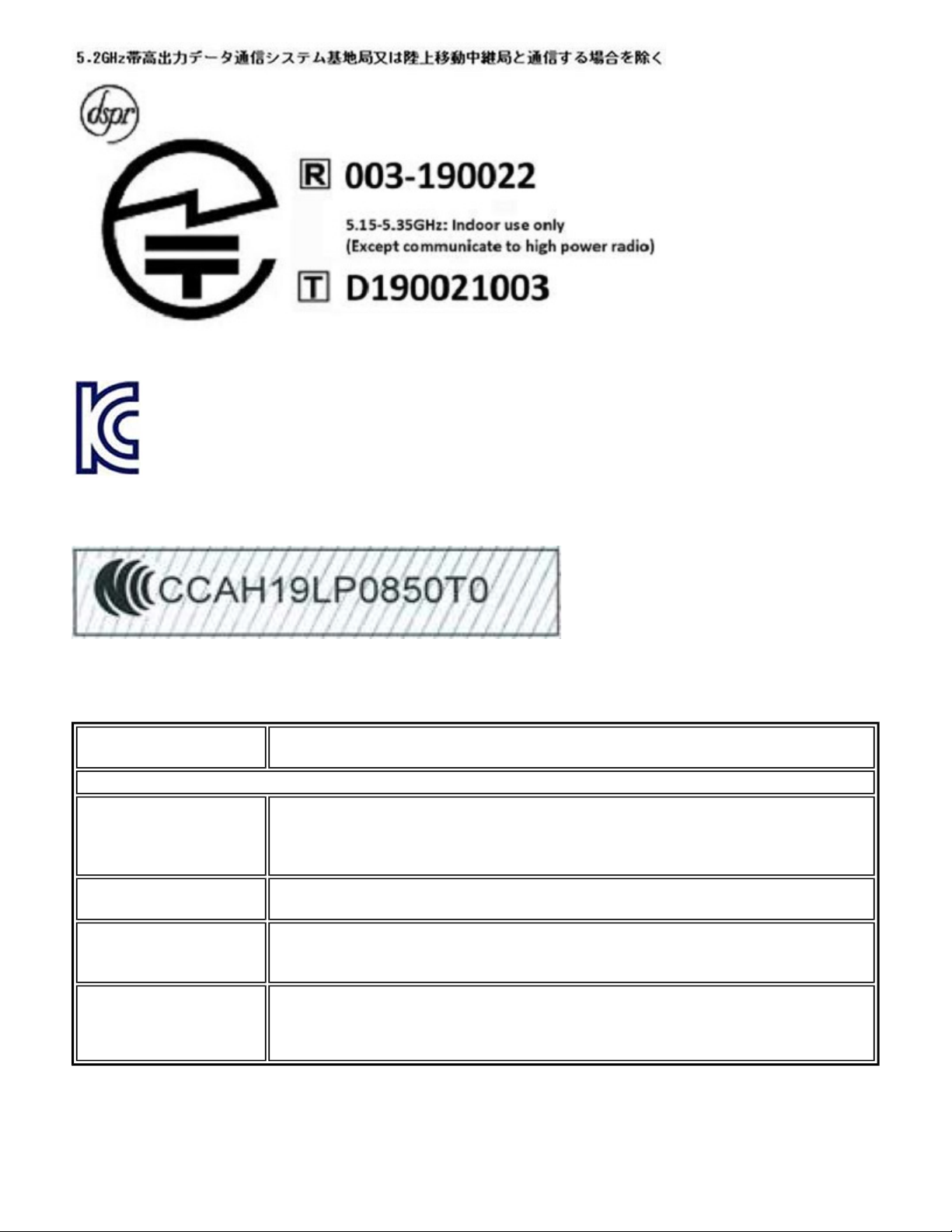

Japan

5GHz 帯は室内でのみ使用のこと

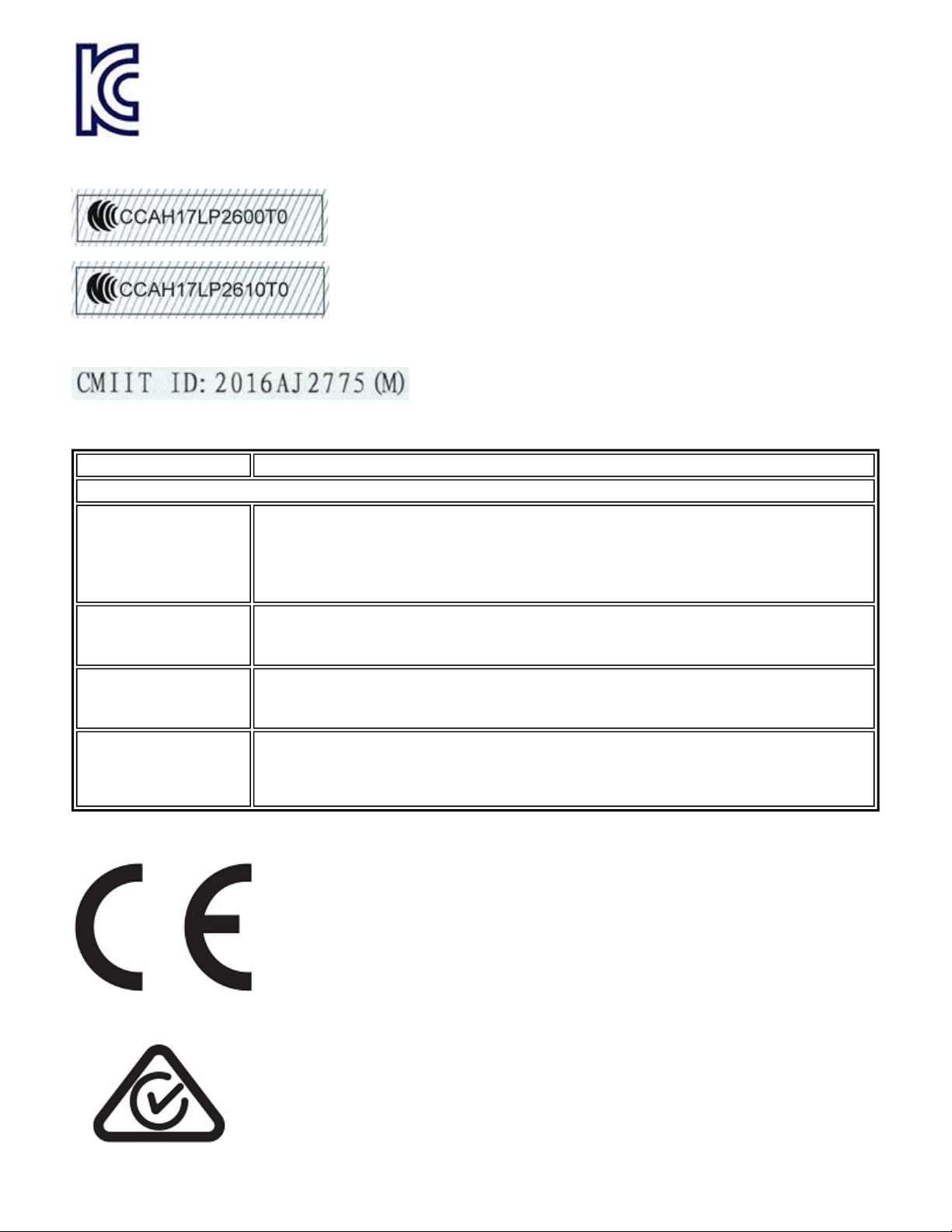

Korea

해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음. 해당 무선 설비는

5150-5250MHz

대역에서 실내에서만 사용할 수 있음

.

Mexico

La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo

no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la

que pueda causar su operación no deseada.

Taiwan

第十二條

經型式認識合格

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信經發現有干擾現象時應立即停用並改善至無干擾時方得繼續使用。前項合法通信, 指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

在 5.25-5.35 秭

之

低功率射頻電機. 非經許可公司、商號或使用者均不得擅自變更頻率‵

赫

頻帶內操作之無線資訊傳輸設備限於室內使用。

加

大功率或變更原設計

之

特性及功能.

Radio Approvals

To determine whether you are allowed to use your wireless network device in a specific country, please check to see if the radio type number that is printed on the identification label of your device is listed in the manufacturer's OEM Regulatory Guidance document.

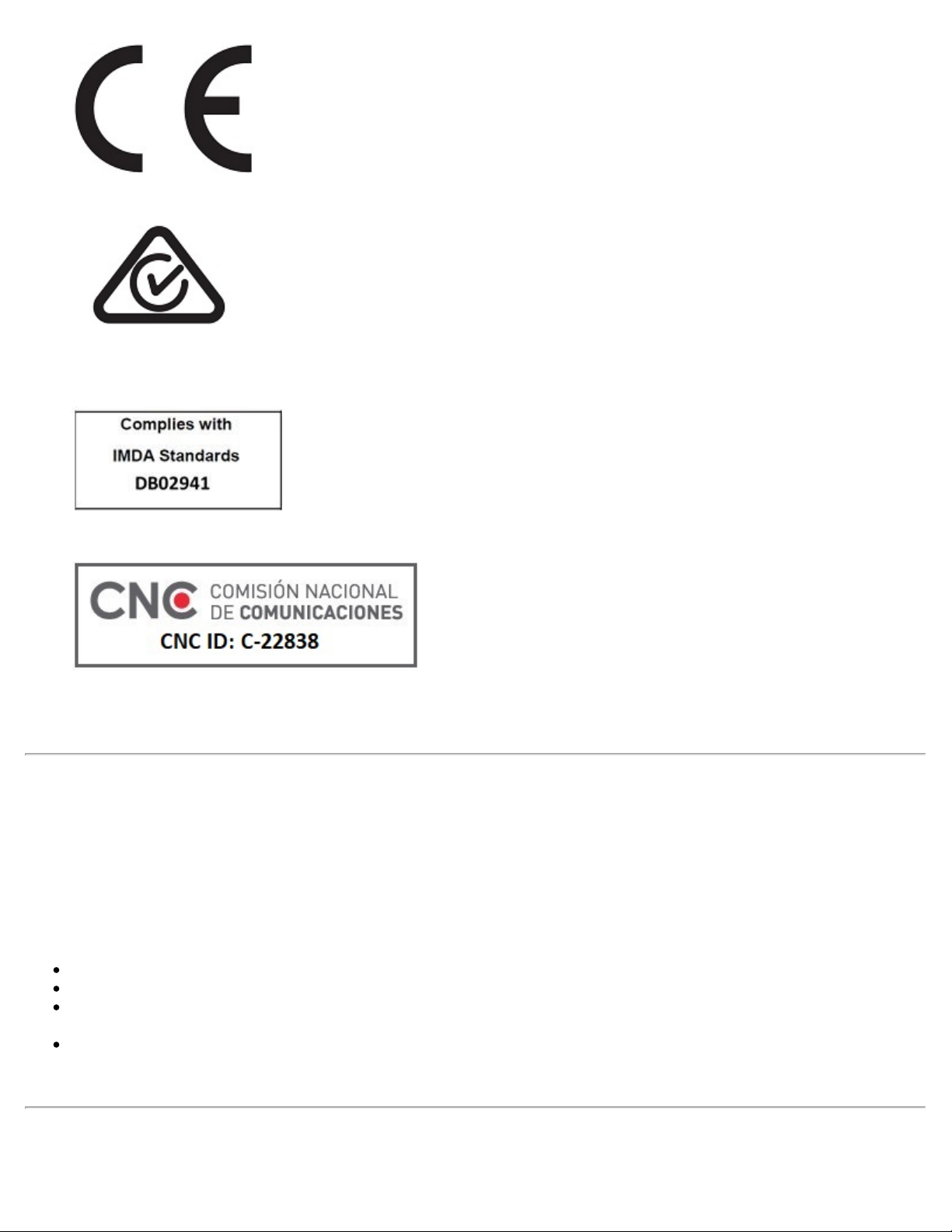

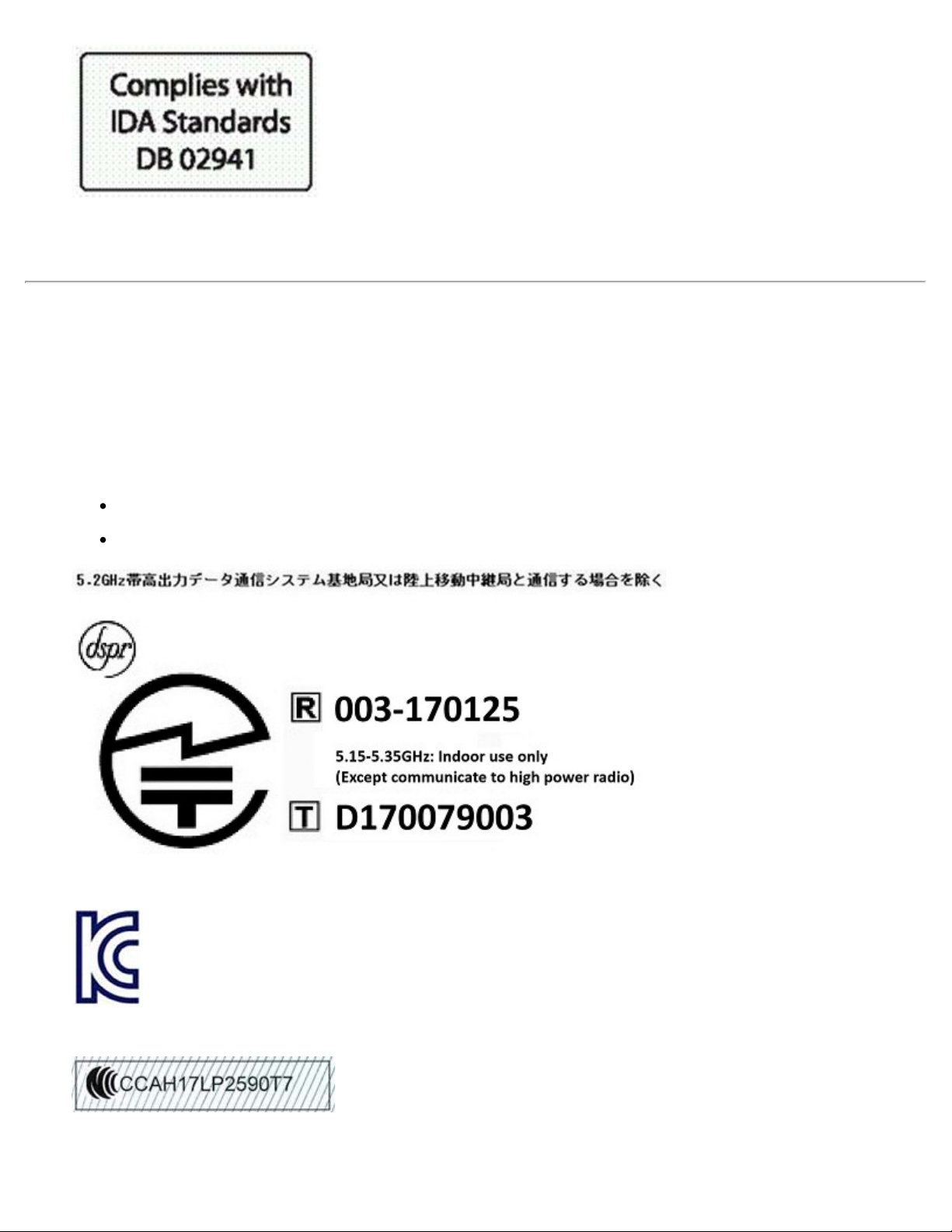

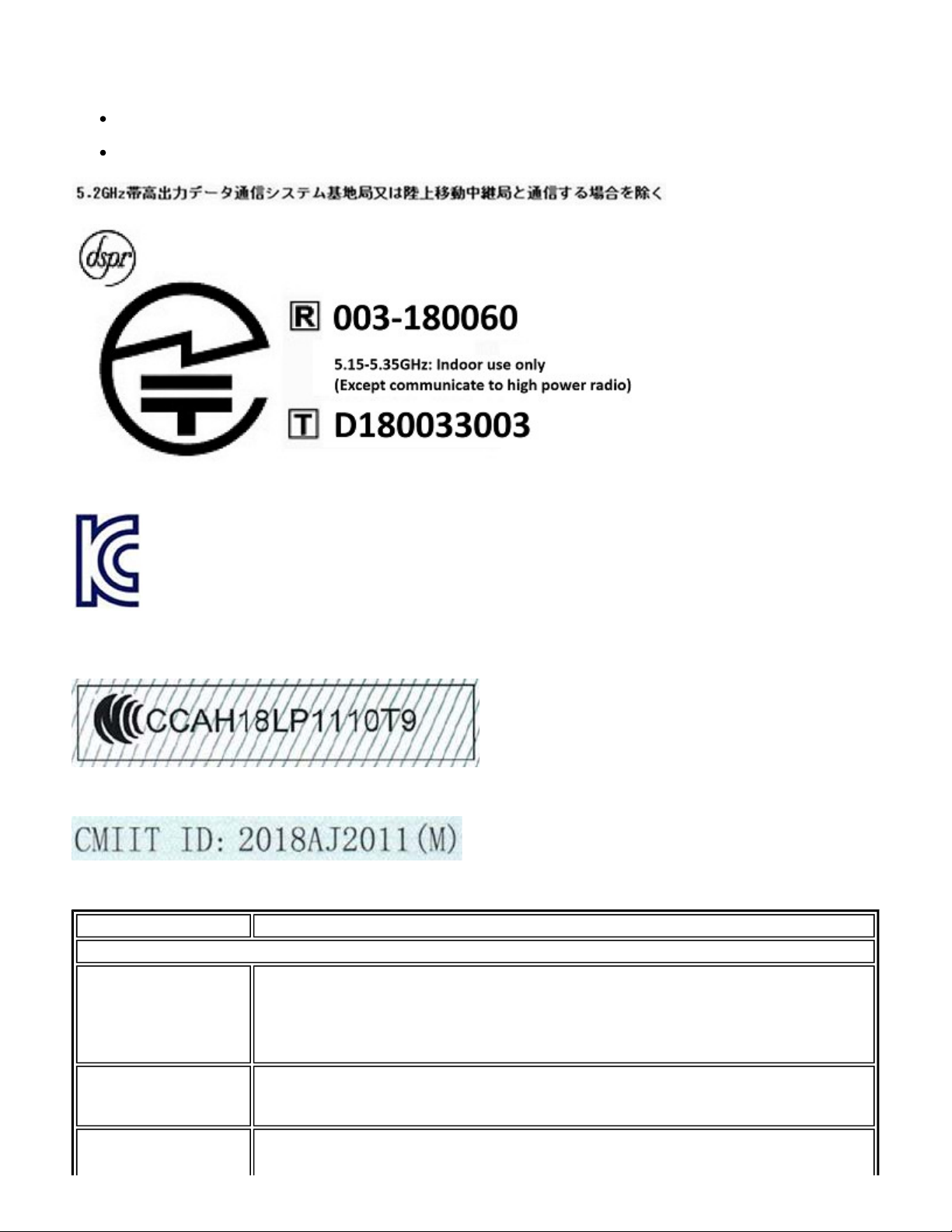

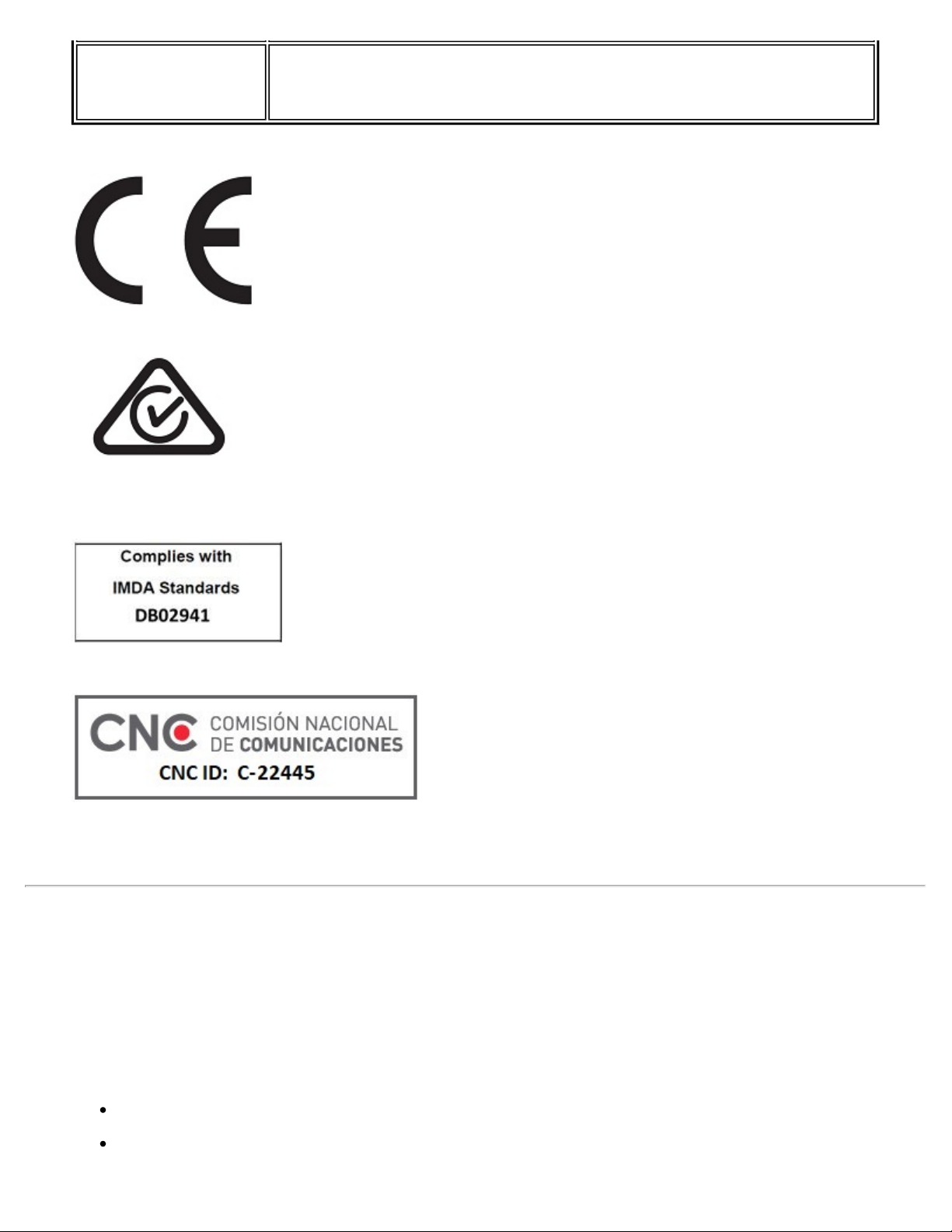

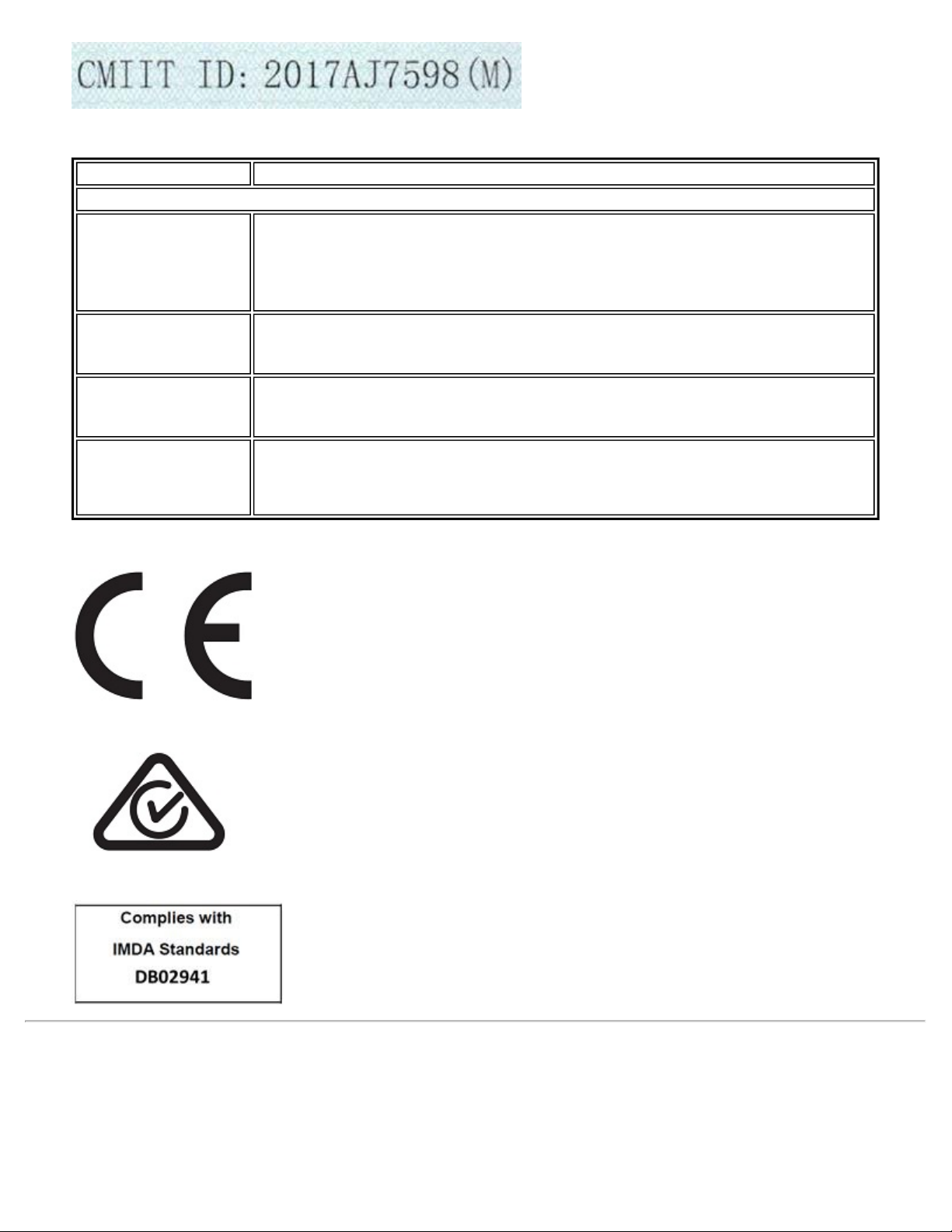

Modular Regulatory Certification Country Markings

A list of countries requiring regulatory markings is available. Note that the lists include only countries requiring marking but not all certified countries. To find the regulatory country marking information for your adapter, perform these steps:

1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-

networking/000007443.html

2. Click on the link for your adapter.

3. Click on Regulatory Marking Document for your adapter.

INFORMATION FOR OEMs and HOST INTEGRATORS

The guidelines described within this document are provided to OEM integrators installing Intel® wireless adapters in notebook and tablet PC host platforms. Adherence to these requirements is necessary to meet the conditions of compliance with FCC rules, including RF exposure. When all antenna type and placement guidelines described herein are fulfilled the Intel® wireless adapters may be incorporated into notebook and tablet PC host platforms with no further restrictions. If any of the guidelines described herein are not satisfied it may be necessary for the OEM or integrator to perform additional testing and/or obtain additional approval. The OEM or integrator is responsible to determine the required host regulatory testing and/or obtaining the required host approvals for compliance.

Intel® wireless adapters are intended for OEMs and host integrators only. The Intel® wireless adapter FCC Grant of Authorization describes any limited conditions of modular approval. The Intel® wireless adapters must be operated with an access point that has been approved for the country of operation. Changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties is not permitted. Any changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties will void authorization to operate the adapter.

Antenna Type and Gains

Only antennas of the same type and with equal or less gains as 3dBi for the 2.4GHz band and 5dBi for the 5GHz band shall be used with the Intel® wireless adapters. Other types of antennas and/or higher gain antennas may

require additional authorization for operation. For testing purposes the following dual band antenna that

approximates closely the above limits was used:

Antenna Type

PIFA Main

*All antenna gains include cable loss.

Antenna Location (Main/Aux)

Aux 3.24 3.73 4.77 4.77

MIMO

2.4GHz Peak Gain in dBi*

5.2GHz Peak Gain in dBi*

5.5GHz Peak Gain in dBi*

5.7GHz Peak Gain in dBi*

Antenna Placement Within the Host Platform

To ensure RF exposure compliance the antenna(s) used with the Intel® wireless adapters must be installed in notebook or tablet PC host platforms to provide a minimum separation distance from all persons, in all operating modes and orientations of the host platform, with strict adherence to the table below. The antenna separation distance applies to both horizontal and vertical orientation of the antenna when installed in the host system.

Intel® Wireless Adapter Minimum required antenna-to-user separation distance

Intel® Centrino® Wireless-N + WiMAX 6150 18 mm Intel® Centrino® Wireless-N + WiMAX 6350 17 mm

Simultaneous Transmission of Intel® Wireless Adapters with Other Integrated or Plug-In Transmitters

Based upon FCC Knowledge Database publication number 616217 when there are multiple transmitting devices installed in a host device, an RF exposure transmitting assessment shall be performed to determine the necessary application and test requirements. OEM integrators must identify all possible combinations of simultaneous transmission configurations for all transmitters and antennas installed in the host system. This includes transmitters installed in the host as mobile devices (>20 cm separation from user) and portable devices (<20 cm separation from user). OEM integrators should consult the actual FCC KDB 616217 document for all details in making this assessment to determine if any additional requirements for testing or FCC approval is necessary.

Information To Be Supplied to the End User by the OEM or Integrator

The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating the Intel® wireless adapter, in compliance with local regulations. Host system must be labeled with "Contains FCC ID: XXXXXXXX", FCC ID displayed on label.

The Intel® wireless adapter must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Intel Corporation is not responsible for any radio or television interference caused by unauthorized modification of the devices included with the wireless adapter kit or the substitution or attachment of connecting cables and equipment other than that specified by Intel Corporation. The correction of interference caused by such unauthorized modification, substitution or attachment is the responsibility of the user. Intel Corporation and authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines.

China:

模块通过型号核准并不代表嵌入或使用该模块的最终设备符合相关无线电管理技术规定或标准最终设备厂商符合无线电管理技术规定或标准

负责

须对产

品的技术特性是否

Local Restriction of 802.11a, 802.11b, 802.11g, 802.11n, and 802.11e Radio Usage

The following statement on local restrictions must be published as part of the compliance documentation for all

802.11a, 802.11b, 802.11g and 802.11n products.

Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g, 802.11n, and 802.16e wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g, 802.11n, and 802.16e products are designed for use only in specific countries, and are not allowed to be operated in countries other than those of designated use. As a user of these products, you are responsible for ensuring that the products are used only in the countries for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country of use. Any deviation from the permissible power and frequency settings for the country of use is an infringement of national law and may be punished as such.

Intel WiFi Adapters, 802.11n and 802.11ac Compliant

The information in this section applies to the following products:

Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 3168 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260 Intel® Dual Band Wireless-AC 8265 Intel® Wireless-AC 9260 Intel® Wireless-AC 9461 Intel® Wireless-AC 9462 Intel® Wireless-AC 9560 Intel® Tri-Band Wireless-AC 17265 Intel® Tri-Band Wireless-AC 18260 Intel® Tri-Band Wireless-AC 18265 Intel® Wireless Gigabit Sink W13100 Intel® Wireless Gigabit 11000 Intel® Wireless Gigabit Sink W13110VR Intel® Wireless Gigabit 11100VR Intel® Wi-Fi 6 AX201 Intel® Wi-Fi 6 AX200

See Specifications

NOTE: In this section, all references to the "wireless adapter" refer to all adapters listed above.

The following information is provided:

Information for the User

for complete wireless adapter specifications.

Regulatory Information

Regulatory ID Information for OEMs and Host Integrators Statements of European Compliance

INFORMATION FOR THE USER Safety Notices

USA FCC Radio Frequency Exposure

The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. The wireless adapter meets the Human Exposure requirements found in FCC Part 2, 15C, 15E along with guidance from KDB 447498, KDB 248227 and KDB 616217. Proper operation of this radio according to the instructions found in this manual will result in exposure substantially below the FCC’s recommended limits.

The following safety precautions should be observed:

Do not touch or move antenna while the unit is transmitting or receiving. Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause damage to the radio. Use in specific environments:

The use of wireless adapters in hazardous locations is limited by the constraints posed by the safety directors of such environments. The use of wireless adapters on airplanes is governed by the Federal Aviation Administration (FAA). The use of wireless adapters in hospitals is restricted to the limits set forth by each hospital.

Explosive Device Proximity Warning

Warning: Do not operate a portable transmitter (including this wireless adapter) near unshielded blasting caps

or in an explosive environment unless the transmitter has been modified to be qualified for such use.

Antenna Warnings

Warning: The wireless adapter is not designed for use with high-gain directional antennas.

Use On Aircraft Caution

Caution: Regulations of commercial airline operators may prohibit airborne operation of certain electronic devices equipped with radio-frequency wireless devices (wireless adapters) because their signals could interfere with critical aircraft instruments.

Caution: 60 GHz/802.11ad equipment is not permitted on aircraft per FCC §15.255. OEM and host integrators should consider this FCC rule in host devices.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network: See the documentation supplied with wireless

adapters or other devices in the wireless network.

Local Restrictions on 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, and 802.11ac Radio Usage

Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, and

802.11ac wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11d, 802.11g,

802.11n, and 802.11ac products are designed for use only in specific countries, and are not allowed to be operated

in countries other than those of designated use. As a user of these products, you are responsible for ensuring that the products are used only in the countries for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country of use. The device transmit power control (TPC) interface is part of the Intel® PROSet/Wireless WiFi Connection Utility Software. Operational restrictions for Equivalent Isotropic Radiated Power (EIRP) are provided by the system manufacturer. Any deviation from the permissible power and frequency settings for the country of use is an infringement of national law and may be punished as such.

Wireless Interoperability

The wireless adapter is designed to be interoperable with other wireless LAN products that are based on direct sequence spread spectrum (DSSS) radio technology and to comply with the following standards:

IEEE Std. 802.11b compliant Standard on Wireless LAN IEEE Std. 802.11g compliant Standard on Wireless LAN IEEE Std. 802.11a compliant Standard on Wireless LAN IEEE Std. 802.11n compliant Standard on Wireless LAN IEEE Std. 802.11ac draft compliant on Wireless LAN Wireless Fidelity certification, as defined by the Wi-Fi Alliance

The Wireless Adapter and Your Health

The wireless adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by the wireless adapter, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile phones. The wireless adapter operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of the wireless adapter may be restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of such situations may include:

Using the wireless adapter on board airplanes, or Using the wireless adapter in any other environment where the risk of interference with other devices or services is perceived or identified as being harmful.

If you are uncertain of the policy that applies to the use of wireless adapters in a specific organization or environment (an airport, for example), you are encouraged to ask for authorization to use the adapter before you turn it on.

REGULATORY INFORMATION USA - Federal Communications Commission (FCC)

This wireless adapter is restricted to indoor use due to its operation in the 5.15 to 5.25 and 5.470 to 5.75GHz frequency ranges. No configuration controls are provided for Intel® wireless adapters allowing any change in the frequency of operations outside the FCC grant of authorization for U.S. operation according to Part 15.407 of the FCC rules.

Intel® wireless adapters are intended for OEM integrators only. Intel® wireless adapters cannot be co-located with any other transmitter unless approved by the FCC.

This wireless adapter complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions:

This device may not cause harmful interference. This device must accept any interference that may cause undesired operation.

NOTE: The radiated output power of the adapter is far below the FCC radio frequency exposure limits. Nevertheless, the adapter should be used in such a manner that the potential for human contact during

normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure

limits, you should keep a distance of at least 20cm between you (or any other person in the vicinity), or the minimum separation distance as specified by the FCC grant conditions, and the antenna that is built into the computer. Details of the authorized configurations can be found at http://www.fcc.gov/oet/ea/ by entering the FCC ID number on the device.

Class B Device Interference Statement

This wireless adapter has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This wireless adapter generates, uses, and can radiate radio frequency energy. If the wireless adapter is not installed and used in accordance with the instructions, the wireless adapter may cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a particular installation. If this wireless adapter does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one or more of the following measures:

Reorient or relocate the receiving antenna of the equipment experiencing the interference. Increase the distance between the wireless adapter and the equipment experiencing the interference. Connect the computer with the wireless adapter to an outlet on a circuit different from that to which the equipment experiencing the interference is connected. Consult the dealer or an experienced radio/TV technician for help.

NOTE: The adapter must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Any other installation or use will violate FCC Part 15 regulations.

Safety Approval Considerations

This device has been safety approved as a component and is for use only in complete equipment where the acceptability of the combination is determined by the appropriate safety agencies. When installed, consideration must be given to the following:

It must be installed into a compliant host device meeting the requirement of UL/EN/IEC 60950-1 2nd edition including the general provisions of enclosure design 1.6.2 and specifically paragraph 1.2.6.2 (Fire Enclosure). The device shall be supplied by a SELV source when installed in the end-use equipment. A heating test shall be considered in the end-use product for meeting the requirement of UL/EN/IEC 60950-1 2nd edition.

Low Halogen

Applies only to brominated and chlorinated flame retardants (BFRs/CFRs) and PVC in the final product. Intel components as well as purchased components on the finished assembly meet JS-709 requirements, and the PCB / substrate meet IEC 61249-2-21 requirements. The replacement of halogenated flame retardants and/or PVC may not be better for the environment.

Canada – Industry Canada (IC)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Cet appareil se conforme aux normes Canada d'Industrie de RSS permis-exempt. L'utilisation est assujetti aux deux conditions suivantes: (1) cet appareil ne peut pas causer d'interférences, et (2) cet appareil doit accepter des interférences , y compris des interférences qui peuvent causer desopérations non désirées de l'appareil.

Caution: When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the

5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency

range of 5.15GHz to 5.25GHz to reduce the potential for harmful interference to co-channel mobile satellite systems.

High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device. The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85GHz frequency range in point-to-point operation. To comply with RF exposure requirements all antennas should be located at a minimum distance of 20cm, or the minimum separation distance allowed by the module approval, from the body of all persons.

Attention: l'utilisation d'un réseau sans fil IEEE802.11a est restreinte à une utilisation en intérieur à cause du fonctionnement dans la bande de fréquence 5.15-5.25 GHz. Industry Canada requiert que ce produit soit utilisé à l'intérieur des bâtiments pour la bande de fréquence 5.15-5.25 GHz afin de réduire les possibilités d'interférences nuisibles aux canaux co-existants des systèmes de transmission satellites. Les radars de puissances ont fait l'objet d'une allocation primaire de fréquences dans les bandes 5.25-5.35 GHz et 5.65-5.85 GHz. Ces stations radar peuvent créer des interférences avec ce produit et/ou lui être nuisible. Le gain d'antenne maximum permissible pour une utilisation avec ce produit est de 6 dBi afin d'être conforme aux limites de puissance isotropique rayonnée équivalente (P.I.R.E.) applicable dans les bandes 5.25-5.35 GHz et 5.725-5.85 GHz en fonctionnement point-à-point. Pour se conformer aux conditions d'exposition de RF toutes les antennes devraient être localisées à une distance minimum de 20 cm, ou la distance de séparation minimum permise par l'approbation du module, du corps de toutes les personnes.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Selon les règlements de Canada d'Industrie, cet émetteur de radio peut seulement fonctionner en utilisant une antenne du type et de gain maximum (ou moindre) que le gain approuvé pour l'émetteur par Canada d'Industrie. Pour réduire lesinterférences radio potentielles avec les autres utilisateurs, le type d'antenne et son gain devraient être choisis de façon à ce que la puissance isotrope rayonnée équivalente(P.I.R.E.) ne soit pas supérieure à celle qui est nécessaire pour une communication réussie.

European Union

The low band 5.15 - 5.35GHz is for indoor use only.

This equipment complies with the essential requirements of the European Union directive 2014/53/EU. See

Statements of European Union Compliance.

European Union Declarations of Conformity

To view the European Union Declaration of Conformity for your adapter, perform these steps.

1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-

networking/000007443.html

2. Click on "User Guide."

3. Scroll to your adapter.

To view additional regulatory information for your adapter, perform these steps:

1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-

networking/000007443.html

2. Click on the link for your adapter.

3. Click on Regulatory Marking Document for your adapter.

Waste Electrical and Electronic Equipment Directive (WEEE)

Restriction of Hazardous Substances Directive (RoHS) Compliant

All products described herein are compliant with the European Union's RoHS Directive. For CE Mark-Related Questions related to the wireless adapter, contact: Intel Corporation Attn: Corporate Quality 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA

Japan

5GHz 帯は室内でのみ使用のこと

Korea

해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음. 해당 무선 설비는

5150-5250MHz

대역에서 실내에서만 사용할 수 있음

.

Mexico

La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.

Morocco

The operation of this product in the radio channel 2 (2417 MHz) is not authorized in the following cities: Agadir, Assa-Zag, Cabo Negro, Chaouen, Goulmima, Oujda, Tan Tan, Taourirt, Taroudant and Taza.

The operation of this product in the radio channels 4, 5, 6 et 7 (2425 - 2442 MHz) is not authorized in the following cities: Aéroport Mohamed V, Agadir, Aguelmous, Anza, Benslimane, Béni Hafida, Cabo Negro, Casablanca, Fès, Lakbab, Marrakech, Merchich, Mohammédia, Rabat, Salé, Tanger, Tan Tan, Taounate, Tit Mellil, Zag.

Pakistan

"PTA APPROVED MODEL"

Taiwan

第十二條

經型式認識合格

(5150 - 5725 MHz) 23dBm EIRP max (200mW)

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信經發現有干擾現象時應立即停用並改善至無干擾時方得繼續使用。前項合法通信, 指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

之

低功率射頻電機. 非經許可公司、商號或使用者均不得擅自變更頻率‵

加

大功率或變更原設計

之

特性及功能.

在 5.25-5.35 秭

赫

頻帶內操作之無線資訊傳輸設備限於室內使用。

Singapore

Radio Approvals

To determine whether you are allowed to use your wireless network device in a specific country, please check to see if the radio type number that is printed on the identification label of your device is listed in the manufacturer's OEM Regulatory Guidance document.

Modular Regulatory Certification Country Markings

A list of countries requiring regulatory markings is available. Note that the lists include only countries requiring marking but not all certified countries. To find the regulatory country marking information for your adapter, perform these steps:

1. Open this web site: http://www.intel.com/content/www/us/en/support/network-and-i-o/wireless-

networking/000007443.html

2. Click on the link for your adapter.

3. Click on Regulatory Marking Document for your adapter.

Regulatory ID

Europe: Models 3160HMW, 3160NGW, 3160SDW, 3165NGW, 7260SDW, 7260NGW, 7260HMW, 7265D2W,

7265NGW, 8260D2W, 8260NGW, 8260NGWH, 18260NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions

(WiFi/BT) Intel® Wireless Dock Manager 3.x and previous versions (WiGig)

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode

(2400 - 2483.5 MHz) BLE / Bluetooth

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

IEEE802.11 a/n/ac

mode

The low band 5.15 - 5.35 GHz is for indoor use only

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

(57 - 64 GHz) IEEE802.11 ad mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a category

2 receiver. Not supported by the models: 3160HMW, 3160NGW, 3160SDW, 3165NGW, 7265D2W, 7265NGW

25 dBm EIRP max

Intel® Dual Band Wireless-AC 3165

Due to the very small size of the 3165D2W/3165NGW (12x16), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 3165D2W, FCC ID: PD93165D2 Canada: Model 3165D2W, IC: 1000M-3165D2 Japan:

Model 3165D2W:

RF: 003-150155 TEL: D150112003

Model 3165NGW:

RF: 003-150009 TEL: D150008003

Korea: Model 3165D2W, MSIP-CRM-INT-7265D2W Taiwan: Model 3165D2W,

China: Model 3165D2W, CMIIT ID: 2015AJ3466 (M) Europe: Model 3165D2W

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode

(2400 - 2483.5 MHz) Bluetooth/BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 3165D2W

Singapore: Model 3165D2W

Argentina:

Model 3165D2W,

Model 3165NGW,

Intel® Dual Band Wireless-AC 3168

Due to the very small size of the 3168NGW, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

Japan: Model 3168NGW:

RF: 003-160024 TEL: D160013003

Europe: Model 3168NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode

(2400 - 2483.5 MHz) Bluetooth/BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

Argentina: Model 3168NGW,

Intel® Dual Band Wireless-AC 7265

Due to the very small size of the 7265D2W/7265NGW (12x16), the marking has been placed in this user manual

because the product label on the device is considered too small to be readable.

USA: Model 7265D2W, FCC ID: PD97265D2 Canada: Model 7265D2W, IC: 1000M-7265D2 Japan:

Model 7265D2W:

RF: 003-140134 TEL: D140087003

Model 7265NGW:

RF: 003-140018 TEL: D140017003

Korea: Model 7265D2W, MSIP-CRM-INT-7265D2W Taiwan: Model 7265D2W,

China: Model 7265D2W, CMIIT ID: 2014AJ3467 (M)

Australia: Model 7265D2W,

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions

Argentina: Model 7265D2W,

Intel® Wireless Gigabit Sink W13100

Due to the very small size of the 13100NGW, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

Europe: Model 13100NGW

Software Version Intel® Wireless Dock Manager 3.x and previous versions Maximum Power Output

(57 - 64 GHz) IEEE802.11 ad mode

25 dBm EIRP max

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Singapore: Model 13100NGW

Intel® Tri-Band Wireless-AC 17265

Due to the very small size of the 17265NGW, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

Europe: Model 17265NGW

(WiFi/BT)

Intel® Wireless Dock Manager 3.x and previous versions (WiGig)

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

(57 - 64 GHz) IEEE802.11 ad mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver 25 dBm EIRP max

Singapore: Model 17265NGW

Intel® Dual Band Wireless-AC 8260

Due to the very small size of the 8260D2W (12x16), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 8260D2W, FCC ID: PD98260D2 (FCC ID without suffix "U" denotes factory installation only); FCC ID: PD98260D2U (FCC ID with suffix “U” denotes user installation or replacement permitted and

supported by bios locking feature)

Canada: Model 8260D2W, IC: 1000M-8260D2 Japan: Model 8260D2W:

RF: 003-150094

TEL: D150070003

Korea: Model 8260D2W, MSIP-CRM-INT-8260D2W Taiwan: Model 8260D2W,

China: Model 8260D2W, CMIIT ID: 2014AJ3467 (M) Australia: Model 8260D2W,

Argentina: Model 8260D2W,

Due to the very small size of the 8260NGWH/8260NGW, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

Japan:

Model 8260NGW:

RF: 003-150093 TEL: D150069003

Model 8260NGWH:

RF: 003-150154 TEL: D150111003

Argentina: Model 8260NGWH,

Argentina: Model 8260NGW,

Intel® Dual Band Wireless-AC 8265

Due to the very small size of the 8265NGW (22mm x 30mm x 2.4mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 8265NGW

FCC ID: PD98265NG (FCC ID without suffix "U" denotes factory installation only)

BLE

FCC ID: PD98265NGU (FCC ID with suffix “U” denotes user installation or replacement permitted and supported by BIOS locking feature)

Canada: Model 8265NGW, IC: 1000M-8265NG Japan: Model 8265NGW:

RF 003-160104 TEL D160055003

Korea: Model 8265NGW, MSIP-CRM-INT-8265NGW,

Taiwan: Model 8265NGW

China: Model 8265NGW

Europe: Models 8265NGW, 8265D2W

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz)

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

(57 - 64 GHz) IEEE802.11 ad mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 8265NGW,

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver 25 dBm EIRP max

Brazil: Model 8265NGW: ANATEL: XXXXXXXXXX, Argentina: Model 8265NGW,

Singapore: Model 8265NGW:

Pakistan: Model 8265NGW

"PTA APPROVED MODEL"

Due to the very small size of the 8265D2W (12mm x 16mm x 1.8mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 8265D2W, FCC ID: PD98265D2 Canada: Model 8265D2W, IC: 1000M-8265D2

Japan: Model 8265D2W:

RF 003-160129 TEL D160076003

Korea: Model 8265D2W, MSIP-CRM-INT-8265D2W,

Taiwan: Model 8265D2W

China: Model 8265D2W

Australia: Model 8265D2W,

Brazil: Model 8265D2W: ANATEL: XXXXXXXXXX, Argentina: Model 8265D2W,

Singapore: Model 8265D2W:

Pakistan: Model 8265D2W

"PTA APPROVED MODEL"

Intel® Wireless-AC 9260 (Model 9260NGW)

Due to the very small size of the 9260NGW (22mm x 30mm x 2.4mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9260NGW, FCC ID: PD99260NG Canada: Model 9260NGW, IC: 1000M-9260NG Japan: Model 9260NGW:

RF 003-170125 TEL D170079003

Korea: Model 9260NGW, MSIP-CRM-INT-9260NGW

Taiwan: Model 9260NGW

China: Model 9260NGW

Europe: Model 9260NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

Australia: Model 9260NGW

Singapore: Model 9260NGW

Intel® Wireless-AC 9260 (Model 9260D2WL)

Due to the very small size of the 9260D2WL (12mm x 16mm x 1.8mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9260D2WL, FCC ID: PD99260D2L Canada: Model 9260D2WL, IC: 1000M-9260D2L

Japan: Model 9260D2WL:

RF: 003-190024 TEL: D190023003

Europe: Model 9260D2WL

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 9260D2WL

Brazil: Model 9260D2WL, ANATEL: 05831-17-04423

Korea: Model 9461NGW

Singapore: Model 9260D2WL

Argentina: Model 9260D2WL

Pakistan: Model 9260D2WL

APPROVED BY PTA: 9.9203/2019

Intel® Wireless-AC 9461 (Model 9461NGW)

Due to the very small size of the 9461NGW (22mm x 30mm x 2.4mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9461NGW, FCC ID: PD99461NG Canada: Model 9461NGW, IC: 1000M-9461NG Japan: Model 9461NGW:

RF 003-170204 TEL D170127003

MSIP-CRM-INT-9461NGW

Taiwan: Model 9461NGW

China: Model 9461NGW

Europe: Model 9461NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 9461NGW

Singapore: Model 9461NGW

Intel® Wireless-AC 9461 (Model 9461D2W)

Due to the very small size of the 9461D2W (12mm x 16mm x 1.8mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9461D2W, FCC ID: PD99461D2 Canada: Model 9461D2W, IC: 1000M-9461D2 Japan: Model 9461D2W:

RF 003-170203 TEL D170126003

Korea: Model 9461D2W

MSIP-CRM-INT-9461D2W

Taiwan: Model 9461D2W

China: Model 9461D2W

Europe: Model 9461D2W

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

Australia: Model 9461D2W

Singapore: Model 9461D2W

Intel® Wireless-AC 9462 (Model 9462NGW)

Due to the very small size of the 9462NGW (22mm x 30mm x 2.4mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9462NGW, FCC ID: PD99462NG

Canada: Model 9462NGW, IC: 1000M-9462NG

Japan: Model 9462NGW:

RF 003-170245 TEL D170151003

Korea: Model 9462NGW

R-CRM-INT-9462NGW

Taiwan: Model 9462NGW

China: Model 9462NGW

Europe: Model 9462NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

(5150 - 5725 MHz)

IEEE802.11 a/n/ac

23dBm EIRP max (200mW)

mode (5725 - 5875 MHz)

IEEE802.11 a/n/ac mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 9462NGW

The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

Singapore: Model 9462NGW

Intel® Wireless-AC 9462 (Model 9462D2W)

Due to the very small size of the 9462D2W (12mm x 16mm x 1.8mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9462D2W, FCC ID: PD99462D2 Canada: Model 9462D2W, IC: 1000M-9462D2 Japan: Model 9462D2W:

RF 003-170243 TEL D170149003

Korea: Model 9462D2W

R-CRM-INT-9462D2W

Taiwan: Model 9462D2W

China: Model 9462D2W

Europe: Model 9462D2W

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 9462D2W

Singapore: Model 9462D2W

Intel® Wireless-AC 9560 (Model 9560NGW)

Due to the very small size of the 9560NGW (22mm x 30mm x 2.4mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9560NGW, FCC ID: PD99560NG Canada: Model 9560NGW, IC: 1000M-9560NG Japan: Model 9560NGW:

RF 003-170126 TEL D170080003

Korea: Model 9560NGW, MSIP-CRM-INT-9560NGW

Taiwan: Model 9560NGW and 9560NGW R:

Singapore: Model 9560NGW

China: Model 9560NGW

Europe: Model 9560NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 9560NGW

Intel® Wireless-AC 9560 (Model 9560D2W)

Due to the very small size of the 9560D2W (12mm x 16mm x 1.8mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9560D2W, FCC ID: PD99560D2 Canada: Model 9560D2W, IC: 1000M-9560D2 Japan: Model 9560D2W:

RF 003-170244 TEL D170150003

Korea: Model 9560D2W

R-CRM-INT-9560D2W

Taiwan: Model 9560D2W

China: Model 9560D2W

Europe: Model 9560D2W

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

Australia: Model 9560D2W

Singapore: Model 9560D2W

Intel® Wireless-AC 9560 (Model 9560D2WL)

Due to the very small size of the 9560D2WL (12mm x 16mm x 1.8mm), the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 9560D2WL, FCC ID: PD99560D2L

Canada: Model 9560D2WL, IC: 1000M-9560D2L

Japan: Model 9560D2WL:

RF 003-180060 TEL D180033003

Korea: Model 9560D2WL

R-CRM-INT-9560D2WL

Taiwan: Model 9560D2WL

China: Model 9560D2WL

Europe: Model 9560D2WL

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 9560D2WL

Singapore: Model 9560D2WL

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver

Intel® Tri-band Wireless AC 18265

Due to the very small size of the 18265NGW module, the regulatory marking has been placed in this user manual because the product label on the device is considered too small to be readable

USA: Model 18265NGW, FCC ID: PD918265NG (This module is for factory installation only) Canada: Model 18265NGW, IC : 1000M-18265NG Japan: Model 18265NGW

Korea: Model 18265NGW, MSIP-CRM-INT-18265NGW

Taiwan: Model 18265NGW

China: Model 18265NGW, CMIIT ID: 2016AJ7066 (M) Europe: Model 18265NGW,

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent versions

(WiFi/BT) Intel® Wireless Dock Manager 3.x and previous versions (WiGig)

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac mode

(57 - 64 GHz) IEEE802.11 ad mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered a

category 2 receiver 25 dBm EIRP max

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 18265NGW,

Brazil: Model 18265NGW, ANATEL: XXXXXXXXXXXXX

Singapore: Model 18265NGW,

Intel® Wireless Gigabit 11000

Due to the very small size of the 11000D2W/11000D2W LC, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 11000D2W and 11000D2W LC, FCC ID: PD911000D2 Canada: Model 11000D2W, IC: 1000M-11000D2 Japan: Model 11000D2W:

Korea: Model 11000D2W, MSIP-CRM-INT-11000D2W Taiwan: Model 11000D2W and 11000D2W LC,

China: Model 11000D2W, CMIIT ID: 2016DJ0267 (M); Model 11000D2W LC, CMIIT ID: 2016DJ0268 (M) Europe: Model 11000D2W

Software Version Intel® Wireless Dock Manager 3.x and previous versions Maximum Power Output

(57 - 64 GHz) IEEE802.11 ad mode

25 dBm EIRP max

Australia: Model 11000D2W,

Singapore: Model 11000D2W/11000D2W LC:

Intel® Wireless Gigabit Sink W13110VR

Due to the very small size of the 13110NGW, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 13110NGW, FCC ID: PD913110NG Canada: Model 13110NGW, IC: 1000M-13110NG Korea: Model 13110NGW, R-CRM-INT-13110NGW Taiwan: Model 13110NGW

Europe: Model 13110NGW

Software Version Intel® Wireless VR dashboard 4.x Maximum Power Output

(57 - 64 GHz) IEEE802.11ad mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Singapore: Model 13110NGW

25 dBm EIRP max

Intel® Wireless Gigabit 11100VR

Due to the very small size of the 11100D2W, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model 11100D2W, FCC ID: PD911100D2 Canada: Model 11100D2W, IC: 1000M-11100D2 Korea: Model 11100D2W, R-CRM-INT-11100D2W Taiwan: Model 11100D2W

Europe: Model 11100D2W

Software Version Intel® Wireless VR Dashboard 4.x Maximum Power Output

(57 - 64 GHz) IEEE802.11ad mode

26 dBm EIRP max

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model 11100D2W

Singapore: Model 11100D2W

Intel® Wi-Fi 6 AX201 (Model AX201NGW)

Due to the very small size of the AX201NGW, the marking has been placed in this user manual because the product

mode

label on the device is considered too small to be readable.

USA: Model AX201NGW, FCC ID: PD9AX201NG Canada: Model AX201NGW, IC: 1000M-AX201NG Japan: Model AX201NGW:

RF: 003-180232 TEL: D180131003

Korea: Model AX201NGW

R-C-INT-AX201NGW

Taiwan: Model AX201NGW

China: Model AX201NGW

Europe: Model AX201NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent

versions

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n/ax

20dBm EIRP max (100mW)

Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac/ax mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac/ax mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model AX201NGW

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered

a category 2 receiver

Brazil: Model AX201NGW, ANATEL: 06970-18-04423 Singapore: Model AX201NGW

Argentina: Model AX201NGW

Pakistan: Model AX201NGW

APPROVED BY PTA: 9.9116/2019

Intel® Wi-Fi 6 AX201 (Model AX201D2W)

Due to the very small size of the AX201D2W, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model AX201D2W, FCC ID: PD9AX201D2

Canada: Model AX201D2W, IC: 1000M-AX201D2

Japan: Model AX201D2W:

a/n/ac/ax mode

RF: 003-180233 TEL: D180132003

Korea: Model AX201D2W

R-C-INT-AX201D2W

Taiwan: Model AX201D2W

China: Model AX201D2W

Europe: Model AX201D2W

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent

versions

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n/ax mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

(5725 - 5875 MHz) IEEE802.11 a/n/ac/ax mode

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model AX201D2W

Brazil: Model AX201D2W, ANATEL: 07039-18-04423

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered

a category 2 receiver

Singapore: Model AX201D2W

Argentina: Model AX201D2W

Pakistan: Model AX201D2W

APPROVED BY PTA: 9.9115/2019

Intel® Wi-Fi 6 AX201 (Model AX201D2WL)

Due to the very small size of the AX201D2WL, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model AX201D2WL, FCC ID: PD9AX201D2L Canada: Model AX201D2WL, IC: 1000M-AX201D2L Japan: Model AX201D2WL:

RF: 003-180234 TEL: D180133003

Korea: Model AX201D2WL

R-C-INT-AX201D2WL

Taiwan: Model AX201D2WL

China: Model AX201D2WL

Europe: Model AX201D2WL

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent

versions

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n/ax mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac/ax mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac/ax mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered

a category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model AX201D2WL

Brazil: Model AX201D2WL, ANATEL: 07271-18-04423 Singapore: Model AX201D2WL

Argentina: Model AX201D2WL

Pakistan: Model AX201D2WL

APPROVED BY PTA: 9.9110/2019

Intel® Wi-Fi 6 AX200 (Model AX200D2WL)

Due to the very small size of the AX200D2WL, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model AX200D2WL, FCC ID: PD9AX200D2L Canada: Model AX200D2WL, IC: 1000M-AX200D2L Japan: Model AX200D2WL:

RF: 003-190023 TEL: D190022003

Korea: Model AX200D2WL

R-C-INT-AX200D2WL

Taiwan: Model AX200D2WL

China: Model AX200D2WL, CMIIT ID: 2019AJ2493 (M) Europe: Model AX200D2WL

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent

versions

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n/ax mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac/ax mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac/ax mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered

a category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model AX200D2WL

Brazil: Model AX200D2WL, ANATEL: XXXXXXXXXXXXX Singapore: Model AX200D2WL

Argentina: Model AX200D2WL

Pakistan: Model AX200D2WL

APPROVED BY PTA: 9.9202/2019

Intel® Wi-Fi 6 AX200 (Model AX200NGW)

Due to the very small size of the AX200NGW, the marking has been placed in this user manual because the product label on the device is considered too small to be readable.

USA: Model AX200NGW, FCC ID: PD9AX200NG Canada: Model AX200NGW, IC: 1000M-AX200NG Japan: Model AX200NGW:

RF: 003-190022 TEL: D190021003

Korea: Model AX200NGW

R-C-INT-AX200NGW

Taiwan: Model AX200NGW

China: Model AX200NGW, CMIIT ID: 2019AJ2274 (M) Europe: Model AX200NGW

Software Version Intel® PROSet/Wireless WiFi Software 20.x and subsequent

versions

Maximum Power Output

(2400 - 2483.5 MHz) IEEE802.11 b/g/n/ax mode Bluetooth

(2400 - 2483.5 MHz) BLE

(5150 - 5725 MHz) IEEE802.11 a/n/ac/ax mode

(5725 - 5875 MHz) IEEE802.11 a/n/ac/ax mode

20dBm EIRP max (100mW)

10dBm EIRP max (10mW)

23dBm EIRP max (200mW) The low band 5.15 - 5.35 GHz is for indoor use only

13.98 dBm EIRP Max (25mW) For the standard EN 300 440, the device operating in 5.8 GHz is considered

a category 2 receiver

This equipment complies with the essential requirements of the European Union directive 2014/53/EU.

Australia: Model AX200NGW

Brazil: Model AX200NGW, ANATEL: XXXXXXXXXXXXX Singapore: Model AX200NGW

Argentina: Model AX200NGW

Pakistan: Model AX200NGW

APPROVED BY PTA: 9.9211/2019

INFORMATION FOR OEMS and HOST INTEGRATORS

The guidelines described within this document are provided to OEM integrators installing Intel® wireless adapters in notebook and tablet PC host platforms. Adherence to these requirements is necessary to meet the conditions of compliance with FCC rules, including RF exposure. When all antenna type and placement guidelines described herein are fulfilled the Intel® wireless adapters may be incorporated into notebook and tablet PC host platforms with no further restrictions. If any of the guidelines described herein are not satisfied it may be necessary for the OEM or integrator to perform additional testing and/or obtain additional approval. The OEM or integrator is responsible to determine the required host regulatory testing and/or obtaining the required host approvals for compliance.

Intel® wireless adapters are intended for OEMs and host integrators only. The Intel® wireless adapter FCC Grant of Authorization describes any limited conditions of modular approval. The Intel® wireless adapters must be operated with an access point that has been approved for the country of operation. Changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties is not permitted. Any changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties will void authorization to operate the adapter.

Antenna Type and Gains

Only antennas of the same type and with equal or less gains as 3dBi for the 2.4GHz band and 5dBi for the 5GHz

band shall be used with the Intel® wireless adapters. Other types of antennas and/or higher gain antennas may require additional authorization for operation. For testing purposes the following dual band antenna that approximates closely the above limits was used:

Antenna Type

PIFA Main

*All antenna gains include cable loss.

Antenna Location (Main/Aux)

Aux 3.24 3.73 4.77 4.77

MIMO

2.4GHz Peak Gain in dBi*

5.2GHz Peak Gain in dBi*

5.5GHz Peak Gain in dBi*

5.7GHz Peak Gain in dBi*

Antenna Placement Within the Host Platform

To ensure RF exposure compliance the antenna(s) used with the Intel® wireless adapters must be installed in notebook or tablet PC host platforms to provide a minimum separation distance from all persons, in all operating modes and orientations of the host platform, with strict adherence to the table below. The antenna separation distance applies to both horizontal and vertical orientation of the antenna when installed in the host system.

Wireless Adapter Minimum required antenna-to-user separation distance

Intel® Centrino® Wireless-N 100 9 mm Intel® Centrino® Wireless-N 105 9 mm Intel® Centrino® Wireless-N 130 8 mm Intel® Centrino® Wireless-N 135 9 mm Intel® Centrino® Wireless-N 1000* 20 mm Intel® Centrino® Wireless-N 1030 8 mm Intel® Centrino® Wireless-N 2200 9 mm Intel® Centrino® Wireless-N 2230 6 mm Intel® Centrino® Advanced-N 6200* 20 mm Intel® Centrino® Advanced-N 6205 12 mm Intel® Centrino® Advanced-N 6230 12 mm Intel® Centrino® Advanced-N 6235 8 mm Intel® Centrino® Ultimate-N 6300 13 mm Intel® Dual Band Wireless-AC 7260 8 mm Intel® Dual Band Wireless-N 7260 8 mm Intel® Wireless-N 7260 8 mm Intel® Dual Band Wireless-AC 3160 8 mm Intel® Dual Band Wireless-AC 3165 8 mm Intel® Dual Band Wireless-AC 7265 8 mm Intel® Dual Band Wireless-N 7265 8 mm Intel® Wireless-N 7265 8 mm Intel® Dual Band Wireless-AC 8260 8 mm Intel® Dual Band Wireless-AC 8265 8 mm Intel® Wireless-AC 9260 14 mm Intel® Wireless-AC 9461 (9161NGW) 19 mm Intel® Wireless-AC 9461 (9161D2W) 12 mm

Intel® Wireless-AC 9462 (9162NGW) 14 mm

Intel® Wireless-AC 9462 (9162D2W) 15 mm Intel® Wireless-AC 9560 (9560NGW) 18 mm Intel® Wireless-AC 9560 (9560D2W) 15 mm Intel® Wireless-AC 9560 (9560D2WL) TBD Intel® Tri-Band Wireless-AC 17265 8 mm Intel® Tri-Band Wireless-AC 18260 8 mm

Intel® Tri-Band Wireless-AC 18265 8 mm Intel® Wireless Gigabit Sink W13100 8 mm Intel® Wireless Gigabit 11000 8 mm Intel® Wireless Gigabit Sink W13110VR 8 mm Intel® Wireless Gigabit 11100VR 8 mm Intel® Wi-Fi 6 AX201 TBD Intel® Wi-Fi 6 AX200 TBD * This wireless adapter may be installed in mobile devices only (requires > 20 cm antenna separation from the

body of user).

For WiFi/Bluetooth combination adapters it is recommended that a 5 cm separation distance between transmitting antennas be provided within the host system to maintain an adequate separation ratio for simultaneous WiFi and Bluetooth transmission. For less than 5 cm separation the separation ratio must be verified according to FCC publication KDB 447498 for the specific adapter.

Additional regulatory authorization process may be required if wishing to place the 60 GHz/802.11ad RFEM (antenna array) closer than 20 cm to the user.

Simultaneous Transmission of Intel® Wireless Adapters with Other Integrated or Plug-In Transmitters

Based upon FCC Knowledge Database publication number 616217, when there are multiple transmitting devices installed in a host device, an RF exposure transmitting assessment shall be performed to determine the necessary application and test requirements. OEM integrators must identify all possible combinations of simultaneous transmission configurations for all transmitters and antennas installed in the host system. This includes transmitters installed in the host as mobile devices (>20 cm separation from user) and portable devices (<20 cm separation from user). OEM integrators should consult the actual FCC KDB 616217 document for all details in making this assessment to determine if any additional requirements for testing or FCC approval is necessary.

Information To Be Supplied to the End User by the OEM or Integrator

The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating the Intel® wireless adapter, in compliance with local regulations. Host system must be labeled with "Contains FCC ID: XXXXXXXX", FCC ID displayed on label.

The wireless adapter must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. For country-specific approvals, see Radio

Approvals. Intel Corporation is not responsible for any radio or television interference caused by unauthorized

modification of the devices included with the wireless adapter kit or the substitution or attachment of connecting cables and equipment other than that specified by Intel Corporation. The correction of interference caused by such unauthorized modification, substitution or attachment is the responsibility of the user. Intel Corporation and authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines.

China:

模块通

过

型

号核准并不代表嵌入或使用该模块的

符合相关无线电管理

术规定或标

准

厂商

须对产

品的

术

特性是否

符合无线电管理技术规定或标准

负责

最终设备

技

最终设备

技

Local Restriction of 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad Radio Usage

The following statement on local restrictions must be published as part of the compliance documentation for all

802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad products.

Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g and 802.11n products are designed for use only in specific countries, and are not allowed to be operated in countries other than those of designated use. As a user of these products, you are responsible for ensuring that the products are used only in the countries for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country of use. Any deviation from permissible settings and restrictions in the country of use could be an infringement of national law and may be punished as such.

Statements of European Compliance

Each of the adapters listed below comply with the essential requirements of the European Union directive 2014/53/EU.

Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260 Intel® Dual Band Wireless-AC 8265 Intel® Wireless-AC 9260 Intel® Wireless-AC 9560 Intel® Tri-Band Wireless-AC 17265 Intel® Tri-Band Wireless-AC 18260 Intel® Tri-Band Wireless-AC 18265 Intel® Wireless Gigabit Sink W13100 Intel® Wireless Gigabit 11000 Intel® Wireless Gigabit Sink W13110VR Intel® Wireless Gigabit 11100VR Intel® Wi-Fi 6 AX201 Intel® Wi-Fi 6 AX200

Back to Top

Back to Contents

Trademarks and Disclaimers

Back to Contents

Specifications

This section provides specification information for the family of Intel® wireless adapters. The following list may not be all inclusive.

Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 3168 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260 Intel® Dual Band Wireless-AC 8265 Intel® Wireless-AC 9260 Intel® Wireless-AC 9461 Intel® Wireless-AC 9462 Intel® Wireless-AC 9560 Intel® Tri-Band Wireless-AC 17265 Intel® Tri-Band Wireless-AC 18260 Intel® Tri-Band Wireless-AC 18265 Intel® Wireless Gigabit Sink W13100 Intel® Wireless Gigabit 11000 Intel® Wireless Gigabit Sink W13110VR Intel® Wireless Gigabit 11100VR Intel® Wi-Fi 6 AX201 Intel® Wi-Fi 6 AX200

Intel® Centrino® Wireless-N 100, Intel® Centrino® Wireless-N 105, Intel® Centrino® Wireless-N 130 and Intel® Centrino® Wireless-N 135

Form Factor PCI Express* Half-Mini Card Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x

4.5 mm)

Antenna Interface Connector

Antenna Diversity On-board diversity

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

Connector

Interface

52-pin Mini Card edge connector

mm x 4.5 mm)

Voltage 3.3 V Operating

Temperature Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

WiFi

Frequency Modulation

Frequency band 2.400 - 2.4835 GHz (dependent on country) Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM) Channels All channels as defined by the relevant specification and country rules. IEEE 802.11n

Data Rates

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Bluetooth Support

0 to +80 degrees Celsius

2.4 GHz (802.11b/g/n)

MIMO Configuration: 1X1 Tx/Rx: 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3,

30, 28.9, 21.7, 15, 14.4, 7.2 Mbps 54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Intel® Centrino® Wireless-N 100: None Intel® Centrino® Wireless-N 105: None Intel® Centrino® Wireless-N 130: Bluetooth 2.1, 2.1 + EDR, 3.0, 3.0+HS Intel® Centrino® Wireless-N 135: Bluetooth 4.0 (Bluetooth Low-Energy and Bluetooth 3.0 +HS)

General

Operating Systems

Wi-Fi Alliance* certification

Cisco Compatible Extensions certification

IEEE Feature Sets IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11d, 802.11h Architecture Infrastructure or ad hoc (peer-to-peer) operating modes Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit and 64-bit)

Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise, WPA2Personal, WPA2-Enterprise, WMM, WPS

Cisco Compatible Extensions, v4.0

128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA

Intel® Centrino® Wireless-N 1000

Form Factor PCI Express* Mini Card and Half-Mini Card SKUs Intel® Centrino® Wireless-N 1000 - 1X2 MC/HMC Dimensions Mini Card: Width 2.0 in x Length 1.18 in x Height 0.18 in (50.80 mm x 30 mm x 4.5

mm) Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30

Antenna Interface Connector

Antenna Diversity On-board diversity Connector Interface 52-pin Mini Card edge connector Voltage 3.3 V Operating Temperature 0 to +80 degrees Celsius Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)

WiFi

Frequency Modulation 2.4 GHz (802.11b/g/n) Frequency band 2.41-2.474 GHz (dependent on country) Modulation BPSK, QPSK, 16 QAM, 64 QAM, CCK, DQPSK, DBPSK Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM) Channels All channels as defined by the relevant specification and country rules. IEEE 802.11n Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

General

Operating Systems Microsoft Windows* XP (32 and 64 bit) and Windows Vista* (32 and 64 bit), Ubuntu

Wi-Fi Alliance* certification

Cisco Compatible Extensions certification

WLAN Standard IEEE 802.11g, 802.11b, 802.11n, 802.11d, 802.11e, 802.11i, Architecture Infrastructure or ad hoc (peer-to-peer) operating modes Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, 802.1X: EAP-SIM,

Encryption AES-CCMP 128-bit, WEP 128-bit and 64-bit, CKIP, TKIP Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Linux* Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise,

WPA2-Personal, WPA2-Enterprise, WMM, WPS Cisco Compatible Extensions, v4.0

LEAP, PEAP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA

Intel® Centrino® Wireless-N 2200 and Intel® Centrino® Wireless-N 2230

Form Factor PCI Express* Half-Mini Card Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x

4.5 mm)

Antenna Interface Connector

Antenna Diversity On-board diversity Connector

Interface Voltage 3.3 V Operating

Temperature

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

52-pin Mini Card edge connector

0 to +80 degrees Celsius

Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

WiFi

Frequency Modulation

Frequency band 2.400 - 2.4835 GHz (dependent on country) Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM) Channels All channels as defined by the relevant specification and country rules. IEEE 802.11n

Data Rates

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Bluetooth Support

General

Operating Systems

Wi-Fi Alliance* certification

Cisco Compatible Extensions certification

IEEE Feature Sets IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11d, 802.11h Architecture Infrastructure or ad hoc (peer-to-peer) operating modes Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

2.4 GHz (802.11b/g/n)

MIMO Configuration: 2X2 Tx/Rx: 300, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45,

43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps 54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Intel® Centrino® Wireless-N 2200: None Intel® Centrino® Wireless-N 2230: Bluetooth 4.0 (Bluetooth Low-Energy and Bluetooth 3.0 +HS)

Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit and 64-bit)

Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise, WPA2Personal, WPA2-Enterprise, WMM, WPS

Cisco Compatible Extensions, v4.0

128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA

Intel® Centrino® Wireless-N 1030 and Intel® Centrino® Advanced-N 6230

Form Factor PCI Express* Half-Mini Card Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5

mm)

Antenna Interface Connector

Antenna Diversity

Network Standards

Connector Interface

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

On-board diversity

802.11a/b/g/n (varies by adapter) and Bluetooth 3.0 + HS

52-pin Mini Card edge connector

Voltage 3.3 V

Operating Temperature

Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC) WiFi Network

Standards

Frequency Modulation

Frequency band

Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless

Medium Channels All channels as defined by the relevant specification and country rules. IEEE 802.11n

Data Rates

IEEE 802.11a Data Rates

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Bluetooth Bluetooth Version 3.0 + HS

General

Operating Systems

0 to +80 degrees Celsius

Intel® Centrino® Wireless-N 1030: 802.11b/g/n Intel® Centrino® Advanced-N 6230: 802.11a/g/n

5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)

5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)

5 GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM)

Intel® Centrino® Advanced-N 6230: Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,

115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Intel® Centrino® Wireless-N 1030:

Rx (Mbps): 300, 270, 243, 240, 180 Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Microsoft Windows* XP (32-bit and 64-bit) Windows Vista* (32-bit and 64-bit) Windows* 7 (32-bit and 64-bit) Windows* 8 (32-bit and 64-bit) Windows* 8.1 (32-bit and 64-bit)

2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Wi-Fi Alliance* certification

Cisco Compatible Extensions certification

WLAN Standard

Architecture Infrastructure or ad hoc (peer-to-peer) operating modes Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP

Product Safety

Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPAEnterprise, WPA2-Personal, WPA2-Enterprise, WPS, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA, P2P

Cisco Compatible Extensions, v4.0

IEEE 802.11g, 802.11b, 802.11a, 802.11n

128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAPAKA

UL, C-UL, CB (IEC/EN 60950-1)

Intel® Centrino® Advanced-N 6235

Form Factor PCI Express* Half-Mini Card Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5

mm)

Antenna Interface Connector

Antenna Diversity

Network Standards

Connector Interface

Voltage 3.3 V Operating

Temperature Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band

Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless

Medium Channels All channels as defined by the relevant specification and country rules. IEEE 802.11n

Data Rates IEEE 802.11a

Data Rates IEEE 802.11g

Data Rates IEEE 802.11b

Data Rates Bluetooth Bluetooth Version 4.0 (3.0 +HS )

General

Operating Systems

Wi-Fi Alliance* certification

Cisco Compatible Extensions certification

WLAN Standard

Architecture Infrastructure or ad hoc (peer-to-peer) operating modes Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

On-board diversity

802.11a/b/g/n and Bluetooth 4.0

52-pin Mini Card edge connector

0 to +80 degrees Celsius

5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)

5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)

5 GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM)

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,

115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 54, 48, 36, 24, 18, 12, 9, 6 Mbps

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit and 64-bit)

Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPAEnterprise, WPA2-Personal, WPA2-Enterprise, WPS, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA, P2P

Cisco Compatible Extensions, v4.0

IEEE 802.11g, 802.11b, 802.11a, 802.11n

2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-

AKA

Product Safety

UL, C-UL, CB (IEC/EN 60950-1)

Intel® Centrino® Advanced-N + WiMAX 6250 and Intel® Centrino® Wireless-N + WiMAX 6150

Form Factor PCI Express* Half-Mini Card Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5

mm)

Antenna Interface Connector

Antenna Diversity

Connector Interface

Voltage 3.3 V Operating

Temperature Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

WiFi

Frequency Modulation

Frequency band

Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless

Medium Channels All channels as defined by the relevant specification and country rules. IEEE 802.11n

Data Rates

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

On-board diversity

52-pin Mini Card edge connector

0 to +80 degrees Celsius

Intel® Centrino® Advanced-N + WiMAX 6250

2.4 GHz (802.11b/g/n), 5 GHz (802.11a/n)

5.15 GHz - 5.85 GHz (dependent on country)

5 GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM)

Intel® Centrino® Wireless-N + WiMAX 6150

MIMO Configuration: 1X2

Intel® Centrino® Wireless-N + WiMAX 6150

2.4 GHz (802.11b/g/n)

2.400 - 2.4835 GHz (dependent on country)

2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

IEEE 802.11a Data Rates

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Rx: 300, 270, 243, 240, 180 Mbps Rx/Tx: 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30,

28.9, 21.7, 15, 14.4, 7.2 Mbps

Intel® Centrino® Advanced-N + WiMAX 6250

MIMO Configuration: 2X2 Tx/Rx: 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65,

60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps 54, 48, 36, 24, 18, 12, 9, 6 Mbps

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

General

Operating Systems

Microsoft Windows* XP (32-bit and 64-bit) Windows Vista* (32-bit and 64-bit) Windows* 7 (32-bit and 64-bit) Windows* 8 (32-bit and 64-bit) Windows* 8.1 (32-bit and 64-bit)

Wi-Fi Alliance* certification

Cisco Compatible Extensions certification

IEEE Feature Sets

Architecture Infrastructure or ad hoc (peer-to-peer) operating modes Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

WiMAX General

Operating Systems

Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPAEnterprise, WPA2-Personal, WPA2-Enterprise, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA

Cisco Compatible Extensions, v4.0

Intel® Centrino® Wireless-N + WiMAX 6150: IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11h, 802.11d

Intel® Centrino® Advanced-N + WiMAX 6250:

802.11a, IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11h, 802.11d

128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAPAKA

Microsoft Windows* XP (32-bit and 64-bit) Windows Vista* (32-bit and 64-bit) Windows* 7 (32-bit and 64-bit) Windows* 8 (32-bit and 64-bit) Windows* 8.1 (32-bit and 64-bit)

Standard Compliance

WiMAX System Profile Feature set

Security Key Management Protocol (PKMv2) Encryption 128-bit CCMP (Counter-Mode/CBC-MAC) based on AES encryption

WiMAX

Frequency band

Modulation UL - QPSK, 16 QAM

Wireless Medium

802.16e-2005 Corrigenda 2 (D4)

Intel® Centrino® Wireless-N + WiMAX 6150: Mobile WiMAX release 1, Wave II. Supports 3A and 1A/B profiles

Intel® Centrino® Advanced-N + WiMAX 6250: Mobile WiMAX release 1, Wave II. Supports 3A, 5A/C, 1A/B, and 5BL profiles

Intel® Centrino® Wireless-N + WiMAX 6150: 2.3-2.4 GHz / 2.496-2.690 GHz Intel® Centrino® Advanced-N + WiMAX 6250: 2.3-2.4 GHz / 2.496-2.690 GHz / 3.4-3.8 GHz

DL - QPSK, 16 QAM, 64 QAM Duplex mode: TDD operations Scalable OFDMA (SOFDMA): 512 and 1024

FFT

sub-carrier permutation: PUSC Intel® Centrino® Wireless-N + WiMAX 6150:

Channel bandwidths: 5 and 10 MHz Intel® Centrino® Advanced-N + WiMAX

6250: Channel bandwidths: 5, 7, 8.75 and 10 MHz

WiMAX

Network

SPWG/NWG Release 1.5

Release Feature set

Rate Performance

RF Transmitter Output Power

Intel® Centrino® Wireless-N + WiMAX 6150: Up to 10 Mbps DL and 4 Mbps UL @ peak rate (OTA performance, 10MHz channel)

Intel® Centrino® Advanced-N + WiMAX 6250: Up to 20 Mbps DL and 6 Mbps UL @ peak rate (OTA performance, 10MHz channel)

Compliance with Power class 2

Intel® Centrino® Advanced-N 6200, Intel® Centrino® Advanced-N 6205 and Intel® Centrino® Ultimate-N 6300

Form Factor Intel® Centrino® Advanced-N 6200, Intel® Centrino® Ultimate-N 6300:

PCI Express* Full-Mini Card and Half-Mini Card. Intel® Centrino® Advanced-N 6205: PCI Express* Half-Mini Card.

Dimensions Full-Mini Card: Width 2.00 in x Length 1.18 in x Height 0.18 in (50.95 mm x 30 mm x 4.5

mm) Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5

mm)

Antenna Interface Connector

Antenna Diversity

Connector Interface

Voltage 3.3 V Operating

Temperature Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band

Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless

Medium Channels All channels as defined by the relevant specification and country rules. IEEE 802.11n

Data Rates

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

On-board diversity

52-pin Mini Card edge connector

0 to +80 degrees Celsius

5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)

5.15 GHz - 5.85 GHz (dependent on country)

5 GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM)

Intel® Centrino® Ultimate-N 6300: Tx/Rx: 450, 405, 360, 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,

117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps Intel® Centrino® Advanced-N 6200, Intel® Centrino® Advanced-N 6205:

2.400 - 2.4835 GHz (dependent on country)

2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Tx/Rx: 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65,

60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps

IEEE 802.11a

Division Multiplexing (OFDM)

Data Rates IEEE 802.11g

Data Rates IEEE 802.11b

Data Rates

General

Operating Systems

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Microsoft Windows* XP (32-bit and 64-bit) Windows Vista* (32-bit and 64-bit) Windows* 7 (32-bit and 64-bit) Windows* 8 (32-bit and 64-bit) Windows* 8.1 (32-bit and 64-bit)

Wi-Fi Alliance* certification

Cisco Compatible Extensions certification

WLAN Standard

Architecture Infrastructure or ad hoc (peer-to-peer) operating modes Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPAEnterprise, WPA2-Personal, WPA2-Enterprise, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA

Cisco Compatible Extensions, v4.0

IEEE 802.11g, 802.11b, 802.11a, 802.11n

128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAPAKA

Intel® Dual Band Wireless-AC 7260

Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF) Electrical interfaces PCIe and USB 2.0 for both form factors Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

Intel® Dual Band Wireless-AC 7260

Model 7260HMW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, HMC Model 7260NGW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, M.2

Operating Temperature

Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

0 to +80 degrees Celsius

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

2.4GHz ISM: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Dual Band Wireless-AC 7260: 2 X 2 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the

General

Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-

Wi-Fi Alliance* certification

Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Intel® Dual Band Wireless-AC 7260: Up to 867 Mbps

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

following adapters

Model 7260HMW Model 7260NGW

bit) Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,

Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2, AES-CCMP

Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260

Form Factors Half-Mini Card, M.2 (Next Generation Form Factor - NGFF) Electrical interfaces PCIe, USB 2.0 for both form factors Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11 Networking

Standards

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

Intel® Dual Band Wireless-N 7260

Model 7260HMW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, HMC

Model 7260NGW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2

Model 7260HMW NB - 802.11agn, 2x2, PCIe, USB, HMC Model 7260NGW NB - 802.11agn, 2x2, PCIe, USB, M.2

Intel® Wireless-N 7260

Model 7260HMW BN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2 Model 7260NGW BN - 802.11bgn, 2x2, Bluetooth 4.0, PCIe, USB, M.2

Operating Temperature 0 to +80 degrees Celsius Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

(See above, not all bands supported by all adapters)

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules.

802.11n spatial streams All adapters: 2 X 2 spatial streams Data Rates All data rates are theoretical maximums. IEEE 802.11n Data

Rates

IEEE 802.11a Data Rates

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the

5GHz (802.11a/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

Division Multiplexing (OFDM)

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4,

7.2 54, 48, 36, 24, 18, 12, 9, 6 Mbps

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

following adapters

country)

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Model 7260HMW AN Model 7260NGW AN Model 7260HMW BN Model 7260NGW BN

General

Operating Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-

bit)

Wi-Fi Alliance* certification

Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS

2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

AKA

Authentication Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2 Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP Wi-Fi Direct* Encryption

and Authentication Product Safety UL, C-UL, CB (IEC/EN 60950-1)

WPA2, AES-CCMP

Intel® Dual Band Wireless-AC 3160

Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF) Electrical interfaces PCIe and USB 2.0 for both form factors Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

Intel® Dual Band Wireless-AC 3160

Model 3160HMW - 802.11agn, ac, 1x1, Bluetooth 4.0, PCIe, USB, HMC Model 3160NGW - 802.11agn, ac, 1x1, Bluetooth 4.0, PCIe, USB, M.2

Operating Temperature

Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Dual Band Wireless-AC 3160: 1 X 1 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the

0 to +80 degrees Celsius

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

Division Multiplexing (OFDM)

Intel® Dual Band Wireless-AC 3160: Up to 433 Mbps

Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

following adapters

country)

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Model 3160HMW Model 3160NGW

General

Operating Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)

Wi-Fi Alliance*

certification

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,

Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2, AES-CCMP

Intel® Dual Band Wireless-AC 3165 (Model 3165NGW)

Form Factors M.2 (Next Generation Form Factor - NGFF) Electrical interfaces PCIe and USB 2.0 Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Dual Band Wireless-AC 3165: 1 X 1 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w

0 to +80 degrees Celsius

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

Division Multiplexing (OFDM)

Intel® Dual Band Wireless-AC 3165: Up to 433 Mbps

Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

country)

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)

General

Rates

Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-

Wi-Fi Alliance* certification

Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

bit) Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,

Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2, AES-CCMP

Intel® Dual Band Wireless-AC 3168

Form Factors M.2 2230 (Next Generation Form Factor - NGFF) Electrical interfaces PCIe and USB 2.0 Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Dual Band Wireless-AC 3168: 1 X 1 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w

0 to +80 degrees Celsius

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

Division Multiplexing (OFDM)

Intel® Dual Band Wireless-AC 3168: Up to 433 Mbps

Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

country)

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.2 (BLE) General

Operating Systems Linux, Windows* 8.1 (64-bit), Windows* 10 (64-bit) Wi-Fi Alliance*

certification Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2, AES-CCMP

Intel® Dual Band Wireless-AC 7265 (Model 7265NGW)

Form Factors M.2 (Next Generation Form Factor - NGFF) Electrical interfaces PCIe and USB 2.0 Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Dual Band Wireless-AC 7265: 2 X 2 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

Intel® Dual Band Wireless-AC 7265

Model 7265NGW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, M.2

0 to +80 degrees Celsius

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

Division Multiplexing (OFDM)

Intel® Dual Band Wireless-AC 7265: Up to 867 Mbps

country)

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

IEEE 802.11n Data Rates

IEEE 802.11a Data Rates

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the

General

Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-

Wi-Fi Alliance* certification

Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

following adapters

Model 7265NGW

bit) Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,

Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2, AES-CCMP

Intel® Dual Band Wireless-N 7265 (Models 7265NGW AN and 7265NGW NB) Intel® Wireless-N 7265 (Model 7265NGW BN)

Form Factors M.2 (Next Generation Form Factor - NGFF) Electrical interfaces PCIe, USB 2.0 Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11 Networking

Standards

Operating Temperature 0 to +80 degrees Celsius

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

Intel® Dual Band Wireless-N 7265

Model 7265NGW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2 Model 7265NGW NB - 802.11agn, 2x2, PCIe, USB, M.2

Intel® Wireless-N 7265

Model 7265NGW BN - 802.11bgn, 2x2, Bluetooth 4.0, PCIe, USB, M.2

Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

(See above, not all bands supported by all adapters)

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules.

802.11n spatial streams All adapters: 2 X 2 spatial streams Data Rates All data rates are theoretical maximums. IEEE 802.11n Data

Rates

IEEE 802.11a Data Rates

IEEE 802.11g Data Rates

IEEE 802.11b Data Rates

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the

5GHz (802.11a/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

Division Multiplexing (OFDM)

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4,

7.2 54, 48, 36, 24, 18, 12, 9, 6 Mbps

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

following adapters

country)

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Model 7265NGW AN Model 7265NGW NB Model 7265NGW BN

General

Operating Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-

bit)

Wi-Fi Alliance* certification

Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-

Authentication Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2 Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP Wi-Fi Direct* Encryption

and Authentication Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS

2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

AKA

WPA2, AES-CCMP

Intel® Dual Band Wireless-AC 8260

Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF)

Electrical interfaces PCIe and USB 2.0 for both form factors

Antenna Interface

Wi-Fi Direct* WPA2, AES-CCMP

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

Intel® Dual Band Wireless-AC 8260

Model 8260NGW - 802.11agn, ac, 2x2, Bluetooth 4.0, PCIe, USB, M.2

Operating Temperature

Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Dual Band Wireless-AC 8260: 2 X 2 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the

0 to +80 degrees Celsius

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on

country)

Division Multiplexing (OFDM)

Intel® Dual Band Wireless-AC 8260: Up to 867 Mbps

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

following adapters

country)

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Model 8260NGW

General

Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-

bit)

Wi-Fi Alliance* certification

Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

Encryption and

Authentication Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Intel® Dual Band Wireless-AC 8265 (Models 8265NGWH/8265NGW/8265D2W)

General

Dimensions (H x W x D)

M.2 2230: 22 mm x 30 mm x 2.4 mm M.2 1216: 12 mm x 16 mm x 1.8 mm

Weight

Antenna Diversity Supported Radio ON/OFF

Control Connector Interface M.2: PCIe, USB, or UART (M.2 1216 only) Operating

Temperature Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC) Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1*, Microsoft Windows 10*, Linux* (limited

Wi-Fi Alliance* certification

IEEE WLAN Standard

Roaming Supports seamless roaming between access points Bluetooth Dual Mode Bluetooth* 4.2, BLE

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA,

Authentication Protocols

Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP Wi-Fi Direct*

Encryption and Authentication

Compliance

Product Safety UL, C-UL, CB (IEC 60950-1)

Model Numbers

Models Model 8265NGWH 802.11ac, 2x2, Bluetooth* 4.2, PCIe, USB, LTE

M.2 2230: 2.6g M.2 1216: 0.6g

Supported

0 to +80 degrees Celsius

feature support), Android Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected

Management Frames, Wi-Fi Direct* for peer to peer device connections, Wi-Fi Miracast* as Source.

IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,

802.11k, 802.11v pending OS support; Fine Timing Measurement based on

802.11REVmc

EAP-AKA PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2-PSK, AES-CCMP

Coexistence, eFEM, M.2 2230 HE

Model 8265NGW 802.11ac, 2x2, Bluetooth* 4.2, PCIe, USB, M.2

2230 MS

Model 8265D2W 802.11ac, 2x2, Bluetooth* 4.2, PCIe, LTE

Coexistence, M.2 1216 SD

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256

Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Dual Band Wireless-AC 8265: 2 X 2 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on country)

country)

CCK, DQPSK, DBPSK

QAM

2.4GHz ISM: Orthogonal Frequency Division

Division Multiplexing (OFDM)

Intel® Dual Band Wireless-AC 8265: Up to 867 Mbps

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Multiplexing (OFDM)

Intel® Wireless-AC 9260 (Models 9260NGW and 9260D2WL)

General

Dimensions (H x W x D)

Weight

Antenna Diversity Supported Radio ON/OFF

Control Connector Interface M.2: PCIe, USB Operating

Temperature Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC) Operating Systems Microsoft Windows 10*, Linux* (limited feature support), Chrome* Wi-Fi Alliance*

certification IEEE WLAN Standard IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,

Roaming Supports seamless roaming between access points Bluetooth Bluetooth* 5

M.2 2230: 22 mm x 30 mm x 2.4 mm [1.5 mm max (top side)/ 0.1 mm max (bottom side)]

M.2 1216: 12 mm x 16 mm x 1.67 (±0.08) mm

M.2 2230: 2.9 ±0.3 g M.2 1216: 0.61 ±0.1 g

Supported

0 to +80 degrees Celsius

Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct*.

802.11k, 802.11v pending OS support; Fine Timing Measurement based on

802.11REVmc

Security

Authentication WPA* and WPA2*, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-AKA) Authentication

Protocols Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP Wi-Fi Direct*

Encryption and Authentication

Compliance

US Government FIPS, FISMA Product Safety UL, C-UL, CB (IEC 60950-1)

Model Numbers

Models 9260NGW 802.11ac wave 2, 2x2, Bluetooth* 5, PCIe,

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256

Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Wireless-AC 9260: 2 X 2 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

PAP, CHAP, TLS, MS-CHAP*, MS-CHAPv2*

WPA2-PSK, AES-CCMP

USB, M.2 2230

9260D2WL 802.11ac wave 2, 2x2, Bluetooth* 5, PCIe,

USB, M.2 1216 LTE Coex

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on country)

country)

CCK, DQPSK, DBPSK

QAM

2.4GHz ISM: Orthogonal Frequency Division

Division Multiplexing (OFDM)

1.73 Gbps when using 160MHz channels

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Multiplexing (OFDM)

Intel® Wireless-AC 9461 (Models 9461NGW/9461D2W)

General

Dimensions (H x W x D)

Weight

Antenna Diversity Supported

M.2 2230: 22 mm x 30 mm x 2.4 mm M.2 1216: 12 mm x 16 mm x 1.57 (+-0.08) mm

M.2 2230: 2.7g M.2 1216: 0.7g

Radio ON/OFF

Control

Supported

Connector Interface M.2: CNVio Operating

Temperature Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC) Operating Systems Microsoft Windows 10*, Linux* (limited feature support), Chrome Wi-Fi Alliance*

certification IEEE WLAN Standard IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,

Roaming Supports seamless roaming between access points Bluetooth Bluetooth® 5

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA) Authentication

Protocols Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP Wi-Fi Direct*

Encryption and Authentication

Compliance

Regulatory For a list of country approvals, please contact your local Intel representatives. US Government FIPS, FISMA Product Safety UL, C-UL, CB (IEC 60950-1)

Model Numbers

Models 9461NGW 802.11ac wave 2, 1x1, Bluetooth* 5, PCIe,

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256

Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Wireless-AC 9461: 1 X 1 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data 54, 48, 36, 24, 18, 12, 9, 6 Mbps

0ºC to +80ºC

Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct

802.11k, 802.11v pending OS support; Fine Timing Measurement based on

802.11REVmc

PAP, CHAP, TLS, MS-CHAP*, MS-CHAPv2

WPA2-PSK, AES-CCMP

USB, M.2 2230, Single Antenna

9461D2W 802.11ac wave 2, 1x1, Bluetooth* 5, PCIe,

USB, M.2 1216, Single Antenna

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on country)

country)

CCK, DQPSK, DBPSK

QAM

2.4GHz ISM: Orthogonal Frequency Division

Division Multiplexing (OFDM)

433 Mbps when using 80MHz channels

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

Multiplexing (OFDM)

Rates

IEEE 802.11b Data Rates

11, 5.5, 2, 1 Mbps

Intel® Wireless-AC 9462 (Models 9462NGW/9462D2W)

General

Dimensions (H x W x D)

M.2 2230: 22 mm x 30 mm x 2.4 mm M.2 1216: 12 mm x 16 mm x 1.57 (+-0.08) mm

Weight

Antenna Diversity Supported Radio ON/OFF

Control Connector Interface M.2: CNVio Operating

Temperature Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC) Operating Systems Microsoft Windows 10*, Linux* (limited feature support), Chrome Wi-Fi Alliance*

certification IEEE WLAN Standard IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,

Roaming Supports seamless roaming between access points Bluetooth Bluetooth® 5

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA) Authentication

Protocols Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP Wi-Fi Direct*

Encryption and Authentication

Compliance

Regulatory For a list of country approvals, please contact your local Intel representatives. US Government FIPS, FISMA Product Safety UL, C-UL, CB (IEC 60950-1)

Model Numbers

Models 9462NGW 802.11ac wave 2, 1x1, Bluetooth* 5, PCIe,

Frequency Modulation

M.2 2230: 2.7g M.2 1216: 0.7g

Supported

0ºC to +80ºC

Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct

802.11k, 802.11v pending OS support; Fine Timing Measurement based on

802.11REVmc

PAP, CHAP, TLS, MS-CHAP*, MS-CHAPv2

WPA2-PSK, AES-CCMP

USB, M.2 2230, Diversity Antenna

9462D2W 802.11ac wave 2, 1x1, Bluetooth* 5, PCIe,

USB, M.2 1216, Diversity Antenna

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

Frequency band 5.15GHz - 5.85GHz (dependent on

country)

2.400 - 2.4835GHz (dependent on country)

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256

Wireless Medium 5GHz UNII: Orthogonal Frequency

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Wireless-AC 9462: 1 X 1 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

QAM

Division Multiplexing (OFDM)

433 Mbps when using 80MHz channels

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

CCK, DQPSK, DBPSK

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Intel® Wireless-AC 9560 (Models 9560NGW/9560D2W)

General

Dimensions (H x W x D)

Weight

Antenna Diversity Supported Radio ON/OFF

Control Connector

Interface Operating

Temperature Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC) Operating

Systems Wi-Fi Alliance*

certification

IEEE WLAN Standard

Roaming Supports seamless roaming between access points Bluetooth Bluetooth* 5

Security

Authentication WPA* and WPA2*, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-AKA)

Supported

M.2: CNVio

0 to +80 degrees Celsius

Microsoft Windows 10*, Linux* (limited feature support), Chrome*

Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct* (For Microsoft Windows* only).

IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k,

802.11v pending OS support; Fine Timing Measurement based on 802.11-2016

M.2 2230: 22 mm x 30 mm x 2.4 mm M.2 1216: 12 mm x 16 mm x 1.8 mm

M.2 2230: 2.6g M.2 1216: 0.6g

Authentication

Protocols

PAP, CHAP, TLS, MS-CHAP*, MS-CHAPv2*

Encryption 64-bit and 128-bit WEP, 128-bit AES-CCMP Wi-Fi Direct*

Encryption and Authentication

Compliance

US Government FIPS, FISMA Product Safety UL, C-UL, CB (IEC 60950-1)

Model Numbers

Models 9560NGW 802.11ac wave 2, 2x2, Bluetooth* 5, PCIe,

Frequency Modulation

Frequency band 5.15GHz - 5.85GHz (dependent on

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK Wireless Medium 5GHz UNII: Orthogonal Frequency Division

Channels All channels as defined by the relevant specification and country rules. Spatial streams Intel® Wireless-AC 9560: 2 X 2 Data Rates All data rates are theoretical maximums. IEEE 802.11ac

Data Rates IEEE 802.11n

Data Rates IEEE 802.11a

Data Rates IEEE 802.11g

Data Rates IEEE 802.11b

Data Rates

WPA2-PSK, AES-CCMP

USB, M.2 2230

9560D2W 802.11ac wave 2, 2x2, Bluetooth* 5, PCIe,

USB, M.2 1216

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

2.400 - 2.4835GHz (dependent on country)

country)

2.4GHz ISM: Orthogonal Frequency Division

Multiplexing (OFDM)

1.73 Gbps when using 160MHz channels

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,

115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 54, 48, 36, 24, 18, 12, 9, 6 Mbps

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Multiplexing (OFDM)

Intel® Tri-Band Wireless-AC 17265 (17265NGW/17265NGW LC)

Form Factors M.2 Type 3030 Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041

Module using X-FL, and one dedicated for Bluetooth

Antenna Interface Connector

Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

X.FL; Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h,

802.11w

0 to +80 degrees Celsius

Frequency

Modulation

60GHz

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

Frequency band 57GHz - 64GHz

Modulation DPSK, BPSK,

Wireless Medium DMG control PHY,

Channels 1, 2 and 3,

Spatial streams N/A Intel® Tri-Band Wireless-AC 17265 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11ad Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) General

Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby Wi-Fi Alliance*

certification Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-GCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

(802.11ad)

(dependent on country)

QPSK, 16 QAM,

DMG SC PHY

subject to country rules

Intel® Tri-Band Wireless-AC 17265: Up to 867 Mbps

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2, AES-CCMP

5.15GHz - 5.85GHz (dependent on country)

BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM

5GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM)

All channels as defined by the relevant specification and country rules.

2.400 - 2.4835GHz (dependent on country)

CCK, DQPSK, DBPSK

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Intel® Tri-Band Wireless-AC 17265 (17265NGW/17265NGW LC)

Form Factors M.2 Type 3030

Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041

Module using X-FL, and one dedicated for Bluetooth

Antenna Interface Connector

Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 57GHz - 64GHz

Modulation DPSK, BPSK,

Wireless Medium DMG control PHY,

Channels 1, 2 and 3,

Spatial streams N/A Intel® Tri-Band Wireless-AC 17265 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11ad Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) General

Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby Wi-Fi Alliance*

certification Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

X.FL; Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h,

802.11w

0 to +80 degrees Celsius

60GHz (802.11ad)

(dependent on country)

QPSK, 16 QAM,

DMG SC PHY

subject to country rules

Intel® Tri-Band Wireless-AC 17265: Up to 867 Mbps

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

5.15GHz - 5.85GHz (dependent on country)

BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM

5GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM)

All channels as defined by the relevant specification and country rules.

2.400 - 2.4835GHz (dependent on country)

CCK, DQPSK, DBPSK

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Protocols

Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-GCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

WPA2, AES-CCMP

Intel® Tri-Band Wireless-AC 18260 (18260NGW)

Form Factors M.2 Type 2230 Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041

or M10042 Module using X-FL (single coax cable to carry power, IF and control) Dimensions 22 mm x 30 mm x S3 [1.5mm Max (Top Side)/ 0.1mm max (bottom side)] Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 57GHz - 64GHz

Modulation DPSK, BPSK,

Wireless Medium DMG control PHY,

Channels 1, 2 and 3,

Spatial streams N/A Intel® Tri-Band Wireless-AC 18260 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11ad Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE), 4.1

X.FL; Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066

IEEE 802.11abgn, 802.11ac, 802.11ad, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w

0 to +80 degrees Celsius

60GHz

(802.11ad)

(dependent on

country)

QPSK, 16 QAM,

DMG SC PHY

subject to country

rules

Intel® Tri-Band Wireless-AC 18260: Up to 867 Mbps

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,

117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

5.15GHz - 5.85GHz (dependent on country)

BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM

5GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM)

All channels as defined by the relevant specification and country rules.

2.400 - 2.4835GHz (dependent on country)

CCK, DQPSK, DBPSK

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

General

Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby Wi-Fi Alliance*

certification Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-GCMP, TKIP Wi-Fi Direct*

Encryption and Authentication

Product Safety UL, C-UL, CB (IEC/EN 60950-1)

Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,

Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.

Cisco Compatible Extensions, v4.0

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2, AES-CCMP

Intel® Tri-Band Wireless-AC 18265 (18265NGW)

General

Dimensions (H x W x D)

Weight M.2 2230: 2.4g Antenna Diversity Supported Radio ON/OFF

Control Connector interface M.2: PCIe, USB Interface to Intel® Wireless Gigabit-Antenna M10101 Module using X-FL

Operating Temperature (Adapter Shield)

Humidity NonOperating

Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1*, Microsoft Windows 10, Linux* (limited

Wi-Fi Alliance Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM-PS*, WPA*, WPA2*, WPS2, Protected

IEEE WLAN Standard

Roaming Supports seamless roaming between respective access points Bluetooth Dual Mode Bluetooth* 4.2, BLE

Frequency Modulation

Frequency band 57GHz - 64GHz

M.2 2230: 22 mm x 30 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]

Supported

(single coax cable to carry power, IF and control) 0 to +80 ºC

50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

feature support), Android

Management Frames, Wi-Fi Direct* for peer to peer device connections, Wi-Fi Miracast as Source

IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,

802.11k, 802.11v pending OS support; Fine Timing Measurement based on

802.11REVmc

60GHz (802.11ad)

(dependent on country)

5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)

5.15GHz - 5.85GHz (dependent on country)

2.400 - 2.4835GHz (dependent on country)

Modulation DPSK, BPSK,

QPSK, 16 QAM,

BPSK, QPSK, 16 QAM, 64

CCK, DQPSK, DBPSK

Wireless Medium DMG control PHY,

Channels 1, 2 and 3,

Spatial streams N/A Intel® Tri-Band Wireless-AC 18265 Data Rates All data rates are theoretical maximums. IEEE 802.11ac Data

Rates IEEE 802.11ad Data

Rates IEEE 802.11n Data

Rates IEEE 802.11a Data

Rates IEEE 802.11g Data

Rates IEEE 802.11b Data

Rates

Security

Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP), EAP-SIM, EAP-AKA Authentication

Protocols Encryption 64-bit and 128-bit WEP, AES-CCMP Wi-Fi Direct*

Encryption and Authentication

Compliance

Product Safety UL, C-UL, CB (IEC 60950-1)

DMG SC PHY

subject to country rules

Up to 867 Mbps

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2

54, 48, 36, 24, 18, 12, 9, 6 Mbps

11, 5.5, 2, 1 Mbps

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

WPA2-PSK, AES-CCMP

QAM, 256 QAM 5GHz UNII: Orthogonal

Frequency Division Multiplexing (OFDM)

All channels as defined by the relevant specification and country rules.

2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)

Intel® Wireless Gigabit Sink W13100

Form Factors M.2 Type 3030 Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna

M10041 Module using X-FL, and one dedicated for Bluetooth

Antenna Interface Connector

Antenna Diversity On-board diversity IEEE 802.11

Networking Standards Operating Temperature 0 to +80 degrees Celsius Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 57GHz - 64GHz (dependent on country) Modulation DPSK, BPSK, QPSK, 16 QAM,

X.FL

802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h,

802.11w

60GHz (802.11ad)

Wireless Medium DMG control PHY, DMG SC PHY

Channels 1, 2 and 3, subject to country rules Spatial streams Intel® Wireless Gigabit Sink W13100 Data Rates All data rates are theoretical maximums. IEEE 802.11ad Data

Rates

Over-the-Air Security

Authentication WPA2-Personal (WSC - WiFi Simple Configuration) Encryption 128-bit AES-GCMP

Additional Crypto Functions

Public Key Decrypt RSA-2048

General

Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes Cisco Compatible

Extensions certification

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

Cisco Compatible Extensions, v4.0

Intel® Wireless Gigabit 11000

Dimensions 20.5 mm x 14.2 mm x 1.8 mm (shield included) Weight 2 grams Electrical

interfaces Antenna Interface

Connector Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)

Frequency Modulation

Frequency band 57GHz - 64GHz (dependent on country) Modulation DPSK, BPSK, QPSK, 16 QAM, Channels 1, 2 and 3, subject to country rules Data Rates All data rates are theoretical maximums. IEEE 802.11ad

Data Rates

Over-the-Air Security

Authentication WPA2-Personal (WSC - WiFi Simple Configuration) Encryption 128-bit AES-GCMP

Additional Crypto Functions

Public Key Decrypt

General

Soldered module has a proprietary land plan. Interface to Intel® Wireless Gigabit Antenna-M 10042R using X-FL (single coax cable to carry power, IF and control)

X.FL

802.11ad

0 to +80 degrees Celsius

60GHz (802.11ad)

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

RSA-2048

Operating Systems

Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby, Microsoft Windows 10* with connected standby

Intel® Wireless Gigabit Sink W13110VR

Dimensions (H x W x D)

Weight 5.16 grams Radio ON/OFF

Control Electrical interfaces M.2 Key G (User Defined). Interface to Intel® Wireless Gigabit Antenna-M 10101 Module

LEDs & GPIO Support

Antenna Diversity On-board diversity IEEE 802.11

Networking Standards

Operating Temperature (Adapter Shield)

Humidity NonOperating

Frequency Modulation

Frequency band 57GHz - 64GHz (dependent on country) Modulation DPSK, BPSK, QPSK, 16 QAM, Channels 1, 2 and 3, subject to country rules Data Rates All data rates are theoretical maximums. IEEE 802.11ad Data

Rates Operating Systems None Wi-Fi Alliance*

certification

Over-the-Air Security

Authentication WPA2-Personal (WSC - WiFi Simple Configuration) Encryption 128-bit AES-GCMP

Additional Crypto Functions

Public Key Decrypt RSA-2048

Intel® Wireless Gigabit Antenna-M 10101R Module

Dimensions (H x W x D)

Weight 1 gram Antenna Connector

Interface Operating

Temperature (Adapter Shield)

M.2 4230: 42 mm x 30 mm x 2.6 mm [1.5 mm Max (Top Side)/ 0.1 mm Max (Bottom Side)]

Hardware Support

using X-FL (single coax cable to carry power, IF and control), up to 2 modules Driving 2 LEDs or Multicolor LED with 4 states, Recovery button, Activity button with

configurable action

802.11ad

0 to +80 degrees Celsius

50% to 90% RH non-condensing (at temperatures of 25 °C to 35 °C)

60GHz (802.11ad)

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

N/A

7 mm x 19.3 mm x 1.8 mm

X.FL

0 to +80 degrees Celsius

Humidity Non-

Operating

50% to 90% RH non-condensing (at temperatures of 25 °C to 35 °C)

Intel® Wireless Gigabit 11100VR

Dimensions (H x W x D)

Weight 2 grams Radio ON/OFF

Control Electrical interfaces Soldered module has a proprietary land plan. Interface to Intel® Wireless Gigabit

LED Output On/Off IEEE 802.11

Networking Standards

Operating Temperature (Adapter Shield)

Humidity NonOperating

Frequency Modulation

Frequency band 57GHz - 64GHz (dependent on country) Modulation DPSK, BPSK, QPSK, 16 QAM, Channels 1, 2 and 3, subject to country rules Data Rates All data rates are theoretical maximums. IEEE 802.11ad Data

Rates Operating Systems Microsoft Windows 10* with connected standby

Over-the-Air Security

Authentication WPA2-Personal (WSC - WiFi Simple Configuration) Encryption 128-bit AES-GCMP

Additional Crypto Functions

Public Key Decrypt RSA-2048

Intel® Wireless Gigabit Antenna-M 10042R Module

Dimensions (H x W x D)

Weight 1 gram Antenna Connector

Interface Operating

Temperature (Adapter Shield)

Humidity NonOperating

20.5 mm x 14.2 mm x 1.8 mm (shield included)

Supported in both hardware and software

Antenna-M 10042 Module using X-FL (single coax cable to carry power, IF and control)

802.11ad

0 to +80 degrees Celsius

50% to 90% RH non-condensing (at temperatures of 25 °C to 35 °C)

60GHz (802.11ad)

4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps

7.5 mm x 24.5 mm x 1.8 mm

X.FL

0 to +80 degrees Celsius

50% to 90% RH non-condensing (at temperatures of 25 °C to 35 °C)

Intel® Wi-Fi 6 AX201 (Models AX201NGW/AX201D2W/AX201D2WL)

General

Dimensions (H x W x D)

M.2 2230: 22 mm x 30 mm x 2.4 mm [1.5 mm max (top side)/ 0.1 mm max (bottom side)]

M.2 1216: 12 mm x 16 mm x 1.65 (±0.05) mm

Weight

Radio ON/OFF Control

Connector Interface

Operating Temperature

Humidity 50% to 90% RH non-condensing (at temperatures of 25 °C to 35 °C) Operating

Systems Wi-Fi

Alliance* certification

IEEE WLAN Standard

Bluetooth Bluetooth* 5

Security

Authentication WPA* and WPA2* Personal and Enterprise; WPA3* (pending OS support) Authentication

Protocols Encryption 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP

Compliance

Regulatory For a list of country approvals, please contact your local Intel representatives. US

Government Product

Safety

Model Numbers

Models Model AX201NGW 802.11ax, 2x2, Bluetooth* 5, M.2 2230

Frequency Modulation

Frequency band

Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM,

Wireless Medium

Supported

M.2: CNVio2

0 to +80 degrees Celsius

Microsoft Windows 10*, Linux*, Chrome OS*

Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast*, Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location*, Passpoint*, Wi-Fi Aware*, and Wi-Fi TimeSync*

IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on

802.11-2016

802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2 (EAP-SIM, EAP-AKA, EAPAKA')

FIPS 140-2, FISMA

UL, C-UL, CB (IEC 60950-1)

Model AX201D2W 802.11ax, 2x2, Bluetooth* 5, M.2 1216 Model AX201D2WL 802.11ax, 2x2, Bluetooth* 5, M.2 1216; LTE

5GHz (802.11a/n/ac/ax) 2.4GHz (802.11b/g/n/ax)

5.15GHz - 5.85GHz (dependent on country) 2.400 - 2.4835GHz (dependent on country)

1024 QAM 5GHz UNII: Orthogonal Frequency Division

Multiple Access (OFDMA)

M.2 2230: 2.33 (±0.3) g M.2 1216: 0.61 (±0.1) g

Coexistence

CCK, DQPSK, DBPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM

2.4GHz ISM: Orthogonal Frequency Division Multiple Access (OFDMA)

Intel AX201D2 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Intel® WiFi Adapter Information Guide

Adapter Settings

Regulatory Information

Specifications
