Intel 62230ANHMWWB User Manual

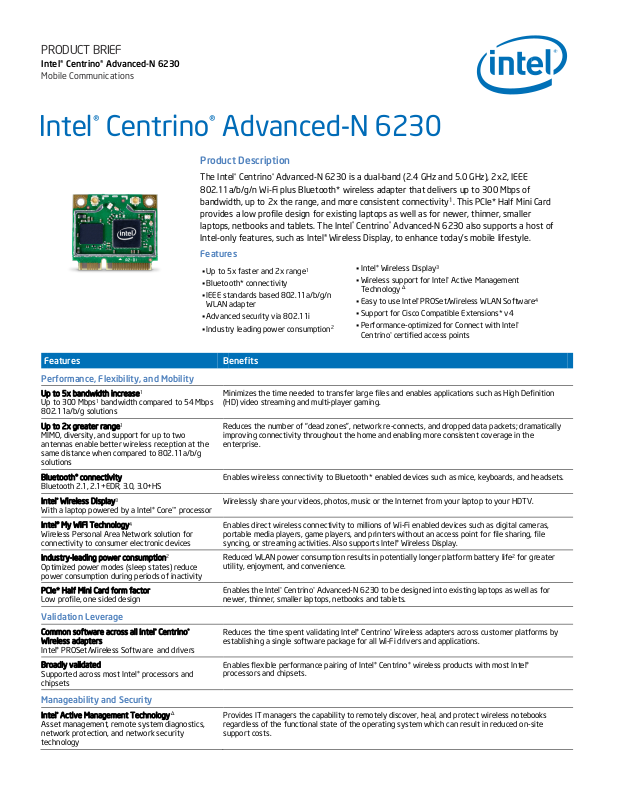

PRODUCT BRIEF

Up to 5x bandwidth increase1

Up to 2x greater range

Bluetooth® connectivity

Intel® Wireless Display3

Intel® My WiFi Technology

Industry-leading power consumption PCIe* Half Mini Card form factor

Common software across all Intel® Centrino® Wireless adapters

Broadly validated

Intel® Active Management Technology Δ

Intel® Centrino® Advanced-N 6230

Mobile Communications

Centrino® Advanced-N 6230

Features Benefits

Performance, Flexibility, and Mobility

Up to 300 Mbps1 bandwidth compared to 54 Mbps

802.11a/b/g solutions

MIMO, diversity, and support for up to two antennas enable better wireless reception at the same distance when compared to 802.11a/b/g solutions

Bluetooth 2.1, 2.1+EDR, 3.0, 3.0+HS

With a laptop powered by a Intel® Core™ processor

Wireless Personal Area Network solution for connectivity to consumer electronic devices

Optimized power modes (sleep states) reduce power consumption during periods of inactivity

Low profile, one sided design

Validation Leverage

Intel® PROSet/Wireless Software and drivers

Supported across most Intel® processors and chipsets

Manageability and Security

Asset management, remote system diagnostics, network protection, and network security technology

Product Description

The Intel® Centrino® Advanced-N 6230 is a dual-band (2.4 GHz and 5.0 GHz), 2x2, IEEE

802.11a/b/g/n Wi-Fi plus Bluetooth* wireless adapter that delivers up to 300 Mbps of bandwidth, up to 2x the range, and more consistent connectivity provides a low profile design for existing laptops as well as for newer, thinner, smaller laptops, netbooks and tablets. The Intel Intel-only features, such as Intel® Wireless Display, to enhance today’s mobile lifestyle.

Features

 Up to 5x faster and 2x range  Bluetooth* connectivity  IEEE standards based 802.11a/b/g/n

WLAN adapter

 Advanced security via 802.11i  Industry leading power consumption

Minimizes the time needed to transfer large files and enables applications such as High Definition (HD) video streaming and multi-player gaming.

Reduces the number of “dead zones”, network re-connects, and dropped data packets; dramatically improving connectivity throughout the home and enabling more consistent coverage in the enterprise.

Enables wireless connectivity to Bluetooth* enabled devices such as mice, keyboards, and headsets.

Wirelessly share your videos, photos, music or the Internet from your laptop to your HDTV.

Enables direct wireless connectivity to millions of Wi-Fi enabled devices such as digital cameras, portable media players, game players, and printers without an access point for file sharing, file syncing, or streaming activities. Also supports Intel® Wireless Display.

Reduced WLAN power consumption results in potentially longer platform battery life utility, enjoyment, and convenience.

Enables the Intel newer, thinner, smaller laptops, netbooks and tablets.

Reduces the time spent validating Intel® Centrino establishing a single software package for all Wi-Fi drivers and applications.

Enables flexible performance pairing of Intel® Centrino® wireless products with most Intel® processors and chipsets.

Provides IT managers the capability to remotely discover, heal, and protect wireless notebooks regardless of the functional state of the operating system which can result in reduced on-site support costs.

. This PCIe* Half Mini Card

Centrino® Advanced-N 6230 also supports a host of

Centrino® Advanced-N 6230 to be designed into existing laptops as well as for

 Intel® Wireless Display  Wireless support for Intel

Technology

 Easy to use Intel  Support for Cisco Compatible Extensions* v4  Performance-optimized for Connect with Intel

Centrino

certified access points

Wireless adapters across customer platforms by

Active Management

PROSet/Wireless WLAN Software4

for greater

Features Benefits

Advanced security via 802.11i

Intel® PROSet/Wireless Software3

IEEE standards based 802.11a/b/g/n WLAN adapter

Cisco Compatible Extensions* v4 Connect® with Intel Centrino®

Wireless security supporting AES encryption

Intel WLAN management software

Interoperability

Wi-Fi CERTIFIED* to IEEE 802.11a, 802.11b,

802.11g, and 802.11n standards

Cisco Centralized Key Management, Call Admission Control, Unscheduled Automatic Power Save Delivery (U-APSD), and Voice Metrics

Intel certification that focuses on interoperability between IEEE 802.11n devices

Ensures wireless networks are protected from unauthorized access via stronger authentication and encryption mechanisms.

Simplifies client deployments and allows remote management of wireless settings and profiles by IT managers.

Enables maximum interoperability with other IEEE-based Wireless Access Points and Wireless network adapters.

Helps prevent delays in VoIP calls when roaming between Access Points; enables improved network diagnostics.

Supports access points with the Connect with Intel® Centrino® label to ensure that both the AP and the Intel® Centrino® Advanced-N 6230 equipped laptop has passed rigorous interoperability tests for maximum performance.

Intel® Wireless Display2

Enjoy all of your laptop, network and online content on a big screen. With the Intel® Centrino® Wireless-N 6230, Intel® Wireless Display and Intel® Core™ processor based laptop, wirelessly share your videos, photos, music or the Internet from your laptop to your HDTV with great image quality and sound. Intel® Wireless Display delivers these features:

 HD supported at full motion frame rate for clarity and smooth-natural motion  128kb/s AAC audio to take advantage or A/V receiver for stereo sound  Intel® My WiFi Technology enables simultaneous Internet access while connected to HDTV  Intuitive user interface for simple connectivity to your big screen  Supported on Microsoft Windows 7*  Supports latest Wi-Fi security features including WPA2

Intel® PROSet/Wireless Enterprise Software3

Intel® PROSet/Wireless Enterprise Software for Microsoft Windows 7 is available for users of Intel superior experience by providing enhancements for end users as well as IT administrators who deploy and manage wireless networks. Features include:

 Simplified, consistent user interface design  Includes IT Administrator Toolkit for remote client management

 Persistent connection profiles for client maintenance  Advanced security support including WPA2 and AES-CCMP  Intelligent troubleshooting and diagnostics tools  Interoperability across IEEE 802.11 standards

Intel® Centrino® Advanced-N 6230 Technical Specifications

General

Dimensions (H x W x D) Weight Diversity Radio ON/OFF Control Connector interface LED Output Operating Temperature (Adapter Shield) Humidity Non-Operating

26.80 mm x 30.00 mm x 2.4 mm Max (Top Side) / 1.35 mm Max (Bottom Side)

4.0 g On-board diversity support for systems designed with two antennas Supported in both hardware and software Half Mini Card form factor, based on PCIe electrical interface On/Off 0 to +80 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)

WLAN hardware. The latest version of the software helps enable a

- Create self-extracting administrator packages

- Central control over driver and application settings

- Single Sign On for Microsoft Windows networks
