PARTS LIST
FULL JACKET DIRECT STEAM STATIONARY KETTLES
MODELS: DL-20F, 30F, 40F, 60F
DP-20F, 30F, 40F, 60F
DLT-20F, 30F, 40F, 60F
CROWN FOOD SERVICE EQUIPMENT LTD.
70 OAKDALE ROAD, DOWNSVIEW (TORONTO), ONTARIO, M3N 1V9
TELEPHONE: (416) 746-2358, FAX: (416) 746-8324
PART NUMBER 10217R1 1 2009-03-27
PRINTED IN CANADA
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
FIGURE 1
ITEM PART NUMBER DESCRIPTION QUANTITY
1 9189-1 Ball Valve 1
2 2960-2 Tilt Console 1
3 3011-1 Console Cover 1
4 8-1308 Adjustable Foot 3
5 M33S-1032-12 Screw 10 - 32 x 1/2 1
* 6 3-SRV8-1 Relief Valve, 35 PSI 1
** 3-SRV9-1 Relief Valve, 50 PSI (Optional) 1
* 7 5184-1 Down Tube for Relief Valve 1
* NOT SHOWN.
** SELECT AS REQUIRED.
PART NUMBER 10217R1 2 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
TILT CONSOLE PARTS
FIGURE 2
PART NUMBER 10217R1 3 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
FIGURE 2
ITEM PART NUMBER DESCRIPTION QUANTITY
1 8-2054 Handwheel 1
2 1-72U4 Set Screw, 3/8 - 16 x 1/2" 1
3 8-2055 Tilt Shaft 1
4 2-HN66 Jam Nut, 3/4 - 16 UNF 2
5 5327-1 Thrust Bearing 2
6 5393-1 Segment Gear and Worm Gear Kit
(Includes Items 7 to 12)
7 1-52U4 Set Screw, 1/4 - 20 x 1/2" 1
8 2-T6U5 Tension Pin, 3/16" Diameter x 1-1/4" L. 1
9 1-99C0 Nut, 1/2 - 13 UNC 1
10 1-W4C0 Lock Washer, 1/2" 1
11 2-96C8 Bolt, 1/2 - 13 UNC x 2" 1
12 8-2075-1 Key, 1/4" 1
* 13 9085-1 “O” Ring Lubrication 1
14 8-2057 Spacer 1
15 1-79C0 Nut 3/8 - 16 UNC 1
16 2-72U7 Set Screw, 3/8-16 UNC x 1 - 3/4" 1
17 8-2085DE Outbore Bearing Complete With Extension. Used
on Spring Assist Cover only. Specify model.
18 9-3197 Stainless Steel Washer 1
1
1
19 9-3198 Bolt 1
20 8-2085D Outbore Bearing 1
21 2-113R “O” Ring 1
22 9-3196 Brass Fitting 1
PART NUMBER 10217R1 4 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
FIGURE 2
ITEM PART NUMBER DESCRIPTION QUANTITY
23 1-75C8 Bolt, 3/8 - 16 UNC x 1" 4
24 1-70C0 Lock Washer, 3/8" 4
25 8-2086 Block Bearing 1
26 9011-4 90° Elbow, 3/4" 1
27 9010-024 Nipple, 3/4 x 2-1/2" L. 1
28 9042-4 Coupling, 3/4" 1
29 9010-124 Pipe, Steam Supply, 3/4 x 12-1/2" L. 1
30 3-SCE6 Control Valve, 3/4" 1
31 3-SC06 Control Valve Knob 1
32 9-3374 Decal - Tilt 1
33 5328-1 Washer, 3/4 ID x 1-1/4 OD 1
34 5329-1 Cotter Pin, S.S., 3/16 x 1" L. 1
35 2-218R “O” Ring 4
36 1-R315 Retaining Ring 1
* NOT SHOWN
PART NUMBER 10217R1 5 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
SPRING ASSIST HINGE ASSEMBLY
FIGURE 3
PART NUMBER 10217R1 6 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
FROM FIGURE 3
ITEM PART NUMBER DESCRIPTION QUANTITY
9-3185 HINGE ASSEMBLY
1 8-2029 Lock Pin 1
2 8-2035L End Lock Plate 1
3 5428-1 Stationary Disc 1
5430-1 Core 1
5 8-2026 Spring 1
** 6 8-2028-2 Handle Assembly, 20 Gallon Kettle 1
8-2027 Handle Assembly, 30 Gallon Kettle 1
8-2027-1 Handle Assembly, 40 Gallon Kettle 1
8-2027-2 Handle Assembly, 60 Gallon Kettle 1
7 5429-1 Rotary Disc 1
8 8-2021 End Stop Plate 1
9 1-66S6 Cap Screws 4
10 2-KB01 Knob 1
11 4261-2 Mounting Plate - Tilting Kettles Only 1
** 12 8-2005 Cover, 20 Gallon Kettle 1
8-2006 Cover, 30 Gallon Kettle 1
8-2007 Cover, 40 Gallon Kettle 1
8-2008 Cover, 60 Gallon Kettle 1
** SELECT AS REQUIRED.
PART NUMBER 10217R1 7 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
HINGE ASSEMBLY
FIGURE 4
ITEM PART NUMBER DESCRIPTION QUANTITY
1 2-KB01 Knob 1
2 9-3231-2 Handle Assembly, 20 Gallon Kettle 1
3 1-85S8 Hex Bolt, 1/2 - 20 UNF x 1", S.S. 2
4 1-W0V6 Fibre Washer 4
5 1-89S0 Hex Nut, 1/2 - 20 UNF, S.S. 2
6 S05N-12 Lock Washer, 1/2", S.S. 2
7 8-2005 Cover, 20 Gallon Kettle 1
.
PART NUMBER 10217R1 8 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F

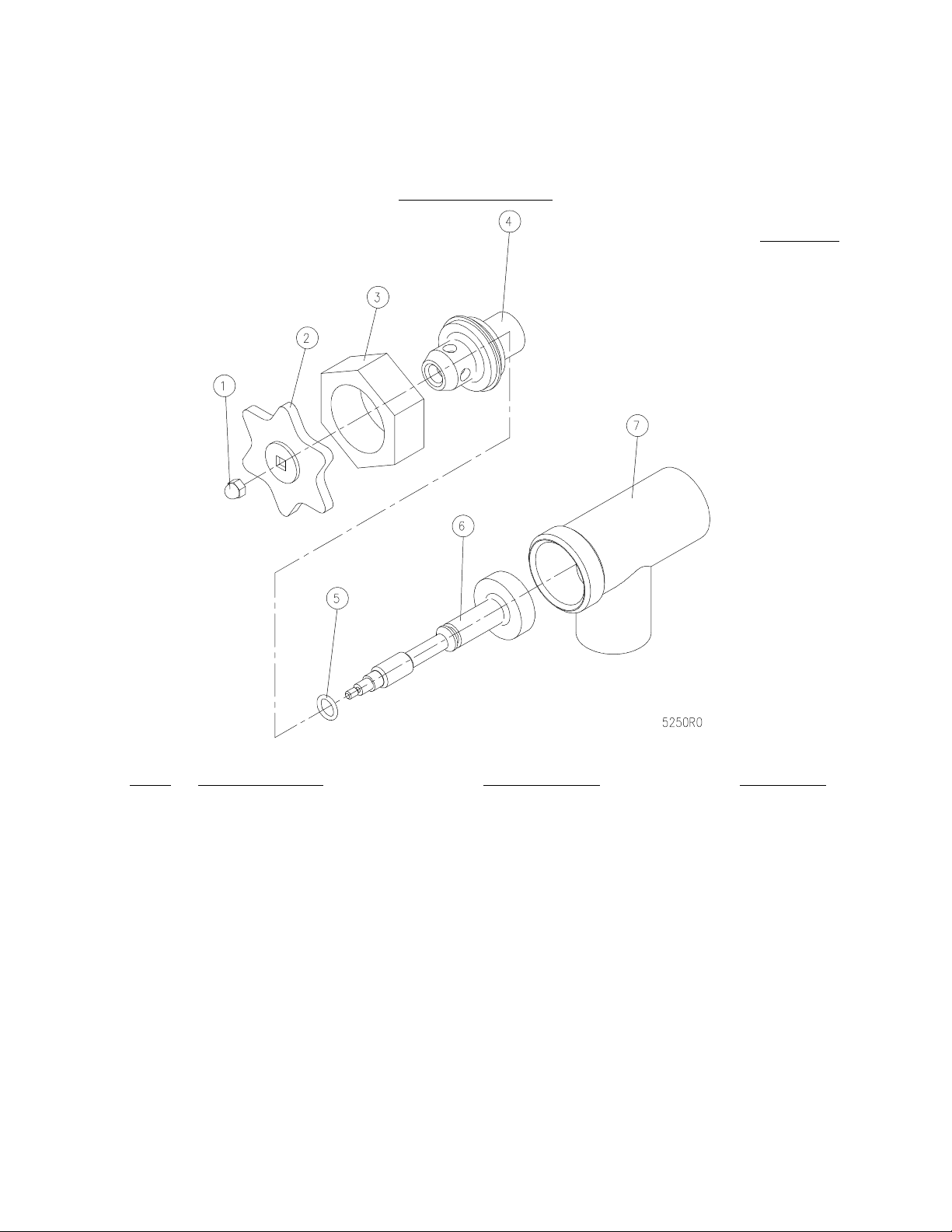

DRAW-OFF VALVE
FIGURE 5
ITEM PART NUMBER DESCRIPTION QUANTITY
3-D015 1-1/2" DRAW OFF VALVE ASSEMBLY
1 9031-3 Acorn Nut, 10-24 UNC 1
2 4115-1 Handle, Stainless Steel 1
3 3-DV13 Gland Nut 1
4 3-DV14 Bonnet 1
5 3-DV16 “O” Ring 1
6 3-DV15RV Stem Assembly 1
7 3-DV17 Valve Body 1
PART NUMBER 10217R1 9 2009-03-27
PARTS LIST, FULL JACKET DIRECT STEAM STATIONARY KETTLES,
MODELS: DL-20F TO 60F, DP-20F TO 60F, DLT-20F TO 60F
ITEM PART NUMBER DESCRIPTION QUANTITY
3-D020 2" DRAW OFF VALVE ASSEMBLY
1 9031-3 Acorn Nut, 10-24 UNC 1
2 4115-1 Handle, Stainless Steel 1
3 3-DV23 Gland Nut 1
4 3-DV24 Bonnet 1
5 3-DV26 “O” Ring 1
6 3-DV25RV Stem Assembly 1
7 3-DV27 Valve Body 1
ITEM PART NUMBER DESCRIPTION QUANTITY
3-D030 3" DRAW OFF VALVE ASSEMBLY
1 3-DV31 Acorn Nut, 7/16-14 UNC 1
2 3-DV32 Handle, Stainless Steel 1
3 3-DV33 Gland Nut 1
4 3-DV34 Bonnet 1
5 3-DV36 “O” Ring 1
6 3-DV35RV Stem Assembly 1
7 3-DV37 Valve Body 1
PART NUMBER 10217R1 10 2009-03-27
