INTEGRITY FUSION BENDS 90 User Manual

E

B

A

D

C

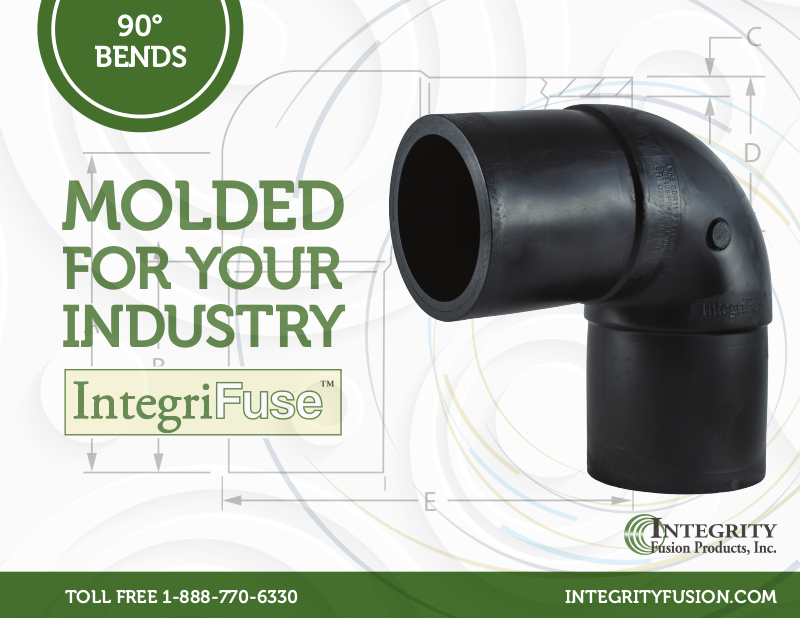

90°

BENDS

MOLDED

FOR YOUR
INDUSTRY

INTEGRITYFUSION.COM

INTEGRITYFUSION.COMTOLL FREE 1-888-770-6330

C

90° BENDS

The dierence

MOLDED

Makes

Molded 90 elbows from Integrity Fusion
Products oer performance, availability, and
value that eliminate the need for fabricated
ttings.

The molded dierence includes:

• No inner fusion beads

• Fully Pressure Rated

• Wall thickness remains consistent
throughout

IntegriFuse ttings are manufactured from
100% Virgin Resin with black high density
bimodal polyethylene copolymer designed
for use in, but not limited to, potable water,
natural gas, industrial, landll, oil & gas, and
mining applications.

All IntegriFuse ttings meet ASTM-D2513 &
ASTM-D3261 requirements.

D

A

B

IPS

E

SDR 9 (Standard Dimension Ratio) 255 PSI (Working Pressure at 73.4˚ F)

Nominal Size A B C D E Weight Item Code Notes

2” IPS 4.36” 2.64” 0.264” 2.375” 5.63” 0.6 lbs. 100108 FM 250

3” IPS 5.85” 3.50” 0.389” 3.500” 7.73” 1.7 lbs. 100112 FM 250

4” IPS 6.85” 3.80” 0.500” 4.500” 9.21” 3.3 lbs. 100116 FM 250

6” IPS 8.94” 4.75” 0.736” 6.625” 12.40” 8.8 lbs. 100120 FM 250

8” IPS 11.81” 7.20” 0.958” 8.625” 16.13” 19.6 lbs. 100124 FM 250

SDR 7 (Standard Dimension Ratio) 335 PSI (Working Pressure at 73.4˚ F)

Nominal Size A B C D E Weight Item Code Notes

2” IPS 4.36” 2.64” 0.339” 2.375” 5.63” 0.7 lbs. 100107 FM 335

3” IPS 5.85” 3.50” 0.500” 3.500” 7.73” 2.2 lbs. 100111 FM 335

4” IPS 6.85” 3.80” 0.643” 4.500” 9.21” 4.0 lbs. 100114 FM 335

6” IPS 8.94” 4.75” 0.946” 6.625” 12.40” 10.9 lbs. 100119 FM 335

8” IPS 11.81” 7.20” 1.232” 8.625” 16.13” 23.9 lbs. 100123 FM 335

All butt fusion, electrofusion, and transition
ttings meet AWWA C-901/C-906, NSF-61,
and NSF-372. IntegriFuse ttings are
manufactured with resin having a material
designation code of PE 3408, PE3608, PE
4710, and PE 100.

Integrity Fusion Products, Inc.
270 Parkade Court
Peachtree City, GA 30269
Phone [phone] | Fax [phone]
www.IntegrityFusion.com
Call Toll Free at 888.770.6330

DIPS

SDR 11 (Standard Dimension Ratio) 200 PSI (Working Pressure at 73.4˚ F)

Nominal Size A B C D E Weight Item Code Notes

4” DIPS 7.55” 4.10” 0.436” 4.800” 10.04” 3.2 lbs. 100129 FM 200

6” DIPS 9.67” 5.10” 0.627” 6.900” 13.34” 8.7 lbs. 100130 FM 200

8” DIPS 11.58” 5.20” 0.823” 9.050” 16.33” 19.5 lbs. 100131 FM 200

10” DIPS 13.00” 5.5” 1.010” 11.10” 18.00” 28.5 lbs. 100132 FM 200

12” DIPS 14.00” 5.87” 1.200” 13.20” 20.00” 43.8 lbs. 100133 FM 200
