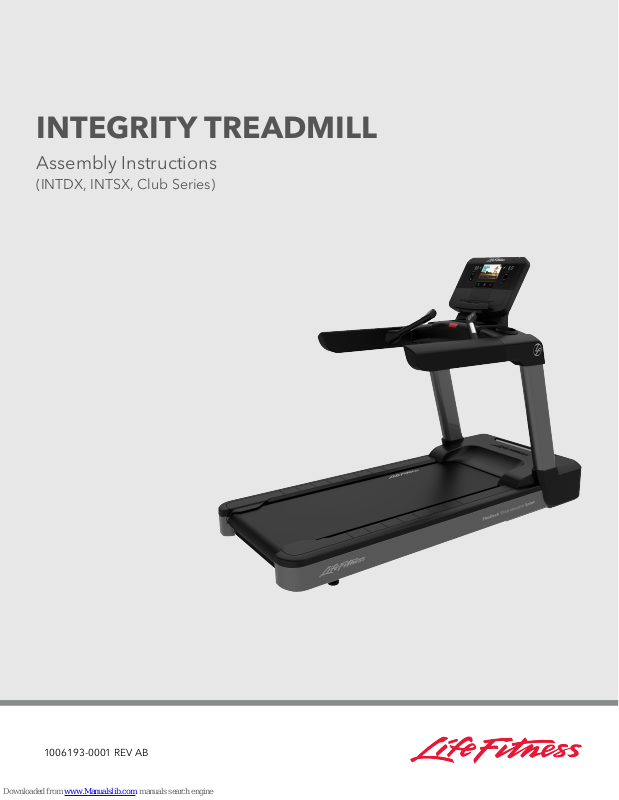

Integrity INTDX Series, INTSX Series, Club Series Assembly Instructions Manual

INTEGRITY TREADMILL

Assembly Instructions

(INTDX, INTSX, Club Series)

1006193-0001 REV AB

User and Service Documents Link

Operation Manuals and other Product Information available at

https://www.lftechsupport.com/web/document-library/documents

https://www.lftechsupport.com/web/document-library/documents

https://www.lftechsupport.com/web/document-library/documents

https://www.lftechsupport.com/web/document-library/documents

https://www.lftechsupport.com/web/document-library/documents

https://www.lftechsupport.com/web/document-library/documents

Trobareu el manual de funcionament i altra informació de producte a

https://www.lftechsupport.com/web/document-library/documents

Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn

https://www.lftechsupport.com/web/document-library/documents

Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter

https://www.lftechsupport.com/web/document-library/documents

Encontrará el manual de funcionamiento y otra información de producto en

https://www.lftechsupport.com/web/document-library/documents

Erabiltzailearen Eskuliburua eta Beste Produktuei buruzko Informazioa eskuratu

https://www.lftechsupport.com/web/document-library/documents gunean

Käyttöoppaat ja muut tuotetiedot ovat saatavana osoitteessa

https://www.lftechsupport.com/web/document-library/documents

Les manuels d’utilisation, ainsi que d’autres informations sur les Produits, sont disponibles sur

https://www.lftechsupport.com/web/document-library/documents

Felhasználói kézikönyvek és más termékinformációk: https://www.lftechsupport.com/web/document-library/documents
Manuali di funzionamento e altre informazioni sui prodotti disponibili su

https://www.lftechsupport.com/web/document-library/documents

Instrukcje obsługi i inne informacje o produktach dostępne na stronie

https://www.lftechsupport.com/web/document-library/documents

Manuais de Operação e Informações sobre outros produtos disponíveis em

https://www.lftechsupport.com/web/document-library/documents

https://www.lftechsupport.com/web/document-library/documents

Kullanım Kılavuzları ve Diğer Ürün Bilgileri https://www.lftechsupport.com/web/document-library/documents’da
bulunmaktadır

Page 3 of 32

Corporate Headquarters

Columbia Centre III, 9525 West Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A.

Service phone number: 800.351.3737 (toll-free within U.S.A., Canada)

International Offices

AMERICAS
North America

Life Fitness, Inc.

Columbia Centre III
9525 West Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A.
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Service Website: www.lifefitness.com/parts
Sales/Marketing Email: [e-mail]
Operating Hours: 7:00 am-6:00 pm (CST)

Brazil
Life Fitness Brasil

Av Reboucas 2315
Jd. Paulistano
São Paulo, SP 05401-300
BRAZIL
SAC: 0800 773 8282
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email: [e-mail]
Service Operating Hours: 9:00 - 17:00 (BRT)

(Monday-Friday)
Store Operating Hours: 9:00 -20:00 (BRT)

(Monday-Friday)
10:00 - 16:00 (BRT) (Saturday)

Latin America & Caribbean*
Life Fitness, Inc.

Columbia Centre III
9525 West Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A.
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Service Website: www.lifefitness.com/parts
Sales/Marketing Email: [e-mail]
Operating Hours: 7:00 am-6:00 pm (CST)

EUROPE, MIDDLE EAST, & AFRICA (EMEA)Netherlands
& Luxemburg
Life Fitness Atlantic BV

Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email:

[e-mail]

Operating Hours: 9:00h-17:00h (CET)

847.288.3300 • FAX: [phone]

Global Website: www.lifefitness.com

United Kingdom & Ireland
Life Fitness UK LTD

Queen Adelaide
Ely, Cambs, CB7 4UB
Telephone: General Office (+44)

1353.666017
Customer Support (+44) 1353.665507
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email: [e-mail]
Operating Hours:
General Office: 9.00am - 5.00pm (GMT)
Customer Support: 8.30am - 5.00pm (GMT)

Germany & Switzerland
Life Fitness Europe GMBH

Siemensstraße 3
85716 Unterschleißheim
GERMANY
Telephone: [phone] (Germany)
([phone] (Switzerland)
Fax: [phone] (Germany)
([phone] (Switzerland)
Service Email: [e-mail]
Sales/Marketing Email: [e-mail]
Operating Hours: 08.30 -16.30h (CET)

Austria
Life Fitness Austria

Vertriebs G.m.b.H.
Dückegasse 7-9/3/36
1220 Vienna
AUSTRIA
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Marketing/Sales Email: [e-mail]
Operating Hours: 08:30-16.30.h (MEZ)

Spain
Life Fitness IBERIA

C/Frederic Mompou 5,1º1ª
08960 Sant Just Desvern Barcelona
SPAIN
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email: [e-mail]
Operating Hours:

9.00h-18.00h (Monday-Thursday)

8.30h-15.00h (Friday)

Belgium
Life Fitness Benelux NV

Parc Industrial de Petit-Rechain
4800 Verviers
BELGIUM
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email:

[e-mail]

Operating Hours: 9.00h -17.00h (CET)

All Other EMEA Countries & Distributor Business
C-EMEA*

Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email:

[e-mail]

Operating Hours: 9.00h-17.00h (CET)

ASIA PACIFIC (AP)
Japan

Life Fitness Japan

Japan Nippon Brunswick Bldg., #8F
5-27-7 Sendagaya
Shibuya-Ku, Tokyo
Japan 151-0051
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email: [e-mail]
Operating Hours: 9.00h-17.00h (JAPAN)

Hong Kong
Life Fitness Asia Pacific LTD

32/F, Global Trade Square
21 Wong Chuk Hang Road
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email:

[e-mail]

Operating Hours: 9.00h-17.00h
Service Operating Hours: 9.00h-18.00h

All Other Asia Pacific countries & distributor business
Asia Pacific*

32/F, Global Trade Square
21 Wong Chuk Hang Road
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email: [e-mail]
Sales/Marketing Email:

[e-mail]

Operating Hours: 9.00h-17.00h
Service Operating Hours: 9.00h-18.00h

*Also check www.lifefitness.com for local representation or distributor/dealer

Page 4 of 32

Table of Contents

Getting Started

IMPORTANT SAFETY INSTRUCTIONS...............6

CONSIGNÉS DE SÉCURITÉ

IMPORTANTES.................................................8

Set-Up..................................................................10

Electrical Power Requirements.........................10

Grounding Instructions......................................10

How to Position and Stabilize the

Treadmill.........................................................11

Safety Clearances...............................................11

Power Switch.......................................................12

Turning the Unit On............................................12

Stride Sensor Auto-Shutoff System..................12

Cable TV Hook-Up..............................................12

Power Cord Routing...........................................13

Product Overview

INTDX & Club Series..........................................14

INTSX....................................................................15

Mounting and Dismounting the

Treadmill.........................................................15

User Position.......................................................15

Using and Testing the Emergency Stop

System.............................................................15

Attach Console...................................................26

Secure Ferrite to Console to Base Power

Cable...............................................................26

Route E-Stop Cable............................................27

Attach Lower Plastics to Bridge........................27

Attach Rear Cover...............................................28

Attach End Caps.................................................28

Attach Side Shrouds...........................................29

Attach Motor Side Shrouds...............................29

Attach Front Shroud...........................................29

Attach Anti-Slip Rails..........................................30

Attach Motor Cover............................................31

Specifications

Specifications......................................................32

Service and Technical Data

Preventive Maintenance Tips............................16

Life Fitness Approved Cleaners........................16

Life Fitness Compatible Cleaners.....................16

Preventive Maintenance Schedule...................17

Troubleshooting the Treadmill.........................17

Troubleshooting the Polar® Heart Rate Chest

Strap................................................................19

How to Adjust and Tension the Striding

Belt...................................................................20

The Belt Tensioning Bolts..................................20

Tracking (Centering) A Striding Belt................20

Tensioning an Existing Striding Belt................21

How To Obtain Product Service.......................21

Assembly

Hardware and Required Tools..........................22

Attach Uprights...................................................22

Secure Grounding Braid Cable to Base

Frame...............................................................23

Attach Bridge Weldment to Uprights..............23

Secure Grounding Braid Cable to

Uprights...........................................................24

Connect Cables..................................................24

Connect Base Cables.........................................25

Attach Upper Plastics to Bridge........................25

Base to Console Cable Connections...............26

Life Fitness® is a registered trademark of Brunswick Corporation.
Gym Wipes® is a registered trademark of the 2XL Corporation. PureGreen 24 is a trademark of Pure Green.

©

Copyright 2017, Life Fitness, a division of Brunswick Corporation. All Rights Reserved.

Columbia Center III - 9525 West Bryn Mawr Ave., Rosemont, IL 60018 • 847-288-3300

www.lifefitness.com • 1006193-0001 AB • January 2017

Page 5 of 32

1. Getting Started

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using Life Fitness products.

Warning: Health-related injuries may result from incorrect or excessive use of exercise equipment. Life Fitness
STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program,
particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes,
has high cholesterol, is obese, or has not exercised regularly in the past year.If, at any time while exercising, the
user experiences faintness, dizziness, pain, or shortness of breath, he or she must stop well immediately.

Caution: Any changes or modifications to this equipment could void the product warranty.

Danger: To reduce the risk of electrical shock or injury from moving parts, always unplug Life Fitness products

before cleaning or attempting any maintenance activity.
Warning: To reduce the risk of burns, fire, electric shock, or injury, it is imperative to connect each product to a

properly grounded electrical outlet.
Warning: Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death.

If you feel faint, stop exercising immediately.
Warning: Keep the area 6.5 ft. (2 m) by 3 ft. (0.9 m) behind the Life Fitness treadmill clear of any obstructions,

including walls, furniture, and other equipment. Contact Life Fitness Customer Support Services for an optional
longer power cord if necessary.

Warning: Be sure the emergency stop lanyard is clipped to the user and in proper position on the treadmill before
beginning any workout.

Warning: The belt centering adjustment must be performed if the belt is not between the marks indicating the
maximum allowed lateral positions. Refer to Treadmill Assembly Instructions.

Caution: Risk of injury to persons – to avoid injury, use extreme caution when stepping onto or off of a moving
belt. Read assembly instruction manual before using.

• Never operate a Life Fitness product if it has a damaged power cord or electrical plug, or if it has been dropped,
damaged, or even partially immersed in water. Contact Life Fitness Customer Support Services.

• Position the product so that the power cord plug to the wall is accessible to the user. Make sure that the power cord
is not knotted or twisted and that it is not trapped under any equipment or other objects.

• If the electrical supply cord is damaged, it must be replaced by the manufacturer, an authorized service agent, or a
similarly qualified person to avoid a hazard.

• Always follow the console instructions for proper operation.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental

capabilities, or lack of experience or knowledge unless they have supervision or been given instruction concerning
the use of the appliance by a person responsible for their safety.

• Do not use this product outdoors, near swimming pools or in areas of high humidity.

• Never operate a Life Fitness product with the air openings blocked. Keep air openings free of lint, hair, or any other

obstructing material.

• Never insert objects into any opening in these products. If an object should drop inside, turn off the power, unplug
the power cord from the outlet, and carefully retrieve it. If the item cannot be reached, contact Life Fitness Customer
Support Services.

• Never place liquids of any type directly on the unit, except in an accessory tray or holder. Containers with lids are
recommended.

• Do not use these products in bare feet. Always wear shoes. Wear shoes with rubber or high-traction soles. Do not use
shoes with heels, leather soles, cleats or spikes. Make sure no stones are embedded in the soles.

• Keep all loose clothing, shoelaces, and towels away from moving parts.

• Do not reach into, or underneath, the unit or tip it on its side during operation.

• This equipment is not intended for use by children. Keep children under the age of 13 away from the machine.

Page 6 of 32

• Do not allow other people to interfere in any way with the user or equipment during a workout.

• Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and using.

• The product should never be left unattended when plugged in. Disconnect from the electrical outlet when not in use,

and before putting on or taking off parts. To disconnect, turn power OFF at the ON/OFF switch, then remove plug
from electrical outlet.

• Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the cord as a
handle. Do not run the power cord on the floor under or along the side of the treadmill.

• Handrails may be held to enhance stability as needed, but are not for continuous use.

• Never mount or dismount the treadmill while the running belt is moving. Use the handrails whenever additional

stability is required. In case of an emergency, such as tripping, grasp the handrails, and place the feet on the side
platforms.

• Never walk or jog backwards on the treadmill.

• Do not use this product in areas where aerosol spray products are being used or where oxygen is being administered.

Such substances create the danger of combustion and explosion.

• The system causes immobilization of the treadmill when a pre-defined hard key sequence has been activated. This
sequence is currently defined as 3 STOP key presses followed by 3 SPEED DOWN ARROW key presses. To prevent
false toggling of the Immobilized feature, this sequence must be done in a 5-10 second period.

• Use these products for their intended use as described in this manual. Do not use attachments that have not been
recommended by the manufacturer.

• In conformity with the European Union Machinery Directive 2006/42/EC, this equipment unloaded runs at sound
pressure levels below 70 dB (A) at the average operating speed of 12 km/hr (commercial units) and 8 km/hr (home
units). Noise emission under load is higher than without load.

• Free standing equipment shall be installed on a stable and leveled surface.

• Read all warnings on each product prior to starting a workout.

• If warnings are missing or damaged, please contact Life Fitness immediately for replacement warning labels. Warning

labels are shipped with every product and should be installed before product is used. Life Fitness is not responsible
for missing or damaged warning labels.

• Health and Environmental Regulations Warning - This product may contain chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm. For more information related to the European Commission
Regulation (EC) No. 1907/2006 (REACH) and the California Safe Drinking Water and Toxic Enforcement Act of 1986
(Proposition 65), please visit https://www.lftechsupport.com/web/guest/environmental-regulations-information.

Page 7 of 32

CONSIGNÉS DE SÉCURITÉ IMPORTANTES

• AVERTISSEMENT:Des problèmes de santé peuvent être causés par une utilisation incorrecte ou excessive de
l’équipement. LIFEFITNESS recommande FORTEMENT de consulter un médecin pour subir un examen médical
complet avant de commencer tout programme d’exercice, et tout particulièrement si l’utilisateur a des antécédents
familiaux d’hypertension ou de troubles cardiaques, s’il a plus de 45 ans, s’il fume, s’il a du cholestérol, s’il est obèse
ou n’apas fait d’exercice régulièrement depuis un an. Si, pendant l’utilisation de l’appareil, l’utilisateur ressent un
malaise, des vertiges, des douleurs ou des diffi cultés à respirer, il doit s’arrêter immédiatement.

• MISE EN GARDE: Tout changement et toute modification de ce matériel peut annuler la garantie du produit.

• DANGER: Pour réduire les risques de décharge électrique, toujours débrancher cet appareil Life Fitness avant
lenettoyage ou toute mesure d’entretien.

• AVERTISSEMENT:Pour réduire les risques de brûlures, d’incendies, de décharges électriques ou de blessures, chaque

appareil doit absolument être branché sur une prise électrique correctement mise à la terre.

• AVERTISSEMENT:Des systèmes de surveillance de fréquence cardiaque peuvent être inexacts. Trop d’exercices
peuvent entraîner des blessures sérieuses, voire mortelles. En cas de sensation d’évanouissement, arrêter
immédiatement l’entraînement.

• AVERTISSEMENT:Conserver une zone de 2 m (6.5 ft) sur 0,9 m (3 ft) libre de toute obstruction derrière le tapis roulant
Life Fitness, y compris aucun mur, meuble ou autre appareil.

• AVERTISSEMENT:S’assurer que la dragonne d’arrêt d’urgence est attachée à l’utilisateur et fixée adéquatement au
tapis roulant avant de commercer un exercice.

• AVERTISSEMENT:Le réglage de centrage de la courroie doit être effectué si la courroie ne se trouve pas entre les
repères indiquant les positions latérales maximum permises.

• MISE EN GARDE:Risque de blessures corporelles – Pour éviter de se blesser, faire preuve d’extrême prudence lors
de la montée ou descente de la courroie en mouvement.

• Pour débrancher, mettre l’appareil hors tension au niveau de l’interrupteur d’alimentation, puis retirer la fiche de la
prise électrique.

• Ne jamais faire fonctionner un produit Life Fitness dont la fiche ou le cordon d’alimentation est endommagé, ni aucun
appareil qui serait tombé ou aurait été endommagé ou même partiellement plongé dans l’eau. Appeler le service
clientèle de Life Fitness.

• Placer ce produit de manière à ce que l’utilisateur puisse accéder à la fi che du cordon d’alimentation. Assurez-vous
que le cordon d'alimentation n'est pas noué ou tordu et qu'il n'est pas coincé sous un autre appareil ou sous tout
autre objet.

• Si le cordon d’alimentation électrique est endommagé, il doit être remplacé par le fabricant, par un réparateur agréé
ou par une personne qualifiée afin d’éviter tout danger.

• Les instructions de la console doivent toujours être suivies pour obtenir un fonctionnement correct.

• Cet appareil n’est pas prévu pour être utilisé par des personnes (y compris les enfants) dont les capacités physiques,

sensorielles ou mentales sont réduites, ou des personnes dénuées d’expérience ou de connaissance, sauf si elles ont
pu bénéfi cier, par l’intermédiaire d’une personne responsable de leur sécurité, d’une surveillance ou d’instructions
préalables concernant l’utilisation de l’appareil. Gardez les enfants de moins de 13 ans loin de cette machine.

• Ne pas utiliser ce produit à l’extérieur, près d’une piscine ou dans des endroits très humides.

• Ne jamais faire fonctionner d’appareil Life Fitness dont les orifi ces d’aération seraient bloqués. Les garder exempts

de peluches, de cheveux ou de toute obstruction.

• Ne jamais rien insérer dans les ouvertures de cet appareil. Si un objet tombe à l’intérieur de l’appareil, couper
l’alimentation électrique, débrancher le cordon de la prise et le récupérer avec précaution. S’il est impossible de
l’atteindre, communiquer avec le service à la clientèle de Life Fitness.

• Ne jamais placer aucun liquide directement sur l’appareil, sauf dans le plateau pour accessoires ou un support prévu
à cet effet. Il est recommandé d’utiliser des conteneurs munis de couvercles.

• Ne pas utiliser cet appareil pieds nus. Toujours porter des chaussures. Porter des chaussures avec des semelles en
caoutchouc ou fournissant une très bonne adhérence. Ne pas utiliser de chaussures à talons, à semelles en cuir ou
munies de crampons. S’assurer qu’aucun caillou n’est incrusté dans les semelles.

• Éloigner les vêtements lâches, les lacets et les serviettes des pièces en mouvement.

Page 8 of 32

• Ne pas placer les mains sous l’appareil ou dans l’appareil, et ne pas le renverser sur le côté pendant le fonction­nement.

• Cet appareil n’est pas destiné à être utilisé par des personnes ou des enfants présentant des capacités physiques,
sensorielles ou mentales réduites, ou encore un manque d’expérience et de connaissances, sauf en cas de supervision
ou d’instructions relatives à son utilisation par une personne responsable de leur sécurité.

• Ne laisser personne déranger de quelque manière que ce soit l’utilisateur ou interférer avec l’équipement durant un
entraînement.

• Laisser les consoles ACL se « normaliser » pendant une heure quant à la température avant le branchement et l’utilisation
de l’appareil.

• Ne laissez jamais l’appareil sans surveillance lorsqu’il est branché. Débranchez-le systématiquement après son
utilisation, et avant l’ajout et le retrait de pièces.

• Tenir le cordon d’alimentation à l’écart de toute surface chauffée. Ne pas tirer l’appareil par le cordon d’alimentation;
ne pas utiliser le cordon comme poignée. Ne pas faire passer le cordon sur le sol, sous le tapis roulant, ni le long de
l’appareil.

• Si le cordon d’alimentation électrique est endommagé, il doit être remplacé par le fabricant, par un réparateur agréé
ou par une personne qualifi ée afi n d’éviter tout danger.

• Ne jamais monter sur le tapis roulant et ne jamais en descendre pendant qu’il tourne. Utiliser les rampes latéralesafi
n de ne pas perdre l’équilibre. En cas d’urgence, par exemple, en cas de trébuchement ou de faux pas, saisir les
rampes latérales et placer les pieds sur les plates-formes latérales.

• Ne jamais marcher ni courir à reculons sur le tapis roulant.

• Ne pas utiliser ce produit dans des salles où des vaporisateurs aérosols sont employés ou bien où de l’oxygène est
administré. Ces substances créent des risques de combustion et d’explosion.

• Le système entraîne l’immobilisation du tapis de course lorsqu’une séquence de touches prédéfi nie dure a été activée.

Cette séquence est actuellement définie comme 3 ARRÊTER presses clés suivies de 3 presses clés de vitesse touche
flèche basse vitesse. Pour éviter la fausse activation/désactivation de la fonctionnalité Immobilized, cette séquence
doit se faire dans une période de 5-10 secondes.

• Cet appareil ne doit être employé que pour l’usage auquel il est destiné, conformément aux directives du manuel.
Ne pas utiliser d’accessoires qui ne sont pas recommandés par le fabricant.

• Conformément à la directive Machines 2006/42/EC de l’Union européenne, à vide, cet équipement fonctionne à des
niveaux de pression acoustique inférieurs à 70 dB(A) à une vitesse de fonctionnement moyenne de 12 km/hr
(commercial) et 8 km/hr (domestique).Les émissions sonores sont plus importantes lorsque l’appareil est chargé.

• L’équipement debout libre sera installé sur une écurie et une base nivelée.

• Lisez tous les avertissements sur chaque produit avant de démarrer un exercice.

• Si les avertissements sont absents ou endommagés, veuillez contacter immédiatement Life Fitness afi n de les faire

remplacer. Les étiquettes d’avertissement sont livrées avec chaque produit et doivent être installées avant leur
utilisation. Life Fitness ne peut être tenu responsable lorsque des étiquettes d’avertissement sont absentes ou
endommagées.

• Réglementation en matière de santé et d’environnement : avertissement - Cet appareil contient des produits chimiques
considérés par l’État de Californie comme étant cancérigènes et causant des malformations congénitales et d’autres
troubles de l’appareil reproducteur. Pour plus d’informations sur la réglementation européenne (EC) No. 1907/2006
(REACH) et sur le California Safe Drinking Water and Toxic Enforcement Act de 1986 (Proposition 65), consultez la
page https://www.lftechsupport.com/web/guest/environmentalregulations- information.

Page 9 of 32

Set-Up

Read the entire manual before setting up the treadmill. Place the treadmill where it will be used before beginning the
setup procedure.

Electrical Power Requirements

The Life Fitness Treadmill requires a dedicated* line with isolated neutral according to the electrical configurations listed
in the chart below.

Frequency (Hz)Supply Voltage

* Commercial Units Only: One individual branch circuit for each treadmill per NEC article 210-21 (b) (1) and 210-22 (or other
appropriate, country specific electrical compliance guidelines). The hot and neutral wires must each be routed
independently (not looped or tied to other circuits).

Note: Do not modify the plug provided with this product. If the plug does not fit into an available electrical outlet,
have a proper outlet installed by a qualified electrician.

Commercial Units Outlet &
Breaker (Amps)

Consumer / Home Units Outlet &
Breaker (Amps)

152050 / 60100 / 120

121250 / 60200 / 220 / 230 / 240

Grounding Instructions

This product must be properly grounded. If the unit malfunctions or breaks down, proper grounding provides a path of
least resistance for the electric current, which reduces the risk of shock to anyone touching or using the equipment. Each
unit is equipped with an electrical cord, which includes an equipment grounding conductor and a grounding plug. The
plug must be inserted into an outlet that has been properly installed and grounded in accordance with all local codes
and ordinances.

Warning: A temporary adapter MUST NOT BE USED to connect this plug to a two-pole receptacle in North America.
If a properly grounded, 20-amp outlet is not available, one must be installed by a qualified electrician. Models
drawing 16 amps or more must be installed on a dedicated line. (Commercial Units Only).

Avertissement : IL EST ABSOLUMENT INTERDIT d’employer un adaptateur temporaire pour brancher cette fi
che sur une prise bipolaire en Amérique du Nord. Si aucune prise de 20 A correctement mise à la terre n’est
disponible, en faire installer une par un électricien qualifié. Les modèles utilisant 16 A ou plus doivent être branchés
sur un circuit spécialisé. (Ceci s’applique aux unités commmercial seulement.)

Warning: A temporary adapter MUST NOT BE USED to connect this plug to a two-pole receptacle in North America.
If a properly grounded, 15-amp outlet is not available, one must be installed by a qualified electrician. (Consumer
Units Only).

Avertissement : IL EST ABSOLUMENT INTERDIT d’employer un adaptateur temporaire pour brancher cette fi
che sur une prise bipolaire en Amérique du Nord. Si aucune prise de 15 A correctement mise à la terre n’est
disponible, en faire installer une par un électricien qualifié. (Ceci s’applique aux unités de consommation seulement.)

Danger: A risk of electrical shock may result from improper connection of the equipment-grounding conductor.
Check with a qualified electrician if in doubt as to proper grounding technique. DO NOT modify the plug provided
with the product. If it will not fit an electrical outlet, have a proper outlet installed by a qualified electrician. Any
modification to the electrical plug will result in a voided warranty.

Danger : Un branchement incorrect du conducteur de mise à la terre peut entraîner des risques de décharge
électrique. Consulter un électricien si des doutes subsistent quant à la technique de mise à la terre. NE PAS
MODIFIER la fi che fournie avec l’appareil. Si elle ne s’adapte pas à une prise, faire installer une prise correcte par
un électricien qualifi é. Toute modifi cation à la fi che annule la garantie.

Page 10 of 32

How to Position and Stabilize the Treadmill

Follow all safety instructions. Move the treadmill to the location in which it will be used.

Note: See How to Adjust and Tension the Striding Belt to center the striding belt.

Safety Clearances

The following information is supplied as regional reference data regarding safety clearances around the exterior of the
treadmill.

• EU: The European EN ISO 20957 Safety Standard requires a 6.5 ft. (2 m) minimum from the rear of the treadmill to
any object or surface and at least as wide as the treadmill.

• U.S. and other regions: The ASTM International (ASTM ) F2115 - 12 Standard recommends the minimum dimensions
to be 1.64 ft. (0.5 m) on each side of the treadmill and 6.5 ft. (2 m) behind the rearward most portion of the usable
moving surface or 6.5 ft. (2 m) behind the furthest rearward obstruction to emergency egress from the treadmill.

Free area

1

After placing the unit where it will be used, check its stability. If there is even a slight rocking motion or the unit is not
stable, determine which stabilizing leg is not resting on the floor. To adjust, loosen the Jam Nut, and turn the Stabilizing
Leg until the rocking motion ceases, and both stabilizing legs rest firmly on the floor. Retighten the Jam Nut.

Note: It is extremely important that the stabilizing leg be correctly adjusted for proper operation. An unbalanced
unit may cause striding belt misalignment. A bubble level is recommended to ensure proper leveling.

6.5 ft. (2.0m)

1.64 ft. (0.5m)2

Description

Jam Nut1

Stabilizing Leg2

Page 11 of 32

Power Switch

Located on the front panel at the base of the treadmill, the ON/OFF switch has two positions: "l" (one) for ON and "0"
(zero) for OFF.

Turning the Unit On

To turn the treadmill on, locate the ON/OFF power switch at the front of the treadmill and turn it ON.

Stride Sensor Auto-Shutoff System

The Stride Sensor auto-shutoff system detects whether a user is on the belt/deck. If the user leaves the belt/deck during
a workout, the system is triggered and the following message is displayed, “User not detected on belt - press “OK” to
continue workout.” If the user presses “OK” during this message the workout will continue without interruption. If the
user does not press “OK” another message will be displayed, “User not detected on belt; RESUME WORKOUT / EXIT
WORKOUT”. At this point power to the belt will shut off as the treadmill enters Pause mode. If the user presses RESUME
WORKOUT during the second message the workout will be resumed. If the user does not press RESUME WORKOUT,
the treadmill will continue in Pause mode and eventually end the workout. This feature can be disabled in the Manager’s
Configuration.

Cable TV Hook-Up

The console can receive both analog and digital signals. Life Fitness is not responsible for the installation of CATV service
or components required for the delivery of CATV service. An external TV signal input via a 75-ohm coaxial cable must
be present before TV setup can occur.
Note to the CATV Installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building as close to the point of cable entry as practical.

Page 12 of 32

Power Cord Routing

Warning: Make sure the power cord is unplugged before attempting to route it around or through the treadmill.

The power cord can be run to the user-front left or right sides. Excess power cord can be bundled and tied to the
pre-installed clips located under the front of the treadmill. The power cord can be run to the rear of the treadmill through
the left side rail. The power cord should run under the left upright cover and into the internal channel of the left side rail
as shown.

Note: To accommodate treadmill incline, at least 2 ft. (24”) of power cord is required between the outlet and the
last power cord clip for outlets in front of the treadmill.

Warning: Keep the area 6.5 ft. (2 m) by 3 ft. (0.9 m) behind the Life Fitness treadmill clear of any obstructions,
including walls, furniture, and other equipment. Contact Life Fitness Customer Support Services for an optional
longer power cord if necessary.

Danger: Ensure that the power cord does not contact the striding belt or get pinched between the frame, lift arm
or under the wheels; failure to follow this warning may result in serious injury.

Danger : S’assurer que le cordon d’alimentation n’entre pas en contact avec le tapis et ne soit pas pincé entre le
cadre, le bras de levage ou la roue. Le non-respect de cet avertissement peut provoquer de graves blessures.

Description

Power Cord1

Clip2

Left Siderail3

Frame4

Lift Arm5

Wheel6

Page 13 of 32

2. Product Overview

INTDX & Club Series

DescriptionItem

Console1

Speed Up/Down Arrows2

Cup Holder3

Contact Heart Rate Sensors4

Walking Belt5

Incline Up/Down Arrows6

Emergency Stop Magnet7

Emergency Stop Lanyard8

Page 14 of 32

INTSX

DescriptionItem

Console1

Cup Holder2

Contact Heart Rate Sensors3

Walking Belt4

Emergency Stop Magnet5

Emergency Stop Lanyard6

Mounting and Dismounting the Treadmill

Use the handrails to enhance stability when mounting or dismounting a treadmill. Never mount or dismount the treadmill
while the running belt is moving. Use the STOP button on the console to end a workout and stop the running belt. Use
the Emergency Stop System to stop the belt immediately.

User Position

The width of the moving walking/running surface is 22 in. (55 cm). Users must keep their feet within this width while in
motion. If standing on the stationary side rails, a user should ensure that his/her feet are completely on the non-moving
portion. Never step partially on the moving surface and partially on the non-moving surface simultaneously.

• Users can adjust their fore-aft position on the moving belt as desired for reach to the console and handles, clearance
for arm swing and attachment of the safety stop pull cord. Do not step on the rear roller.

• It is recommended that the user run within the length of the side handrails to allow usage of the side arms to dismount
the belt if needed.

Using and Testing the Emergency Stop System

The treadmill is equipped with an Emergency Stop System. The system consists of a rectangular stop magnet (located
on the upper bridge plastic) attached to a safety stop pull cord.
Before starting a workout, attach the lanyard on the safety stop pull cord to an item of the user's clothing. During a
workout, pull the cord to remove the magnet from the bridge. This will immediately stop the treadmill belt.

Note: Test the safety stop pull cord by attaching the lanyard to a user's item of clothing during operation of the
treadmill. While the treadmill is on and the console display is active, remove the safety stop pull cord / magnet
from the bridge. A message will be displayed on the console similar to "Replace the emergency stop switch". With
the safety stop pull cord removed no keys shall function on the treadmill. Place the safety stop pull cord back in
place. The treadmill will reset and will be ready for operation.

Page 15 of 32

3. Service and Technical Data

Preventive Maintenance Tips

Life Fitness products are backed by the engineering excellence and reliability of Life Fitness and are one of the most
rugged and trouble-free pieces of exercise equipment on the market today.

Note: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear.
Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that
are subject to wear, as outlined below.

Note: Pour assurer la sécurité du matériel, il convient de l'inspecter régulièrement afin de déceler tout signe
d'usure ou d'endommagement. N’utilisez pas l’appareil avant d’avoir réparé ou remplacé les pièces défectueuses.
Prêtez une attention particulière aux pièces sujettes à usure, tel que décrit ci-dessous.

The following preventive maintenance tips will keep the product operating at peak performance:

• Locate the product in a cool, dry place.

• Clean the display console and all exterior surfaces with an approved or compatible cleaner (see Life Fitness Approved

Cleaners) and a microfiber cloth.

• Long fingernails may damage or scratch the surface of the console; use the pad of the finger to press the selection
buttons on the console.

• Check operation of the emergency stop system once a week.

• Inspect and vacuum the area directly surrounding and under the unit regularly.

• Vacuum around the striding belt regularly to keep debris from accumulating.

• Inspect exterior parts regularly for wear, particularly the striding belt, deck and line cord.

• Check to make sure the unit is properly leveled.

• Check the position (centering) of the striding belt.

Note: Normal belt operating position is for the belt to be located within the belt travel indicators on the rear roller
guards. Refer to Tracking (Centering) A Striding Belt or contact Life Fitness Customer Support Services for proper
alignment instructions.

Life Fitness Approved Cleaners

(United States Availability Only)
Two preferred cleaners have been approved by LIFE FITNESS reliability experts: PureGreen 24 and Gym Wipes. Both
cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial
Force formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1.

PureGreen 24 is available in a spray which is convenient for gym staff to use. Apply the spray to a microfiber cloth and
wipe down the equipment. Use PureGreen 24 on the equipment for at least 2 minutes for general disinfection purposes
and at least 10 minutes for fungus and viral control.

Gym Wipes are large, durable pre-moistened wipes to use on the equipment before and after workouts. Use Gym Wipes
on the equipment for at least 2 minutes for general disinfection purposes.

Contact Customer Support Services to order these cleaners (1-800-351-3737 or email: [e-mail]).

Life Fitness Compatible Cleaners

Mild soap and water or a mild non-abrasive household cleaner can also be used to clean the display and all exterior
surfaces. Use a soft microfiber cloth only. Apply the cleaner to the microfiber cloth before cleaning. DO NOT use ammonia
or acid based cleaners. DO NOT use abrasive cleaners. DO NOT use paper towels. DO NOT apply cleaners directly to
the equipment surfaces.

Page 16 of 32

Preventive Maintenance Schedule

BiannuallyMonthlyWeeklyItem

InspectCleanConsole Overlays

Bottle Holders / Accessory
Trays

InspectClean

InspectConsole Mounting Bolts

InspectHardware

InspectCleanFrame

InspectCleanPlastic Covers

Clean / InspectLifepulse Sensors

InspectStriding Belt Centered

Clean / InspectEmergency Stop Magnet

Vacuum / CleanCleanMotor Cover

InspectMotor Electronic Compartment

InspectDrive Belt

Inspect / AdjustLeg Levelers

InspectFront and Rear Rollers

InspectCleanSide Step Area

InspectCleanSide Hand Rails

Troubleshooting the Treadmill

No power

Power source is insufficient.

Line cord is damaged.

Line cord is improperly seated in socket.

InspectCleanErgo™ Front Handlebar

Corrective ActionProbable Cause

Turn the switch to the ON position.ON / OFF switch is not in proper position.

Plug treadmill into an appropriate circuit. Refer to
Grounding Instructions.

Note: In North America use a dedicated 20 amp
circuit for Commercial Units or a 15 amp circuit for
Consumer Units.

Using a voltmeter, verify power at outlet. If no power exists,
reset circuit breaker at panel.

Replace line cord. Contact Life Fitness Customer Support
Services.

Inspect power connections at wall outlet and at machine
for proper contact.

Page 17 of 32

Striding belt slips off- center.

Floor surface is uneven.

Maximum speed is reduced.

User is pushing striding belt. This occurs when the runner
is running faster than the striding belt will travel, with the
result of the striding belt being pushed with the runner’s
feet.

User is stalling striding belt. This occurs with heavier users
at lower striding belt speeds. The striding belt will "stall" if
the user is traveling slower than the striding belt.

Striding belt/deck malfunctions. The deck laminate is worn
through or the underside of striding belt is glazed over
(hard, glossy).

Power source is insufficient.

Corrective ActionProbable Cause

Check levelers and level treadmill. Check striding belt &
re-tension as necessary. Refer to How to Adjust and Tension

the Striding Belt.

Corrective ActionProbable Cause

Instruct users not to push striding belt in either direction.

Replace belt and deck.

Plug treadmill into an appropriate circuit. Refer to
Grounding Instructions.

Note: In North America use a dedicated 20 amp
circuit for Commercial Units or a 15 amp circuit for
Consumer Units.

Rubbing sound comes from underneath machine.

Foreign objects may be stuck underneath the machine.

Display does not illuminate when machine is powered on.

Corrective ActionProbable Cause

Check all electrical connections for proper attachment.

• AC outlet and line cord

• No power.

• Loose connection(s).

• Incorrect console or power supply.

• Line cord at treadmill

• Power switch

• All console connections

• All lower electronics connections

Contact Life Fitness Customer Support Services.

Corrective ActionProbable Cause

Power down the unit and disconnect AC power. Inspect
underneath striding belt and machine. Remove any debris
or objects that may cause interference with the treadmill.

Page 18 of 32

Unit resets randomly or pauses.

Power source is insufficient.

Corrective ActionProbable Cause

Plug treadmill into an appropriate circuit. Refer to
Grounding Instructions.

Note: In North America use a dedicated 20 amp
circuit for Commercial Units or a 15 amp circuit for
Consumer Units.

Replace line cord.Damaged ground prong is on line cord.

Line cord improperly seated in electrical outlet.

Towel or other item may be making contact with stop switch
while user is running.

Stop switch is activated with very light pressure or returns
slowly after being pressed.

Stop switch cable is not making proper contact.

Main wire harness is pinched.

Ground path is open.

Inspect power connection at electrical outlet and at machine
for proper contact.

Re-engage the emergency stop magnet.Emergency stop magnet is not engaged.

Move all possible obstructions off display console and
handlebar.

Contact Life Fitness Customer Support Services.

Troubleshooting the Polar® Heart Rate Chest Strap

Heart rate reading is erratic or absent entirely

Corrective ActionProbable Cause

Belt transmitter electrodes are not wet enough to pick up
accurate heart rate readings.

Belt transmitter electrodes are not laying flat against the
skin.

Wet the belt transmitter electrodes.

Ensure the belt transmitter electrodes are laying flat against
the skin.

Belt transmitter not properly set up.

Chest strap battery is depleted.

Wash the belt transmitter with mild soap and water.Belt transmitter needs cleaning.

Setup of the belt transmitter is accomplished by initially
bringing it with in 1 foot of the receiver. The receiver is in
the console. After the heart rate is displayed on the console
the range is extended to 3 feet.

Contact LIFE FITNESS Customer Support Services for
instructions on how to have the chest strap replaced.

Page 19 of 32

Abnormally elevated heart rate readings

Corrective ActionProbable Cause

Electromagnetic interference from television sets and/or
antennas.

Electromagnetic interference from cell phones.

Electromagnetic interference from computers.

Electromagnetic interference from cars.

Electromagnetic interference from high voltage power lines.

Electromagnetic interference from motor driven exercise
equipment.

Move the exercise equipment a few inches away from the
probable cause, or move the probable cause a few inches
away from the exercise equipment, until the heart rate
readings are accurate.

How to Adjust and Tension the Striding Belt

Do not move the treadmill or place hands under the treadmill while it is plugged into an electrical outlet!

The Belt Tensioning Bolts

An 8mm hex key wrench is required for this task. The treadmill has access holes in the rear roller guards which allow
access to the tensioning bolts. These tensioning bolts make it possible to adjust the tracking and centering of the striding
belt without removing the guards.

Note: It is extremely important that the treadmill be correctly leveled prior to any tracking adjustments. An unstable
unit may cause striding belt misalignment. See How To Stabilize the Treadmill prior to attempting any rear roller
adjustments.

Before proceeding, it is helpful to visualize the pivot point of the rear roller. Each adjustment made to one side of the
roller must be met with an equal and opposite adjustment to the other side of the roller to maintain an ideal belt tension
at the pivot point.

Belt1

Rear Roller2

Pivot Point of Rear Roller3

Tracking (Centering) A Striding Belt

Two people are needed to perform this procedure.

1. Locate the two access holes to the belt tensioning bolts on each of the rear roller guards.

2. One person stands on the side rails of the treadmill and straddles the belt. This person presses GO and sets the belt

speed to 2.5 MPH (4.0 KPH).

Page 20 of 32

3. If the striding belt has moved to the right, the second person turns the right tension bolt a quarter-turn clockwise

and then turns the left tension bolt a quarter-turn counter-clockwise to make the striding belt track back to the center
of the roller. If the striding belt has moved to the left, turn the left tension bolt a quarter-turn clockwise and then turn
the right tension bolt a quarter-turn counter-clockwise to make the striding belt track back to the center of the roller.

Note: If the striding belt has moved as far as to the edge of the roller (either right or left side), it must be
re-centered per the above procedure.

4. Repeat the adjustments until the striding belt appears centered. Allow the machine to continue running for several

minutes at 4.0 MPH. (6.4 KPH) to observe if tracking remains stabilized.

Note: Do not exceed one full turn of the adjusting screws in either direction. If after one full turn the belt does
not track properly, contact Life Fitness Customer Support Services. Do not overtighten the tensioning bolts
while making belt adjustments. Overtightening of bolts may over stretch and damage the striding belt or roller.

Tensioning an Existing Striding Belt

1. Press GO and operate the treadmill for five minutes at 5.0 MPH (8.0 KPH).

Note: Do not run or walk on belt!

2. Reduce the speed to 2.0 MPH (3.2 KPH). Walk on the treadmill. Tightly grip the handrails and apply force with feet

on the striding belt near the motor cover against the moving belt direction. If the belt slips, continue to Step 3. If it
does not slip, the tension is correct.

3. Using the STOP key, stop the treadmill. Turn the belt tensioning bolts a quarter-turn clockwise for each side.

4. Repeat STEPS 2 and 3 until the belt no longer slips. Do not exceed one full turn (four quarter turns) per side when

adjusting the belt tensioning bolts.

5. Press GO, operate the treadmill at 2.0 MPH (3.2 KPH) and check to insure proper tracking (see Tracking (Centering)

A Striding Belt). If the striding belt drifts to the left or right see Centering an Existing or New Striding Belt .

Do not overtighten the tensioning bolts while making belt adjustments. Overtightening of bolts may over stretch
and damage the striding belt or roller bearings. Do not exceed one full turn of either bolt in either direction.

How To Obtain Product Service

1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and

its features and workouts.

2. Locate and write down the serial number of the unit which is located on the back of the unit near the toe guard.

3. Contact Life Fitness Customer Support Services at http://www.lifefitness.com.

Page 21 of 32

4. Assembly

Hardware and Required Tools

Hardware

1

Required Tools:

• 13mm Socket

• Phillips Screw Driver

M8 X 20 FLANGE HEX HEAD CAP SCREW

M4.2 X 19 PHILLIPS PAN HEAD SCREW2

M6 X 16 PHILLIPS PAN HEAD SCREW3

GROMMET4

M5 X 14 PHILLIPS PAN HEAD SCREW5

M5 X 16 PHILLIPS PAN HEAD SCREW6

Attach Uprights

Qty.Description

1Right Upright Assembly1

1Left Upright Assembly2

3

M8 X 20 Flange Hex Head Cap

Screw

8

17.5 Nm (12.9 ft. lbs.)

Page 22 of 32

Secure Grounding Braid Cable to Base Frame

Qty.Description

2Grounding Braid Cable1

Attach Bridge Weldment to Uprights

1. Attach bridge weldment to uprights.

2

2

M5 X 16 Phillips Pan Head

Screw

2.8 Nm (2.0 ft. lbs.)

M8 X 20 Flange Hex Head Cap

Screw

4

QtyDescription

1Bridge Weldment1

8

2. Torque SIDE screws to 17.5 Nm (12.9 ft. lbs.)

3. Torque TOP screws to 17.5 Nm (12.9 ft. lbs.)

Page 23 of 32

Secure Grounding Braid Cable to Uprights

Qty.Description

2Grounding Braid Cable1

2

Connect Cables

INTDX & Club Series Bases: Connect Heart Rate Cables and Keypad Cables.

M5 X 16 Phillips Pan Head

Screw

2.8 Nm (2.0 ft. lbs.)

4

INTSX Bases: Connect Heart Rate Cables.

Page 24 of 32

Connect Base Cables

1. Connect cables from left upright to the SIB.

Note: Prior to handling electronics or cables, the installer should touch the metal frame of the unit to discharge

static build up. This reduces the risk of damaging control electronics due to electrostatic discharge.

Description

Cable, Console Power1

Cable, Console to Base Signal2

Cable, Ground3

2. Run coax cable (for attachable tv) up the left upright. Tie to other cables.

Attach Upper Plastics to Bridge

Note: Align the bridge plastic to the foam arms before securing the bridge plastic to the bridge! Make sure there

is a consistent gap across the two sides of the machine.

4 Nm (3 ft. lbs.)

Qty.Description

1Bridge Plastic, Upper1

7M6 X 16 Phillips Pan Head Screw2

Page 25 of 32

Base to Console Cable Connections

Attach Console

Description

Console to Base Power

1

Note: Initial console production units have

a right-angle connector.

Bullhorn (Speed / Incline ) Keypad Switches2

Lifepulse3

Base Signal4

Qty.Description

1Console1

Secure Ferrite to Console to Base Power Cable

Clamp the ferrite to the console to base power cable.

2

M5 X 14 Phillips Pan Head

Screw

1.9 Nm (1.4 ft. lbs.)

5

Qty.Description

1Ferrite1

1Console to Base Power Cable2

Page 26 of 32

Route E-Stop Cable

Attach Lower Plastics to Bridge

1. Attach lower bridge plastics to upper bridge plastics.

Qty.Description

1E-Stop Cable1

QtyDescription

1Bridge Plastics, Lower1

2

2. Secure lower bridge plastics to user arms. Attach emergency stop magnet.

1

M6 X 16 Phillips Pan Head

Screw

4 Nm (3 ft. lbs.)

M4.2 X 19 Phillips Pan Head

Screw

1.5 Nm (1.1 ft. lbs.)

4

QtyDescription

2

2Grommet2

1Emergency Stop Switch Magnet3

Page 27 of 32

3. Insert cup holders.

Attach Rear Cover

QtyDescription

2Cup Holder1

Qty.Description

1Rear Cover1

Attach End Caps

2

3

M4.2 X 19 Phillips Pan Head

Screw

1.5 Nm (1.1 ft. lbs.)

M4.2 X 19 Phillips Pan Head

Screw

2

Qty.Description

1End Cap, Right1

1End Cap, Left2

6

6Grommet4

1.5 Nm (1.1 ft. lbs.)

Page 28 of 32

Attach Side Shrouds

Qty.Description

1Side Shroud, Right1

1Side Shroud, Left2

Attach Motor Side Shrouds

Snap the motor side shrouds to the base frame.

3

M4.2 X 19 Phillips Pan Head

Screw

1.5 Nm (1.1 ft.lbs.)

6

6Grommet4

Qty.Description

1Motor Side Shroud, Right1

2Motor Side Shroud, Left2

Attach Front Shroud

1. Loosely attach the two top screws to the base.

QtyDescription

2M4.2 X 19 Phillips Pan Head Screw1

2Grommet2

1Front Shroud3

Page 29 of 32

2. Tightly secure the two bottom screws to the base.

QtyDescription

1

Attach Anti-Slip Rails

Note: Push the anti-slip rail forward to lock into place. Secure with the screw.

M4.2 X 19 Phillips Pan Head

Screw

1.5 Nm (1.1 ft. lbs.)

2

2Grommet2

Qty.Description

1Anti-Slip Rail, Right1

1Anti-Slip Rail, Left2

2M6 X 16 Phillips Pan Head Screw3

4 Nm (3 ft. lbs.)

Page 30 of 32

Attach Motor Cover

1. Snap the Tinnerman clips on the motor cover into place.

2. Securely tighten the two top screws of the front shroud. Torque screws to 1.5 Nm (1.1 ft. lbs.).

QtyDescription

1Motor Cover1

Page 31 of 32

5. Specifications

Specifications

Designed Use

Speed Range

Elevation Range

Power Requirements Dedicated 120 volt, 20 amp (U.S) (INTDX, INTSX)

Heavy / Commercial (INTDX, INTSX)

Home (Club Series)

400 lbs. / 181 kgMaximum User Weight

0.5 - 14.0 MPH (0.8 - 23 KPH) in 0.1 increments (INTDX, INTSX)

0.5 - 12.0 MPH (0.8 - 19 KPH) in 0.1 increments (Club Series)

0% - 15% (INTDX)

0% - 10% (INTSX)

AC motor with variable speed controllerDrive Train

AC InductionMotor Type

2.0 HP continuous duty, 4.0 HP peakMotor Size

See Electrical Requirements for requirements outside the U.S.

120 volt, 15 amp (U.S.) (Club Series)

3.5” (9 cm) diameter, precision-crowned, front and backRollers

60” Length x 22” Width (152 cm Length x 55 cm Width)Striding Belt

Lubricant -infused Striding BeltWaxing System

Stop Systems

Heart Rate Monitoring Systems

3/4" medium density reversible fiberboardDeck Type

Patented FlexDeck® Shock Absorption System with Lifesprings™Shock Absorption System

16" (41 cm) flaredSide Handrail

• Red magnetic lanyard emergency stop system

• Stride Sensor (INTDX only)

Patented Lifepulse™ digital contact heart rate and Polar® telemetry compatible heart
rate monitoring system

F-type connectorCATV (1)

Shipped Dimensions Box 2Shipped Dimensions Box 1Physical Dimensions

44 in. / 1116.6 mm87 in. / 2209.8 mm82.25 in. / 2090 mmLength

68 in. / 1727.2 mm43 in. / 1092.2 mm36.25 in. / 921 mmWidth

14 in. / 355.6 mm17 in. / 431.8 mm56 in. / 1420 mmHeight

N/AN/A8 in. / 203 mmStep-Up Height

140 lbs. / 63.5 kg354 lbs. / 160.5 kg434 lbs. / 197 kg (with console)Weight
