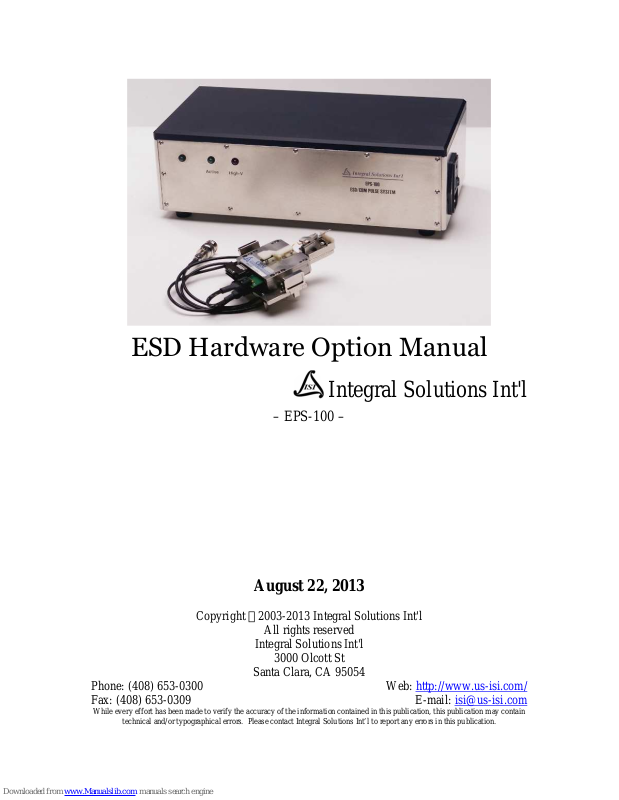

Integral Solutions EPS-100 Option Manual

ESD Hardware Option Manual

– EPS-100 –

Integral Solutions Int'l

August 22, 2013

Copyright 2003-2013 Integral Solutions Int'l

All rights reserved

Integral Solutions Int'l

3000 Olcott St

Santa Clara, CA 95054

Phone: [phone] Web: http://www.us-isi.com/

Fax: [phone] E-mail: [e-mail]

While every effort has been made to verify the accuracy of the information contained in this publication, this publication may contain

technical and/or typographical errors. Please contact Integral Solutions Int’l to report any errors in this publication.

Contents

1. HARDWARE DESCRIPTION 3

2. INSTALLATION 4

3. MAINTENANCE 5

4. CHARGE DEVICE MODEL (CDM) 6

4.1 M

4.2 M

4.3 ESD S

4.4 C

4.5 CDM O

ECHANICAL ALIGNMENT
ONITORING WAVEFORM

TANDARD

ALIBRATION

PERATION

8

10

12

6

7

5. MACHINE MODEL (MM) 13

5.1 M

5.2 M

5.3 ESD S

5.4 C

5.5 MM O

ECHANICAL ALIGNMENT
ONITORING WAVEFORM

TANDARD

ALIBRATION

PERATION

15

16

17

13

14

6. HUMAN BODY MODEL (HBM) 18

6.1 M

6.2 ESD S

6.3 C

6.4 HBM O

ONITORING WAVEFORM

TANDARD

ALIBRATION

PERATION

19

20

21

18

7. ESD SWEEP TEST 22

8. BAR ESD STRESS OPTION 23

8.1 B

8.2 M

8.3 C

8.4 S

8.5 ESD P

AR

ESD O

PTION INSTALLATION

ONITORING THE WAVEFORM ON BAR

HANGING THE WAVEFORM MODULE

OFTWARE CONTROL DIAGRAM

ROBE CARD PIN-OUT

23

28

28

HBM/MM 25

27

9. HIGH FIELD ESD STRESS OPTION 29

10. CONTACT INFORMATION 29

11. TABLE OF FIGURES 30

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

1. Hardware Description

ESD Hardware Option is designed as an add-on to ISI QST-200x testers to study sensitivity of magneto­resistive heads to electro static discharge. ESD stress can only be done at HGA level and can be run in either
standalone mode or as part of QST test.

ESD option consists of EPS-100 and waveform module. EPS-100 is a power supply, capable of producing +/­100V with 0.003V resolution. It is universal for all waveform modules. Due to calibration for more precise HBM
and MM amplitude, the waveform module may require voltages slightly higher than 100, which is not supported by
EPS-100. Therefore the maximum HBM and MM firing voltage is +/-90V.

Waveform module is responsible for producing a pulse of a known shape (using one of the standard ESD
models) and switching the head from stressing to testing. There are three standard types of waveform modules:
Charge Device Model (CDM), Human Body Model (HBM), and Machine Model (MM). Newer waveform modules
are located directly on the 2xHGA cartridge in close proximity to the head, and are called cartridge-style. Such
modules can be run standalone or mounted on 2x tooling directly for testing.

Older type module is an add-on to QST that has two 6-pin cables running to standard QST 2xHGA cartridge,
and is called a box-style module. HBM and MM box-style waveform modules do not support any AC measurements.
These modules are no longer manufactured, however EPS-100 supports them as well. A special adapter board for
EPS-100 is required to run the box-style waveform modules.

HBM and MM modules are universal for any flex design; custom mechanics that are required for different
heads are located on the cartridge. So HBM and MM waveform modules can be freely interchanged on one
cartridge. CDM waveform module on the other hand requires unique mechanical configuration for each flex design,
and cannot be mounted on HBM/MM cartridge.

EPS option was designed to work with the automated ESD Sweep test. The test uses EPS to generate controlled
ESD transients and measures head parameters between the pulses to find ESD failure threshold (voltage). Any QST­200x test, including AC measurements, can be used to characterize the head and find the ESD failure threshold. QST
test requires a QST-200x and either 2xHGA tooling (for cartridge style waveform modules) or 8xHGA tooling for
box-style. To enable this test, add ESDApp.Application to Quasi97  Selected Modules and enable it.

!Important!

It is not recommended to expose any waveform module to magnetic fields higher than 250Oe. When running
QST tests with waveform module close to the magnet, make sure that magnetic field from the QST magnet does not
cause field near waveform modules to exceed 200Oe.

On standard 2-pole HSA/HGA magnet the module is physically inside the magnet so 250Oe limit applies.
However, other magnet design (for example 4-pole or 15K high field) can go to higher fields without affecting the
waveform module due to smaller field leakage in the perimeter. For example QST-2002HF Tester and QST-2002
with Quad-Pole HGA Magnet can go to higher fields.

!Important!

The diodes on Gen2 2xHGA cartridges must be removed in order to work properly with Machine Model (MM)
and Human Body Model (HBM) ESD modules. So the “MR Clamping During Write” feature is not supported by the
HBM/MM Gen2 type cartridges. User must remember the fact that the QST-2002 tester cannot recognize if the
diodes are present or not, so “MR Clamping During Write” even though available in software, will not work. The
diode protection still exists on the 2xHGA GEN2 interface board, using programmable clamping voltage, but it is
enabled in both write and read modes.

!Important!

On Gen2 2xHGA type cartridges, for HBM and MM, the DC cable makes a slight impact on the waveform with
higher resistance read heads. While it is recommended to have it for higher accuracy measurement, it has negative
impact on the amplitude of the HBM waveform (HBM peak on 500ohm reader is ~5% higher with the DC ribbon
cable because of additional capacitance). In order to avoid this phenomena, the DC ribbon cable between the
cartridge and HGA connector board can be removed. In this case the cartridge needs to be reworked as follows:

1) On HGA connector board - remove the R5 and R7.

2) On the G2 2x Universal Cartridge board, install 0ohm resistors on R5-R10.

Page 3

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

2. Installation

1. Install the NI-DAQ PCI-6503 in one of available PCI slots in the computer.

2. Connect EPS-100 to the NI-Daq card using a 50-pin ribbon cable.

3. Connect the waveform module to the EPS-100 using 26-pin cable.

4. Plug in EPS-100 power supply to a standard 115VAC outlet.

5. Turn on the PC, and run Quasi97. Go to FileHardware Config. Add one line item, select for

module type EPS100Lib.clsHOption, * in the instance column and ESD Option in the function
column.

6. Select a setup file. In the Add-InsSelected modules, enable ESDApp.application.

7. ESD option is ready. You can fire single pulses from FileHardwareConfigEPS100Lib User

menu, or run an ESD Sweep test.

If you are installing the EPS-100 option on the new PC, you need to install the NIDAQmx 9.7 software. The
NIDaqmx Core link is available on www.us-isi.com – this is the bar minimum required to run.

There is also an option to install full version of NIDAQmx. This can be downloaded from National Instruments
website. If installing full NIDAQ version, then following must be done:

1) Select the following options.

2) After Installing the NI-DAQ software, run “Measurement and Automation Explorer” from your Desktop.

3) Go to "Devices and Interfaces", click "View"-->"Refresh".

Page 4

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

4) The new PCI-6503 card should appear on the list. Click on the PCI-6503 card, then "Properties" - the

software will verify the card.

5) After than close Measurement and Automation Explorer and Start Quasi97.

FFiigguurree 22--11 –– MMeeaassuurreemmeenntt aanndd AAuuttoommaattiioonn EExxpplloorreerr

The 50pin ribbon cable with the choke between QST Universal Interface and 2xHGA tooling is to reduce
AC noise on 2xHGA ESD option. It should be used if ESD Option is installed, and does not have any effect on
standard non-ESD cartridgees.

2xHGA Gen2 Users:

For CDM ESD test, you should have a special cartridge that does not have DC cables and connectors
installed. The CDM cable splits into 2 AC cables (write and read) that should be connected to the back of the
cartridge.

For MM/HBM ESD test, you should reuse the non-ESD cartridge. You have to disconnect the 4 AC cables,
then install a shim and put on the ESD waveform module. Then connect the waveform module to the cartridge via
Y-type AC cable. Then connect the waveform module to the Connector board via 1" Y-Type AC cable. The DC
cables should remain connected.

3. Maintenance

Approximated lifetime of the relay on DCDM modules is 100,000 cycles. HBM and MM modules are less
sensitive to a small change of capacitance in the relay, and will work longer without changing it. Performance of
your waveform module should be monitored periodically, and, if necessary, the module should be sent back to ISI
for relay replacement or calibration. Follow calibration procedures to ensure performance of your ESD Stress
system.

There is a 100mA SLO-BLO fuse on the AC input.

Page 5

EPS-100 Manual Integral Solutions Int’l

Holder

Flex Guide

Flex Clamp

August 22, 2013

4. Charge Device Model (CDM)

4.1 Mechanical Alignment

According to CDM standard, the head’s suspension must be grounded. In most cases suspension holder serves
that purpose, while in other, the suspension is pressed against CDM chassis by flex clamp.

Unlike HBM or MM modules, CDM cartridge requires the flex to be directly connected to the board. That is
why mechanical alignment of CDM cartridge may be counterintuitive. The pads on the flex must be facing the
board, so for some cases, the head will be mounted ABS side up. The head will still be kept horizontal (90° to the
transverse field).

Suspension

FFiigguurree 44--11 CCDDMM MMeecchhaanniiccaall AAlliiggnnmmeenntt

Up/Down head reconfiguration involves changing the flex guide and realigning the suspension holder.
Align the suspension holder so that the head’s flex is on the centerline of the CDM tooling and the lies on the 2(4)
pogo pins.

Usually ISI ships two flex guides for Up/Down heads: user needs to remove the two screws holding the
flex guide and change it. Head’s flex should always lie on the 2(4) pogo pins, on the centerline of CDM tooling. If
screws from the flex guide are missing the user should remove the pins and put them into different pinholes to match
head type.

CDM cartridge can support heater, but a special cable should be used (that connects to pins 3 and 4 of the Write
port on the 2xCartridge). Use "Static Test"."Aux Point Test" to measure resistance of the heater in ESD and non­ESD configuration.

Note for 4-Pole magnet applications

On DCDM the flex is centered, but the suspension (and therefore HGA) is pivoted. This means there may be an
offset (top view) of both the UP and DN sliders, and each may be at an angle (mirror image top view). The offset
user can manually compensate by moving the magnet left or right. However, the angle will be an issue. For
Transverse testing this is no problem, assuming the MR itself is centered in the gap. But for rotating fields the head
will see different result than if the head was placed perpendicular into the gap.

So for Quad-Pole and HGA-only magnets user must ensure that the MR-element is within the uniform zone of
the magnet gap. Secondly, Transverse-only field is recommended if the suspension is at any angle to the magnet
other than 90degrees.

Page 6

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

4.2 Monitoring Waveform

CDM waveform module charges the head to desired voltage and then grounds it, which creates a very fast
current transient from the charge accumulated on the head. The pulse is very fast with the rise time up to 500pS and
pulse width up to 1nS. The screenshot below is 5V CDM pulse, fired into a real head.

FFiigguurree 44--22 MMoonniittoorriinngg CCDDMM PPuullssee ((ffiirreedd iinnttoo rreeaall hheeaadd))

The shape and amplitude of the pulse you see on the screenshot is
going to depend on the electrical properties (capacitance) of the head.

The CT-6 probe comes standard with CDM cartridge and should
be ready for monitoring the waveform. Simply connect the CT-6
current probe from CDM waveform module to the oscilloscope.

If CT-6 is not installed, we recommend sending it to ISI. If that is
not possible, here is the procedure on how to do it:

Separate the waveform module from the 2x cartridge, by
removing 4 screws that are not covered in black.

Fix the waveform module as shown on the picture (right).

Push the CT-6 probe through the opening on the bottom, up
towards the copper wire.

Unsolder the copper wire on the right end. Insert wire through the
CT-6 probe and re-solder.

Mount DCDM waveform module back on the cartridge.

FFiigguurree 44--33 CCDDMM CCTT--66

Page 7

EPS-100 Manual Integral Solutions Int’l

-1 0 1 2 3 4 5 6

Time (ns)

r

d

p2

p3

P1

August 22, 2013

4.3 ESD Standard

The standard shown here applies to pulses produced by ISI DCDM waveform modules and should treated as
such. The values should be used for verification of the CDM waveform module device with 5pF and 12pF
calibration capacitors.

300

200

-2

100

0

-100

-200

I

t

I

I

t

1

1

FFiigguurree 44--44 CCDDMM SSttaannddaarrdd

Ip1 can be estimated as 11mA/V CDM for 5pF capacitor and 13mA/V CDM for 12pF at 10V CDM or higher.
The real peak current at lower voltages (such as 1V CDM) is around 8mA/V and 12mA/V for 5pF and 12pF
capacitors. Use the following table to verify performance of your CDM module.

Ip1 / CDM Voltage

1
10
20

1
10
20

Nominal Minimum Maximum

5pF Calibration Capacitor

8.2 6.6 9.8

104.5 83.6 125.4

215.6 172.5 258.7

12pF Calibration Capacitor

10.4 8.3 12.5

130.9 104.7 157.0

268.2 214.6 321.8

Other parameters can be checked at 10V CDM:

Rise Time (10% – 90% of Ip1)
Width at 50% of Ip1
Max 2nd peak
Max 3rd peak

Symbol 5pF 12pF
tr <0.5 ns <0.6 ns
td 700 ps 1000 ps2
Ip2 <50% Ip1 <50% Ip1
Ip3 <25% Ip1 <25% Ip1

The values above were measured using LeCroy LC574A 1Ghz oscilloscope. We expect that faster oscilloscope

would show slightly higher amplitude and smaller pulse width.

1

Figure taken from Standardized Direct Charge Device ESD Test For Magneto resistive Recording Heads II.

Lydia Baril, Tim Cheung, Albert Wallash.

2

The waveform rise time and width is overall 5% higher at bar CDM then on 2xHGA, because calibration

capacitor is mounted in different location.

Page 8

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

The following plot shows real 20V CDM discharge on 5pF calibration capacitor.

FFiigguurree 44--55 CCDDMM WWaavveeffoorrmm ((55ppFF CCaappaacciittoorr))

Page 9

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

4.4 Calibration

Use one of the calibration capacitors to verify the CDM waveform. Turn on the EPS-100. If running Quasi97

software then exit from it and run EPS-100 application. Also remove the CDM cartridge from the 2xHGA tooling.

To install a calibration board, remove the HGA flex clamp and flex guide for Up/Down Heads from the
cartridge. Pull out a pin from plastic base (where you put in the flex of HGA); the HGA clamp along with the spring
should come out. If flex guide is held by two screws then remove them and pull out the flex guide. If flex guide is
glued then remove the locating pins from it. You should have a cartridge with 2 or more uncovered pogo pins.

FFiigguurree 44--66 CCDDMM CCaarrttrriiddggee CCaalliibbrraattiioonn

Put the calibration board on top of the pogo pins. The calibration capacitor board should reside on two reader
pogo pins and contact the CDM chassis on the sides. So when installing it make sure that the two MR pogo pins do
contact the metal portion of the disk capacitor and writer pins do not. There are two methods of locating the
calibration capacitor:

If there is a pinhole before pogo pin 1, insert the pin that you removed earlier in that hole through the calibration
board (use the pin to guide the calibration board to the proper location).

If a guide hole (or a pin) is not available then use an ohmmeter to locate the calibration board. To do that, restart
EPS-100 software; connect the ohmmeter to pins 1 and 2 of J2 connector, and continuously measure resistance
while moving the calibration capacitor until you get less than 1 Ohm. After that, check resistance between pins 2 and
3 to make sure that R+ and W- are not connected.

Put 2 screws with washers on two sides of the calibration board to hold it in place and to connect the topside of
the board with the CDM chassis. Fire a 1, 10 and 20V pulses and verify the amplitude, pulse width and rise time
against CDM standard.

Page 10

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

BlazerX5 version of the CDM waveform module has pogopins on the other side of the board. For verification of
the waveform, the module has to be mounted on the support plate and the calibration disk should be mounted on a
shim, as shown on the picture below.

1
2
9
10
12
13

FFiigguurree 44--77 BBllaazzeerrXX55 CCDDMM CCaalliibbrraattiioonn

CDM Waveform Module
Support Plate
Calibration Disk
Special Shim
Screw
Flat washer

Page 11

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

4.5 CDM Operation

The following block diagram is provided for better understanding of the operation of the waveform module. It is
created to show the charge device model ESD standard. The actual waveform module circuit may be slightly
different.

To fire pulse:

1) S1-UP, S2-DN, S3-UP

2) wait 100mS

3) S1-DN

To test:

1) S1-DN, S2-UP, S3-DN

FFiigguurree 44--88 CCDDMM BBlloocckk DDiiaaggrraamm

Page 12

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

5. Machine Model (MM)

5.1 Mechanical Alignment

MM cartridge does not require a special mechanical alignment. It connects to the board with pogo pins on the
cartridge through a short cable. The waveform module can be connected to only one head at a time. In the case
where cartridge has two pogo-pin boards for up and down heads, connect the cable from one or the other board to
the waveform module.

FFiigguurree 55--11 MMMM // HHBBMM MMeecchhaanniiccaall AAlliiggnnmmeenntt

To switch from MM to HBM, simply remove the two screws on the topside of the waveform module and
disconnect three cables from it (EPS-100 cable, QST and pogo-pin board connection). The waveform module should
come off and you can install another one (HBM or MM) in its place.

On 2xHGA Gen2 HBM/MM ESD cartridges do support heater testing (the aux bias current goes though the DC
cables). Use "Static Test"."Aux Point Test" to measure resistance of the heater in ESD and non-ESD configuration.

Page 13

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

5.2 Monitoring Waveform

To monitor current going through the head install a CT-1 probe on the wire going from J4 Pin2 on the cartridge­style waveform module to the FIC board. For the box-style modules mount CT-1 on the wire going from pin2 of
“HEAD” connector on waveform module.

FFiigguurree 55--22 MMoonniittoorriinngg MMMM PPuullssee

The following screenshot shows a 10V discharge into 500Ohm resistor.

FFiigguurree 55--33 MMMM 550000ΩΩ DDiisscchhaarrggee

Page 14

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

5.3 ESD Standard

Machine Model charges a 200pF capacitor and fires the accumulated charge into the head. The standard shown
here applies to pulses produced by ISI MM waveform modules and should treated as such.

Voltage Level
Positive I
Current at 100ns for 500Ω I
Maximum Positive I

for Short, I

PEAK

PS1

for 500Ω IPR

PEAK

100

Maximum Ringing Current, IR
Resonance Frequency for Short, FR (1/tfr)

FFiigguurree 55--44 SShhoorrtt aanndd 550000ΩΩ MMMM SSttaannddaarrdd

(V) 10
(mA) 150 – 200
(mA) 7.25 +/- 20%
(mA) I
(mA)

100

I

PS1

* 4.5

* 30%

(MHz) 11–15

3

3

3

Figure Taken from EIA/JEDEC Standard. Test Method A115-A. Electrostatic Discharge Sensitivity Testing

Machine Model (HBM). Revision EIA/JESD22-A115.

Page 15

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

5.4 Calibration

To verify calibration of the machine module, mount a CT-1 probe to monitor the ESD pulse. Connect a 0Ω
resistor instead of the head and fire a 10V pulse. Verify the peak amplitude and ringing frequency against that in the
MM spec. Connect a 500Ω resistor and fire a 10V pulse. Check that amplitude and current at 100nS conforms to
Machine Module specification.

FFiigguurree 55--55 NNeeww--SSttyyllee MMMM--HHBBMM CCaalliibbrraattiioonn

The picture above shows the cartridge-style machine module prepared for calibration. See HBM calibration for
a picture of box-style waveform module calibration. Note that the same ESD waveform specification applies to both
cartridge and box – style MM.

FFiigguurree 55--66 MMMM 1100VV DDiisscchhaarrggee iinnttoo aa 00OOhhmm RReessiissttoorr

Page 16

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

5.5 MM Operation

The following block diagram is provided for better understanding of the operation of the waveform module. It is
created to show the machine model ESD standard. The actual waveform module circuit may be slightly different.

To fire pulse:

1) S2-Right, S1-Right, S3-Up

2) wait 100mS

3) S2-Left

To test device:

1) S3-DN

FFiigguurree 55--77 MMMM BBlloocckk DDiiaaggrraamm

Page 17

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

6. Human Body Model (HBM)

6.1 Monitoring Waveform

Capturing the waveform of HBM pulse requires the same setup as on Machine Model. To monitor current going
through the head install a CT-1 probe on the wire going from J4 Pin2 on the cartridge-style waveform module to the
FIC board. For the box-style modules mount CT-1 on the wire going from pin2 of “HEAD” connector on waveform
module.

FFiigguurree 66--11 MMoonniittoorriinngg HHBBMM PPuullssee

HBM/MM ESD catridge do support heater testing (the aux bias current goes though the DC cables). Use "Static
Test"."Aux Point Test" to measure resistance of the heater in ESD and non-ESD configuration

FFiigguurree 66--22 HHBBMM 5500VV wwiitthh 550000OOhhmm RReessiissttoorr

Page 18

EPS-100 Manual Integral Solutions Int’l

4

PEAK

PEAK

August 22, 2013

6.2 ESD Standard

Human Body Model charges 100pF capacitor and fires accumulated charge through the 1500Ω resistor into the
head. The standard shown here applies to pulses produced by ISI HBM waveform modules and should treated as
such.

Voltage Level
I

(MR) for Short

P0

Ω

I

(MR) for 500Ω

P500

Ω

V

(on R1)

PEAK

(I

*1500/1000)

V

(on R1) for 500Ω

PEAK

(I

*(1500+500)/1000)

for Short

Rise Time for Short (tr)
Rise Time for 500Ω

Decay Time for Short (td)
Decay Time for 500Ω

Ringing Current (IR)

FFiigguurree 66--33 SShhoorrtt aanndd 550000OOhhmm HHBBMM SSttaannddaarrdd

(V) 7 50
(mA) 4.2 – 5.15 30 – 36.7
(mA) 2.63 – 4.2 18.75 – 30
(V) 6.3 – 7.7 45 – 55

(V) 5.25 – 8.4 37.5 – 60

(nS) 2 – 10
(nS) 5 – 25
(nS) 130 – 170
(nS) 160 – 240
(mA) 15% of IPS

5

5

4

R1 is 1500Ω Resistor in series with the MR head inside the HBM waveform Module. Vpeak is directly

proportional to Ipeak, and the formula can be used to calculate real HBM voltage applied.

5

Figure Taken from EIA/JEDEC Standard. Test Method A114-A. Electrostatic Discharge Sensitivity Testing

Human Body Model (HBM). Revision EIA/JESD22-A114.

Page 19

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

6.3 Calibration

To verify calibration of the human body module, mount a CT-1 probe to monitor the ESD pulse. Connect a 0Ω
resistor instead of the head and fire a 7V and 50V pulse. Verify the peak amplitude, rise and decay times against the
HBM spec. Connect a 500Ω resistor and fire a 7 and 50V pulses. Verify the waveform characteristics with the spec.

FFiigguurree 66--44 OOlldd--SSttyyllee MMMM--HHBBMM CCaalliibbrraattiioonn

The screenshot above shows the box-style HBM prepared for calibration. See MM calibration for screenshot of
cartridge-style waveform module calibration. Note that the same ESD waveform specification applies to both box
and cartridge – style HBM.

FFiigguurree 66--55 RReeaall HHBBMM DDiisscchhaarrggee oonn 00OOhhmm rreessiissttoorr

Page 20

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

6.4 HBM Operation

The following block diagram is provided for better understanding of the operation of the waveform module. It is
created to show the human body model ESD standard. The actual waveform module circuit may be slightly
different.

To fire pulse:

1) S2-Right, S1-Right, S3-Up

2) wait 100mS

3) S2-Left

To test device:

1) S3-DN

FFiigguurree 66--66 HHBBMM BBlloocckk DDiiaaggrraamm

Page 21

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

7. ESD Sweep Test

ESD option allows you to fire a sequence of pulses and monitor head performance during the sweep. To enable
it run Quasi97, go to Add-Ins Modules and enable ESDApp.application. ESDApp is a test that will use your ESD
option to fire pulses into the head and will run transfer curve (or any other test) to see how the head had degraded.

It is not recommended to expose any waveform module to magnetic fields higher than 250Oe. When running
QST tests with waveform module close to the magnet, make sure that magnetic field from the QST magnet does not
cause field near CDM waveform module to exceed 200Oe.

FFiigguurree 77--11 EESSDD SSwweeeepp

FFiigguurree 77--22 EESSDD SSwweeeepp TTrraannssffeerr CCuurrvvee PPlloott

See Quasi97 External Tests manual for more information how to ESD Sweep test.

Page 22

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

8. Bar ESD Stress Option

The ESD Stress option can also be mounted on the BlazerX5 bar tester, for testing heads while they are still on
the row bar. This arrangement requires standard PCI-6503 card and EPS-100 modules. It also required modified
waveform module, stress probe card base and stress probe card.

FFiigguurree 88--11 BBaarr EESSDD SSttrreessss OOppttiioonn

This manual will describe the installation of the ESD stress option onto the BlazerX5 bar tester, instructions on
changing the waveform module and monitoring the ESD waveform. For ESD Stress probe card alignment and
setting up stress positions, please refer to BlazerX5 Users Manual.

8.1 Bar ESD Option Installation

For installation turn off the BlazerX5.

1. Install PCI-6503 card in one of the available PCI slots in the comuter

2. Install the shelf for EPS-100 on the right side of the tester (leaving the 50pin ribbon cable between the shelf

then the right panel of the Blazer).

3. Route the ribbon cable into the lower frame and connect to the PCI-6503 card inside the computer. Connect

the AC power to the EPS-100.

FFiigguurree 88--22 EEPPSS--110000 BBllaazzeerrXX55 IInnssttaallllaattiioonn

Page 23

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

FFiigguurree 88--33 EEPPSS--110000 BBllaazzeerrXX55 IInnssttaallllaattiioonn ((22))

4. Mount the EPS-100 on the shelf and connect all cables to it.

FFiigguurree 88--44 EEPPSS--110000 BBllaazzeerrXX55 IInnssttaallllaattiioonn ((33))

5. Remove one from bar magnet assembly and install the waveform module holder.

Page 24

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

8.2 Monitoring the waveform on Bar HBM/MM

Unlike the standard HBM/MM cartridges, the BlazerX5 HBM/MM don’t have connectors for the flex guide
cables. Instead the have pogo-pins which connect to the probe card PCB. BlazerX5 HBM/MM waveform modules
have a special slot in the enclosure specifically for the CT-6 installation.

FFiigguurree 88--55 BBllaazzeerrXX55 HHBBMM//MMMM –– CCoonnnneeccttiinngg CCTT--66

1. To install the CT-6, you have to remove the BlazerX5 waveform module assembly from the base, just as

you would when changing the stress probe card (see BlazerX5 User Manual). This is done by removing
two screws from the top plate of the assembly.

2. Remove the waveform module from the assembly.

FFiigguurree 88--66 BBllaazzeerrXX55 HHBBMM//MMMM –– CCoonnnneeccttiinngg CCTT--66 ((22))

3. Remove 4 on the bottom of the pomalux enclosure to take it apart.

FFiigguurree 88--77 BBllaazzeerrXX55 HHBBMM//MMMM –– CCoonnnneeccttiinngg CCTT--66 ((33))

Page 25

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

4. Install the CT-6 onto the outside pogo pin, such that the green dot on the CT-6 is facing the PCB.

FFiigguurree 88--88 BBllaazzeerrXX55 HHBBMM//MMMM –– CCoonnnneeccttiinngg CCTT--66 ((44))

5. Put the assembly back together.

6. To avoid damage to the vacuum gripper or to the pogo pin, secure the CT-6 with the tie wrap after the

waveform module is installed on the tester.

To monitor the waveform on a real head, you need to load a bar in Barcont, then select “Stress” location, move
to a slider on the bar and click “Probe”. You can open the EPS-100 main menu from the ESD Sweep Test option,
and then fire single pulses using EPS-100.

To monitor the waveform on a resistor probe card, you need to install the dummy (resistor) probe card first and
then mount the waveform assembly onto the Blazer. After that you can fire pulses using EPS-100 application. The
waveform should comply with HBM/MM standards specified in this manual.

Page 26

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

8.3 Changing the Waveform Module

To change the waveform module, first remove the waveform module assembly from stress probe card base and
then unscrew the two screws holding the waveform module to the assembly (as shown on the picture below).

FFiigguurree 88--99 CChhaannggiinngg tthhee WWaavveeffoorrmm MMoodduullee ((BBllaazzeerrXX55))

Loosen all 4 screws holding the base with the probe card, as you would when realigning the probe card. You
need to do that because different modules will allow access to different probe card alignment screws. For example
HBM/MM allows access to left-back, right-back and right-front screw; whereas CDM allows access to righ-back,
left-front and right-front screw. You will need to tighten any two screws to hold the probe card base firmly in place.

Install the waveform module in the opposite order (first install the module onto the assembly, and then install
assembly onto the stress probe card base). Note that when changing the module from HBM/MM to CDM or vice
versa, you will have to change the screws in Step1 and Step2 with the ones supplied with the module you are
attempting to install.

FFiigguurree 88--1100 CCDDMM WWaavveeffoorrmm MMoodduullee ((BBllaazzeerrXX55))

Page 27

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

8.4 Software Control Diagram

For Bar ESD Stress option, you need to select “Bar Level” configuration in Quasi97 setup selection screen
(instead of QST2002). You also need to enable ESDApp.Application module in the Quasi97 selected modules
menu. When running, the ESD Sweep test will tell barcont to move to stress location, then tell EPS-100 to apply
ESD voltage, then tell barcont to move to test location and run tests in Quasi97.

FFiigguurree 88--1111 BBaarr EESSDD SSooffttwwaarree CCoonnttrrooll DDiiaaggrraamm

The ESD Sweep Test can be enabled in production. For BlazerX5 ESD, this allows to run a full bar in
engineering mode and multiple trays of bars in operator mode, without operator input. Be careful not to run ESD
sweep test in production if you want to enable logging plots, because Excel file is going to get very big very quickly.

8.5 ESD Probe Card Pin-out

The ESD probe card has only two pins, which are connected to R+ and R- outputs of the waveform module. R+
is the pin that is closer to the magnet, and R- pin is closer to the operator.

For HBM and MM the pulse is discharged through R+ side. For CDM module, the head is charged through R­and then R- side is grounded, and R+ remains floating during discharge. So the active pin is different on CDM vs
HBM/MM, but the polarity of the pulse remains the same on all module types.

Page 28

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

9. High Field ESD Stress Option

HBM and MM ESD modules are fully compatible with High Field tester, CDM module requires a rework. For
more information and operation specifications please refer to QST-2002-HF User’s Manual.

10. Contact Information

Integral Solutions Int'l

3000 Olcott St

Santa Clara, CA 95054

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Web: http://www.us-isi.com/

Page 29

EPS-100 Manual Integral Solutions Int’l

August 22, 2013

11. Table of Figures

Figure 1 CDM Mechanical Alignment 6
Figure 2 Monitoring CDM Pulse (fired into real head) 7
Figure 3 CDM CT-6 7
Figure 4 CDM Standard 8
Figure 5 CDM Waveform (5pF Capacitor) 9
Figure 6 CDM Cartridge Calibration 10
Figure 7 BlazerX5 CDM Calibration 11
Figure 8 CDM Block Diagram 12
Figure 9 MM / HBM Mechanical Alignment 13
Figure 10 Monitoring MM Pulse 14
Figure 11 MM 500Ω Discharge 14
Figure 12 Short and 500Ω MM Standard 15
Figure 13 New-Style MM-HBM Calibration 16
Figure 14 MM 10V Discharge into a 0Ohm Resistor 16
Figure 15 MM Block Diagram 17
Figure 16 Monitoring HBM Pulse 18
Figure 17 HBM 50V with 500Ohm Resistor 18
Figure 18 Short and 500Ohm HBM Standard 19
Figure 19 Old-Style MM-HBM Calibration 20
Figure 20 Real HBM Discharge on 0Ohm resistor 20
Figure 21 HBM Block Diagram 21
Figure 22 ESD Sweep 22
Figure 23 ESD Sweep Transfer Curve Plot 22
Figure 24 Bar ESD Stress Option 23
Figure 25 EPS-100 BlazerX5 Installation 23
Figure 26 EPS-100 BlazerX5 Installation (2) 24
Figure 27 EPS-100 BlazerX5 Installation (3) 24
Figure 28 BlazerX5 HBM/MM – Connecting CT-6 25
Figure 29 BlazerX5 HBM/MM – Connecting CT-6 (2) 25
Figure 30 BlazerX5 HBM/MM – Connecting CT-6 (3) 25
Figure 31 BlazerX5 HBM/MM – Connecting CT-6 (4) 26
Figure 32 Changing the Waveform Module (BlazerX5) 27
Figure 33 CDM Waveform Module (BlazerX5) 27
Figure 34 Bar ESD Software Control Diagram 28

Page 30
