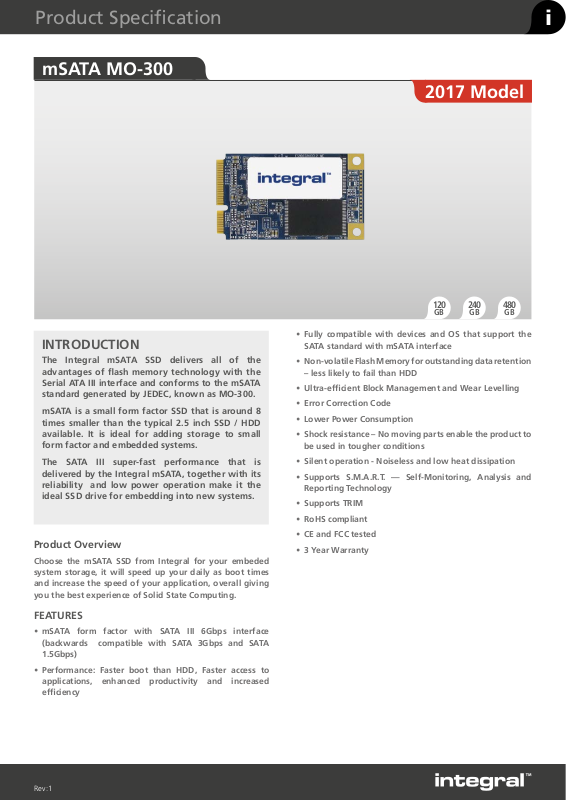

Product Specification

mSATA MO-300

i

2017 Model

INTRODUCTION

The Integral mSATA SSD delivers all of the
advantages of flash memory technology with the
Serial ATA III interface and conforms to the mSATA
standard generated by JEDEC, known as MO-300.

mSATA is a small form factor SSD that is around 8
times smaller than the typical 2.5 inch SSD / HDD
available. It is ideal for adding storage to small
form factor and embedded systems.

The SATA III super-fast performance that is
delivered by the Integral mSATA, together with its
reliability and low power operation make it the
ideal SSD drive for embedding into new systems.

Product Overview

Choose the mSATA SSD from Integral for your embeded
system storage, it will speed up your daily as boot times
and increase the speed of your application, overall giving
you the best experience of Solid State Computing.

120

GB

• Fully compatible with devices and OS that support the
SATA standard with mSATA interface

• Non-volatile Flash Memory for outstanding data retention
– less likely to fail than HDD

• Ultra-efficient Block Management and Wear Levelling

• Error Correction Code

• Lower Power Consumption

• Shock resistance – No moving parts enable the product to
be used in tougher conditions

• Silent operation - Noiseless and low heat dissipation

• Supports S.M.A.R.T. — Self-Monitoring, Analysis and
Reporting Technology

• Supports TRIM

• RoHS compliant

• CE and FCC tested

• 3 Year Warranty

240

GB

480

GB

FEATURES

• mSATA form factor with SATA III 6Gbps interface
(backwards compatible with SATA 3Gbps and SATA

1.5Gbps)

• Performance: Faster boot than HDD, Faster access to
applications, enhanced productivity and increased
efficiency

Rev:1

i

Product Specification

i

CAPACITIES & INTERFACE

Capacities available 120GB, 240GB, 480GB

Form Factor MSATA MO300

NAND TLC

Controller Phison S11

SATA III 6Gbps

Interface

Also compatible with SATA II 3Gbps
Also compatible with SATA 1.5Gbps

120GB = READ 560MB/s, WRITE 540MB/s

Sequencial Speed (up to)*

240GB = READ 560MB/s, WRITE 540MB/s
480GB = READ 560MB/s, WRITE 540MB/s

DIMENSIONS

Length 50.8mm

Width 29.85mm

Height 4mm

Weight 8g

E-tail Packaged Weight 24g

E-tail Packaged
Dimensions (mm)

L = 134, W = 113, D = 14

POWER CONSUMPTION

Power Management 3.3V

Power Consumption
(mW)***

120GB - Read 1,240, Write 1,350, Idle 265
240GB - Read 1,400, Write 1,850 Idle 270
480GB - Read 1,450, Write 1,650, Idle 280

ENVIRONMENTAL

Operating Temp 0° to +70°C

Non - Operating Temp -40° to +85°C

Humidity**** RH 90% under 40°C (operational)

FEATURES

Supports SMART Software Yes

Supports TRIM Yes (OS support required)

ECC scheme LDPC

MTBF >2 Million Hours

Compliancy CE, FCC, RoHS

WARRANTY

3 years

E-tail packaging order codes

CAPACITY PART CODE BARCODE (EAN)

120GB INSSD120GMSA 5055288435865

240GB INSSD240GMSA 5055288435872

480GB INSSD480GMSA 5055288435889

1. Performance based on “out of the box” internal testing measured under ambient temperature.
Sequential R/W is measured using ATTO.

2. Power Consumption may differ according to flash configuration and platform.

3. Humidity test was for 4 hours

E&OE. Product design and specification subject to change or modification without notice.

2—ø2.60 holes

24.05

27.03

29.85

50.80

48.80 [Max.]

48.05

45.00

TOP SIDE

4.00

3.20 [Max.]

0.00

29.85

13.08

11.825

29.35

27.78

Details B Details C

( 5.60 )

2.05

13.60

2 —O.25 [Max.]

4.00

25.70

Details B

Details C

Details A

PCB T=1.00±0.1

( 13.60 )

1.65

4.00

2 —O.25 [Max.]

BOTTOM SIDE

5.10 [Min.]

Details A

5.60

50.80

45.00

2 —RO.80 [Max.]

Pin 51

Pitch: 0.80

0.60 ± 0.05

Pin 2

24.05

29.85

29.85

2.55 ± 0.05

5.80

0.00

50.80

48.80 [Max.]

45.00

5.10 [Min.]

0.25 [Max.]

0.00

0.00

50.80

48.05

45.00

3.20 [Max.]

0.00

2.83

5.80

4.00

0.00

0.50

0.00

2.08

9.08

10.325

Pin 1

Pin 52
